The KHE CENTRIX BMX frame 20.75 inch is built from high-quality Hi-Ten steel and combines modern geometry, an integrated headset and AFFIX compatibility for reliable strength and precise handling in street and park riding.
Accessories
```html

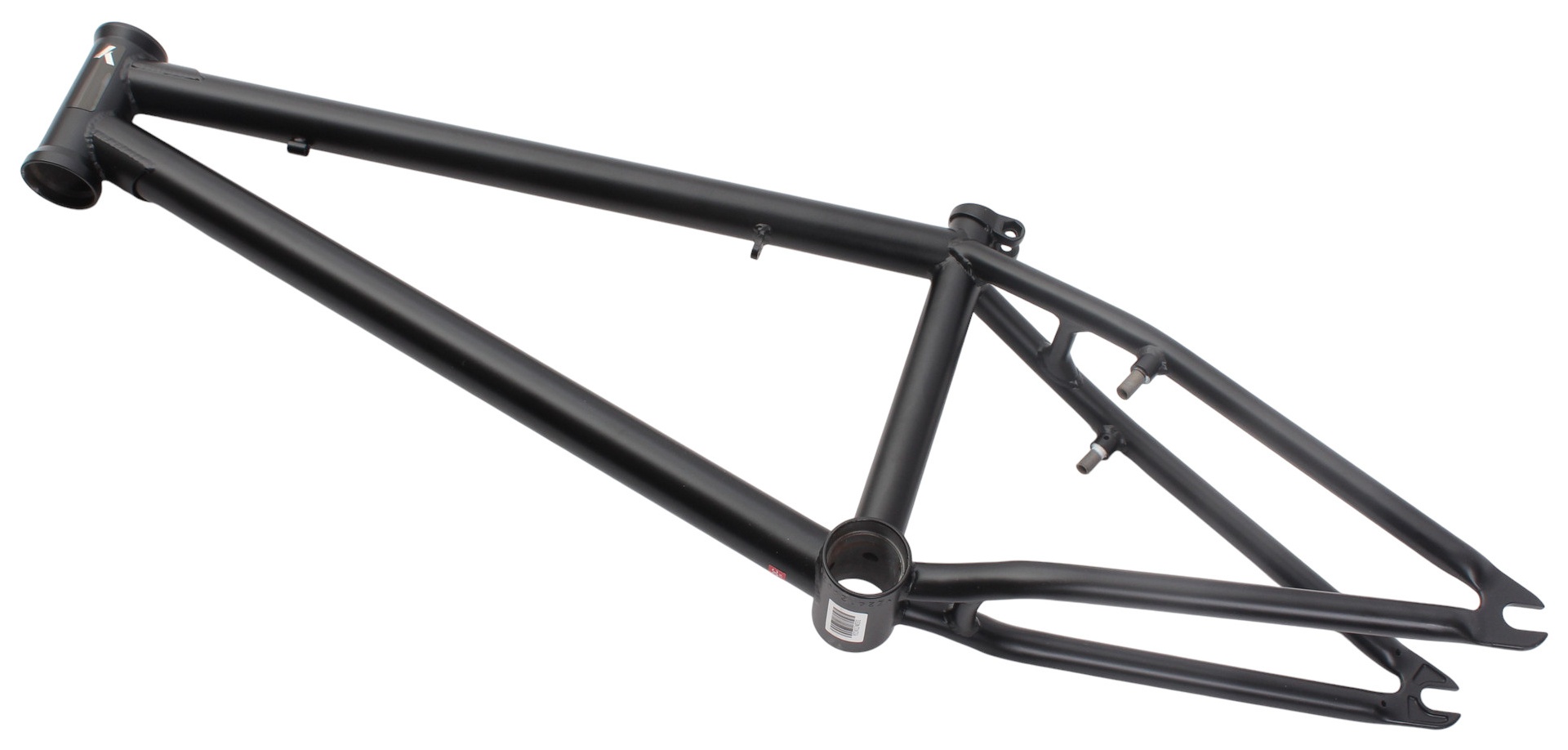

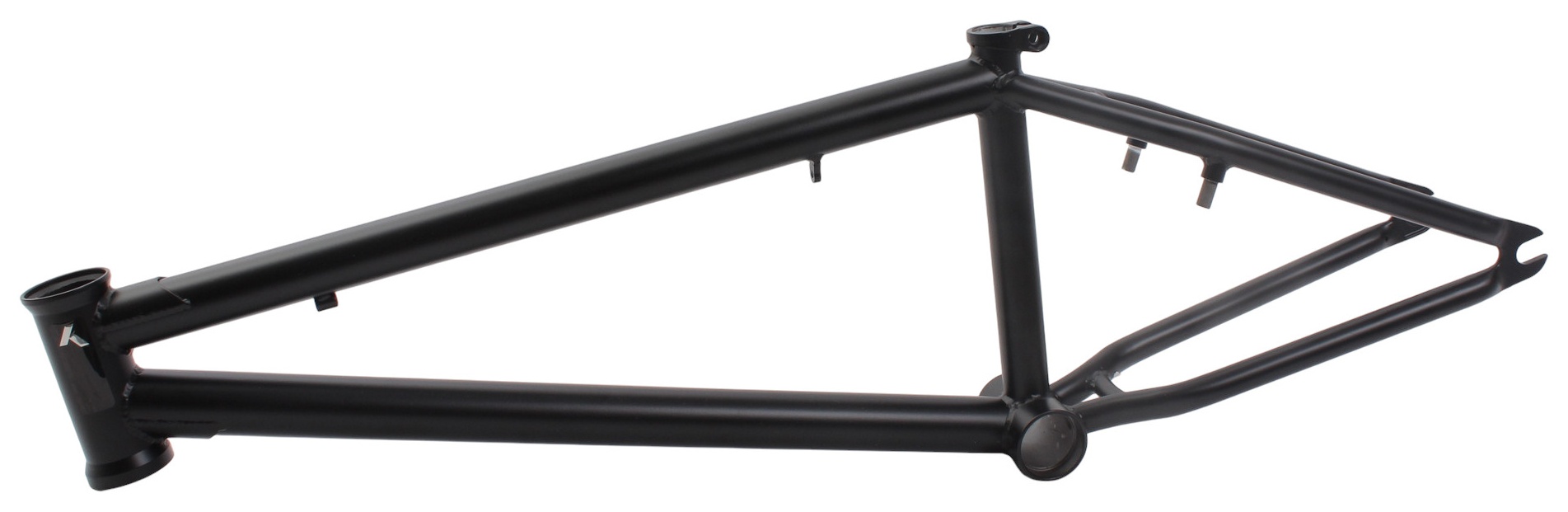

KHE CENTRIX Frame – Matte Black
The KHE CENTRIX frame is made from high-quality HiTen steel, providing a robust and durable base for your BMX bike. With a top tube length of 20.8" 20,75" Zoll (527 mm), it is ideal for park and street riding. The frame is identical to the one used in the KHE CENTRIX complete bike and offers excellent performance features.

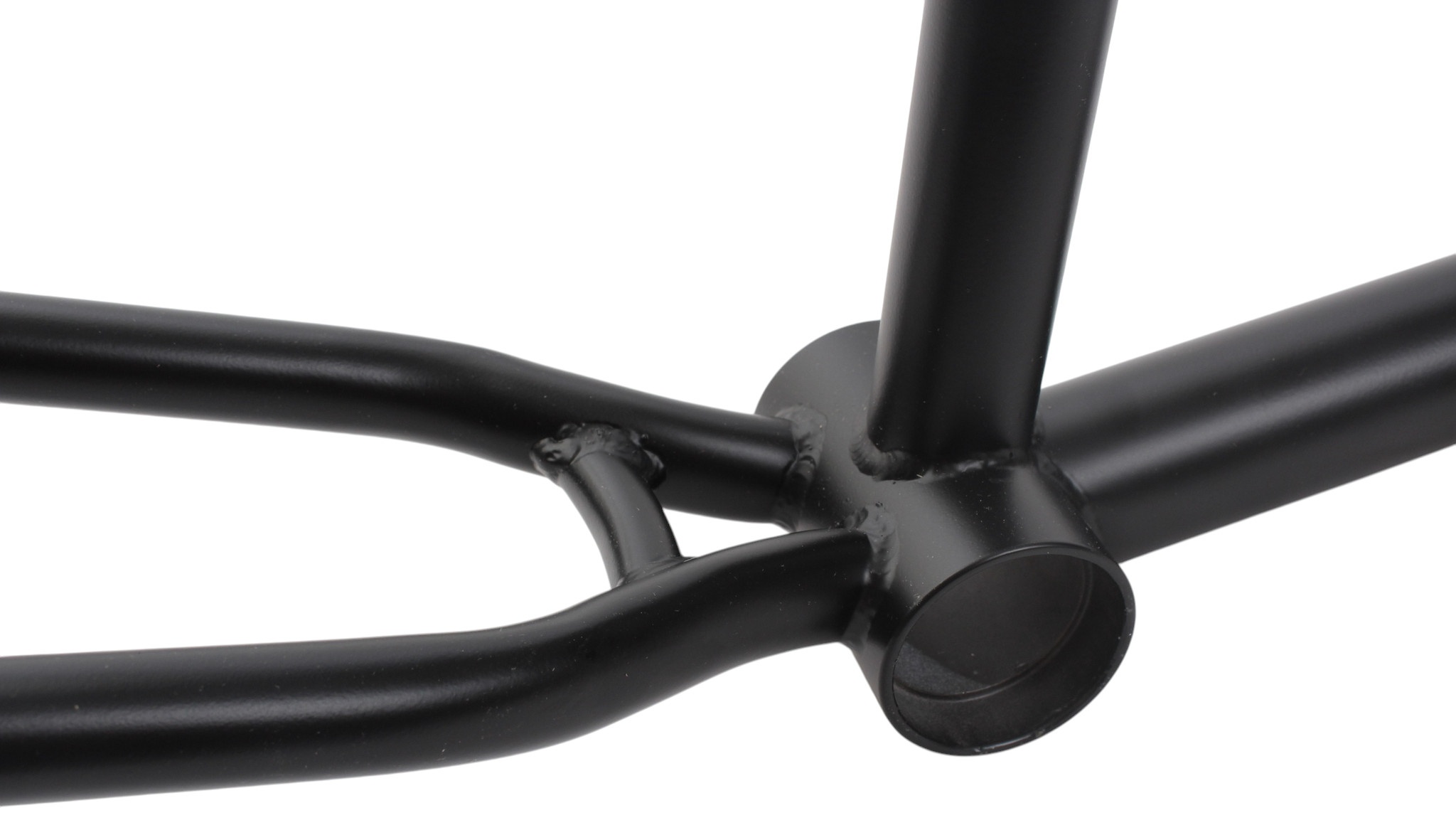

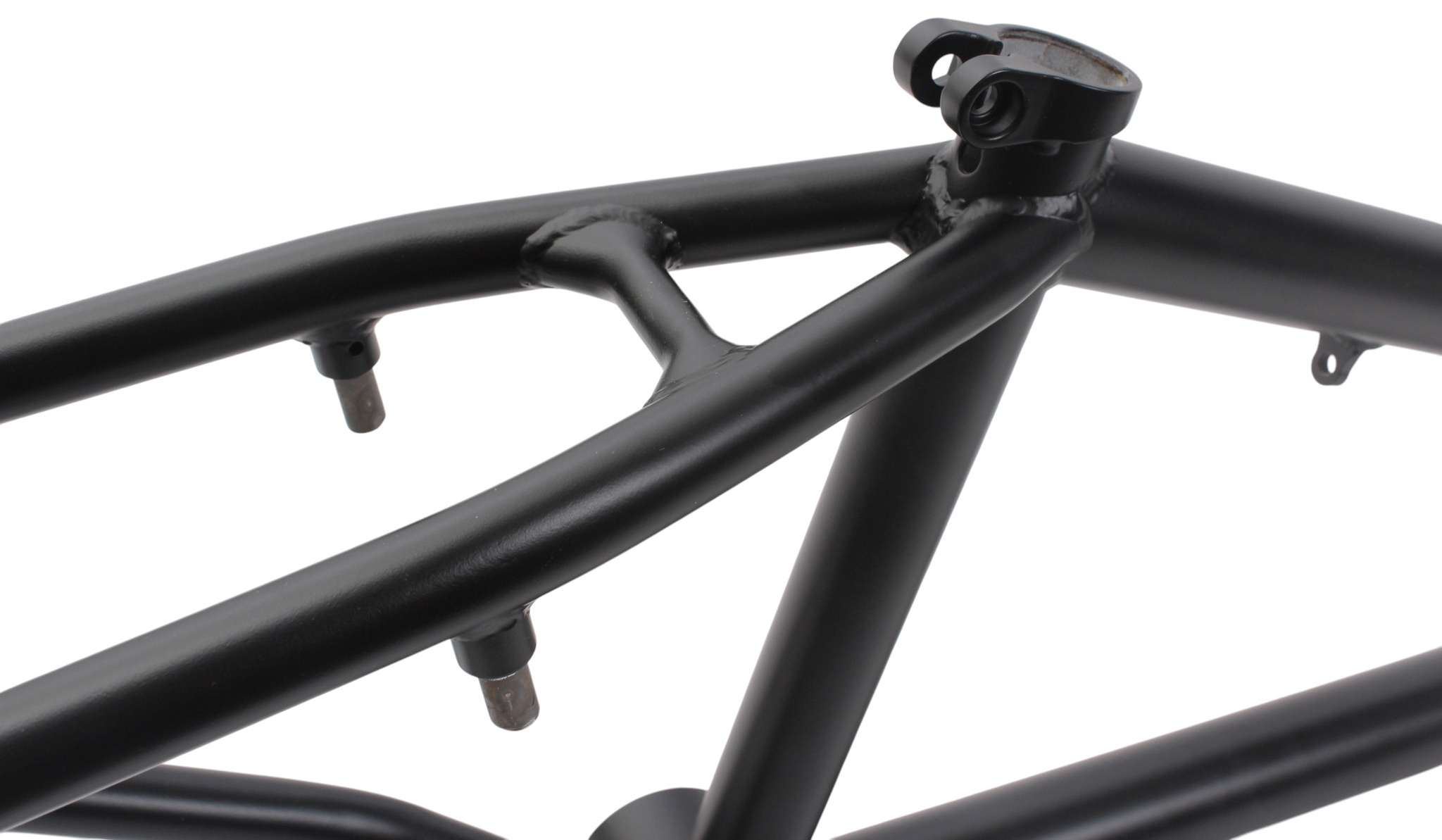

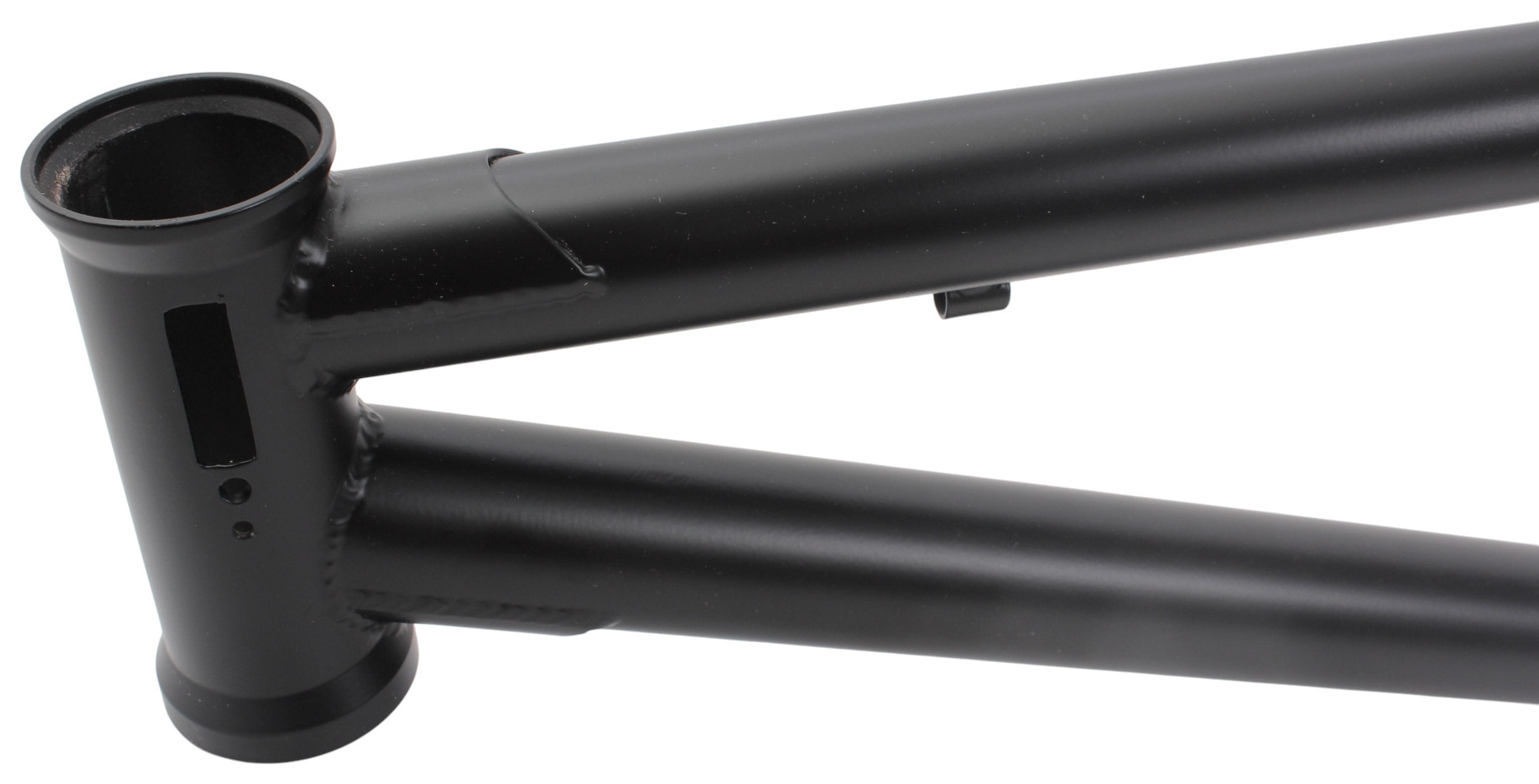

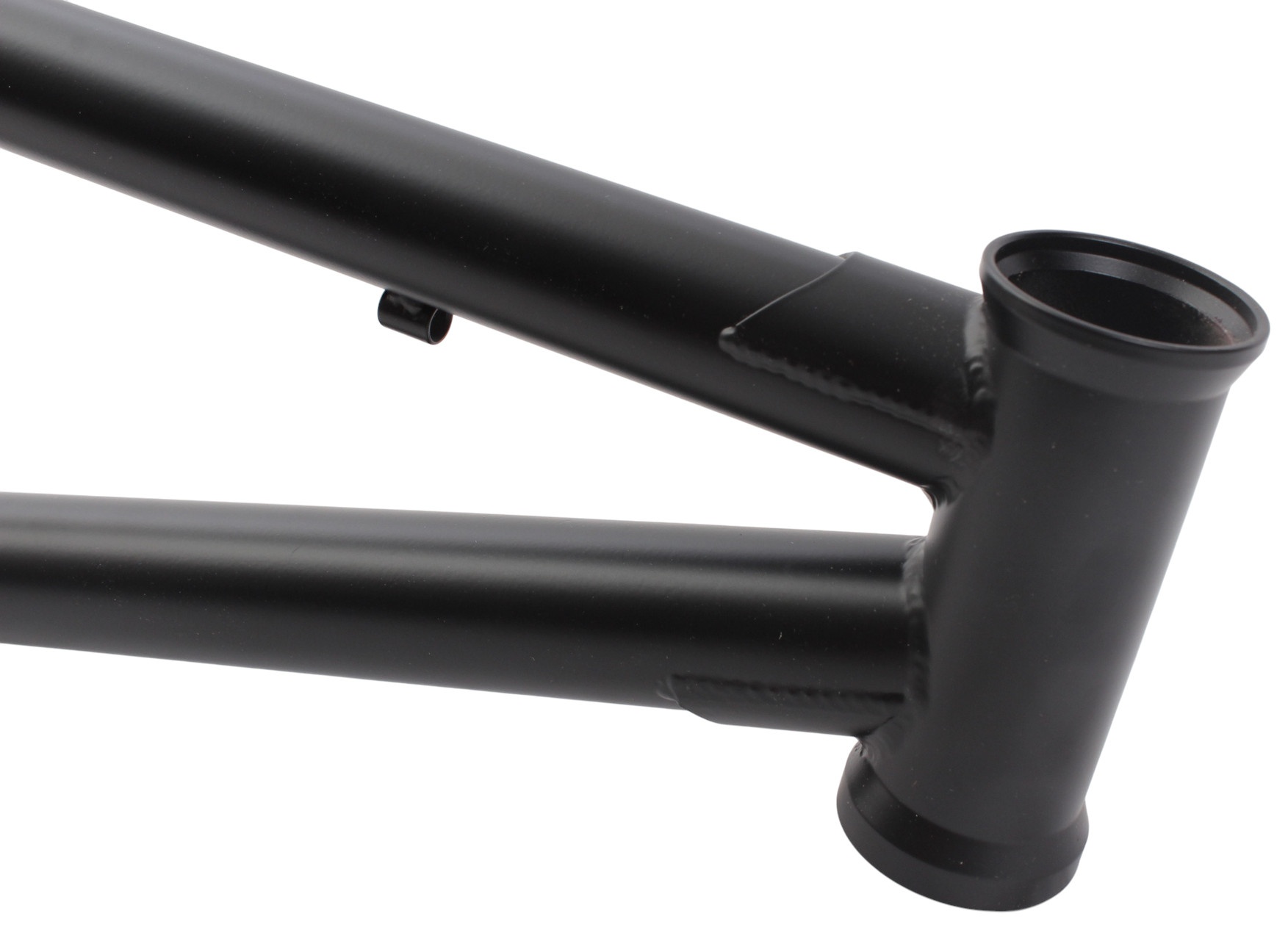

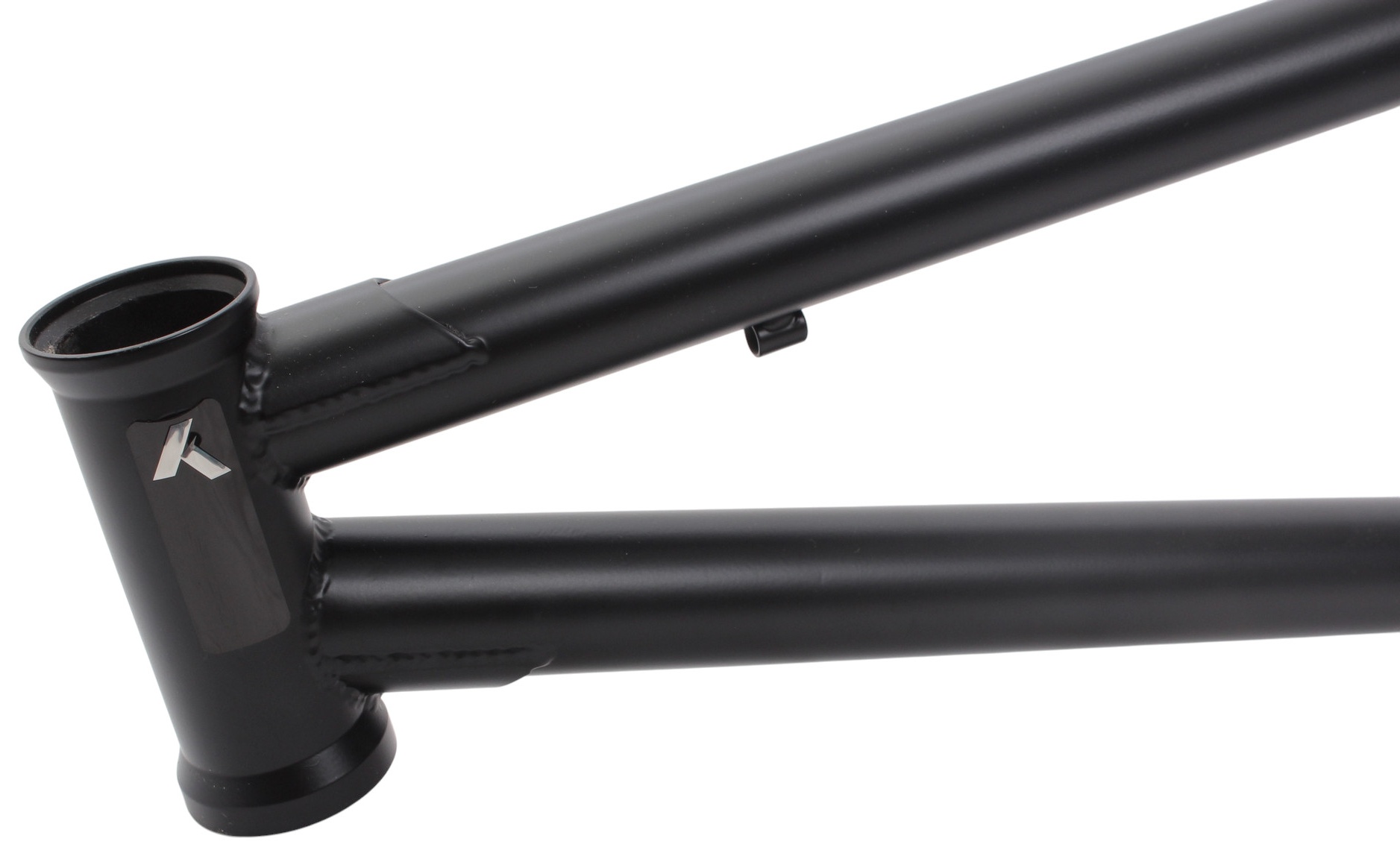

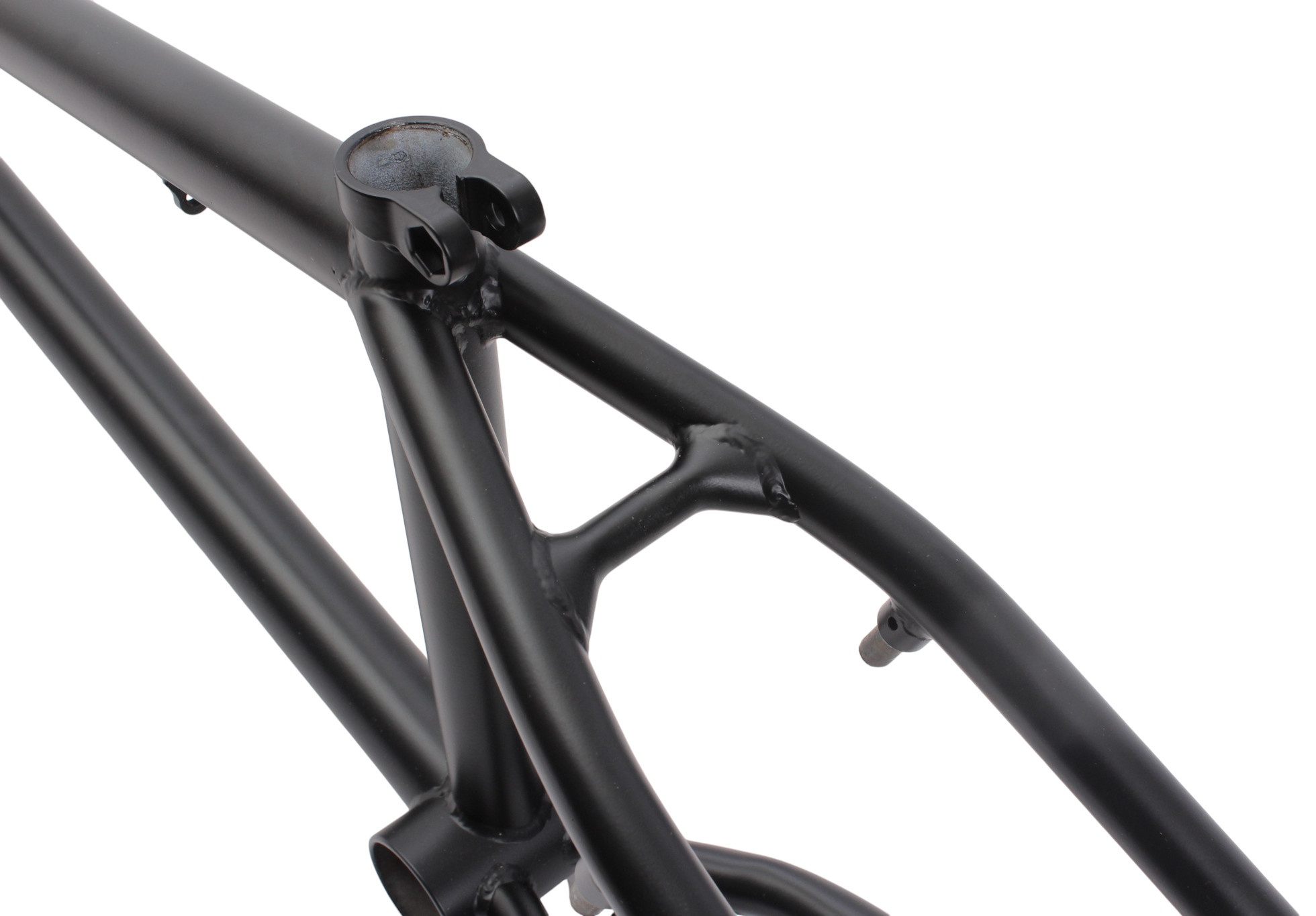

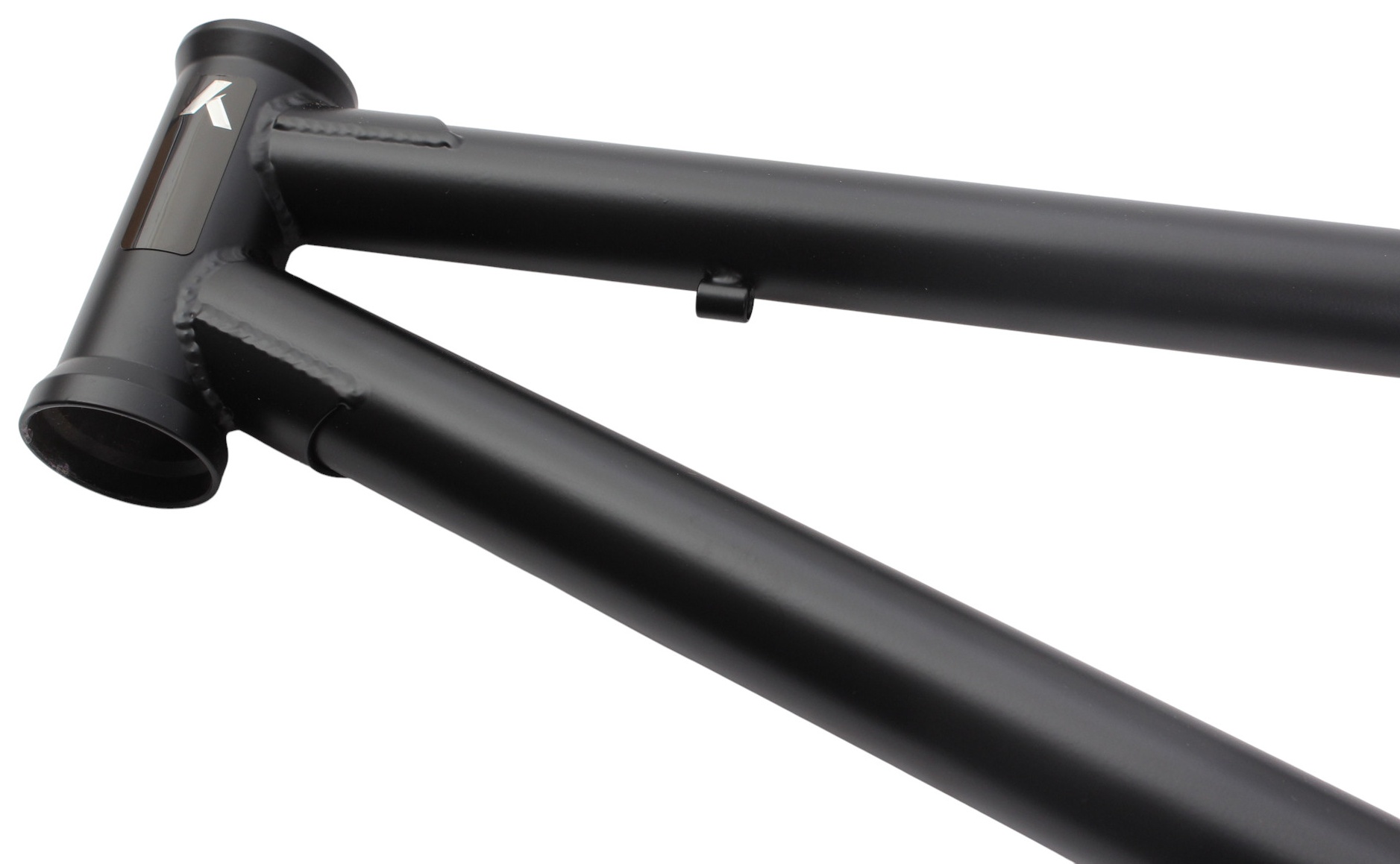

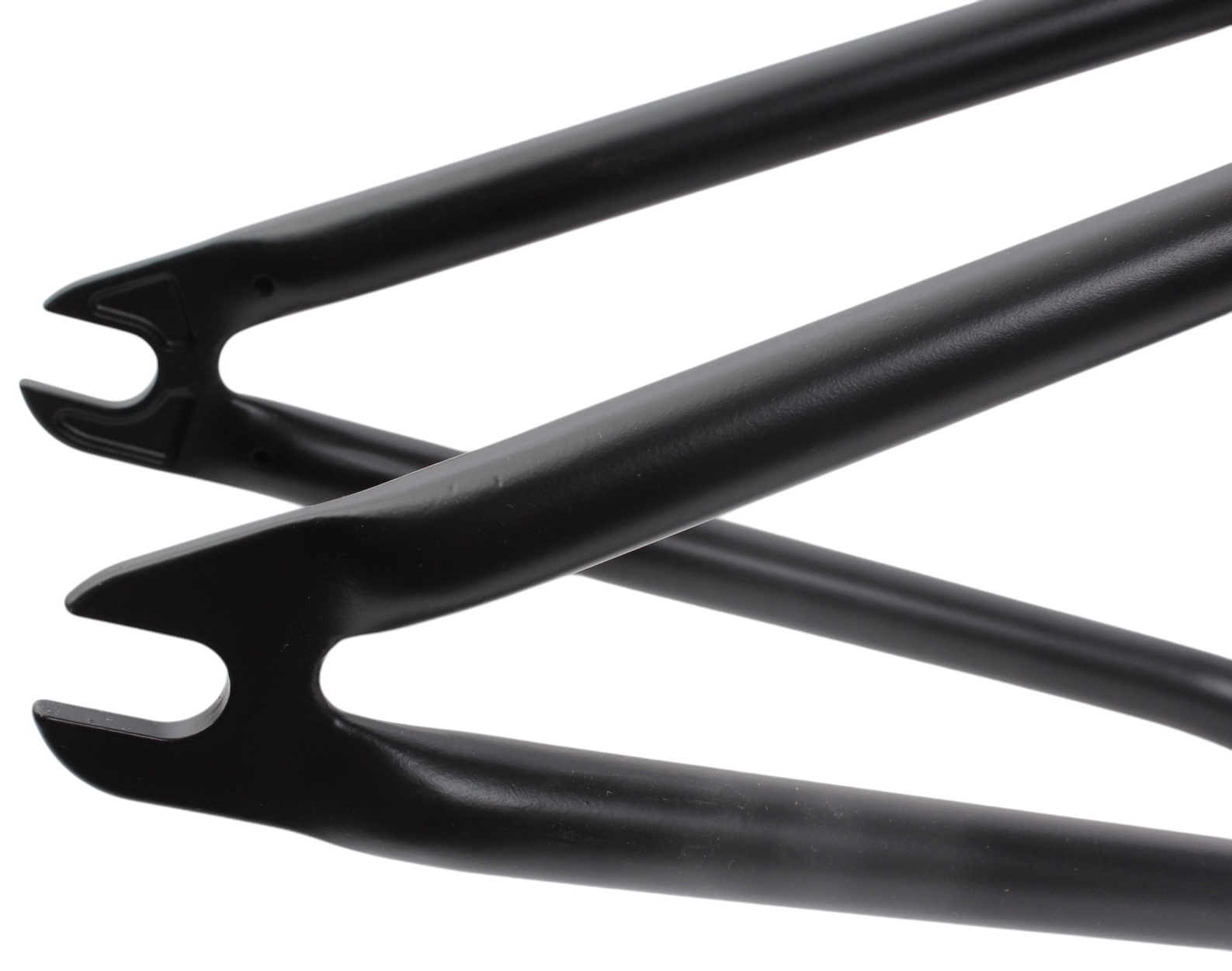

The CENTRIX frame is AFFIX ready and features an integrated headset, 3D dropouts (made in one piece), and an integrated seat clamp. Additionally, it is equipped with a U-brake mount and accommodates tires up to 2.4". The hydroformed chainstay cross tube provides additional stability and a modern design.
This frame can also be used with any standard 1 1/8" BMX fork. However, if you want to use the AFFIX rotor system, you will need a KHE Centrix AFFIX fork.
Overview of Specifications:
- Brand: KHE
- Model: CENTRIX
- Color: Matte Black
- Material: HiTen
- Top Tube Length: 20,75" Zoll (527 mm) inches
- RC (Rear Center): 336 mm (13.2")
- HT (Head Tube Angle): 75° degrees
- Weight: only 2,470 g
- Bottom Bracket Shell: MID BB
- Features: AFFIX ready, integrated headset, U-brake mount
```
| Top tube length: | 20,75" |
|---|---|
| Bottom bracket: | MID BB |
| Material: | HiTen steel |
| Colour: | Black |
| Weight: | 2470g / 5,44lbs |
| Rear stay length (RC): | 336mm (13,2") |
| Head tube angle (HT): | 75° |
Intended use: BMX frame for street, park and freestyle riding. Use only with compatible BMX components and wheel sizes. Not suitable for motorised vehicles or any other purpose.
Installation / use: The frame must be assembled correctly using compatible components. Before every ride, inspect all bolts, the frame and the dropouts for cracks, deformation or damage. After crashes or heavy impacts, thoroughly inspect the frame and do not continue using a damaged frame.
Care and cleaning: Clean the frame regularly with water and a soft cloth. Do not use aggressive cleaning agents or pressure washers. Regularly inspect and maintain all attached components.
Replacement due to wear: Replace the frame immediately if cracks, deformation or any other visible damage are detected. A damaged frame may result in loss of control and serious injury.
