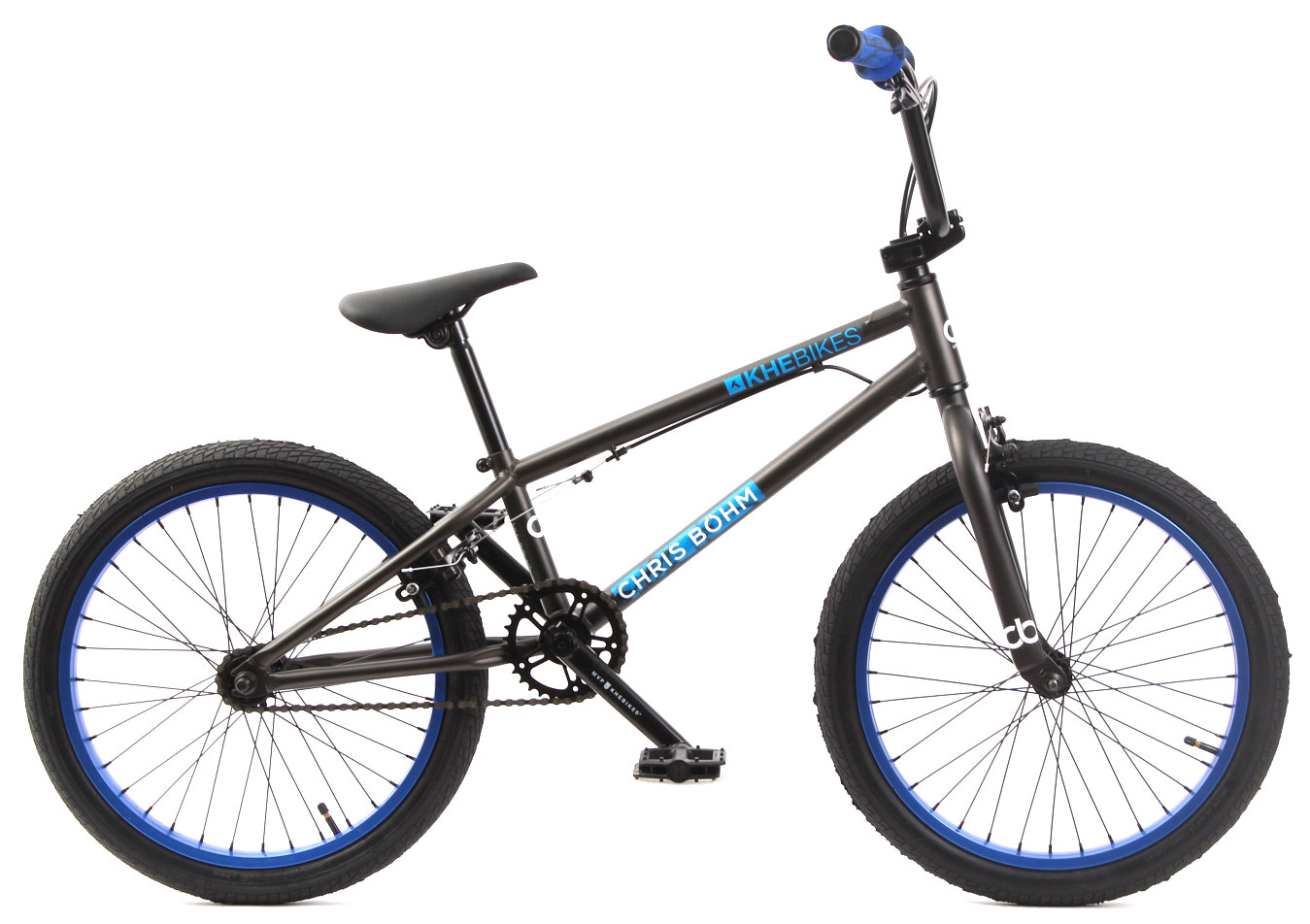

KHE has teamed up with Chris Böhm, probably the most well-known German BMX rider. Together we developed the perfect entry-level bike to learn all kinds of tricks with ease.

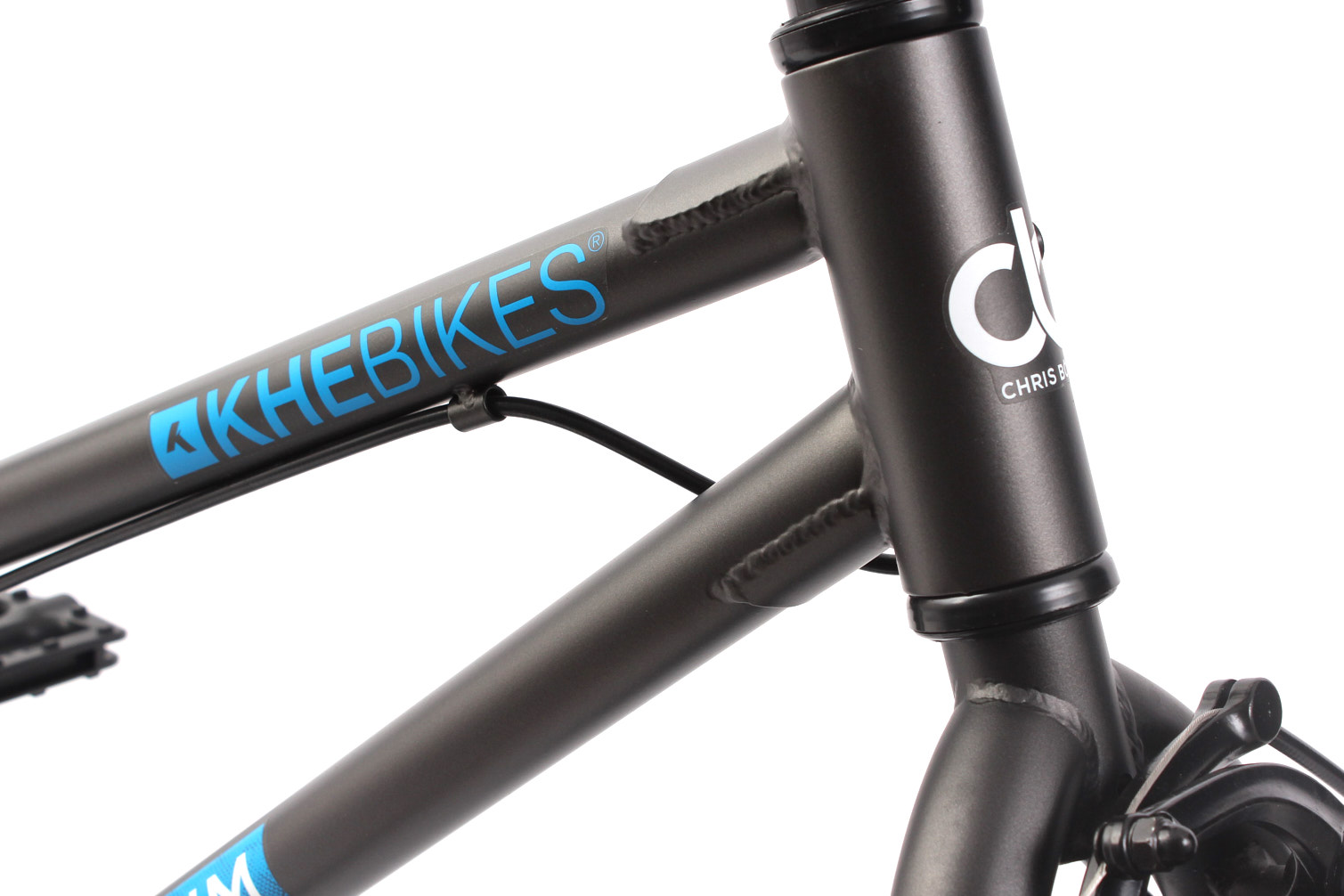

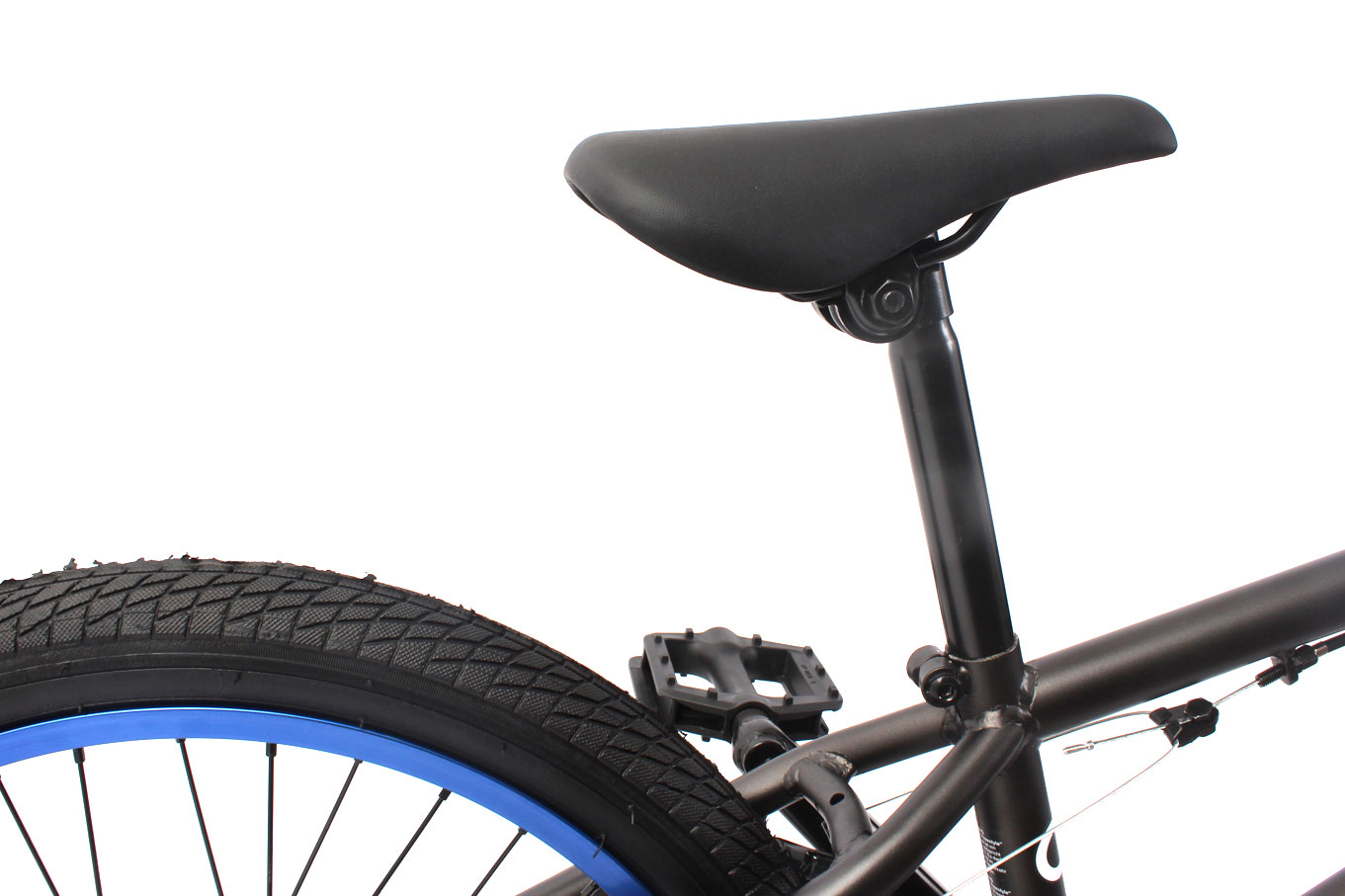

Thanks to its short wheelbase, the bike is very agile and quick. Naturally, the Chris Böhm BMX is equipped with our patented 360° AFFIX rotor (allows the handlebars to rotate 360° without tangling the cables). It also features high-quality U-brakes (front and rear) and a top load stem. The lightweight aluminium seat post allows easy adjustment of saddle height and angle. This BMX is ideal for children aged 9 and up or with a height of 4'7" (140 cm). This is the anthracite-black version of the Chris Böhm bike.
Recommended rider height: 4'5"–5'7" (135–170 cm)
Maximum rider weight: 176 lbs (80 kg)
Suitable for: Street / Park / Flatland

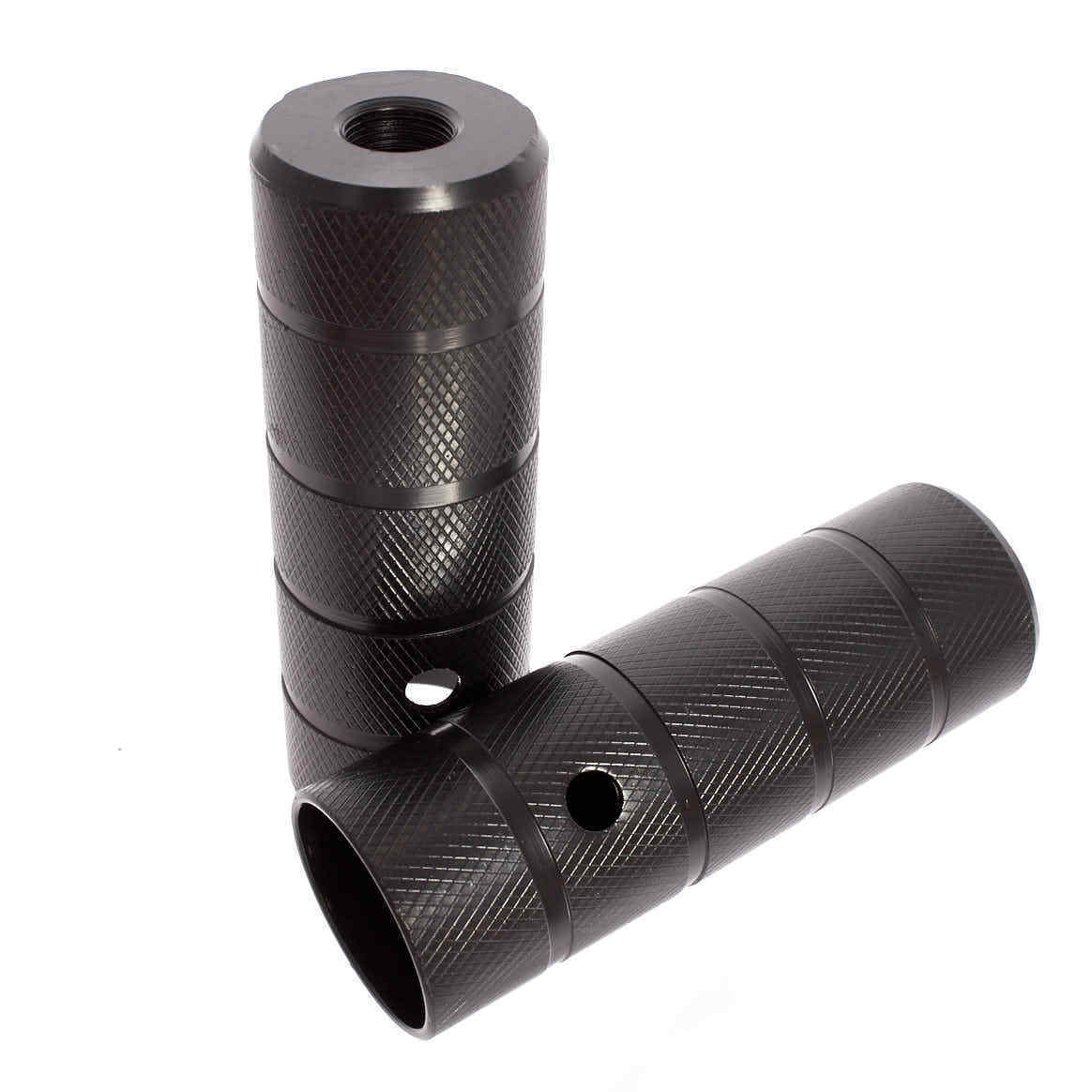

Pegs: Suitable pegs for the Chris Böhm 20" are 10 mm front and 14 mm rear. We recommend the KHE BLACK STEEL pegs.
The BMX bike is approx. 90% pre-assembled. The manual is available under “Datasheets”, and the assembly video can be found under “Video”.

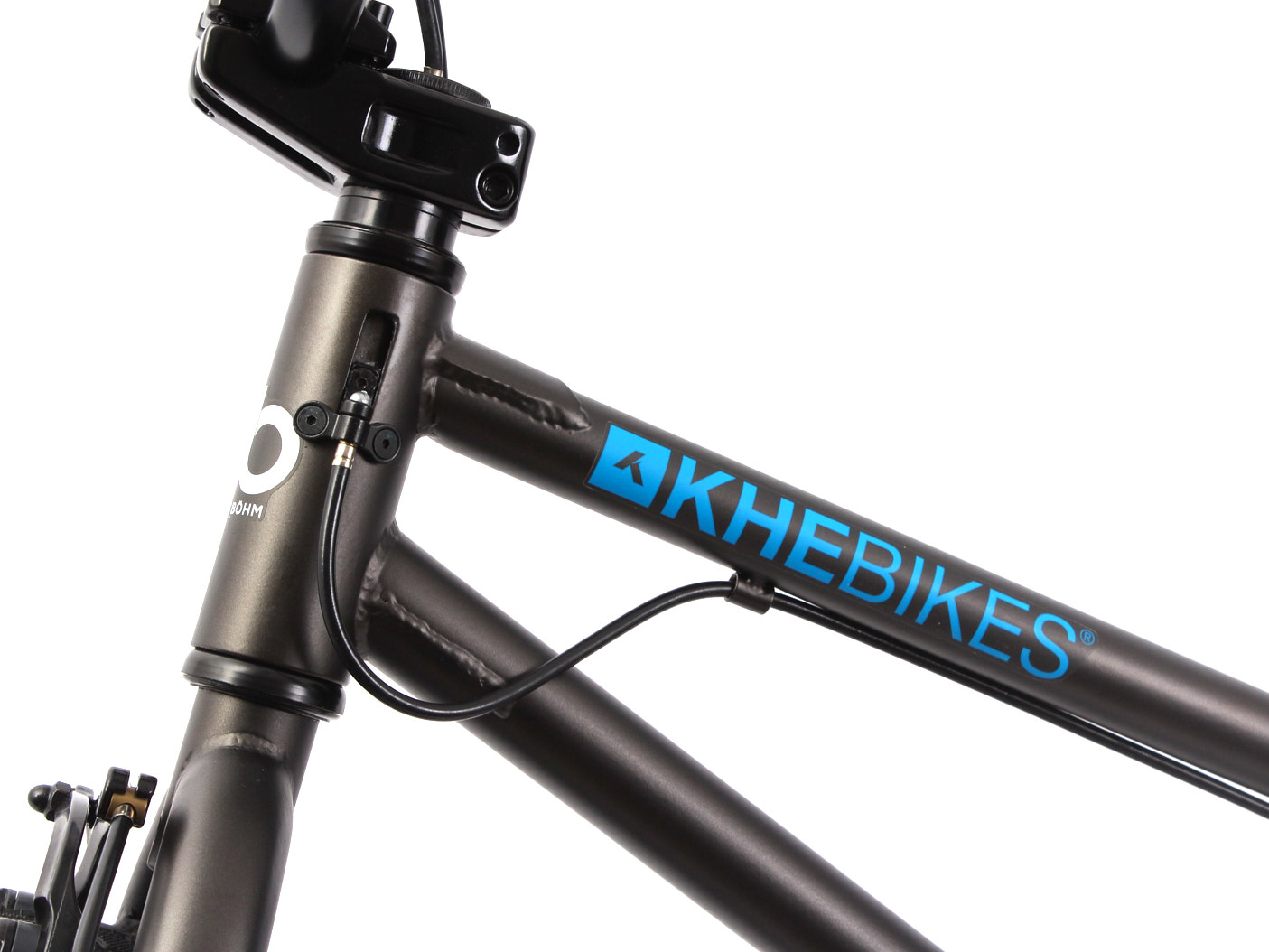

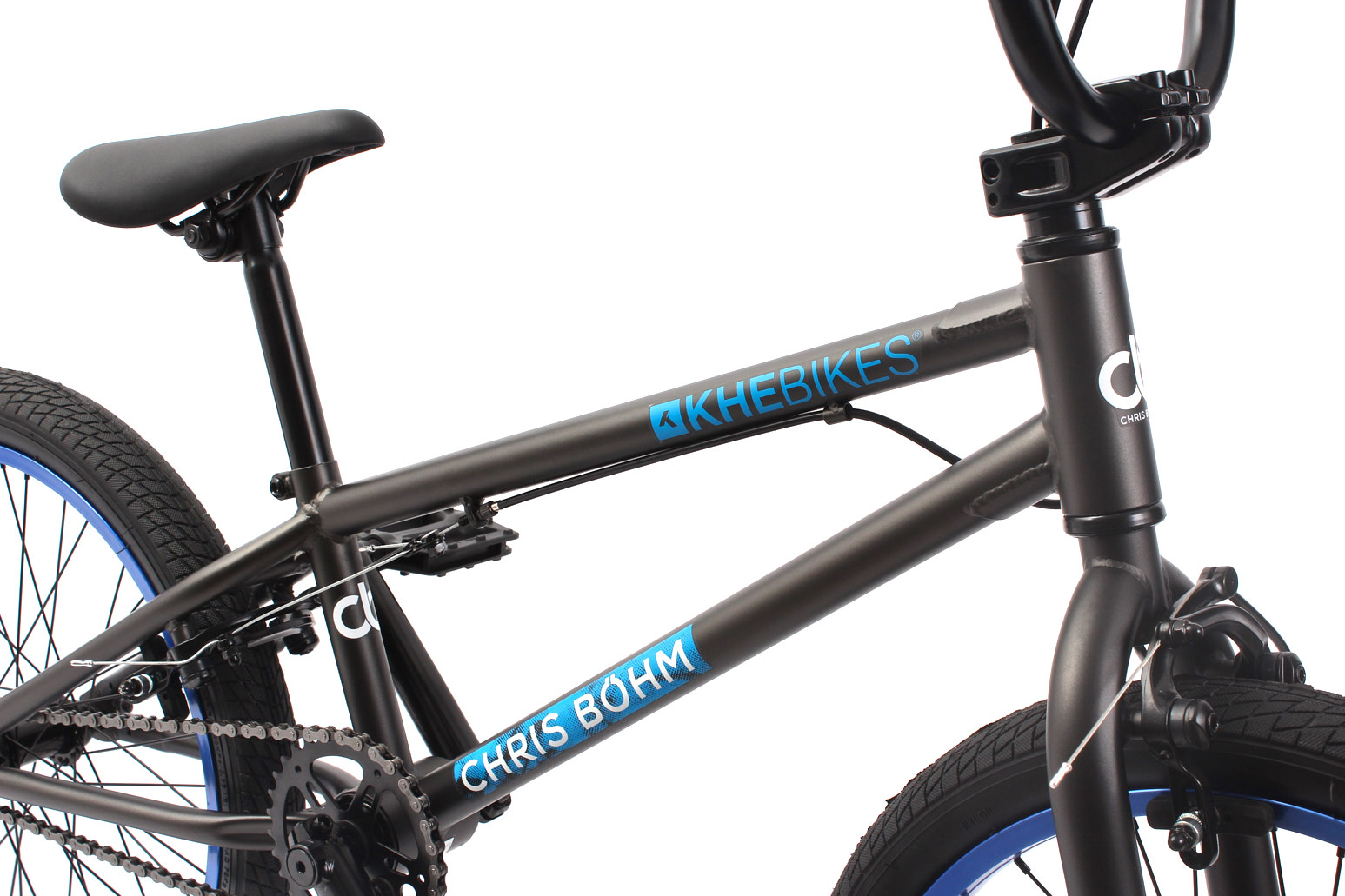

| Frame: | HiTen steel, top tube 19", RC 13.7", HT 75° |
|---|---|
| Top tube length: | 19" (483mm) |
| Fork: | HiTen, with short offset 18mm |
| Handlebars: | HiTen, 2-piece, 8" rise |

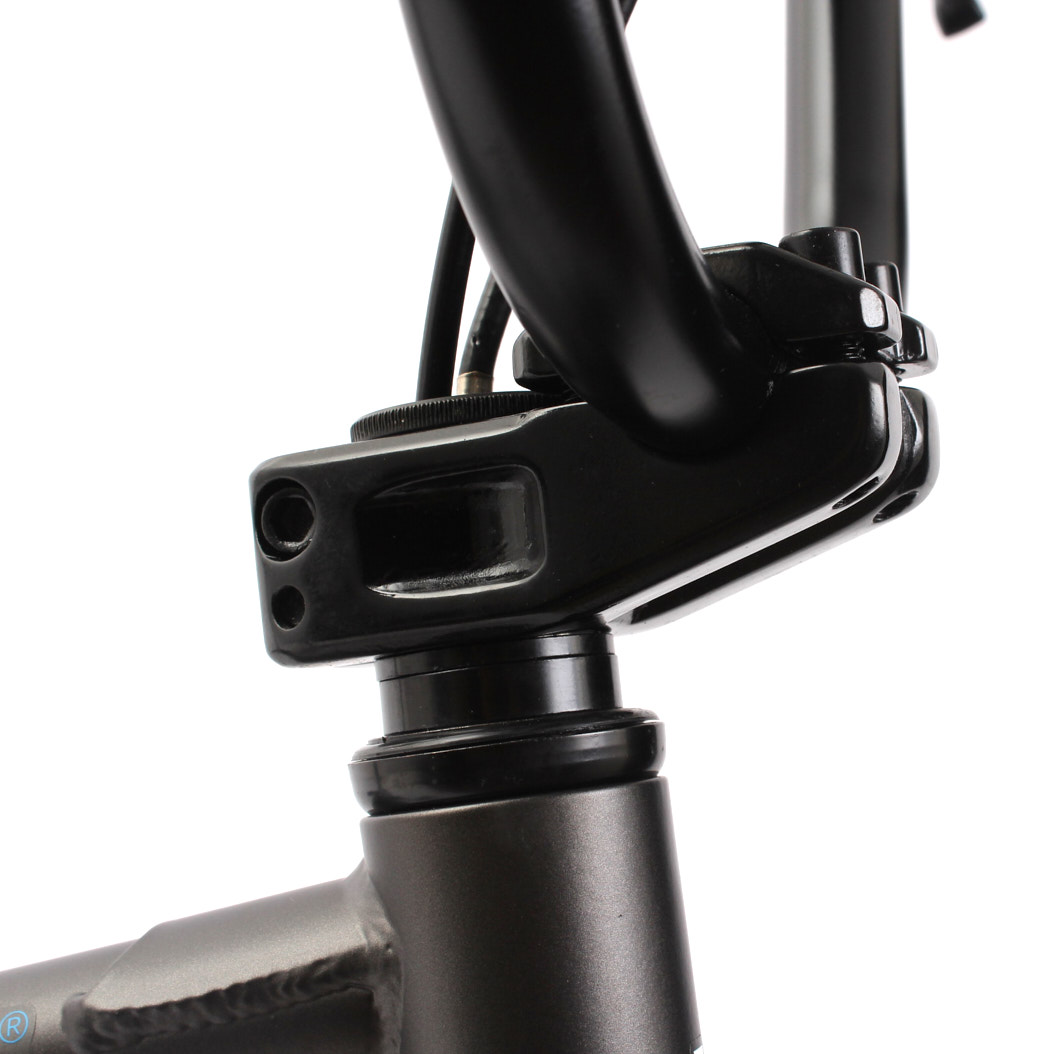

| Stem: | Top Loader |
| Headset: | 1 1/8“, Standard headset |
| Rotor: | AFFIX |

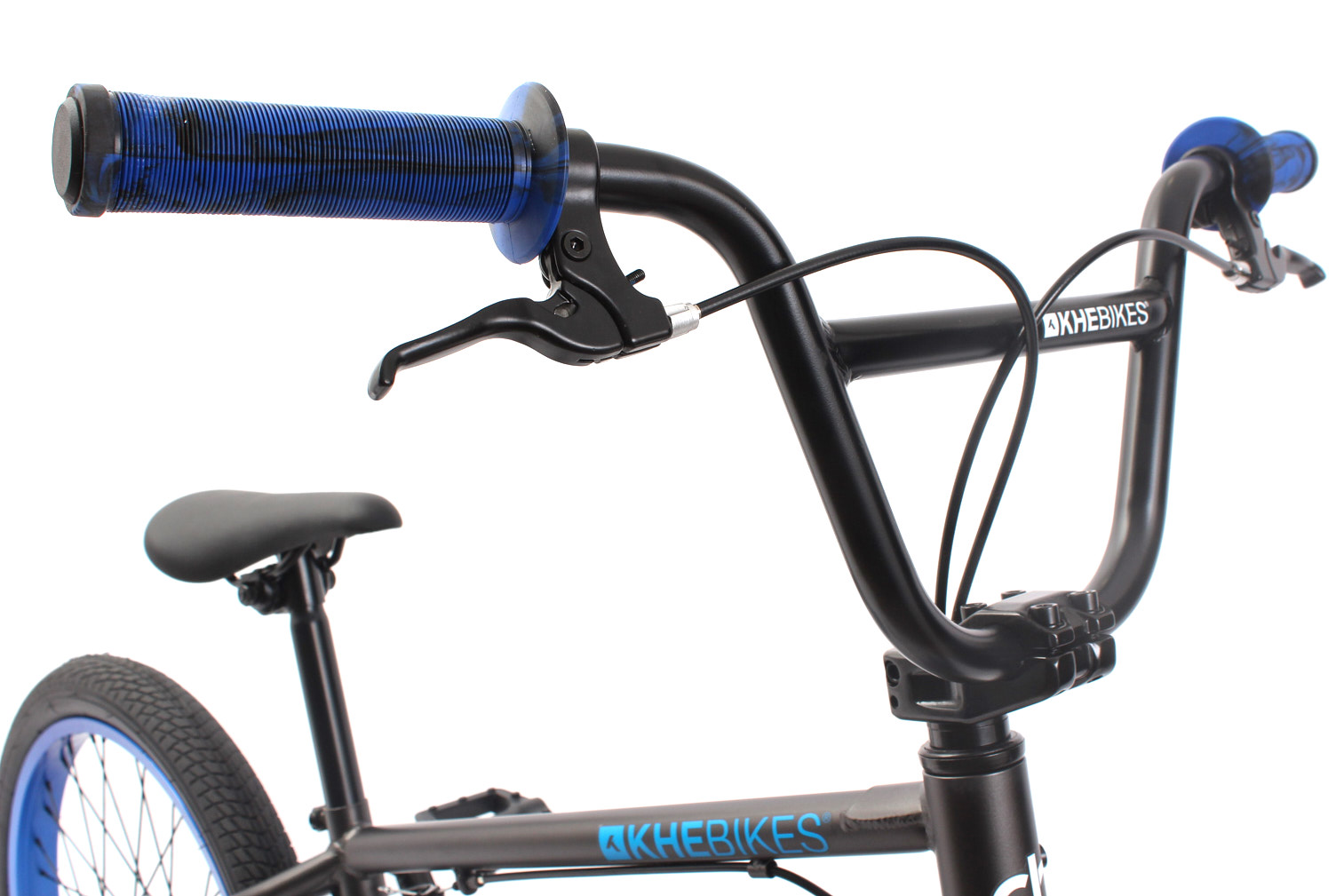

| Brake levers: | for U-Brake |
| Crank: | MVP 3-piece CrMo cranks, 8 spline axle, 170mm |
| Bottom bracket: | US-BB Loose Ball |
| Chainring: | 32T |
| Chain: | YBN |
| Brake type: | U-brake |
| Saddle: | padded, adjustable tilt |
| Seat clamp: | Integrated |
| Seatpost: | 270mm |
| Brake: | U-Brake |
| Front wheel: | KHE BIG400 rim blue anodised, 36 spoke hub, 10mm axle |

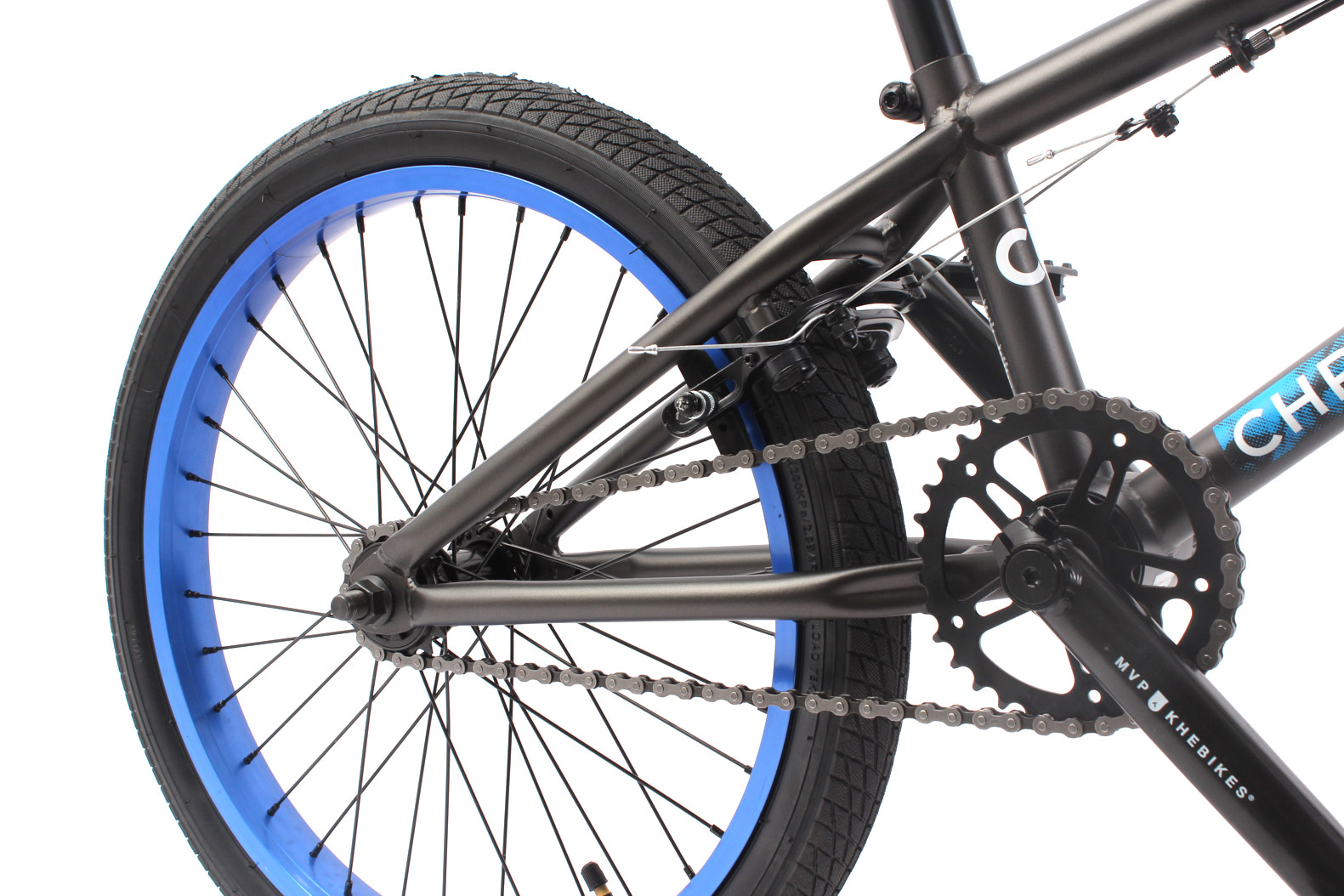

| Rear wheel: | KHE BIG400 rim blue anodised, 36 spoke hub, 16T freewheel, 14mm axle |
| Tyres: | 20" x 1,95" |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | BMX Freestyle |
| Size: | 20 "; 4'7" - 5'7" in |
| Colour: | Silver |
| Weight: | 24.91 lbs / 11,3kg |
| Model Year: | 2023 |
| Sale: | Sale |
Usage Instructions:
This BMX bike is designed for sporty and trick-based use, e.g., on skateparks, pump tracks, and similar surfaces.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bicycle is equipped with appropriate lighting and reflectors according to StVZO.
Maximum user weight: 80kg.
Safety Instructions:
Always wear a suitable helmet and protective gear (knee, elbow, and wrist guards).
Check all screws, connections, and components for secure fastening before each ride.
Regularly inspect the condition of the brakes and tires.
Ensure that the chain is properly tensioned and shows no visible damage.
Do Not Modify: Do not perform modifications such as drilling, cutting, or making any other changes to the BMX bicycle. Warranty is void in case of improper use.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust.
Use only original spare parts. Perform maintenance as outlined in the user manual.
Replacement Due to Wear: Regularly check components such as handlebars, frame, and fork of the BMX bike for cracks, deformations, or hairline fractures, especially at welds. Replace components of the BMX bike immediately if cracks or damage are found.
