US$349.00*
Available, delivery time: 5-15 business days **

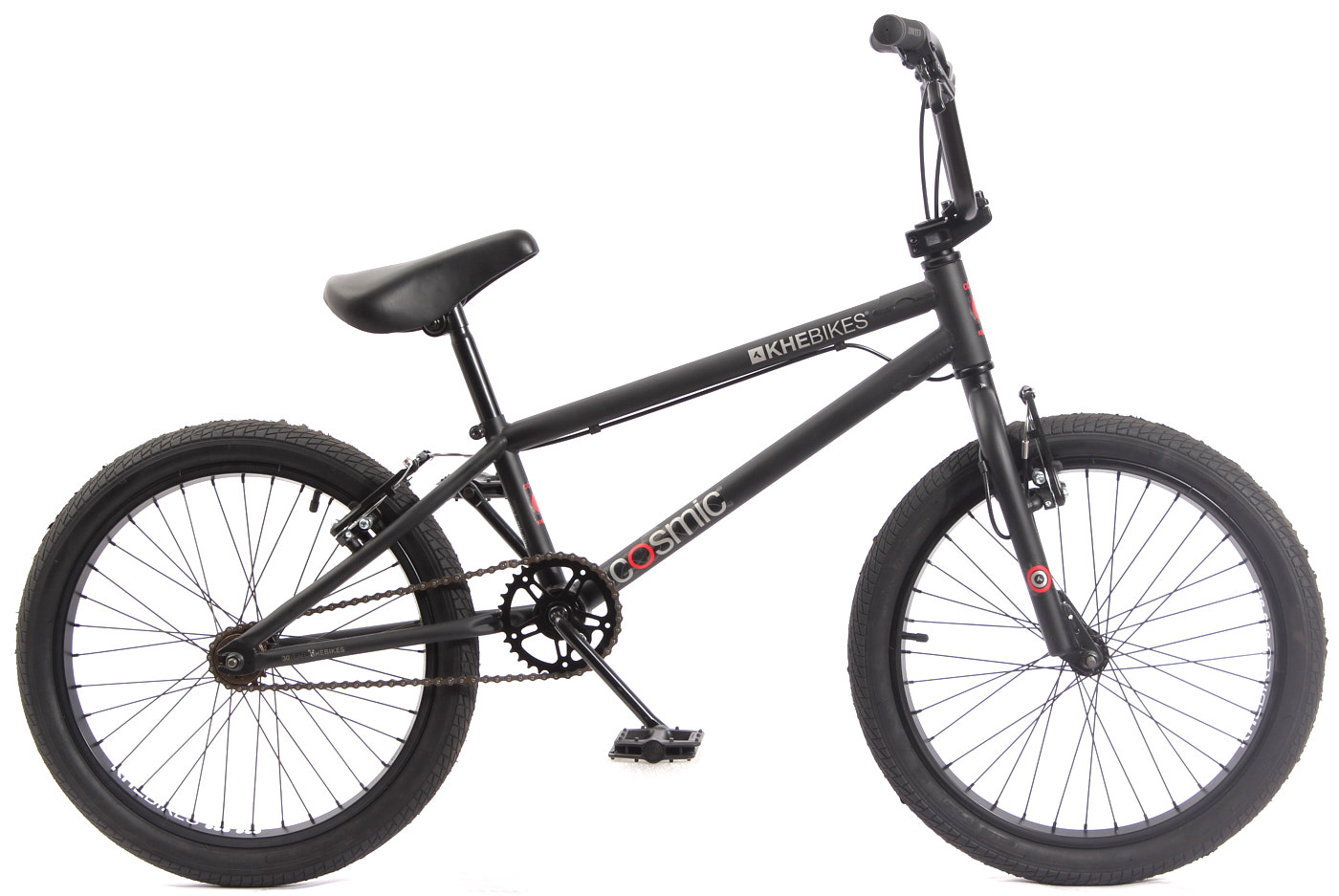

The COSMIC is a real KHE history BMX bike! The first edition was produced over 30 years ago. Now, for our 35th anniversary, the KHE COSMIC 20 inch is being reissued.
The idea behind this "all-round BMX bike" is to inspire children and young people to take up riding BMX. A great design and unbeatable value speak for themselves.
As safety when riding is important to us, we have installed high-quality V-brakes, which really bite when braking. Also important are the wide 2.10" tyres, an adjustable saddle and of course the KHE AFFIX Pro rotor for 360° bar spins. The COSMIC BMX bike has everything you need to learn beginner tricks, jump over dirt jumps or ride in BMX parks.
Recommended rider height: 4.59ft - 5.58ft / 140-170cm
Maximum total rider weight: 132.28lbs / 60kg
Application: Street / Park / Dirt
Pegs: The Cosmic 20" can be equipped with 10mm front pegs and 10mm rear pegs. We recommend the BLACK STEEL pegs.
| Bottom bracket: | US-BB Loose Ball |
|---|---|

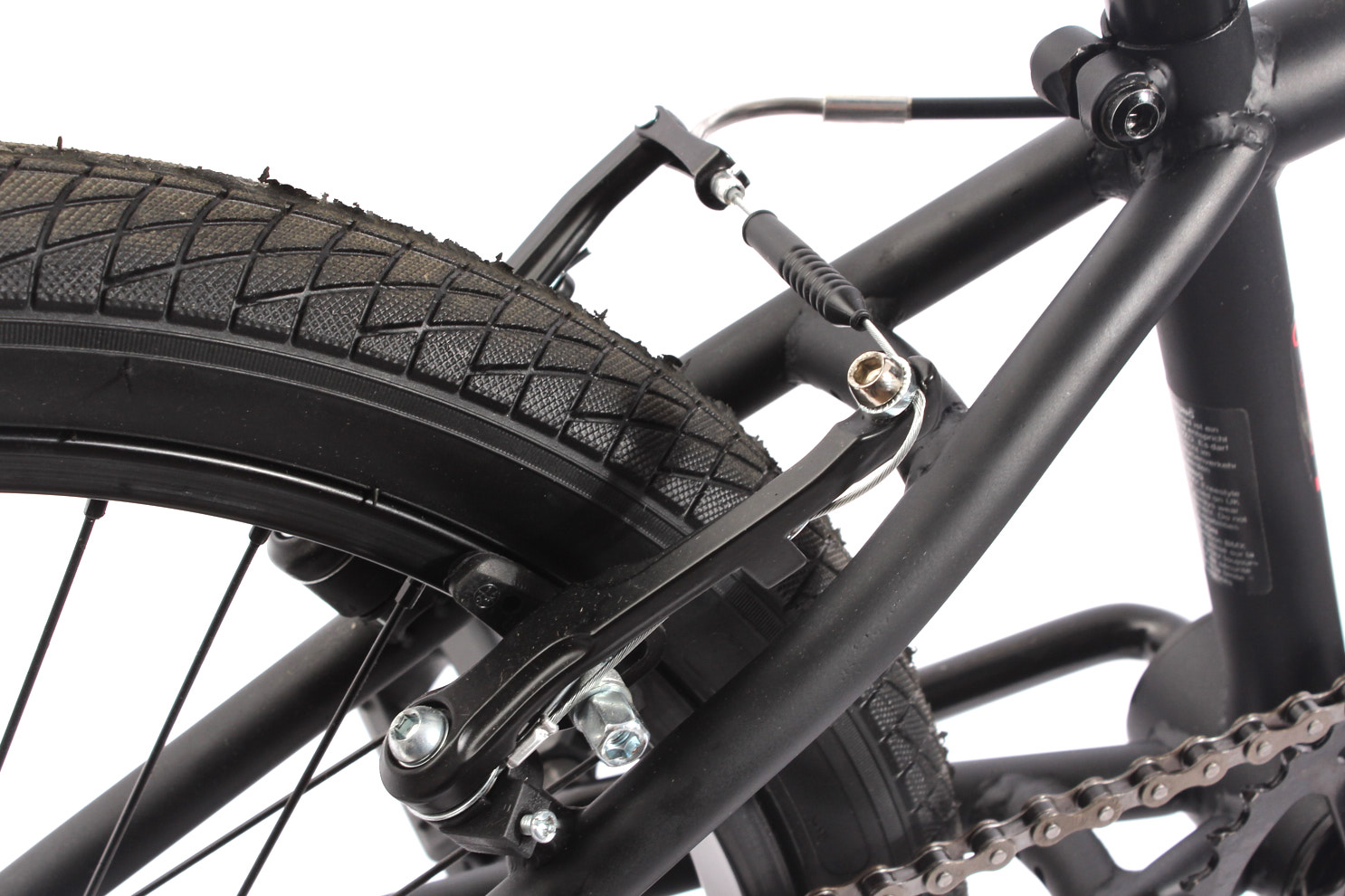

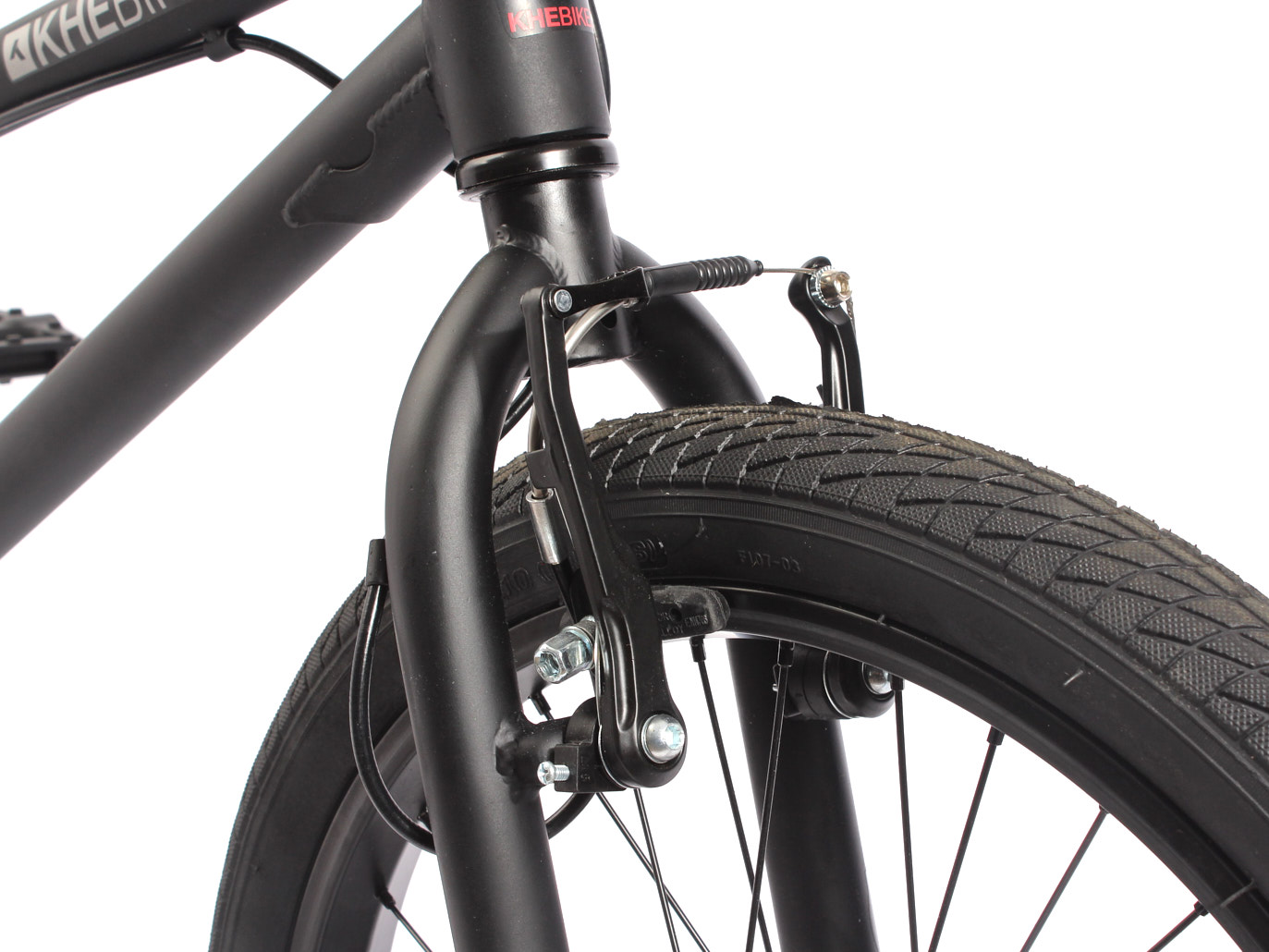

| Brake: | V-Brake |
| Brake levers: | For V-Brake |
| Brake type: | V-brake |
| Category: | BMX Freestyle |
| Chain: | YBN |

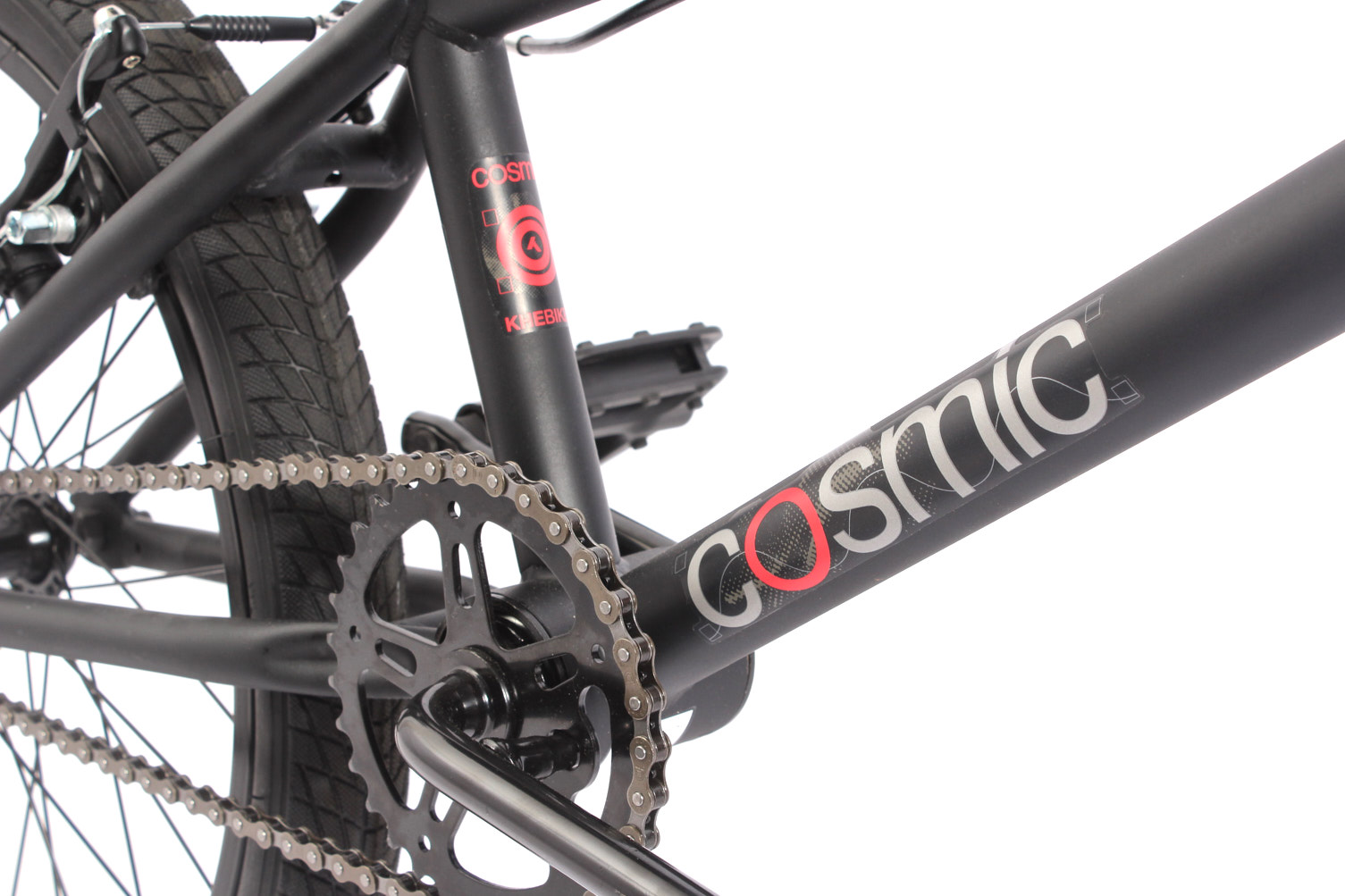

| Chainring: | 32T |
| Colour: | Black |
| Crank: | 1-piece, 165mm |
| Fork: | HiTen |

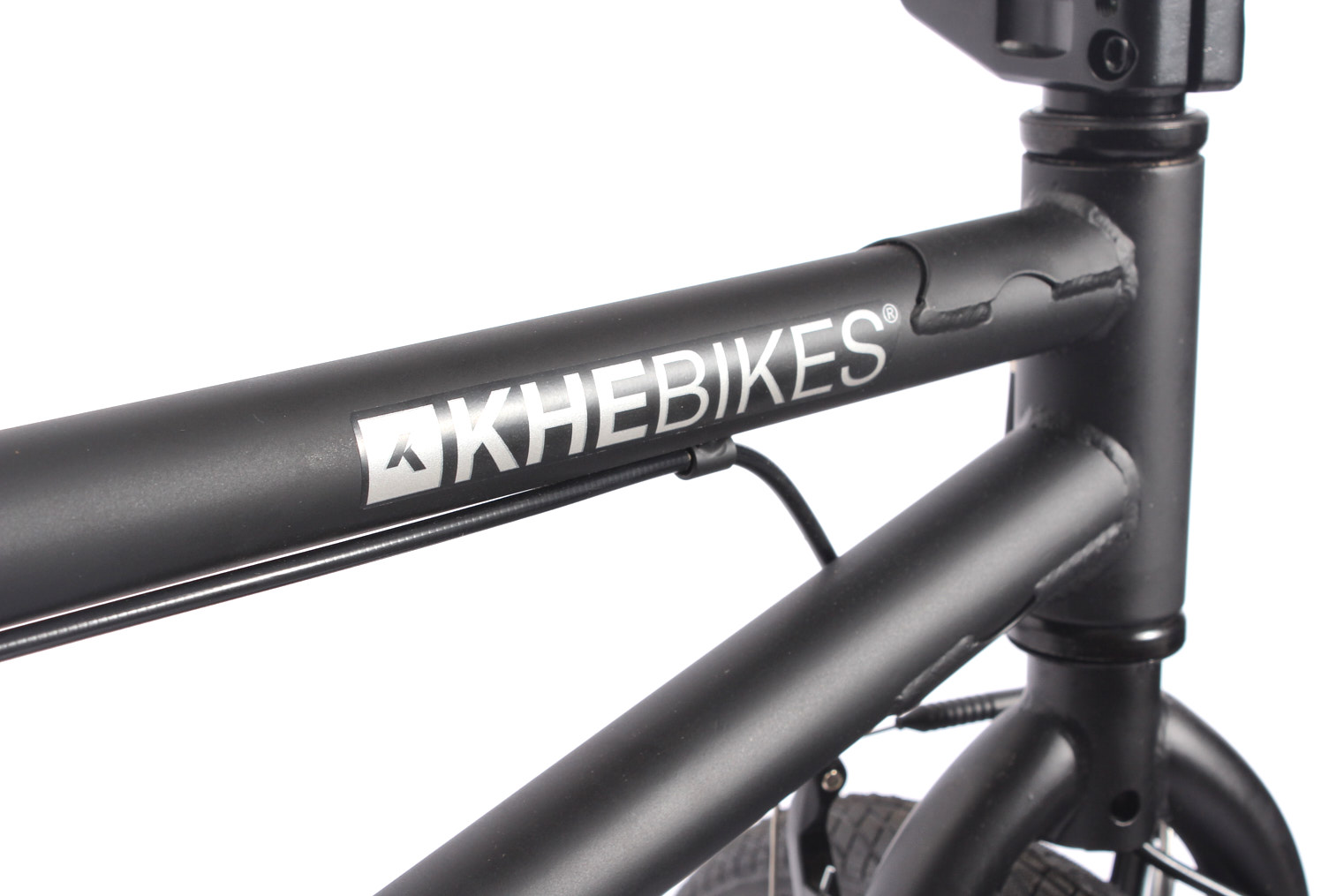

| Frame: | HiTen, top tube length: 495mm (19.5"), HT 75*, RC347mm |

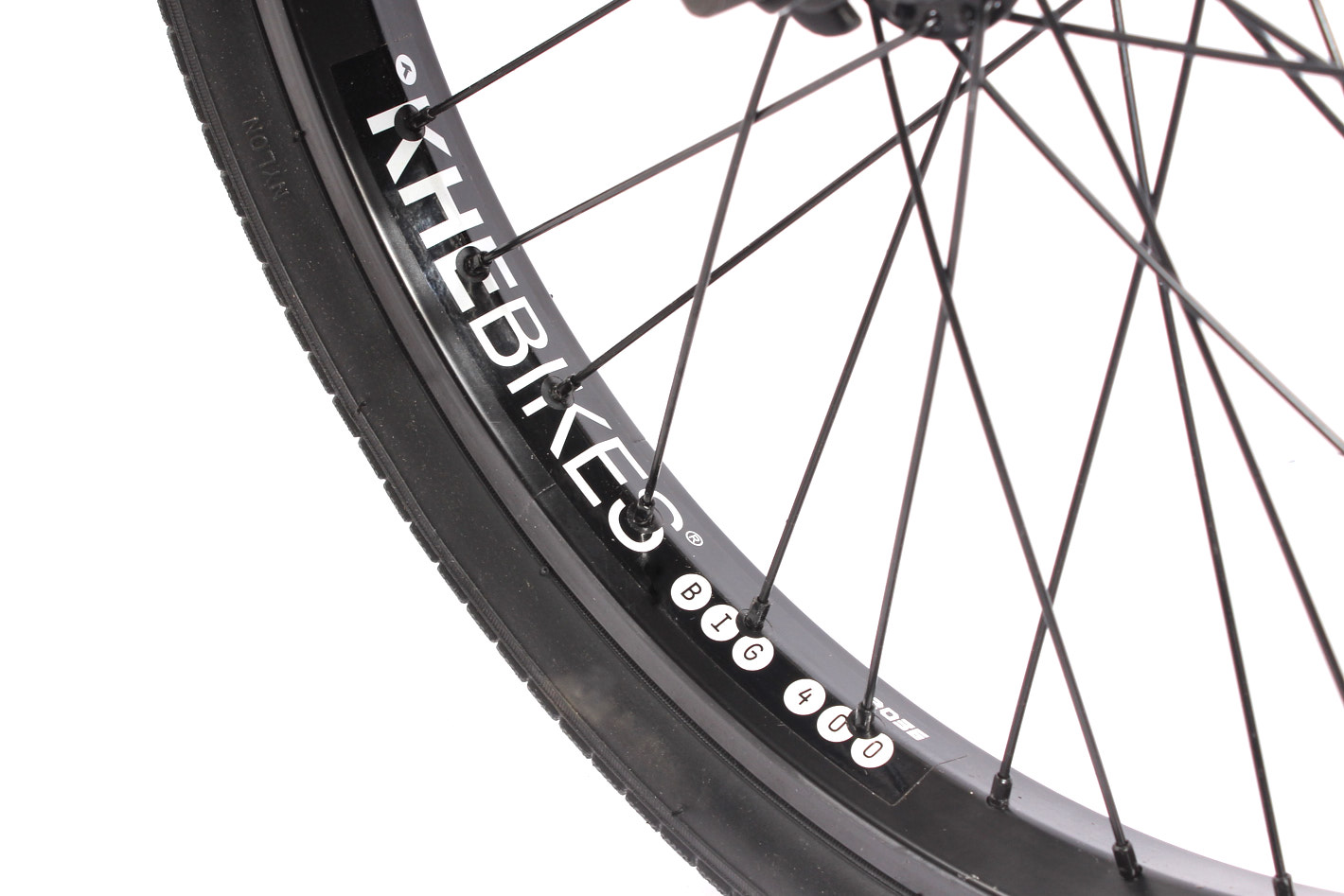

| Front wheel: | KHE BIG400 rim, 36 spoke hub, 10mm axle |

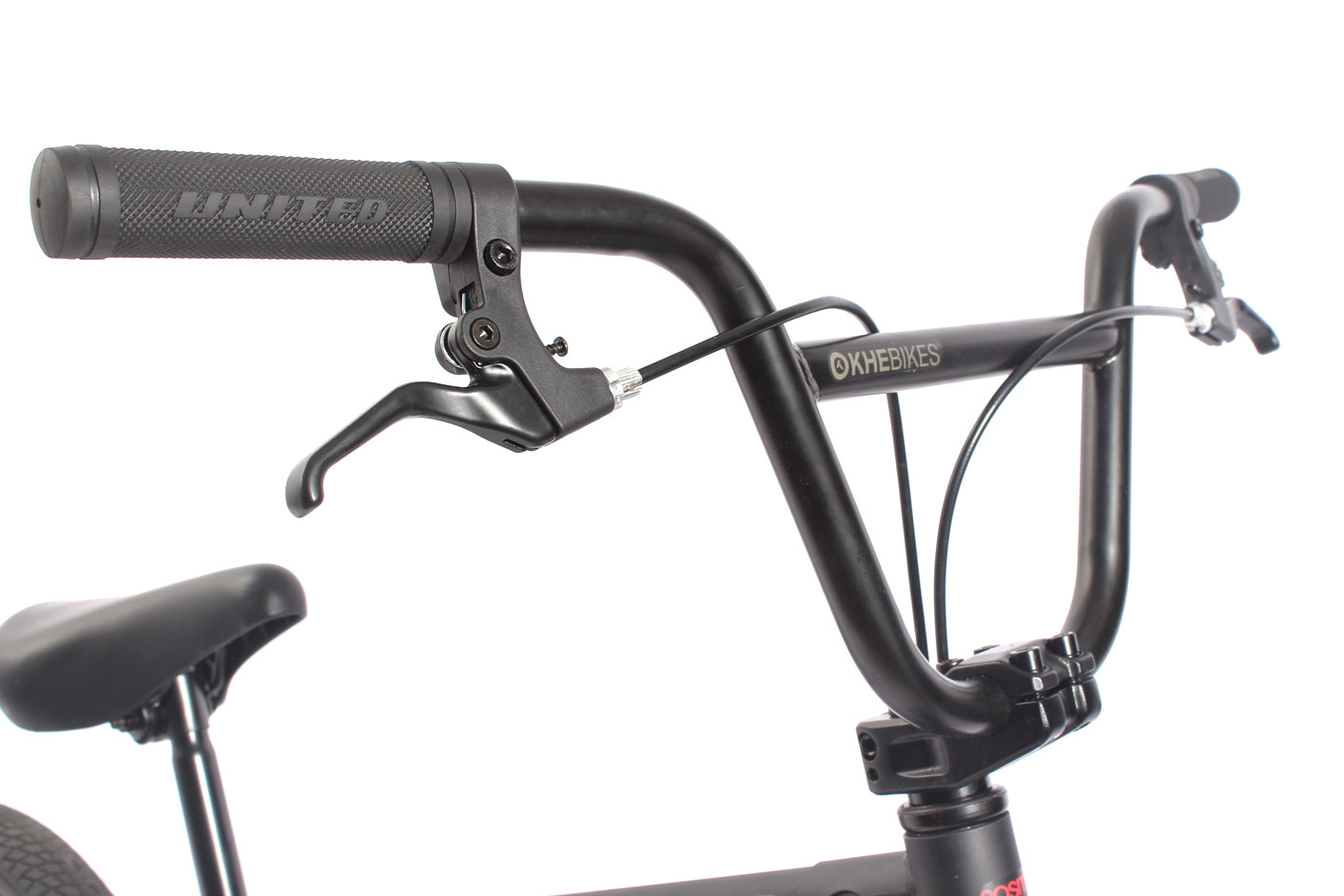

| Handlebars: | 2-piece 8" high |
| Headset: | 1 1/8“, Standard headset |
| Material: | HiTen steel |
| Rear wheel: | KHE BIG400 rim, 36 spoke hub, 16T freewheel, 10mm axle |

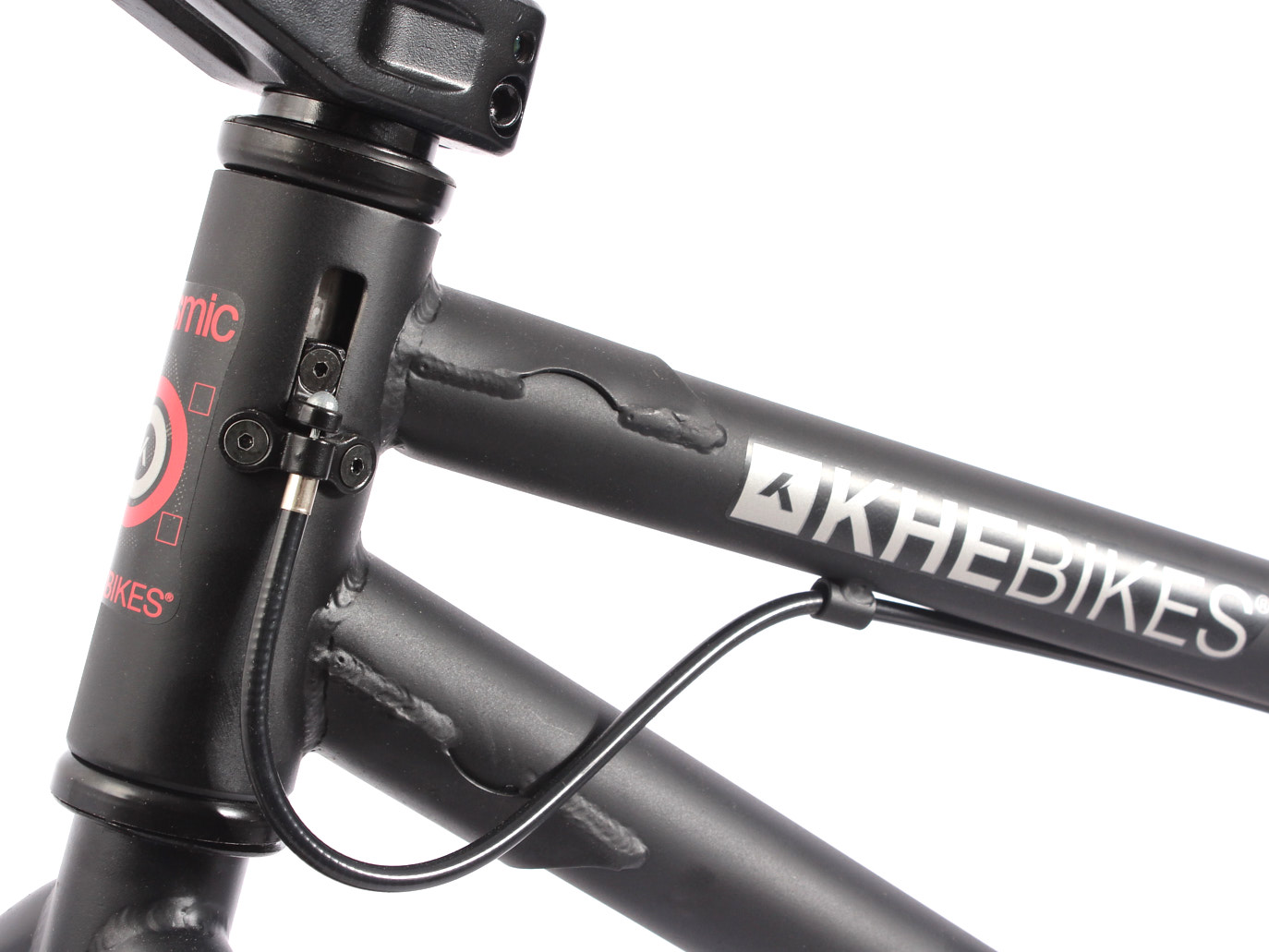

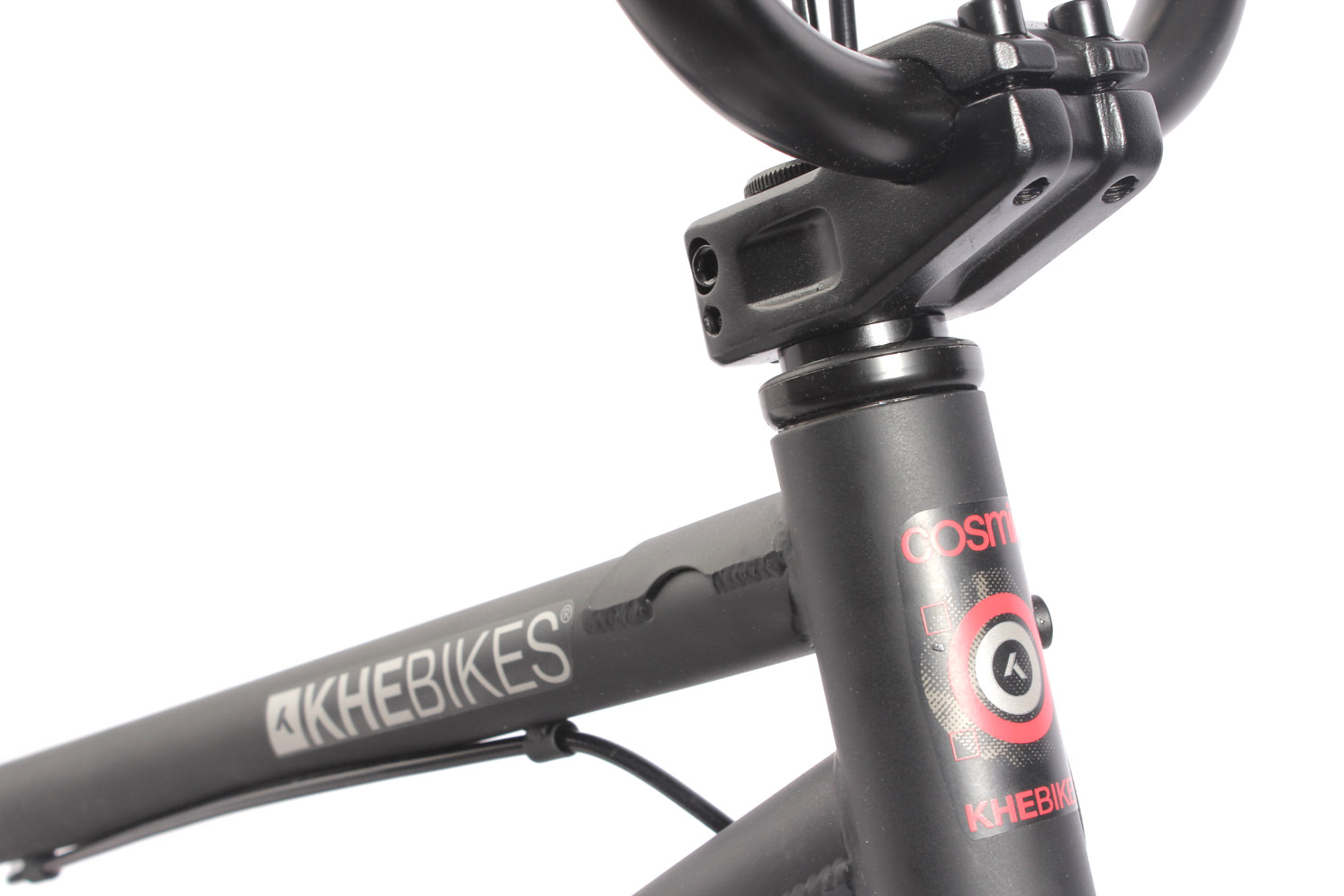

| Rotor: | AFFIX |

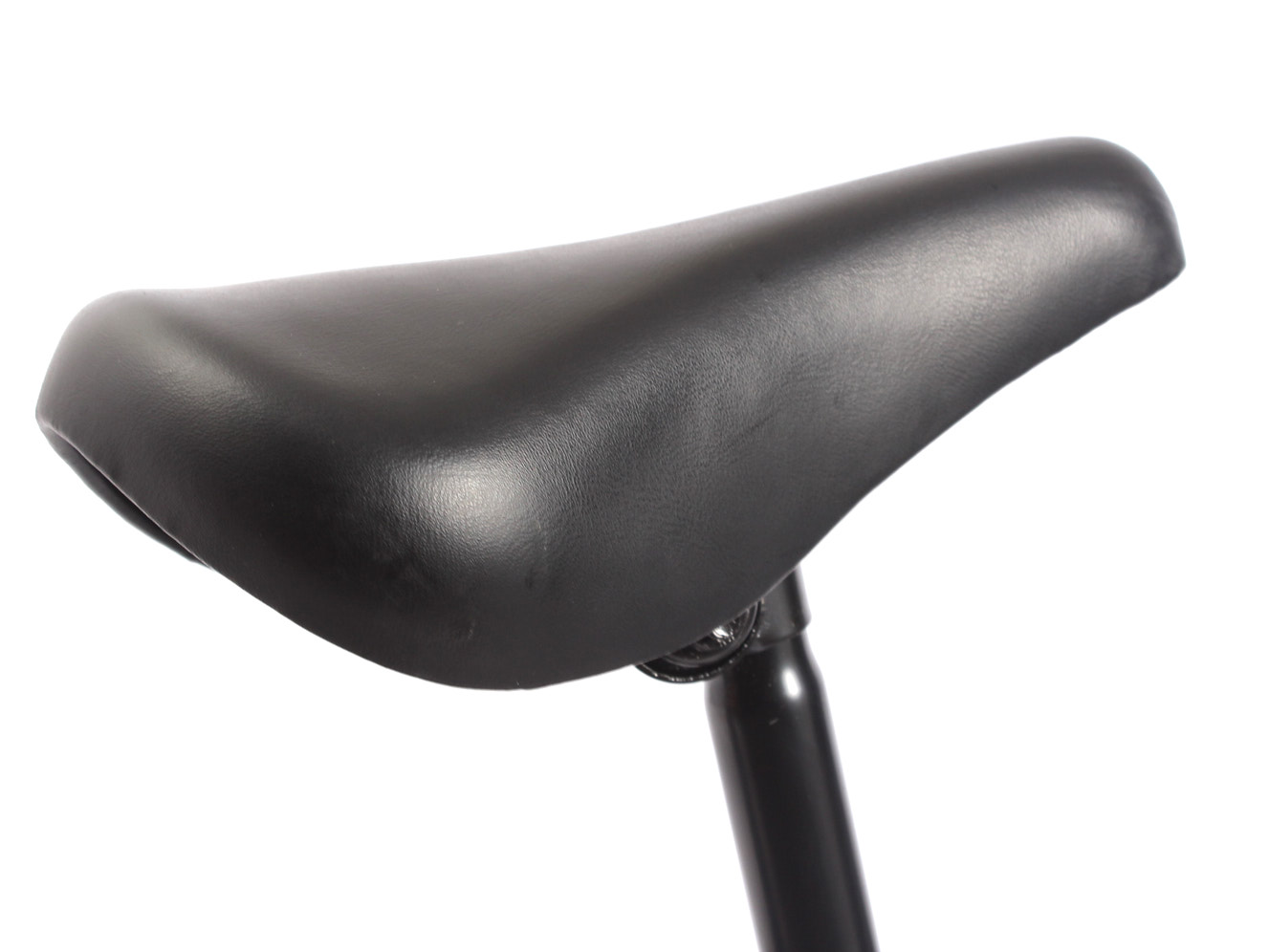

| Saddle: | padded, adjustable tilt |
| Seat clamp: | Integrated |
| Size: | 20 "; 140-170cm |
| Stem: | Top Loader |
| Tire size: | 20 inch |
| Tyres: | 20" x 2,10" |
| Weight: | 24.47 lbs / 11,1kg |
Usage Instructions:
This BMX bike is designed for sporty and trick-based use, e.g., on skateparks, pump tracks, and similar surfaces.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bicycle is equipped with appropriate lighting and reflectors according to StVZO.
Maximum user weight: 80kg.
Safety Instructions:
Always wear a suitable helmet and protective gear (knee, elbow, and wrist guards).
Check all screws, connections, and components for secure fastening before each ride.
Regularly inspect the condition of the brakes and tires.
Ensure that the chain is properly tensioned and shows no visible damage.
Do Not Modify: Do not perform modifications such as drilling, cutting, or making any other changes to the BMX bicycle. Warranty is void in case of improper use.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust.
Use only original spare parts. Perform maintenance as outlined in the user manual.
Replacement Due to Wear: Regularly check components such as handlebars, frame, and fork of the BMX bike for cracks, deformations, or hairline fractures, especially at welds. Replace components of the BMX bike immediately if cracks or damage are found.
