US$349.00*
Available, delivery time: 5-15 business days **

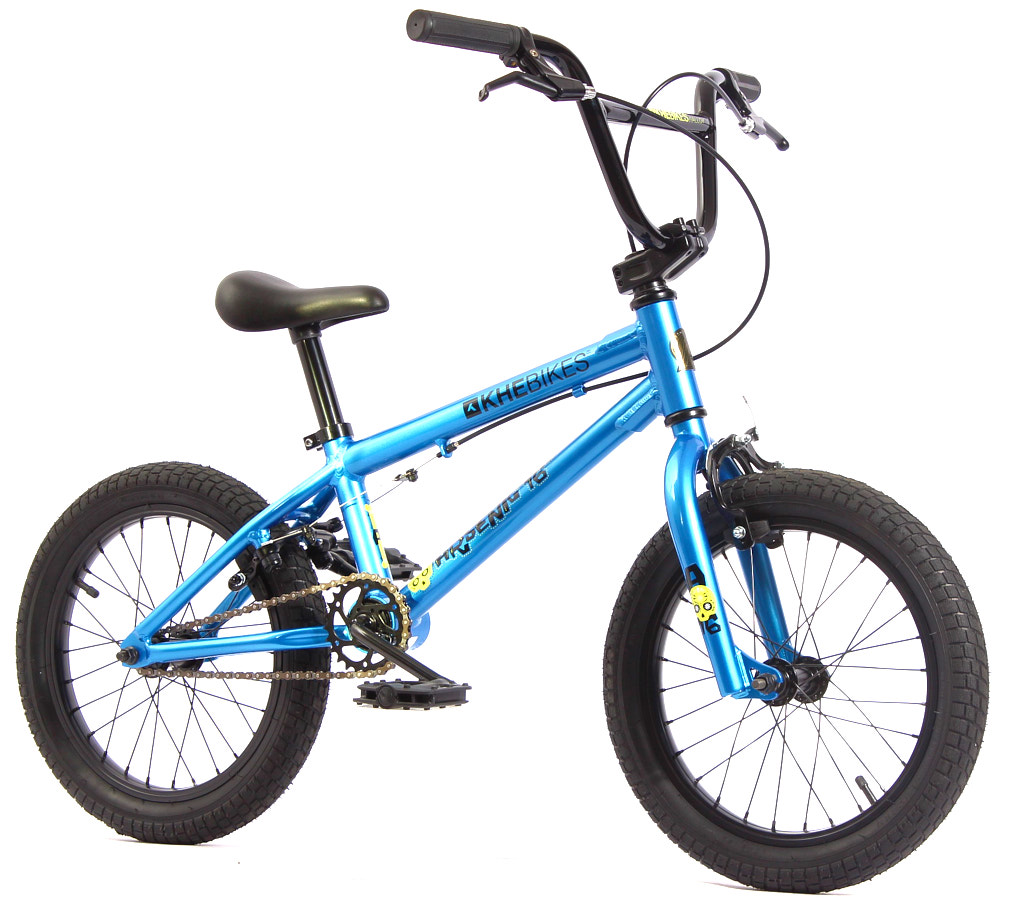

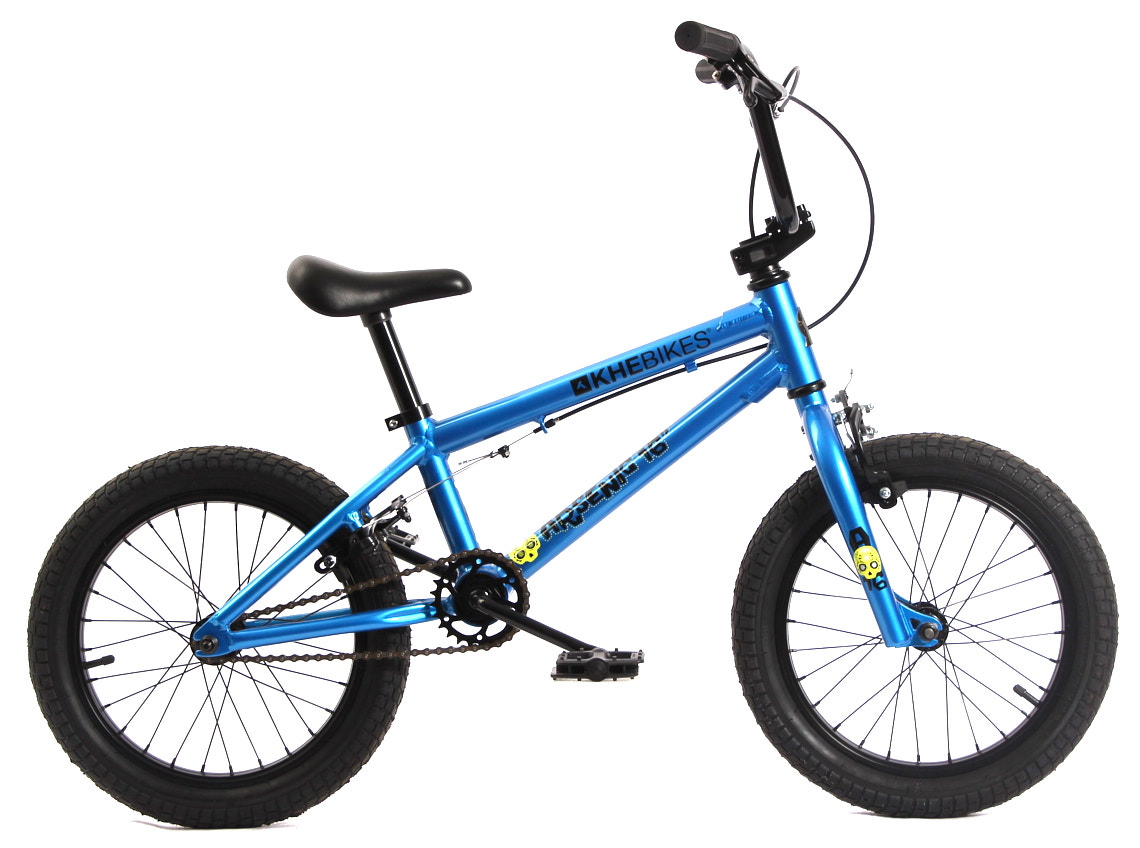

We have developed the Arsenic 16 inch to enable children from the age of 5 and a height of 3.4ft / 105 cm to ride a BMX. With this BMX bike, first tricks, jumps or simply cruising off-road are no problem at all.
We are especially proud of the weight: Since the Arsenic LL 16" is equipped with a high-quality and stable aluminium frame and has an optimised geometry, it weighs only 17.64lbs / 8.0kg. This is especially important as young riders have less strength and therefore a BMX bike that is too heavy is difficult for them to handle. The bike is painted blue anodised and has wide tyres that provide grip and make it an eye-catcher. Great fun and safety are ensured with this KHE beginner's bike.
Recommended rider height: 3.4ft- 4.1ft / 105-125cm
Maximum total rider weight: 88.18lbs / 40kg
Application: Street / Park / Dirt
Pegs: The KHE ARSENIC 16" LL can be equipped with 10mm front pegs and 10mm rear pegs. We recommend the KHE COP ALU pegs.
The BMX bike is about 90% pre-assembled. The operating instructions can be found under "Data sheets". A video about the assembly you can find at "Video".
| Bottom bracket: | US-BB Loose Ball |
|---|---|
| Brake cable: | extra long for handlebar turns |

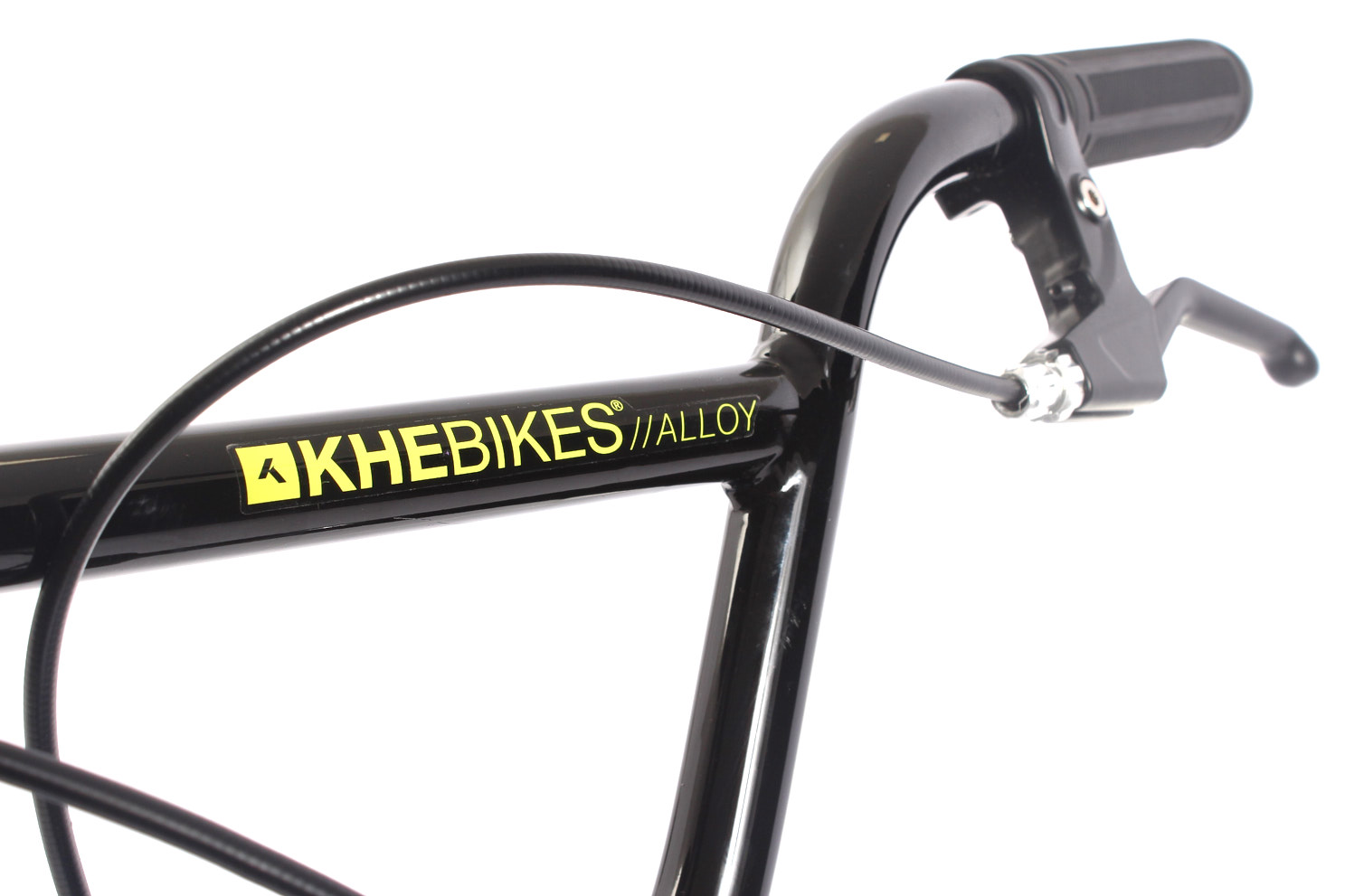

| Brake levers: | for U-Brake |
| Brake type: | U-brake |
| Category: | BMX Freestyle |
| Chain: | YBN |
| Chainring: | 25T |
| Colour: | Blue |
| Crank: | very sturdy forged one-piece crank 140mm |
| Fork: | HiTen |

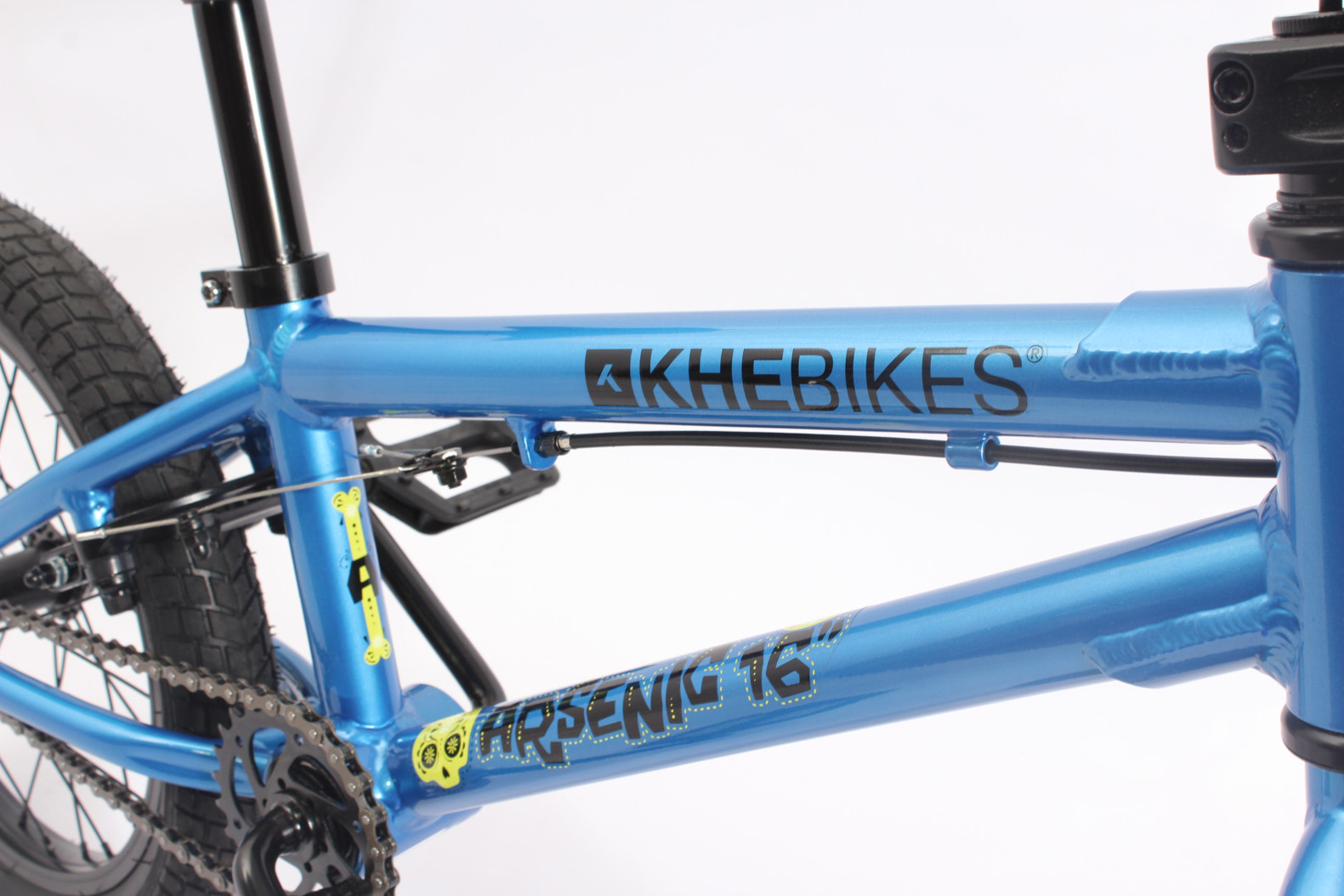

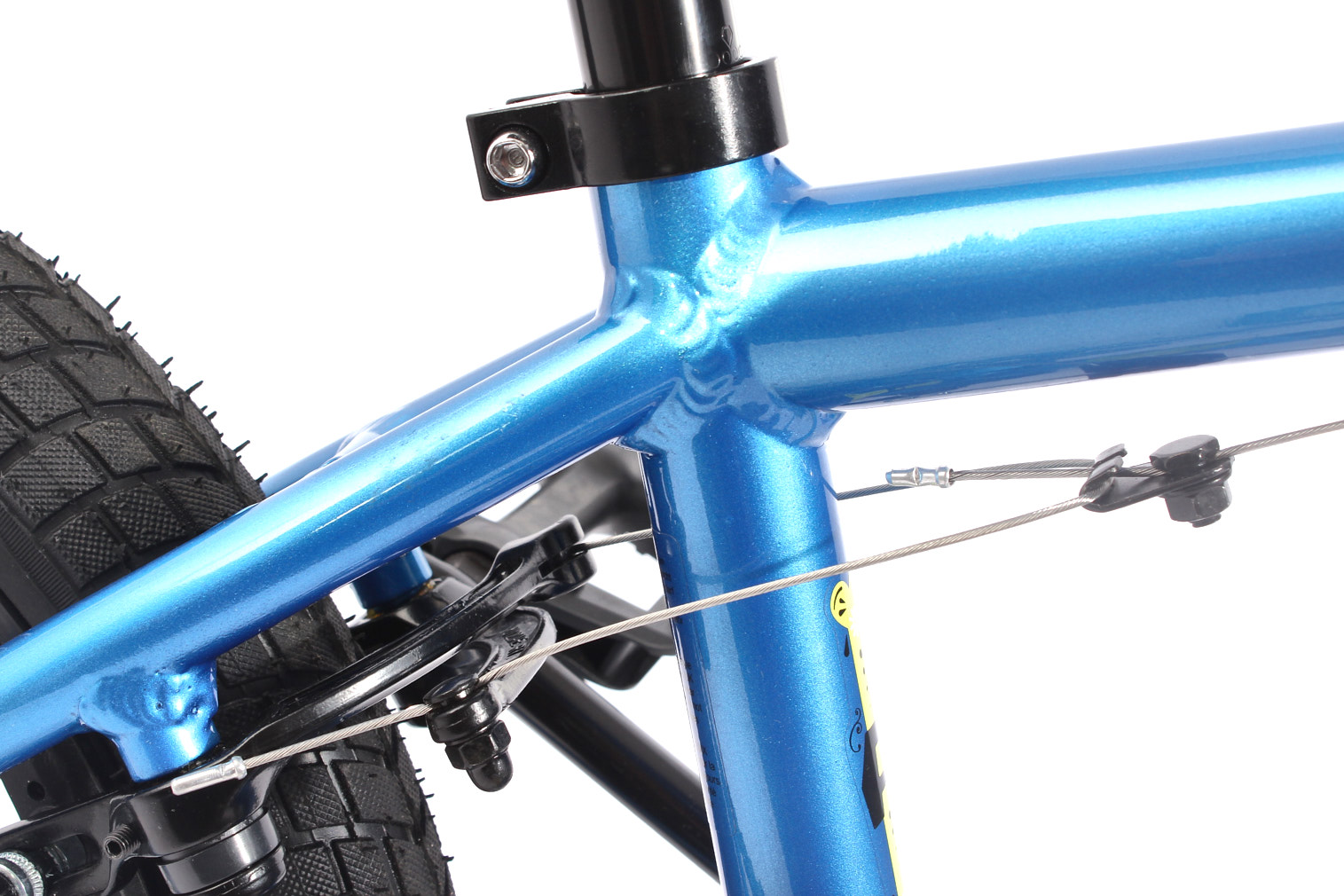

| Frame: | Aluminum! Top tube length: 402mm (15.8") |

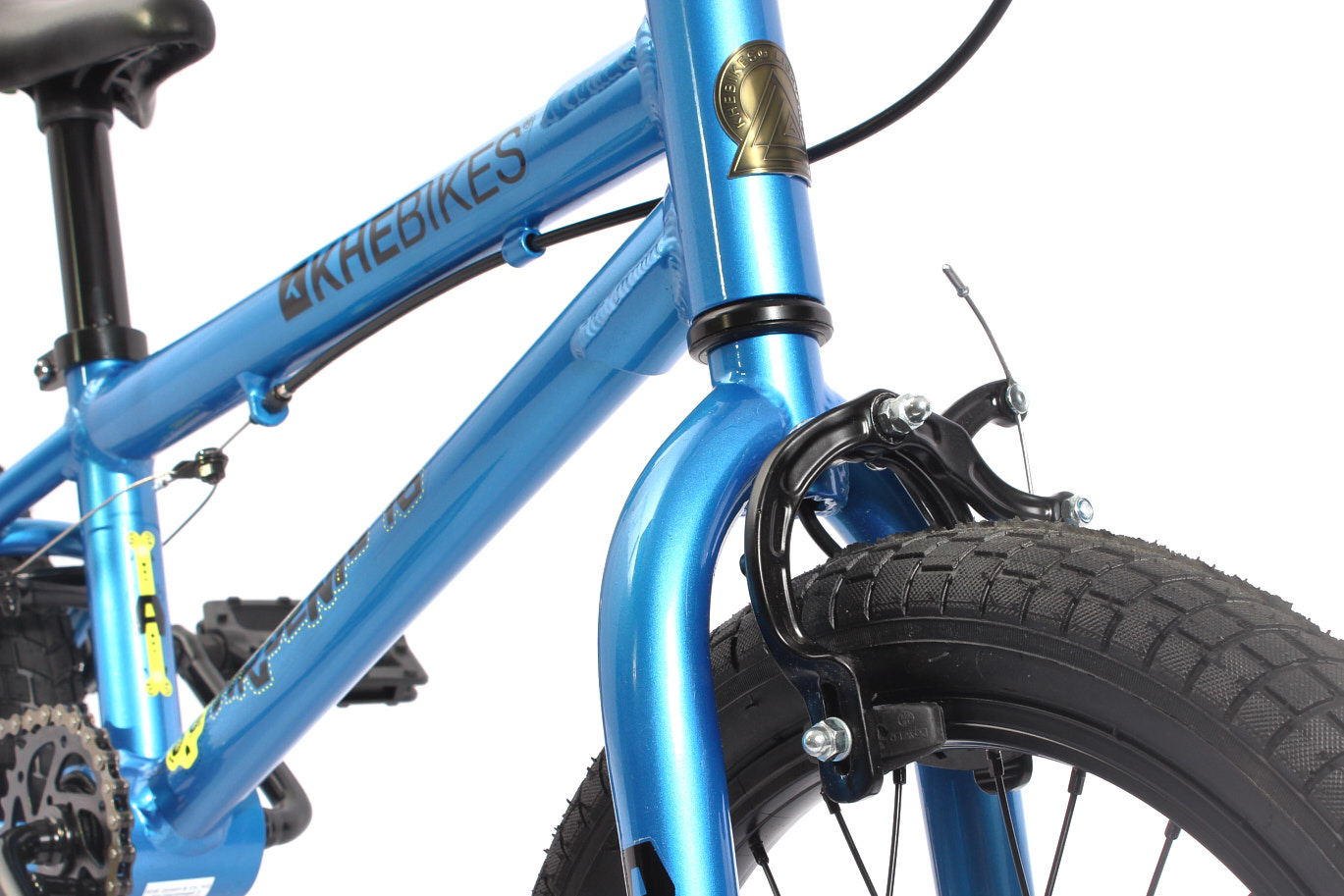

| Front brake: | Side pull (already installed!) |
| Front wheel: | Aluminum rim, 28 hole prism hub 10mm axle |
| Handlebars: | 2 pezzi in alluminio |
| Headset: | 1 1/8“, Standard headset |
| Material: | HiTen steel |
| Pedals: | PVC 1/2" |

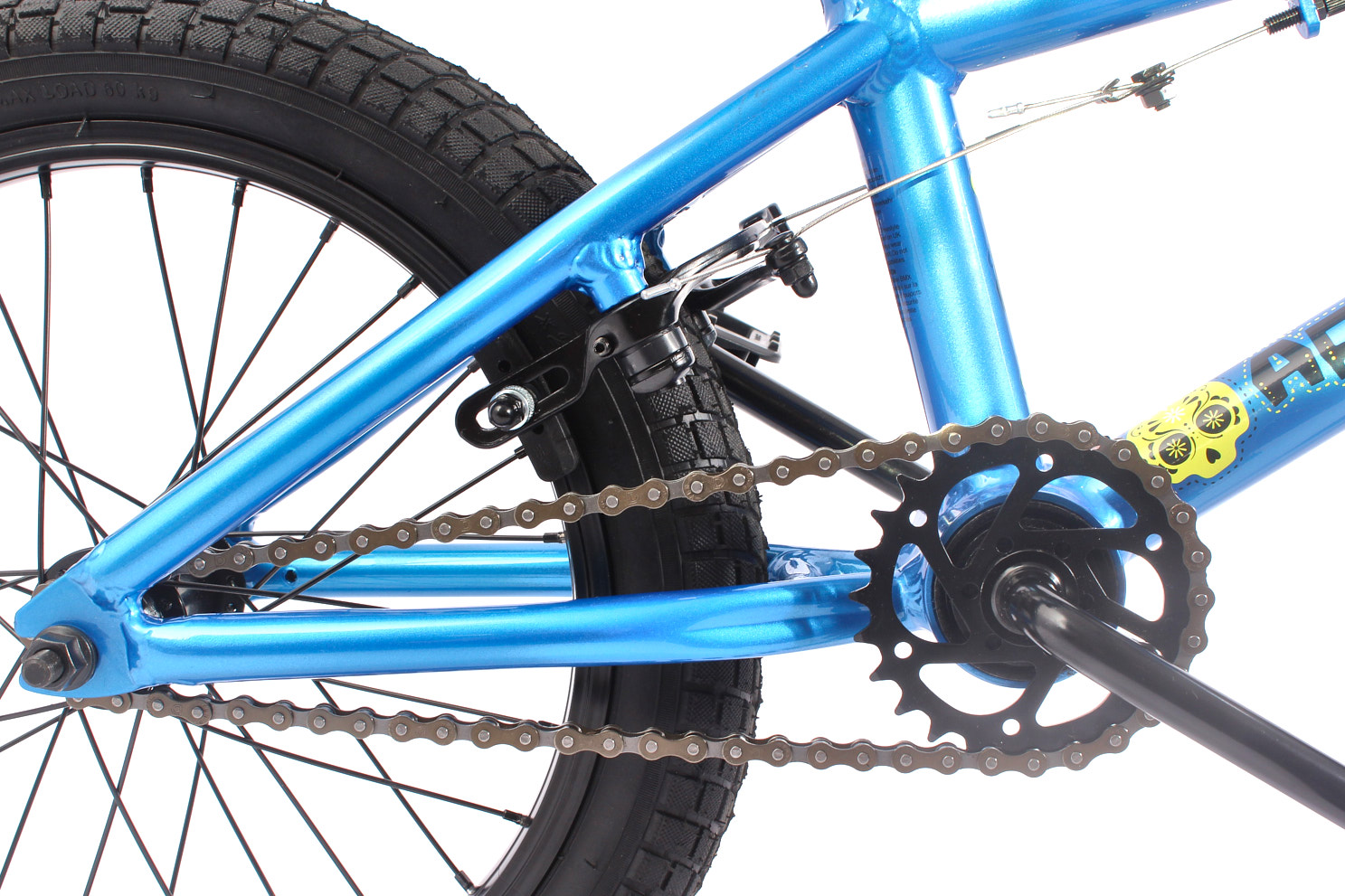

| Rear brake: | Aluminium U-Brake |
| Rear wheel: | Aluminum rim, 28-hole Prism hub, 10 mm axle, 9-tooth cassette hub |
| Saddle: | ammortizzata e con reggisella integrato |
| Size: | 16 "; 105 -125cm |

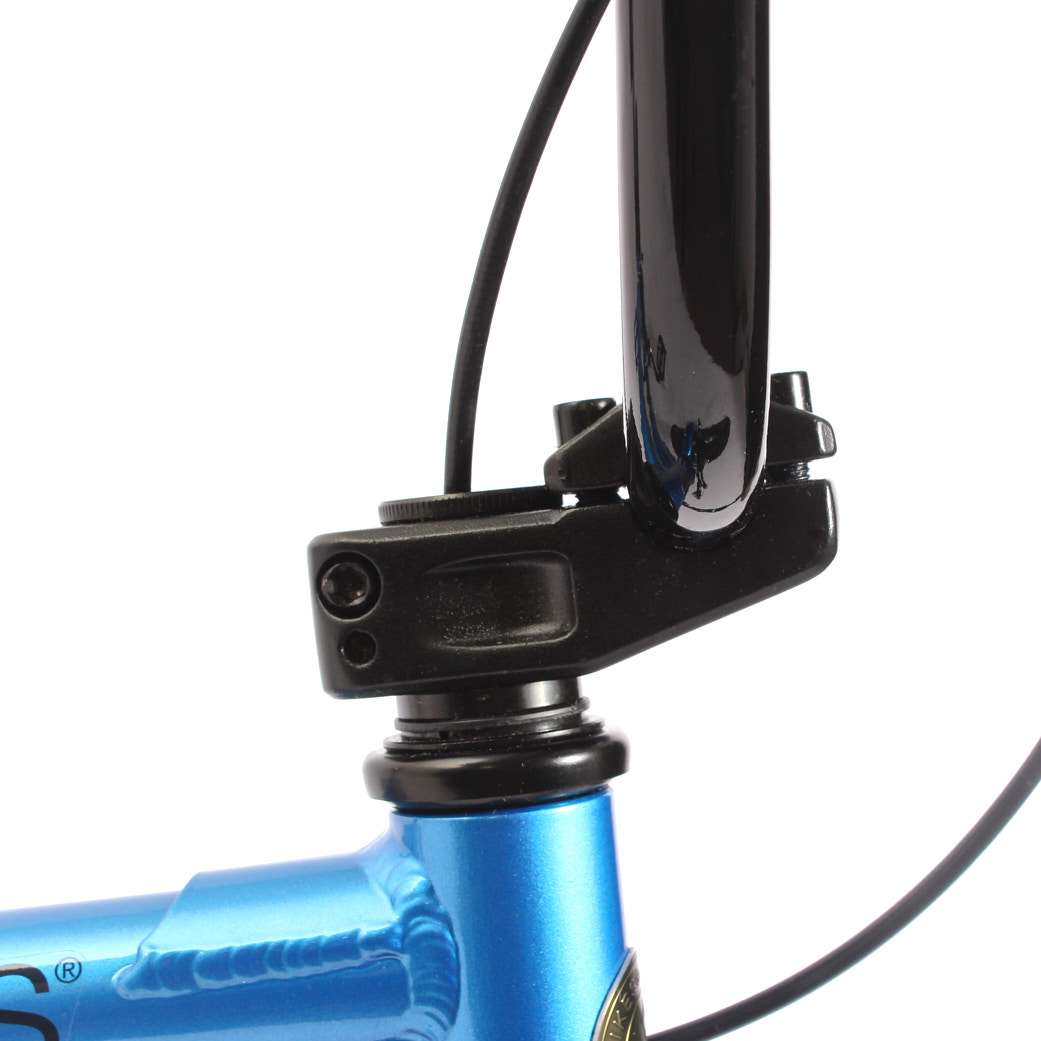

| Stem: | Top Loader |
| Tire size: | 16 inch |
| Tyres: | 2.125" extra wide black tires |
| Weight: | 17.64 lbs / 8,0kg |
Usage Instructions:
This BMX bike is designed for sporty and trick-based use, e.g., on skateparks, pump tracks, and similar surfaces.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bicycle is equipped with appropriate lighting and reflectors according to StVZO.
Maximum user weight:
40kg.
Safety Instructions:
Always wear a suitable helmet and protective gear (knee, elbow, and wrist guards).
Check all screws, connections, and components for secure fastening before each ride.
Regularly inspect the condition of the brakes and tires.
Ensure that the chain is properly tensioned and shows no visible damage.
Do Not Modify: Do not perform modifications such as drilling, cutting, or making any other changes to the BMX bicycle. Warranty is void in case of improper use.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust.
Use only original spare parts. Perform maintenance as outlined in the user manual.
Replacement Due to Wear: Regularly check components such as handlebars, frame, and fork of the BMX bike for cracks, deformations, or hairline fractures, especially at welds. Replace components of the BMX bike immediately if cracks or damage are found.
