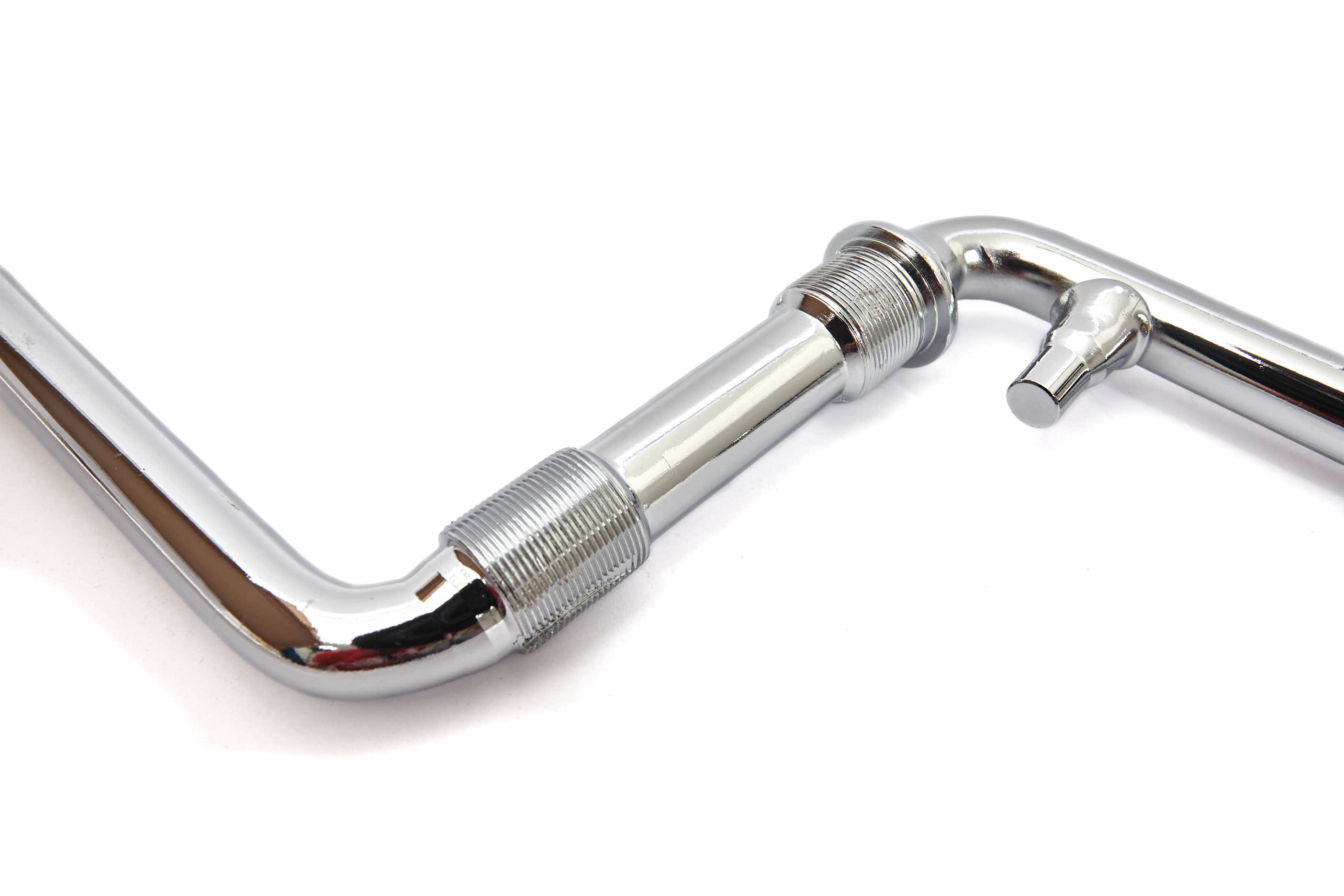

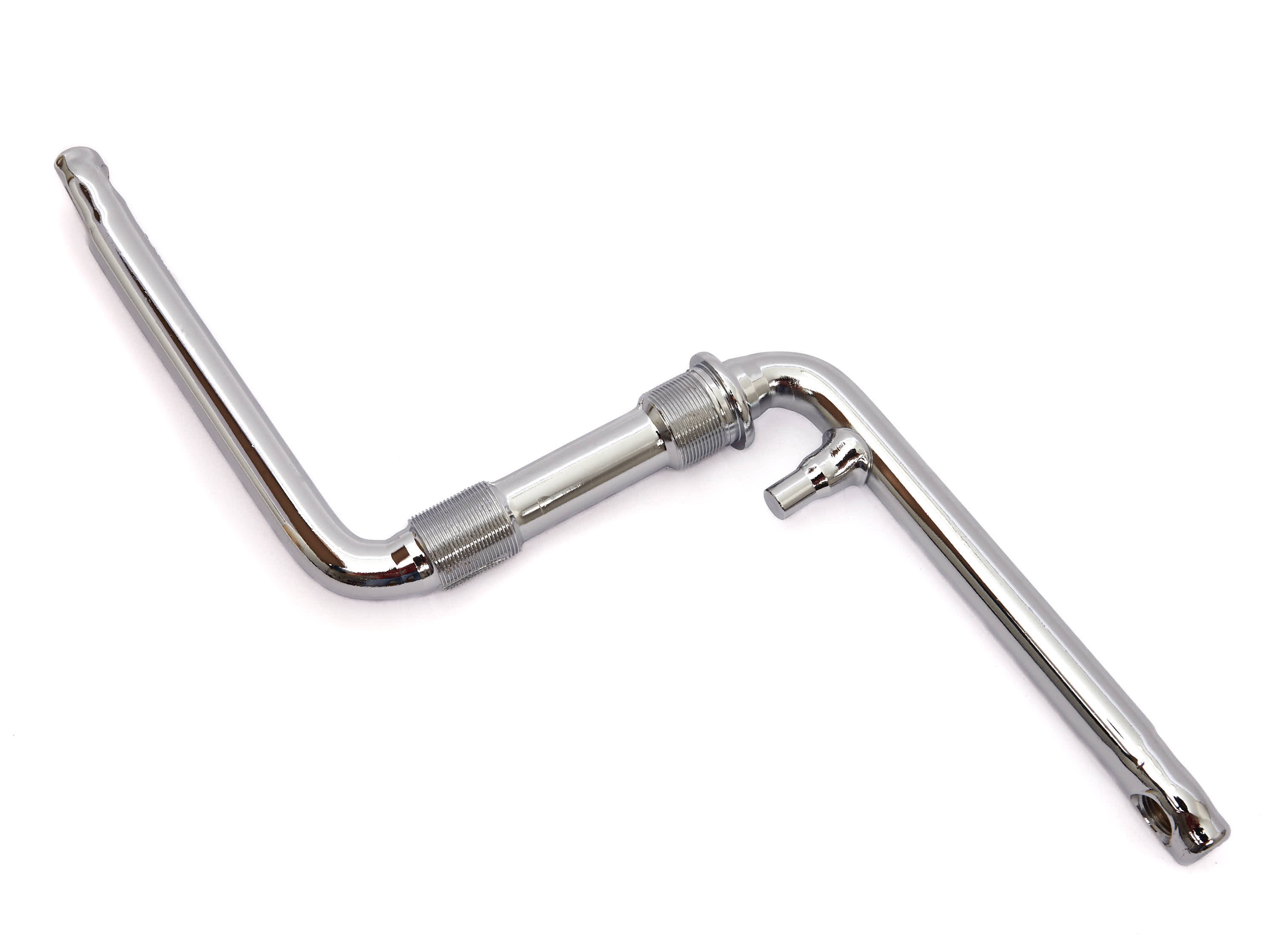

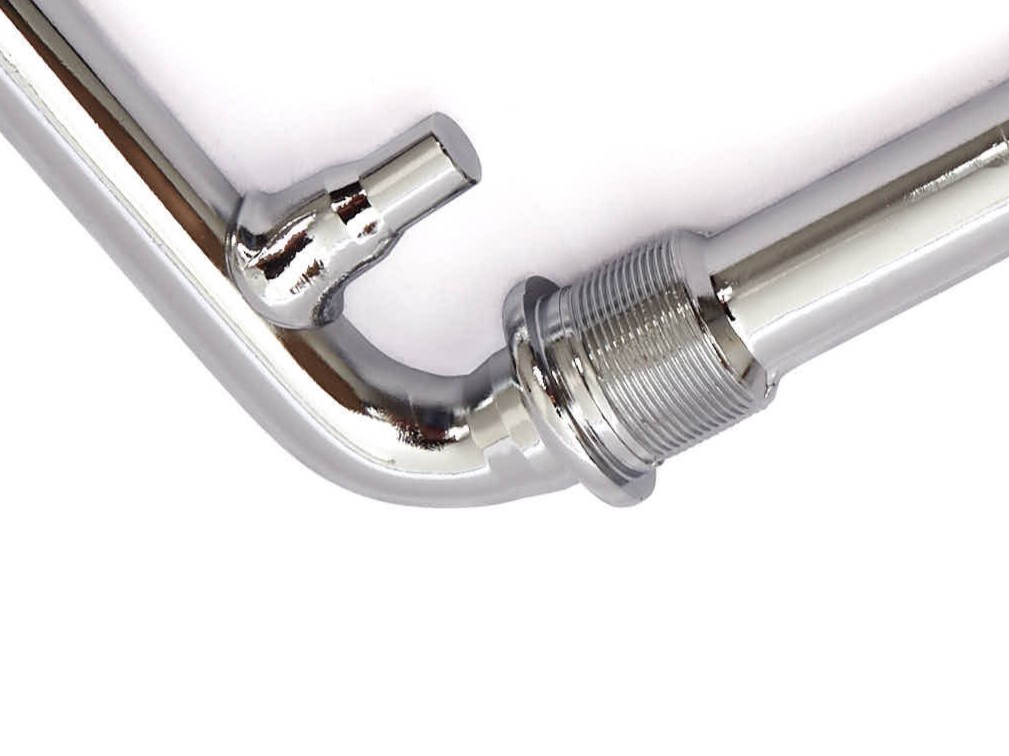

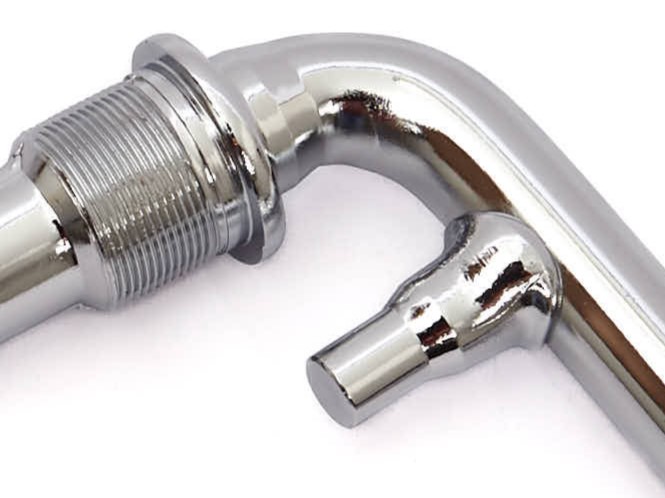

High-quality 1-piece PRISM crank with 152mm long cranks in chrome.
- One piece PRISM crank
- For US BB
- For 1/2" pedals

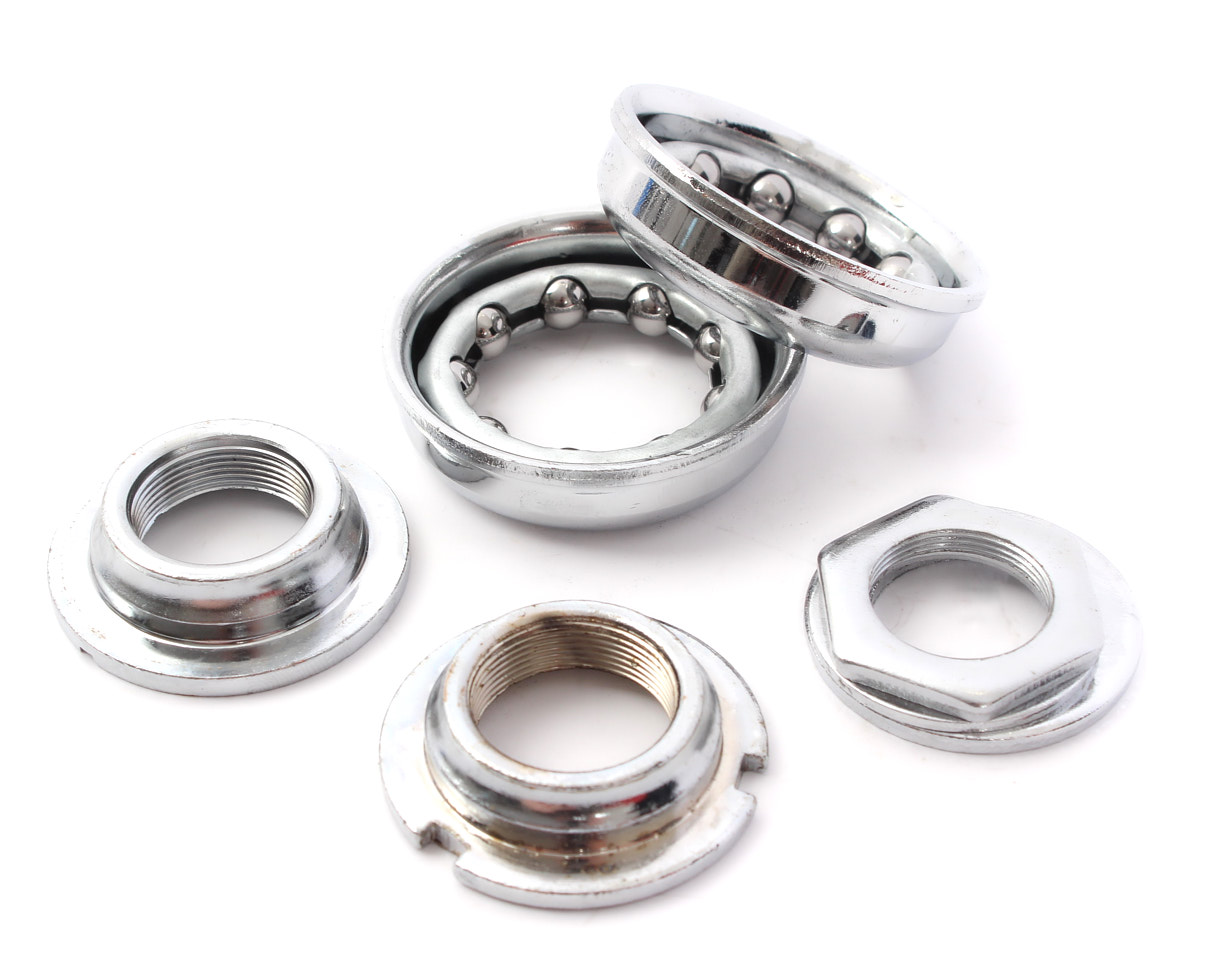

Hint: down in the section accessories is a matching US BB linked
| Material: | HiTen steel |
|---|---|
| Size: | For 1/2" pedals |
| Colour: | Chrome |
| Weight: | 2.47 oz / 70g |
| Length: | 5.98" / 152mm |
Ensure Compatibility:
This crank is designed exclusively for use on BMX bicycles. Use only on bicycles compatible with a one-piece BMX crank.
Installation: Clean the bottom bracket shell, insert the greased bearings, and pass the one-piece crank through the bearings. Attach the chainring using the provided screws and position the spacers correctly. Tighten all screws, remove excess grease, and test functionality with a test ride.
Care and Maintenance:
Clean the crank regularly and lubricate the bearings as needed. Check screws and bearings for proper tightness and wear.
Replace When Worn: Replace the crank immediately if you notice wear, uneven degradation, cracks, or damage.
