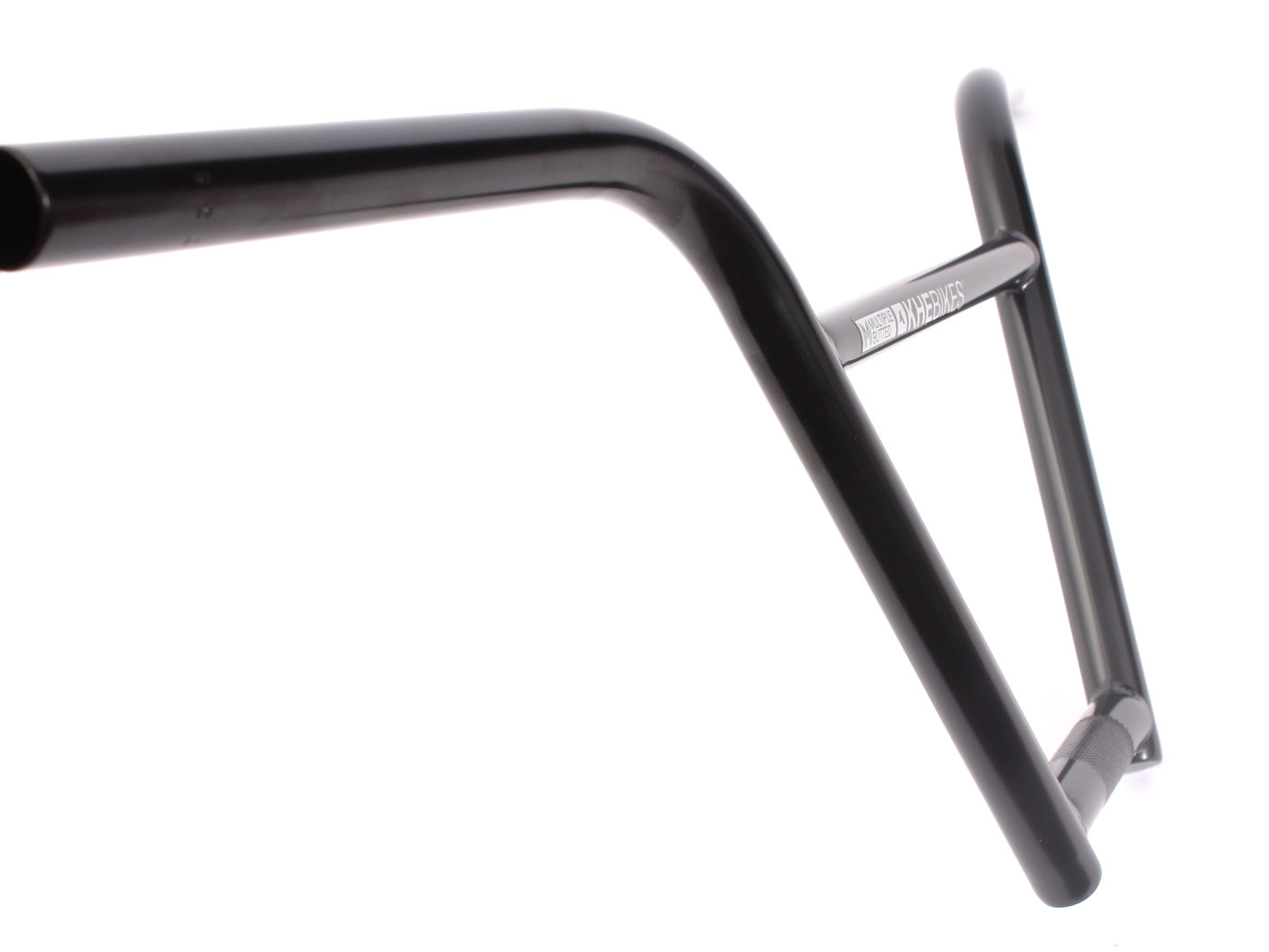

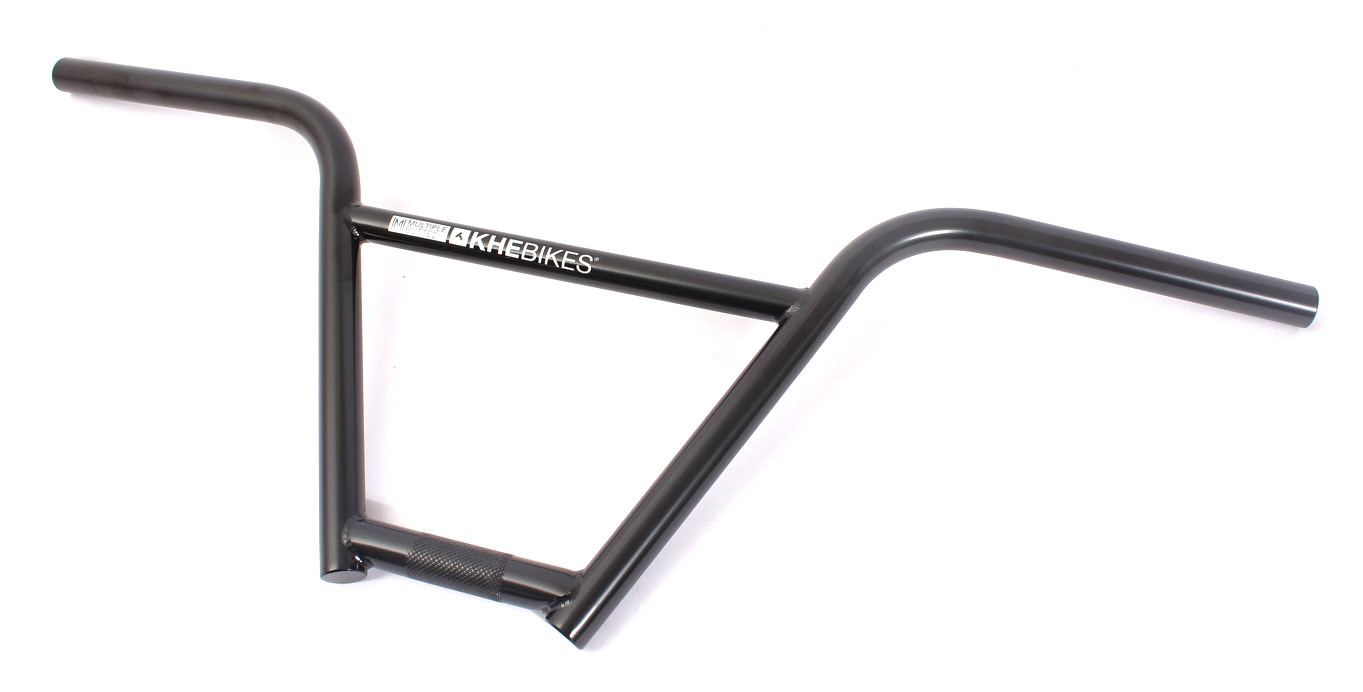

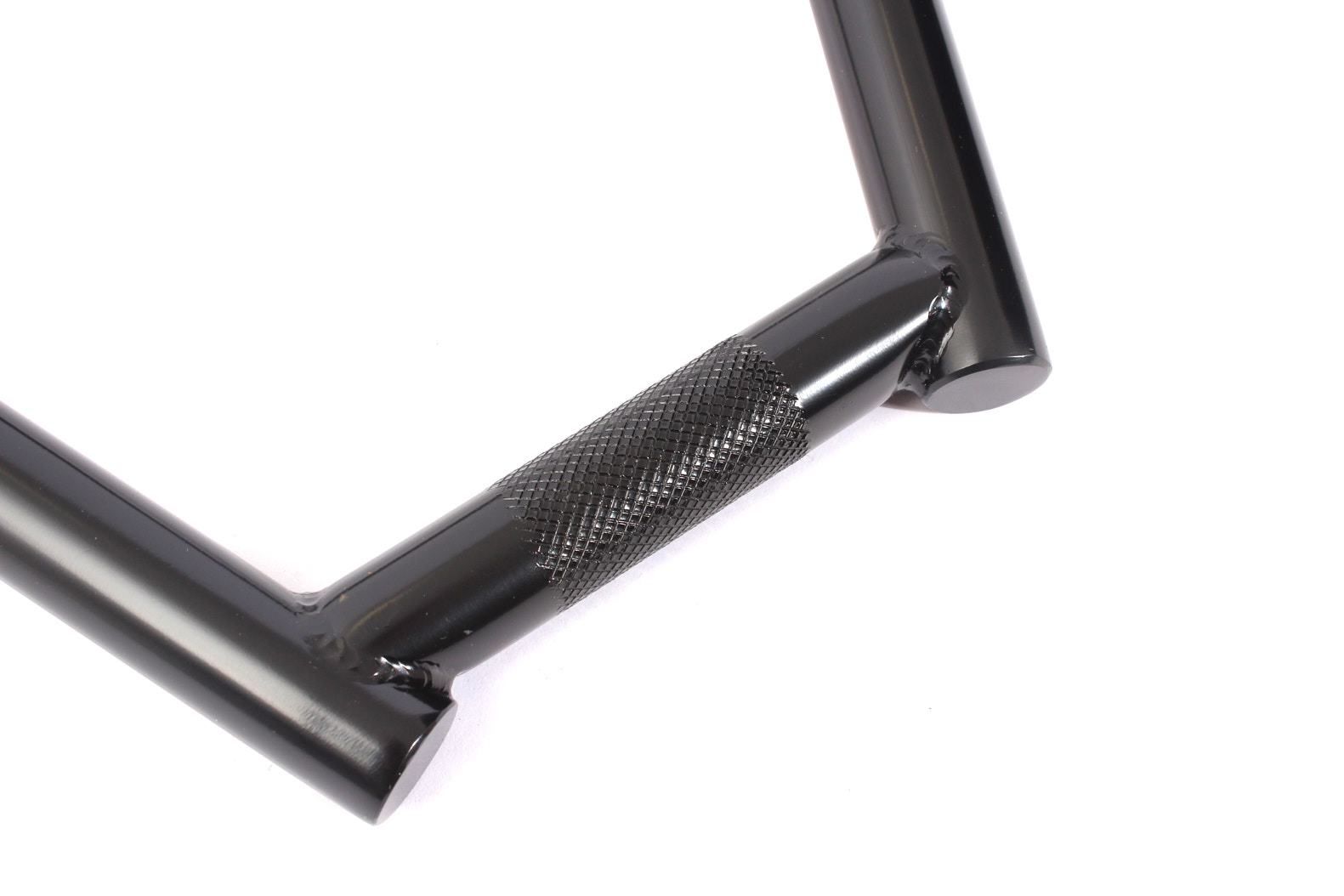

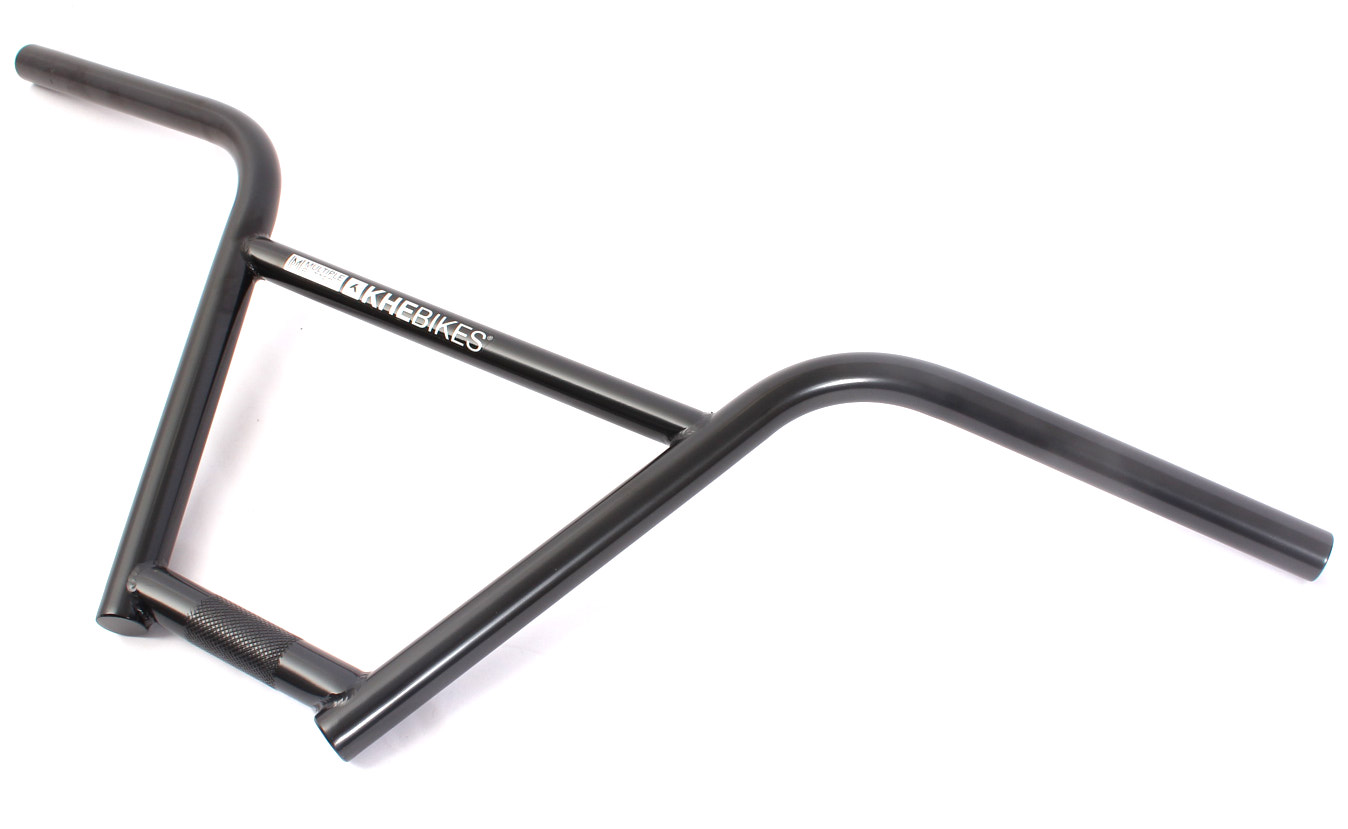

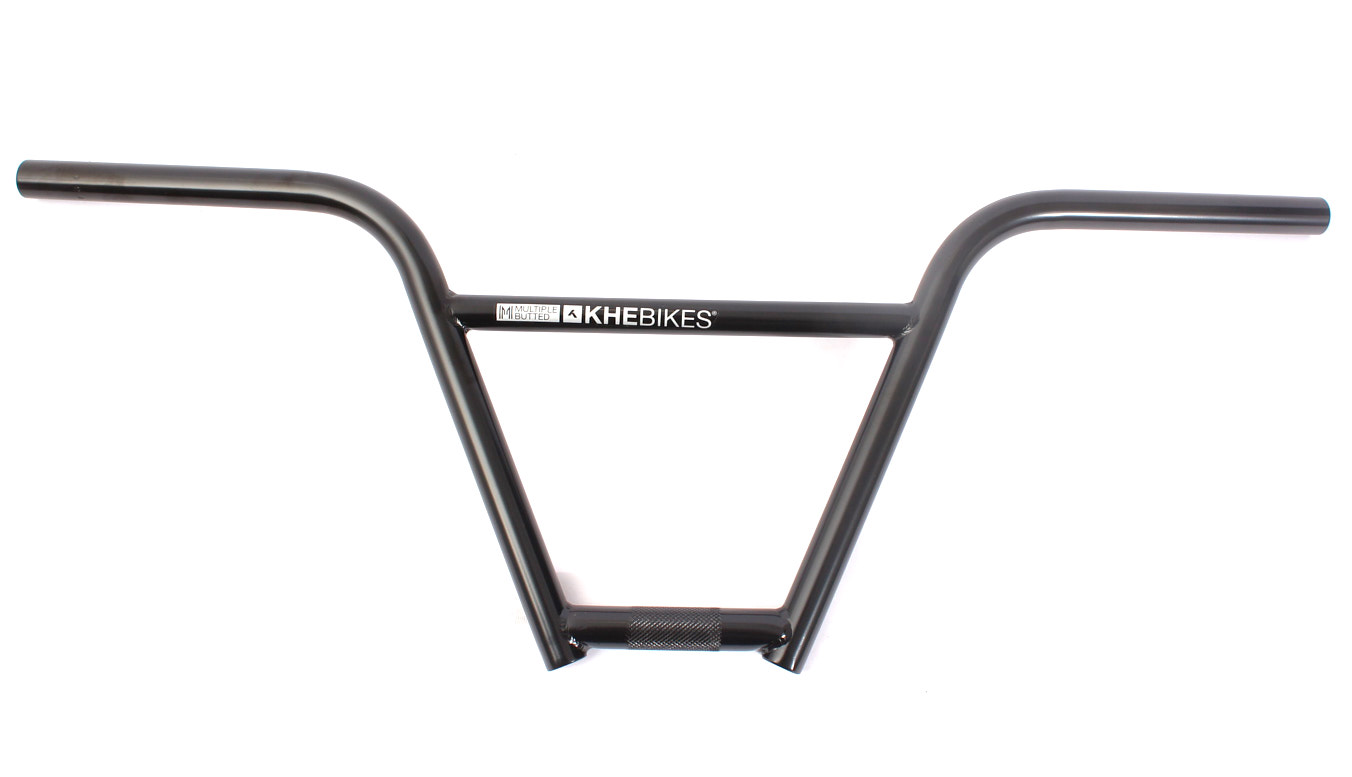

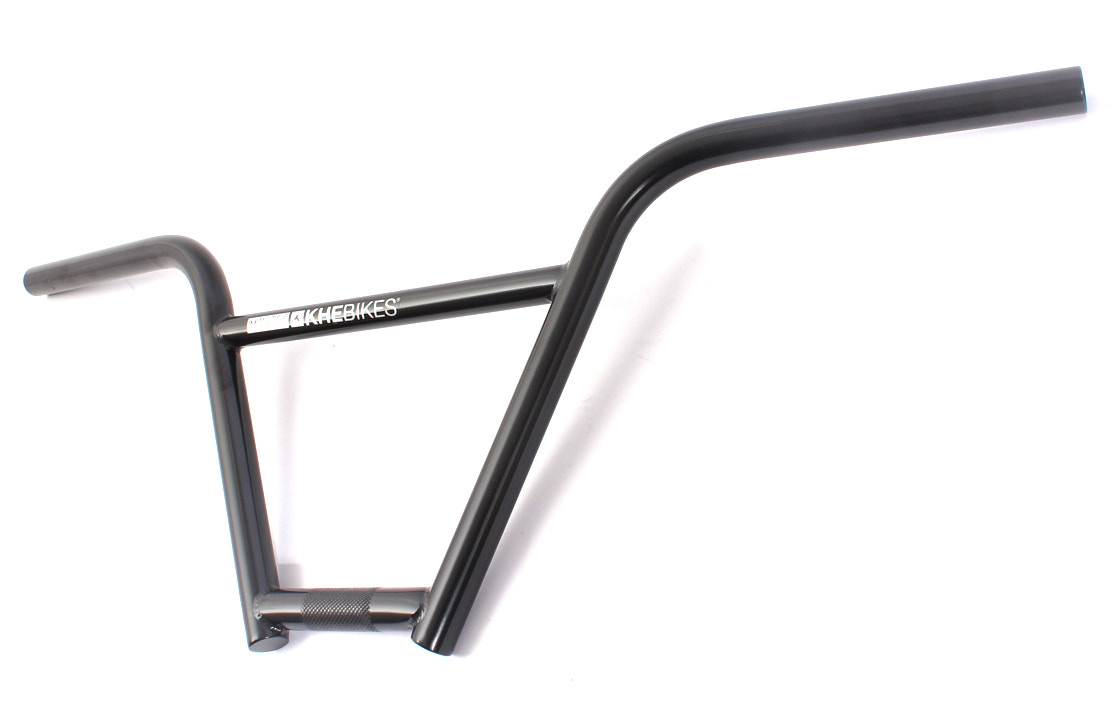

KHE MVP 4-piece multi-butted 4130 CrMo BMX handlebar with a 9" rise.

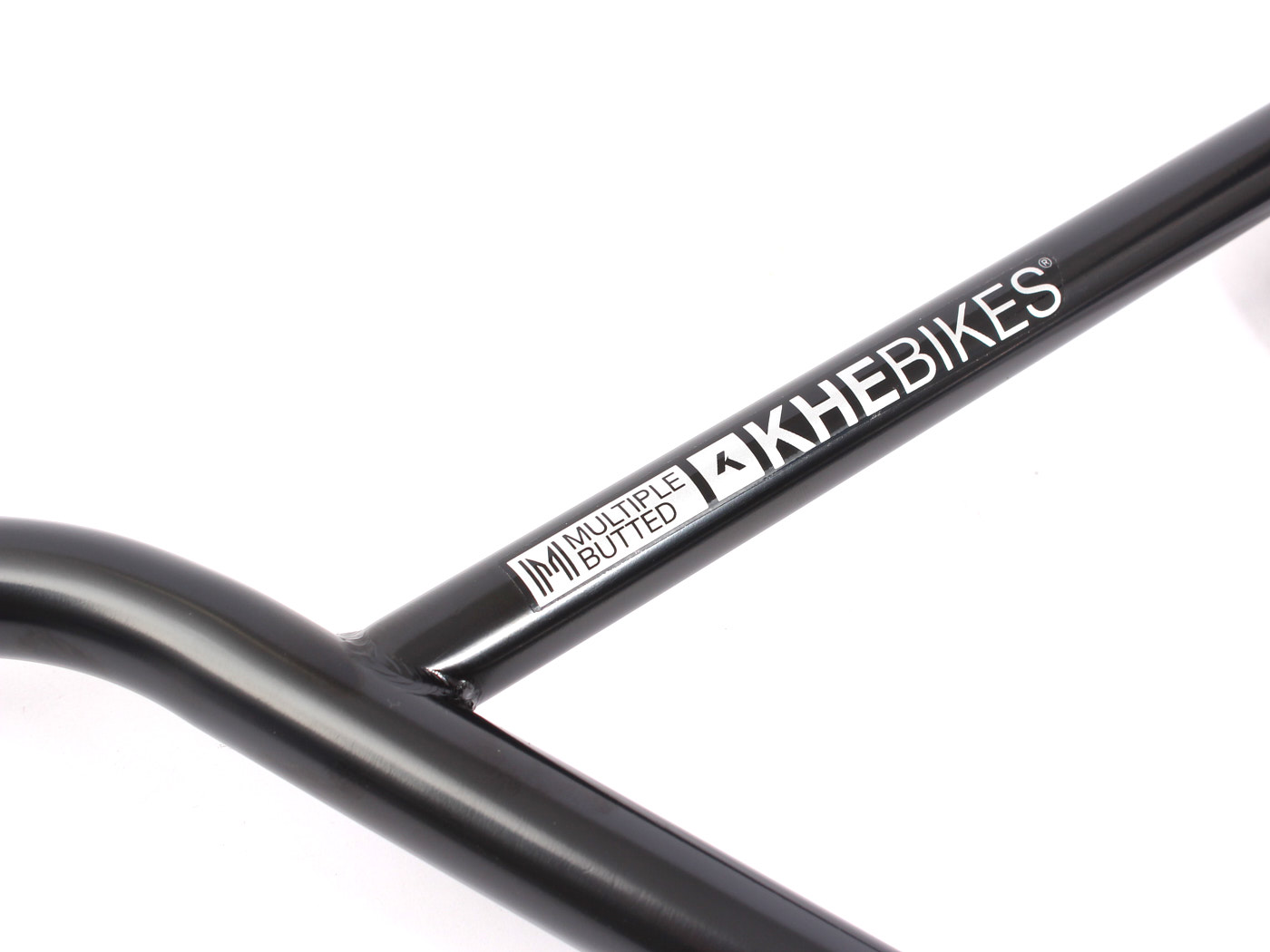

To make the handlebar light yet strong we use multi-butted 4130 CrMo tubes. The tubes have a different wall thickness allowing us to save weight where it is not needed but also strengthen the critical stress areas. This technology was originally co-developed by KHEbikes and is now standard in the high-end segment.
- Production: Butted
| Backsweep: | 10° |
|---|---|
| Clamping diameter: | 0.87" / 22,2 mm |
| Colour: | Black |
| Height: | 9" |
| Material: | 4130 CrMo |
| Upsweep: | 2° |
| Weight: | 1.87 lbs / 850g |
| Width: | 28.98" / 736mm |
Ensure Compatibility: Ensure that the BMX handlebar fits your frame and stem. Proper handlebar clamping is essential for a stable connection. Tighten the handlebar clamp crosswise with 8 Nm.
Suitable for Tricks and Stunts: The handlebar is designed for BMX tricks and hard landings. It is intended exclusively for BMX use.
No Modifications: Do not perform modifications such as drilling or cutting on the handlebar.
Use in Rain: Clean and dry the handlebar after riding in the rain to prevent rust formation.
Regular Inspection for Cracks and Deformations: Regularly inspect the BMX steel handlebar for cracks, deformations, or hairline cracks, especially at the weld seams. Replace the handlebar immediately if cracks or damage are found.
