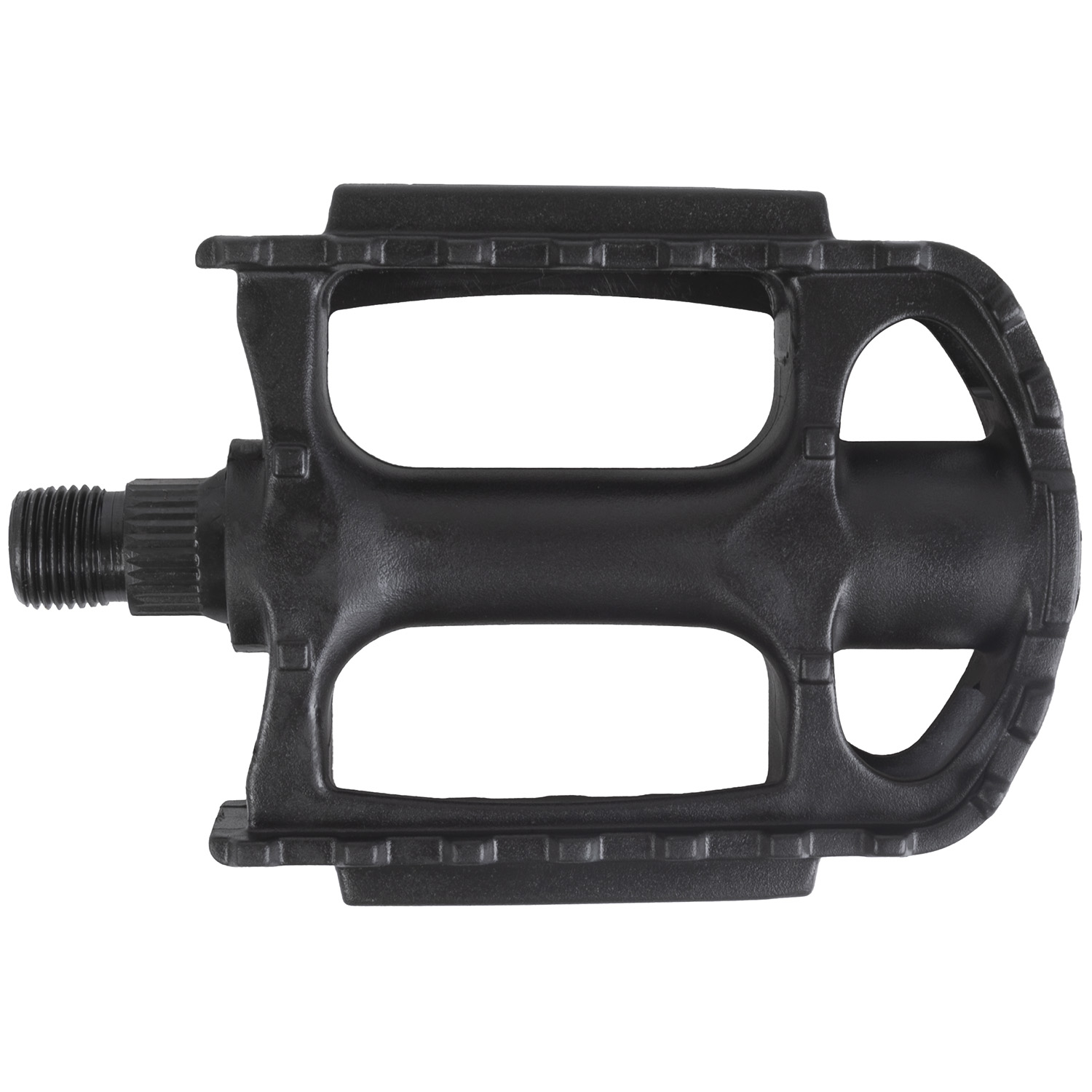

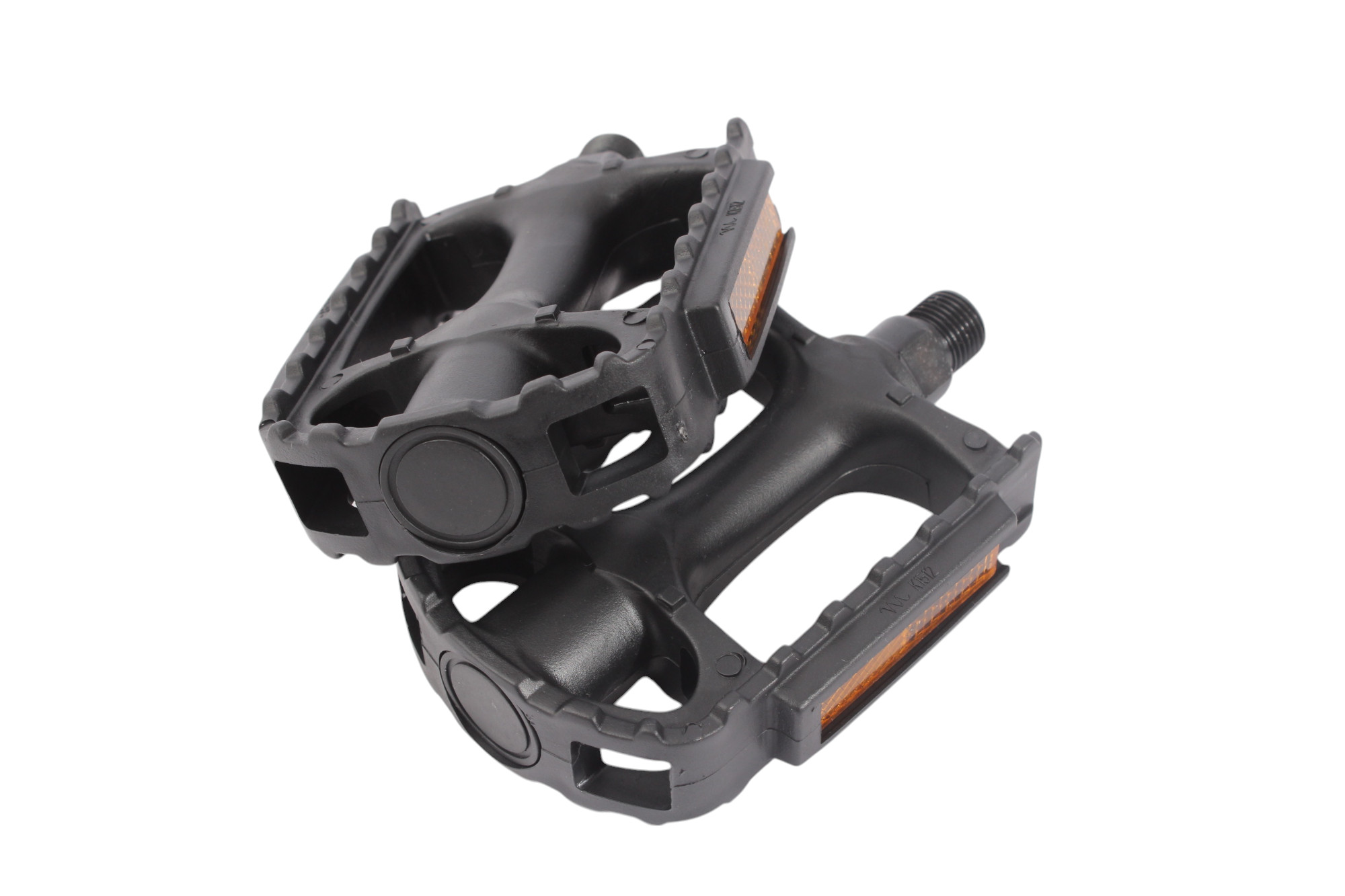

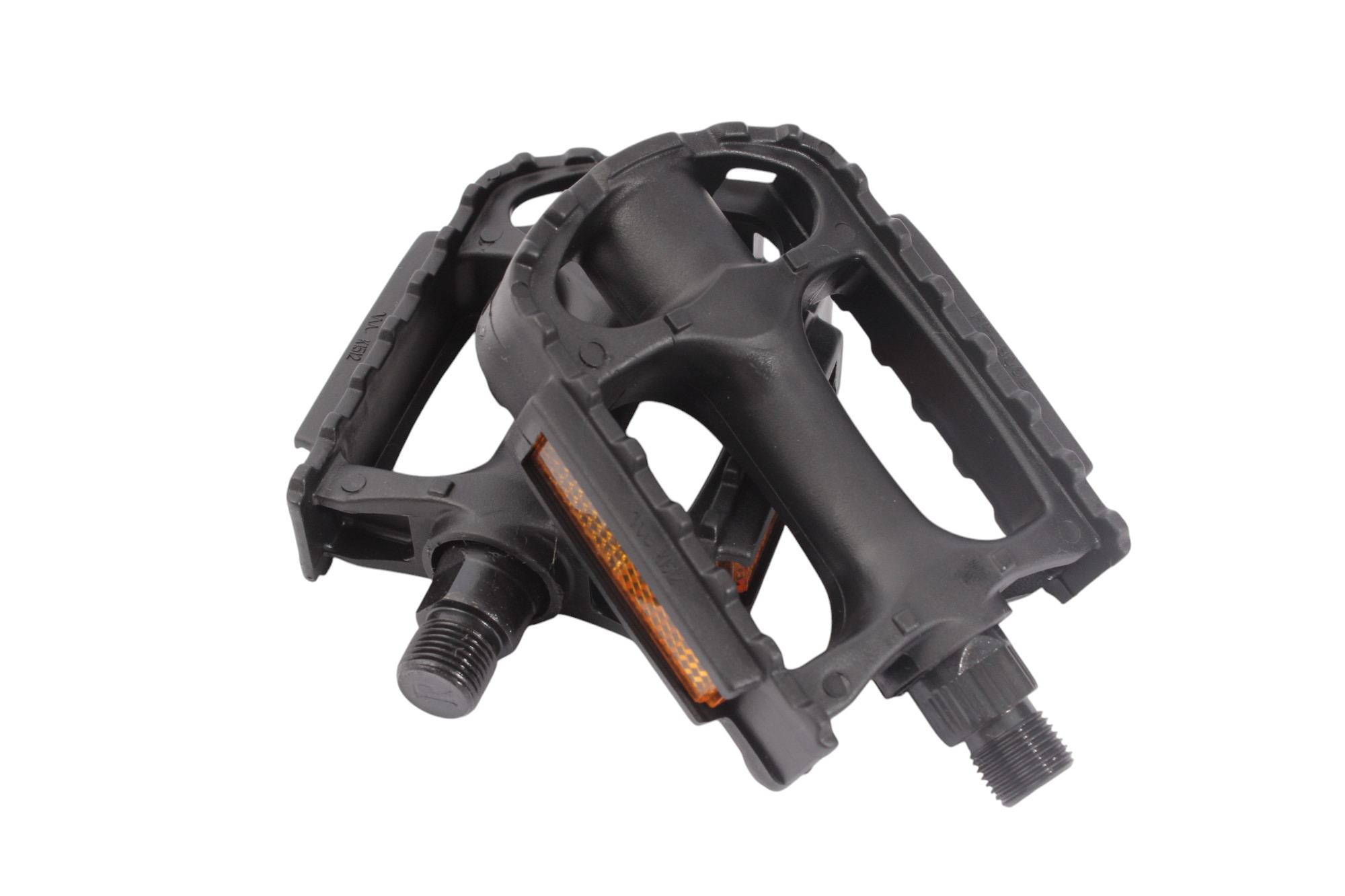

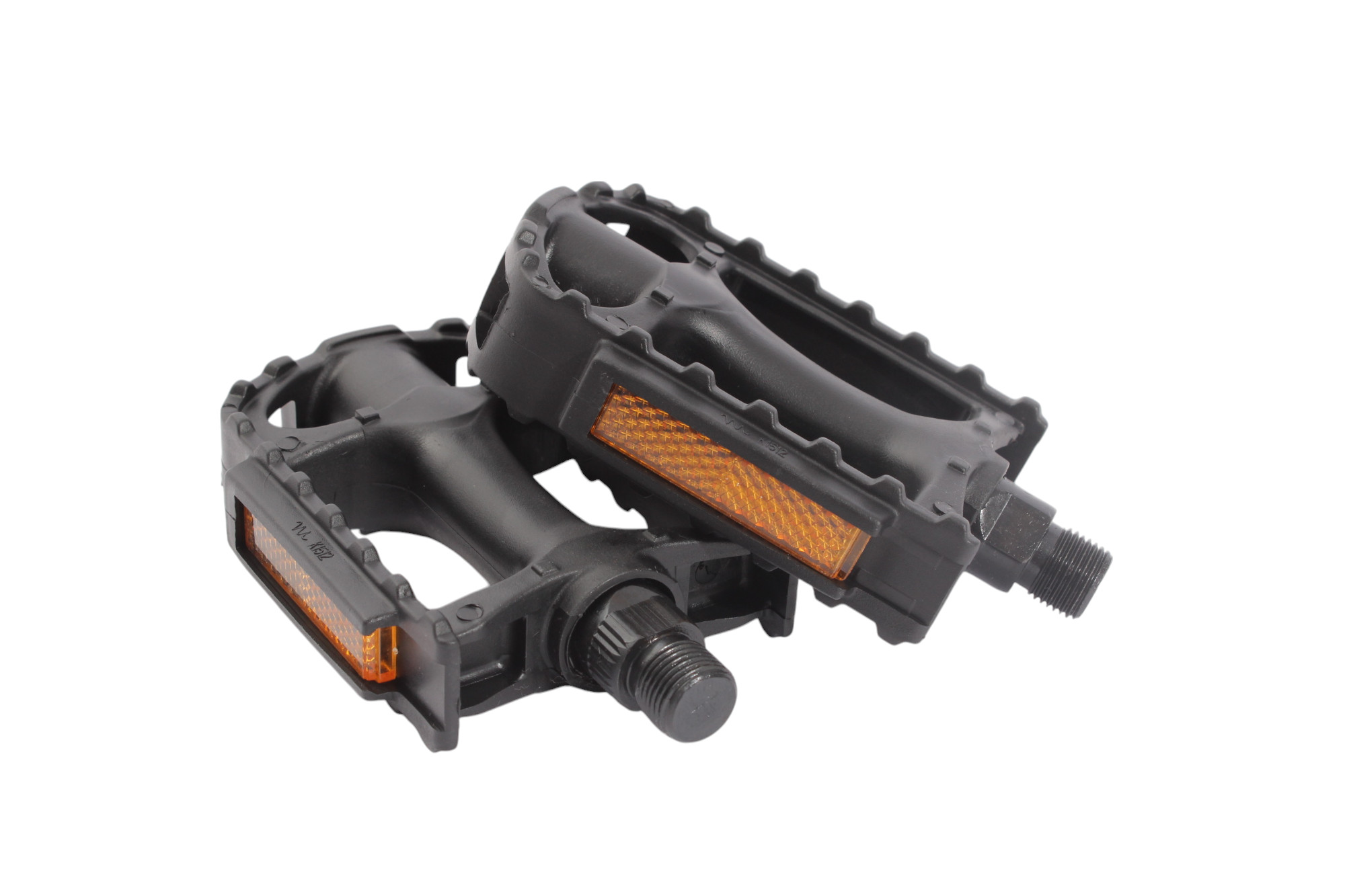

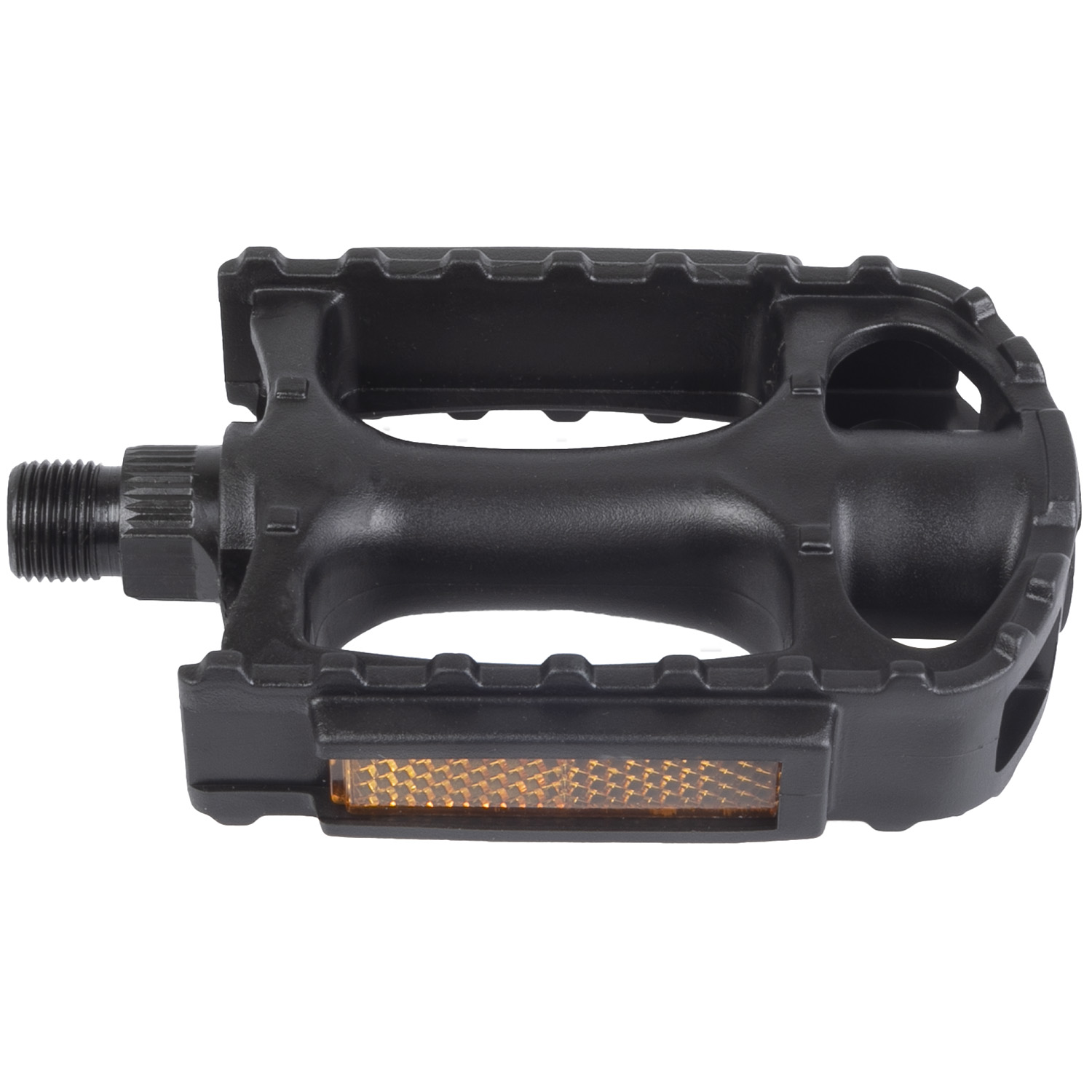

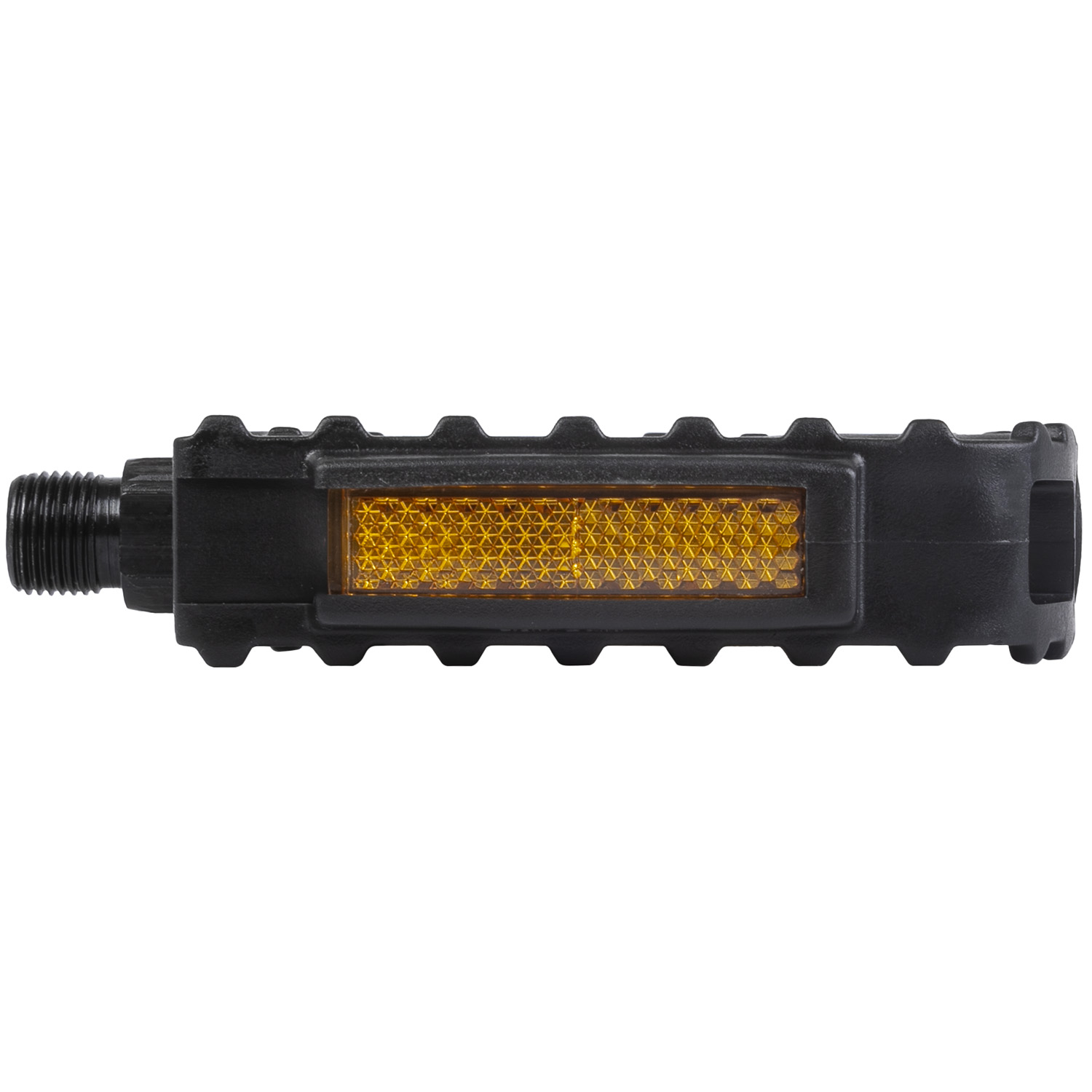

MTB Fixie Pedals PVC Prism 9/16 Inch Plain Bearing
This affordable pedal has a black plastic body and features reflectors for better visibility. The plain bearing makes the ride particularly smooth. These pedals are very light at just 238g.
Overview of data:
- Brand: PRISM
- Dimensions: 95 x 72.5mm
- Height: 26mm
- Material: Plastic
- Axle Material: Steel
- Thread Size: 9/16" Inch
- Plain Bearing
- Weight: only 238g (pair)
- Suitable for 3-piece cranks
| Pedals: | Light & sturdy 9/16" aluminium pedals |
|---|---|
| Material: | PVC |
| Colour: | Black |
| Weight: | 8.4 oz / 238g |
| Product group: | MTB pedals |
| Axle diameter: | 9/16 Zoll |
| Width: | 3.74" / 95 mm |
| Length: | 28.54" / 72,5cm |
Ensure Compatibility:
These PVC pedals are designed exclusively for use on MTB/Fixie bicycles. They are not suitable for other bicycle types or mechanical applications.
Installation: The pedals are marked with a left-hand thread (L) and a right-hand thread (R). Install each pedal on the corresponding side of the bicycle. Tighten the pedals using a torque wrench: 35–40 Nm. Apply a small amount of lubricant to the threads and check after installation that the pedals rotate freely without resistance.
Care and Maintenance:
Clean the pedals regularly with a damp cloth to remove dirt, mud, or dust that may affect their performance.
Inspect the pedal bearings and axle regularly for play or wear. If necessary, lubricate the bearings with suitable grease.
Replace When Worn: Replace the pedals immediately if you notice wear, uneven degradation, cracks, or damage.
