$32.95*
Available, delivery time: 5-10 business days **

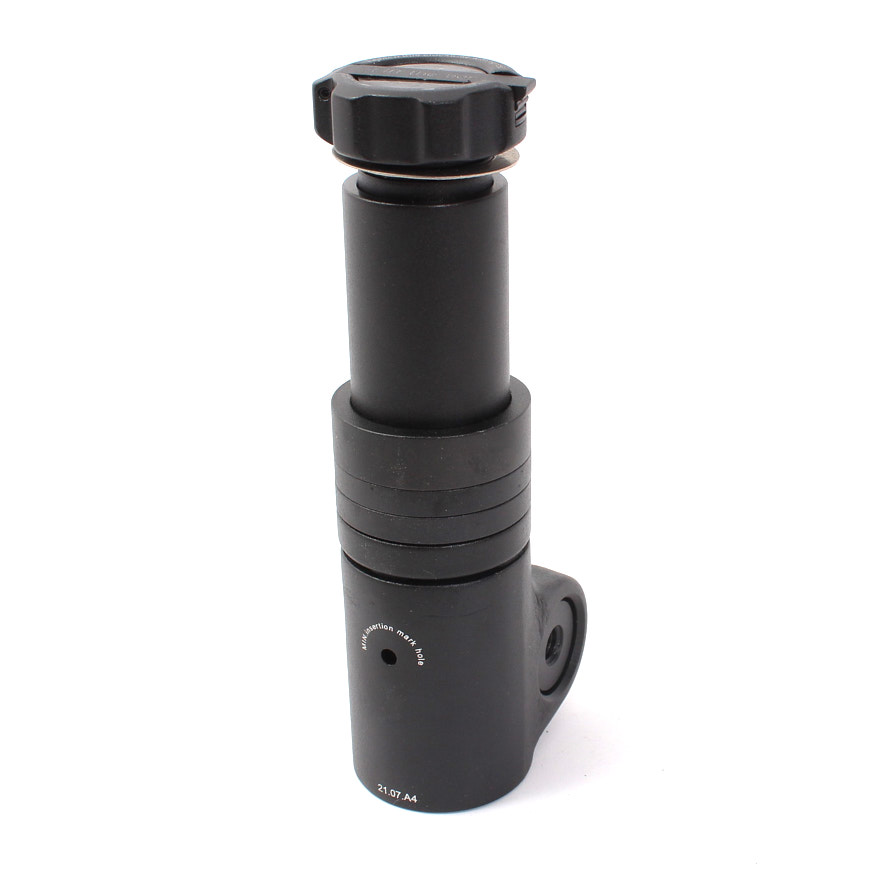

Ahead 1 1/8 inch height adapter
What makes this height adapter special is that you can adjust the handlebars by 90 degrees using a mechanism above the stem adapter. This is perfect if you want to park your bike in a car, streetcar or basement to save space. The height adapter for Ahead stems from the quality manufacturer Satori is ideal for positively influencing the geometry of the bike. If you have back problems, you can use this adapter to raise the stem or handlebars by up to 65 mm and thus achieve a straight sitting position. The height adjustment can be set individually using the three spacer rings.
- For 1 1/8” stem diameter
- Can be rotated 90° to the side without tools
- Height-adjustable thanks to 3 spacer rings
- Aluminum material
| Material: | Aluminum |
|---|---|
| Colour: | Black |
| Weight: | 9.95 oz / 282g |
| Product group: | MTB stem |
| Type: | MTB/Fixie |
| Shaft diameter: | 1 1/8" |
Product Safety Instructions for MTB SATORI 90-Degree Rotatable Ahead Height Adapter:
No Modifications: Do not make modifications such as drilling or cutting on the adapter.
Installation:
The bolts on the stem must be correctly tightened to 6-8 Nm, and the handlebar clamp (steerer tube clamp) to 10-12 Nm.
Regular Inspection for Cracks and Deformations: Regularly check the adapter for cracks, deformations, or hairline fractures. Replace the adapter immediately if cracks or damage are found.
