US$10.84*
Available, delivery time: 5-15 business days **

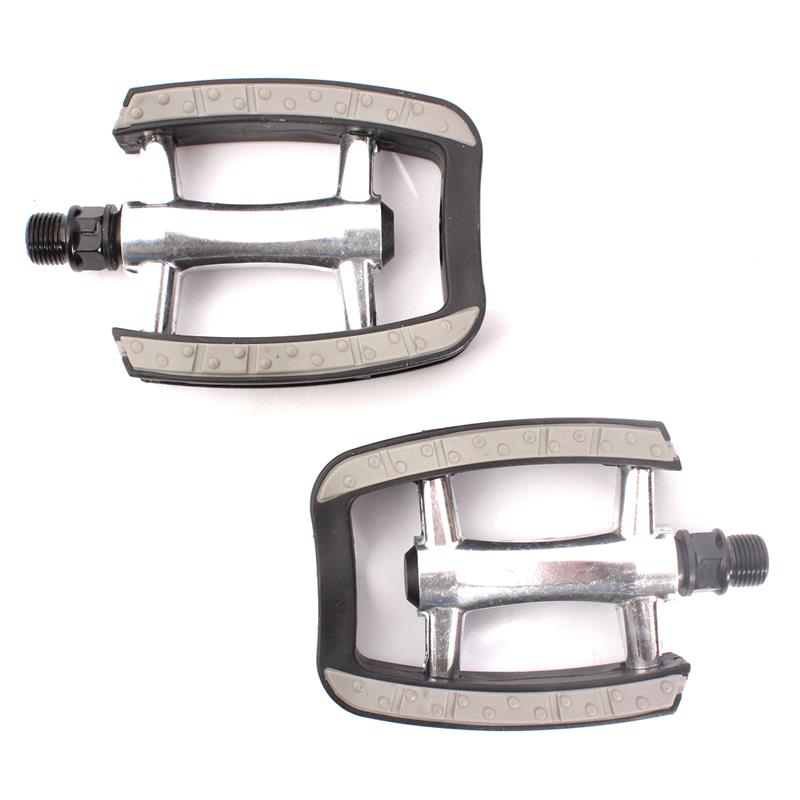

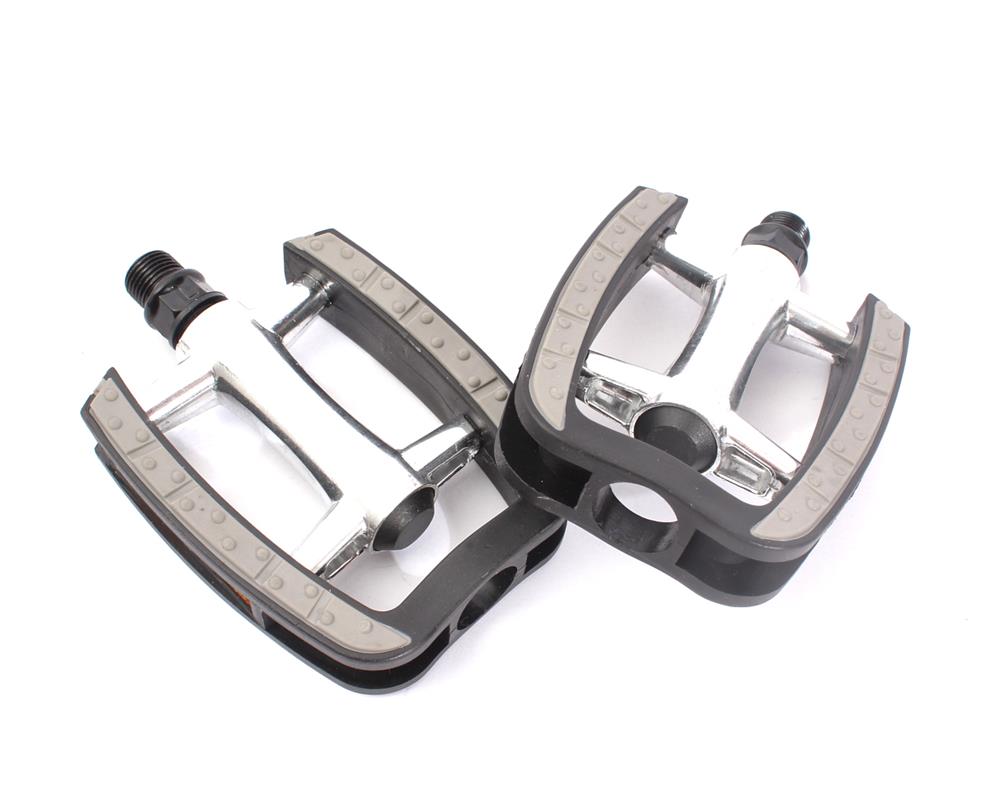

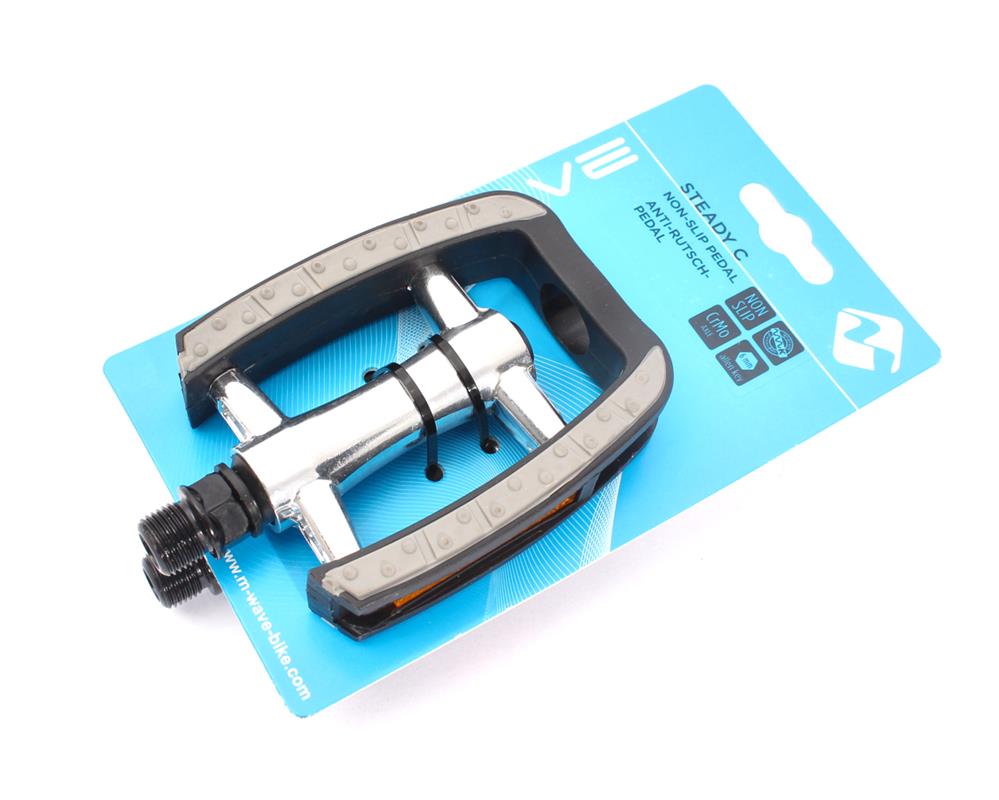

MTB Bike Pedals KHE A9 9/16 inch aluminum
This MTB pedal is approved for use in accordance with the Road Traffic Licensing Regulations (StVZO) in Germany. Here is a summary of the technical details:
- -axle: chrome-molybdenum steel (CrMo) for increased stability and durability.
- -Mounting: It can be mounted with an Allen key (probably 6 mm) as well as with a 15 mm open-end wrench.

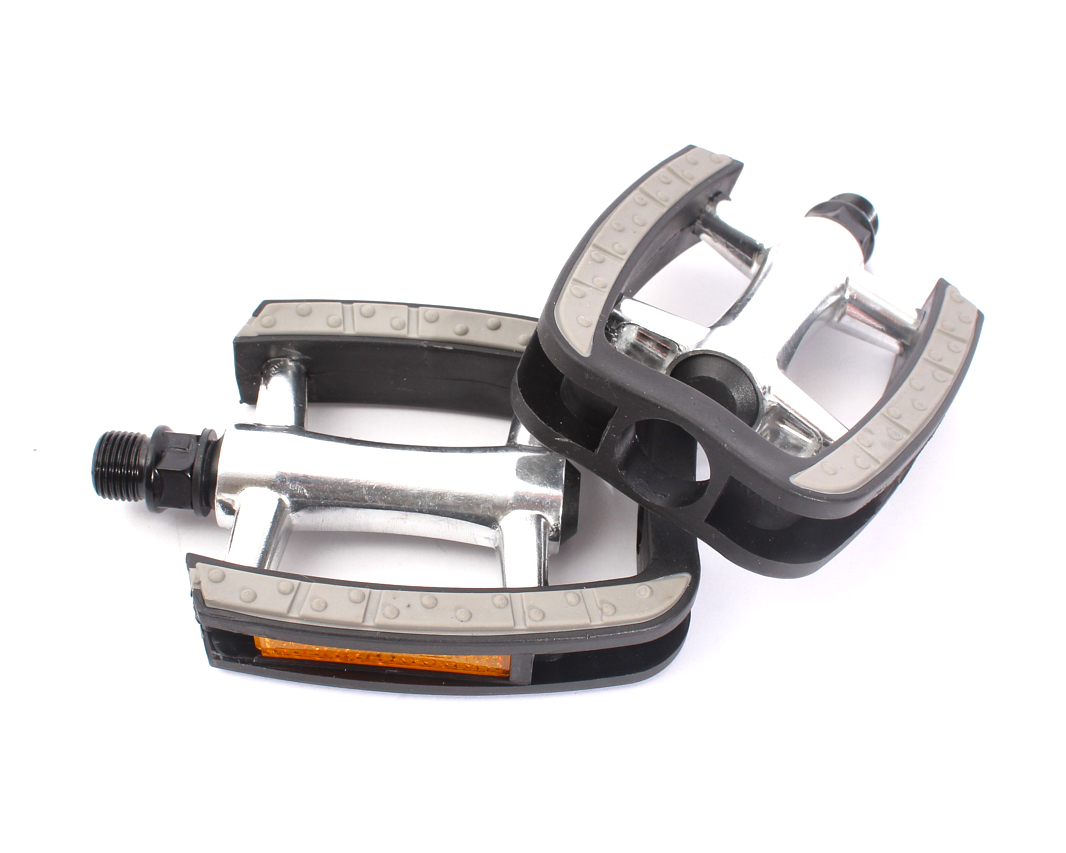

- -Reflectors: Integrated to meet StVZO requirements, which is important for use on public roads.
- Anti-slip pad: Provides additional grip, particularly useful off-road or in wet conditions.
- -Pedal body: Made of aluminum, which ensures a good ratio of weight to stability.
- -Pedal axle: Made of CrMo (chrome-molybdenum), known for its high load capacity.
- -Pedal cage: Made of thermoplastic, a material that is light yet strong.
- -Thread size: Standard 9/16” axle, suitable for most MTB cranks.
- -Bearing: Equipped with ball bearings to ensure low-friction and long-lasting rotation.
- -Dimensions: Width/depth 95 mm, length 80 mm.
The pedal offers a good combination of lightweight construction, durability and the necessary safety features for road use.
| Axle diameter: | 9/16 Zoll |
|---|---|
| Colour: | Silver |
| Material: | Plastic/aluminum |
| Weight: | 10.93 oz / 310g |
| Width: | 3.74" / 95 mm |
Ensure Compatibility:
These aluminum pedals are designed exclusively for use on MTB bicycles. They are not suitable for other bicycle types or mechanical applications.
Installation: The pedals are marked with a left-hand thread (L) and a right-hand thread (R). Install each pedal on the corresponding side of the bicycle. Tighten the pedals using a torque wrench: 35–40 Nm. Apply a small amount of lubricant to the threads and check after installation that the pedals rotate freely without resistance.
Care and Maintenance:
Clean the pedals regularly with a damp cloth to remove dirt, mud, or dust that may affect their performance.
Inspect the pedal bearings and axle regularly for play or wear. If necessary, lubricate the bearings with suitable grease.
Replace When Worn: Replace the pedals immediately if you notice wear, uneven degradation, cracks, or damage.
