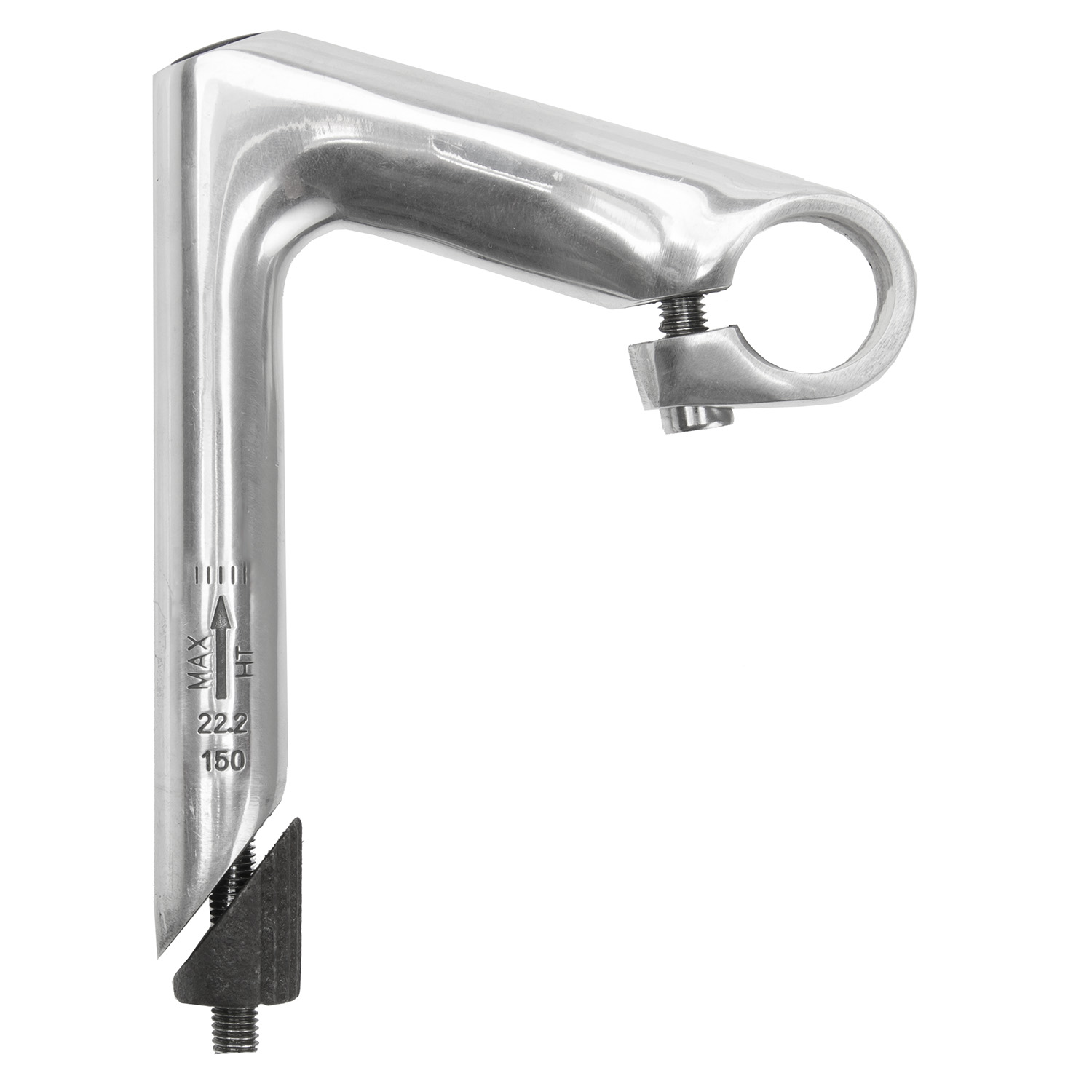

Stem RETRO KHE Ext 100mm
Retro road bike / fixie stem. Handlebar stem made of aluminum with an angle of -17 degrees. This silver polished stem is suitable for a fork diameter of 22.2mm (inner) or 25.4mm (outer).
- Brand: KHE
- color silver
- 17 degree angle
- handlebar clamping dimension: 25.4mm
- Stem diameter 22.2mm (inside)
- Height: 150mm
- Length: 100mm
| Colour: | Silver |
|---|---|
| Weight: | 12.2 oz / 346g |
| Product group: | MTB stem |
| Type: | MTB/Fixie |
| For fork: | 1" |
| Length: | 5.91" / 150mm |
| Shaft diameter: | 1'' |
Product Safety Instructions for Shaft Stem RETRO KHE Ext 100mm:
No Modifications: Do not make modifications such as drilling or cutting on the stem.
Installation:
Tighten the handlebar clamp bolts to a torque of 6-8 Nm to ensure a firm, even fit. The fork steerer clamp bolts should be tightened to a torque of 10-12 Nm.
Regular Inspection for Cracks and Deformations: Regularly check the stem for cracks, deformations, or hairline fractures. Replace the stem immediately if any cracks or damage are found.
KHE GmbH & Co. KG
Am Hambiegel 3
76706 Dettenheim
Germany
