KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, sophisticated engineering, and outstanding ride dynamics. The new 2025 models offer optimized geometry, thoughtful details, and high-quality components – directly from the manufacturer for top performance on any terrain.

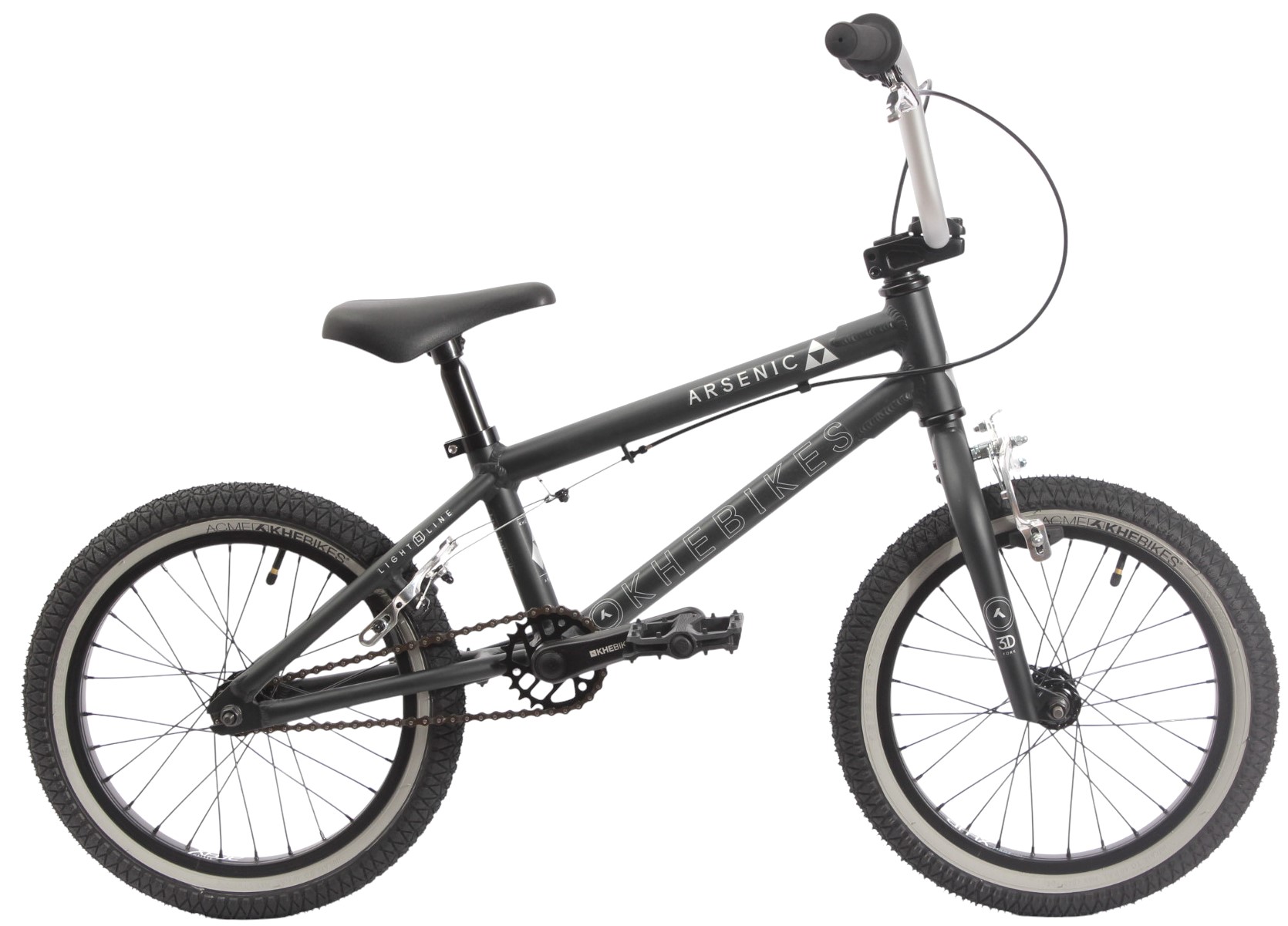

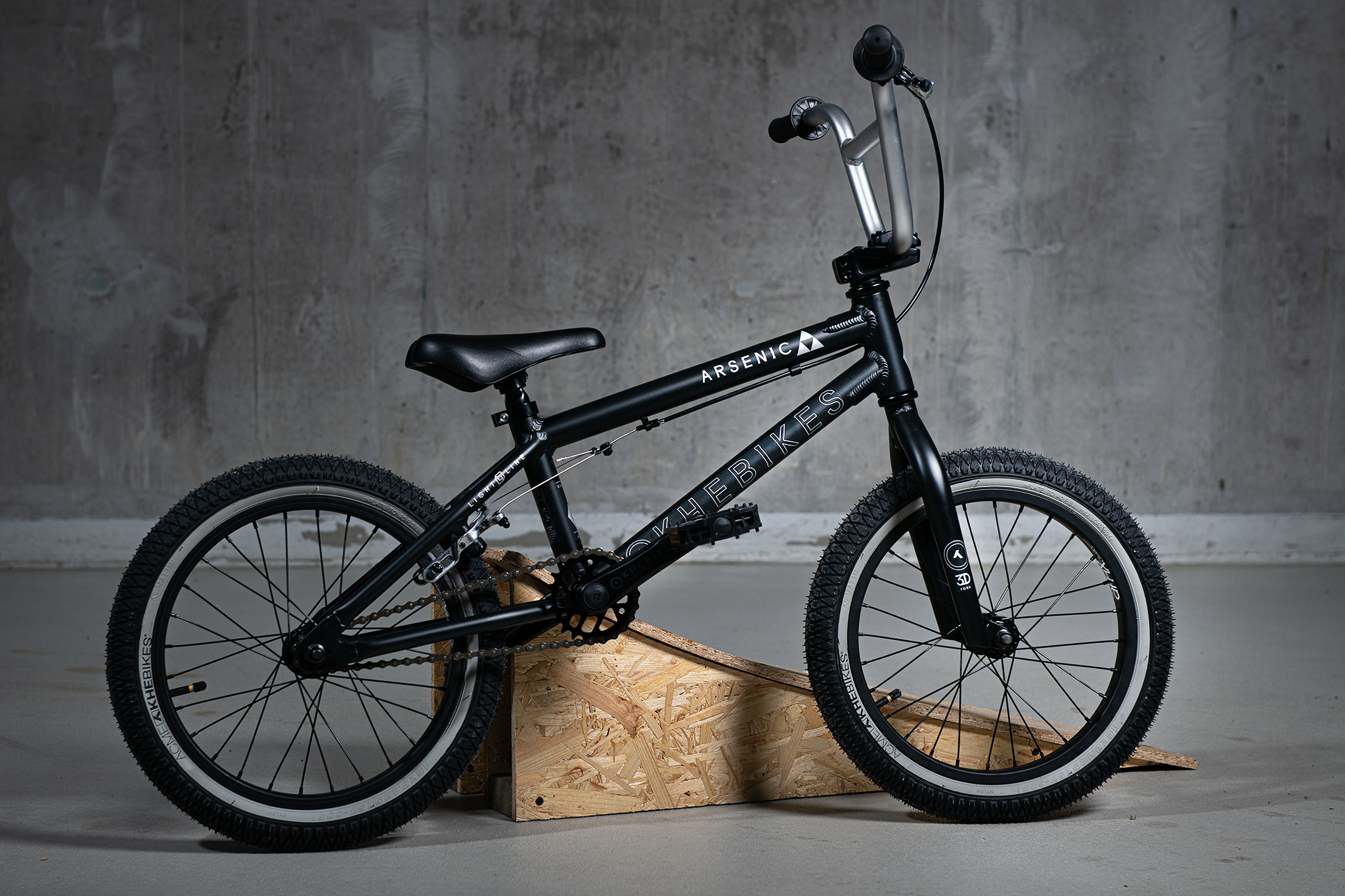

KHE ARSENIC LL 16" BMX
The KHE ARSENIC LL is an extremely lightweight 16-inch BMX designed for young beginners eager to start with a high-quality and well-thought-out bike. Weighing only 8.0 kg (17.6 lbs), it is among the lightest bikes in its class – perfect for children riding on pump tracks, in parks, or on the street.

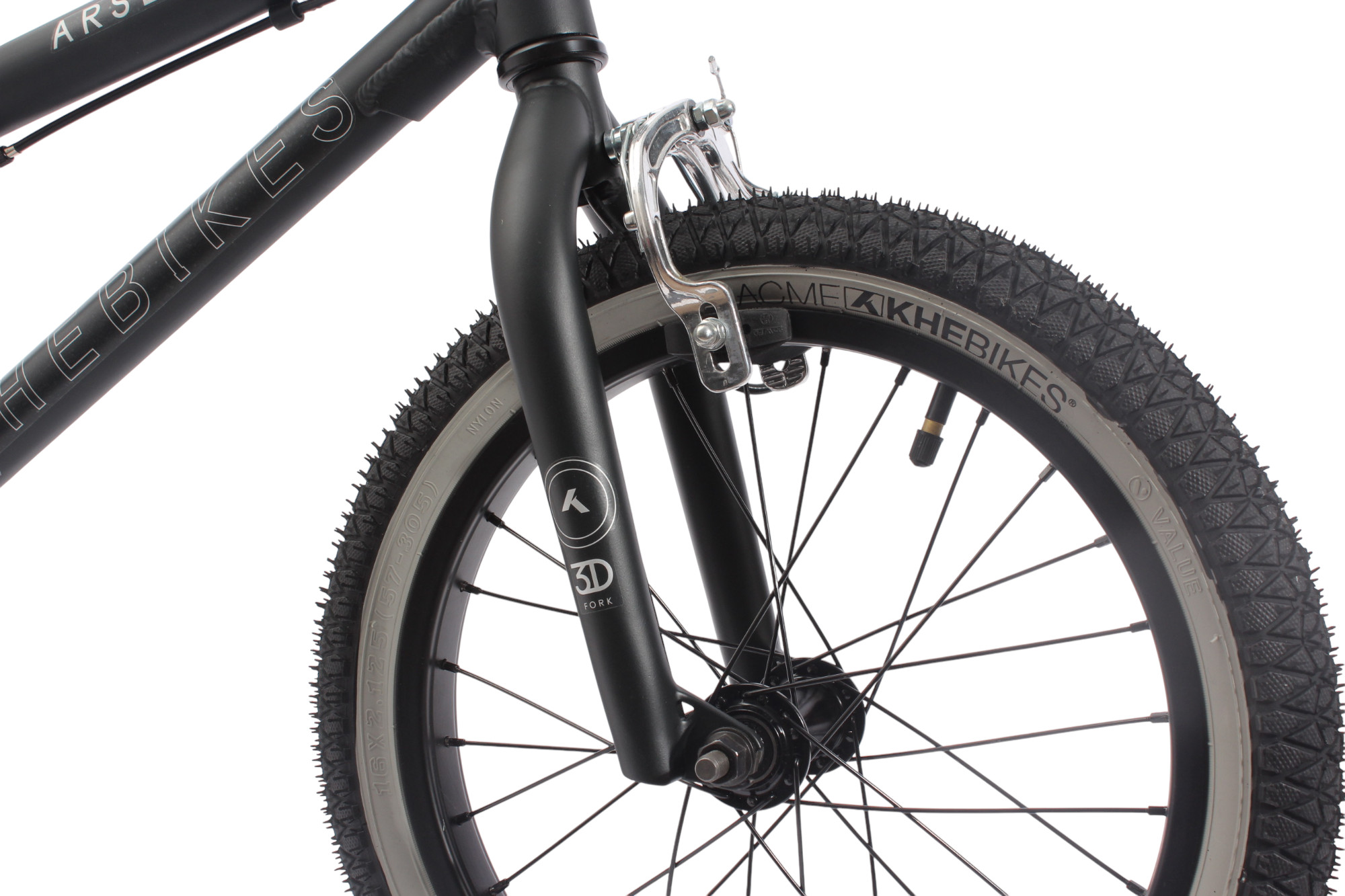

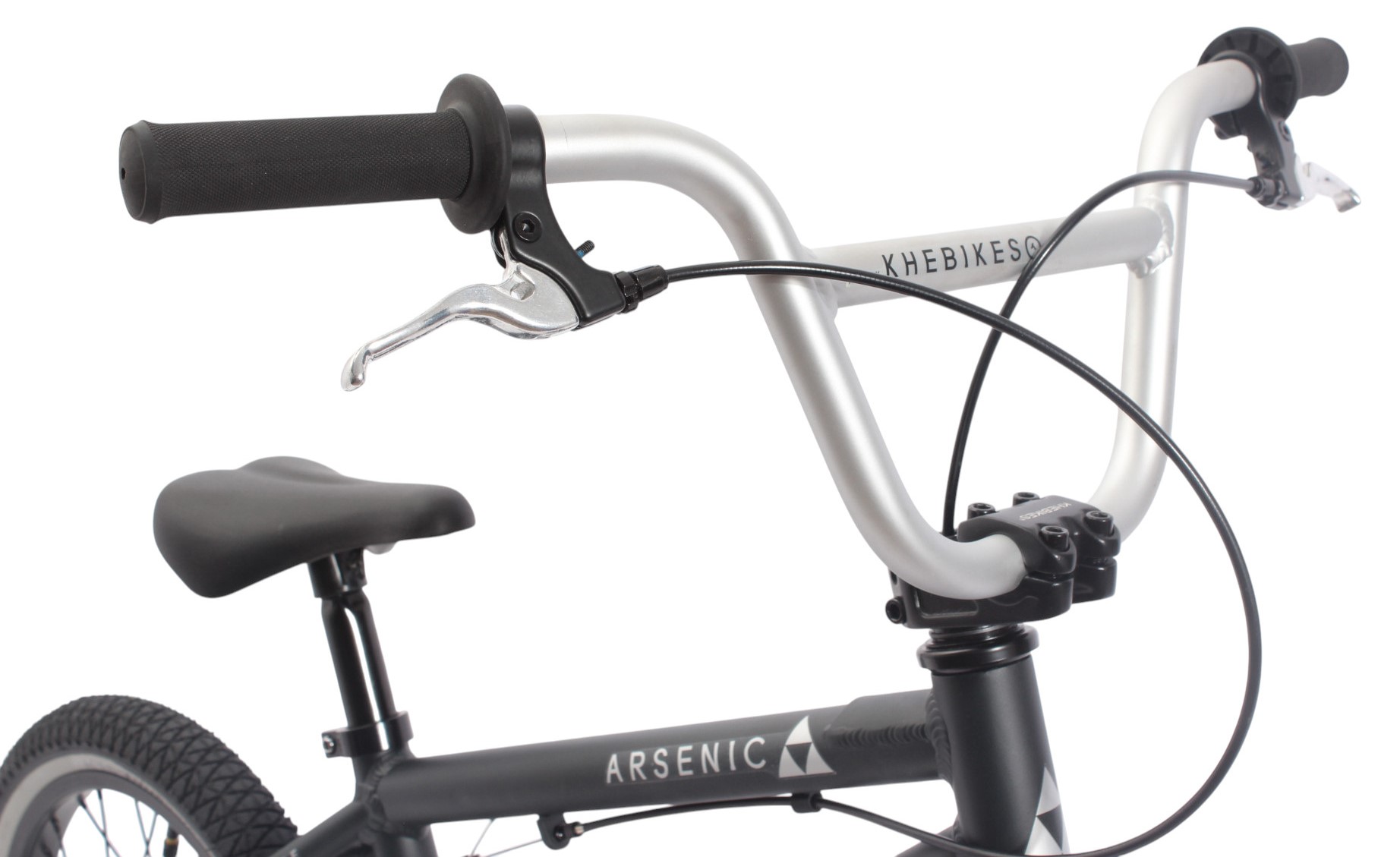

The lightweight aluminum frame with a top tube length of 15.8 inches offers optimal control for smaller riders. It is complemented by a robust fork with 3D dropouts and a modern design in sand black. The 640 mm wide aluminum handlebar in silver ensures a safe and comfortable steering experience.

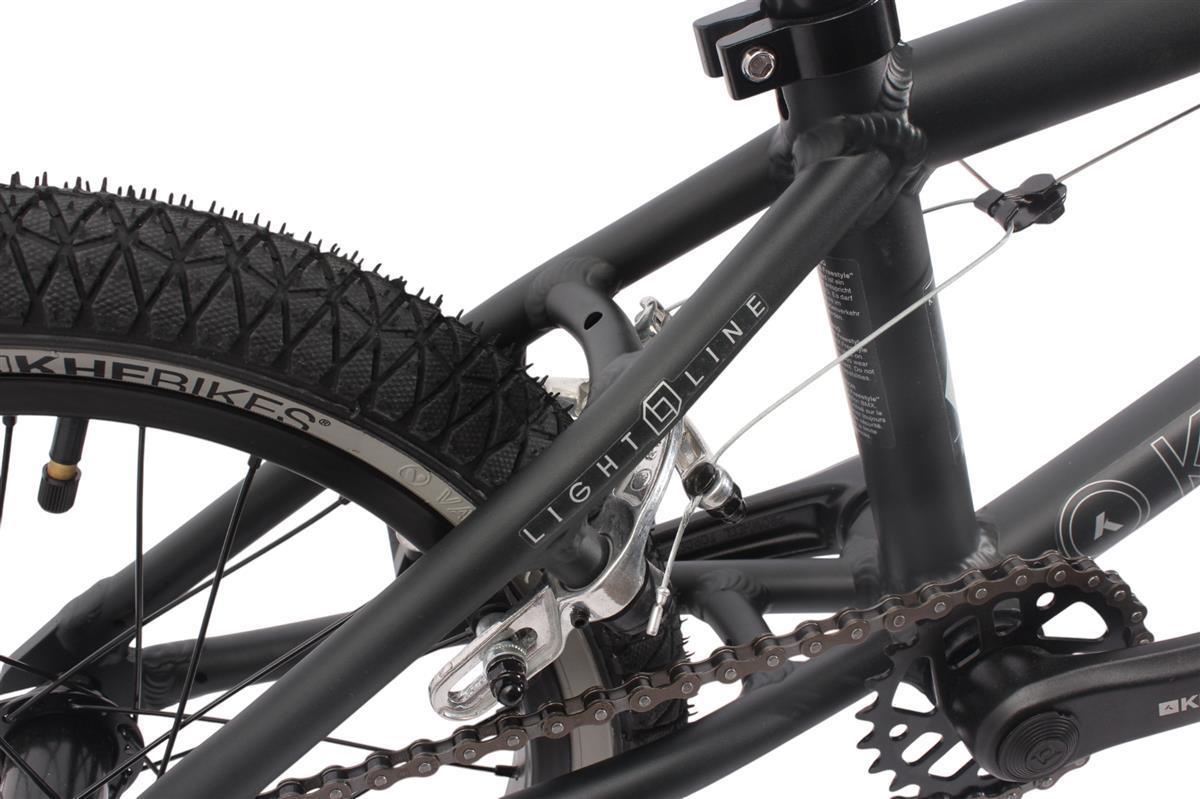

The 3-piece aluminum crank with a length of 127 mm, the 23T steel chainring, and the sealed Euro bottom bracket provide efficient power transmission. Braking is handled by a rear U-brake and a front side-pull brake. The two-tone tires with a black tread and gray sidewalls, along with the silver components, add visual accents.
Recommended rider height: 110–130 cm (3'7"–4'3")
Maximum rider weight: 60 kg (132 lbs)
Suitable for: Park, Street, Pumptrack
Why choose the ARSENIC LL 16" from KHEbikes:
- Only 8.0 kg (17.6 lbs) – one of the lightest BMX bikes for kids
- Sturdy aluminum frame with optimal geometry
- Aluminum handlebar for excellent handling
- Durable 3-piece aluminum crank & sealed bottom bracket
- Stylish look with two-tone tires & silver components
Pegs: Suitable pegs for the ARSENIC LL 16" are 10 mm at the front and rear. We recommend the COP aluminum pegs.
The BMX bike is approximately 90% pre-assembled. The user manual can be found under “Datasheets”. An assembly video is available under “Video”.

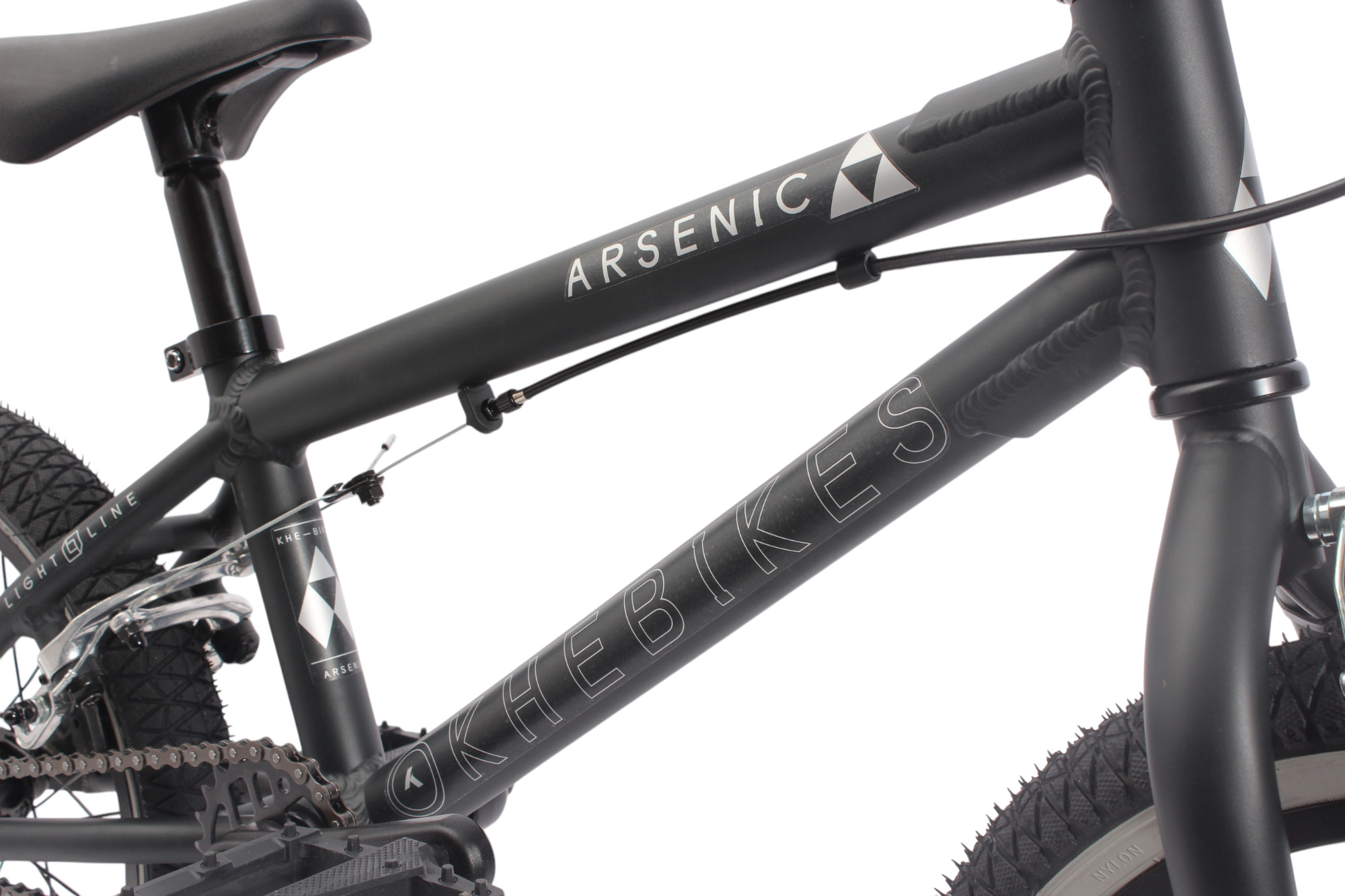

| Frame: | KHE 6061 aluminum, 10mm dropouts, top tube 15.85" (403mm), CS 292mm, HT 75°, ST 72°, A-headset 1 1/8", headtube 41 / 34mm |
|---|---|
| Top tube length: | 15,85" (403mm) |

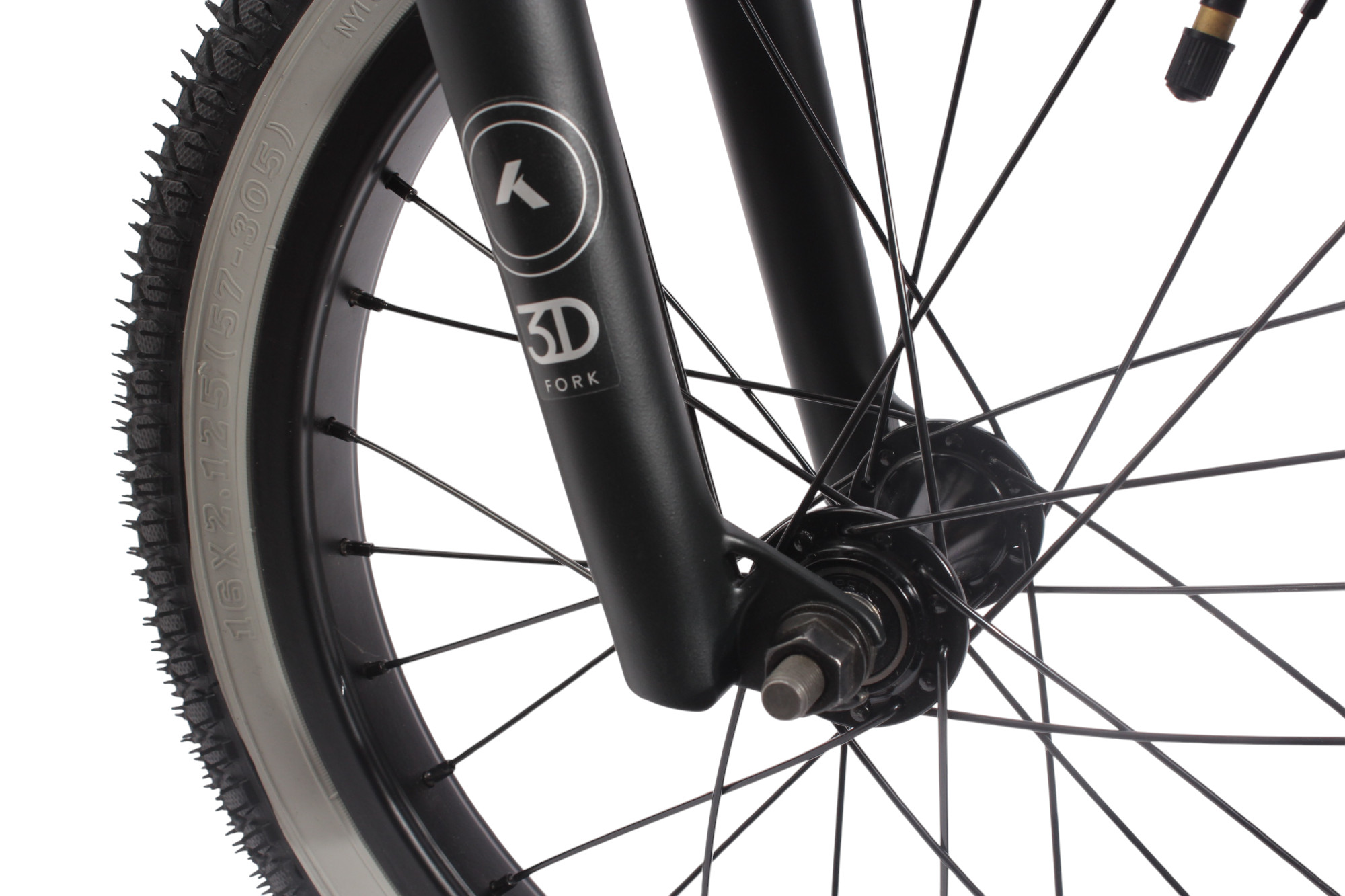

| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |
| Handlebars: | KHE 6061 aluminum, 640mm (25") width x 177mm (7") height, 2° backsweep, 2° upsweep |

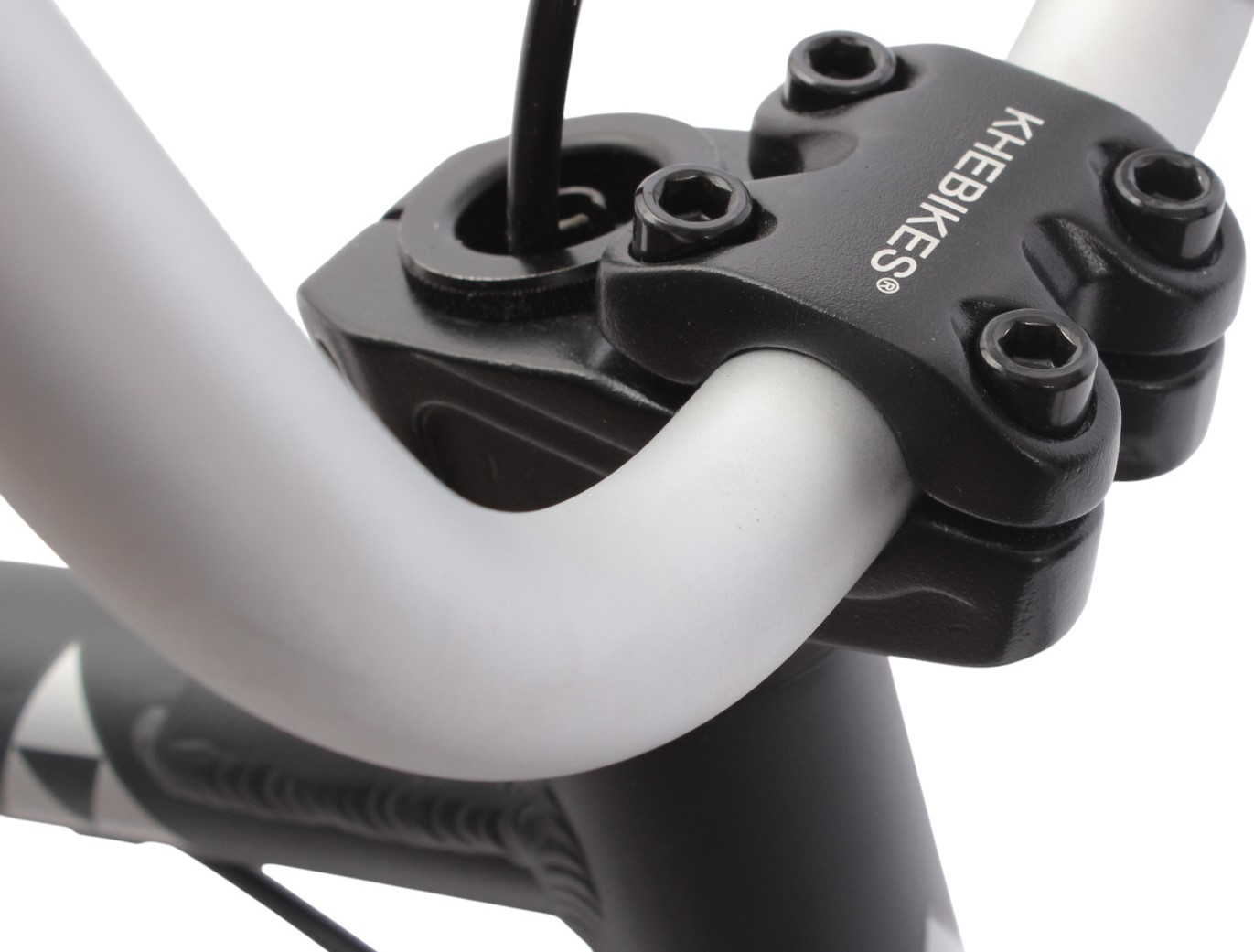

| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | Aheadset 38x34mm Loosball 1 1/8” |

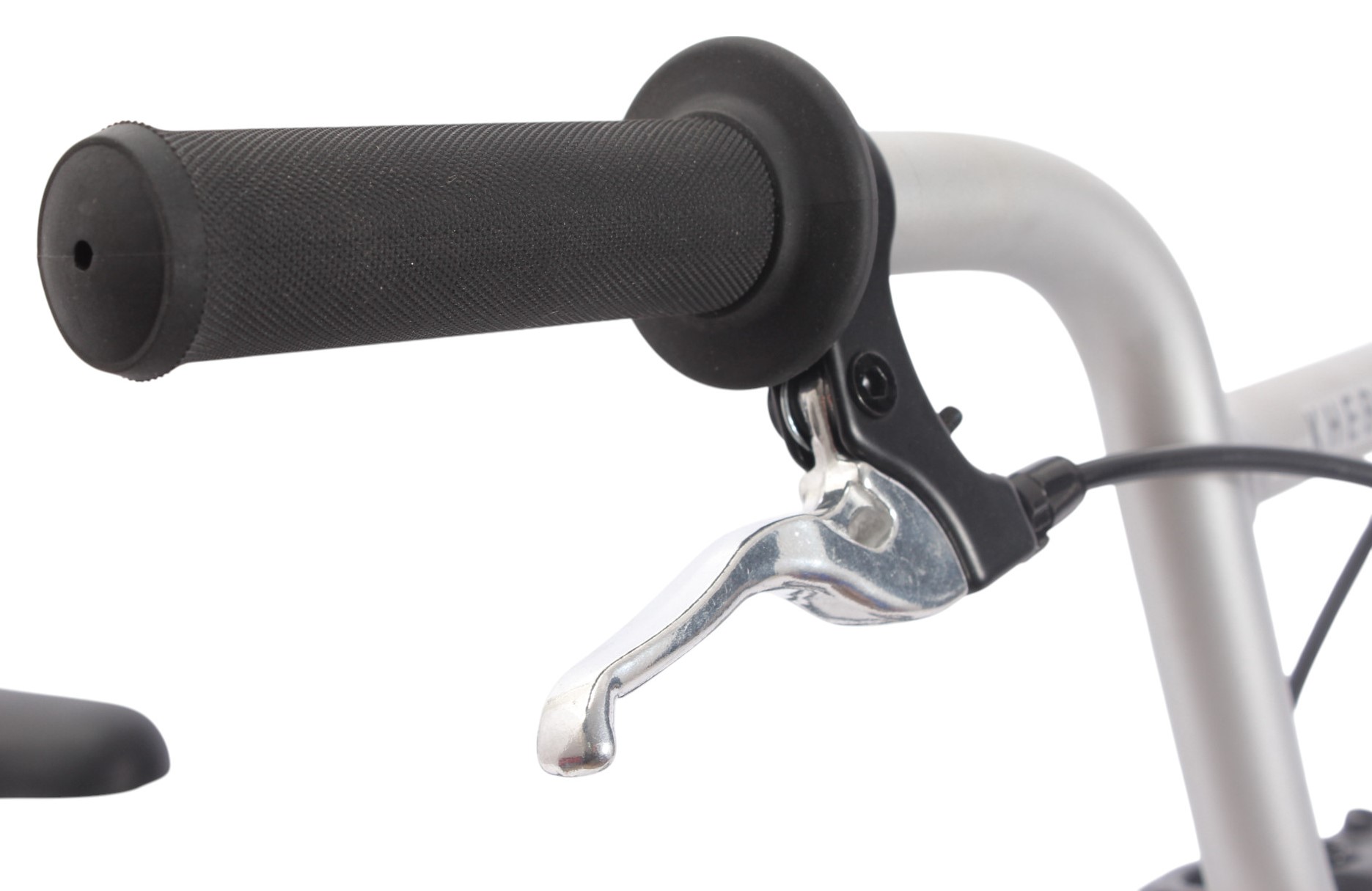

| Handles: | with flange 120mm, rubber diamond cut profile |
| Brake levers: | Aluminum with adjusting screw |

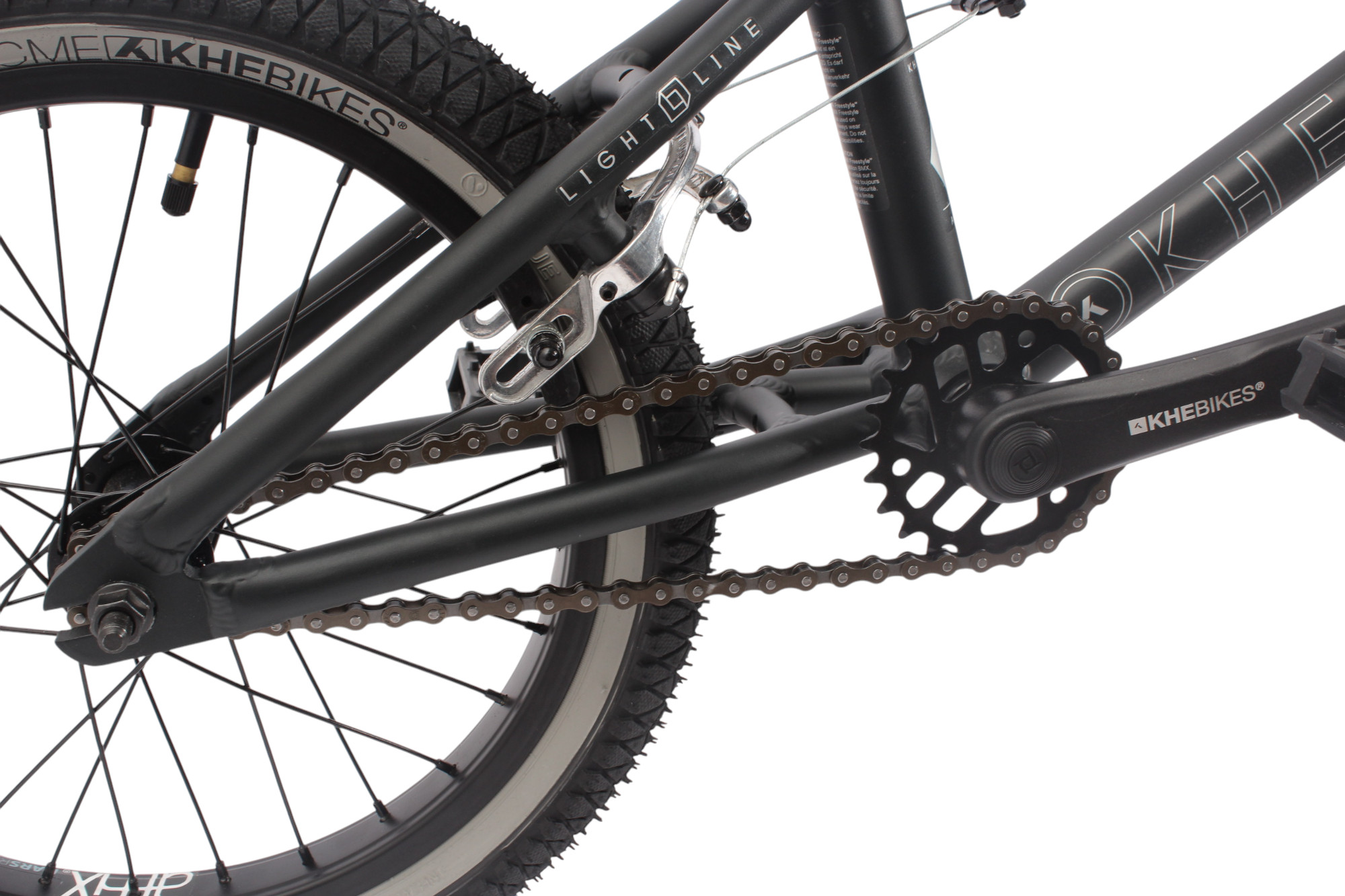

| Rear brake: | KHE RADIUS Aluminum U-Brake |
| Front brake: | Side pull (already installed!) |

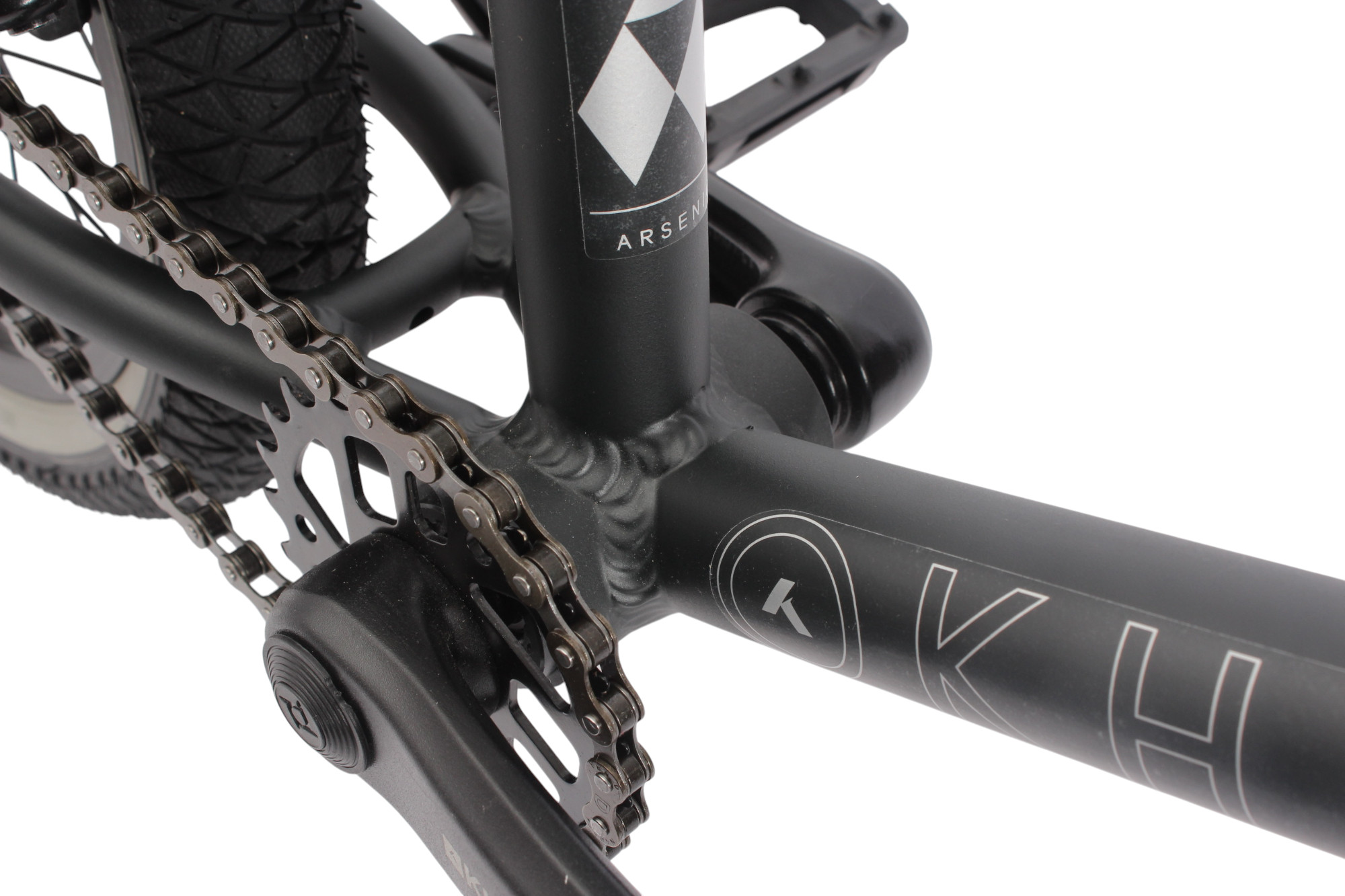

| Crank: | KHE 3-piece, forged aluminum, 127mm length |
| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 110mm |
| Chainring: | 23 teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |
| Pedals: | FEIMIN PVC with Baron axle 9/16” |

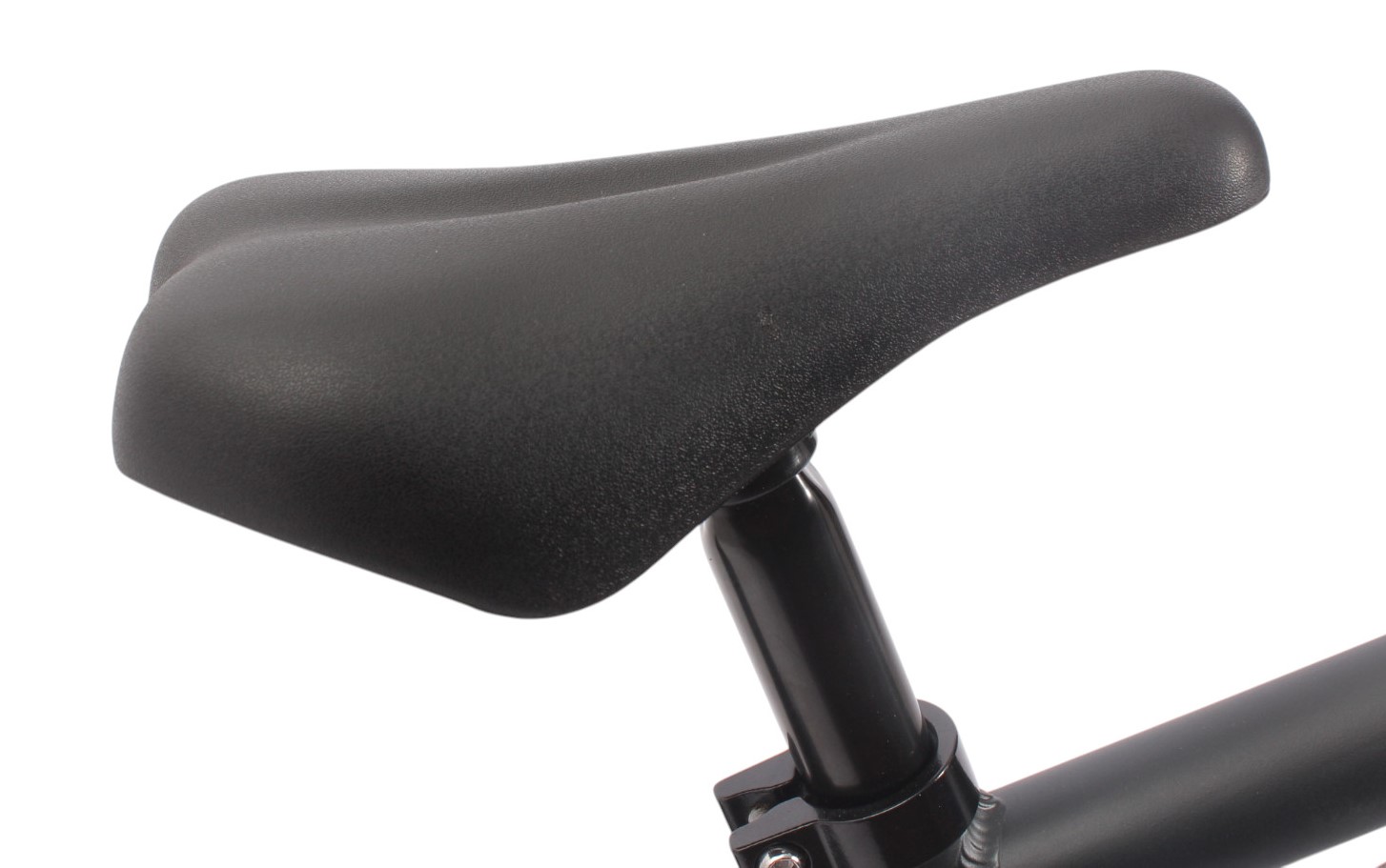

| Saddle: | Padded 210 x 120mm with silver embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 220mm (integrated seat post with saddle) |
| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |
| Rear wheel hub: | 3/8" (10mm) x 170mm axle, steel, 9-tooth cassette hub, 28 holes |
| Rim: | 16 inch aluminum, 28 holes, 32.5mm wide |
| Tyres: | KHE ACME 16 inch x 2.125" |
| Material: | 6061 T6 Aluminium |
| Tire size: | 16 inch |
| Category: | Park, Street, Flatland, Pumptrack |
| Size: | 16" ; 110–130 cm |
| Colour: | Black |
| Weight: | 17.42lbs / 7,9kg |
| Model Year: | 2025 |
Ensure Compatibility:
This BMX bike is designed for children approximately 110–130 cm tall. It is suitable for street, park, and pump track use. The maximum rider weight must not exceed 60 kg. Not intended for competition or extreme stunts.
Assembly: Before first use, the handlebar, brakes, crank, wheels, and all safety-relevant parts must be properly assembled and checked for secure fit. Inspect all components again after crashes.
Care and Maintenance:
Clean the bike regularly with a soft, damp cloth. Do not use aggressive cleaners. Regularly check brake function, tire pressure, chain tension, and the condition of the frame and rims.
Store the bike in a dry, sheltered area.
Replacement in Case of Wear: Replace visibly worn or damaged parts such as brakes, crankset, tires, or chain immediately. Damaged parts may lead to accidents and injuries.
