KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, sophisticated engineering, and outstanding riding dynamics. The new 2025 models offer optimized geometry, thoughtful details, and high-quality components – directly from the manufacturer for top performance on any terrain.

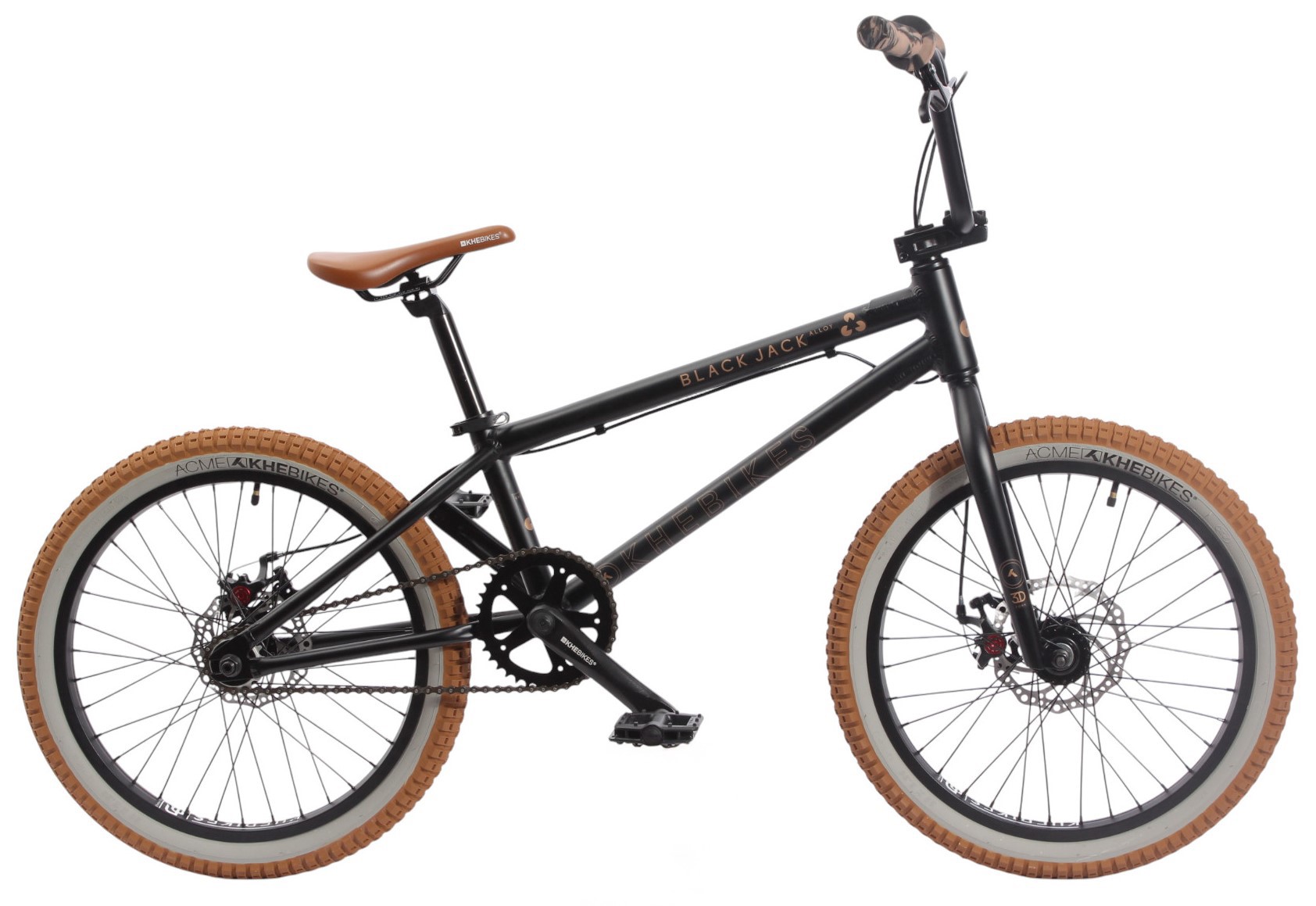

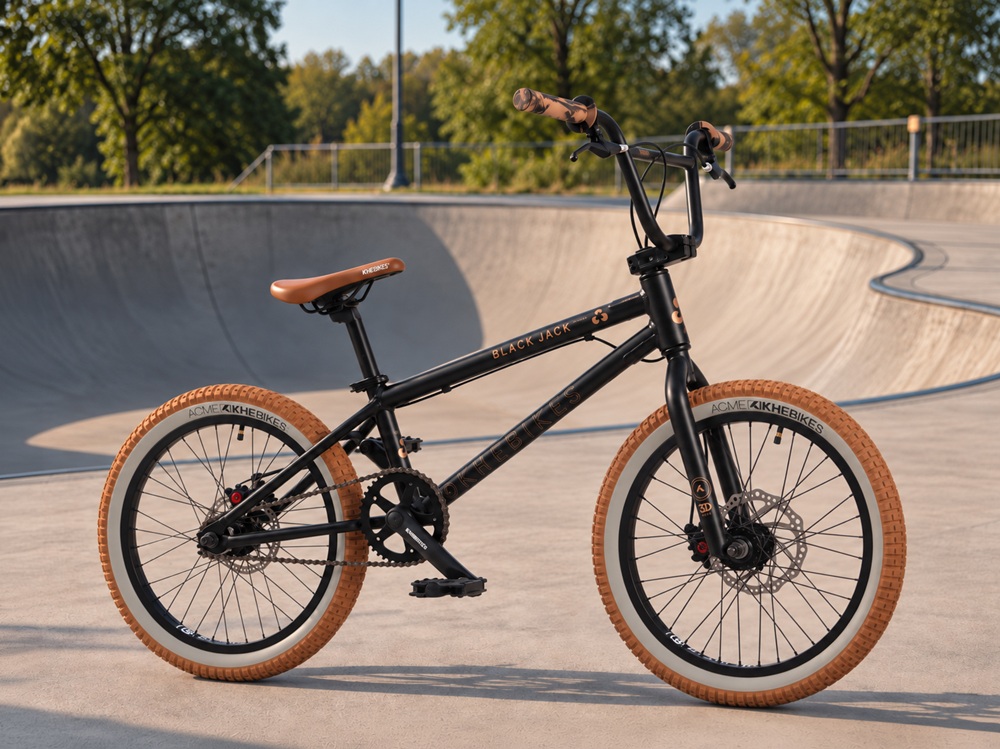

KHE BLACK JACK DISC AL 20 Inch
The KHE BLACK JACK DISC AL is the ideal BMX for pump tracks, park, and street – lightweight, stable, and modernly equipped.

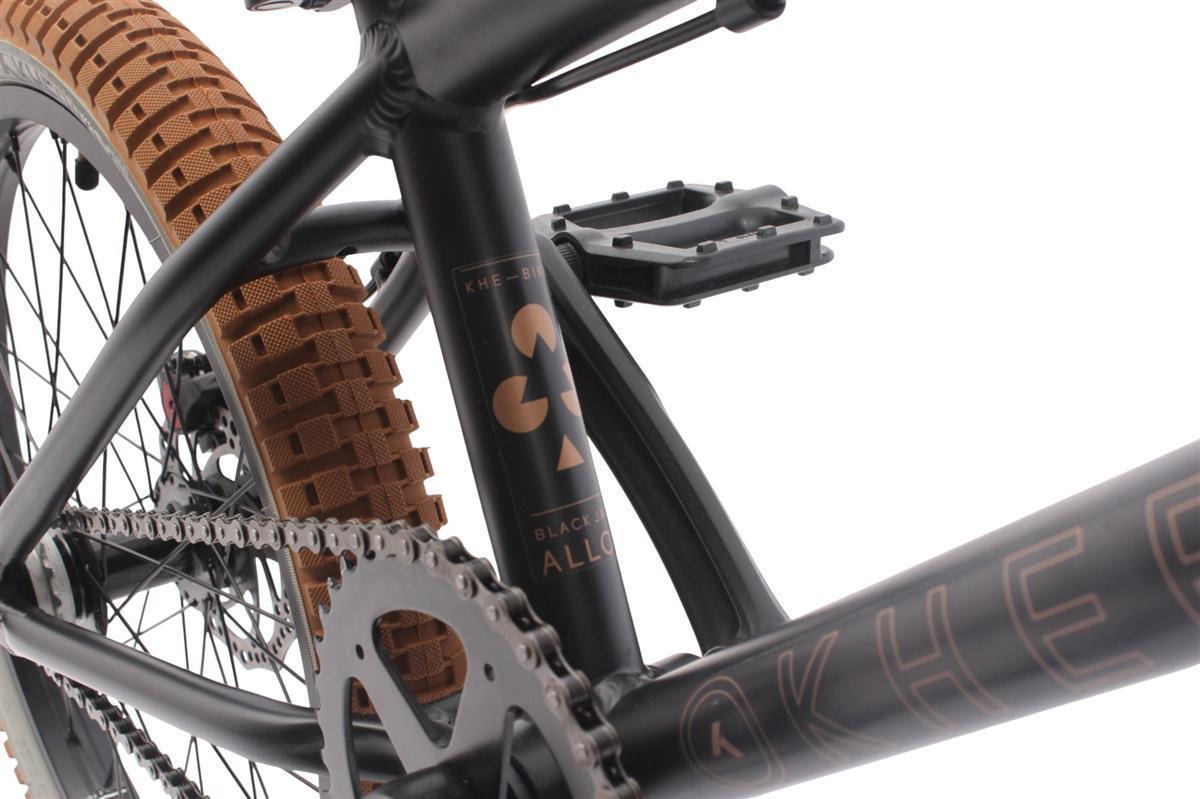

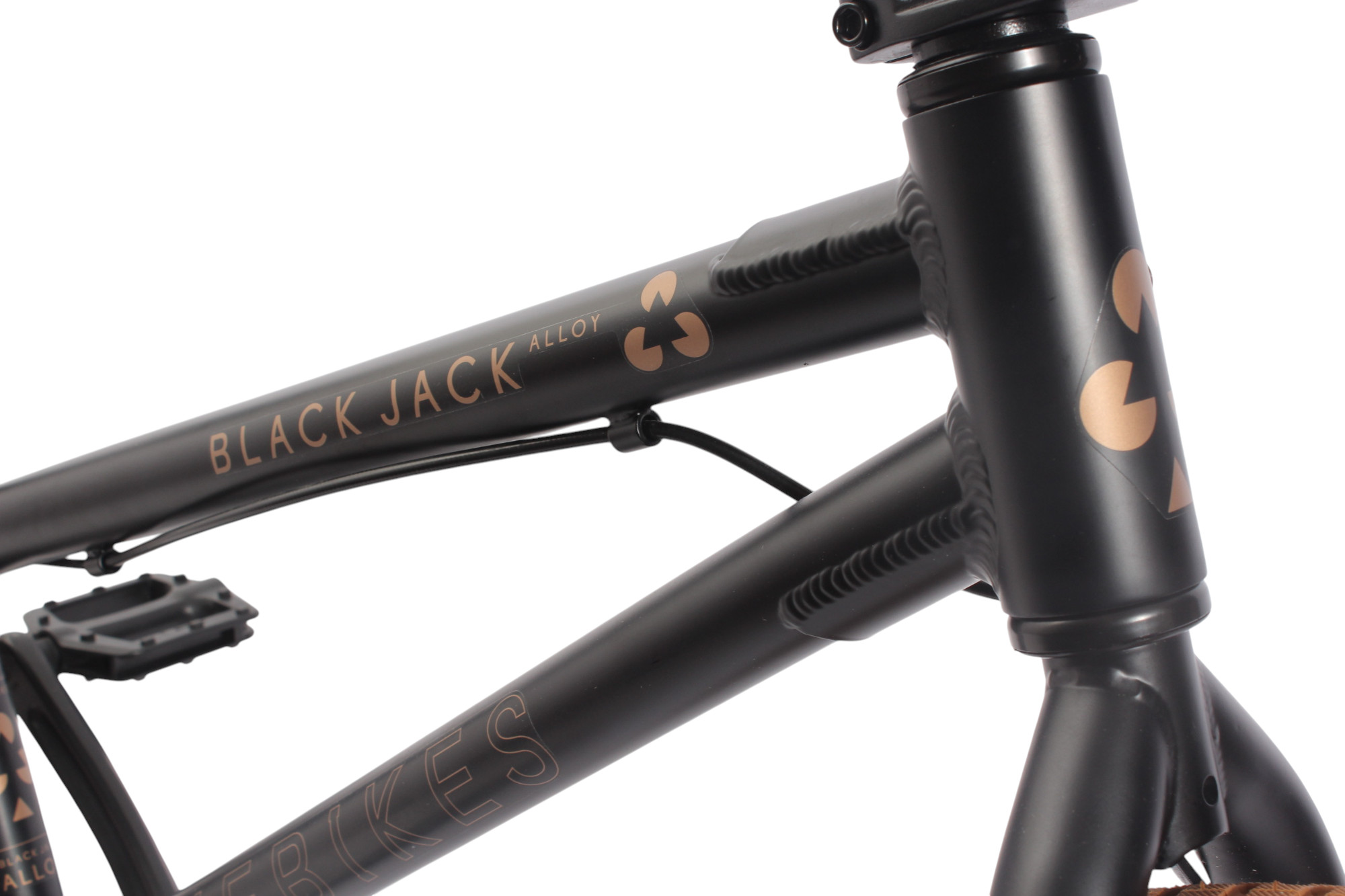

With its lightweight aluminum frame and a top tube length of 20.4 inches, the bike offers perfect stability and agility, with an extremely low weight of only 10 kg. The frame is matte black and is complemented by a robust HiTen fork with 3D dropouts.

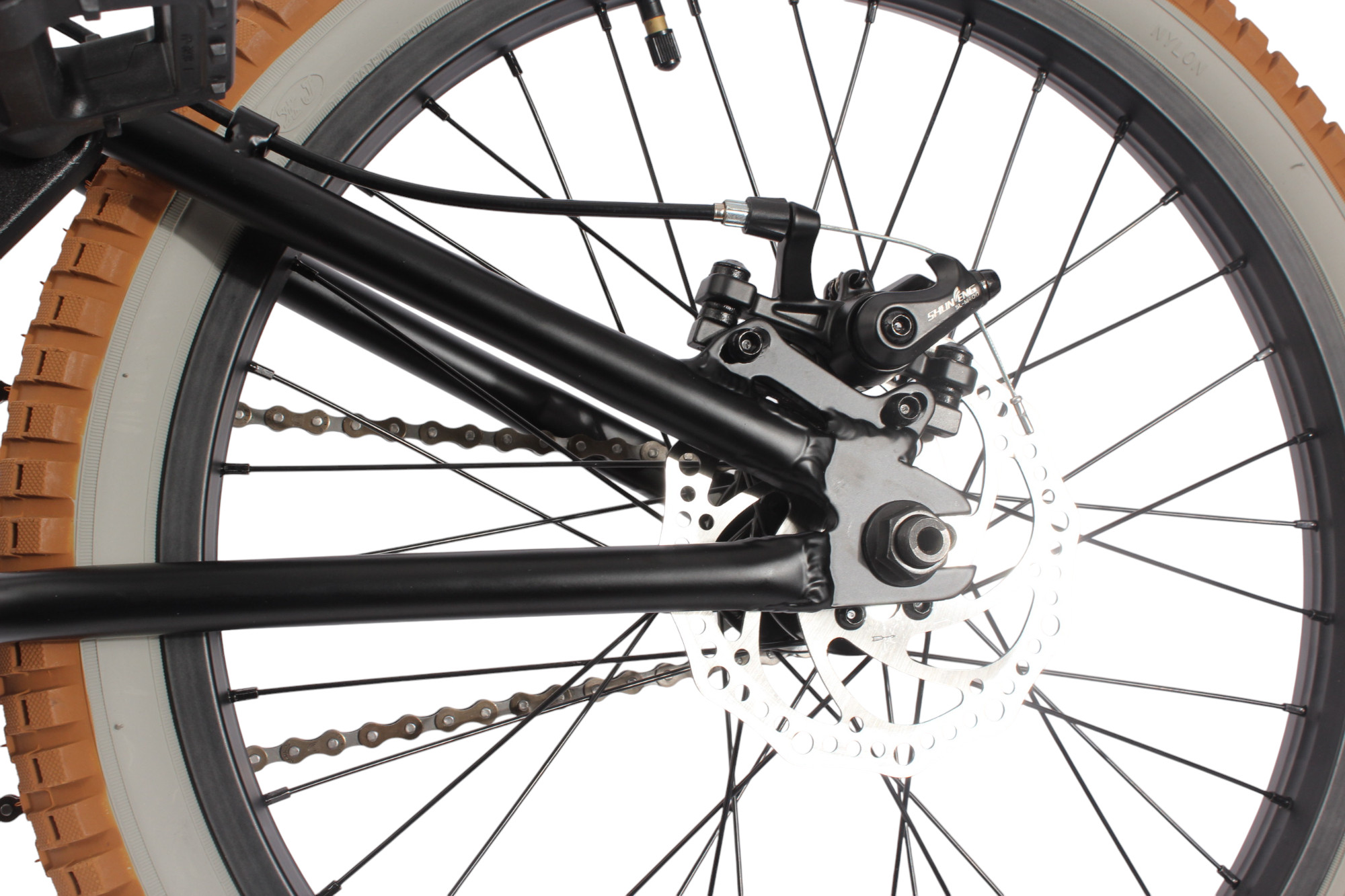

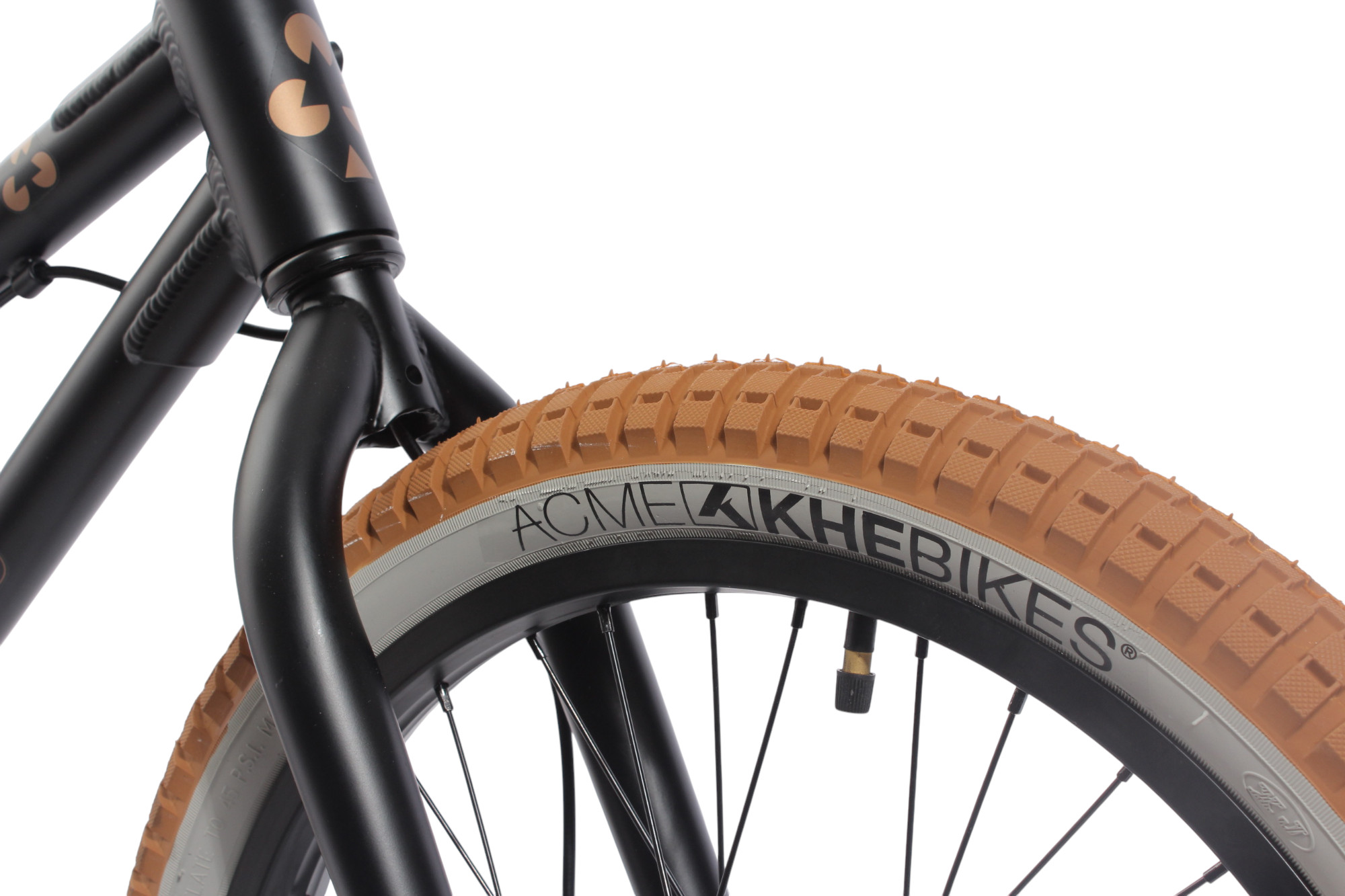

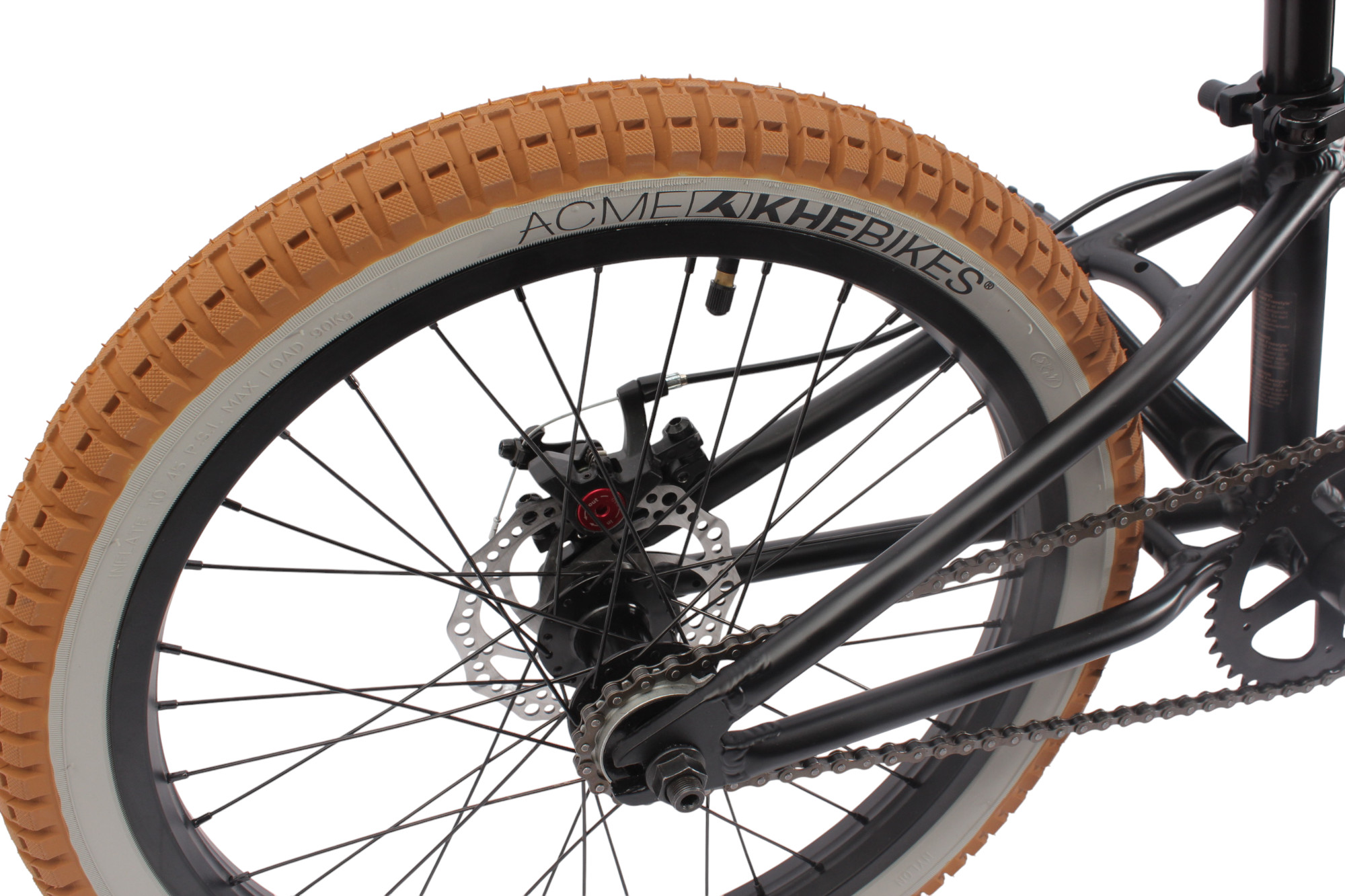

A real highlight is the disc brakes front and rear, providing exceptional braking power. The peg-compatible disc hub at the rear with a 14 mm axle and industrial bearings allows for the installation of pegs. Aluminum double-wall rims and KHE MVP 2.125 inch tires with a brown tread and gray sidewalls ensure optimal grip and a cool design.

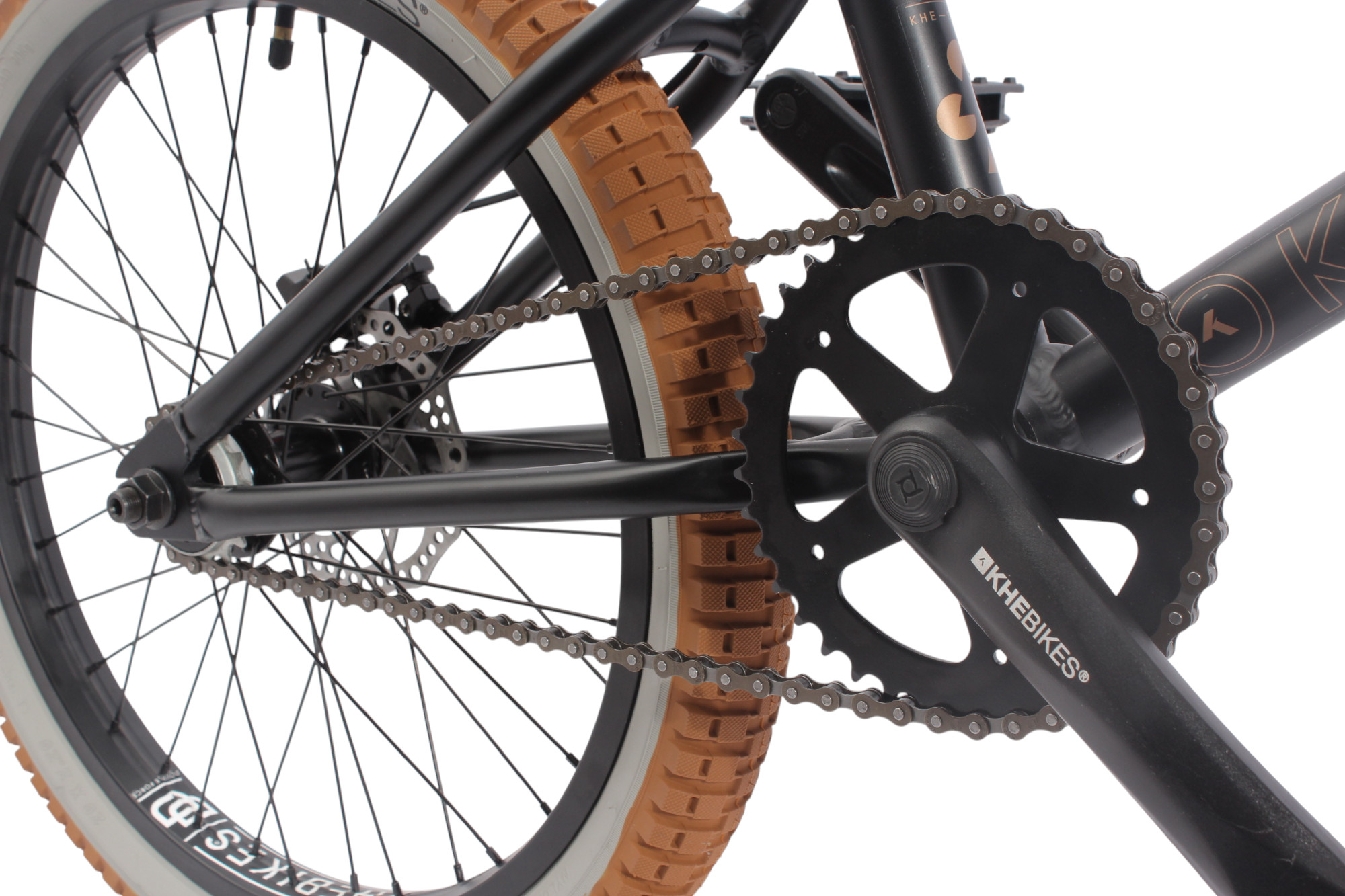

Thanks to the innovative KHE Affix Rotor System, 360° handlebar rotations are easily possible. The setup is completed by a forged 3-piece aluminum crank (165 mm) and a robust 38T steel chainring for optimal power transmission.
With its clever equipment and modern look, the BLACK JACK AL is one of the most versatile and lightest BMX bikes in its class.
You should be this tall: 140–185 cm
Maximum body weight: 100 kg
Application area: Pump Track, Park, Street
Why the BLACK JACK DISC AL 20 Inch from KHEbikes:
- Very lightweight aluminum frame for easy handling
- Powerful disc brakes front and rear
- KHE Affix Rotor for 360° handlebar rotations
- Peg-compatible disc hub with 14 mm axle and industrial bearings
- Stylish details like two-tone tires and embossed saddle
Pegs: Suitable for the BLACK JACK DISC AL 20" are 10 mm pegs at the front and 14 mm pegs at the rear. We recommend the KHE CNC Pro Pegs or optionally the KHE LASER Pro Pegs.
The BMX bike is about 90% pre-assembled. You can find the manual under “Datasheets”. A video for assembly can be found under “Video”.
| Frame: | KHE 6061 aluminum, 14mm dropout, top tube 20.4", CS 12.8", HT 75°, ST 71.5°, A-headset 1 1/8" 46x39mm |
|---|---|
| Top tube length: | 20,4" (518mm) |
| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

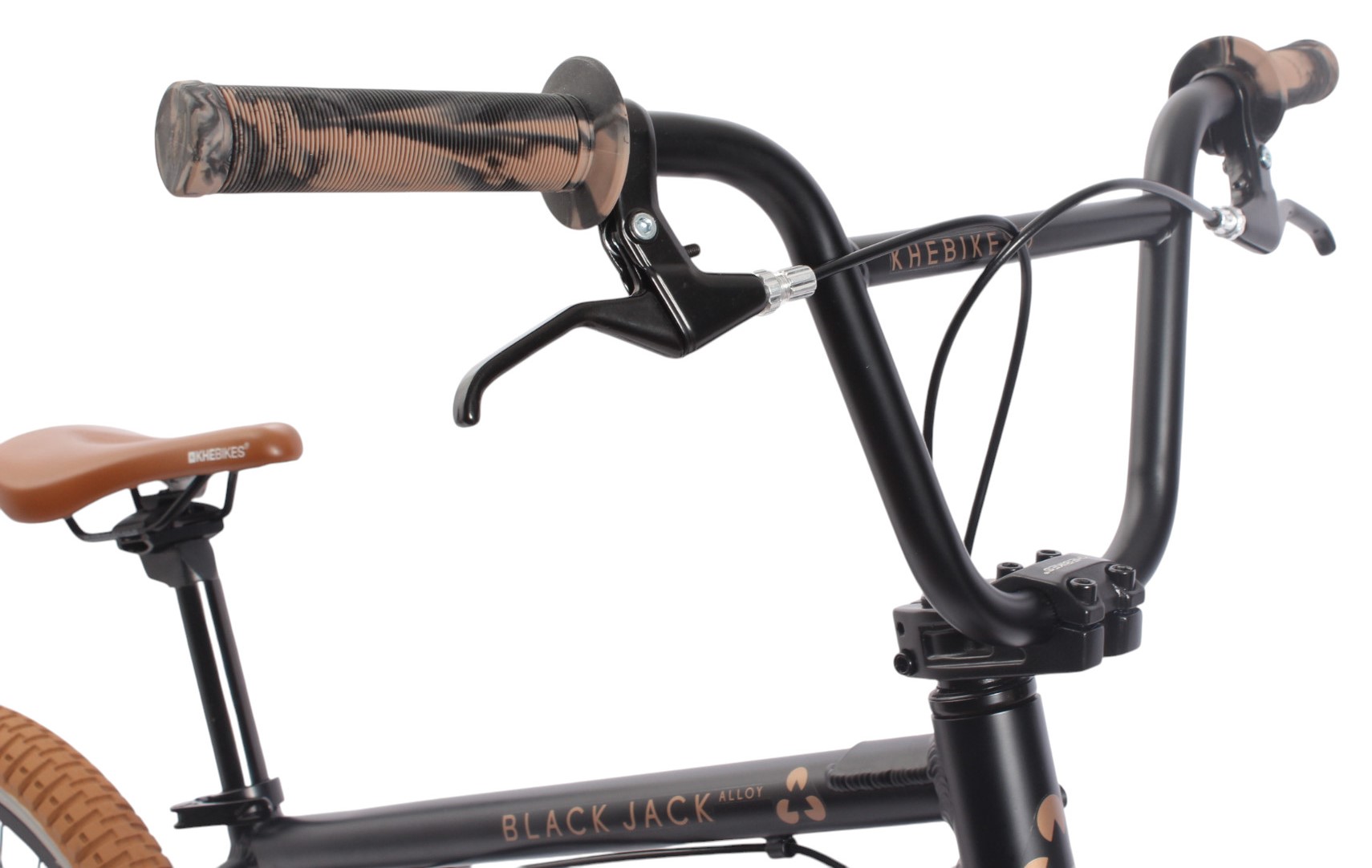

| Handlebars: | KHE HiTen steel 680mm width (26.8“) x 203mm (8”) height, backsweep 10”, upsweep 1” |

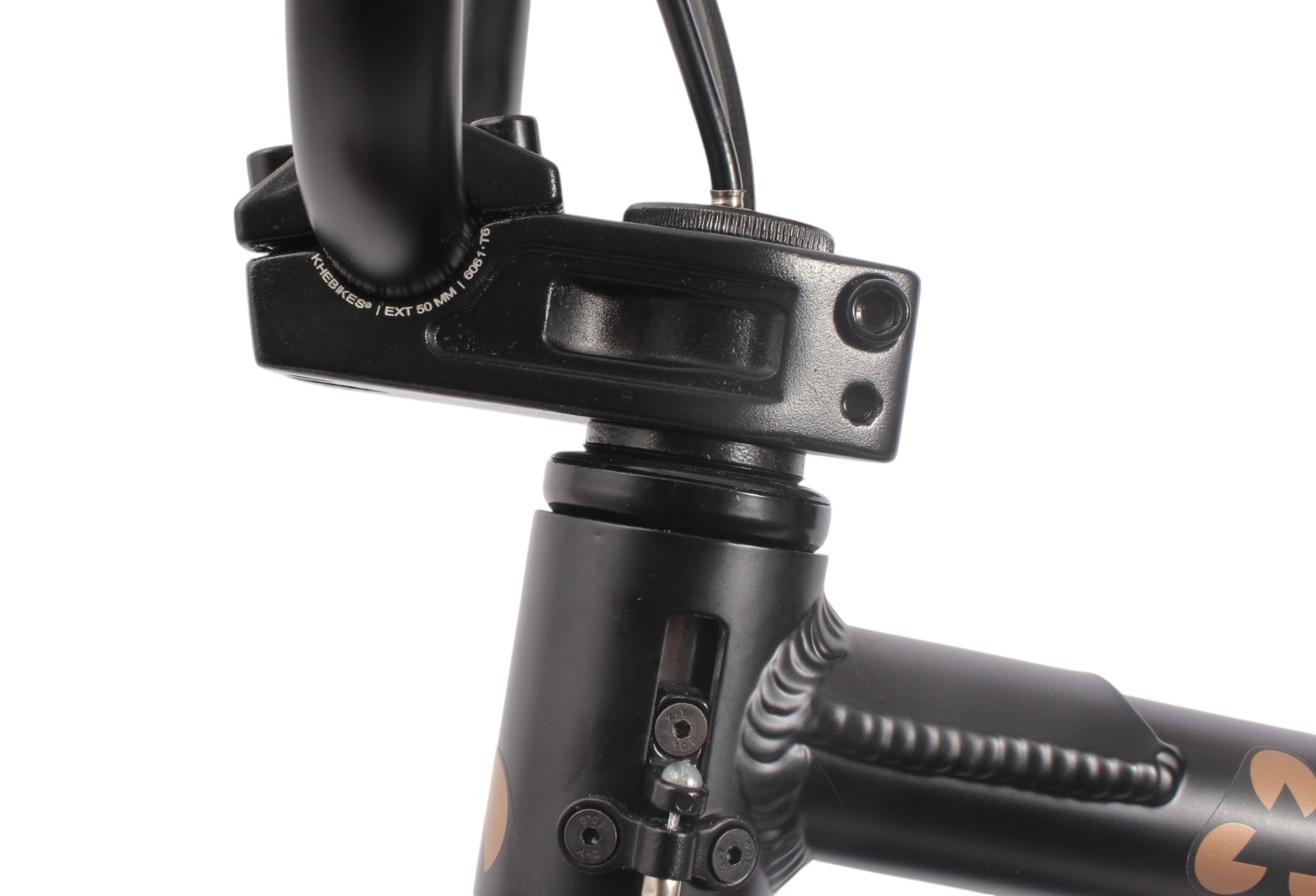

| Stem: | KHE Top Loader Ext.50mm |
| Headset: | Aheadset 38x34mm Loosball 1 1/8” |
| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Handles: | Propalm Mushroom Style140mm |
| Brake levers: | Aluminum with adjusting screw |

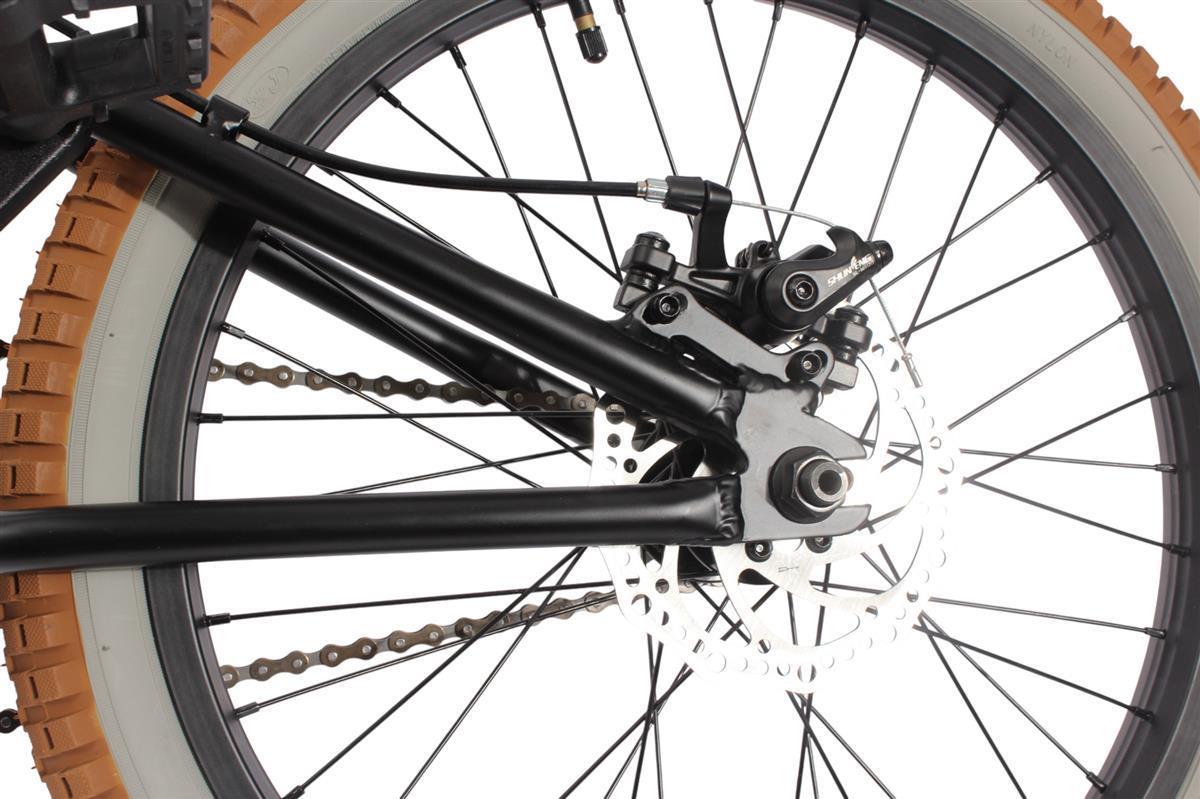

| Rear brake: | Mechanical disc brake, 140mm rotor |

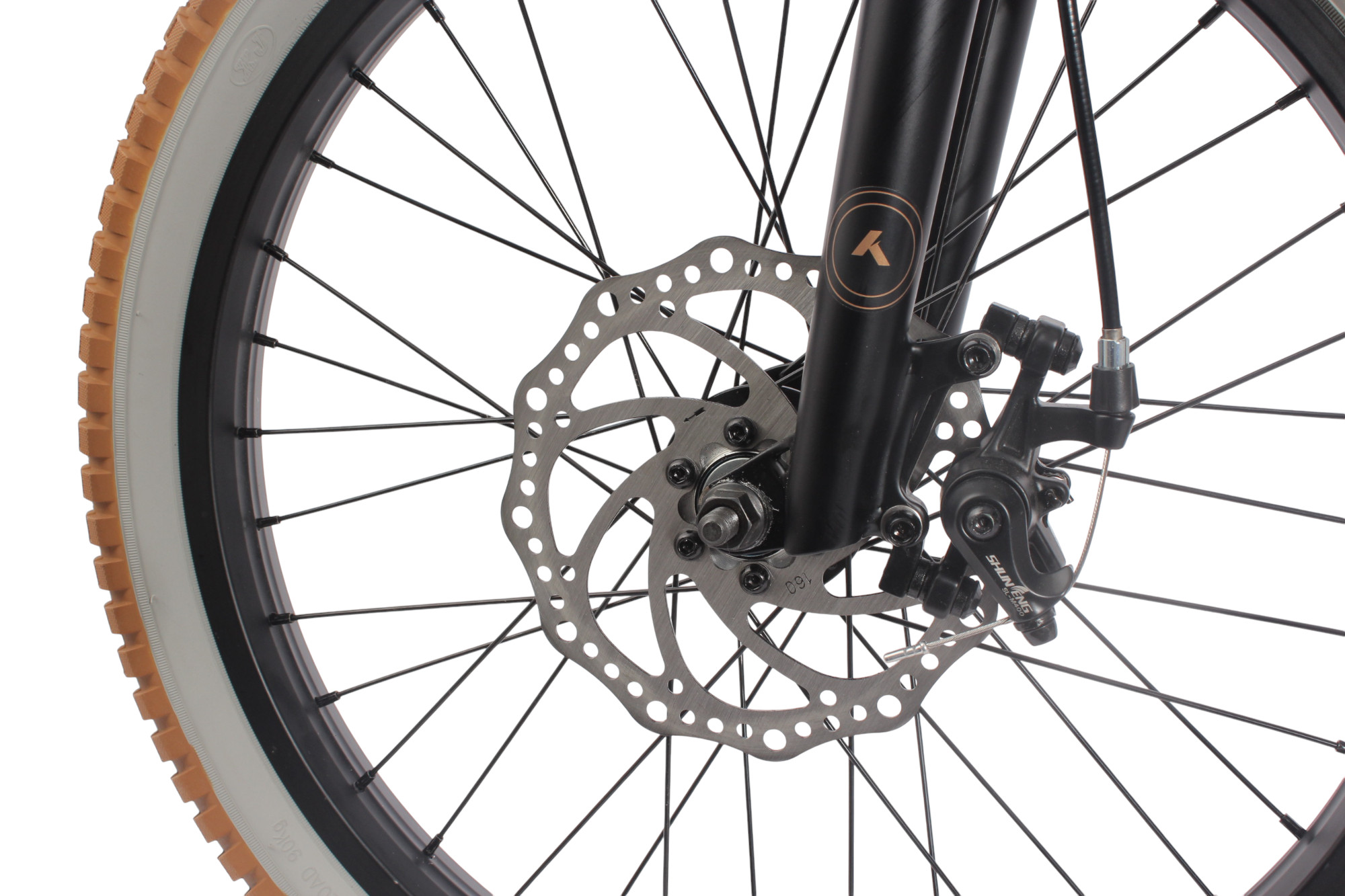

| Front brake: | Mechanical disc brake, 160mm rotor |
| Crank: | KHE 3-piece forged aluminum 165mm length |
| Chainring: | 38 teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |
| Pedals: | FEIMIN PVC with Baron axle 9/16” |
| Brake type: | Disc brake |

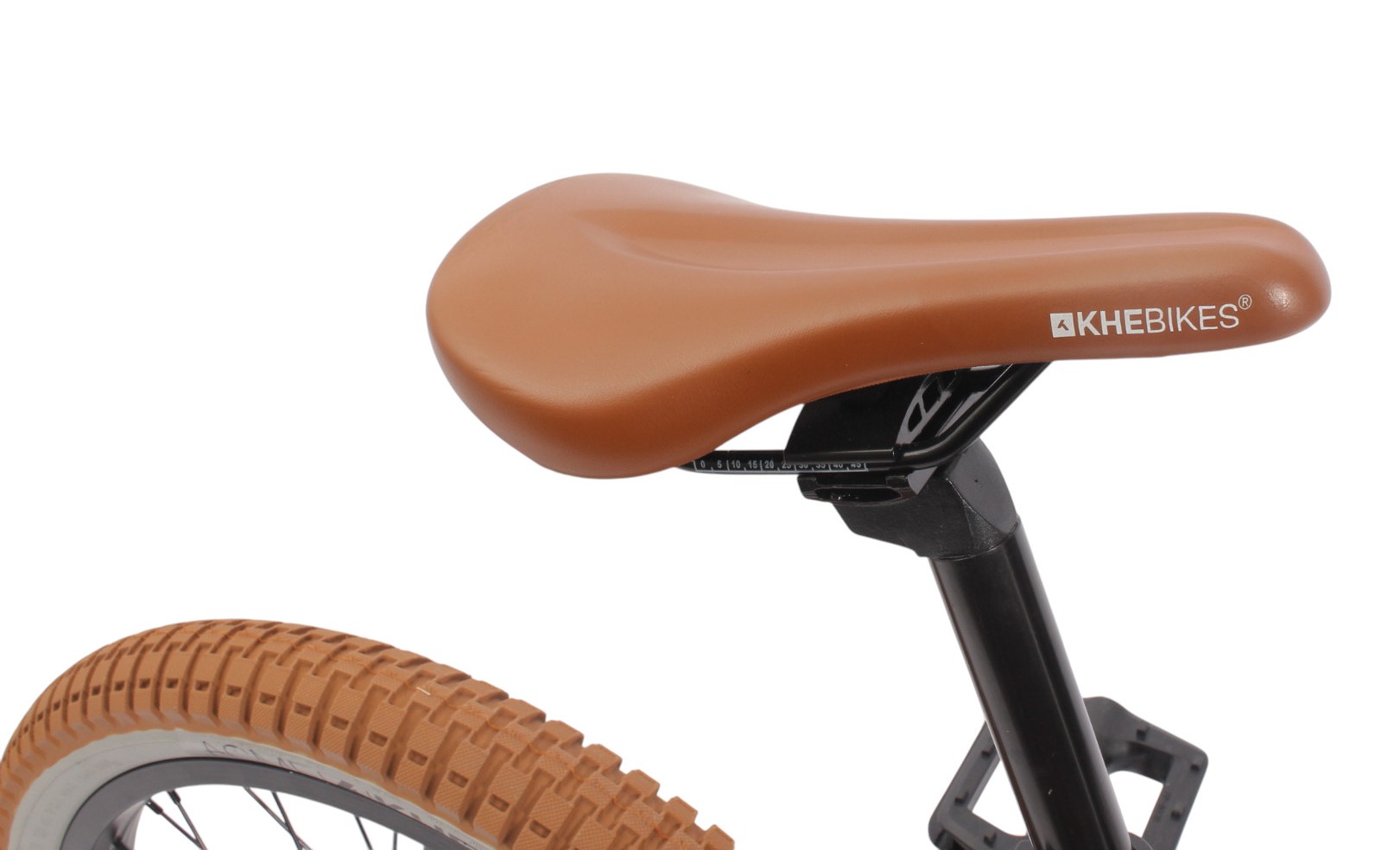

| Saddle: | padded, saddle angle not adjustable |

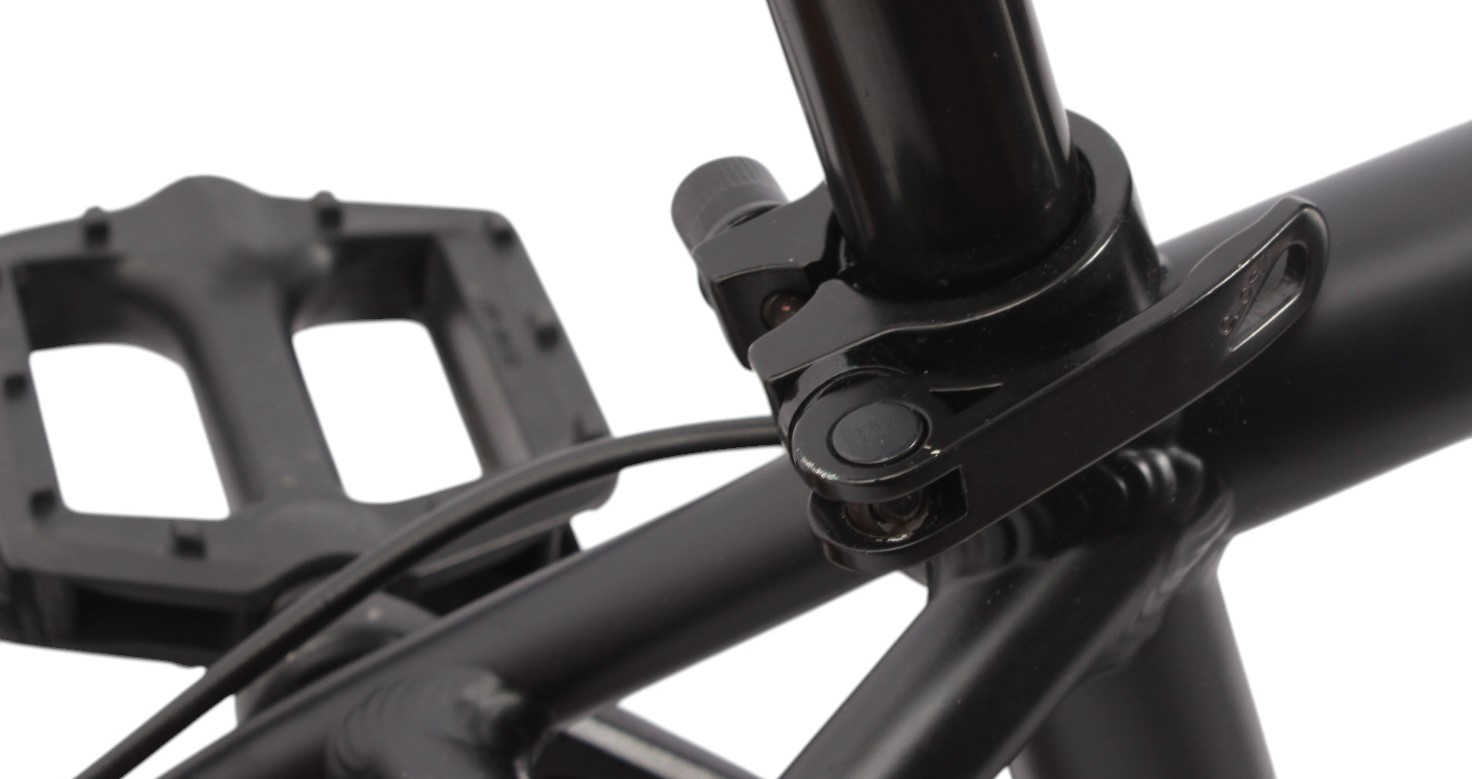

| Seatpost: | Patented clamp, aluminum 27.2 × 300 mm |

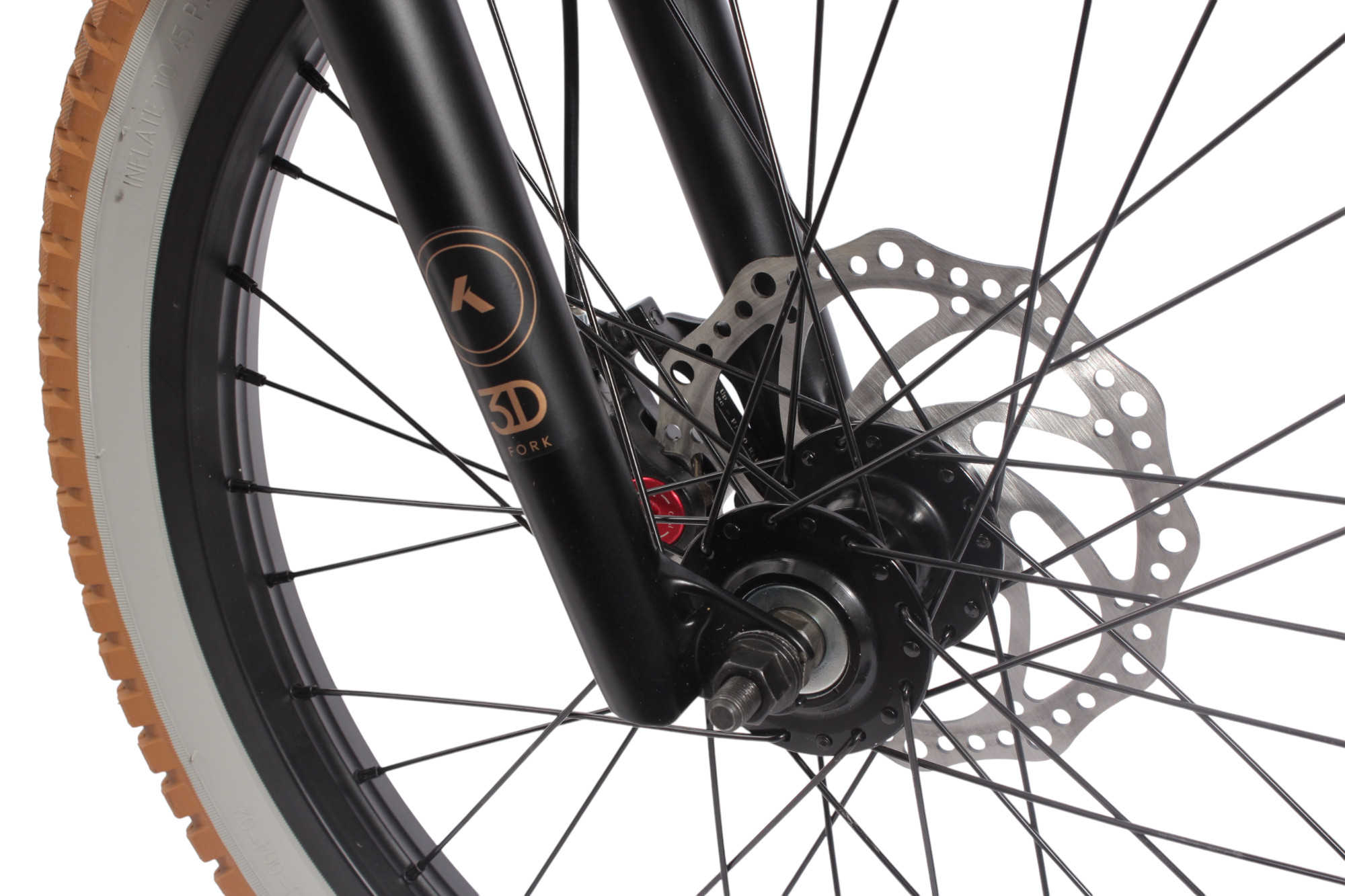

| Front wheel hub: | Aluminum 3/8" (10mm) x 155mm axle, sealed industrial bearing, 36 holes, disc brake mounting pattern |
| Rear wheel hub: | Aluminum 14mm x 170mm axle, sealed industrial bearing, 36 holes, disc brake mounting pattern |
| Freilauf: | 16 teeth freewheel |

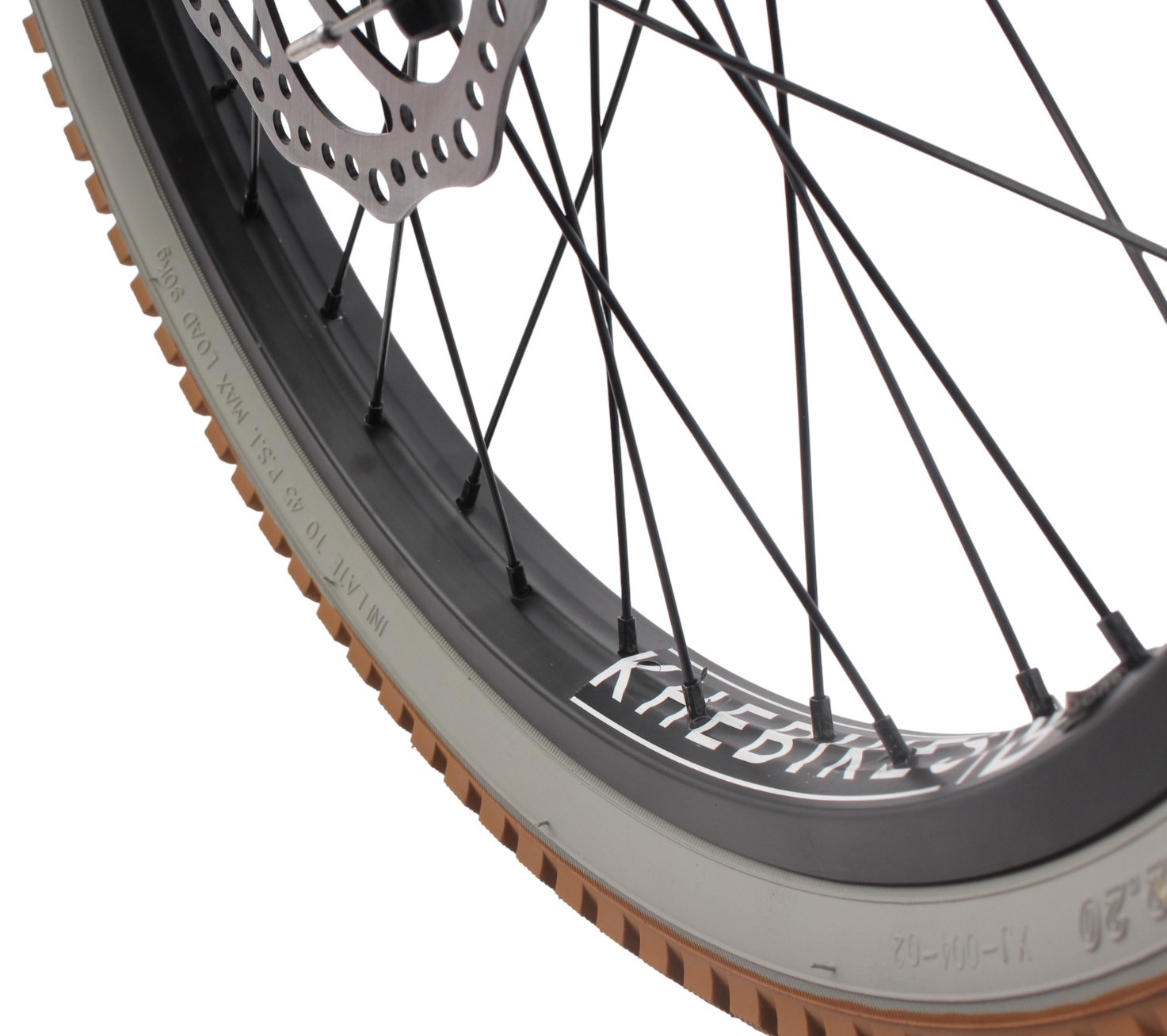

| Rim: | 20 inch double chamber aluminum, 36 hole |

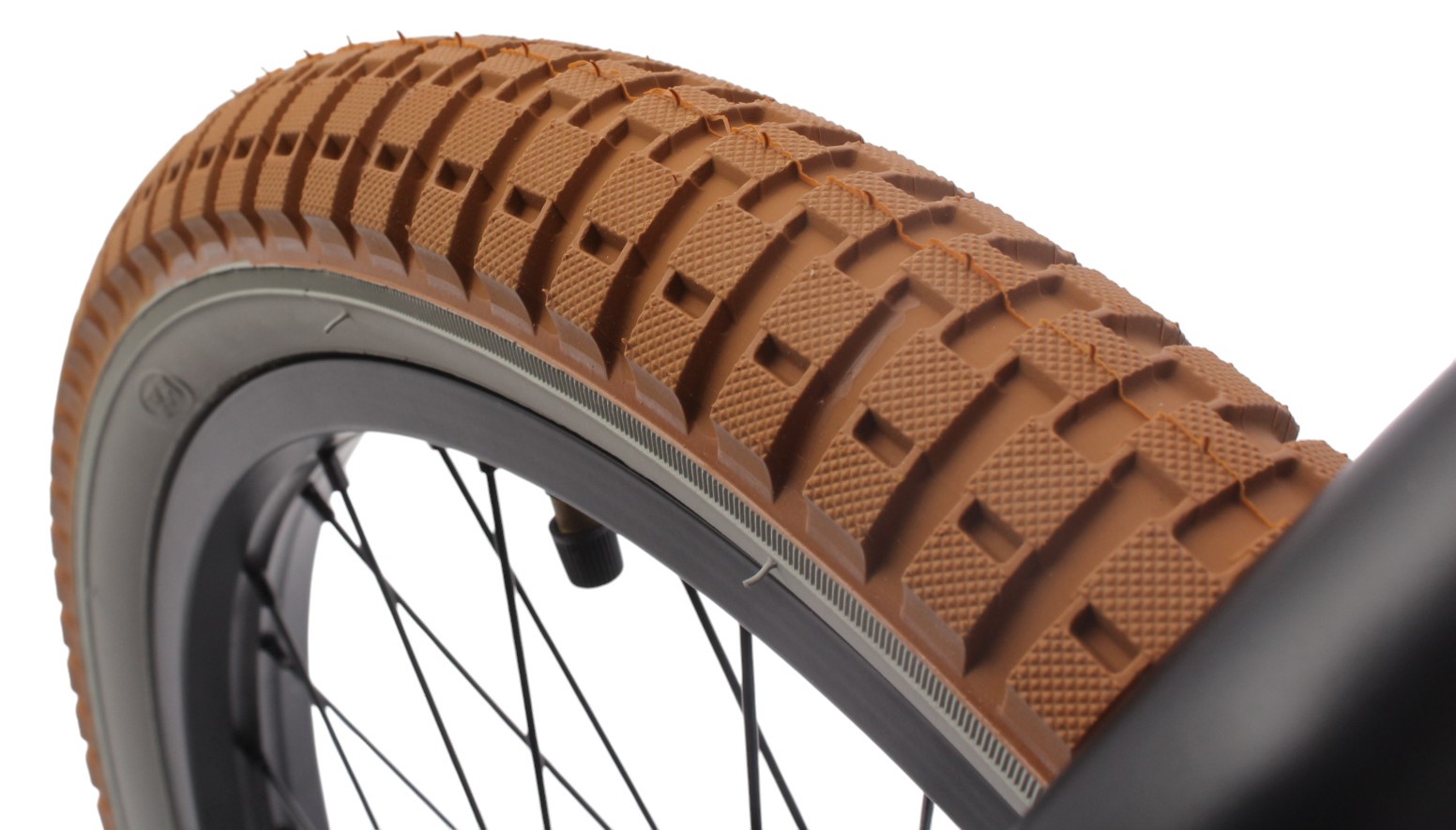

| Tyres: | KHE ACME DIRT 20 inch x 2.20" |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | Pumptrack, Street, Park, BMX Race |
| Colour: | Matt Schwarz |
| Model Year: | 2025 |
Intended Use:
This BMX bike is designed for pump track, park, and street use. It is not approved for road traffic or downhill riding.
Assembly and Inspection: The bike is delivered 90% pre-assembled. Before first use, all safety-relevant components (handlebars, brakes, axles, pedals, chain, saddle) must be properly installed and checked. Final assembly should be carried out by a professional bicycle workshop or experienced person. Note: Pegs are not included, but the rear hub is peg-compatible.
Maintenance & Care:
Clean the bike regularly with a damp cloth. Do not use aggressive cleaning agents.
Lubricate and inspect moving parts such as the chain, bearings, rotor system, hubs, and disc brakes regularly.
Store the bike in a dry and protected place to prevent corrosion and wear.
Maximum Load & Safety: This BMX is suitable for riders approximately 4'7"–6'1" (140–185 cm) in height and up to 220 lbs (100 kg) in weight. Before each ride, check that all bolts, wheels, and the braking system are secure and functioning properly. Do not ride if cracks, damage, or material fatigue are visible.
