KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, sophisticated engineering, and outstanding riding dynamics. The new 2025 models offer optimized geometry, thoughtful details, and high-quality components – directly from the manufacturer for top performance on any terrain.

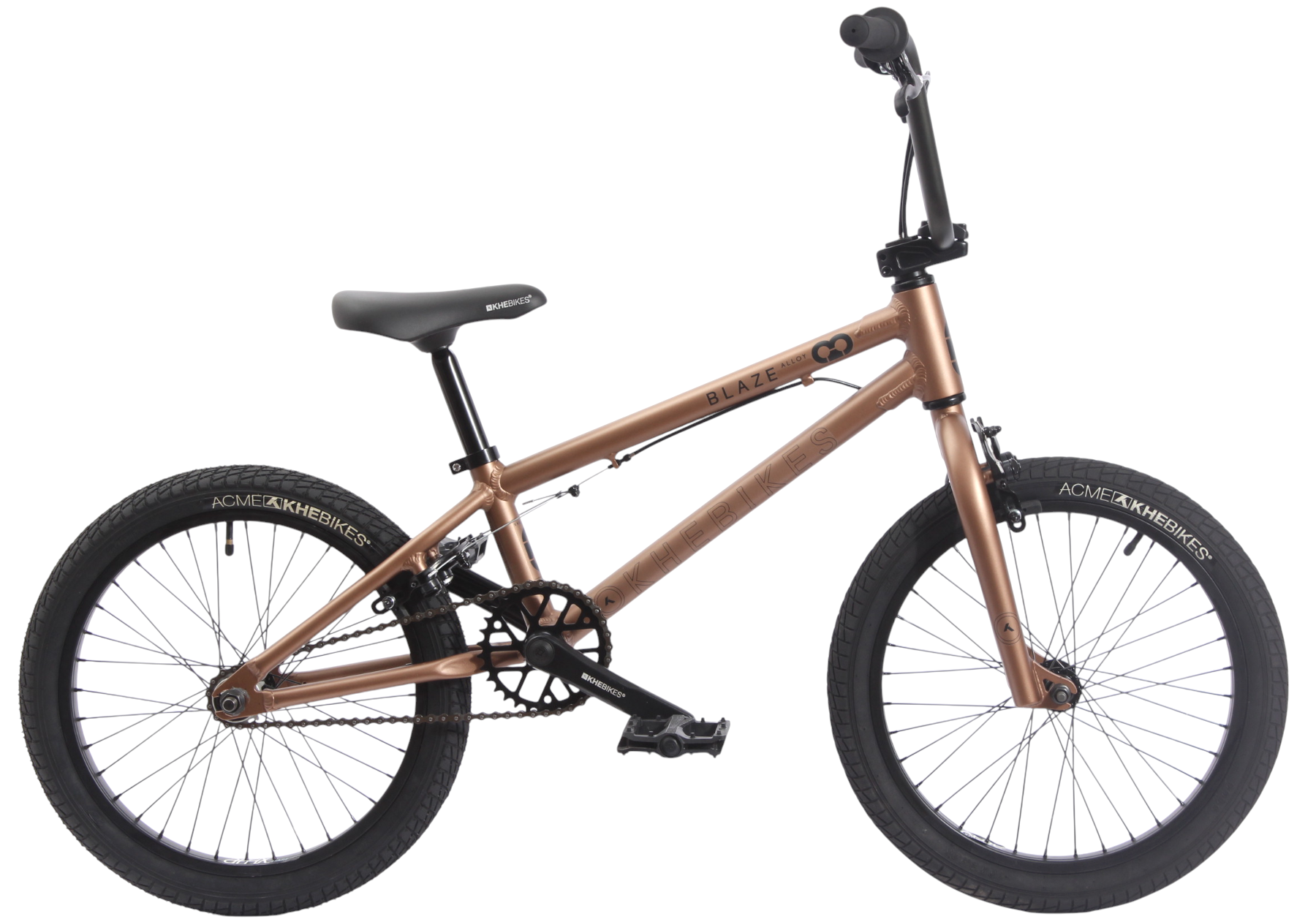

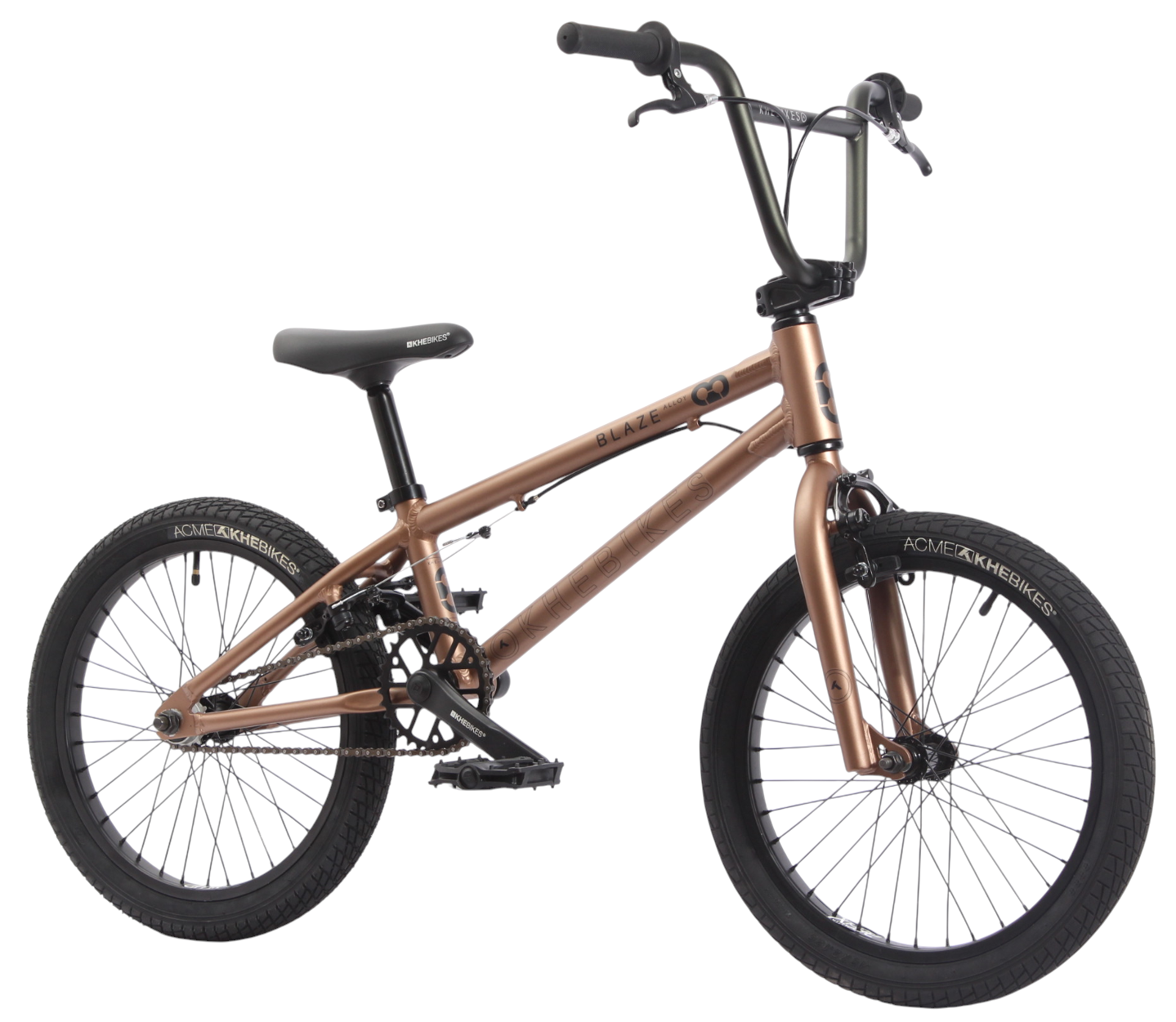

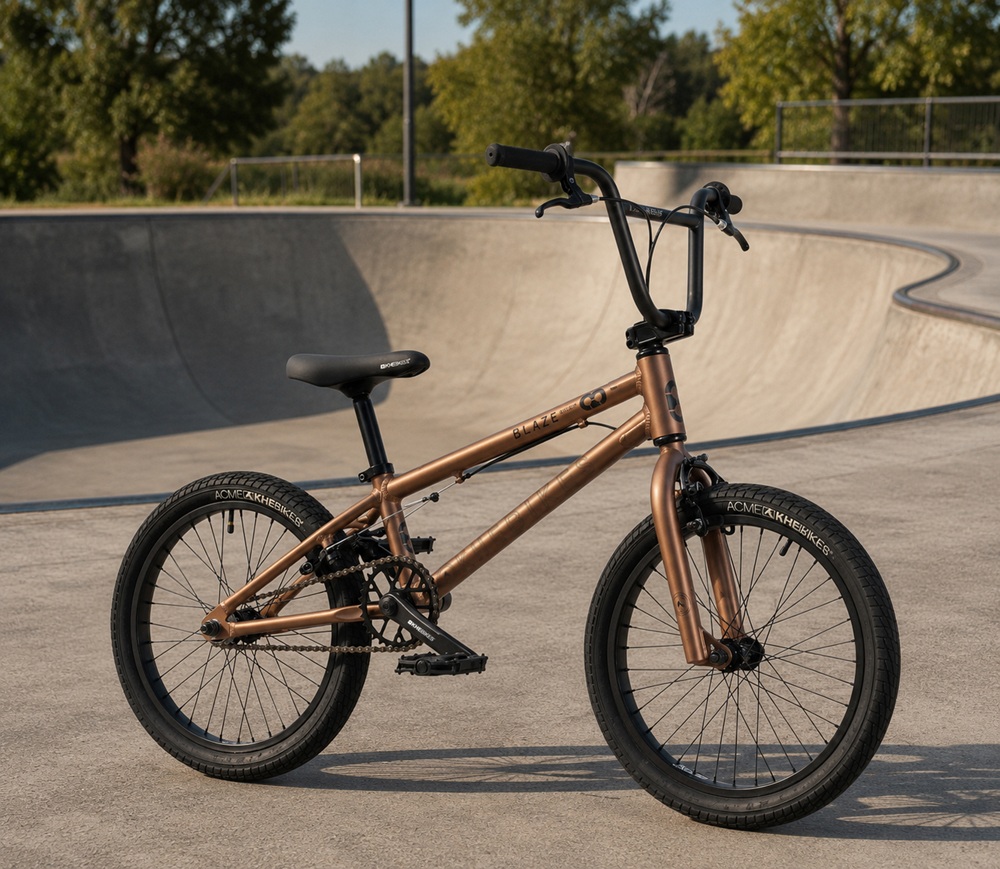

KHE BLAZE 18 Inch
For 2025, it was particularly important to us to equip all beginner and advanced models with a lightweight aluminum frame. Especially for beginners, a low weight is crucial to learn tricks faster and to control the BMX safely. With a top tube length of 18 inches, the BLAZE is perfectly tailored to young riders looking for a bike that is optimally balanced between control and agility.
New is also that this model comes standard with a sealed EURO bottom bracket with high-quality industrial bearings and forged aluminum cranks – components rarely found in this price range from other brands. The KHE BLAZE is one of the lightest BMX bikes in its class and combines stable design with excellent riding feel – ideal for entering the world of BMX.
This is how tall you should be: 125–145 cm
Maximum body weight: 70 kg
Application area: Park, Street, Pumptrack
Why the BLAZE 18 Inch from KHEbikes:
- Directly from the manufacturer, hence the best prices
- At 9.3 kg, the lightest 18-inch BMX bike in its price range
- Worldwide patented KHE BMX rotor for 360-degree handlebar rotations
- Aluminum frame
- Powerful aluminum U-brakes installed front & rear
- Sealed industrial bottom bracket & forged aluminum crank arms
Pegs: Suitable for the BLAZE 18" are 10 mm pegs in the front and 14 mm pegs in the rear. We recommend the COP aluminum pegs.
The BMX bike is about 90% pre-assembled. You can find the manual under “Datasheets”. A video for assembly can be found under “Video”.

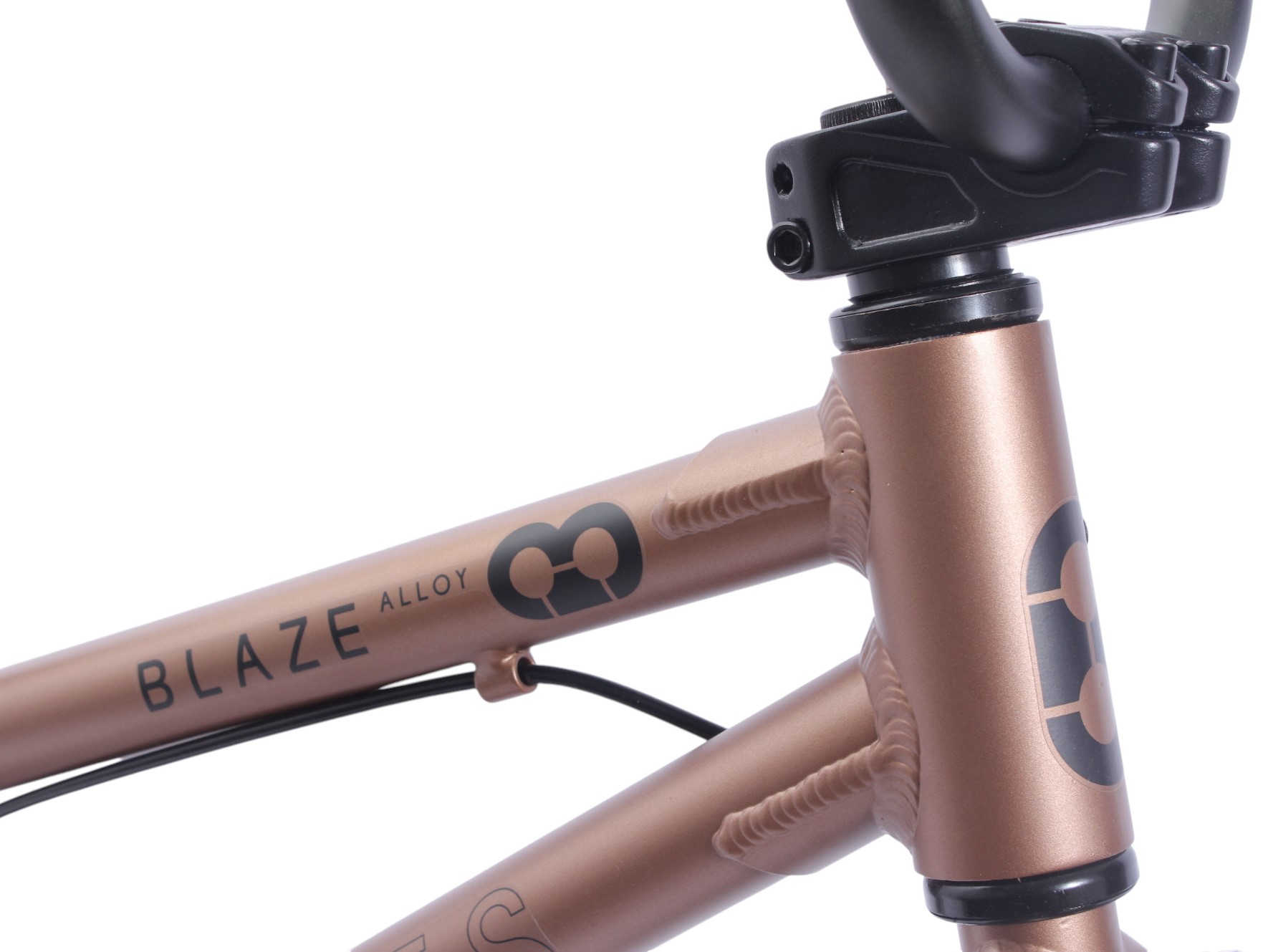

| Frame: | KHE 6061 aluminum, 14mm dropout, top tube 18", CS 12.5", HT 75°, ST 71°, A-headset 1 1/8" 46x39mm |
|---|---|
| Top tube length: | 18" (457mm) |
| Fork: | KHE 1020 HiTen steel with 10mm dropouts, tapered stanchions & 33mm forerunner |

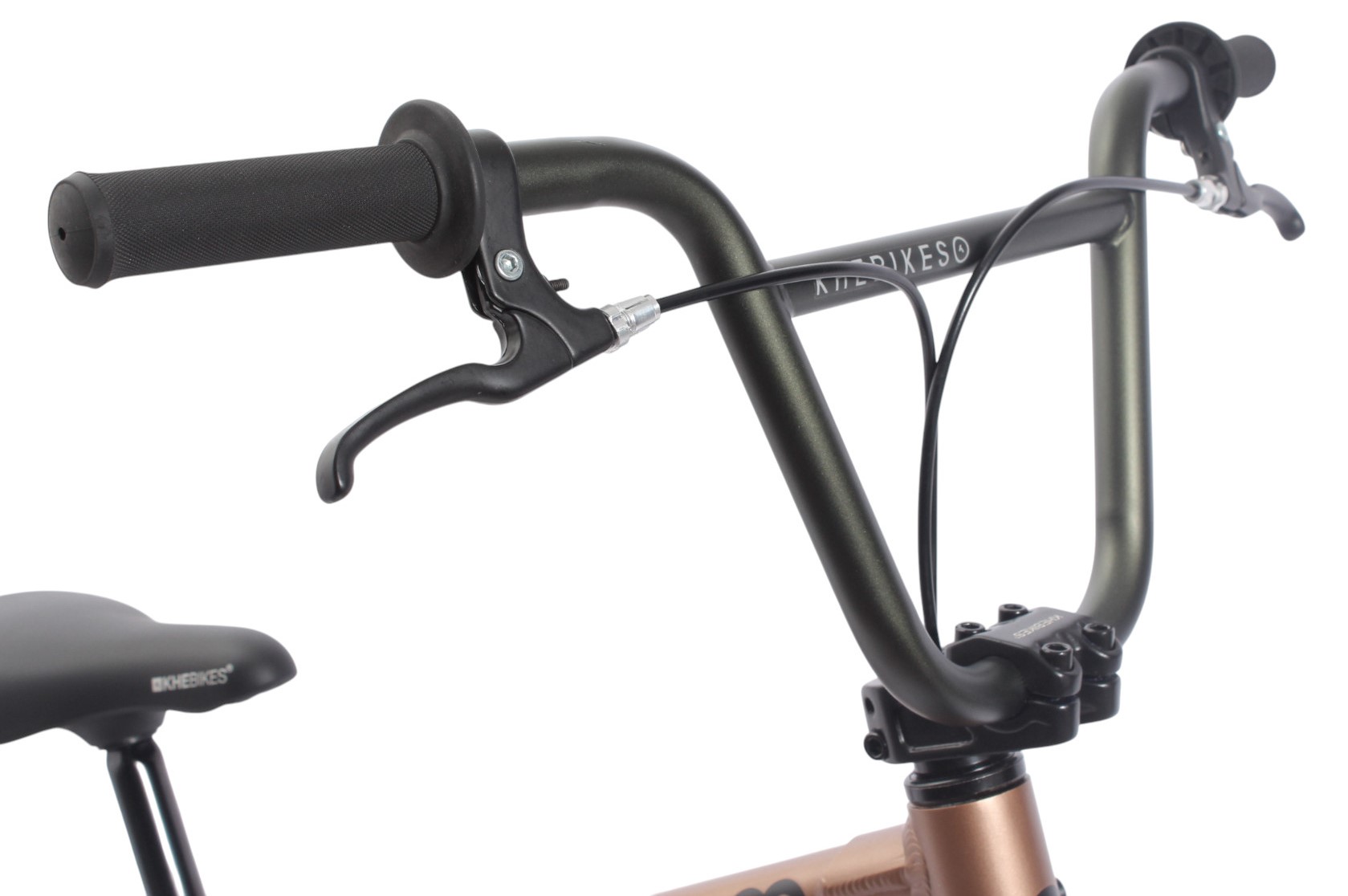

| Handlebars: | KHE HiTen steel 680mm width (26.8“) x 203mm (8”) height, backsweep 10”, upsweep 1” |

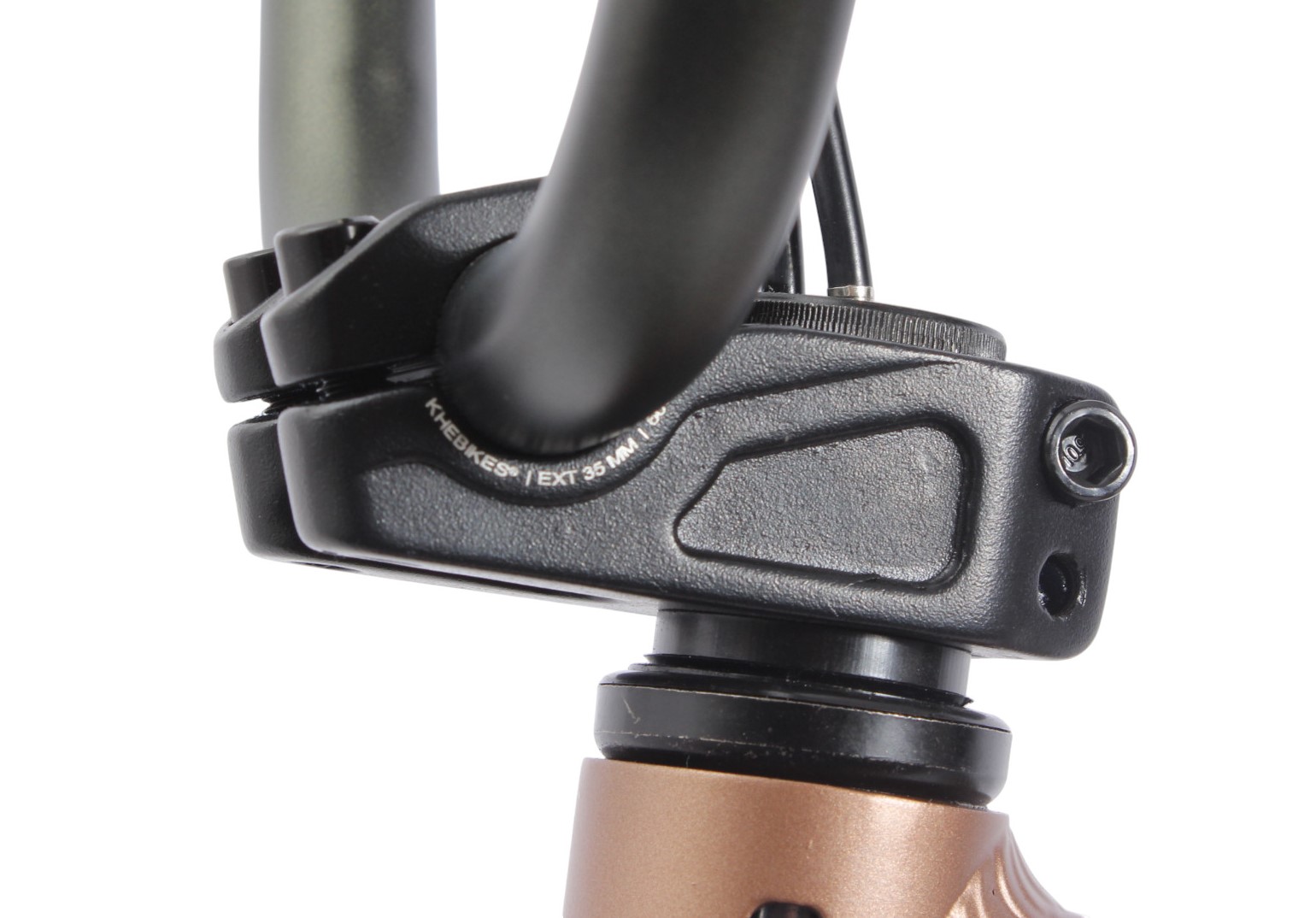

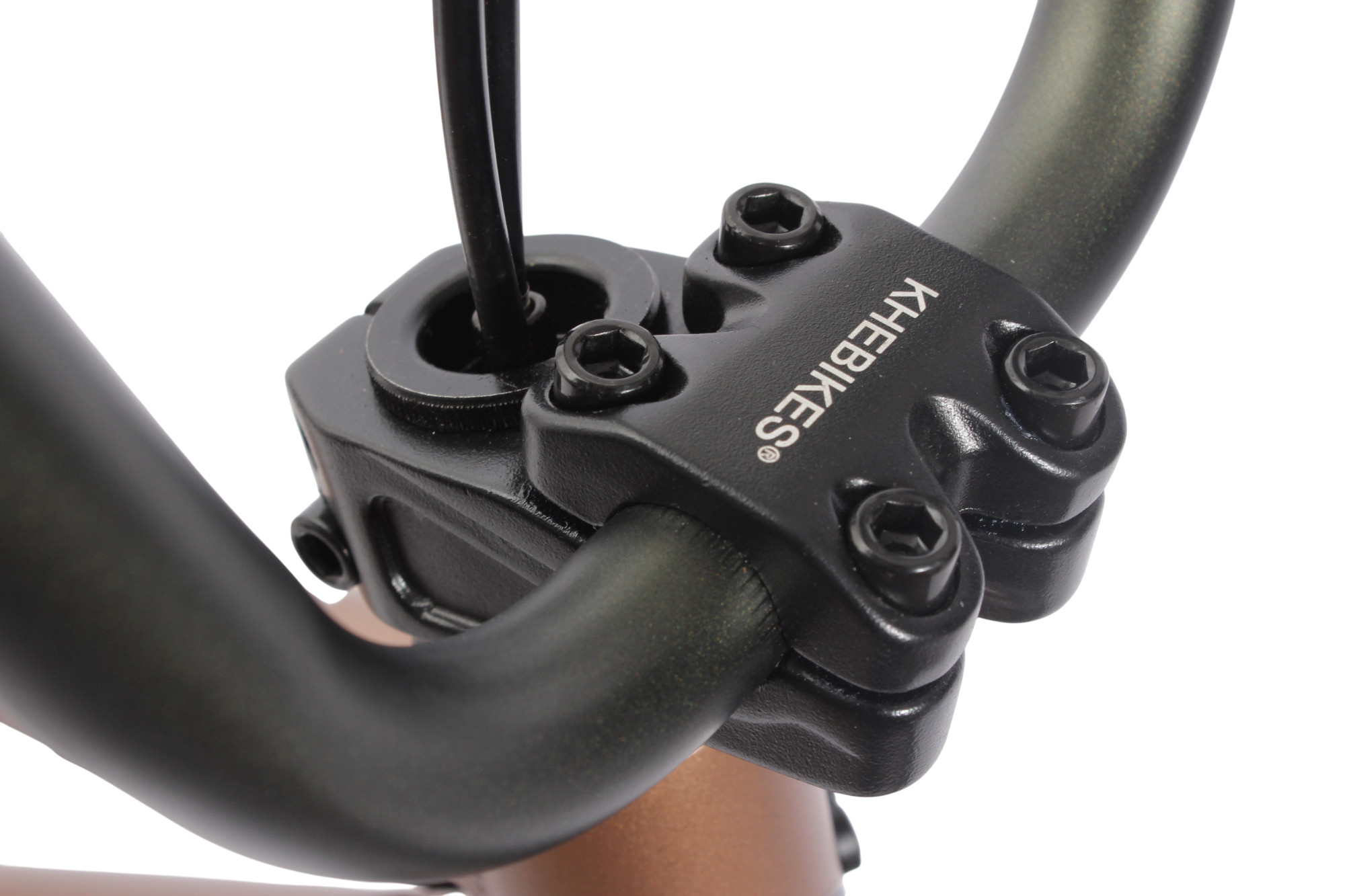

| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | AFFIX Loosball 1 1/8" |

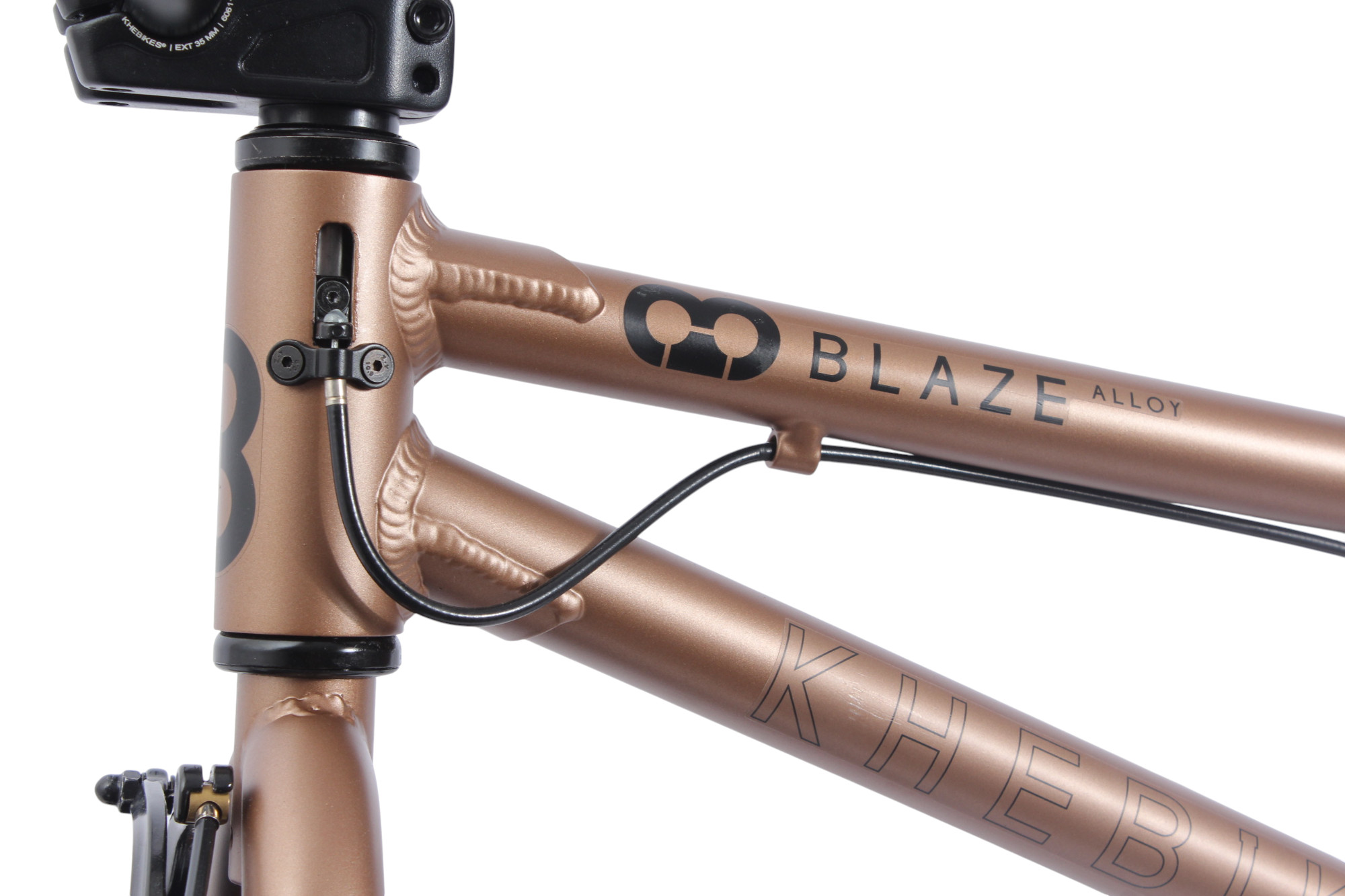

| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Brake levers: | Aluminum with adjusting screw |

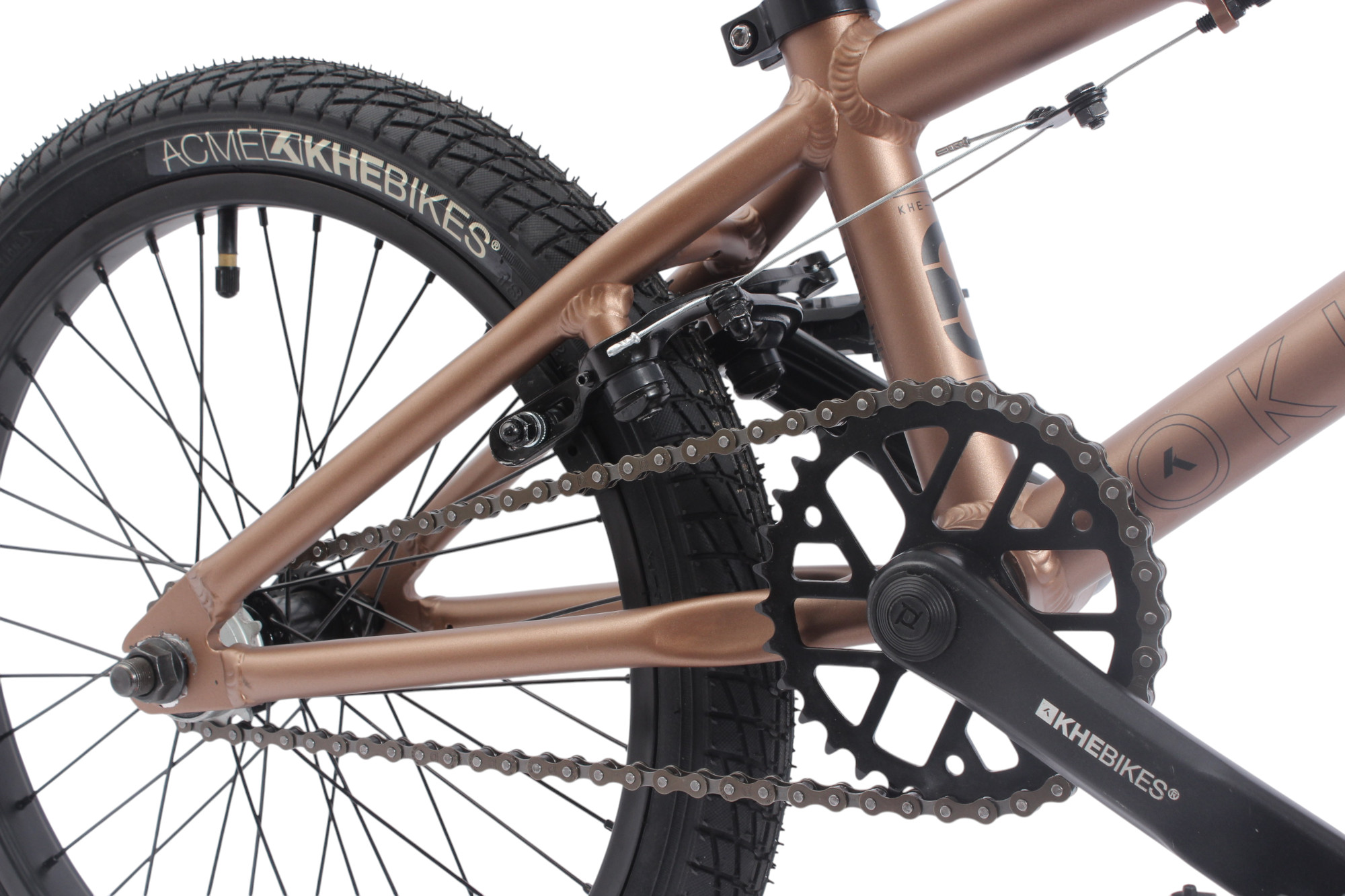

| Rear brake: | KHE RADIUS Aluminum U-Brake |

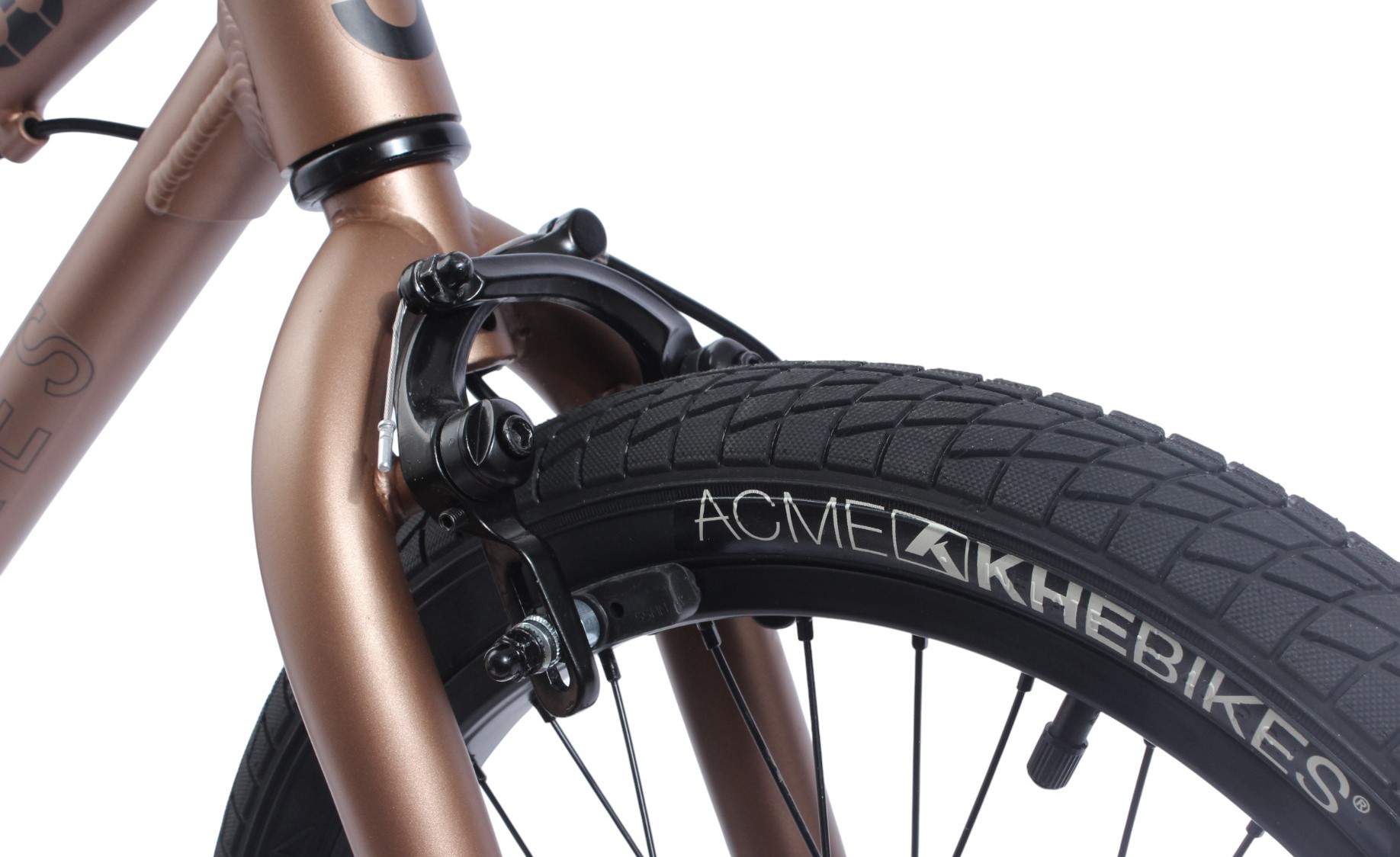

| Front brake: | KHE RADIUS Aluminum U-Brake |
| Crank: | KHE 3-piece forged aluminum 152mm length |

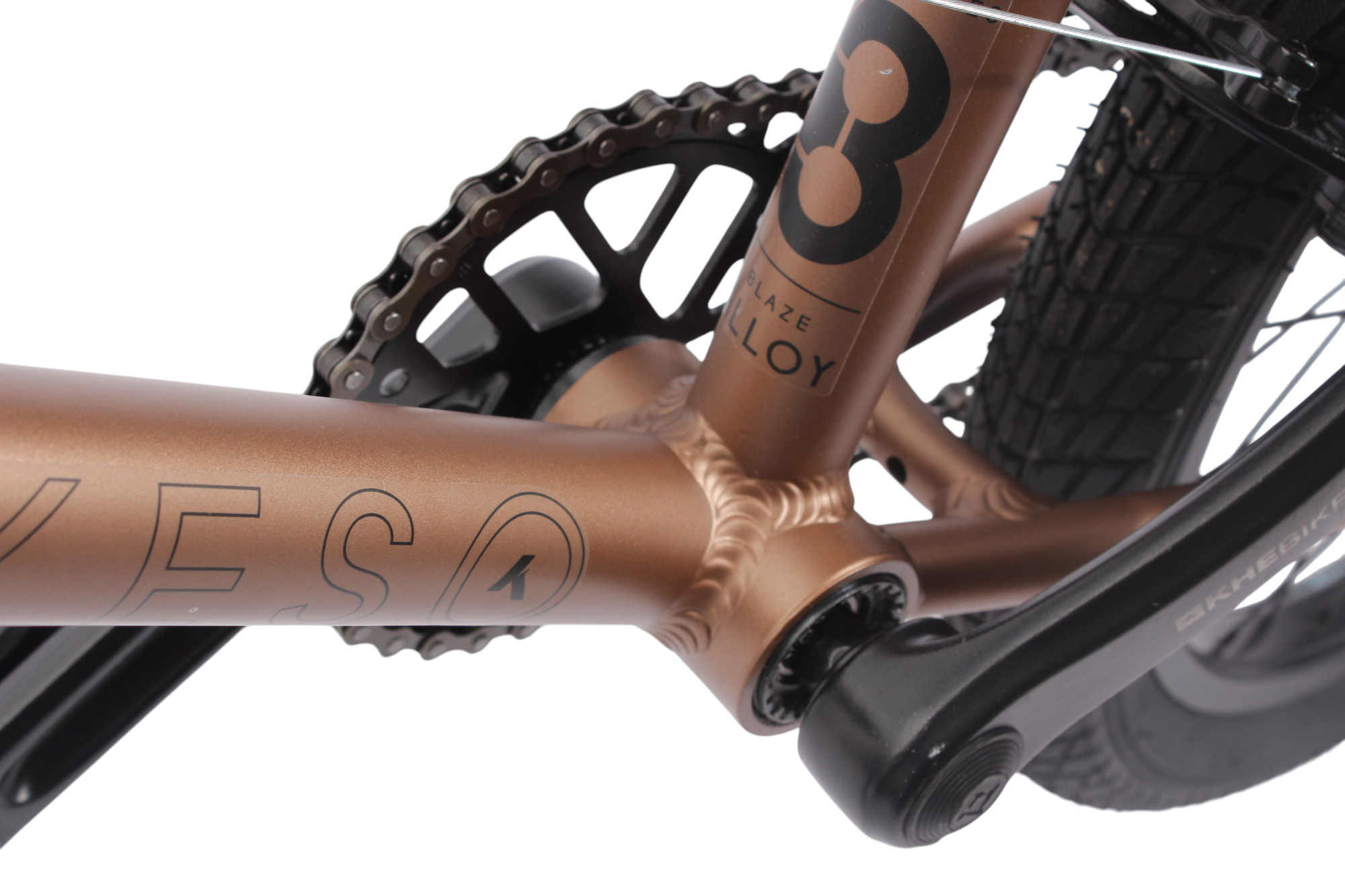

| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 116mm |
| Chainring: | 32T |
| Chain: | YBN CN ST 1/2 x 1/8“ |

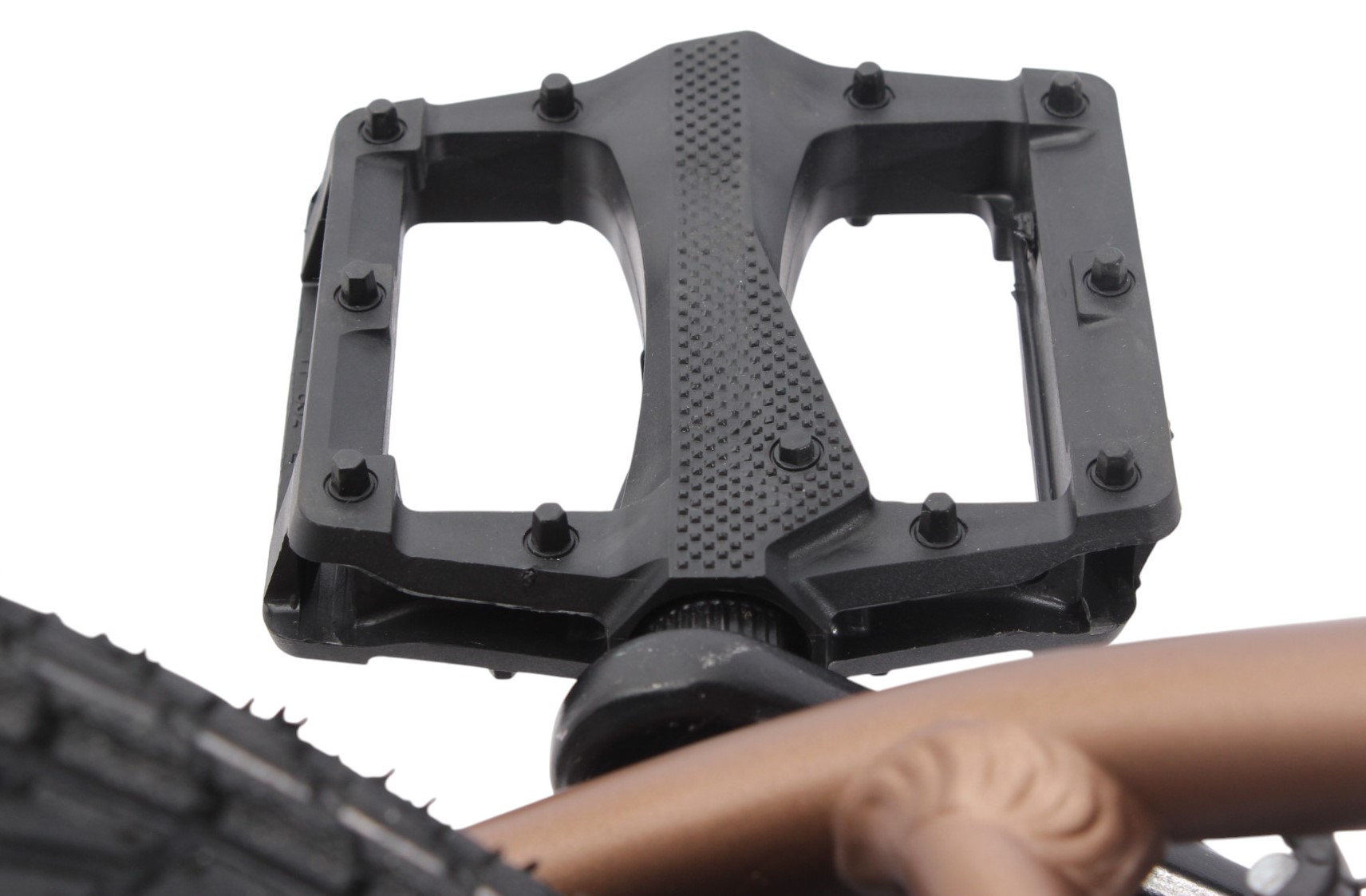

| Pedals: | FEIMIN PVC with Baron axle 9/16” |
| Front wheel hub: | Aluminum 3/8" (10mm) x 155mm axle, loose ball bearings, 36 holes |

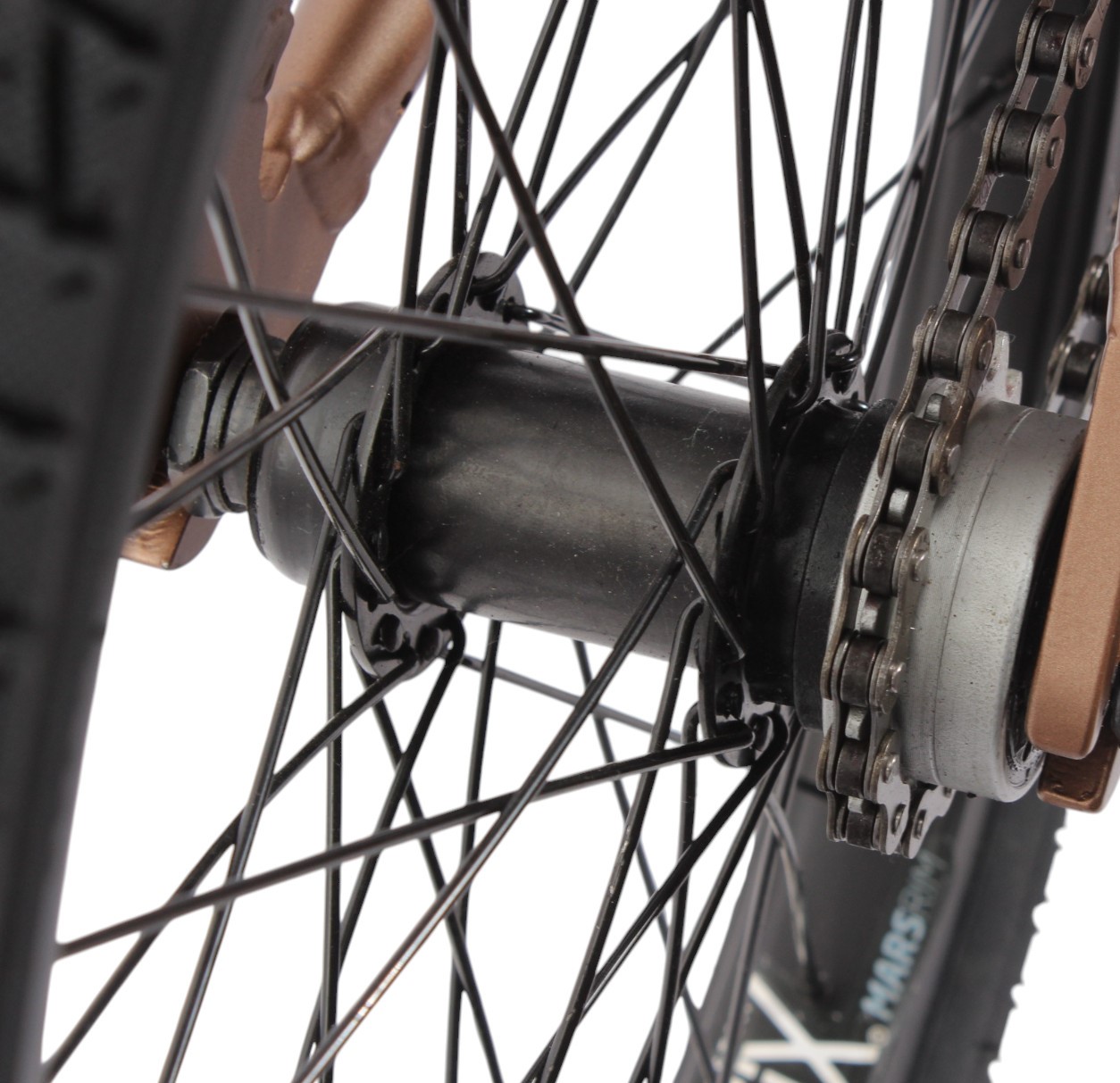

| Rear wheel hub: | 14mm x 170mm axle, loose ball bearing (thread for freewheel M35) |
| Freilauf: | 14 teeth freewheel |

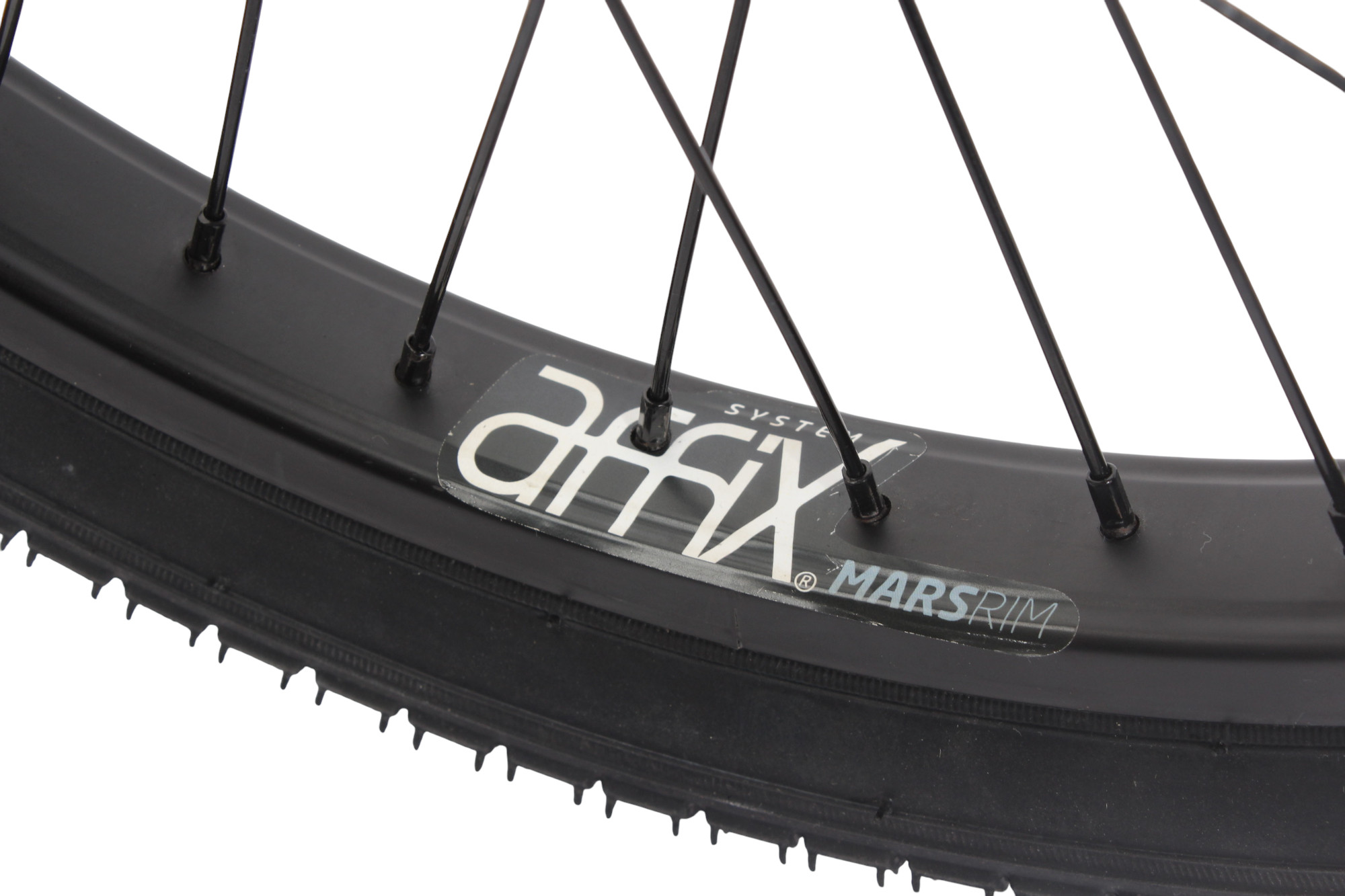

| Rim: | AFFIX 18 inch single-wall aluminum, 36 holes |
| Tyres: | KHE ACME 18 inch x2.125” |
| Material: | 6061 T6 Aluminium |
| Tire size: | 18 inch |
| Category: | Park, Street, Flatland, Pumptrack |
| Size: | 18"; 4'1" - 4'9" in |
| Colour: | Bronze |
| Weight: | 20.5lbs / 9,3kg |
| Model Year: | 2025 |
Ensure Compatibility:
This BMX bike is suitable for children and young riders approximately 125–145 cm tall. It is intended for use in parks, on the street, and on pump tracks. The maximum rider weight must not exceed 70 kg. Not suitable for competitions or extreme jump use.
Assembly: All safety-relevant components such as handlebars, rotor, brakes, cranks, and wheels must be properly assembled and checked before first use. After crashes, all bolts should be rechecked.
Care and Maintenance:
Clean the bike regularly with a soft damp cloth. Do not use aggressive cleaning products. Periodically check brake performance, the condition of frame, rims, tires, and bottom bracket play.
Store the bike in a dry and protected environment.
Replacement in Case of Wear: Worn or damaged components such as brakes, chain, cranks, or rims must be replaced immediately. Using damaged parts can lead to accidents and loss of control.
