Das KHE COSMIC AL 2025 ist ein stylisches und besonders leichtes 20-Zoll-BMX mit Aluminiumrahmen, Rotor-System, V-Bremsen und nur 10,6kg Gesamtgewicht – ideal für Einsteiger.
KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, advanced engineering and outstanding riding dynamics. The new 2025 models offer optimised geometry, thoughtful details and high-quality components – directly from the manufacturer for top performance on any terrain.

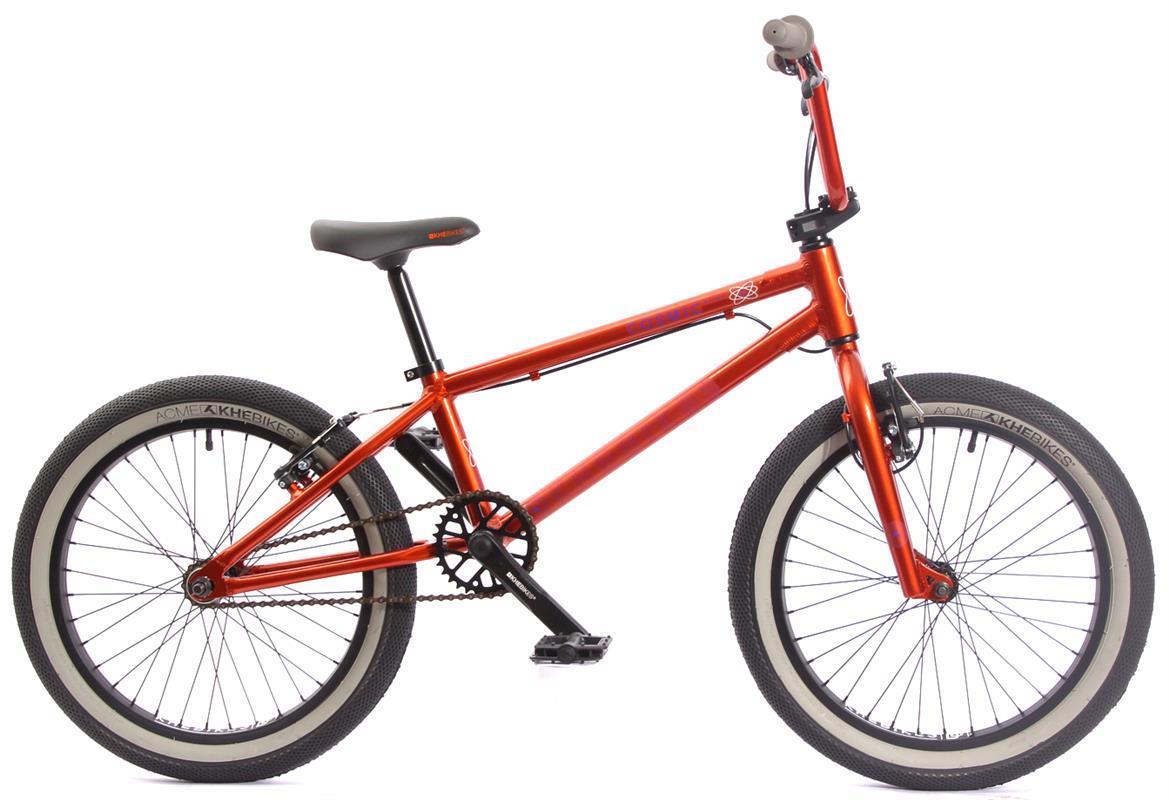

KHE COSMIC AL 20"
The KHE Cosmic AL 20 inch BMX is a very stable and stylish BMX bike, ideal for riders starting out with BMX. The lightweight aluminium frame with 14 mm dropouts ensures both stability and agility at a total weight of just 10.6 kg (23.4 lbs).
With our patented KHE Affix rotor system, 360° barspins are possible – perfect for all kinds of tricks. The 680 mm wide and 8 inch high handlebar ensures optimal control, while the forged 3-piece aluminium crank and 32-tooth chainring deliver efficient power transfer. The sealed EURO BB bottom bracket is threaded into the frame and therefore cannot develop side play like a US BB system. The 20-inch double-wall rims and the wide KHE ACME 2.40 inch tyres provide excellent grip and high stability.
Another highlight is the front and rear V-brakes, which enable precise and powerful braking.
Recommended rider height: 135–170 cm (4'5"–5'7")
Maximum rider weight: 75 kg (165 lbs)
Ideal for: Park, pump track, street, race, flatland
Why choose the Cosmic 20 inch from KHEbikes:
- Directly from the manufacturer – best prices
- At 10.6 kg – one of the lightest 20 inch BMX starter bikes (including rotor)
- Worldwide patented KHE BMX rotor for 360° barspins
- Aluminium frame!
- With two powerful V-brakes
- Sealed EURO industrial bottom bracket

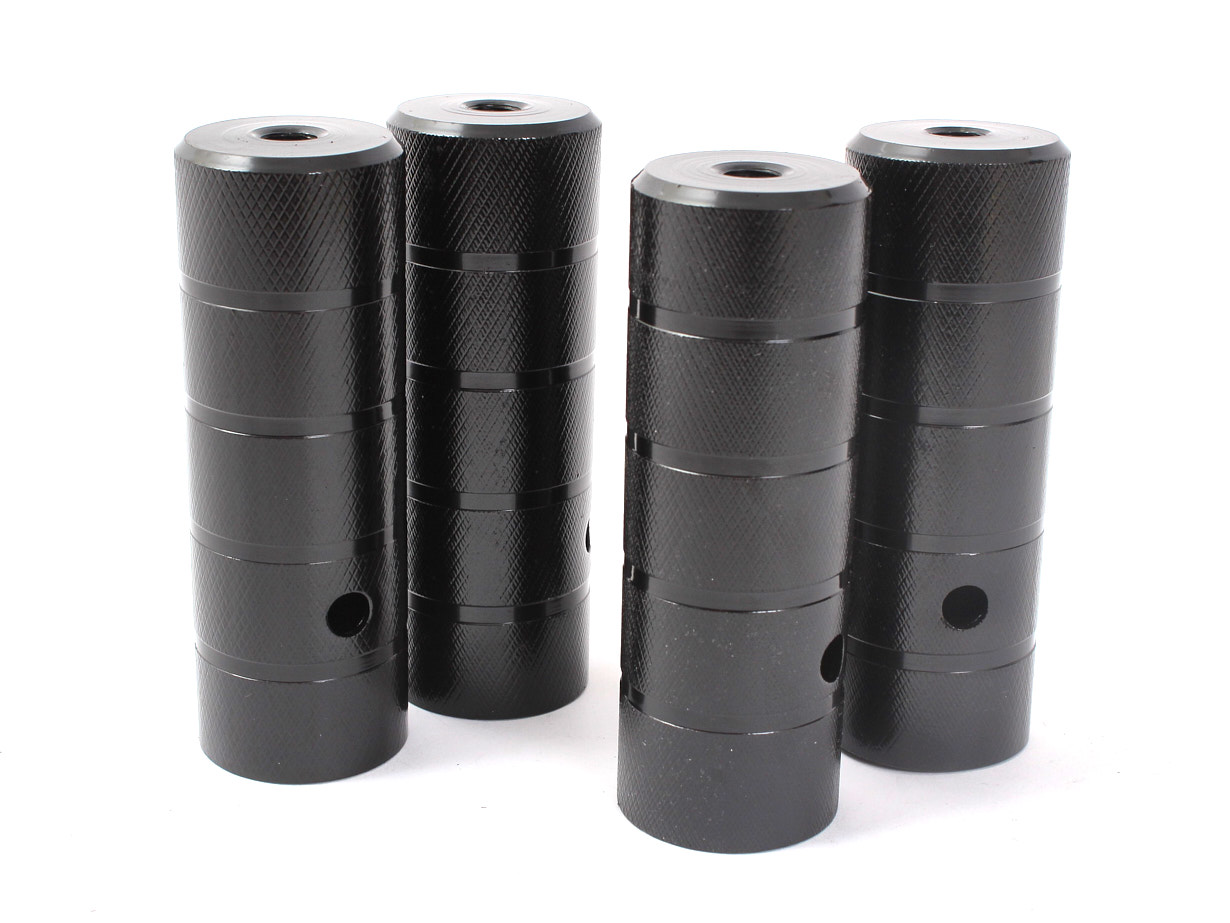

Pegs: Suitable for the Cosmic 20" are 10 mm front and 14 mm rear pegs. We recommend the BLACK STEEL Pegs.
The BMX bike comes approximately 90% pre-assembled. You can find the manual under “Datasheets” and the assembly video under “Video”.

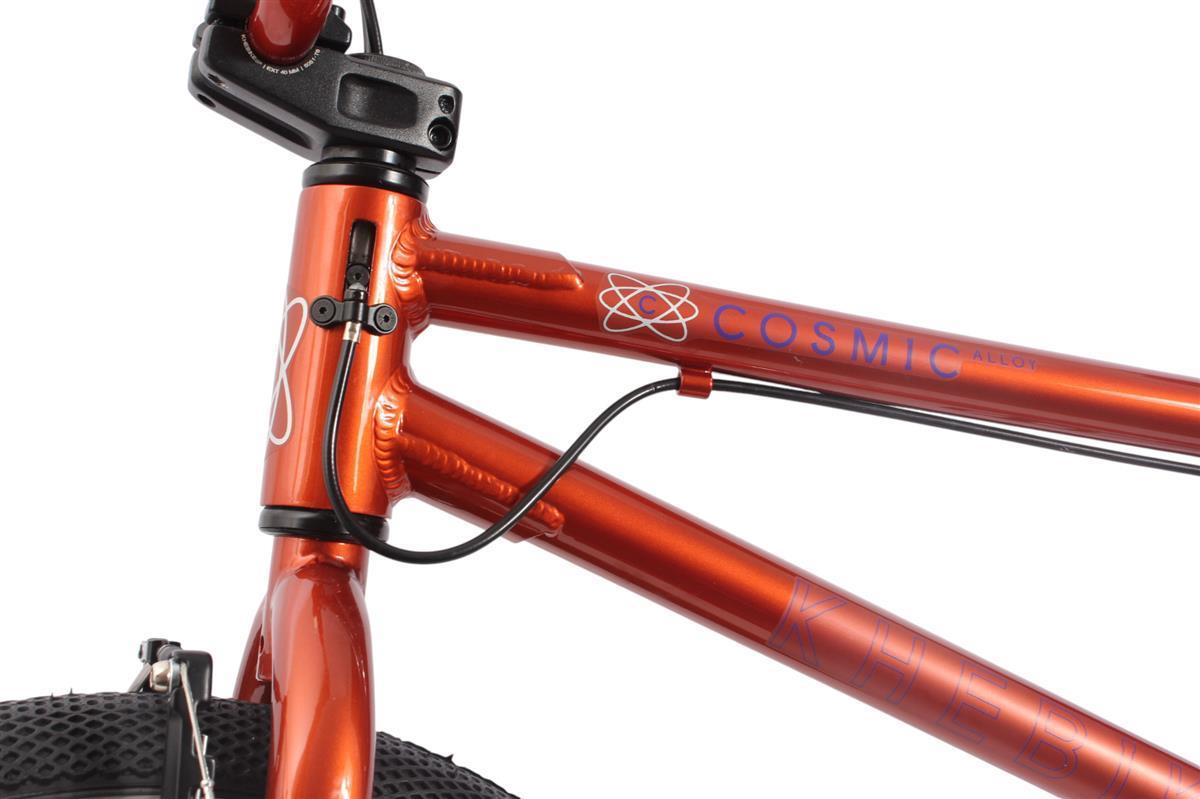

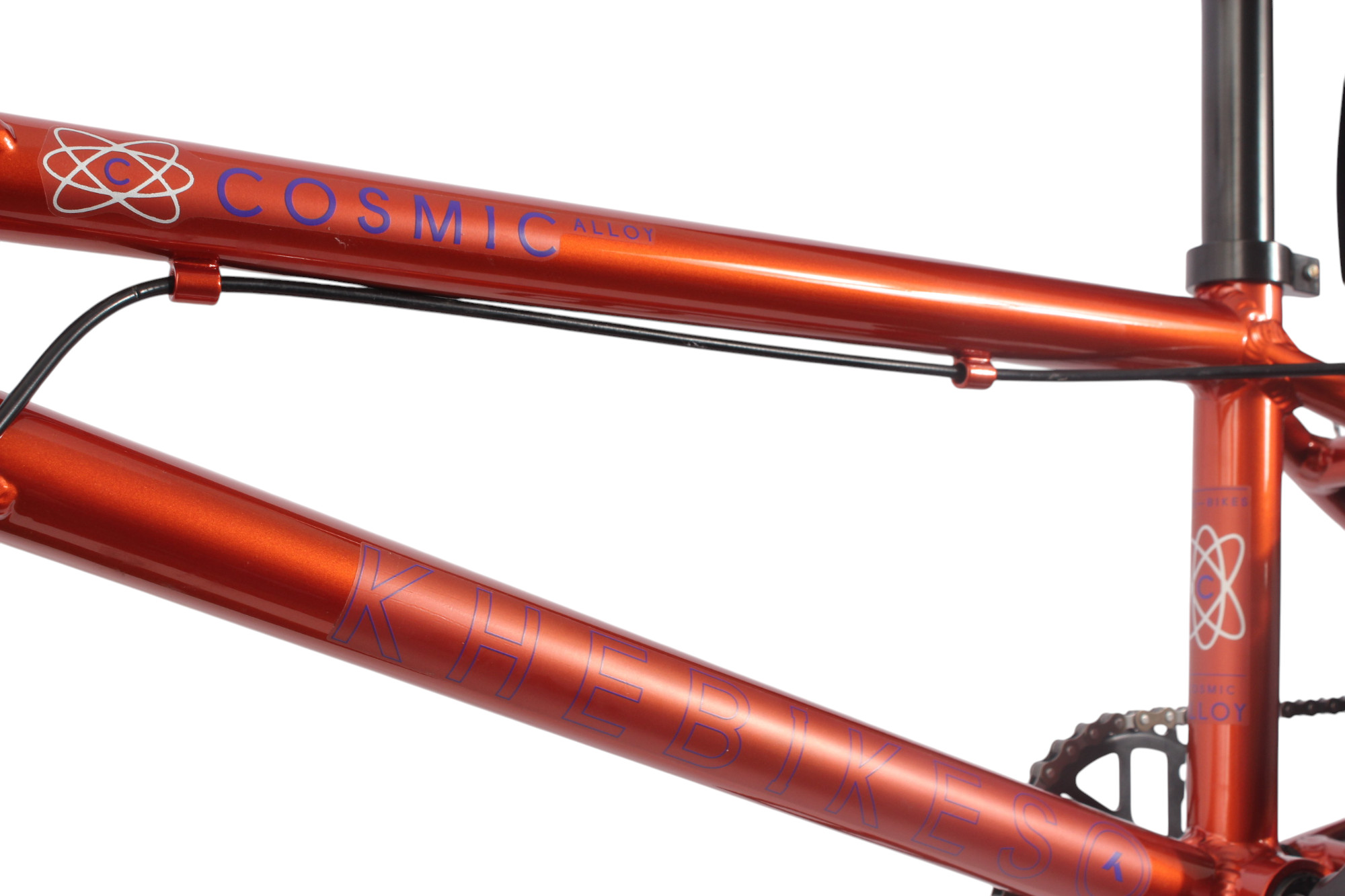

| Frame: | KHE 6061 aluminum, 14mm dropout, top tube 20", CS 13.7", HT 74°, ST 71°, A-headset 1 1/8" 46x39mm |
|---|---|
| Top tube length: | 20" (508mm) |
| Fork: | KHE 1020 HiTen steel with 10mm dropouts, tapered stanchions & 33mm forerunner |

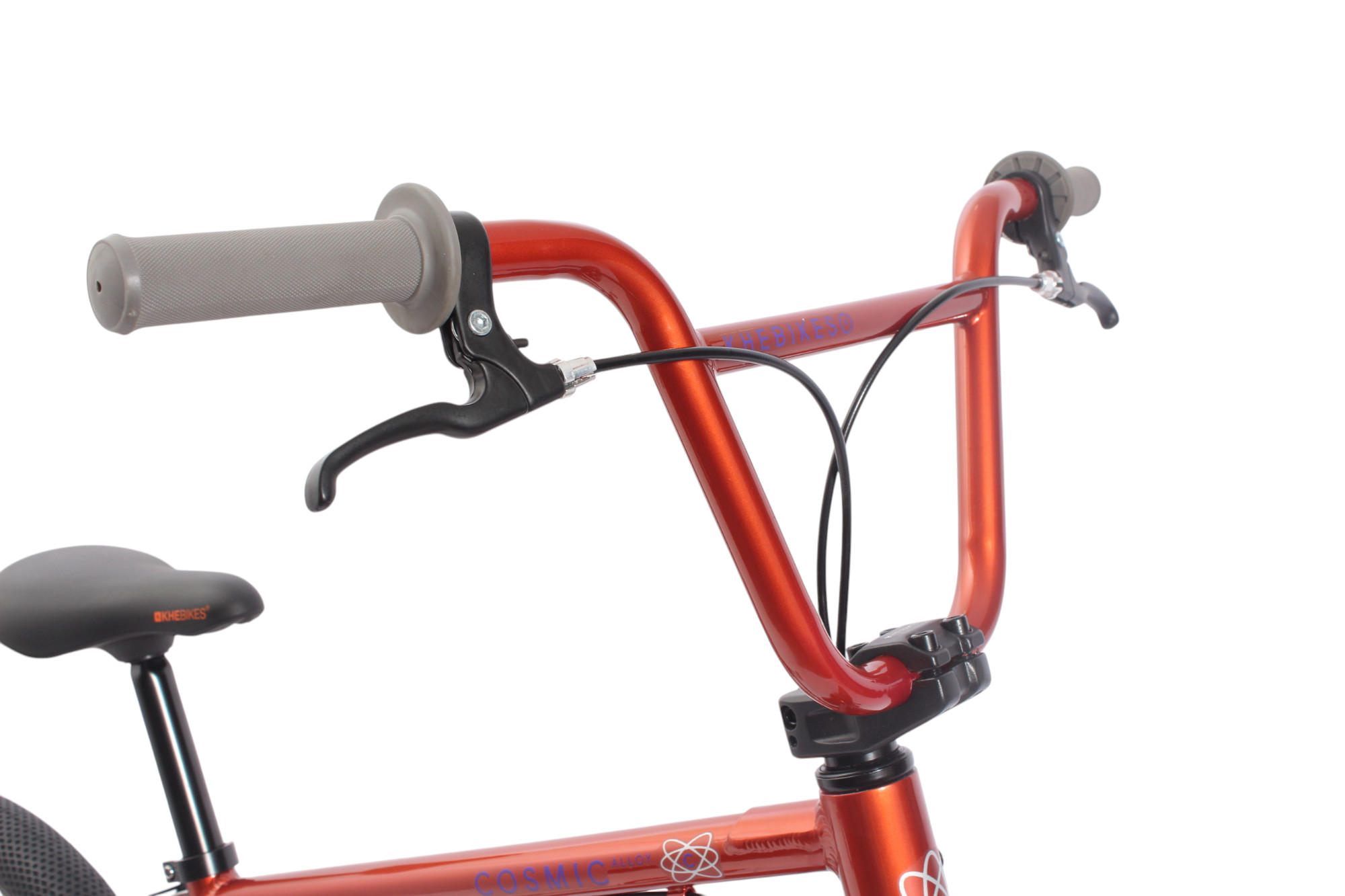

| Handlebars: | KHE HiTen steel 680mm width (26.8“) x 203mm (8”) height, backsweep 10”, upsweep 1” |

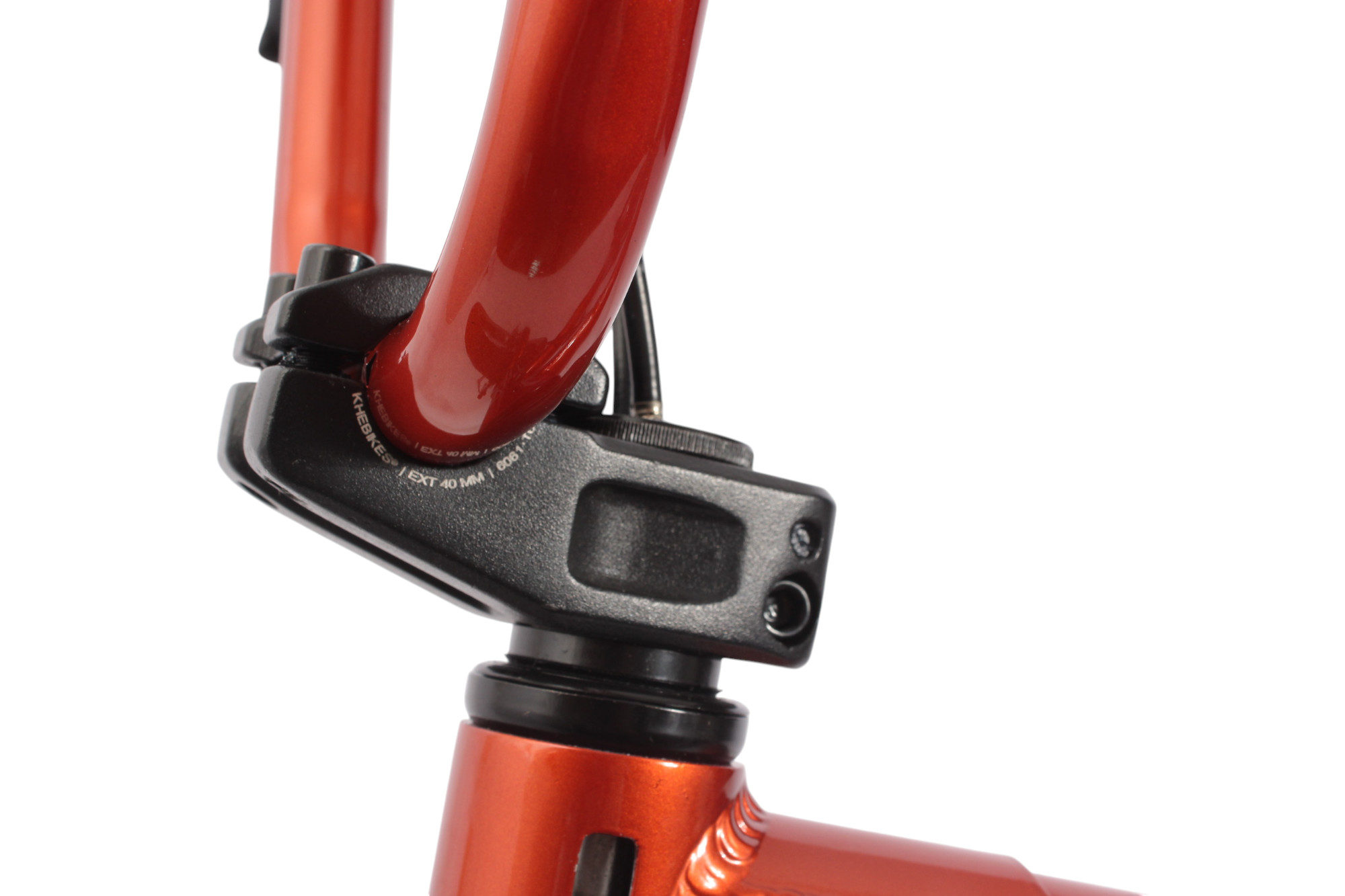

| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | AFFIX Loosball 1 1/8" |
| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Brake levers: | Aluminum with adjusting screw |
| Rear brake: | 102mm aluminum V-brake with adjustment screw |

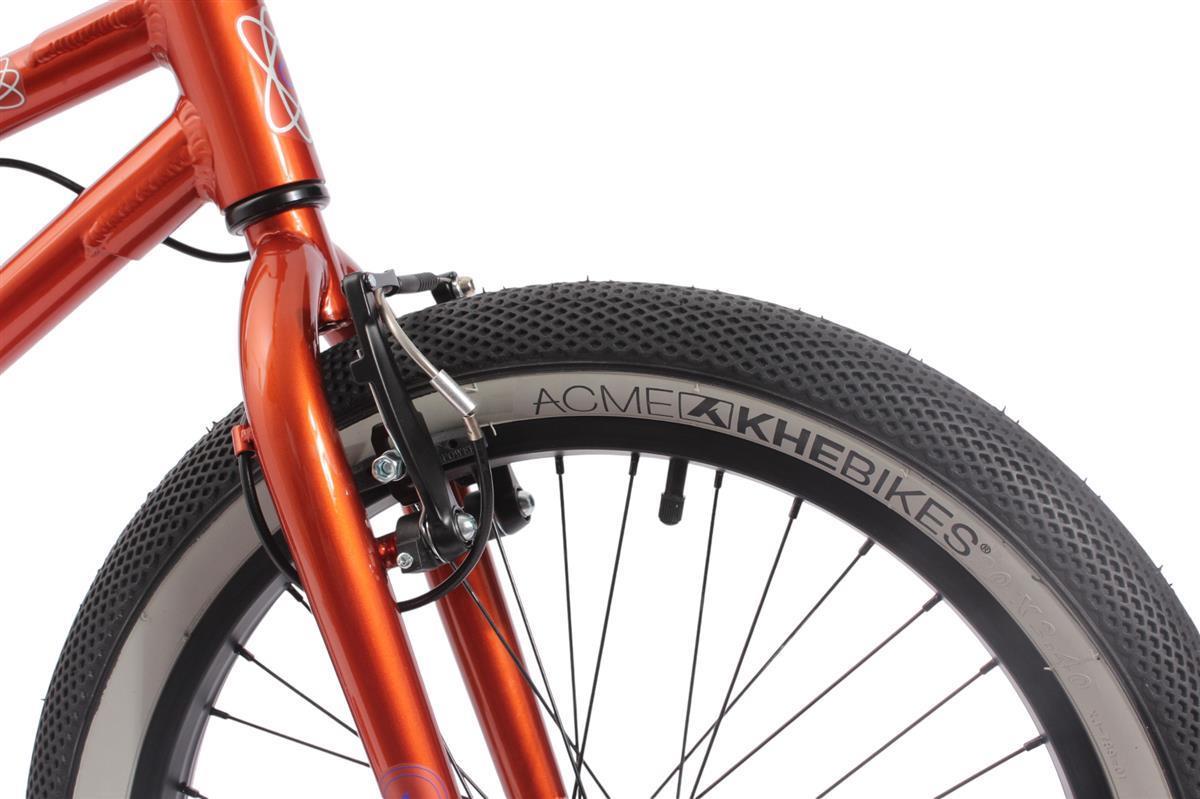

| Front brake: | 102mm aluminum V-brake with adjustment screw |

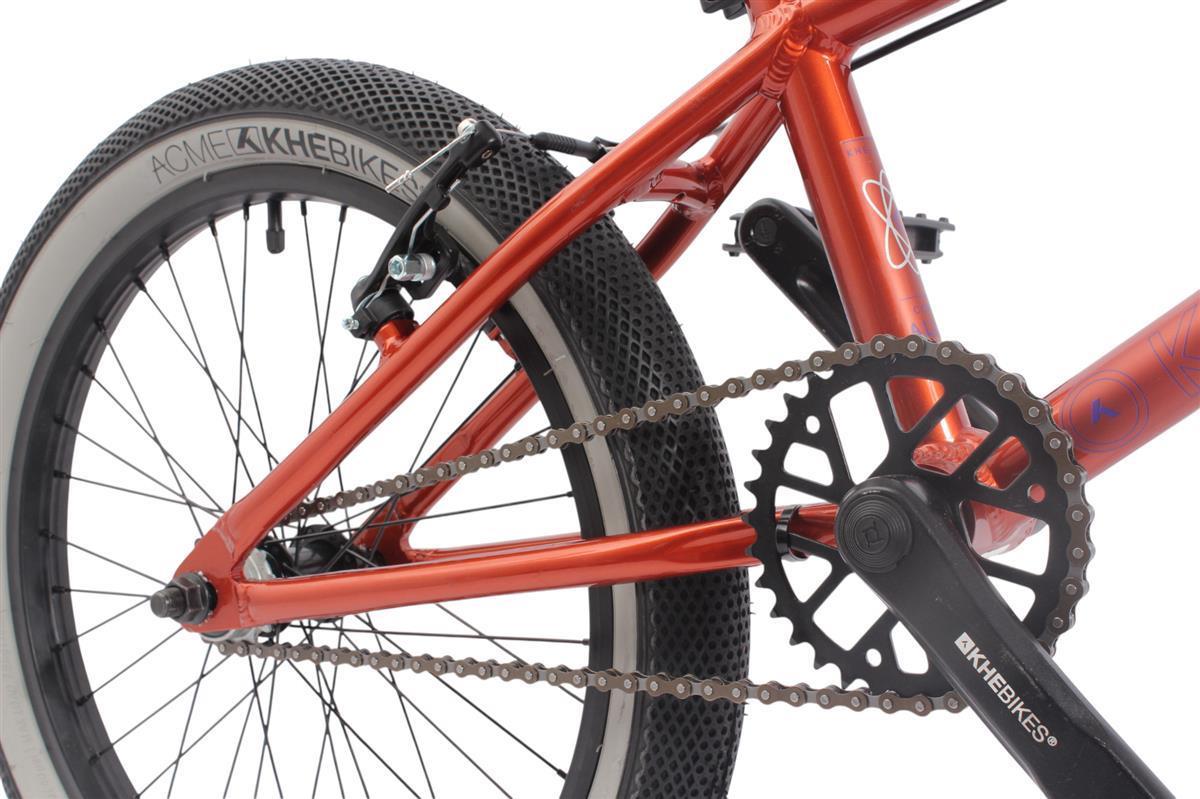

| Crank: | KHE 3-piece forged aluminum 165mm length |
| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 116mm |
| Chainring: | 32 teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |

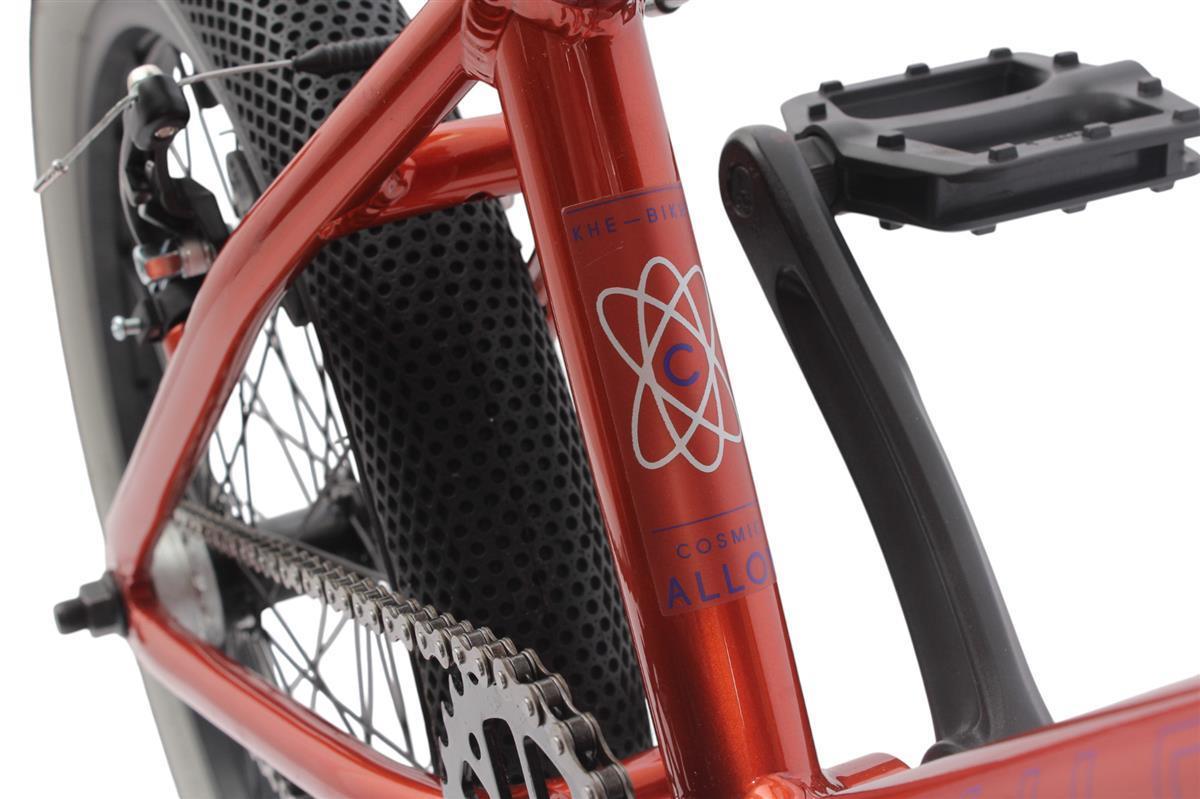

| Pedals: | FEIMIN PVC with Baron axle 9/16” |

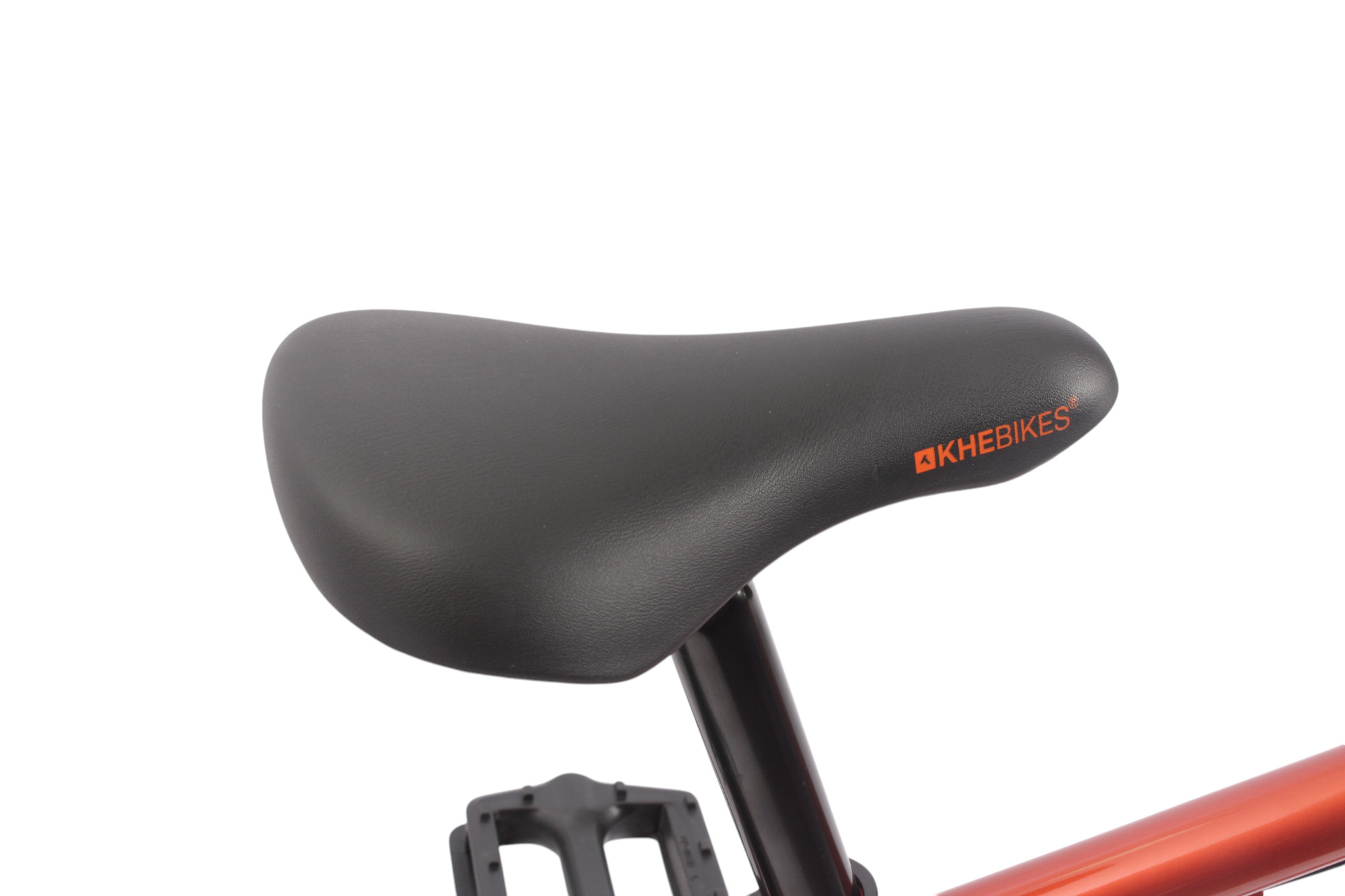

| Saddle: | Padded 210 x 140mm with embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 250mm (integrated seat post with saddle) |
| Front wheel hub: | 3/8” (10mm) x 155mm axle, steel, loose ball, 20H |

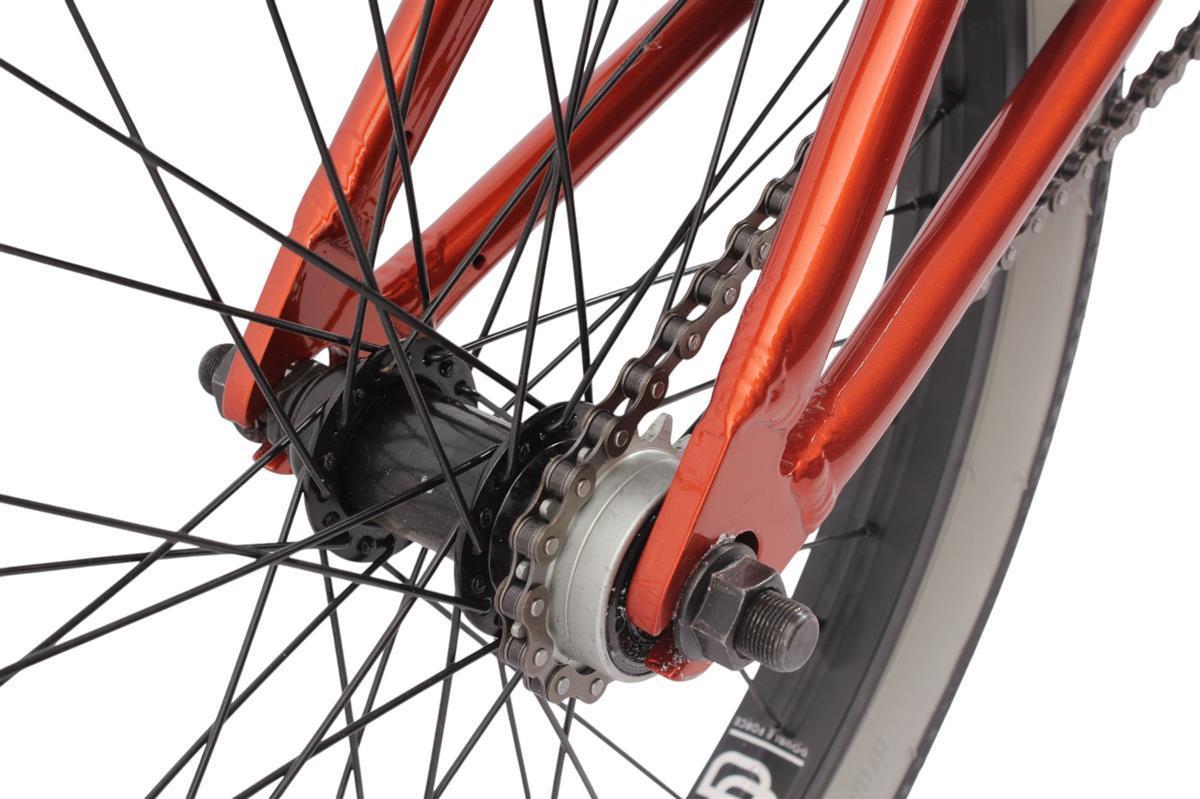

| Rear wheel hub: | 14mm x 170mm axle, loose ball bearing (thread for freewheel M35) |
| Freilauf: | 14 teeth freewheel |
| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | Aluminum |
| Tire size: | 20 inch |
| Category: | Pumptrack, Street, Park, BMX Race |
| Size: | 20 "; 4'7" - 5'7" in |
| Colour: | Orange |
| Model Year: | 2025 |
Usage Instructions:
The KHE Cosmic AL 20-inch BMX is ideal for beginners and designed for use in skateparks, pump tracks, street, race, and flatland.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bike is equipped with appropriate lighting and reflectors in accordance with StVZO regulations.
Maximum user weight: 75 kg.
Safety Instructions:
Always wear an appropriate helmet and protective gear (knee, elbow, and hand guards).
Before each ride, check all bolts, connections, and components for secure fit.
Regularly inspect the condition of the brakes and tires.
Ensure the chain is properly tensioned and shows no visible damage.
No Modifications Allowed: Do not make any modifications such as drilling, cutting, or other changes to the BMX bike. The warranty will be void if the bike is used improperly.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust formation.
Use only original spare parts. Perform maintenance according to the user manual.
Replacement due to Wear: Regularly check components such as the handlebar, frame, and fork of the BMX bike for cracks, deformations, or microcracks, especially at the welds. Replace components immediately if cracks or damage are found.
