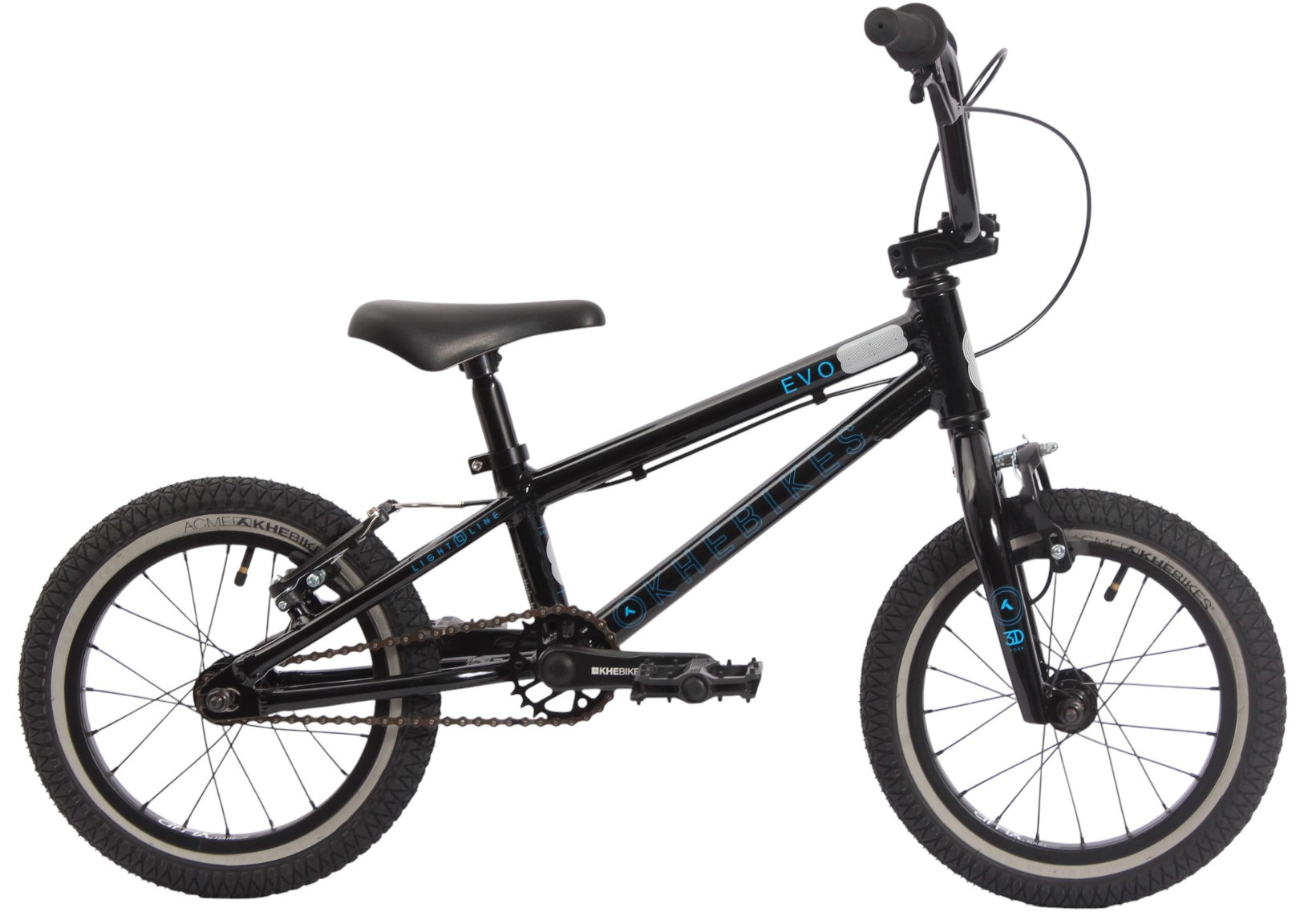

KHE EVO LL 14"

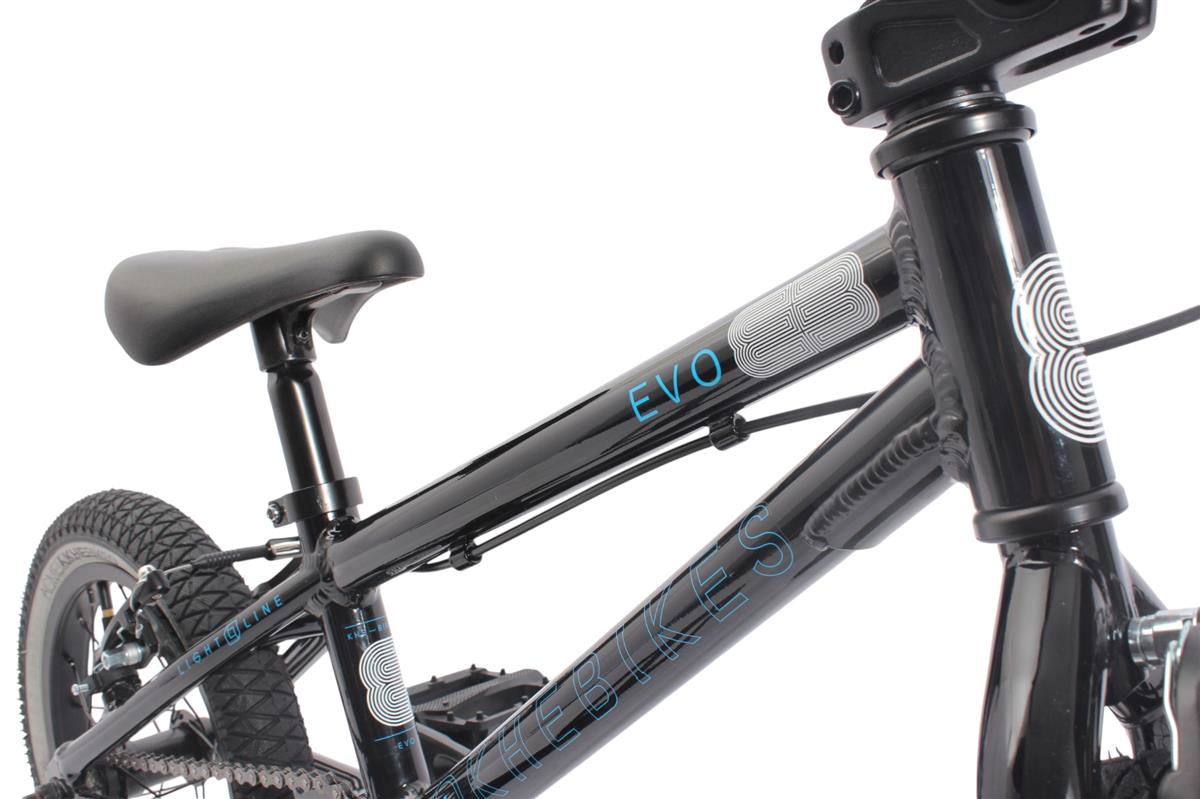

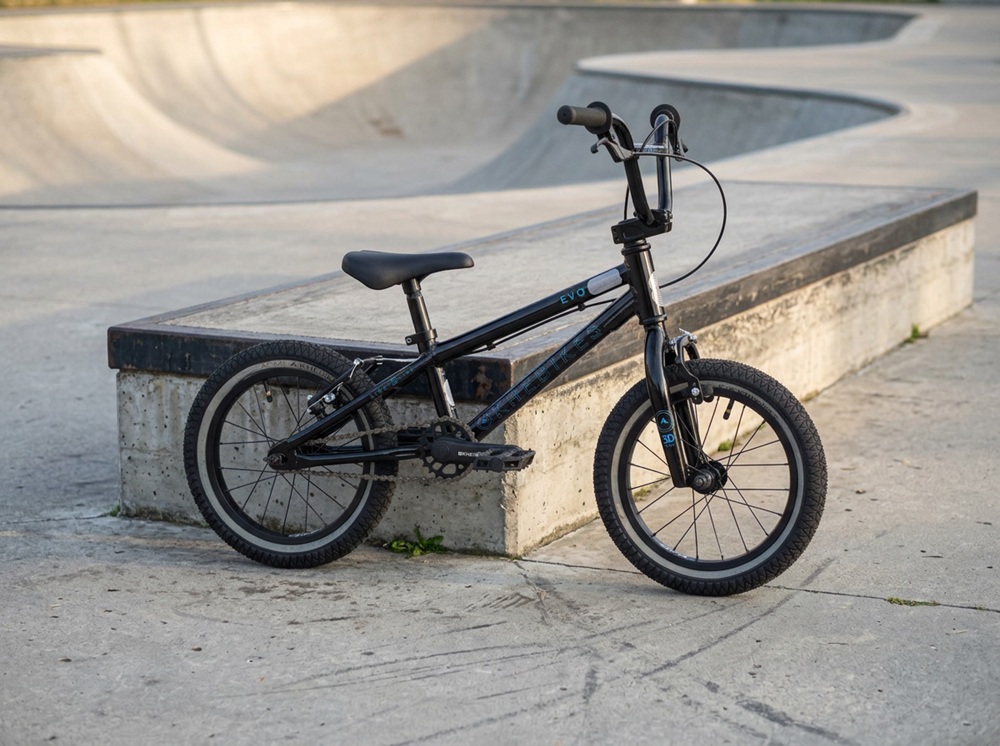

The KHE EVO LL 14-inch BMX is a lightweight and stable freestyle bike for young riders who want to learn their first tricks. The aluminum frame and aluminum handlebars provide agility and control at just 16.5 lbs (7.5 kg).
With 3D dropouts (Investment Cast), the fork is particularly strong. The compact 14-inch size is suitable for riders between 3'1" and 3'9" (95 to 115 cm). Thanks to the wide 2.1-inch tires, the bike offers excellent grip on any surface.
A reliable rear V-brake ensures safe braking. The KHE EVO 14" is perfect for pump track, street, park, race, and flatland.
Recommended rider height: 3'1" - 3'9" (95-115 cm)
Maximum rider weight: 99.2 lbs (45 kg)
Best for: Pump track, street, park, race, flatland.
Why choose the KHE EVO 14-inch from KHEbikes?
- Directly from the manufacturer, ensuring the best prices
- One of the lightest 14-inch BMX bikes at 16.5 lbs (7.5 kg)
- Aluminum frame & aluminum handlebars
- Equipped with two brakes
- Sealed industrial bottom bracket
Pegs: The KHE EVO LL 14" is compatible with 10mm pegs front and rear. We recommend the KHE COP ALU Pegs.
The BMX bike comes about 90% pre-assembled. The manual can be found under "Datasheets." An assembly video is available under "Video."
| Frame: | KHE 6061 aluminum, 10mm dropout, top tube 14.7", CS 10.7", HT 74°, ST 73°, A-headset 1 1/8" 38x34mm |
|---|---|
| Top tube length: | 14,7" (373mm) |

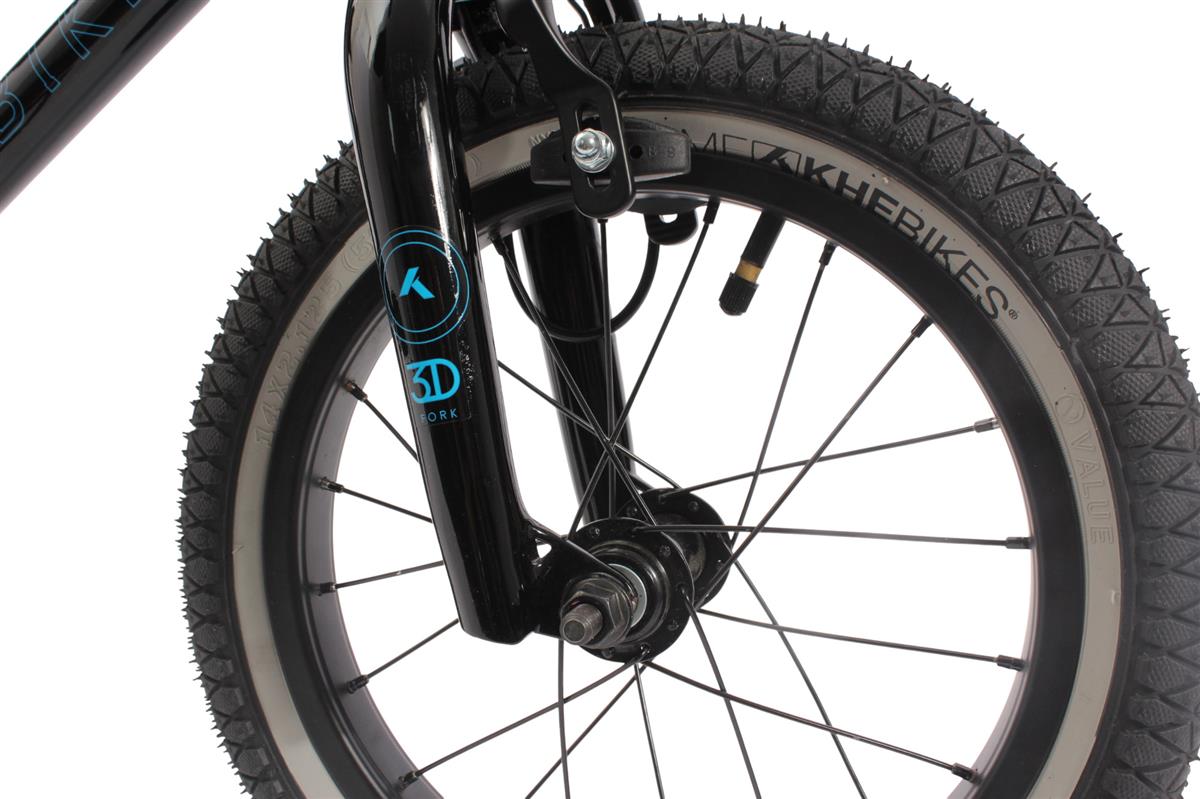

| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

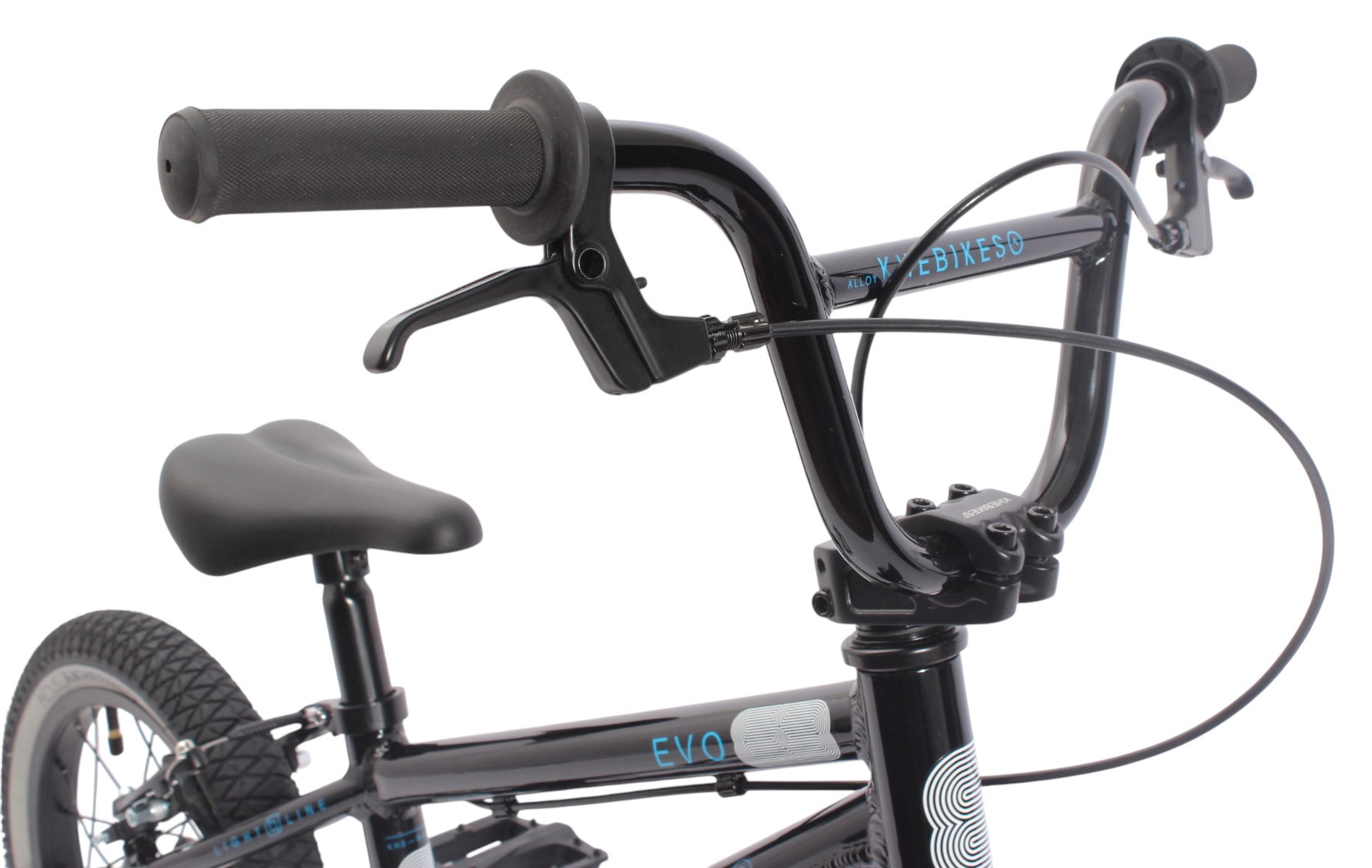

| Handlebars: | KHE aluminum 585mm width x 165mm (6.5“) height, backsweep 8”, upsweep 2.5” |

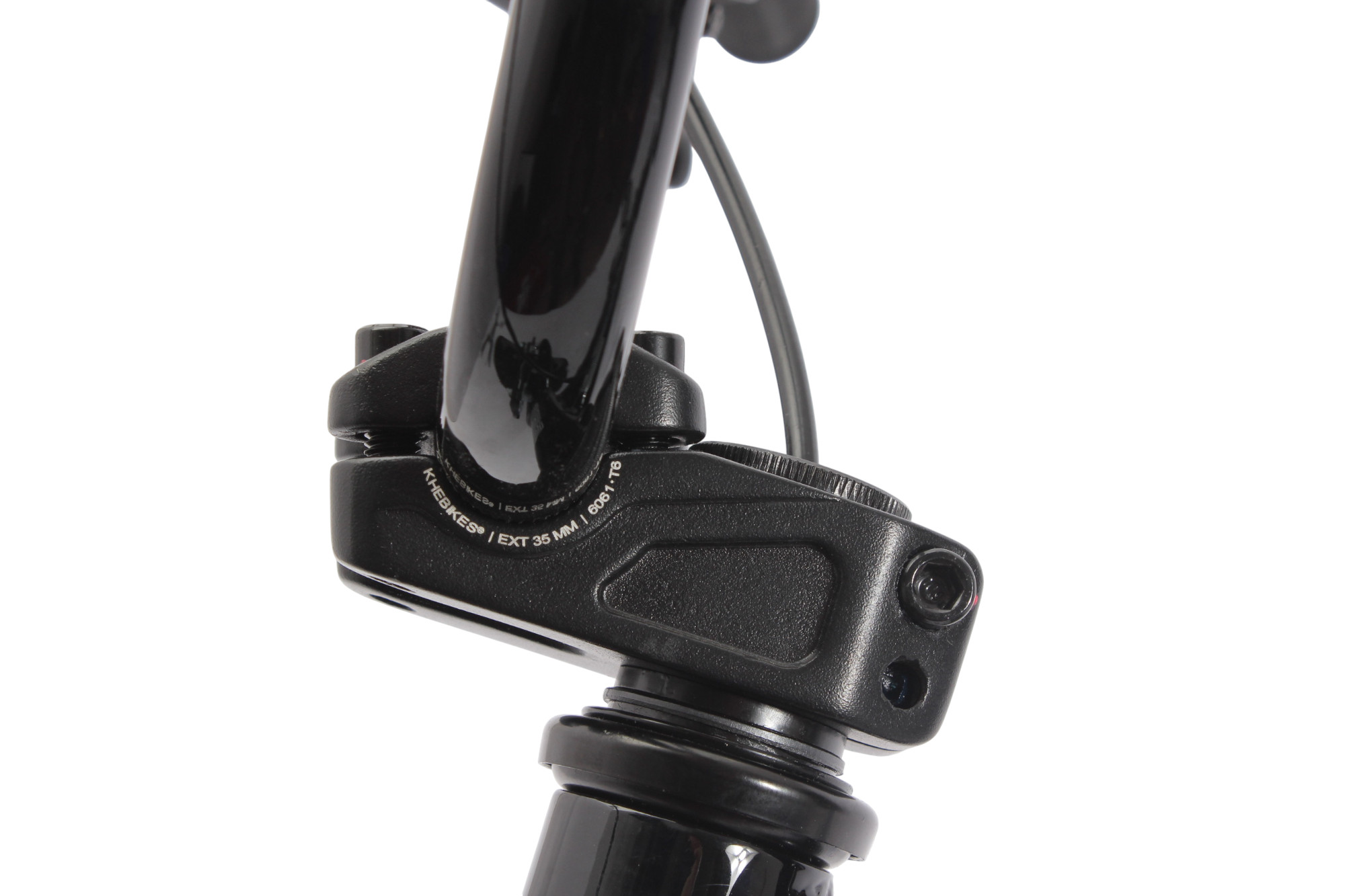

| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | Aheadset 38x34mm Loosball 1 1/8” |
| Handles: | with flange 110mm, rubber diamond cut profile |

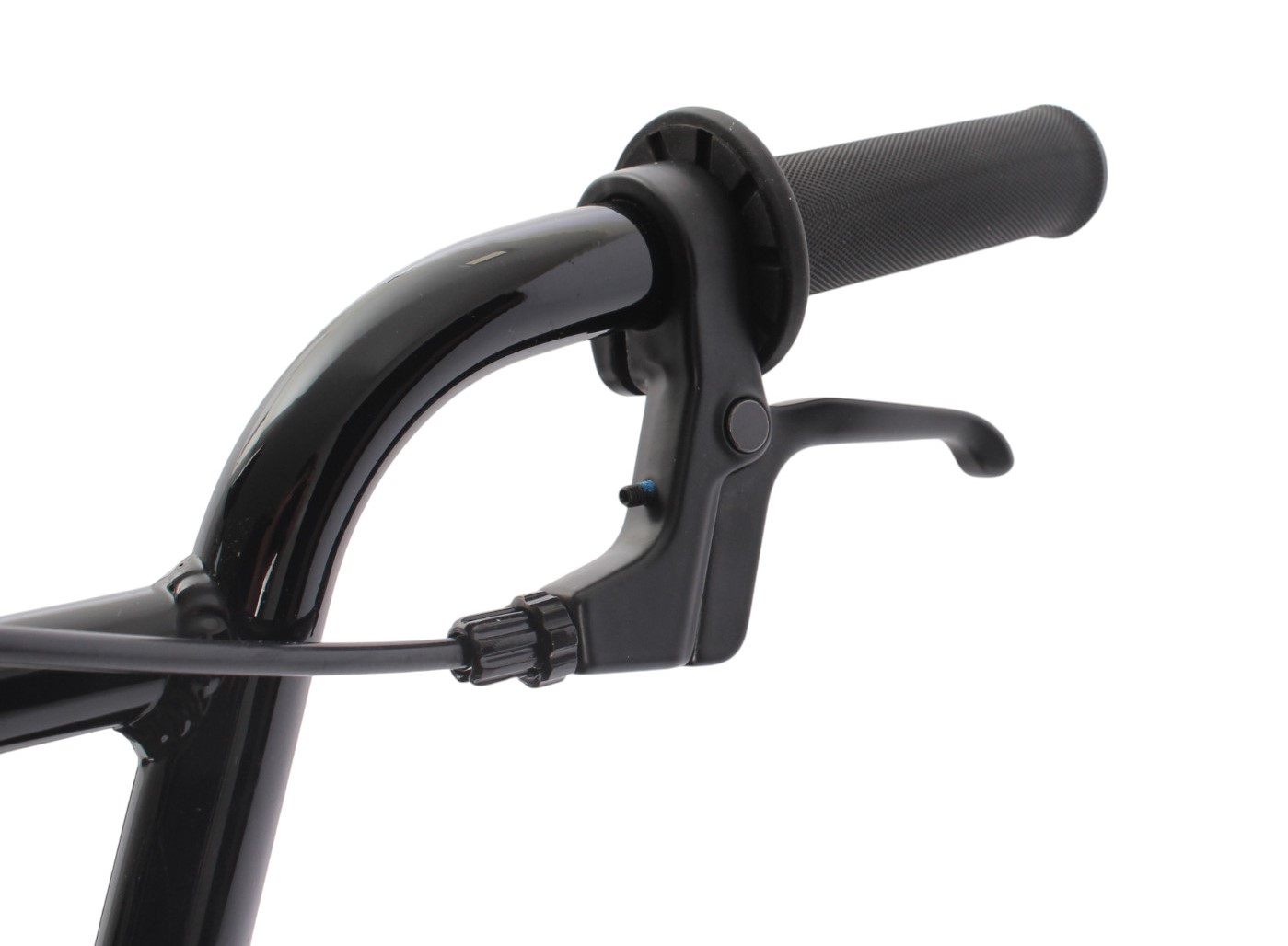

| Brake levers: | Aluminum with adjusting screw |

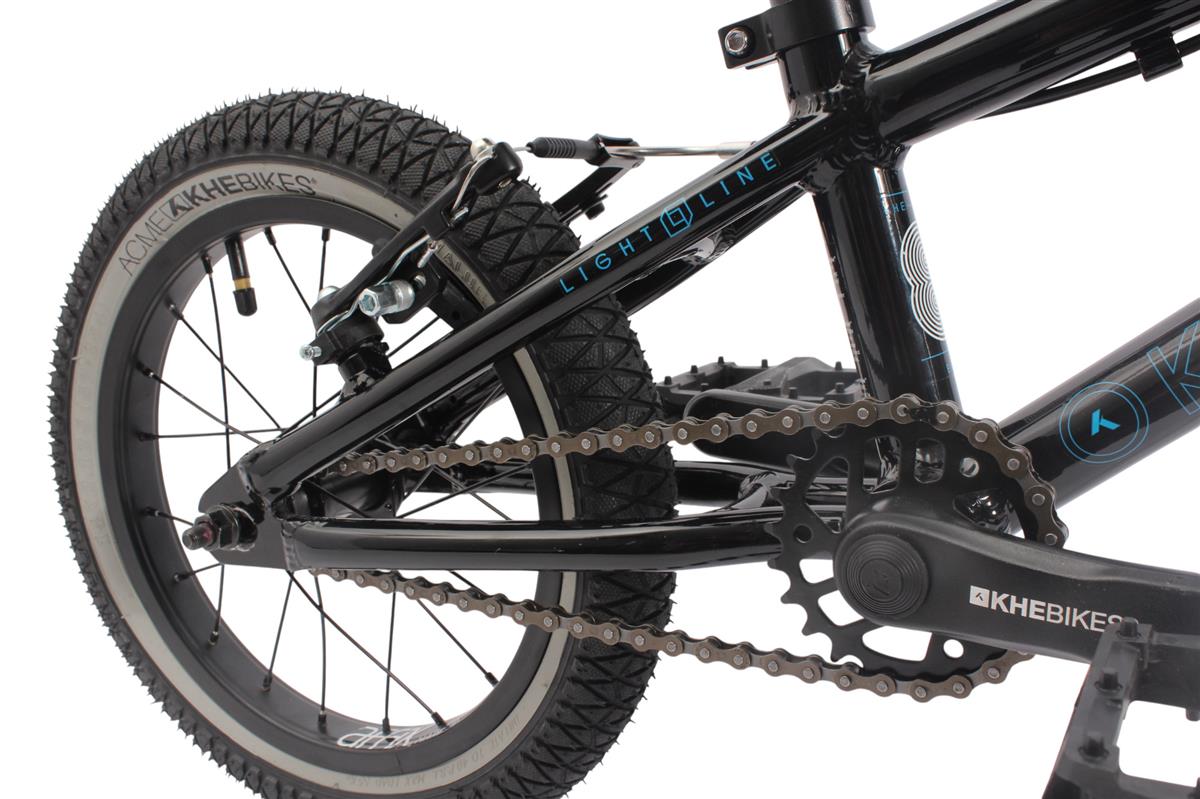

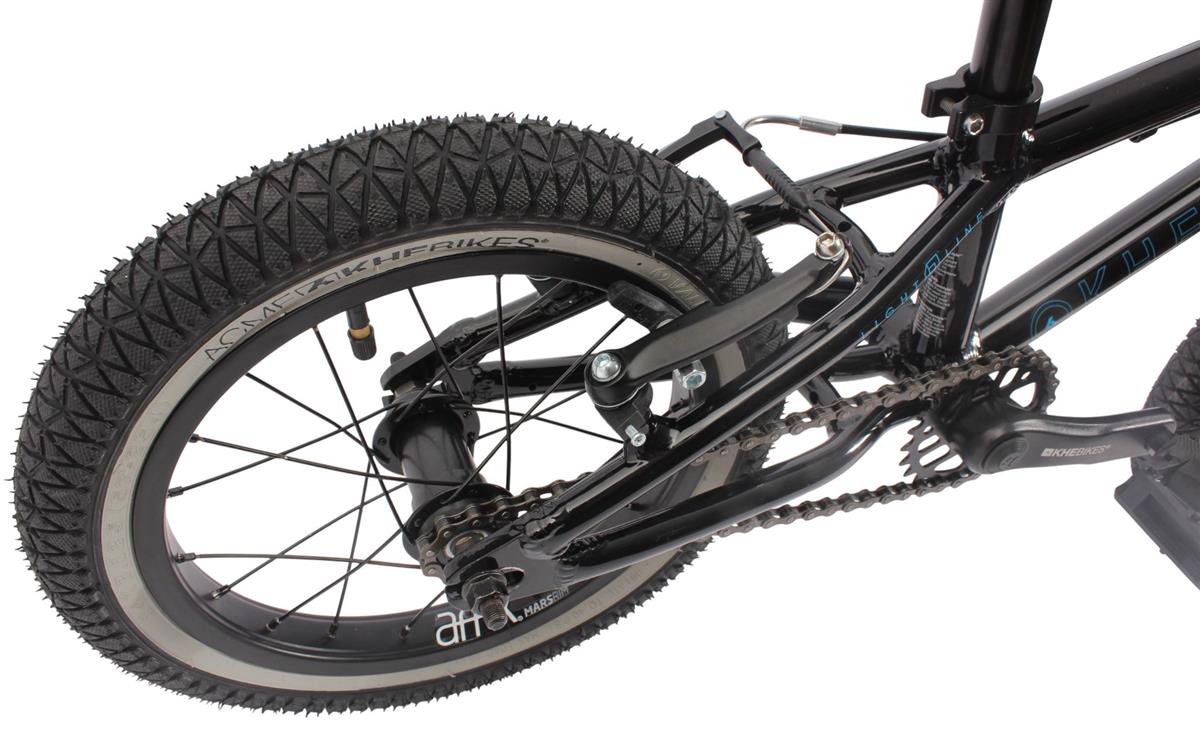

| Rear brake: | 102mm aluminum V-brake with adjustment screw |
| Front brake: | Side pull (already installed!) |
| Crank: | KHE 3-piece forged aluminum 110mm length |
| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 110mm |
| Chainring: | 23 teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |
| Pedals: | FEIMIN PVC with Baron axle 9/16” |

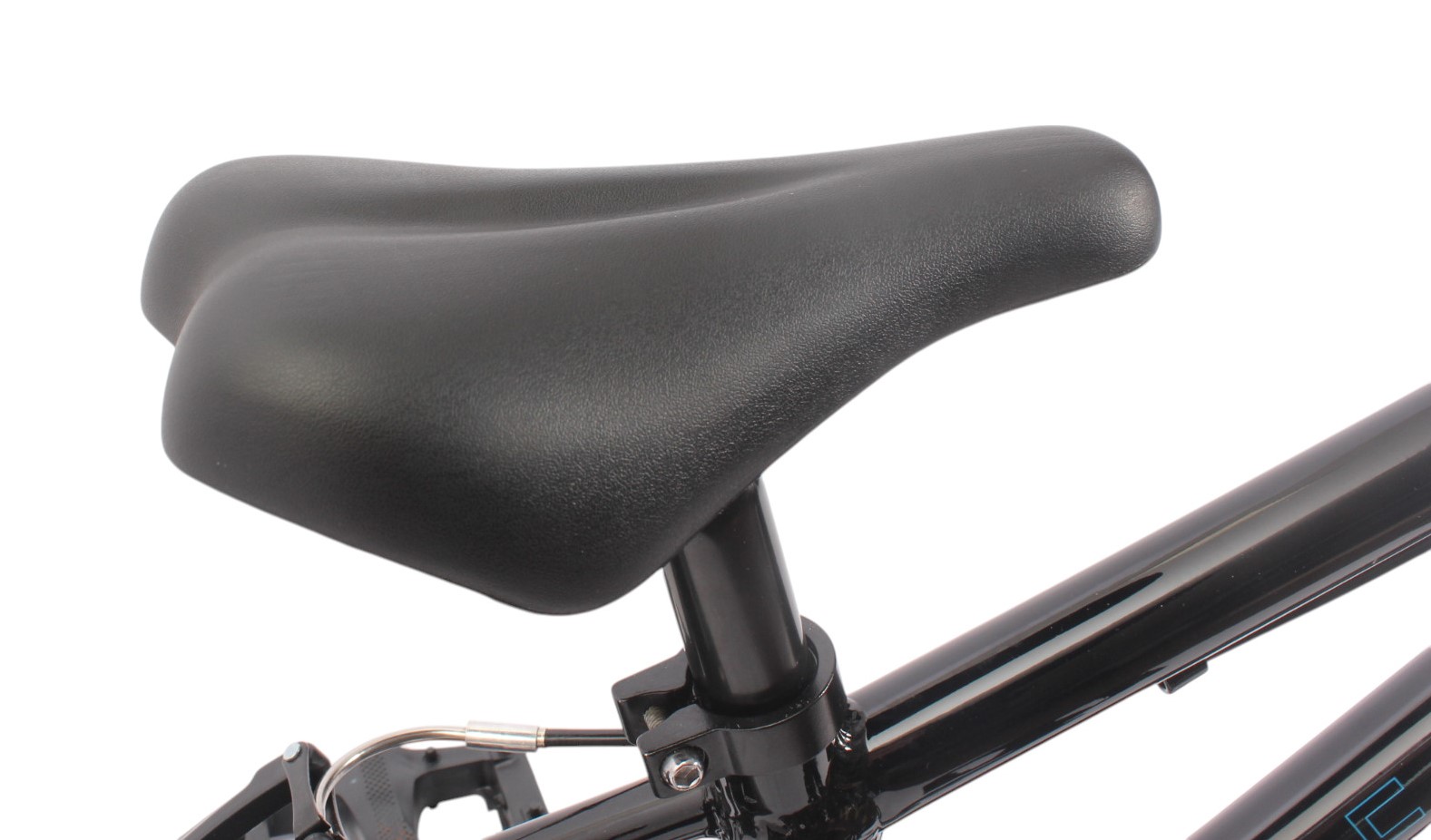

| Saddle: | Padded 210 x 120mm with silver embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 220mm (integrated seat post with saddle) |
| Front wheel hub: | 3/8” (10mm) x 155mm axle, steel, loose ball, 20H |
| Rear wheel hub: | 3/8” (10mm) x 170mm axle, steel, cassette hub 9 teeth, 20H |
| Rim: | 14 inch aluminum, 20 hole, 32.5mm wide |
| Tyres: | KHE 14 inch x 2.125” wide |
| Material: | Aluminum |
| Tire size: | 14 inch |
| Category: | Pumptrack, Street, Park, BMX Race |
| Size: | 14 inch, 95 - 115cm |
| Colour: | Black |
| Weight: | 7.5 kg (weight is stated without front brake) |
| Model Year: | 2025 |
Usage Instructions:
The KHE EVO LL 14-inch BMX is ideal for young riders from 95 cm to approximately 115 cm who want to learn their first tricks and stunts. It is suitable for use on pump tracks, race tracks, street, park, and flatland.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bike is equipped with appropriate lighting and reflectors in accordance with StVZO regulations.
Maximum user weight: 45 kg.
Safety Instructions:
Always wear an appropriate helmet and protective gear (knee, elbow, and hand guards).
Before each ride, check all bolts, connections, and components for secure fit.
Regularly inspect the condition of the brakes and tires.
Ensure the chain is properly tensioned and shows no visible damage.
No Modifications Allowed: Do not make any modifications such as drilling, cutting, or other changes to the BMX bike. The warranty will be void if the bike is used improperly.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust formation.
Use only original spare parts. Perform maintenance according to the user manual.
Replacement due to Wear: Regularly check components such as the handlebar, frame, and fork of the BMX bike for cracks, deformations, or microcracks, especially at the welds. Replace components immediately if cracks or damage are found.
