KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, advanced engineering and outstanding ride dynamics. The new 2025 models feature optimized geometry, refined details and high-quality components – directly from the manufacturer for top performance on any terrain.

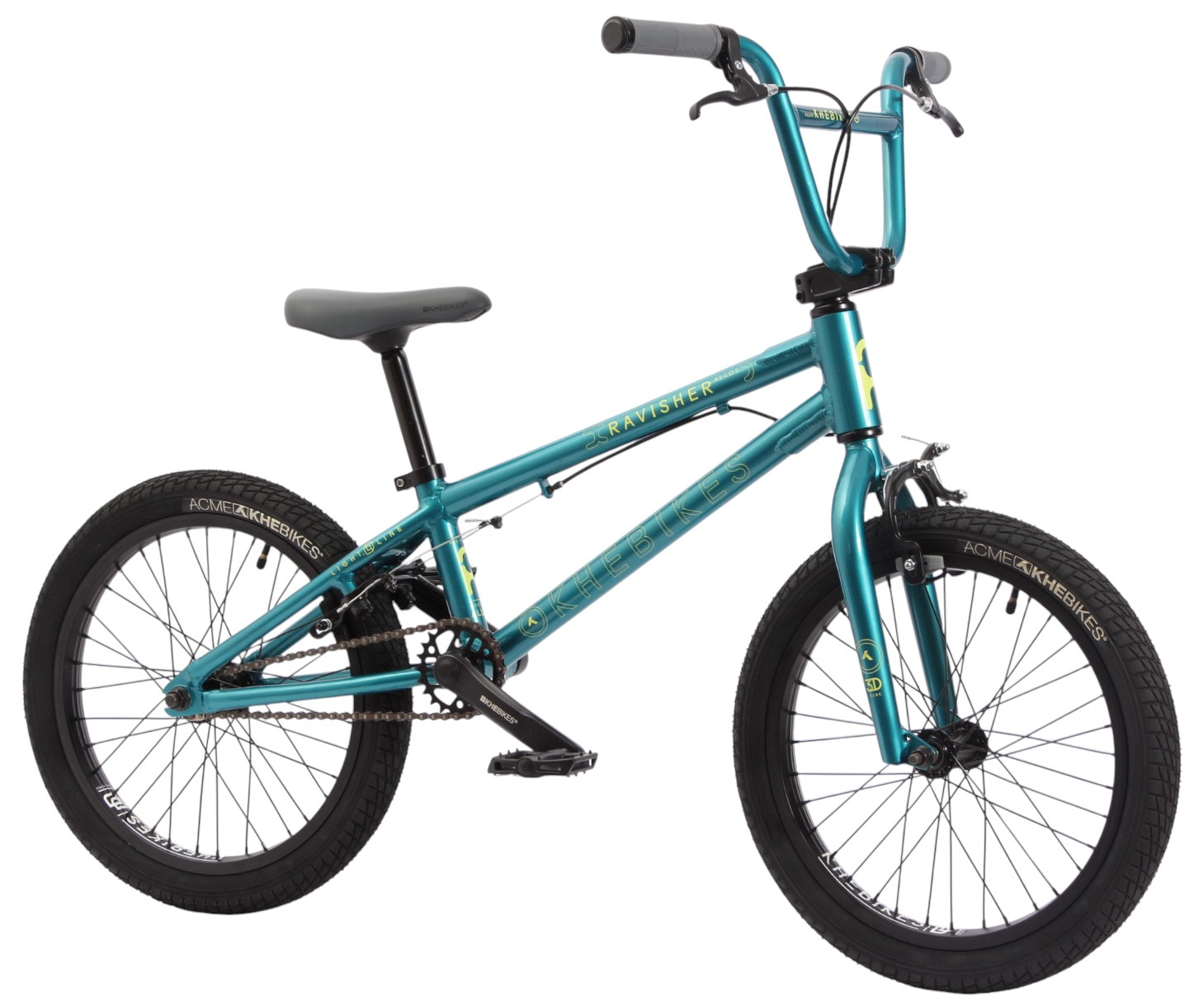

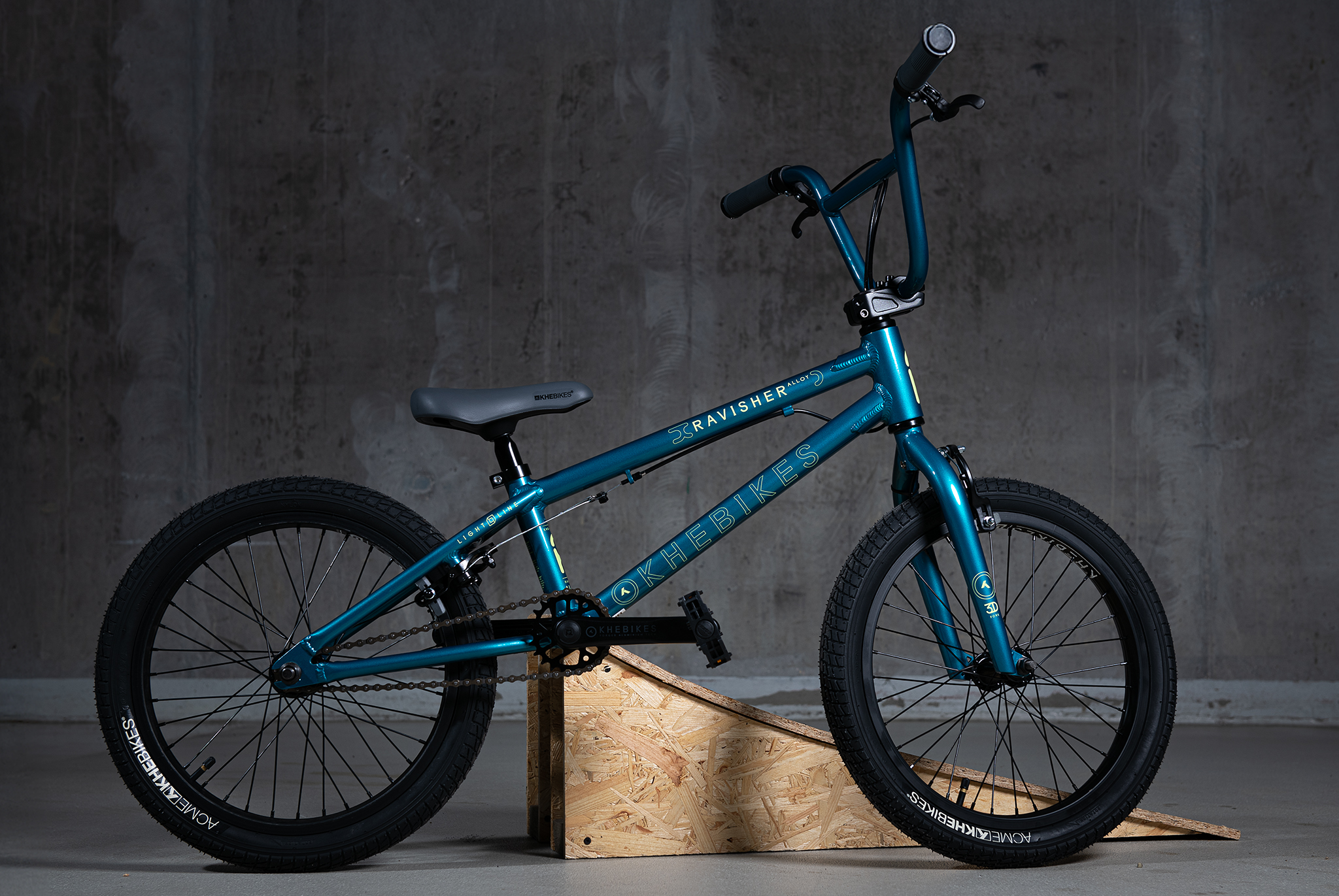

KHE RAVISHER LL 18"

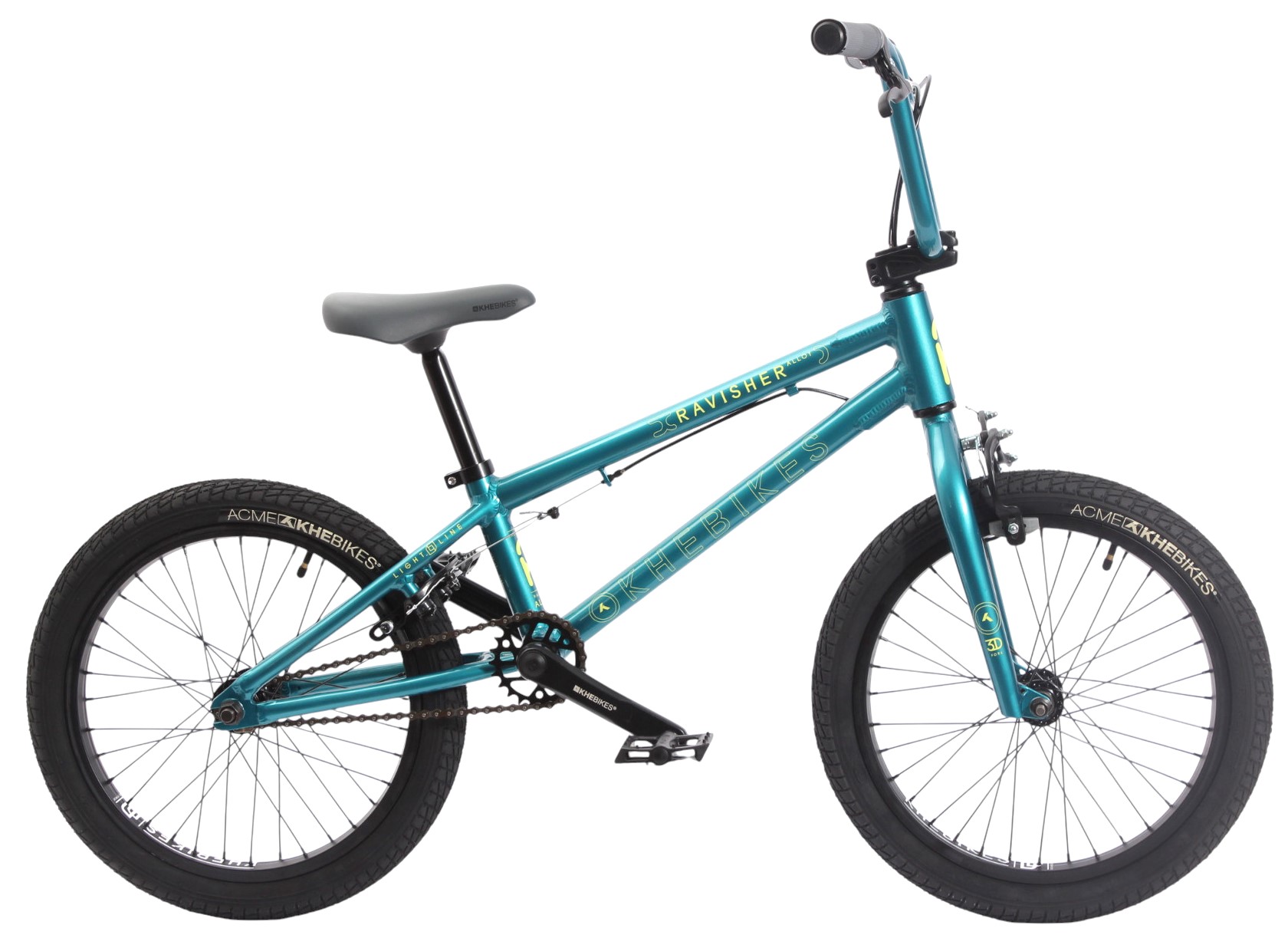

The KHE RAVISHER LL is a lightweight and stylish 18-inch BMX designed for young riders who want to master their first tricks and jumps. With a lightweight aluminum frame, 18" toptube and a total weight of only 8.6 kg (approx. 18.9 lbs), it’s perfect for beginners and advanced kids looking for a responsive and stable bike.
Our KHE 18" fork with 3D dropouts and 640 mm (25.2") wide aluminum handlebars provides precise handling and maximum control. The 152 mm (6.0") forged 3-piece aluminum crank and 25T chainring ensure efficient power transfer. The Euro bottom bracket is equipped with sealed industrial bearings – smooth and low-maintenance.

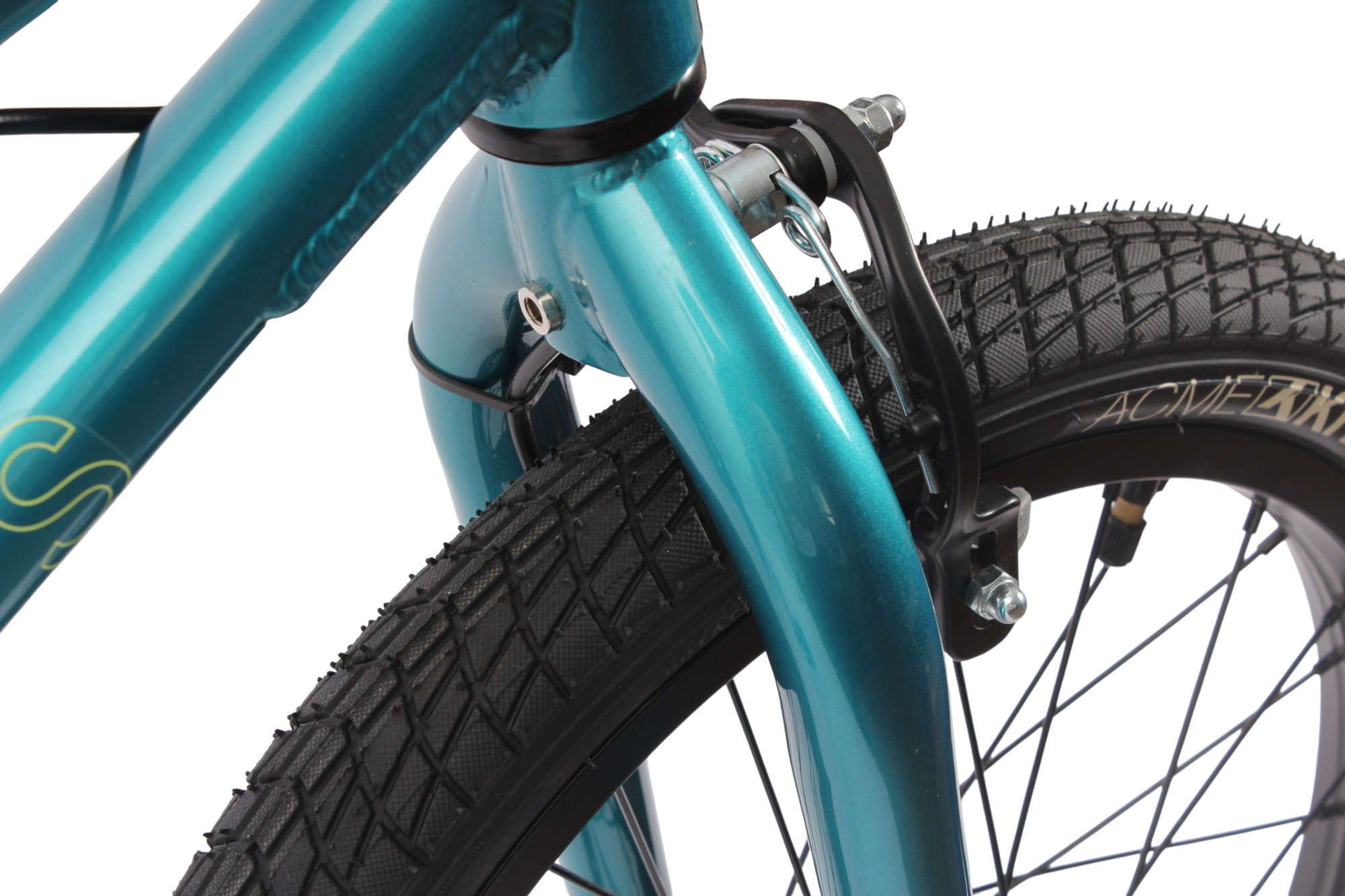

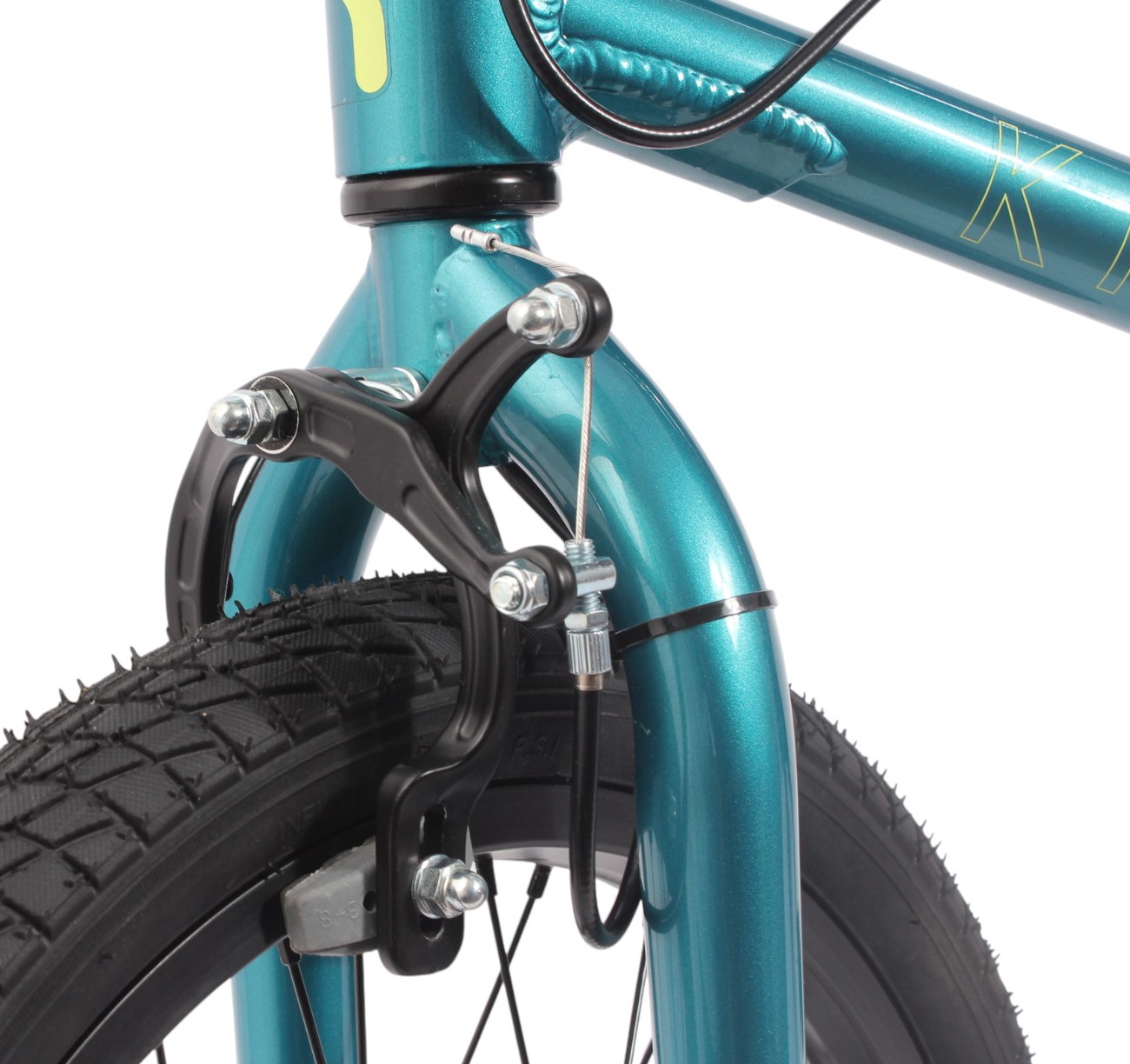

Thanks to the KHE Affix Rotor System, 360° barspins are possible without twisting the brake cables. Braking is handled by a U-brake in the rear and a sidepull brake in the front – ideal for everyday use and tricks.

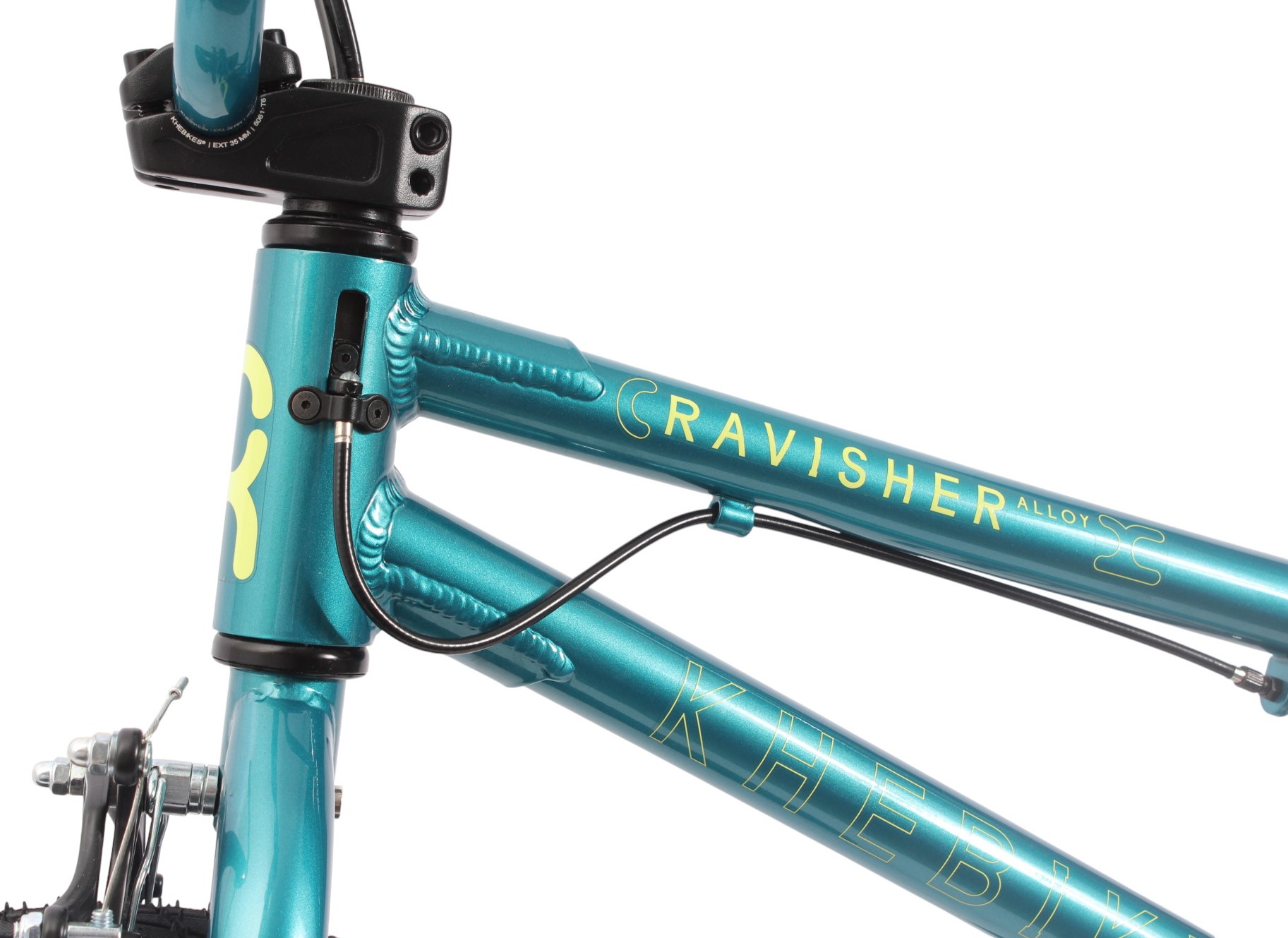

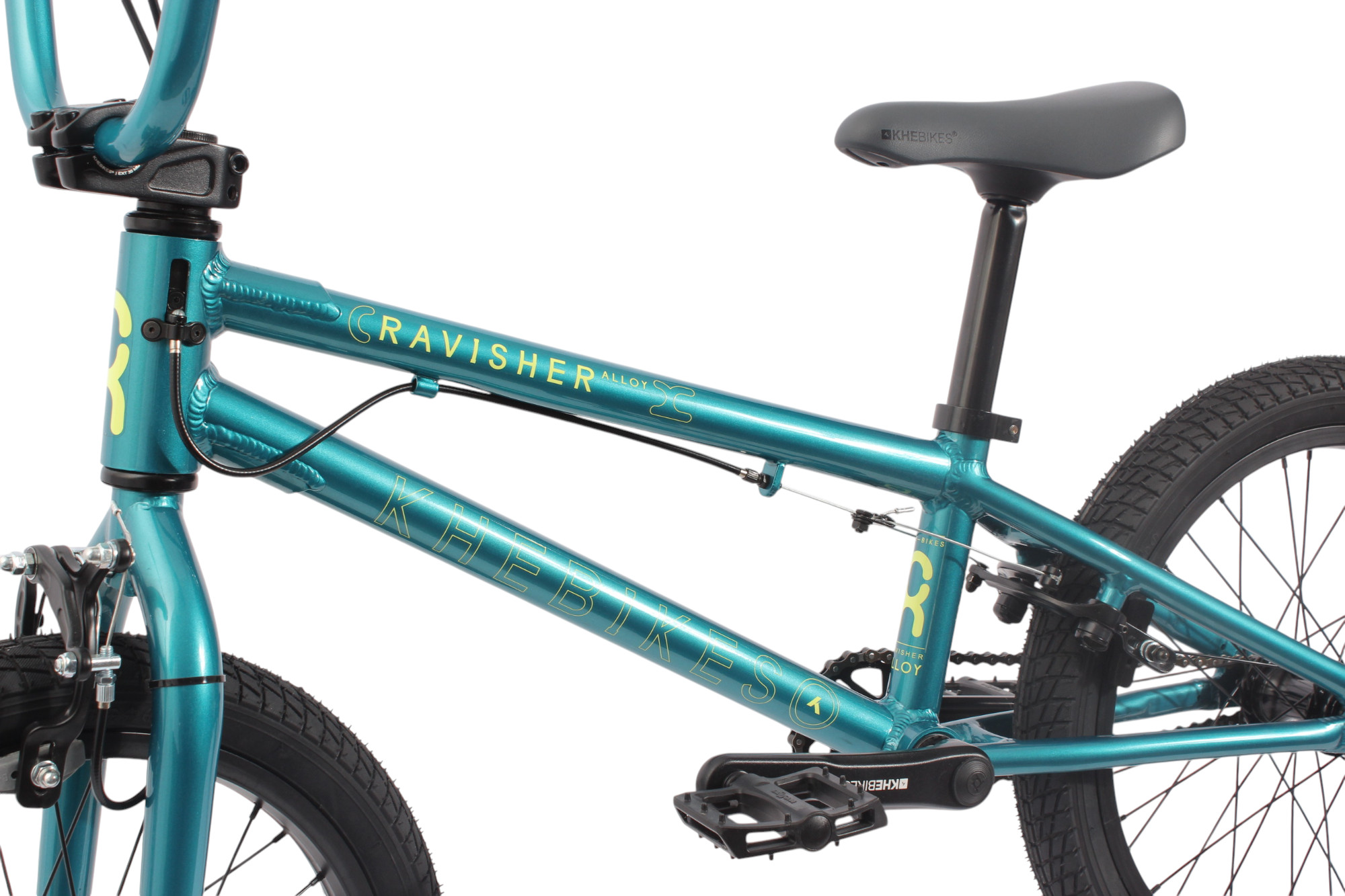

With its eye-catching turquoise frame, grey saddle and black KHE double-wall 18" rims, the RAVISHER LL is a real head-turner.
Recommended rider height: 125–145 cm (4'1"–4'9")
Maximum rider weight: 75 kg (165 lbs)
Usage: Park, Street, Pumptrack
Why choose the RAVISHER LL 18" from KHEbikes:
- Only 8.6 kg (18.9 lbs) – super light and ideal for kids
- Patented KHE BMX Rotor for 360° barspins
- Aluminum frame & aluminum handlebars

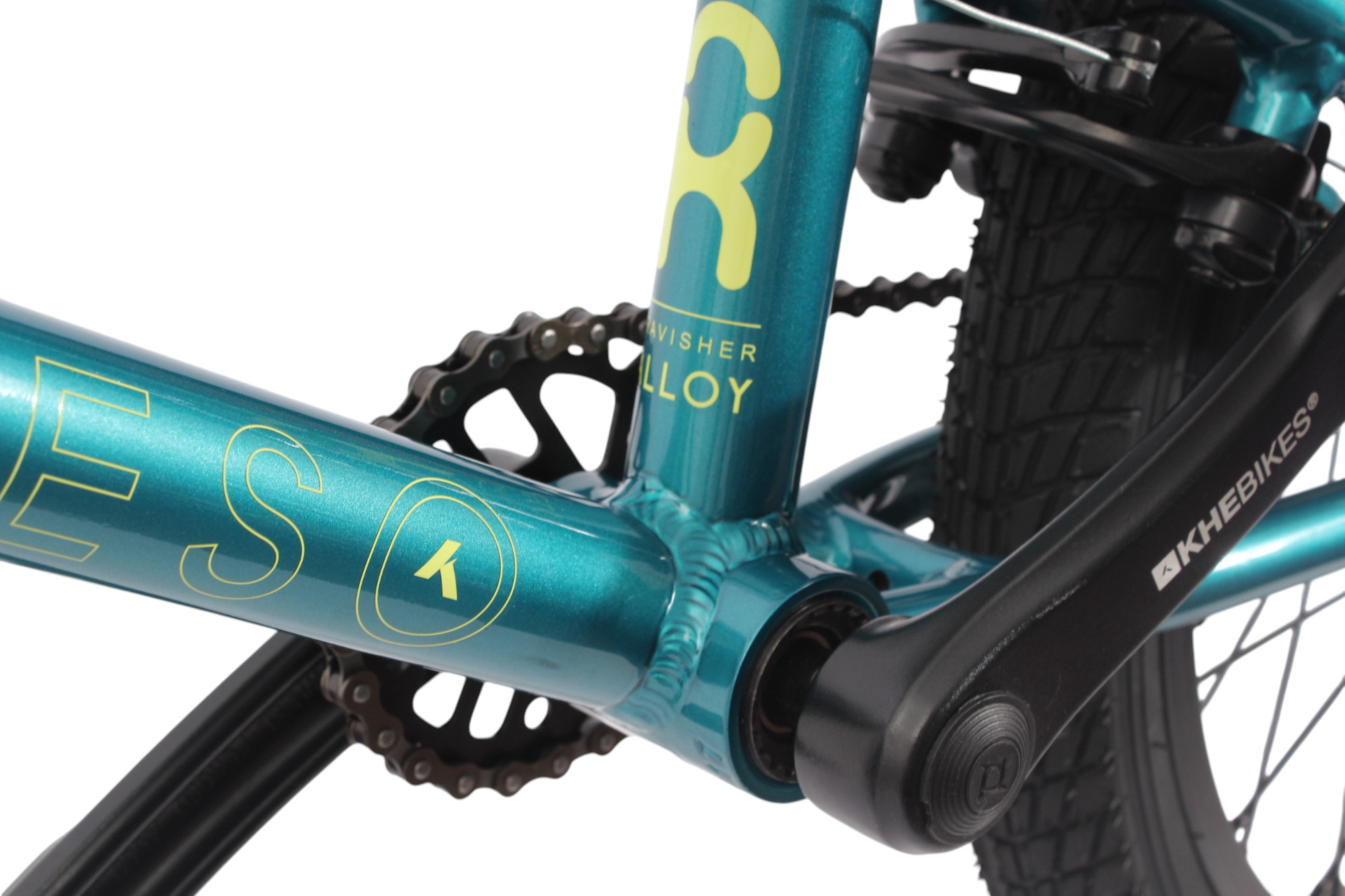

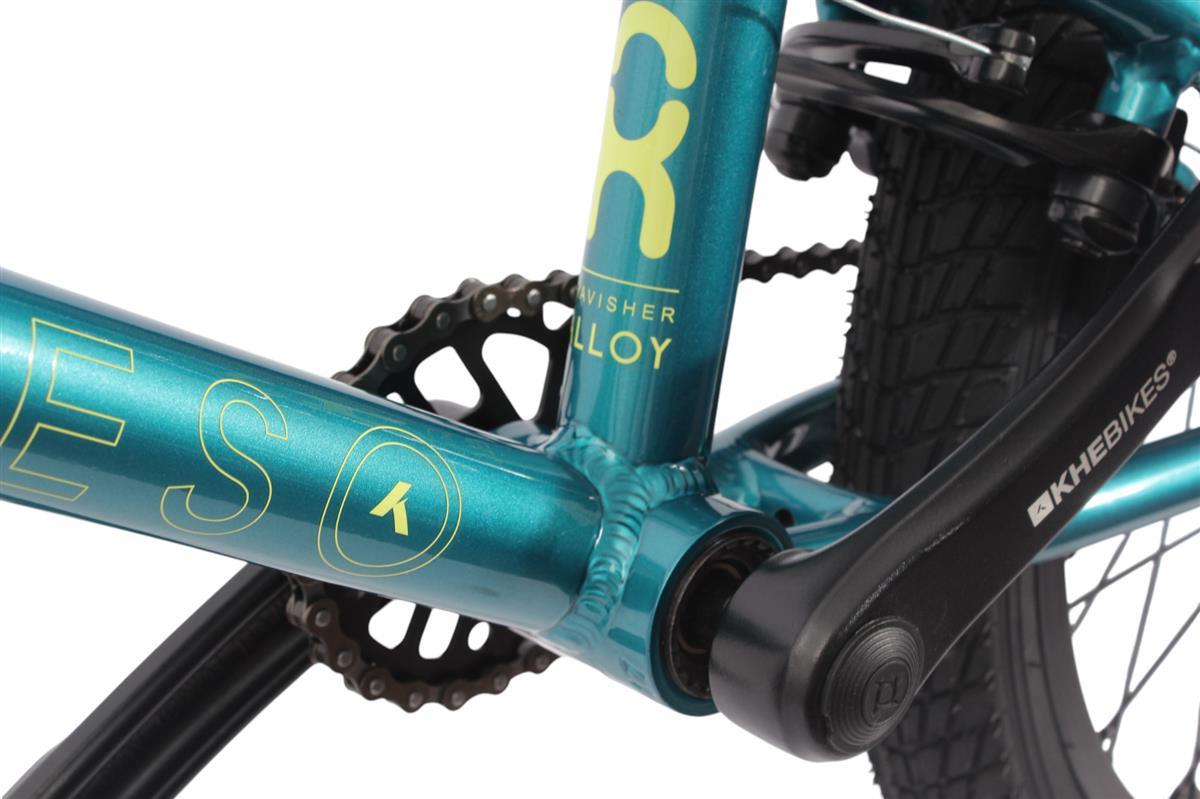

- Sealed industrial bottom bracket & forged aluminum crank arms
- Sealed industrial hubs front & rear
Pegs: Fits 10 mm front and 14 mm rear pegs. We recommend the COP Aluminum Pegs.
The BMX is approx. 90% pre-assembled. Instructions are under "Datasheets". Assembly video available under "Video".
| Frame: | Aluminium, Top tube 18", RC 311mm, HT 75° |
|---|---|
| Top tube length: | 18" (457mm) |

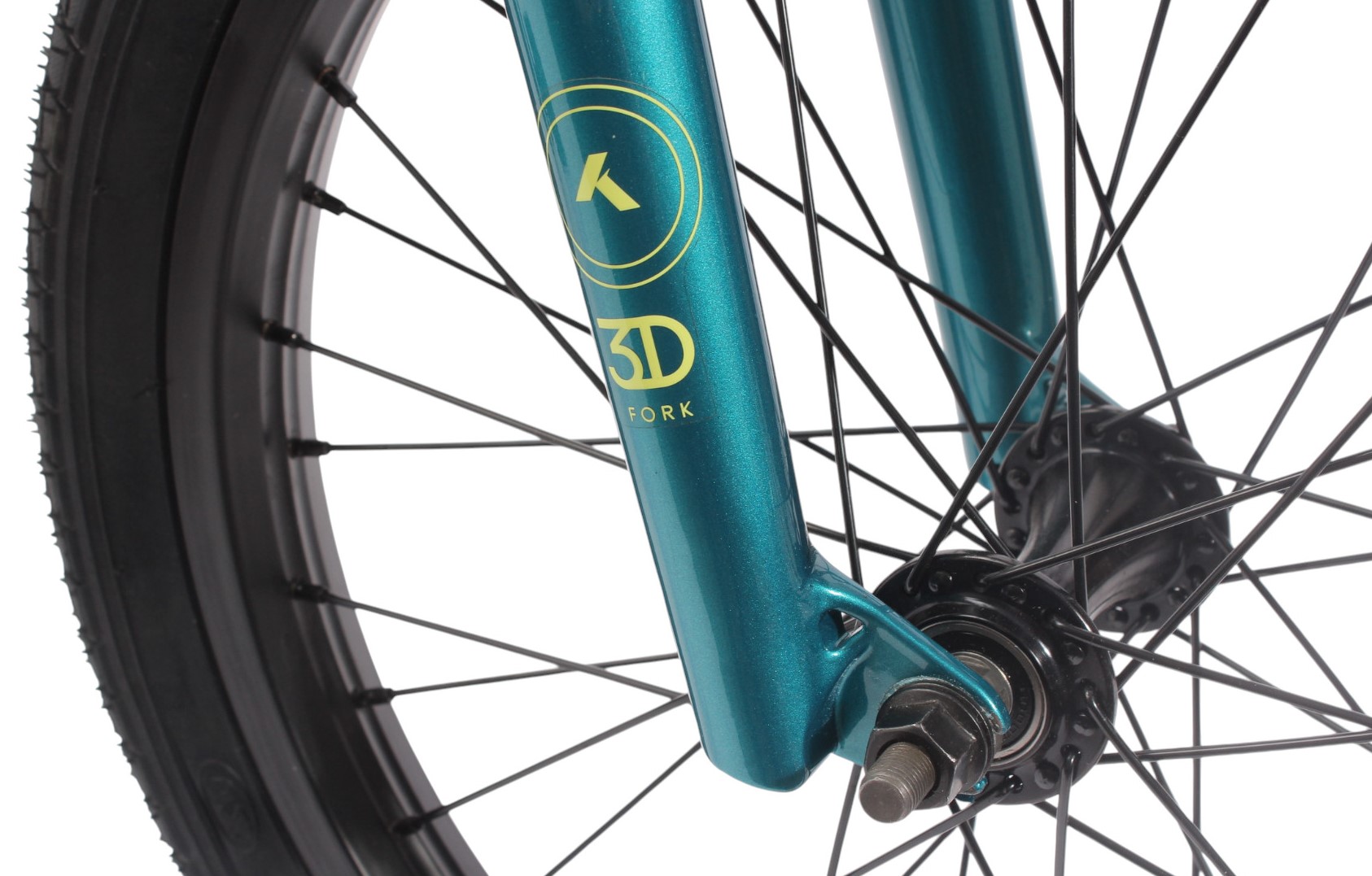

| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

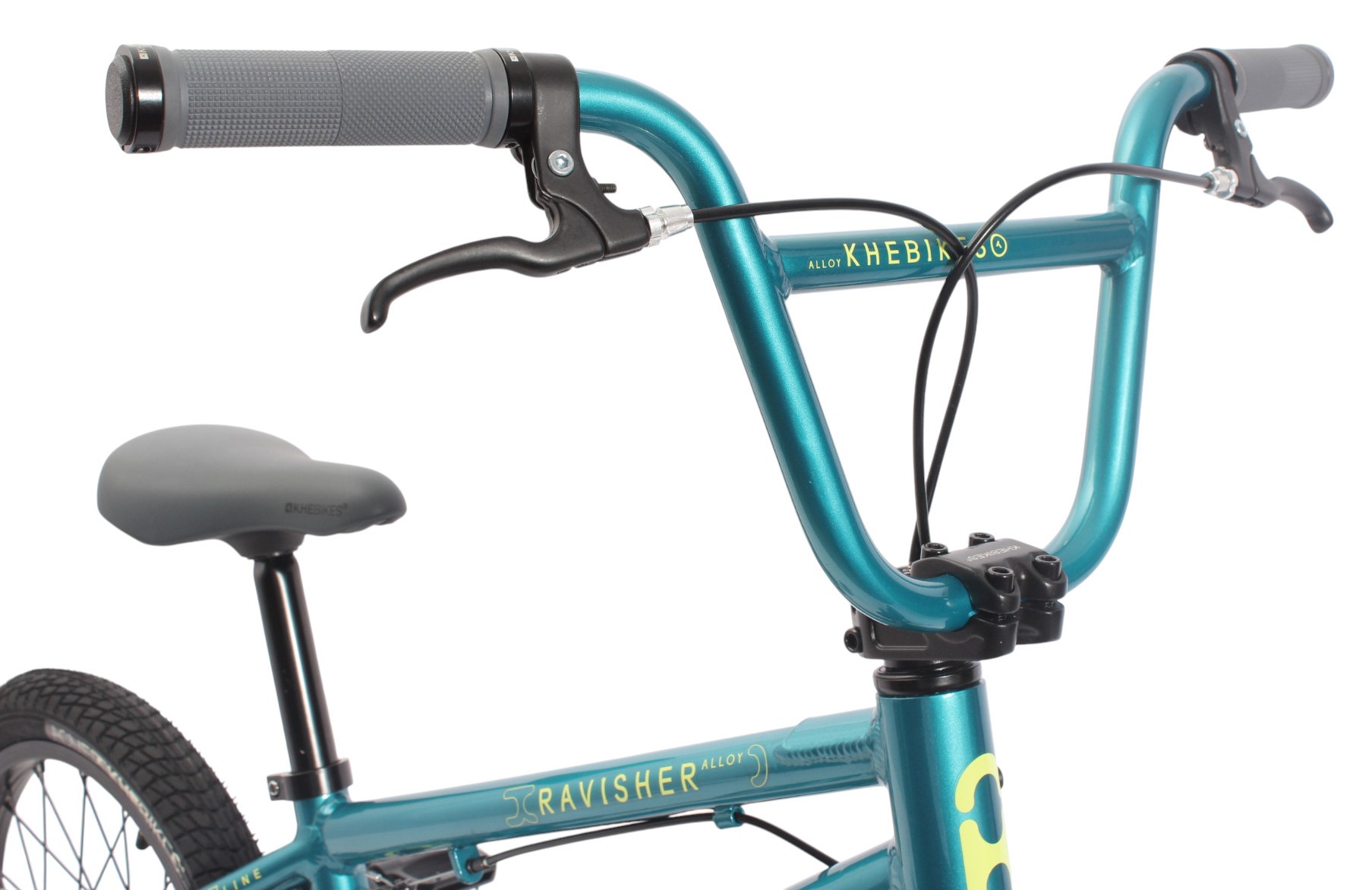

| Handlebars: | KHE aluminum 640mm width x 200mm (7.9“) height, backsweep 10°, upsweep 1° |
| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | AFFIX Loosball 1 1/8" |
| Rotor: | Patentierter KHE AFFIX 360 Grad Rotor, Patented KHE AFFIX 360 degree rotor |

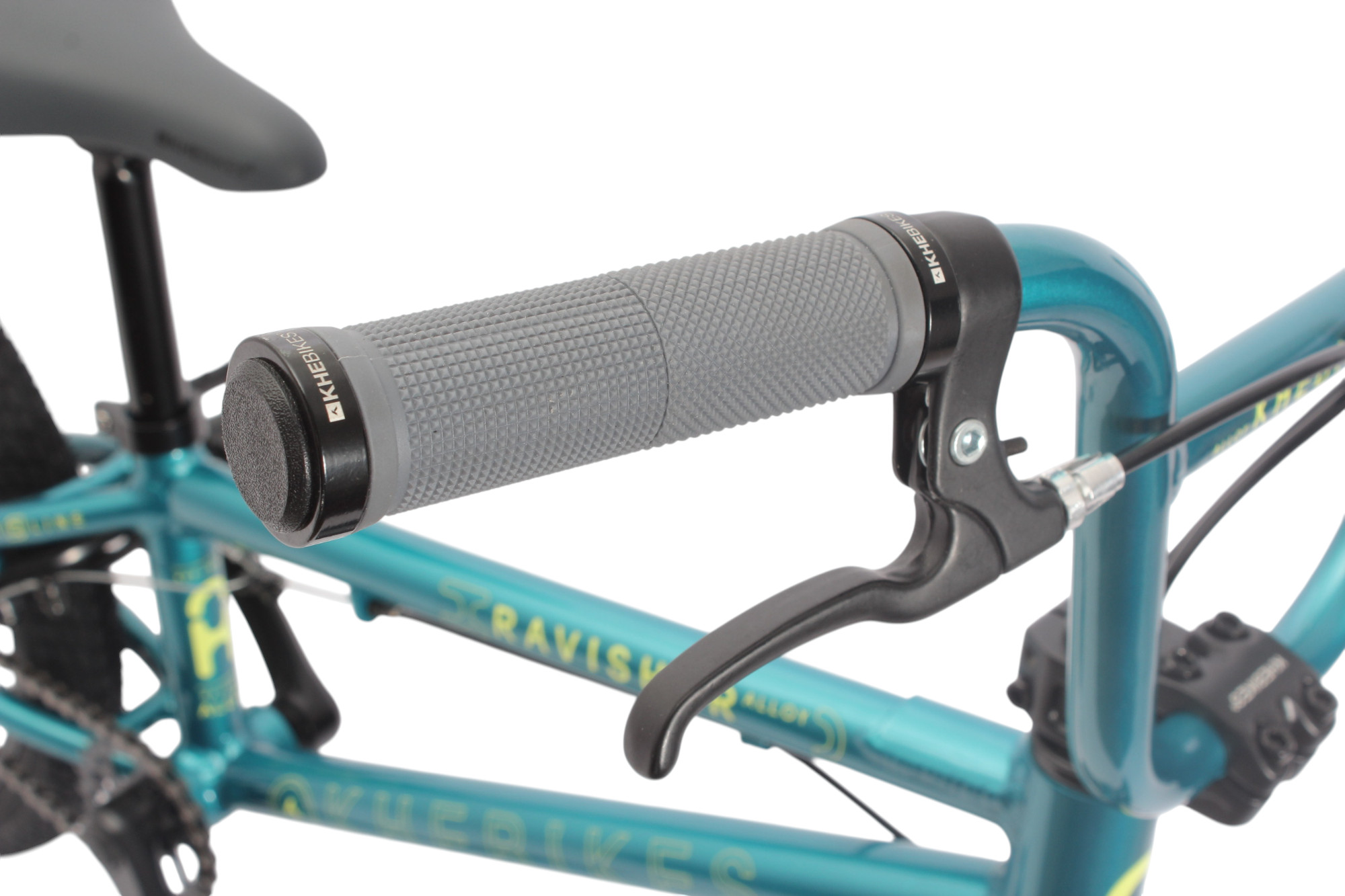

| Brake levers: | Aluminum with adjusting screw |

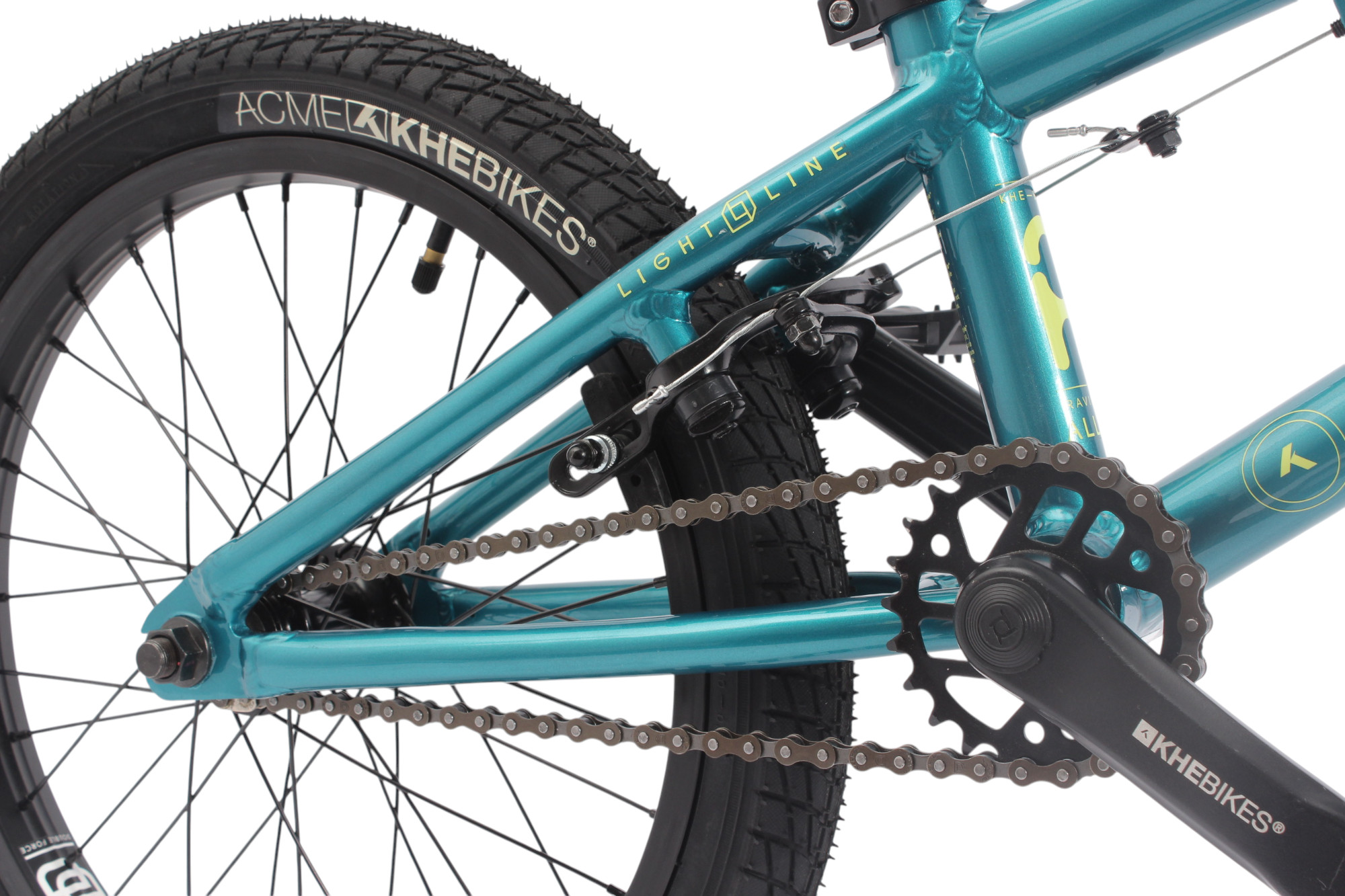

| Rear brake: | KHE RADIUS Aluminum U-Brake |

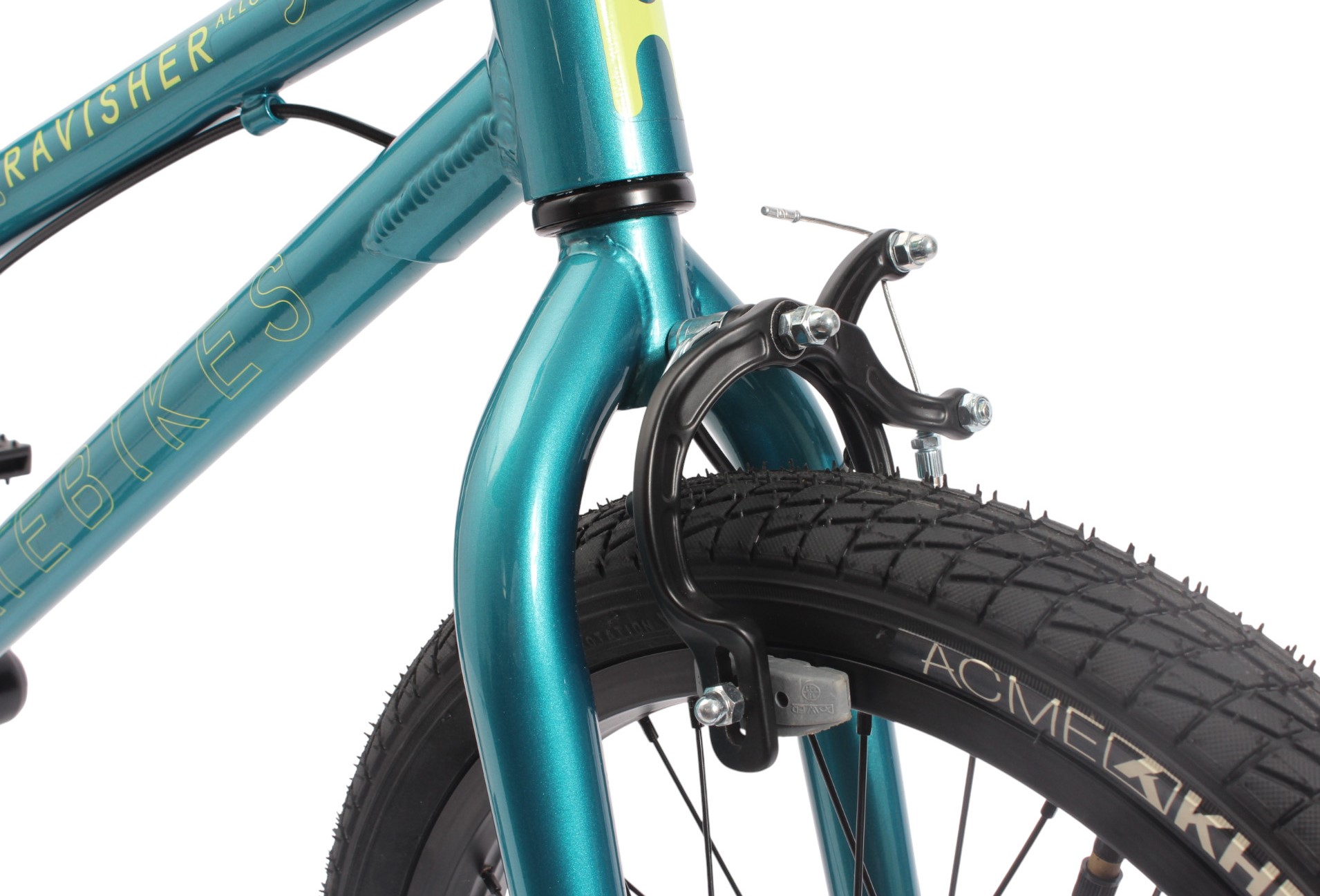

| Front brake: | Side pull (already installed!) |
| Crank: | KHE 3-piece forged aluminum 152mm length |
| Chainring: | 23 teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |

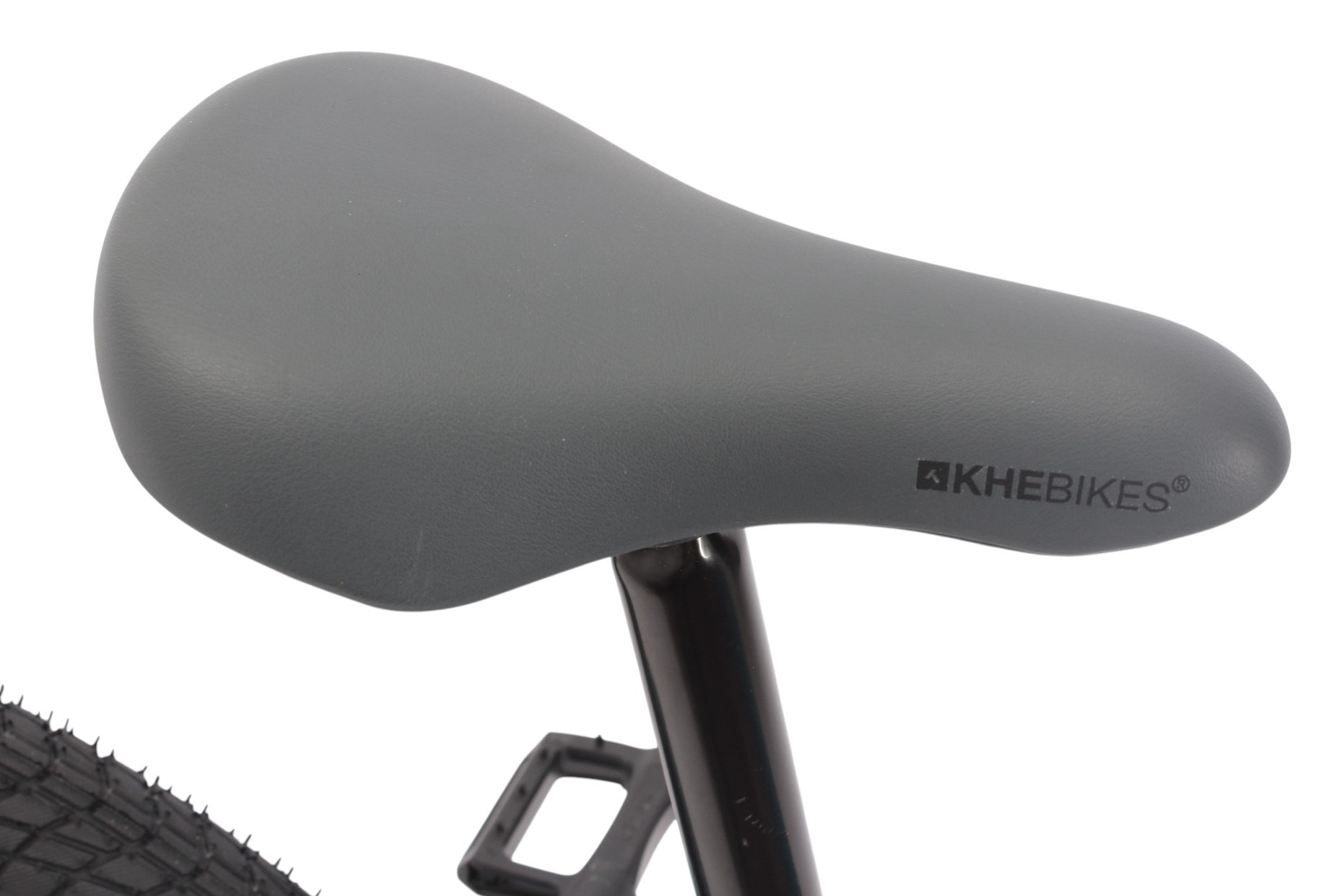

| Saddle: | Padded 210 x 140mm with rails (adjustable) + embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 250mm (integrated seat post with saddle) |
| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

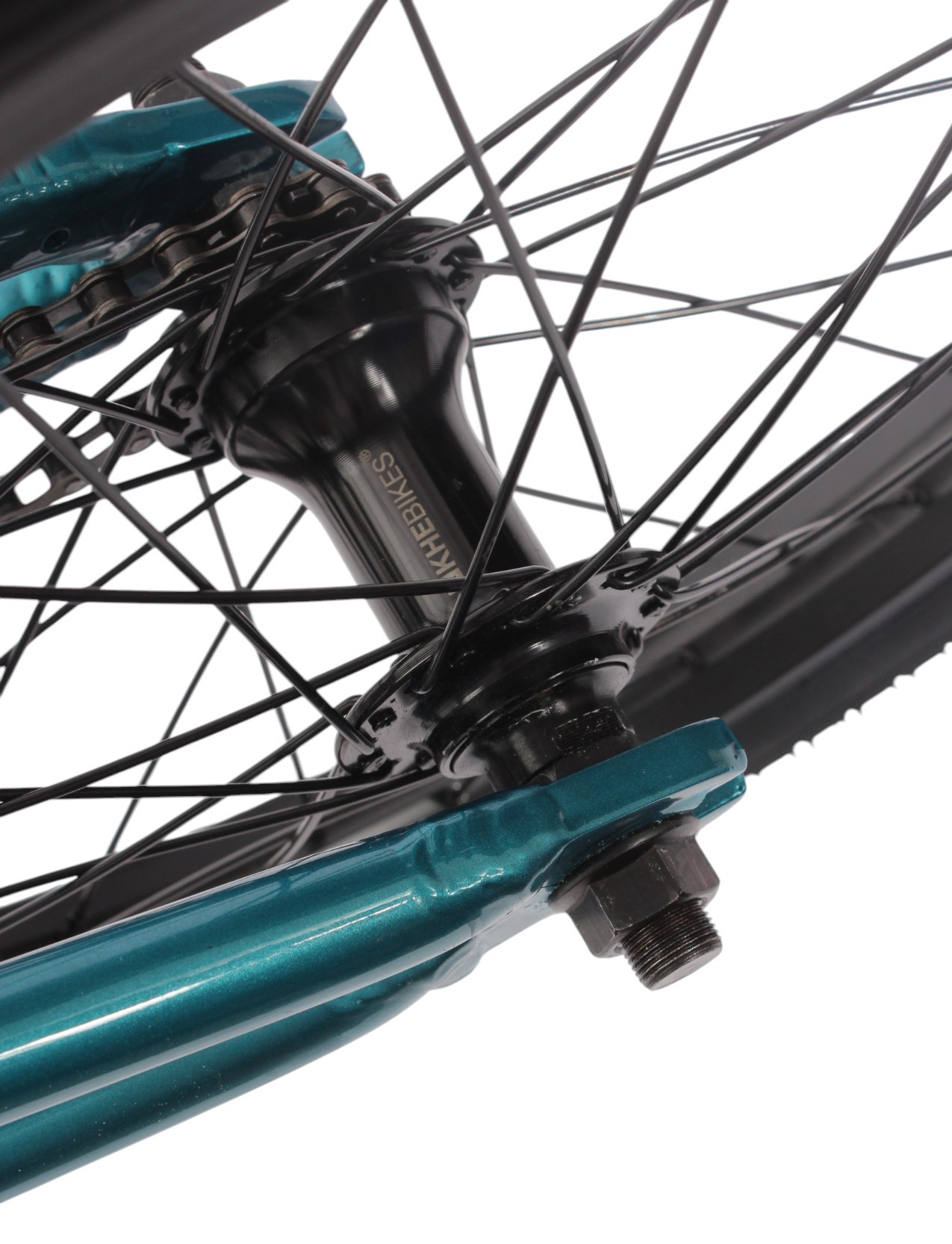

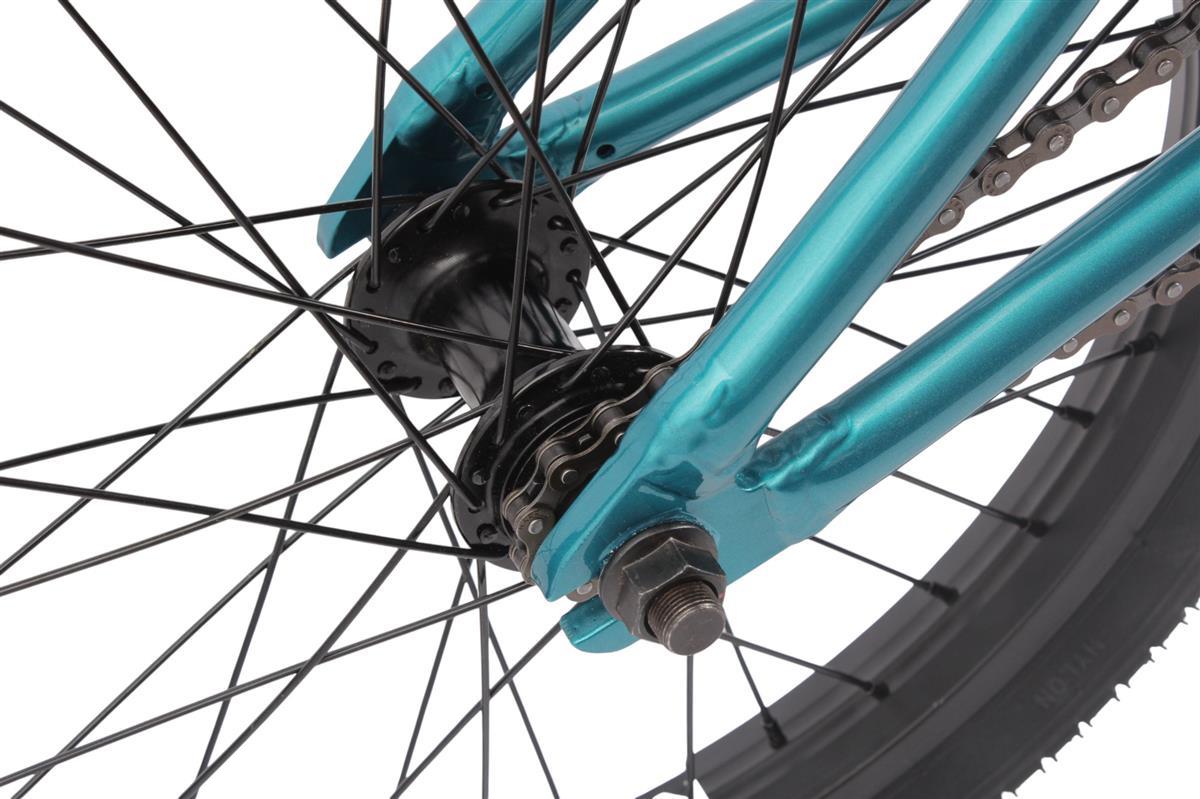

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Rim: | KHE DD 18 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 18 inch x2.125” |
| Material: | 6061 T6 Aluminium |
| Tire size: | 18 inch |
| Category: | Park, Street, Pumptrack |
| Colour: | Turquoise |
| Weight: | 18.95lbs / 8,6kg |
| Model Year: | 2025 |
Intended Use:
This BMX bike is designed for children and young riders for use in park, street, and pumptrack areas. It is not approved for road traffic or downhill riding.
Assembly and Inspection: The bike is delivered 90% pre-assembled. Before first use, all safety-relevant components (handlebars, brakes, axles, pedals, chain, saddle) must be properly installed and checked. Final assembly should be carried out by a certified bike mechanic or experienced person. The Affix Rotor System allows full 360° handlebar rotation. Brakes, bottom bracket, and all wear parts should be serviced regularly.
Maintenance & Care:
Clean the bike regularly with a damp cloth. Avoid aggressive cleaning agents.
Lubricate and inspect moving parts such as the chain, bearings, rotor system, and brakes.
Store the bike in a dry and sheltered place to prevent corrosion and damage.
Maximum Load & Safety: This BMX is suitable for children approximately 4'1"–4'9" (125–145 cm) in height and up to 165 lbs (75 kg) in weight. Before each ride, ensure that all bolts, wheels, and the braking system are secure and functional. Do not use the bike if any cracks, visible damage, or material fatigue is found.
