KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, refined engineering and outstanding riding dynamics. The new 2025 models offer optimised geometry, thoughtful details and high-quality components – directly from the manufacturer for top performance on any terrain.
KHE RAVISHER LL FC 18 Inch

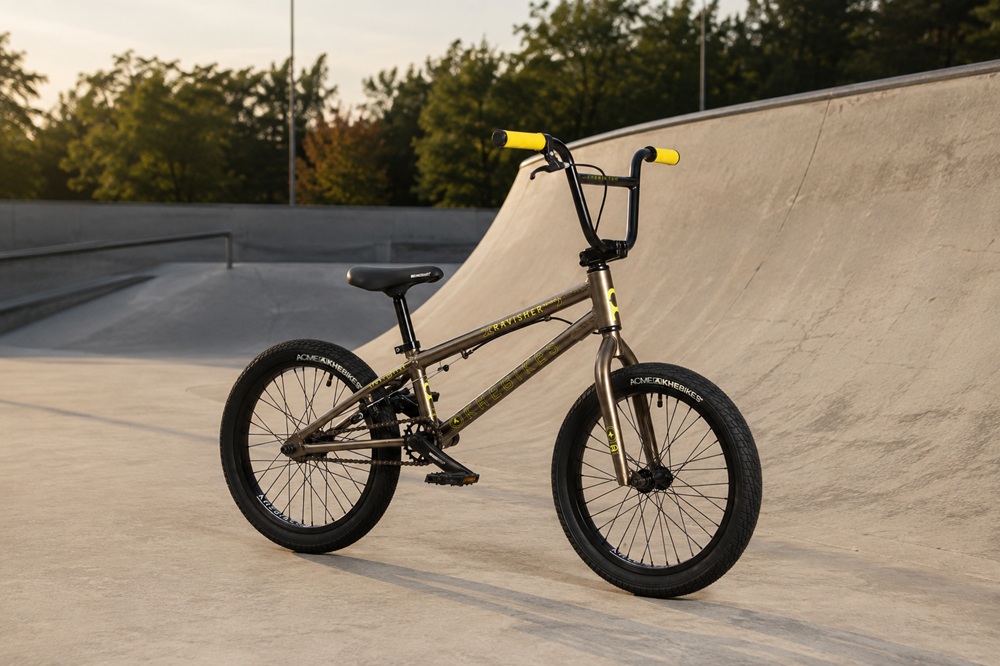

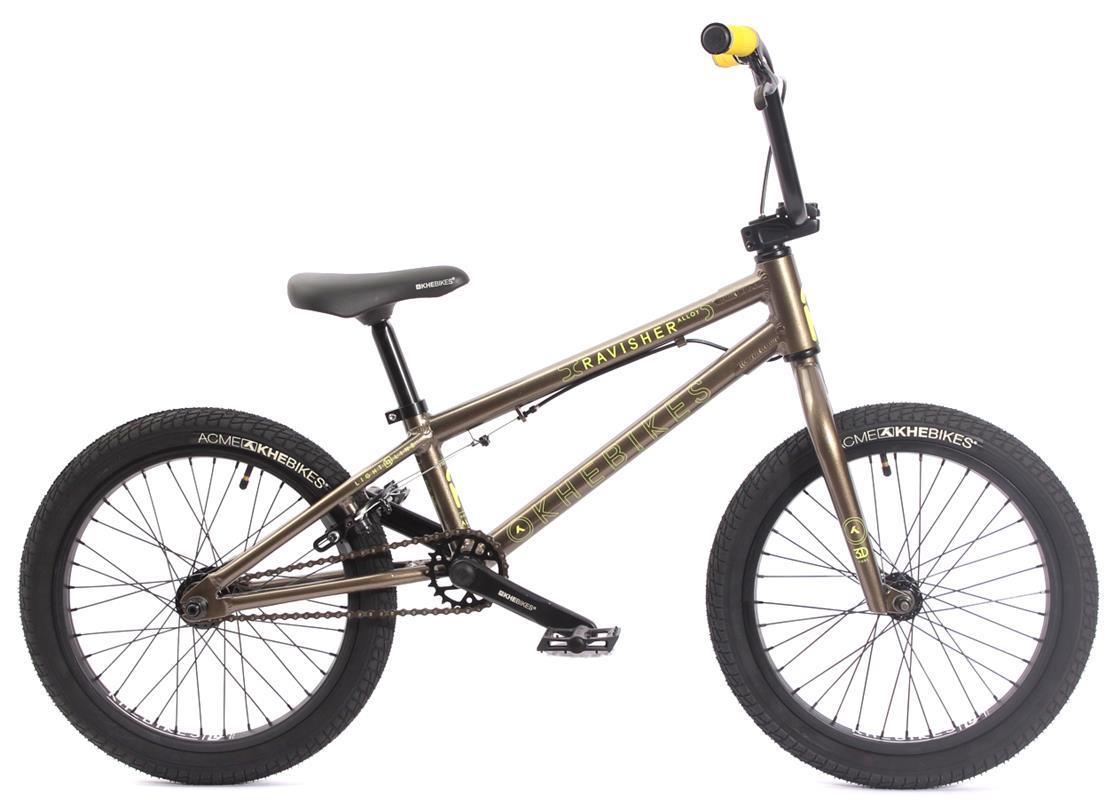

The KHE Ravisher LL FC 18 Inch BMX in anthracite grey is the world’s first 18-inch BMX with a freecoaster hub.
The freecoaster allows rolling backwards without pedal movement, making tricks easier and improving control when going in reverse – perfect for advanced riders!
With a lightweight aluminium frame and a 640 mm wide aluminium handlebar, the bike remains extremely agile with a total weight of just 8.8 kg (19.4 lbs). The 23/9 gear ratio provides the ideal balance between acceleration and speed control. Combined with the worldwide patented KHE Affix rotor system for 360° barspins and robust 18-inch double-wall rims, the Ravisher LL is a technically advanced, super light and stylish BMX.
Recommended rider height: 125–145 cm (4'1"–4'9")
Maximum rider weight: 75 kg (165 lbs)
Ideal for: Park, street, flatland, pump track
Why choose the Ravisher 18 Inch from KHEbikes:
- Directly from the manufacturer – best prices
- At 8.8 kg, the lightest 18-inch BMX bike with a freecoaster hub
- Worldwide patented KHE BMX rotor for 360-degree barspins
- Aluminium frame & aluminium handlebar
- First 18-inch BMX worldwide with a freecoaster hub
- Sealed bearing bottom bracket & forged aluminium crank arms

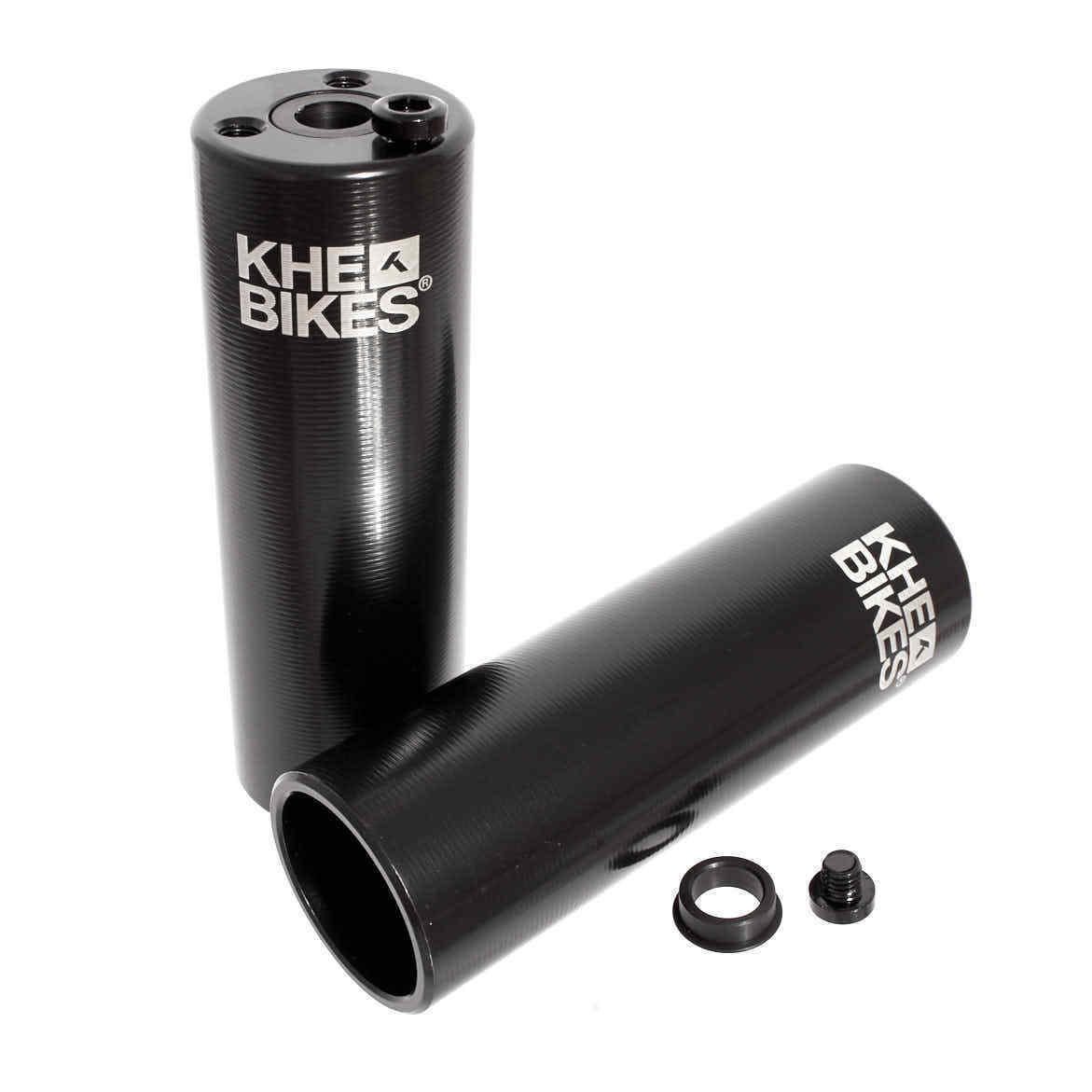

Pegs: Suitable pegs for the Ravisher LL FC 18" are 10 mm front and 14 mm rear. We recommend the COP aluminium pegs.
The BMX bike comes approximately 90% pre-assembled. You can find the manual under “Datasheets” and a setup video under “Video”.

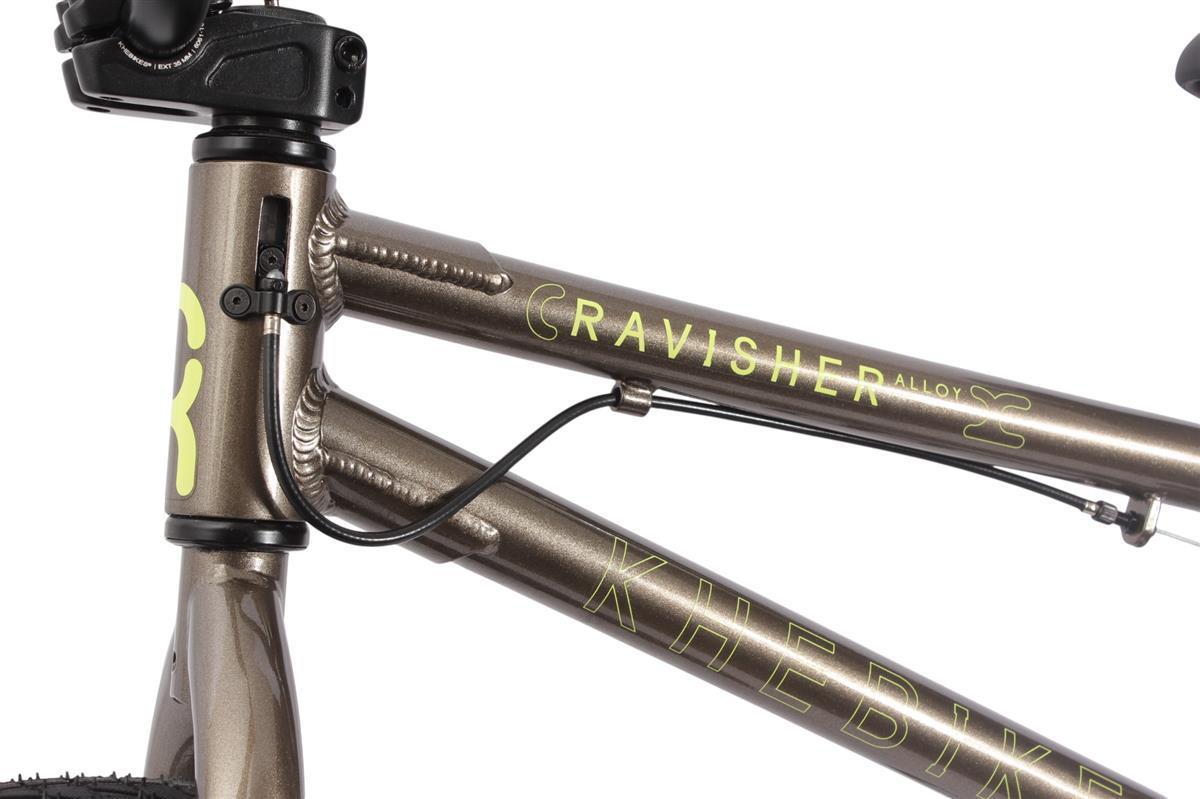

| Frame: | Aluminium, Top tube 18", RC 311mm, HT 45° |
|---|---|
| Top tube length: | 18" (457mm) |

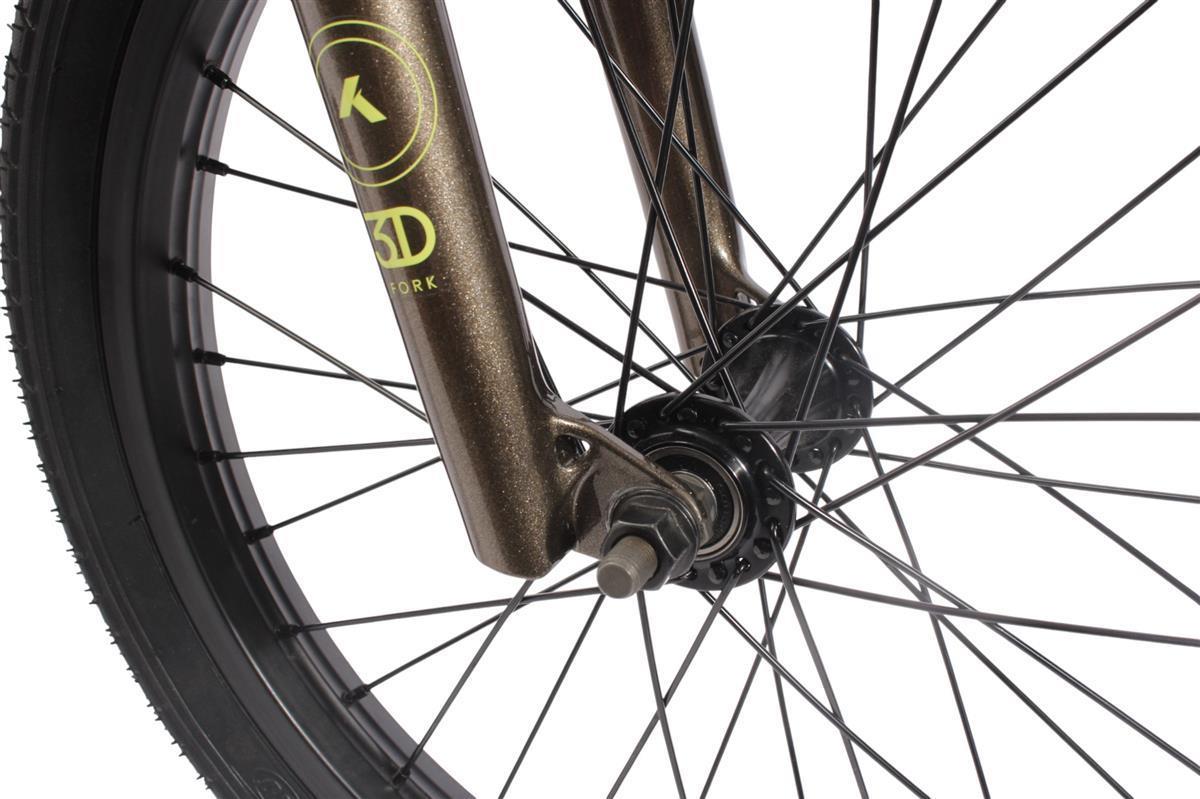

| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

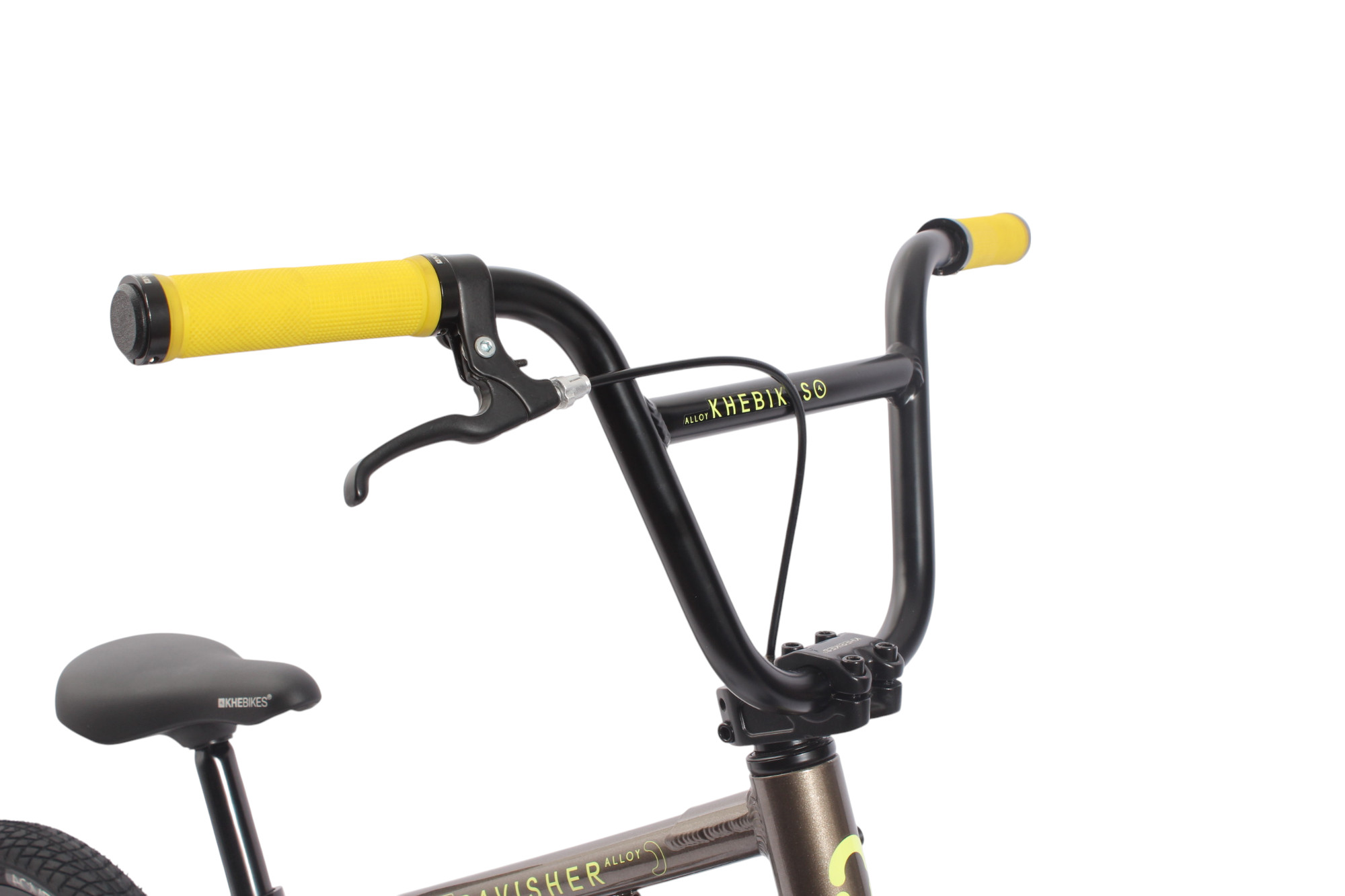

| Handlebars: | KHE aluminum 640mm width x 200mm (7.9“) height, backsweep 10°, upsweep 1° |

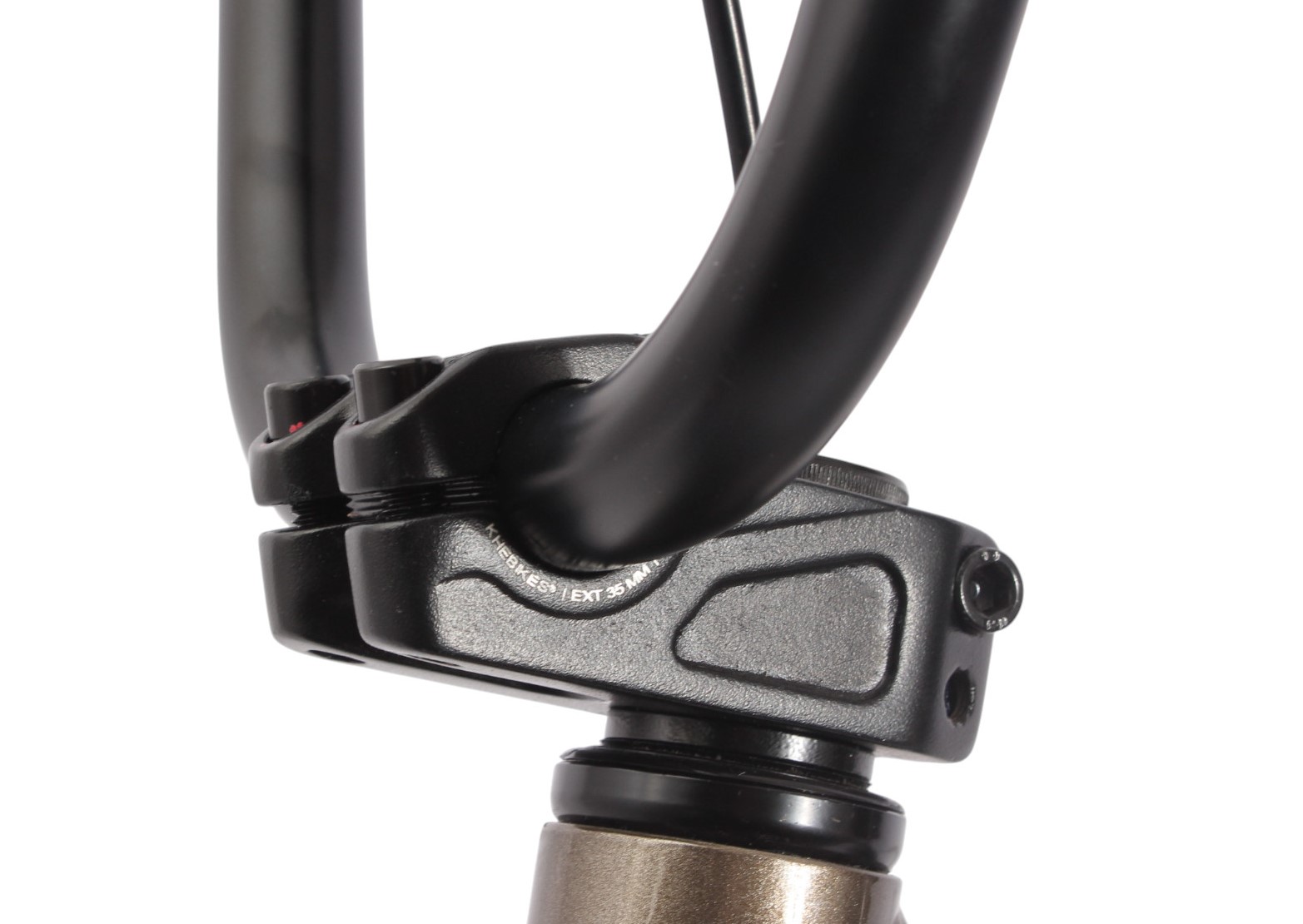

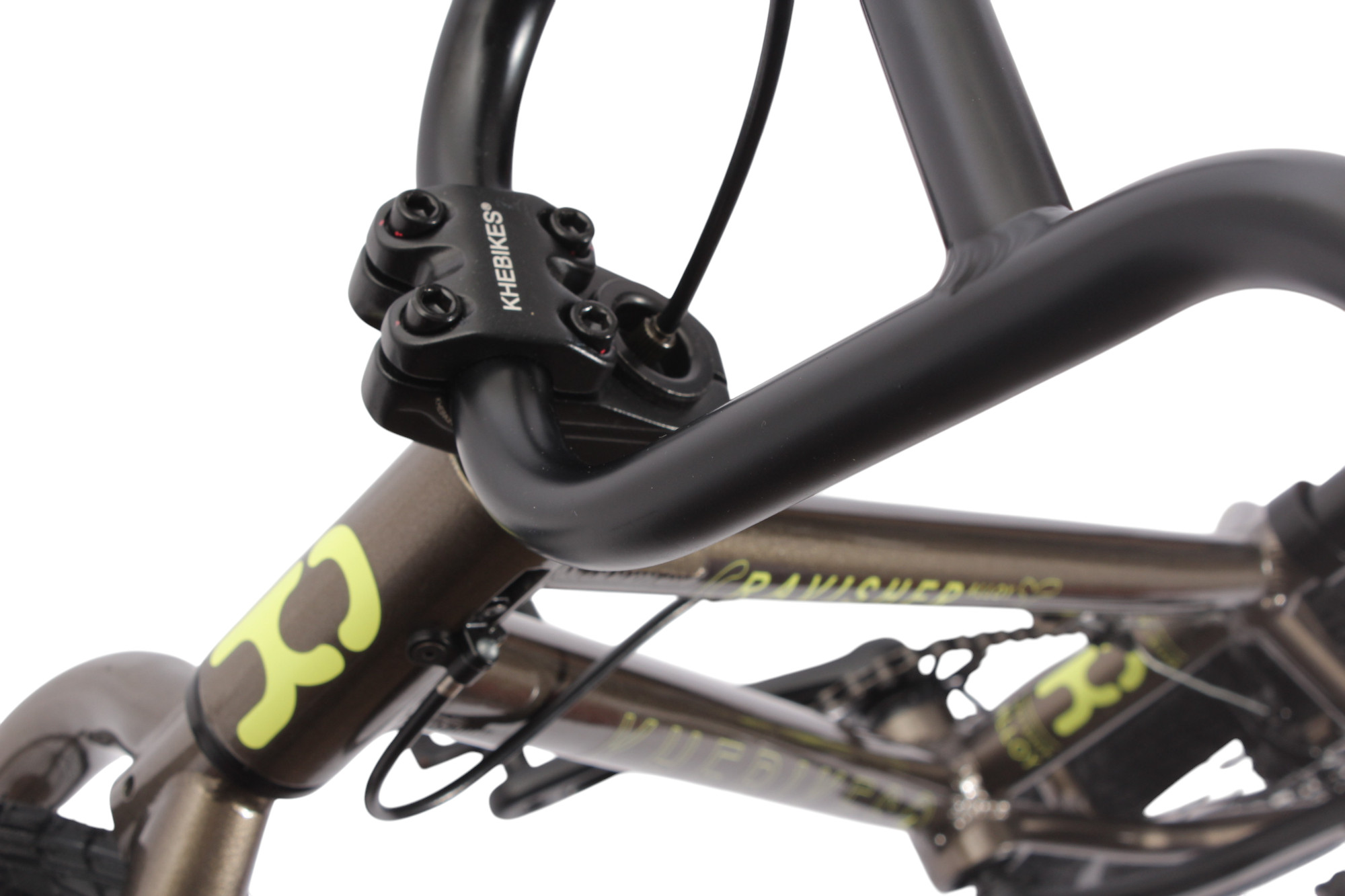

| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | AFFIX Loosball 1 1/8" |
| Rotor: | Patented KHE AFFIX 360 degree rotor |

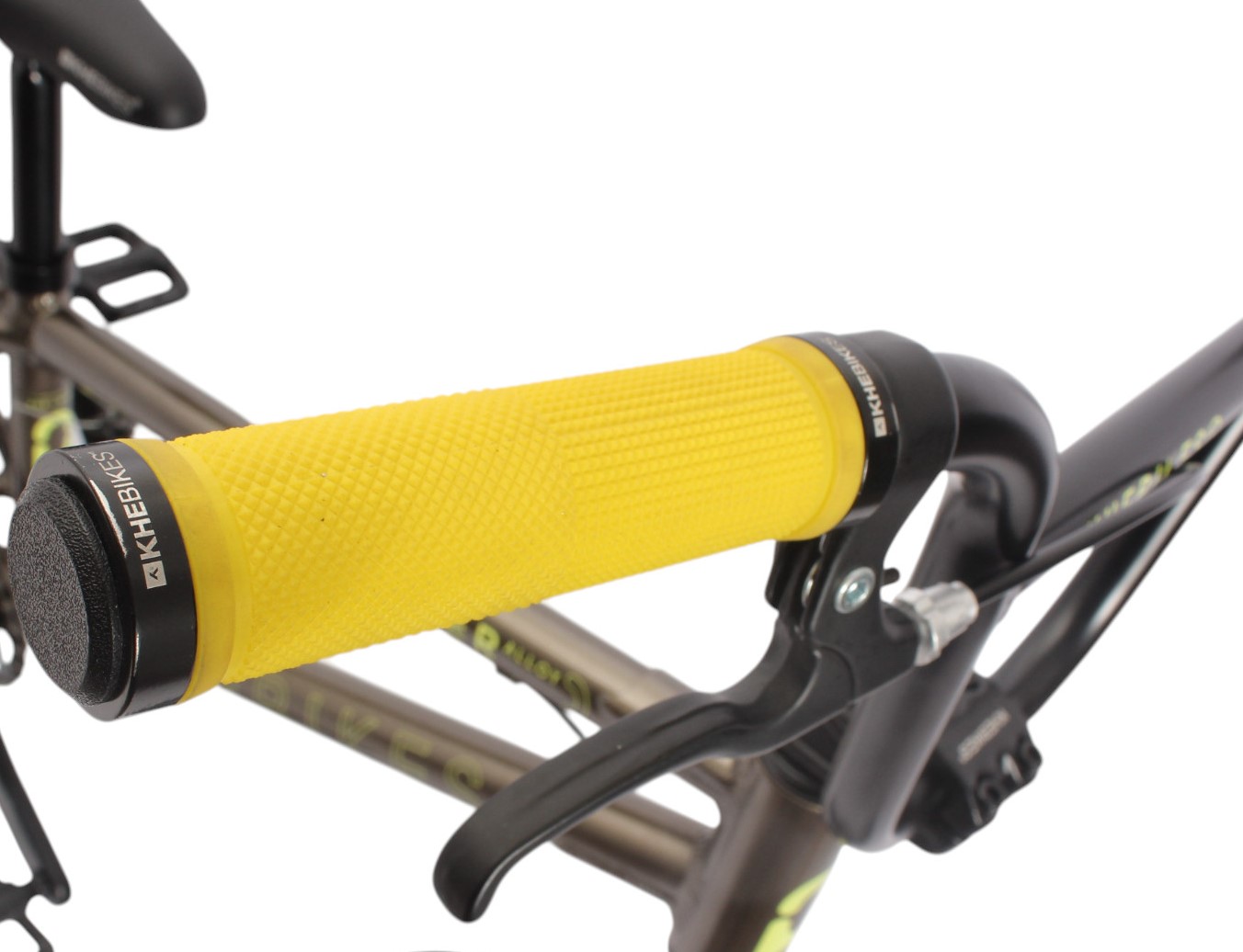

| Brake levers: | Aluminum with adjusting screw |
| Rear brake: | KHE RADIUS Aluminum U-Brake |
| Front brake: | Side pull (already installed!) |

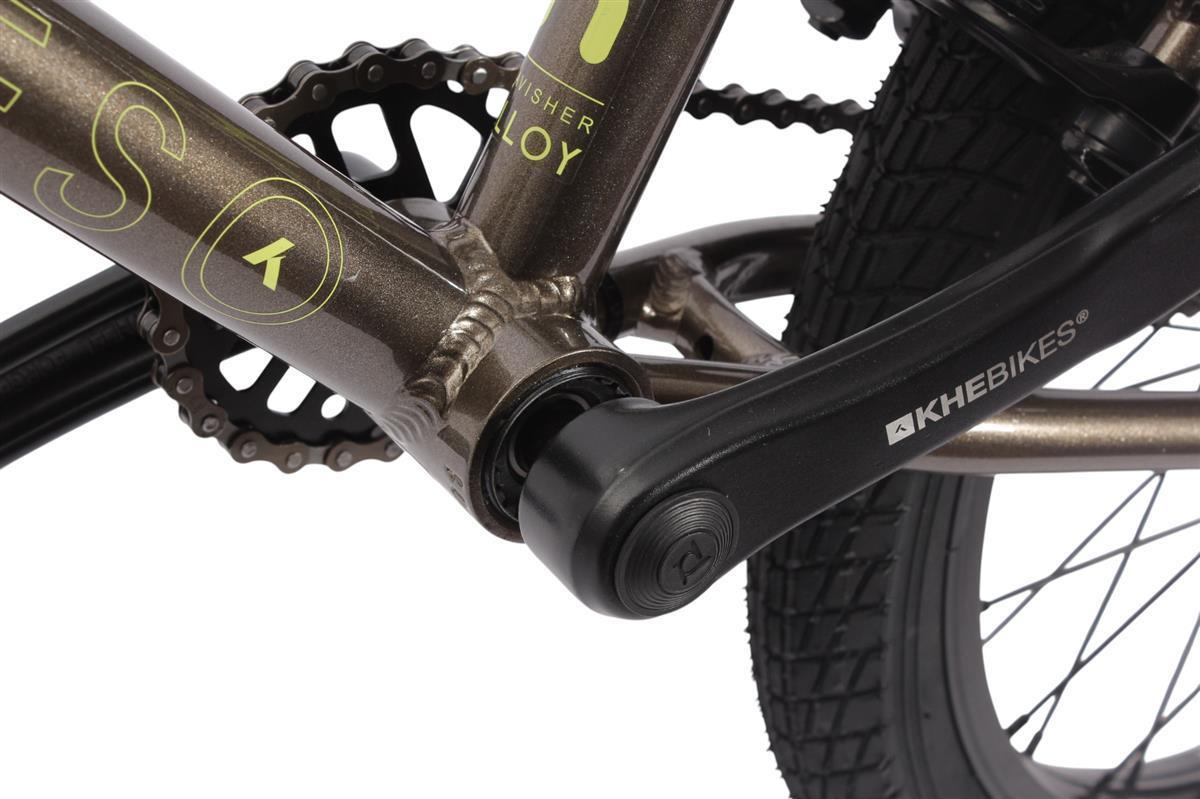

| Crank: | KHE 3-piece forged aluminum 152mm length |
| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 116mm |

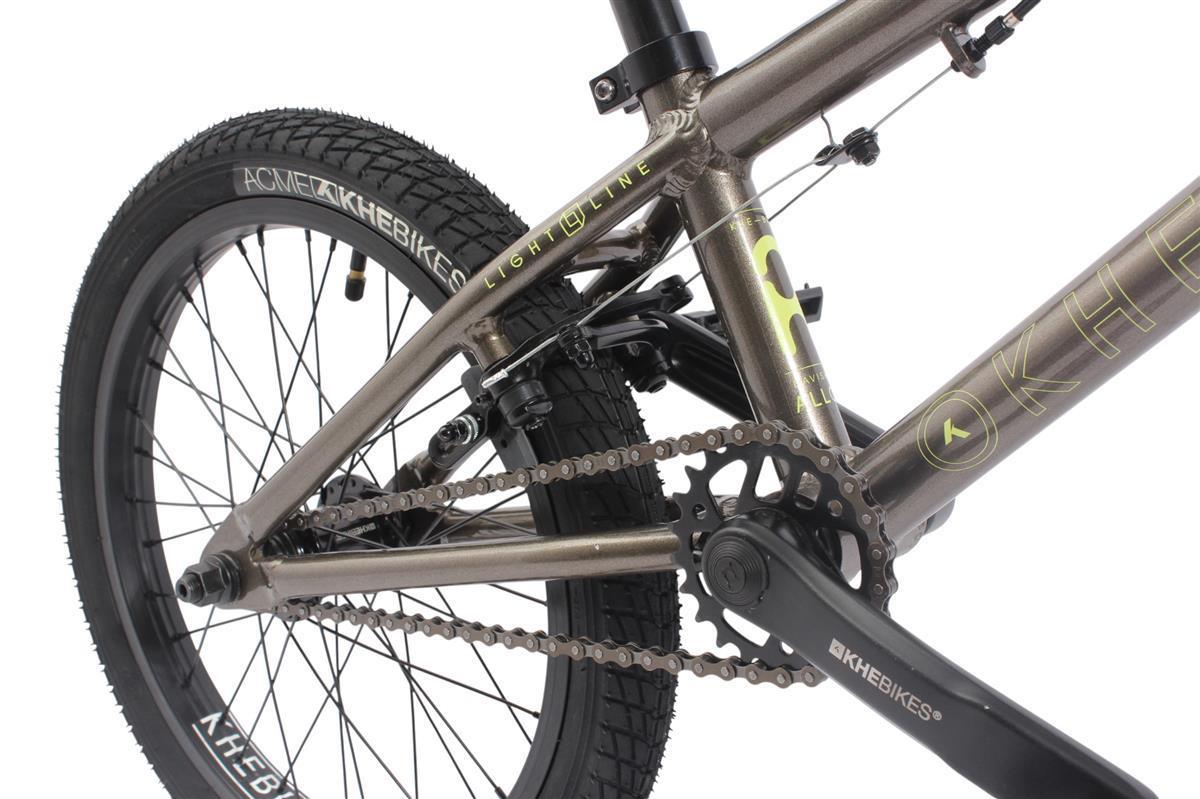

| Chainring: | 23 teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |

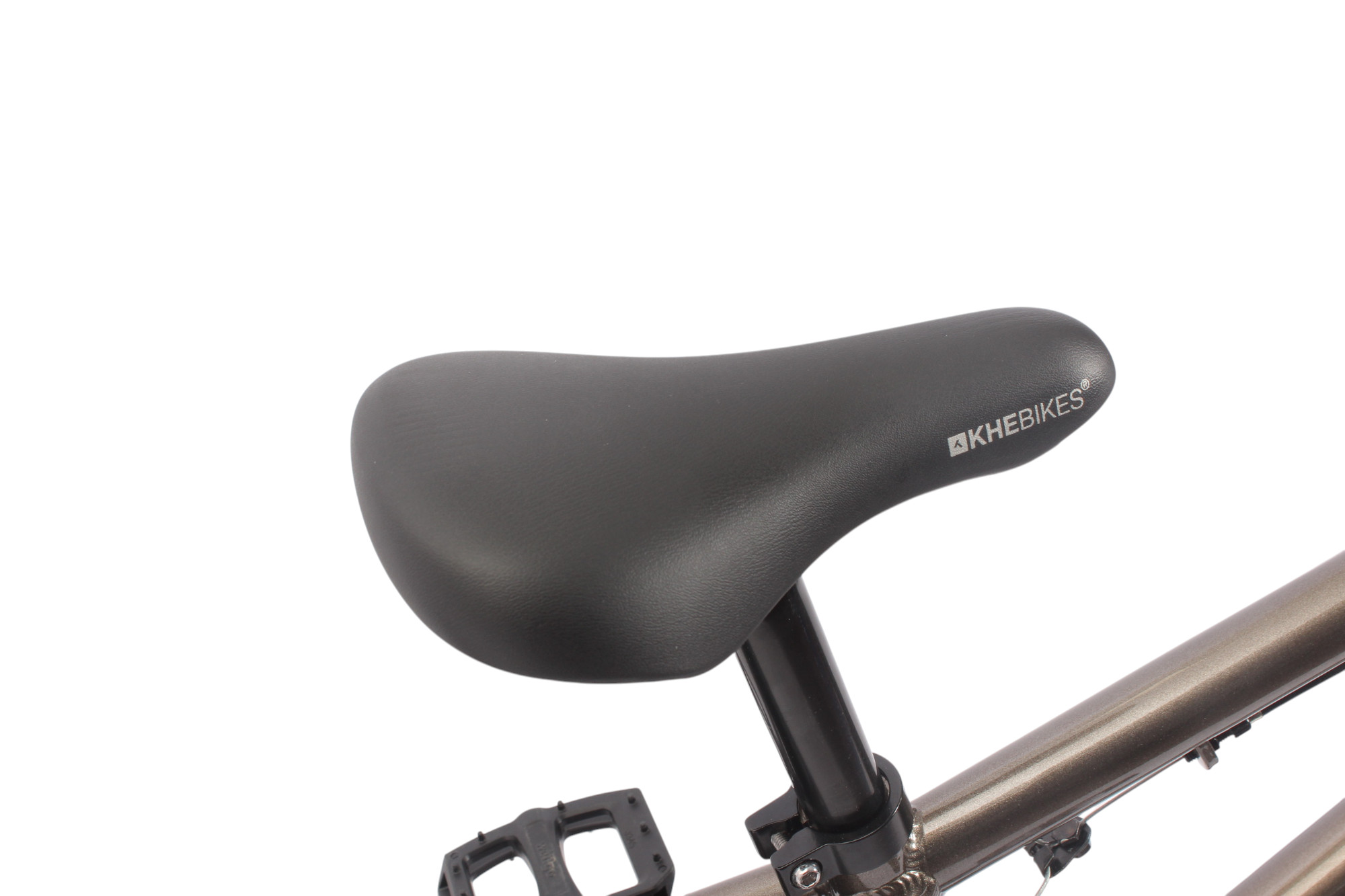

| Saddle: | Padded 210 x 140mm with embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 250mm (integrated seat post with saddle) |

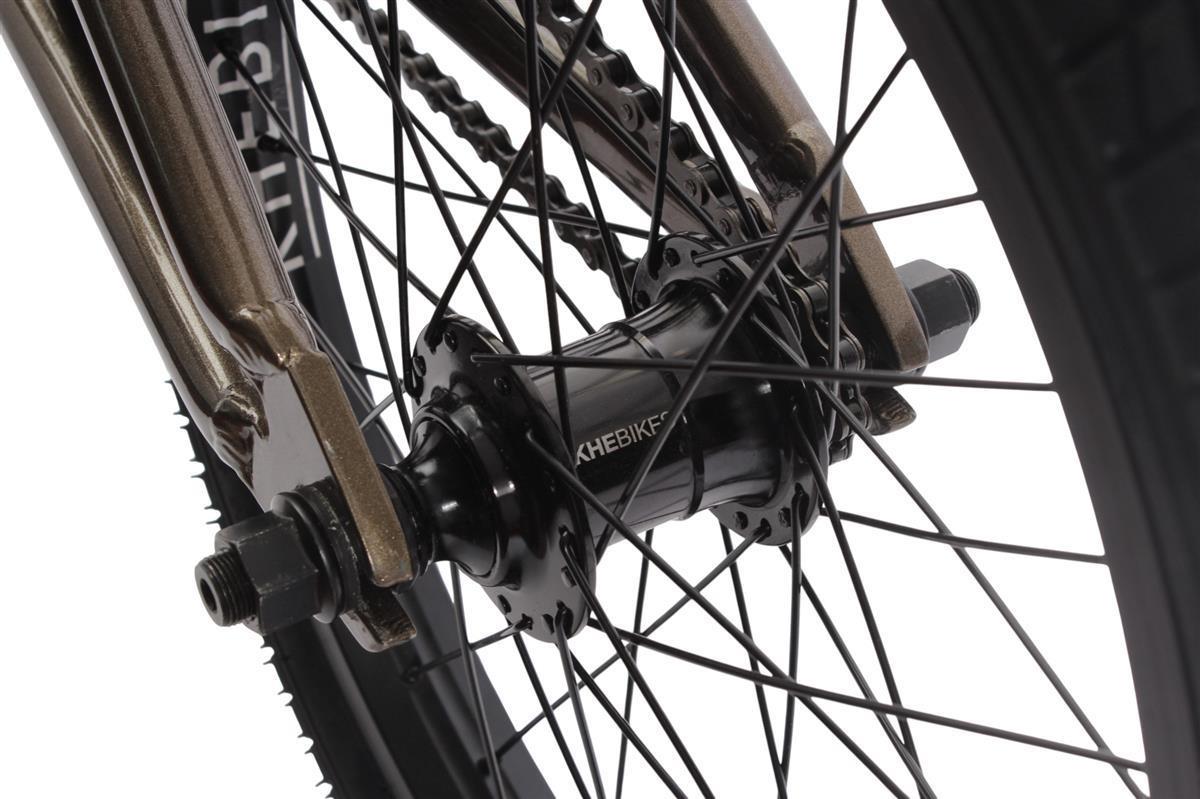

| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |
| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Rim: | KHE DD 18 inch double chamber aluminum, 36 hole |

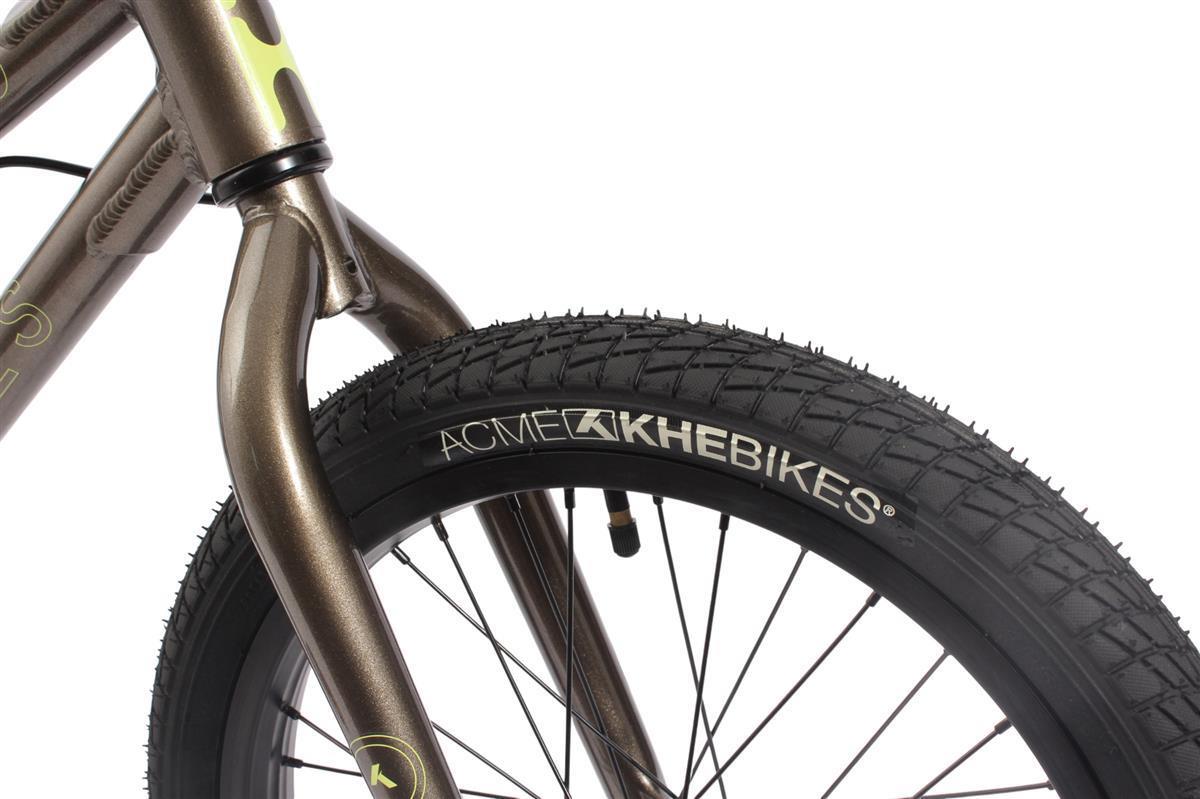

| Tyres: | KHE ACME 18 inch x2.125” |
| Material: | Aluminum |
| Tire size: | 18 inch |
| Category: | Park, Street, Flatland, Pumptrack |
| Size: | 18"; 4'1" - 4'9" in |
| Colour: | Anthracite |
| Model Year: | 2025 |
Usage Instructions:
The KHE Ravisher LL FC 18-inch BMX is suitable for advanced riders and ideal for use in parks, street, flatland, and pump tracks.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bike is equipped with appropriate lighting and reflectors in accordance with StVZO regulations.
Maximum user weight: 75 kg.
Safety Instructions:
Always wear an appropriate helmet and protective gear (knee, elbow, and hand guards).
Before each ride, check all bolts, connections, and components for secure fit.
Regularly inspect the condition of the brakes and tires.
Ensure the chain is properly tensioned and shows no visible damage.
No Modifications Allowed: Do not make any modifications such as drilling, cutting, or other changes to the BMX bike. The warranty will be void if the bike is used improperly.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust formation.
Use only original spare parts. Perform maintenance according to the user manual.
Replacement due to Wear: Regularly check components such as the handlebar, frame, and fork of the BMX bike for cracks, deformations, or microcracks, especially at the welds. Replace components immediately if cracks or damage are found.
