The KHE TRICKY AL 2025 is an extremely agile 20-inch BMX with a platform aluminium frame, rotor system, 4 pegs and stylish old-school design – perfect for flatland and beginners.
KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, sophisticated technology, and outstanding riding dynamics. The new 2025 models offer optimized geometry, thoughtful details, and high-quality components – directly from the manufacturer for top performance on any terrain.

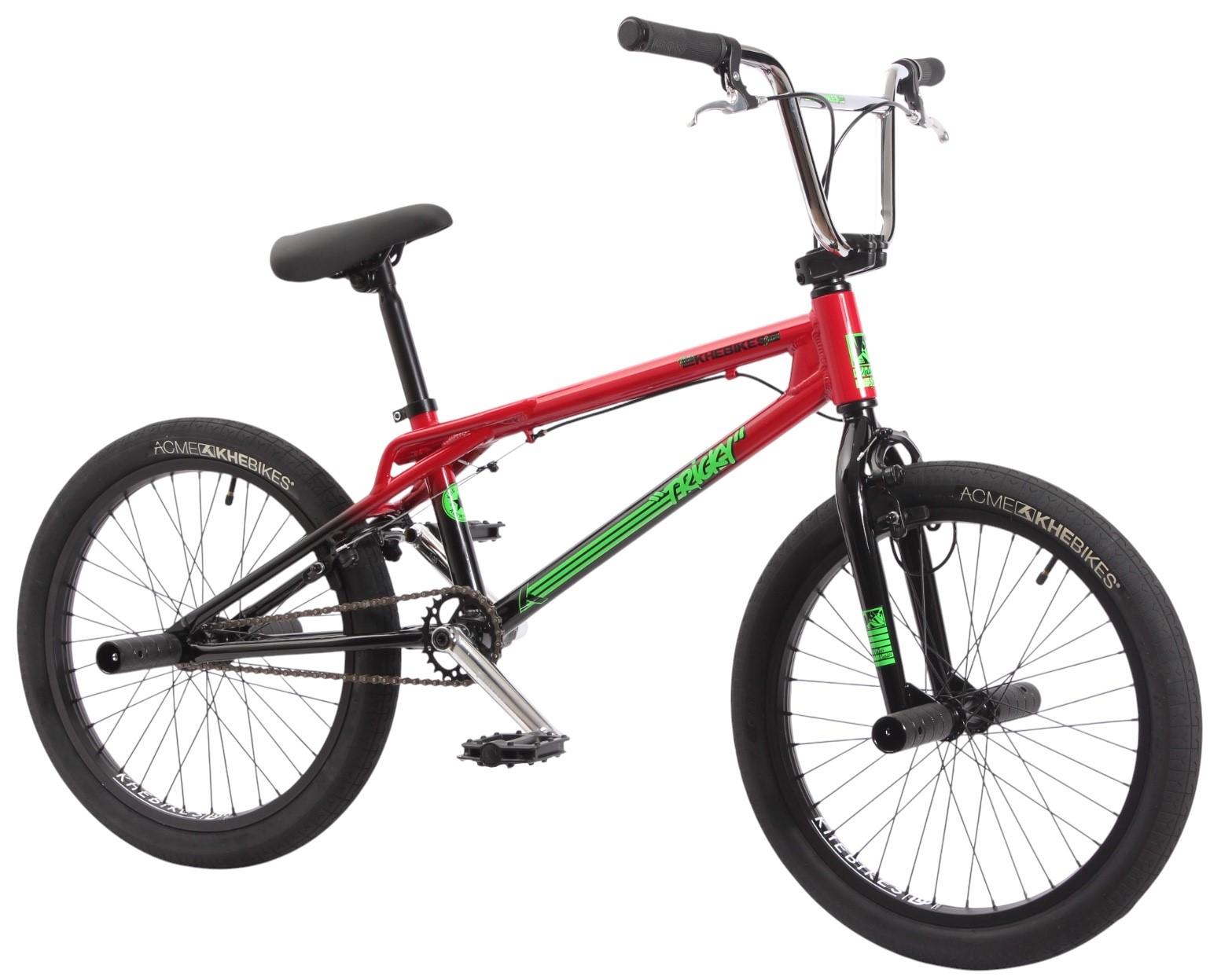

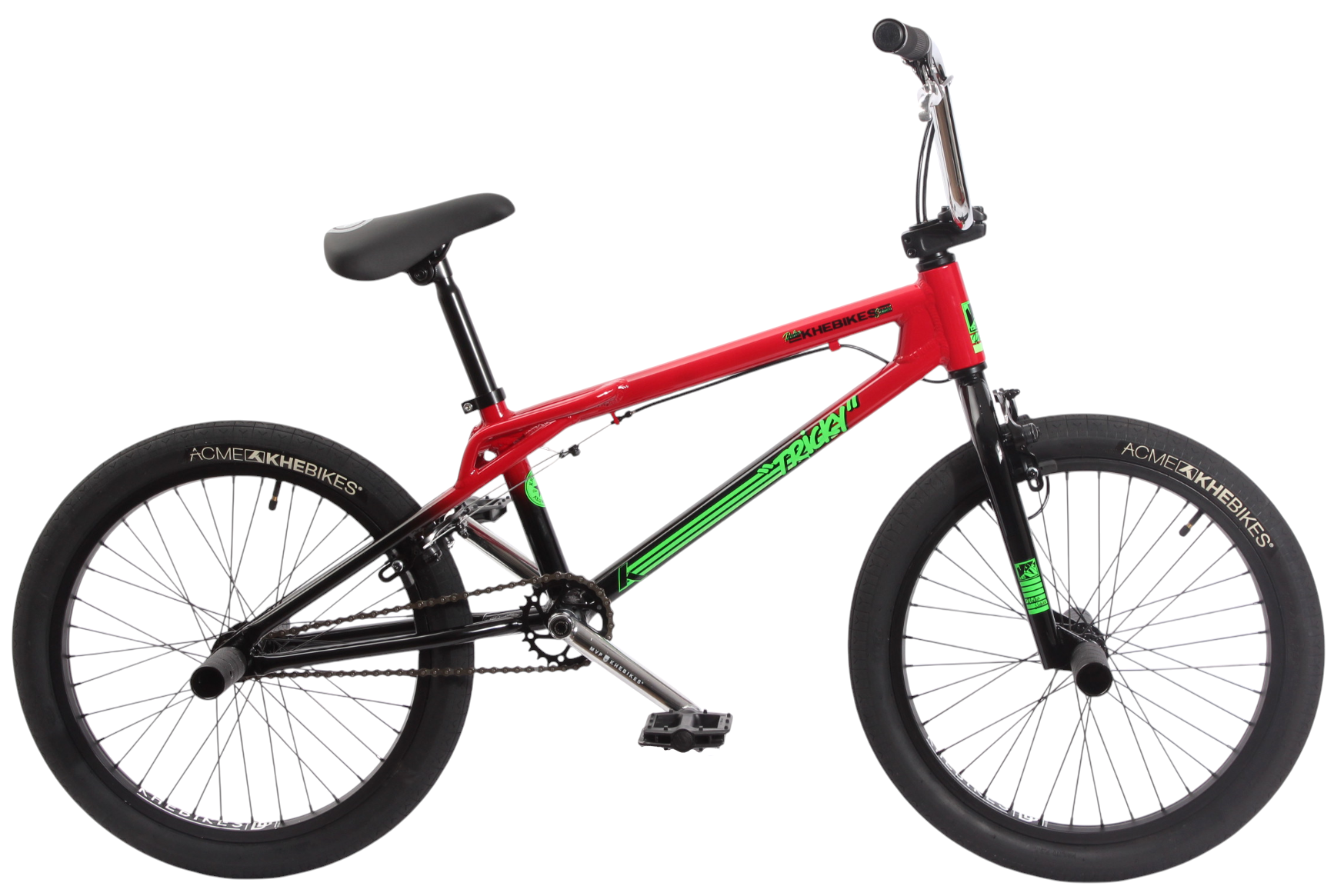

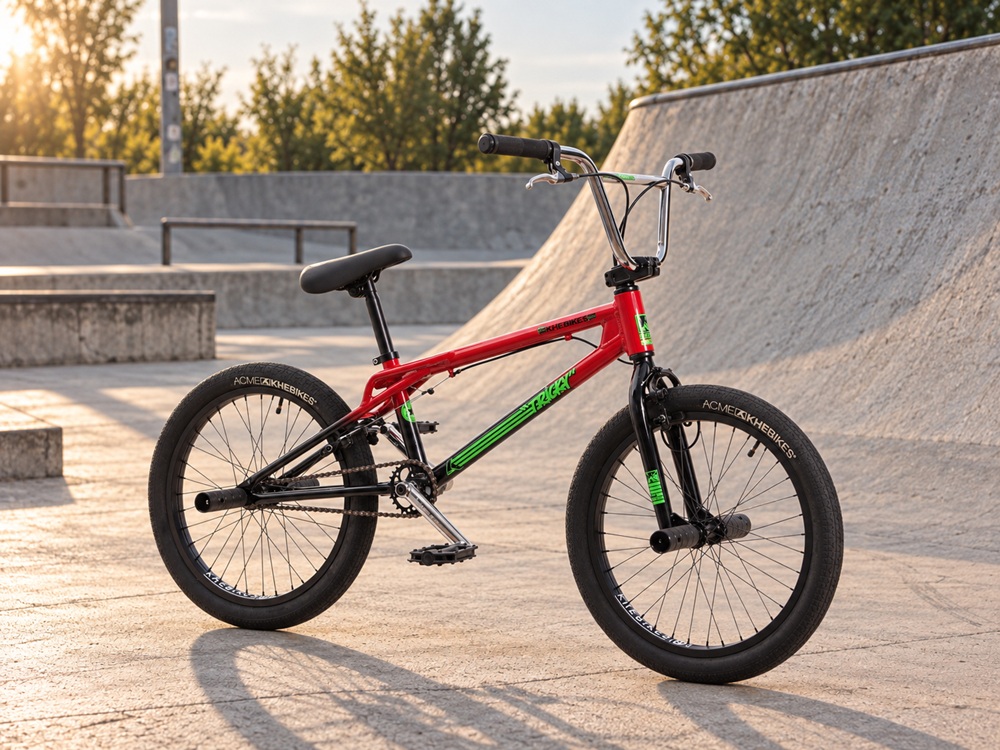

KHE TRICKY AL 20"
The KHE Tricky 20 inch BMX is the perfect “All Around” bike for kids or old-school riders who want to learn flatland tricks. The lightweight aluminum frame with an integrated platform, 19.7-inch toptube, and 14.25-inch chainstay length offers optimal maneuverability. The two-tone paint in chrome silver / gloss red is complemented by the chrome handlebar, chrome crank, and black details.
With the patented KHE Affix Rotor System, 360-degree handlebar spins are no problem, while the 8-inch high handlebar, 40 mm toploader stem, and 3-piece chromoly crank with 48 teeth provide the best control. Equipped with two U-brakes, robust double-walled rims, KHE ACME tires (1.95 inches), and two pairs of aluminum pegs, the TRICKY is versatile.
Weighing only 10.9 kg (24lbs), it is ideal for all types of BMX riding such as flatland, park, or pump track.
You should be this tall: 140–185 cm (4'7"–6'1")
Maximum body weight: 95 kg (209lbs)
Field of application: Flatland, Park, Pumptrack
Why the TRICKY 20 inch from KHEbikes:
- Directly from the manufacturer, hence the best prices
- At 10.9 kg, one of the lightest 20-inch BMX all-rounders (including rotor)
- Worldwide patented KHE BMX rotor for 360-degree handlebar spins

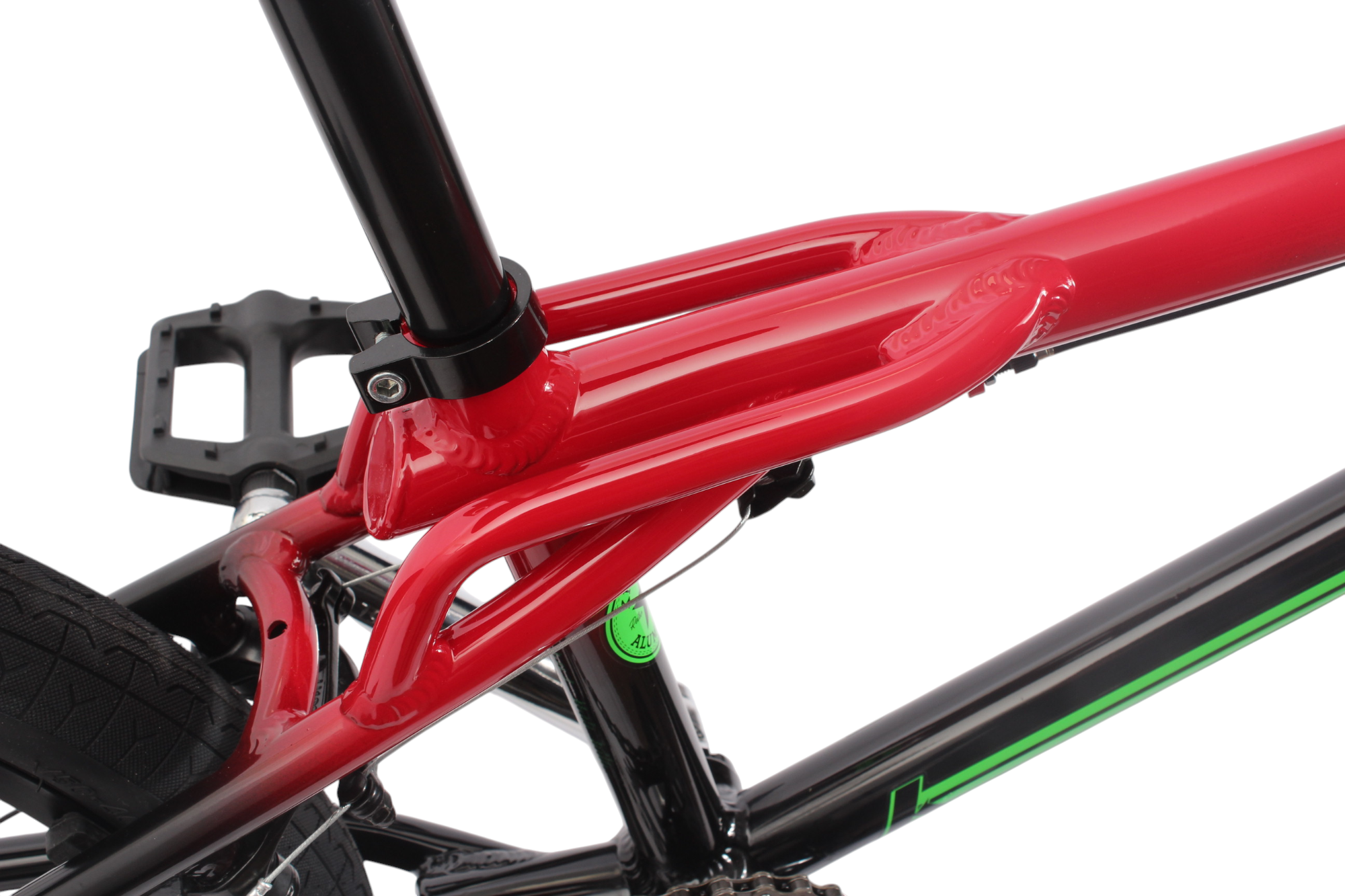

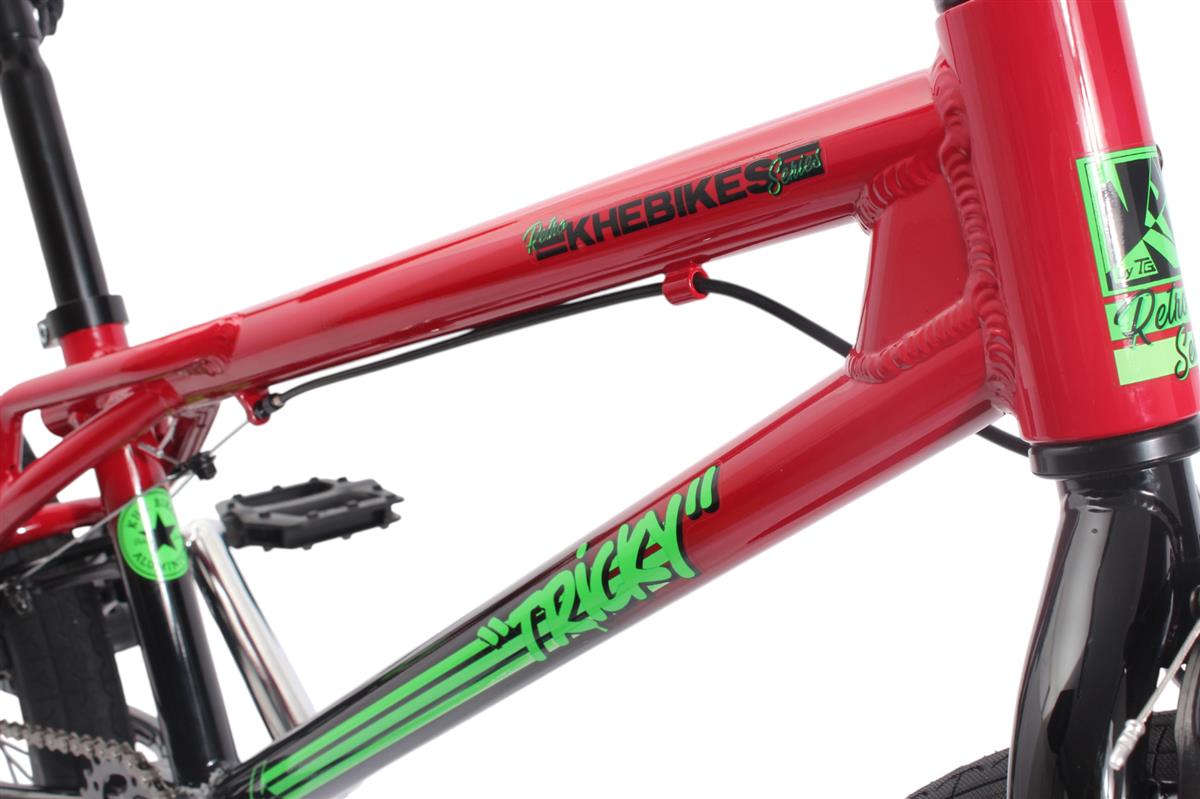

- Aluminum frame with integrated platform
- With two powerful U-brakes
- Sealed Euro industrial bottom bracket with 48 teeth axle

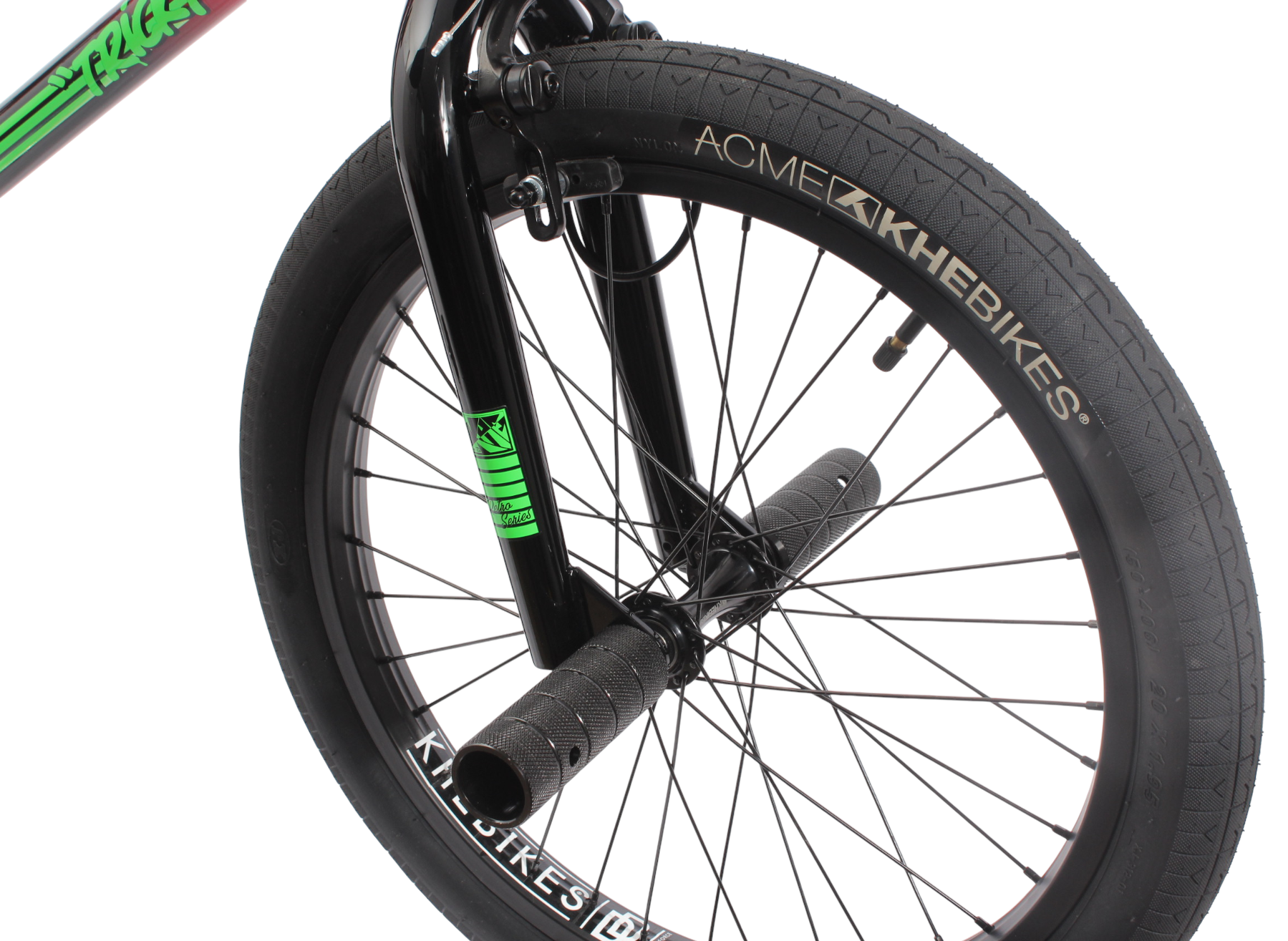

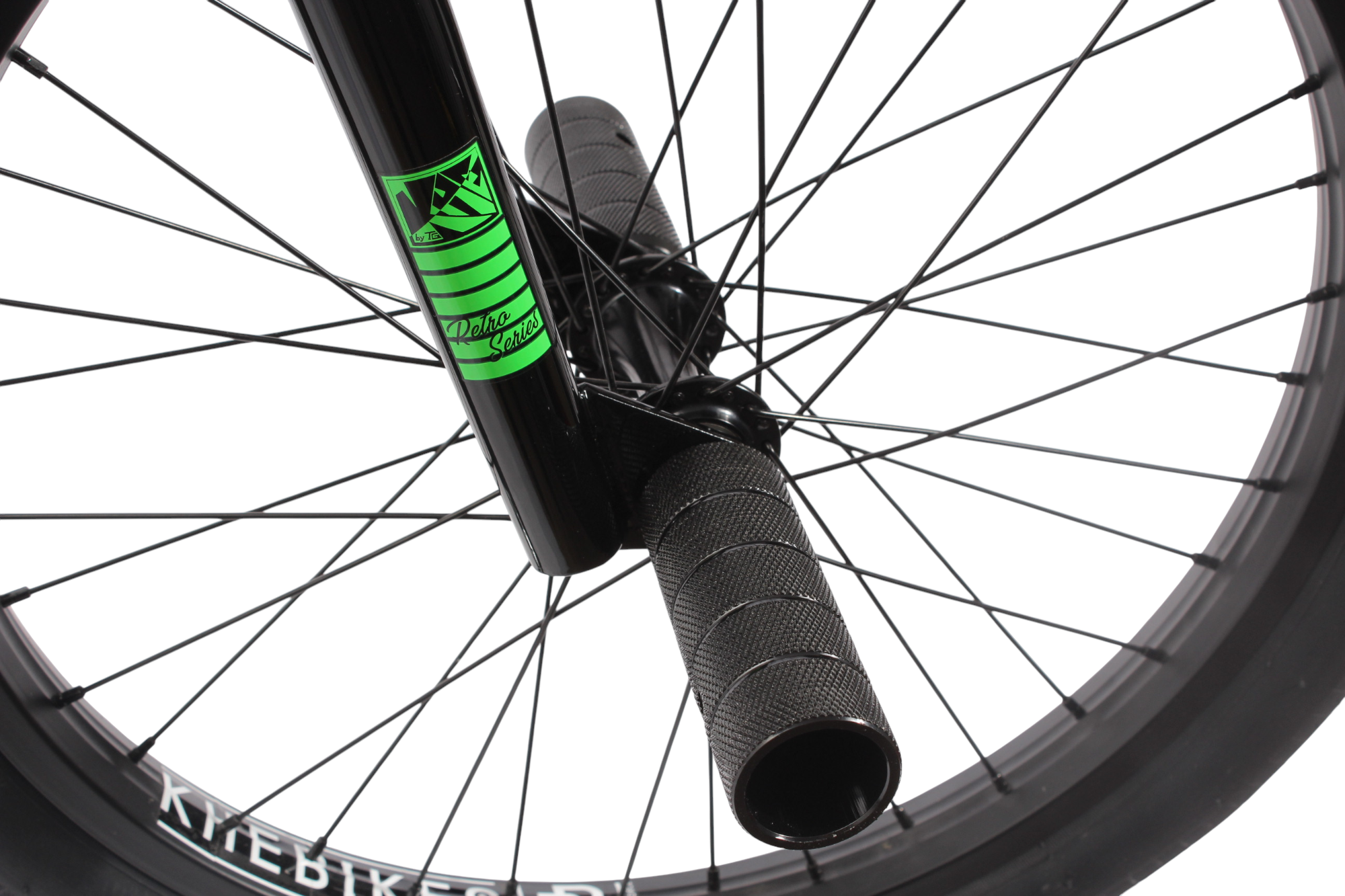

- Includes pegs (2 pairs)
The BMX bike is about 90% pre-assembled. You can find the manual under “Datasheets”. A video for assembly can be found under “Video”.

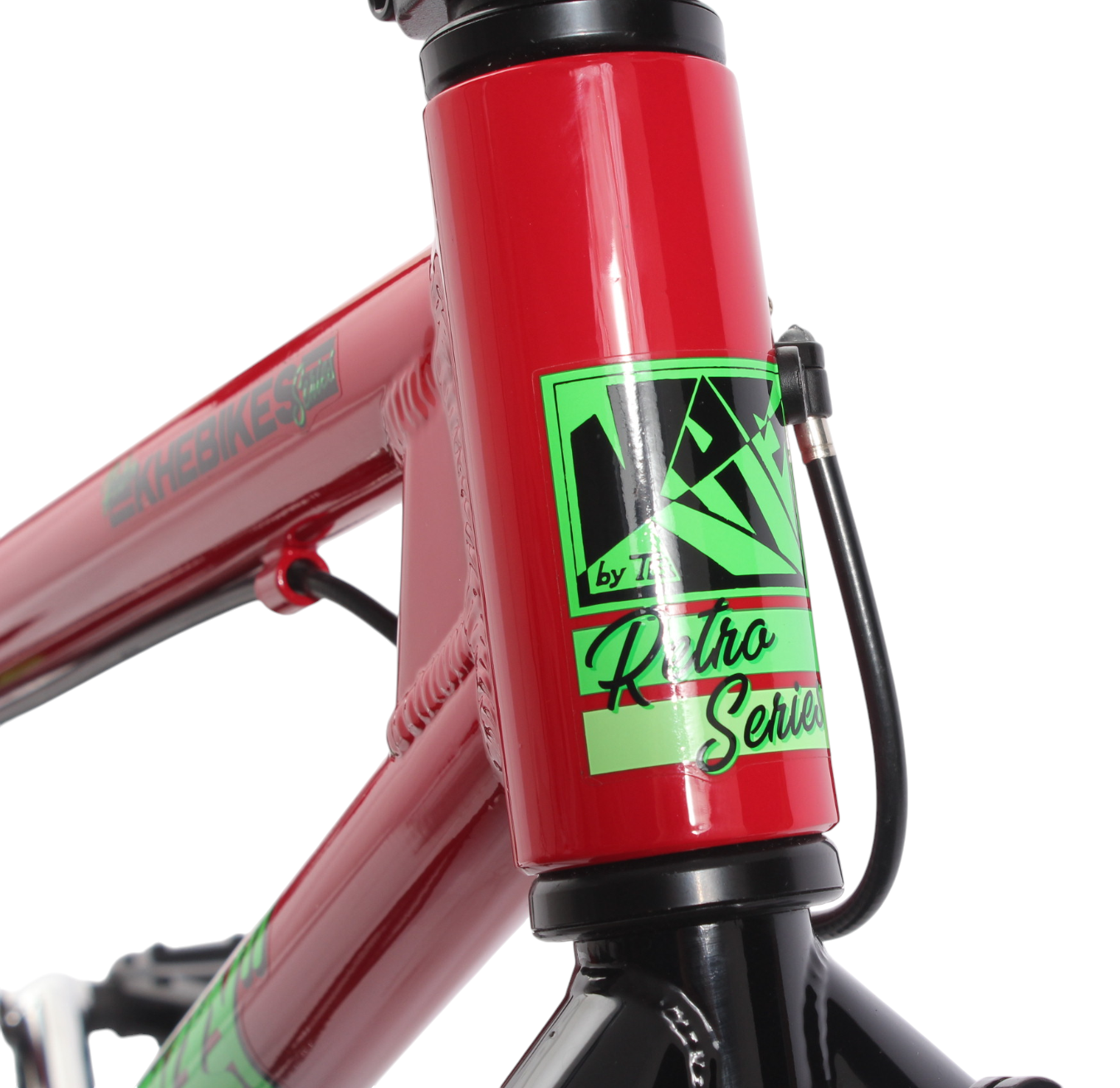

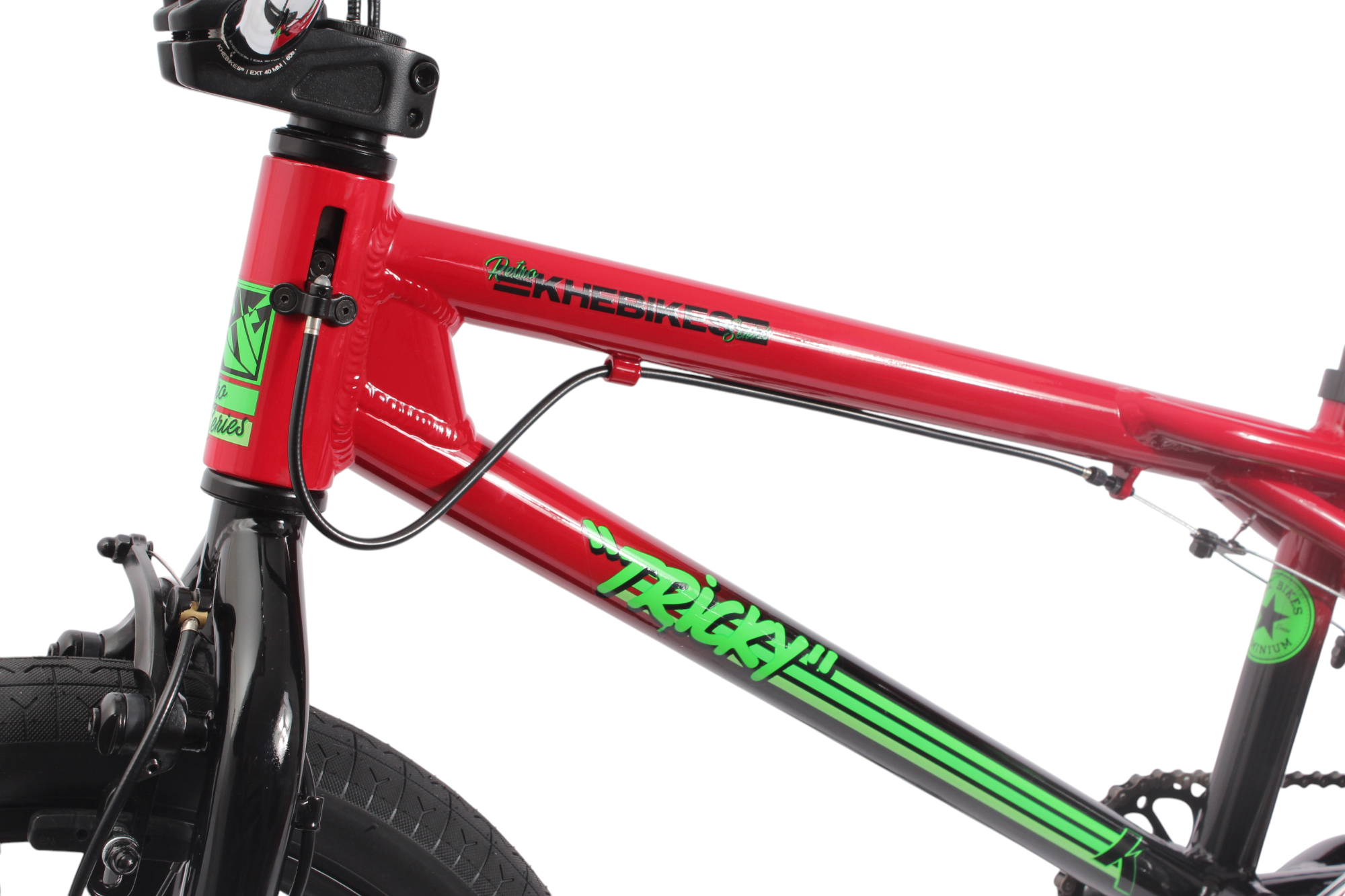

| Frame: | KHE 6061 aluminum, 14mm dropout, top tube 19.7", CS 14.3", HT 74.5°, ST 71°, A-headset 1 1/8" 46x39mm |
|---|---|
| Top tube length: | 19,7" (500mm) |
| Fork: | KHE 1020 HiTen steel with 10mm dropouts, tapered stanchions & 33mm forerunner |

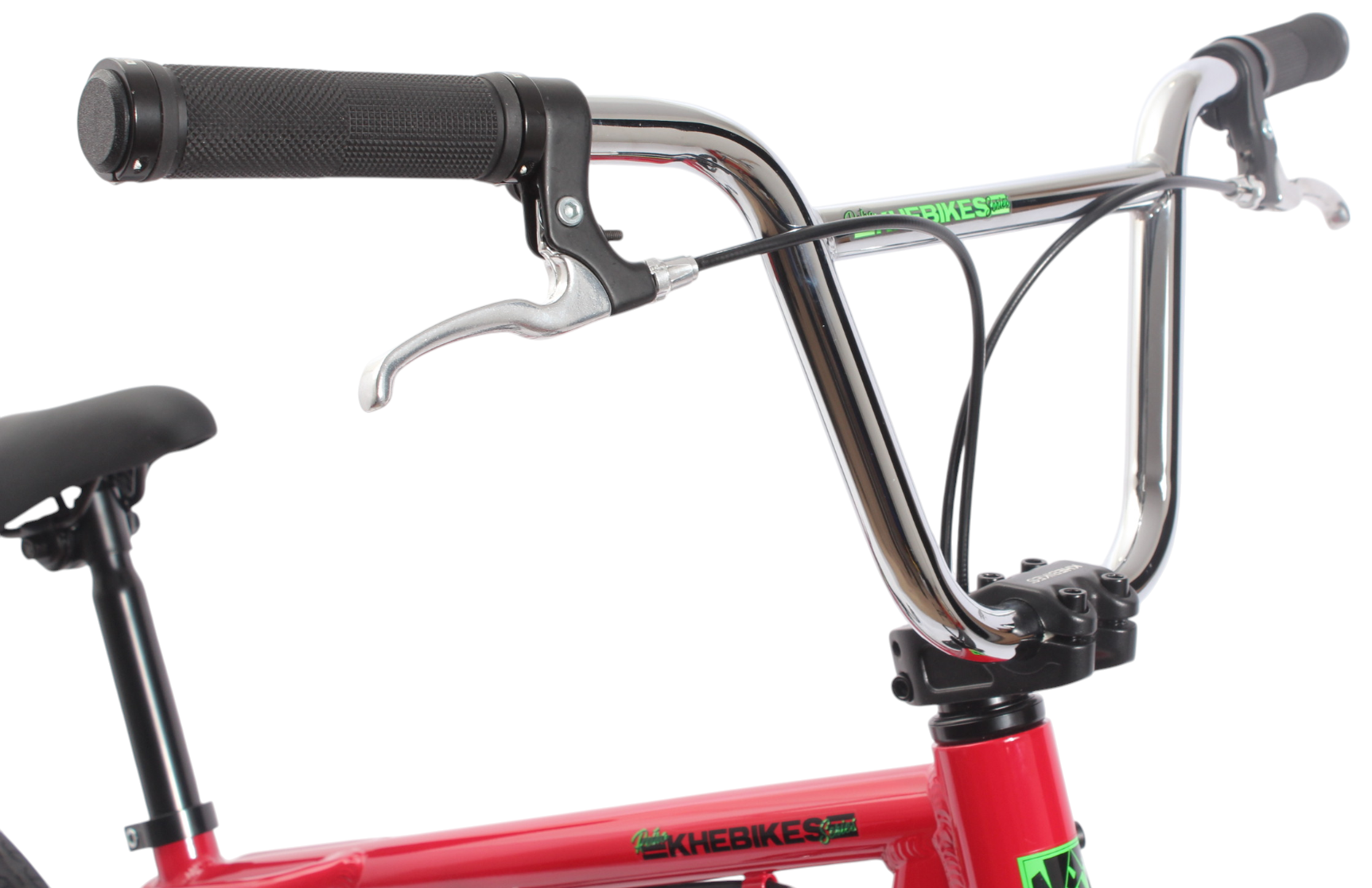

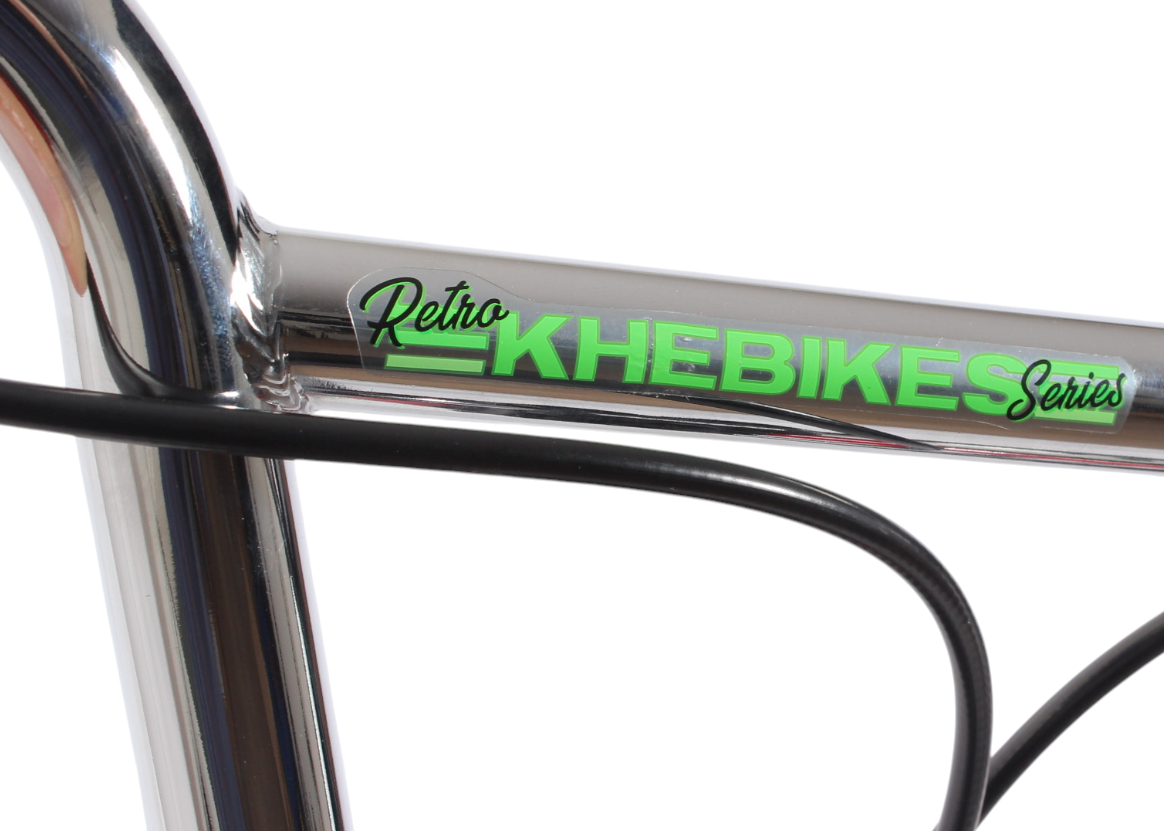

| Handlebars: | KHE HiTen steel 680mm width (26.8“) x 203mm (8”) height, backsweep 10”, upsweep 1” |

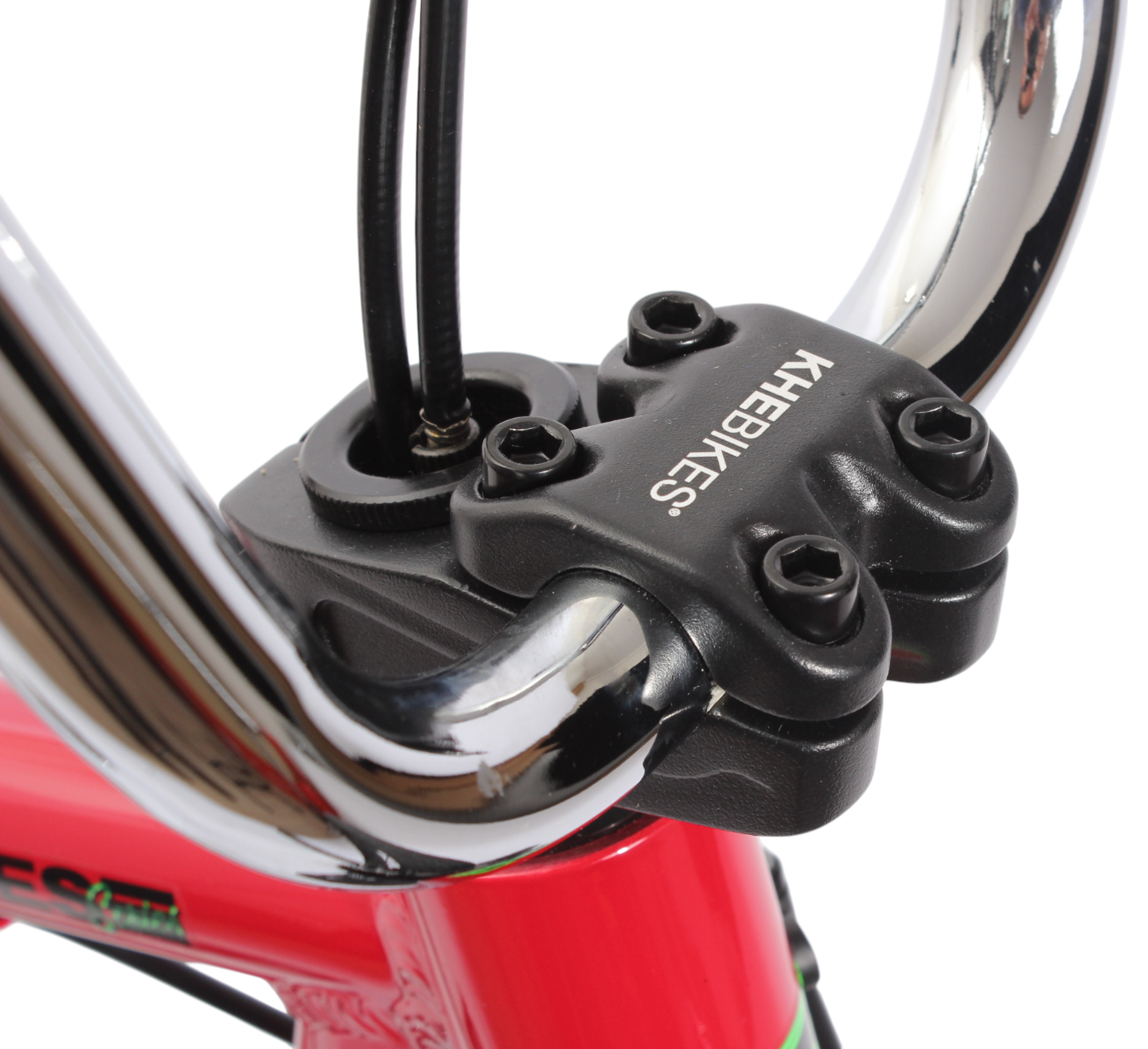

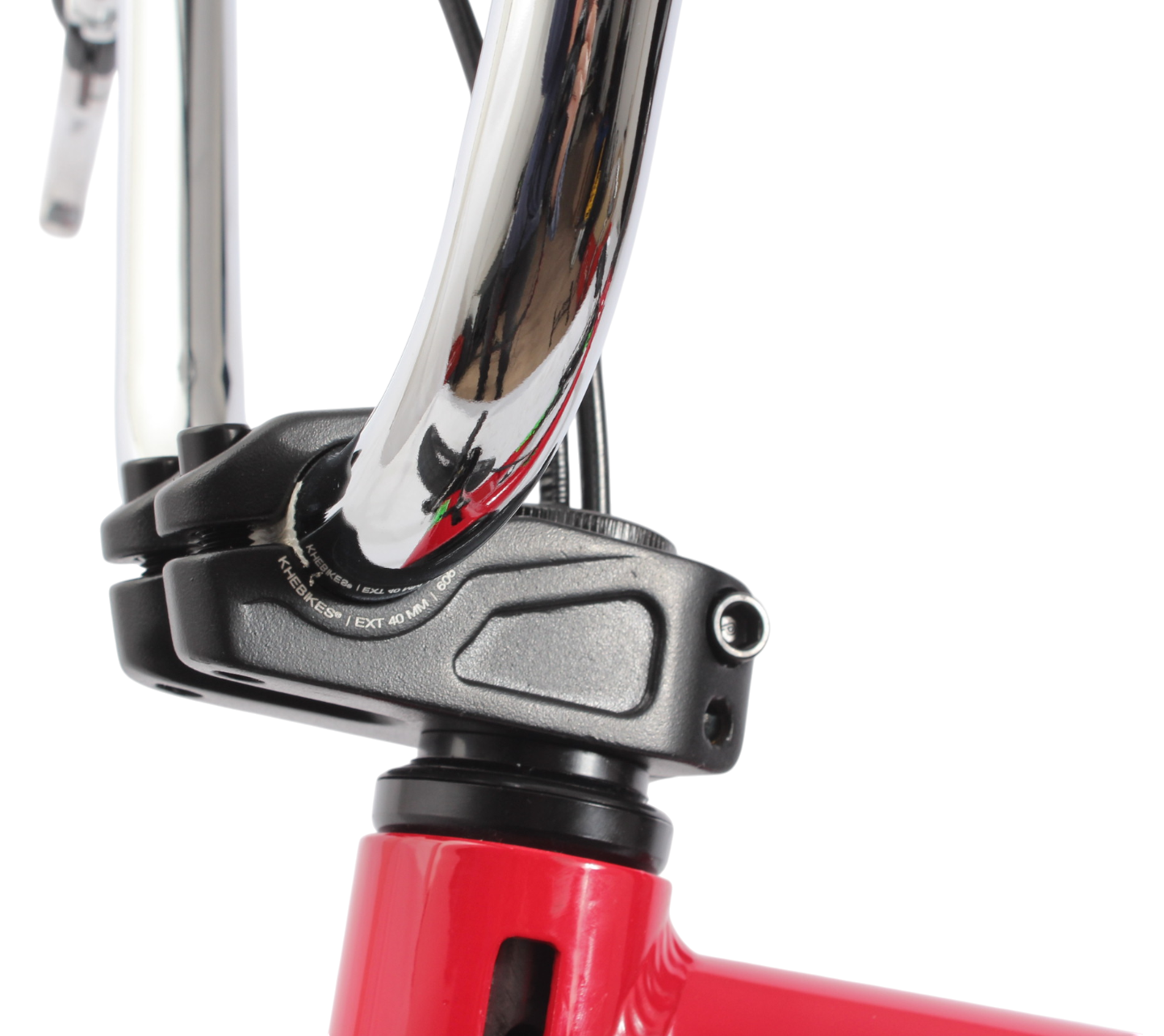

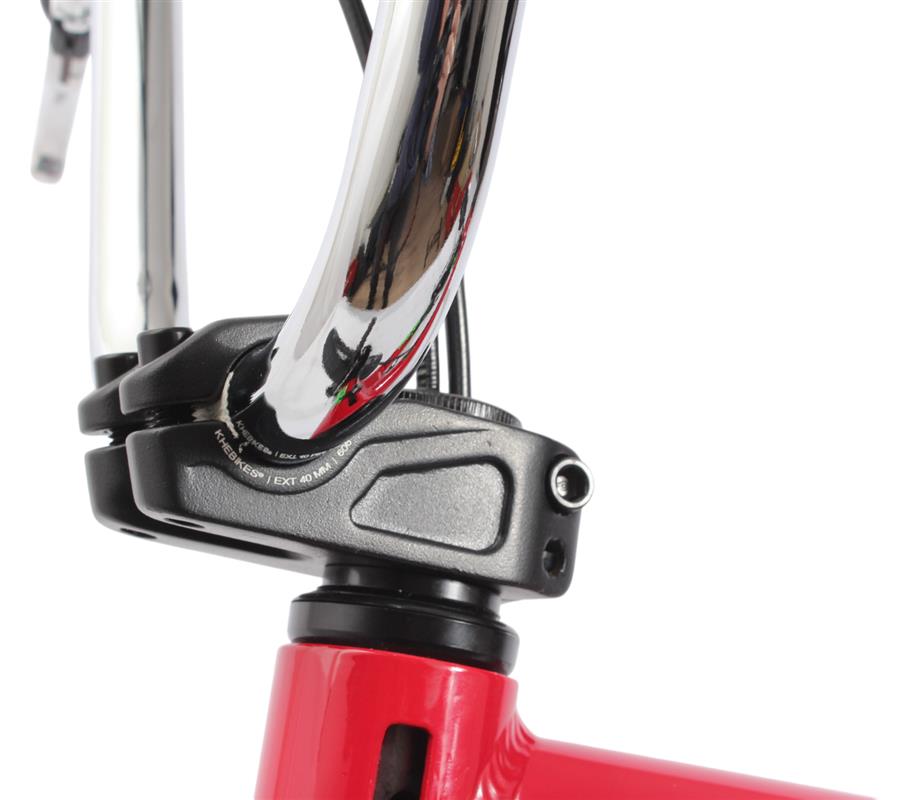

| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | AFFIX Loosball 1 1/8" |
| Rotor: | Patented KHE AFFIX 360 degree rotor |

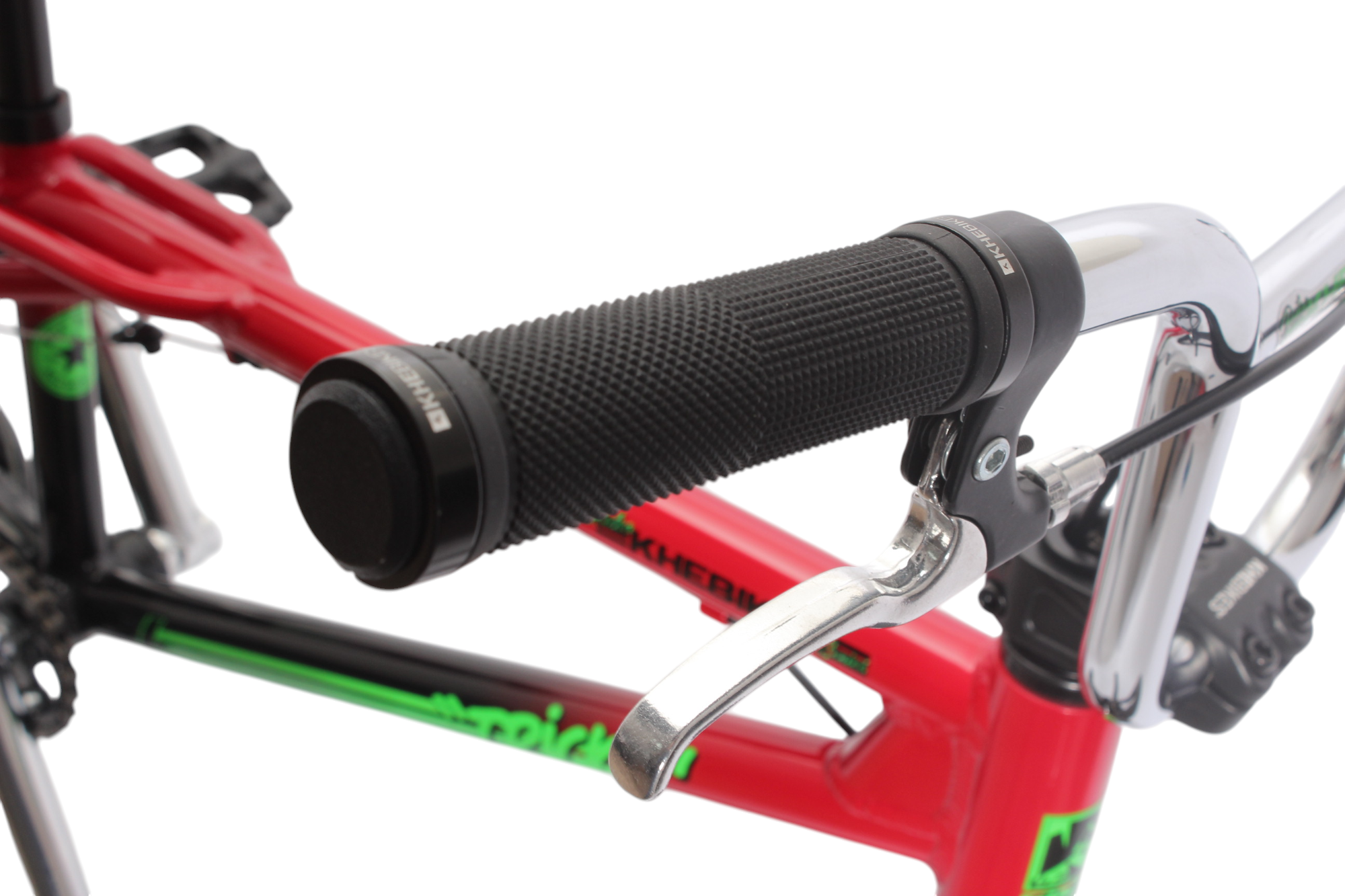

| Handles: | Lock On 140mm high quality rubber with aluminum clamps and KHEbikes laser logo |
| Brake levers: | Aluminum with adjusting screw |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

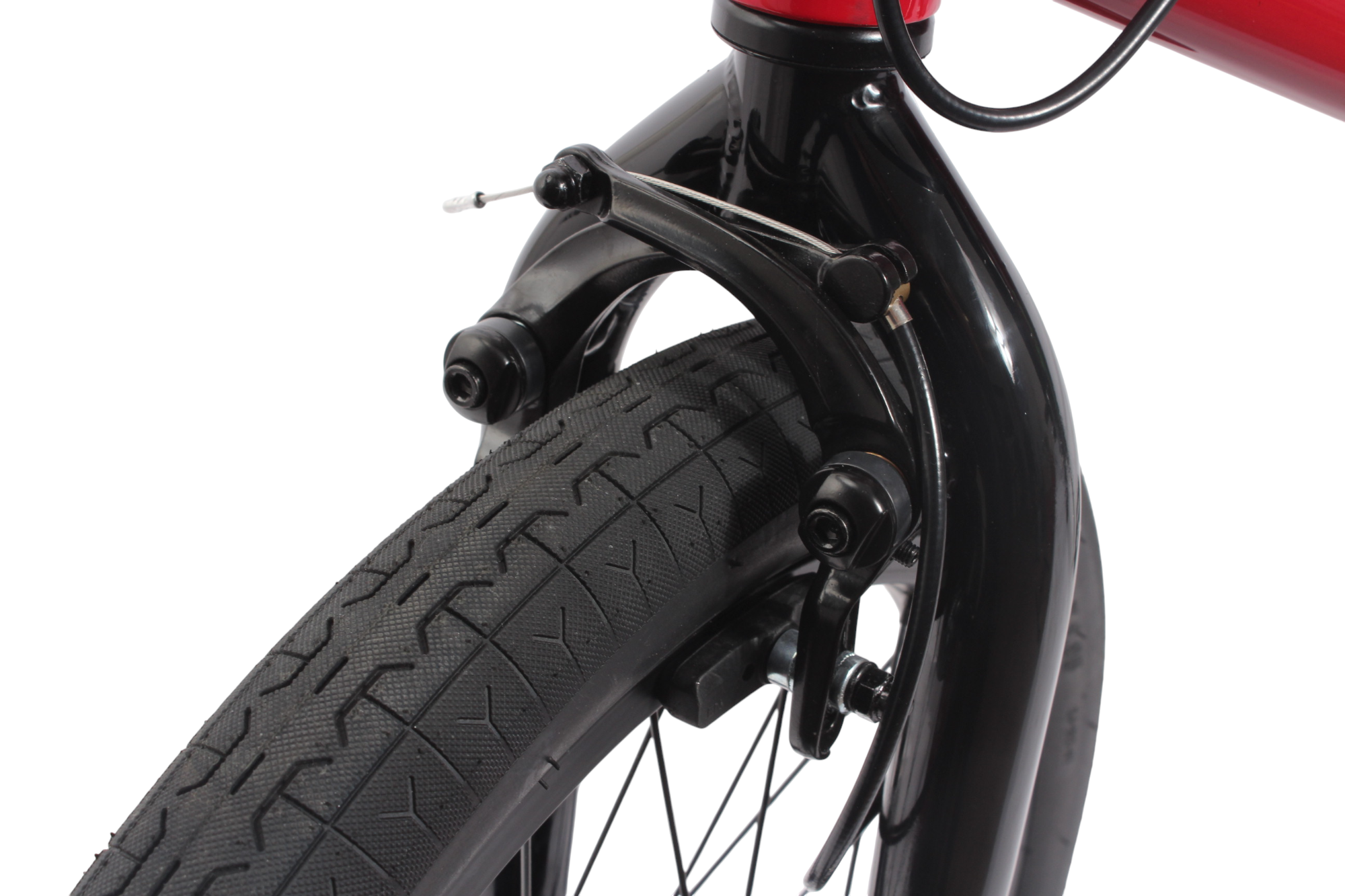

| Front brake: | KHE RADIUS Aluminum U-Brake |

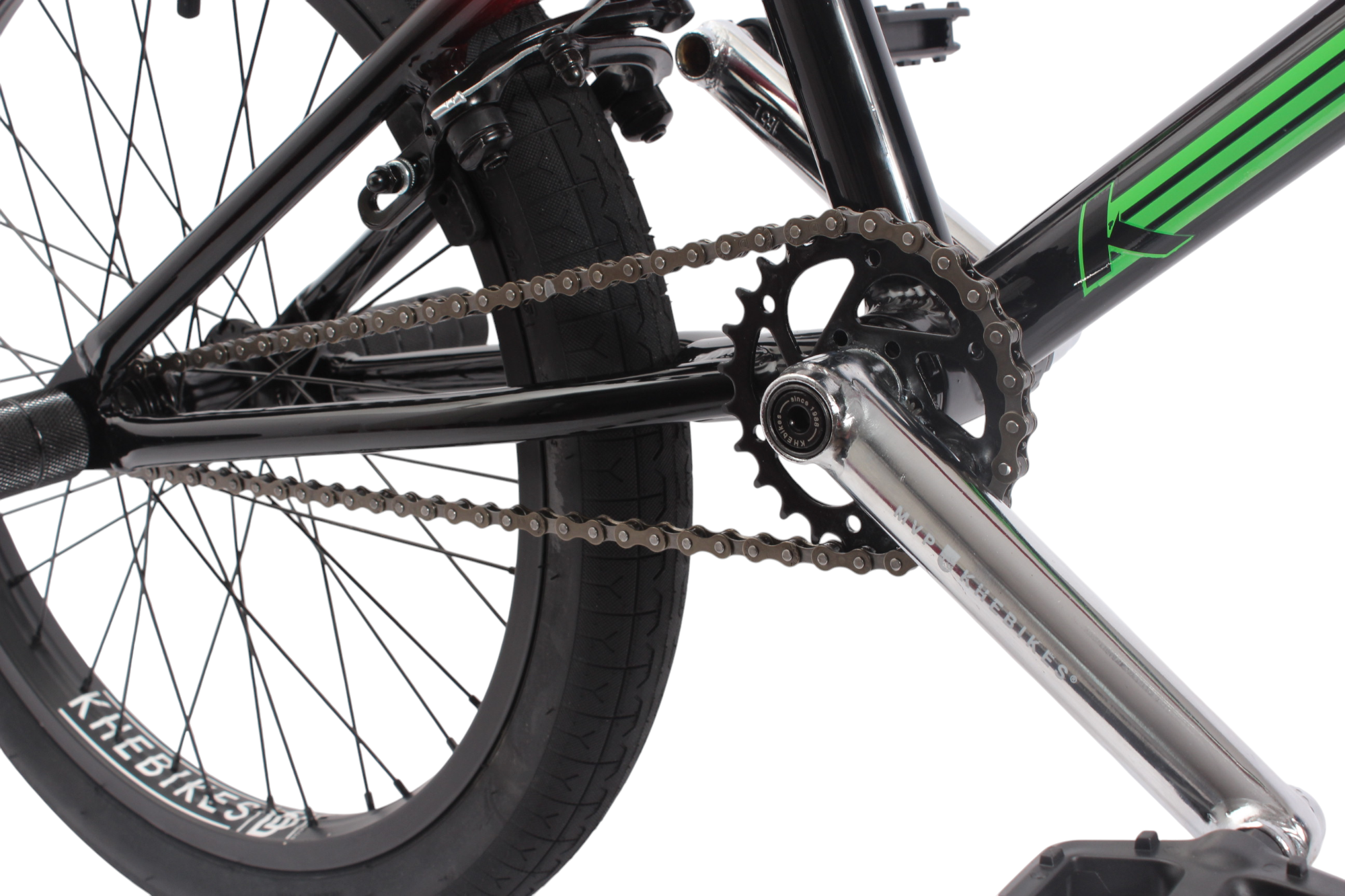

| Crank: | KHE 3-piece CrMo 48 tooth hollow crank 165mm, chrome finish |

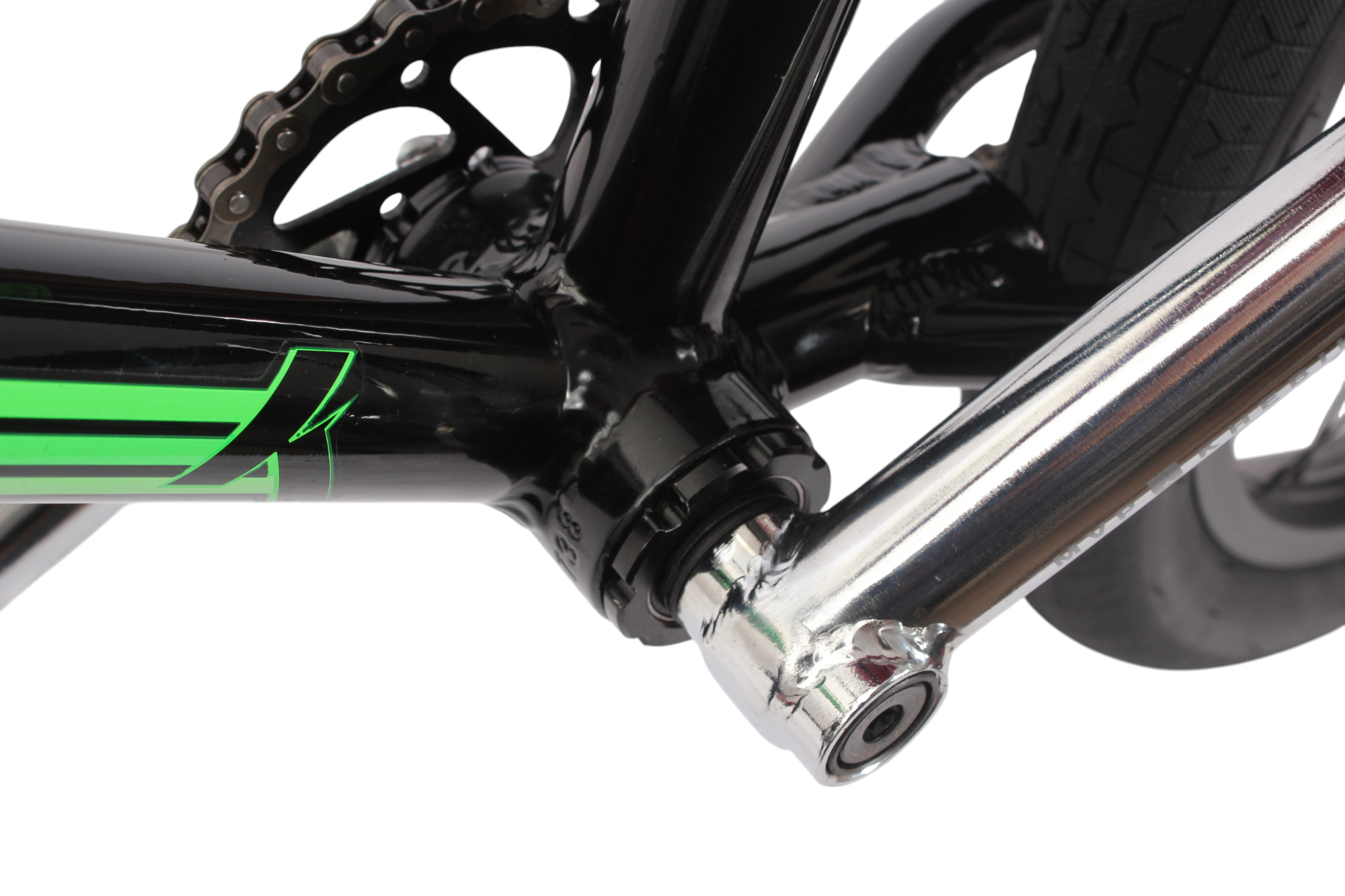

| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 19mm CrMo axle |
| Chainring: | 25T teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |

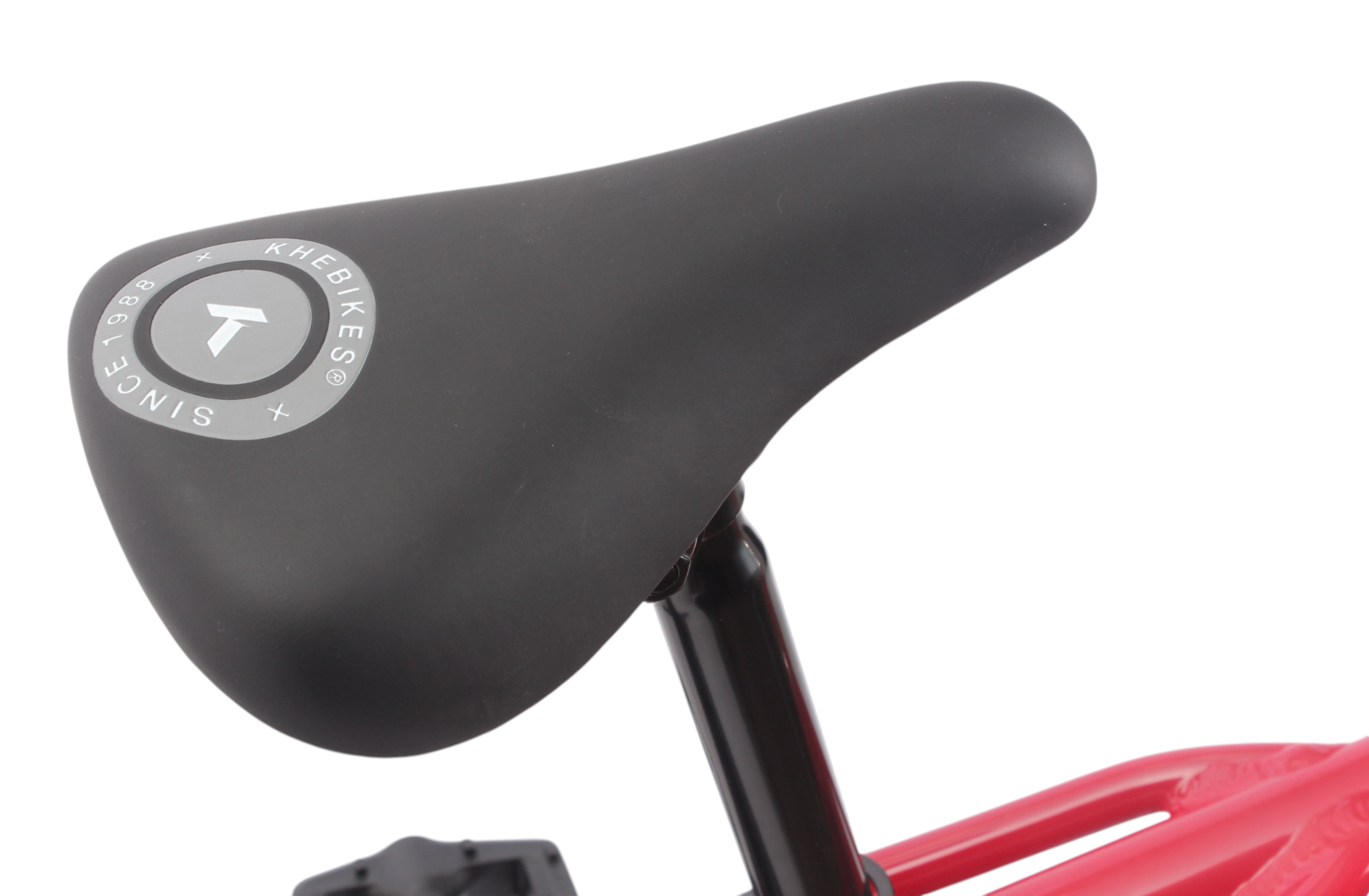

| Saddle: | Padded 210 x 140mm with rails (adjustable) + embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 300mm |

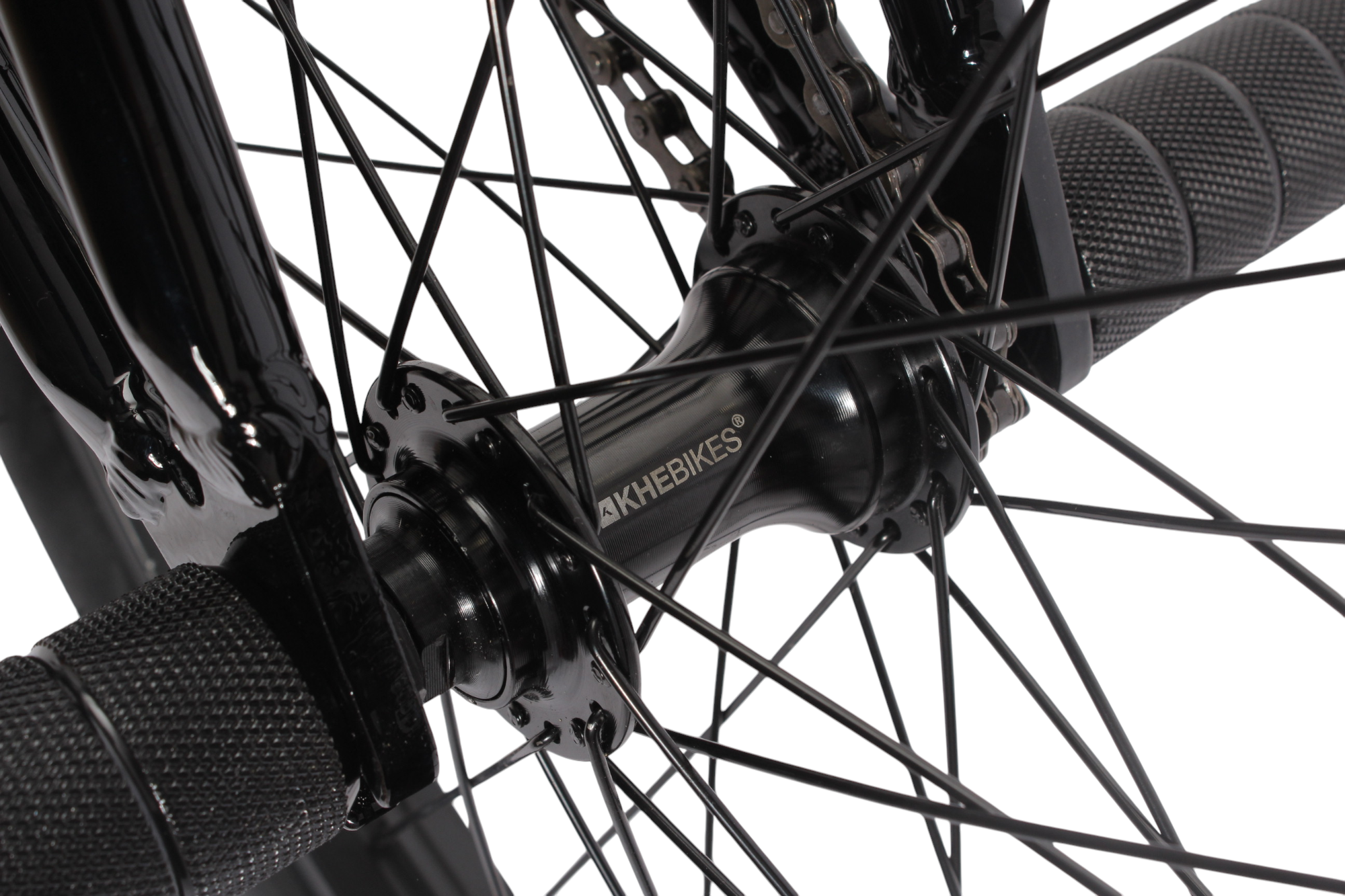

| Front wheel hub: | Aluminum 3/8" (10mm) x 155mm axle, sealed industrial bearing, 36 holes, disc brake mounting pattern |
| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch × 1.95" |
| Material: | 6061 T6 Aluminium |
| Category: | Flatland, Park, Pumptrack |
| Weight: | 24.04lbs / 10,9kg |
| Model Year: | 2025 |
Ensure Compatibility:
This BMX bike is suitable for riders approximately 140–185 cm tall. It is intended for flatland, park, and pump track use. The maximum rider weight is 95 kg. Not intended for competition or high-impact stunts.
Assembly: Before use, handlebars, rotor, brakes, pegs, crank, and wheels must be properly mounted and secured. After falls or intense riding, all bolts and parts should be inspected.
Care and Maintenance:
Clean the bike regularly with a soft, damp cloth. Do not use aggressive cleaners. Frequently check the functionality of brakes, rotor, chain, bearings, and the condition of frame, tires, and rims.
Store in a dry, protected location.
Replacement in Case of Wear: All safety-relevant components such as brakes, cranks, chain, pegs, or rims must be replaced immediately if worn or damaged. Using defective parts can lead to accidents or injury.
