KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, advanced technology, and outstanding ride dynamics. The new 2025 models offer optimized geometry, well-thought-out details, and high-quality components – directly from the manufacturer for maximum performance on any surface.

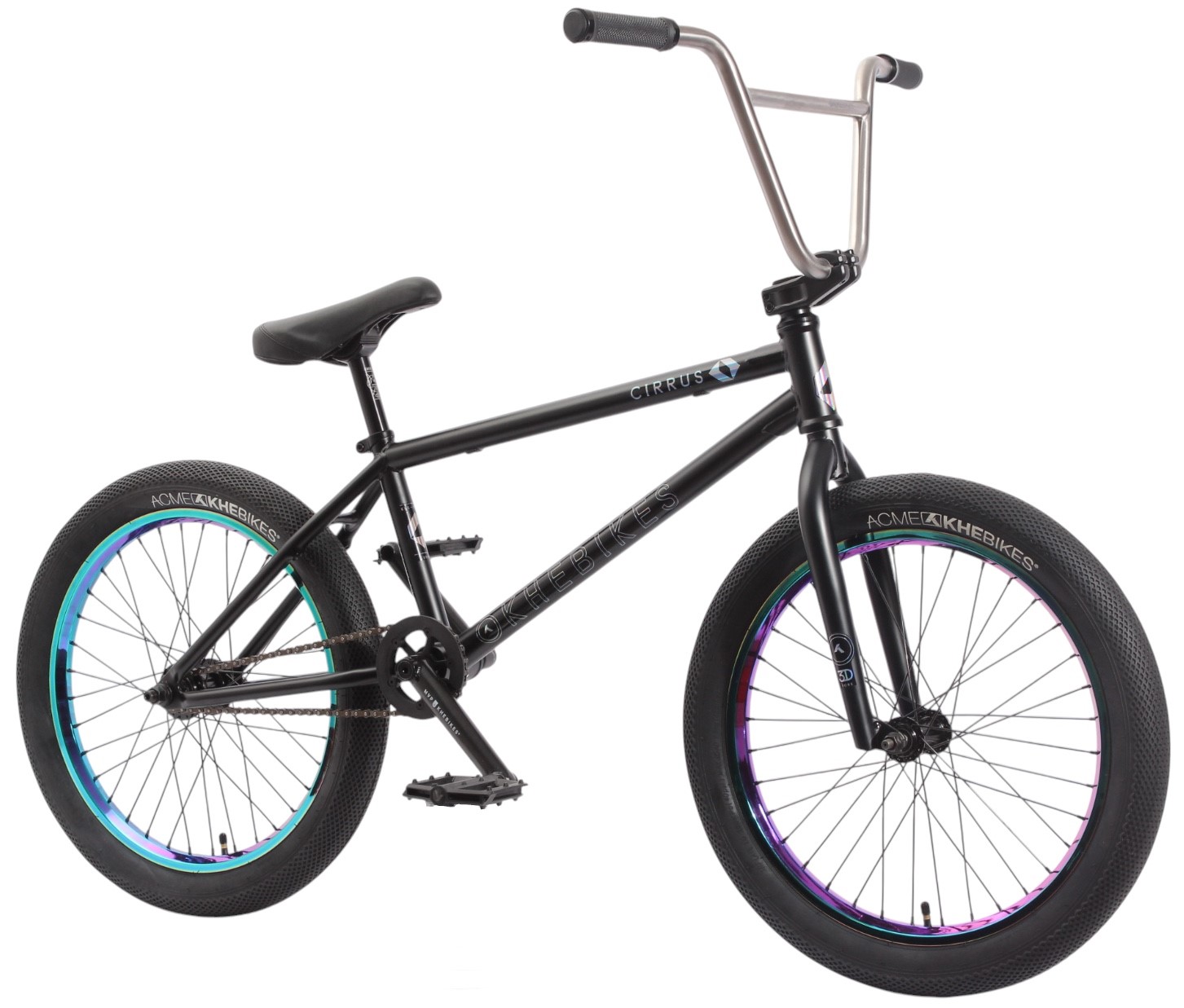

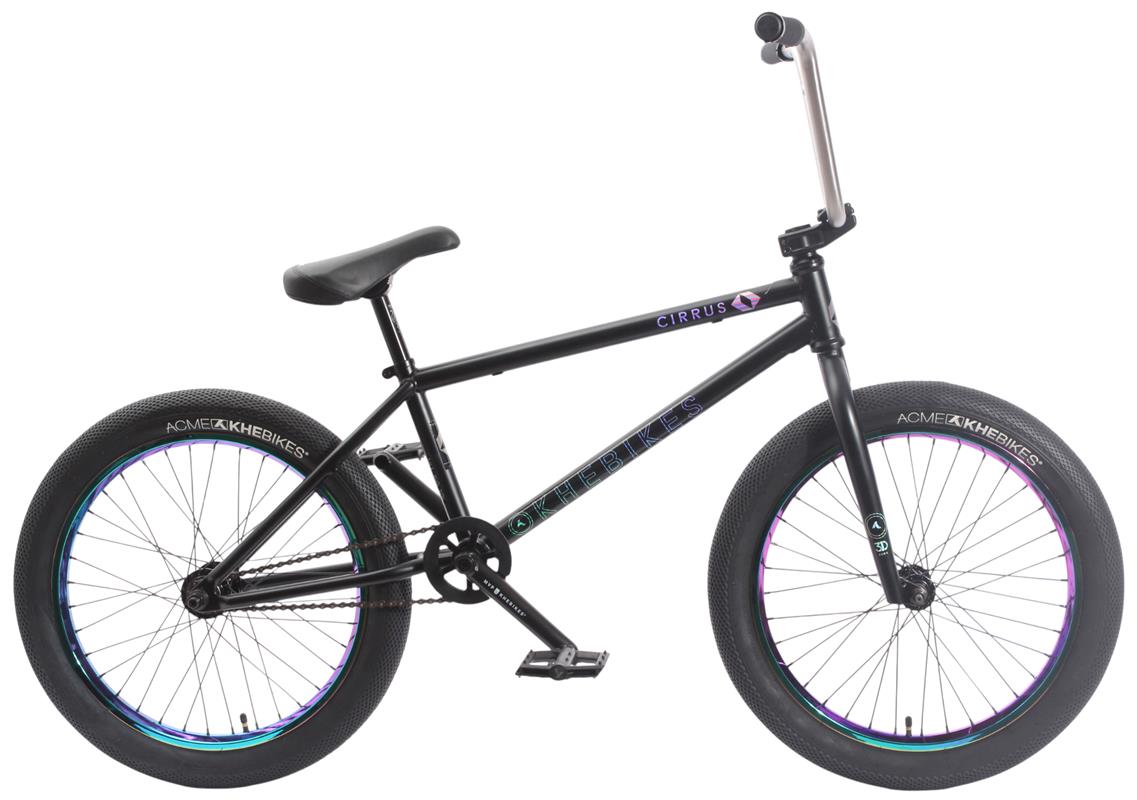

KHE CIRRUS FC PRO 20" Limited Titanium

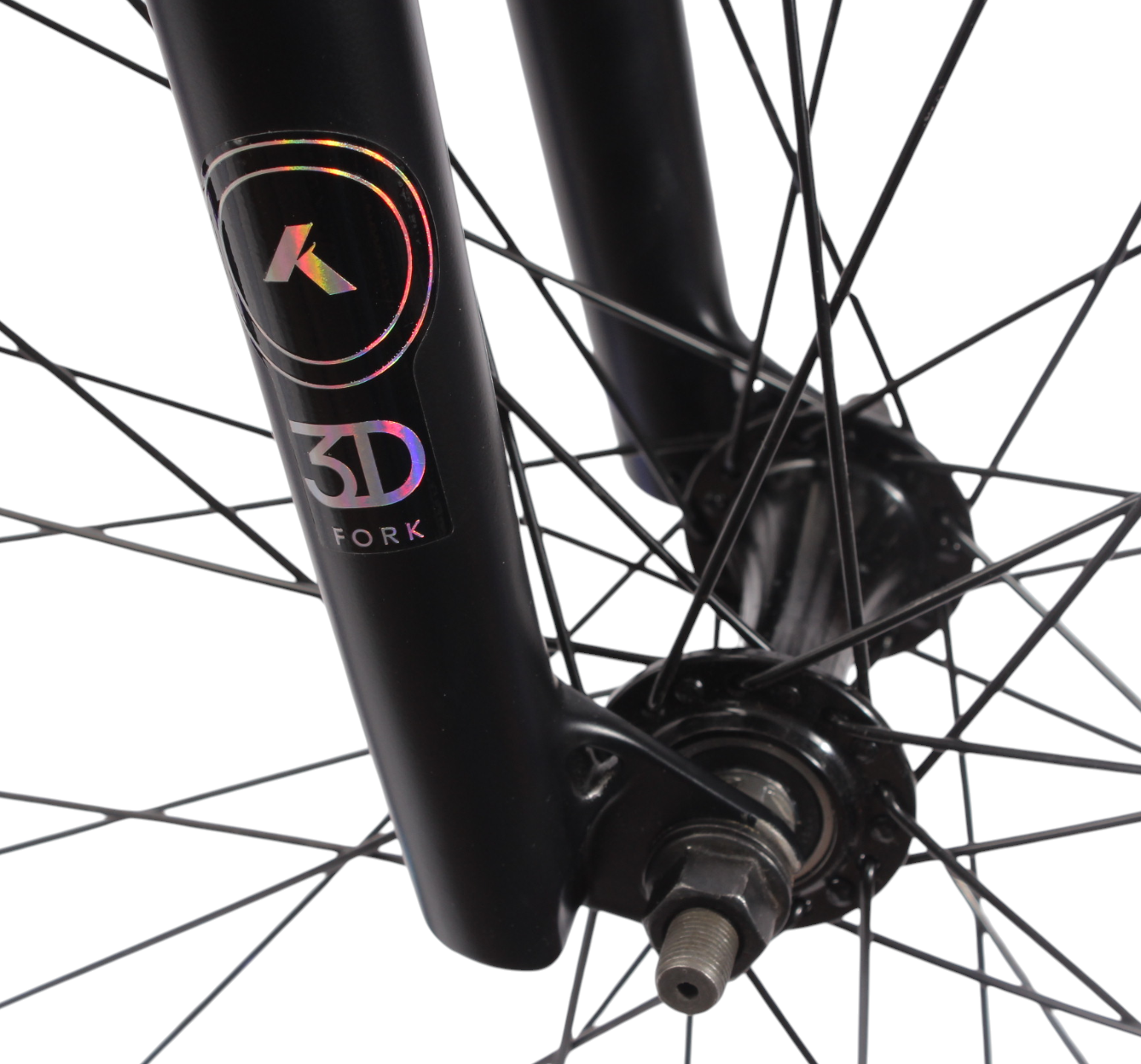

The KHE CIRRUS FC PRO 20 Inch BMX is a high-quality street BMX from our new PRO series. The 100% CrMo frame with “butted” tubes ensures high stability while keeping the weight low. The frame and fork feature 3D dropouts (Investment Cast) made from a single piece, providing maximum durability.
If you want to ride brakeless, you can remove the brake mounts and cable holders. The tapered fork not only looks clean but is also extremely robust and lightweight. A real highlight is the KHE Greyhound Freecoaster Hub, where the cranks do not rotate when rolling backward – ideal for street tricks and modern BMX maneuvers.
The equipment includes a 48-tooth CrMo hollow crankset, an aluminum chainring with Grindguard, MID industrial bearings, and welded double-wall rims with a stylish Oil Slick coating. The CIRRUS PRO combines top components, low weight, and maximum control – ideal for your next street adventure.
Recommended rider height: 4'9"–6'3" (145–190 cm)
Maximum rider weight: 265 lbs (120 kg)
Use: Street
Why the CIRRUS FC PRO Limited Titanium from KHEbikes:
- Direct from the manufacturer, ensuring the best prices
- At just 22.5 lbs (10.2 kg), it’s one of the lightest 20-inch street BMX bikes with a freecoaster hub
- 100% CrMo frame with “butted” tubes
- Welded double-wall rims with Oil Slick coating
- High-end freecoaster: KHE Greyhound Hub
- Aluminum chainring with Grindguard
- Brakeless ready: brakes, bottom bracket, and cable holders can be removed

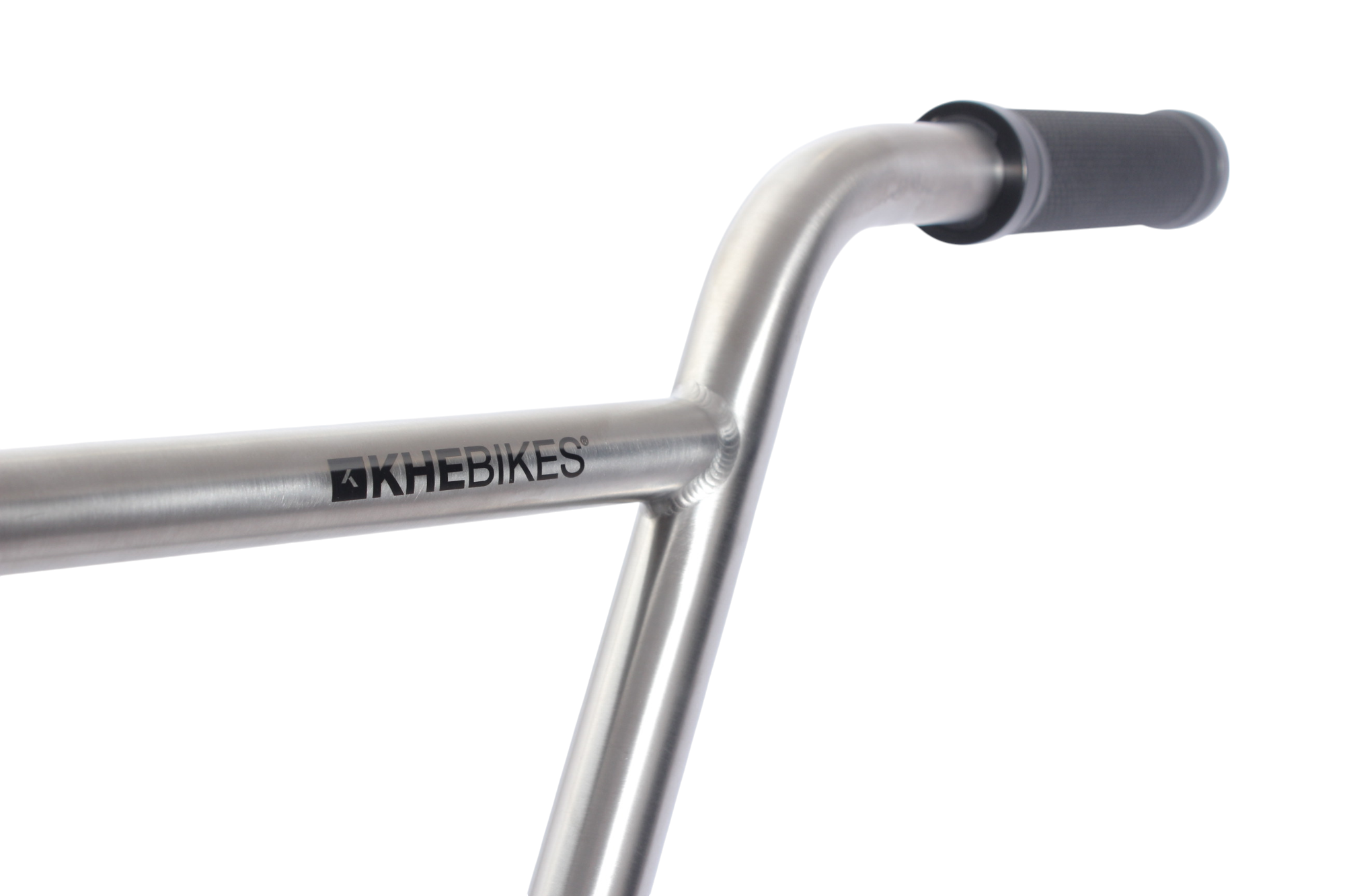

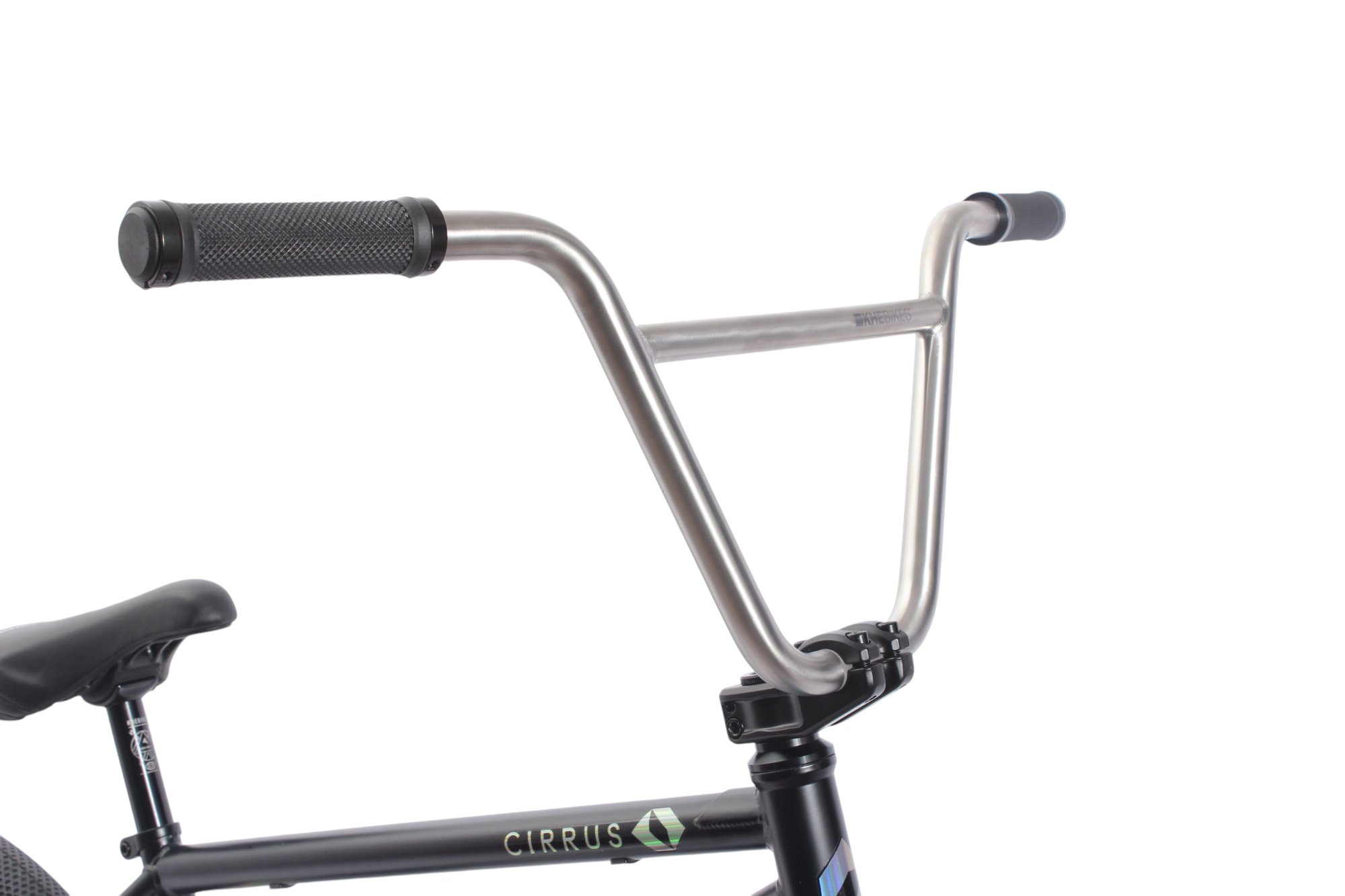

- Built with titanium components: The KHE Specter Ti Handlebar made from GR9 titanium provides a drastic weight reduction – the bike is 1.06 lbs lighter as a result! At just 1.14 lbs, this 9" handlebar is one of the lightest in the world, without sacrificing stability. The heavily textured surface provides optimal grip, while the clean laser logo gives it an elegant look.
The BMX bike is about 90% pre-assembled. You can find the user manual under "Datasheets". A video for assembly is available under "Video".

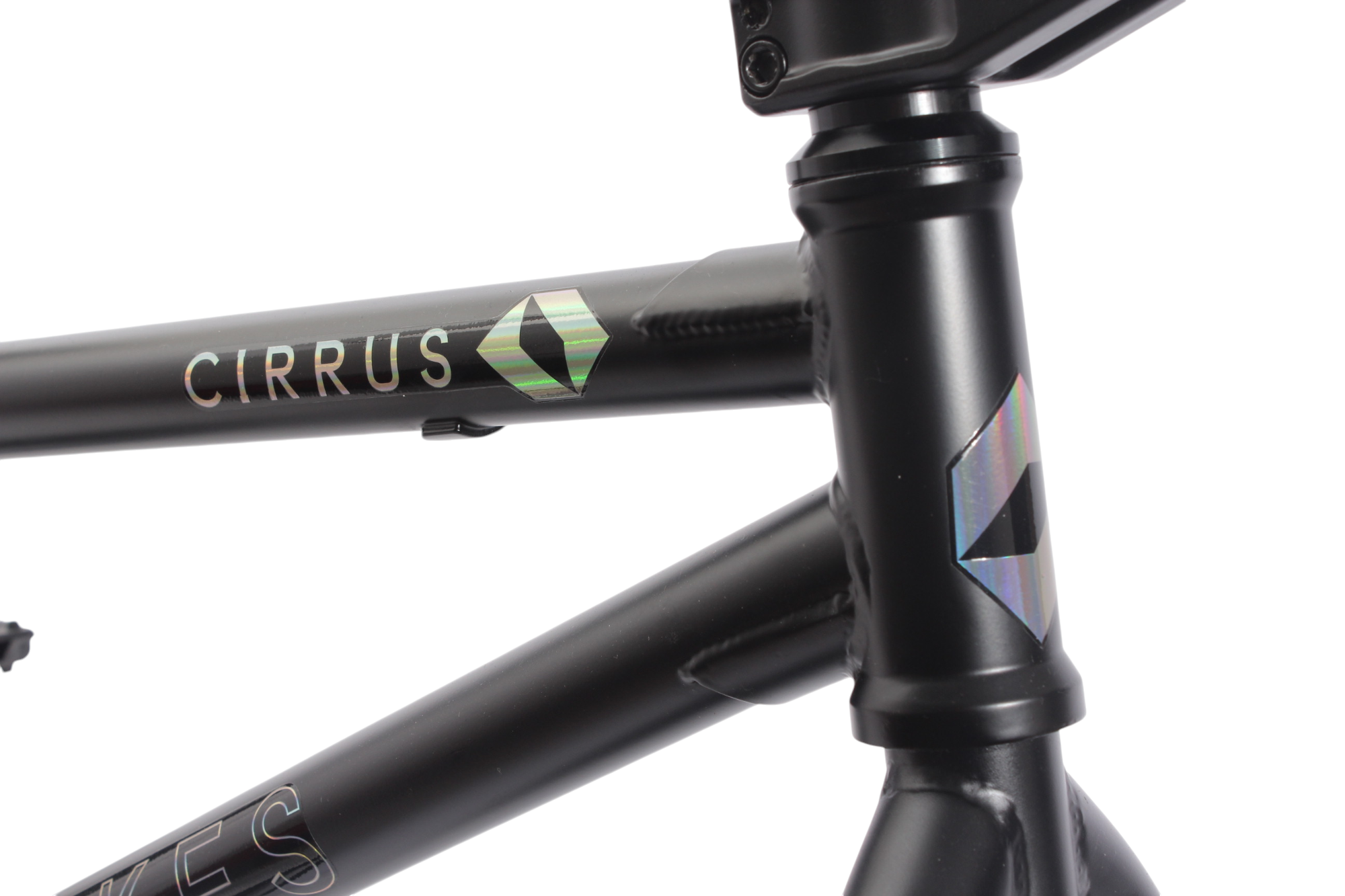

| Frame: | KHE CrMo 4130 seamless drawn steel, butted tubes, 14mm dropouts, top tube 20.8", CS 349mm (13.75"), HT 75.5°, ST 71°, MID BB, integrated 1 1/8" |
|---|---|
| Top tube length: | 20,8" (528mm) |
| Fork: | KHE tubos CrMo conificados y butted, tubo de dirección CNC CrMo 3D, punteras de 10mm, avance de 27mm |

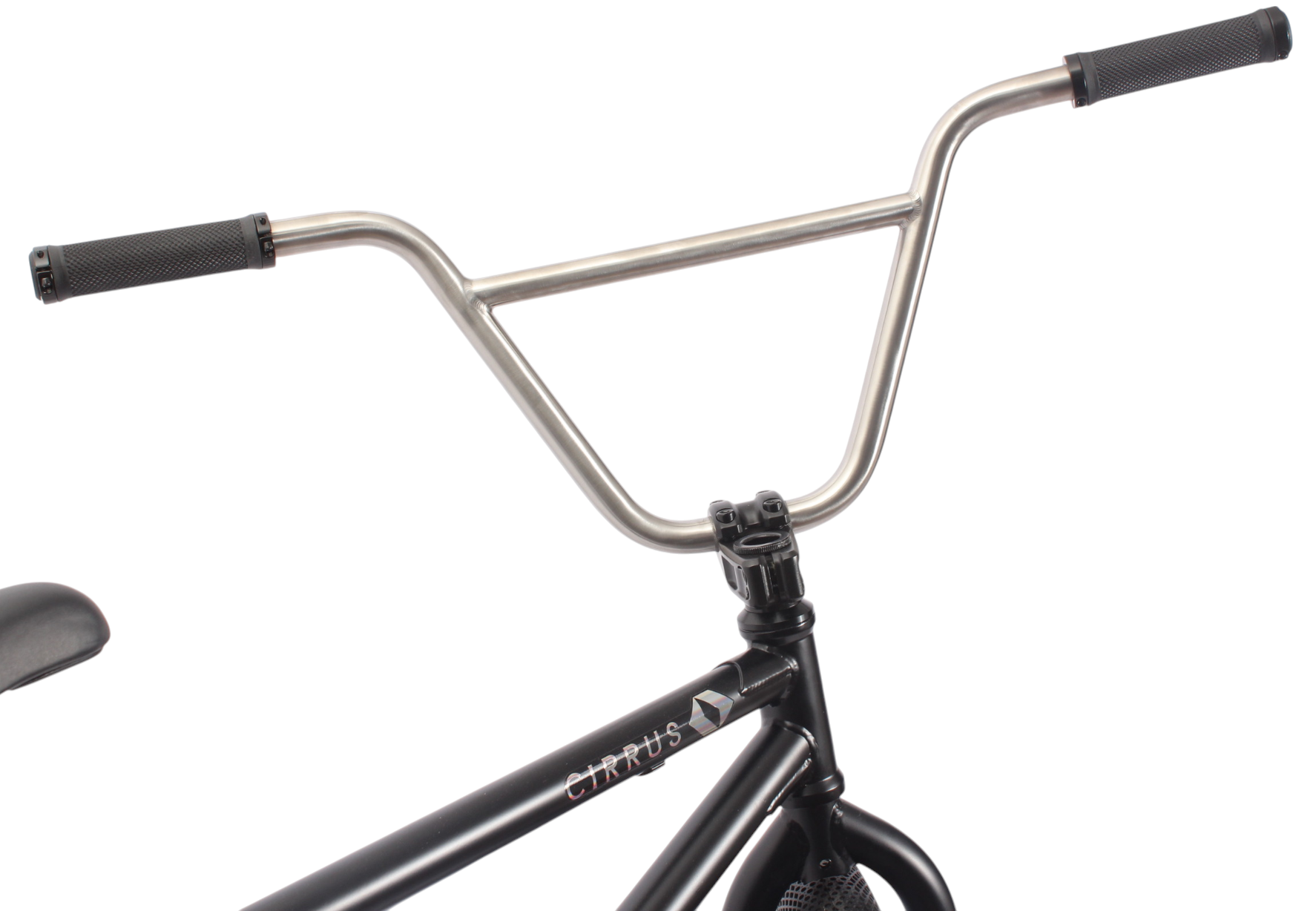

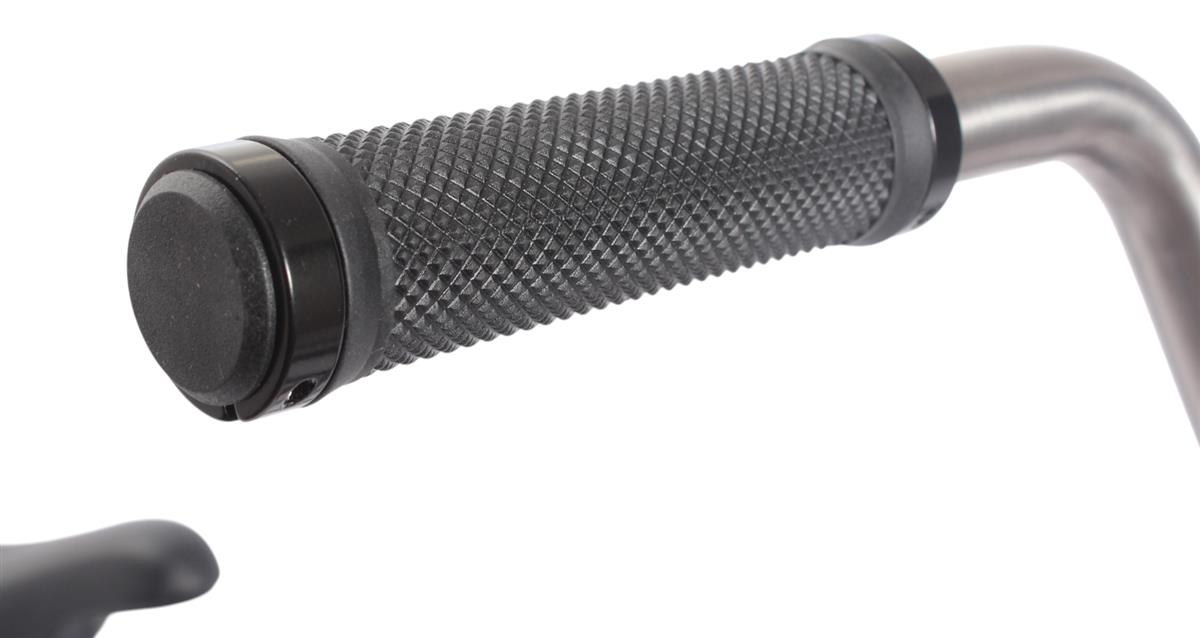

| Handlebars: | KHE Specter Titanium GR9, 9 inch height x 29 inch width, 11° backsweep, 2° upsweep, cross knurling, laser logo |

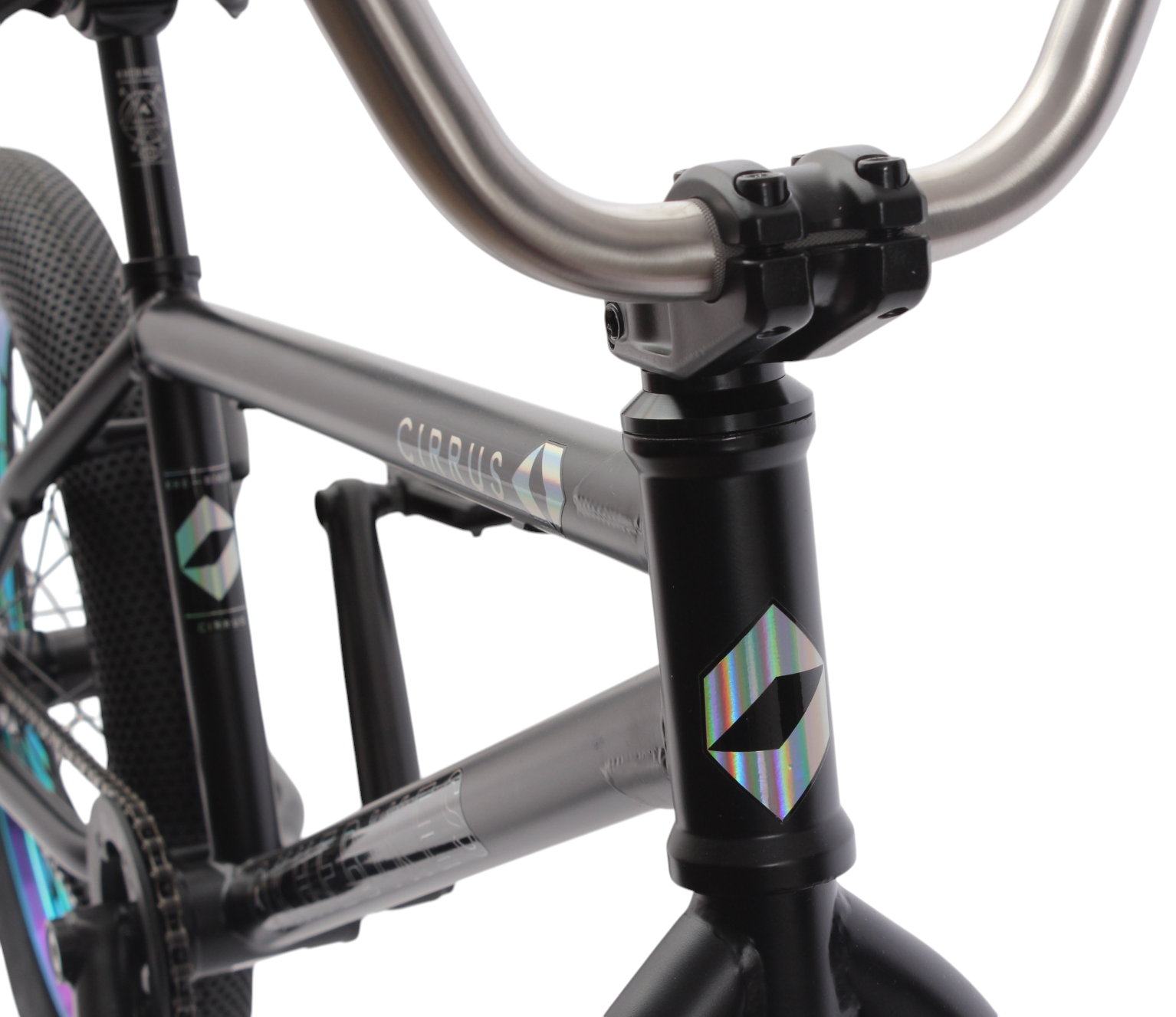

| Stem: | KHE Top Loader Ext.50mm |
| Headset: | Intigrated headset with indusriel bearings |
| Brake levers: | Aluminium brake lever with hinged bar clamp |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

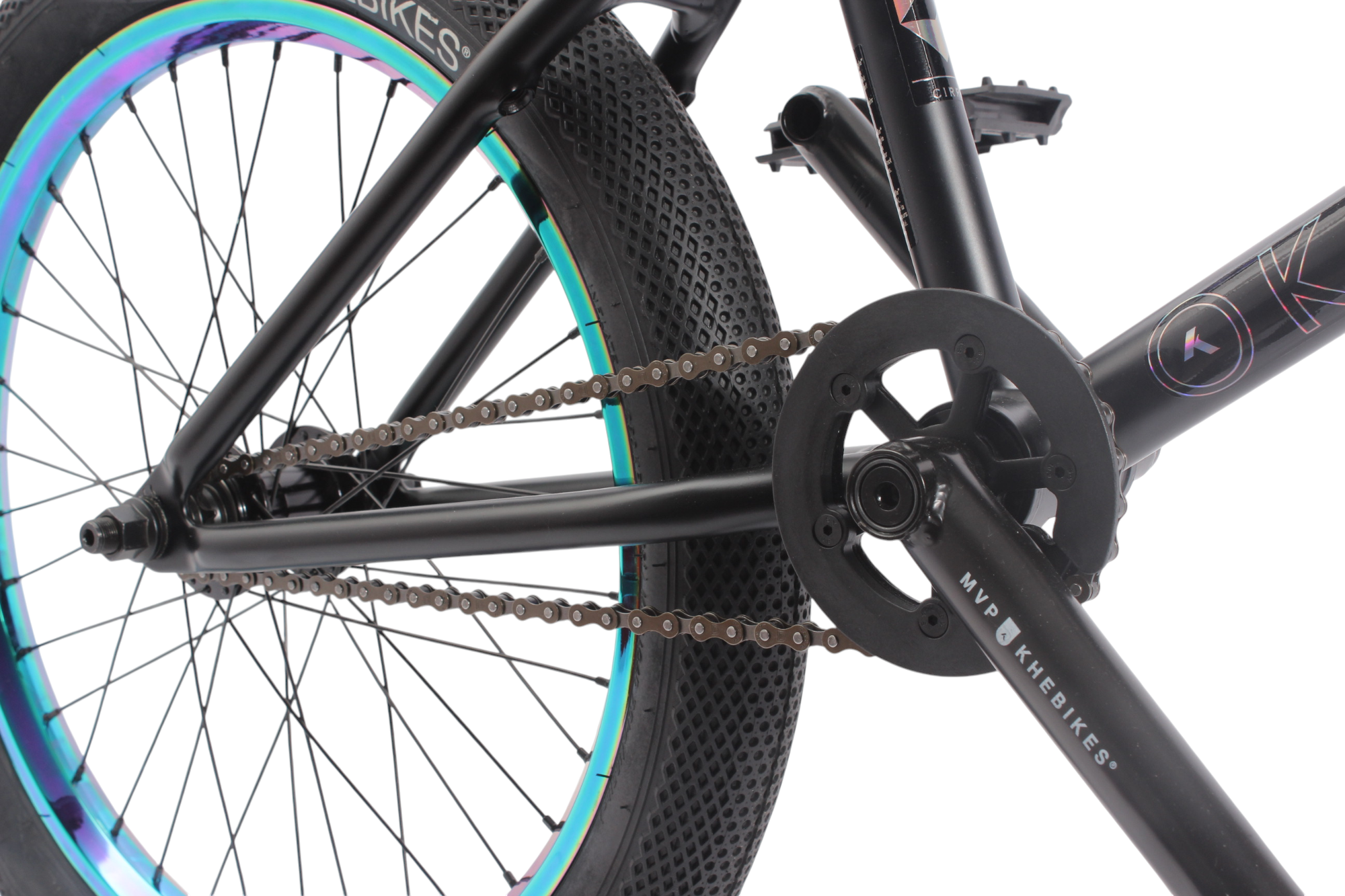

| Crank: | KHE 3-piece CrMo hollow crank 170mm / 48T teeth |

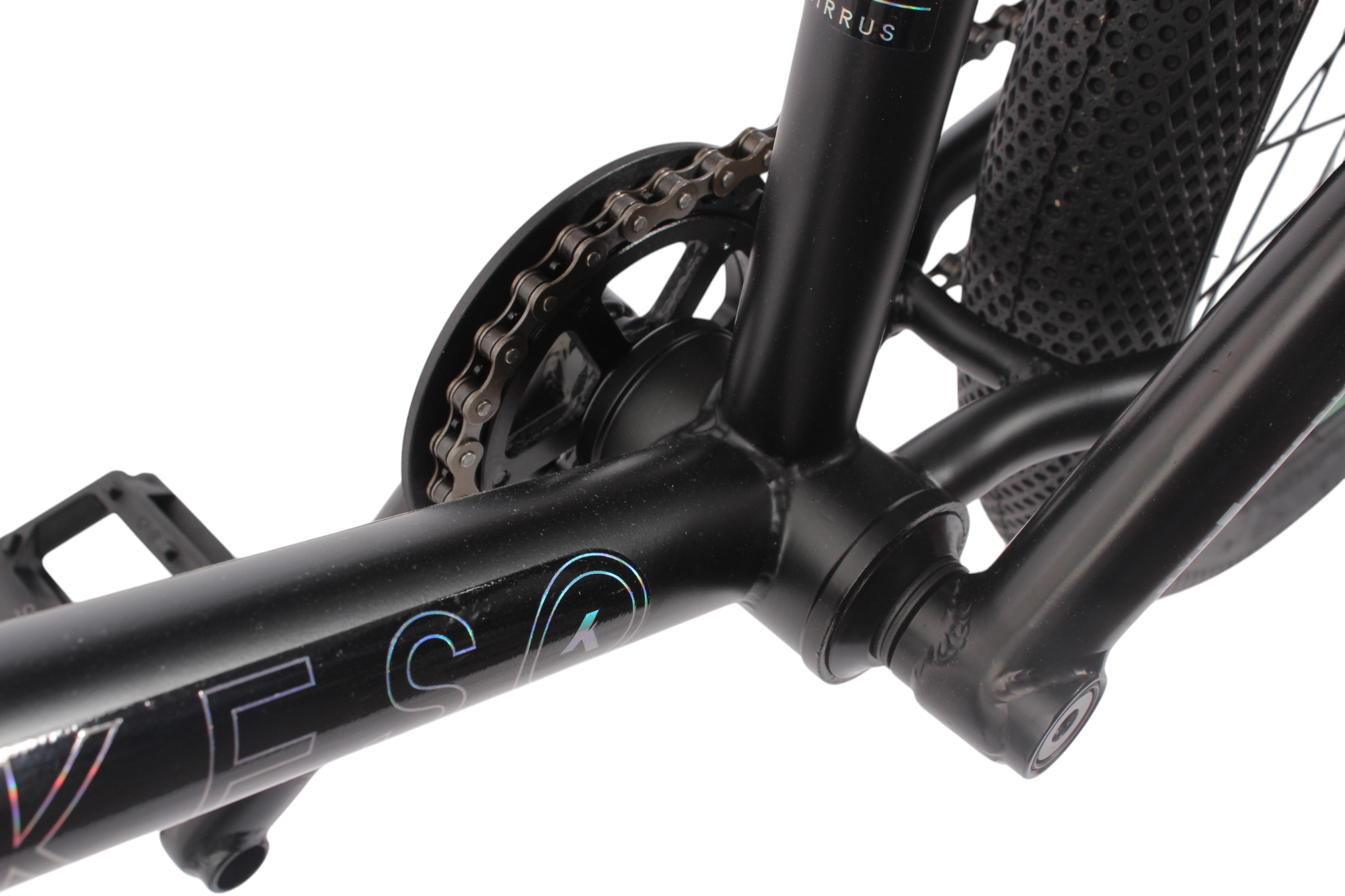

| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 19mm CrMo axle |
| Chainring: | KHE 25 dientes aluminio CNC 7mm, anodizado en negro |
| Chain: | YBN CN ST 1/2 x 1/8“ |

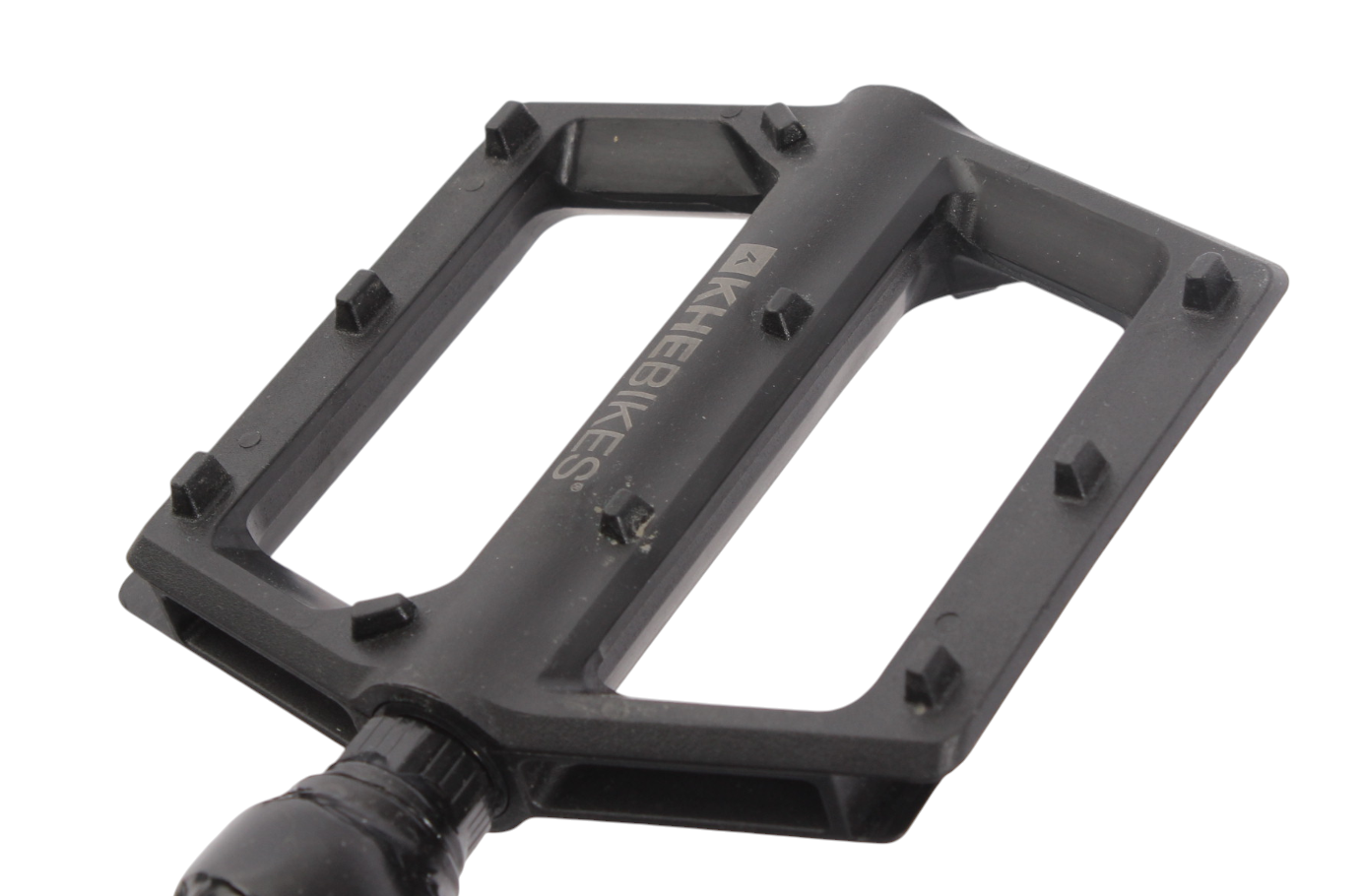

| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

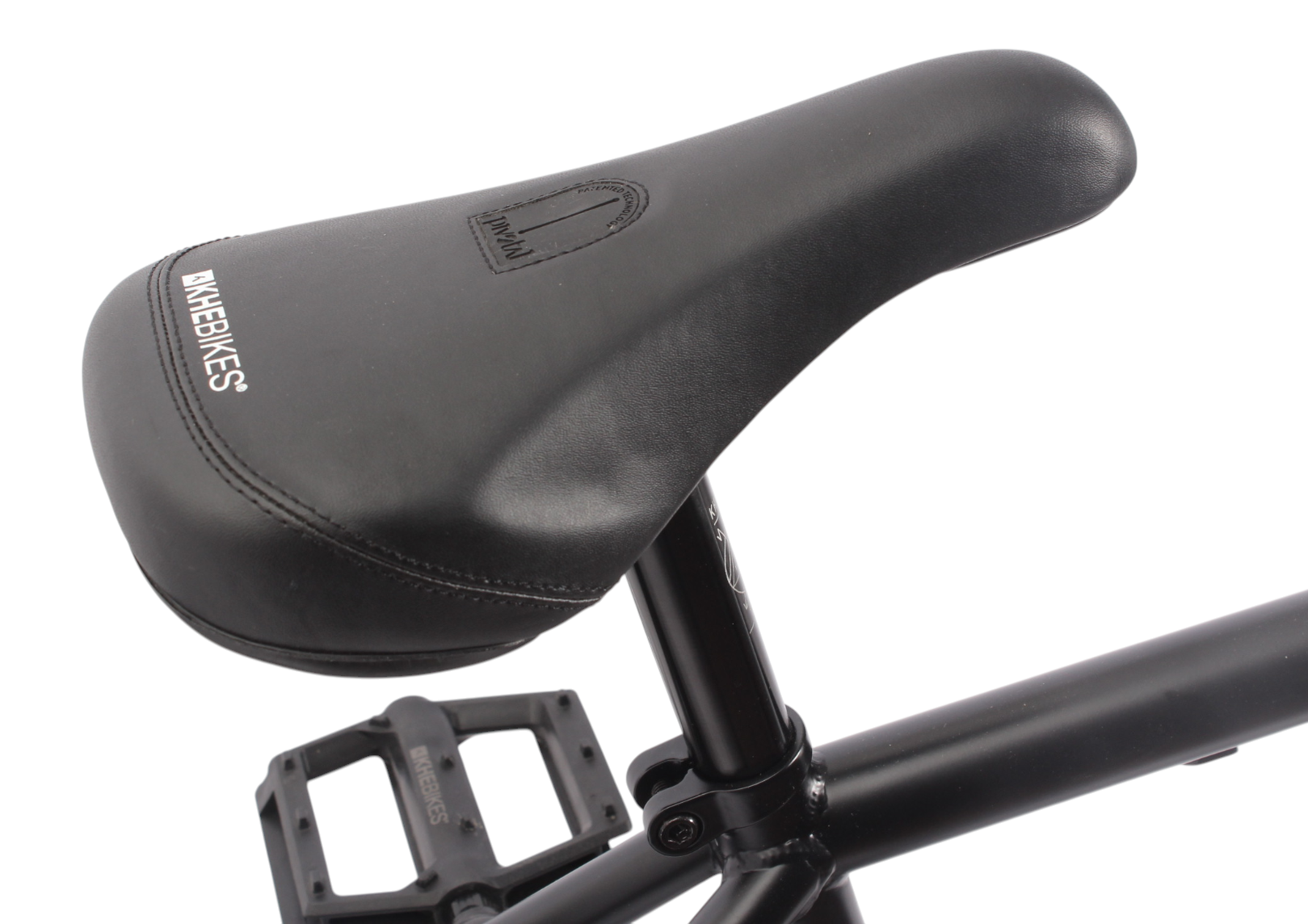

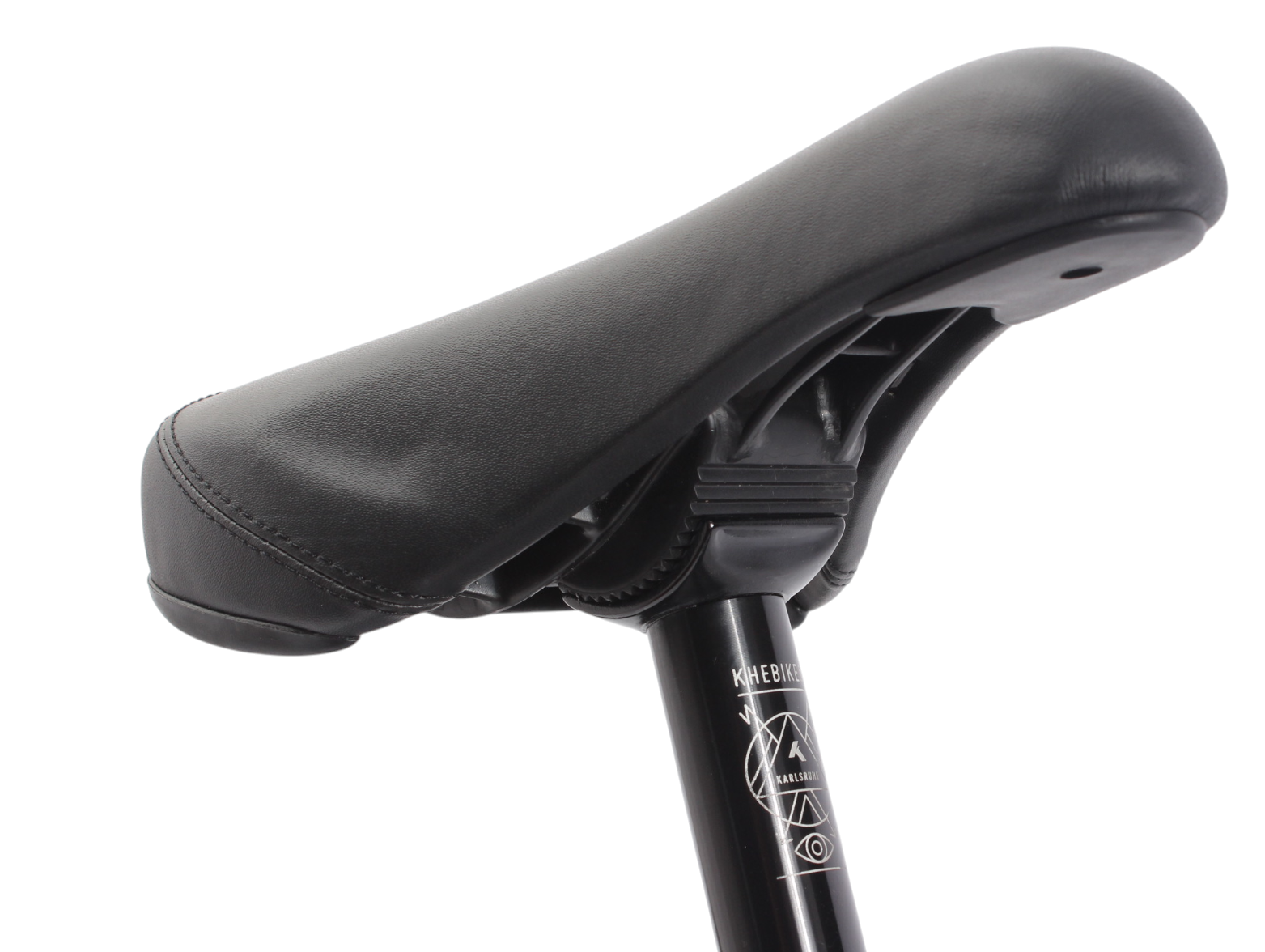

| Saddle: | KHE PIVOTAL, patented clamp system, extra padded |

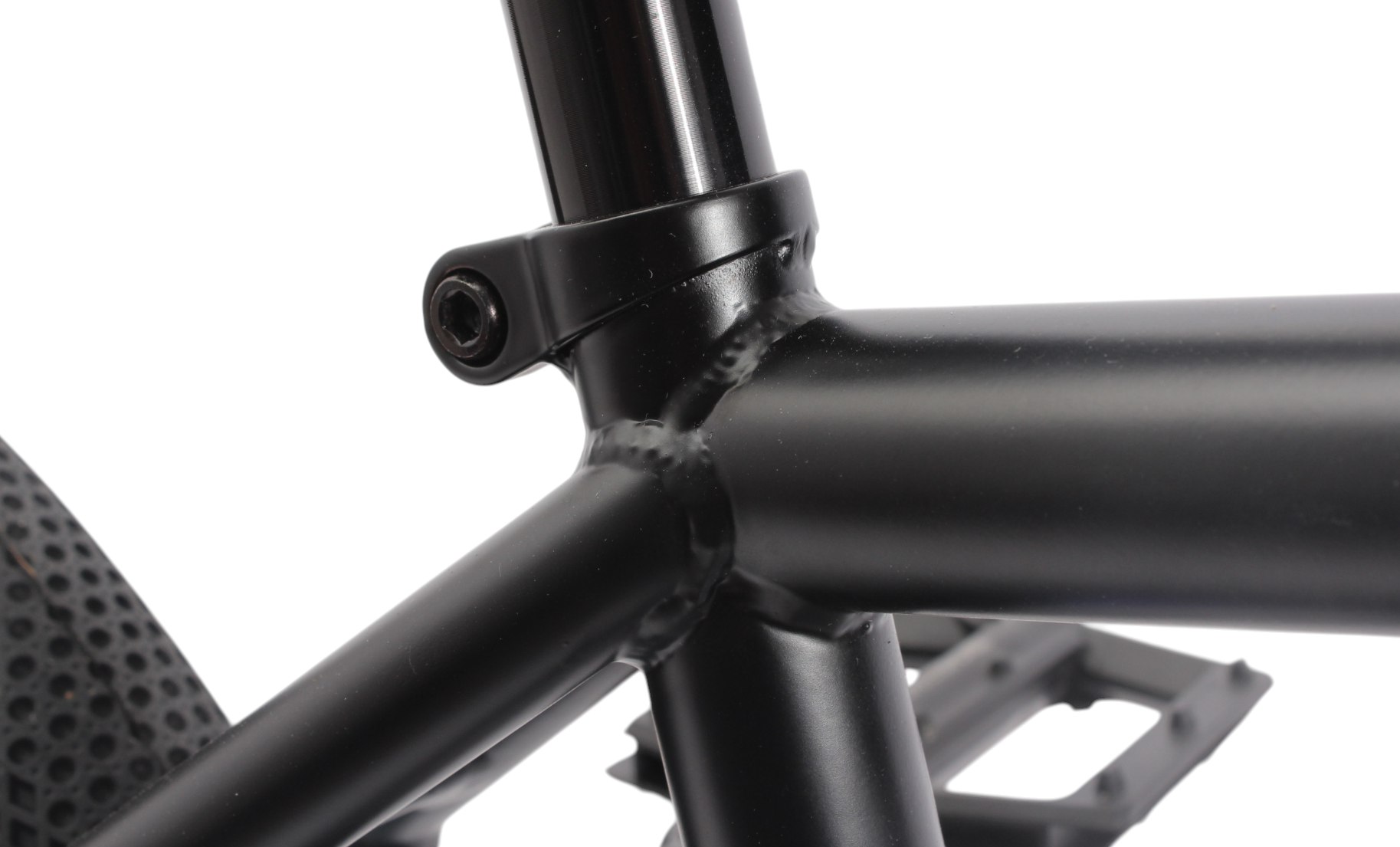

| Seatpost: | KHE PIVOTAL 25.4mm x length 200mm |

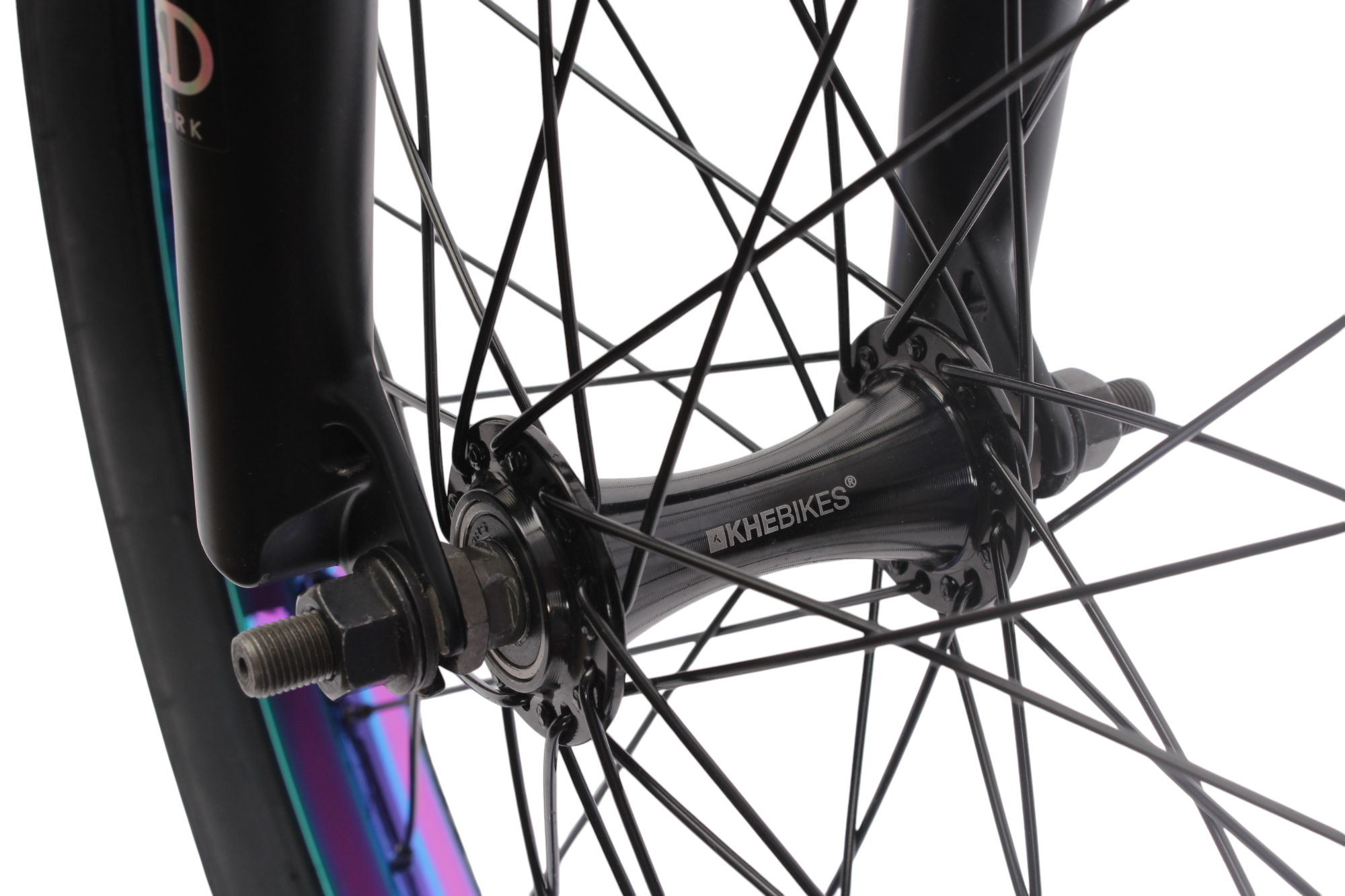

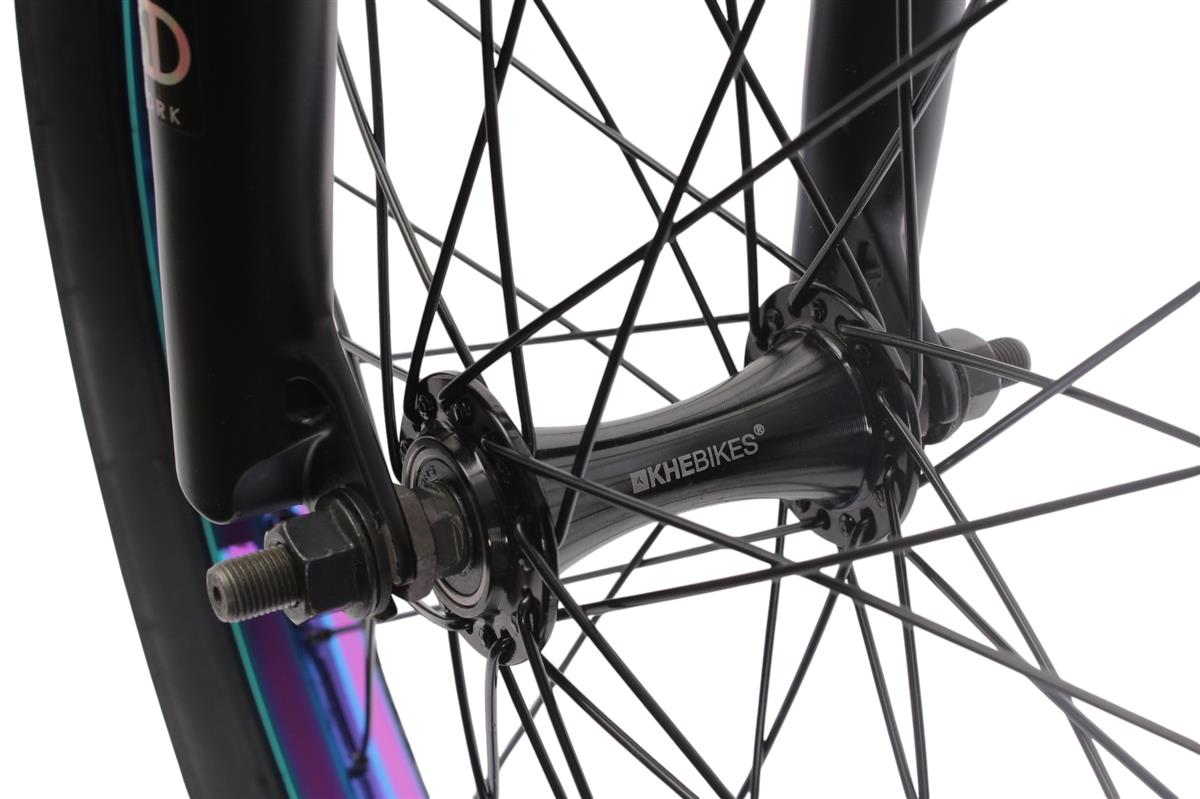

| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

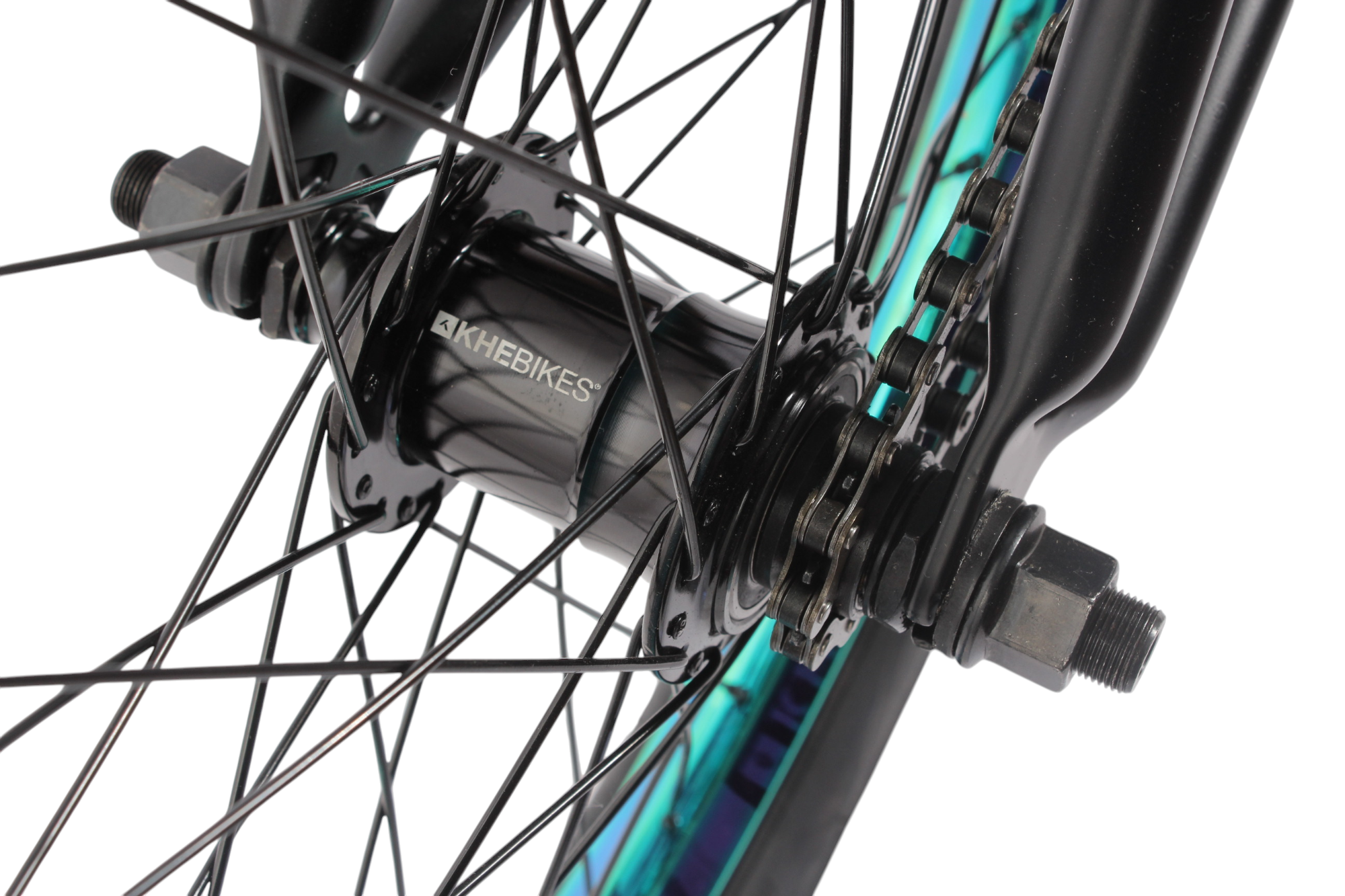

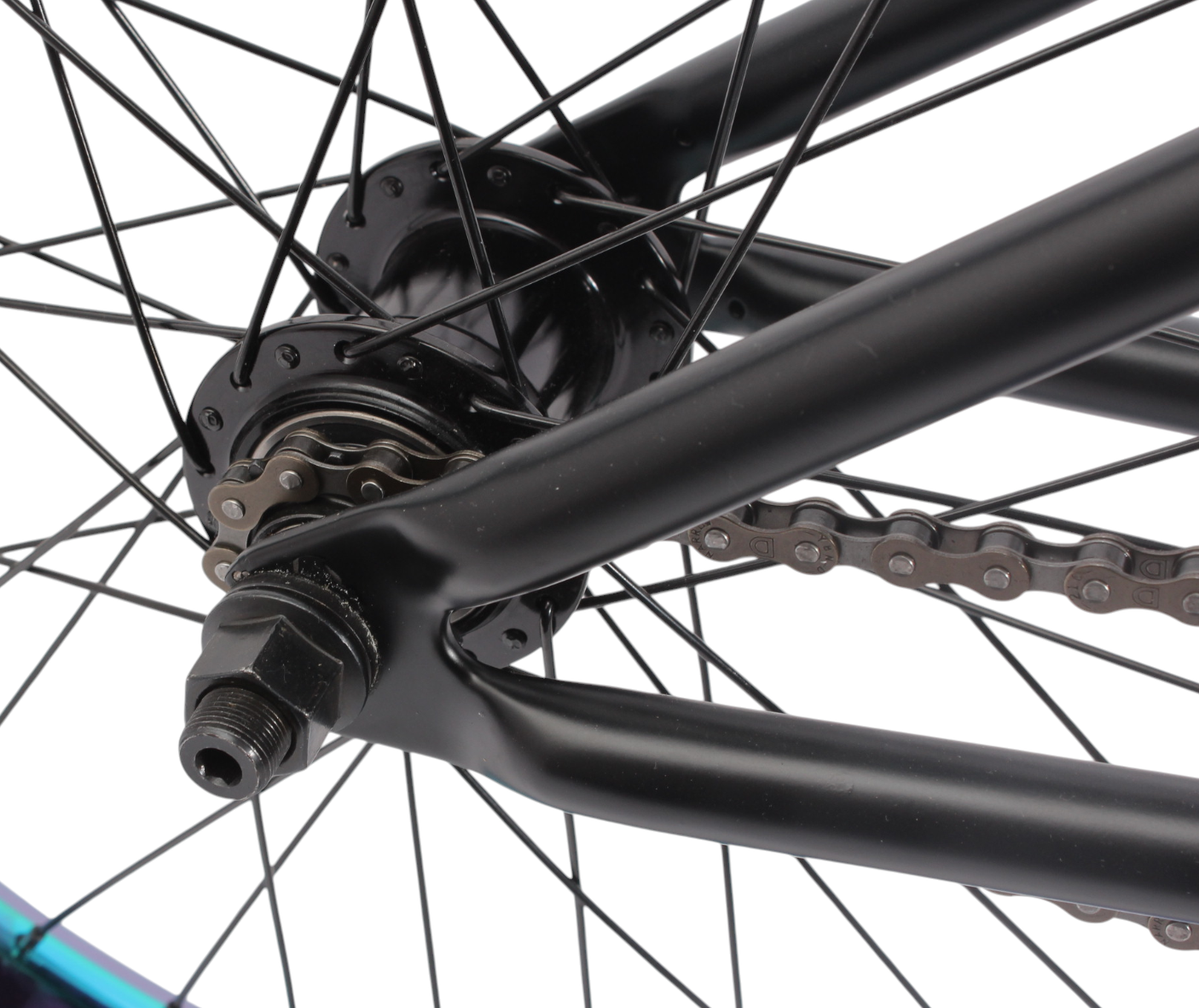

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Rim: | KHE BIG400 V2 welded, double-wall |

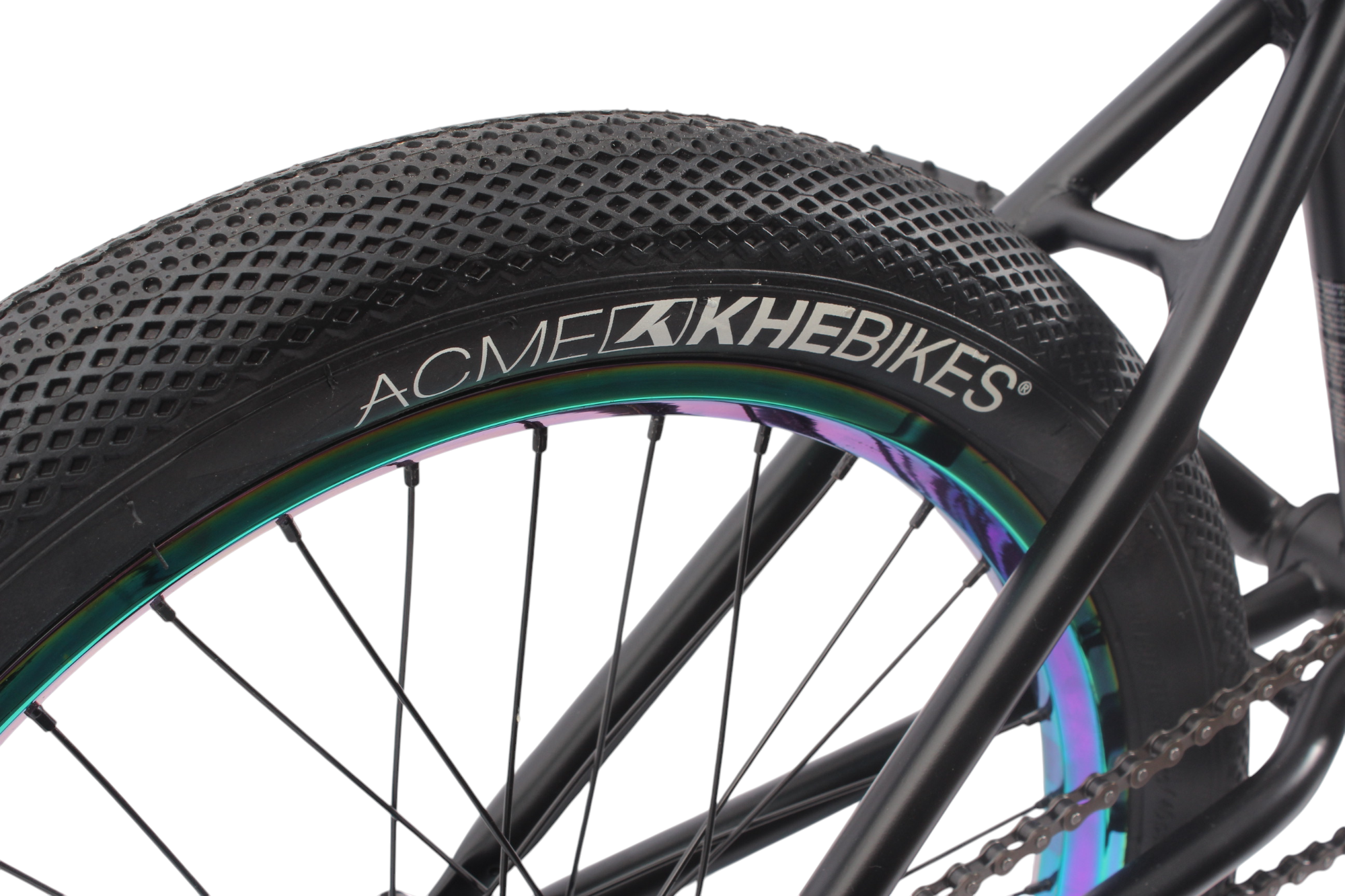

| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | CrMo 4130 butted, seamless drawn |
| Tire size: | 20 inch |
| Size: | 20"; 4'11" - 6'3" in |
| Colour: | Matt black |
| Weight: | 21.6lbs / 9,8kg |
| Model Year: | 2025 |
Ensure Compatibility:
This BMX bike is suitable for riders approximately 145–190 cm tall. It is designed specifically for street riding. The maximum permitted rider weight is 120 kg. Not suitable for downhill or high-jump competitions.
Assembly: Handlebars, Freecoaster hub, brakes (if used), and all attachments must be properly mounted and secured. Ensure crankset, pegs, and grindguard are correctly installed. Check all bolts before each ride.
Care and Maintenance:
Clean the bike with a soft, damp cloth. Do not use solvents or harsh cleaners. Regularly inspect the frame, titanium handlebar, rims, and bearings. Check tire pressure and chain tension frequently.
Store the bike in a dry and sheltered place.
Replacement in Case of Wear: Replace any damaged or worn components such as handlebar, crankset, brakes, chain, pegs, or rims immediately. Using defective parts may lead to crashes or injuries.
