KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, advanced engineering, and outstanding riding dynamics. The new 2025 models offer optimised geometry, smart details, and high-quality components – directly from the manufacturer for top performance on any terrain.

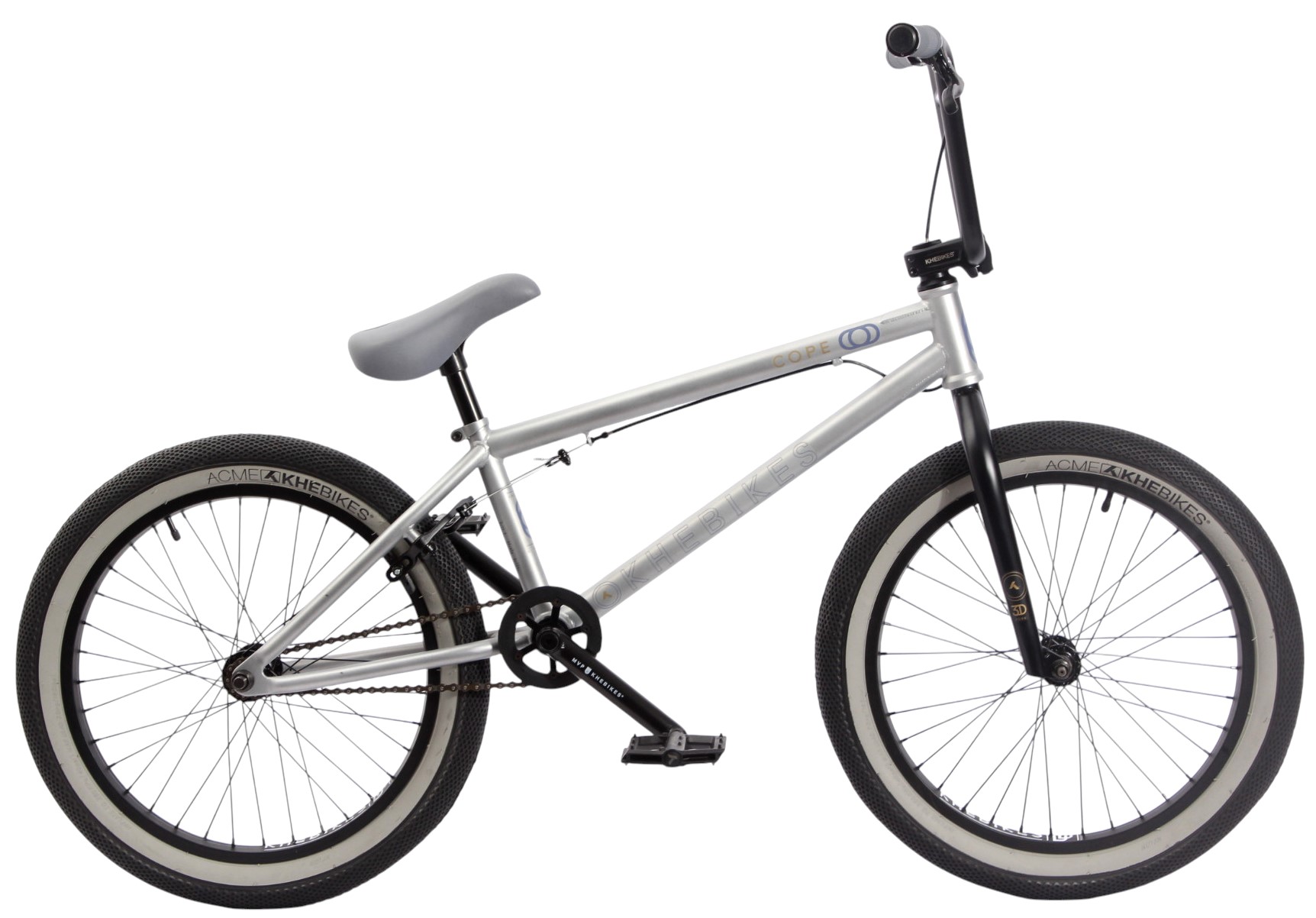

KHE COPE 20"

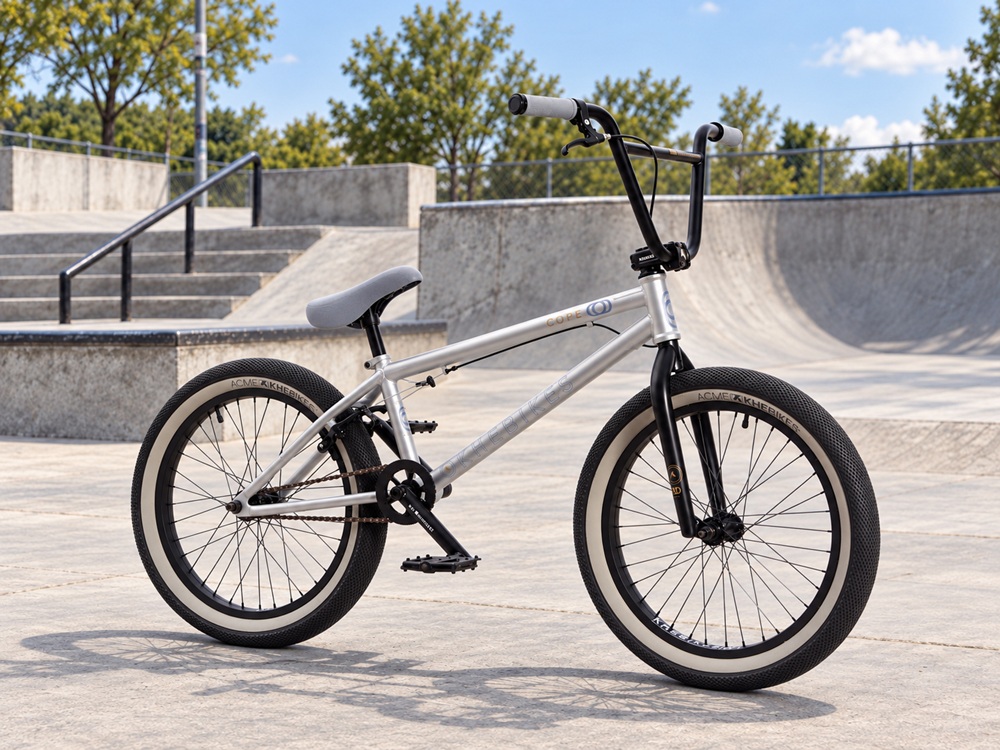

The KHE Cope 20 inch BMX in Flat Silver/Matt Black is a high-quality and very durable bike designed for beginners and more advanced BMX riders. The HiTen steel frame with a 20.5" toptube offers stability and excellent riding characteristics, while the integrated headset with sealed bearings ensures precise steering.
With the KHE Affix Rotor System, 360-degree handlebar spins are possible, making the Cope perfect for tricks and stunts. The wide 736 mm handlebar (9” high) and the 50 mm frontloader stem made of chrome provide comfort and control. The 3-piece chromoly crank with 170 mm length and the 25-tooth chainring with nylon grindguard ensure optimal power transfer and protection while grinding.

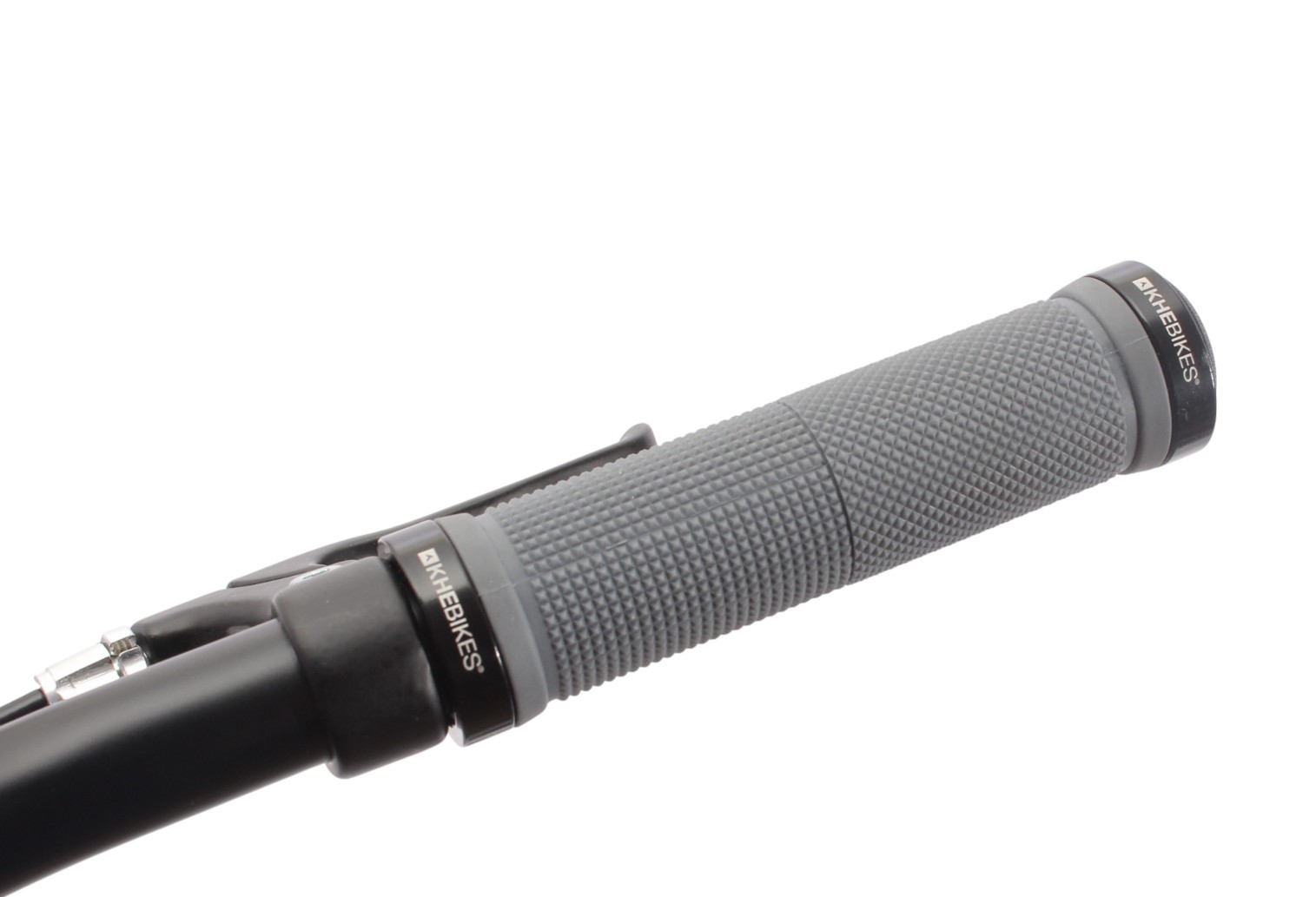

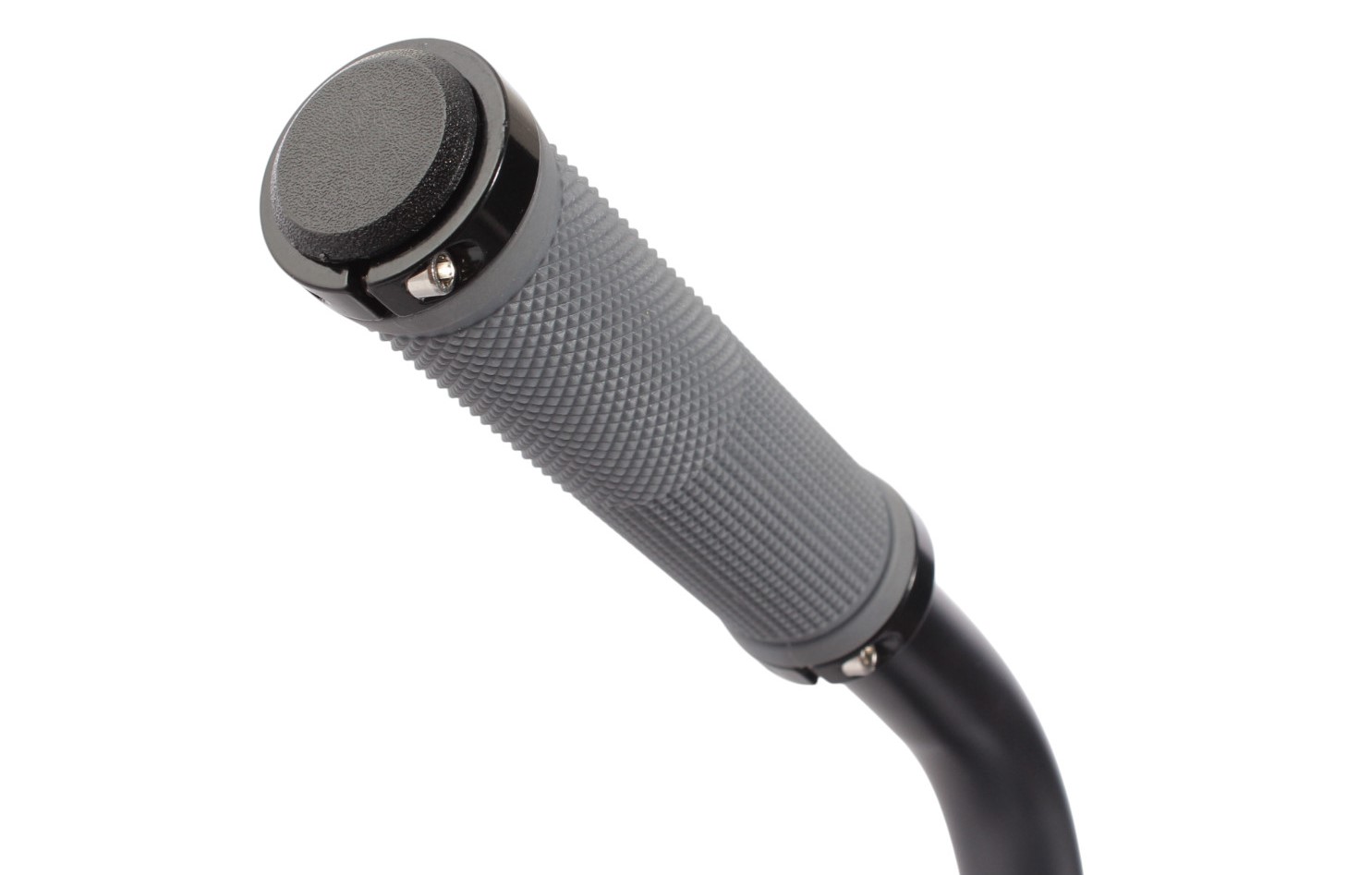

The 20-inch double-wall rims made of aluminium and the wide KHE MVP 2.40-inch tyres provide perfect grip and stability. The grey saddle, grey sidewall tyres and grey lock-on grips give this bike the perfect look.
An ideal bike for park, street and pump track.
Recommended rider height: 4'7"–6'1"
Maximum rider weight: 209 lbs
Best use: Park, Street, Pump Track
Why the COPE 20 inch from KHEbikes:
- Direct from the manufacturer, best prices guaranteed
- At 24.5 lbs one of the lightest 20 inch BMX with rotor system
- Globally patented KHE BMX rotor for 360-degree handlebar rotation
- 3D frame & fork dropouts
- With grindguard chainring
- With 48-spline CrMo hollow crank
Pegs: The COPE 20" is compatible with 10 mm front pegs and 14 mm rear pegs. We recommend the CNC PRO and LASER PRO Pegs.
The BMX bike is approximately 90% pre-assembled. You’ll find the manual under “Datasheets”. An assembly video is available under “Video”.

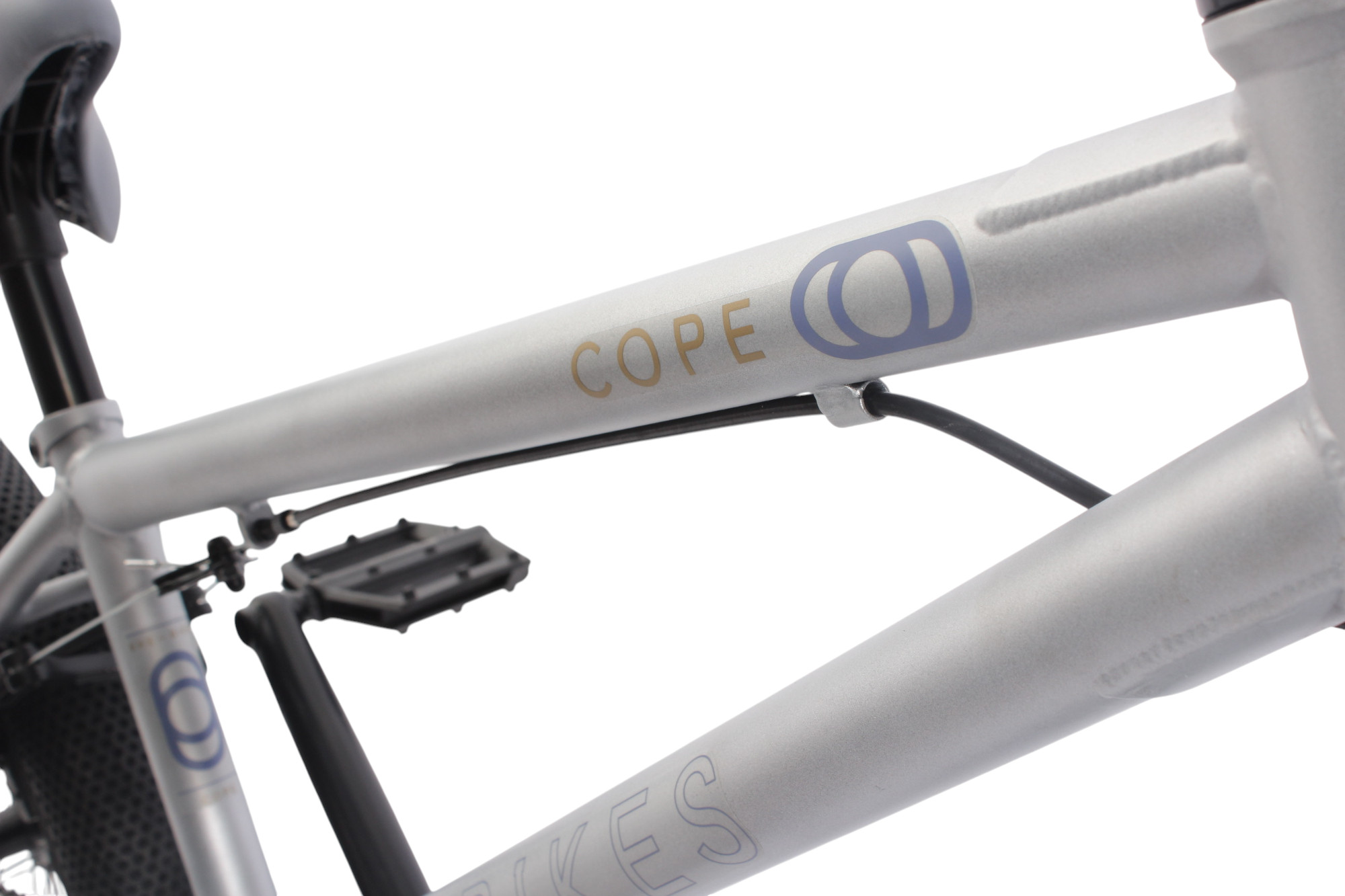

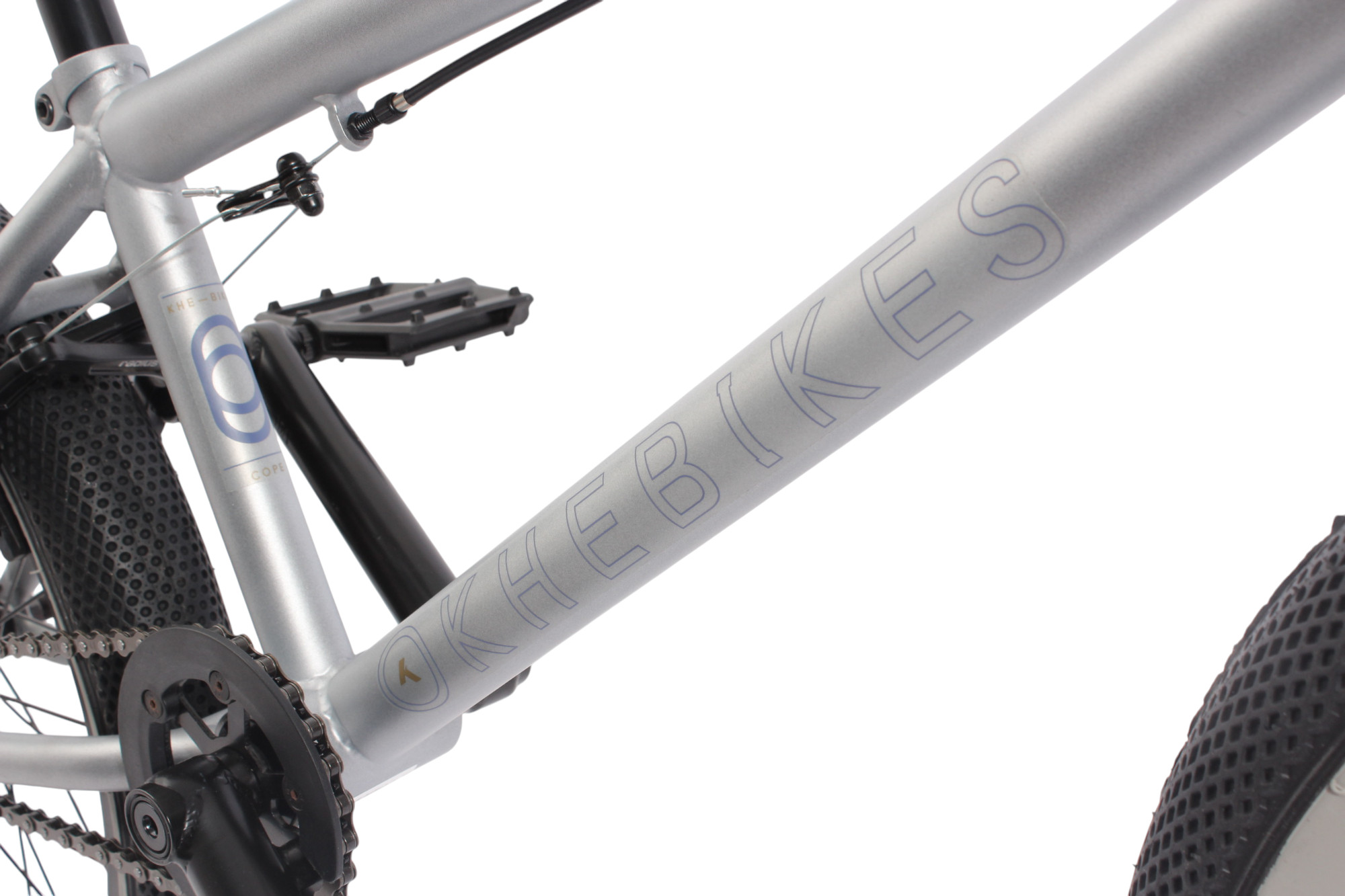

| Frame: | HiTen steel, 14mm dropout, top tube 20.5", CS 13.2", HT 75°, ST 71°, Integrated 1 1/8" |
|---|---|
| Top tube length: | 20,5" (521mm) |

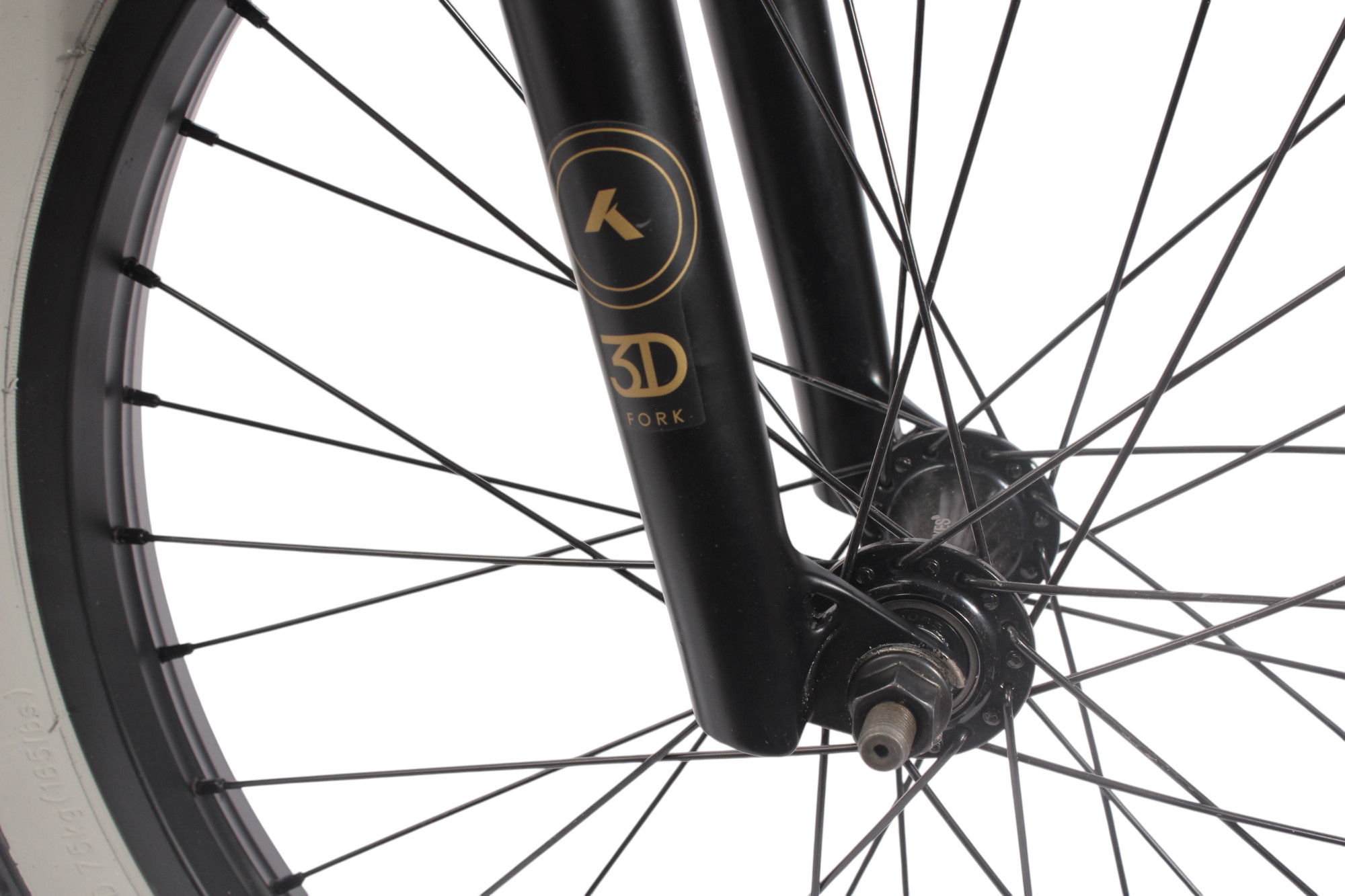

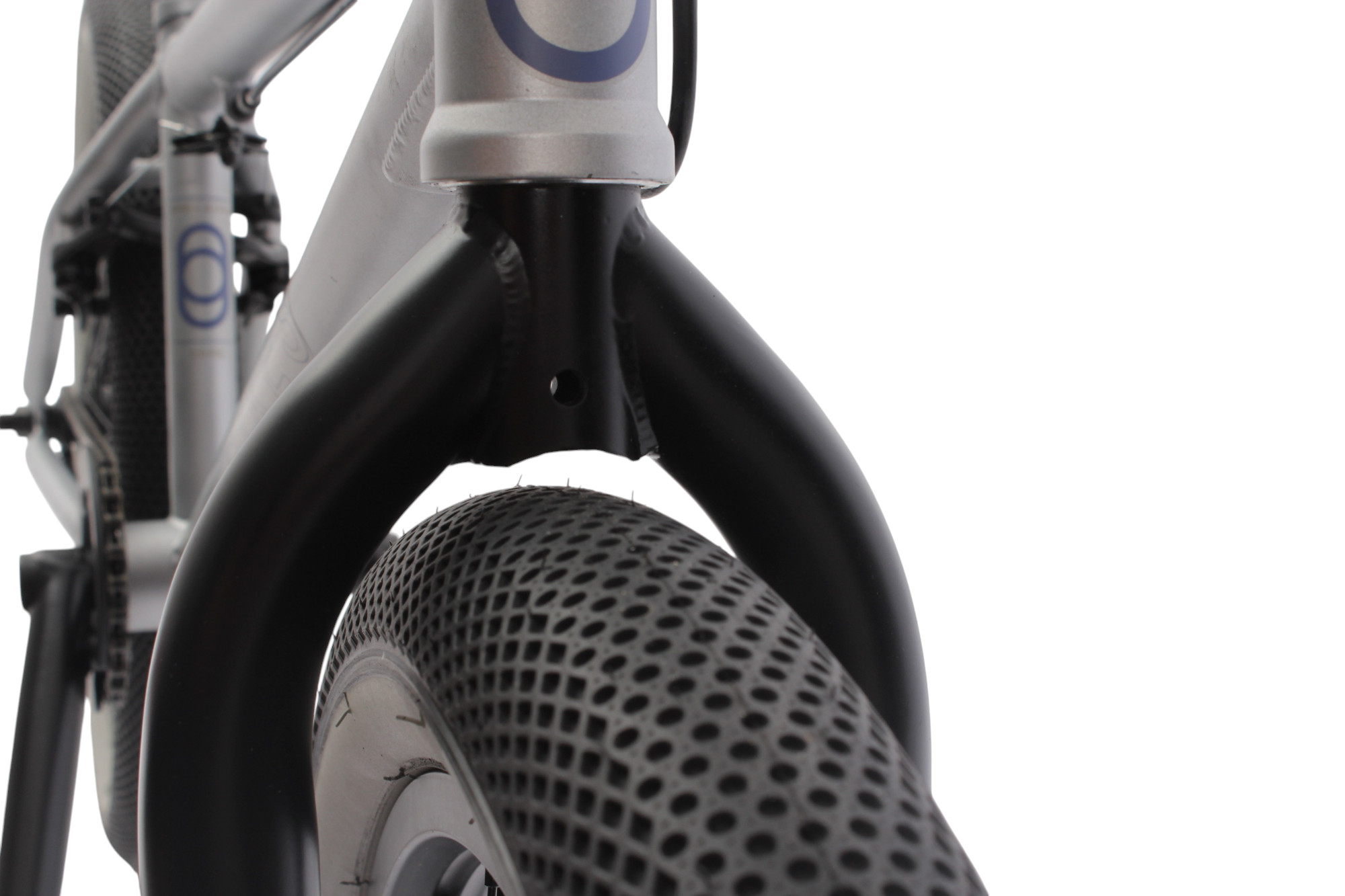

| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

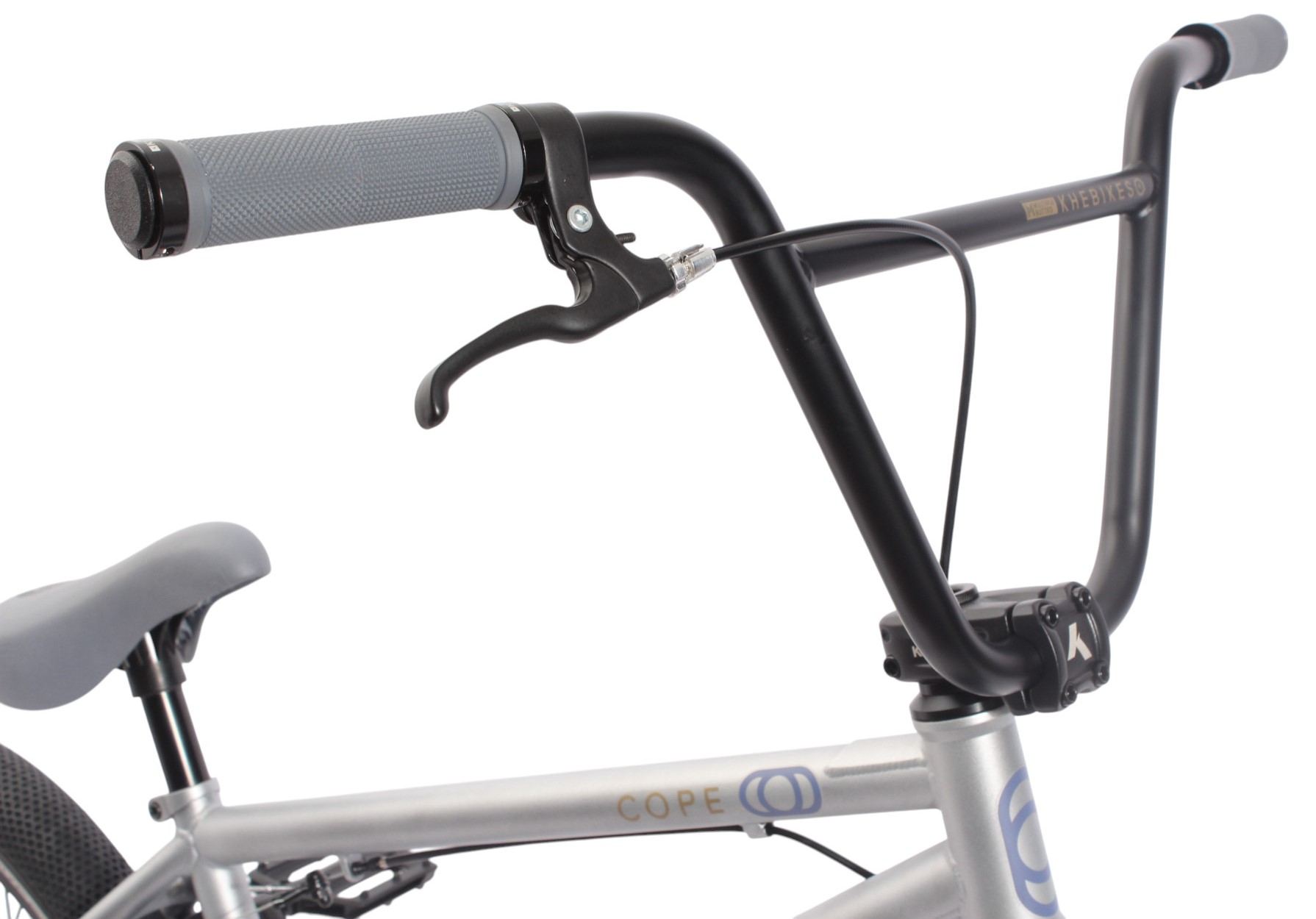

| Handlebars: | KHE HiTen steel 736mm width (29”) x 228mm (9”) height, Backsweep 9”, Upsweep 2” |

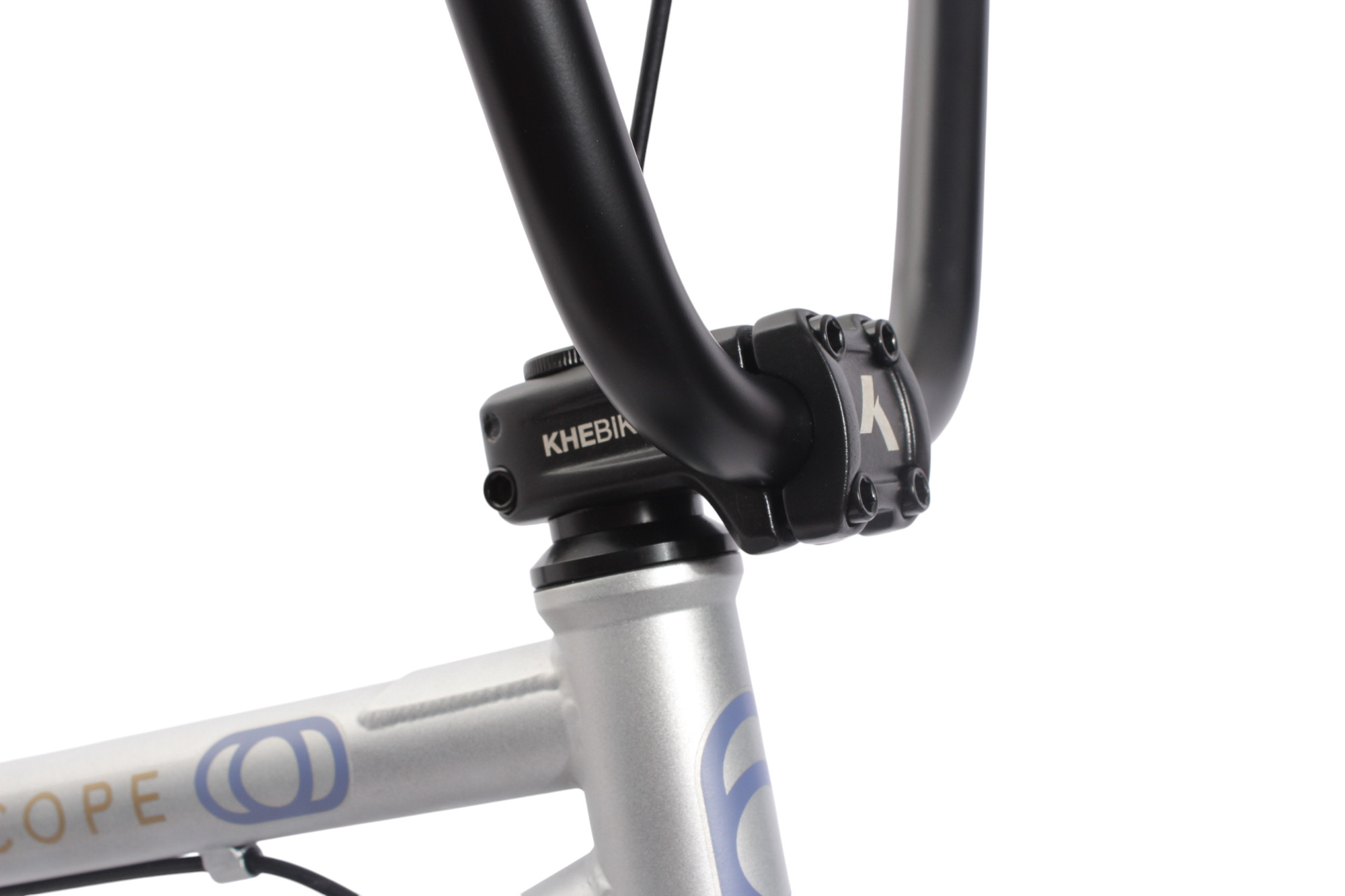

| Stem: | KHE Front Loader Ext.50mm |

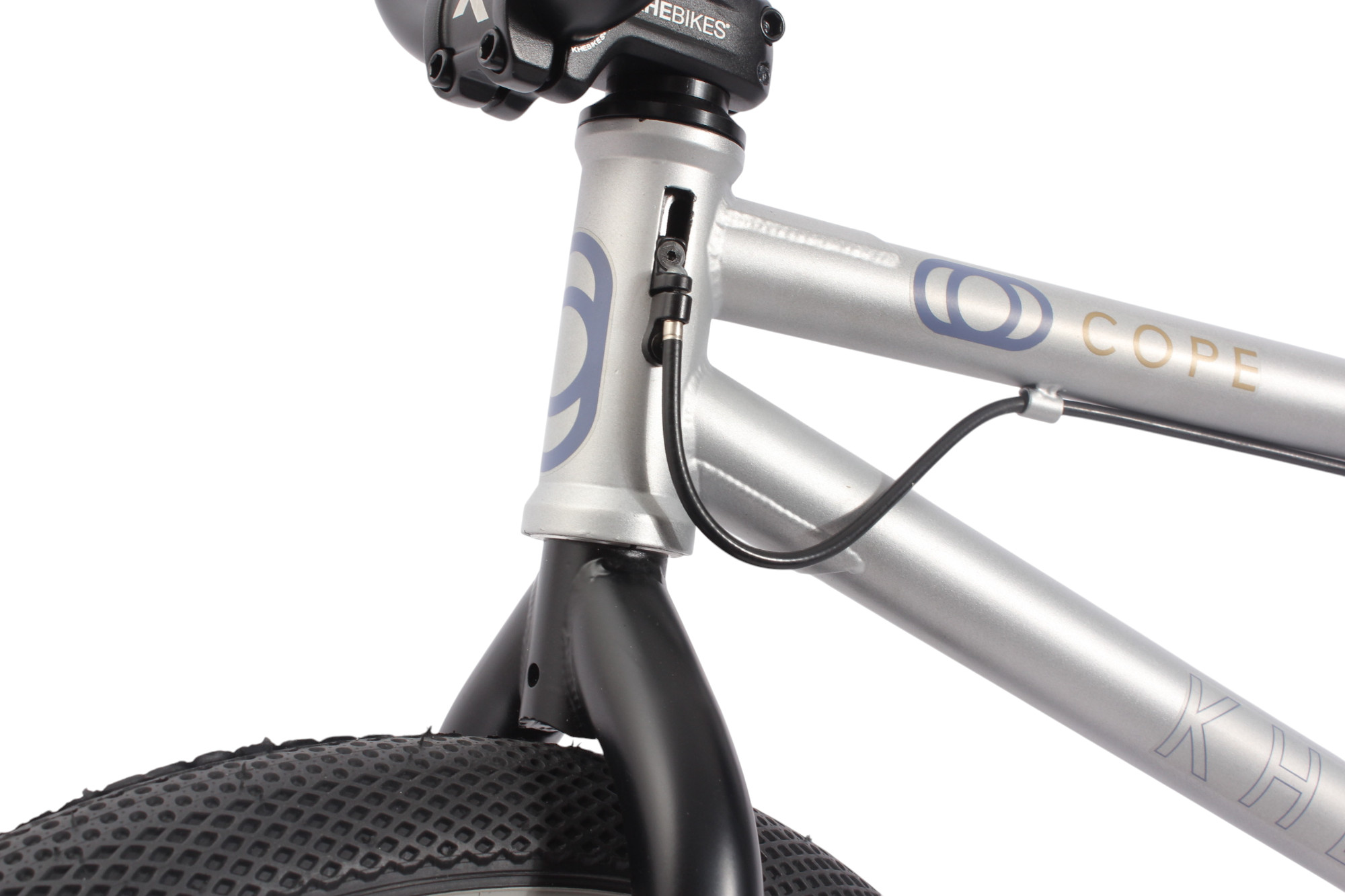

| Headset: | Intigrated headset with indusriel bearings |
| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Brake levers: | Aluminum with adjusting screw |
| Rear brake: | KHE RADIUS Aluminum U-Brake |
| Crank: | KHE 3-piece CrMo hollow crank 170mm / 48T teeth |
| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 19mm CrMo axle |

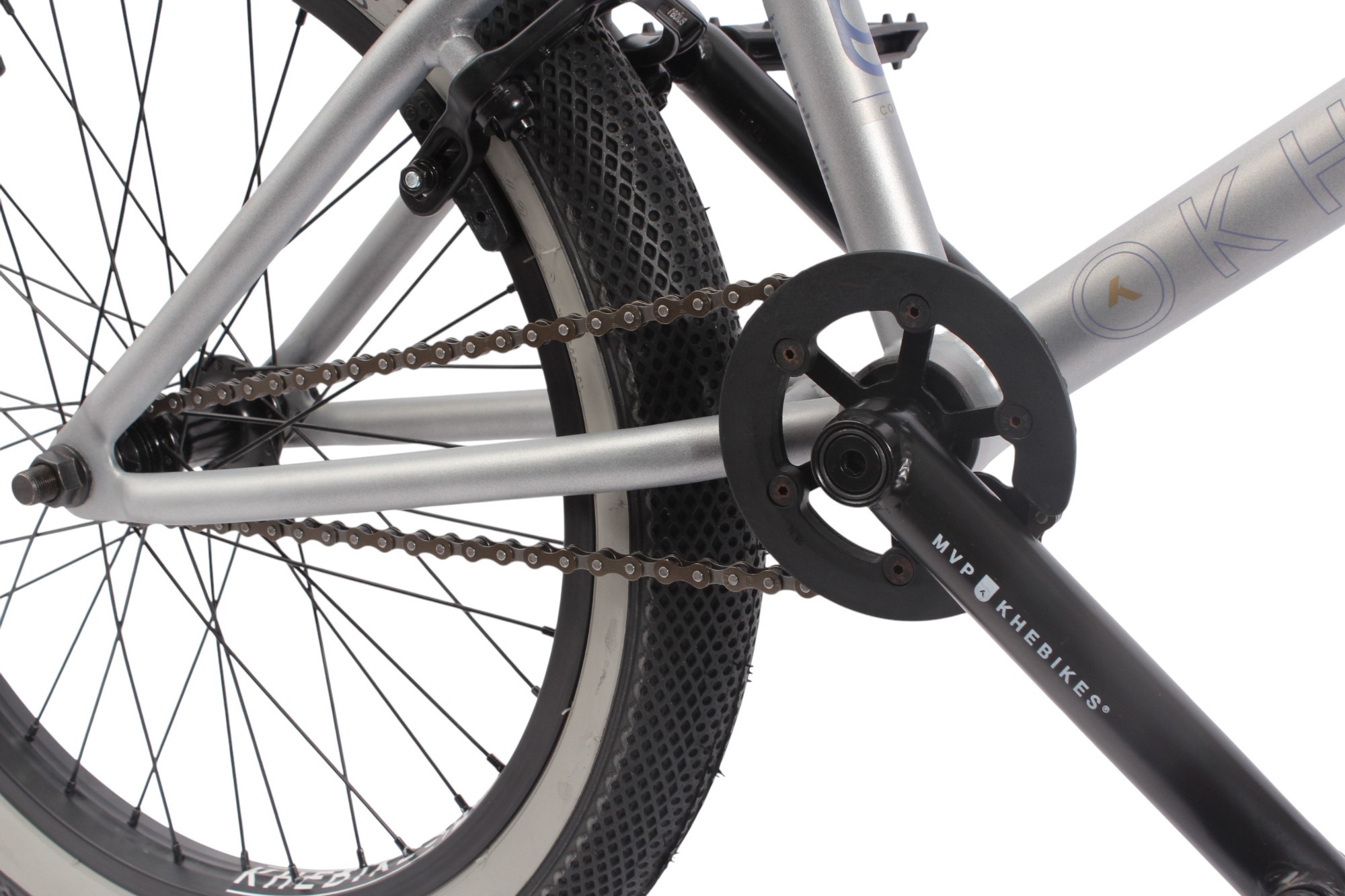

| Chainring: | 25 teeth steel with nylon grind guard |
| Chain: | YBN CN ST 1/2 x 1/8“ |

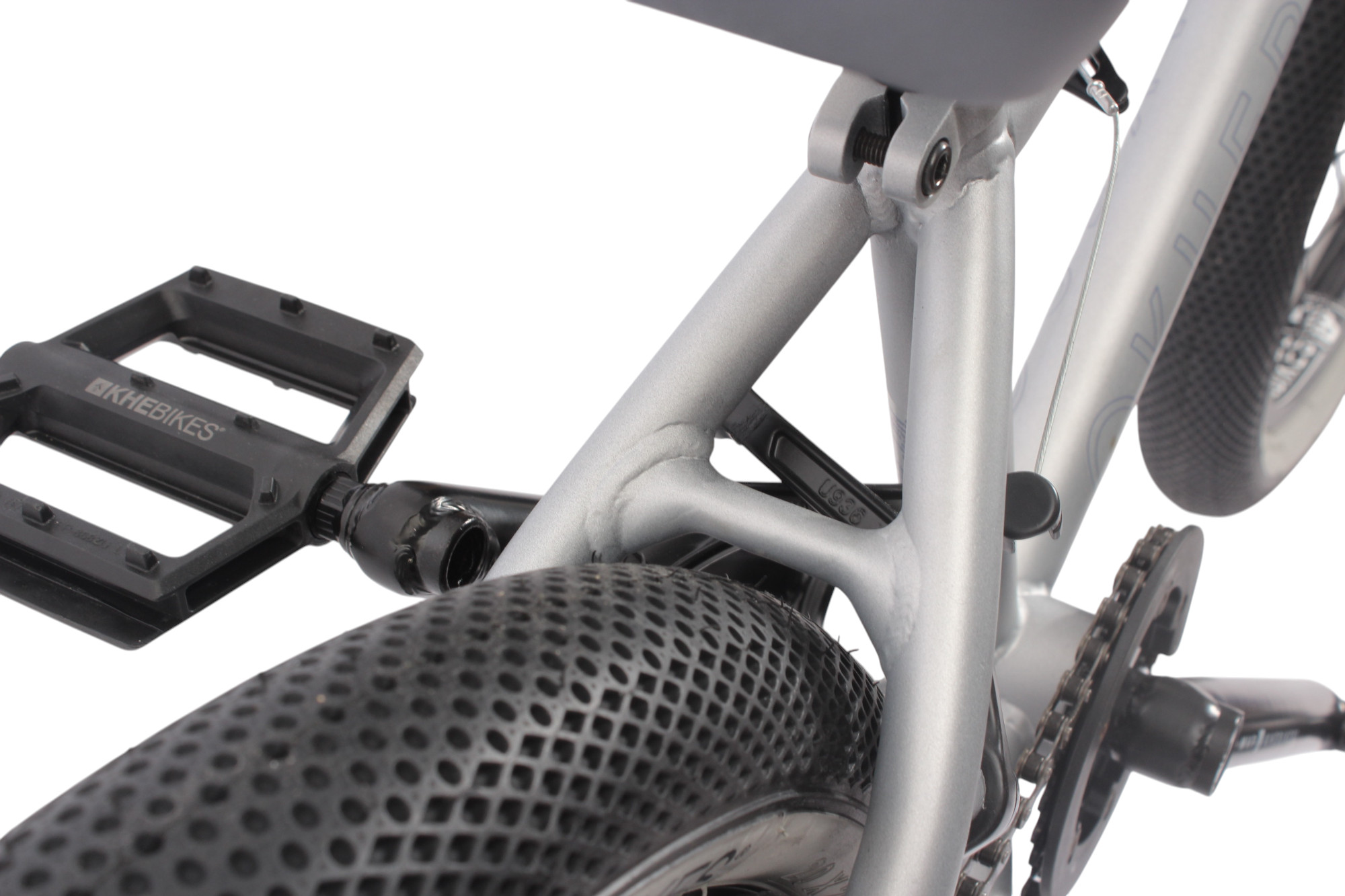

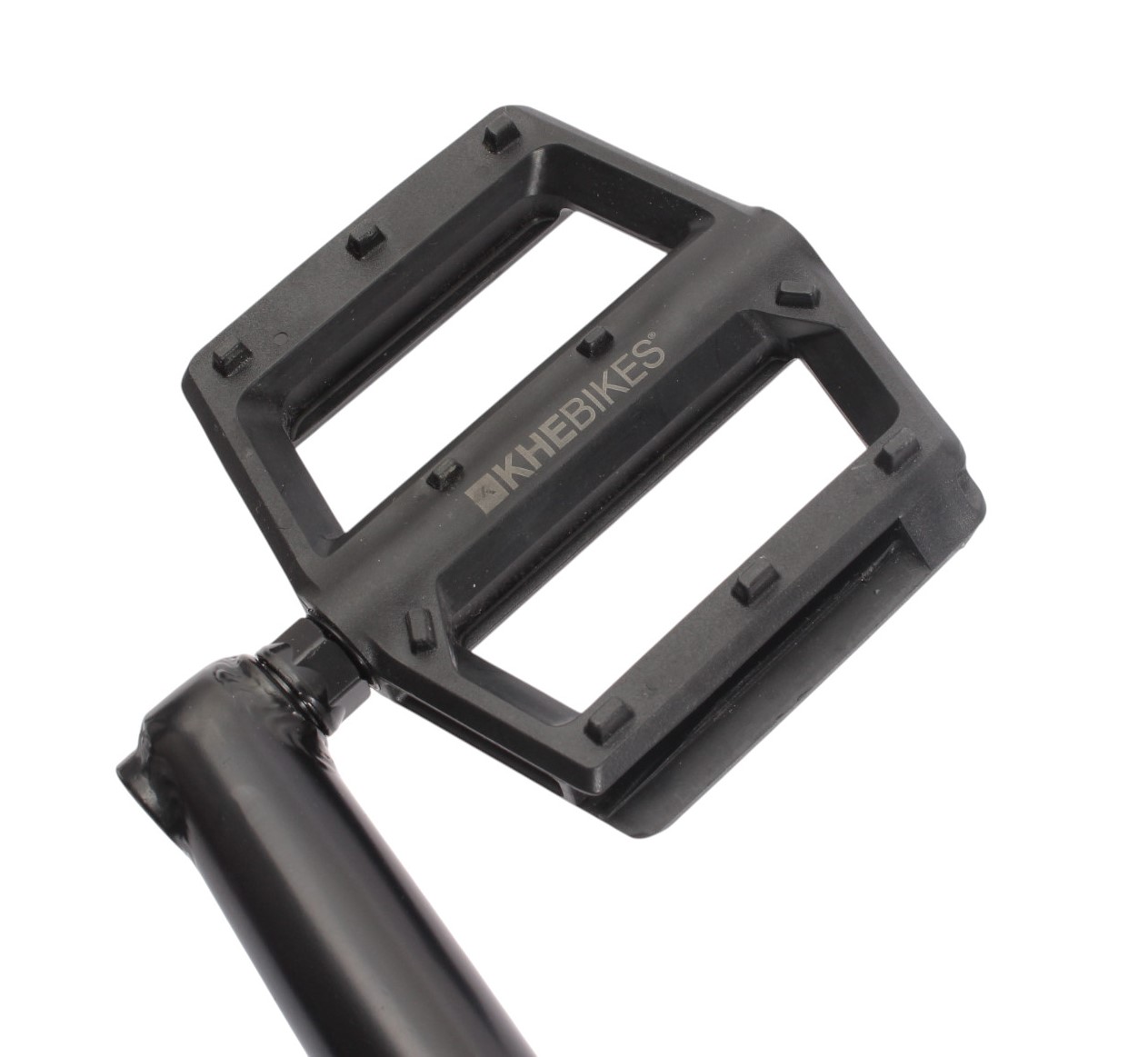

| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

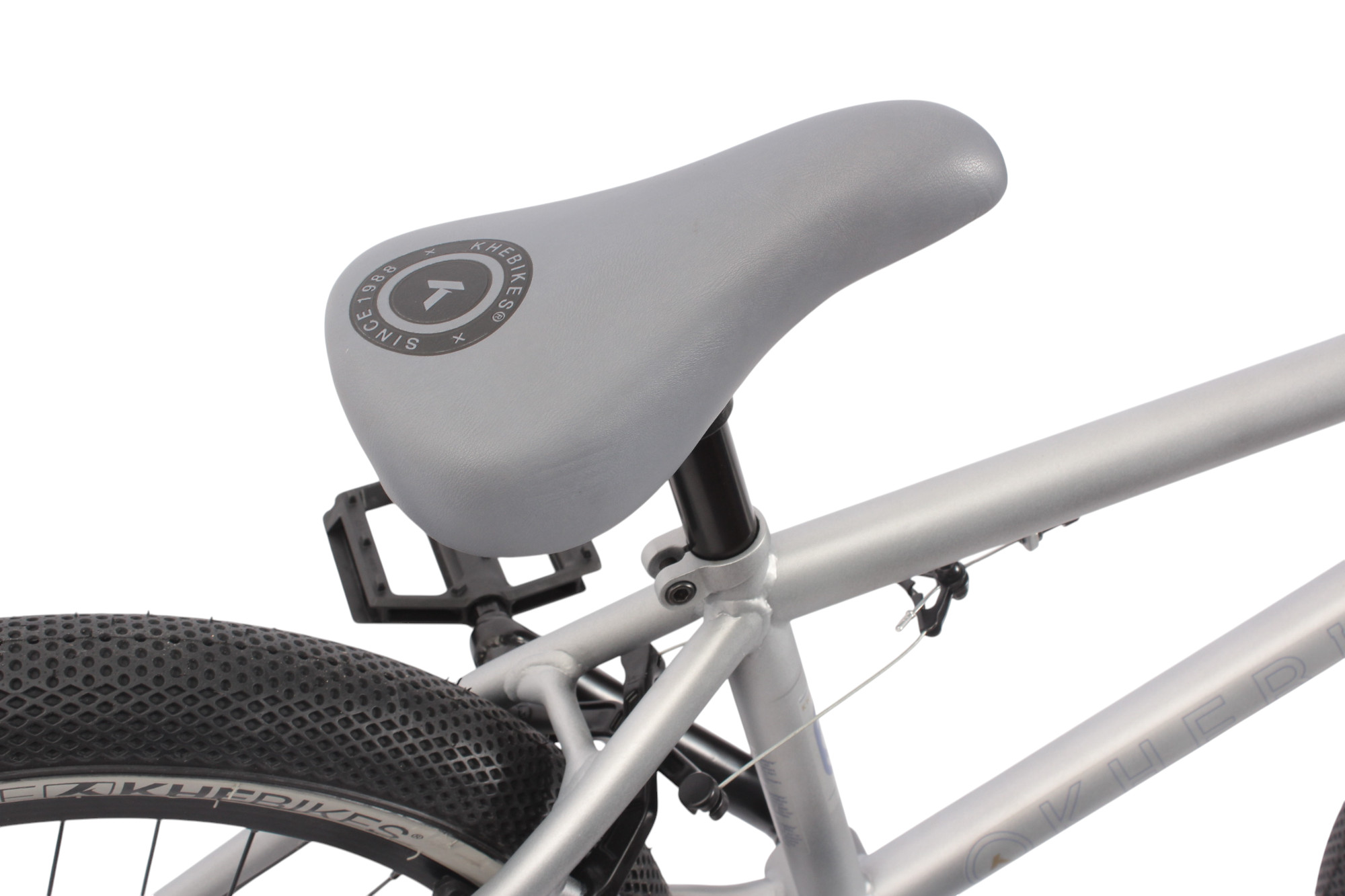

| Saddle: | Padded 220 x 125mm with embossed KHEbikes logo |
| Seatpost: | Diameter 25.4mm x Length 220mm (integrated seat post with saddle) |

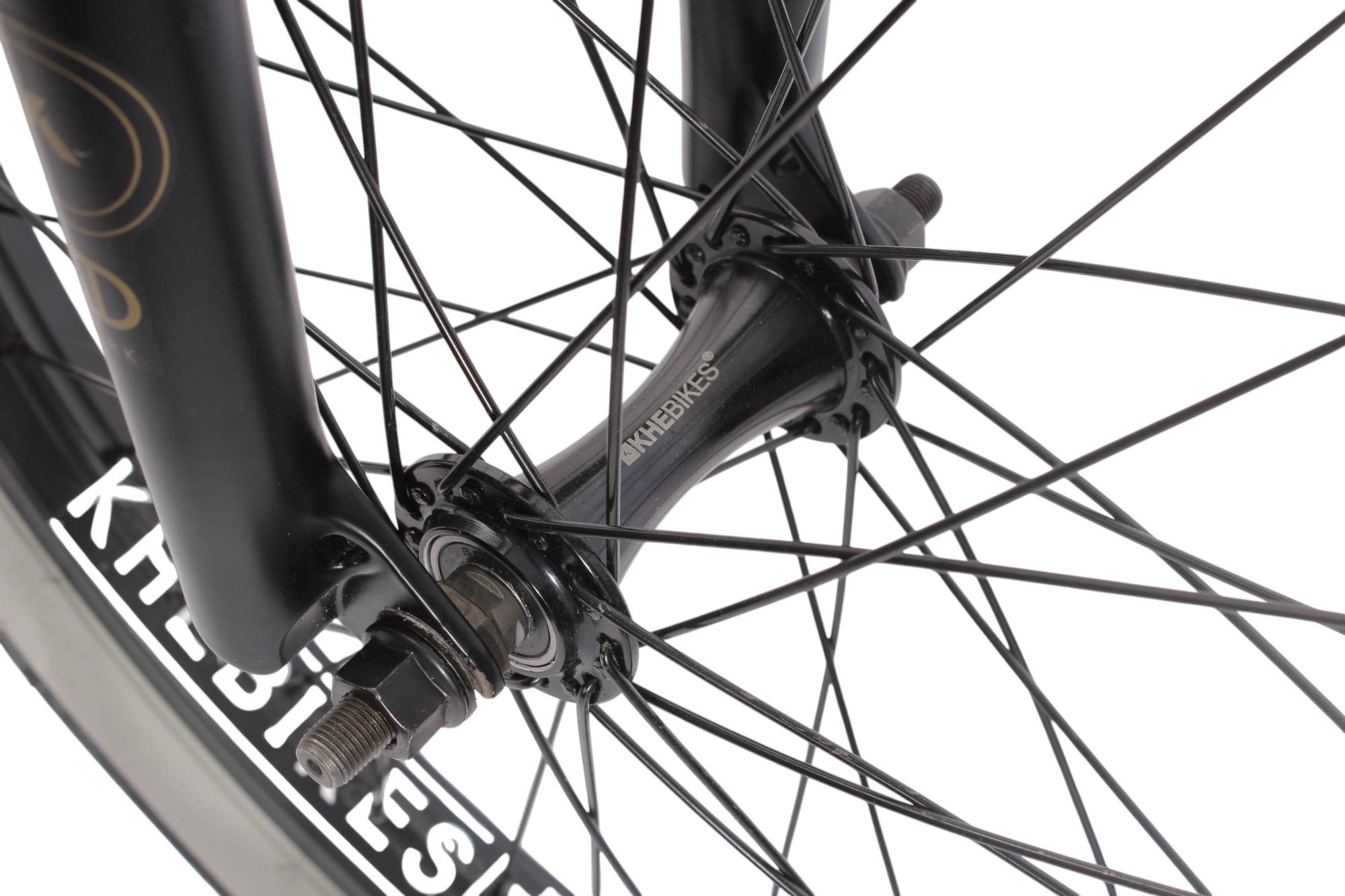

| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

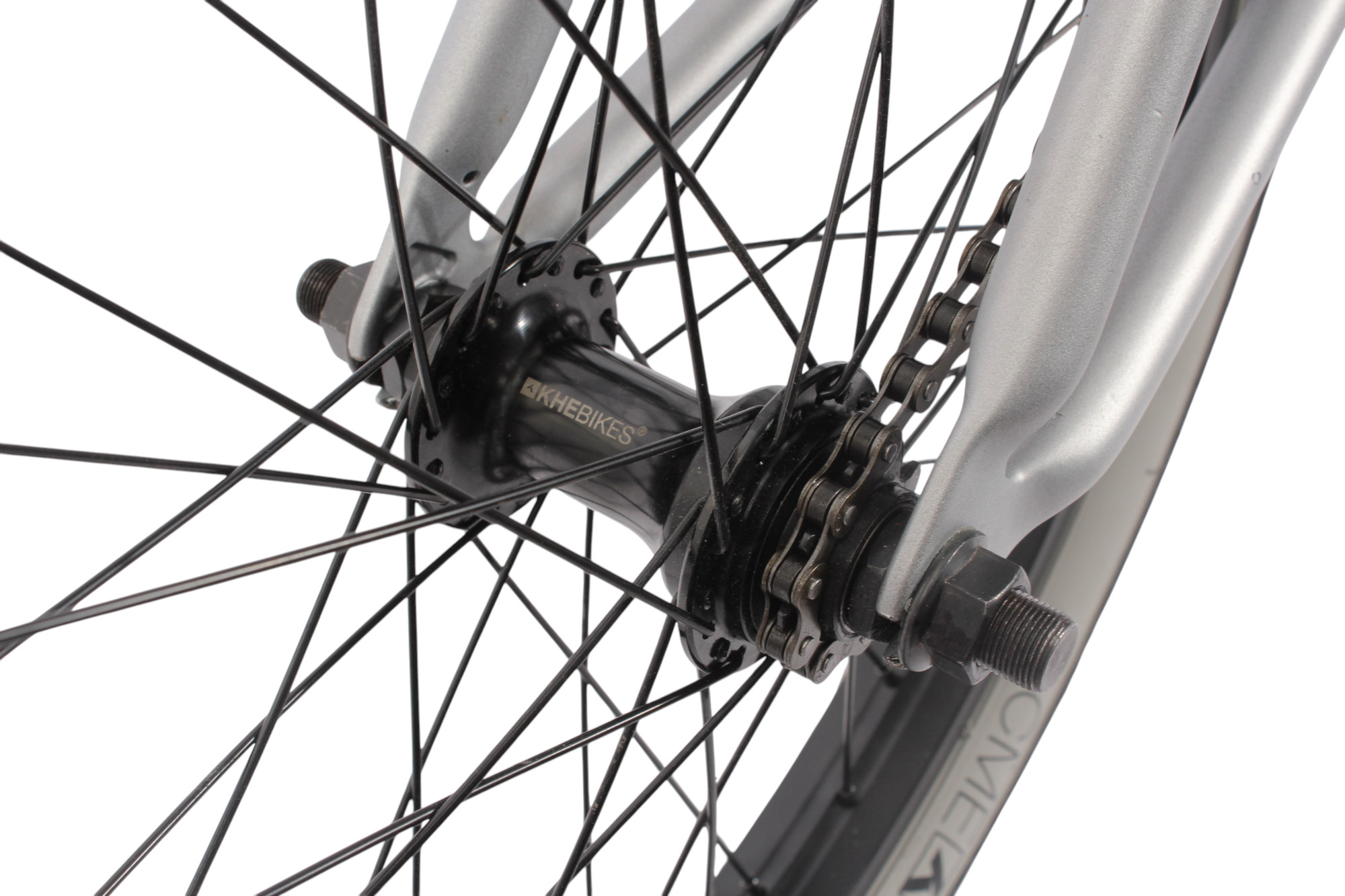

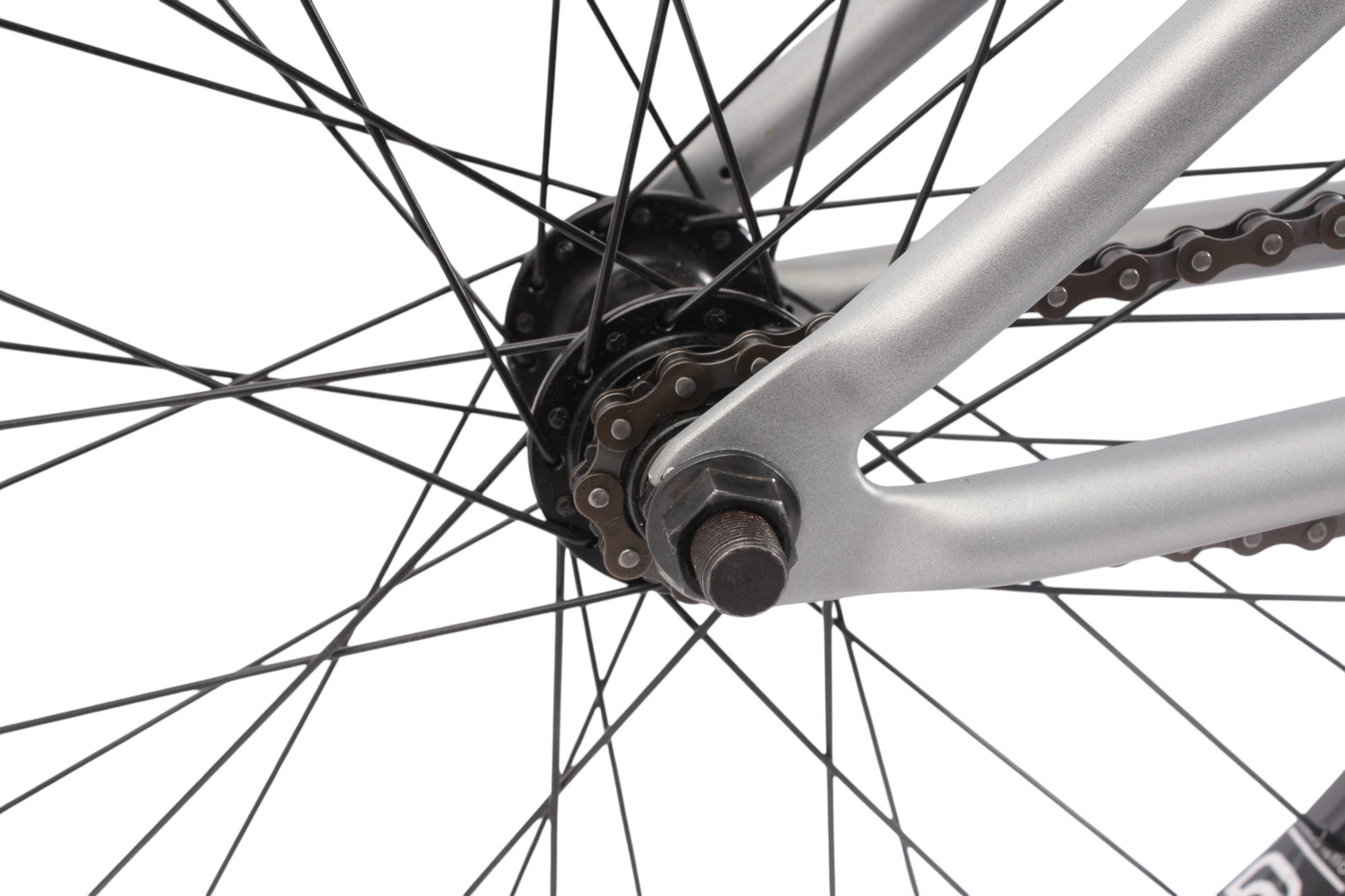

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | Street, Park, Pumptrack |
| Size: | 4'7" – 6'1" |
| Colour: | Silver |
| Weight: | 24.47lbs / 11,1kg |
| Model Year: | 2025 |
Intended Use:
This BMX bike is designed for park, street, and pumptrack use. It is not approved for road traffic or downhill riding.
Assembly and Inspection: Before the first ride, all safety-relevant components (handlebars, brakes, axles, pedals, chain, saddle) must be thoroughly checked and properly installed. Final assembly should be performed by a professional or certified bicycle workshop. Wear parts (e.g. tires, brake pads, chain) must be checked regularly.
Maintenance & Care:
Clean the bike regularly from dirt and dust. Do not use aggressive cleaning agents.
Lubricate moving parts (chain, bearings, rotor system) regularly.
Store the bike in a dry place protected from the elements.
Maximum Load & Safety: This bike is suitable for riders with a height of 140–185 cm and a maximum weight of 95 kg. If visible damage, cracks or material fatigue appear, do not continue to use the bike. Always ensure all bolts are tight and the braking system is functioning properly before use.
