KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, advanced technology, and outstanding ride dynamics. The new 2025 models offer optimized geometry, well-thought-out details, and high-quality components – directly from the manufacturer for maximum performance on any surface.

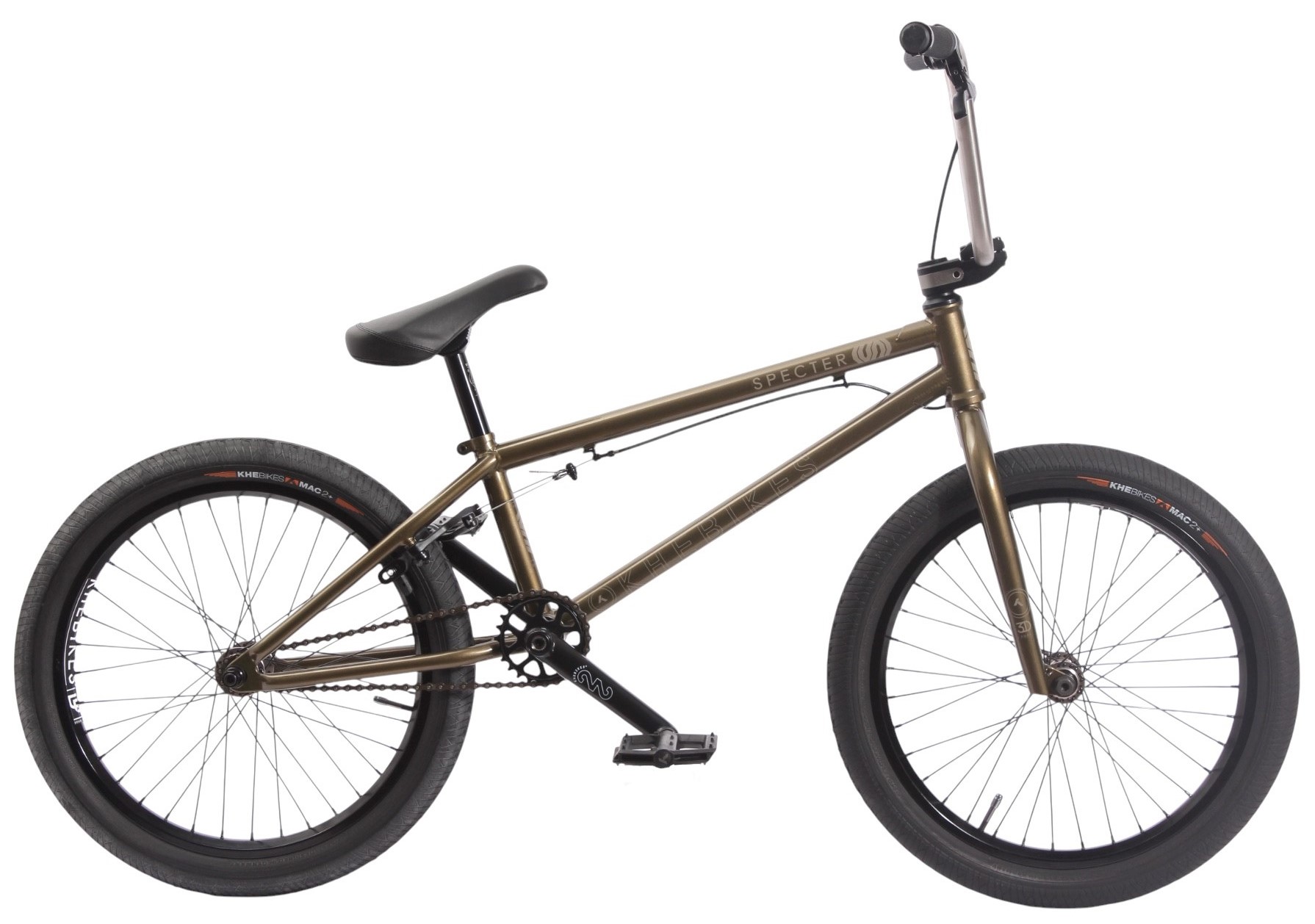

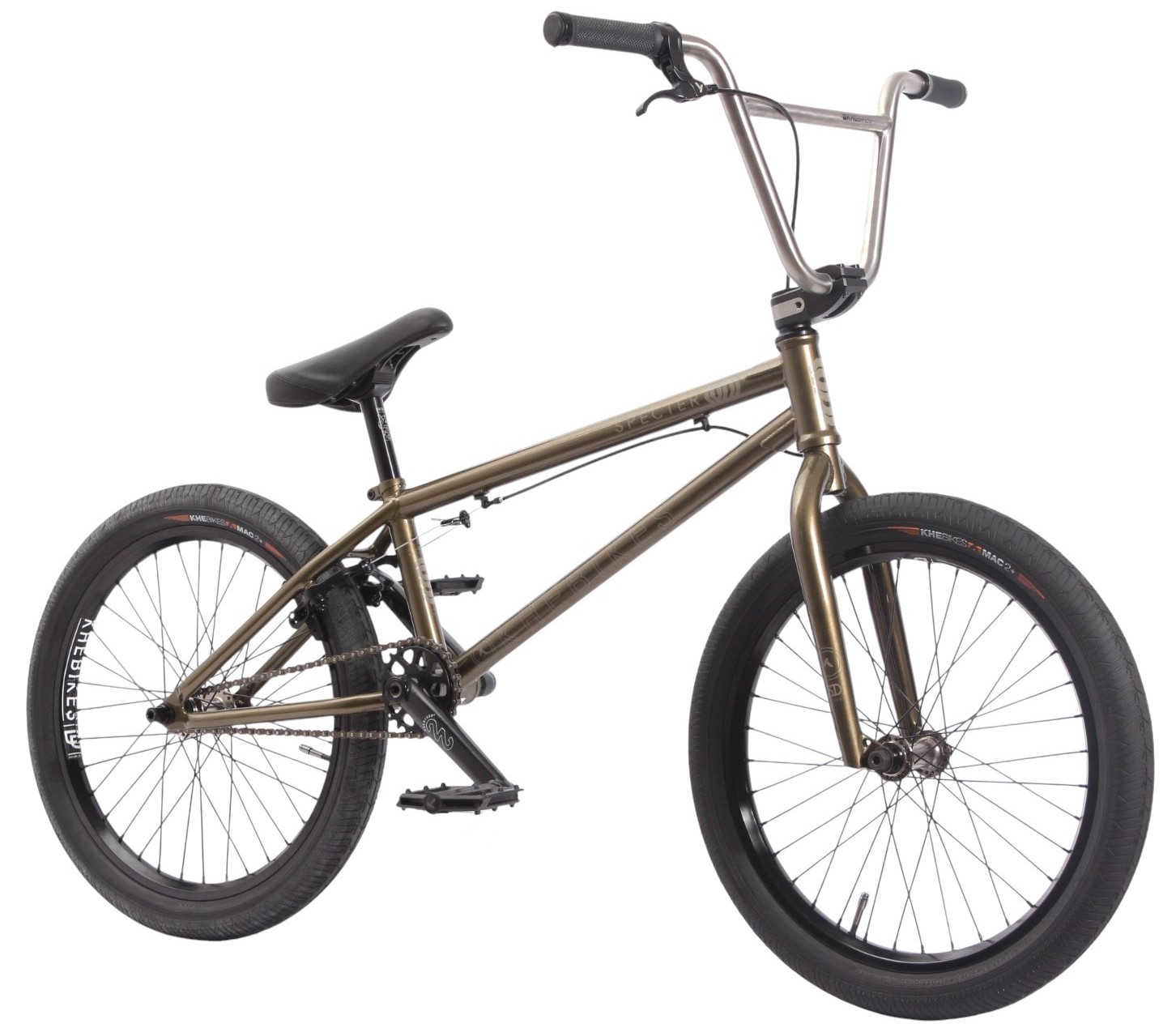

KHE SPECTER V2 Limited Titanium
The KHE SPECTER V2 Limited Titanium is a high-quality BMX from the KHE PRO series, designed for maximum performance and durability. The frame is made of 100% CrMo steel with butted tubes and a top tube length of 20.65 inches. The reinforced construction provides maximum stability with an overall weight of only 20.9 lbs (9.5 kg).
A special highlight is the 3D Investment Cast dropouts, which are made from a single piece on both the frame and fork. This results in a seamless look with no visible welds and significantly increased stability compared to traditional stamped sheets.

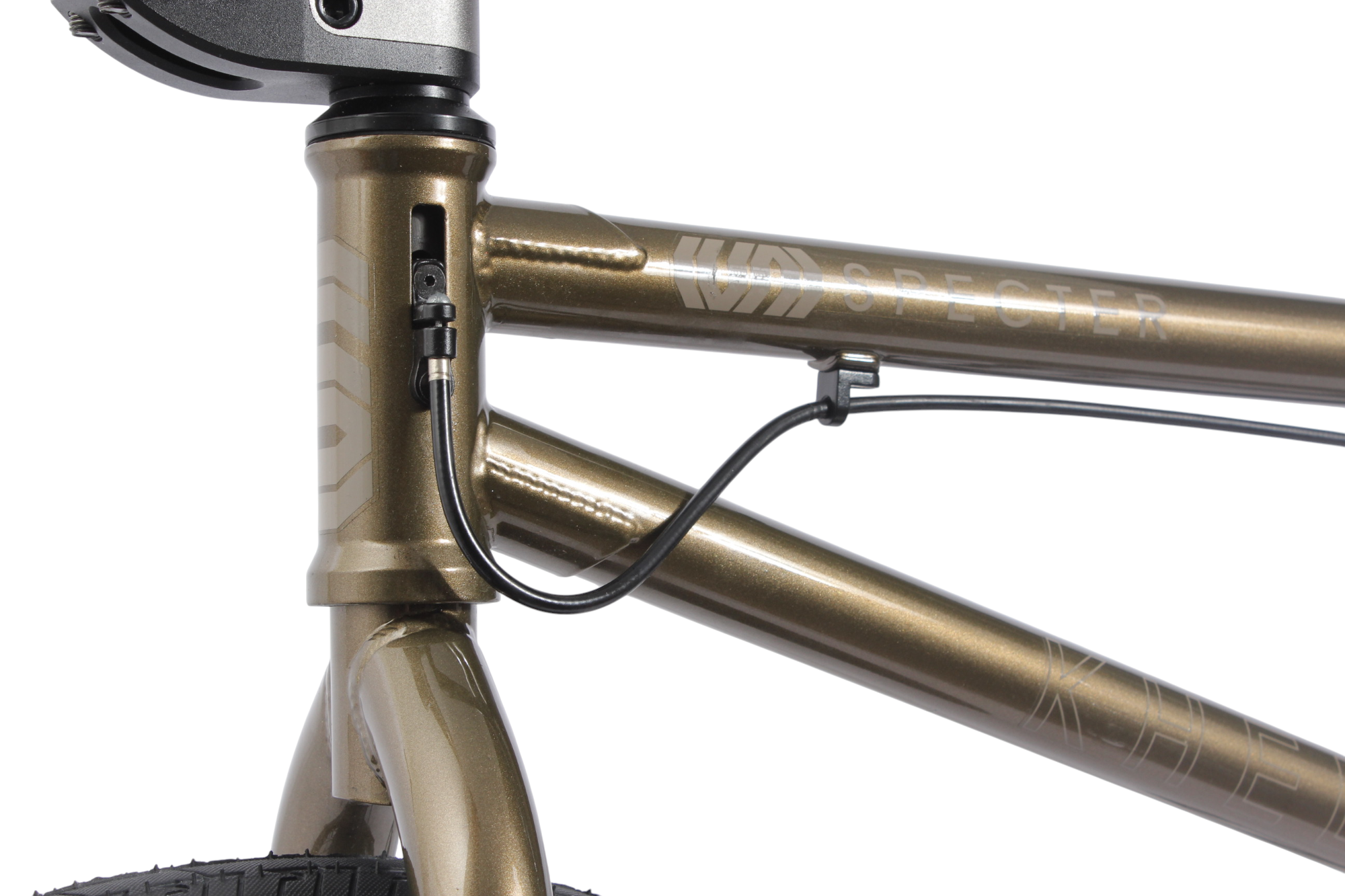

Thanks to the removable cable and brake mount holders, the bike can also be ridden brakeless. The tapered fork legs provide a light, clean, and extremely stable construction.

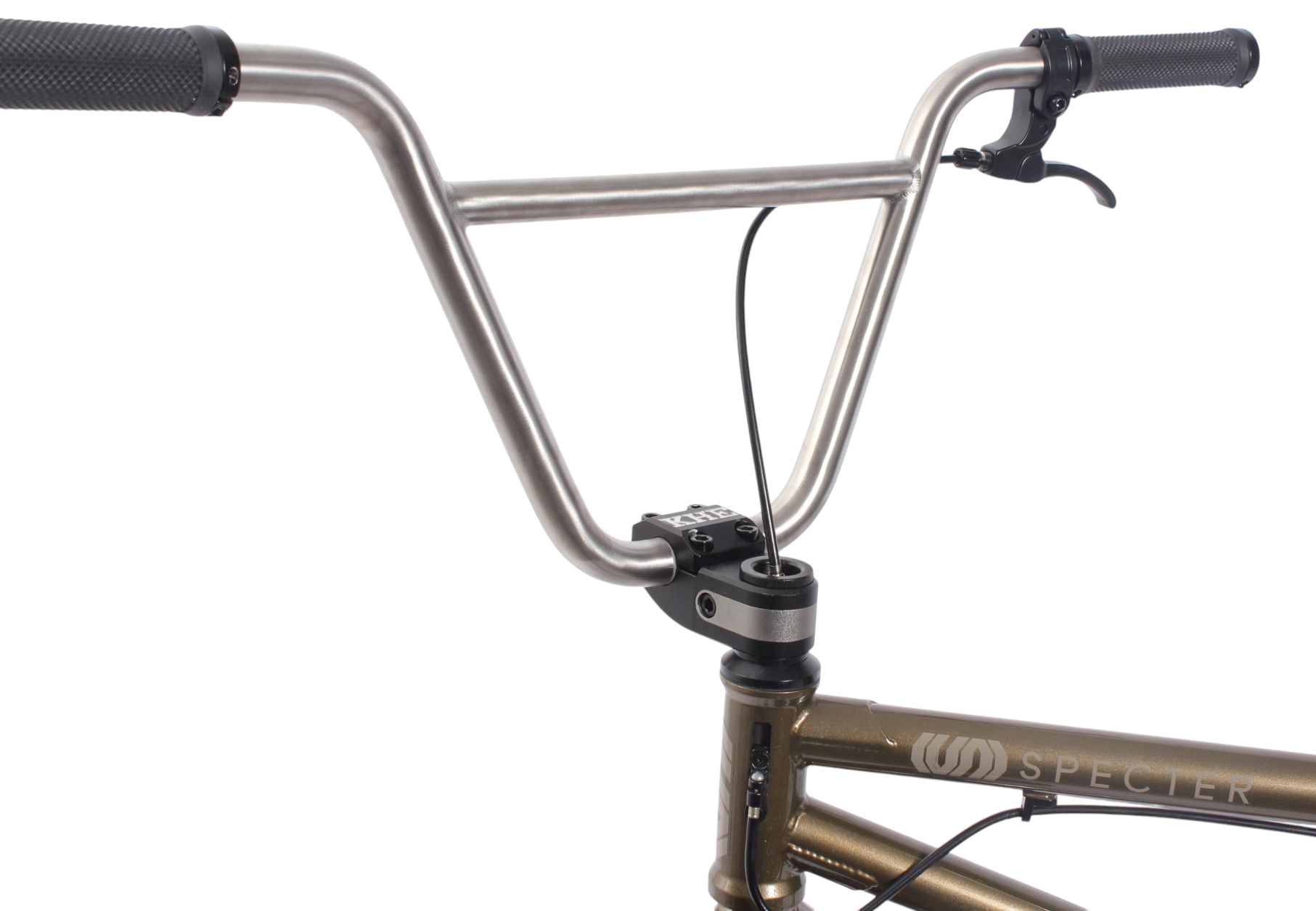

New in the Titanium Limited Edition: The built-in KHE Specter Ti Handlebar made from high-quality GR9 titanium not only provides a clean and sleek design but also significantly reduces the bike’s overall weight. At only 1.14 lbs (518 g), it is one of the lightest handlebars in the world – extremely stable, with 9" height, 29" width, 11° backsweep, 2° upsweep, and a textured surface for the best grip. This reduces the overall weight of the bike to just 20.9 lbs (9.5 kg) – a true lightweight in the high-end category.
This bike is hard to top with these built-in components: CNC patented Affix stem, CNC fork steerer, welded double-wall rims, butted spokes, 22mm CrMo crankset, female front hub, high-end 9 tooth cassette hub, and much more!
Recommended rider height: 4'11"–6'3" (150–190 cm)
Maximum rider weight: 265 lbs (120 kg)
Use: Park, Pumptrack, Street
Why choose the SPECTER V2 Limited Titanium from KHEbikes?
- Direct from the manufacturer, ensuring the best prices
- At just 20.9 lbs (9.5 kg), one of the lightest 20-inch BMX high-end bikes
- KHE BMX Rotor System for 360° bar spins
- Butted CrMo frame & fork tubes with 3D dropouts
- Welded double-wall rims with butted spokes
- Titanium handlebar: KHE Specter Ti – extremely light and stable
- Patented Affix Rotor & stem system
Pegs: The SPECTER V2 Pro 20" is compatible with 10 mm pegs in the front and 14 mm pegs in the back. We recommend the Laser Pro pegs.
The BMX bike is about 90% pre-assembled. You can find the user manual under "Datasheets". A video for assembly is available under "Video".

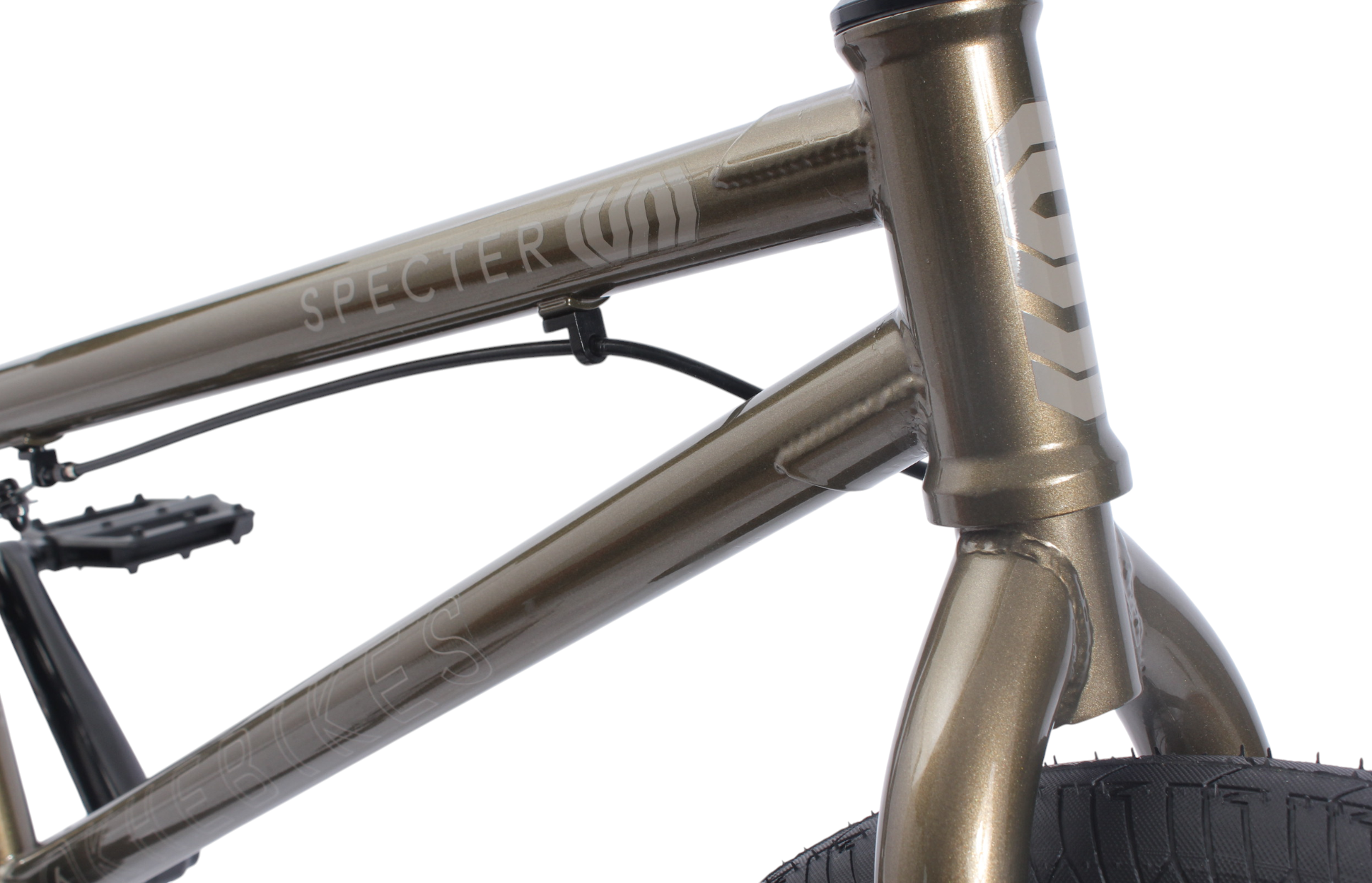

| Frame: | KHE CrMo 4130 seamless drawn steel, butted tubes, 14mm dropout, top tube 20.65", CS 13.2", HT 75.5°, ST 71.5°, Integrated 1 1/8" |
|---|---|
| Top tube length: | 20,65" (526mm) |

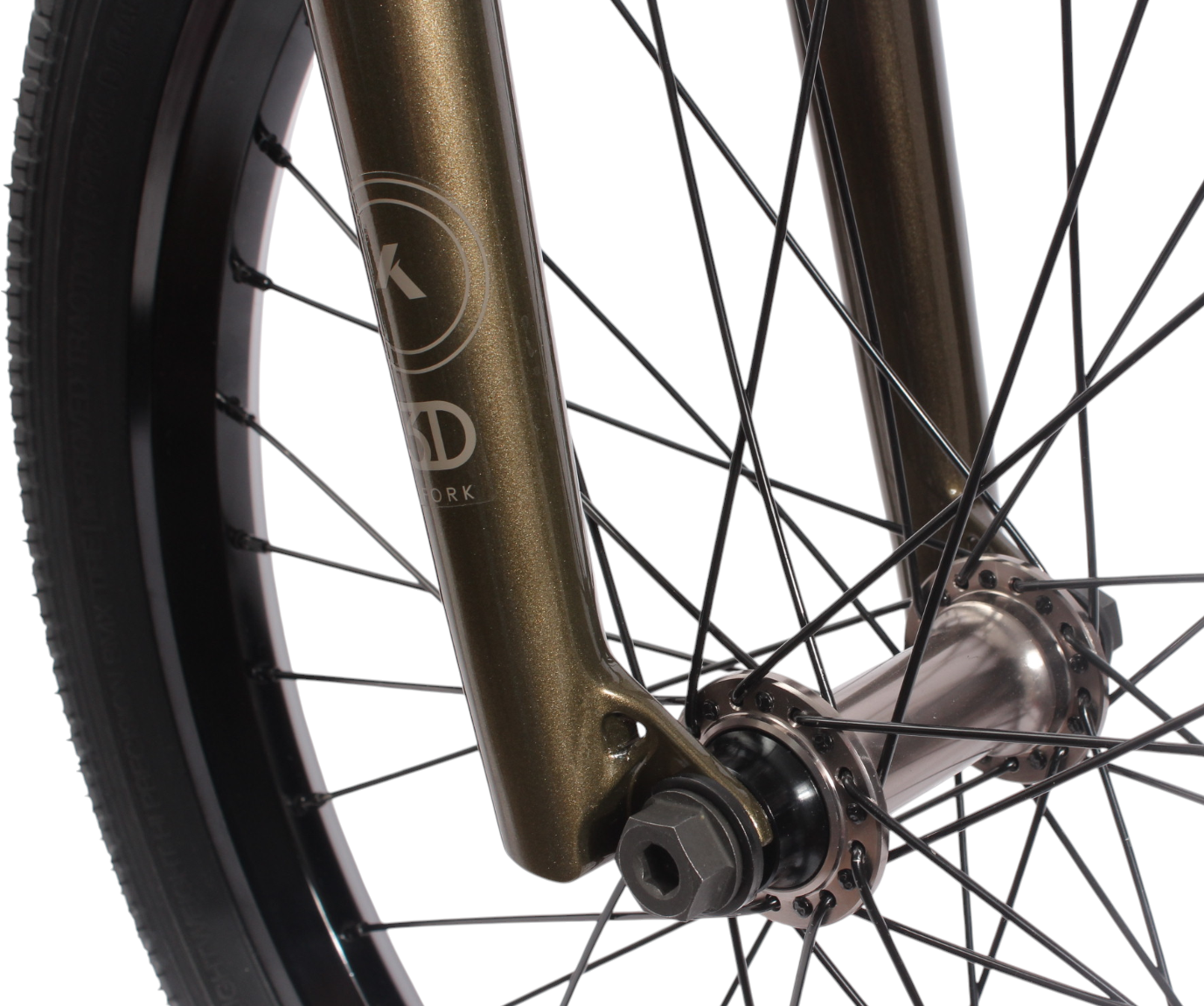

| Fork: | KHE tubos CrMo conificados y butted, tubo de dirección CNC CrMo 3D, punteras de 10mm, avance de 27mm |

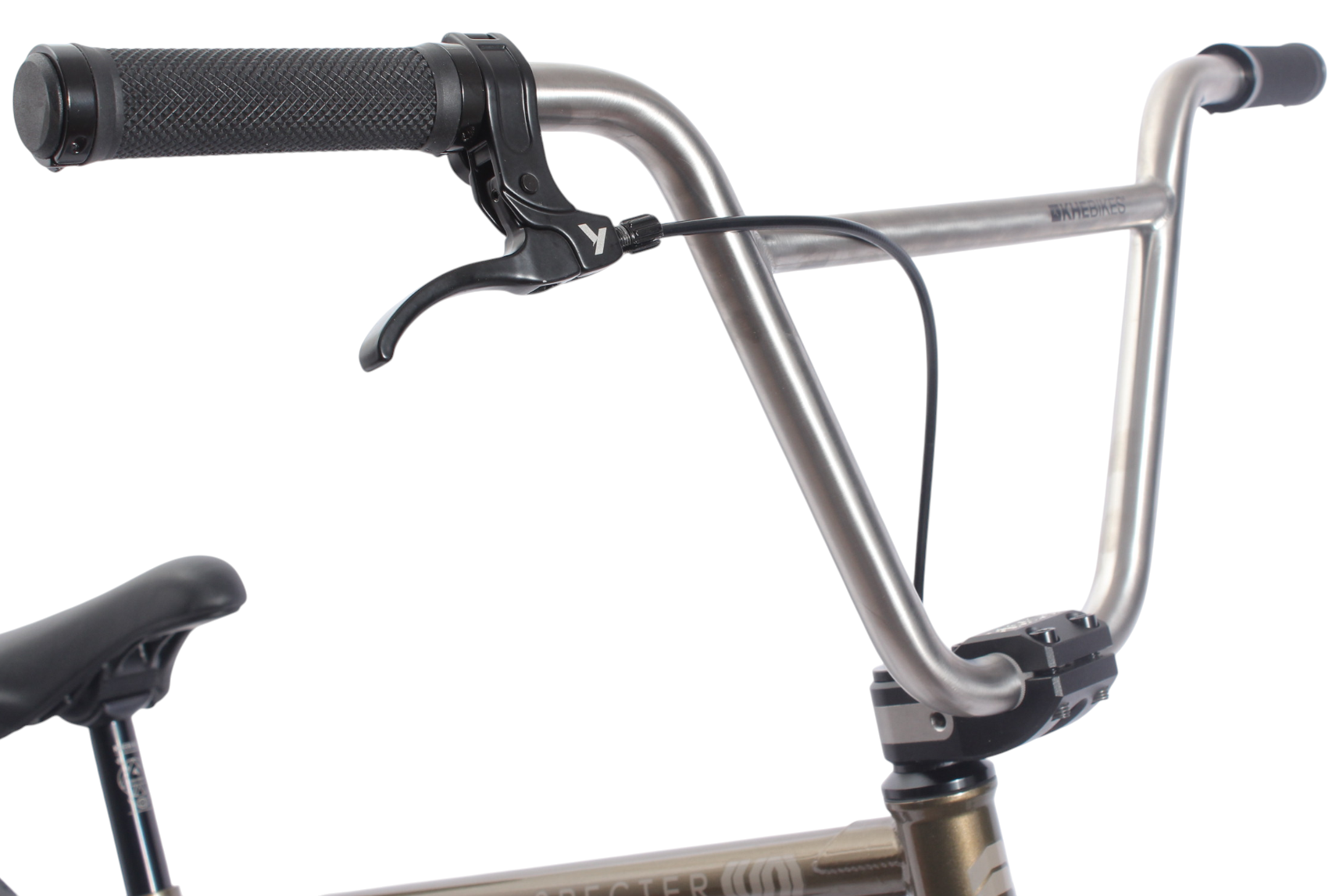

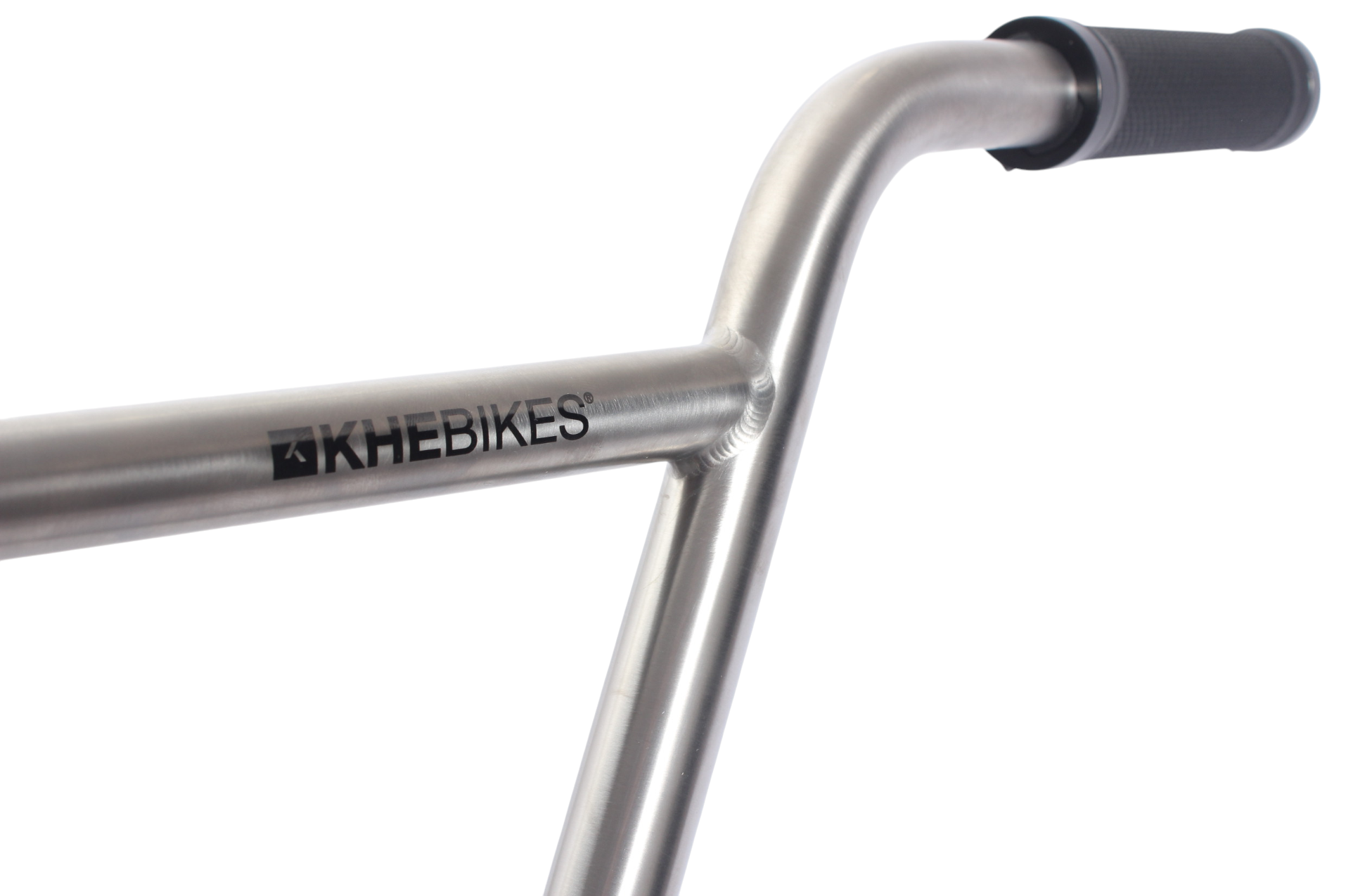

| Handlebars: | KHE Specter Titanium GR9, 9 inch height x 29 inch width, 11° backsweep, 2° upsweep, cross knurling, laser logo |

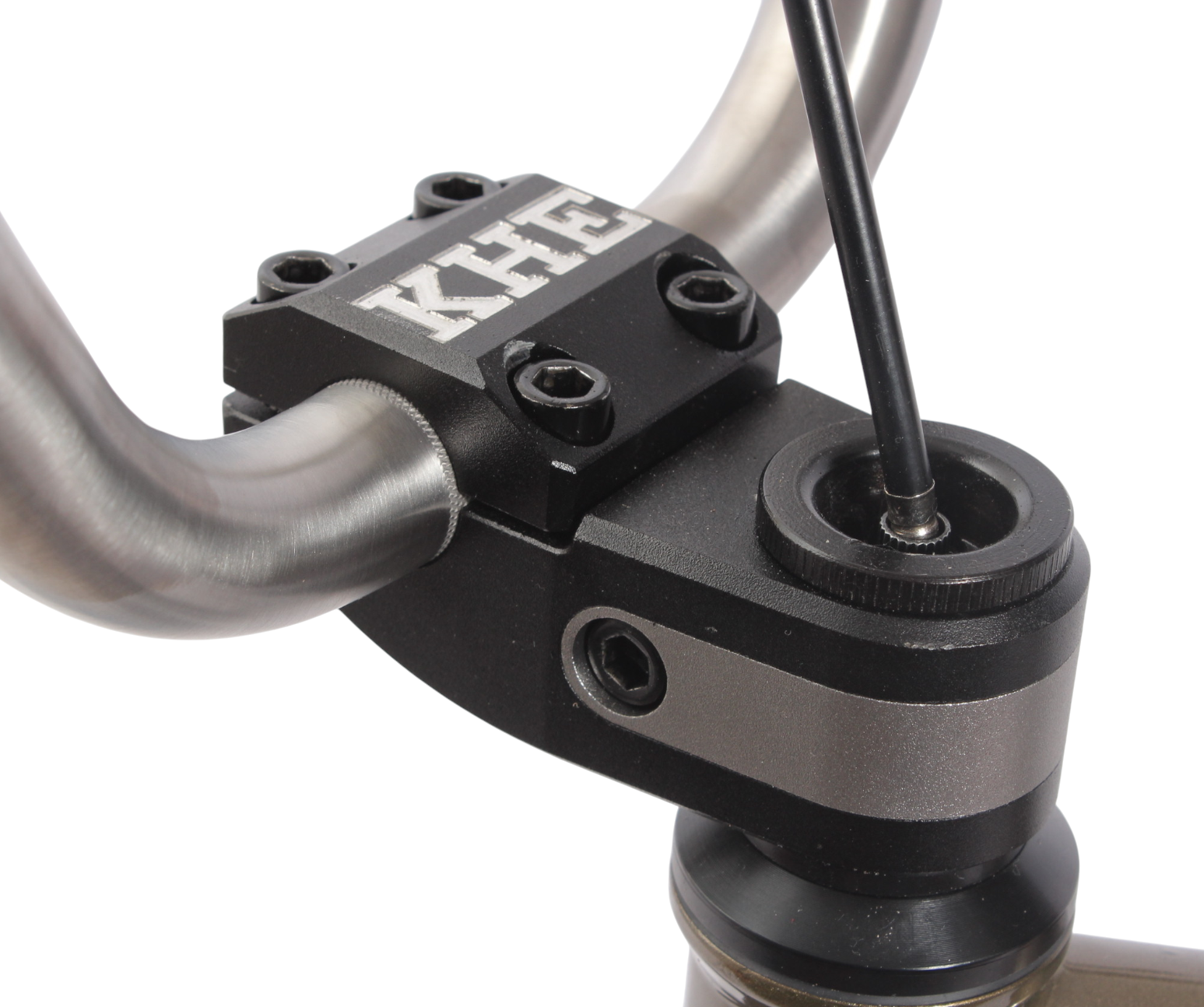

| Stem: | KHE CNC with patented AFFIX clamp, top loader ext. 50mm |
| Headset: | Intigrated headset with indusriel bearings |
| Rotor: | Patented KHE AFFIX 360 degree rotor |

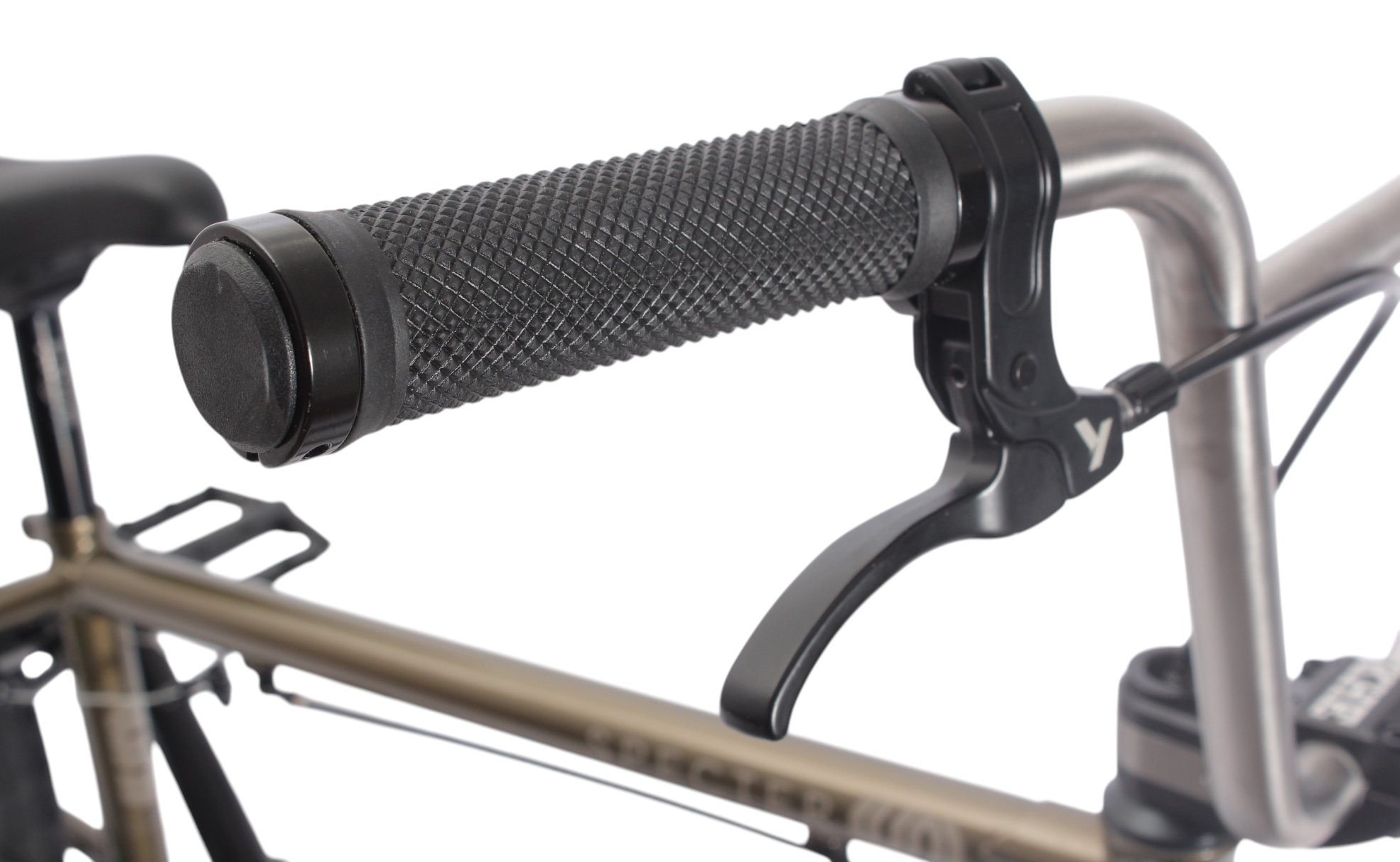

| Brake levers: | Aluminium brake lever with hinged bar clamp |
| Rear brake: | KHE RADIUS Aluminum U-Brake |
| Crank: | KHE 22, biela hueca CrMo de 3 piezas 170mm / 48 dientes |
| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 22mm CrMo axle |

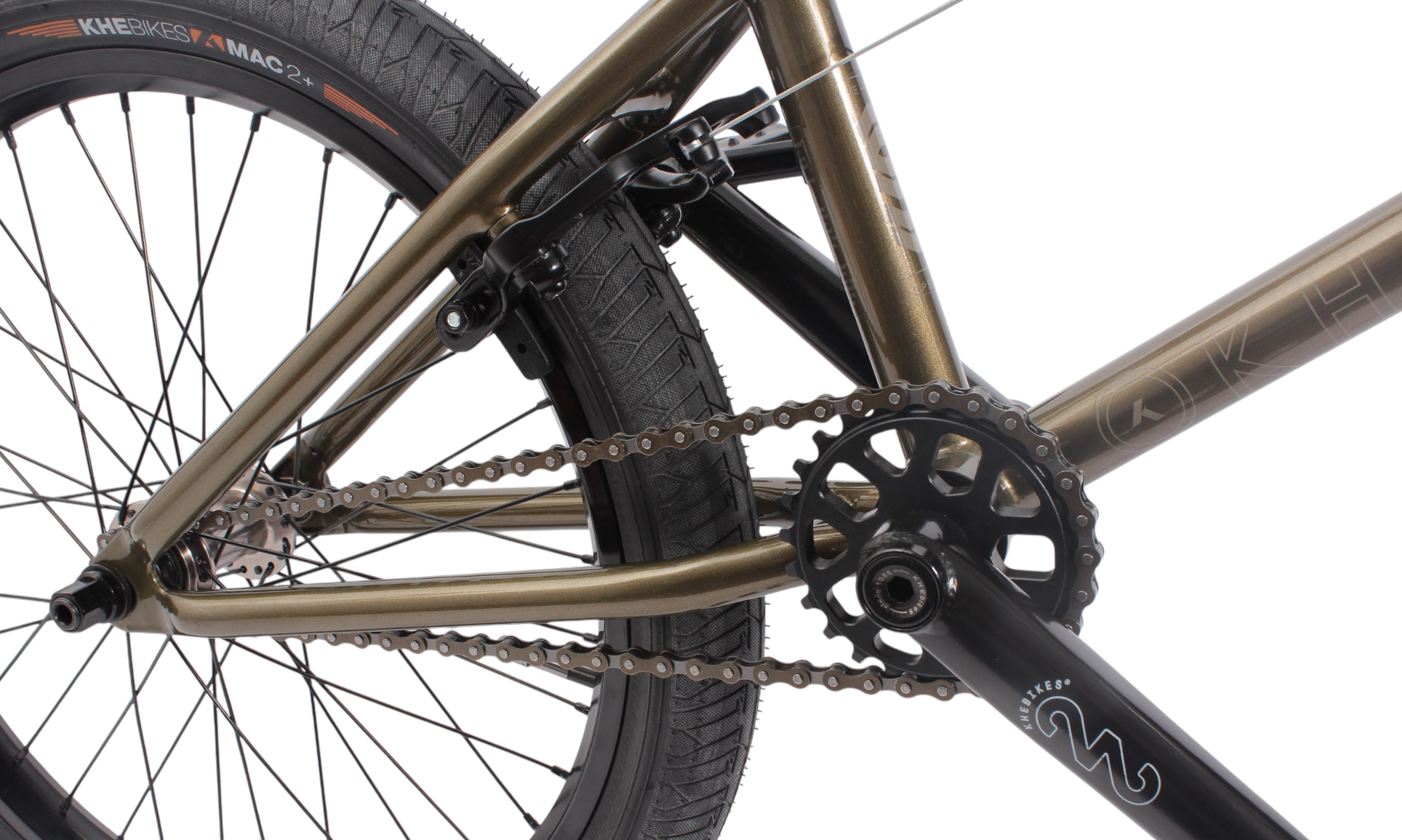

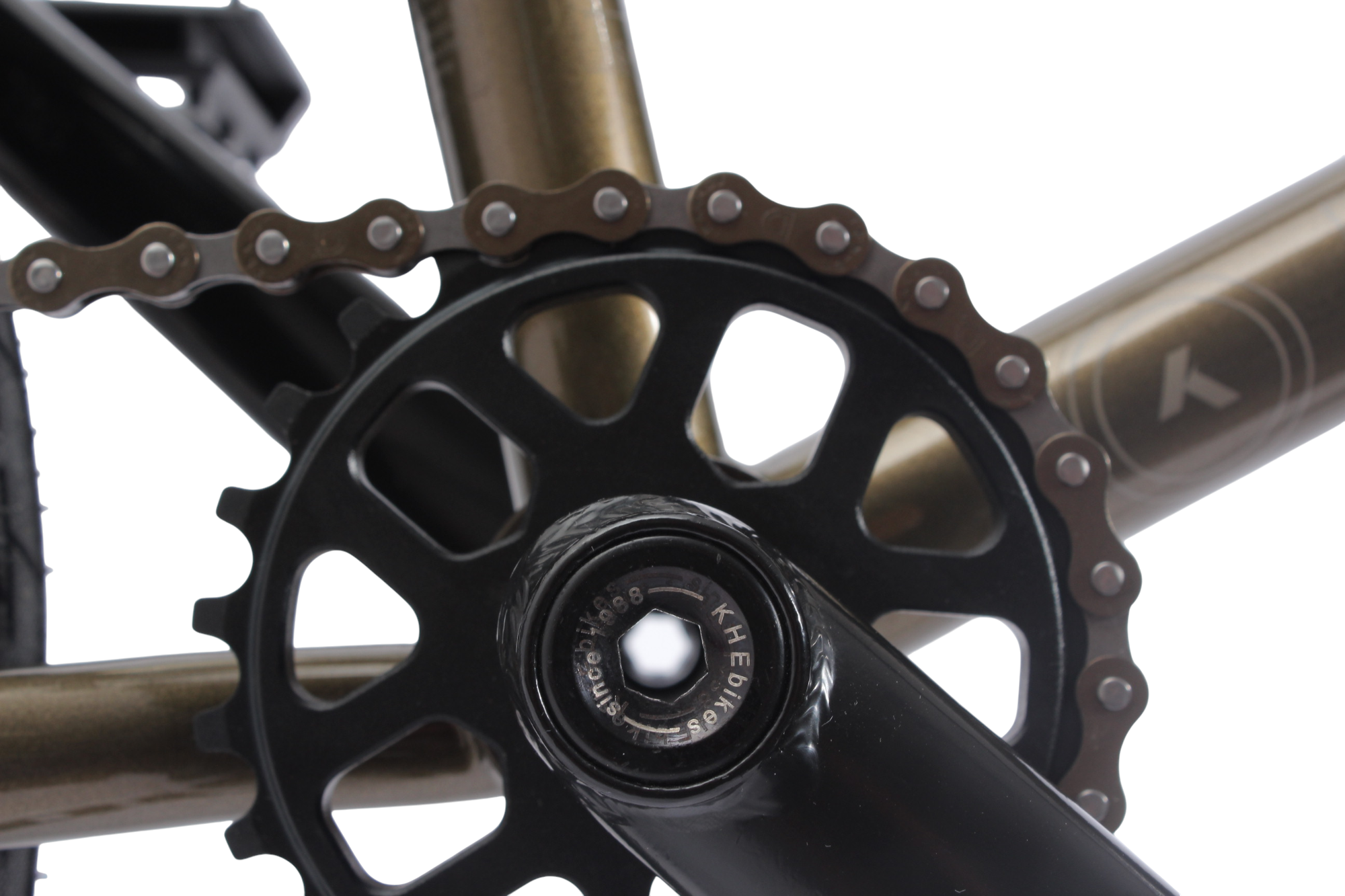

| Chainring: | KHE 25 dientes aluminio CNC 7mm, anodizado en negro |
| Chain: | YBN CN ST 1/2 x 1/8“ |

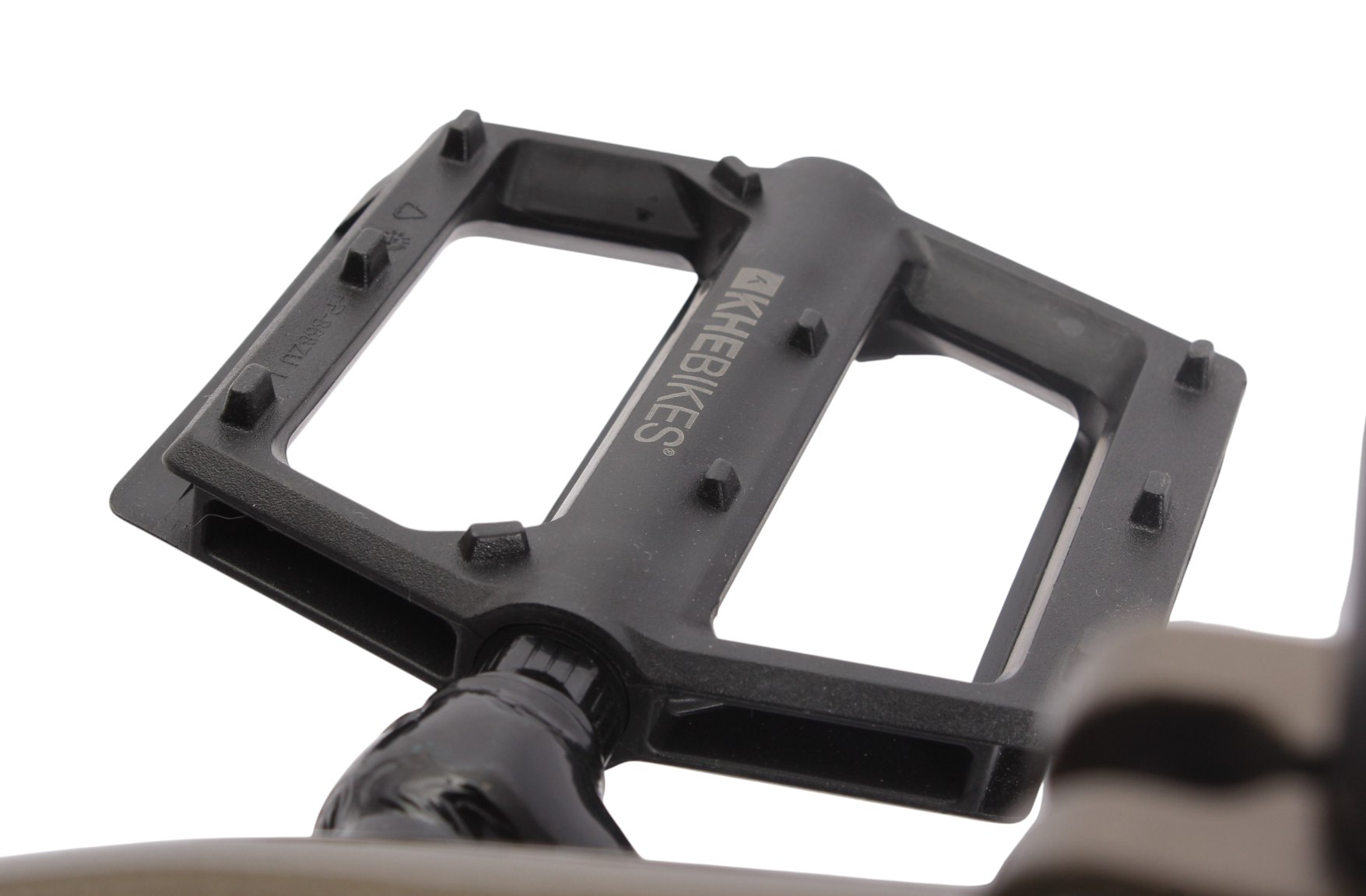

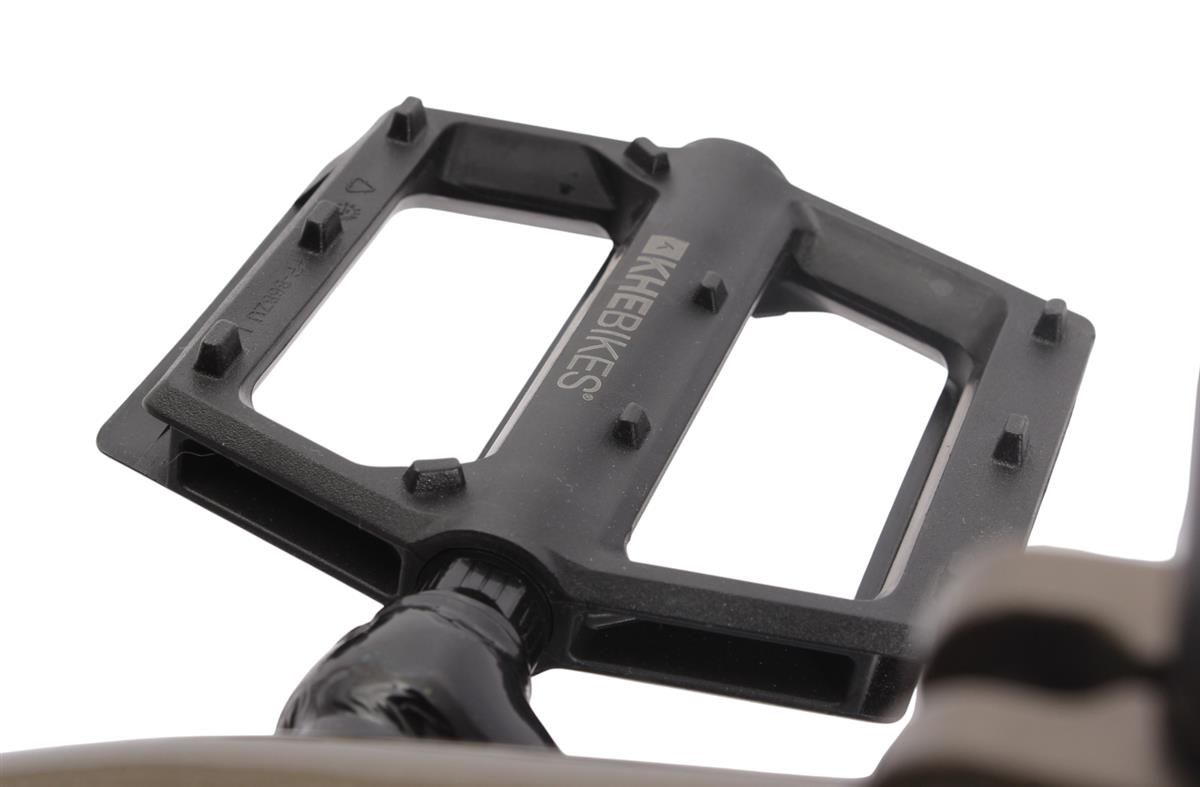

| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

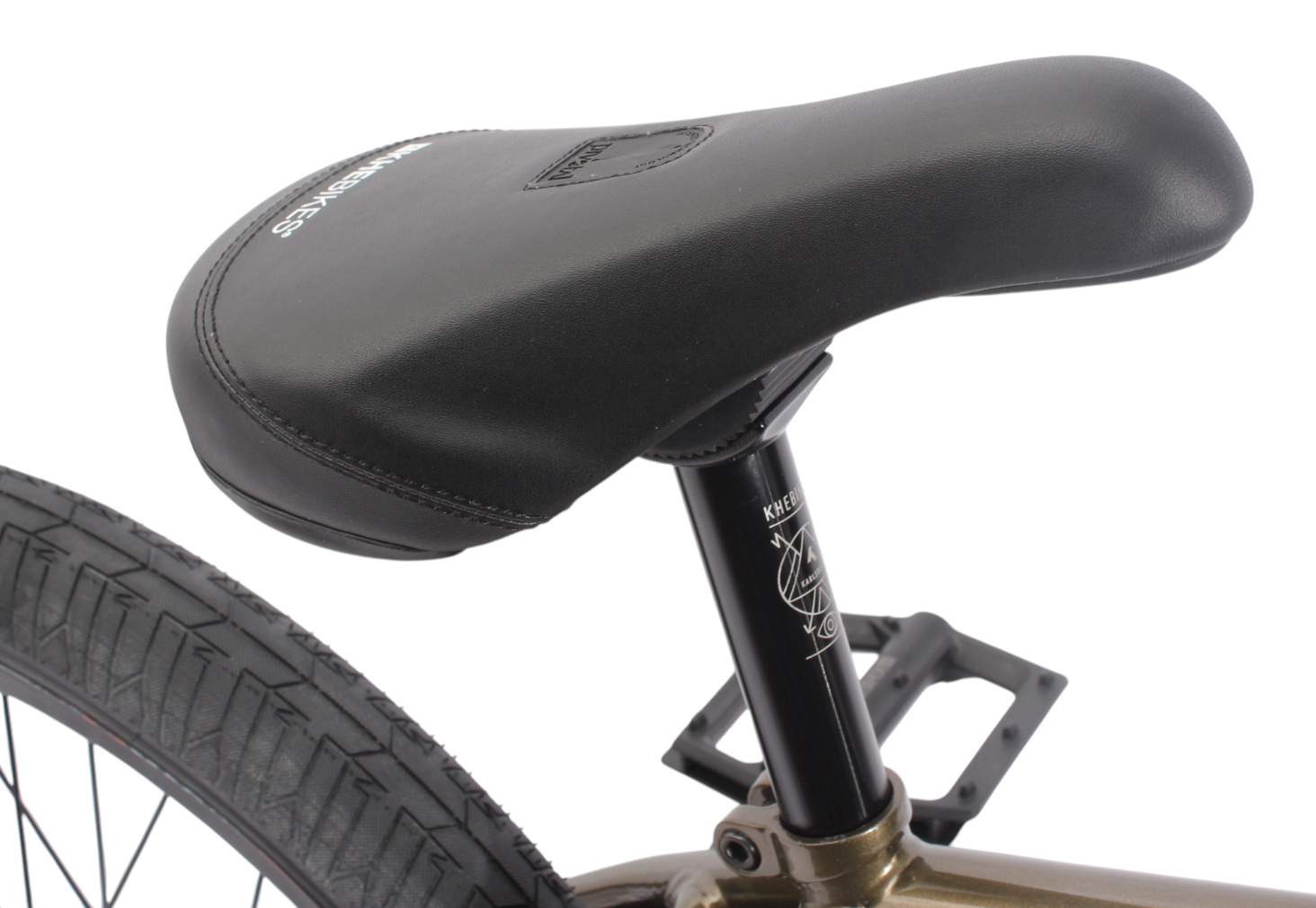

| Saddle: | KHE PIVOTAL, patented clamp system, extra padded |
| Seatpost: | KHE PIVOTAL 25.4mm x length 200mm |

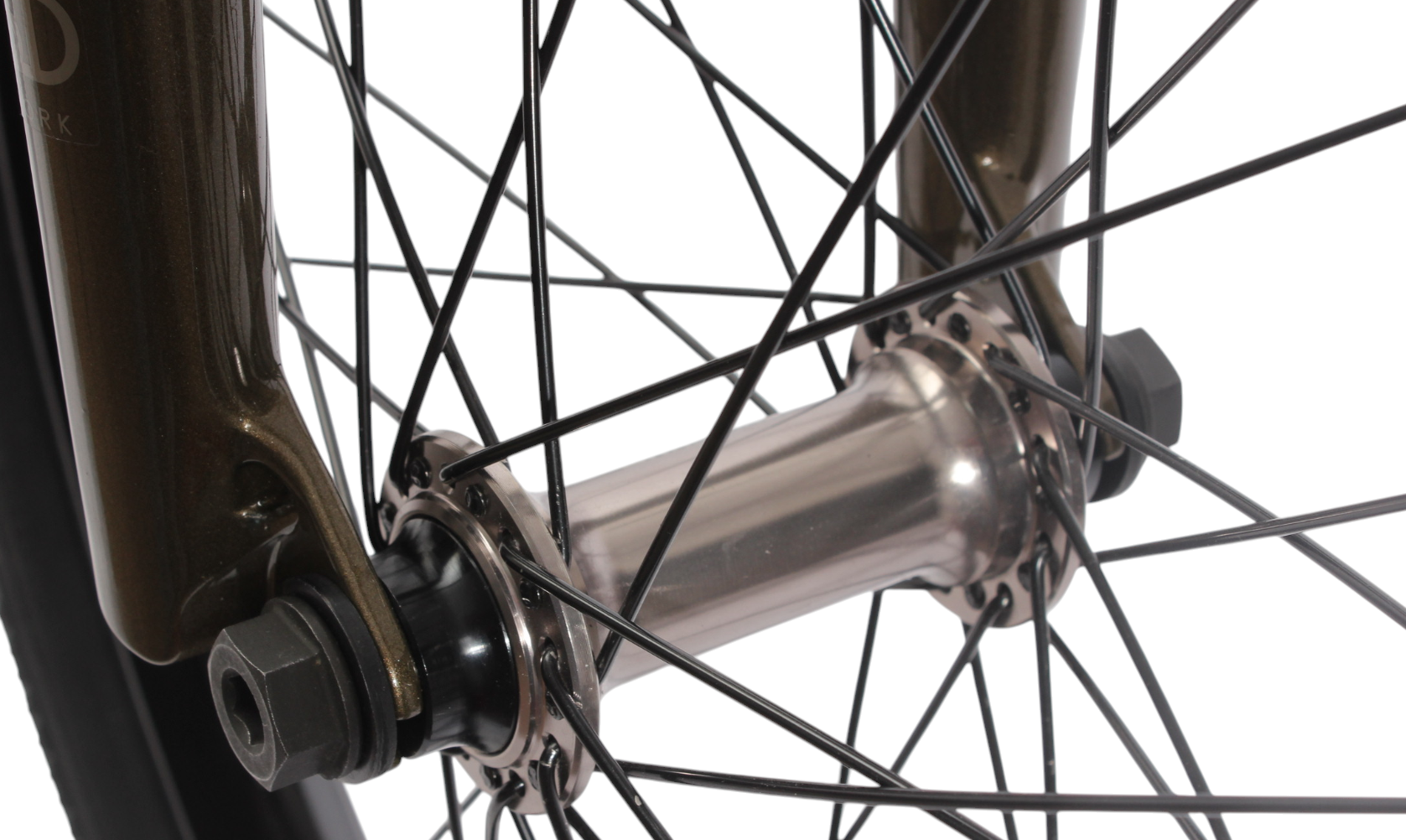

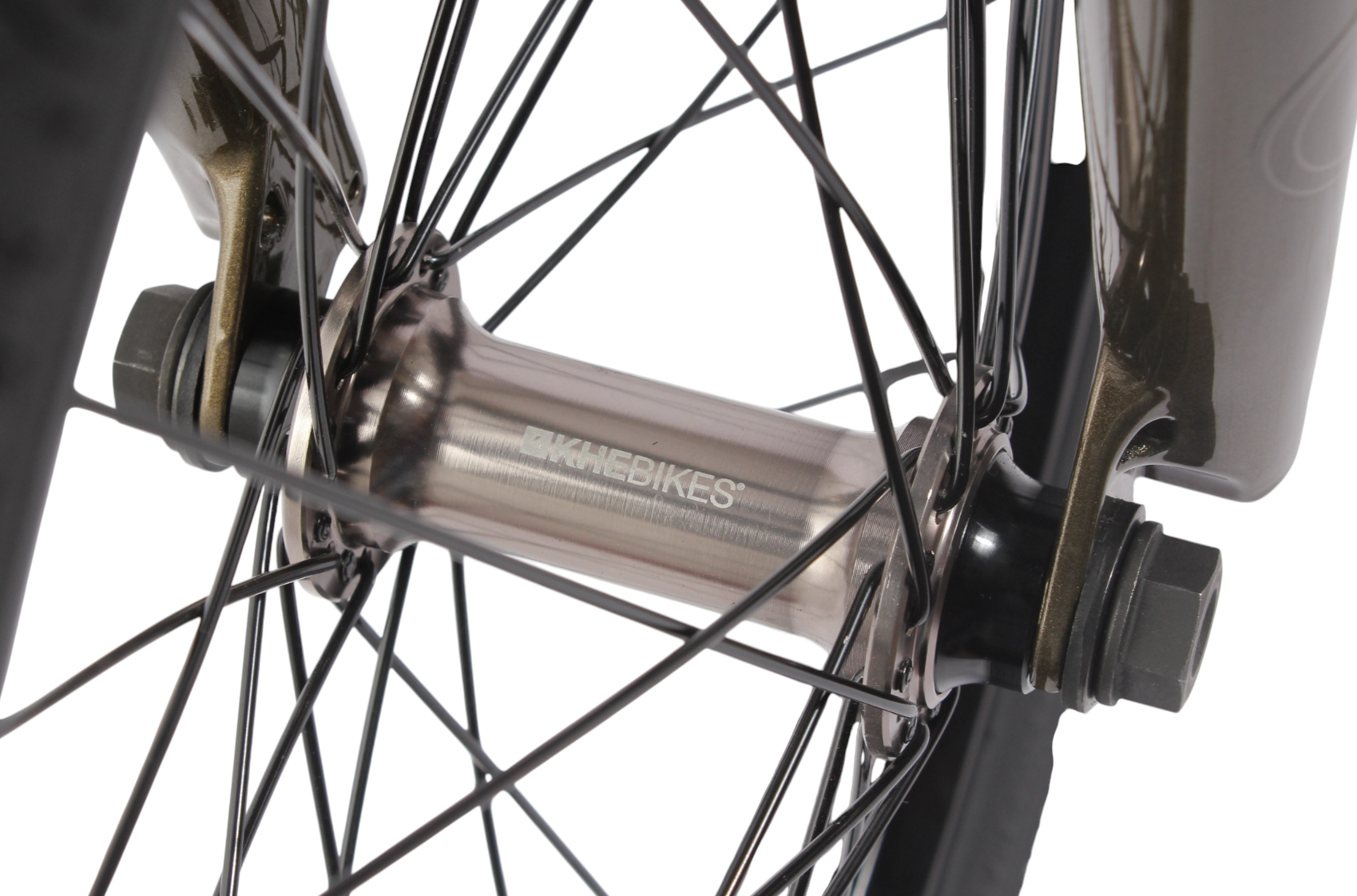

| Front wheel hub: | KHE GREYHOUND female CrMo axle & bolts 3/8", sealed industrial bearing |

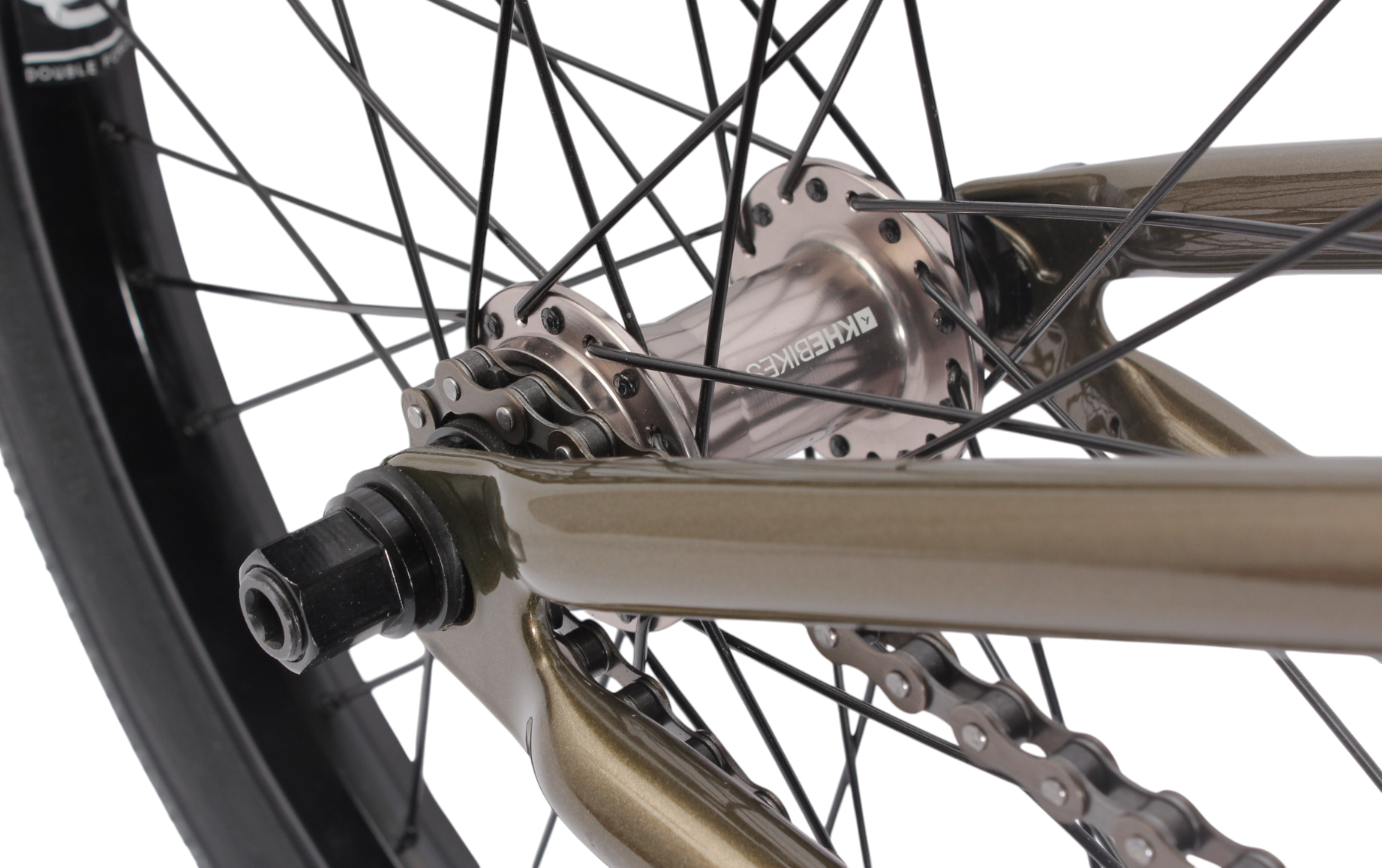

| Rear wheel hub: | KHE GREYHOUND cassette 9T, sealed industrial bearing, 170mm 14mm male, 36 holes |
| Rim: | KHE BIG400 V2 welded, double-wall |
| Tyres: | KHE MAC2+ folding tire Kevlar |
| Material: | CrMo 4130 butted, seamless drawn |
| Tire size: | 20 inch |
| Category: | Park, Street, Pumptrack |
| Size: | 20"; 4'11" - 6'3" in |
| Colour: | Gold |
| Weight: | 20.9lbs / 9,5kg |
| Model Year: | 2025 |
Ensure Compatibility:
This BMX bike is designed for riders approximately 150–190 cm tall. It is intended for park, pump track, and street riding. The maximum rider weight must not exceed 120 kg. Not suitable for downhill or high-jump use.
Assembly: Before first use, handlebar, rotor, brakes (if installed), wheels, stem, crank, and all safety-related parts must be securely mounted and checked. If used brakeless, ensure safe configuration.
Care and Maintenance:
Clean the bike regularly using a soft damp cloth. Do not use aggressive cleaning agents. Frequently inspect welds, bearings, titanium handlebar, chainring, rims, and Affix system for wear or looseness.
Store in a dry, weather-protected environment.
Replacement in Case of Wear: Replace any worn or damaged components (handlebar, rims, spokes, bearings, brakes, stem) immediately. Using faulty parts can lead to serious accidents or loss of control.
