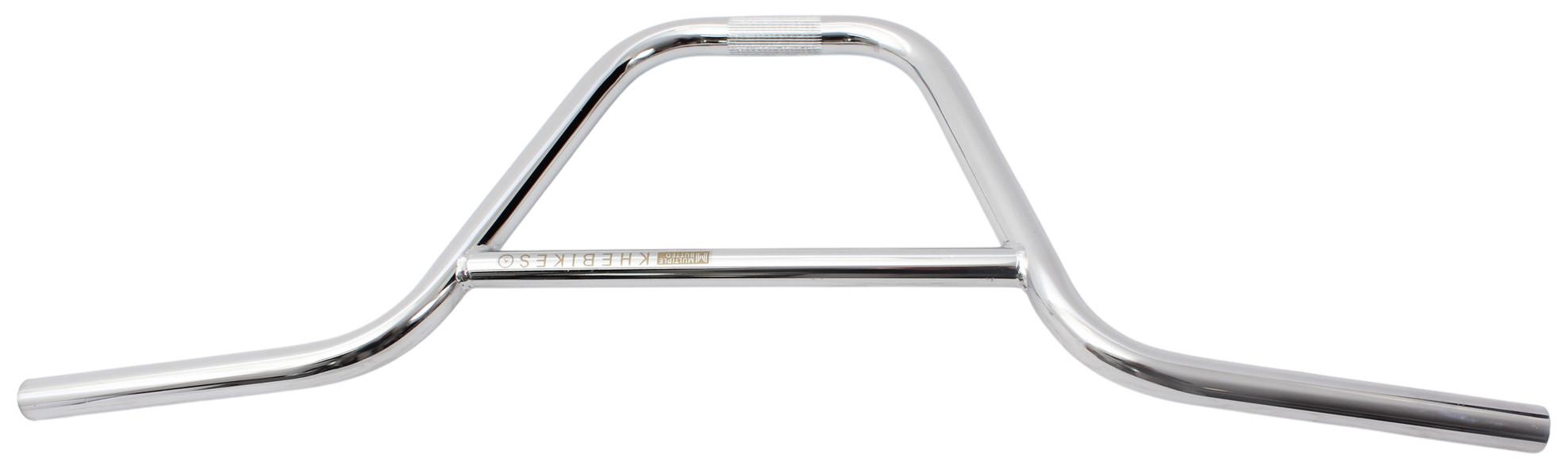

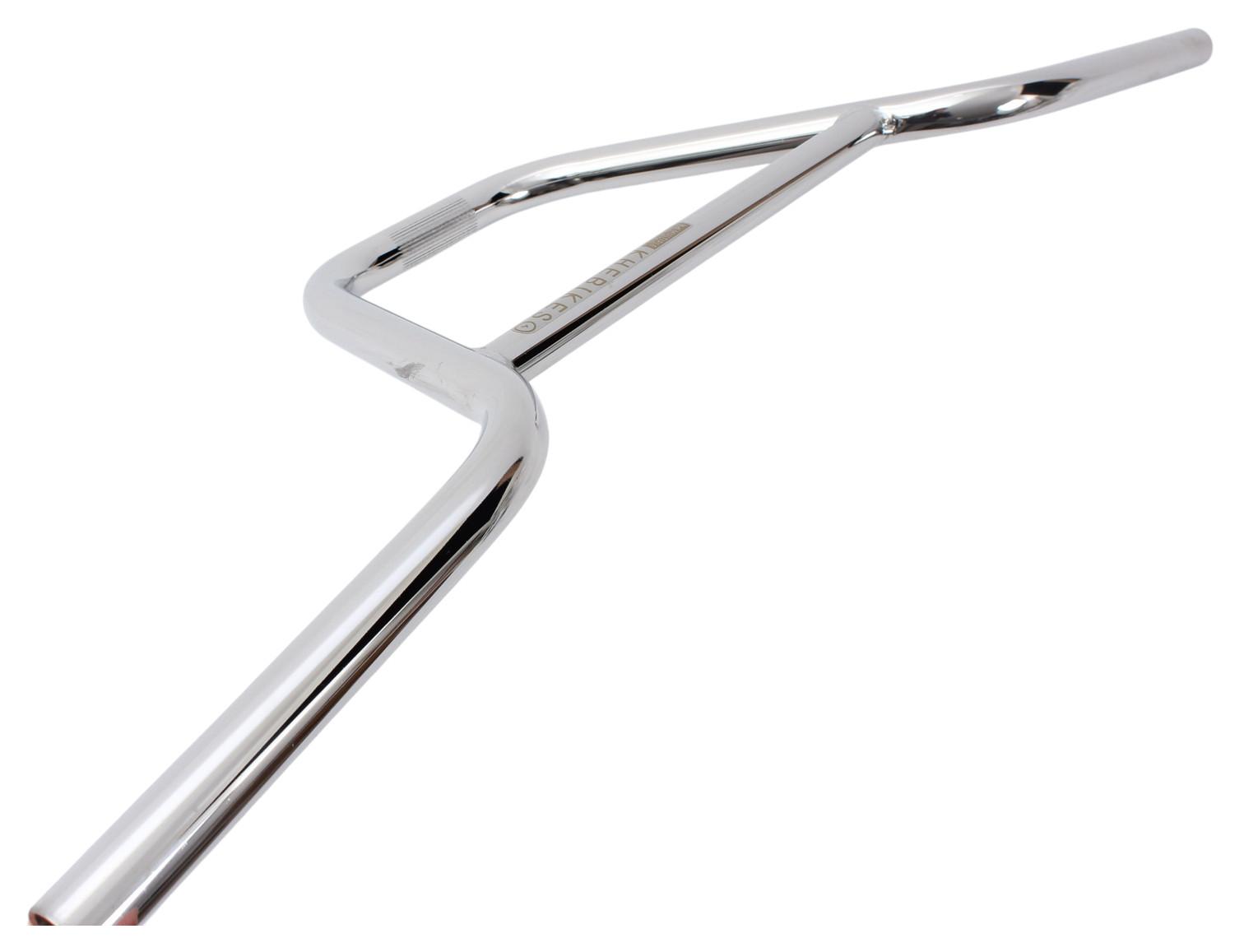

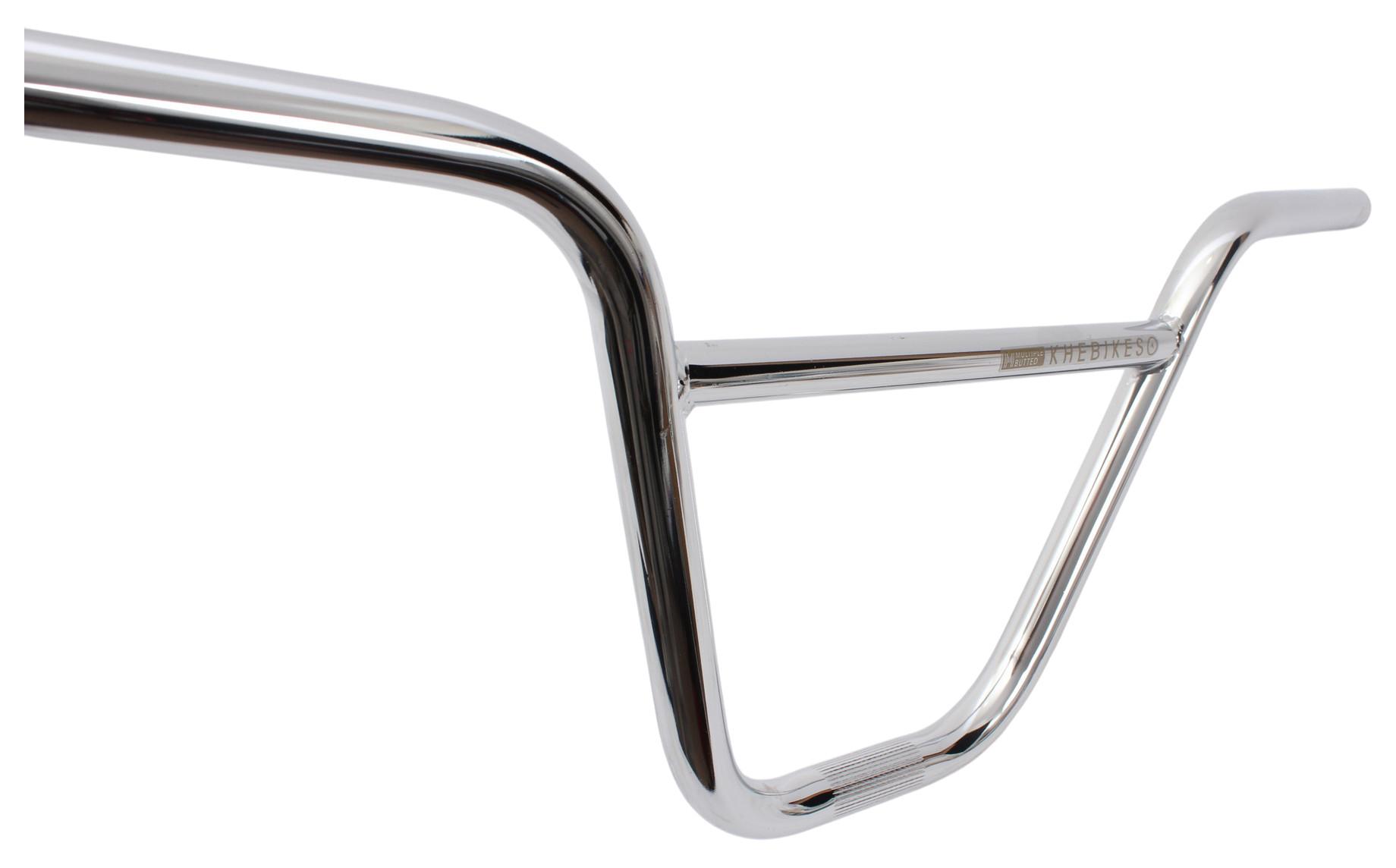

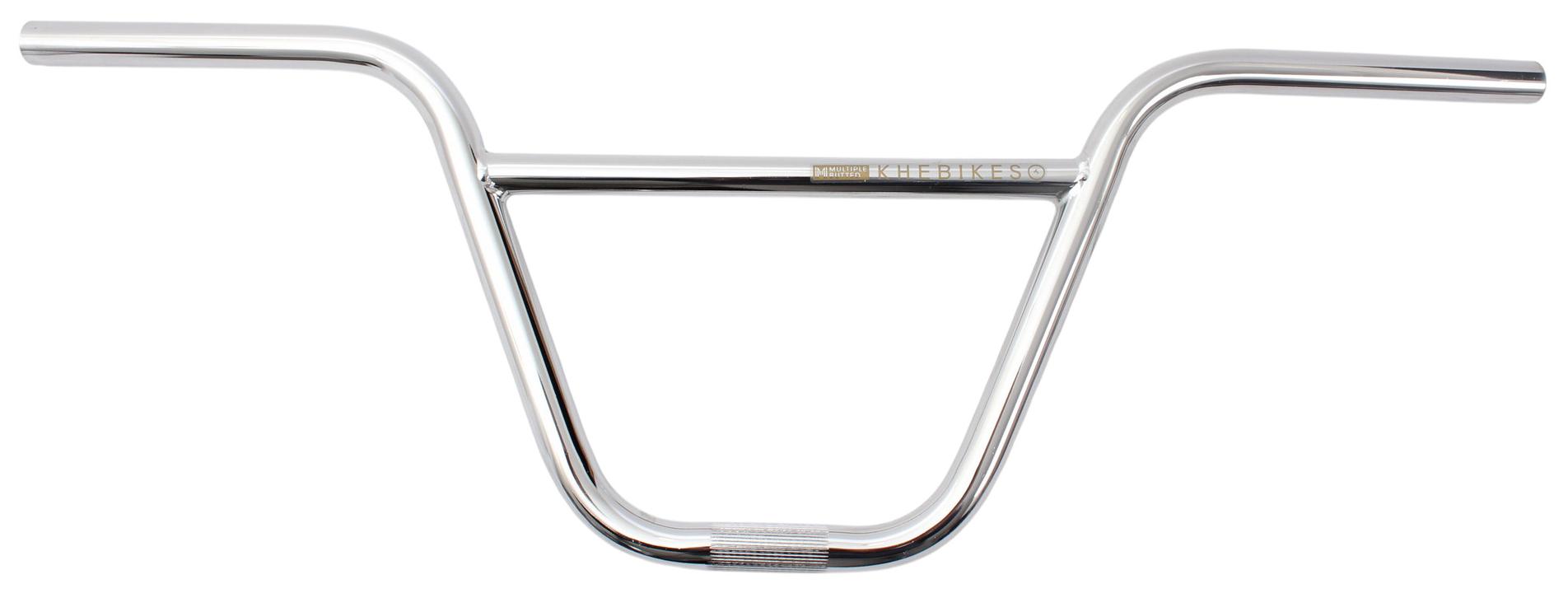

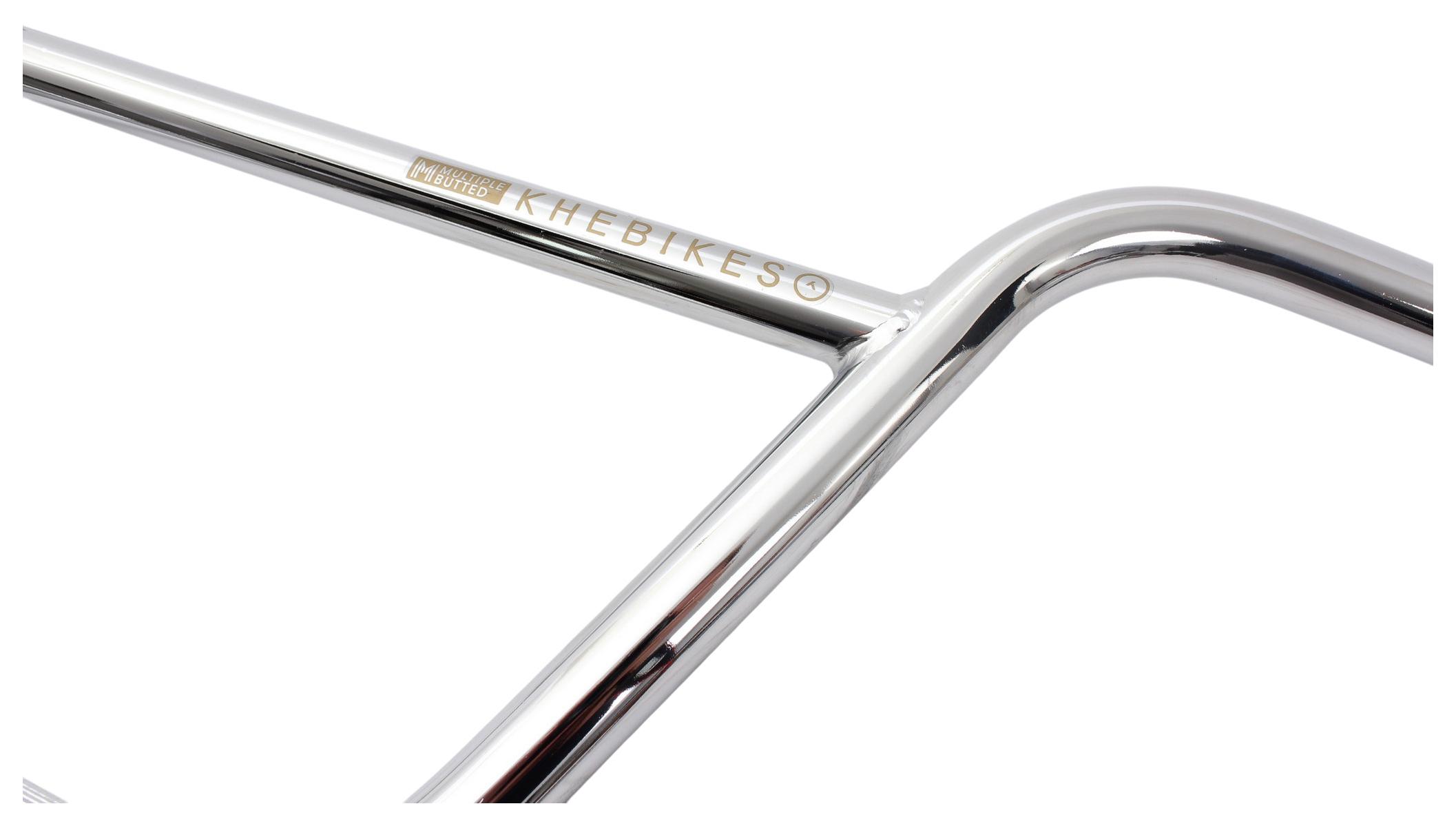

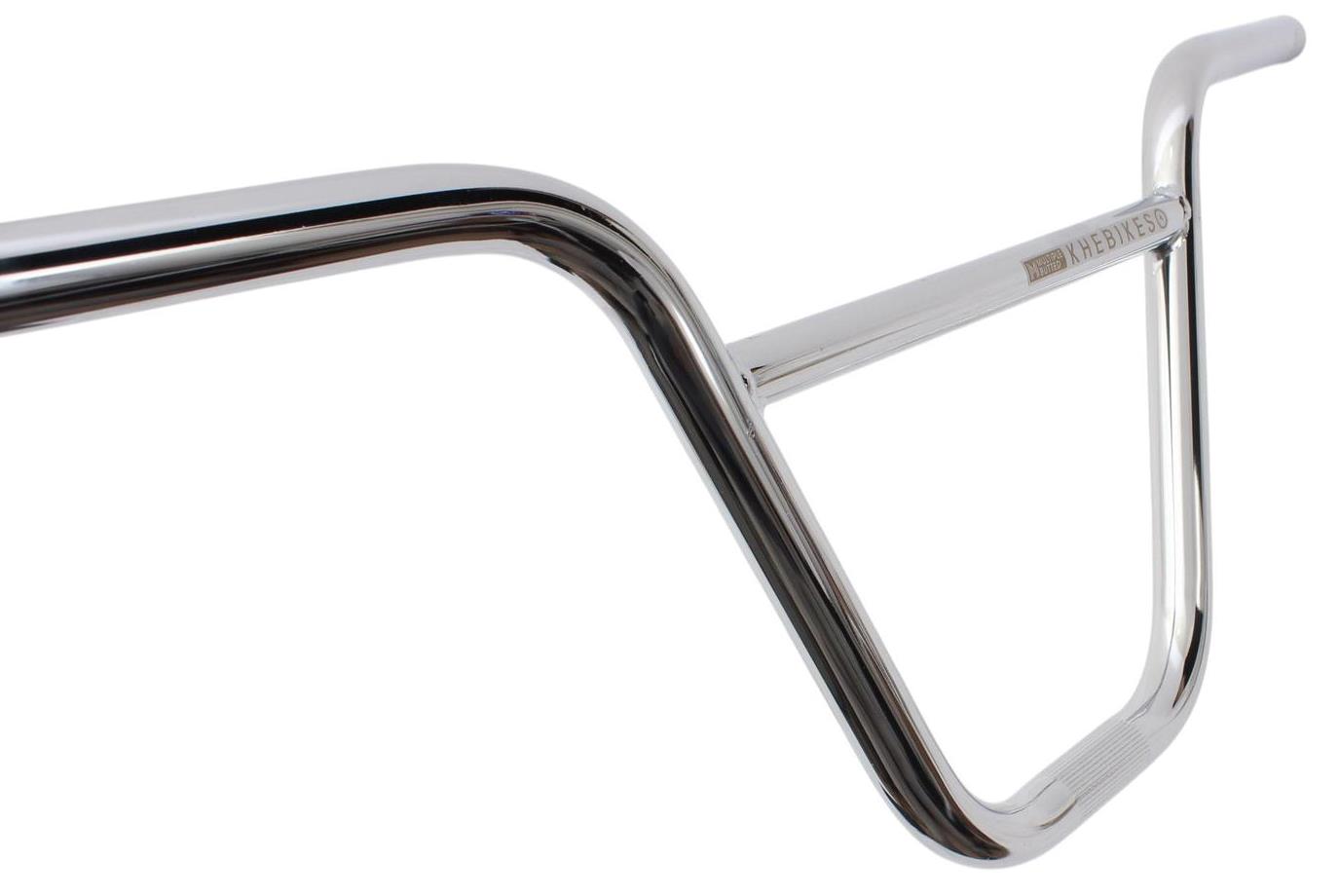

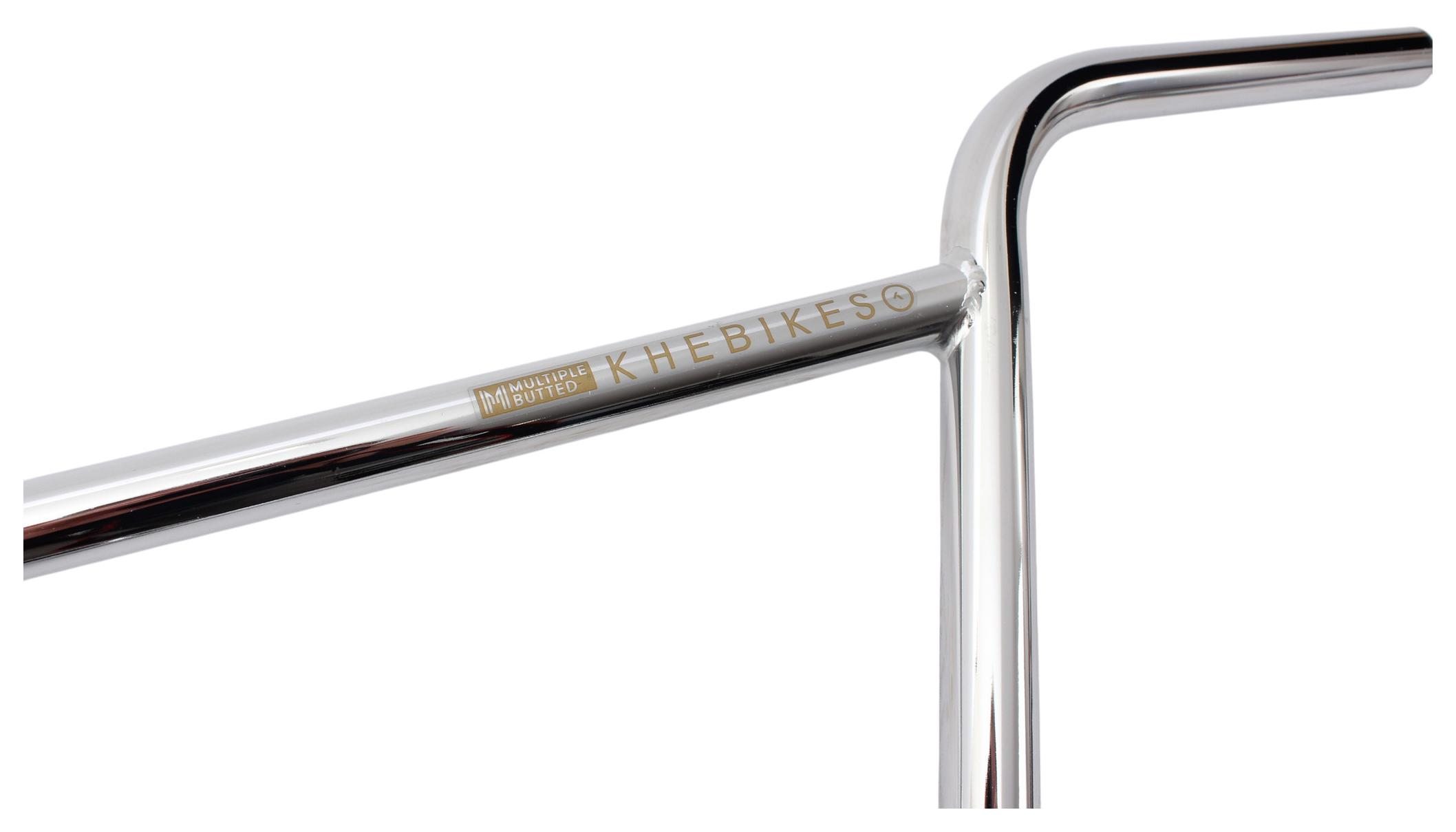

BMX Handlebar KHE PRISM 9" Chrome
The BMX handlebar KHE PRISM 9" Chrome is built for BMX freestyle riders who want a classic chrome look with dependable control. With a 720 mm (28.3 inch) width and 9" (228.6 mm) rise, it delivers confident leverage for street, park, and ramp riding.
Made from HiTen steel, this freestyle handlebar features an 11° backsweep and 2° upsweep for a comfortable wrist angle. The 22.2 mm (0.87 inch) clamp area is knurled for a secure stem grip, and the 1040 g (36.7 oz) weight keeps the setup solid and stable.
Product highlights
- 720 mm (28.3 inch) wide bar
- 9" (228.6 mm) rise for control
- 11° backsweep, 2° upsweep comfort

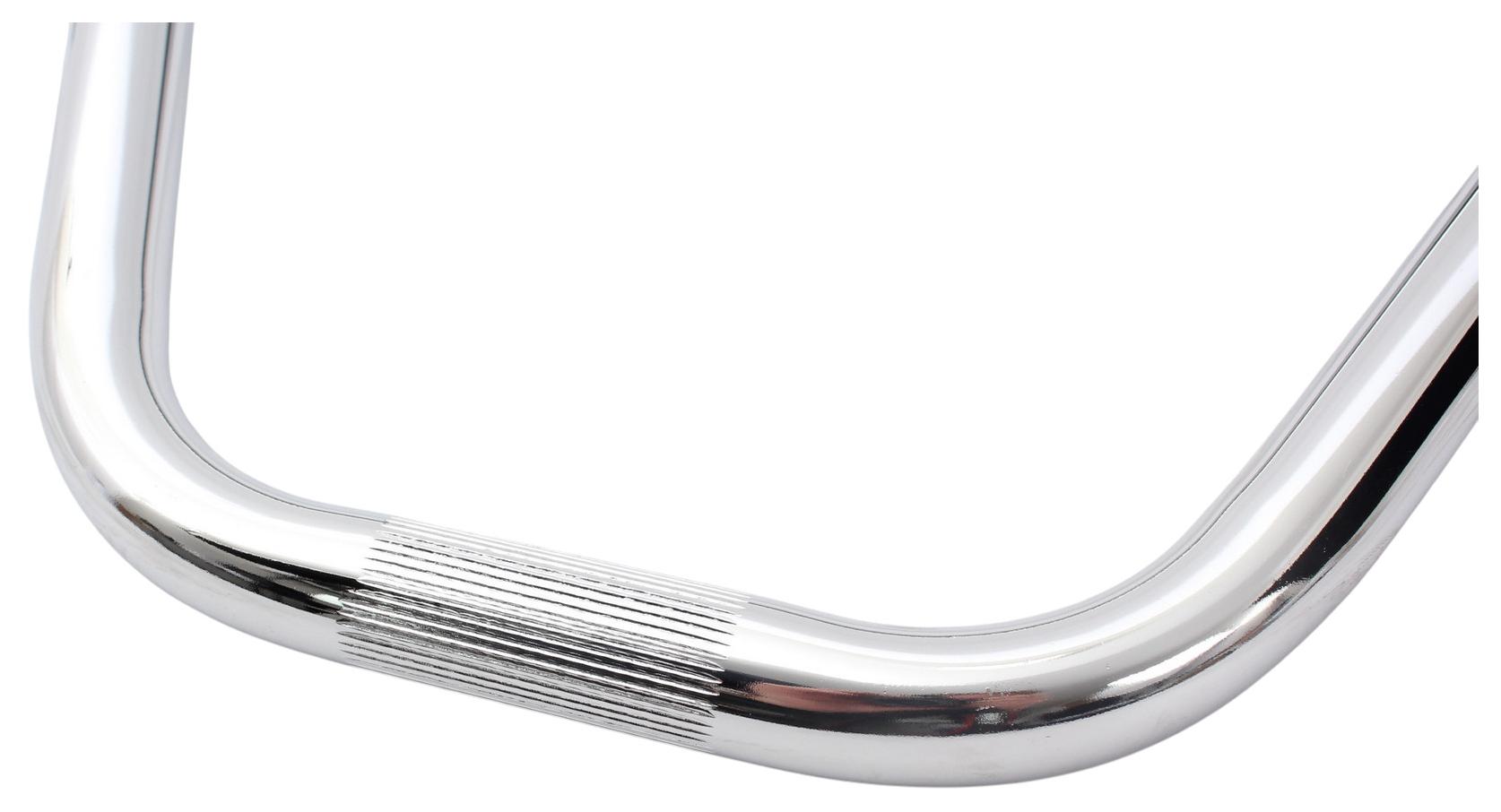

- 22.2 mm (0.87 inch) knurled clamp
- Chrome finish, durable HiTen steel
| Material: | HiTen steel |
|---|---|
| Colour: | Chrome |
| Weight: | 2.29 lbs / 1040 g |
| Backsweep: | 11° |
| Width: | 28.35" / 720mm |
| Height: | 9" |
| Clamping diameter: | 0.87" / 22,2 mm |
| Upsweep: | 2° |
Intended use: BMX handlebar for freestyle use in street, park and flatland. Suitable for compatible BMX stems with 22.2 mm clamp diameter. Do not use for other bicycle types or incompatible components.
Usage / installation instructions: Install the handlebar properly and tighten securely in the stem using appropriate torque. Check compatibility of handlebar and stem. Before every ride, ensure correct alignment and secure fit. Inspect for cracks after impacts or heavy use. Risk of accident due to incorrect installation or damage.
Care and cleaning: Clean with a soft cloth and mild detergent. Do not use aggressive cleaners or solvents. Check regularly for damage and store in a dry place.
Replacement in case of wear: Inspect regularly for cracks, deformation or material fatigue. Replace immediately after heavy crashes or if damage is visible.
