US$12.95*
Available, delivery time: 5-15 business days **

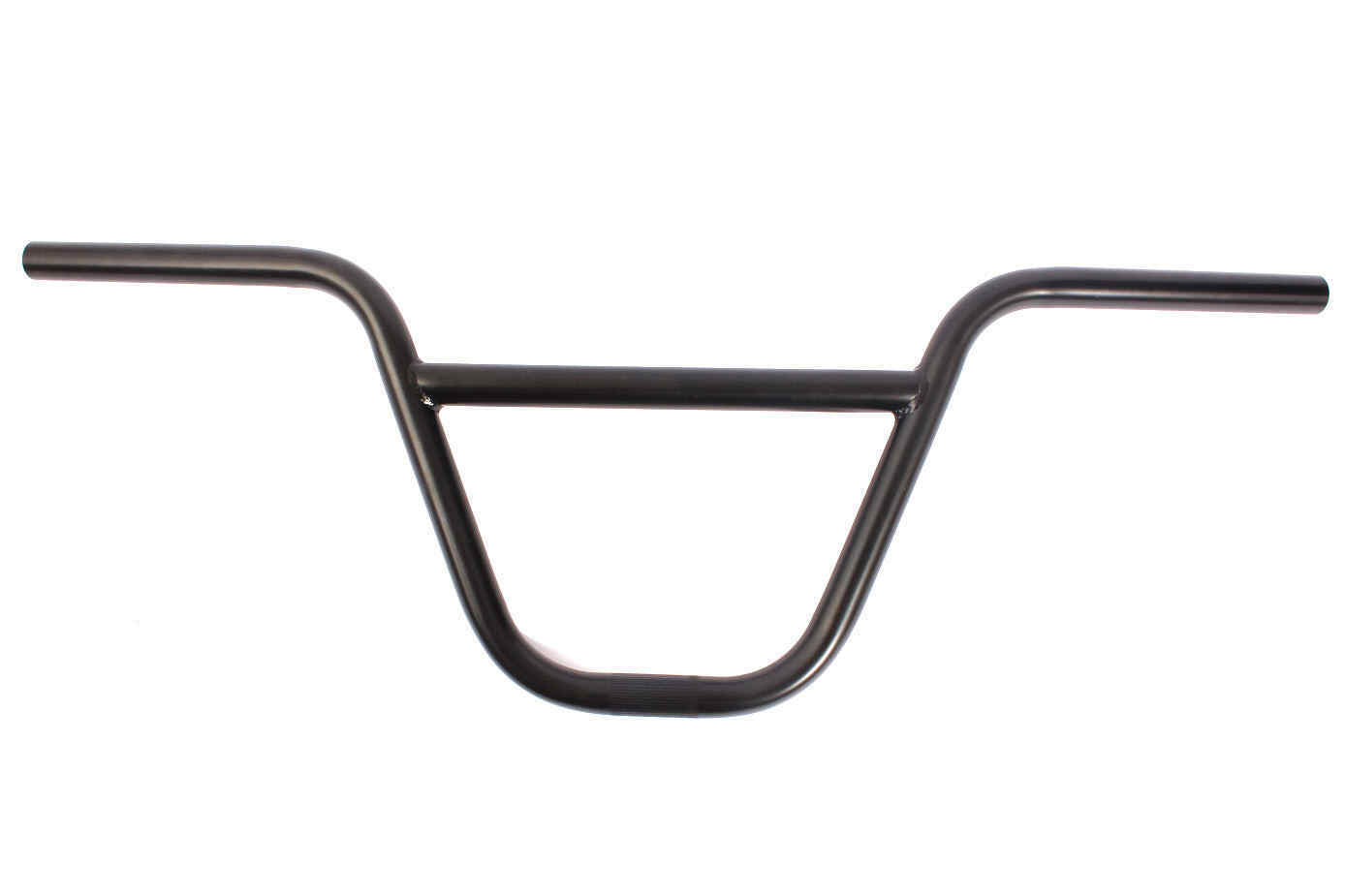

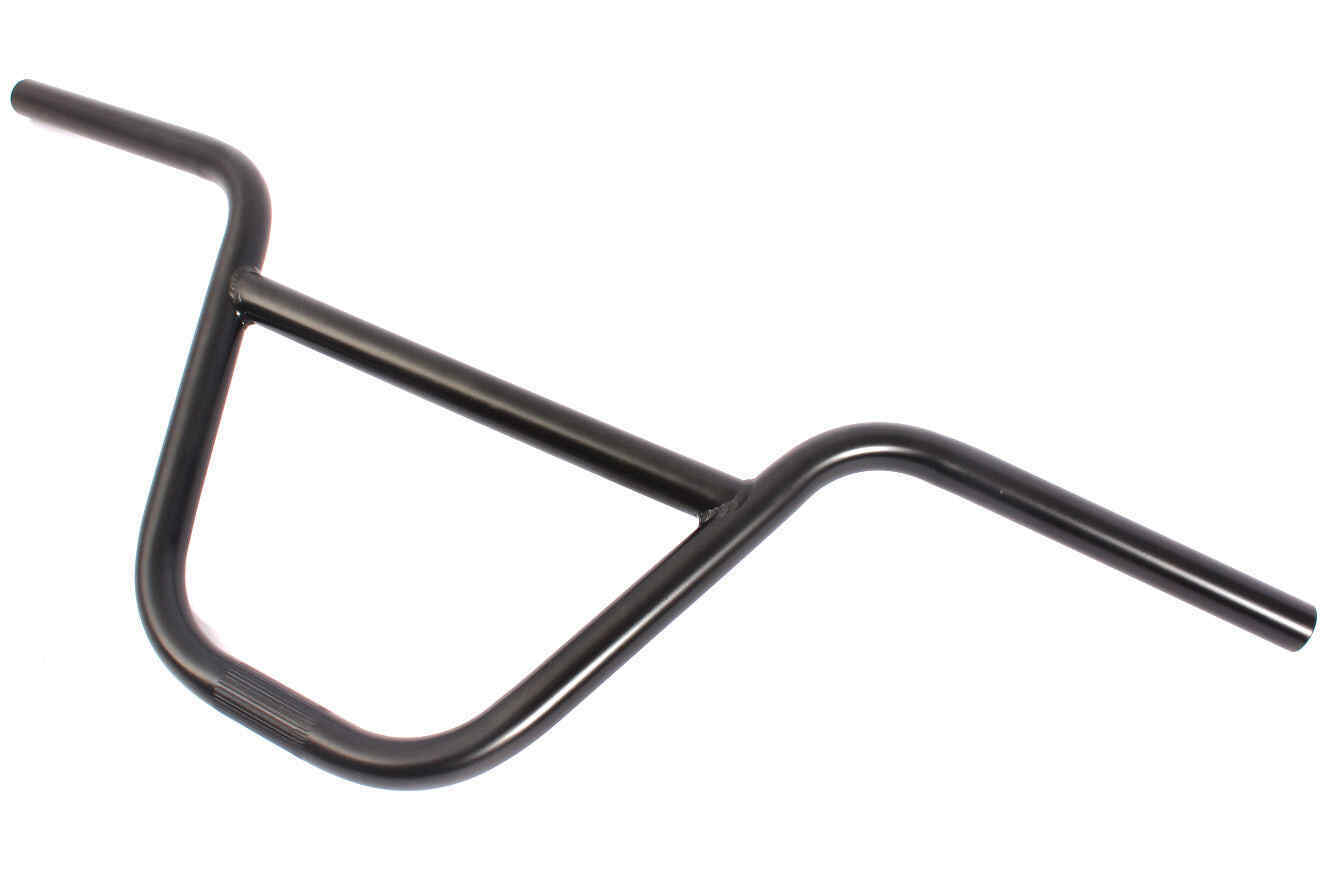

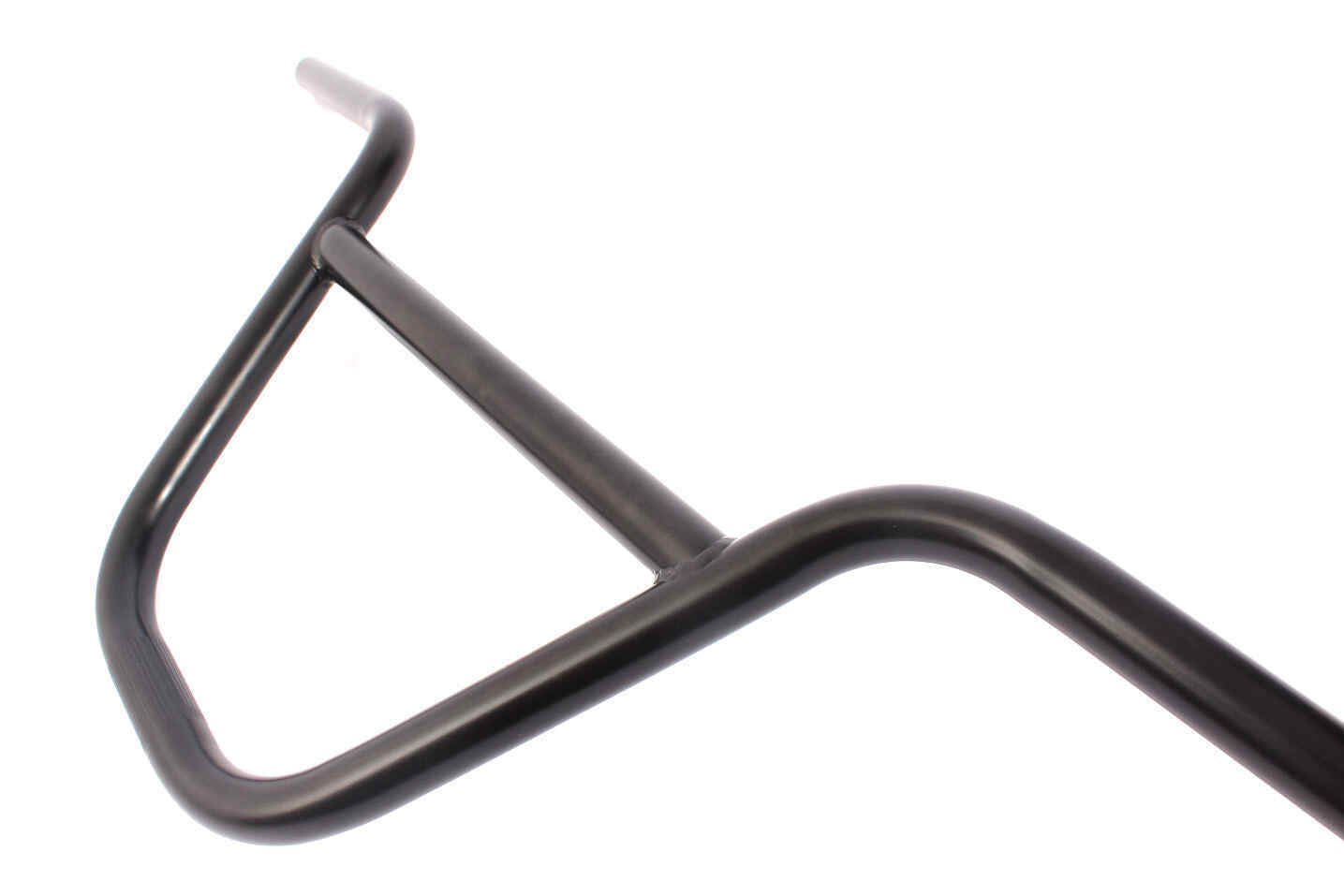

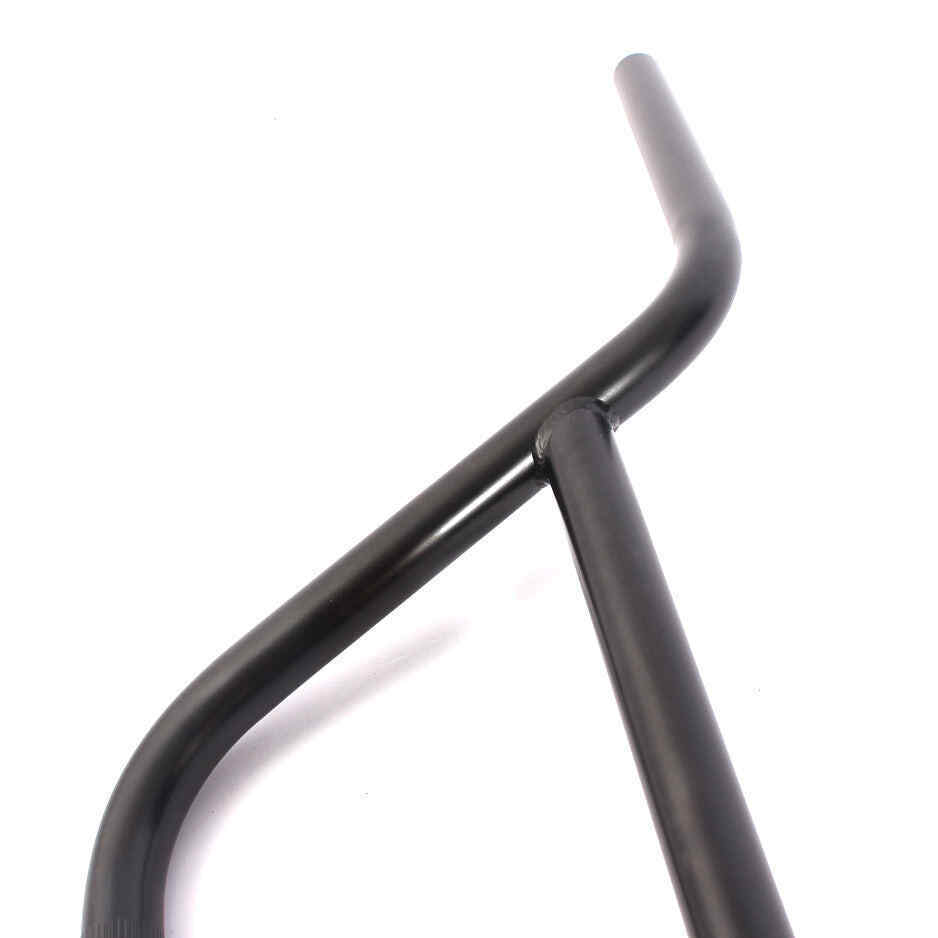

Outstanding KHE Prism handlebars with ribbed handlebar clamp for optimum grip.
PRISM 9" Inch BMX Handlebar made of high-strength HiTen steel
With its 9" inch height, this handlebar has optimal geometry for BMX freestyle riding. The knurling at the stem clamp ensures a firm and secure connection with the stem. The KHE Prism handlebar has been specially powder-coated in black, making the surface very durable.
Overview of data:
- Brand: KHE PRISM
- Color: black
- Powder-coated
- Weight: only 812g
- Material: High-strength HiTen steel
- Width: 720mm
- Height: 9" inch / 228.6mm
- Backsweep: 11° degrees
- Upsweep: 2° degrees
- Clamp: 22.2mm

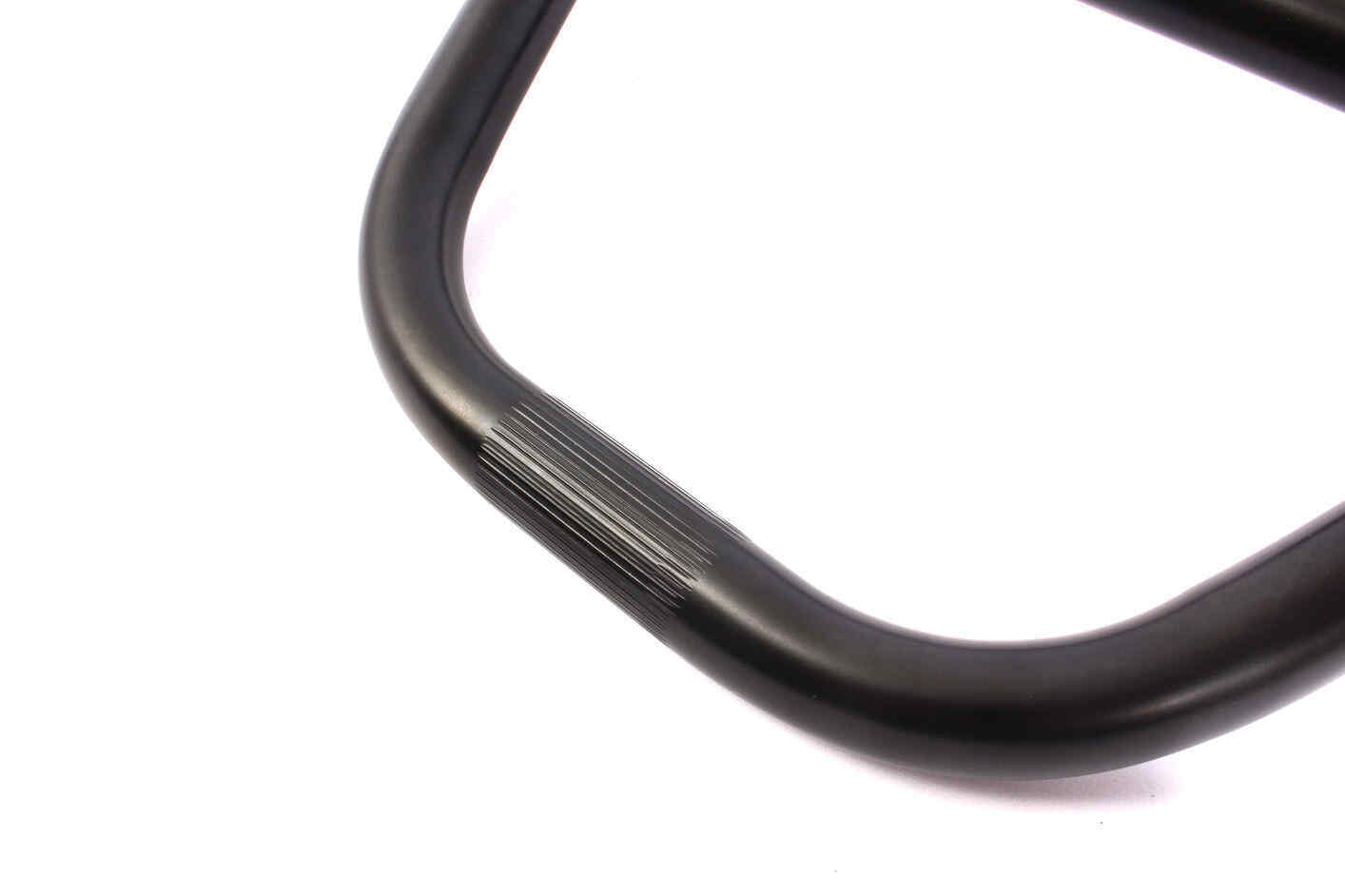

- Knurled handlebar clamp for better grip
| Backsweep: | 11° |
|---|---|
| Clamping diameter: | 0.87" / 22,2 mm |
| Colour: | Black |
| Height: | 9" |
| Material: | HiTen steel |
| Upsweep: | 2° |
| Weight: | 1.79 lbs / 812g |
| Width: | 28.35" / 720mm |
Ensure Compatibility: Make sure that the BMX handlebar fits your frame and stem. Proper handlebar clamping is essential for a stable connection. Tighten the handlebar clamp crosswise with 8 Nm.
Suitable for Tricks and Stunts: The handlebar is designed for BMX tricks and hard landings. It is intended exclusively for BMX use.
No Modifications: Do not perform modifications such as drilling or cutting on the handlebar.
Use in Rain: Clean and dry the handlebar after riding in the rain to prevent rust formation.
Regular Inspection for Cracks and Deformations: Regularly inspect the BMX steel handlebar for cracks, deformations, or hairline cracks, especially at the weld seams. Replace the handlebar immediately if cracks or damage are found.
