$44.95*
% $54.66* (17.76% saved)Available, delivery time: 5-10 business days **

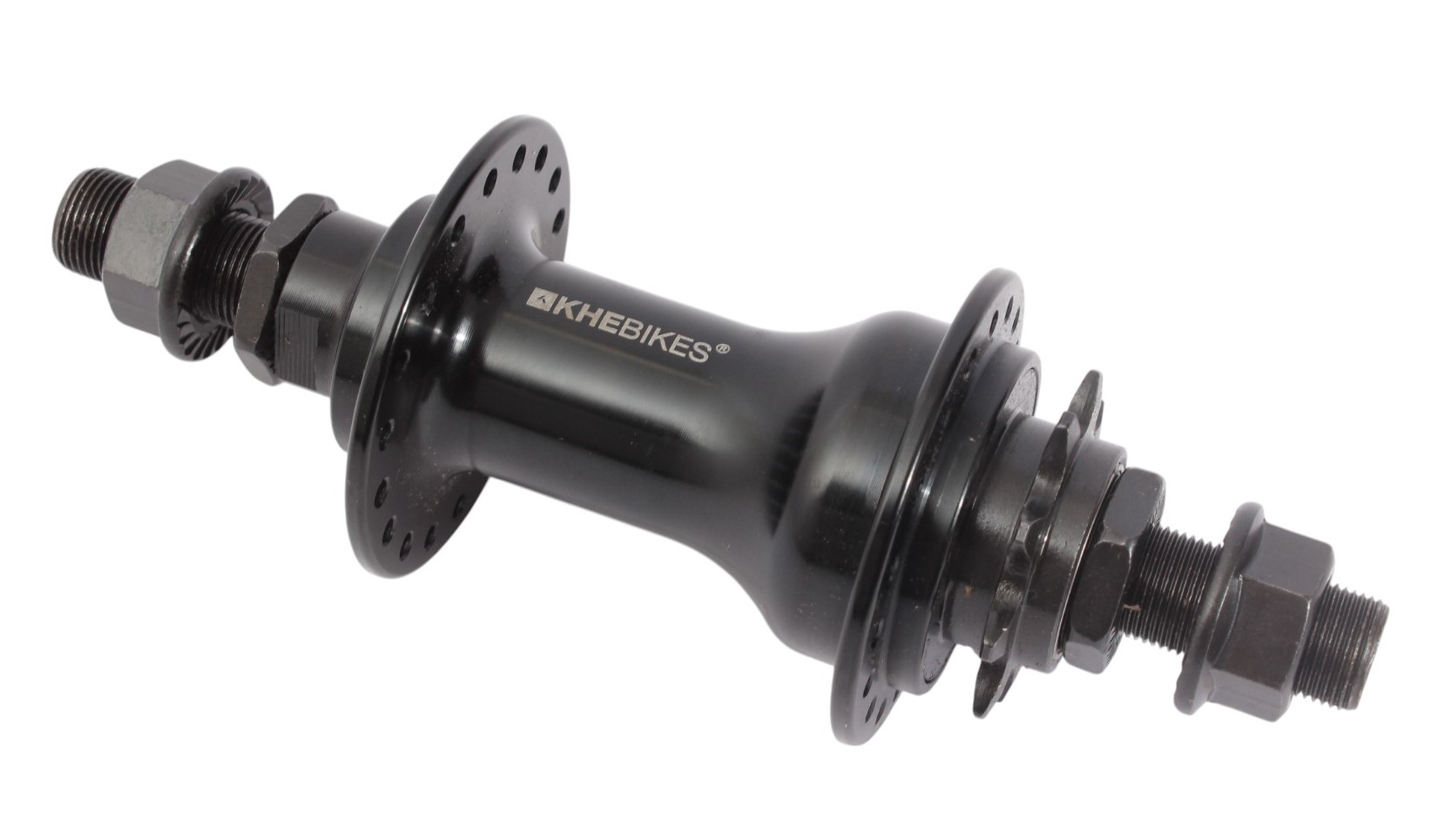

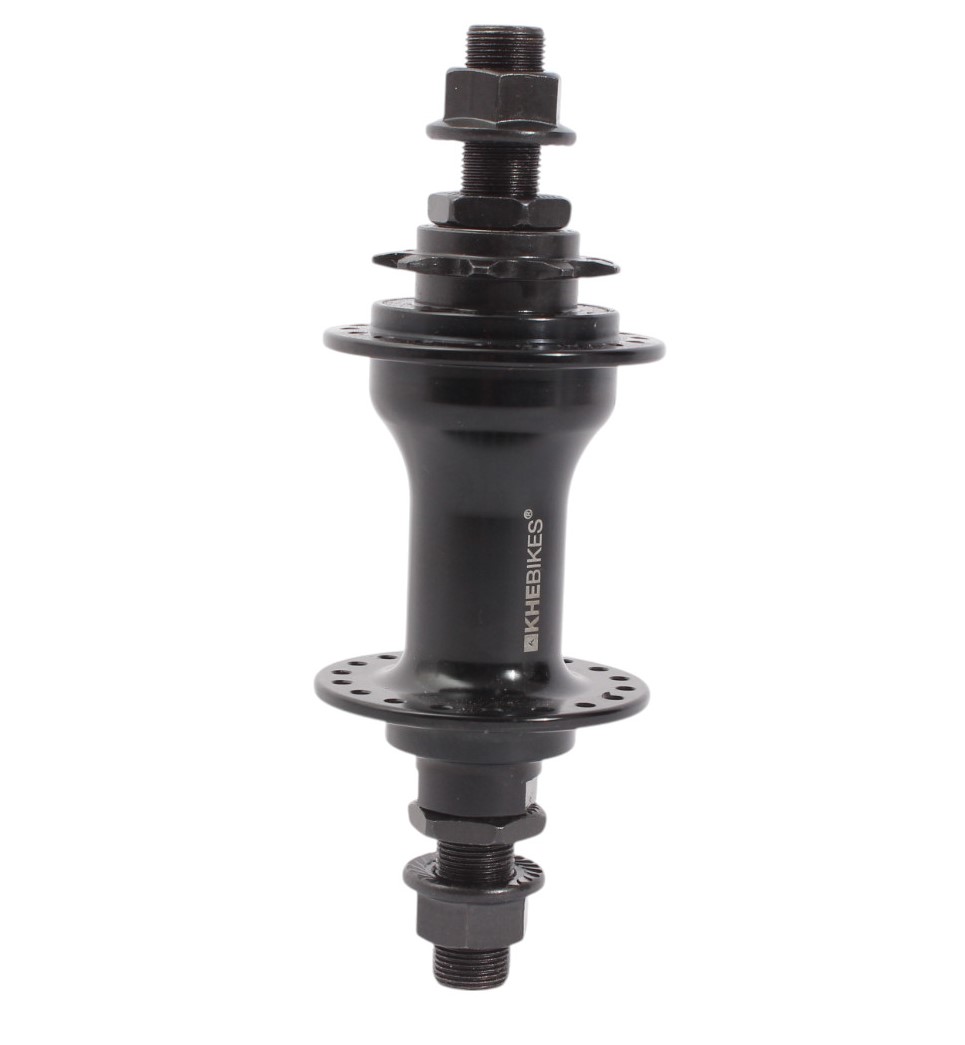

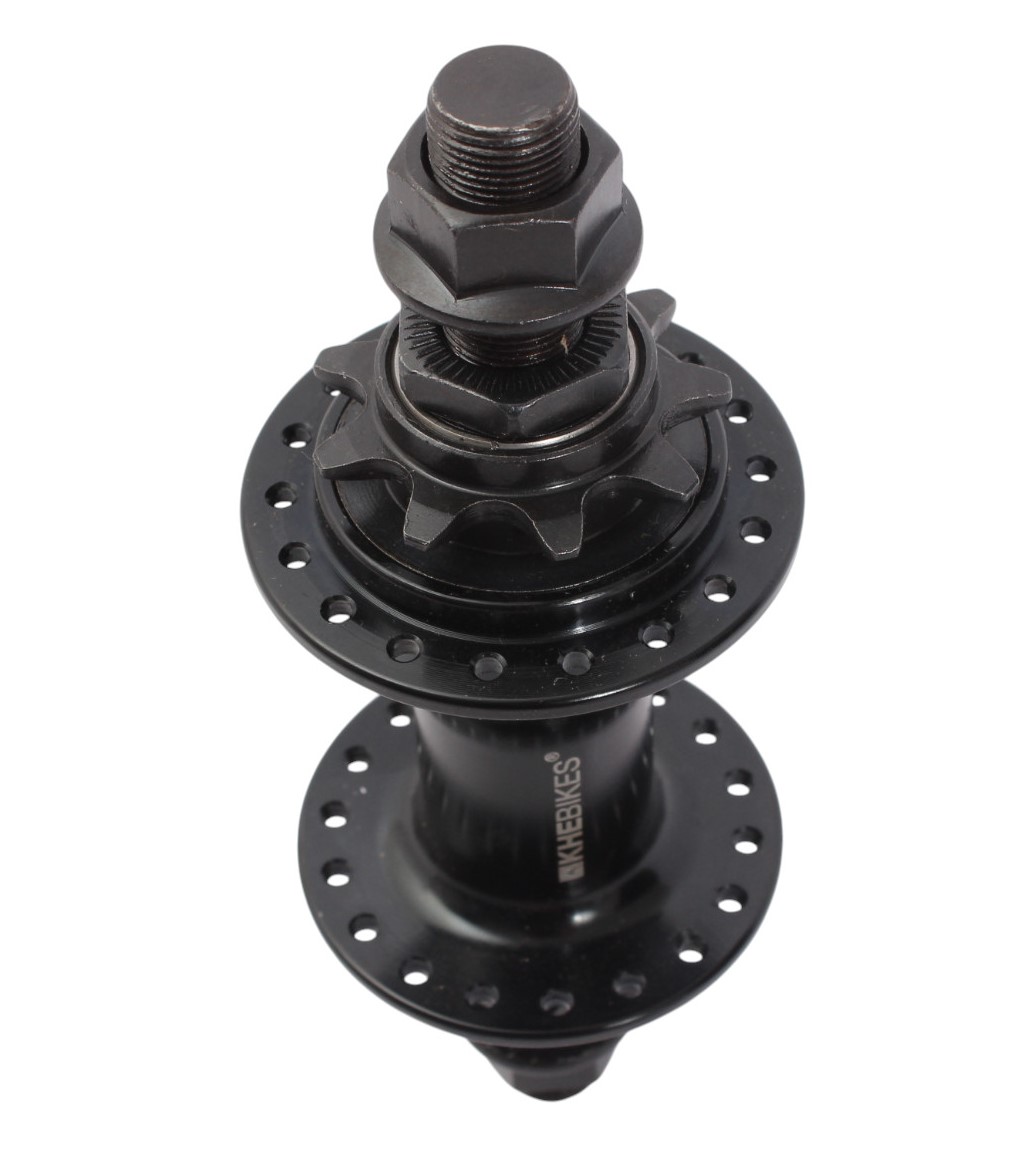

KHE ACME Aluminum Hub – 9 Teeth Sprocket, Black
The KHE ACME Hub impresses with its high-quality craftsmanship and stability. With sealed, smooth-running industrial bearings, rolling resistance is minimized, making it very smooth. Made from high-quality 7005 aluminum and equipped with a 14 mm axle made of 4130 CrMo steel, this hub offers maximum stability at only 1.11 lbs. Perfect for BMX riders who rely on high-quality and durable components.
Overview:
- Brand: KHE
- Color: Black
- Material: 7005 Aluminum
- Bearings: Industrial Bearings / Deep Groove Ball Bearings (sealed bearing)
- Axle: 14 mm, 6.5 inches long
- Axle Material: 4130 CrMo
- Spoke Hole Count: 36 holes (designed for 2.0 spokes)
- Spoke Hole Diameter: 1.93 inches
- Sprocket: 9 Teeth
- Weight: only 1.11 lbs
- Features: Smooth running, extremely durable
The KHE ACME parts line stands for quality and reliability – ideal for BMX riders who rely on top materials and excellent performance.
| Material: | 4130 CrMo |
|---|---|
| Colour: | Black |
| Weight: | 1.111lb |
| Axis length: | 6.5" / 165mm |
| Number of holes: | 36H |
| Teeth: | 9T |
Ensure Compatibility:
This rear hub is designed for BMX bikes with 14 mm dropouts and 36 spoke holes. It is not compatible with quick-release systems or other axle standards. Ensure proper fit with compatible rims, 2.0 mm spokes, and a 9T sprocket.
Assembly: The hub must be correctly laced, trued, and mounted. The axle must be secured evenly with appropriate nuts. Before each ride, check that all fasteners are tight.
Care and Maintenance:
Clean the hub regularly with a soft cloth. Do not use solvents or aggressive cleaning products. Periodically inspect bearing play, sprocket condition, and axle integrity.
Store the wheel in a dry and protected place.
Replacement in Case of Wear: If there is bearing play, deformation, cracks, or wear on the sprocket or axle, the hub must be replaced immediately. Continued use can lead to failure or accidents.
