Quality 7005 aluminum sidepull brake for the front wheel. The brake shoes can be adjusted in height.
Product number:
BR300
EAN:
4260640294054
Product information "BMX Sidepull brake front KHE PRISM"
Sidepull Cantileverbrake for front wheel

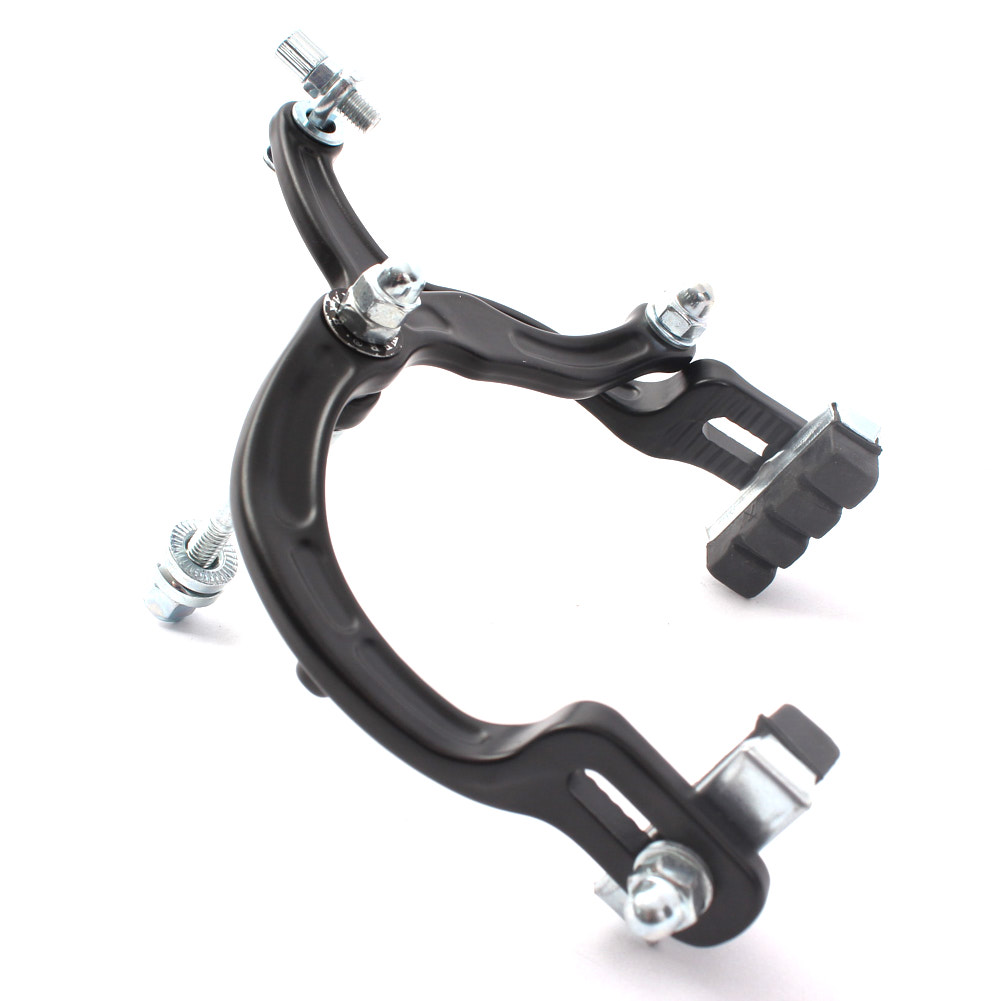

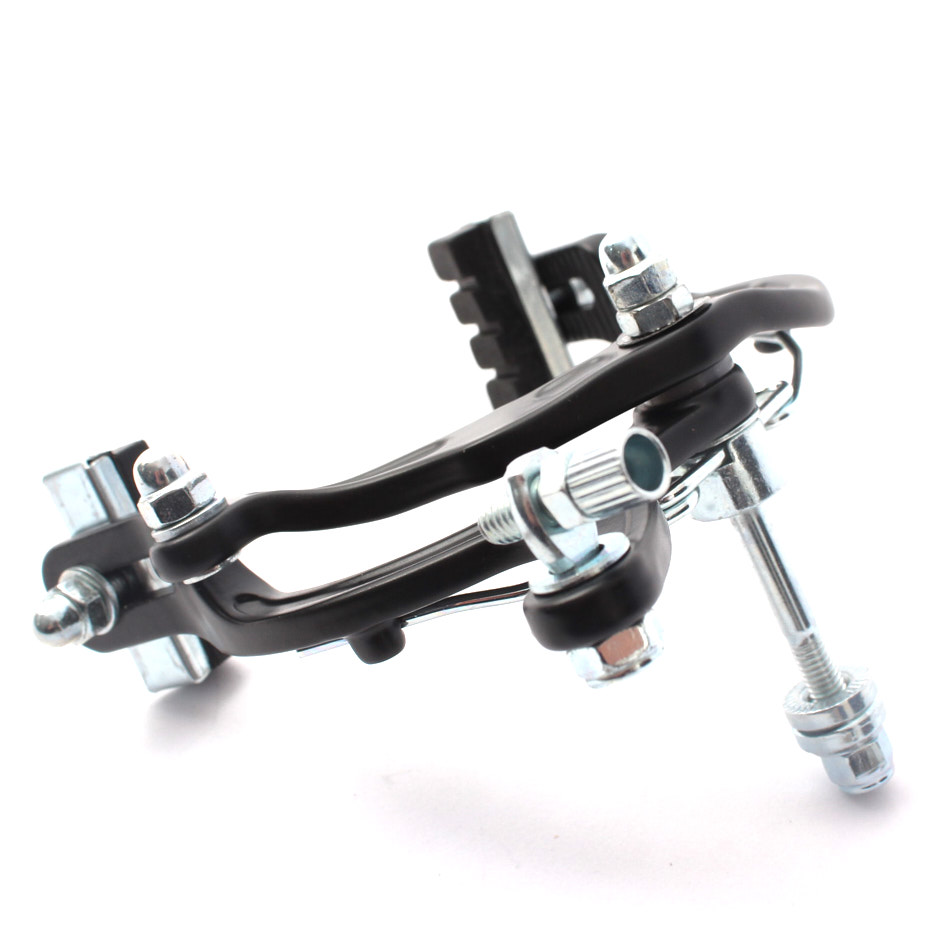

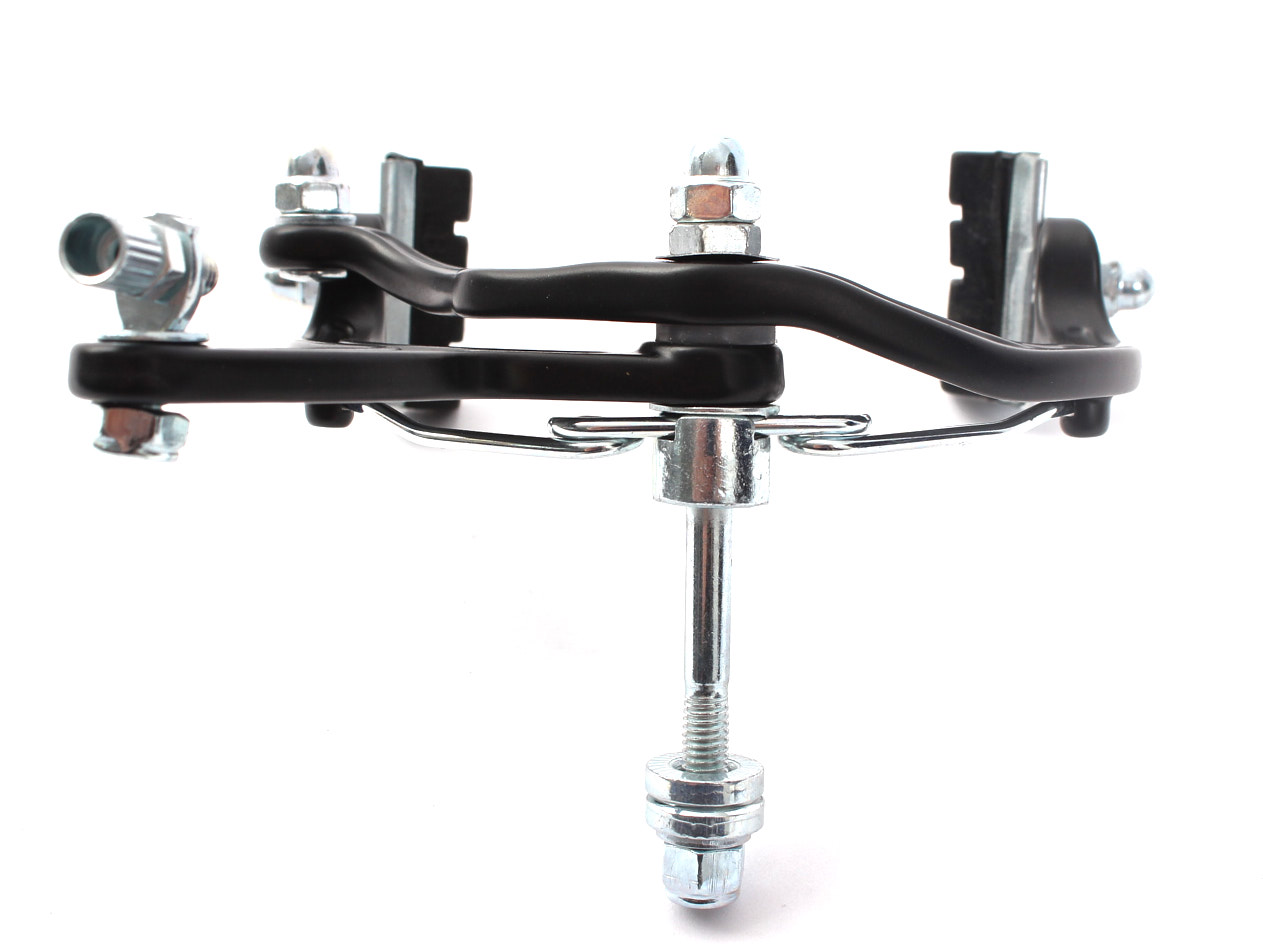

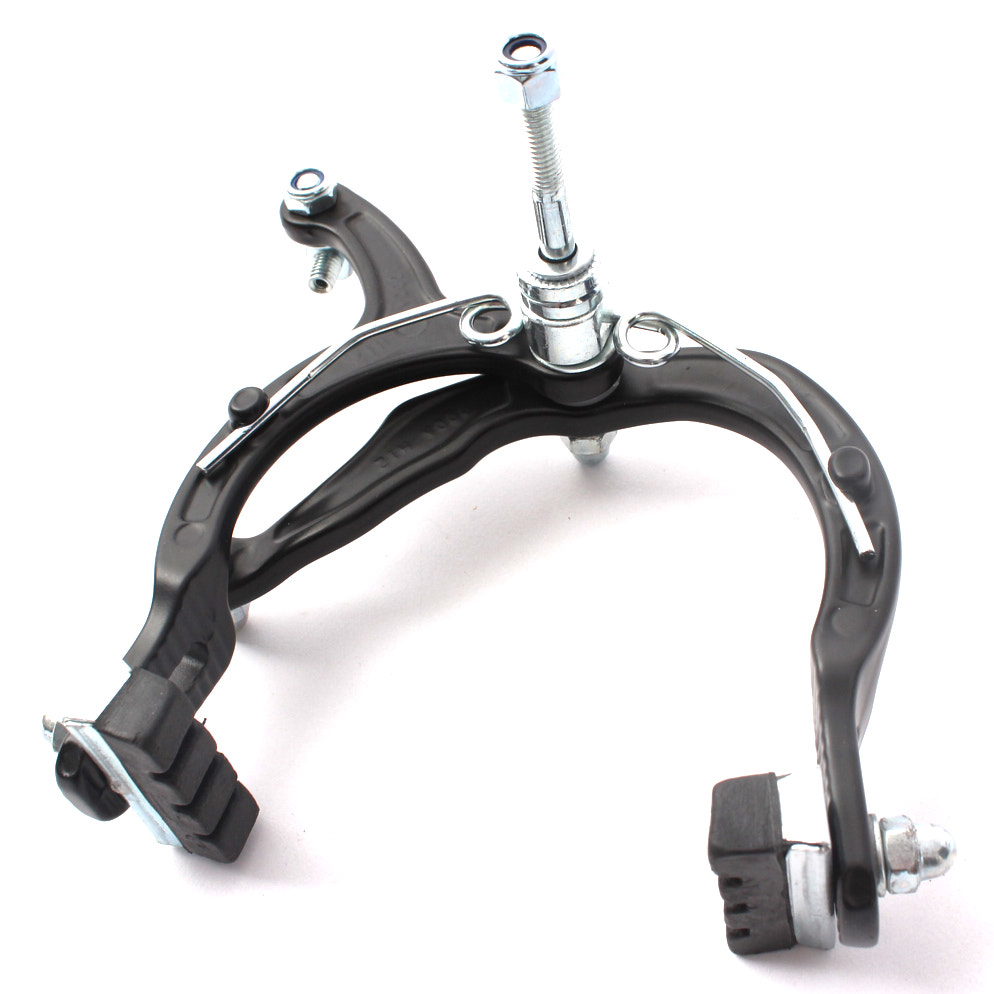

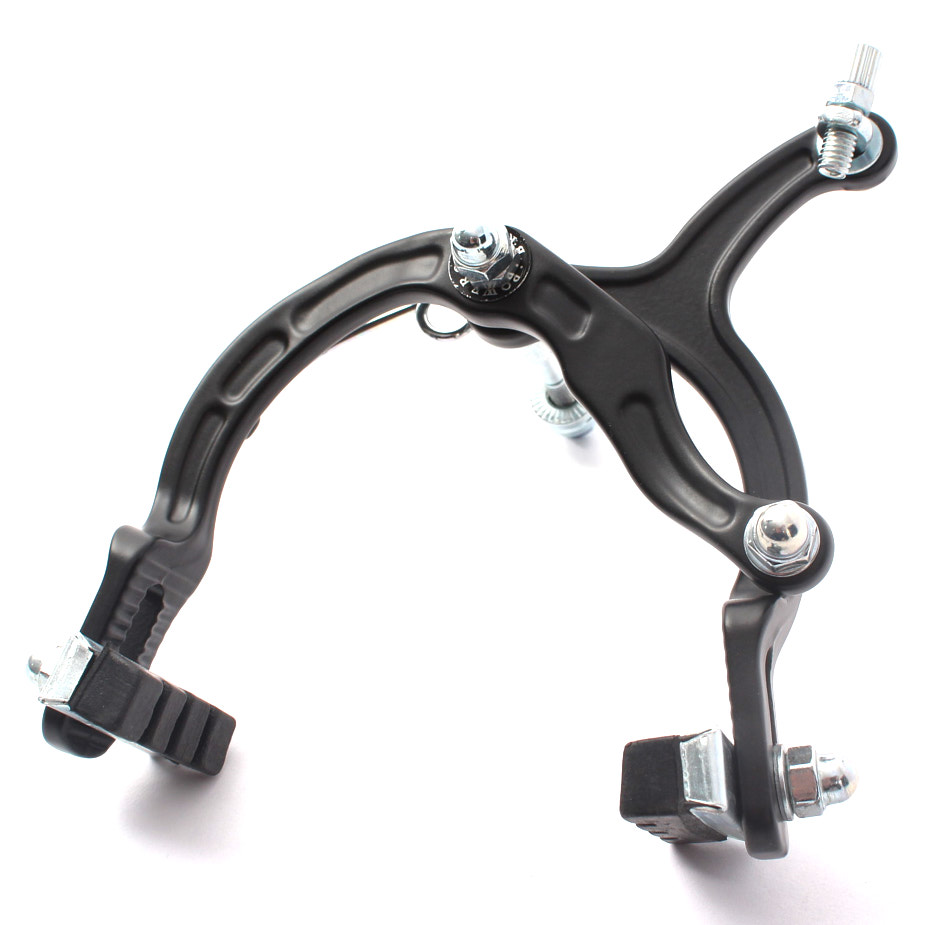

Our new Sidepull brake is made of aluminium and is also used on our KHE BMX bikes. The clamping & guiding of the brake can easily be changed. This is the case when the brake cable is guided through the fork & you have to clamp the cable at the upper part of the brake. This brake has a very good spring tension.
Our new Sidepull brake is made of aluminium and is also used on our KHE BMX bikes. The clamping & guiding of the brake can easily be changed. This is the case when the brake cable is guided through the fork & you have to clamp the cable at the upper part of the brake. This brake has a very good spring tension.
Specifications:
- PRISM
- Function: frontbrake
- brake shoes: These can only be adjusted in height but not in angle. For angle-adjustable brake shoes, we recommend our grey or transparent brake shoes.
- Tire size up to 2,40"
| Brake type: | Side-pull brake |
|---|---|
| Colour: | Black |
| Dimensions: | Highest and lowest brake shoe position is 93mm - 74mm |
| Height: | 2.36" / 6cm |
| Length: | 5.12" / 13 cmm |
| Material: | 7005 Aluminum |
| Size: | Up to 2.40" tires |
| Weight: | 6.77 oz / 192g |
| Width: | 3.93" / 10cm |
Product Safety Instructions for BMX Front Sidepull Brake KHE PRISM:
Scope of Use:
The sidepull brake is intended for bicycles and BMX bikes in everyday riding situations, primarily on smooth surfaces. It is not suitable for extreme off-road rides or intense freestyle BMX sports.
Installation:
The sidepull brake must be securely mounted to the designated fitting on the frame or fork. Check that the central screw is securely in place and fully tightened.
No Modifications: Do not perform modifications such as drilling or cutting on the brake.
Use in Rain:
Braking performance may be reduced when wet or on dirty surfaces. In these conditions, maintain an anticipatory and cautious riding style.
Regular Inspection: The brake arms and brake pads should be regularly checked for alignment to ensure consistent braking force and optimal braking performance. Replace the brake immediately if damaged.
