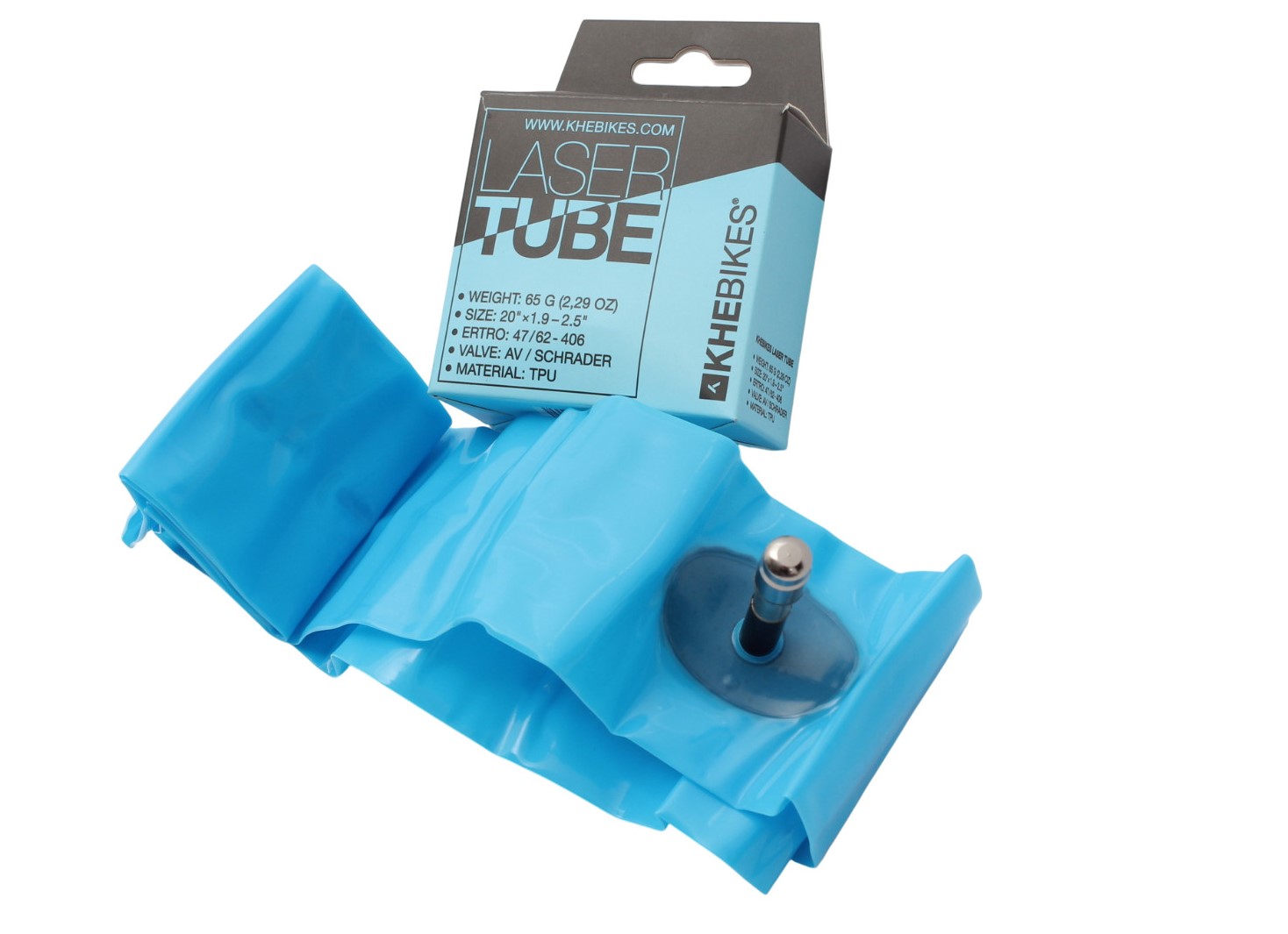

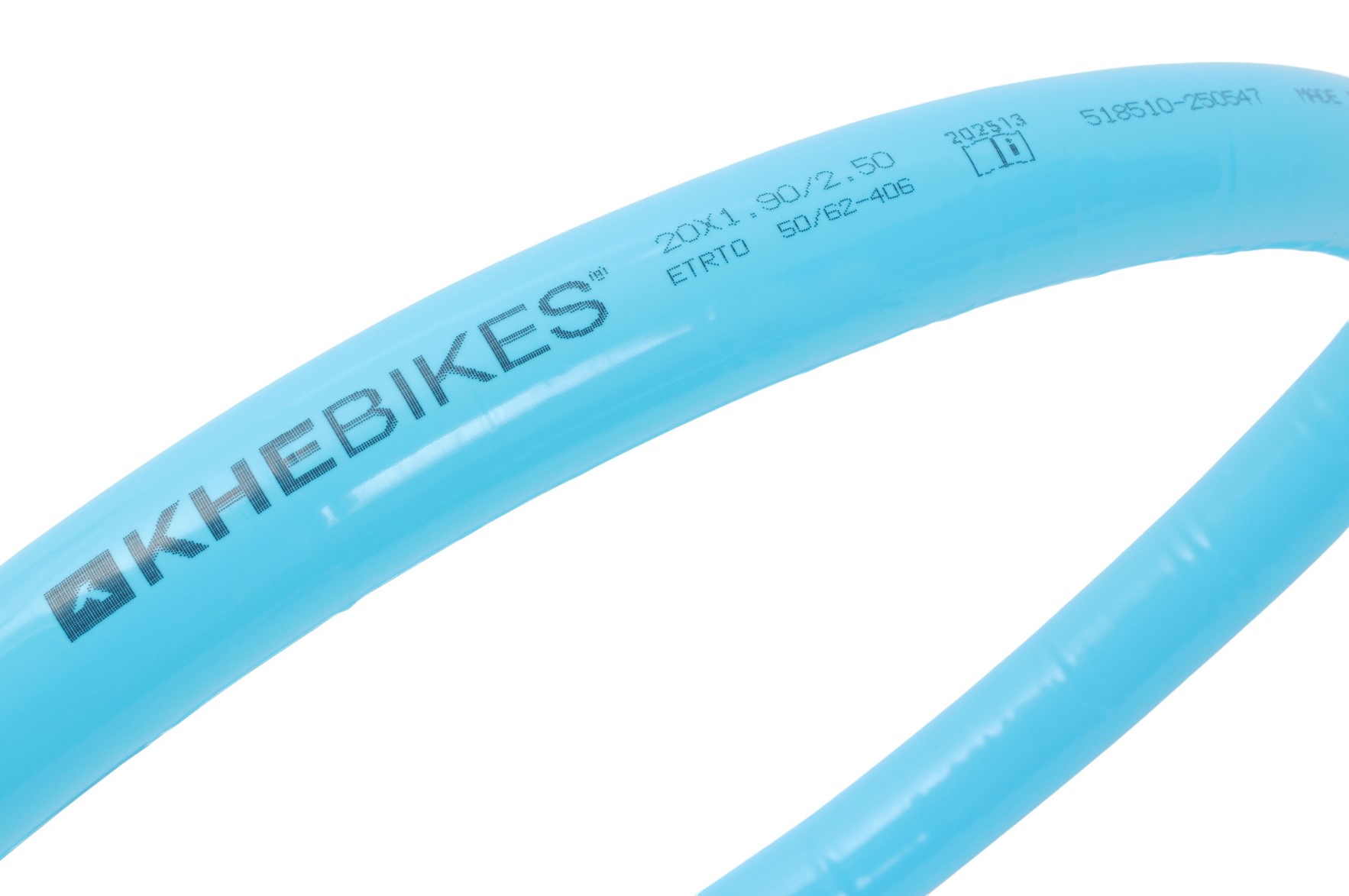

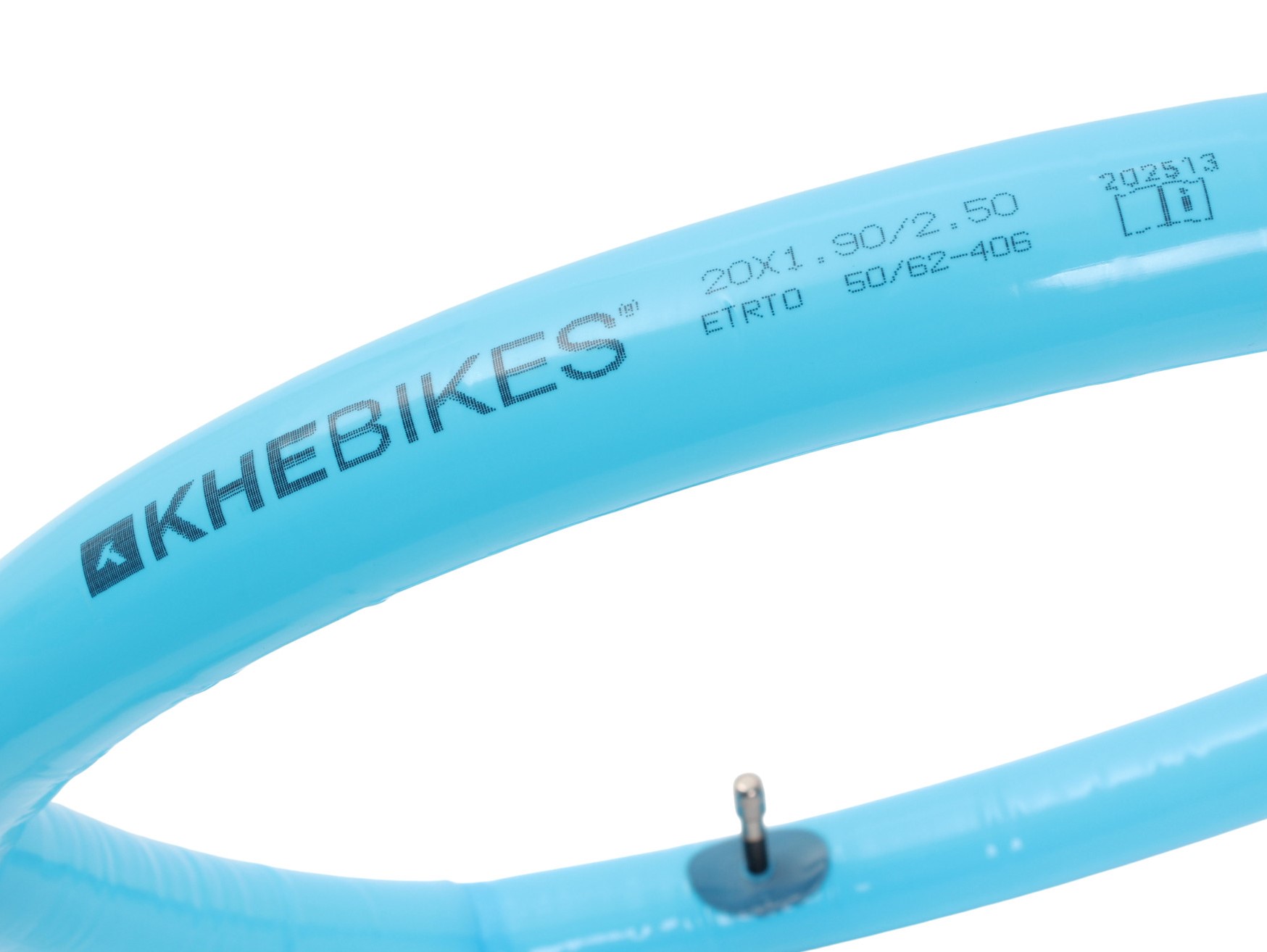

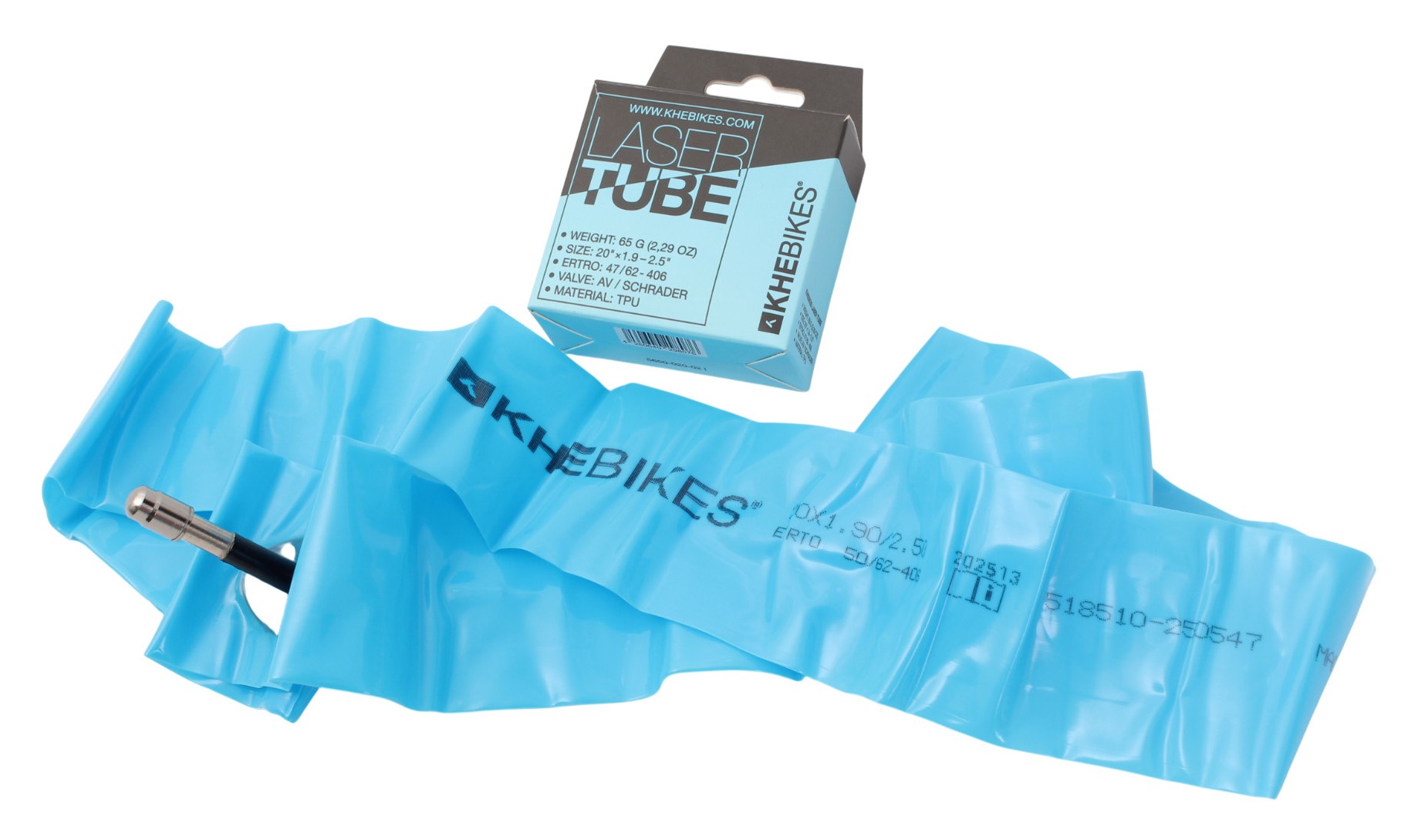

KHE TPU "LASER TUBE" Tube 20" BMX | 2025
The new KHE Laser Tube TPU BMX Tube 2025 sets new standards: With reinforced wall thickness, extremely low weight, and better rolling resistance, it is one of the most high-performance tubes for BMX Freestyle and BMX Race.

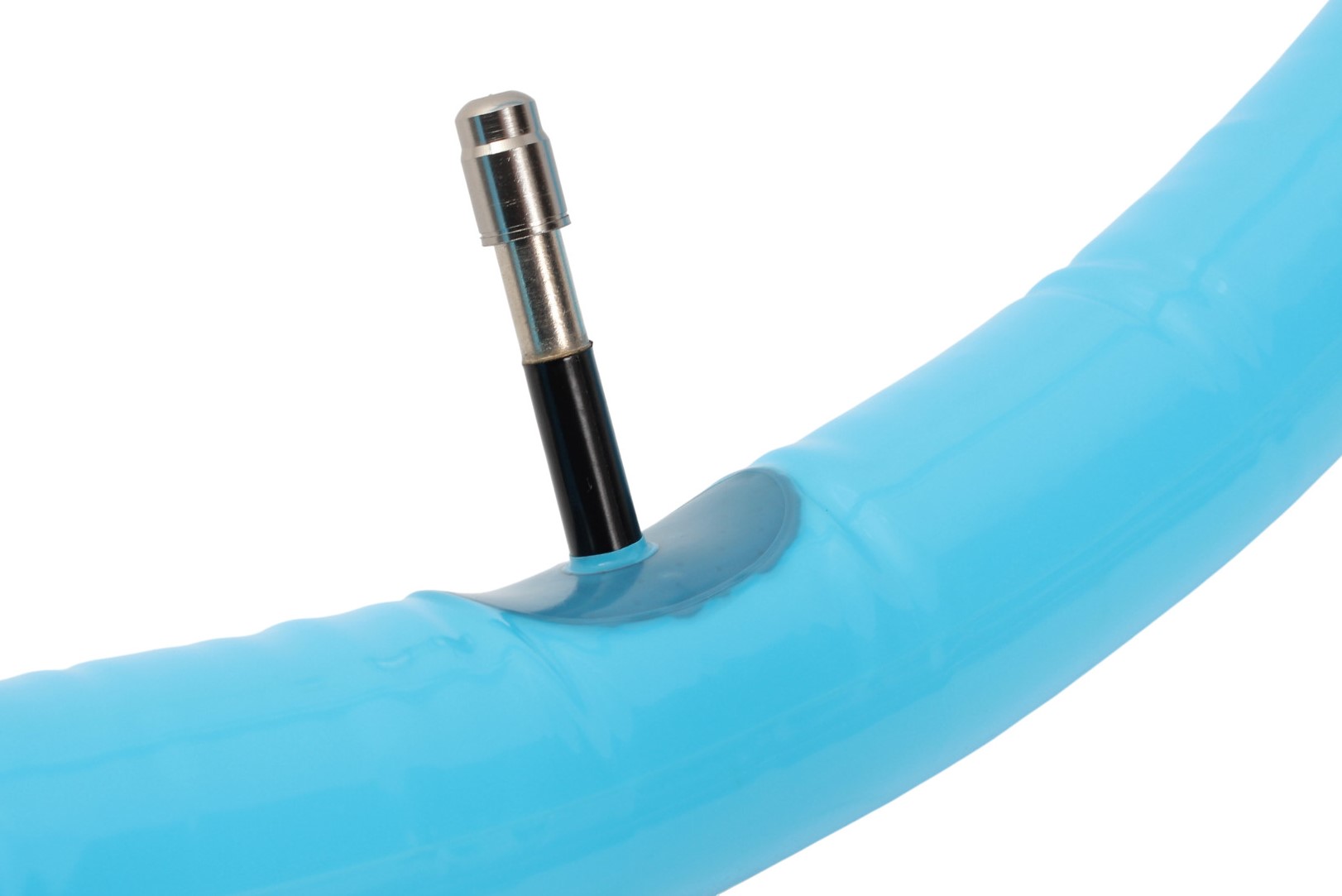

Compared to conventional standard tubes from KHE, the Laser Tube saves around 220 grams of weight – a noticeable advantage for more dynamics in jumps, spins, and fast moves. At the same time, it impresses with exceptional puncture protection, which is particularly useful in hard landings or hang-ups. The aluminum valve stem is especially light and comes with an aluminum valve cap.
The Laser Tube represents a new generation of BMX tubes: ultra-light, puncture-proof, and optimized for minimal rolling resistance. Thanks to its high elasticity, long durability, and impressive performance, it is ideal for Park, Street, Ramp, Flatland, and Race.
Technical Data:
- Tube Material: TPU (Thermoplastic Polyurethane)
- Valve Stem Material: Aluminum
- Application Area: BMX (Park, Street, Flatland, BMX Race)
- Compatible Sizes (Inches): 20 × 1.90 to 20 × 2.50
- Compatible Sizes (ETRTO): 47 / 62-406
- Valve Length: 45 mm
- Valve Type: AV (Schrader, Auto Valve)
- Color: Blue
- Weight: 65 g

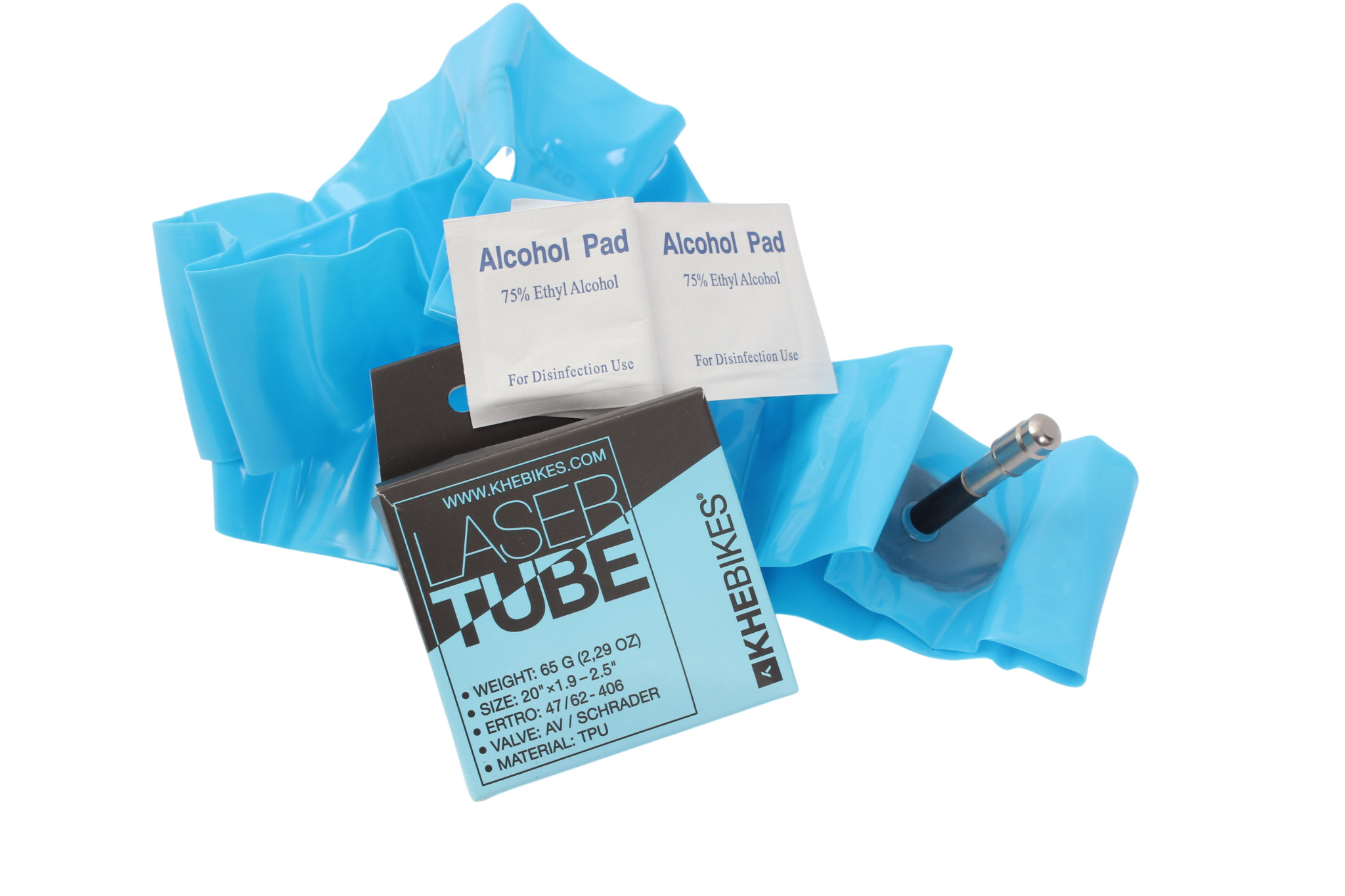

Scope of Delivery:
- 1× KHE Tube 20" LASER TUBE BMX TPU
- 2× TPU Patches
- 1× Assembly Instructions / Leaflet
Note:
The weight specifications may slightly vary due to production.
The Laser Tube can be carefully inflated up to 0.3 bar outside of the tire to achieve a wrinkle-free, round shape.
| Tire size: | 20 inch |
|---|---|
| Size: | 20" x 1,90" - 2,50" |
| Colour: | Blue |
| Weight: | 2.29 oz / 65g |
| Valve type: | Schrader / Auto valve |
Intended Use: This TPU inner tube is designed exclusively for BMX bikes used in park, street, flatland, ramp and race environments. Not approved for other bicycle types or motorised vehicles.
Installation and Inspection: Only use with tyres sized 20 × 1.90 to 2.50 inches (ETRTO 47 / 62-406). Pre-inflate to max. 0.3 bar before fitting to achieve a smooth, round shape. Follow the enclosed mounting instructions.
Maintenance & Care: Use appropriate tyre levers during installation to avoid damaging the material. Avoid exposure to high temperatures and UV light. Check regularly for damage and maintain correct air pressure.
Safety & Notes: Do not exceed the recommended tyre pressure. Use only with rims compatible with AV (Schrader) valves. Replace the tube immediately if any visible damage or wear is detected.
