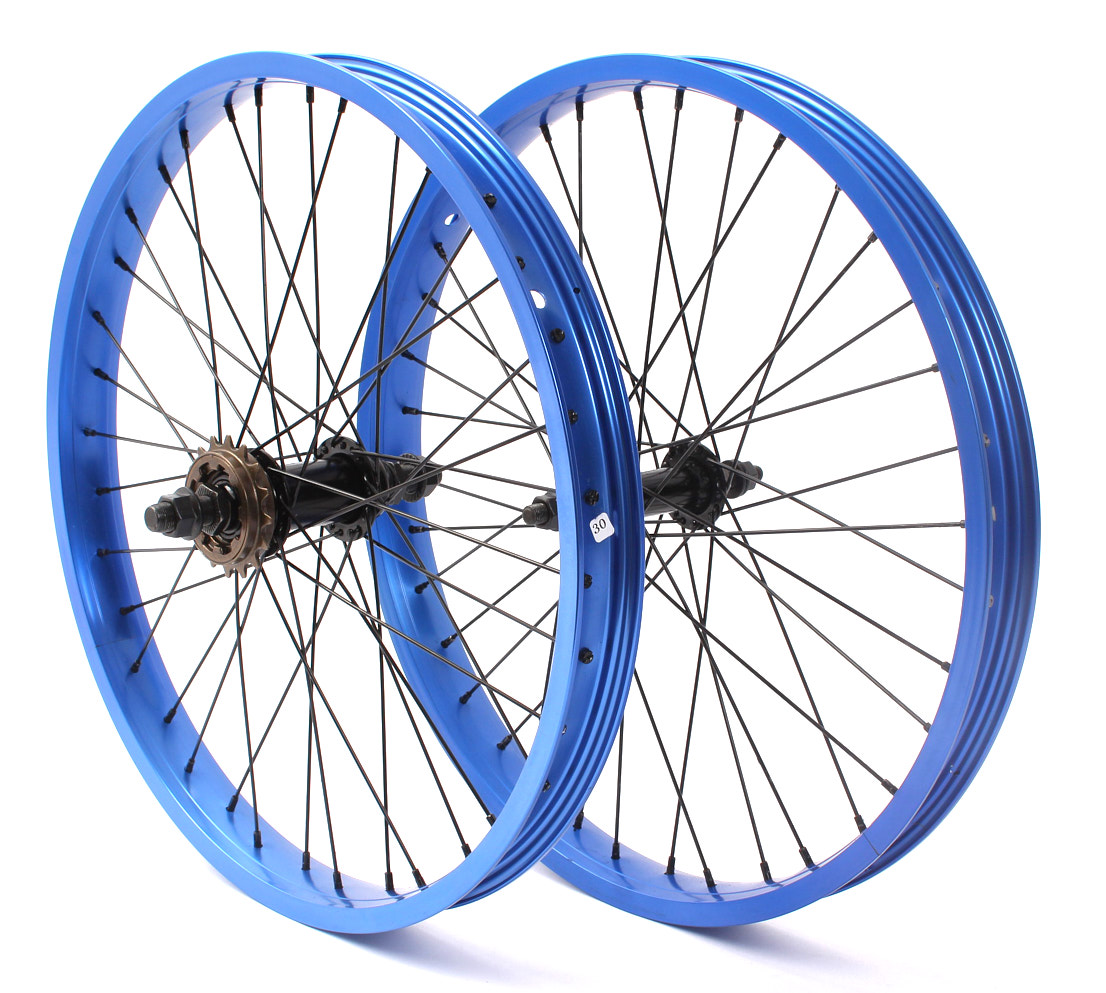

KHE PRISM BMX 20" Wheelset BLUE

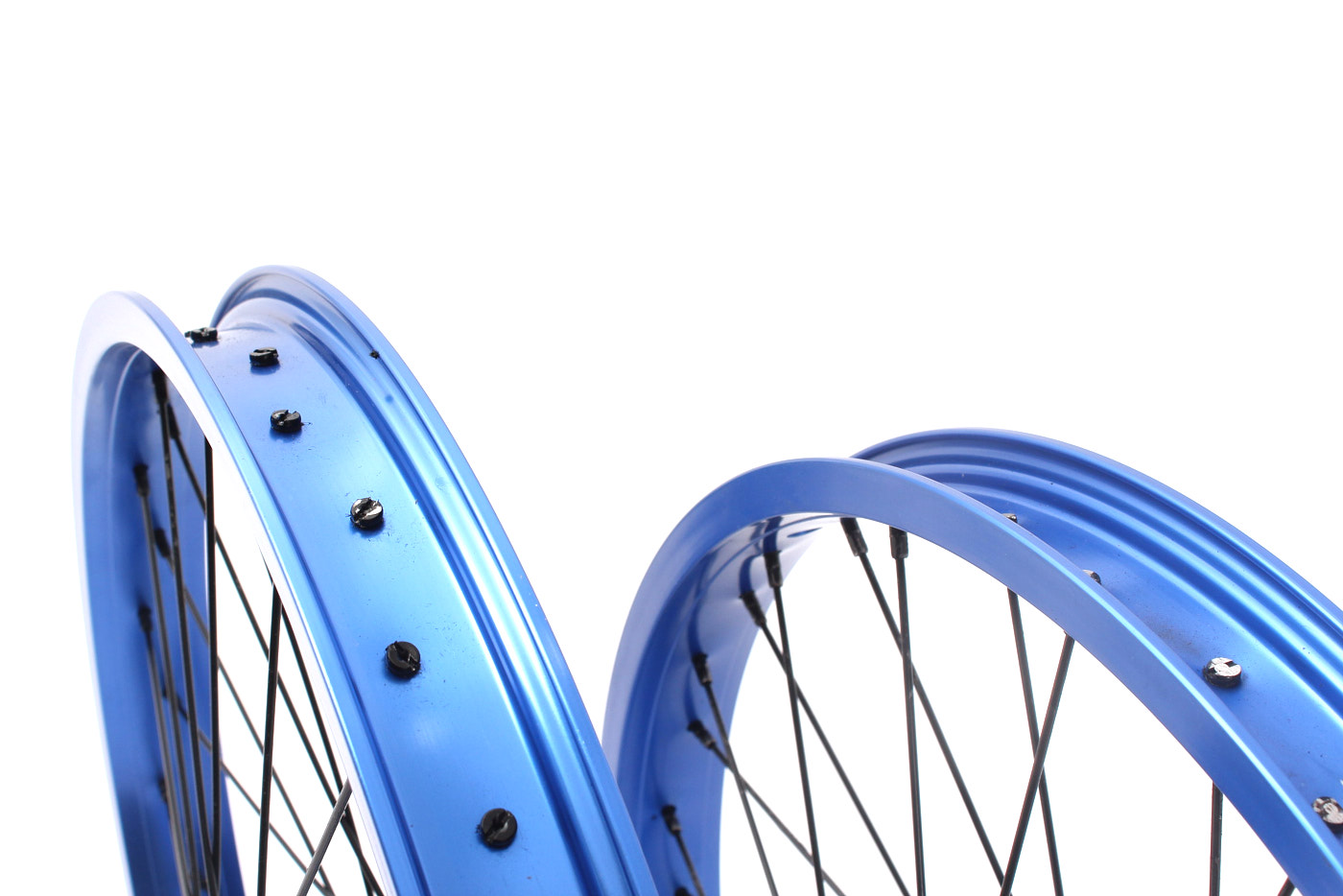

The KHE 20" wheelset is extremely stable due to the blue anodized 38mm wide rims. Thanks to the high-quality 7005 aluminum, the wheelset is also very light. A 16-tooth freewheel cog is already mounted.
Technical Overview:
- Brand: KHE

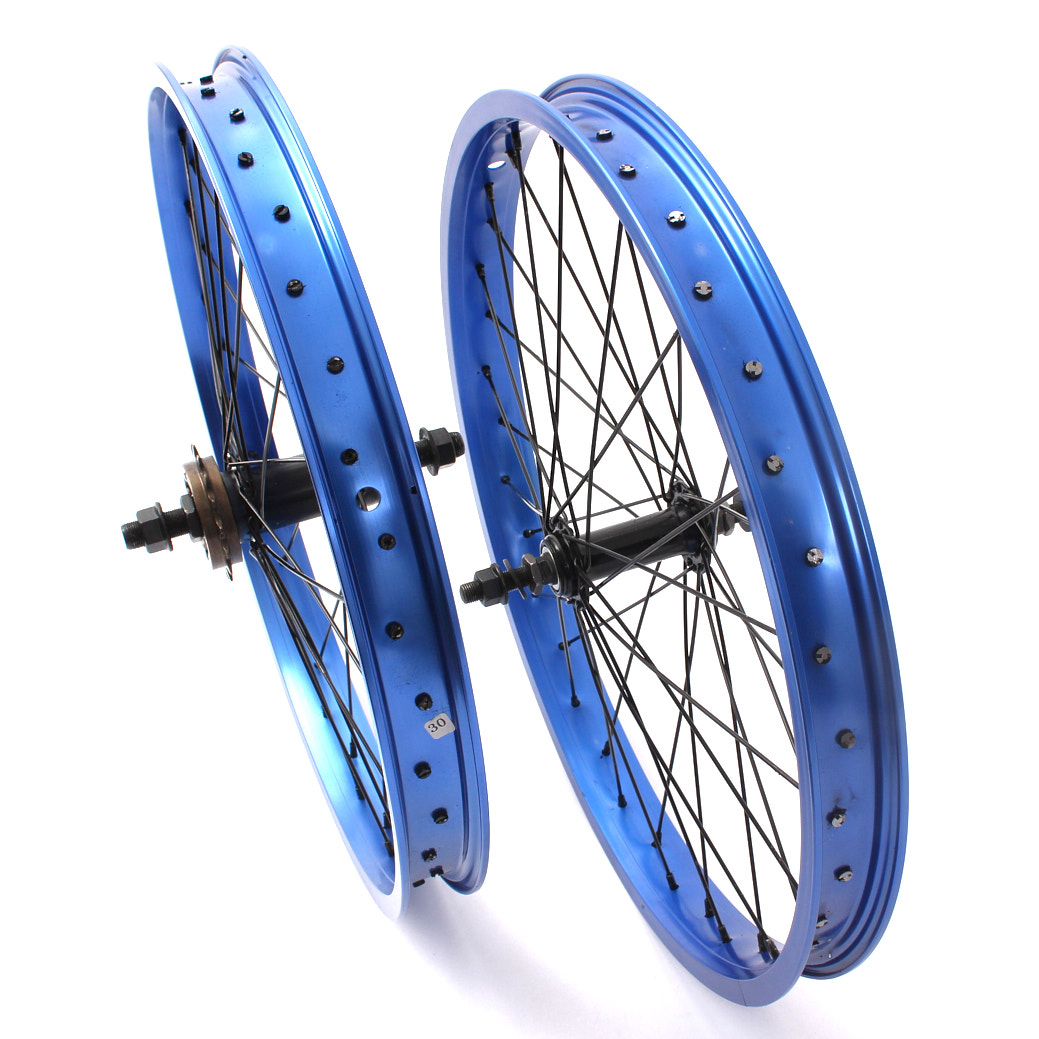

- Hub: 36 Hole KHE Prism
- Color: Blue anodized
- Spokes: Black

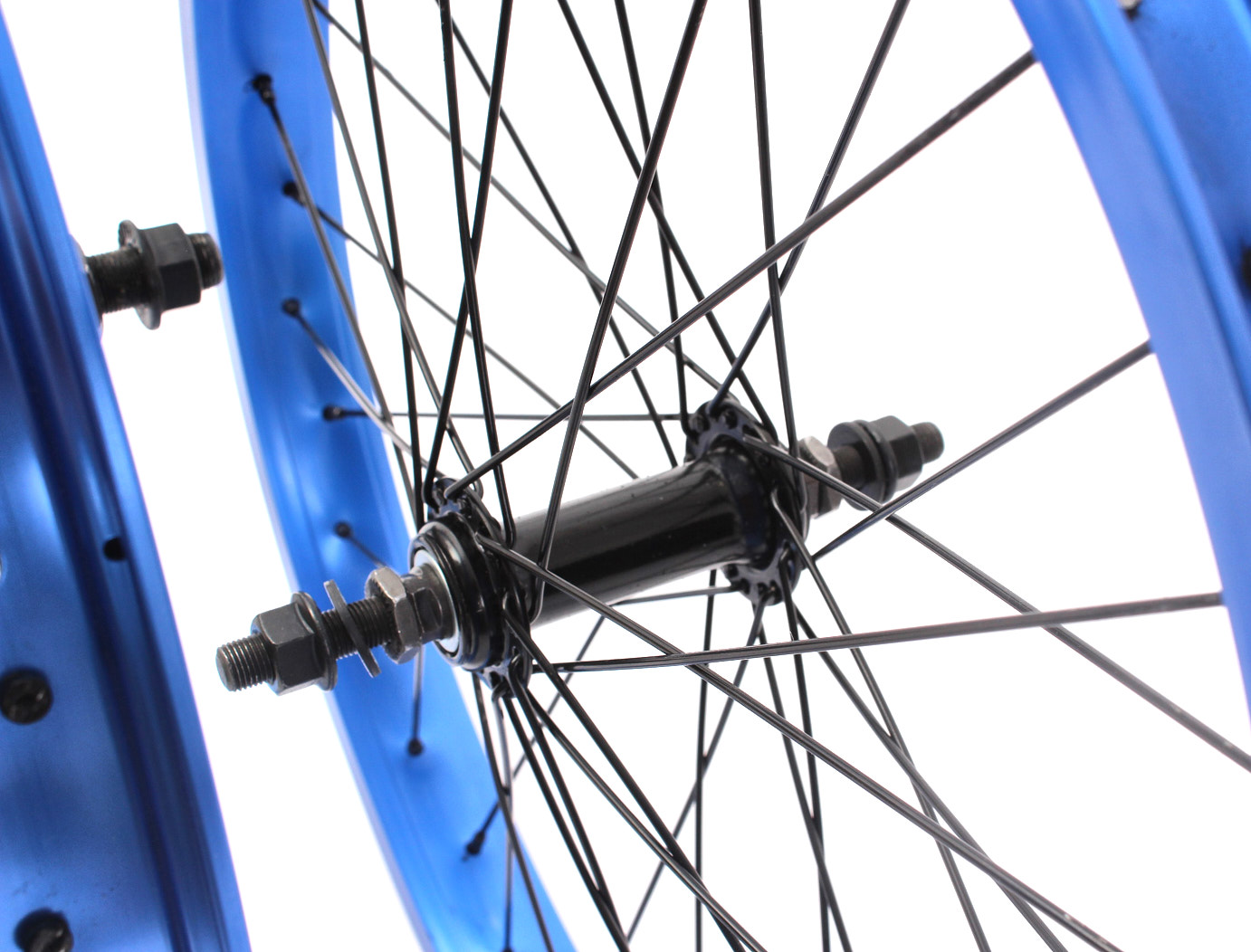

- Axle: 14mm rear, 10mm (3/8") front
- Rim: KHE
- Material: 7005 Aluminum

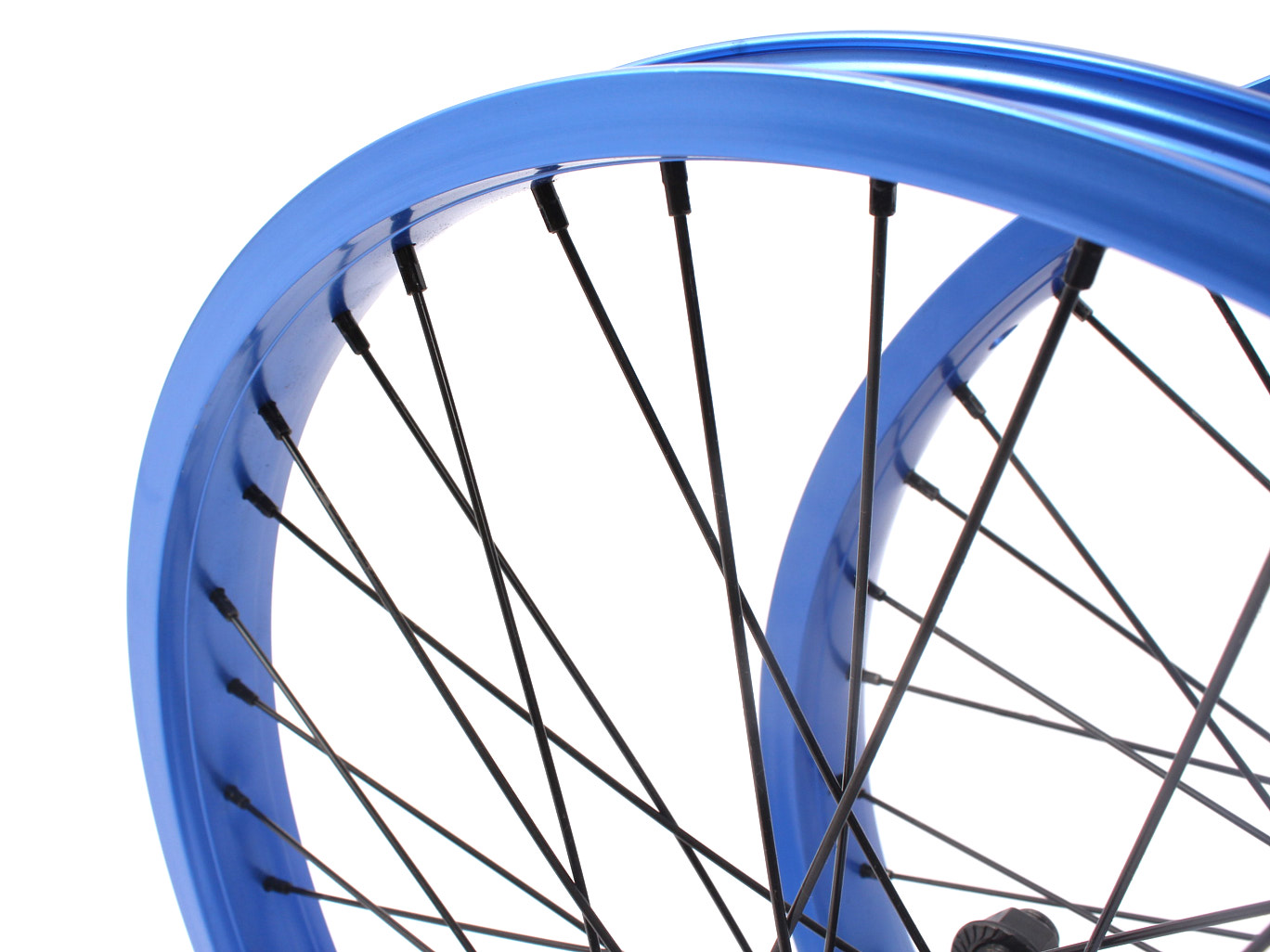

- Rim Width: 38mm
- Installation Width: 110mm rear, 100mm front
- Axle Length: 175mm rear, 165mm front
- Weight: 1130g rear, 798g front
- Includes: 2 nuts each

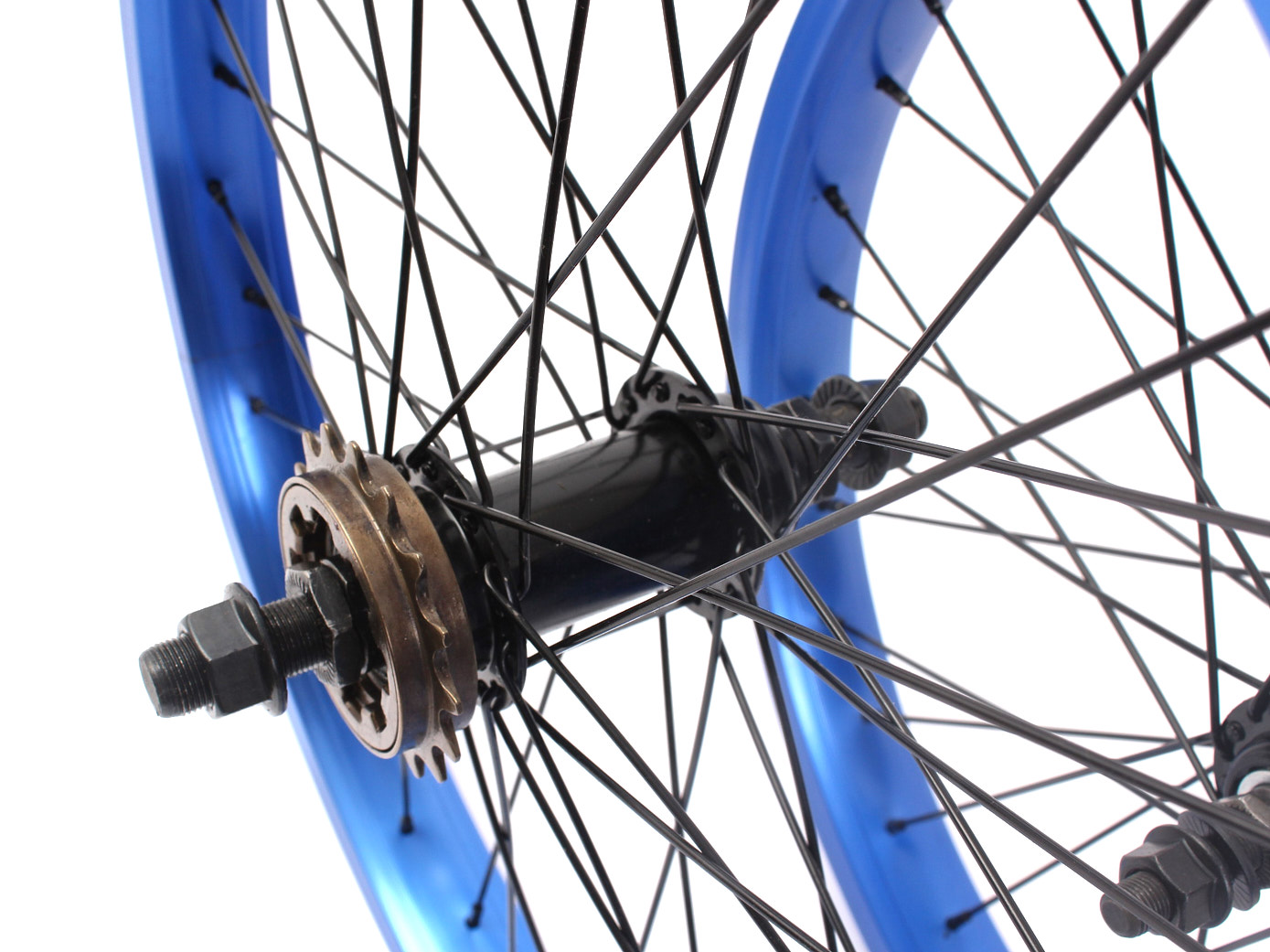

- 16-tooth Freewheel Cog (pre-installed!)
| Rim: | KHE |
|---|---|
| Material: | 7005 Aluminum, Steel |
| Tire size: | 20 inch |
| Colour: | Blue |
| Weight: | 2.49 lbs / 1130g rear, 1.76 lbs / 798g front |
| Axis length: | 6.69" / 175mm rear, 6.5" / 165mm front |
| Width: | 4.33" / 110mm rear, 3.93" / 100mm front |
| Rim width: | 1.5" / 38mm |
| Number of holes: | 36H |
| Valve type: | Schrader / Auto valve |
| Teeth: | 16T |
Ensure Compatibility:
This wheelset is exclusively designed for BMX bicycles. It is not suitable for high-speed riding or for other types of bicycles.
Assembly: Ensure that the axles are securely seated in the fork and frame dropouts of the bicycle and that the nuts or quick-release levers are properly tightened. Check all fastening elements for secure fit before use.
Care and Maintenance:
Clean the wheels regularly with a damp cloth and avoid using aggressive cleaning agents that could damage the material.
Store the BMX wheelset in a dry and cool place to prevent corrosion.
Replacement in Case of Wear: If you notice wear, uneven abrasion, cracks, or damages, replace one or both wheels immediately depending on the damage.
