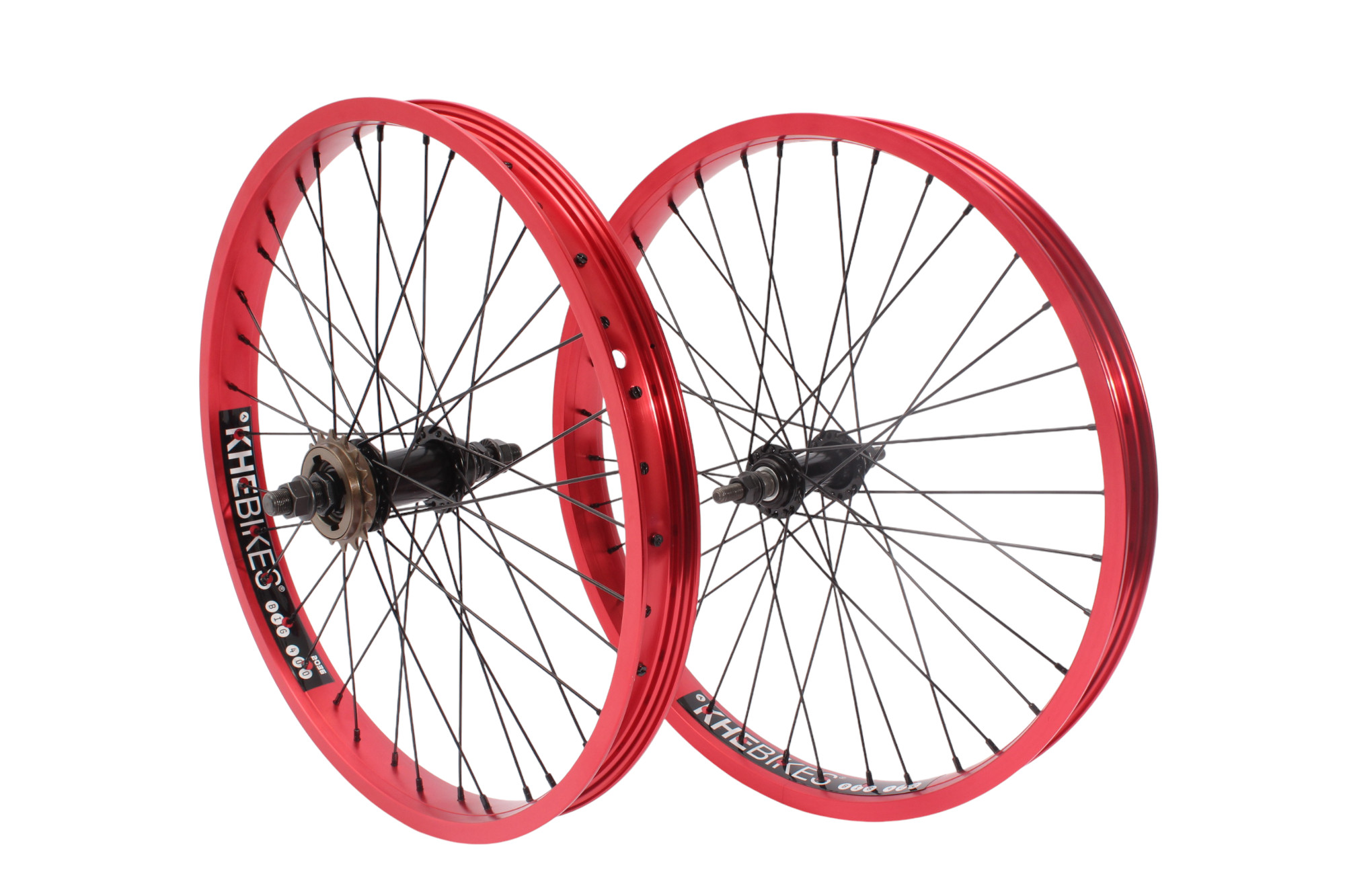

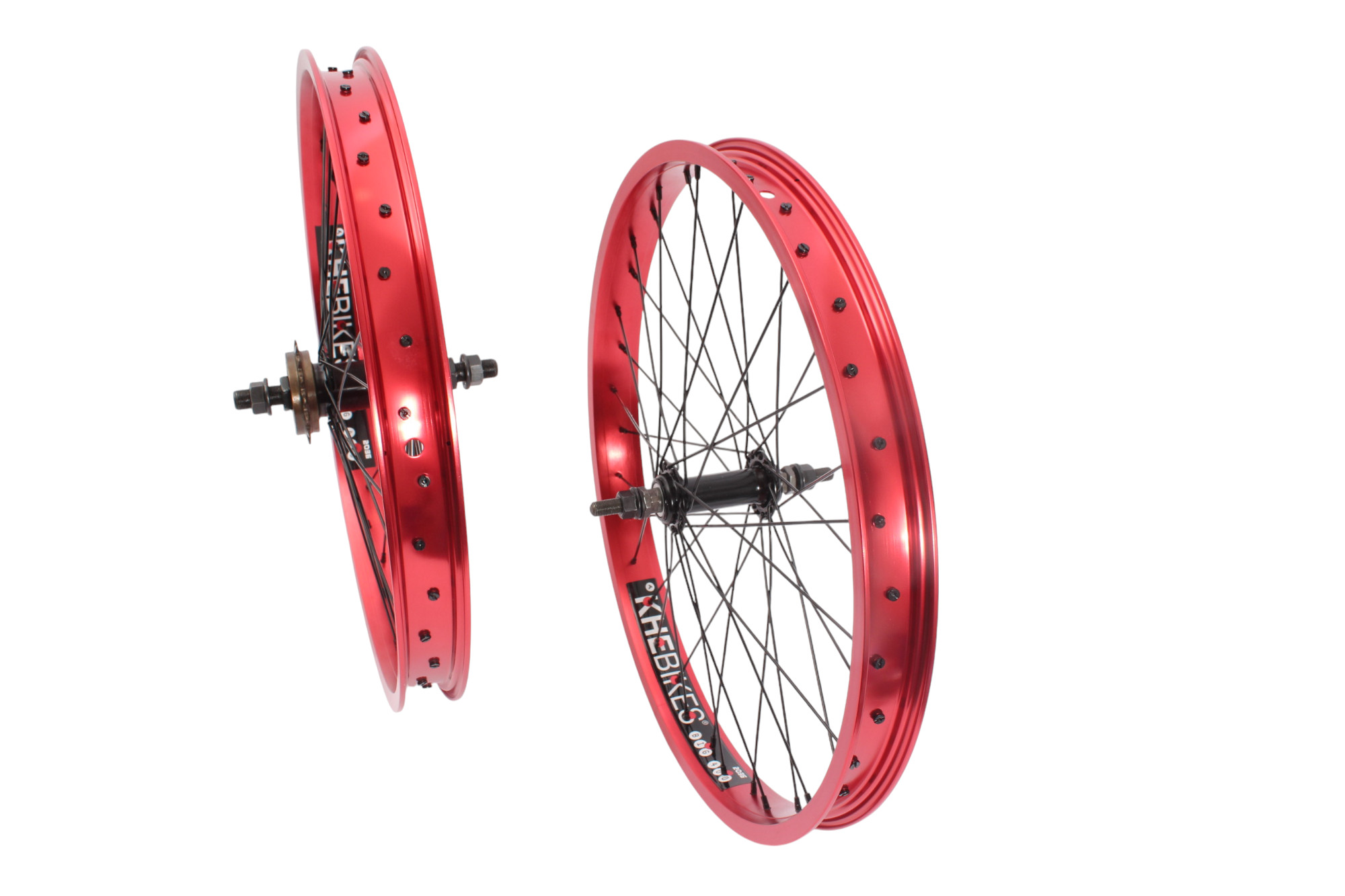

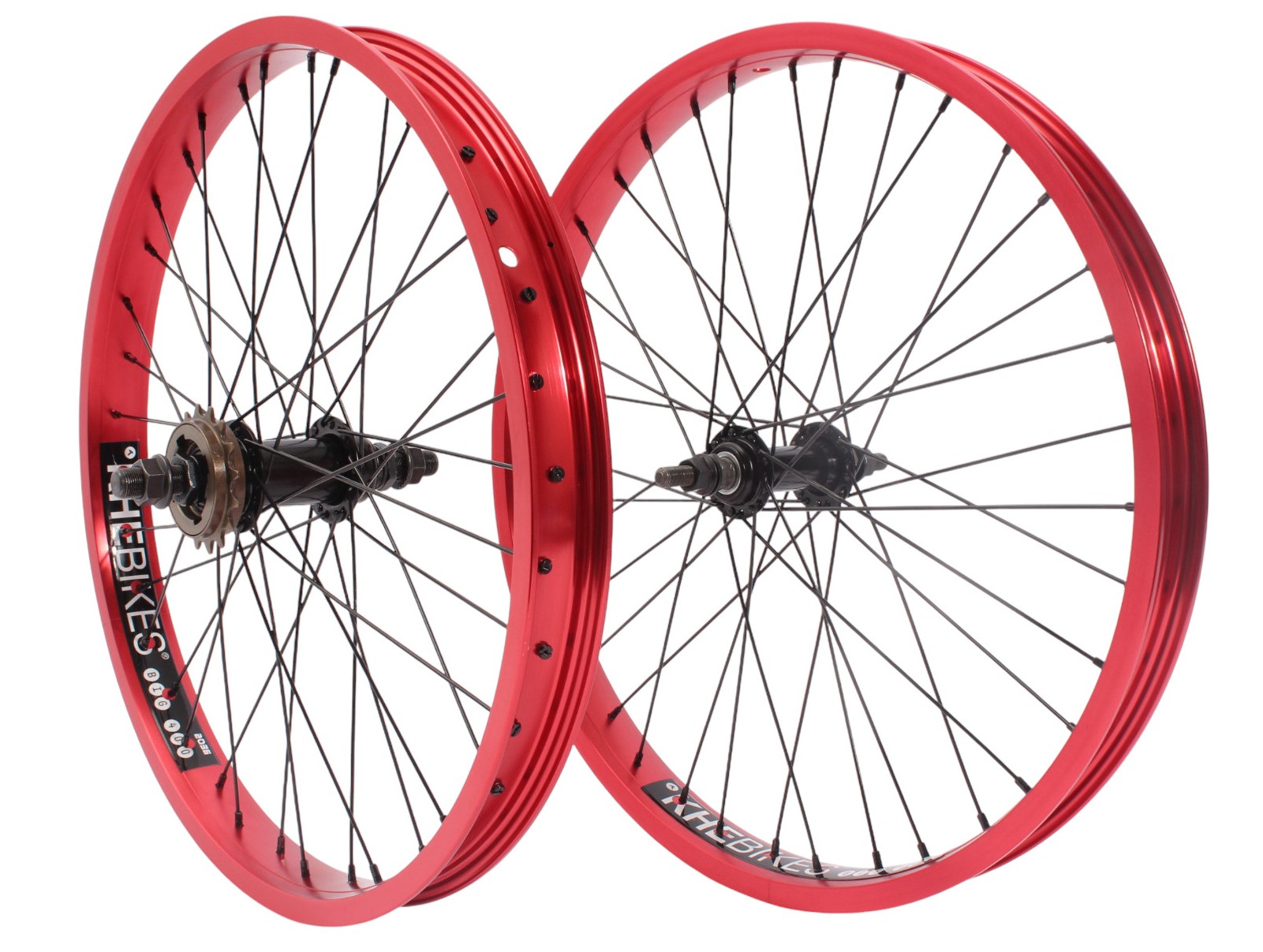

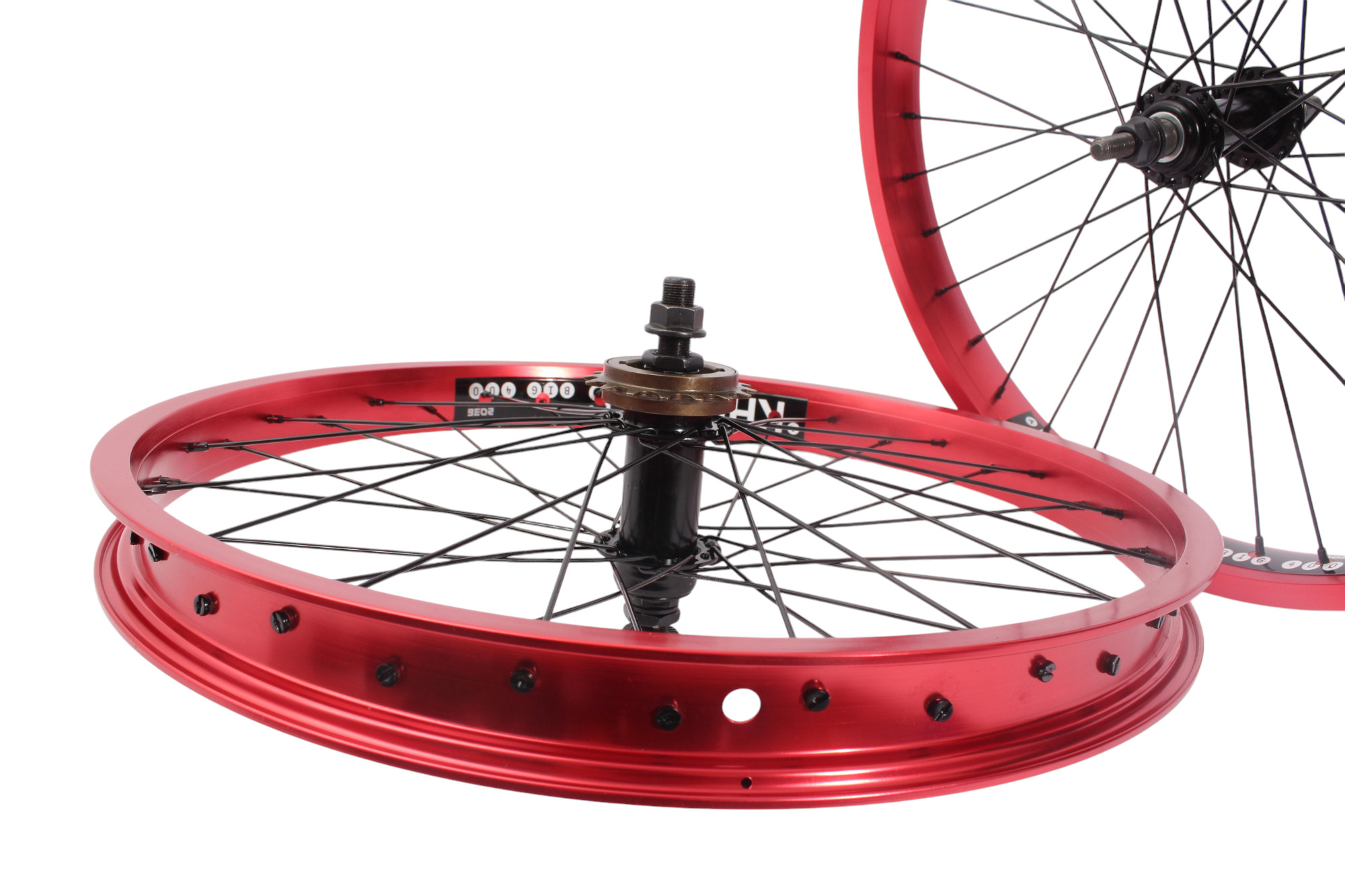

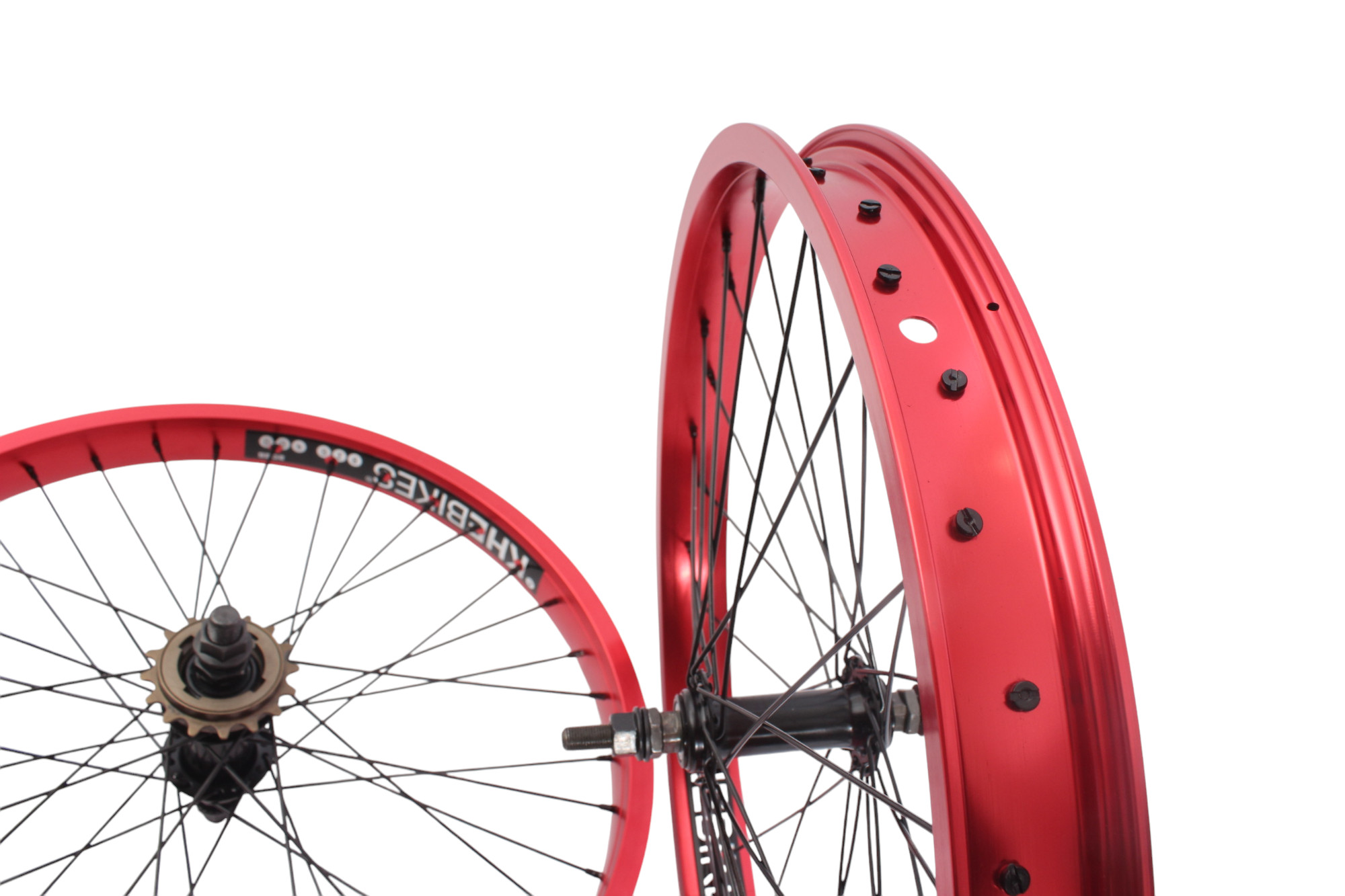

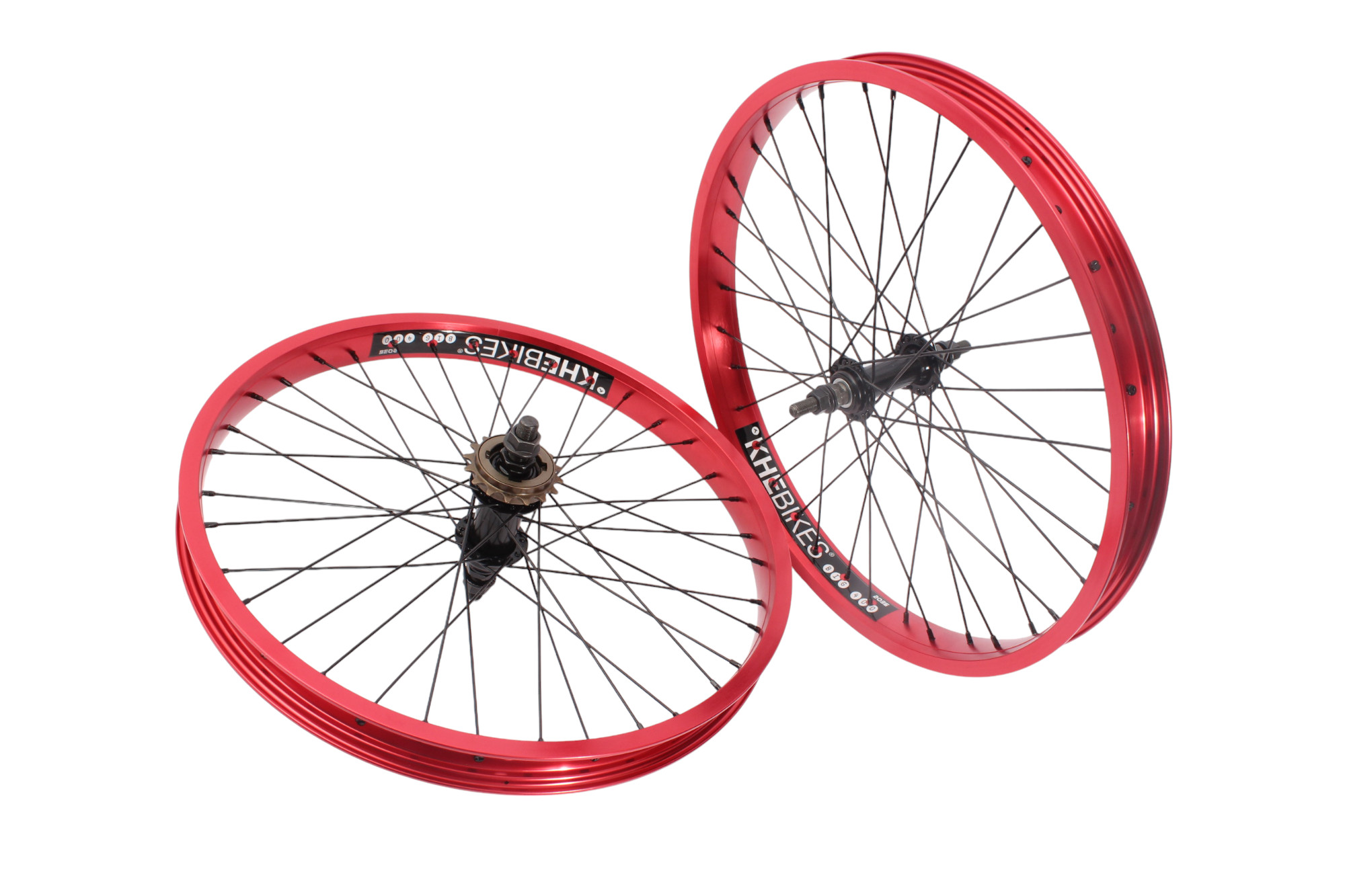

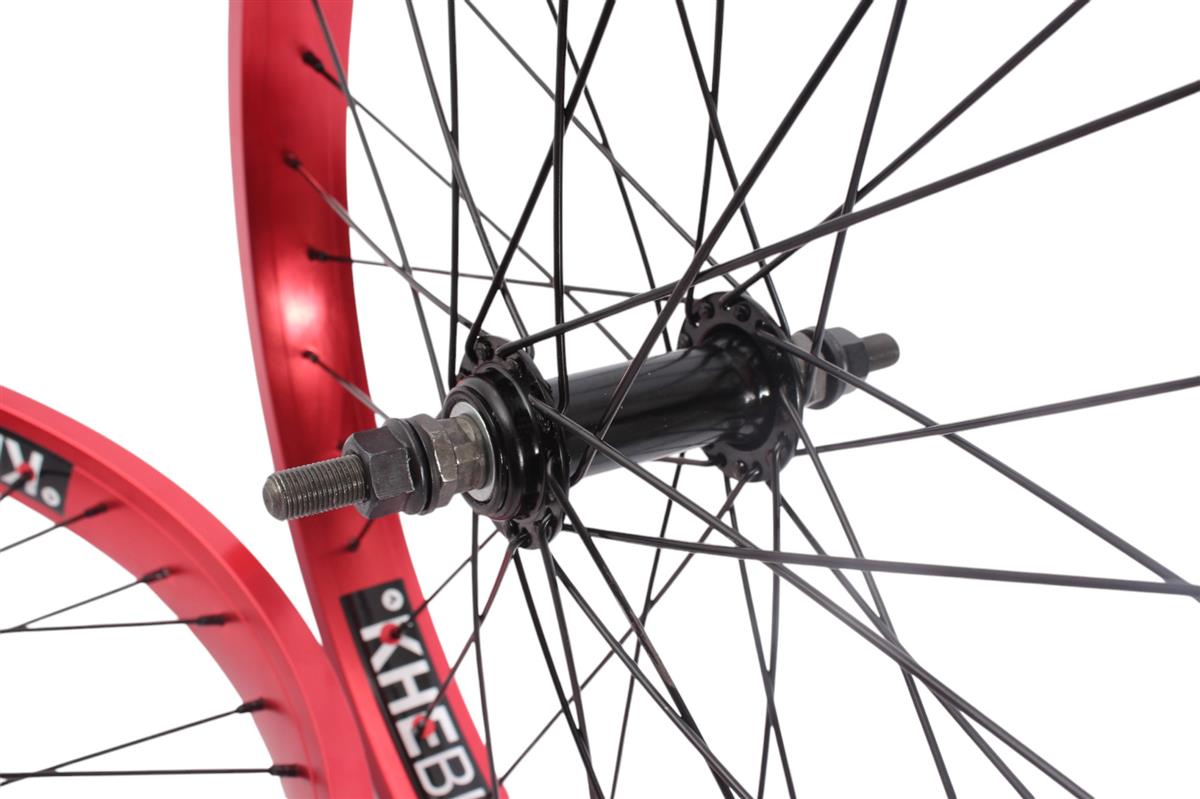

KHE PRISM BMX 20" Wheelset Red
The KHE 20" wheelset is extremely stable due to the red anodized 38mm wide rims. Because of the high-quality 7005 aluminum, the wheelset is also very light. A 16-tooth freewheel sprocket is already installed.
Overview of data:
- Brand: KHE
- Hub: 36 hole KHE Prism
- Color: red anodized
- Spokes: black
- Axle: 14mm rear, 10mm (3/8") front
- Rim: KHE
- Material: 7005 aluminum
- Rim width: 38mm
- Installation width: 110mm rear, 100mm front
- Axle length: 175mm rear, 165mm front
- Weight: 1130g rear, 798g front
- Incl. 2 nuts each

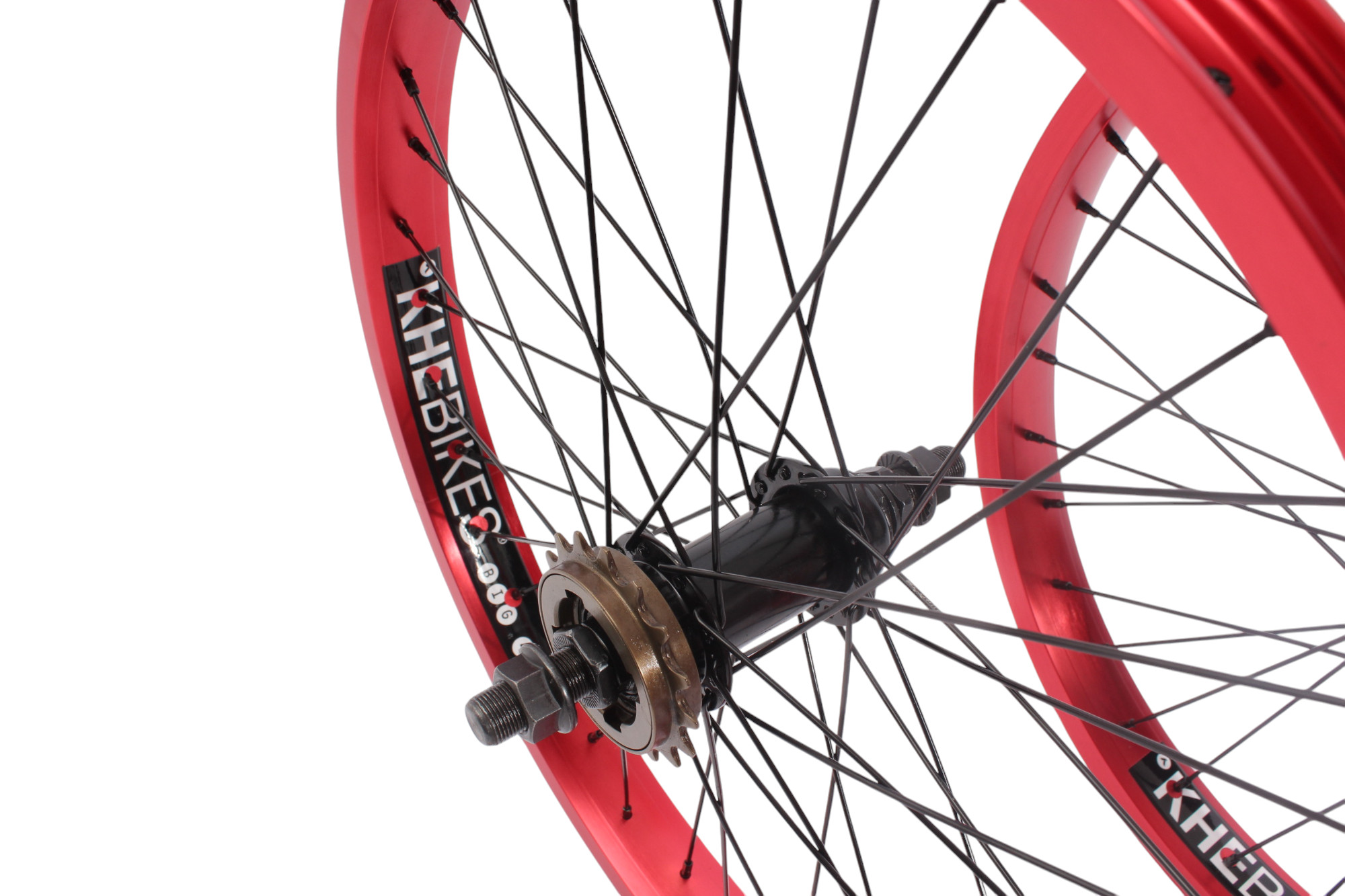

- 16-tooth freewheel sprocket (already installed!)
| Rim: | KHE |
|---|---|
| Material: | 7005 Aluminum, Steel |
| Tire size: | 20 inch |
| Colour: | Red |
| Weight: | 2.49 lbs / 1130g rear, 1.76 lbs / 798g front |
| Axis length: | 6.69" / 175mm rear, 6.5" / 165mm front |
| Width: | 4.33" / 110mm rear, 3.93" / 100mm front |
| Rim width: | 1.5" / 38mm |
| Number of holes: | 36H |
| Valve type: | Schrader / Auto valve |
| Teeth: | 16T |
Ensure Compatibility:
This wheelset is designed exclusively for BMX bikes. It is not suitable for high-speed riding or other types of bicycles.
Installation: Ensure the axles are securely positioned in the bicycle frame dropouts and fork, and the nuts are properly tightened. The included 16T freewheel is pre-installed and should be checked for secure fitting before first use. Check all fasteners for secure attachment before use.
Care and Maintenance:
Clean the wheels regularly with a damp cloth and avoid aggressive cleaning agents that could damage the material.
Regularly check the freewheel for wear and proper functionality.
Store the BMX wheelset in a dry and cool place to prevent corrosion.
Replacement in case of wear: If signs of wear, uneven abrasion, cracks, or damage appear, replace one or both wheels immediately.
