KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, refined engineering and outstanding riding dynamics. The new 2025 models feature optimized geometry, well-thought-out details and high-quality components – directly from the manufacturer for maximum performance on any terrain.

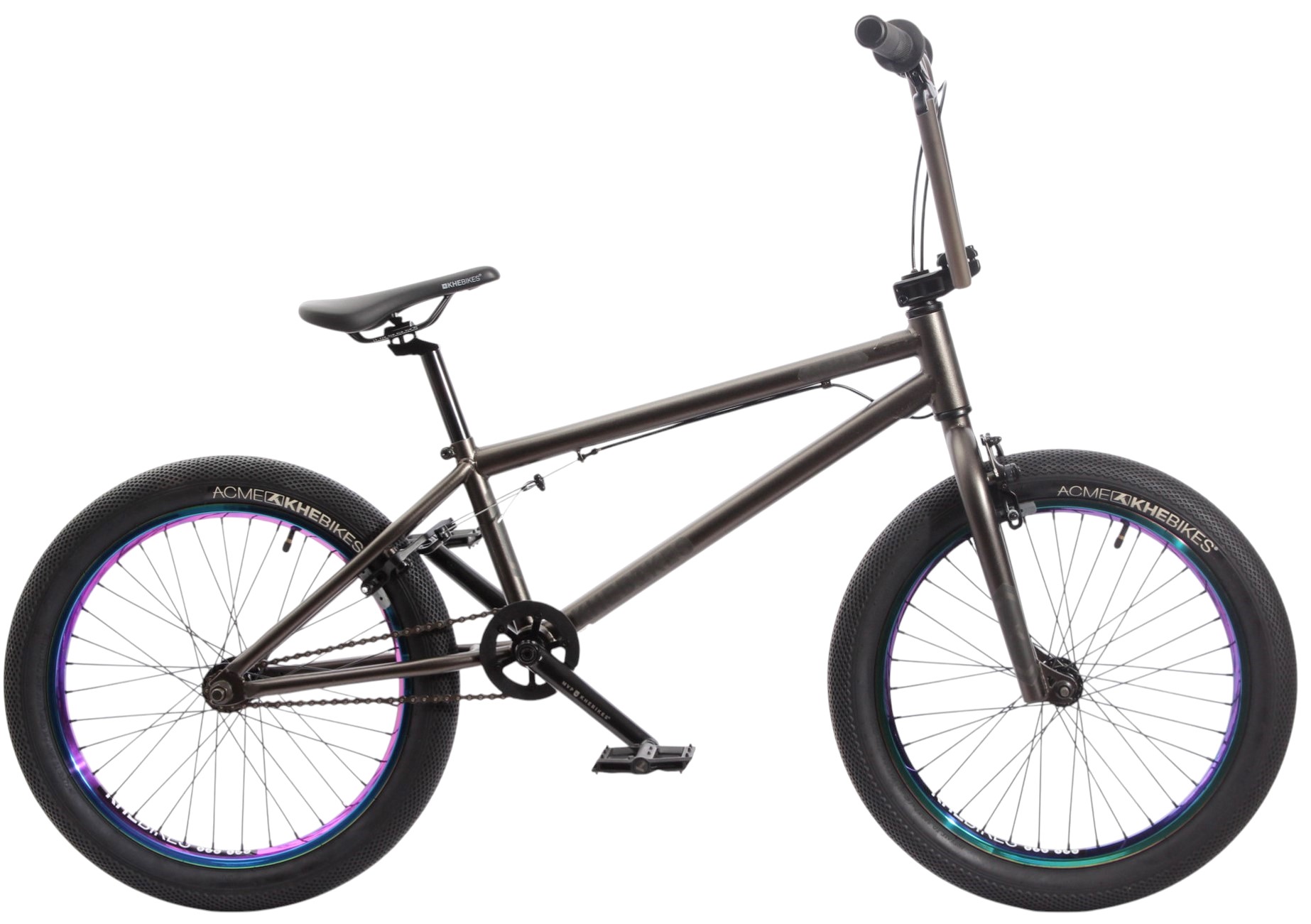

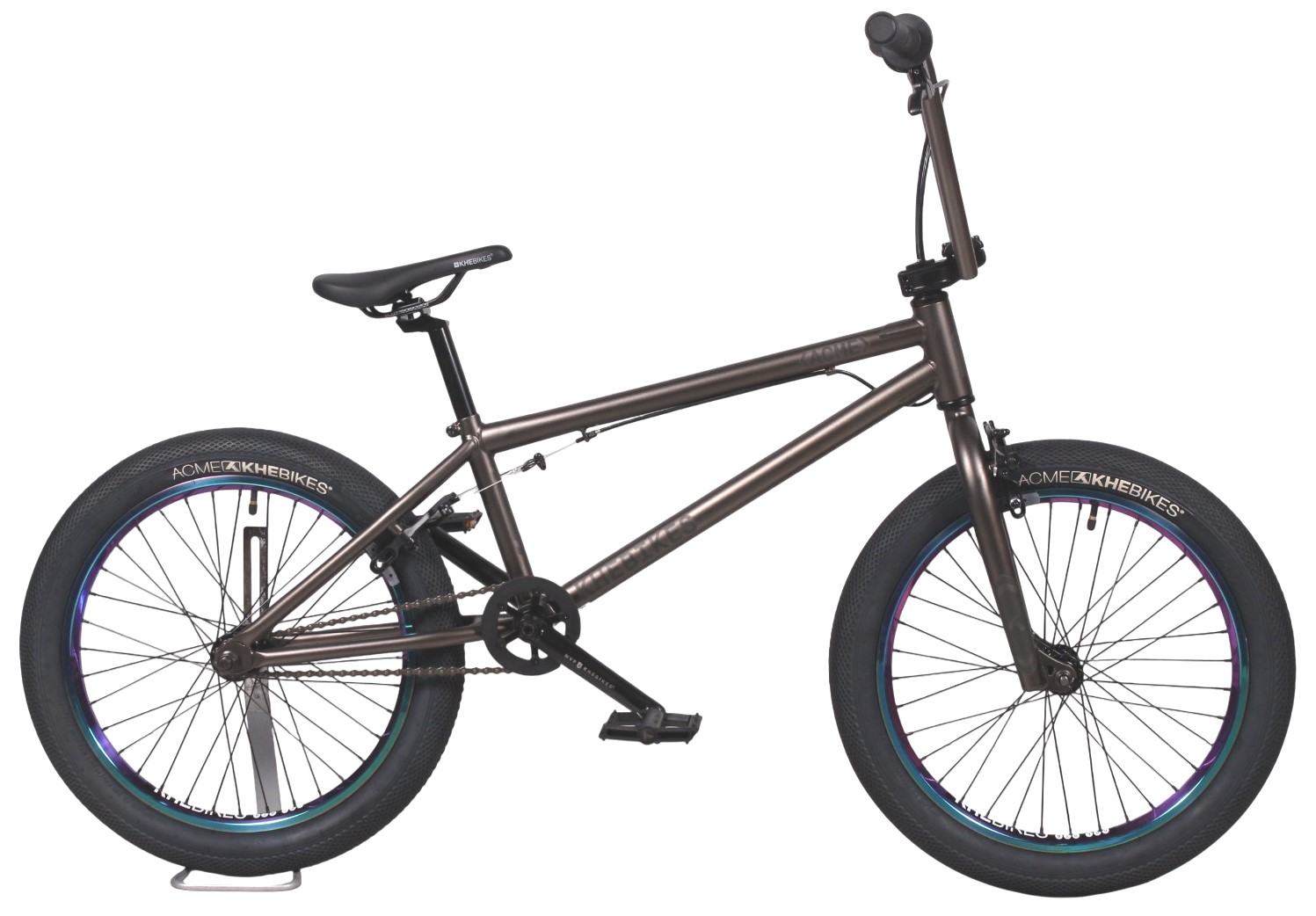

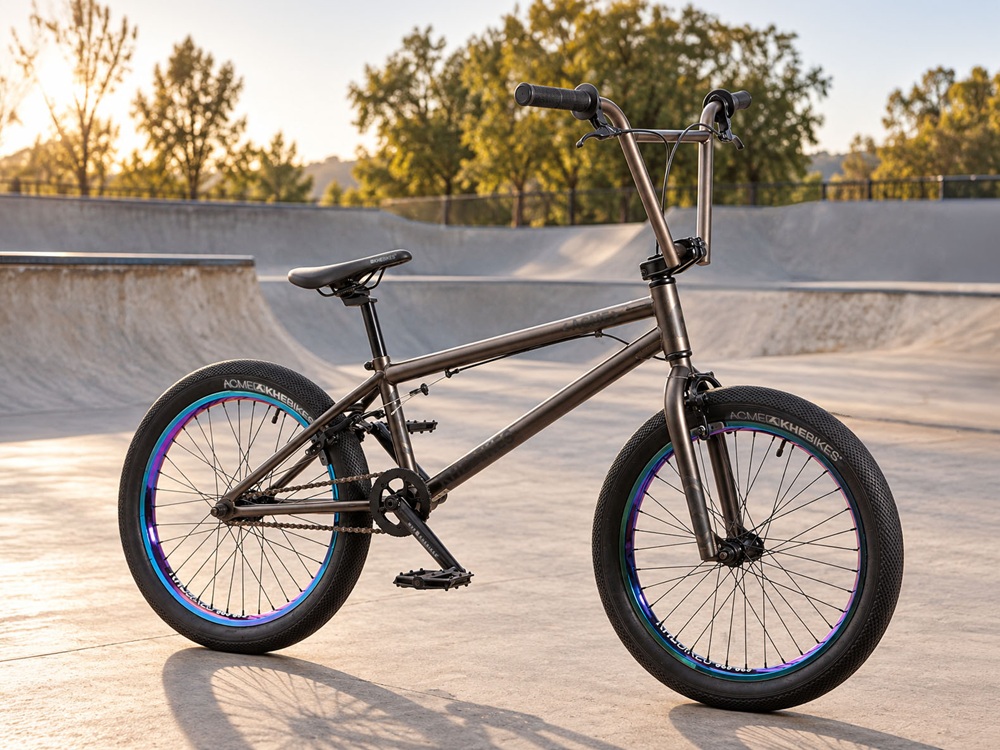

KHE ACME 20 Inch – BMX for Tall Riders up to 2.05 m
The KHE ACME 20 inch was specifically developed for taller and heavier BMX riders. It is suitable for riders up to 2.05 m (6’9”) in height and a maximum rider weight of 130 kg (286 lbs) – ideal for anyone looking for a long, stable yet lightweight BMX.

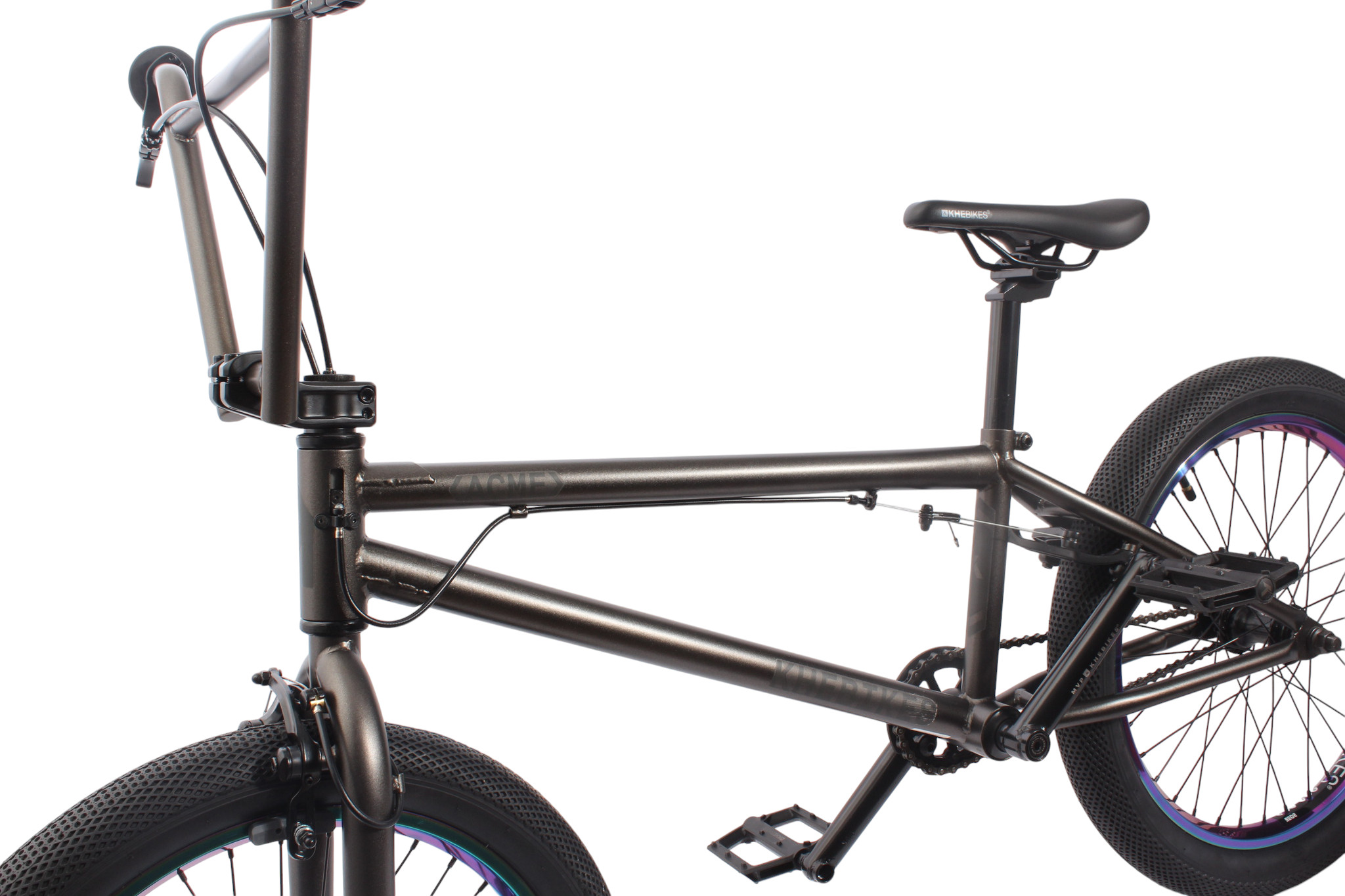

The ACME is a versatile street, park, dirt and pump track BMX. The long frame with a 21.25" top tube (540 mm) combined with the extra high 10" handlebar provides a comfortable, upright riding position and excellent control – even for riders over 2 meters tall.
Frame, fork and handlebar are finished in anthracite grey, perfectly matched with the eye-catching oil slick rims. Tires, grips, saddle and all other components are kept in black, creating a clean and high-end appearance.

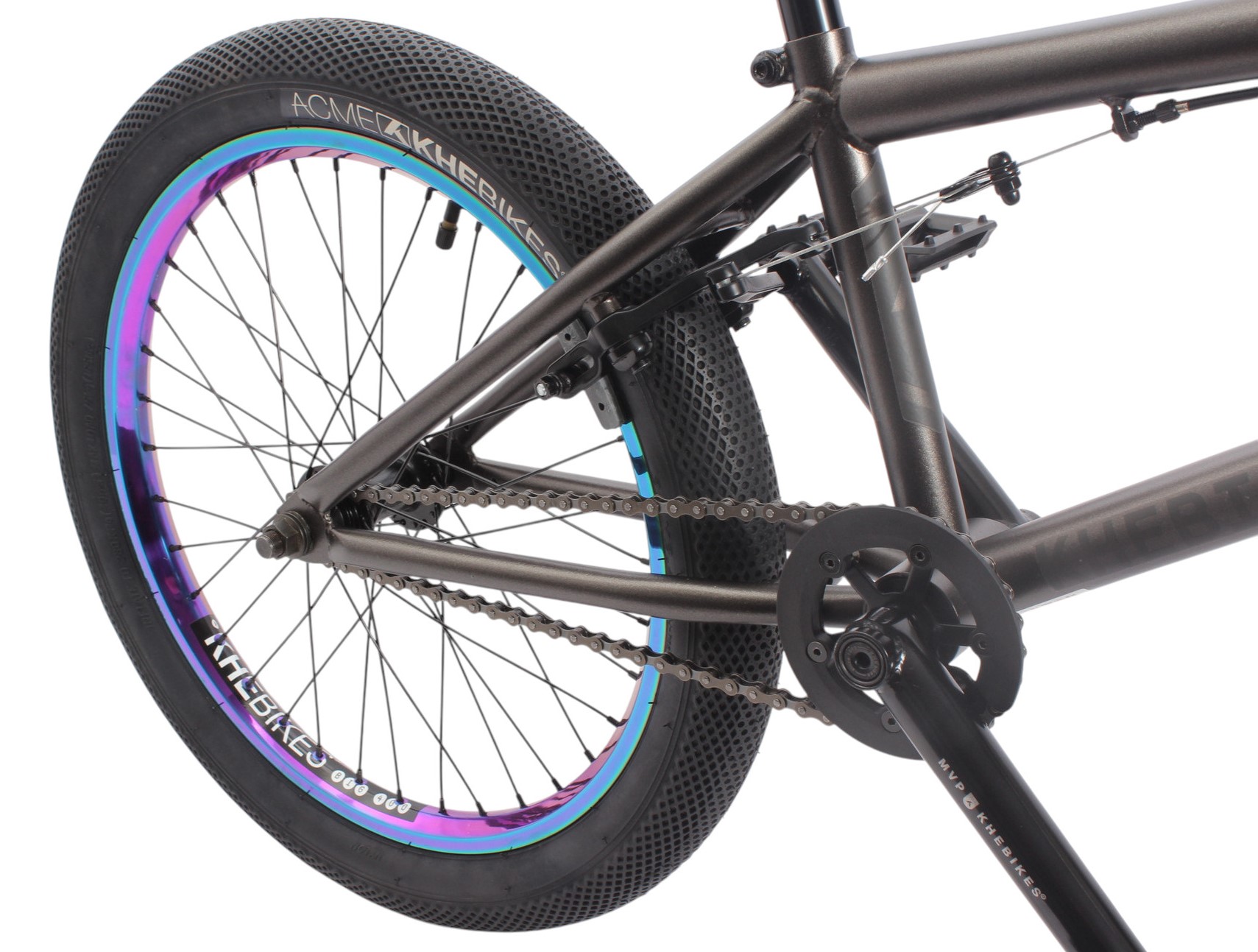

High-quality components include BIG400 oil slick rims, a 3-piece CrMo crankset, precision sealed hubs, and the 10" multiple-butted MVP 4-piece handlebar. The chainring with integrated grind guard reliably protects the chain during grinds.
Despite the long frame, rotor system, and U-brakes front and rear, the bike weighs only approx. 11.1 kg. For many parents riding BMX together with their kids, the KHE ACME is the perfect bike.
Recommended rider height: 175–205 cm
Maximum rider weight: 130 kg
Riding style: Street / Park / Dirt / Pump Track
Why choose the ACME 20 inch by KHEbikes:
• Designed for tall riders up to 2.05 m & 130 kg
• Extra long frame with 21.25" top tube for optimal ergonomics
• 10" high handlebar – ideal for tall riders
• Anthracite grey frame, fork & handlebar – clean and modern
• Oil slick rims – special visual highlight
• KHE ACME tires, 2.40" wide for grip and comfort
• Chainring with grind guard – protects the chain while grinding
• Rotor system & U-brakes front and rear
• Only approx. 11.1 kg despite top-level equipment
Pegs:
Suitable pegs for the KHE ACME 20" are 10 mm front and 14 mm rear.
We recommend the CNC PRO plug-in pegs.
(Adapters for front and rear included)

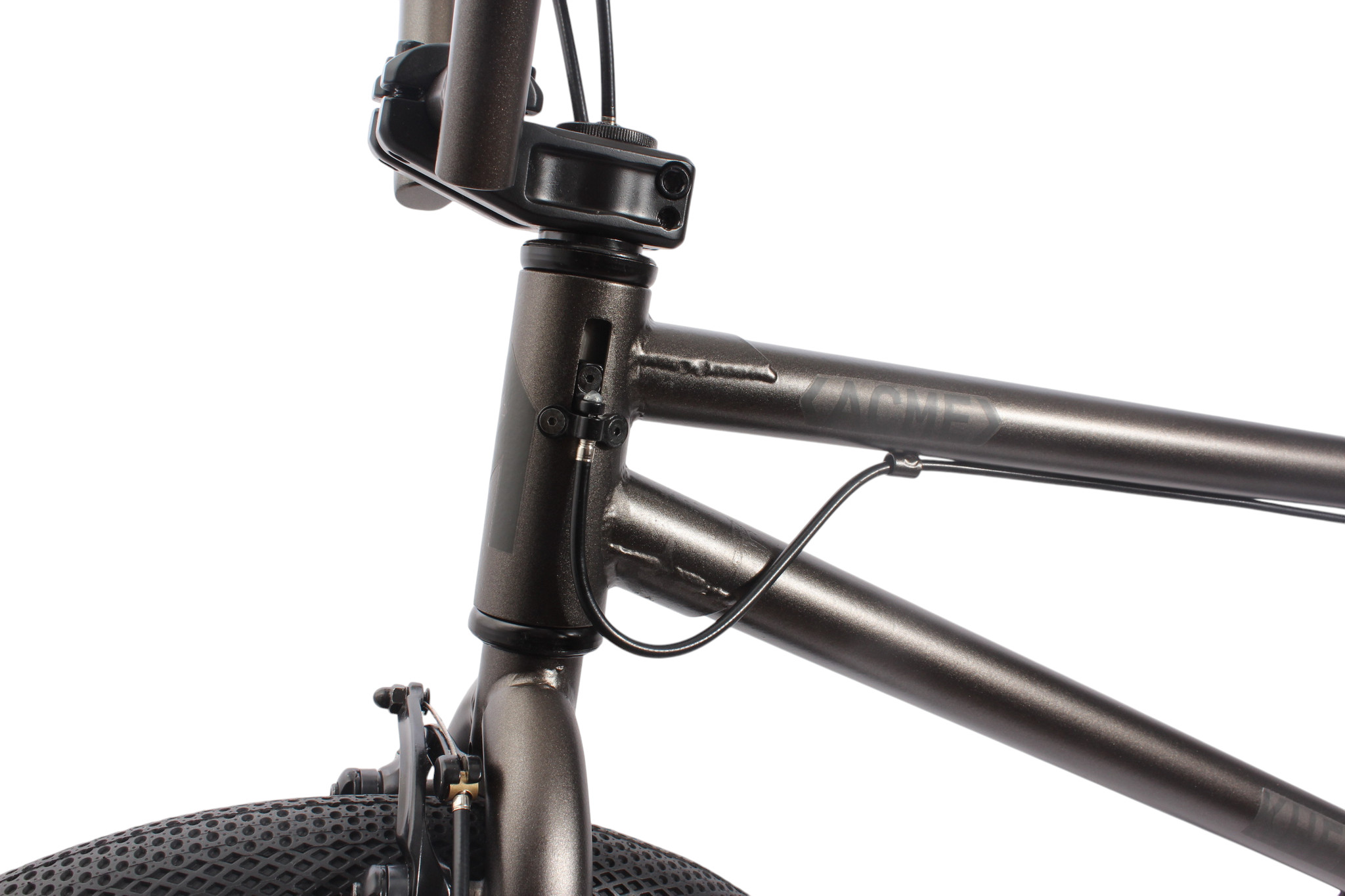

| Frame: | HiTen steel, top tube 20.6", RC 13.7", HT 75° |
|---|---|
| Top tube length: | 21,5" |
| Fork: | KHE 1020 HiTen steel with 10mm dropouts, tapered stanchions & 33mm forerunner |

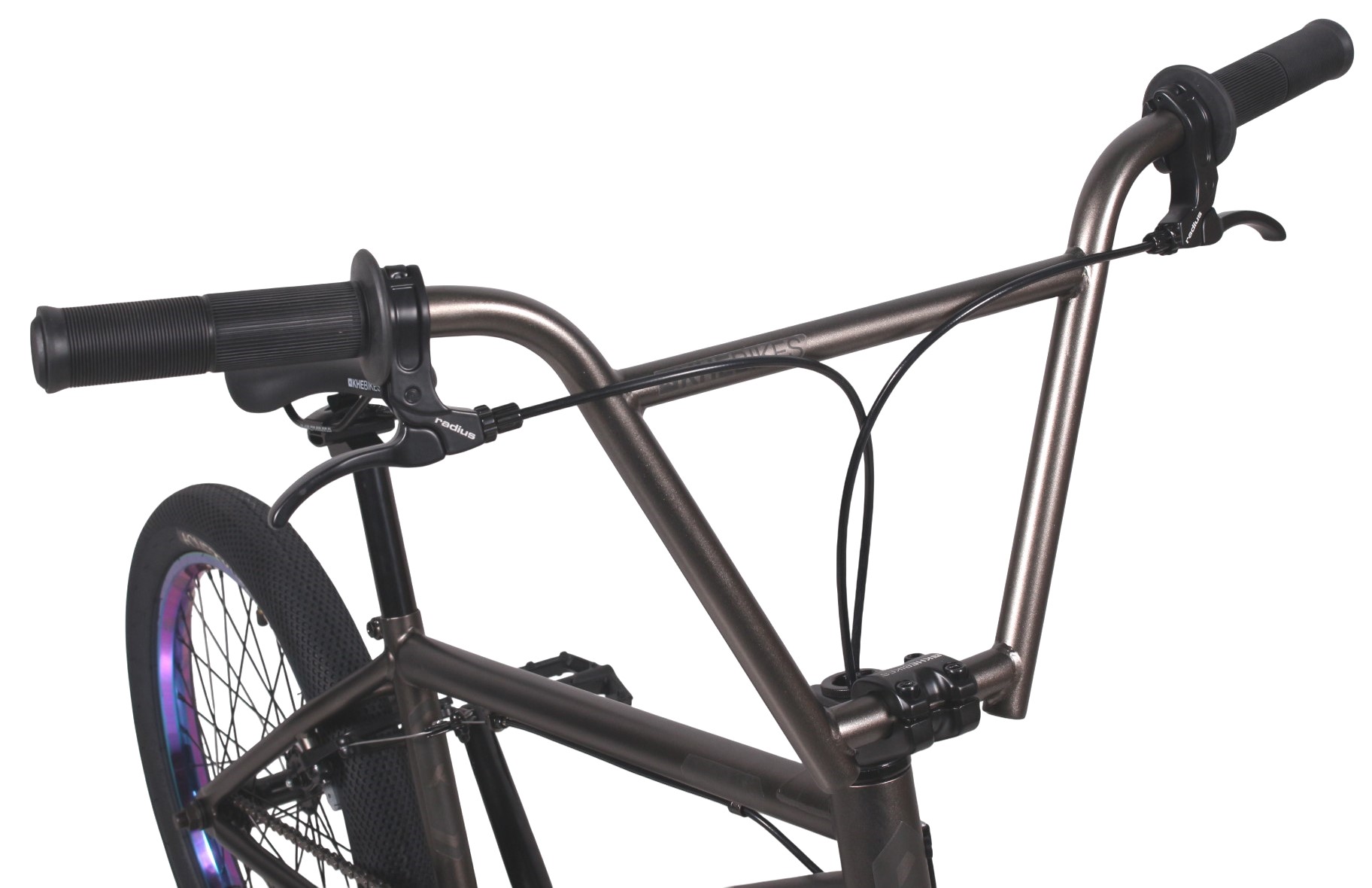

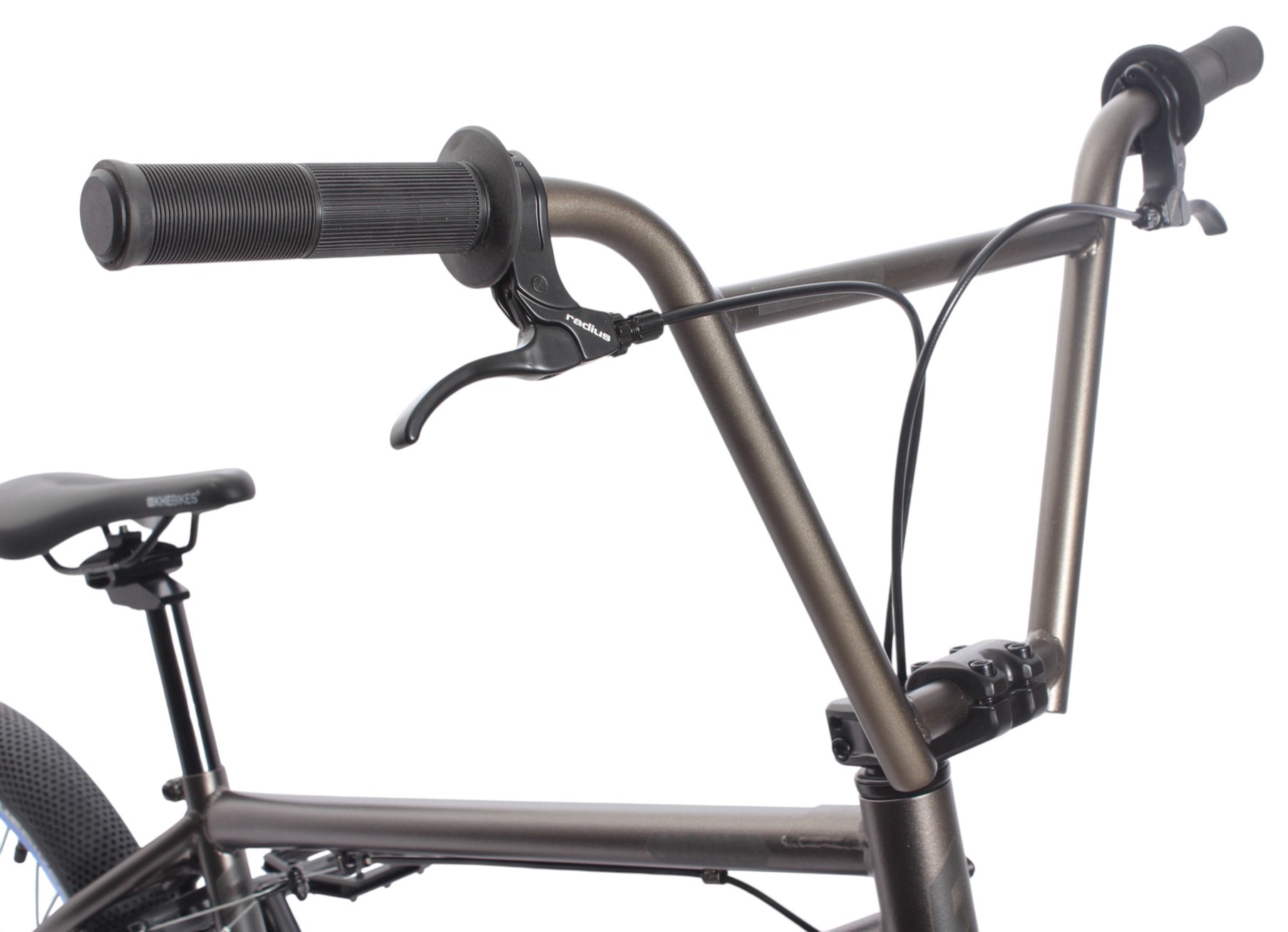

| Handlebars: | KHE multiple butted 4-piece handlebar, height 10" (254mm) x width 750mm, 10° backsweep, 2° upsweep |

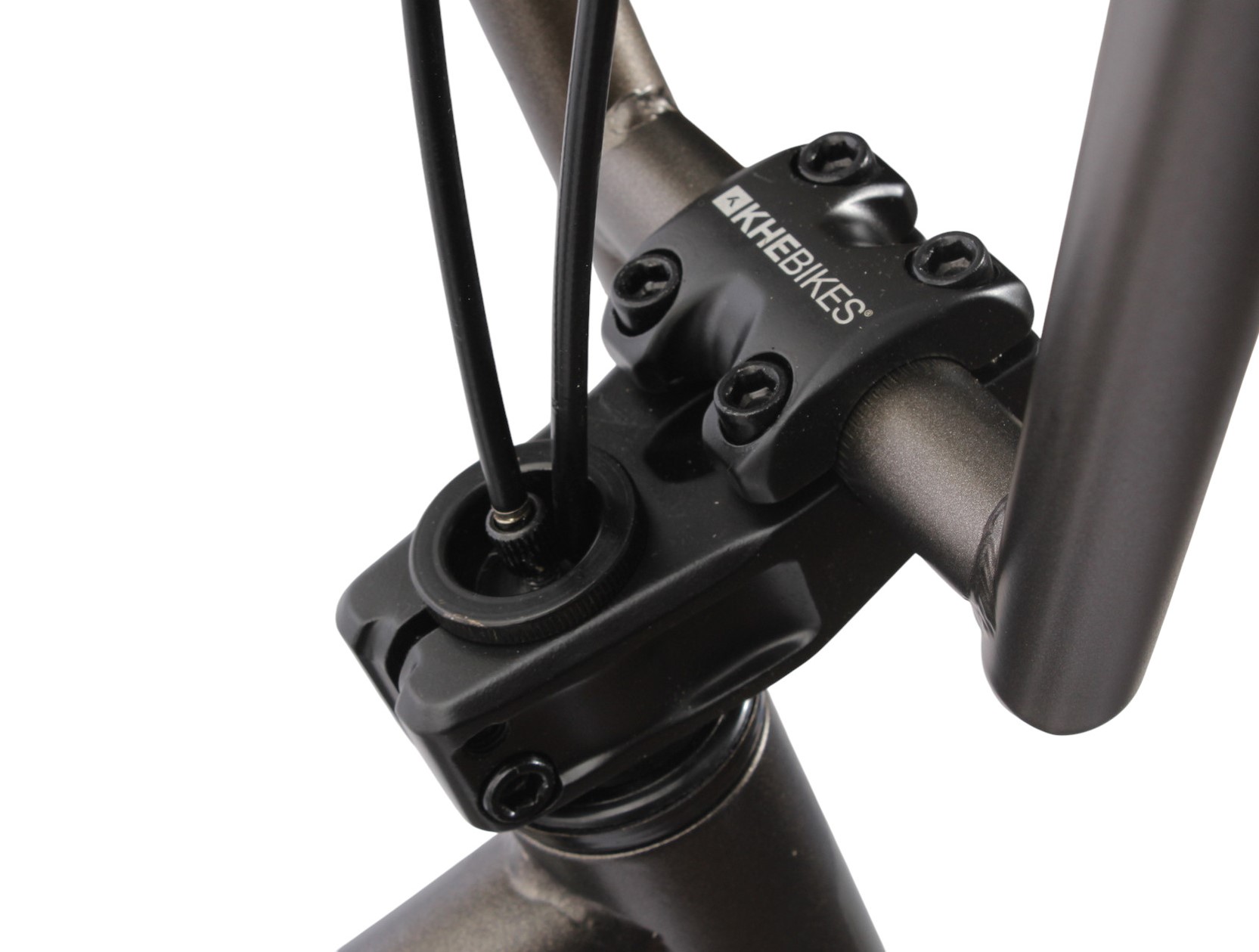

| Stem: | KHE Top Loader Ext.50mm |
| Headset: | AFFIX Loosball 1 1/8" |

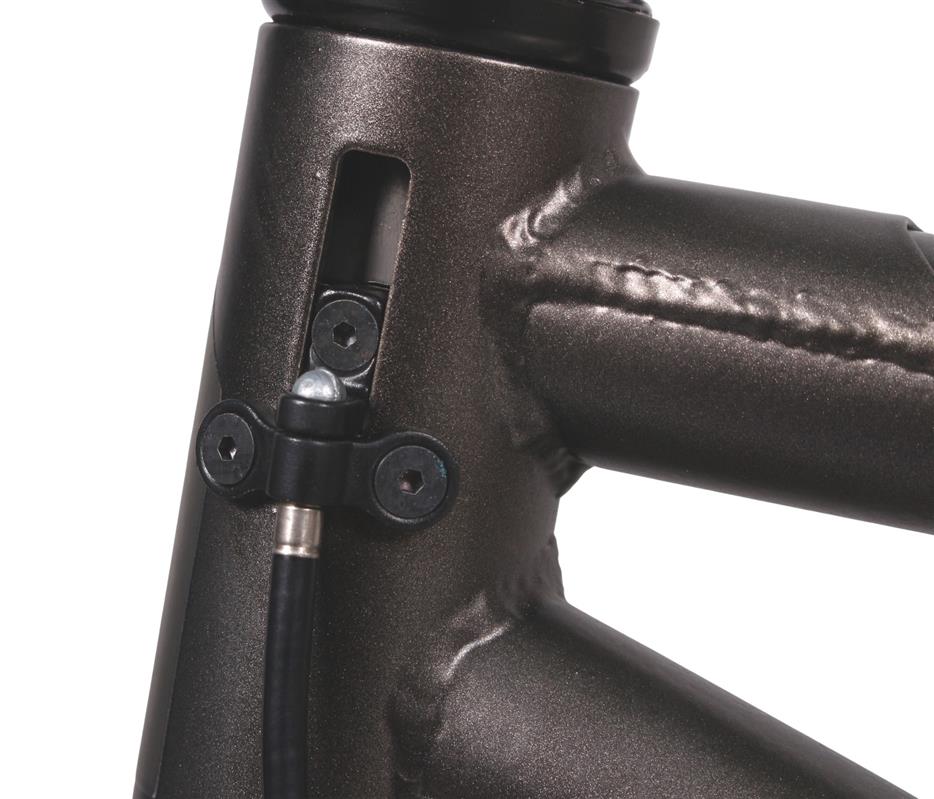

| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Handles: | Propalm Mushroom Style140mm |

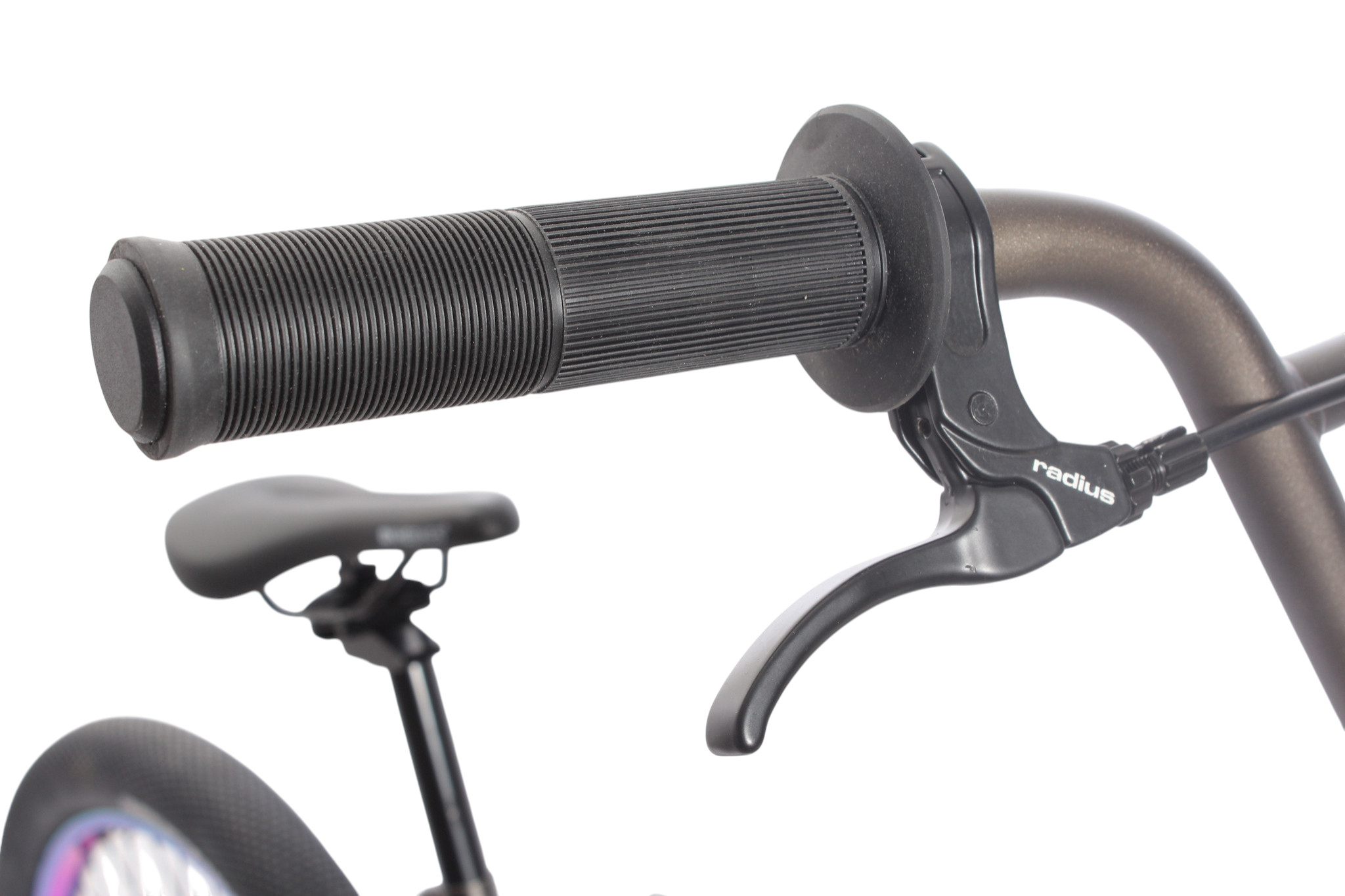

| Brake levers: | Aluminium brake lever with hinged bar clamp |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

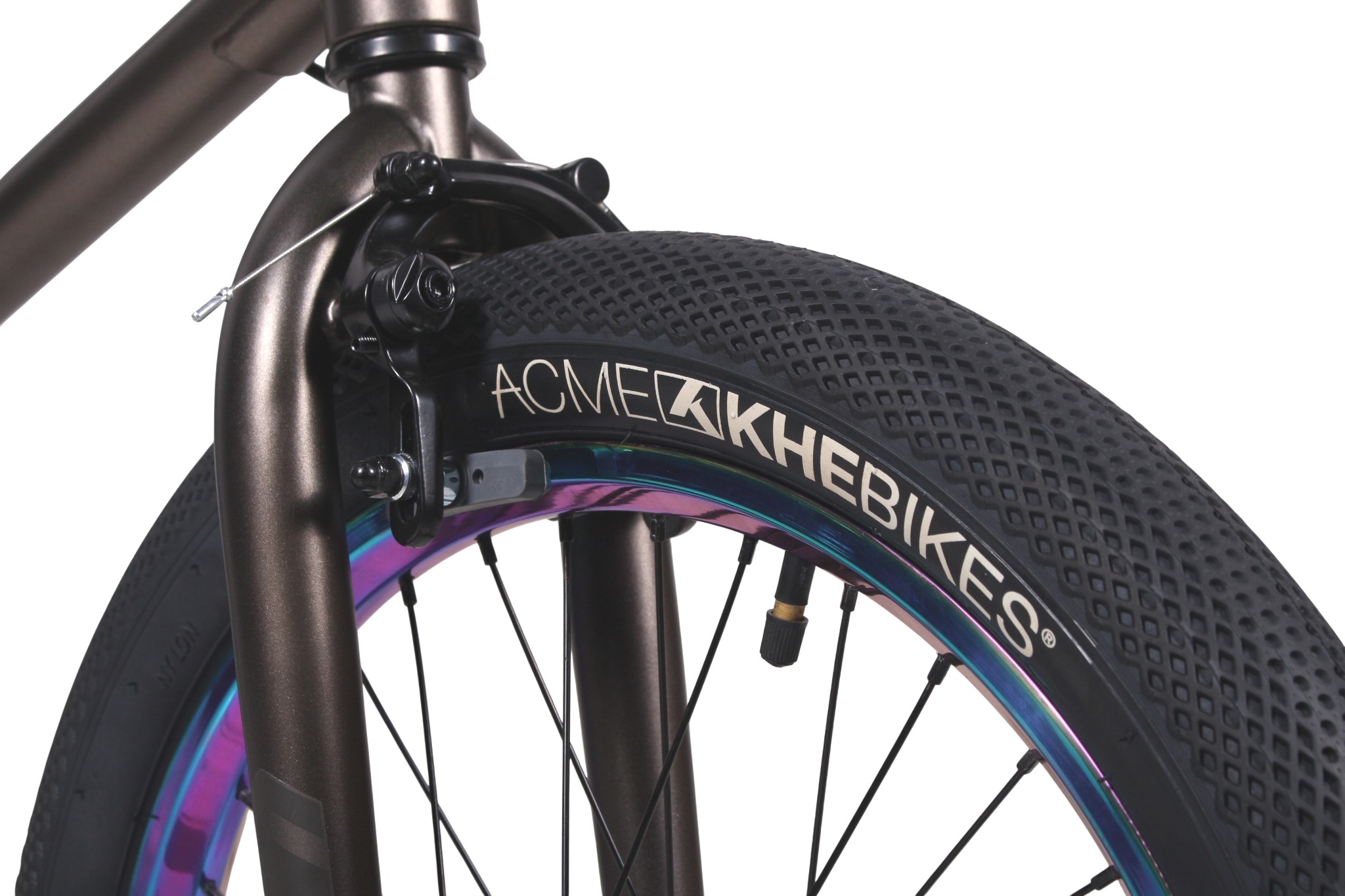

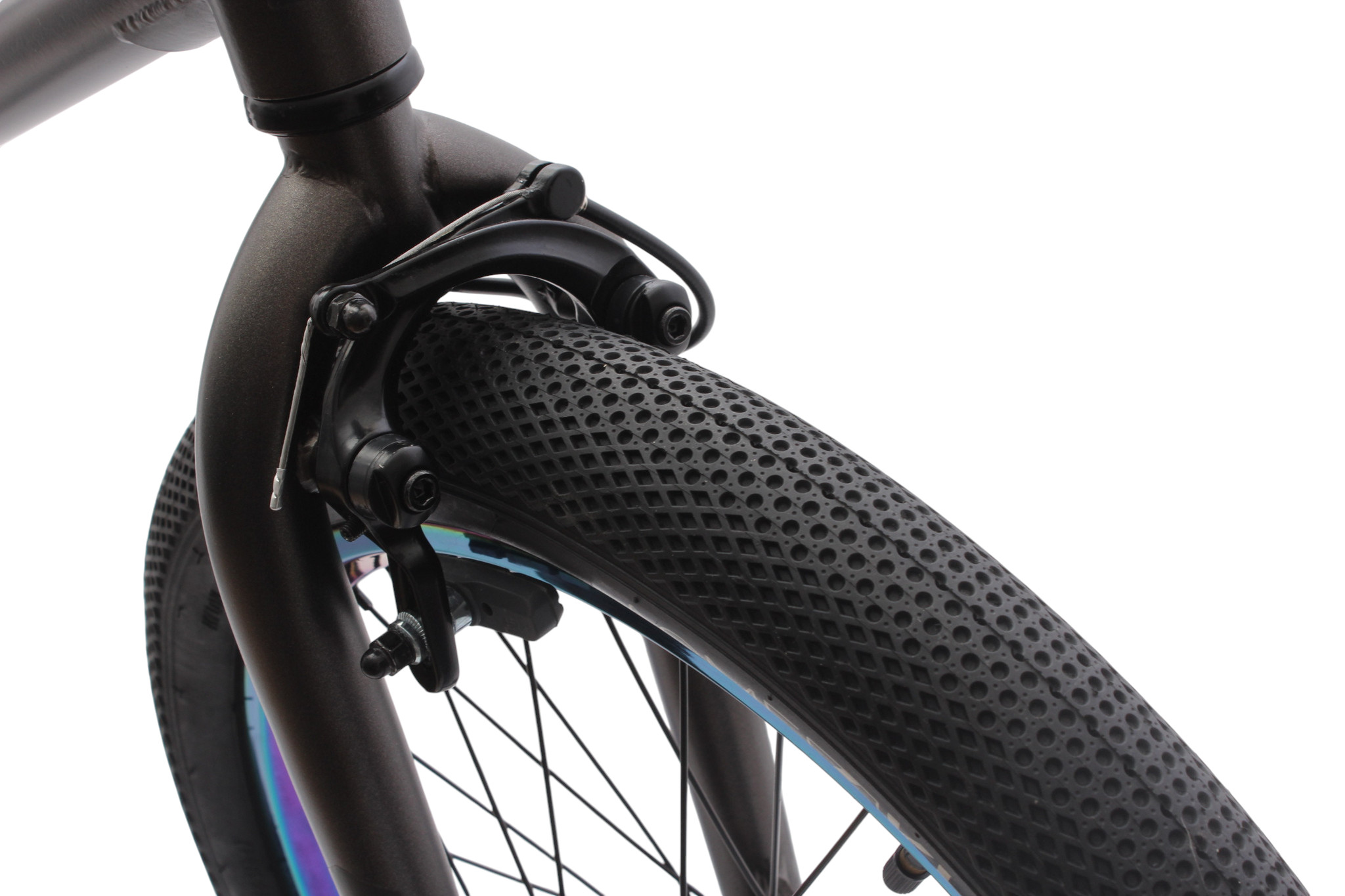

| Front brake: | KHE RADIUS Aluminum U-Brake |

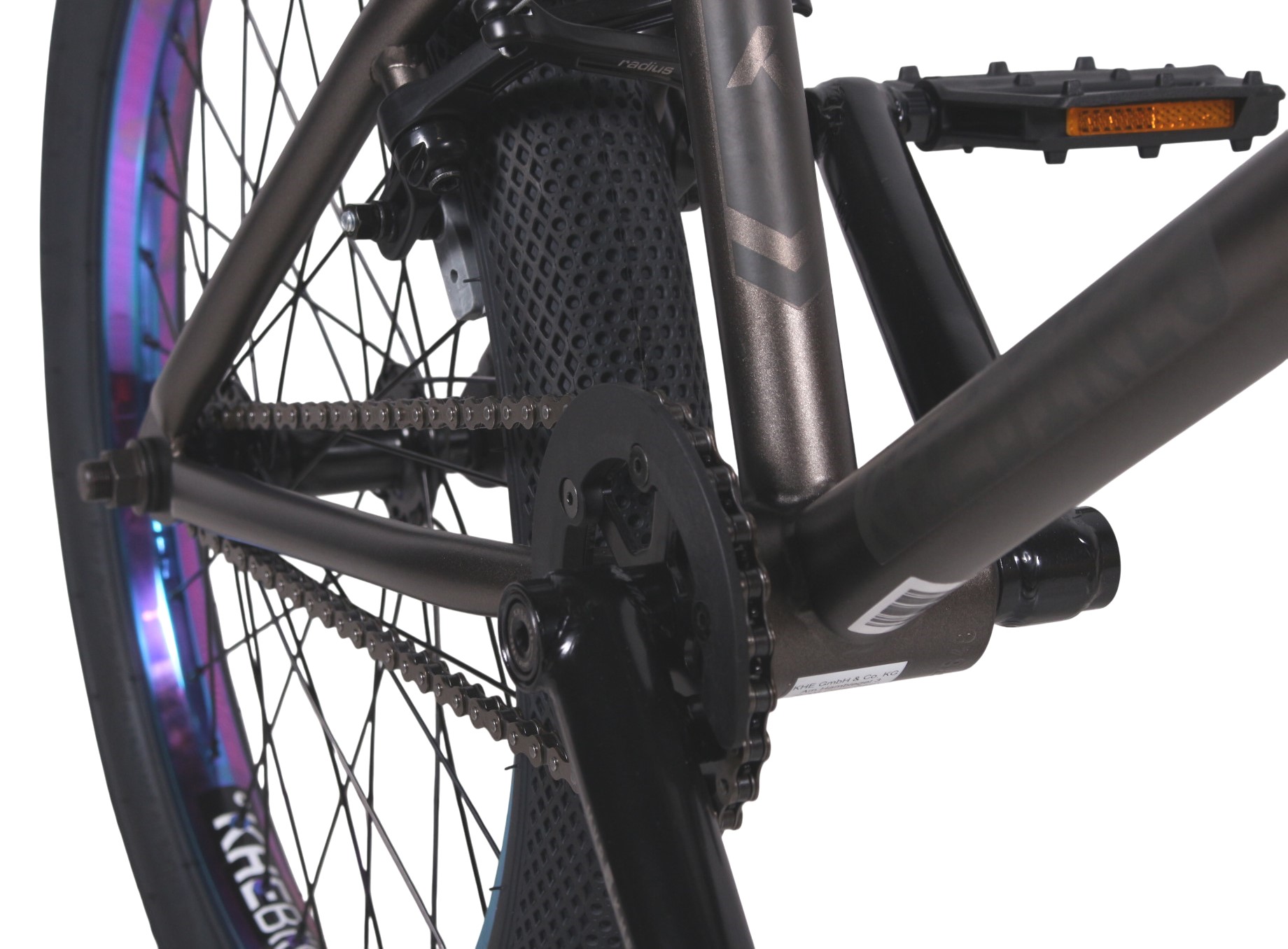

| Crank: | KHE 3-piece CrMo hollow crank 170mm / 48T teeth |
| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 19mm CrMo axle |

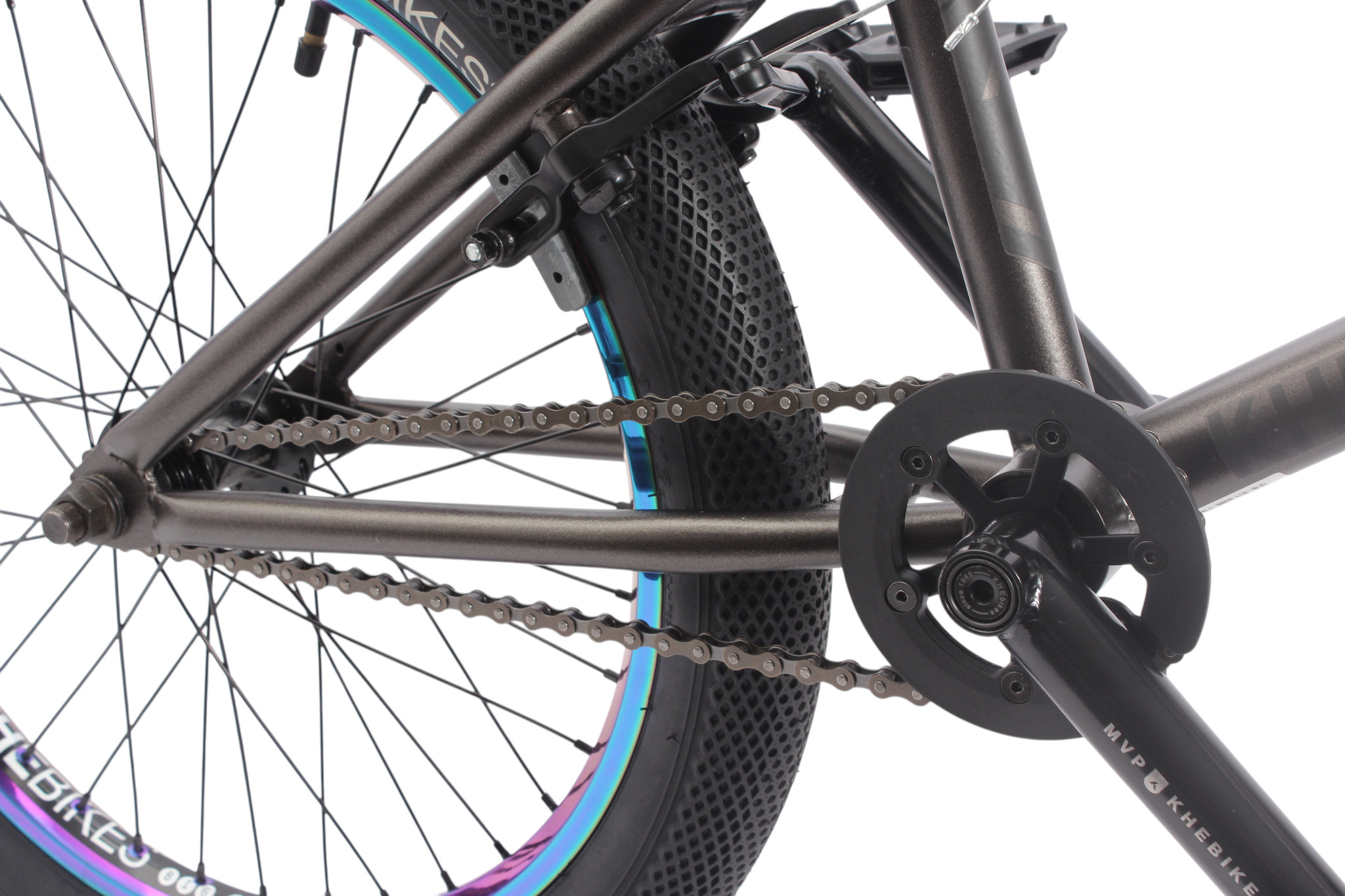

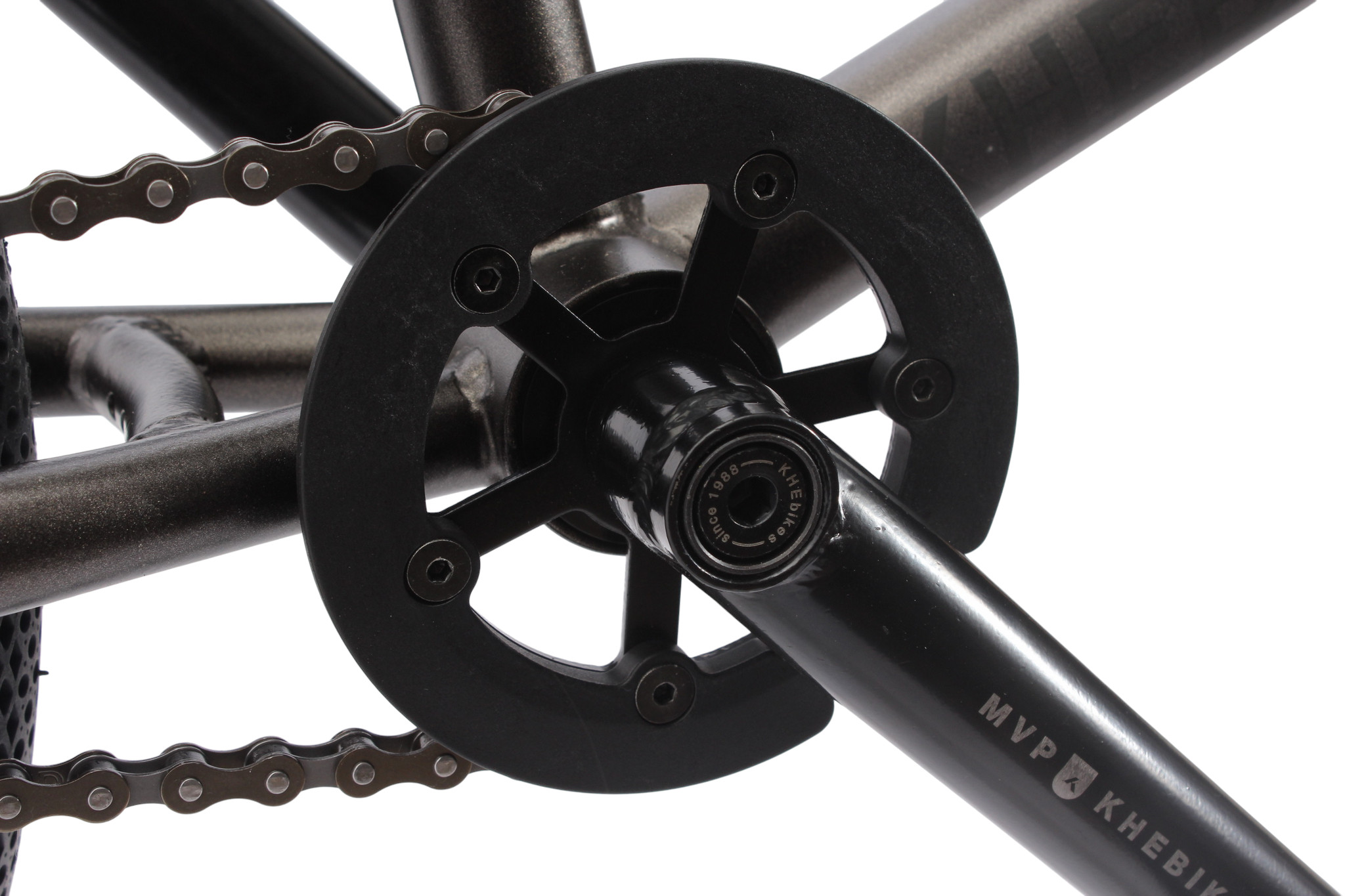

| Chainring: | 25 teeth steel with nylon grind guard |
| Chain: | YBN CN ST 1/2 x 1/8“ |

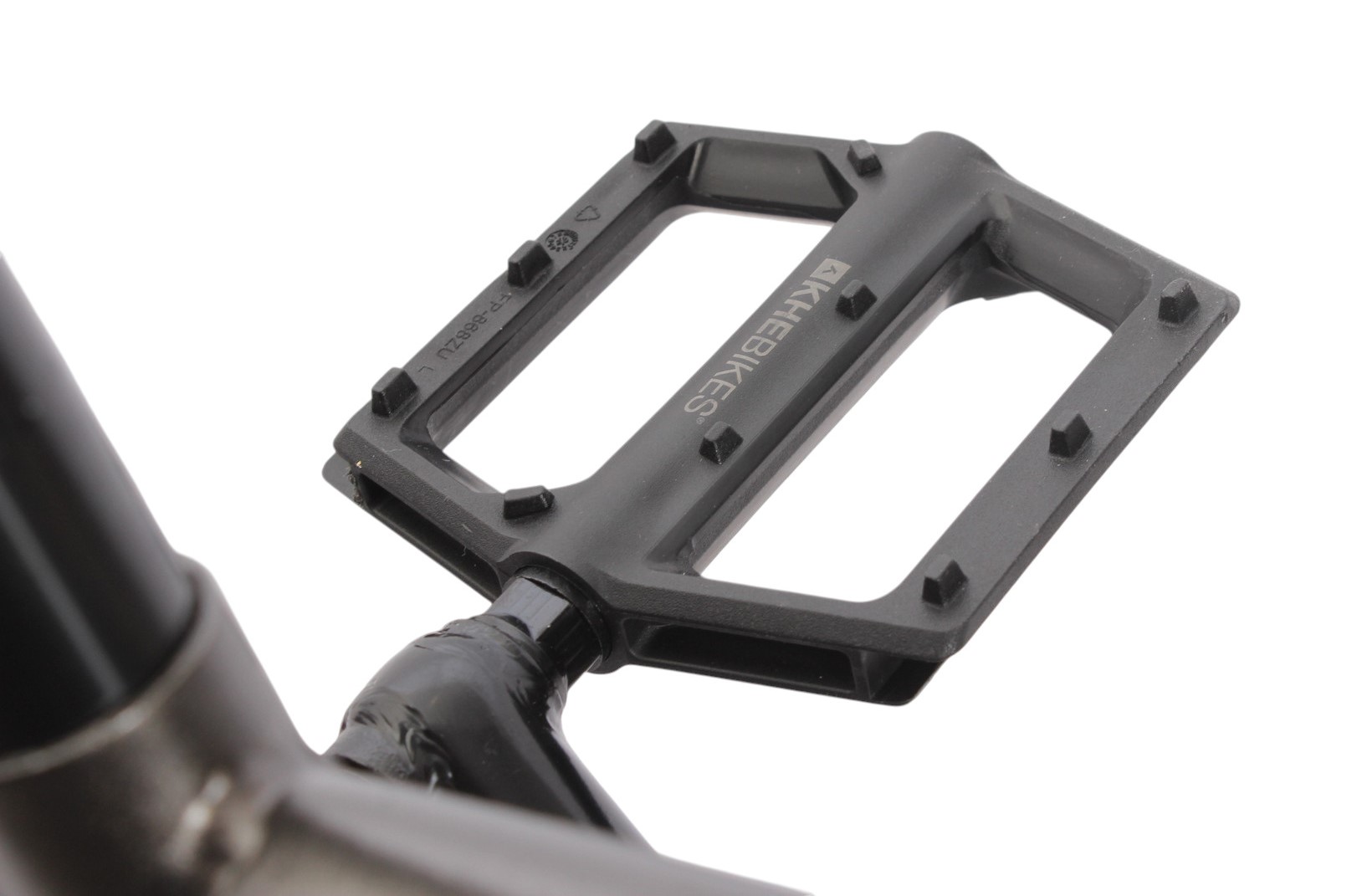

| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

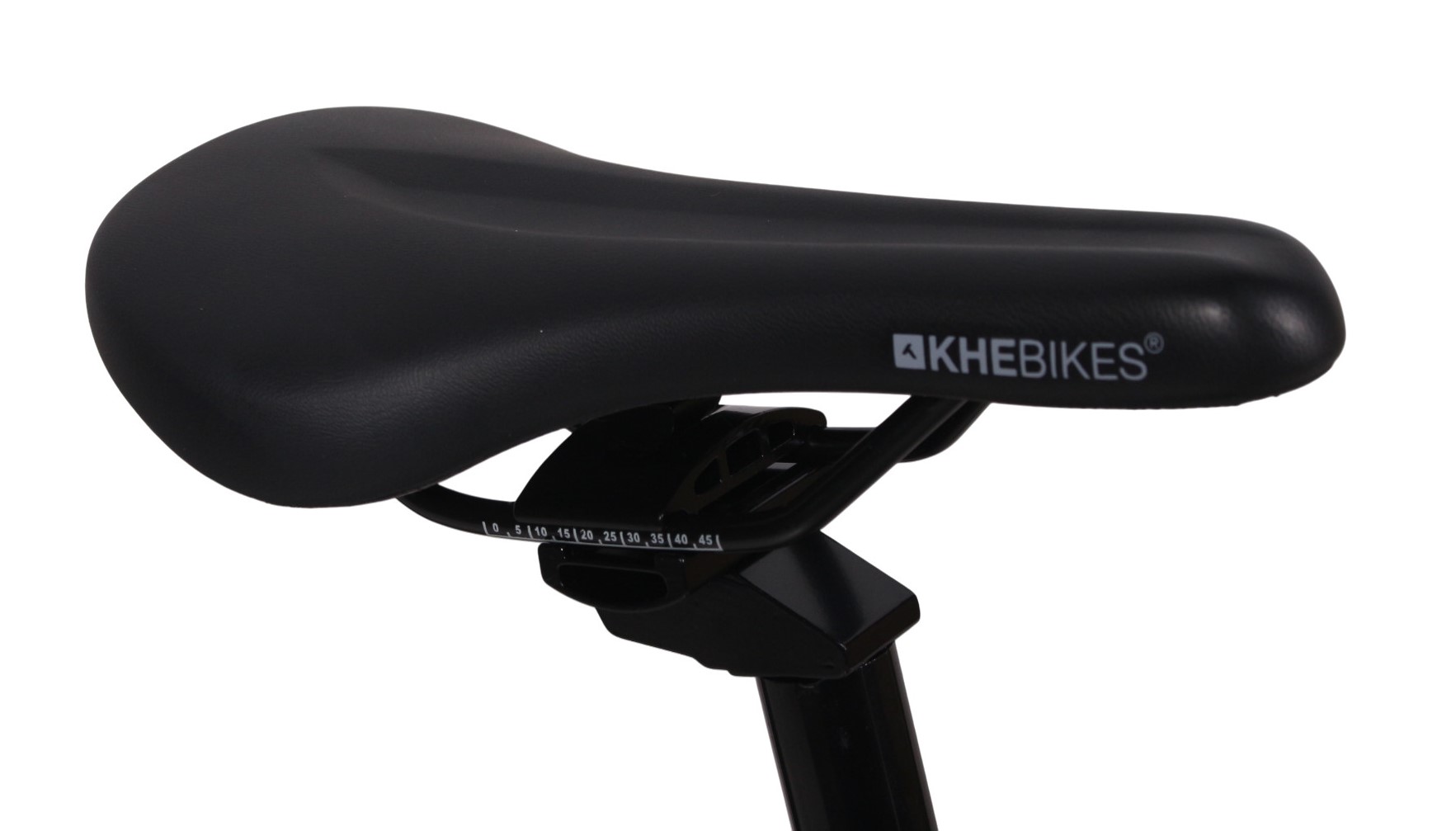

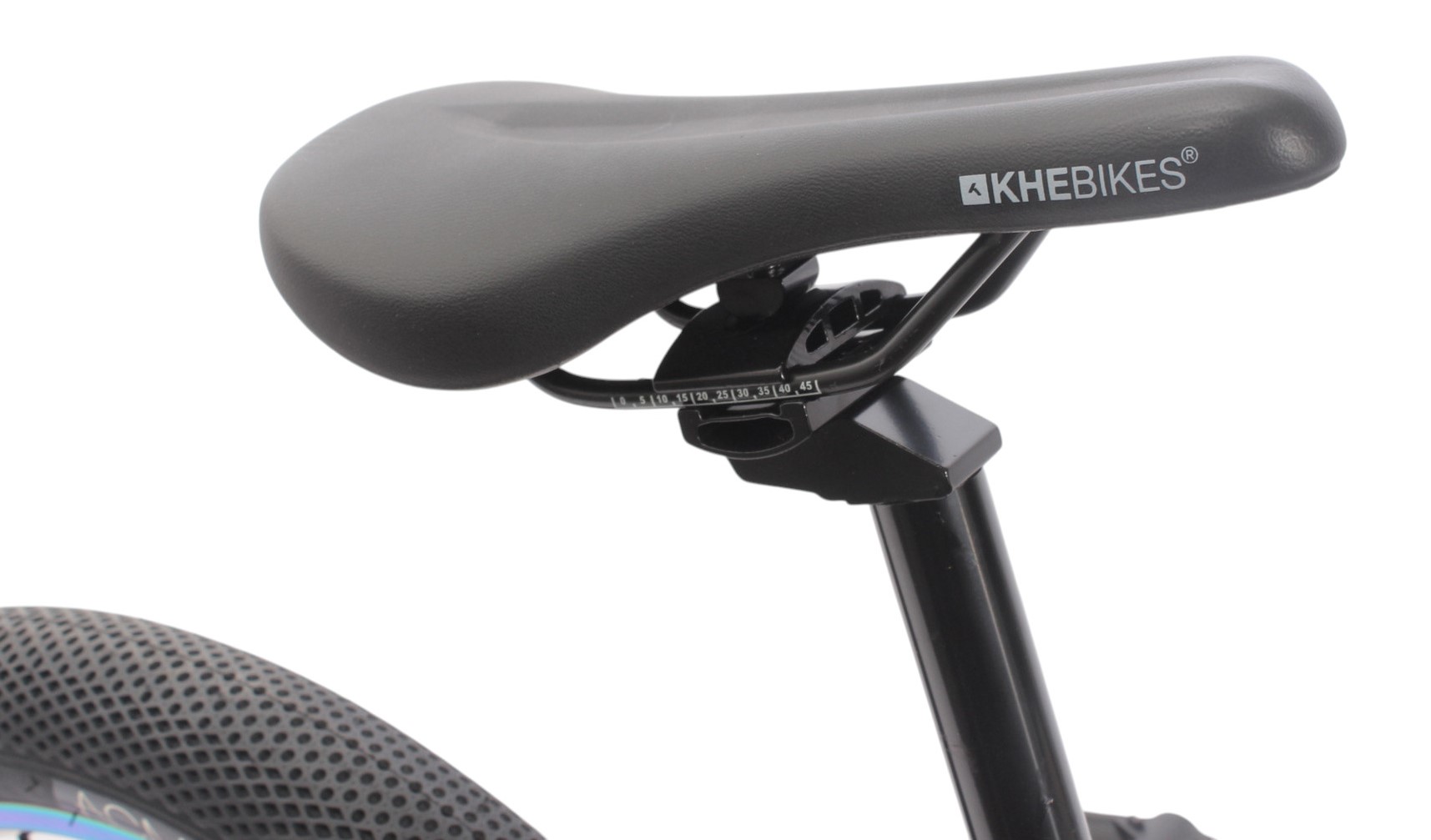

| Saddle: | padded, adjustable tilt |
| Seatpost: | Diameter 25.4mm x Length 220mm (integrated seat post with saddle) |

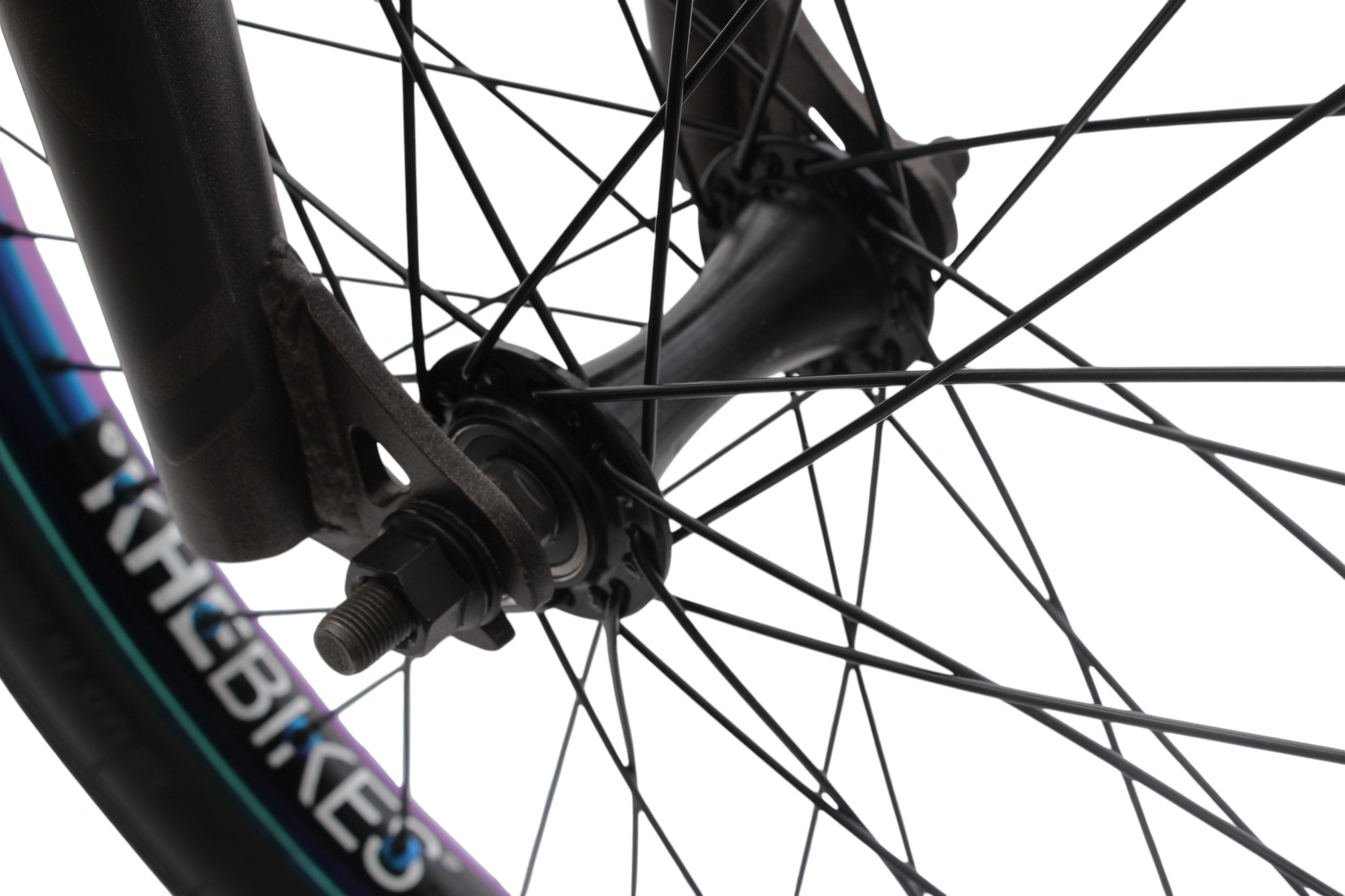

| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

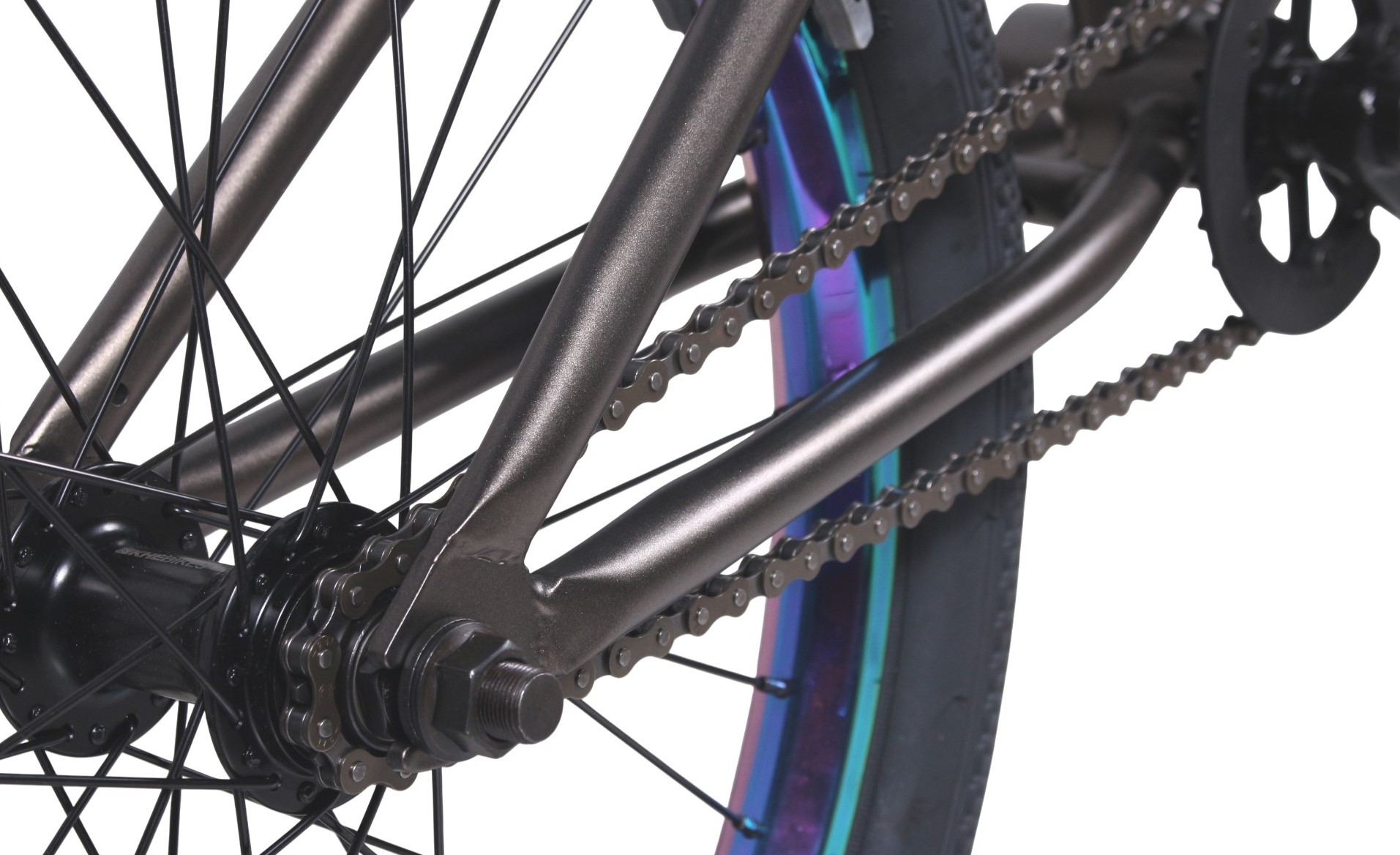

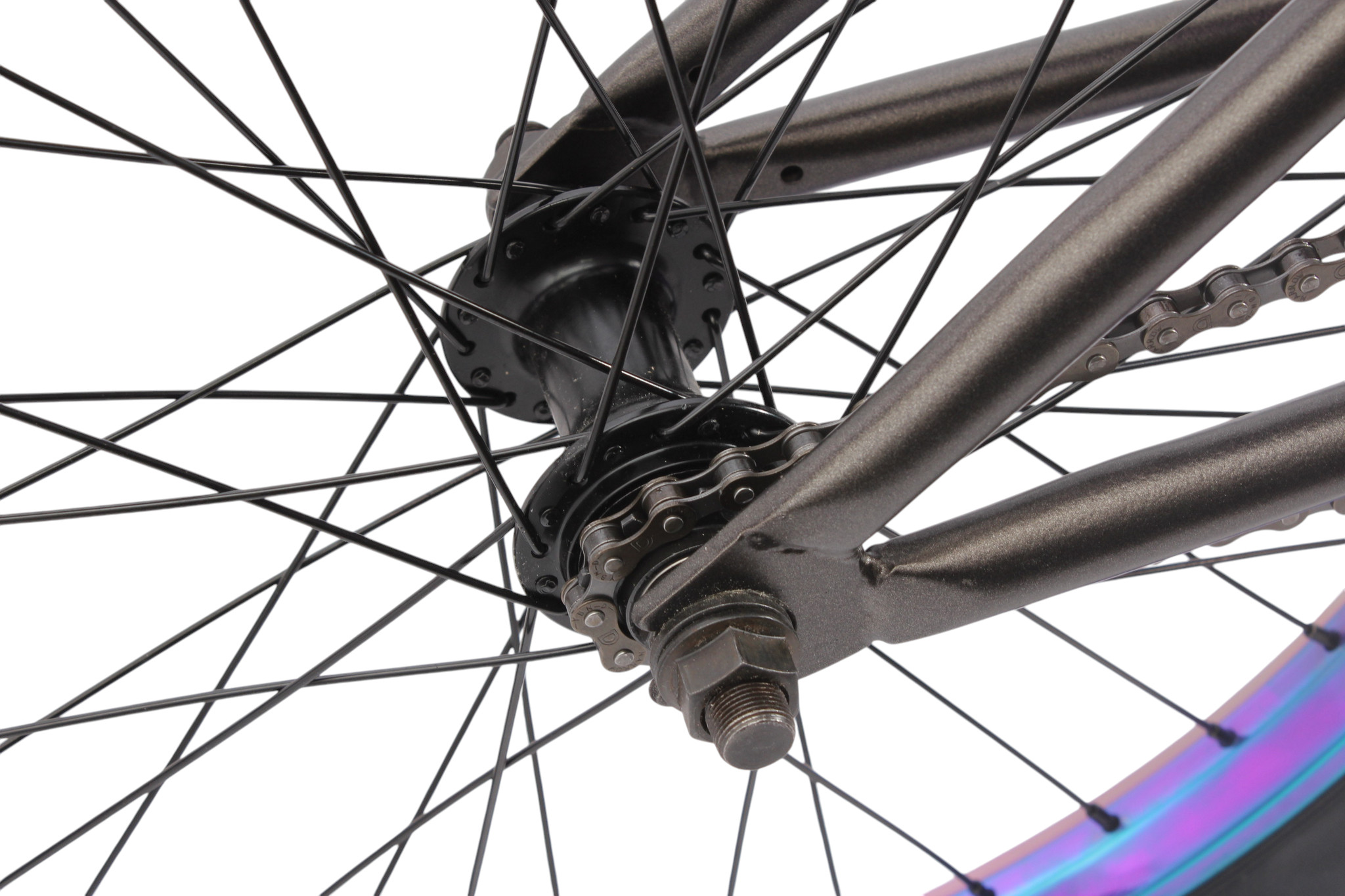

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Hub type: | freewheel |
| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | Park, Street, Pumptrack |
| Colour: | Matt black |
| Weight: | 24.47lbs / 11,1kg |
| Model Year: | 2025 |
| Sale: | Sale |
Intended use: The BMX bike is intended for sporting use in the BMX discipline. It is suitable for street, park, dirt and pump track riding on paved and unpaved surfaces. The bike is designed for riders with a height of 175–205 cm and a maximum body weight of 130 kg. Any use outside these intended applications is not considered proper use.
Wearing instructions / Use / Assembly: The BMX bike must be fully assembled according to the assembly instructions before first use and all bolted connections must be checked for correct fastening. Before each ride, brakes, handlebar, headset, tyres, chain and axle fixings must be inspected. The use of suitable protective equipment such as a helmet, gloves, knee pads and elbow pads is strongly recommended. The bike is not intended for road traffic use without legally required equipment.
Care and cleaning: Clean the BMX bike regularly to remove dirt, dust and moisture. Use a soft cloth and mild cleaning agents. High-pressure cleaners must be avoided as they may damage bearings, seals and moving parts. After cleaning, the chain and moving components should be re-lubricated.
Replacement in case of wear: The BMX bike and its components are subject to natural wear. Worn or damaged parts such as brake pads, tyres, chain, bearings or fasteners must be replaced immediately. Continued use of worn components may result in loss of function or safety risks.
