KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, advanced engineering and outstanding riding dynamics. The new 2025 models feature optimized geometry, well-thought-out details and high-quality components – directly from the manufacturer for maximum performance on any terrain.

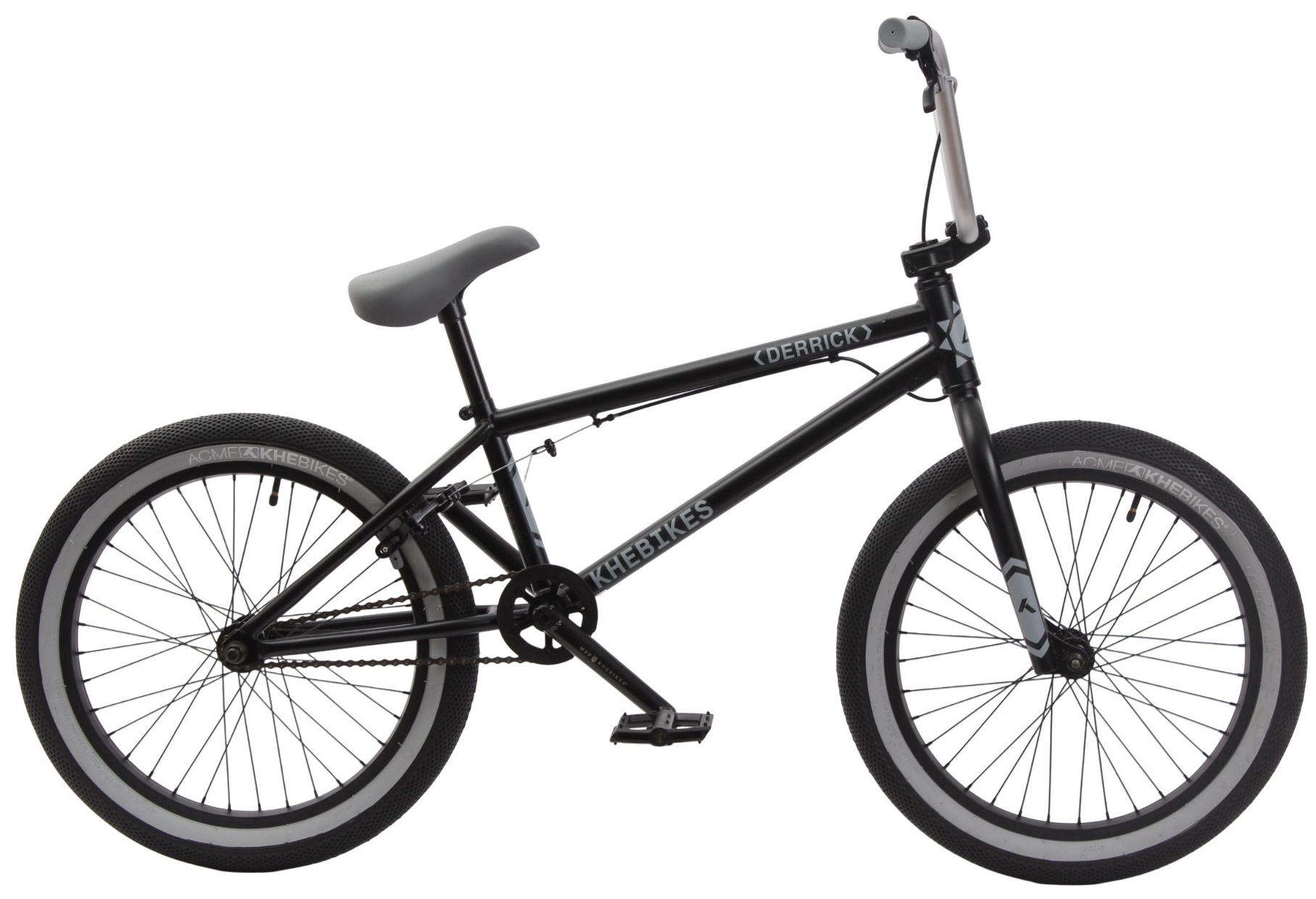

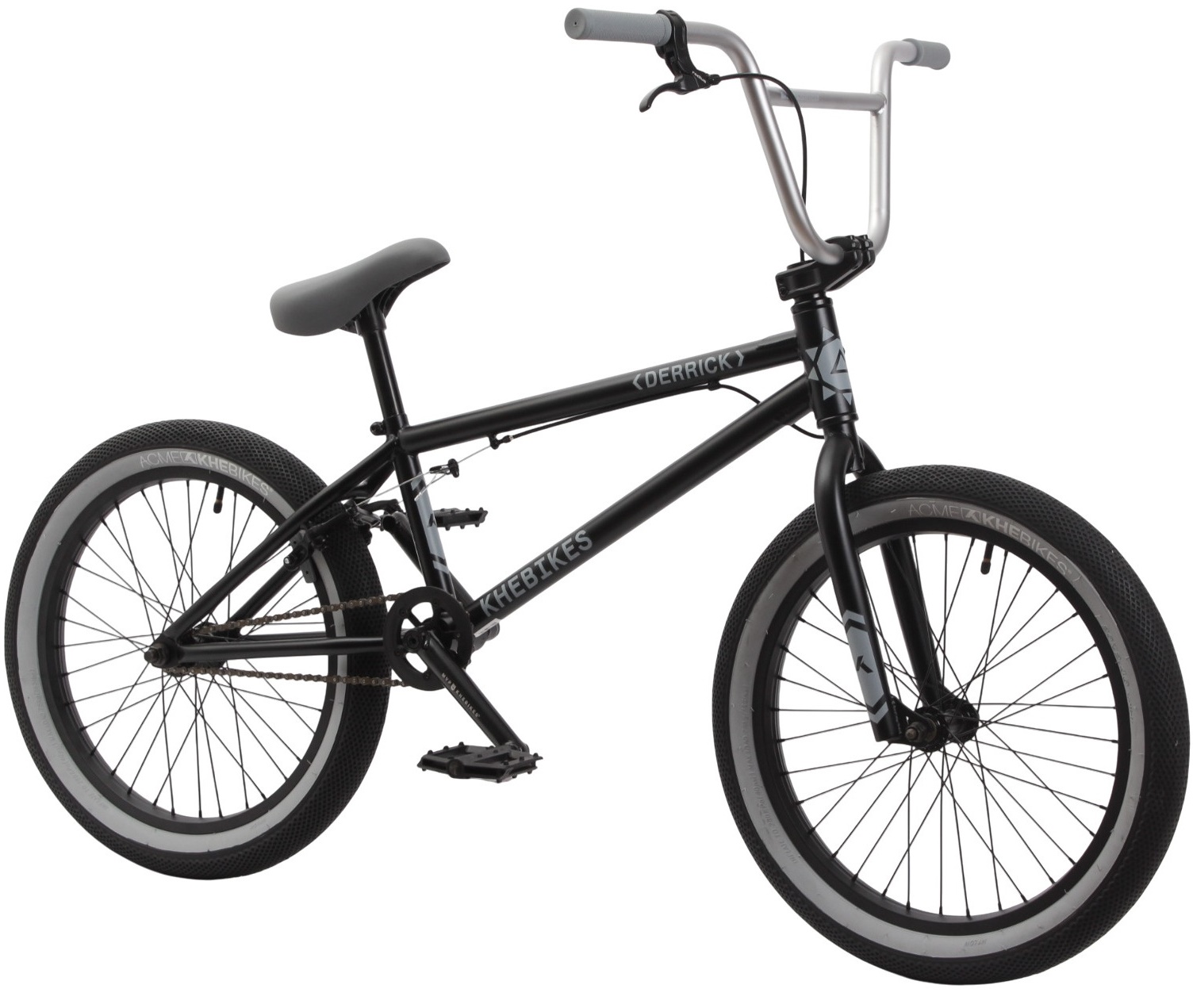

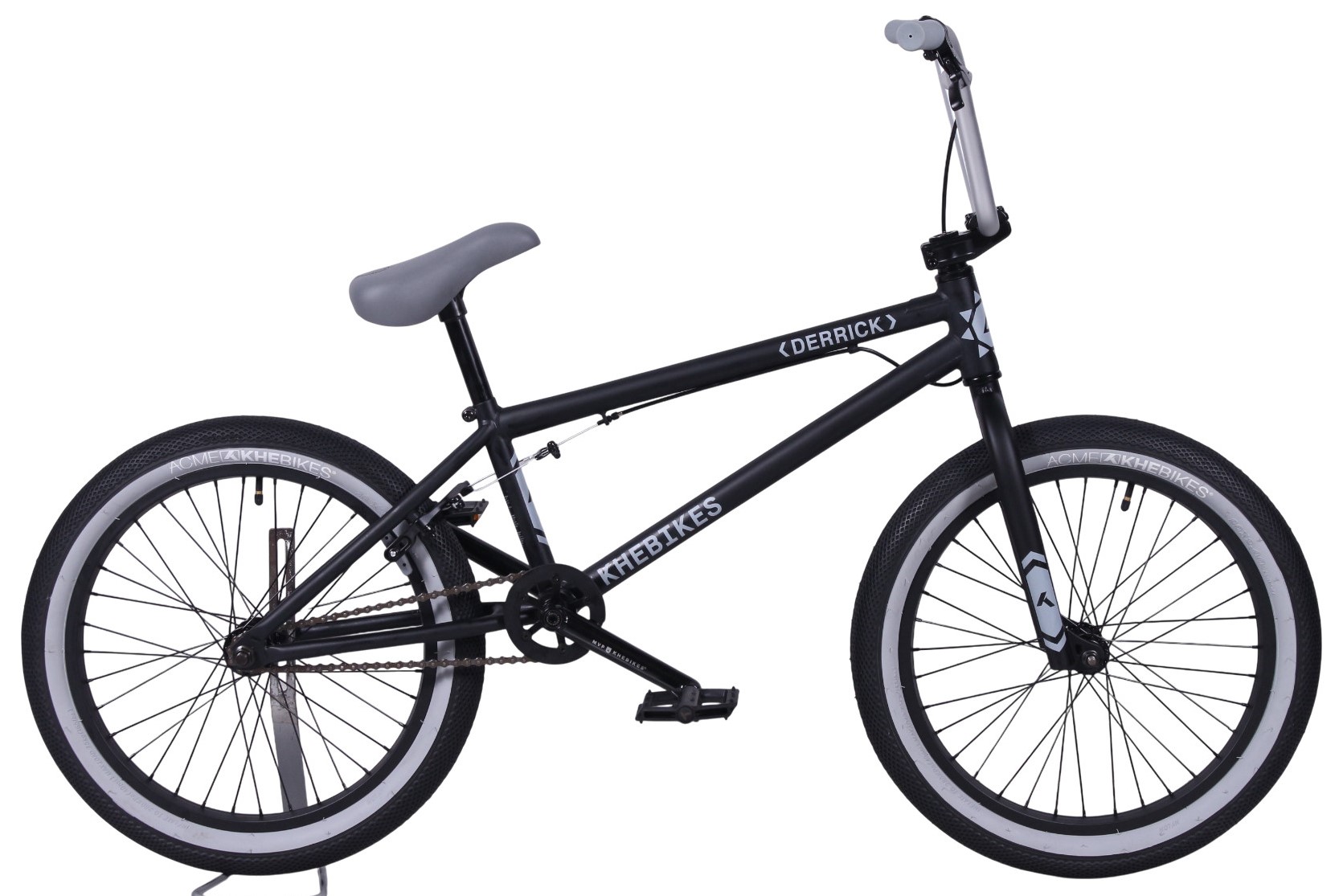

KHE DERRICK 20"
The KHE DERRICK 20 Inch BMX is a lightweight and durable freestyle BMX from the KHE 2025 BMX Series, developed for beginners and advanced riders. Weighing only 24.5 lbs, featuring a robust HiTen steel frame with a 20.6 inch top tube and wide 20 inch x 2.40 inch tyres, it offers excellent control and a modern riding feel.
The high-quality specification includes a 3-piece CrMo crank with a length of 6.7 inches, a 25T chainring with grind guard and a 9T cassette hub for direct power transfer. The U brakes front and rear provide reliable braking performance for safe riding and controlled tricks.
Thanks to its balanced geometry and durable components, the DERRICK is perfect for street, park, dirt and freestyle riding.
Recommended rider height: 4'11"–6'3"
Maximum rider weight: 176 lbs
Intended use: Park, Street, Dirt, Freestyle
Why choose the DERRICK 20 Inch from KHEbikes:
- Directly from the manufacturer for the best prices
- Especially lightweight and agile at only 24.5 lbs

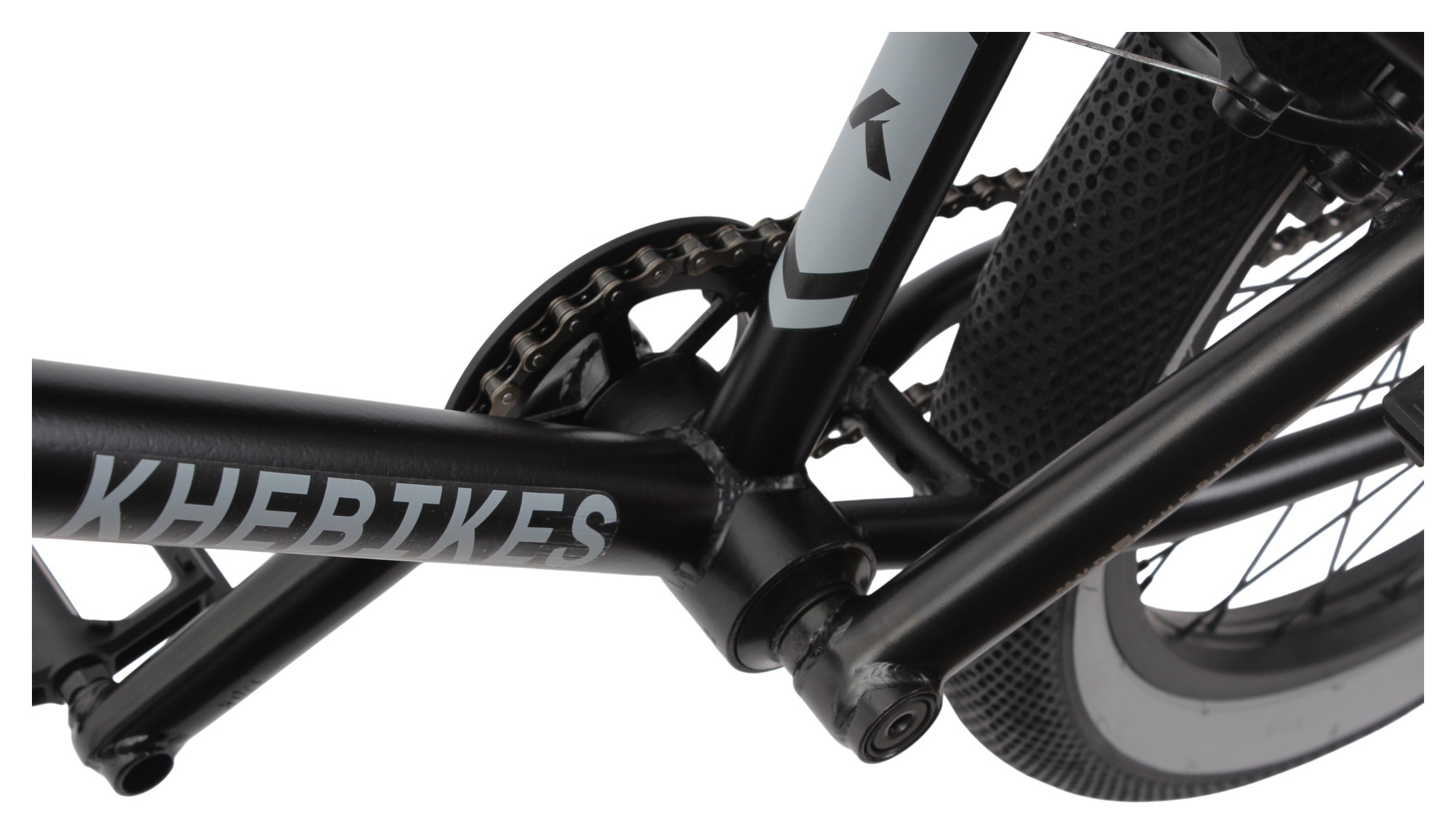

- Robust HiTen steel frame with a 20.6 inch top tube
- Wide 20 inch x 2.40 inch tyres for optimal grip
- 3-piece CrMo crank with a length of 6.7 inches
- 25T chainring with grind guard
- 9T cassette hub for direct power transfer
- Front and rear U brakes for maximum control
Pegs: The DERRICK 20" is compatible with 10 mm pegs at the front and 14 mm pegs at the rear.
The BMX bike is approximately 90% pre-assembled. You can find the instruction manual under “Datasheets”. An assembly video is available under “Video”.

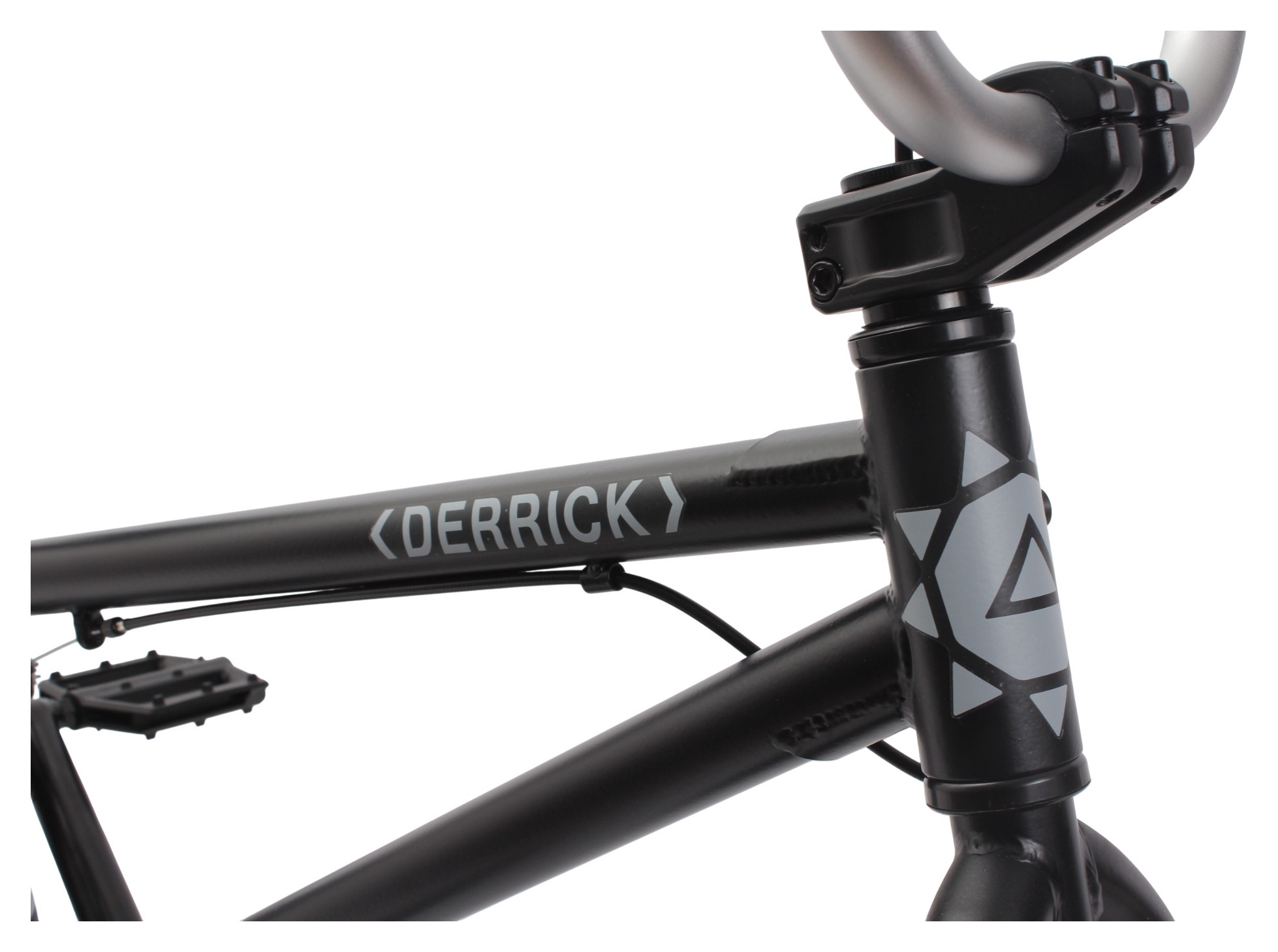

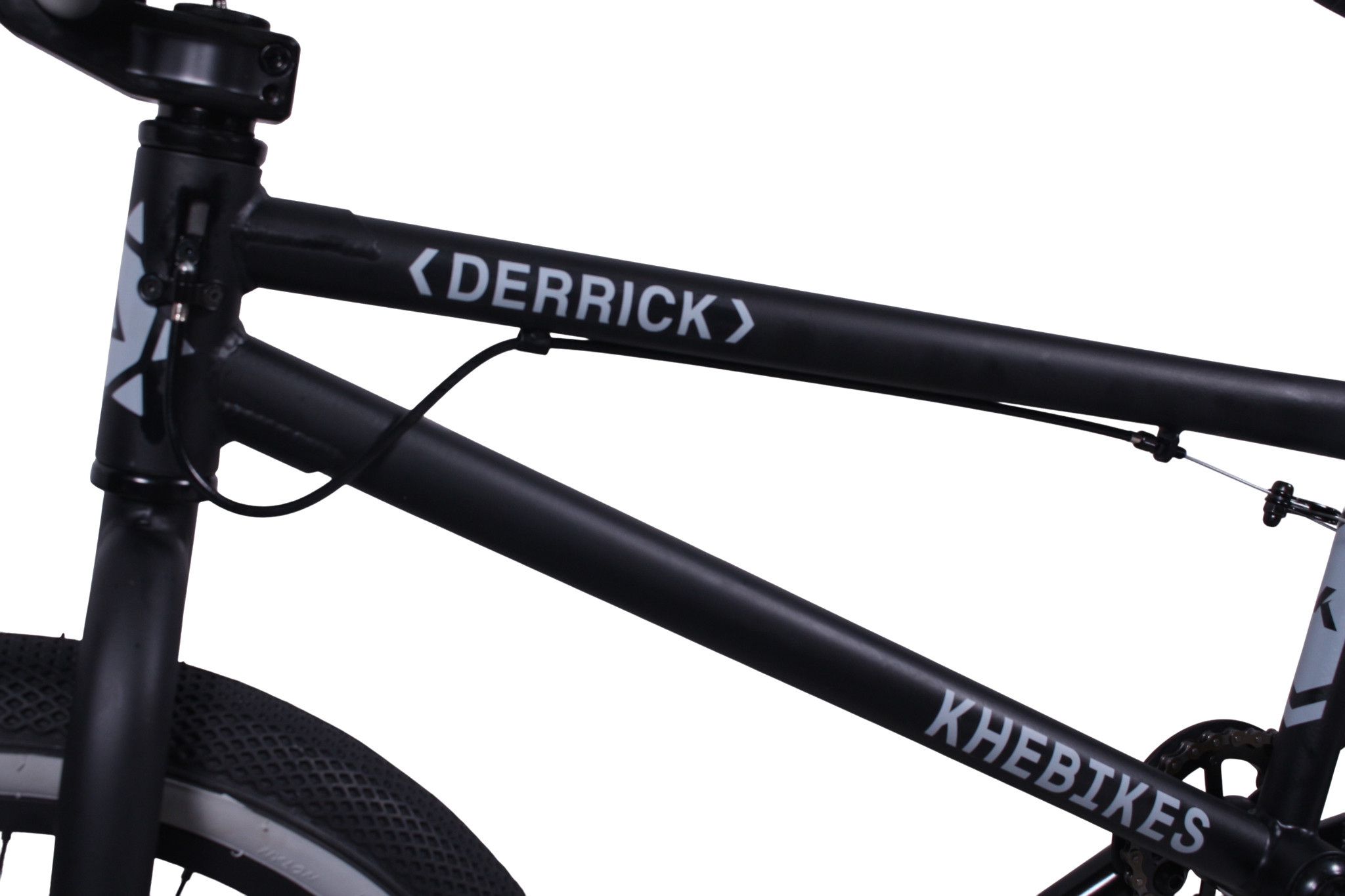

| Frame: | HiTen steel, top tube 20.6", RC 13.7", HT 75° |
|---|---|
| Top tube length: | 20,6" (524mm) |

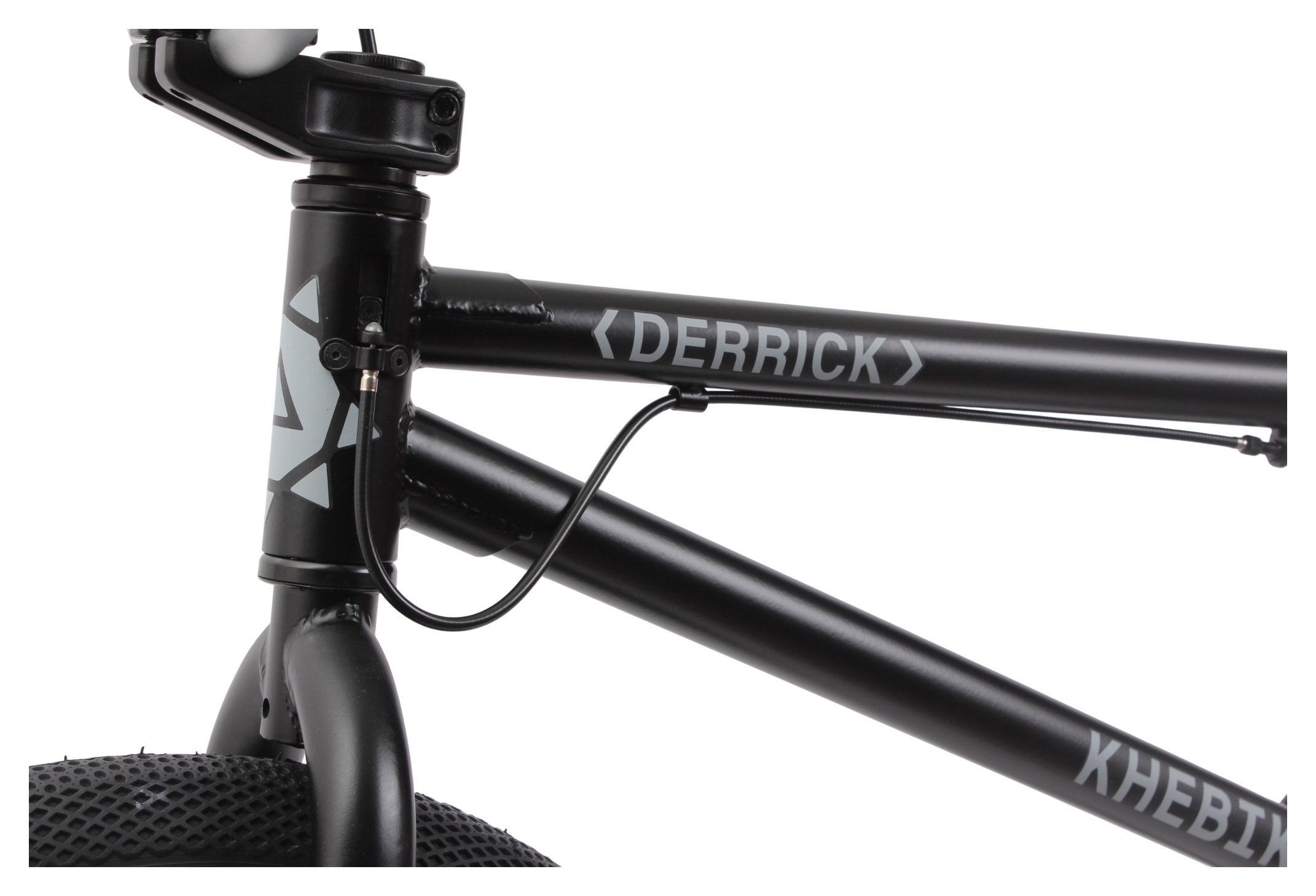

| Fork: | KHE 1020 HiTen steel with 10mm dropouts, tapered stanchions & 33mm forerunner |

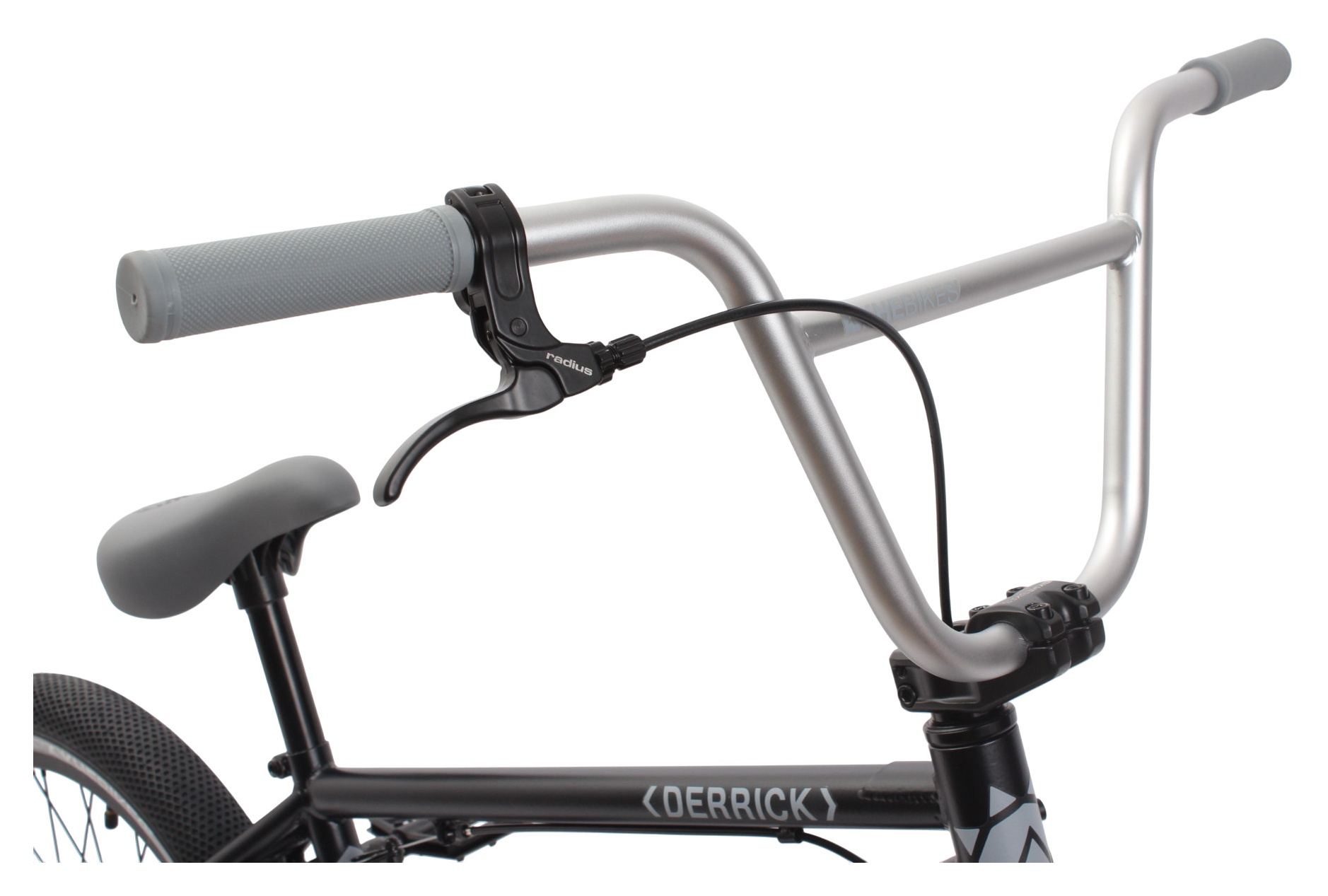

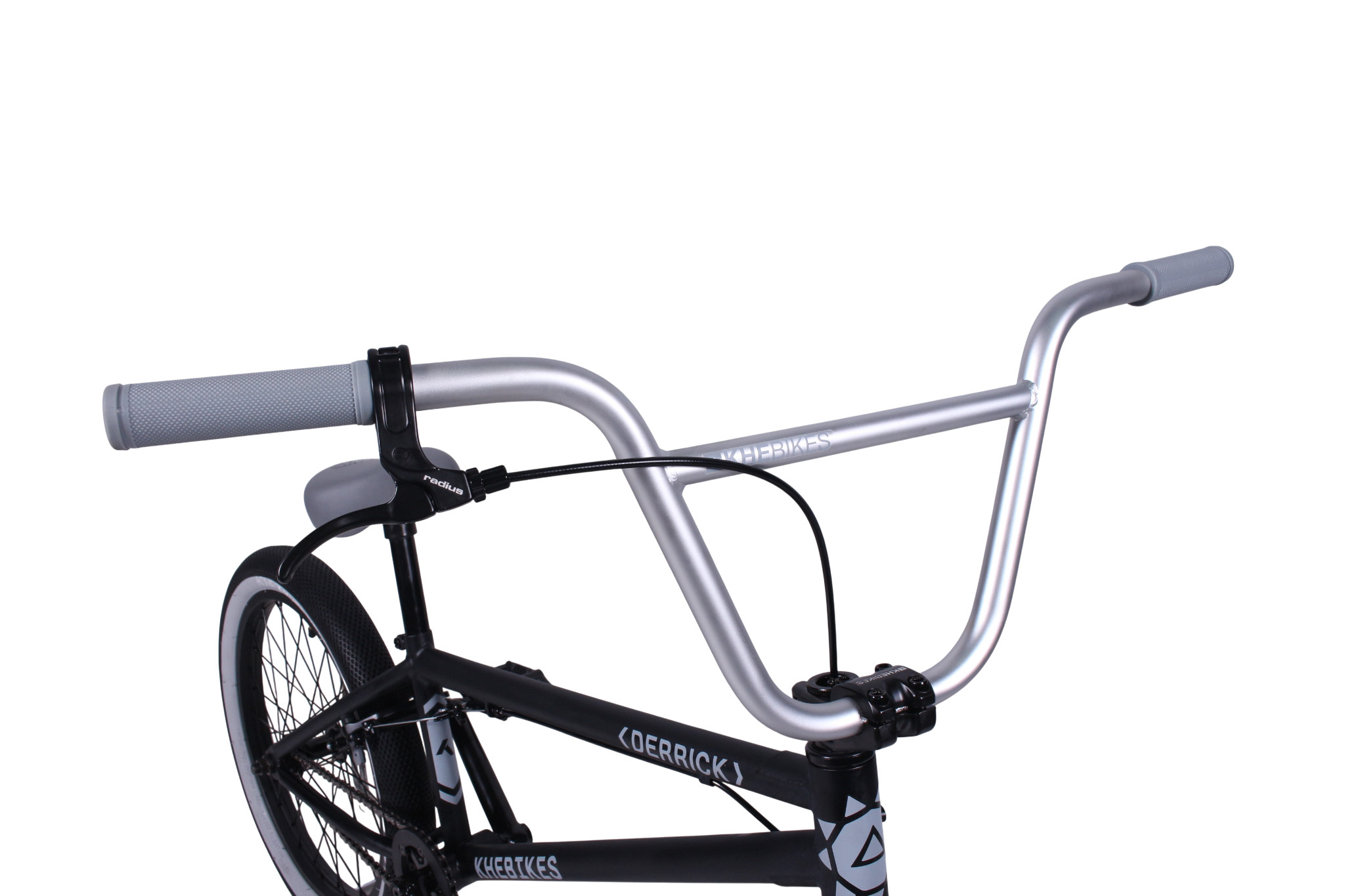

| Handlebars: | KHE HiTen steel 736mm width (29”) x 228mm (9”) height, Backsweep 9”, Upsweep 2” |

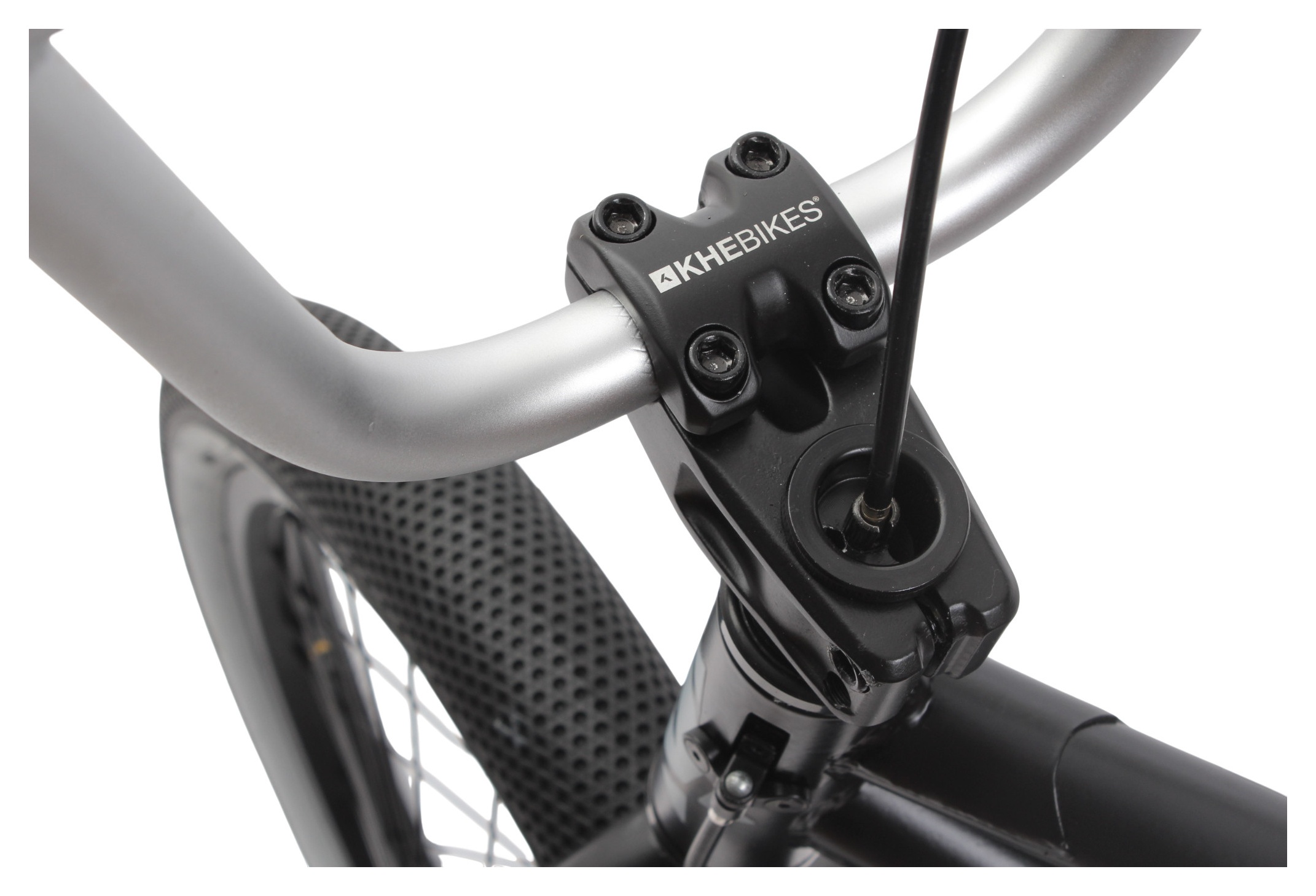

| Stem: | KHE Top Loader Ext.50mm |
| Headset: | AFFIX Loosball 1 1/8" |
| Rotor: | Patented KHE AFFIX 360 degree rotor |
| Handles: | with flange 120mm, rubber diamond cut profile |

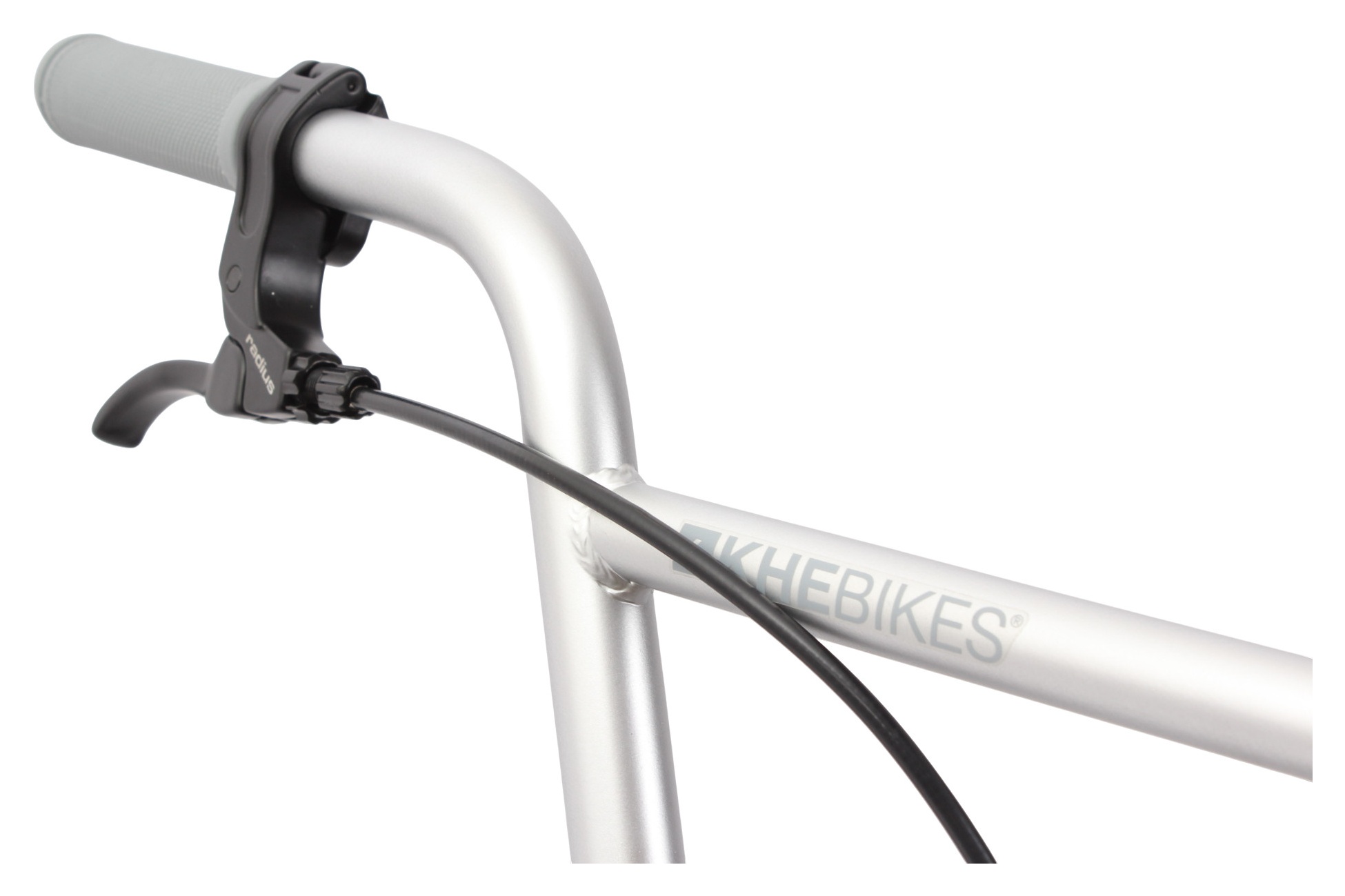

| Brake levers: | Aluminium brake lever with hinged bar clamp |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

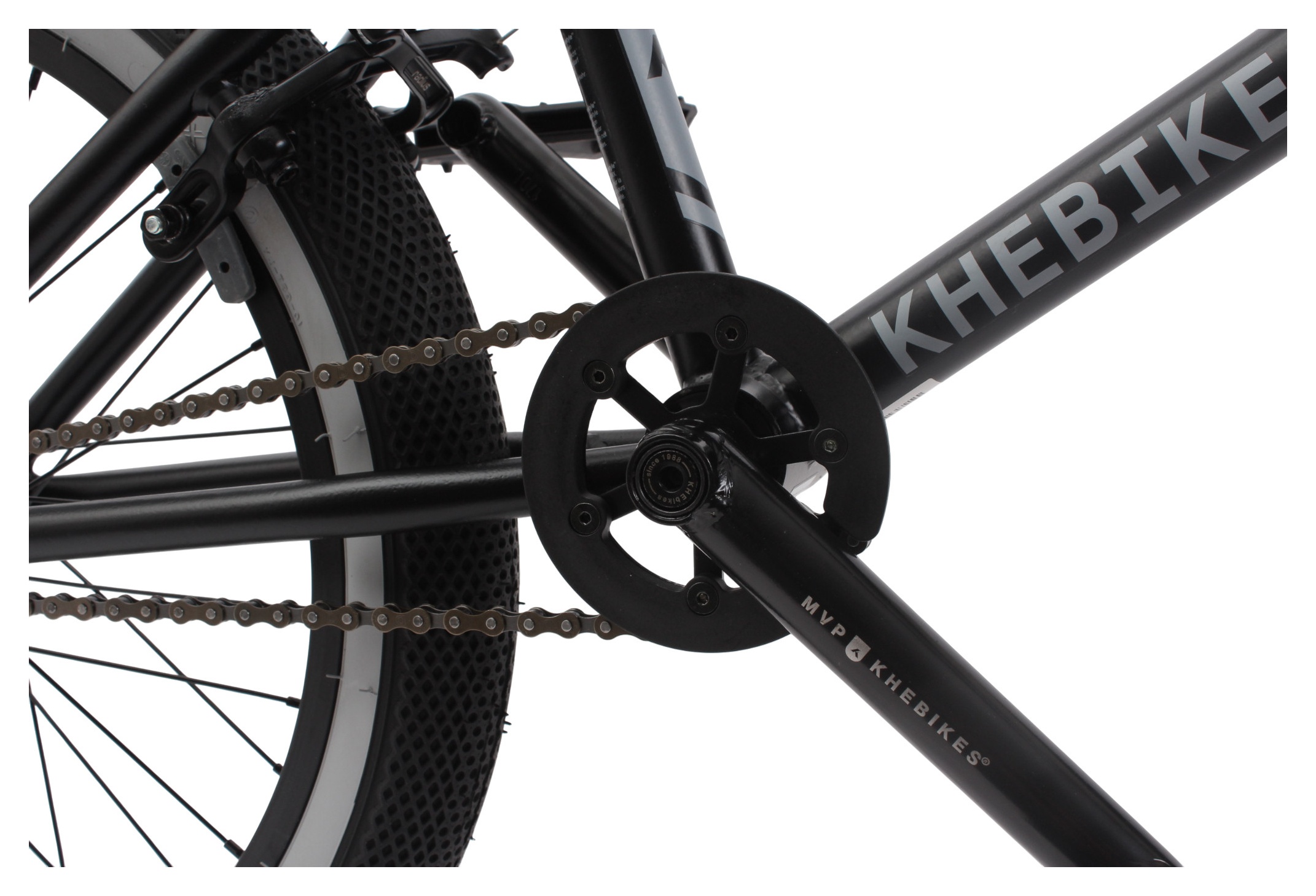

| Crank: | KHE 3-piece CrMo hollow crank 170mm / 48T teeth |
| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 19mm CrMo axle |

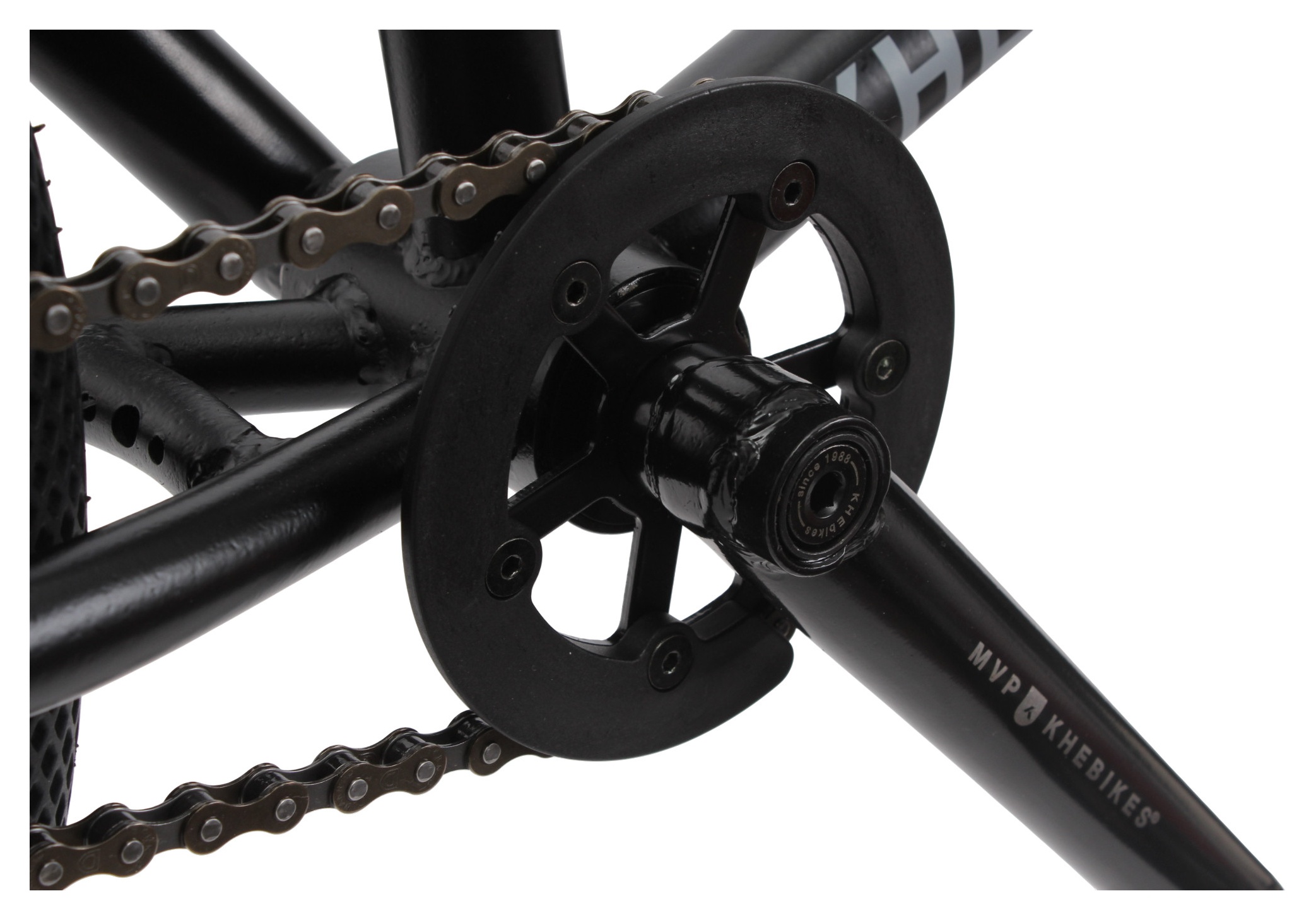

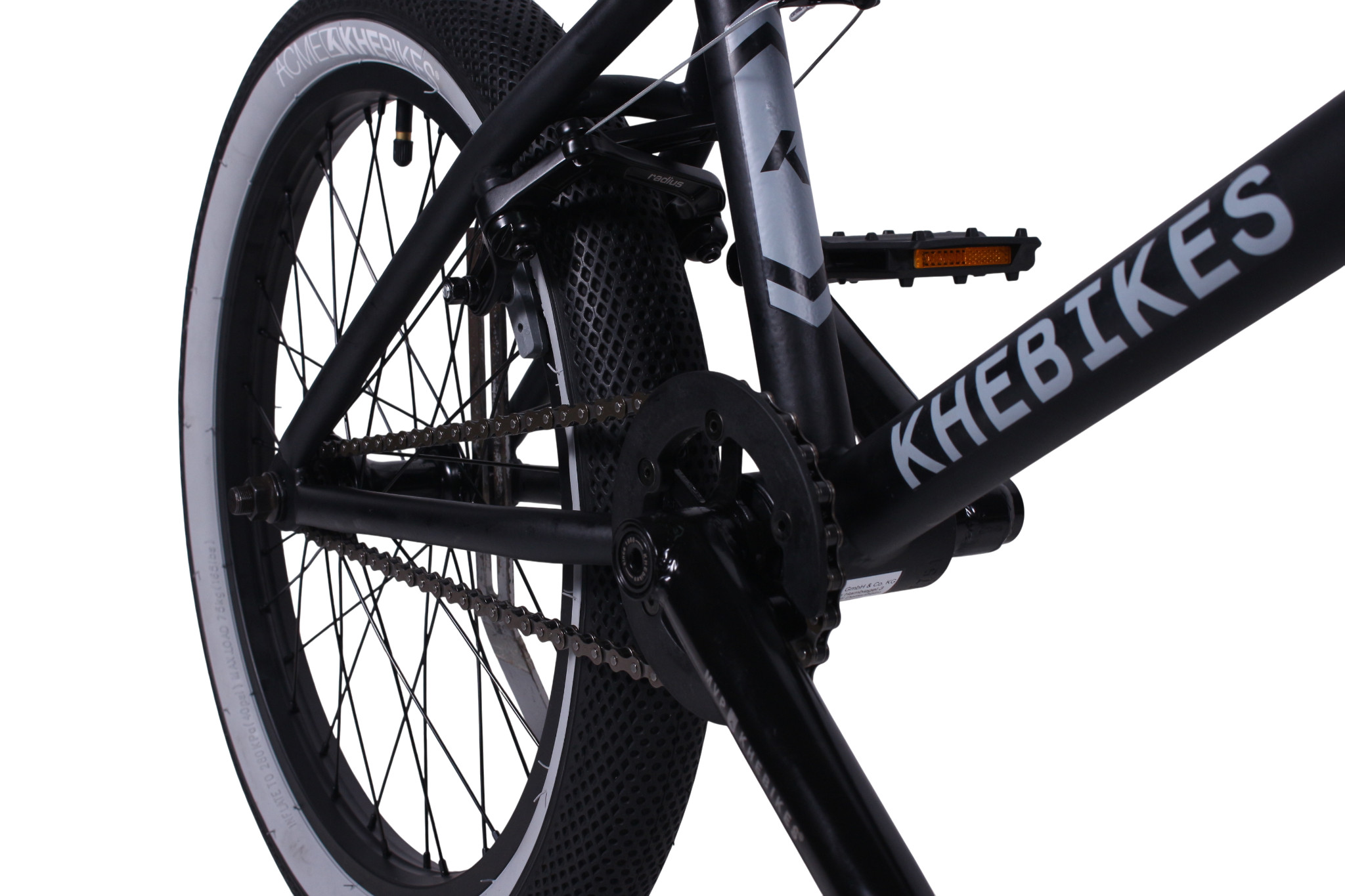

| Chainring: | 25 teeth steel with nylon grind guard |
| Chain: | YBN CN ST 1/2 x 1/8“ |
| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

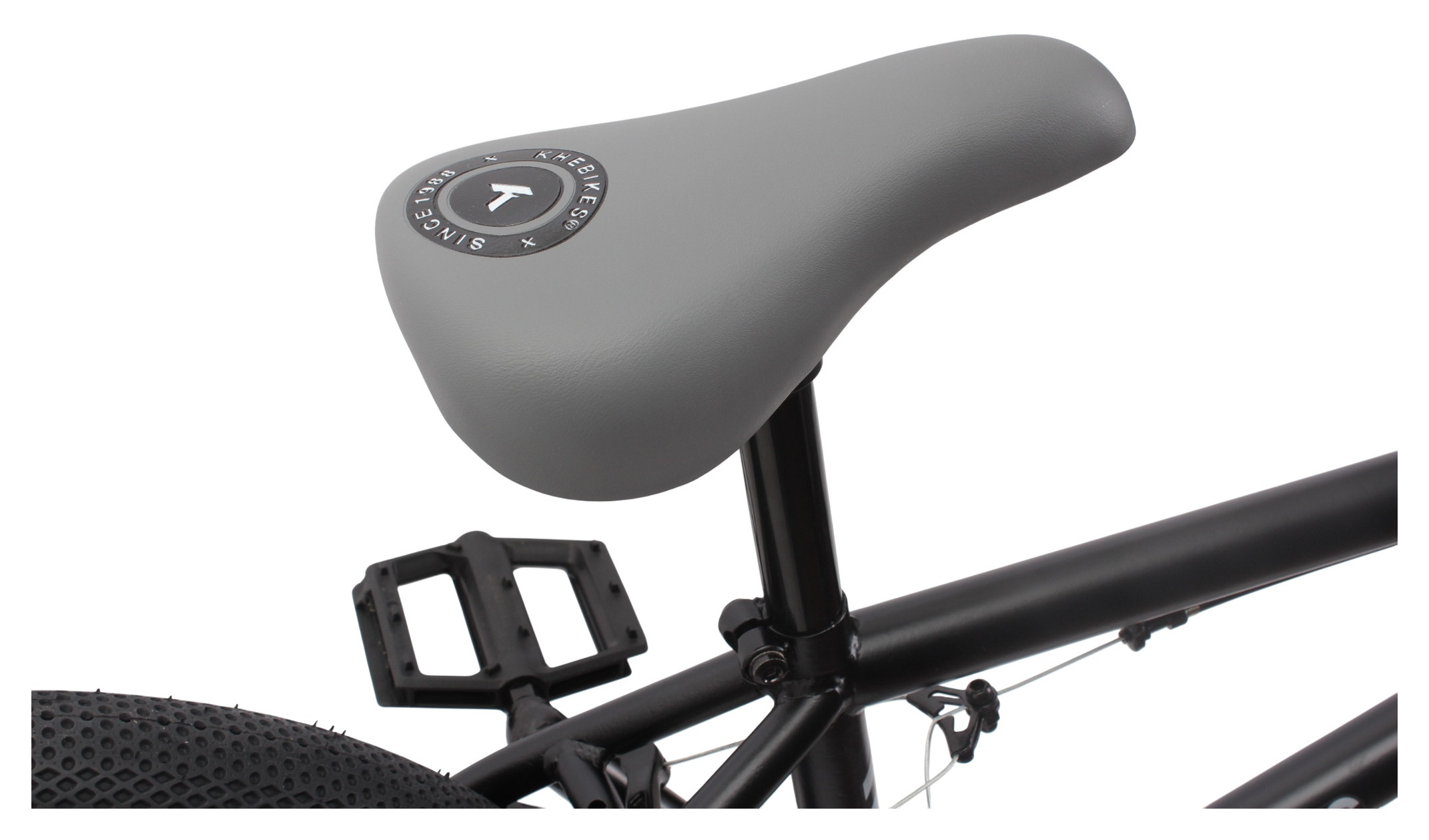

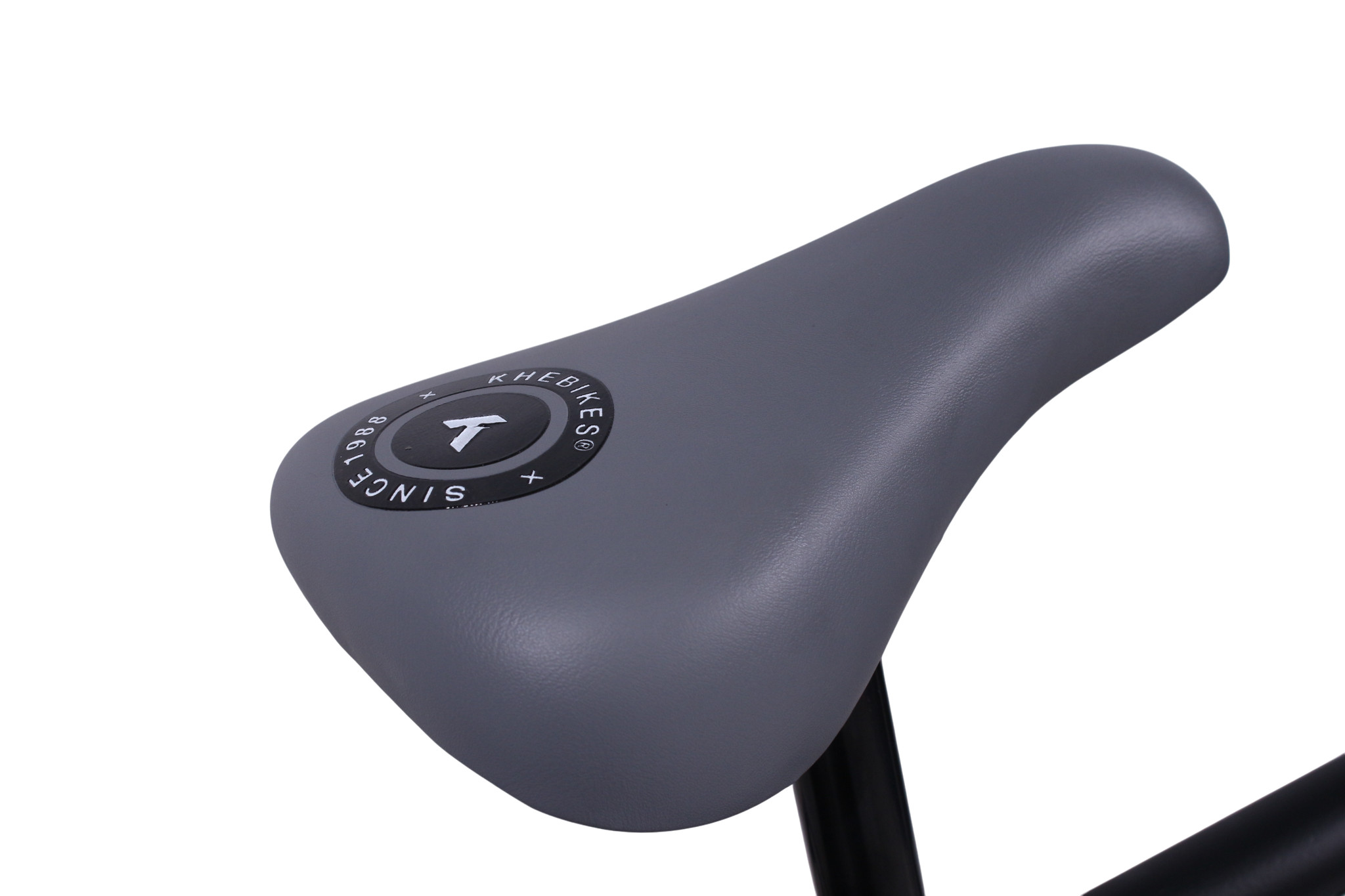

| Saddle: | Padded 210 x 140mm with embossed KHEbikes logo |
| Seatpost: | Diameter 25.4mm x Length 220mm (integrated seat post with saddle) |
| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

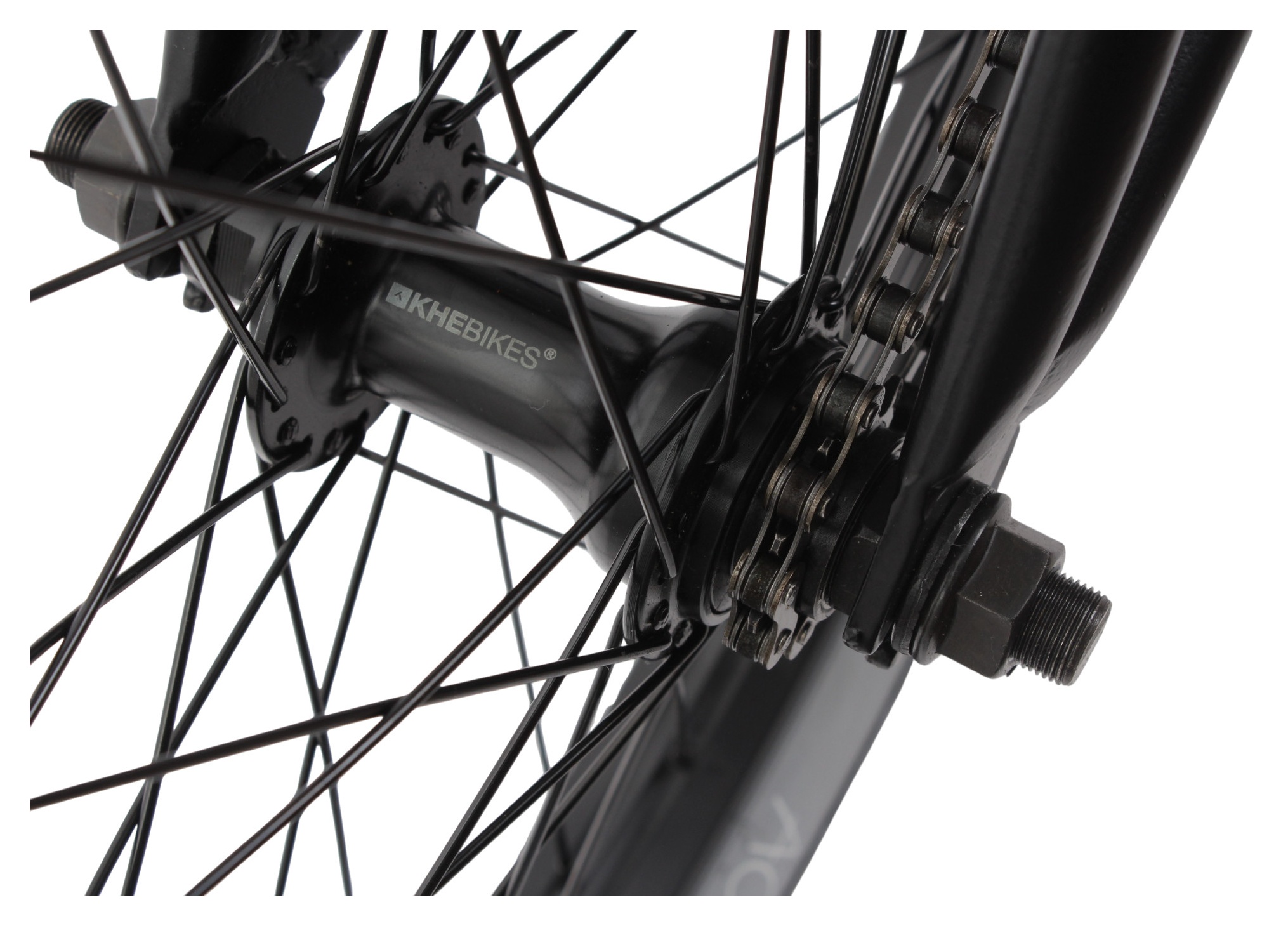

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Hub type: | freewheel |

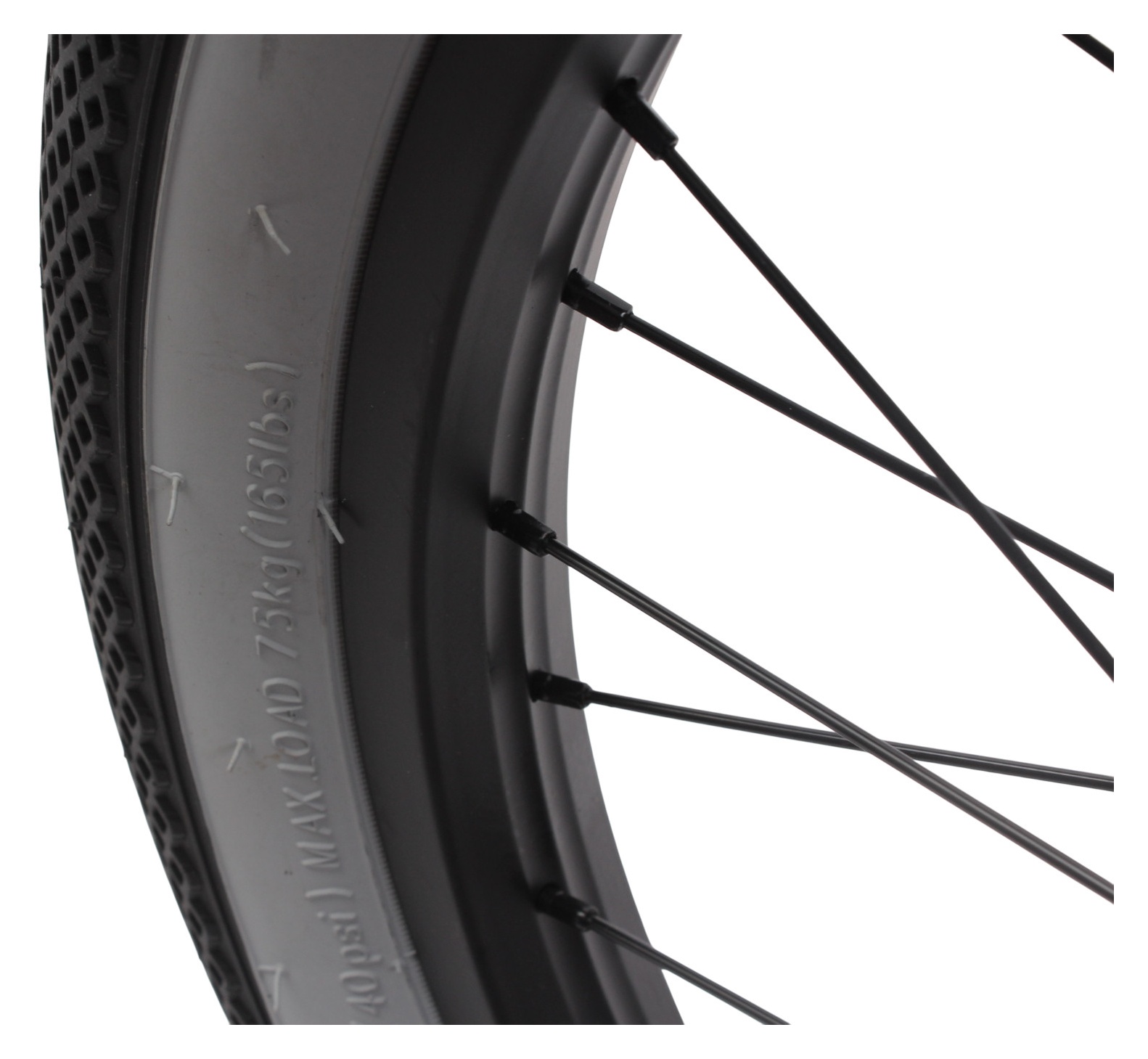

| Rim: | 20 inch double chamber aluminum, 36 hole |

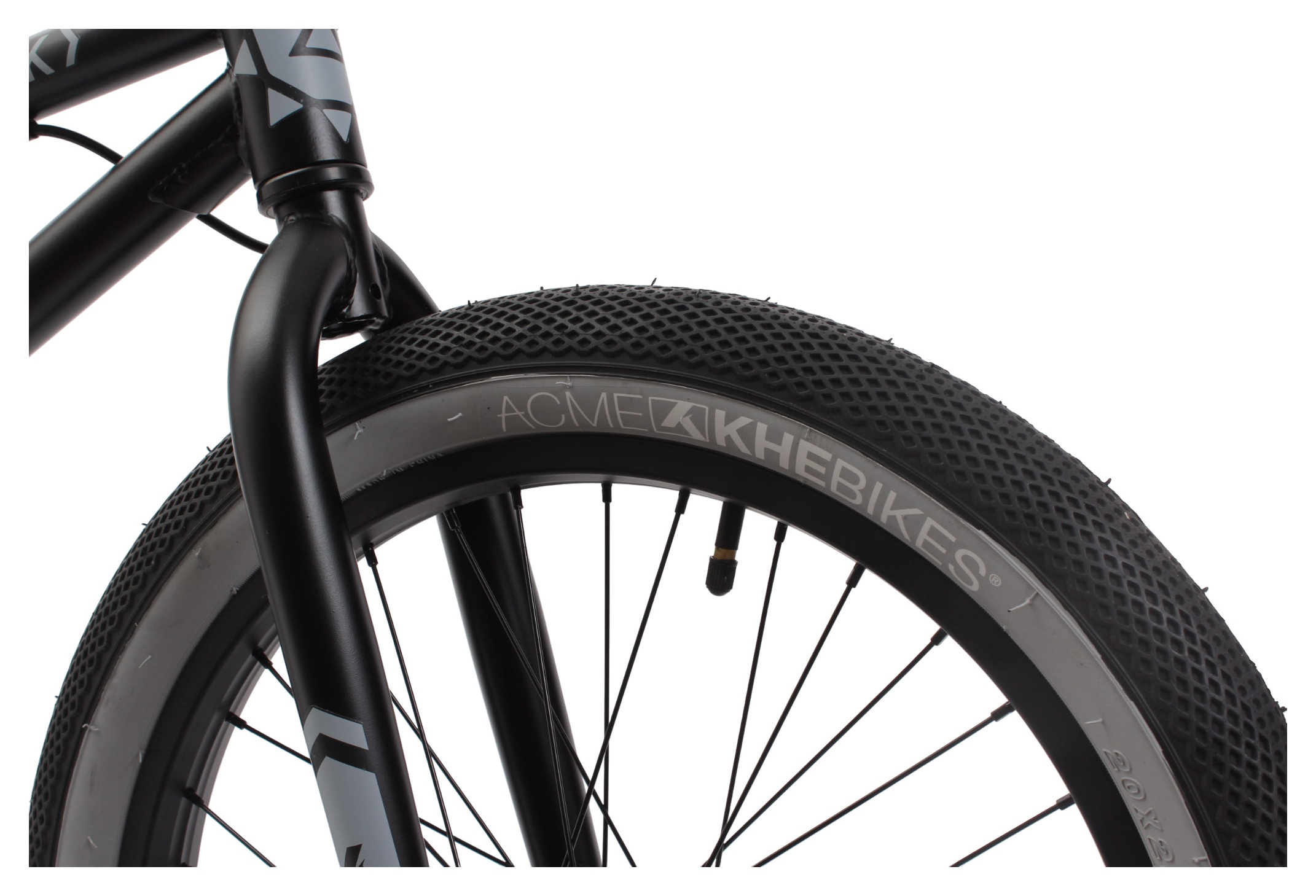

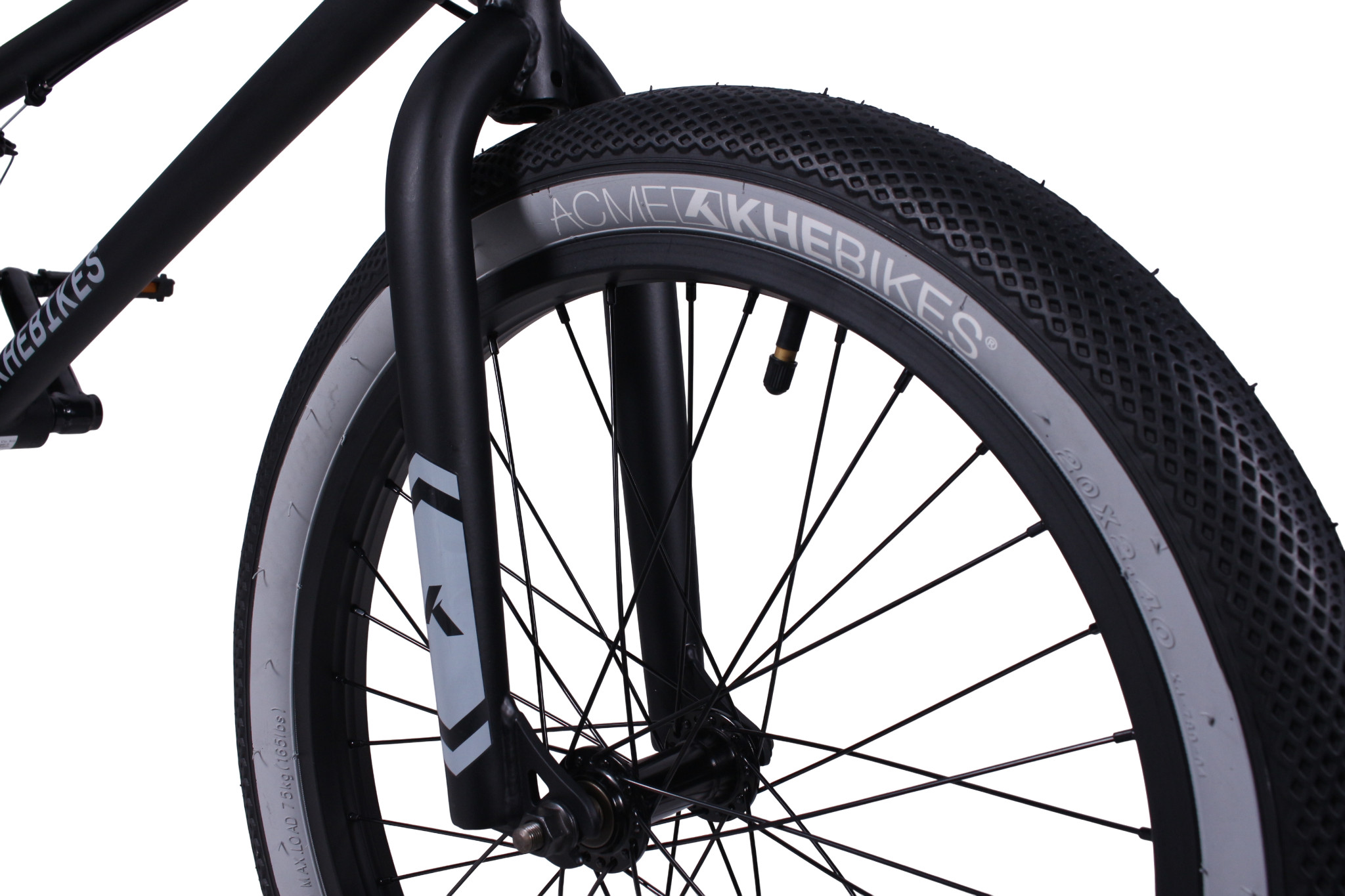

| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | Park, Street, Pumptrack |
| Colour: | Matt black |
| Weight: | 24.47lbs / 11,1kg |
| Model Year: | 2025 |
Intended Use: This BMX bike is designed for teenagers and adults with a height from approx. 4'11" (150 cm). It is suitable for street, park, dirt and freestyle use. Not approved for public road traffic.
Assembly and Inspection: The bike is delivered about 90 % pre-assembled. Before first use, handlebars, brakes, axles, pedals, chain and saddle must be fully installed and checked. Final assembly should be performed by a qualified workshop or experienced person.
Maintenance & Care: Clean the bike regularly with a damp cloth. Chain, bottom bracket and brakes should be lubricated and inspected regularly. Replace worn or damaged parts immediately. Do not store outdoors in wet conditions.
Maximum Load & Safety: This BMX is rated for a maximum rider weight of 220 lbs (100 kg). Before each ride, check all bolts, brakes and tyres for secure fit and function. Do not use the bike if any damage is visible.
