KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, refined engineering and outstanding riding dynamics. The new 2025 models stand for optimized geometry, smart details and high-quality components – directly from the manufacturer for maximum performance on any surface.

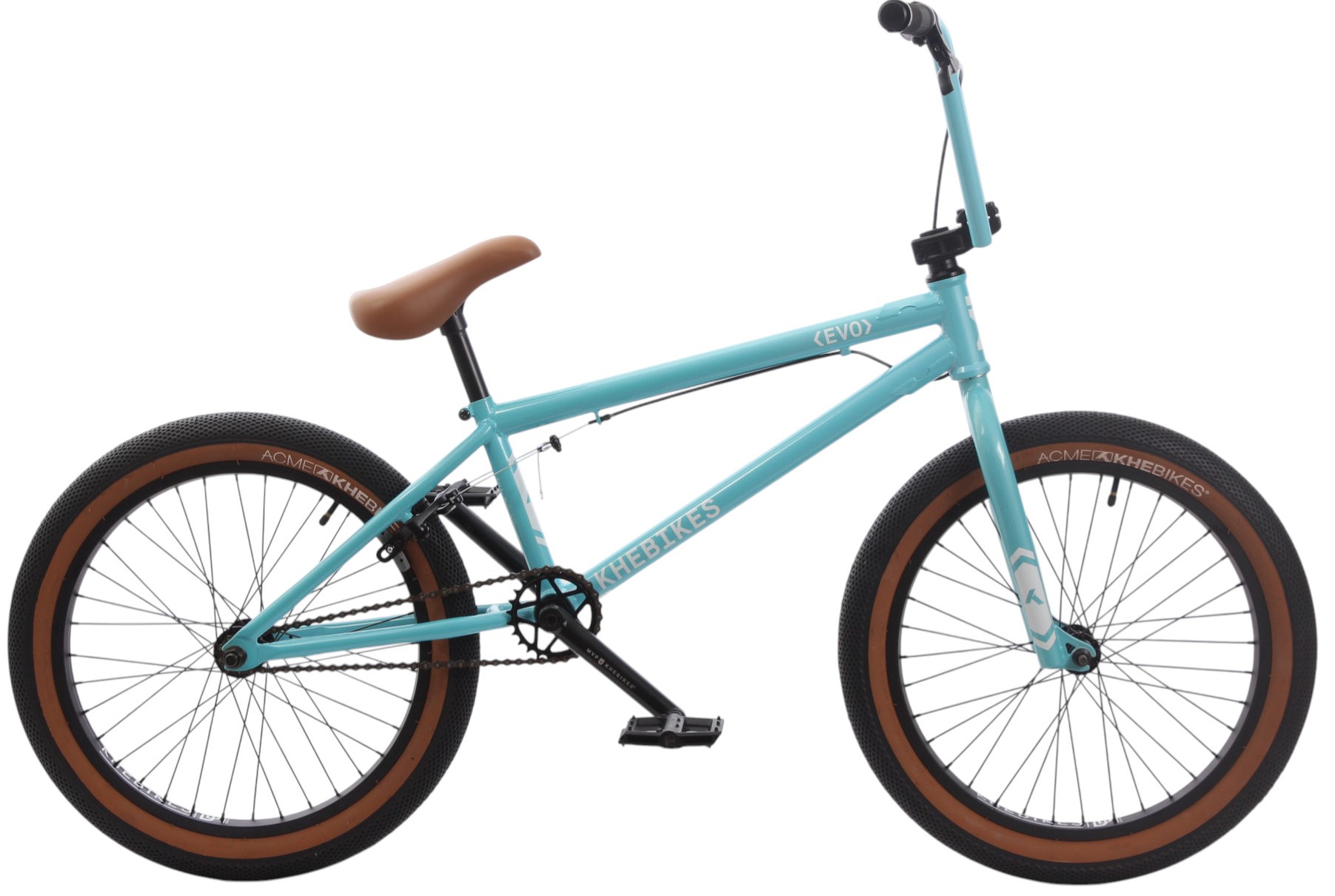

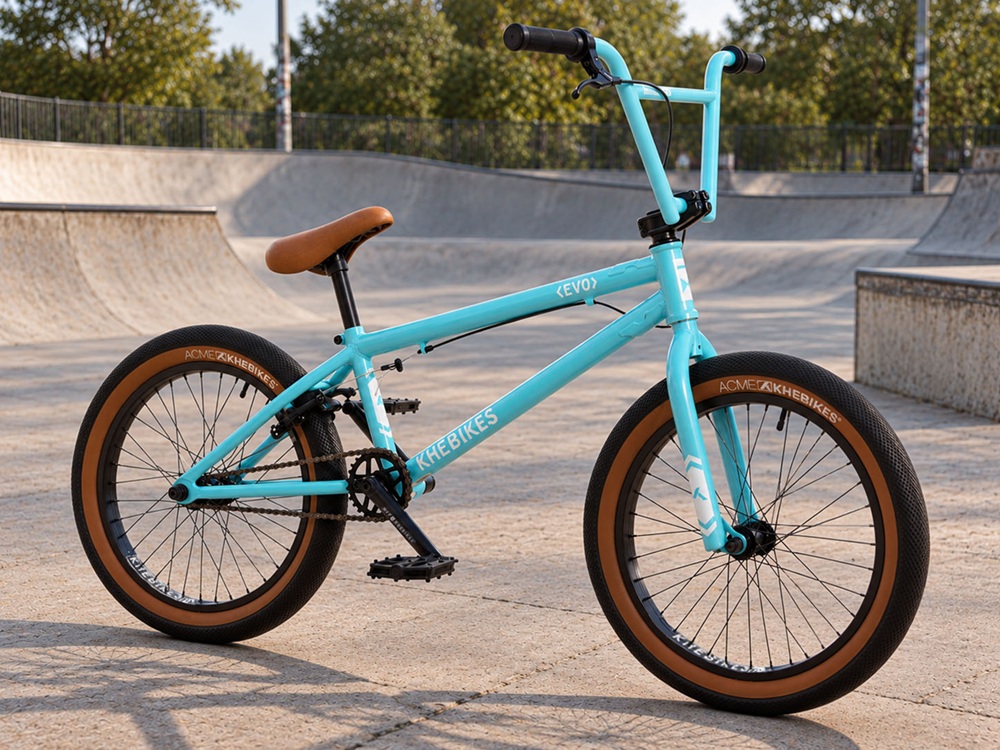

KHE EVO 20 Inch – Lightweight Street & Park BMX with Rotor
The KHE EVO 20 inch is an especially lightweight street and park BMX, weighing only 10.6 kg despite the rotor system. It is aimed at ambitious riders looking for a responsive, high-quality BMX for demanding tricks and intensive riding.

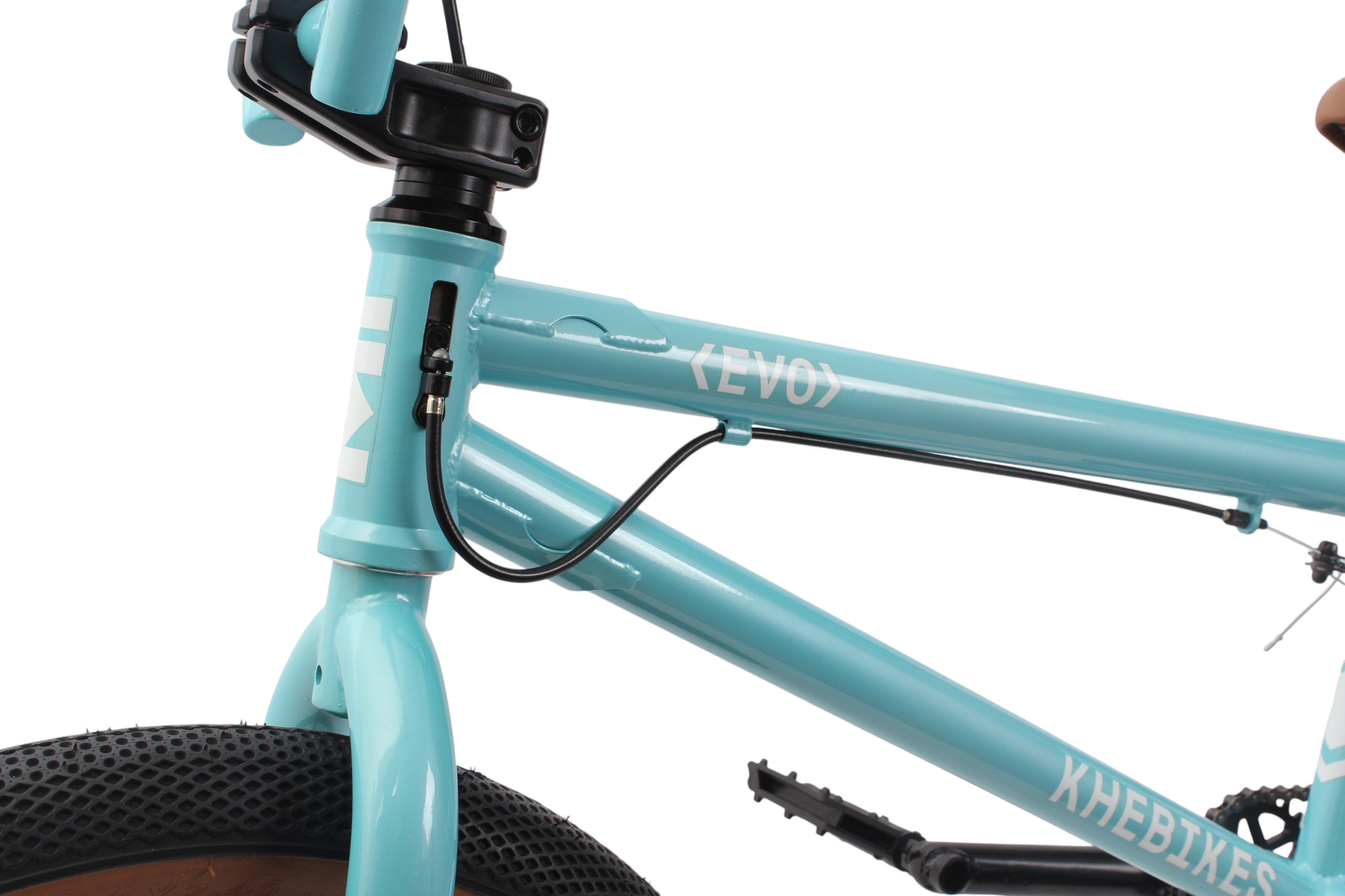

The CrMo 4130 frame with a 20.6" top tube provides a balanced geometry and high stability at low weight. Frame, fork and handlebar come in a lighter blue tone, giving the bike a fresh and modern appearance. A strong contrast is created by the matte black anodized double-wall rims, offering both durability and a clean look.
All other components such as grips, stem, brake lever and crankset are black, while the KHE ACME tires with brown sidewalls and black tread and the brown saddle add a classic, high-end touch.

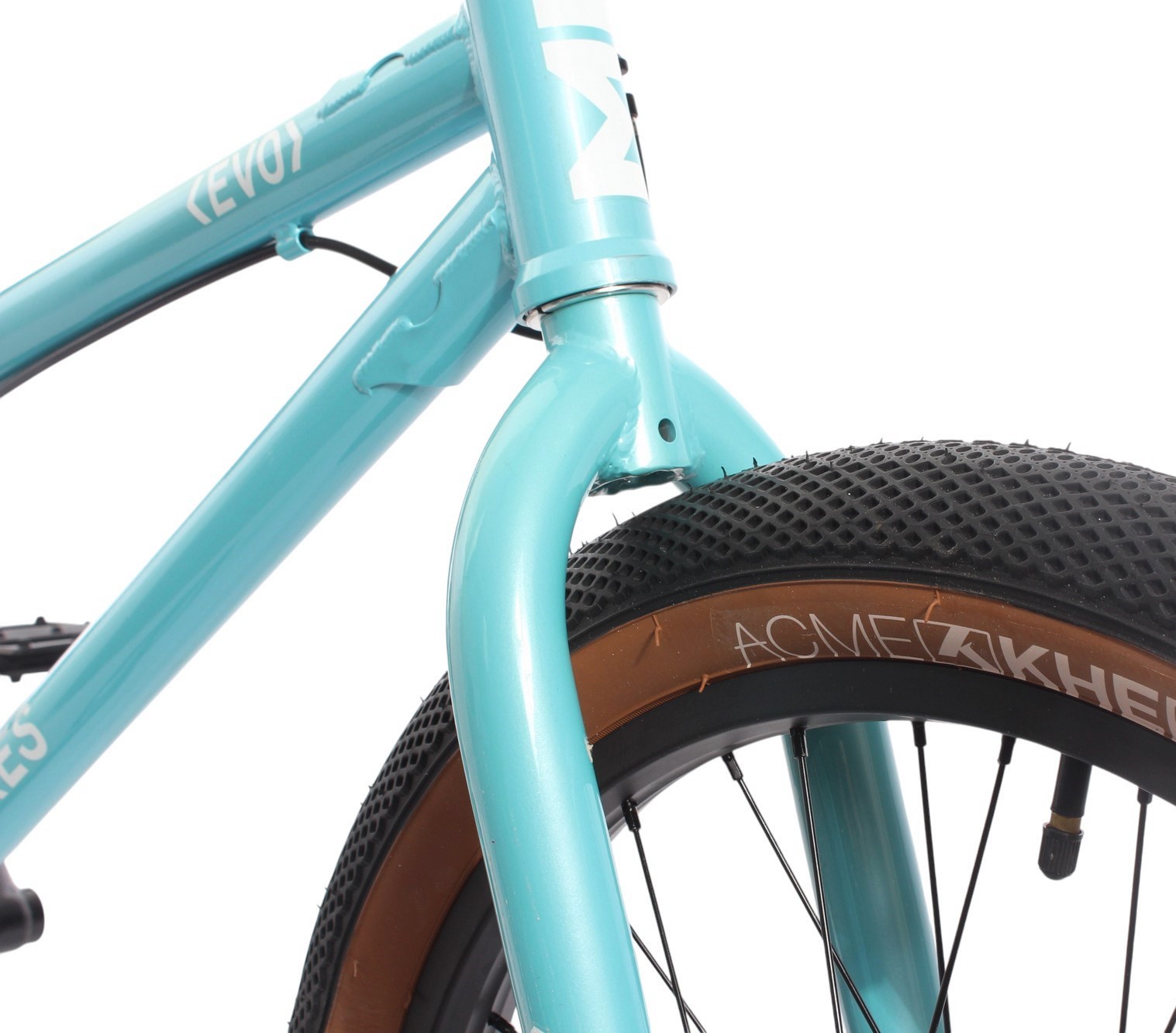

The high-quality setup includes a 3-piece CrMo hollow crank with 48-spline axle, precision bearing hubs, an integrated headset, and the AFFIX rotor for barspins and 360° handlebar rotations. The KHE ACME tires in 2.40" width provide excellent grip, comfort and control for street and park riding.
The bike is delivered without a front brake – a front brake can be ordered separately as an optional accessory.
Recommended rider height: 150–190 cm
Maximum rider weight: 120 kg
Riding style: Street / Park / Dirt
Why choose the EVO 20 inch by KHEbikes:
• Only 10.6 kg total weight – extremely light despite rotor
• High-quality CrMo 4130 frame for durability
• Light blue frame, fork & handlebar – fresh and modern
• Matte black anodized double-wall rims – strong and clean
• Black components for a balanced overall look
• Brown sidewall tires & brown saddle for a classic style
• AFFIX rotor system for barspins & 360° rotations

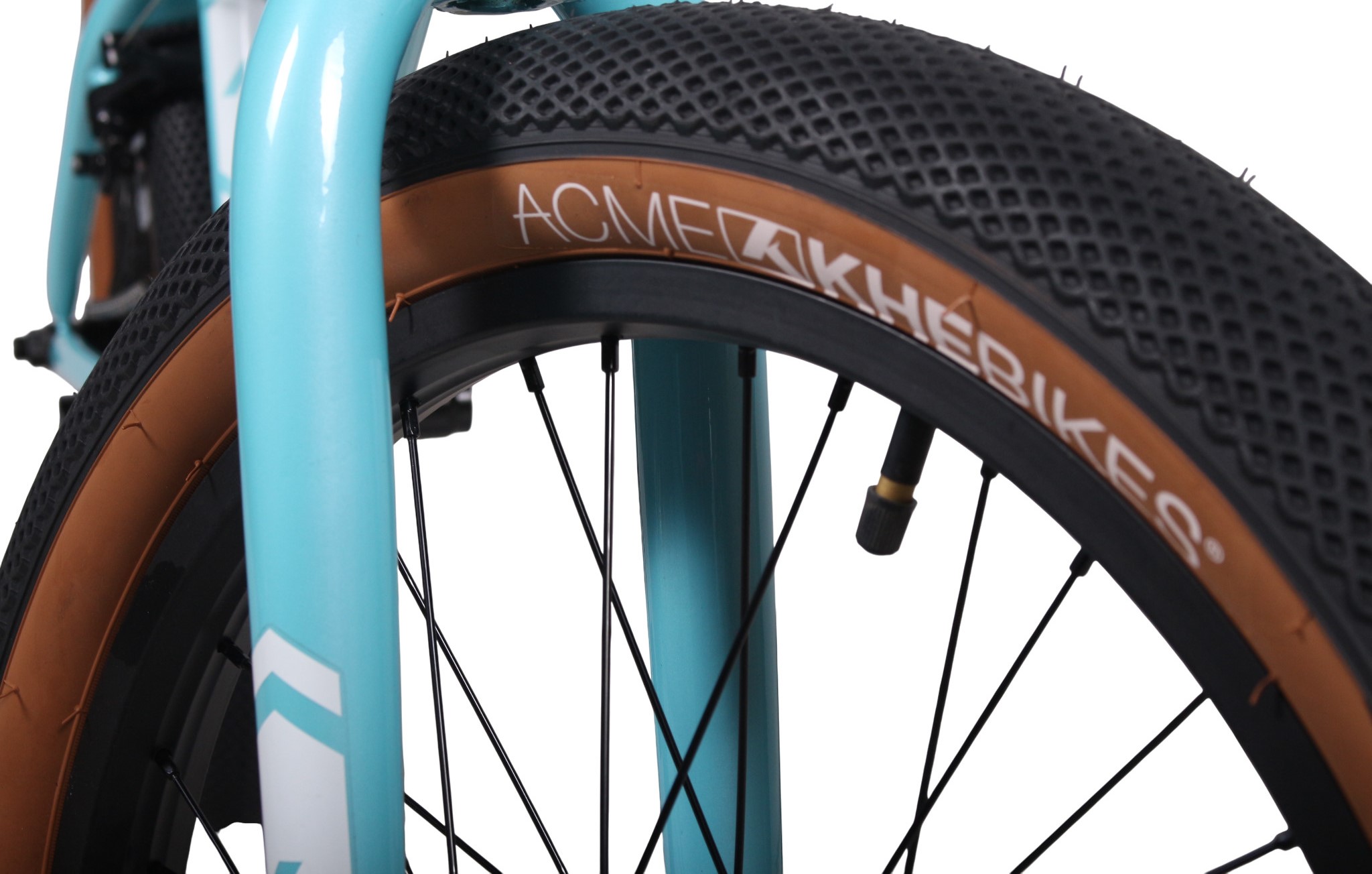

• KHE ACME tires 2.40" – grip and comfort
• Front brake available as optional accessory
• Direct from the manufacturer – excellent value for money
• Perfect for street & park riding
| Frame: | Main tubes made of CrMo 4130 steel, top tube 20.6", RC 13.7", HT 75° |
|---|---|
| Top tube length: | 20,6" (524mm) |
| Fork: | CNC steerer made of CrMo steelRotor: equipped with the AFFIX Pro Free60 Rotor System |

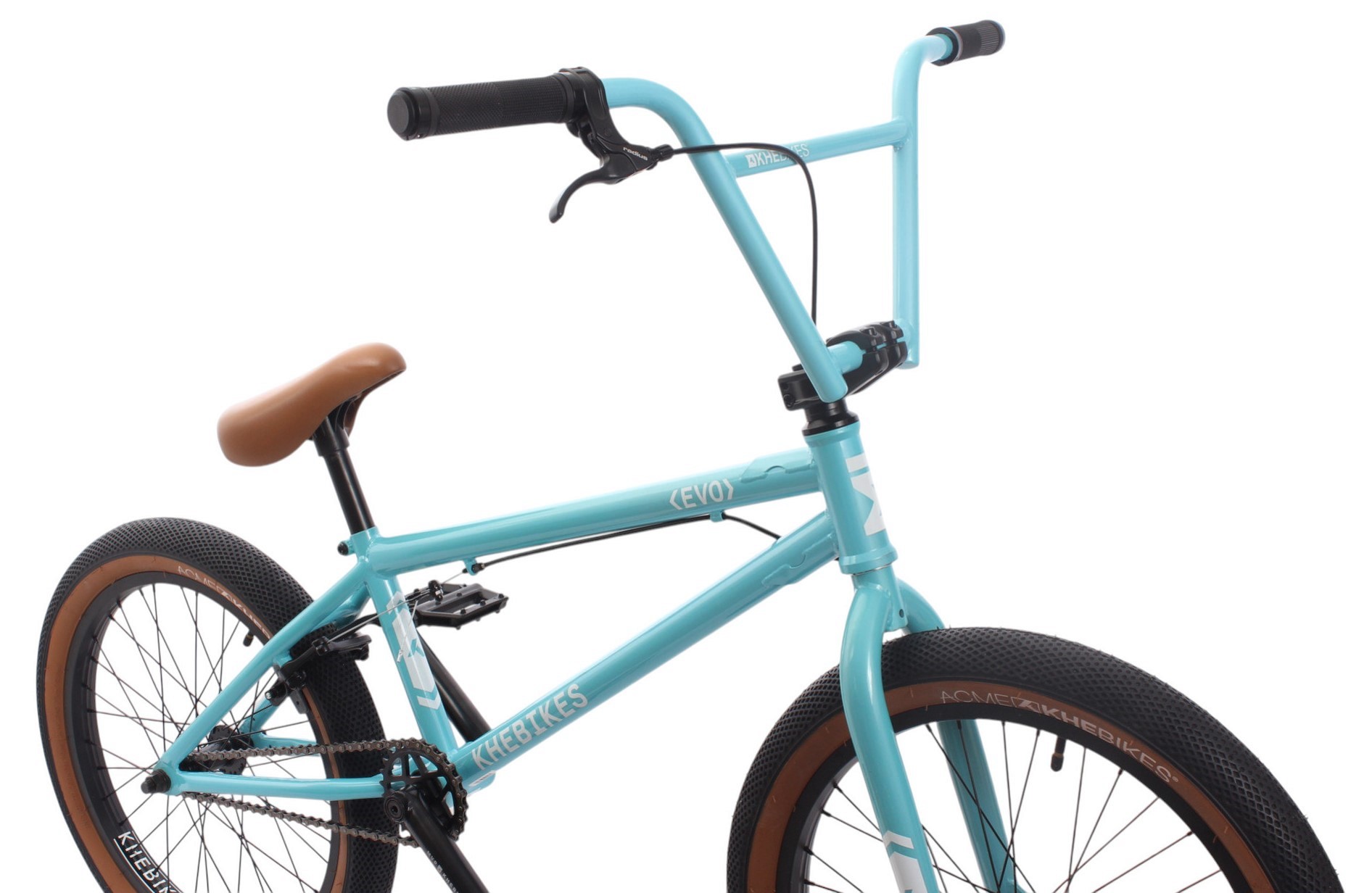

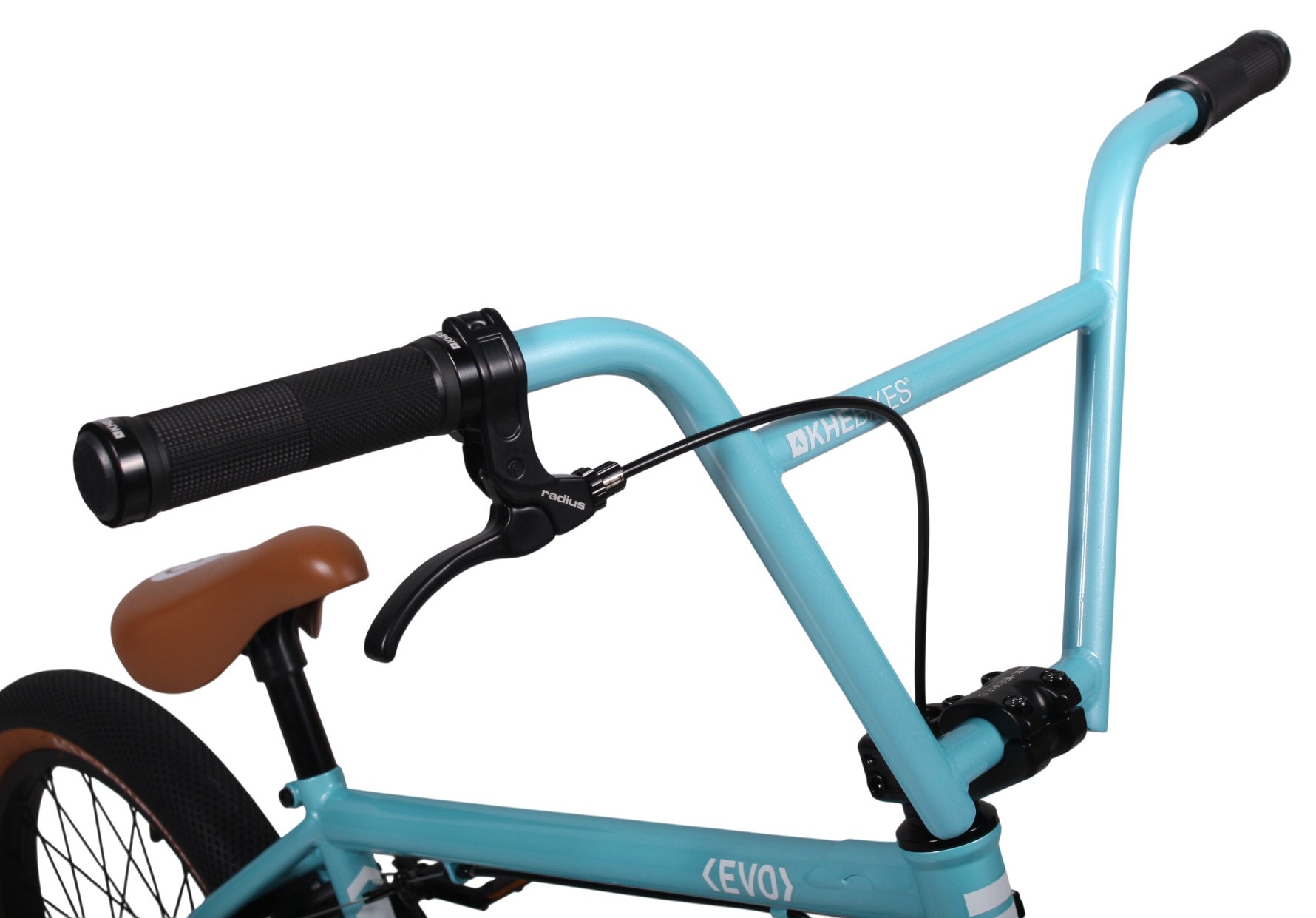

| Handlebars: | KHE Multiple butted, 4-piece, 9" rise |

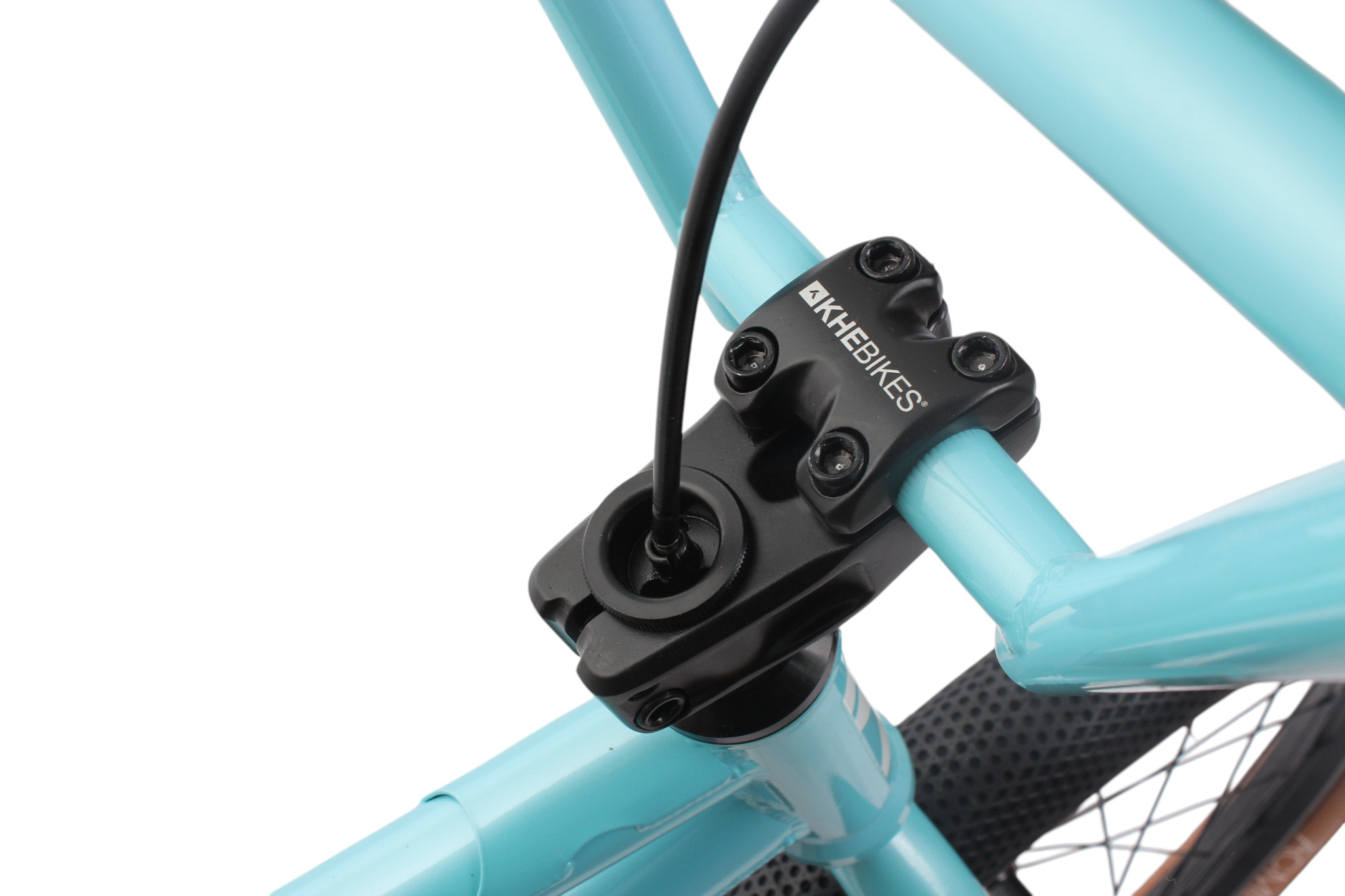

| Stem: | Top Loader |
| Headset: | Intigrated headset with indusriel bearings |
| Rotor: | AFFIX |

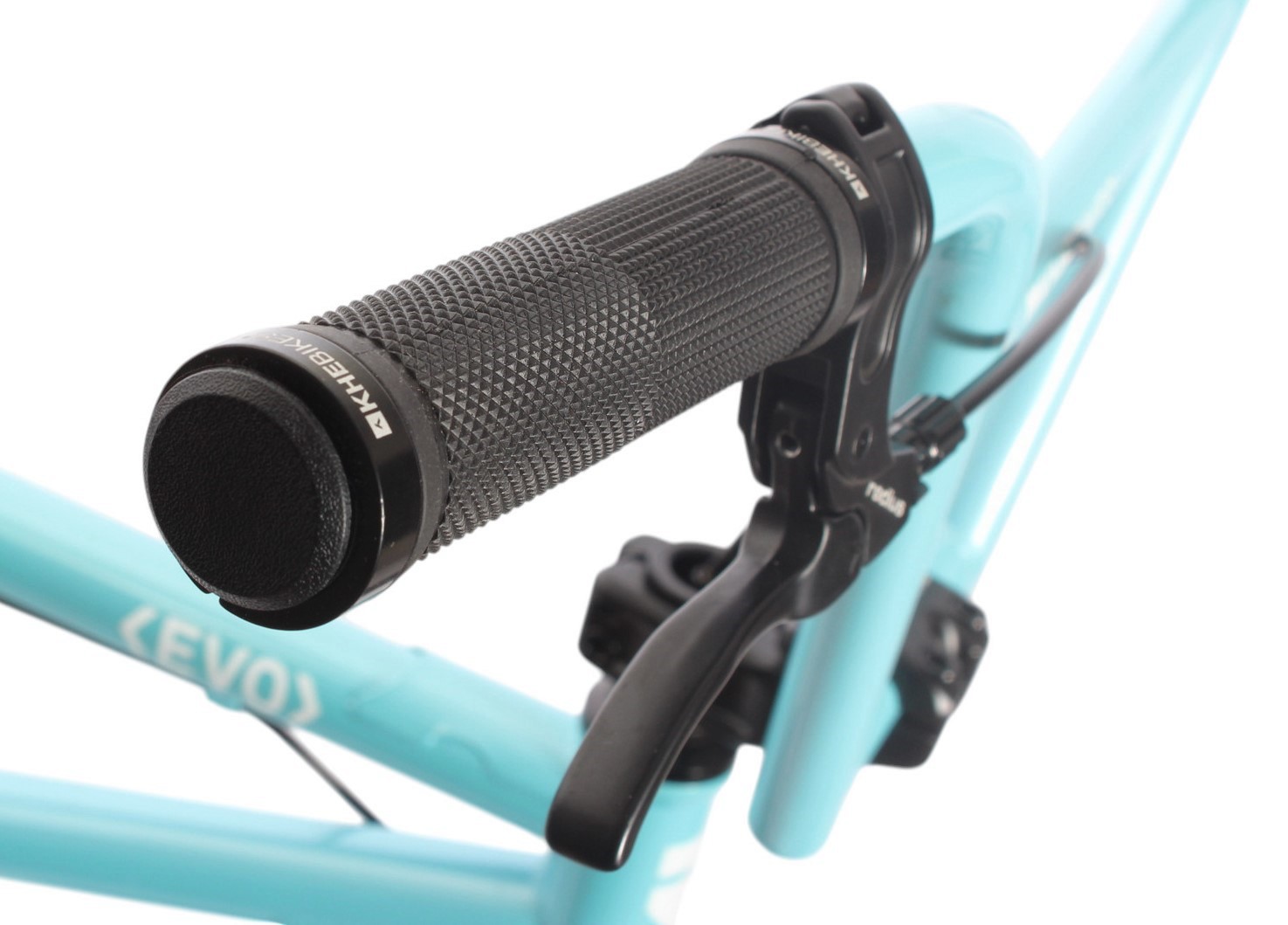

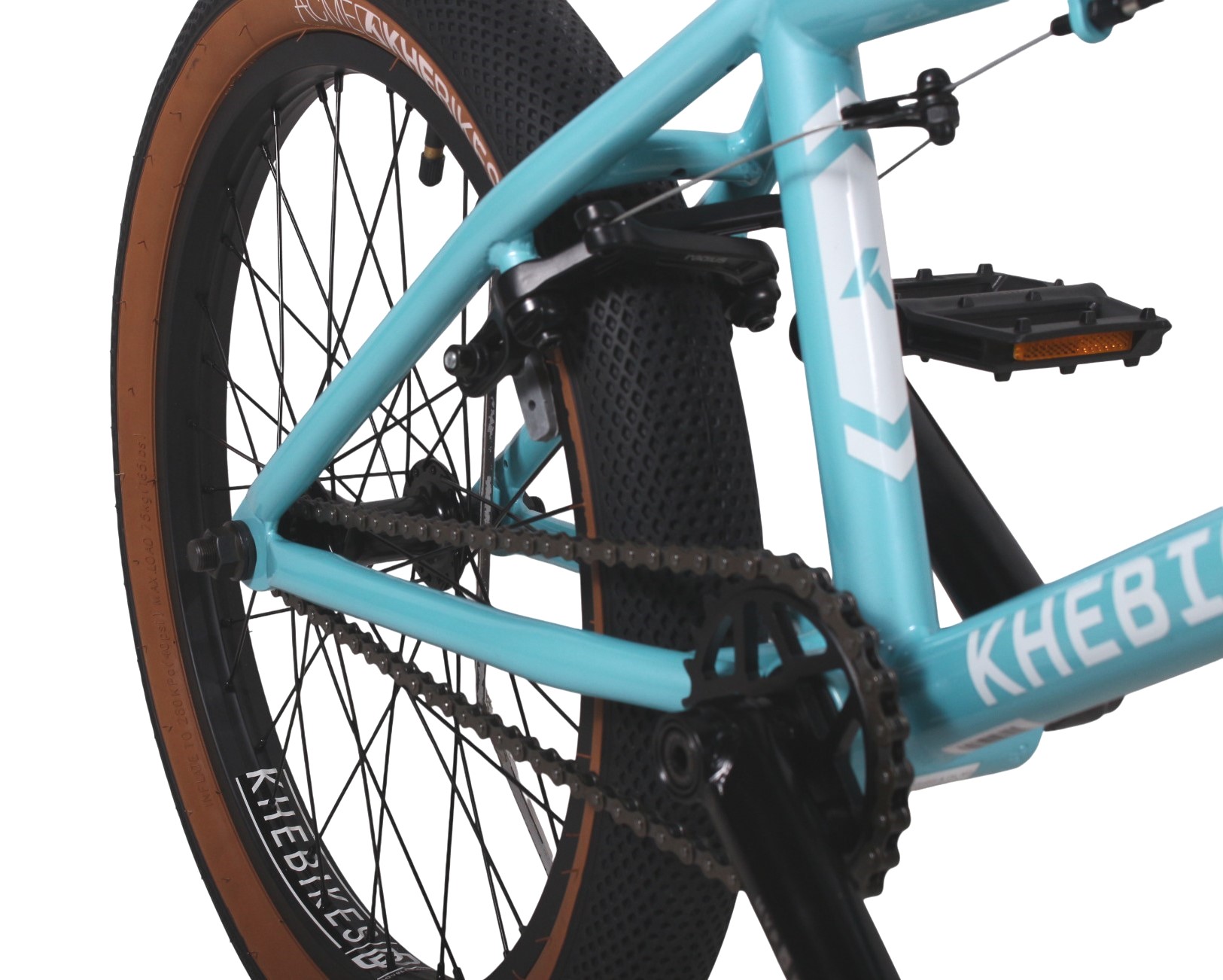

| Rear brake: | KHE RADIUS Aluminum U-Brake |

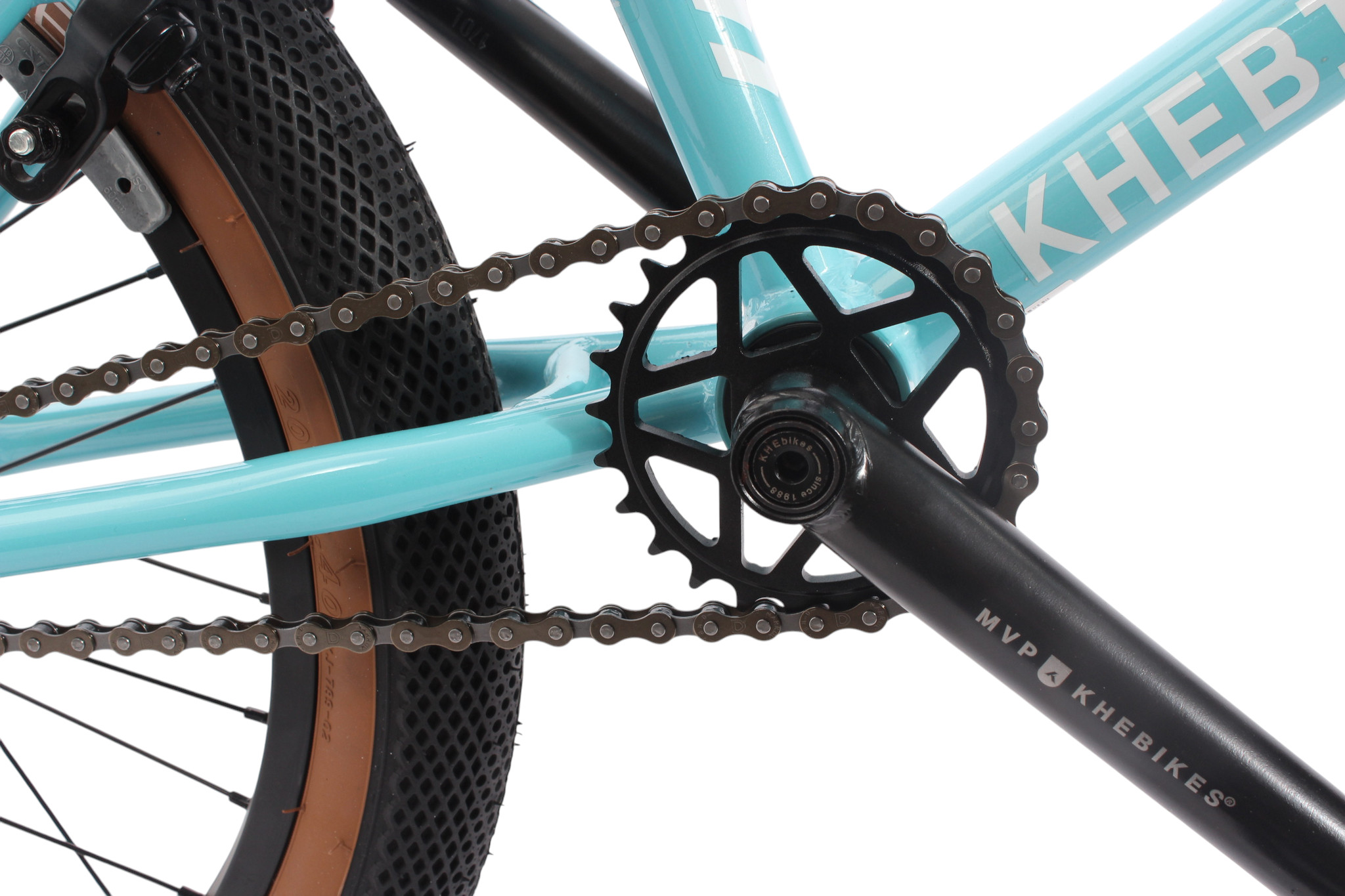

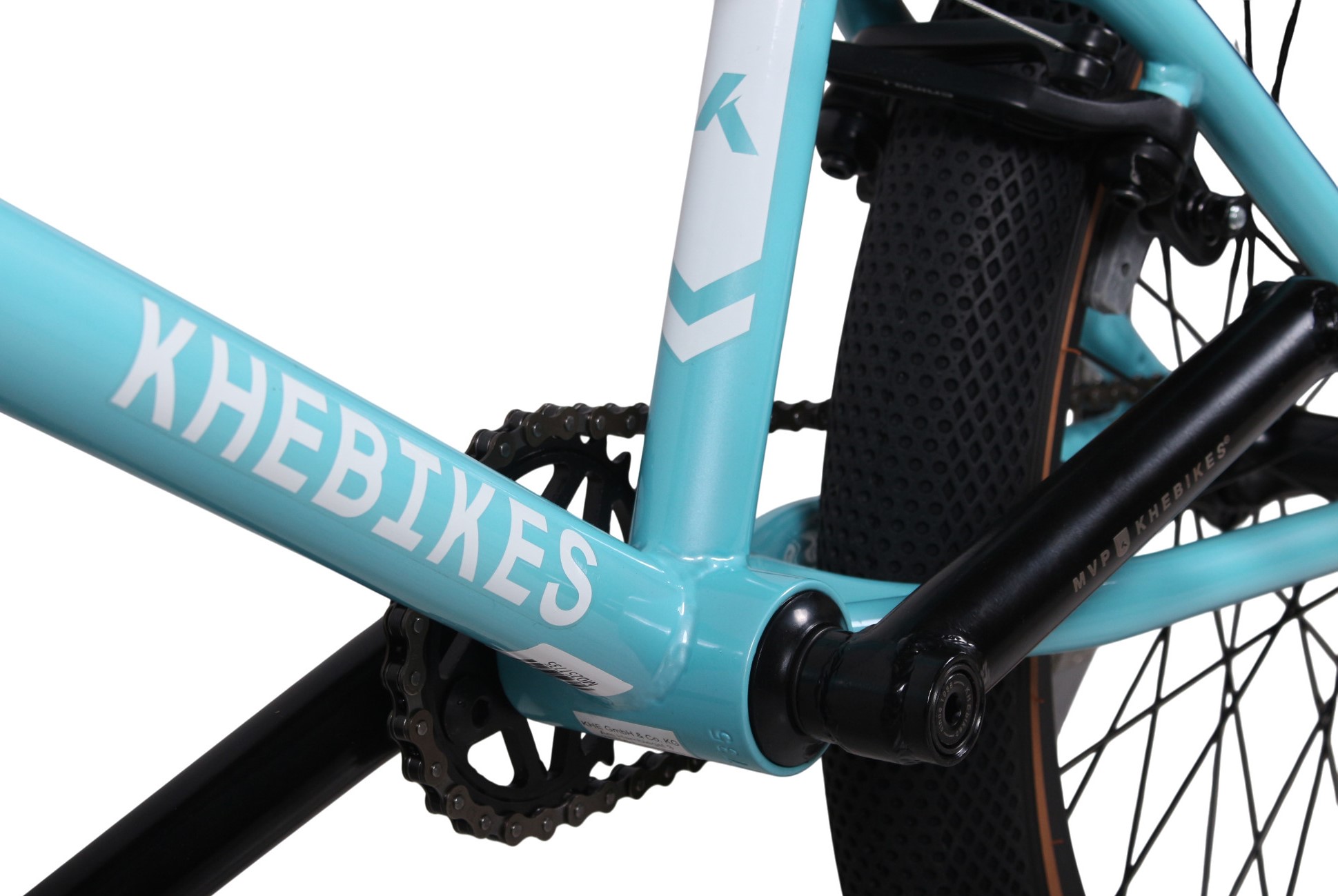

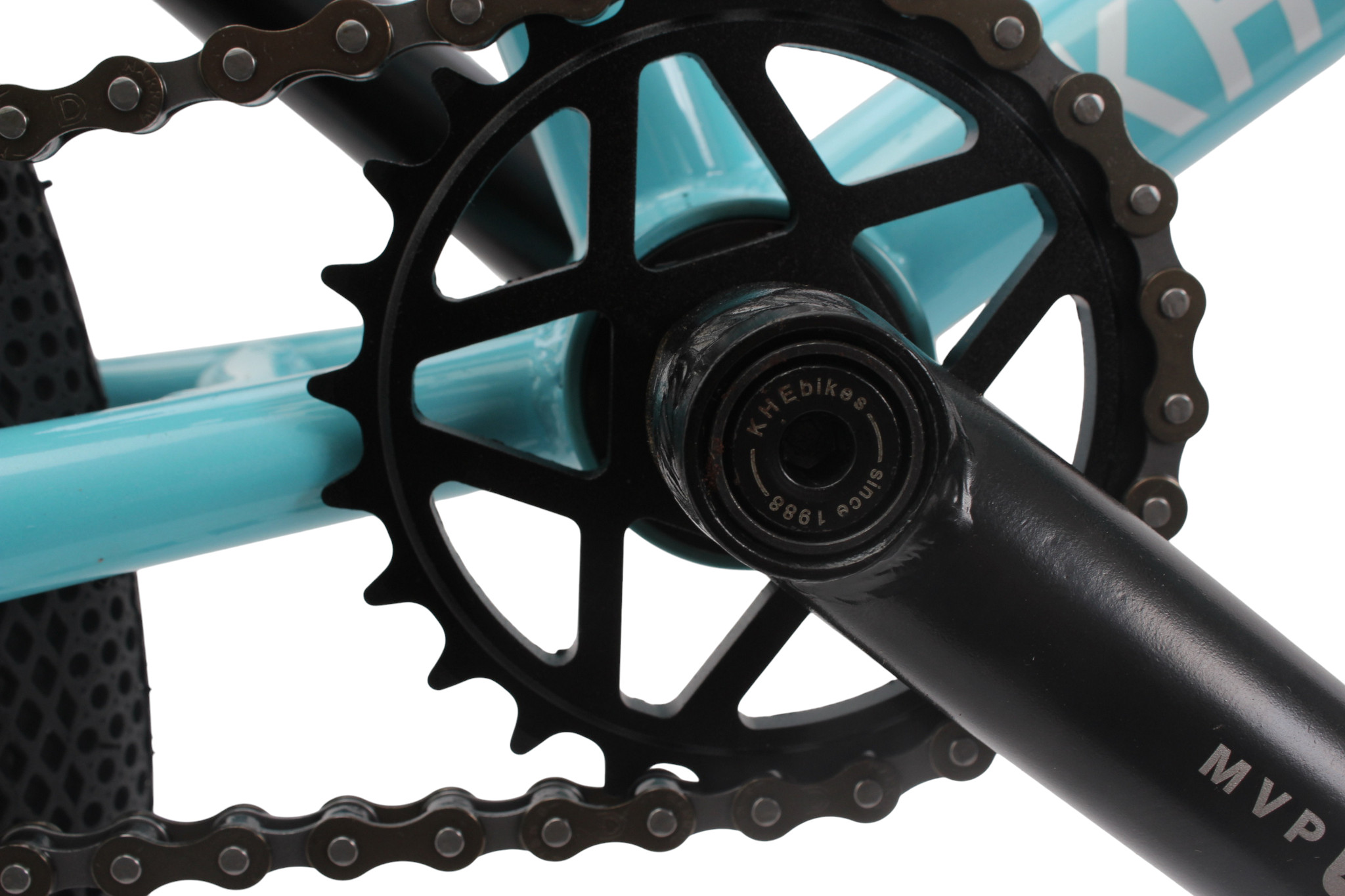

| Crank: | very high quality 3-piece 48 Spline CrMo hollow crank in black |
| Bottom bracket: | MID BB |
| Chainring: | 25T aluminum CNC |
| Chain: | KMC |

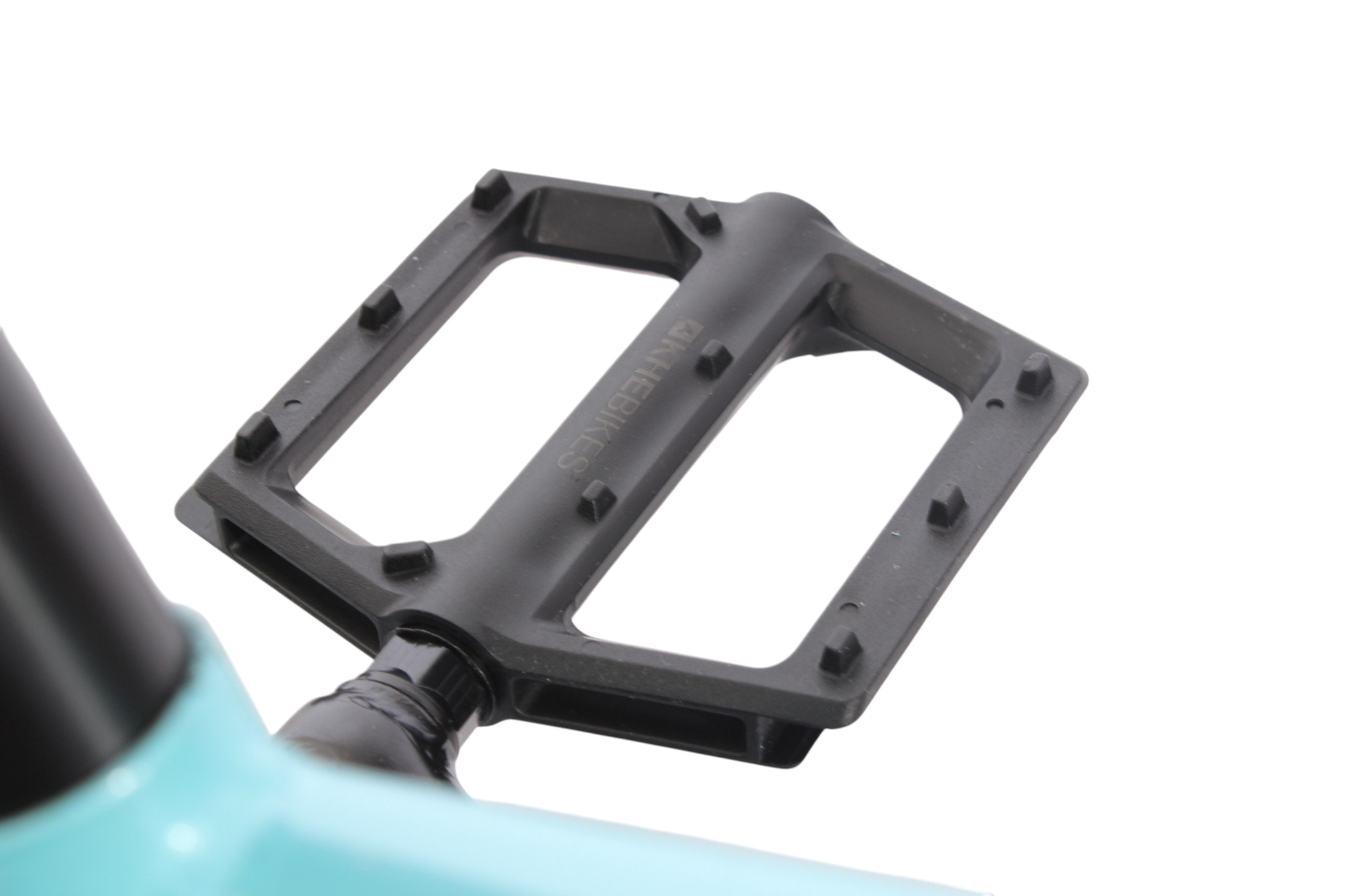

| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |
| Brake type: | U-brake |

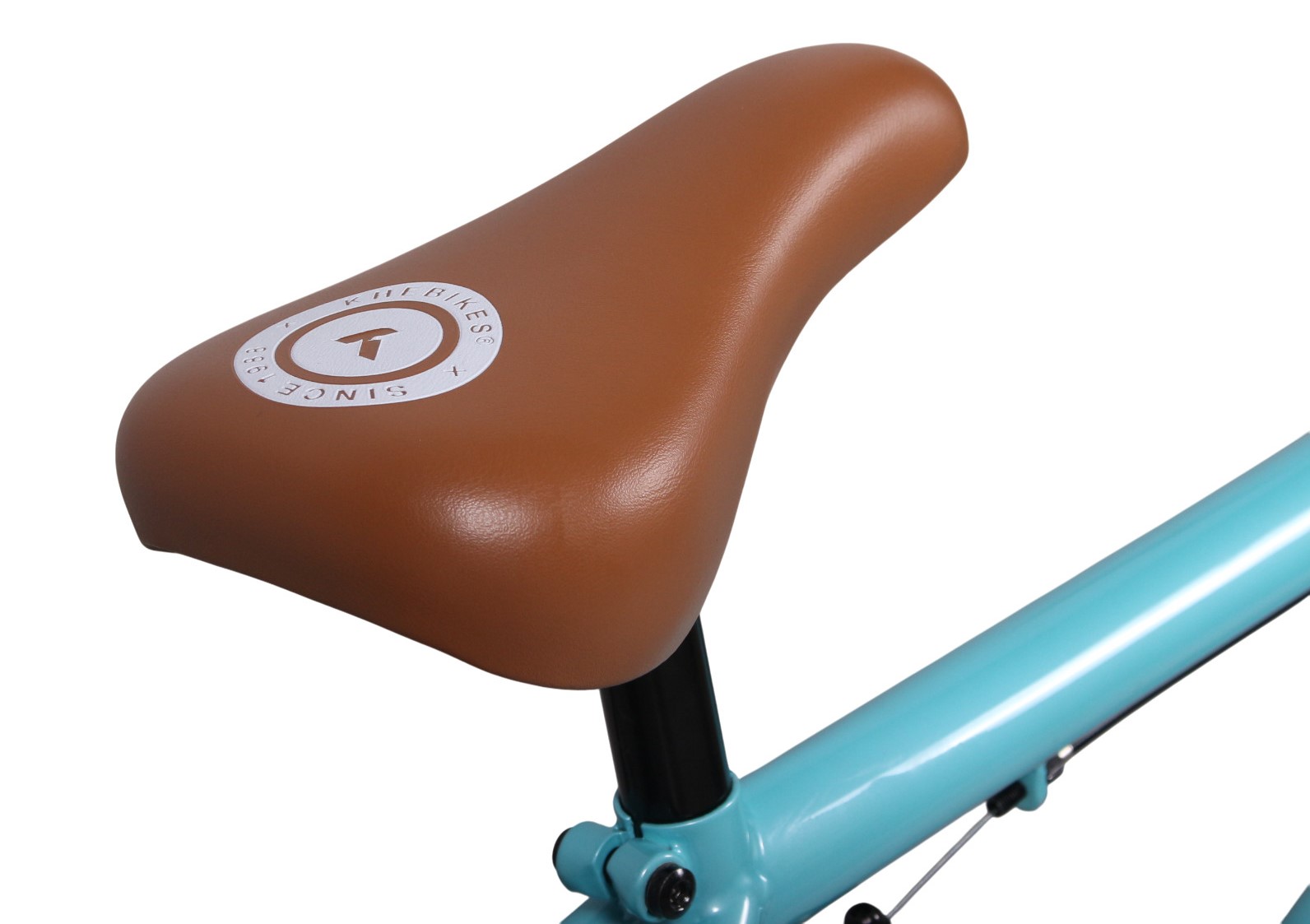

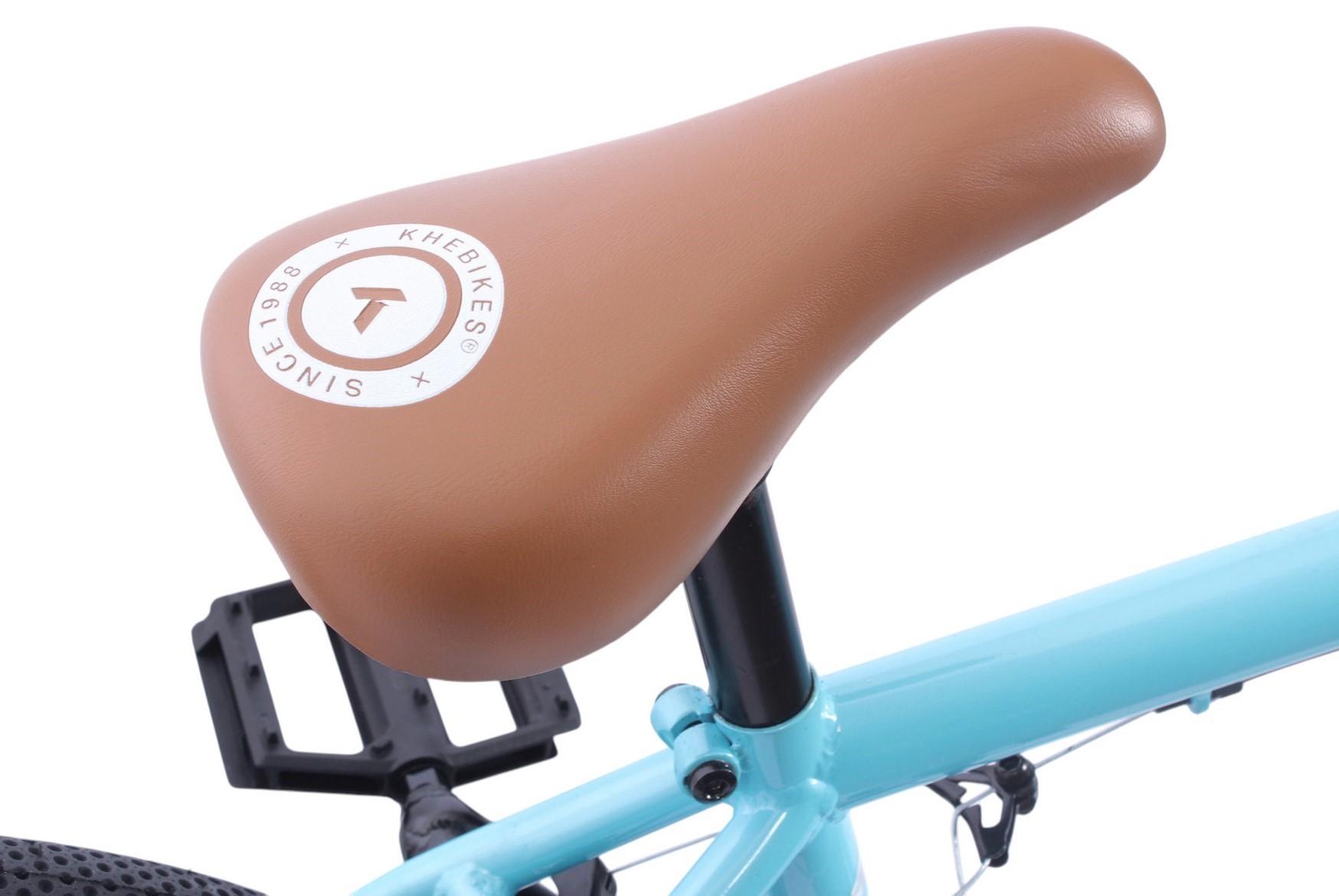

| Saddle: | Extra light and padded KHE saddle combo |
| Seat clamp: | Integrated |
| Front wheel: | KHE BIG400 rim 35 mm wide, precision-bearing hub, 10 mm axle! |

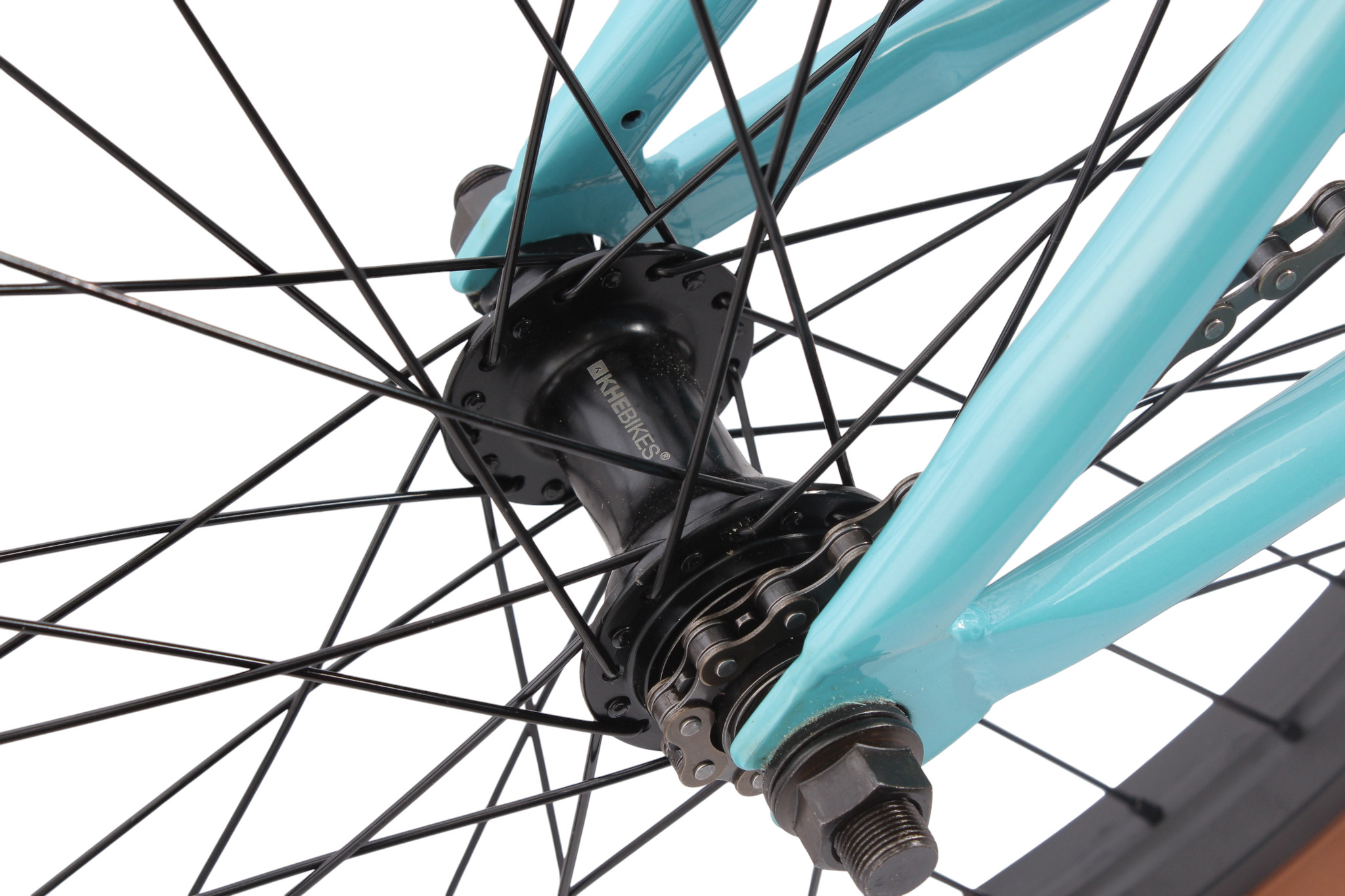

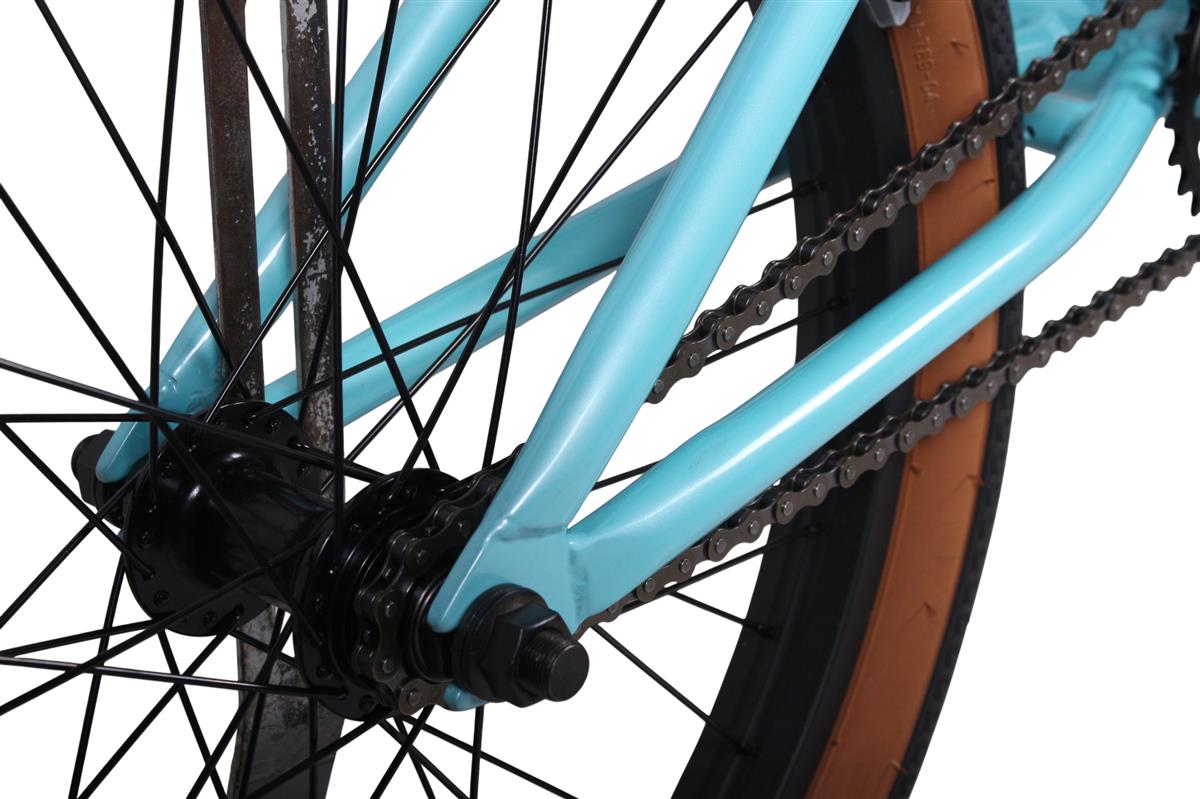

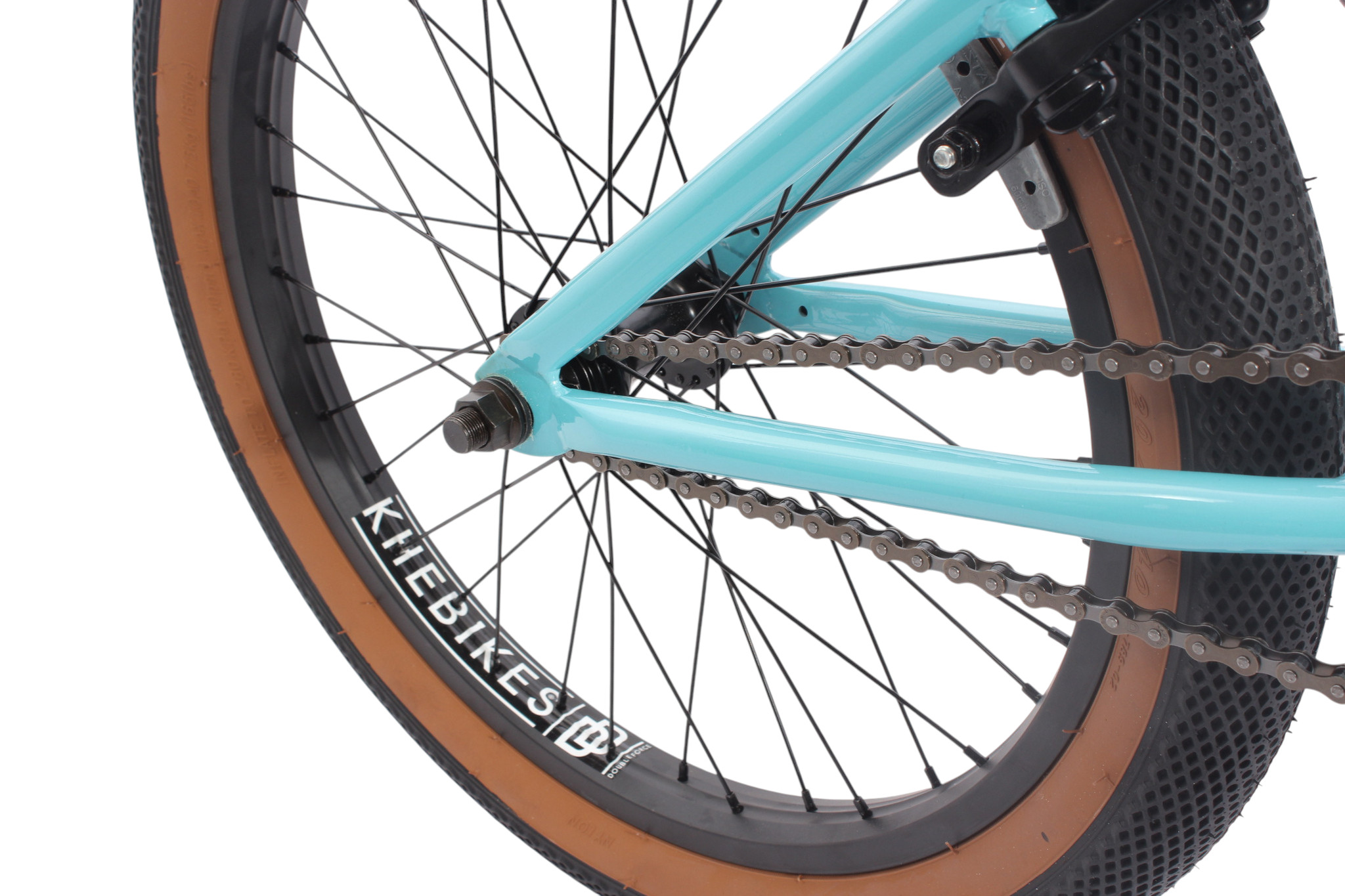

| Rear wheel: | KHE BIG400 rim 35mm wide, 9T cassette hub, 14mm axle! |
| Tyres: | KHE MAC2+ 2,30“ |
| Material: | 4130 CrMo |
| Tire size: | 20 inch |
| Category: | BMX Freestyle |
| Size: | 20"; 4'11" - 6'3" in |
| Colour: | Blue |
| Weight: | 23.4lbs / 10,6kg |
| Model Year: | 2025 |
| Sale: | Sale |
Intended use: The BMX bike is intended for sporting use in the BMX discipline. It is suitable for street, park and dirt riding on appropriate surfaces. The bike is designed for riders with a height of 150–190 cm and a maximum body weight of 120 kg. Any use outside the intended applications is not considered proper use.
Wearing instructions / Use / Assembly: The BMX bike is supplied approximately 90% pre-assembled and must be correctly fully assembled before first use. Before each ride, brakes, handlebar, headset, tyres, chain, axle fixings and the rotor system must be checked for correct installation and function. The use of suitable protective equipment such as a helmet, gloves, knee pads and elbow pads is strongly recommended. The bike is not intended for road traffic use without legally required equipment.
Care and cleaning: Clean the BMX bike regularly to remove dirt, dust and moisture. Use a soft cloth and mild cleaning agents. High-pressure cleaners must be avoided as they may damage bearings, seals, the rotor system and moving parts. After cleaning, the chain and moving components should be re-lubricated.
Replacement in case of wear: The BMX bike and its components are subject to natural wear. Worn or damaged parts such as tyres, brake components, chain, bearings, fasteners or rotor parts must be replaced immediately. Continued use of worn components may result in loss of function or safety risks.
