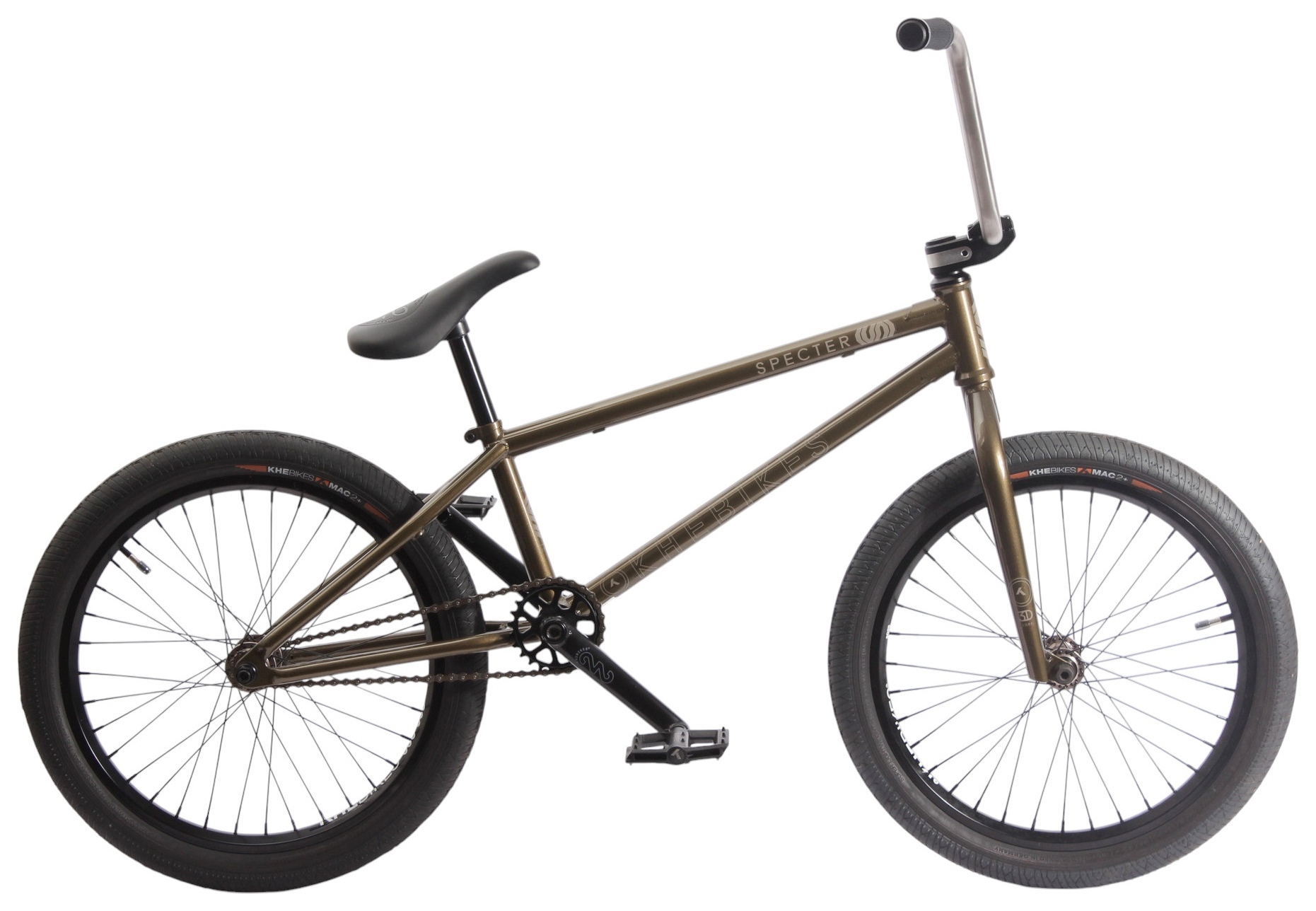

BMX bike KHE SPECTER V2 Limited Titanium 20 inch 8.1 kg
The KHE SPECTER V2 Limited Titanium 20 inch BMX combines a lightweight butted CrMo frame, titanium handlebar, KHE LASER TPU tubes and MAC2+ folding tyres for maximum agility and high-end performance in park, pump track and street riding.
Accessories
KHE SPECTER V2 Limited Titanium
The KHE SPECTER V2 Limited Titanium is a high-quality BMX park bike from the KHE PRO series, consistently designed for lightweight construction, maximum performance and durability. The frame is made from 100 percent CrMo steel with butted tubes and a top tube length of 20.65 inches. The high-quality construction provides excellent stability at a total weight of only 8.1 kg.
A special highlight is the 3D investment-cast dropouts, which are manufactured as one piece on both the frame and the fork. This creates a seamless look without visible welds and significantly increased stability compared to conventional stamped plates.

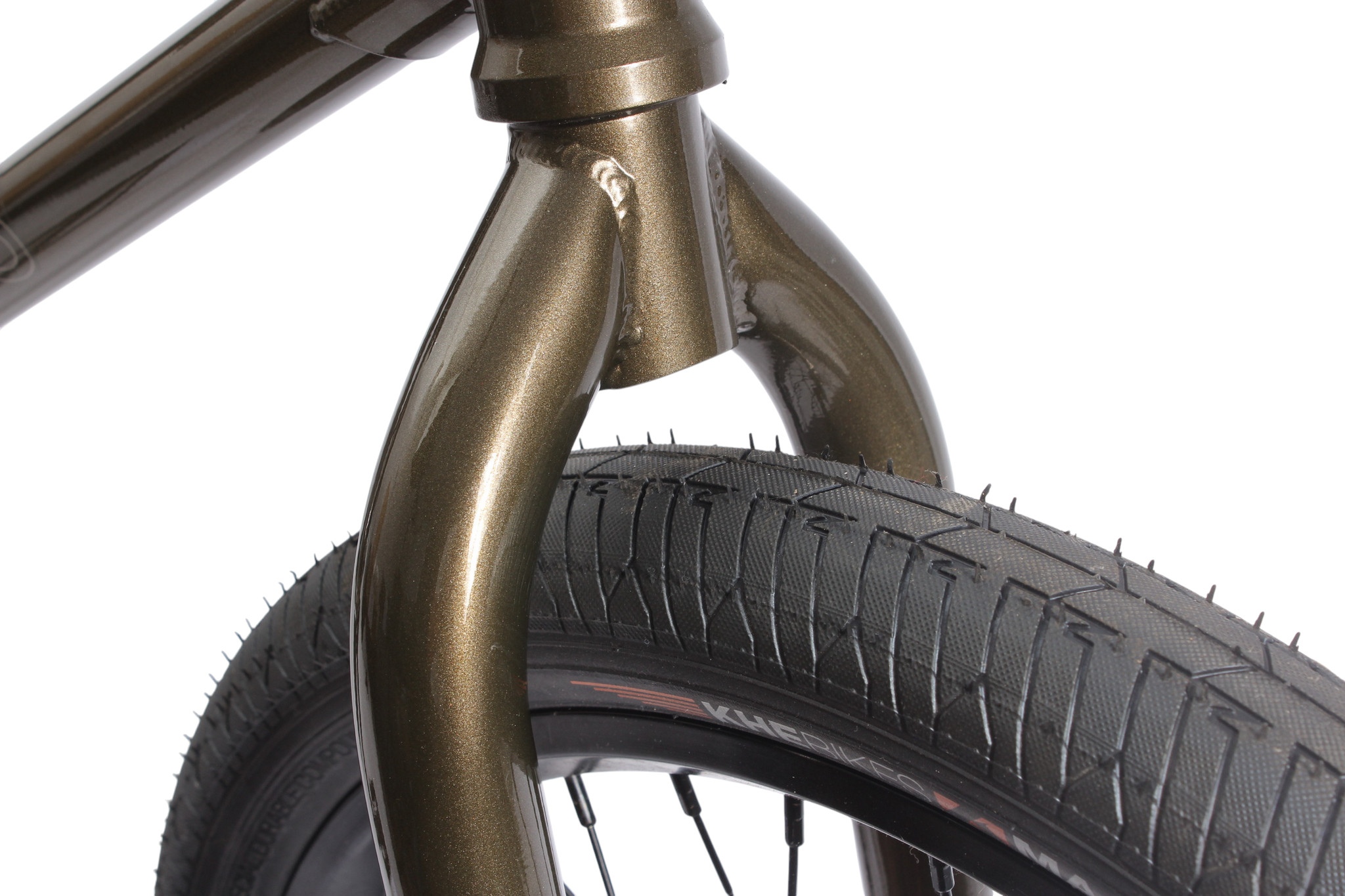

The bike is perfectly prepared for a clean brakeless setup. The mounted rear U-brake and the brake pivots can be removed if required. The tapered fork legs additionally provide a lightweight, clean and at the same time stable construction.

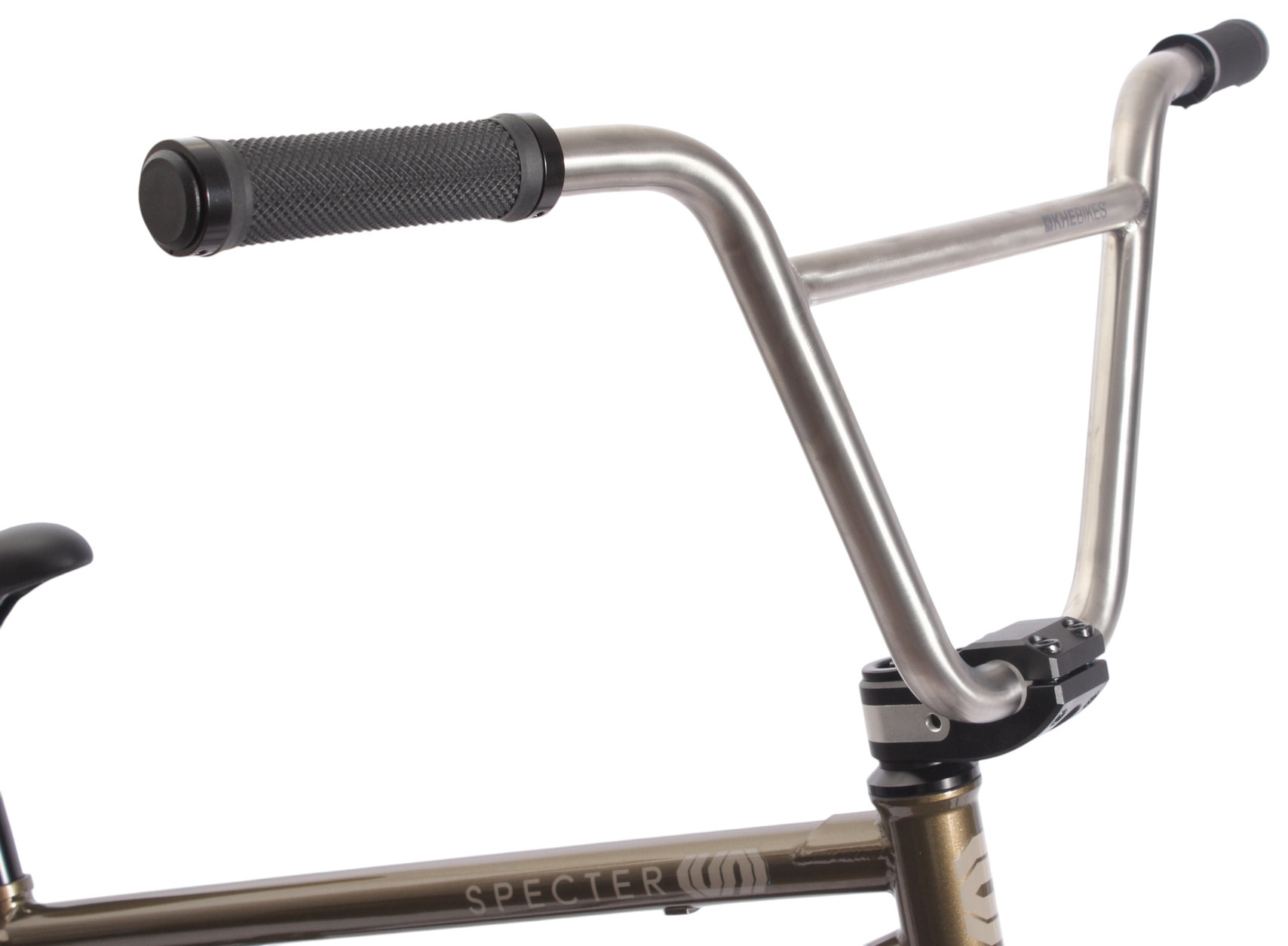

New on the Titanium Limited Edition: The fitted KHE SPECTER Ti handlebar made from high-quality Grade 9 titanium not only provides a clean and premium design, but also significantly reduces the overall weight of the bike. At only 518 g, it is extremely lightweight yet stable, with a 9-inch rise, 29-inch width, 11-degree backsweep, 2-degree upsweep and a knurled surface for maximum grip. In addition, the Limited Edition features a lightweight seatpost combo, KHE LASER TPU tubes and extremely lightweight KHE MAC2 Plus folding tyres. This significantly reduces the rotating mass in particular, making the bike even more agile and direct. This results in a total weight of just 8.1 kg.
This bike is hard to beat with its installed components: CNC-machined patented KHE Affix stem, KHE Affix rotor system, CNC fork steerer, welded double-wall rims, butted spokes, 22 mm CrMo crank, female front hub, high-end 9-tooth cassette hub, KHE LASER TPU tubes, KHE MAC2 Plus folding tyres and much more!
Recommended rider height: 150–190 cm
Maximum rider weight: 120 kg
Intended use: Park, pump track, street
Important note: This bike is supplied without a front brake. A suitable front brake is available separately (item no.: BR-SET).
Why choose the SPECTER V2 Limited Titanium from KHEbikes?
- Direct from the manufacturer, therefore the best prices
- At only 8.1 kg, an extremely lightweight 20-inch high-end BMX park bike
- KHE BMX rotor system for 360-degree handlebar rotations
- Butted CrMo frame and fork tubes with 3D investment-cast dropouts
- Welded double-wall rims with butted spokes
- 518 g KHE SPECTER Ti handlebar made from high-quality Grade 9 titanium
- KHE LASER TPU tubes and KHE MAC2 Plus folding tyres for reduced rotating mass
- Brakeless-ready with removable U-brake and removable brake pivots
- Patented KHE Affix rotor and stem system
Pegs: The SPECTER V2 Limited Titanium 20-inch is compatible with 10 mm pegs at the front and 14 mm pegs at the rear. We recommend the Laser Pro pegs.
The BMX bike is approximately 90 percent pre-assembled. You can find the instruction manual under “Data sheets”. An assembly video can be found under “Video”.

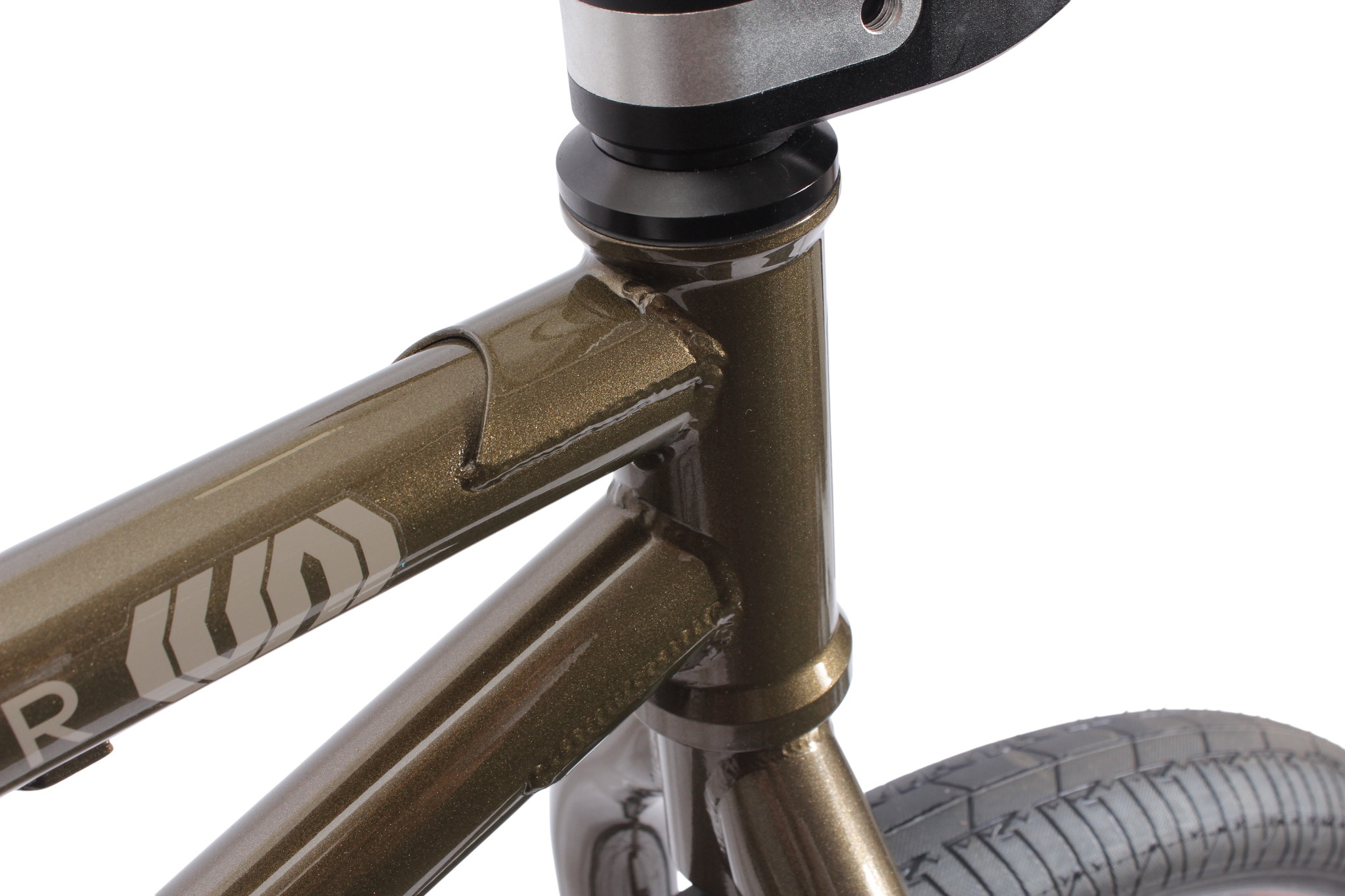

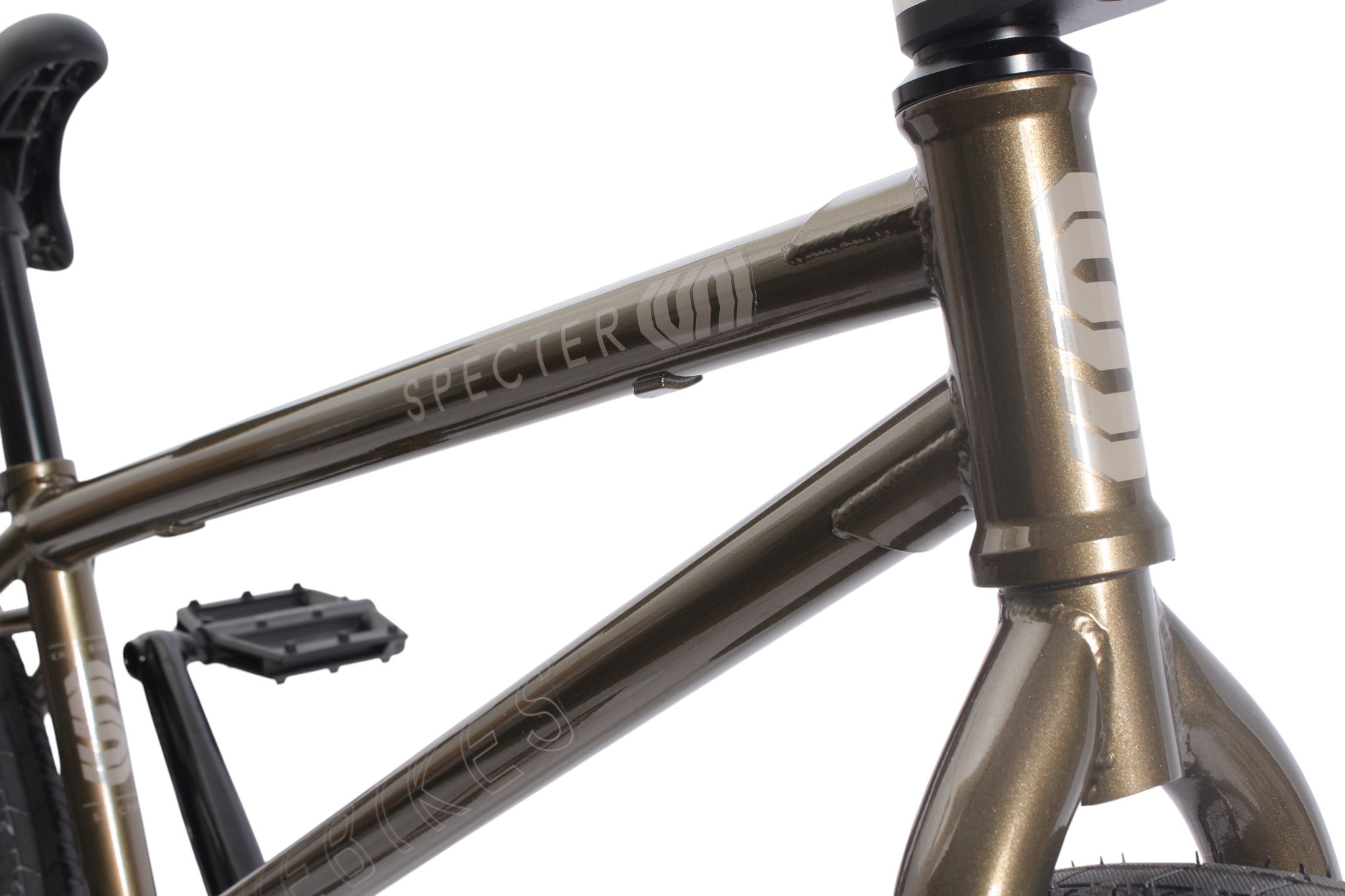

| Frame: | KHE CrMo 4130 seamless drawn steel, butted tubes, 14mm dropout, top tube 20.65", CS 13.2", HT 75.5°, ST 71.5°, Integrated 1 1/8" |
|---|---|
| Top tube length: | 20,65" (526mm) |
| Fork: | KHE tubos CrMo conificados y butted, tubo de dirección CNC CrMo 3D, punteras de 10mm, avance de 27mm |
| Handlebars: | KHE Specter Titanium GR9, 9 inch height x 29 inch width, 11° backsweep, 2° upsweep, cross knurling, laser logo |

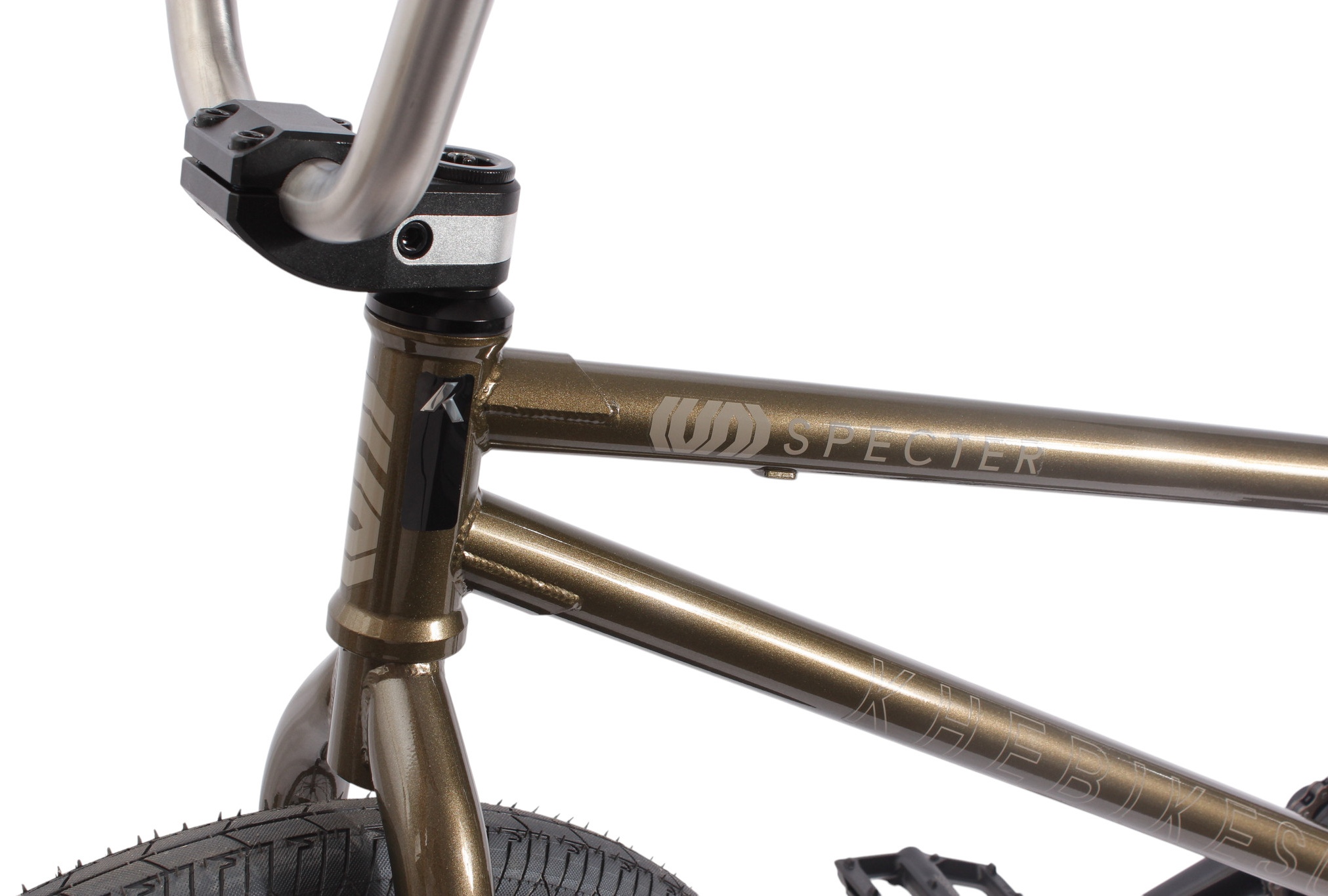

| Stem: | KHE CNC with patented AFFIX clamp, top loader ext. 50mm |
| Headset: | Intigrated headset with indusriel bearings |
| Brake levers: | Aluminium brake lever with hinged bar clamp |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

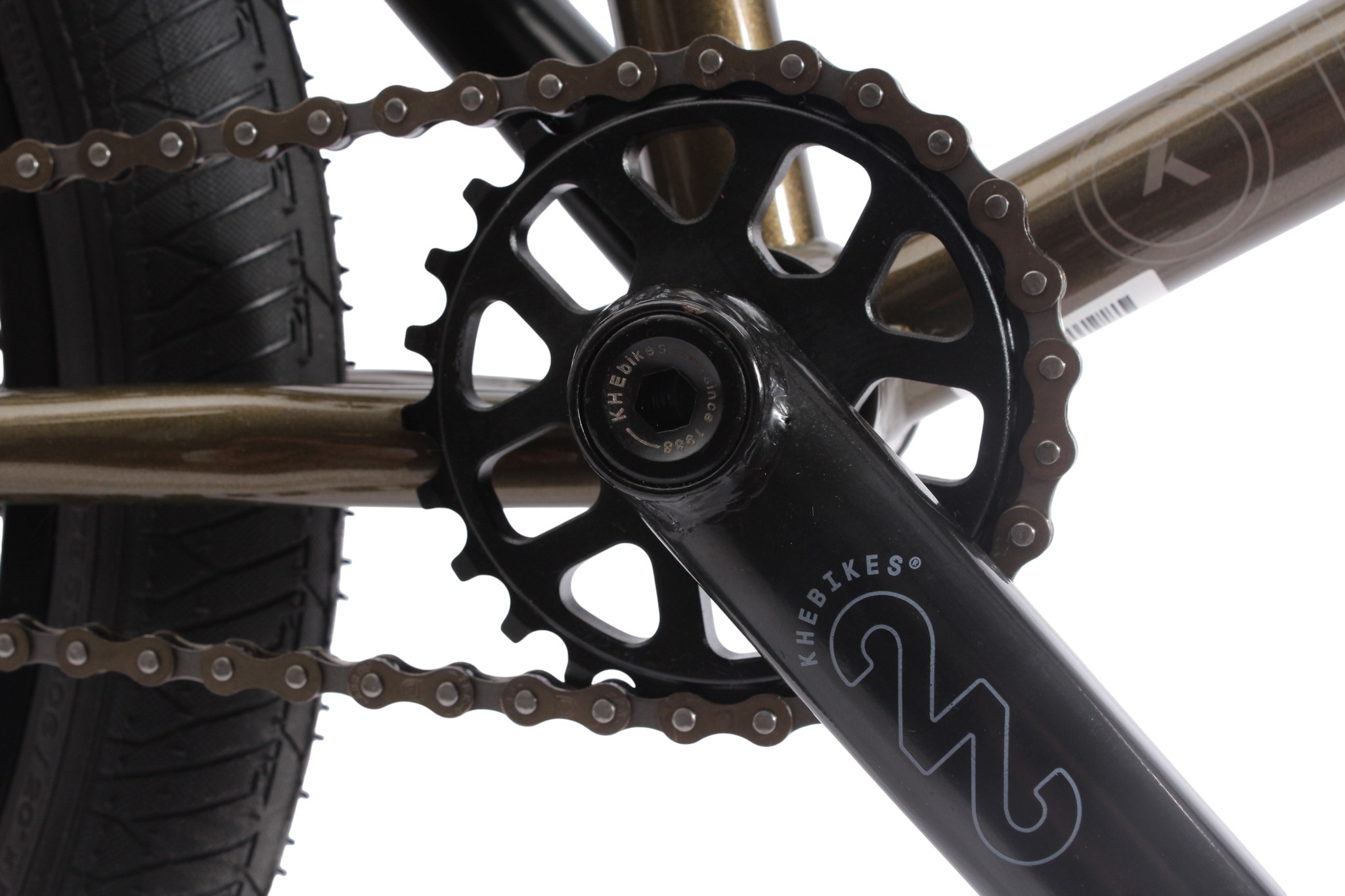

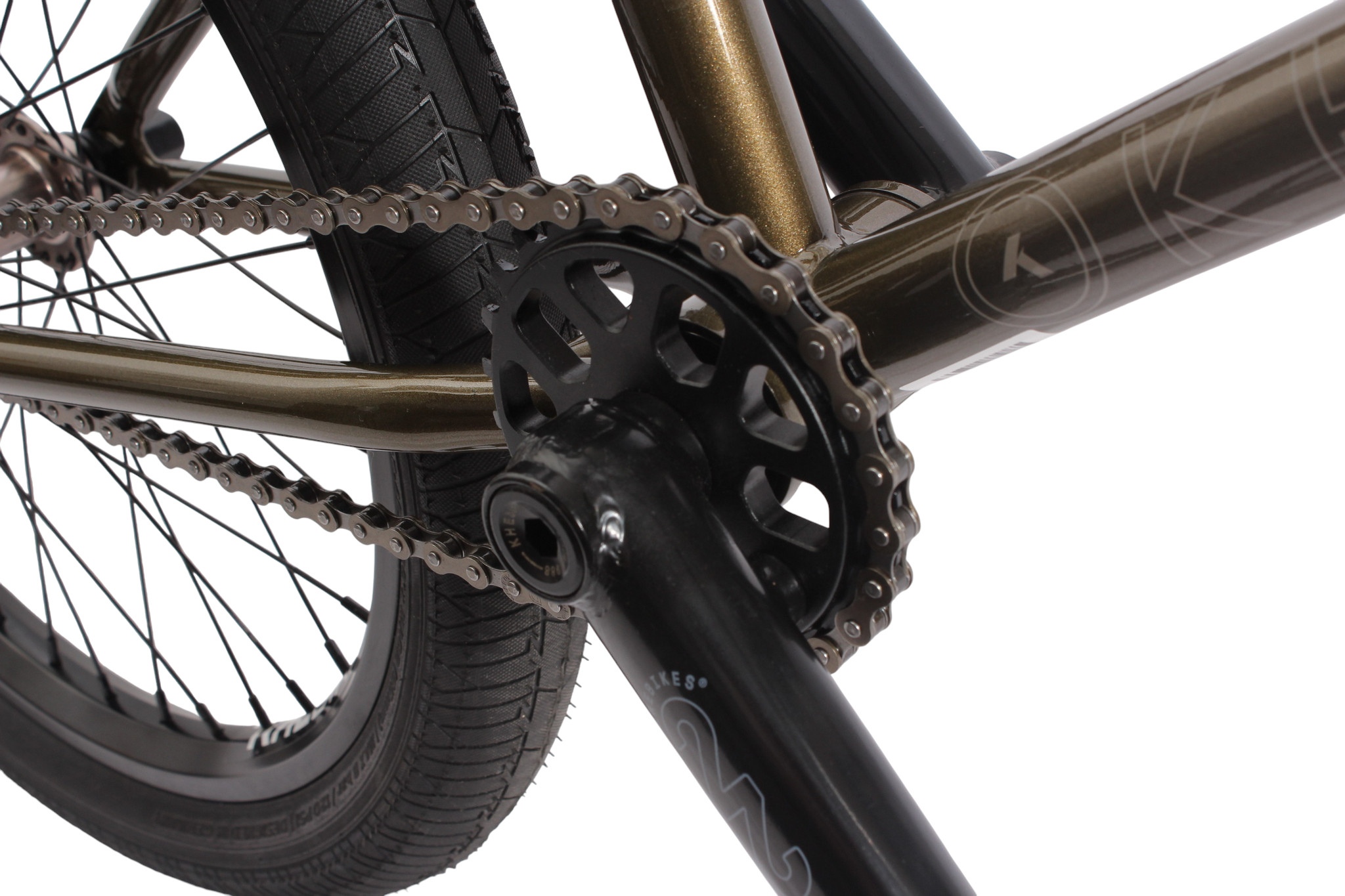

| Crank: | KHE 22, biela hueca CrMo de 3 piezas 170mm / 48 dientes |
| Bottom bracket: | "MID BB" industrial bearing & sealed, 48 teeth, 22mm CrMo axle |
| Chainring: | KHE 25 dientes aluminio CNC 7mm, anodizado en negro |
| Chain: | YBN CN ST 1/2 x 1/8“ |

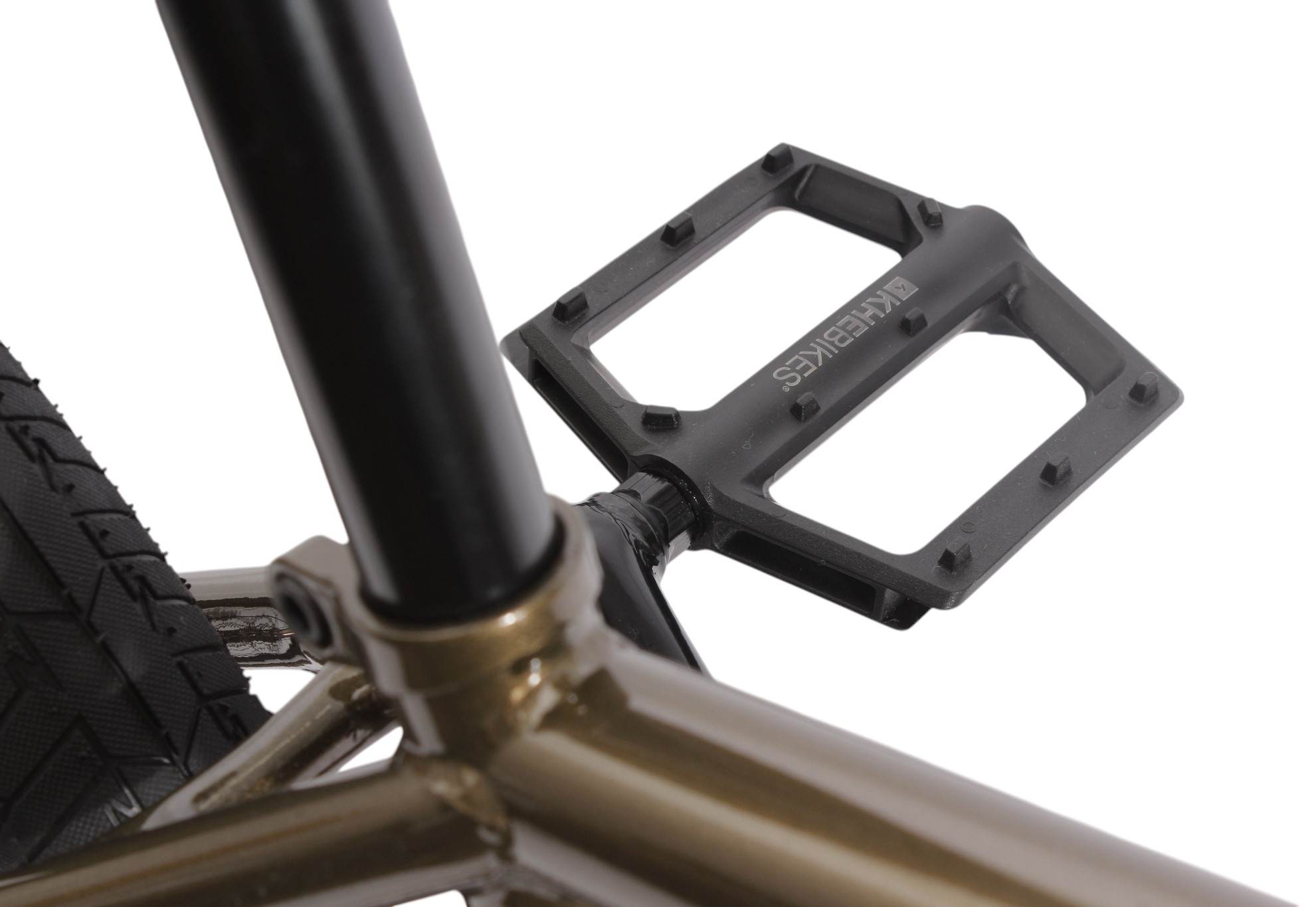

| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

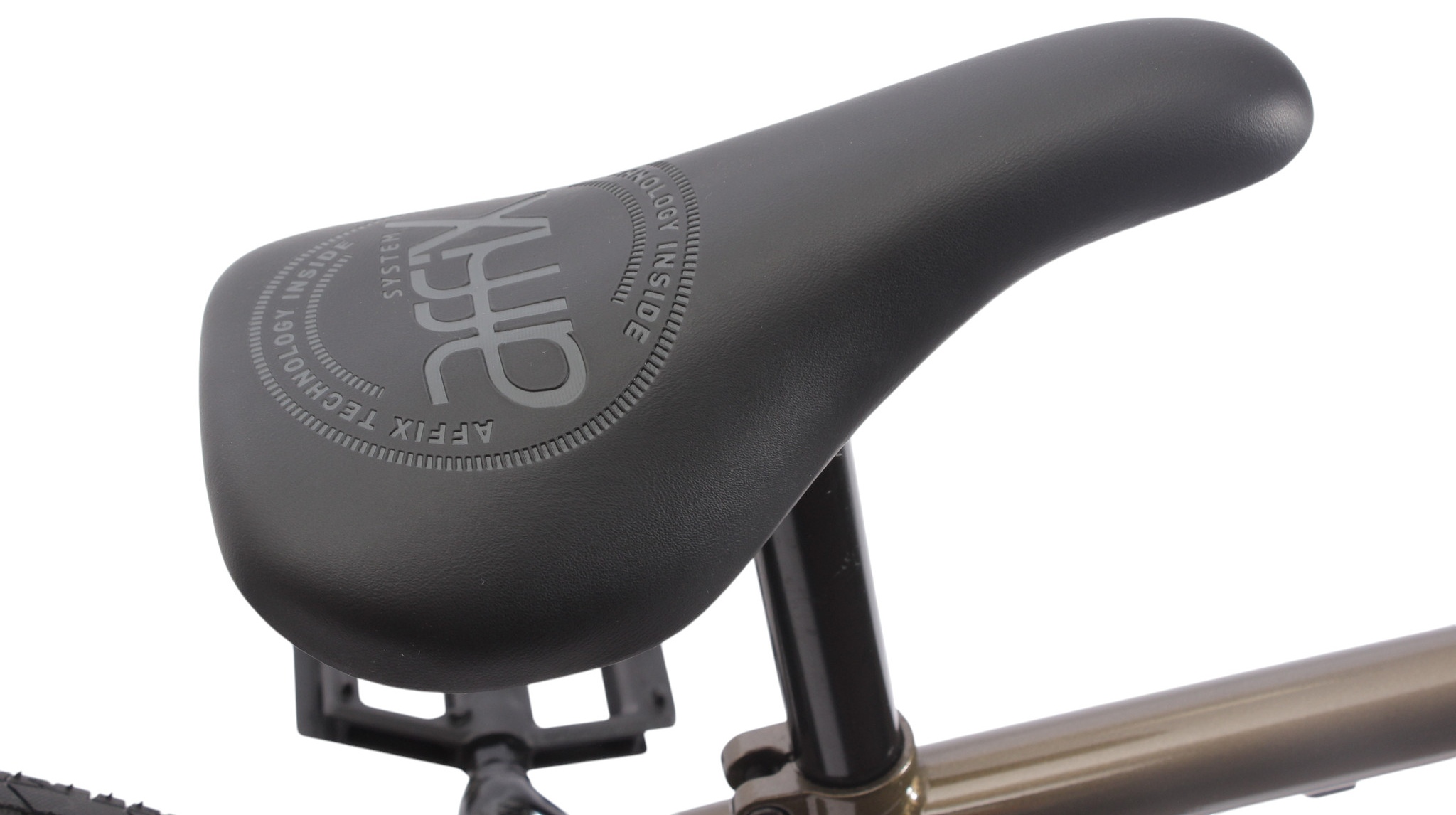

| Saddle: | extra light thick padded KHE saddle combo |

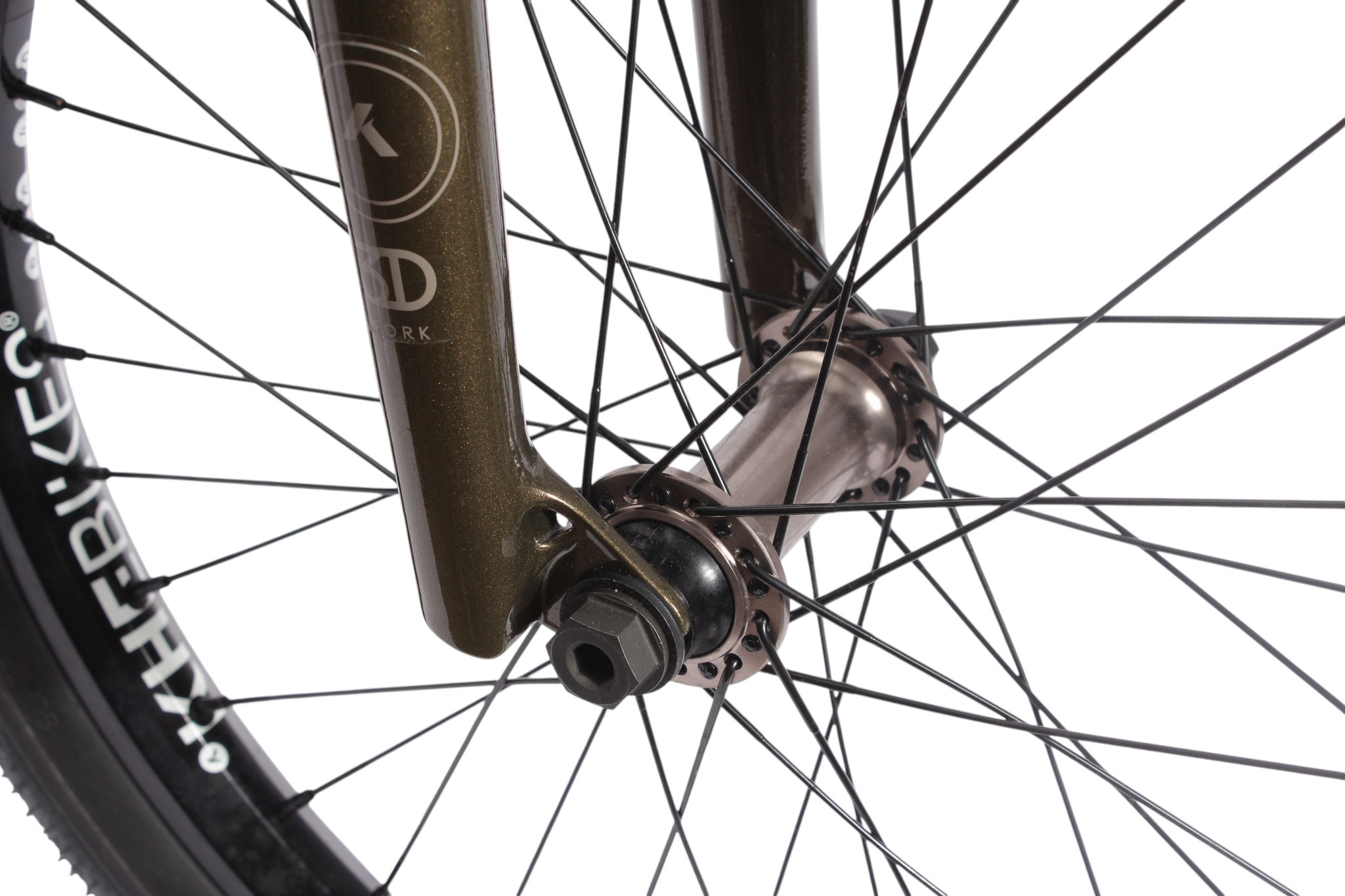

| Front wheel hub: | KHE GREYHOUND female CrMo axle & bolts 3/8", sealed industrial bearing |

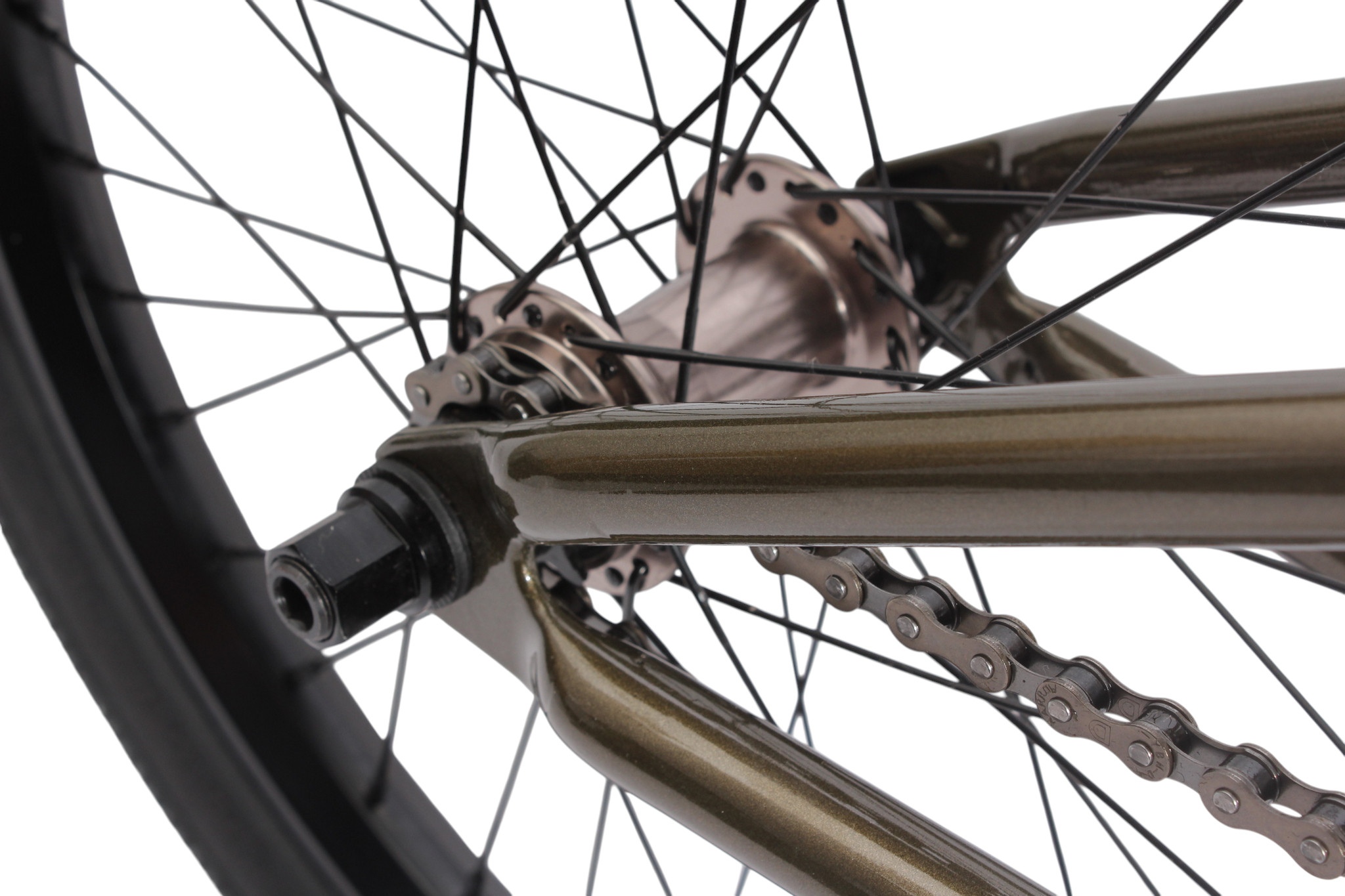

| Rear wheel hub: | KHE GREYHOUND cassette 9T, sealed industrial bearing, 170mm 14mm male, 36 holes |
| Hub type: | freewheel |

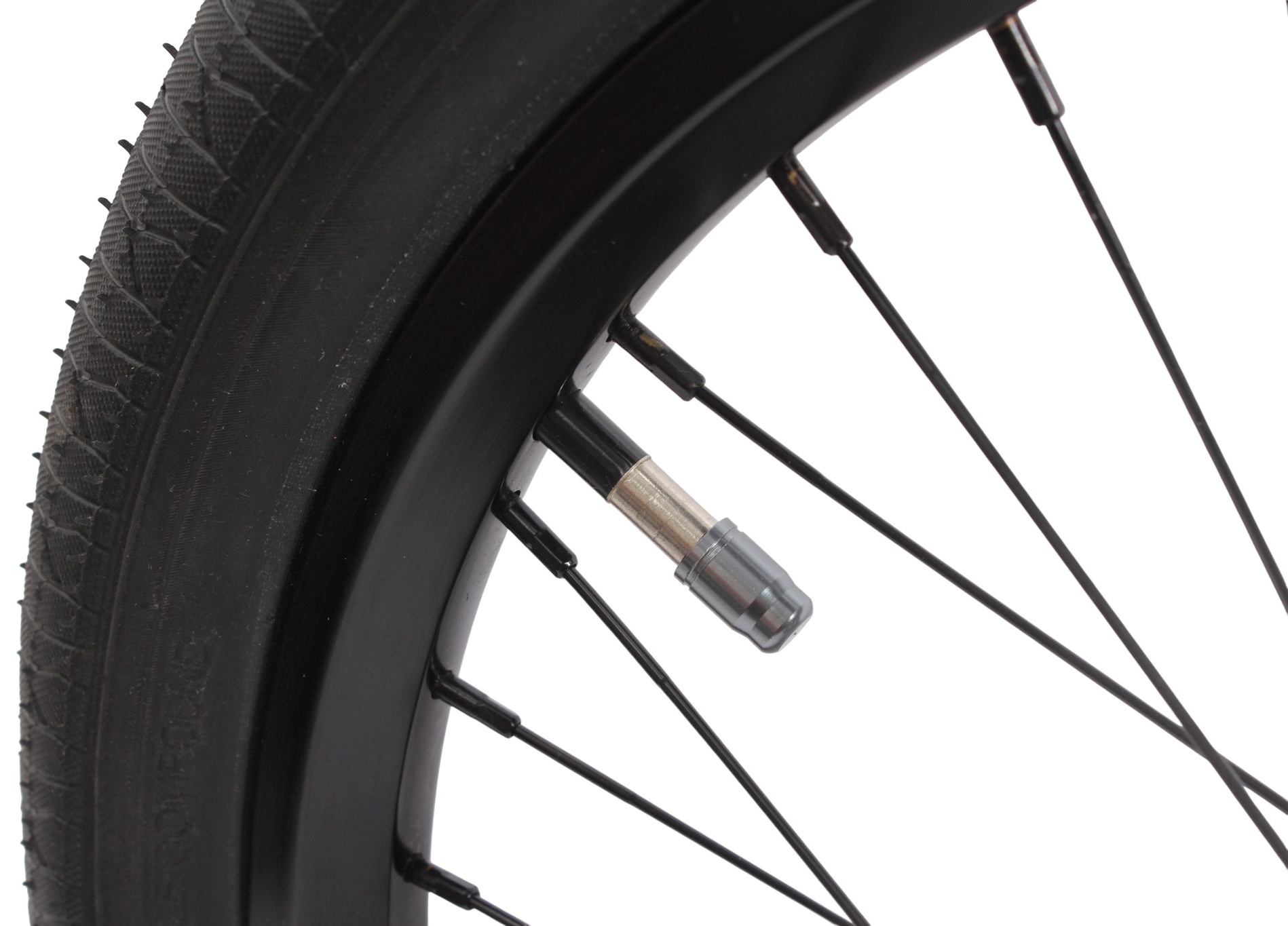

| Rim: | KHE BIG400 V2 welded, double-wall |

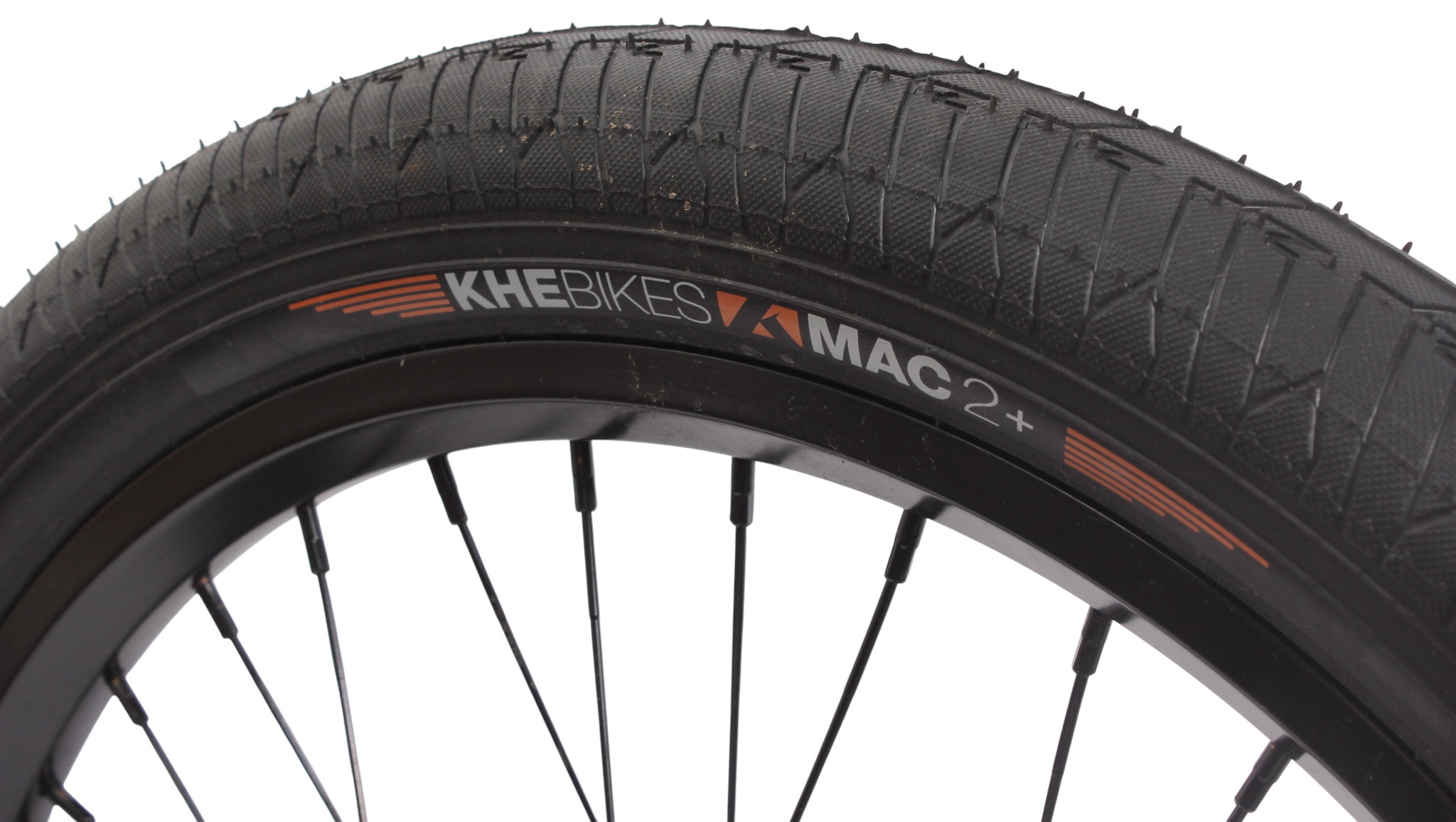

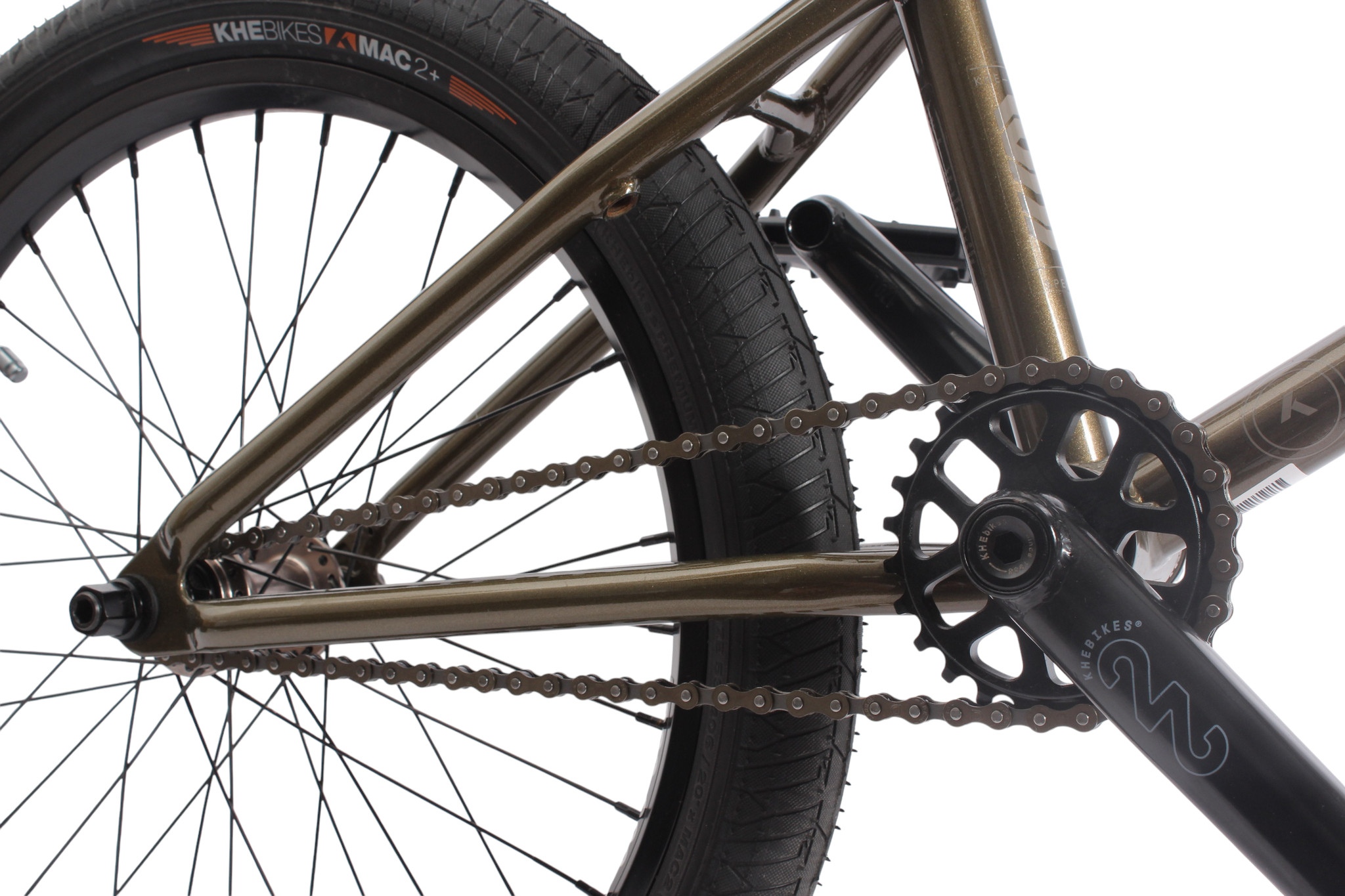

| Tyres: | KHE MAC2+ folding tire Kevlar |
| Material: | CrMo 4130 butted, seamless drawn |
| Tire size: | 20 inch |
| Category: | Park, Street, Pumptrack |
| Size: | 20"; 4'11" - 6'3" in |
| Colour: | Gold |
| Weight: | 8,1kg |
| Model Year: | 2025 |
| Sale: | Sale |
Intended use: 20-inch BMX bicycle for park, pump track and street use. Suitable for riders with a recommended height of approximately 150–190 cm and a maximum rider weight of 120 kg. Use the bicycle only as intended and within the specified load limits. The bicycle is supplied without a front brake and is prepared for an optional brakeless setup.
Installation / use: The BMX is delivered approximately 90 percent pre-assembled. Before the first ride, all remaining assembly work must be carried out correctly. Check the handlebar, stem, wheels, pedals, crank, chain, saddle, rear brake, KHE AFFIX rotor system and all fasteners for correct installation and secure fit. The fitted U-brake must be correctly adjusted and fully functional. If the rear brake or brake pivots are removed, the resulting change in braking performance must be taken into account. Before every ride, check the tyres, air pressure, TPU tubes, wheels, brake system and all safety-related components.
Care and cleaning: Clean the bicycle regularly with water and a soft cloth. Do not use aggressive cleaning agents or pressure washers. Regularly inspect and maintain the chain, bearings, cassette hub, KHE AFFIX rotor system, brake system and moving parts according to the manufacturer's instructions. Keep braking surfaces free from oil and grease. Regularly inspect the titanium handlebar, frame, fork and dropouts for damage.
Replacement due to wear: Replace worn or damaged tyres, TPU tubes, brake pads, chain, bearings, wheels, crank, handlebar, fork, frame or other safety-related components immediately. After crashes or hard landings, carefully inspect the KHE SPECTER Ti handlebar, frame, fork, 3D dropouts, stem and wheels for cracks, deformation or other damage. Do not use a damaged BMX bicycle.
