KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, sophisticated engineering, and outstanding riding dynamics. The new 2025 models offer optimized geometry, thoughtful details, and high-quality components – directly from the manufacturer for top performance on any surface.

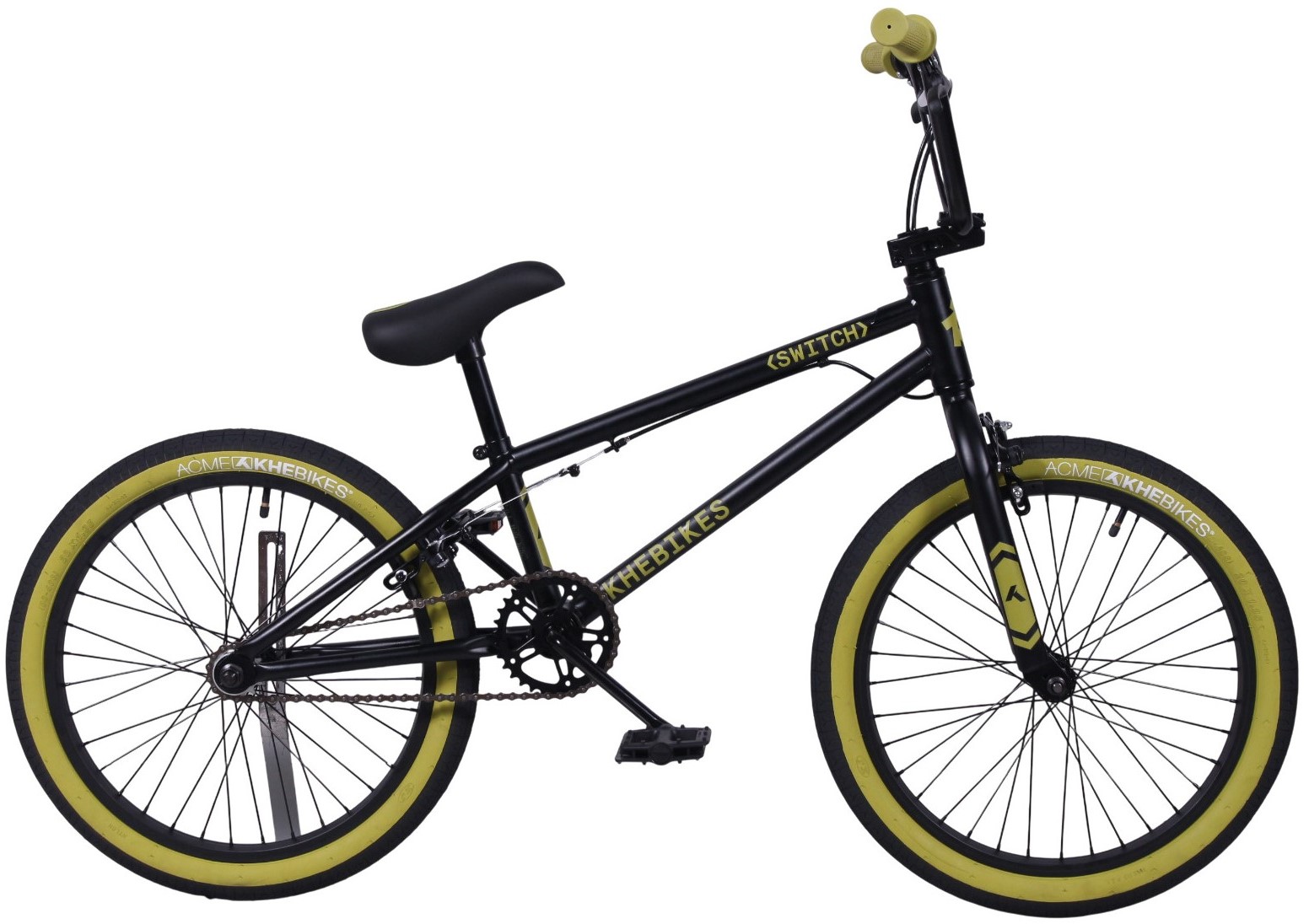

KHE SWITCH 20 Inch – BMX Freestyle Allrounder
The KHE SWITCH 20 Inch is a true all-round BMX that perfectly combines flatland, street, park, and ramps. Weighing only 11.3 kg, it offers the optimal balance between stability, lightness, and control.
The sturdy HiTen steel frame with a 19" top tube length ensures a modern geometry & is perfect for flatland tricks. The robust fork and wide 680 mm handlebar guarantee precise handling and a secure riding feel. Available in the special editions Black-Green or Gold, the SWITCH is also a visual highlight.
The 165 mm long OPC crank, the 32T chainring, and the US-BB loose ball bottom bracket ensure direct power transmission. Thanks to the integrated rotor system, bar spins and 360° handlebar rotations are possible. With U-brakes front and rear, reliable braking power is ensured. The 14T freewheel hub at the rear and the 20" × 1.95" all-round tires provide perfect grip and riding comfort.
You should be this tall: from about 135cm
Maximum body weight: 90kg
Application area: Flatland, Street, Park, Ramps
Why the SWITCH 20 Inch from KHEbikes:
-
Only 11.3 kg – light & robust & very suitable for flatland tricks
-
HiTen steel frame with 19" top tube
-
In two designs: Black-Green & Gold
-
U-brakes front & rear with integrated rotor system
-
14T freewheel hub & 20" × 1.95" tires
Pegs: Suitable for the SWITCH 20" are 10 mm front and 14 mm rear pegs. We recommend the KHE COP ALU Pegs.
The BMX bike is about 90% pre-assembled.
You can find the manual under “Datasheets”.
A video for assembly can be found under “Video”.

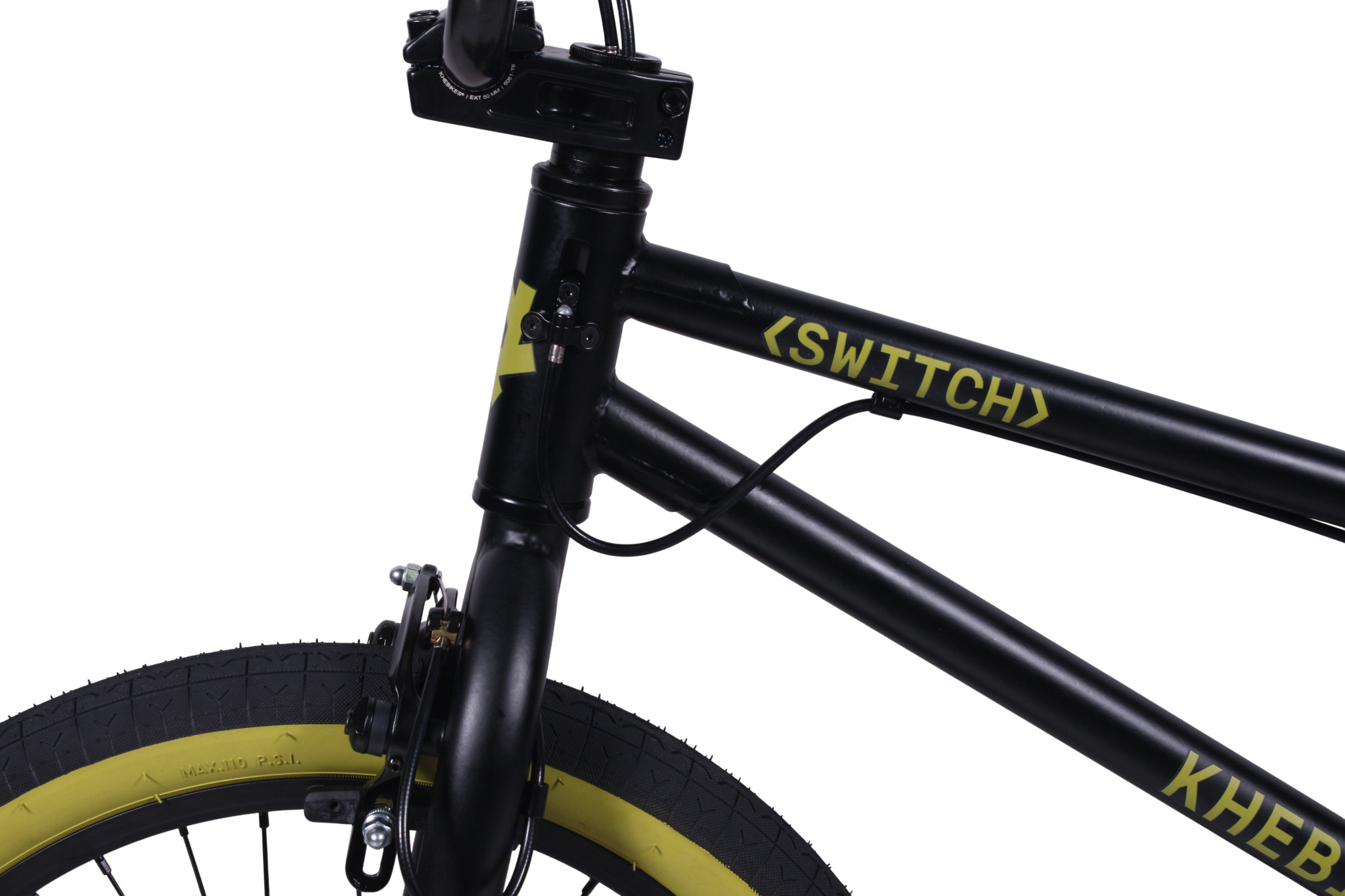

| Frame: | HiTen steel, top tube 19", RC 13.7", HT 75° |
|---|---|
| Top tube length: | 19" (483mm) |

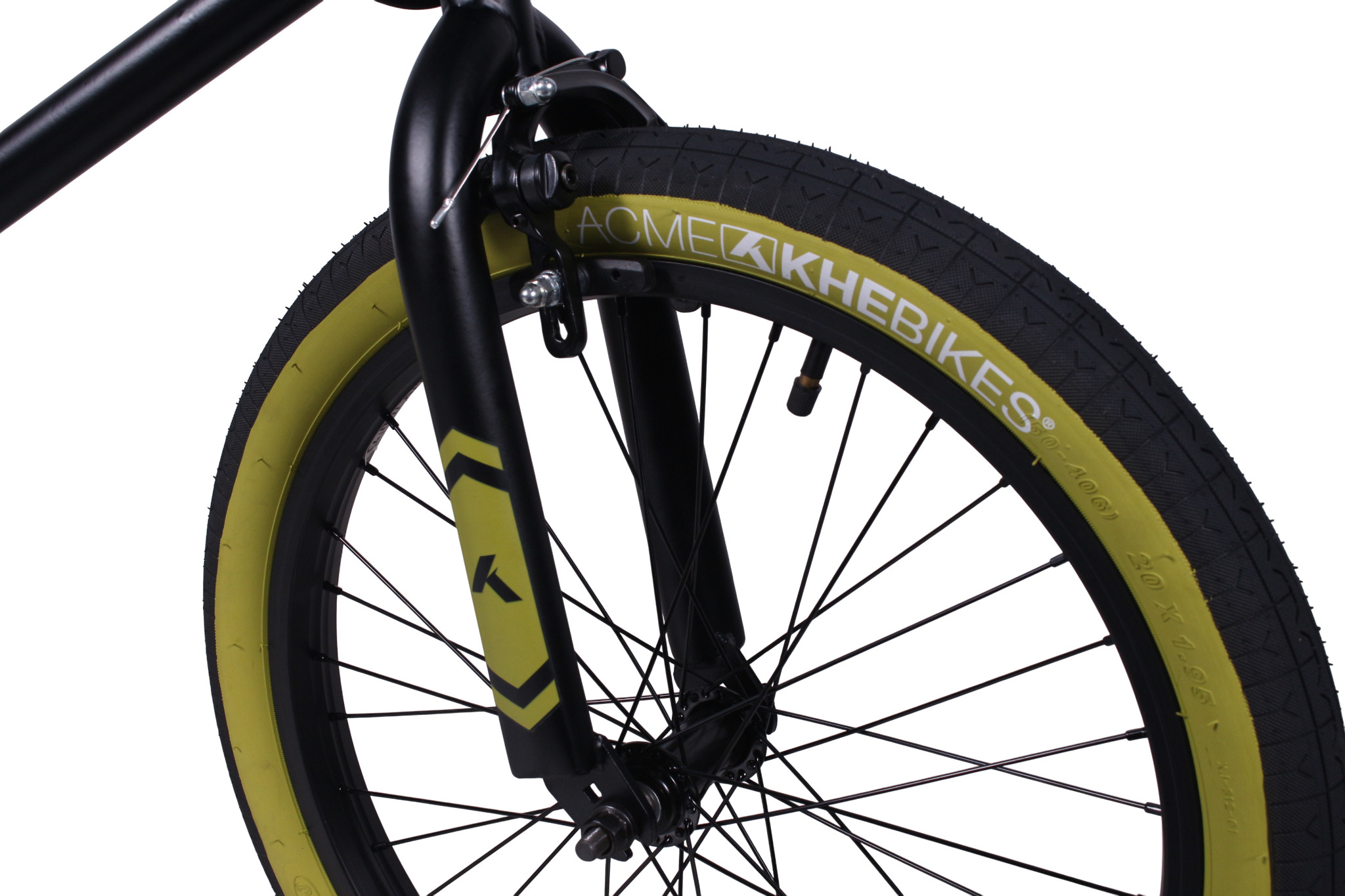

| Fork: | HiTen, with short offset 18mm |

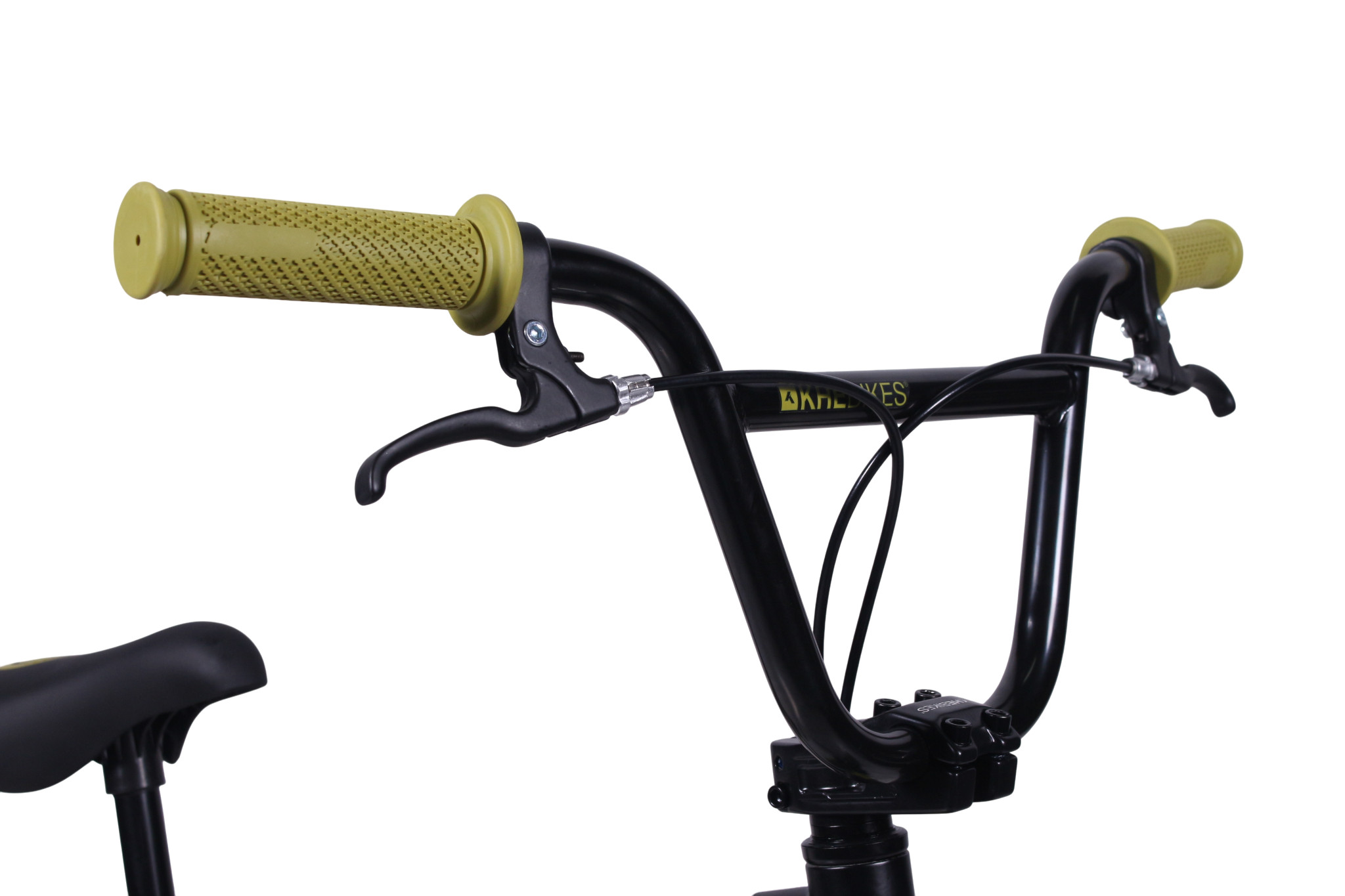

| Handlebars: | HiTen, 2-piece, 8" rise |
| Stem: | KHE Top Loader Ext.50mm |
| Headset: | 1 1/8“, Standard headset |
| Rotor: | AFFIX |
| Brake levers: | for U-Brake |

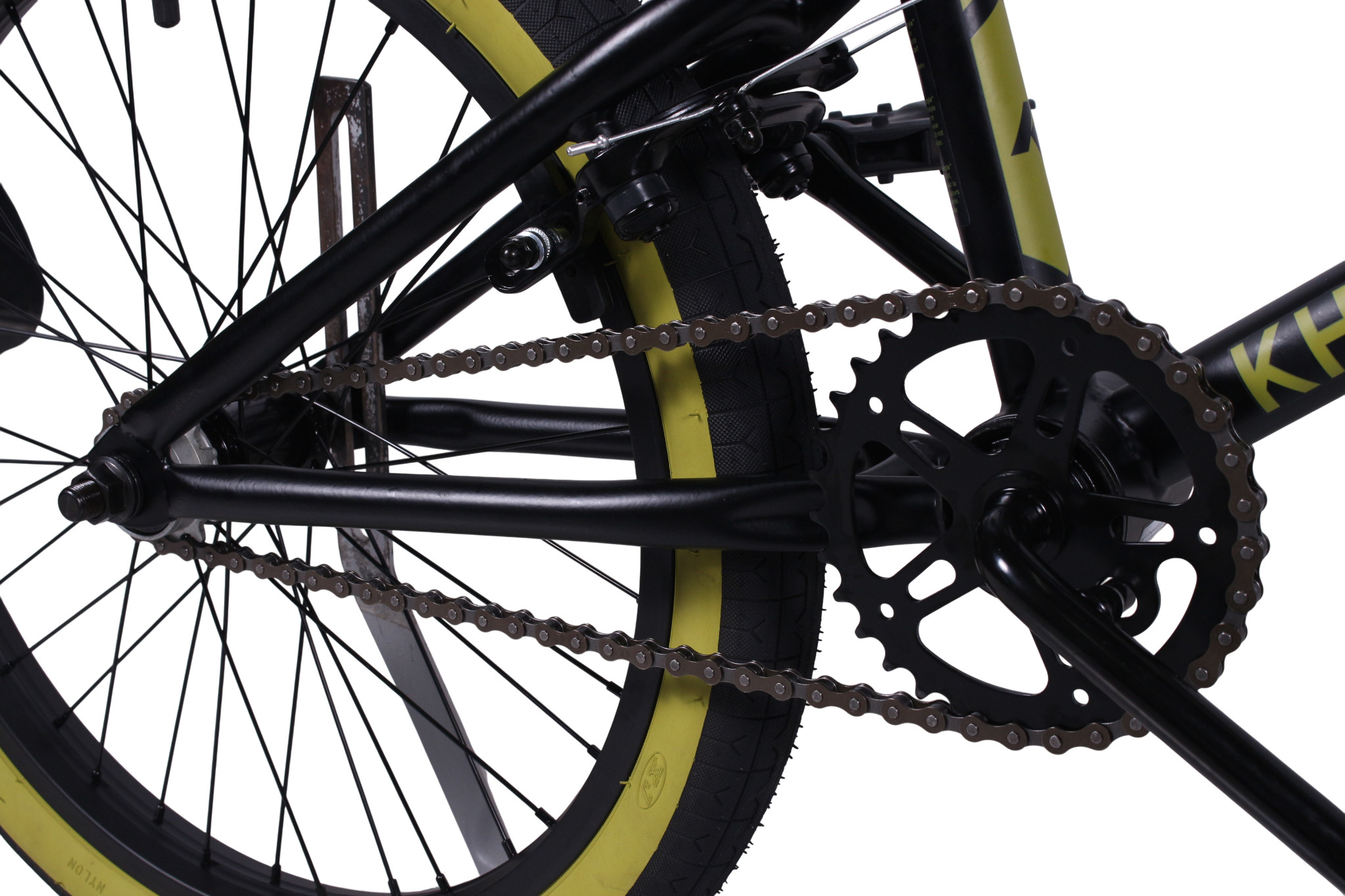

| Crank: | 1-piece, 165mm |
| Bottom bracket: | US-BB Loose Ball |
| Chainring: | 32T |
| Chain: | YBN |

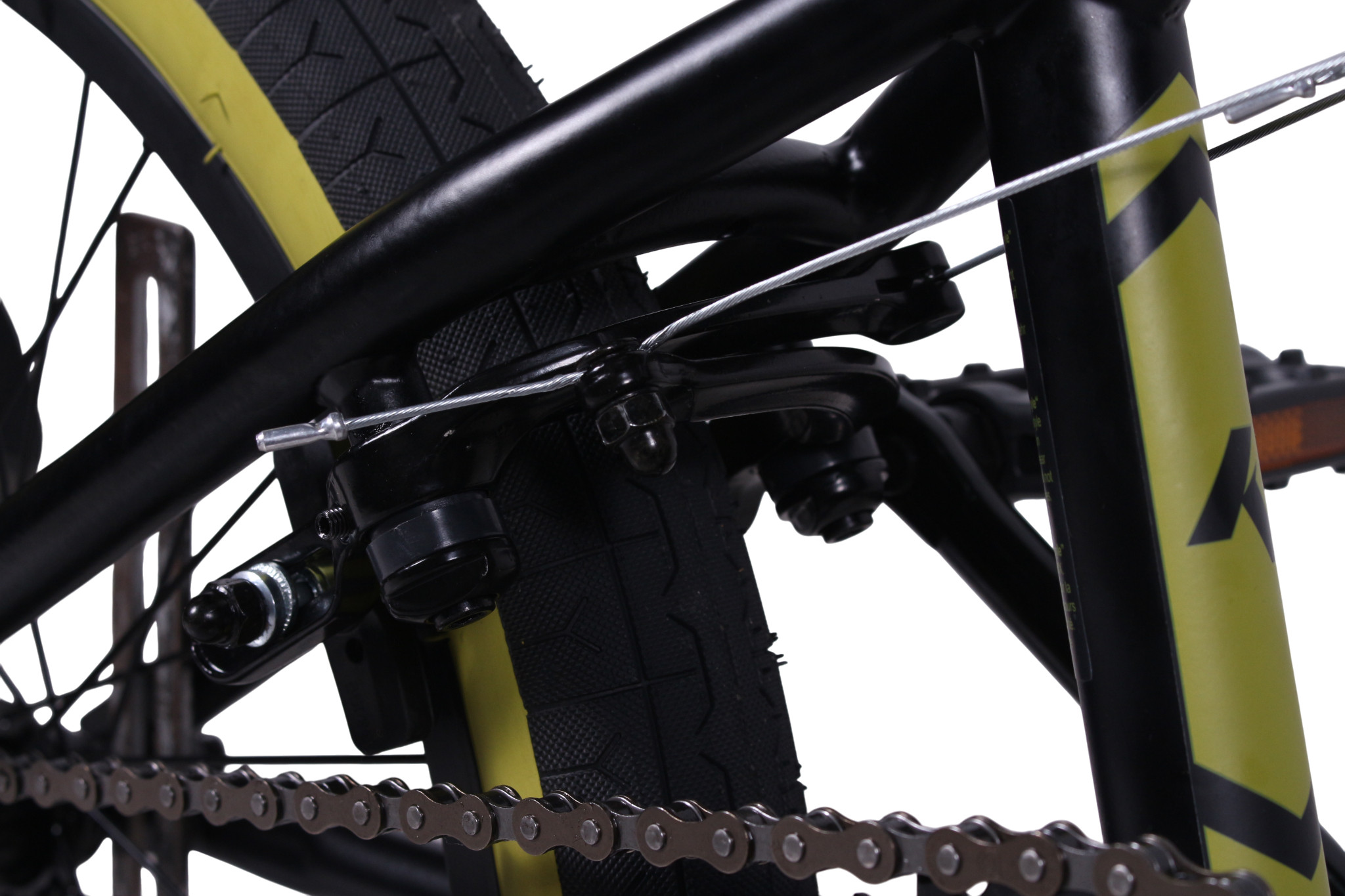

| Brake type: | U-brake |
| Saddle: | Padded 210 x 140mm with embossed KHEbikes logo |
| Seat clamp: | Integrated |
| Seatpost: | 270mm |
| Brake: | U-Brake |
| Front wheel: | KHE BIG400 rim blue anodised, 36 spoke hub, 10mm axle |
| Hub type: | freewheel |
| Rear wheel: | KHE BIG400 double chamber rim, 14-tooth sprocket, 14mm axle |
| Tyres: | 20" x 1,95" |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | BMX Freestyle |
| Size: | 20 "; 4'7" - 5'7" in |
| Colour: | Matt black |
| Weight: | 24.91 lbs / 11,3kg |
| Model Year: | 2025 |
| Sale: | Sale |
Intended Use: This BMX bike is designed for teens and adults for use in flatland, street, park and ramp riding. It is not approved for public road traffic or extreme downhill use.
Assembly and Inspection: The bike is delivered about 90% pre-assembled. All safety-relevant parts (handlebar, brakes, rotor, axles, pedals, chain, saddle) must be correctly mounted and checked before first use. Final assembly should be done by a specialist or experienced person.
Maintenance & Care: Clean the bike regularly with a damp cloth. Do not use harsh cleaners. Lubricate all moving parts (chain, rotor system, brakes) regularly and check for proper function.
Maximum Load & Safety: This BMX is suitable for riders approx. 135 cm tall and up to 90 kg in weight. Before each ride, check all bolts for tightness and ensure brakes are functioning. Replace any damaged or worn parts immediately.
