KHE TRIPLE THREAT 20 Inch

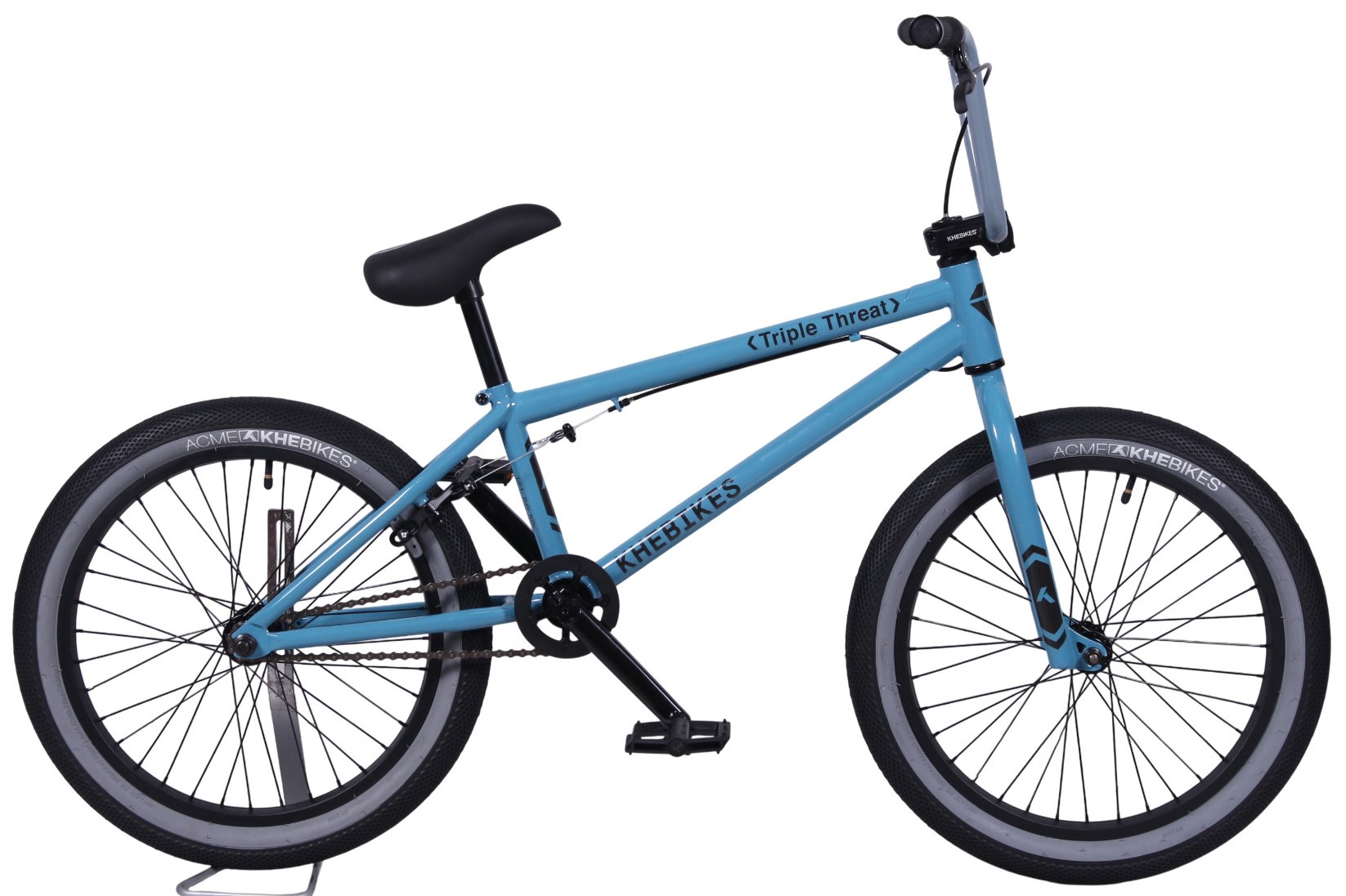

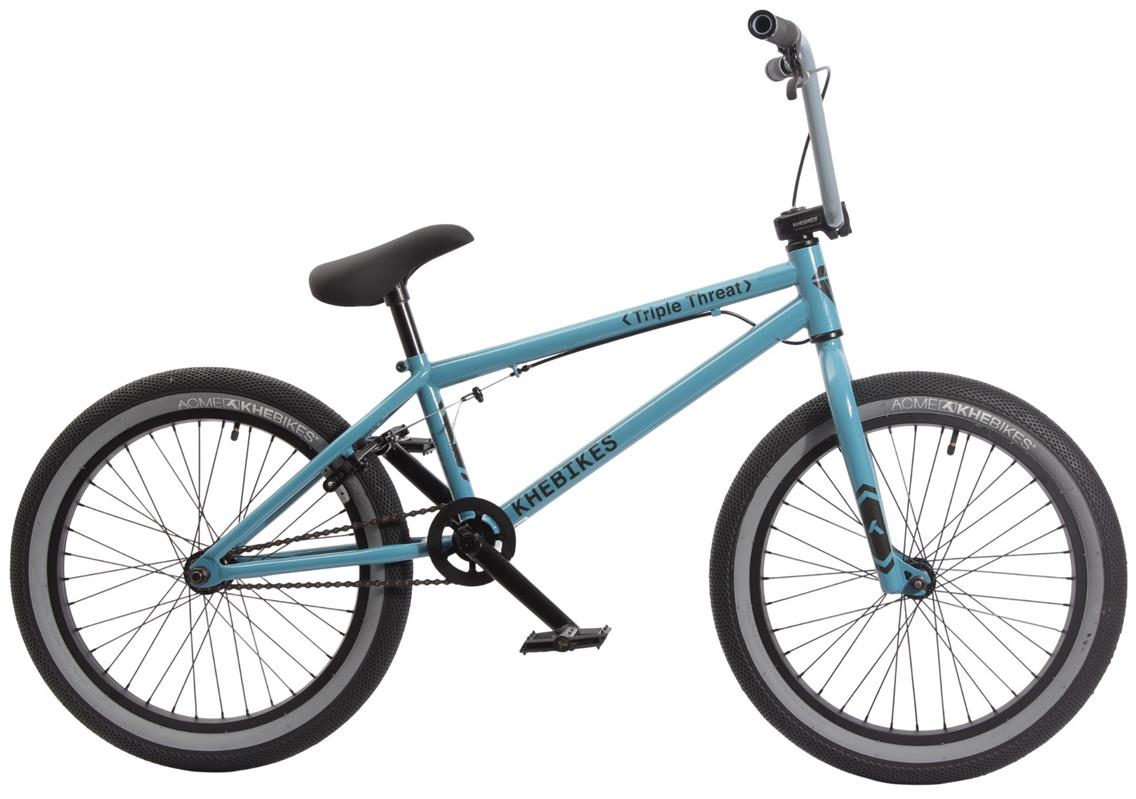

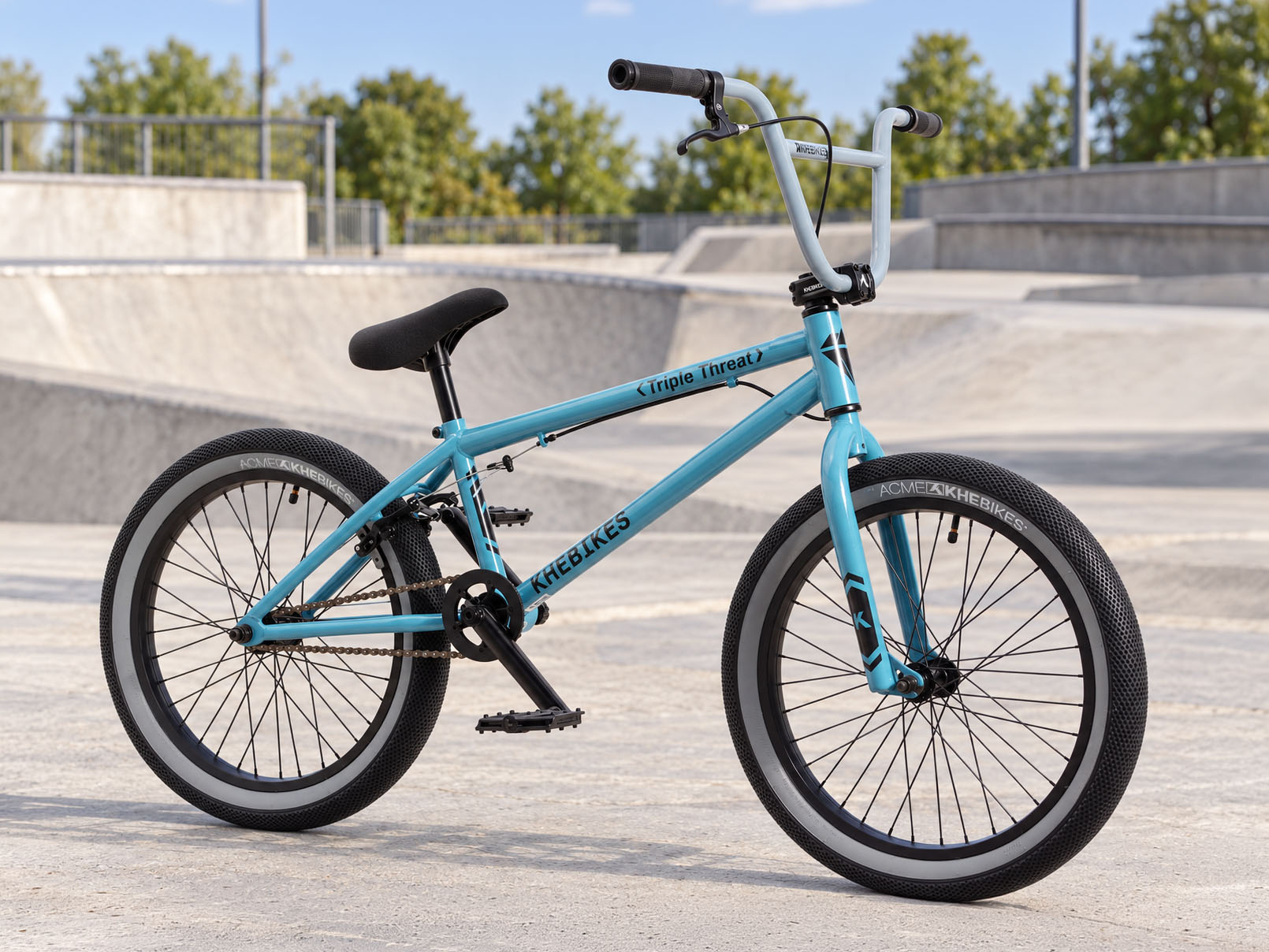

KHE TRIPLE THREAT 20 inch is a modern freestyle BMX from the KHE 2025 BMX Series, designed for teenagers and adults looking for a lightweight, stable and well-controlled bike for street, park and dirt riding. Weighing only 24.47 lbs (11.1 kg), it features a robust HiTen steel frame with a 20.6 inch top tube and wide 20 x 2.40 inch tyres, offering a balanced geometry and secure handling for tricks and jumps. The 3-piece CrMo crank with 170 mm (6.69 inch), the 25T chainring with grindguard and the US BB loose ball bottom bracket ensure direct power transfer, while front and rear U-brakes provide strong and reliable braking performance.
- Weight: 24.47 lbs (11.1 kg)

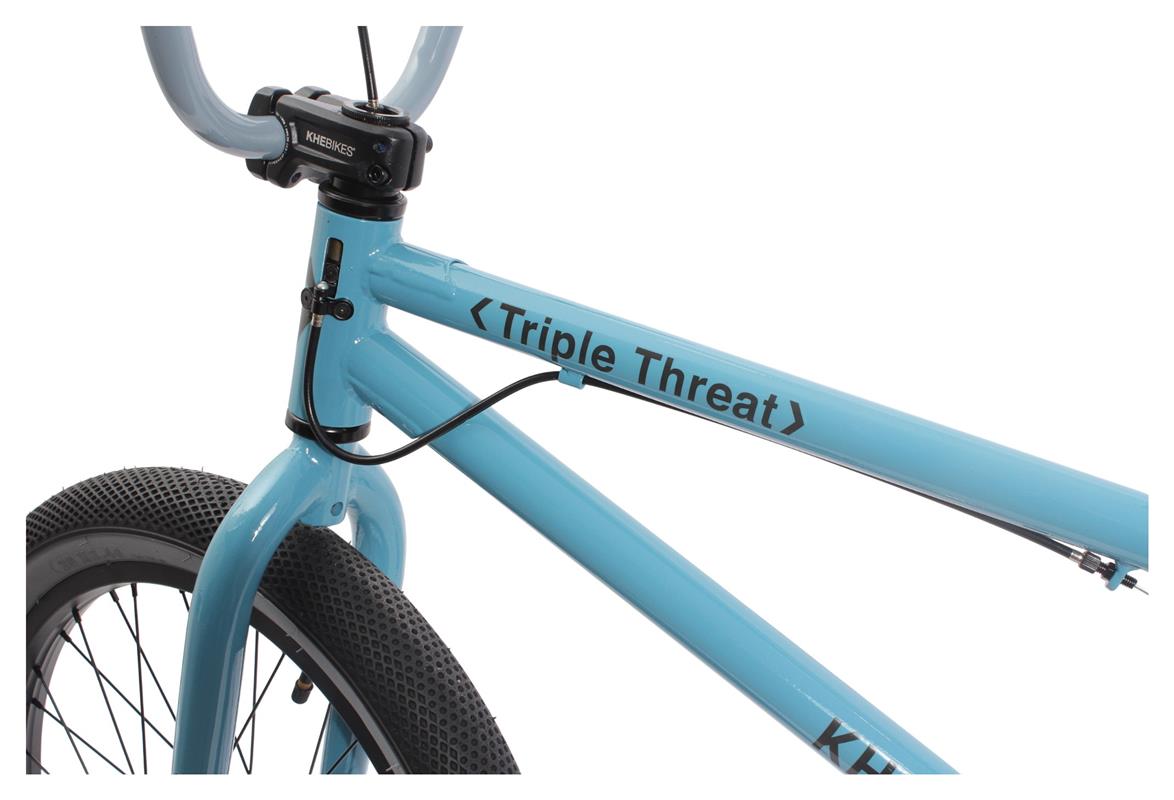

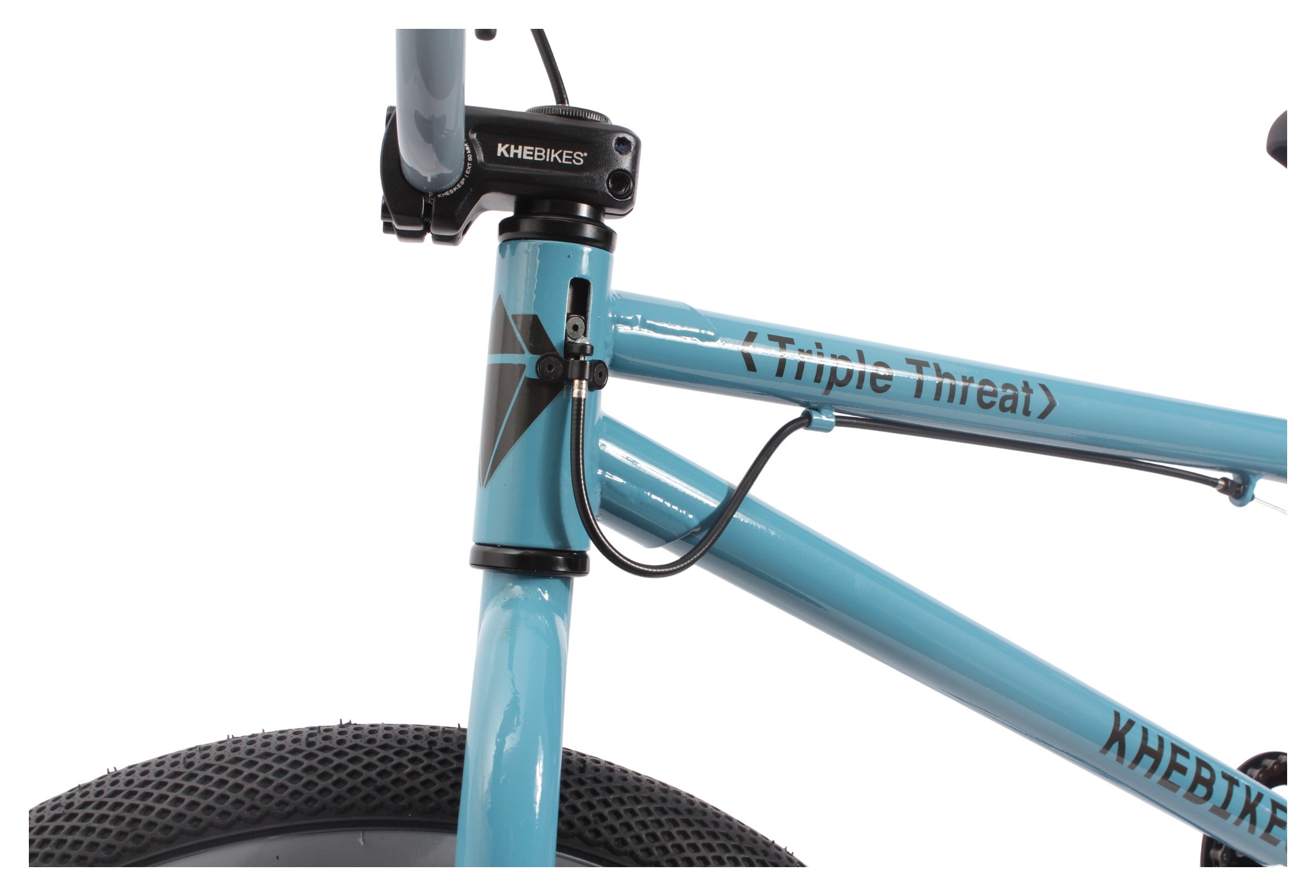

- Frame: HiTen steel, 20.6 inch top tube
- Tyres: 20 x 2.40 inch
- Brakes: Front and rear U-brakes
- Drivetrain: 3-piece CrMo crank 170 mm (6.69 inch), 25T chainring with grindguard, 9T cassette hub
- Usage: Street, Park, Dirt, Freestyle
- Rider height: from approx. 4'11" (150 cm)
- Maximum rider weight: 220 lbs (100 kg)
- Pegs: front 10 mm, rear 14 mm
- Pre-assembly: approx. 90% pre-assembled

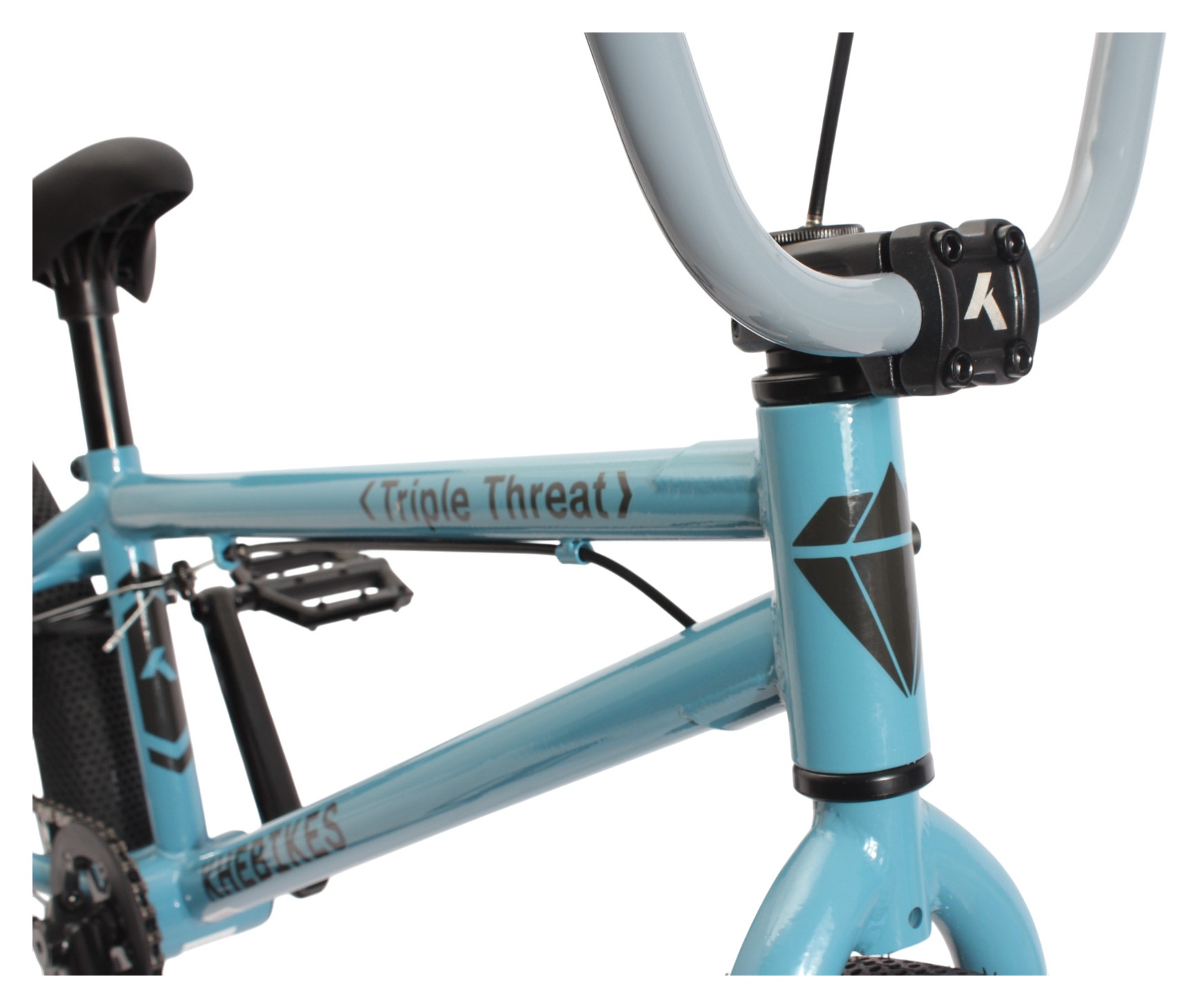

| Frame: | HiTen steel, top tube 20.6", RC 13.7", HT 75° |
|---|---|
| Top tube length: | 20,6" (524mm) |
| Fork: | KHE 1020 HiTen steel with 10mm dropouts, tapered stanchions & 33mm forerunner |

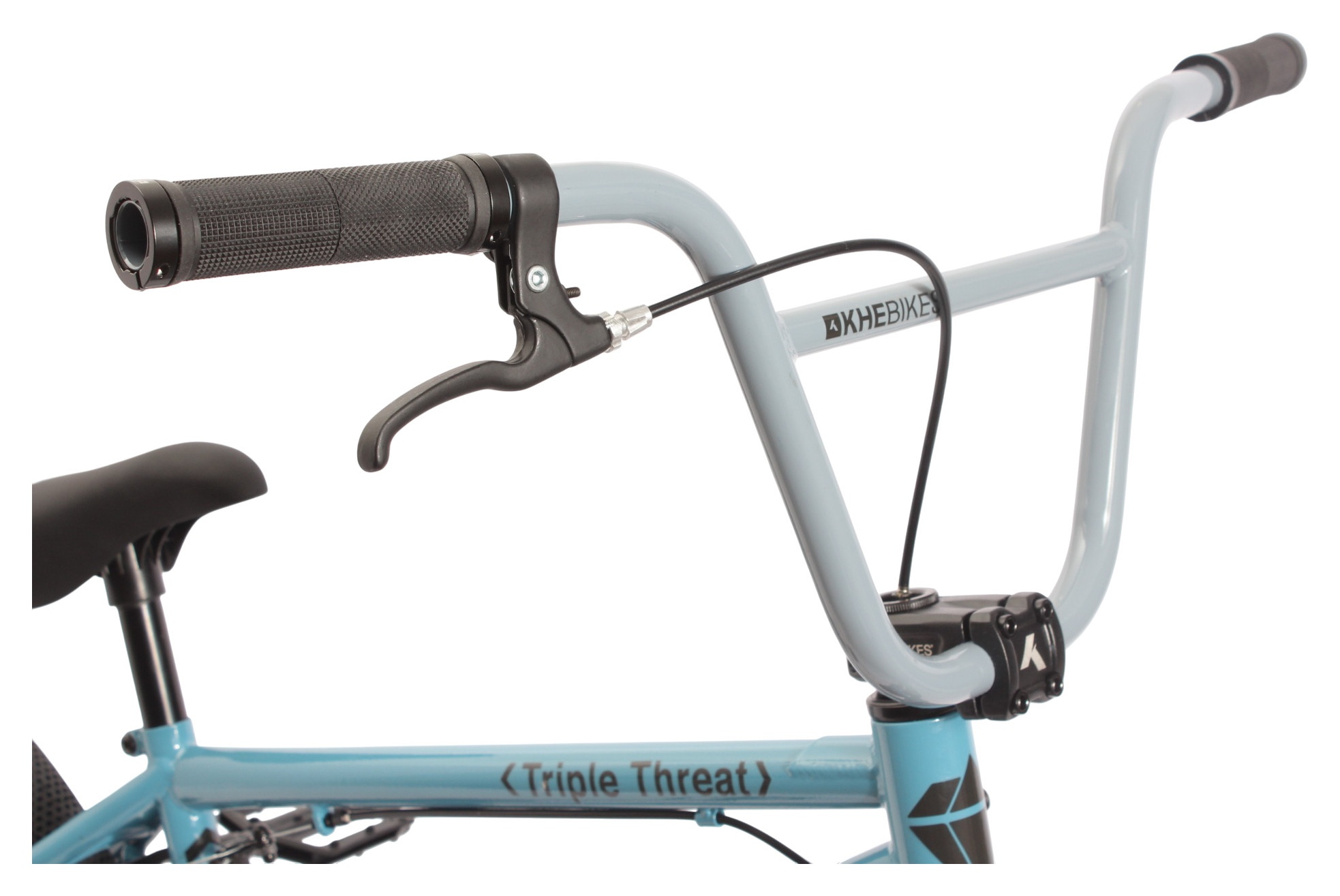

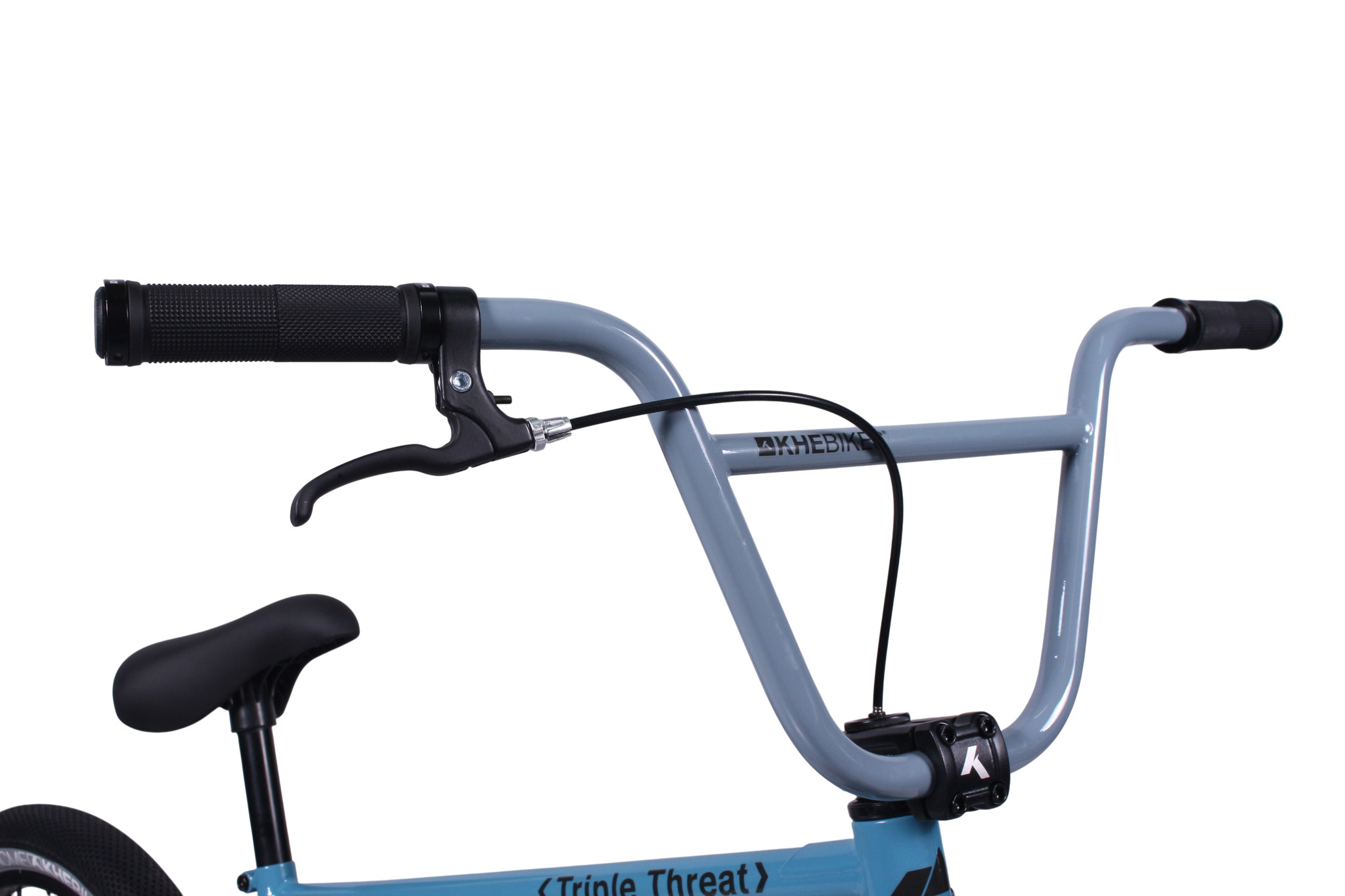

| Handlebars: | KHE HiTen steel 736mm width (29”) x 228mm (9”) height, Backsweep 9”, Upsweep 2” |

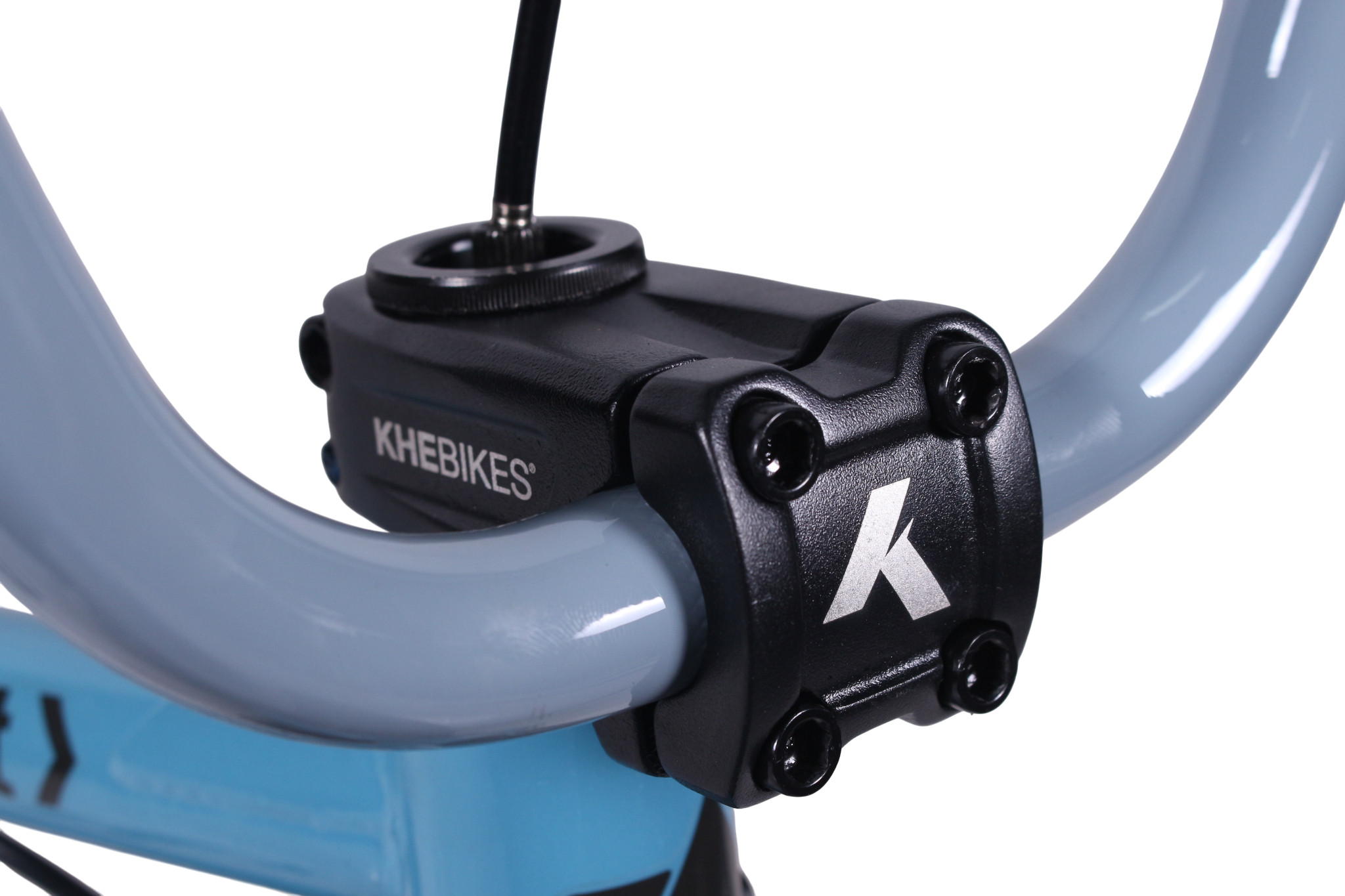

| Stem: | KHE Front Loader Ext.50mm |
| Headset: | AFFIX Loosball 1 1/8" |

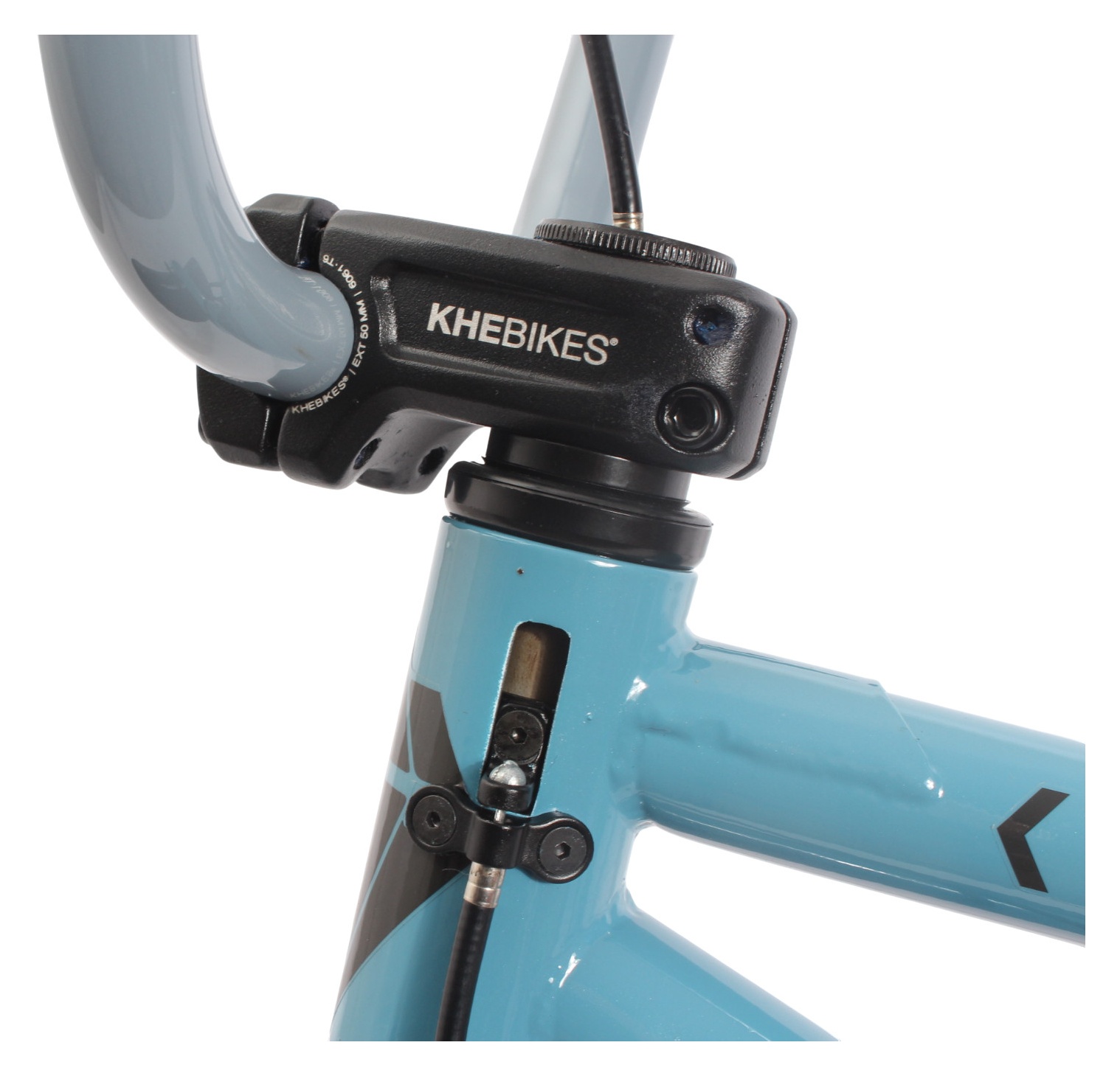

| Rotor: | Patented KHE AFFIX 360 degree rotor |

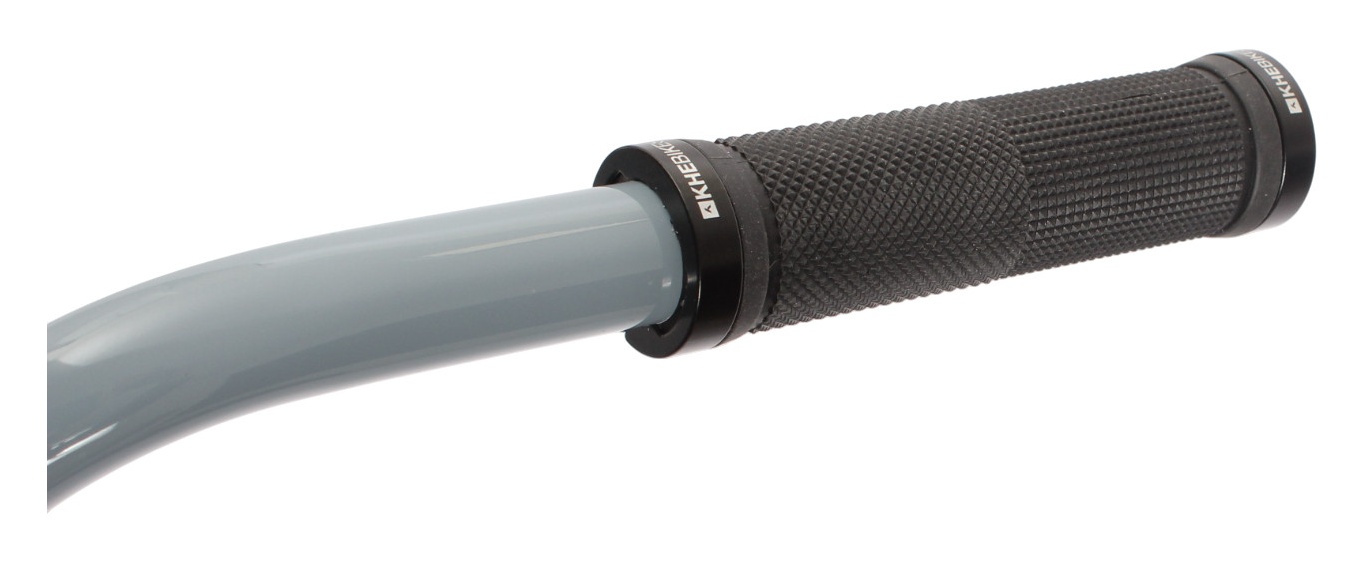

| Handles: | with flange 120mm, rubber diamond cut profile |
| Brake levers: | Aluminium brake lever with hinged bar clamp |

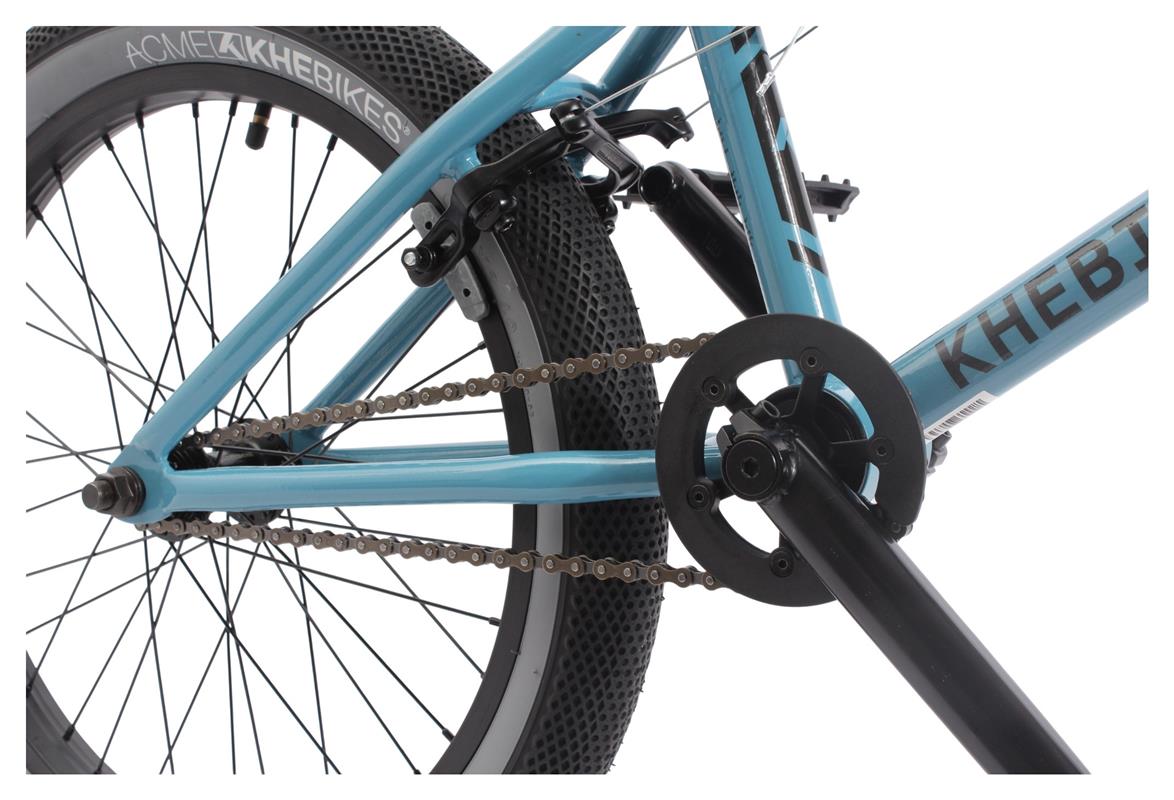

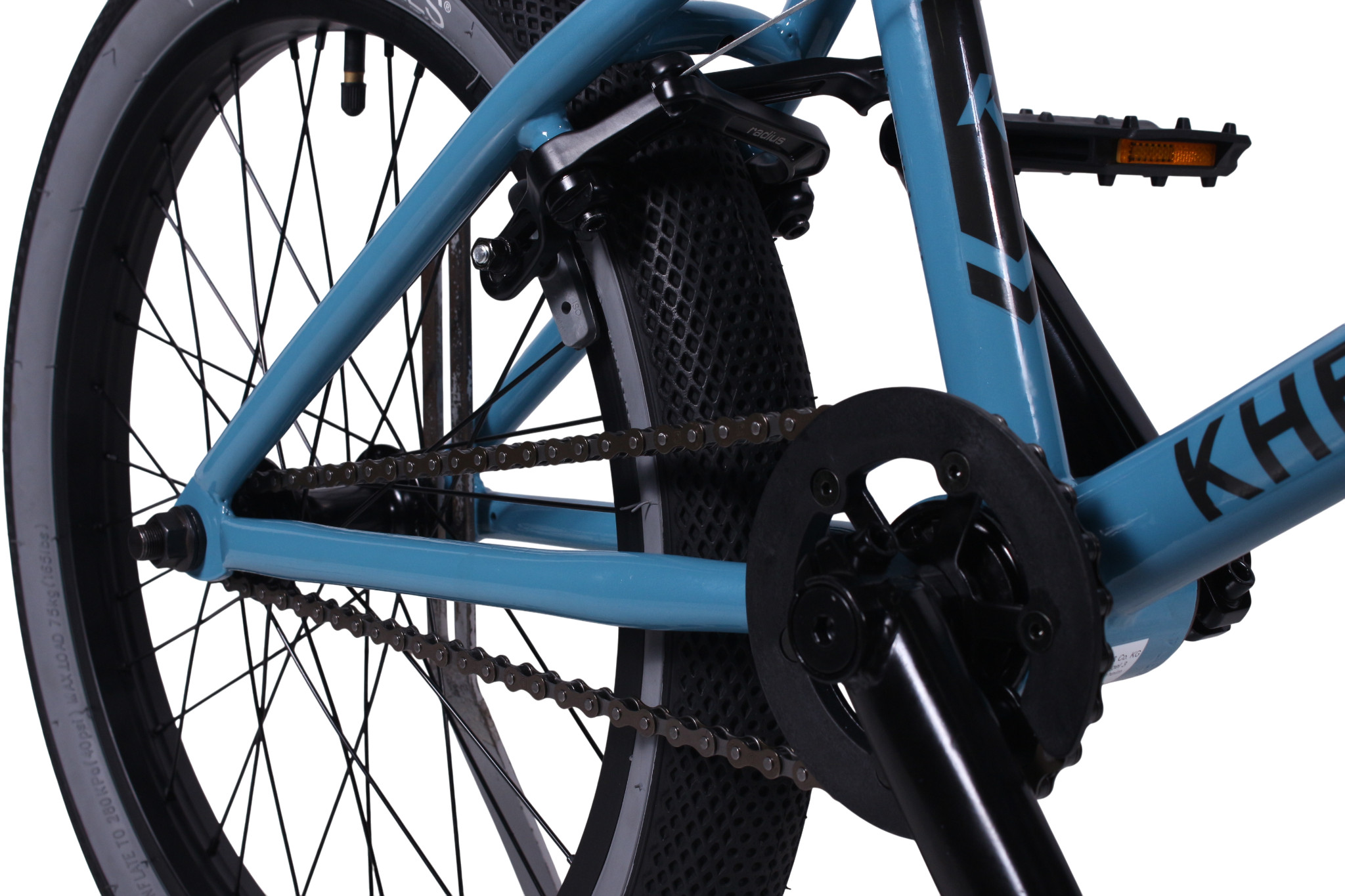

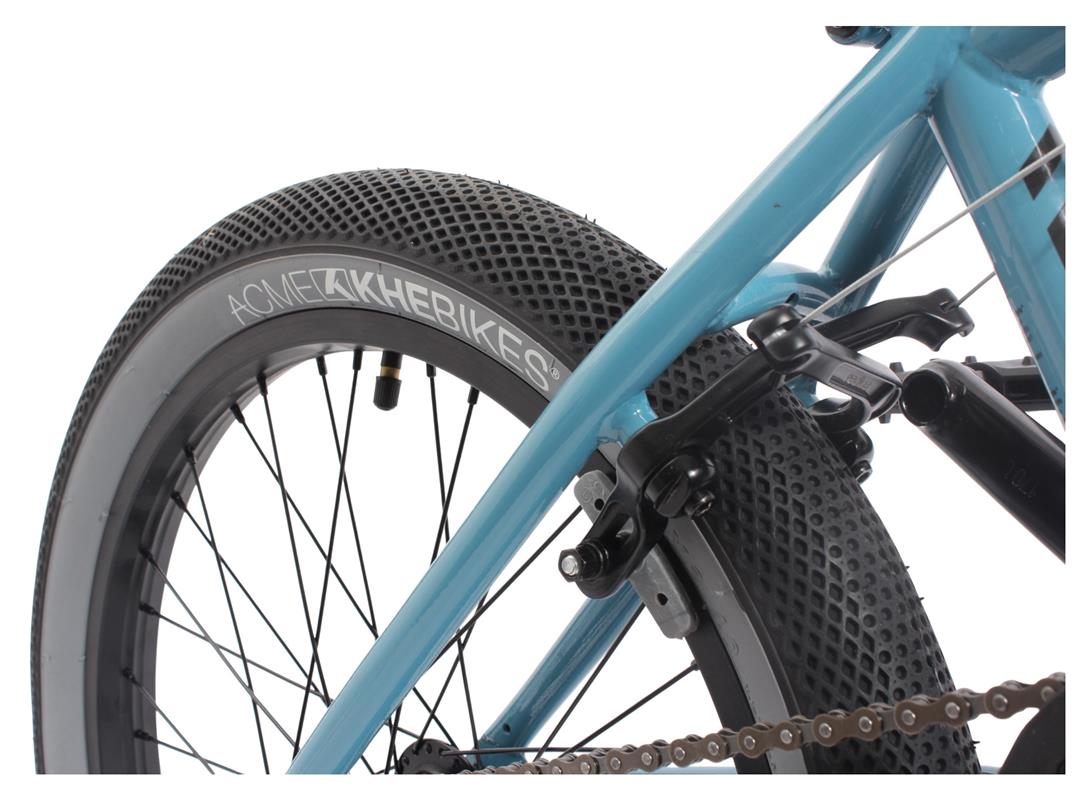

| Rear brake: | KHE RADIUS Aluminum U-Brake |
| Crank: | KHE 3-piece CrMo hollow crank 170mm / 48T teeth |

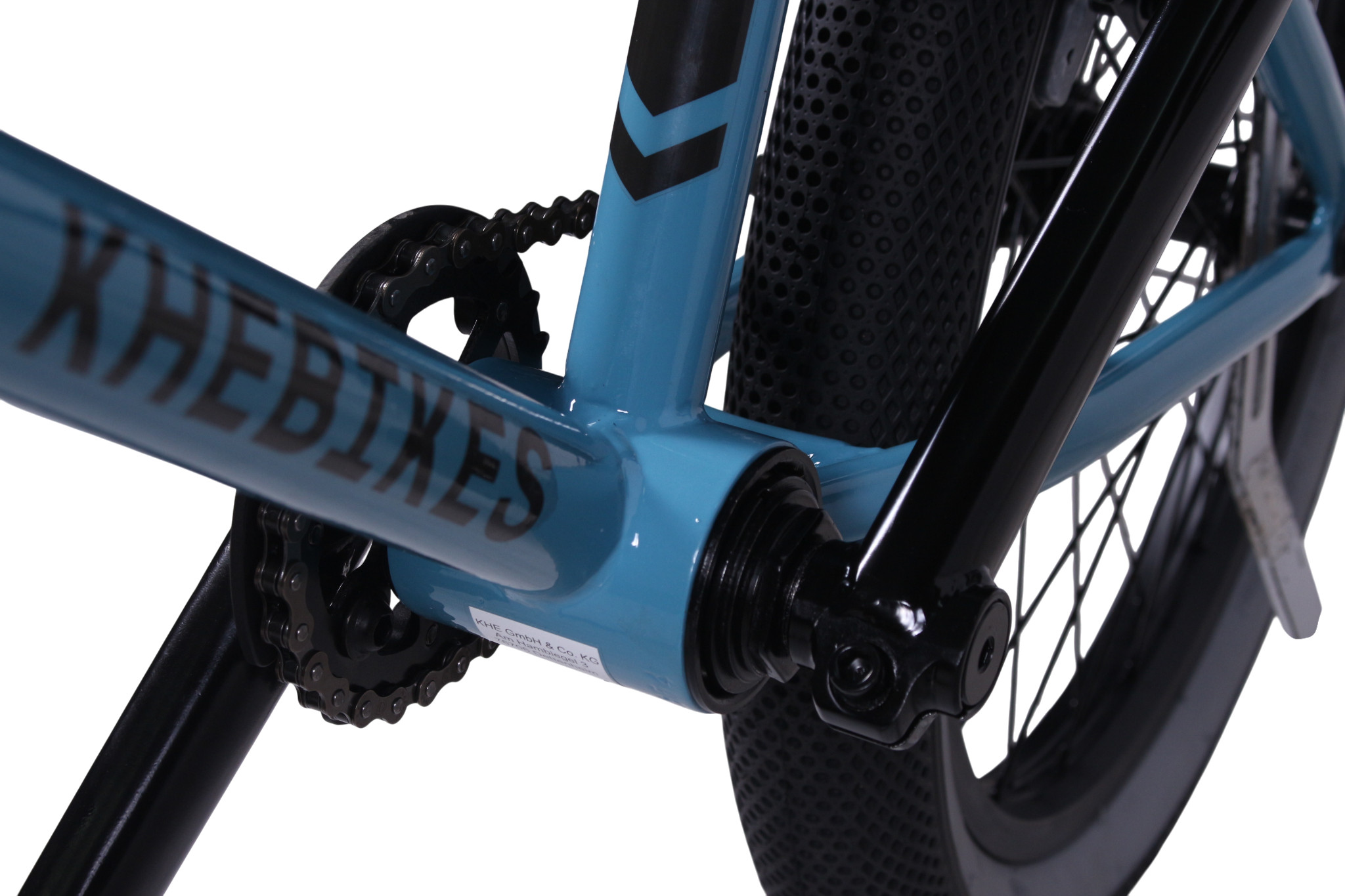

| Bottom bracket: | US-BB Loose Ball |
| Chainring: | 25 teeth steel with nylon grind guard |
| Chain: | YBN CN ST 1/2 x 1/8“ |

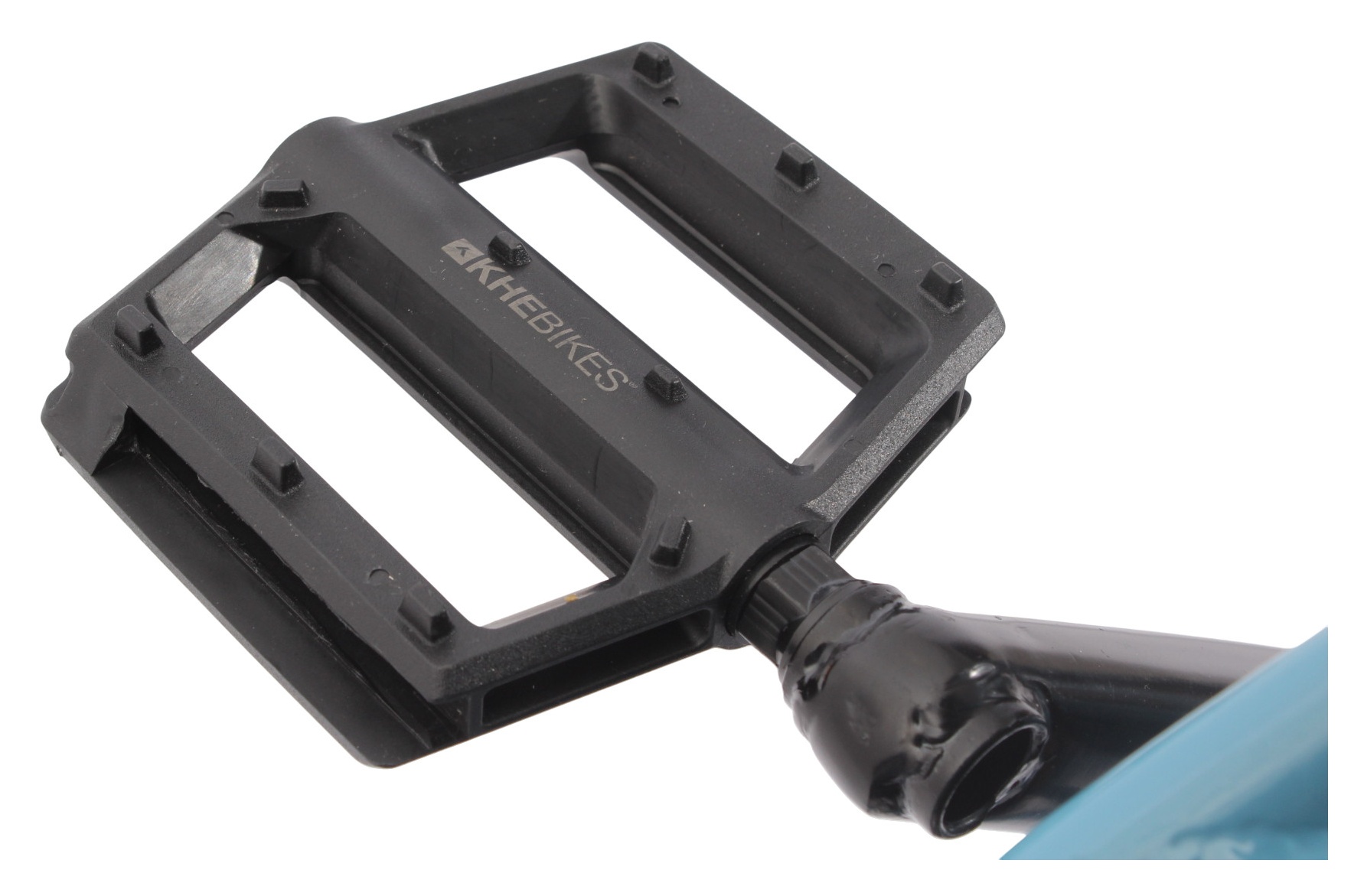

| Pedals: | KHE STEALTH, flat / lightweight, PVC with CrMo 9/16" axle |

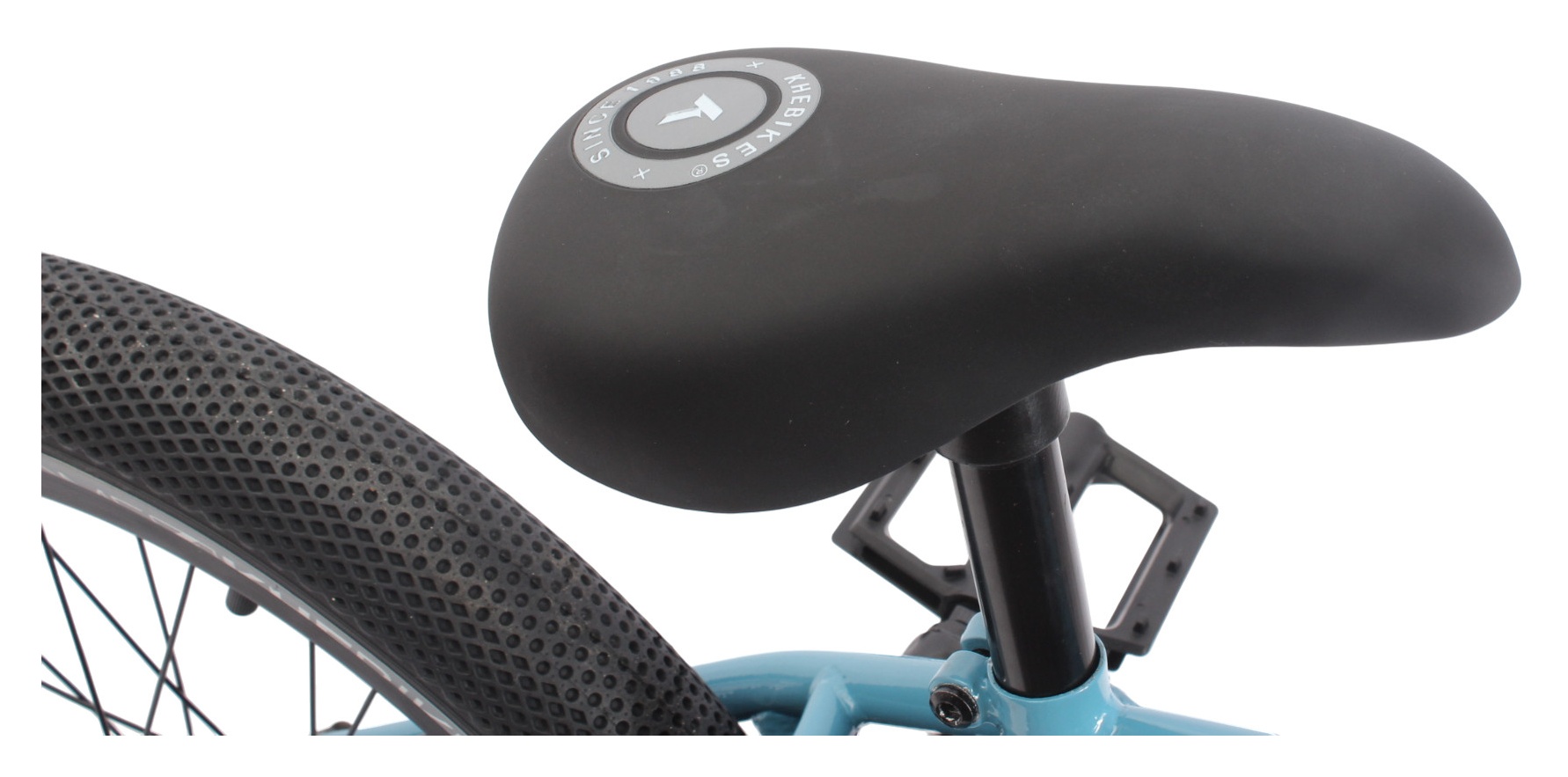

| Saddle: | Padded 210 x 140mm with embossed KHEbikes logo |
| Seatpost: | Diameter 25.4mm x Length 220mm (integrated seat post with saddle) |
| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

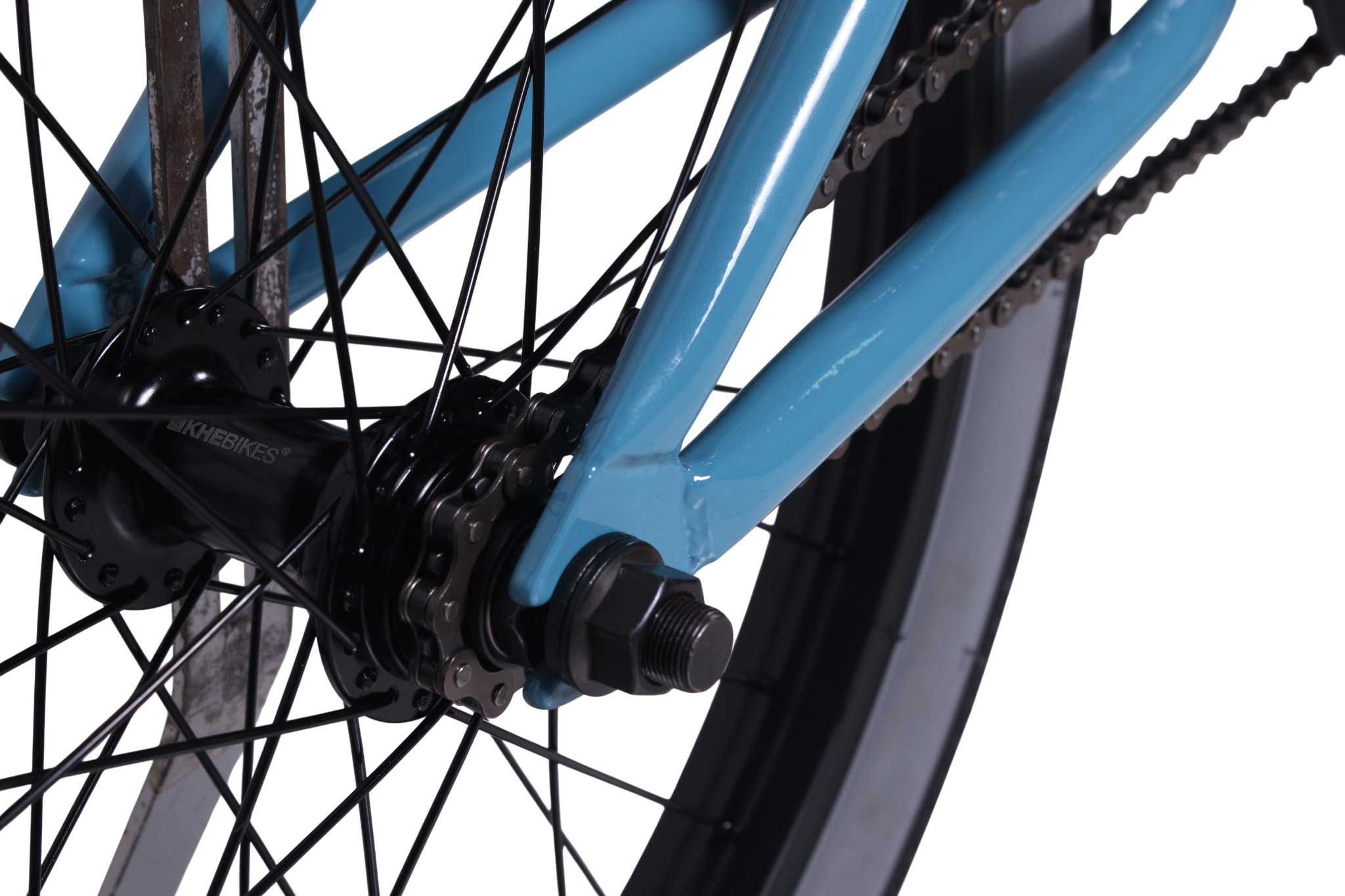

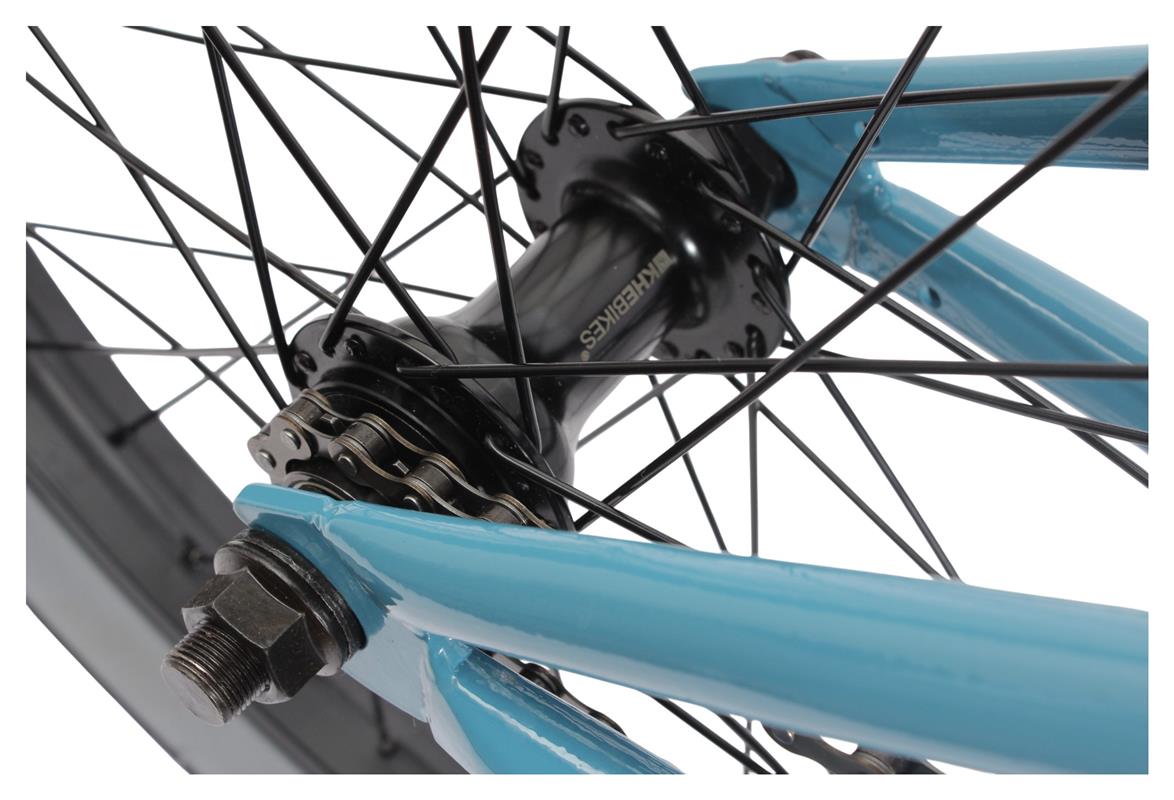

| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |
| Hub type: | freewheel |
| Rim: | 20 inch double chamber aluminum, 36 hole |

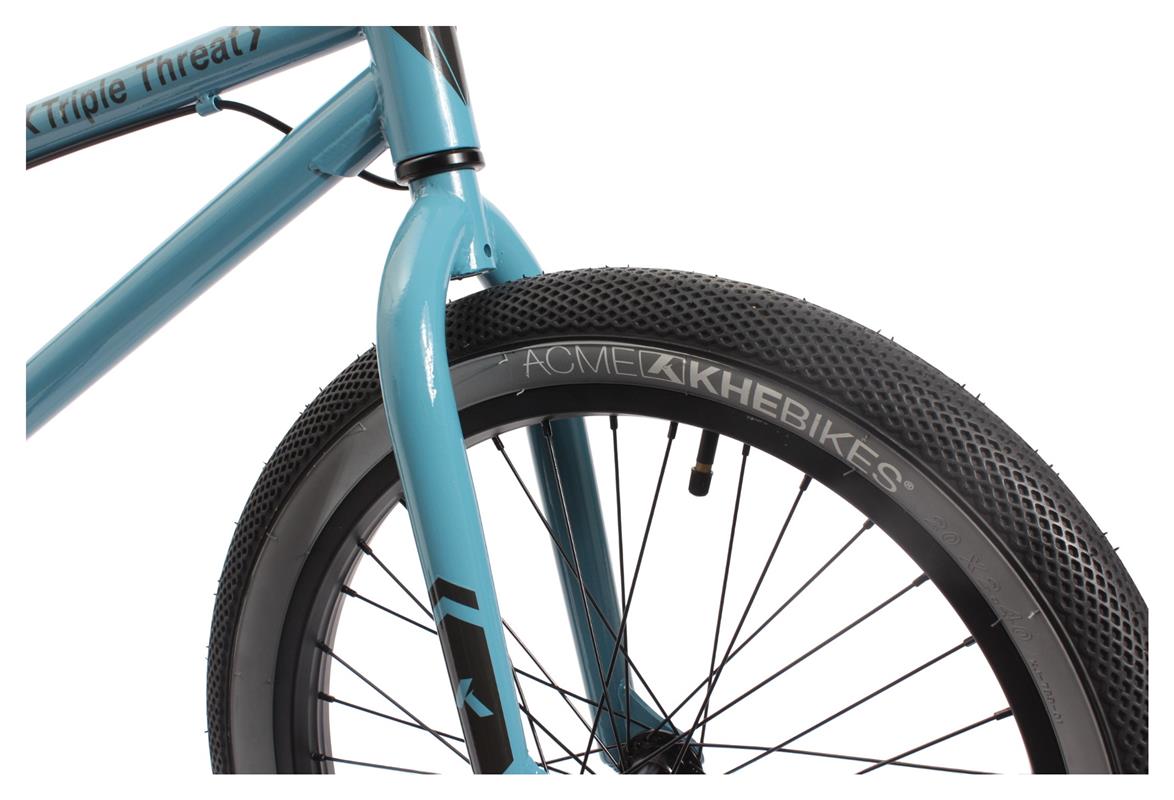

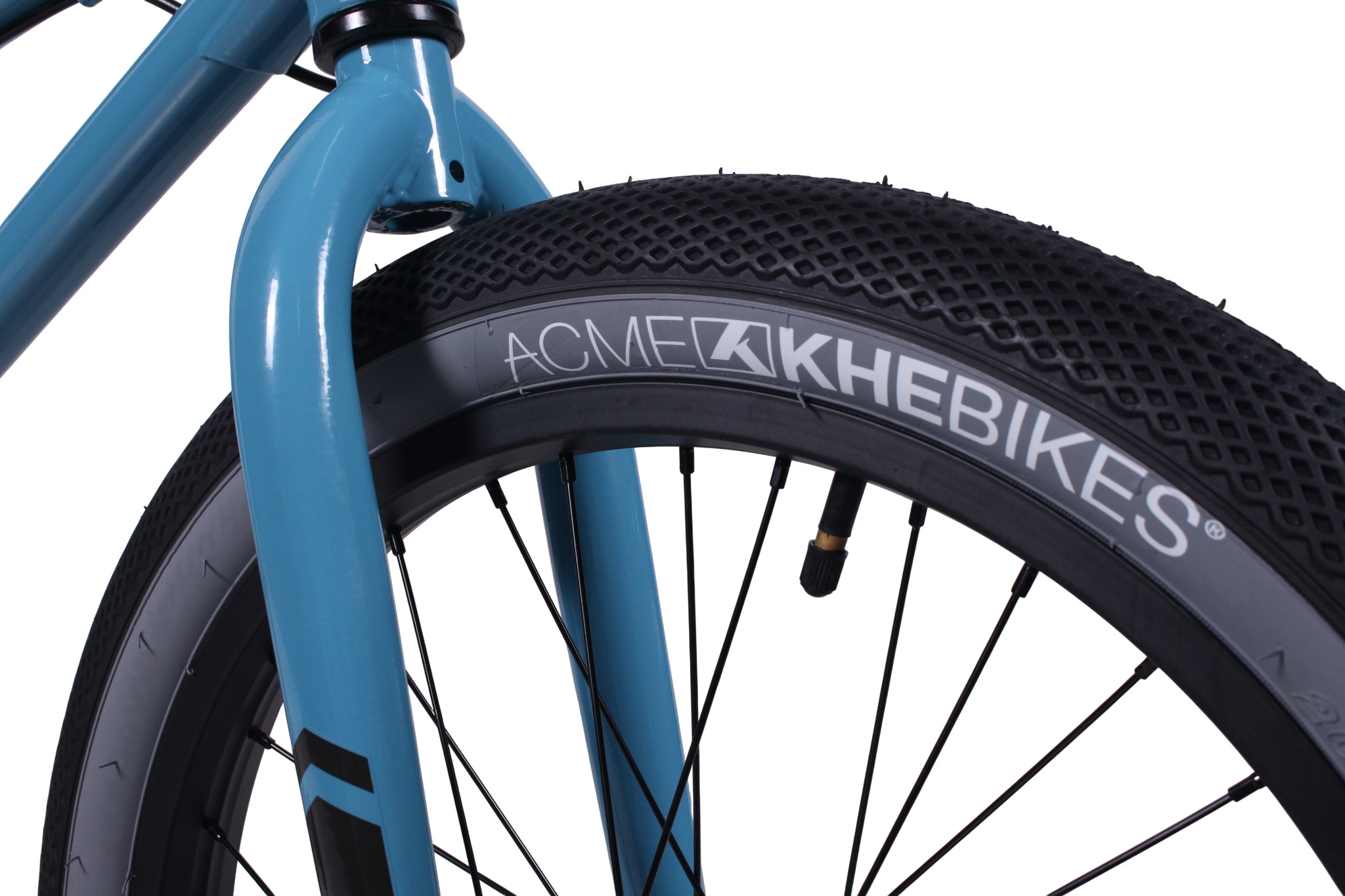

| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | HiTen steel |
| Tire size: | 20 inch |
| Category: | Park, Street, Pumptrack |
| Colour: | Blue |
| Weight: | 24.47lbs / 11,1kg |
| Model Year: | 2025 |
| Sale: | Sale |
Intended Use: This BMX is designed for freestyle, street, park and dirt use. It is not approved for public road traffic and must not be used on public streets.
Assembly & Inspection: Before first use, the bike must be properly assembled and all bolts checked. Please refer to the manual and regularly tighten all safety-relevant parts.
Usage: Always use with protective gear (helmet, gloves etc.). Not suitable for children under 8 years. Maximum rider weight is 100 kg (220 lbs).
Maintenance: Before every ride, check brakes, tyres, handlebar and wheels. Store the bike clean and dry. After jumps or crashes, inspect all components for damage.
