KHE 2025 BMX Series
With over 35 years of experience, KHEbikes combines innovation, precision engineering and outstanding ride performance. The new 2025 models offer optimized geometry, refined details and high-quality components – directly from the manufacturer for top performance on any terrain.
KHE ARSENIC LL 16"

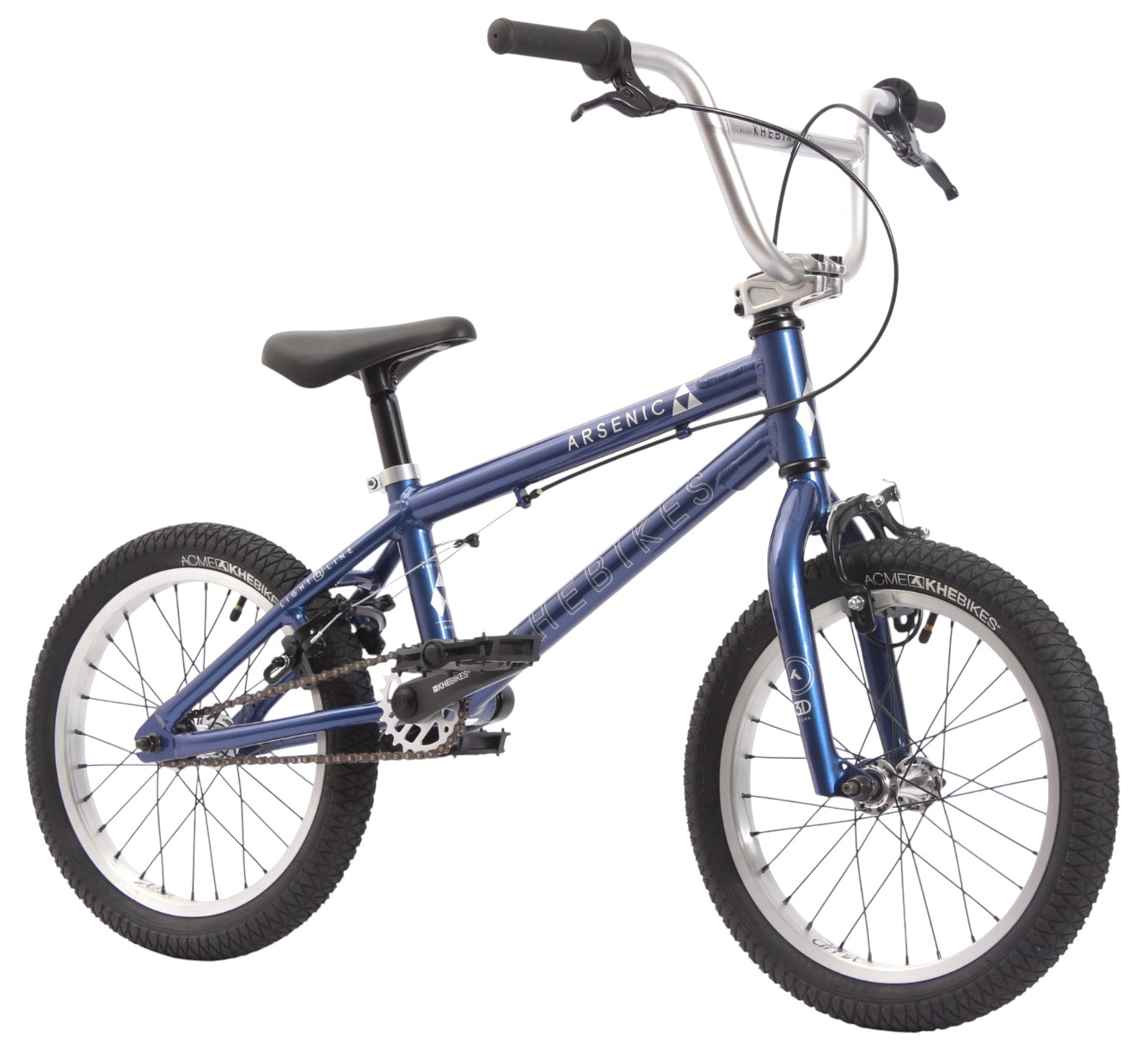

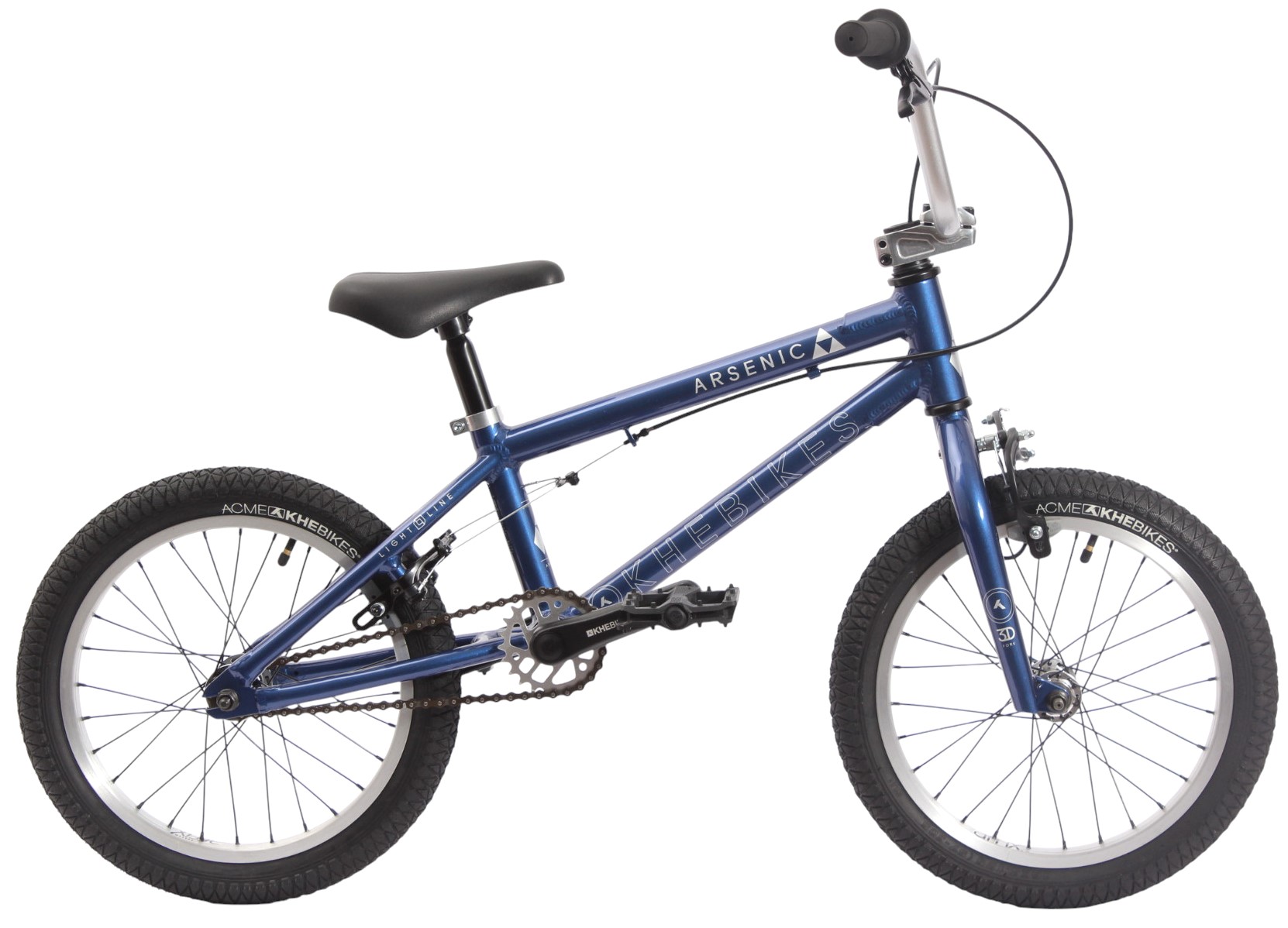

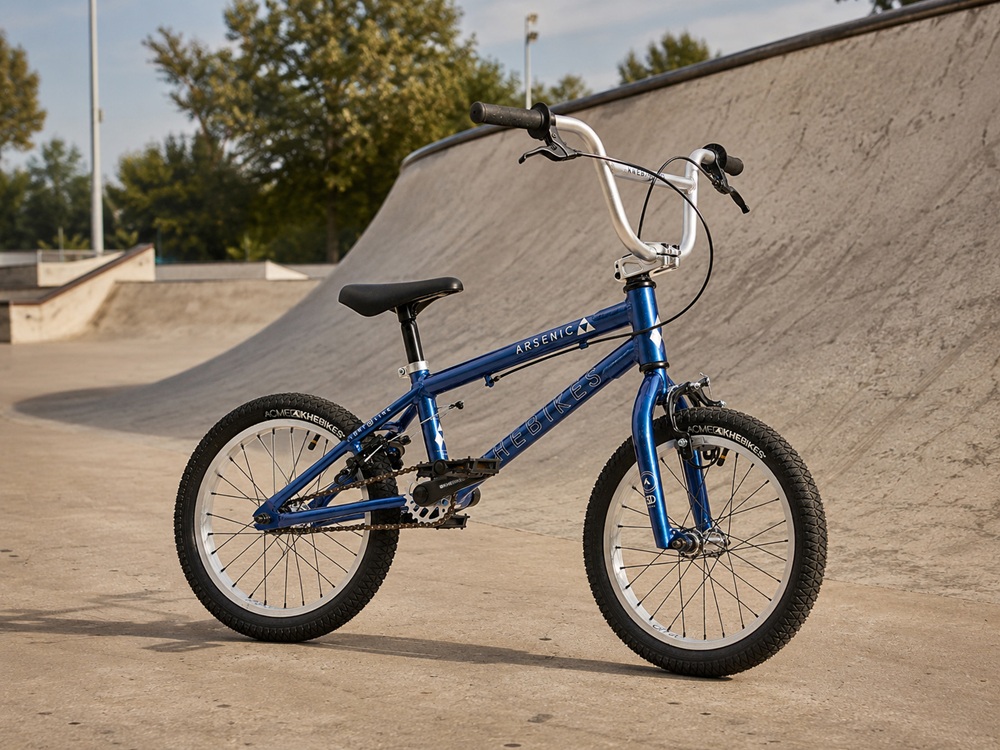

The KHE ARSENIC LL is an ultra-light 16-inch BMX designed for young beginners who want to get started with a high-quality and well-thought-out bike. Weighing just 7.9 kg (17.4 lbs), it is one of the lightest bikes in its class – perfect for kids riding on the pump track, in the park or on the street.

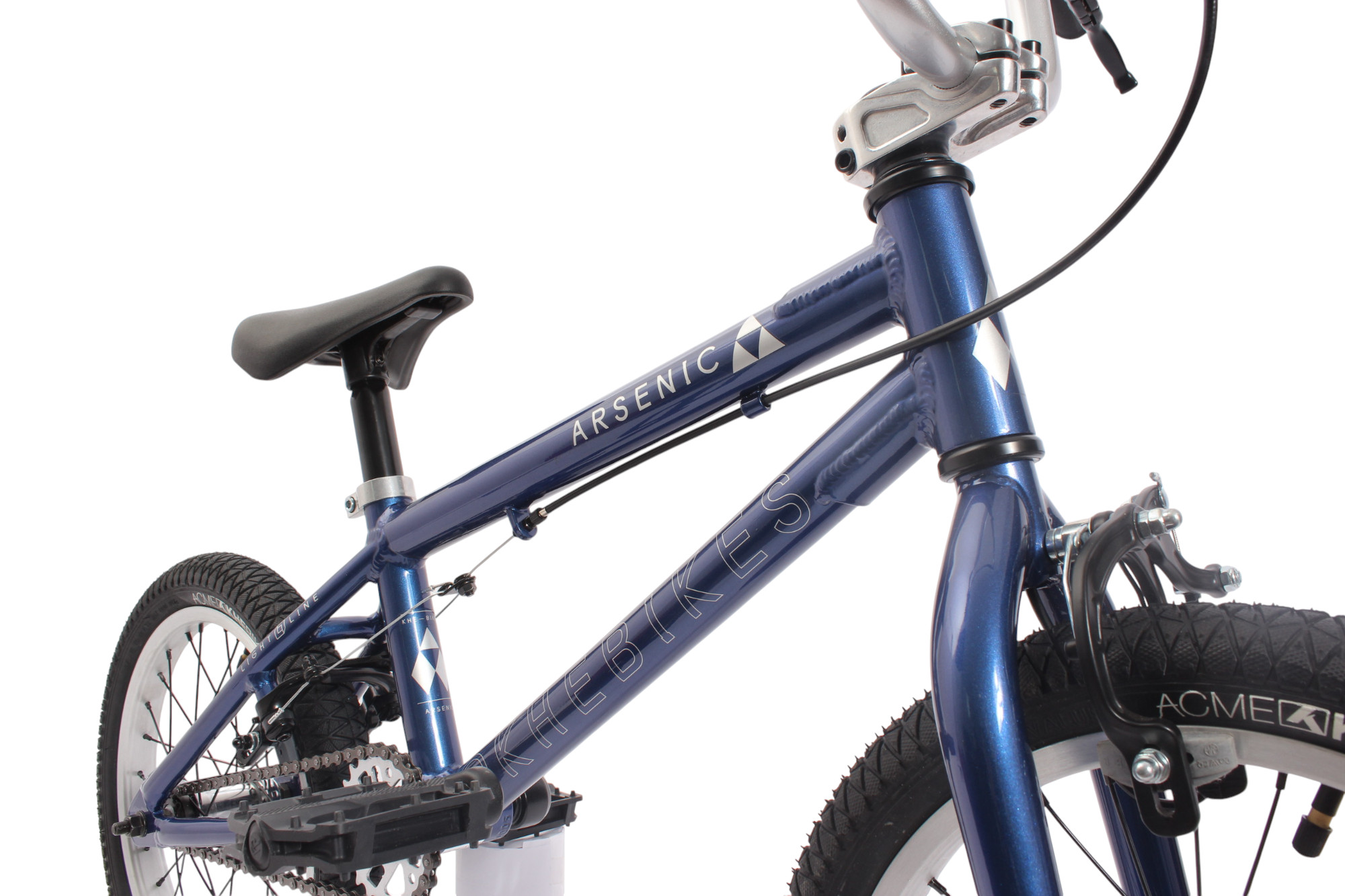

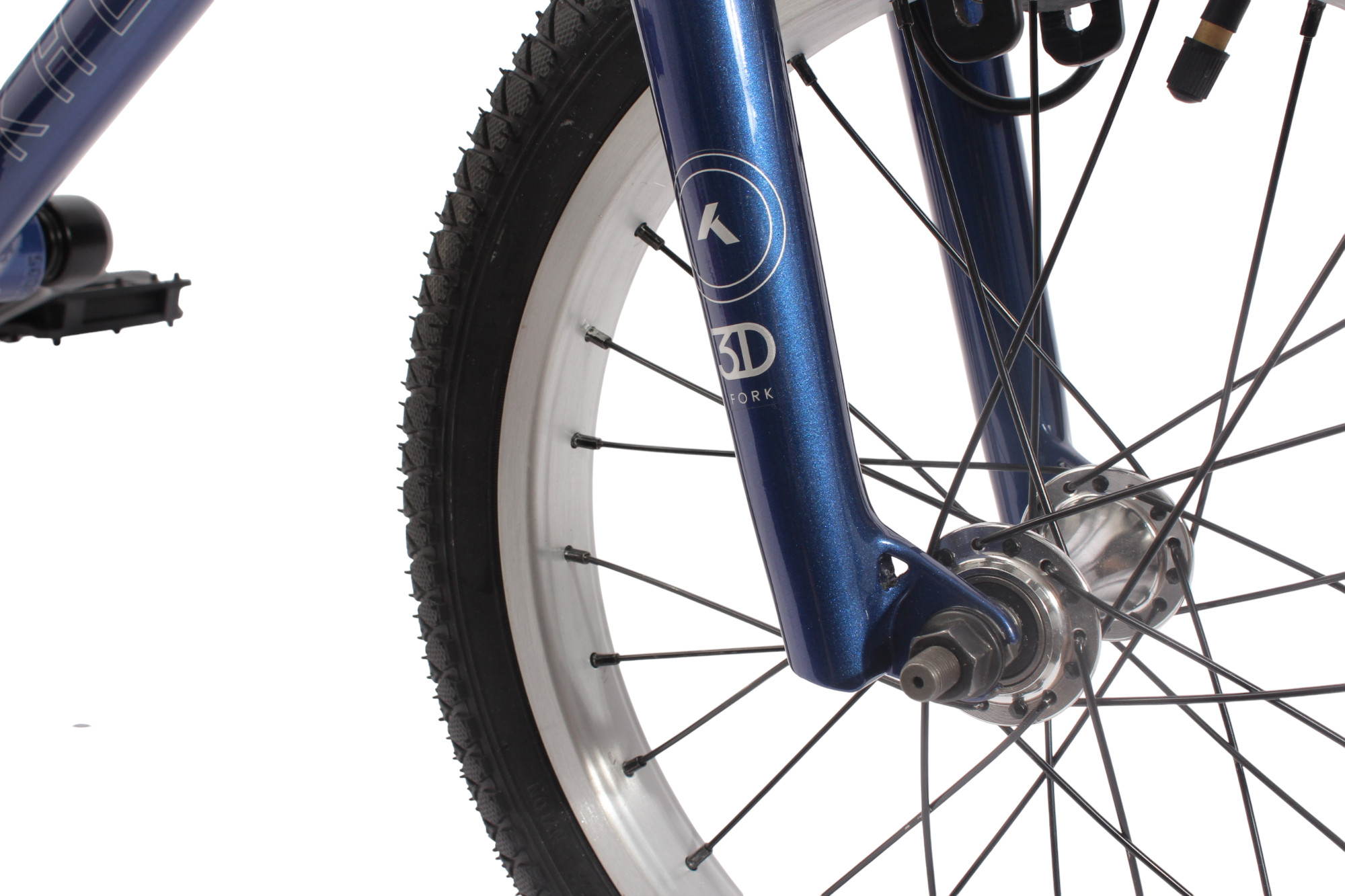

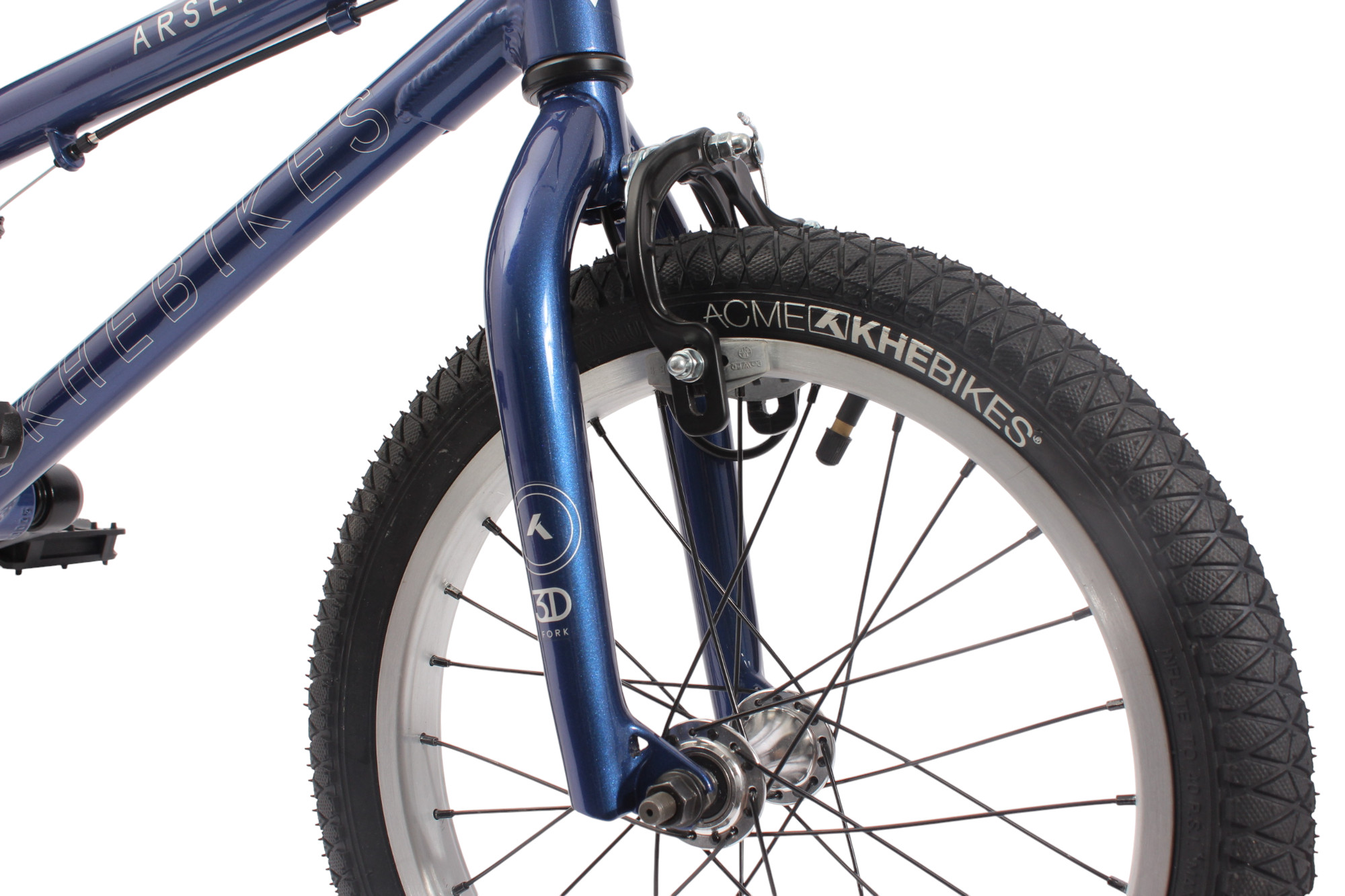

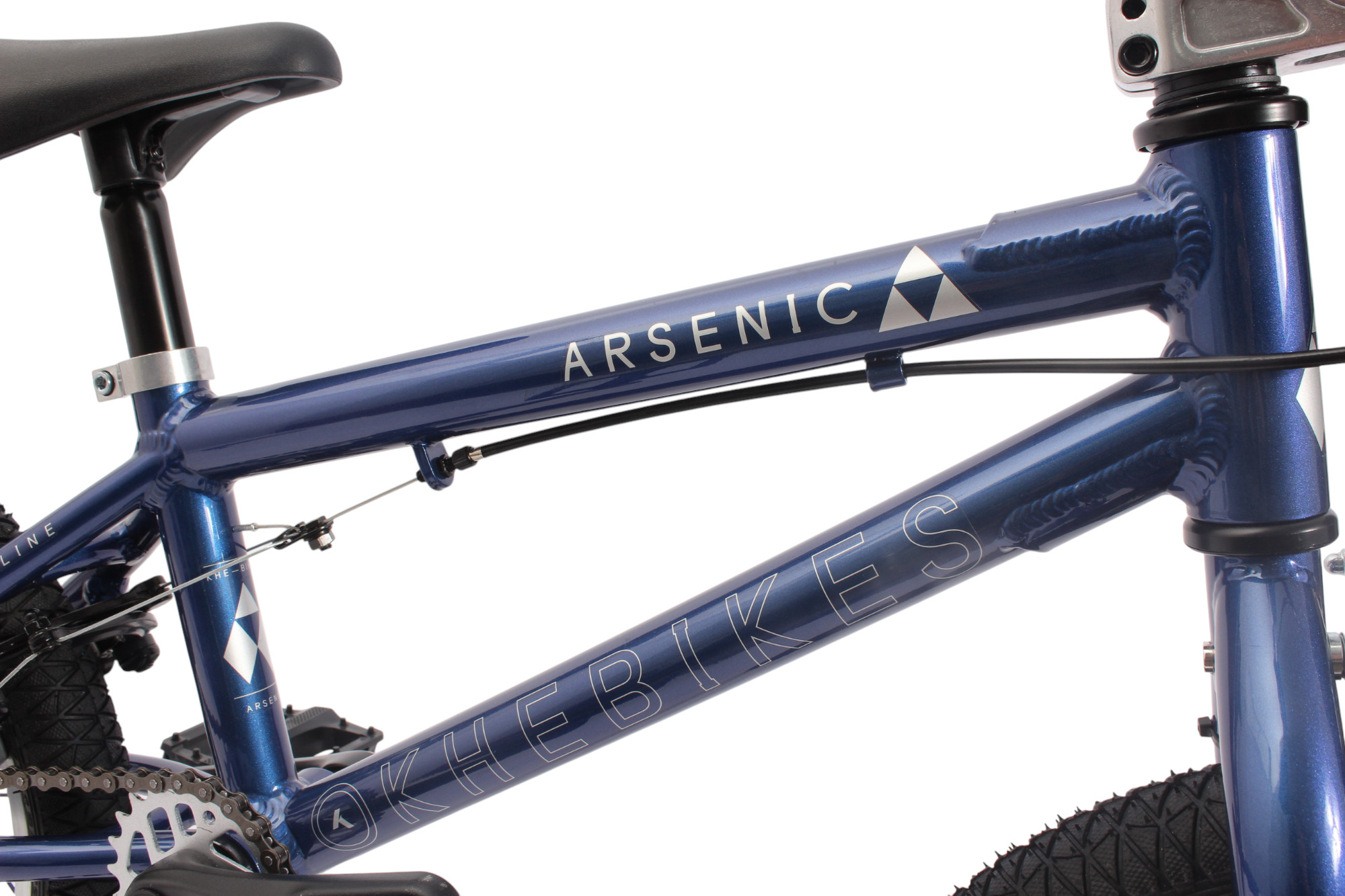

The lightweight aluminium frame with a 15.9-inch top tube offers optimal control for smaller riders. It features a robust fork with 3D dropouts and a modern Space Dark Blue finish. The 640 mm wide aluminium handlebar in silver provides safety and smooth handling.

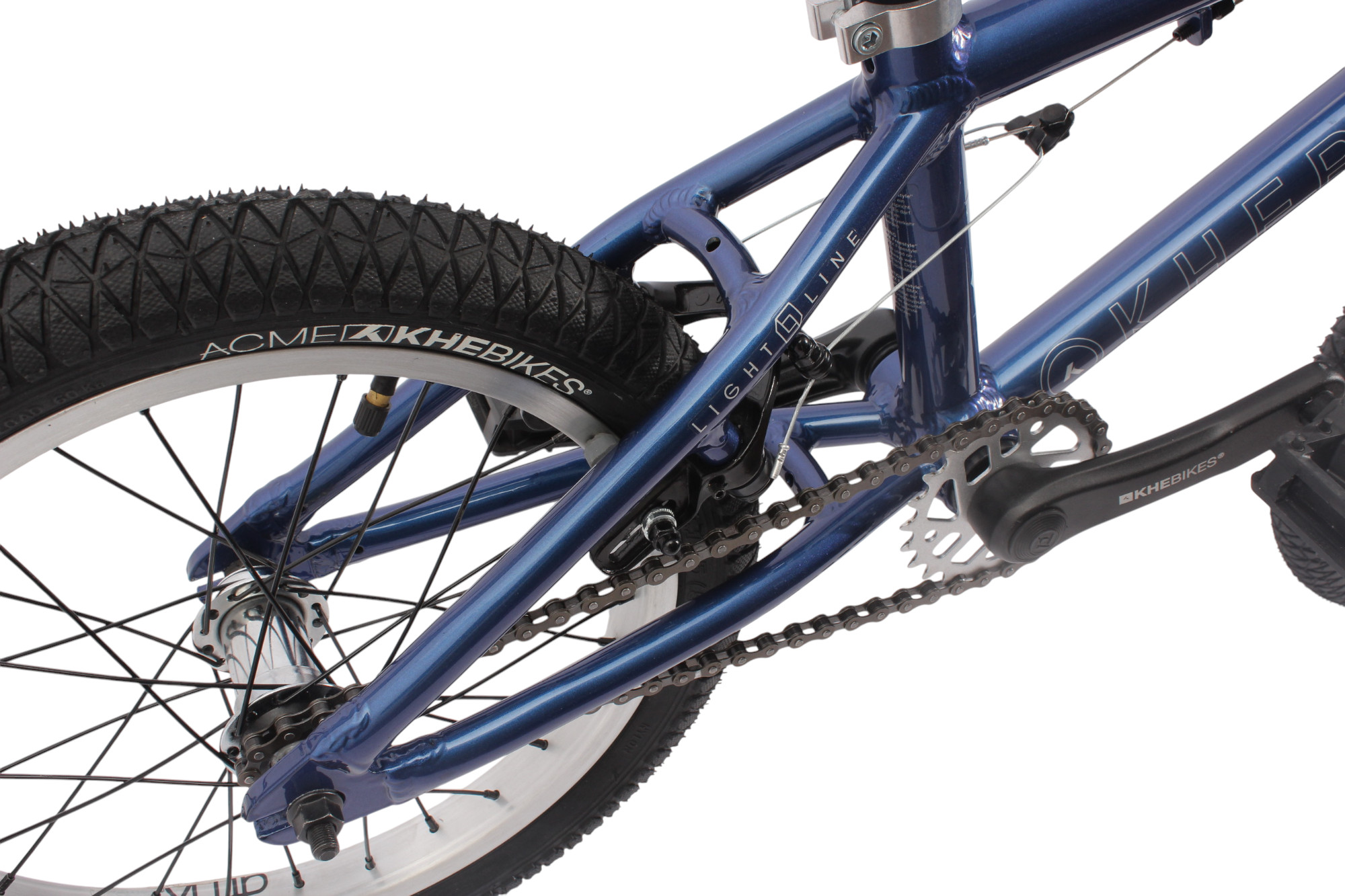

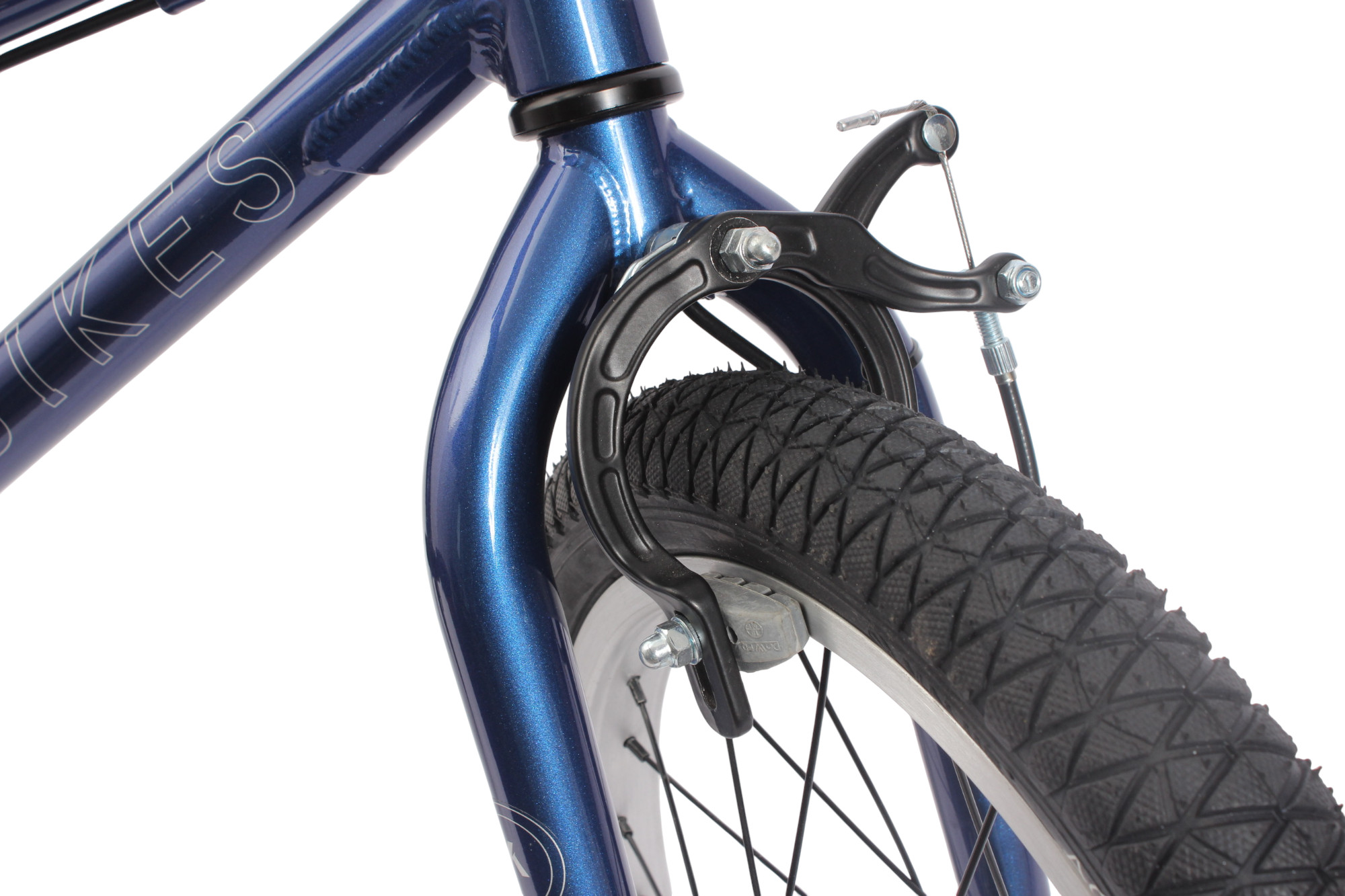

The 3-piece aluminium crankset with 127 mm length, 23T steel chainring and sealed Euro bottom bracket ensure efficient power transmission. Braking is provided by a rear U-brake and a front sidepull brake. Two-tone tyres with black tread and grey sidewalls as well as silver components add stylish accents.
You should be: 110–130 cm (3'7"–4'3") tall
Max rider weight: 60 kg (132 lbs)
Recommended use: Park, Street, Pumptrack
Why choose the ARSENIC LL 16" from KHEbikes:
- Only 7.9 kg (17.4 lbs) – one of the lightest kids BMX bikes
- Strong aluminium frame with ideal geometry
- Aluminium handlebar for excellent control
- Durable 3-piece crankset & sealed bottom bracket
- Modern look in metallic blue with silver parts
Pegs: For the ARSENIC LL 16", 10 mm pegs fit front and rear. We recommend the COP aluminium pegs.
The BMX bike is approx. 90% pre-assembled. The manual can be found under "Datasheets". A video guide is available under "Video".
| Frame: | KHE 6061 aluminum, 10mm dropouts, top tube 15.85" (403mm), CS 292mm, HT 75°, ST 72°, A-headset 1 1/8", headtube 41 / 34mm |
|---|---|
| Top tube length: | 15,85" (403mm) |
| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

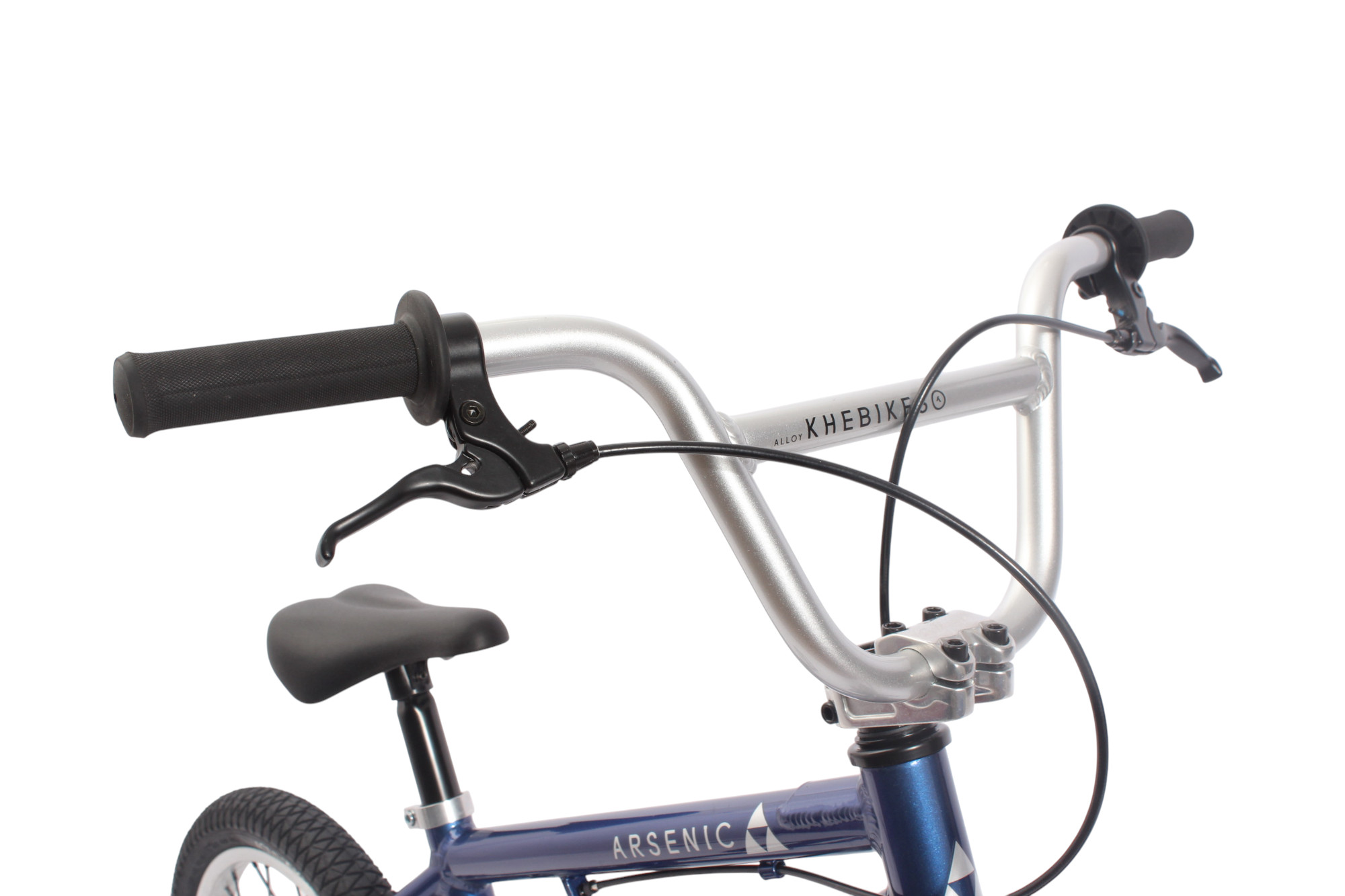

| Handlebars: | KHE 6061 aluminum, 640mm (25") width x 177mm (7") height, 2° backsweep, 2° upsweep |

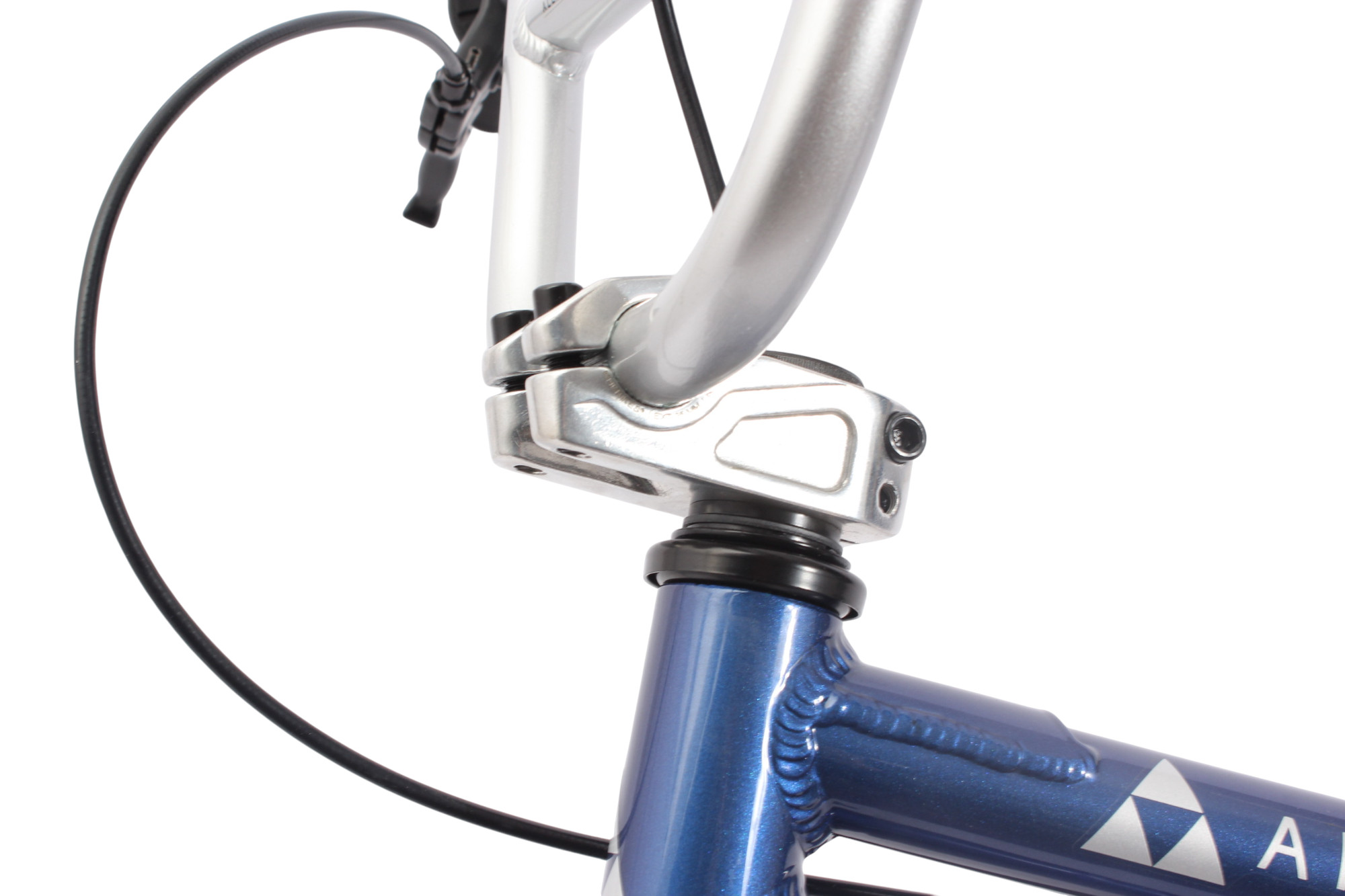

| Stem: | KHE Top Loader 40mm forward travel |
| Headset: | Aheadset 38x34mm Loosball 1 1/8” |
| Handles: | with flange 120mm, rubber diamond cut profile |
| Brake levers: | Aluminum with adjusting screw |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

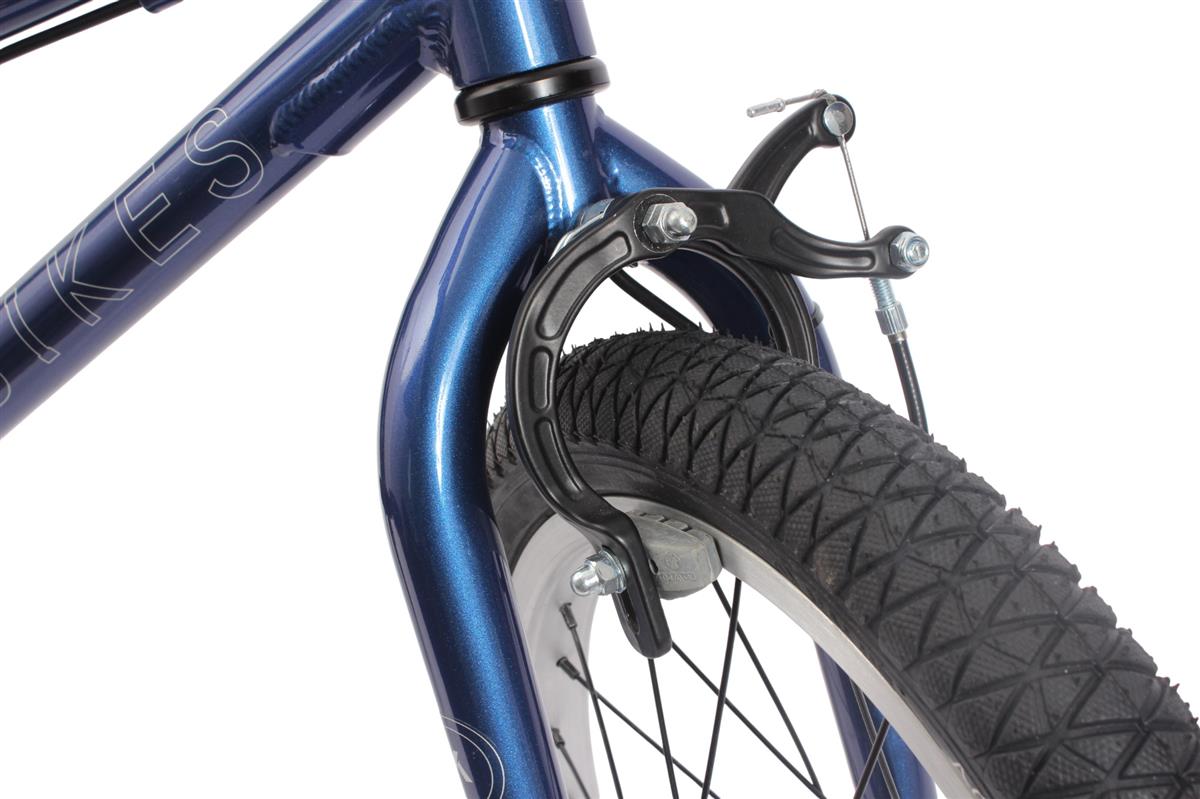

| Front brake: | Side pull (already installed!) |

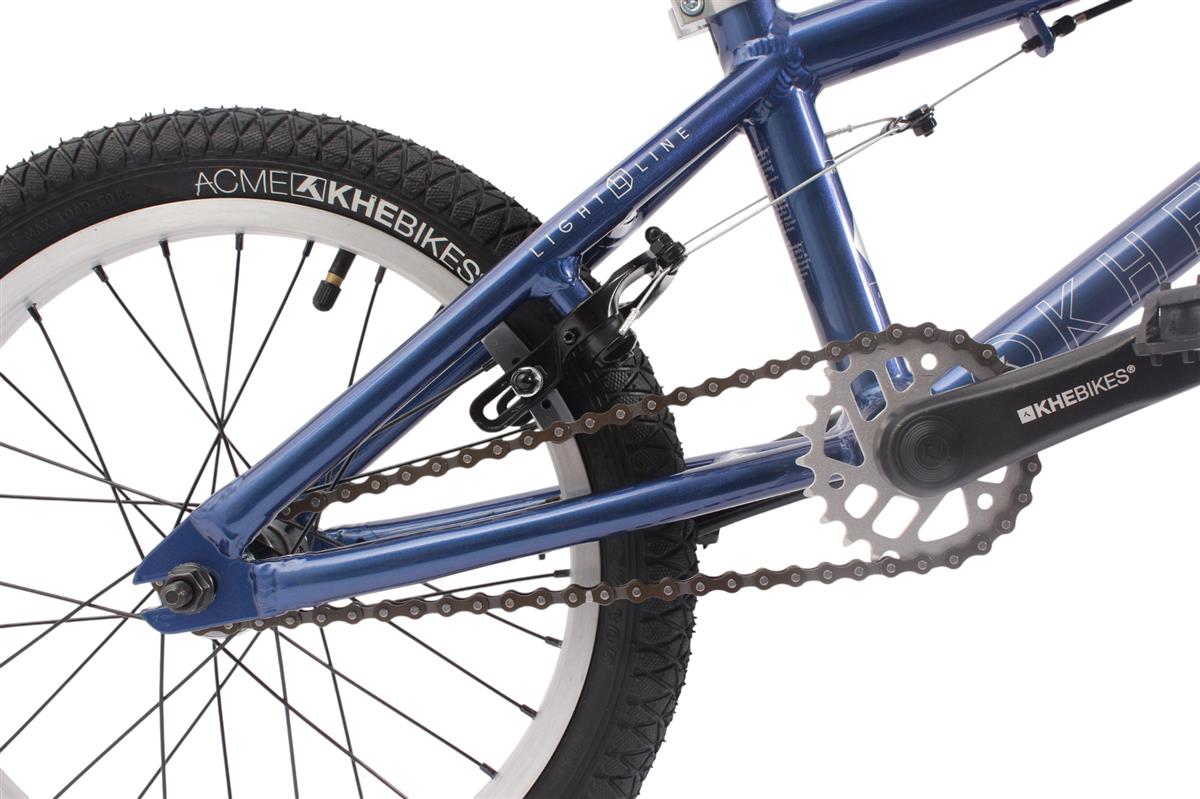

| Crank: | KHE 3-piece, forged aluminum, 127mm length |
| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 110mm |
| Chainring: | 23 teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |
| Pedals: | FEIMIN PVC with Baron axle 9/16” |
| Saddle: | Padded 210 x 120mm with silver embossed KHEbikes logo |
| Seatpost: | Diameter 27.2mm x length 220mm (integrated seat post with saddle) |
| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |

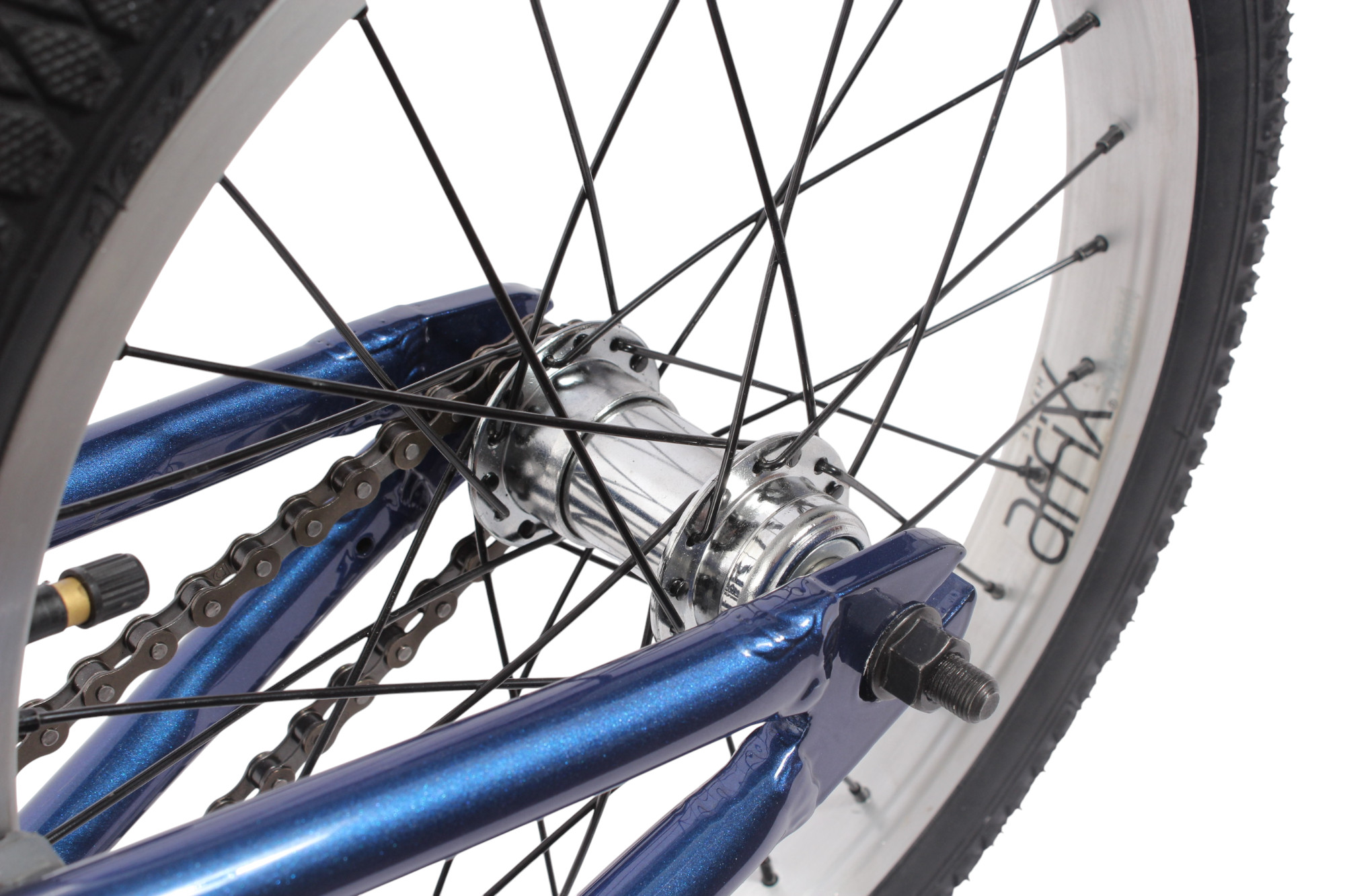

| Rear wheel hub: | 3/8" (10mm) x 170mm axle, steel, 9-tooth cassette hub, 28 holes |
| Rim: | 16 inch aluminum, 28 holes, 32.5mm wide |
| Tyres: | KHE ACME 16 inch x 2.125" |
| Material: | 6061 T6 Aluminium |
| Tire size: | 16 inch |
| Category: | Park, Street, Flatland, Pumptrack |
| Size: | 16" ; 110–130 cm |
| Colour: | Blue |
| Weight: | 17.42lbs / 7,9kg |
| Model Year: | 2025 |
Ensure Compatibility:
This BMX bike is designed for children approximately 110–130 cm tall. It is suitable for street, park, and pump track use. The maximum rider weight must not exceed 60 kg. Not intended for competition or extreme stunts.
Assembly: Before first use, the handlebar, brakes, crank, wheels, and all safety-relevant parts must be properly assembled and checked for secure fit. Inspect all components again after crashes.
Care and Maintenance:
Clean the bike regularly with a soft, damp cloth. Do not use aggressive cleaners. Regularly check brake function, tire pressure, chain tension, and the condition of the frame and rims.
Store the bike in a dry, sheltered area.
Replacement in Case of Wear: Replace visibly worn or damaged parts such as brakes, crankset, tires, or chain immediately. Damaged parts may lead to accidents and injuries.
