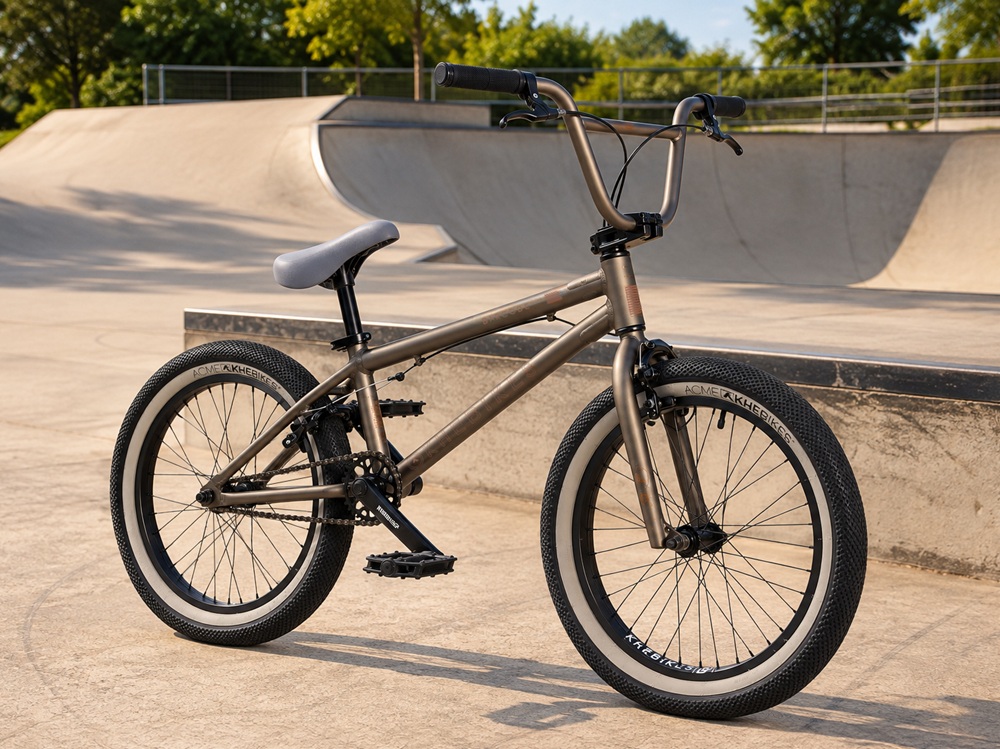

The KHE Barcode LL 20-inch BMX is a lightweight all-round bike with an aluminium frame and a 360° rotor – perfect for park, pump track, street, and flatland.
KHE Barcode LL 20 Inch

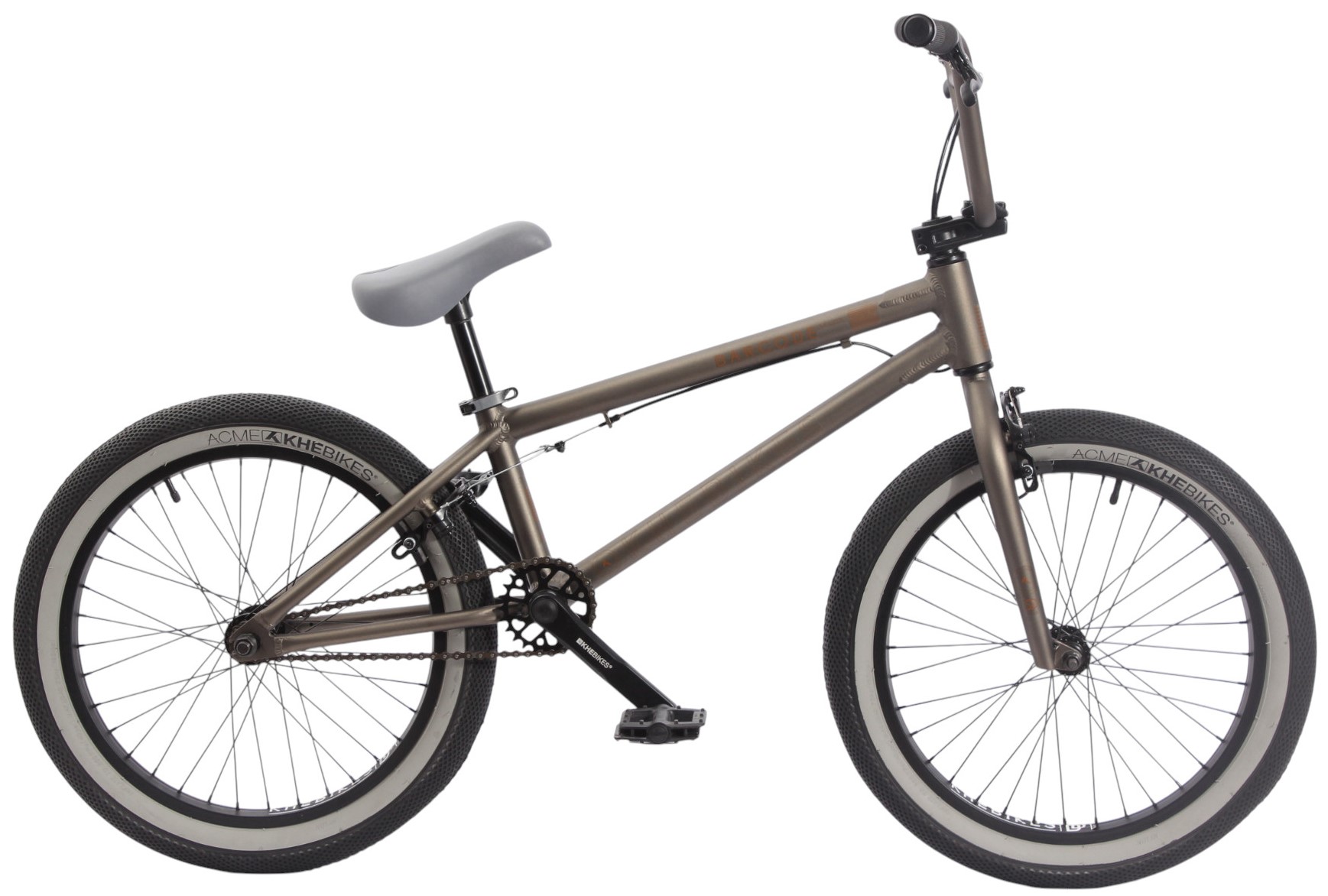

The KHE Barcode LL 20-inch BMX in Soft Grey is a very lightweight and stylish all-round BMX bike. With an aluminium frame and a 20.4-inch (1'8.4") top tube length, it offers stability and optimal riding characteristics at a weight of only 22.9 lbs.
The bike is equipped with our patented KHE Affix Rotor System, allowing 360° handlebar spins for various tricks and jumps. The wide aluminium handlebar (680 mm / 26.8 inches) and the 50 mm (1.97 inches) toploader stem provide ample legroom. The combination of a three-piece aluminium crank (165 mm / 6.5 inches), a 25-tooth chainring & a 9T fully sealed industrial cassette hub ensures optimal power transmission.
With double-wall aluminium rims, 2.40-inch KHE-ACME tyres with grey sidewalls, and fully sealed industrial bearings on the front and rear wheels, the Barcode LL is both robust and durable. Front and rear U-brakes provide excellent braking performance. The saddle cover and tyre sidewalls are grey, perfectly matching the frame colour. The Barcode LL is a great choice for park, pump track, street, or flatland – a true all-rounder!
Recommended rider height: 4'7" - 5'11"
Maximum rider weight: 187.4 lbs
Best for: Park, Pump Track, Street, Flatland.
Why choose the Barcode LL 20-inch from KHEbikes?
- Direct from the manufacturer, ensuring the best prices
- At 22.9 lbs, one of the lightest 20-inch BMX all-round bikes (including rotor)
- Globally patented KHE BMX Rotor for 360-degree handlebar spins
- Aluminium frame & 3D dropouts!
- Equipped with two powerful U-brakes
- Sealed Euro industrial bottom bracket
Pegs: The Barcode LL 20" is compatible with 10 mm front and 14 mm rear pegs. We recommend the BLACK STEEL Pegs.
The BMX bike is approximately 90% pre-assembled. The manual can be found under "Datasheets". A video tutorial is available under "Video".

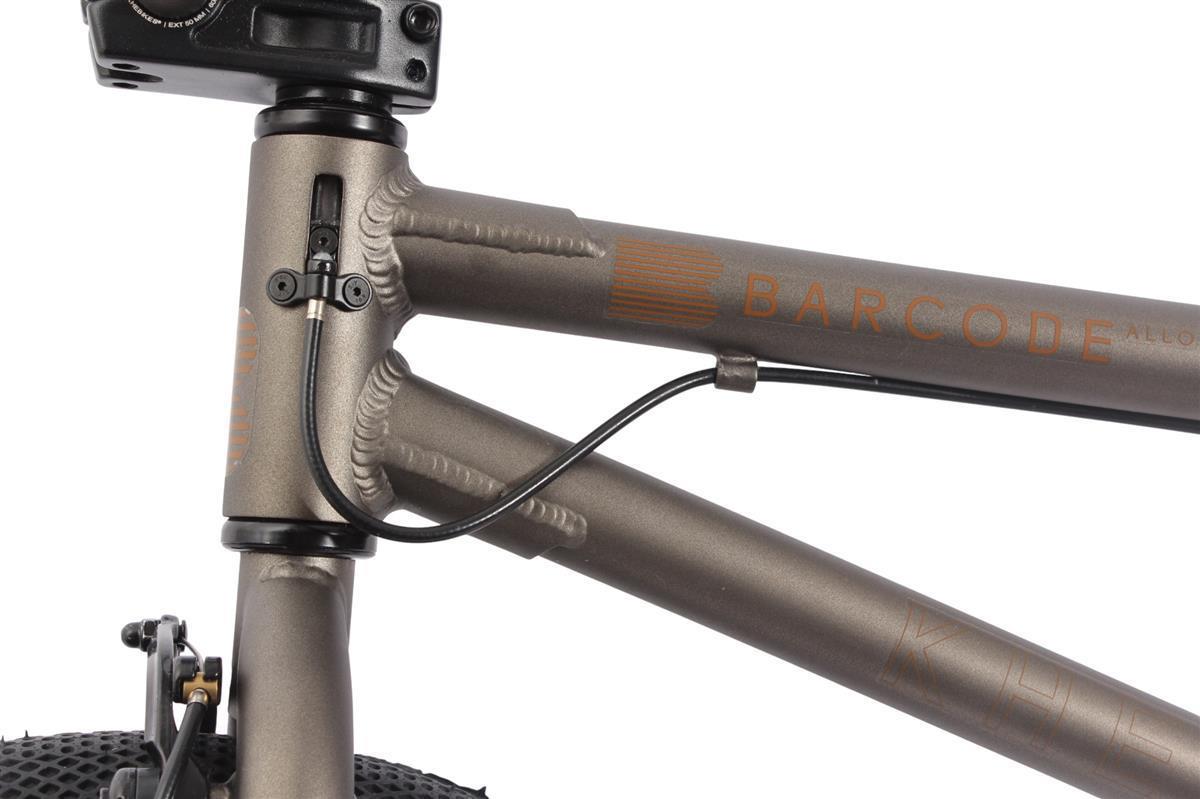

| Frame: | KHE 6061 aluminum, 14mm dropout, top tube 20.4", CS 12.8", HT 75°, ST 71.5°, A-headset 1 1/8" 46x39mm |
|---|---|
| Top tube length: | 20,4" (518mm) |

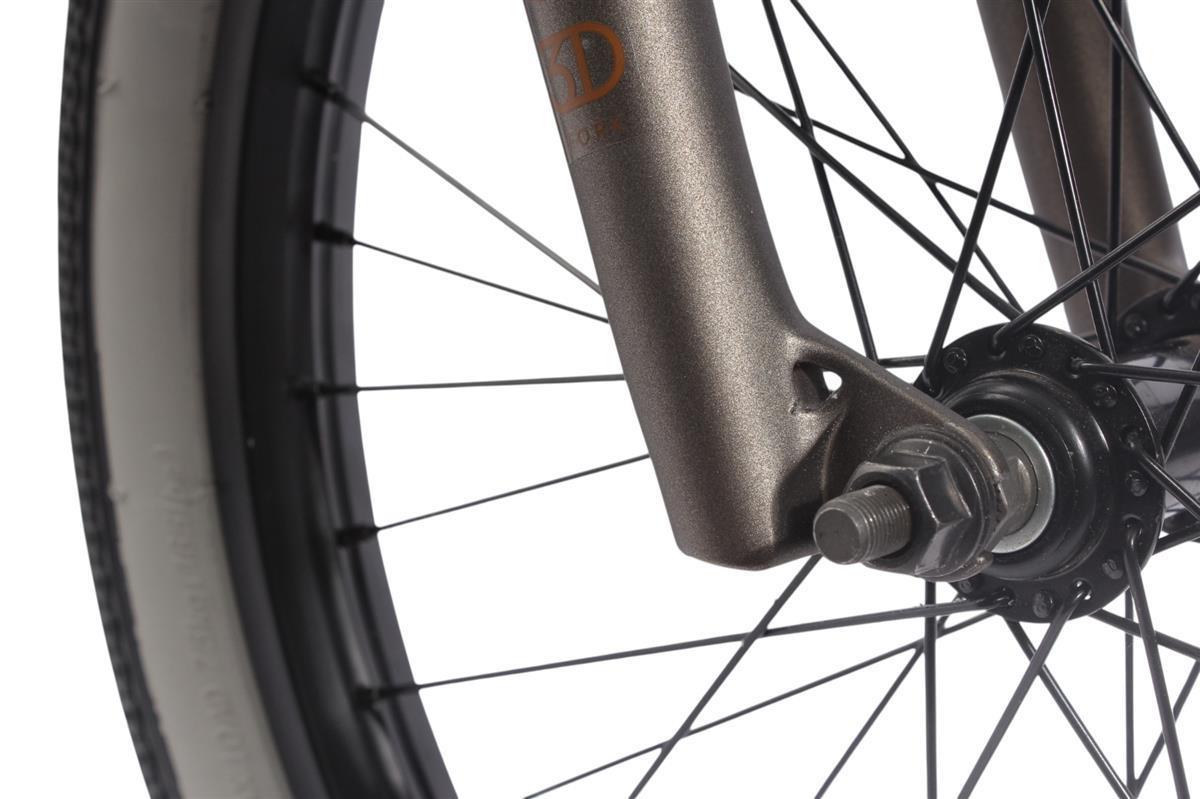

| Fork: | KHE 1020 HiTen steel with 3D 10mm dropouts, 27mm front wheel |

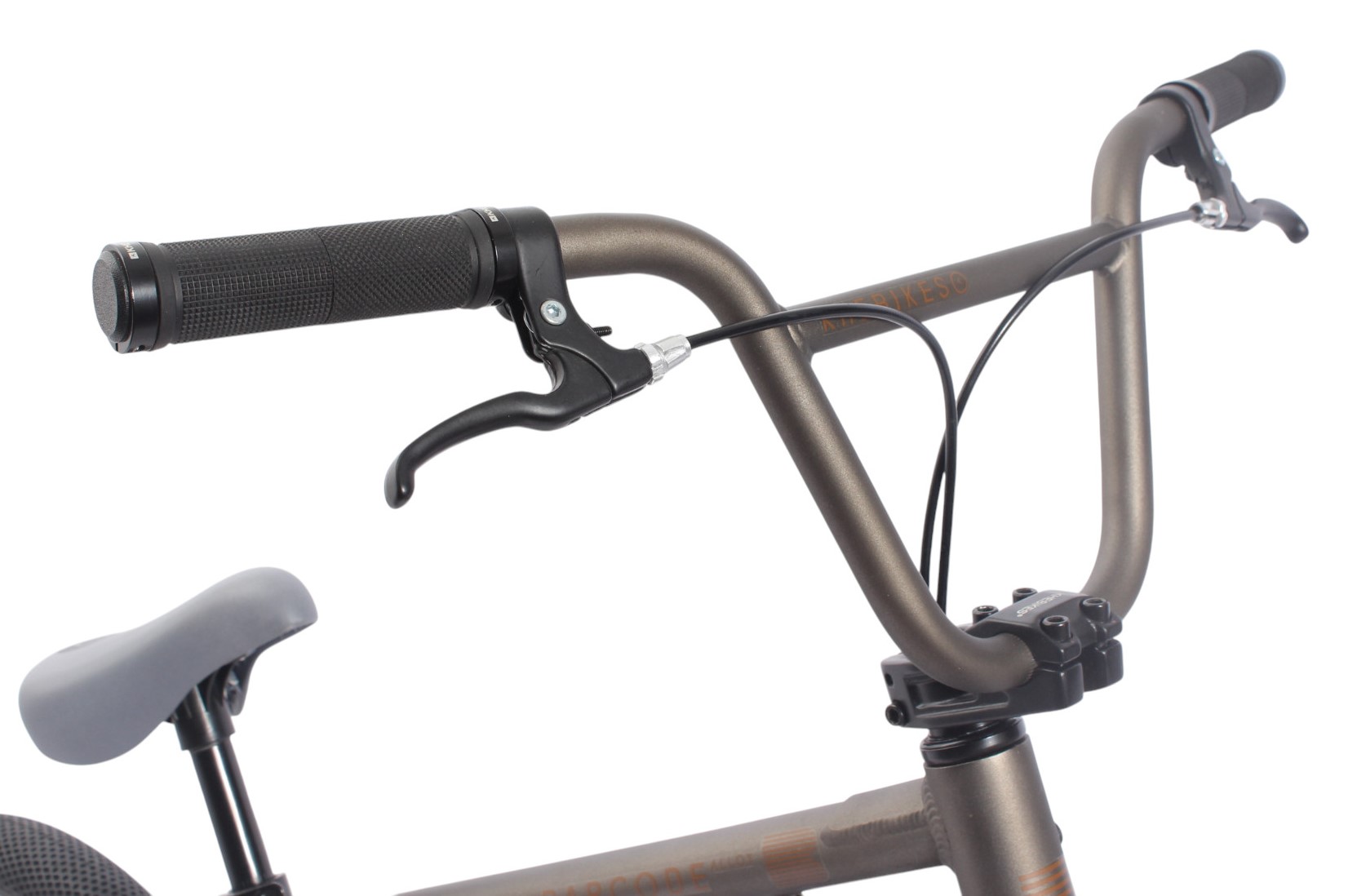

| Handlebars: | KHE HiTen steel 680mm width (26.8“) x 203mm (8”) height, backsweep 10”, upsweep 1” |

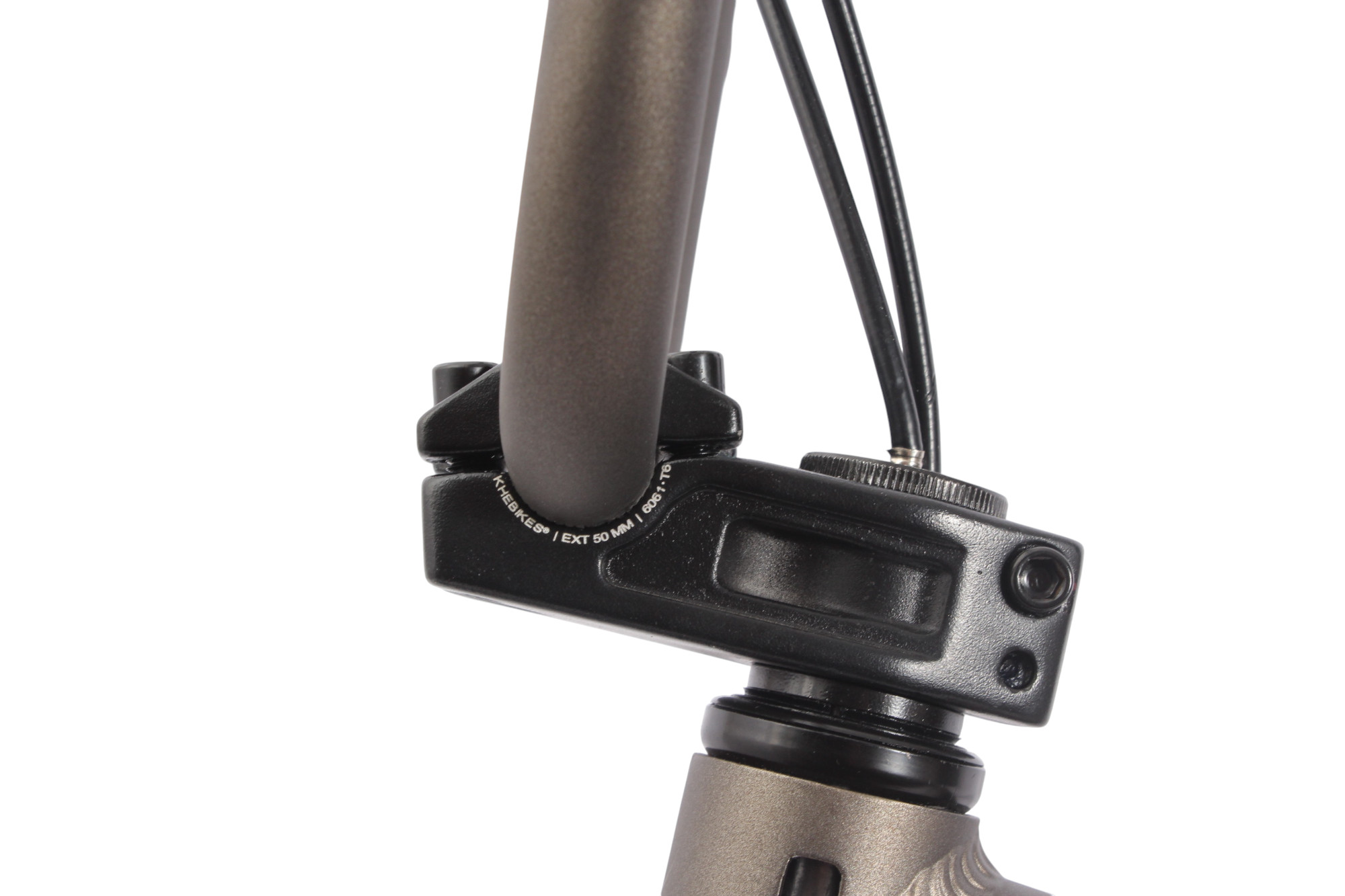

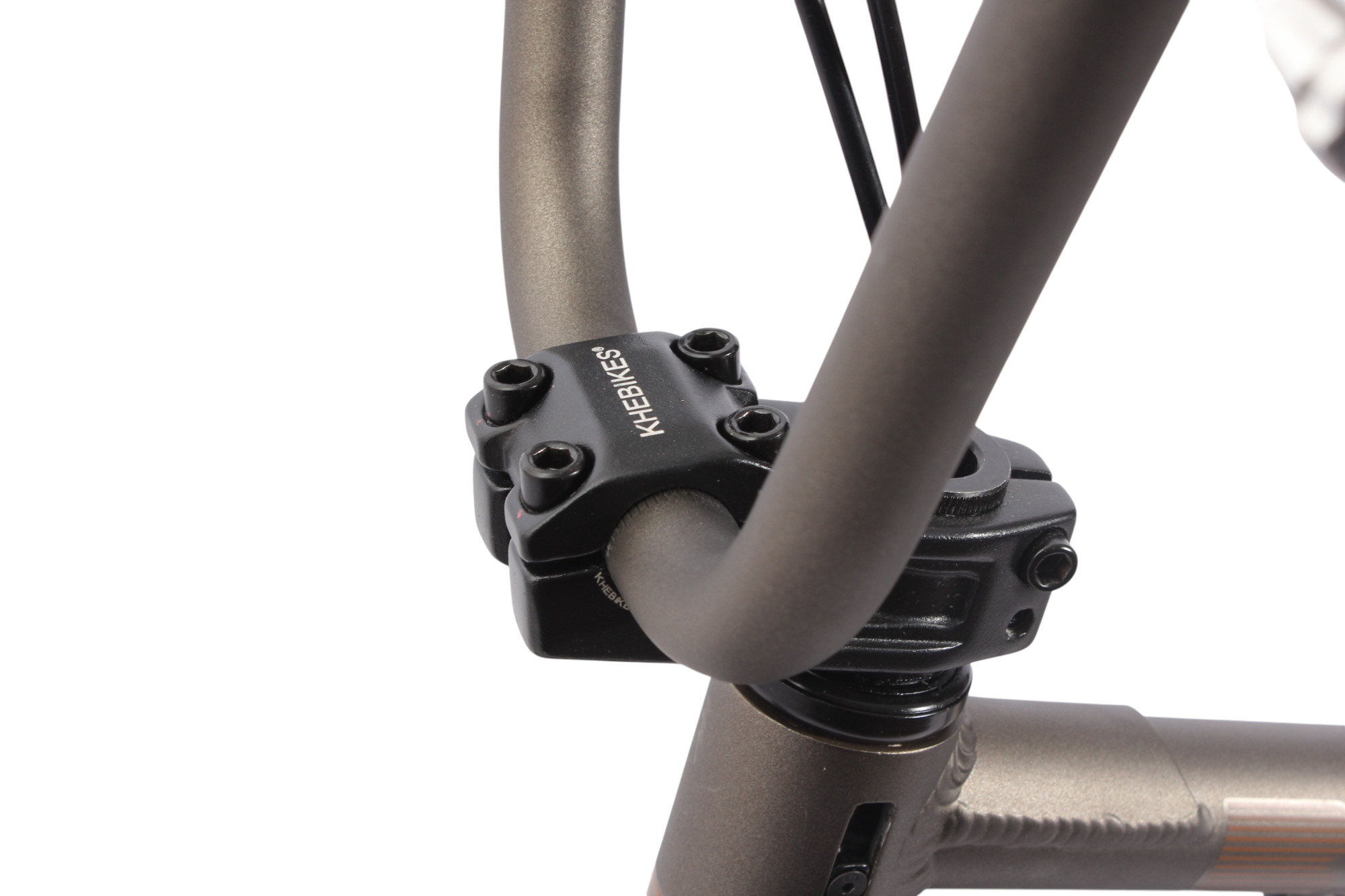

| Stem: | KHE Top Loader Ext.50mm |
| Headset: | AFFIX Loosball 1 1/8" |
| Rotor: | Patentierter KHE AFFIX 360 Grad Rotor |

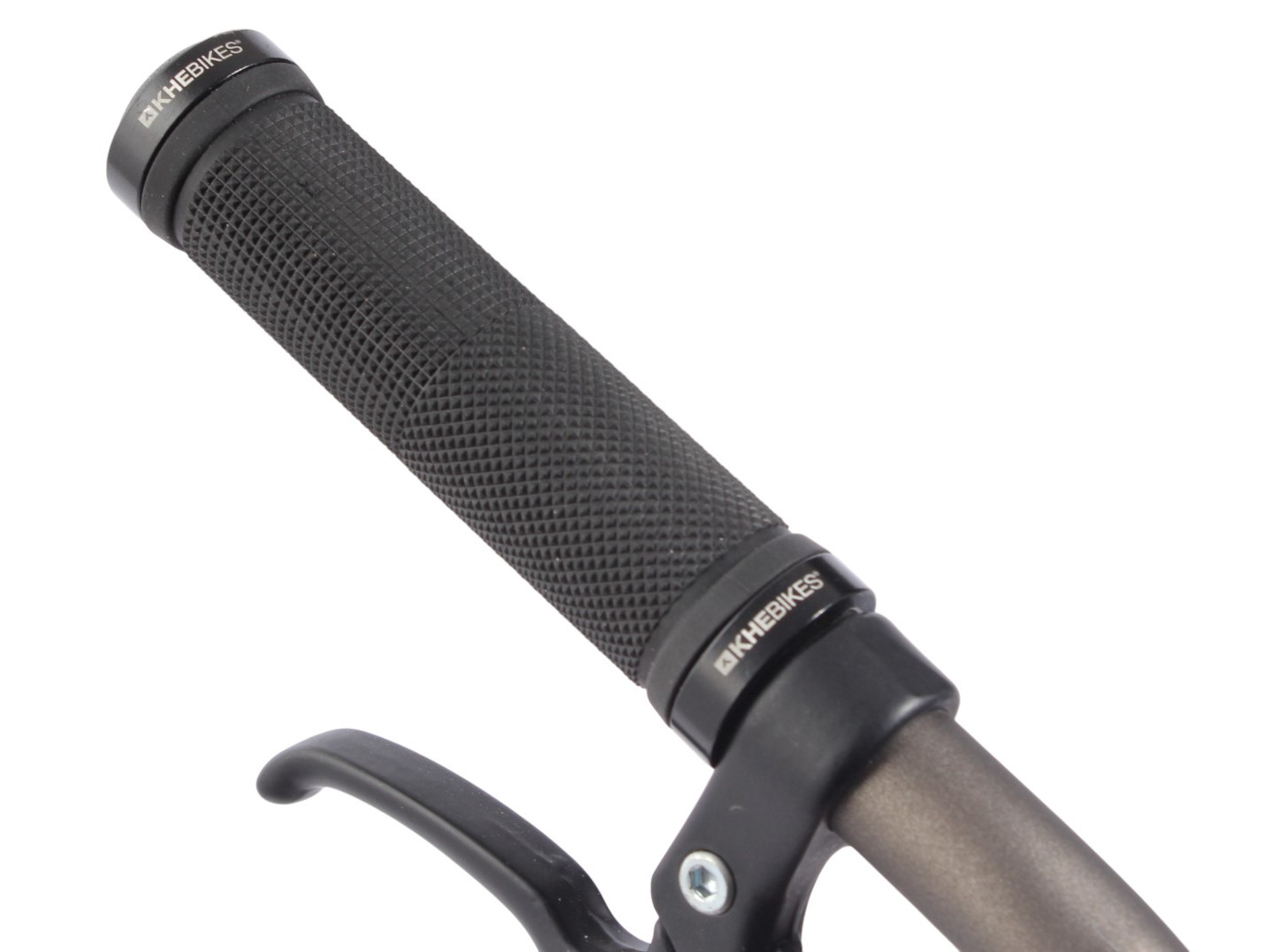

| Handles: | Lock On 140mm high quality rubber with aluminum clamps and KHEbikes laser logo |
| Brake levers: | Aluminum with adjusting screw |
| Rear brake: | KHE RADIUS Aluminum U-Brake |

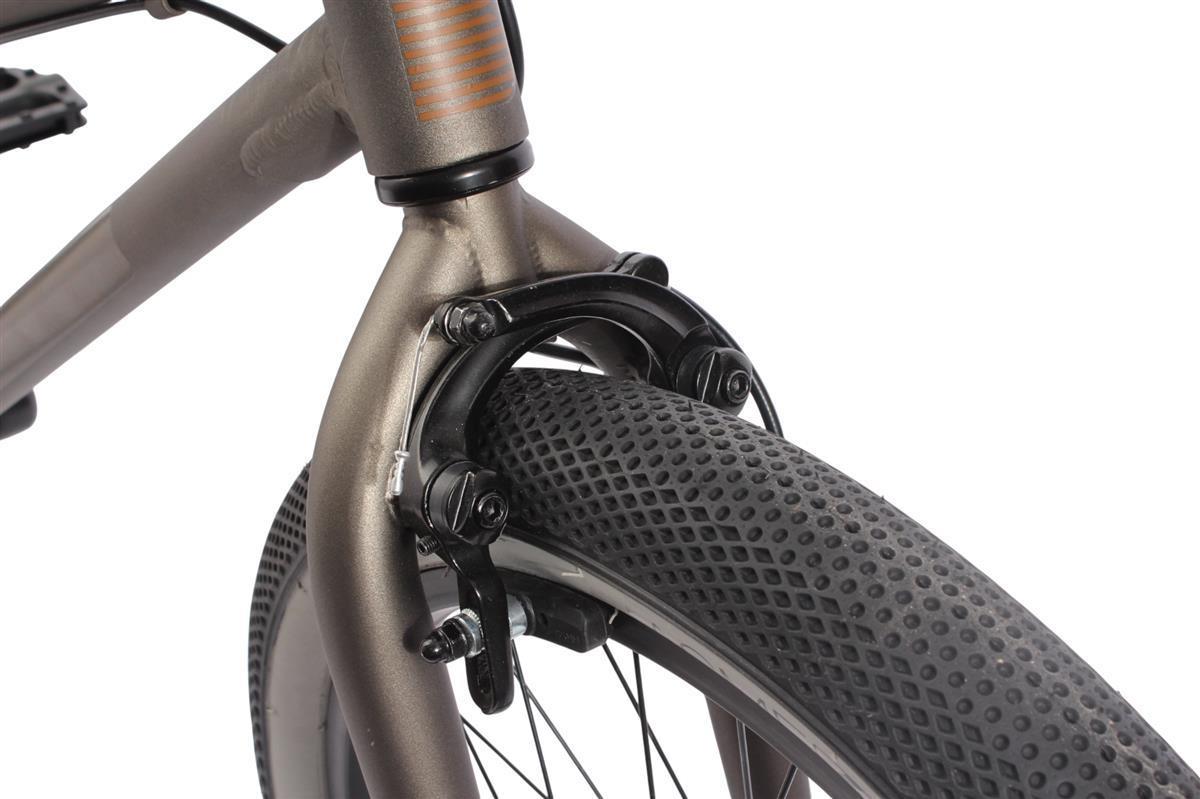

| Front brake: | KHE RADIUS Aluminum U-Brake |
| Crank: | KHE 3-piece forged aluminum 165mm length |

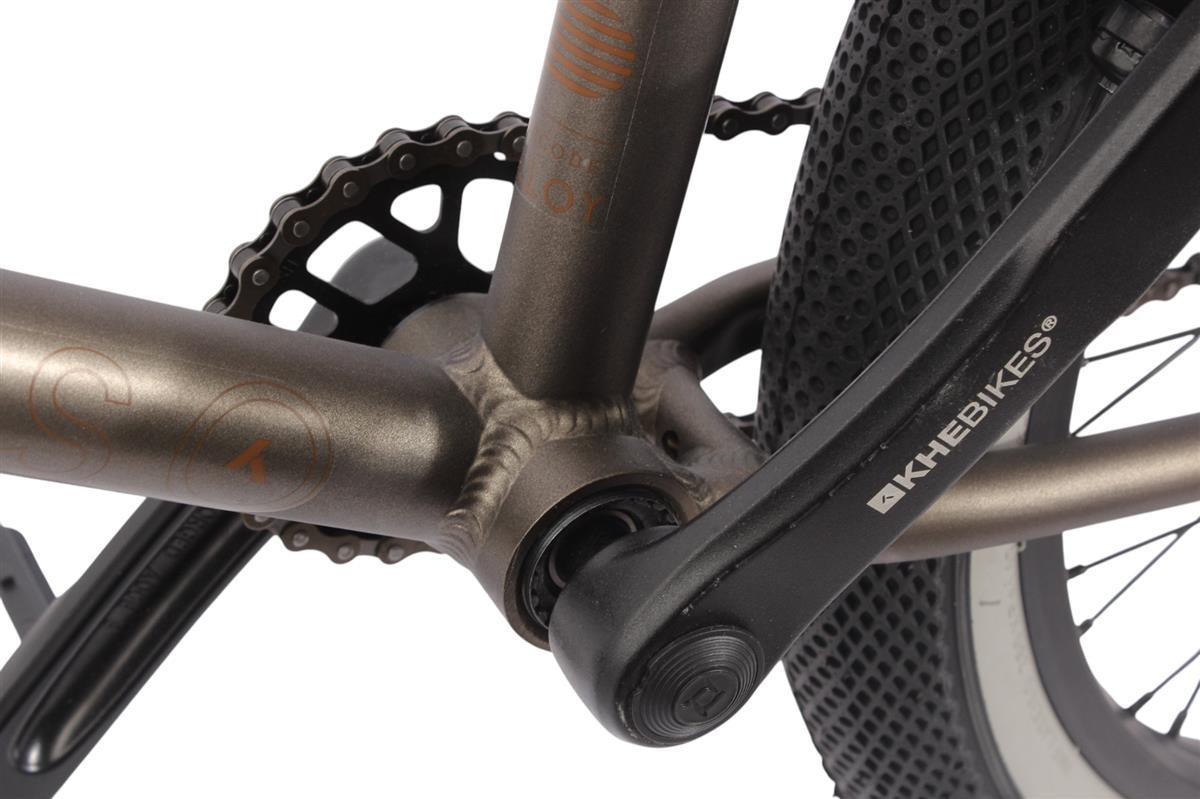

| Bottom bracket: | “EURO BB” industrial bearing & sealed, BC1.37 ”x24T 68mm / 116mm |

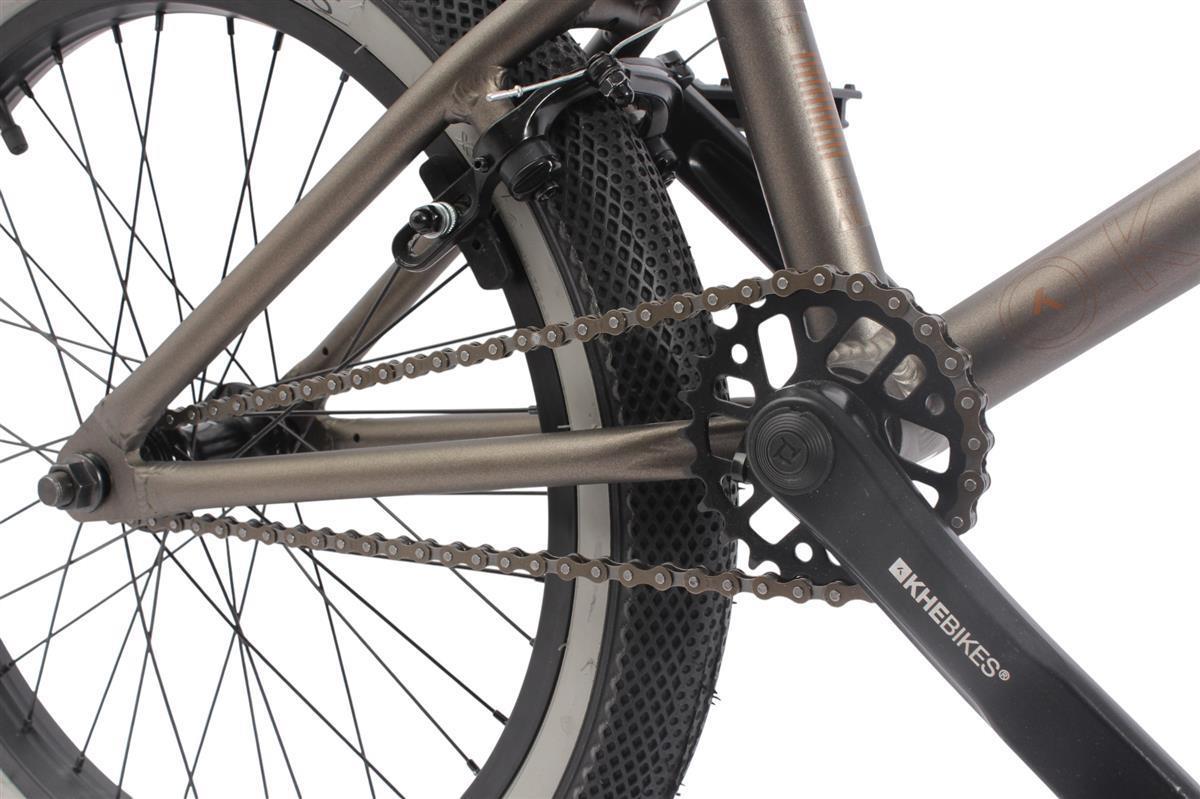

| Chainring: | 25T teeth steel |
| Chain: | YBN CN ST 1/2 x 1/8“ |

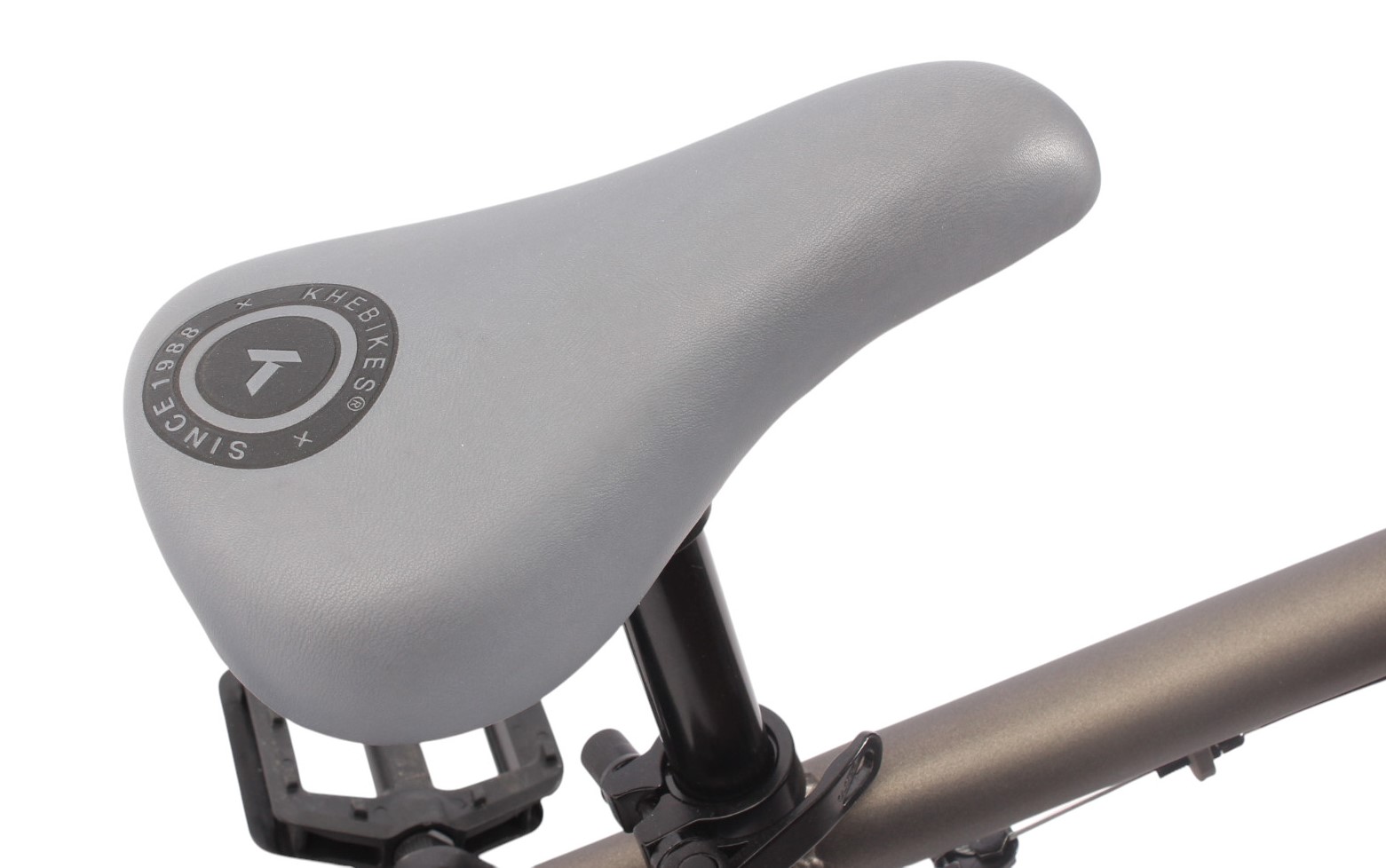

| Saddle: | Padded 220 x 125mm with embossed KHEbikes logo |

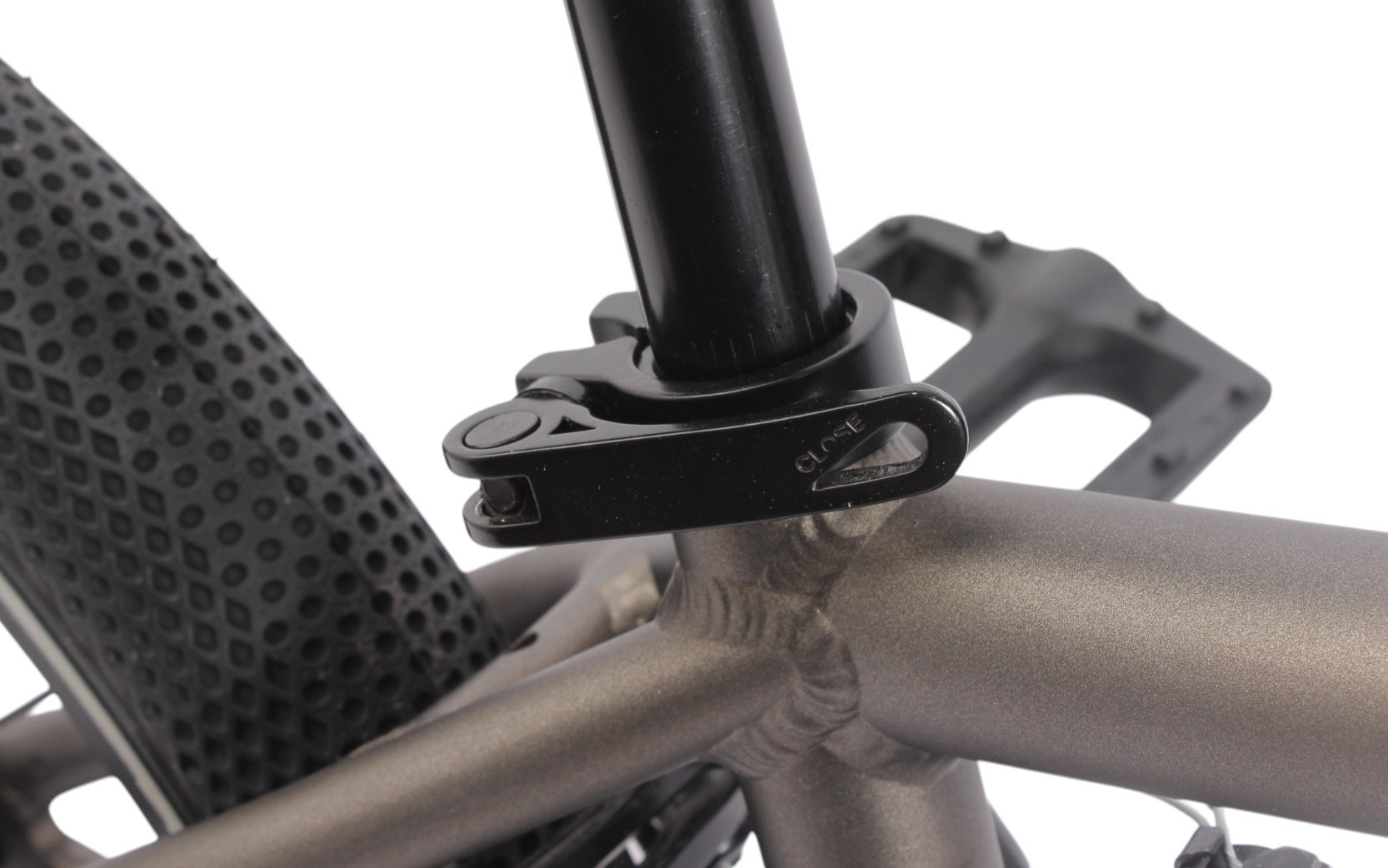

| Seatpost: | Diameter 27.2mm x length 220mm (integrated seat post with saddle) |

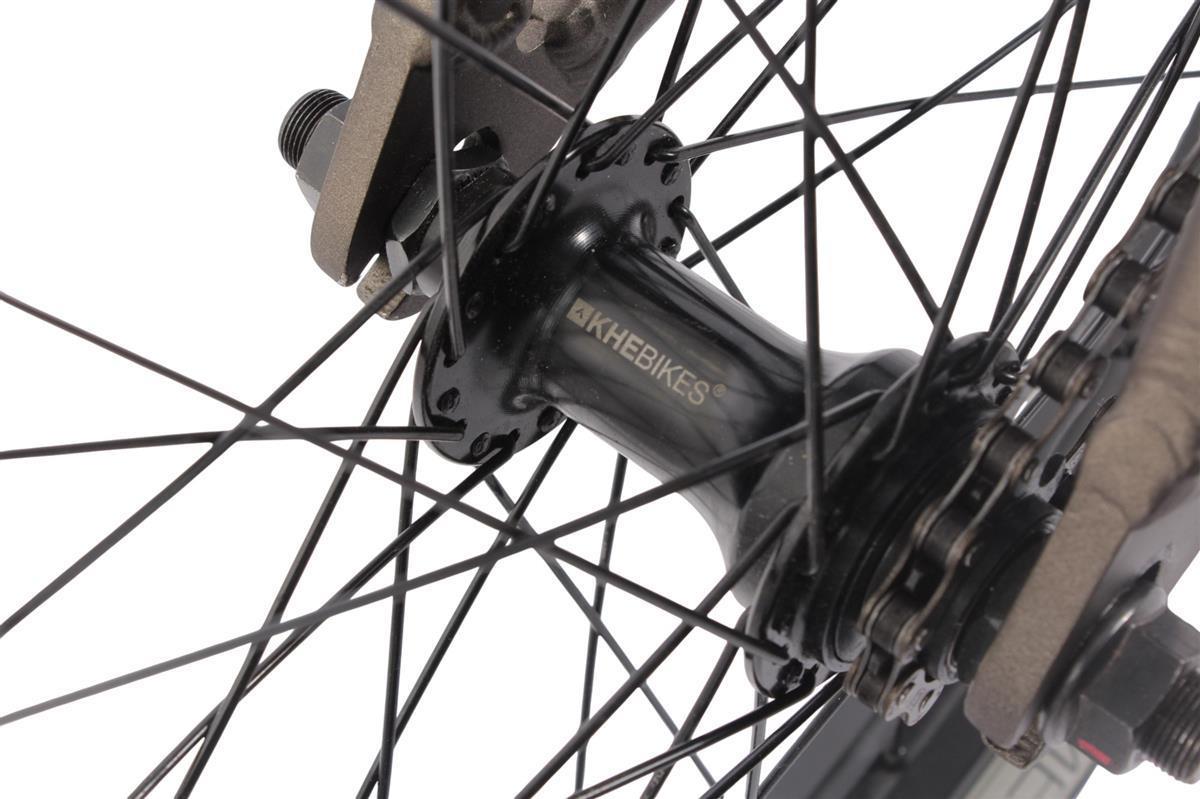

| Front wheel hub: | Aluminum, 3/8” (10mm) x 155mm axles, S/B industrial bearings |
| Rear wheel hub: | Aluminum, 14mm x 170mm axle, (full S/B) industrial bearings, 9 tooth cassette, 36 hole |

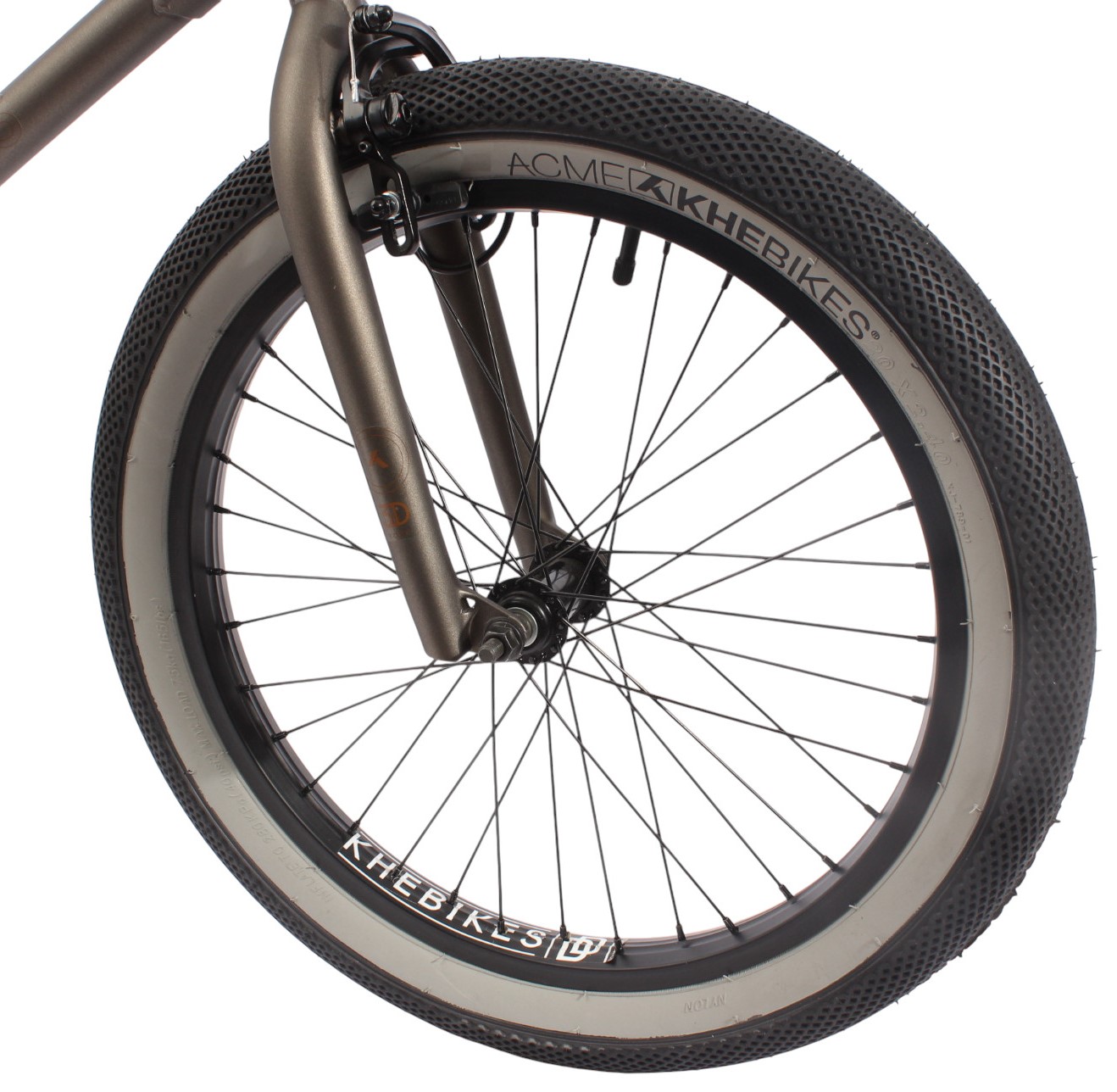

| Rim: | 20 inch double chamber aluminum, 36 hole |
| Tyres: | KHE ACME 20 inch x 2.40” |
| Material: | Aluminum |
| Tire size: | 20 inch |
| Category: | Park, Street, Flatland, Pumptrack |
| Size: | 20 "; 4'7" - 5'7" in |
| Colour: | Anthracite |
| Model Year: | 2025 |
Usage Instructions:
The KHE Barcode LL 20-inch BMX is designed for sporty and trick-based use in skateparks, pump tracks, street, and flatland.
Do not use the BMX bike on wet, slippery, or icy surfaces.
Not suitable for road traffic unless the bike is equipped with appropriate lighting and reflectors in accordance with StVZO regulations.
Maximum user weight: 85 kg.
Safety Instructions:
Always wear an appropriate helmet and protective gear (knee, elbow, and hand guards).
Before each ride, check all bolts, connections, and components for secure fit.
Regularly inspect the condition of the brakes and tires.
Ensure the chain is properly tensioned and shows no visible damage.
No Modifications Allowed: Do not make any modifications such as drilling, cutting, or other changes to the BMX bike. The warranty will be void if the bike is used improperly.
Maintenance and Care:
Clean the BMX bike regularly and protect it from rust formation.
Use only original spare parts. Perform maintenance according to the user manual.
Replacement due to Wear: Regularly check components such as the handlebar, frame, and fork of the BMX bike for cracks, deformations, or microcracks, especially at the welds. Replace components immediately if cracks or damage are found.
