KHE US BB Bottom Bracket with Industrial Bearings (S/B)
Product overview:
- Brand: KHE
- Aluminium bearing cups suitable for US BB
- Size: 51.5mm (2.03") press fit diameter
- Sealed industrial bearings, maintenance-free (S/B)
- For 48T and 8T spindles
- Suitable for 19mm (0.75") axles
- Total weight: only 244g (0.54 lbs)
- Includes 6 spacers
- Colour: black
- Includes chainring adapter

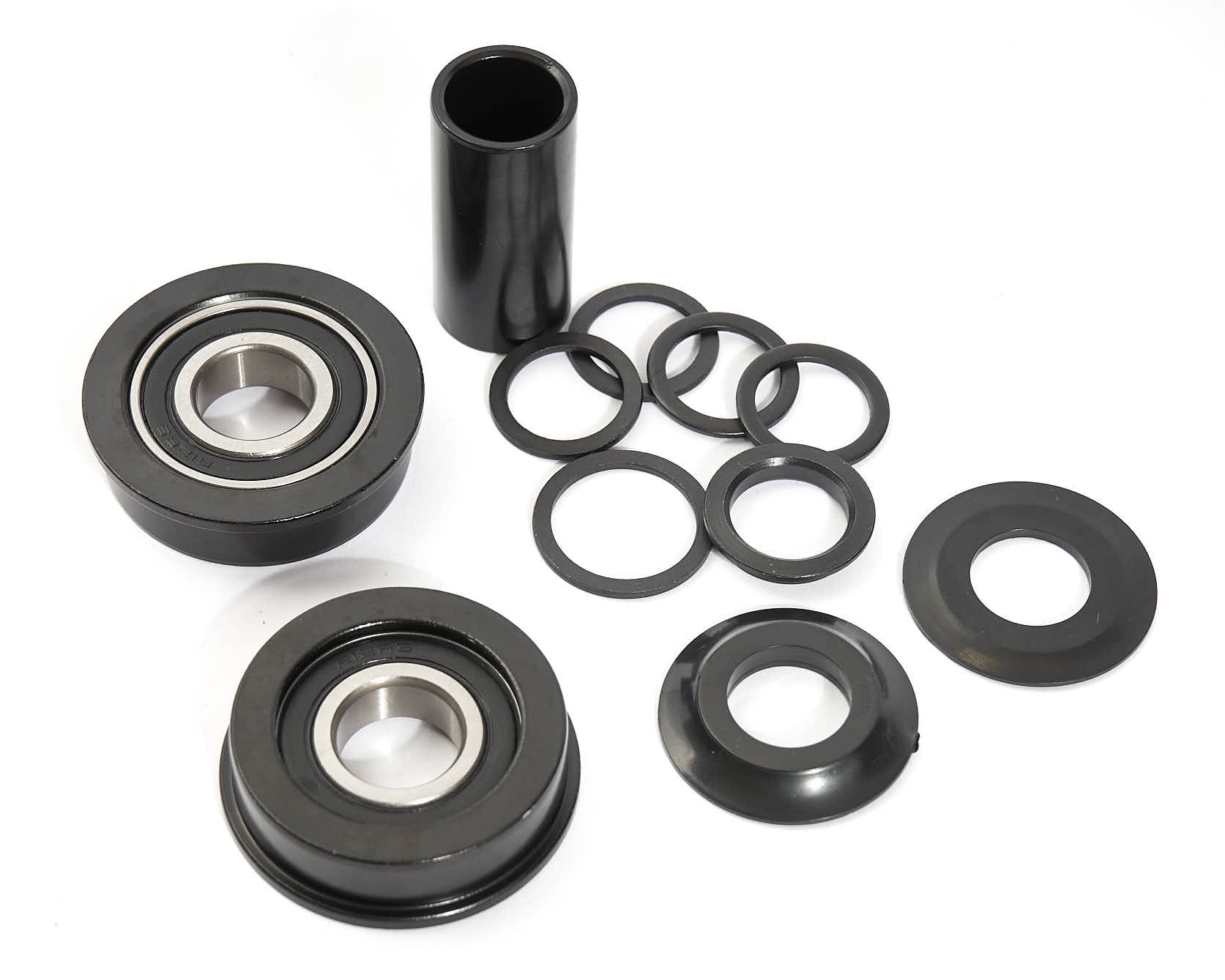

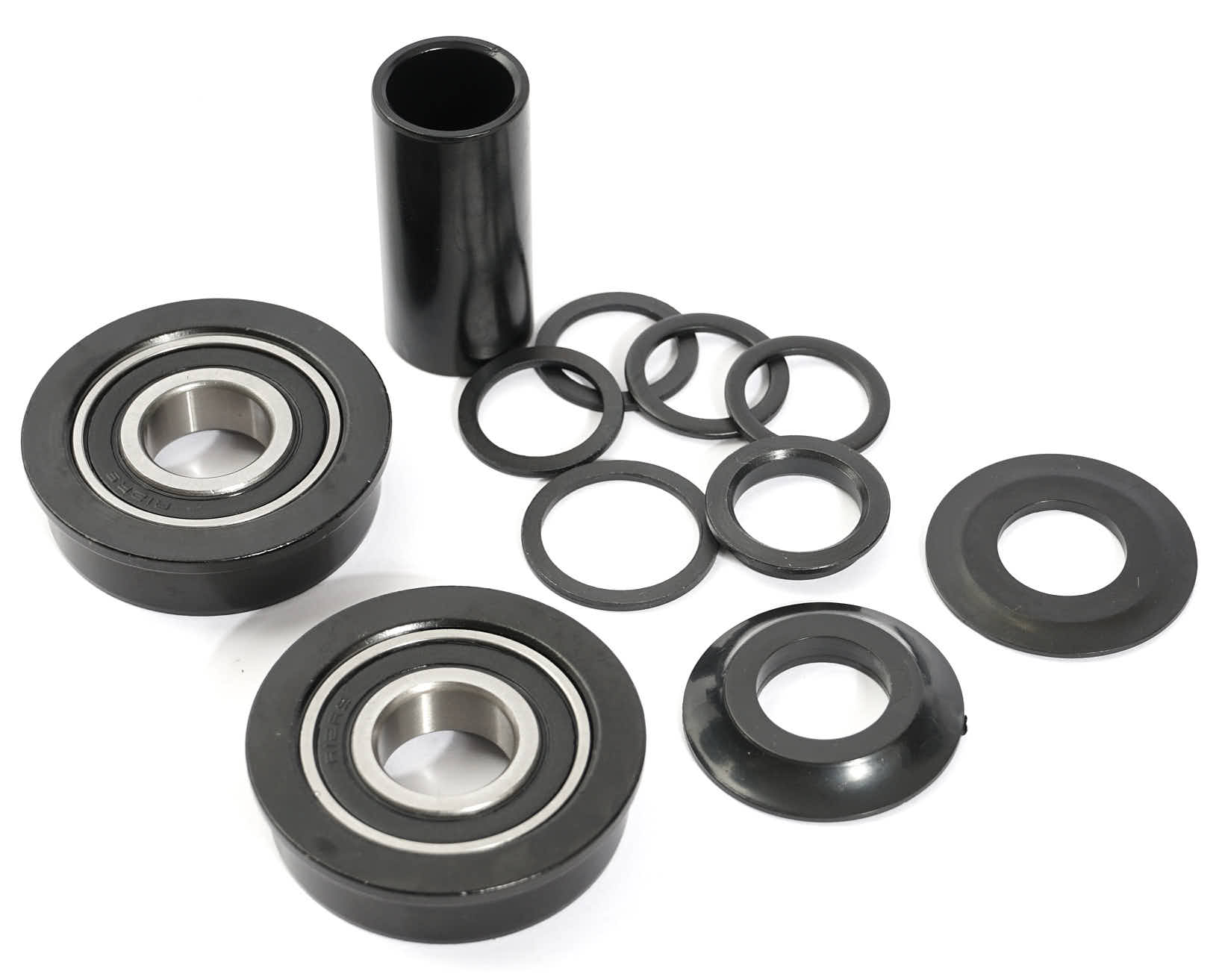

- Set consists of 13 parts
| Bottom bracket: | US-BB; S/B |
|---|---|
| Size: | 2.03" / 51,5mm |
| Colour: | Black |
| Weight: | 8.61 / 244g |
| Axle diameter: | 0.75 " / 19mm |
| Teeth: | 8T, 48T |
Ensure Compatibility:
This bottom bracket is exclusively intended for use on BMX bicycles.
Only use it on bicycles compatible with a three-piece BMX crank.
Installation: Clean the bottom bracket shell and lightly grease the bearings. Carefully insert the bottom bracket into the shell, ensuring it is correctly seated. Tighten the bottom bracket evenly and check its function with a short test ride.
Care and Maintenance:
Regularly grease the bearings to ensure smooth operation.
Inspect periodically for rust and damage.
Replacement in Case of Wear: Replace the bearings immediately if wear, uneven abrasion, cracks, or damage are detected.
