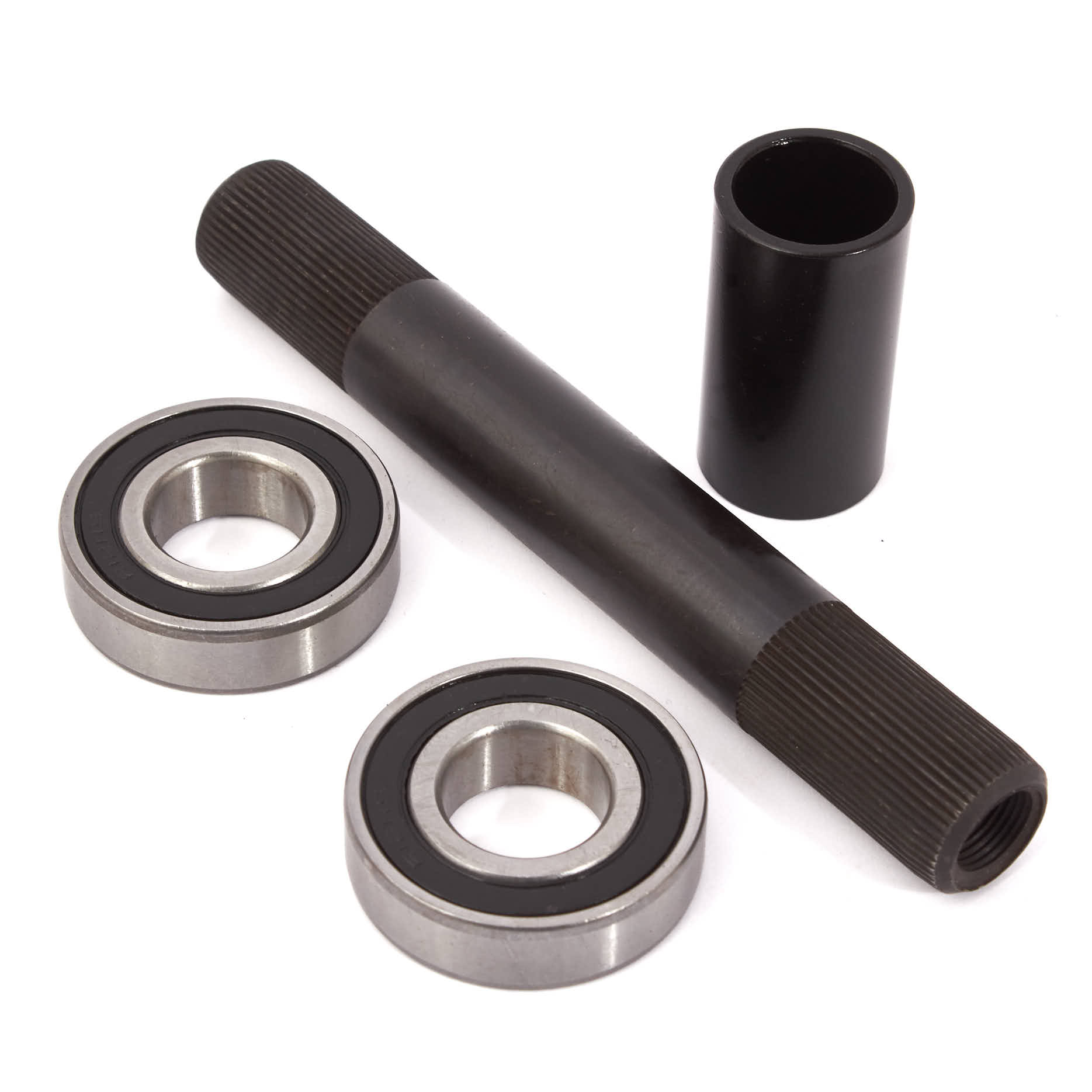

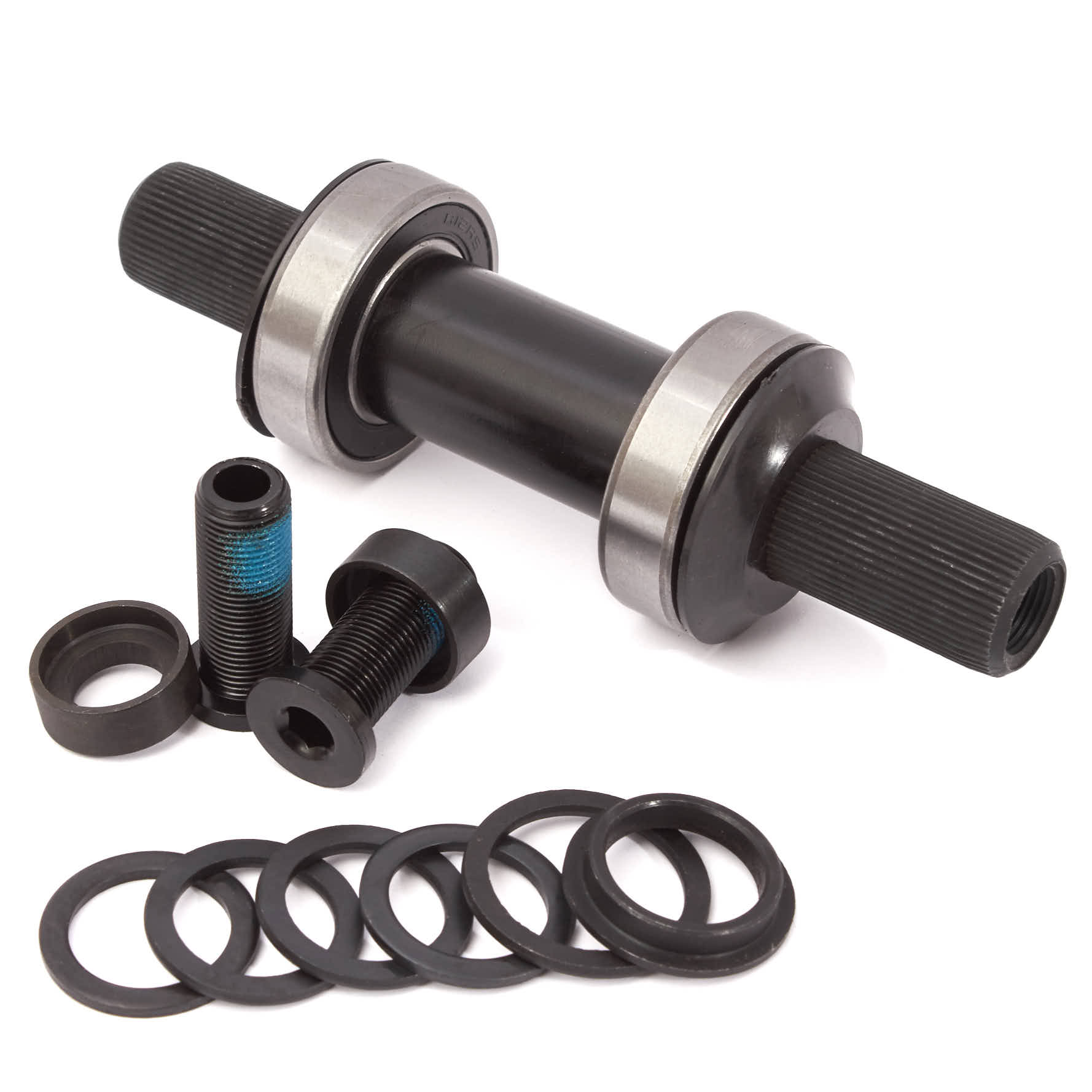

KHE bottom bracket set with a high-quality 19mm (0.75") 4130 CrMo axle and industrial bearings

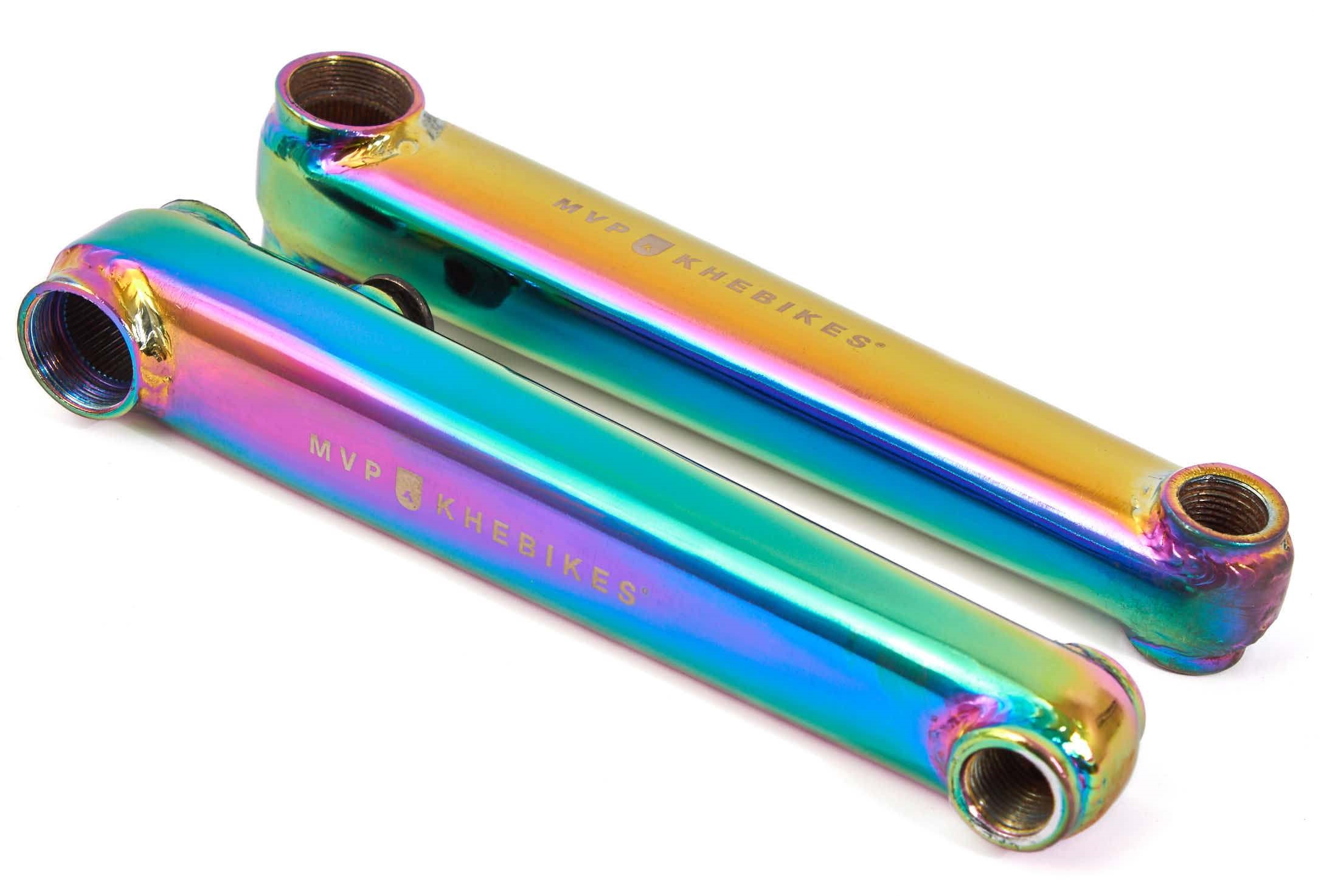

Suitable for KHE Erlkönig, MVP, Hindenburg and other 48T crank arms.
Overview:
- Brand: KHE
- Axle: 48 teeth (48T), 19mm (0.75")
- Axle Material: 4130 CrMo
- Including adapter for Ø24mm (0.94") chainrings
- Bearing outer diameter: 41mm (1.61")
- Length: 140mm (5.51")
- Bottom bracket: MID BB industrial / deep groove ball bearings
- Sealed bearing additionally protected by covers!

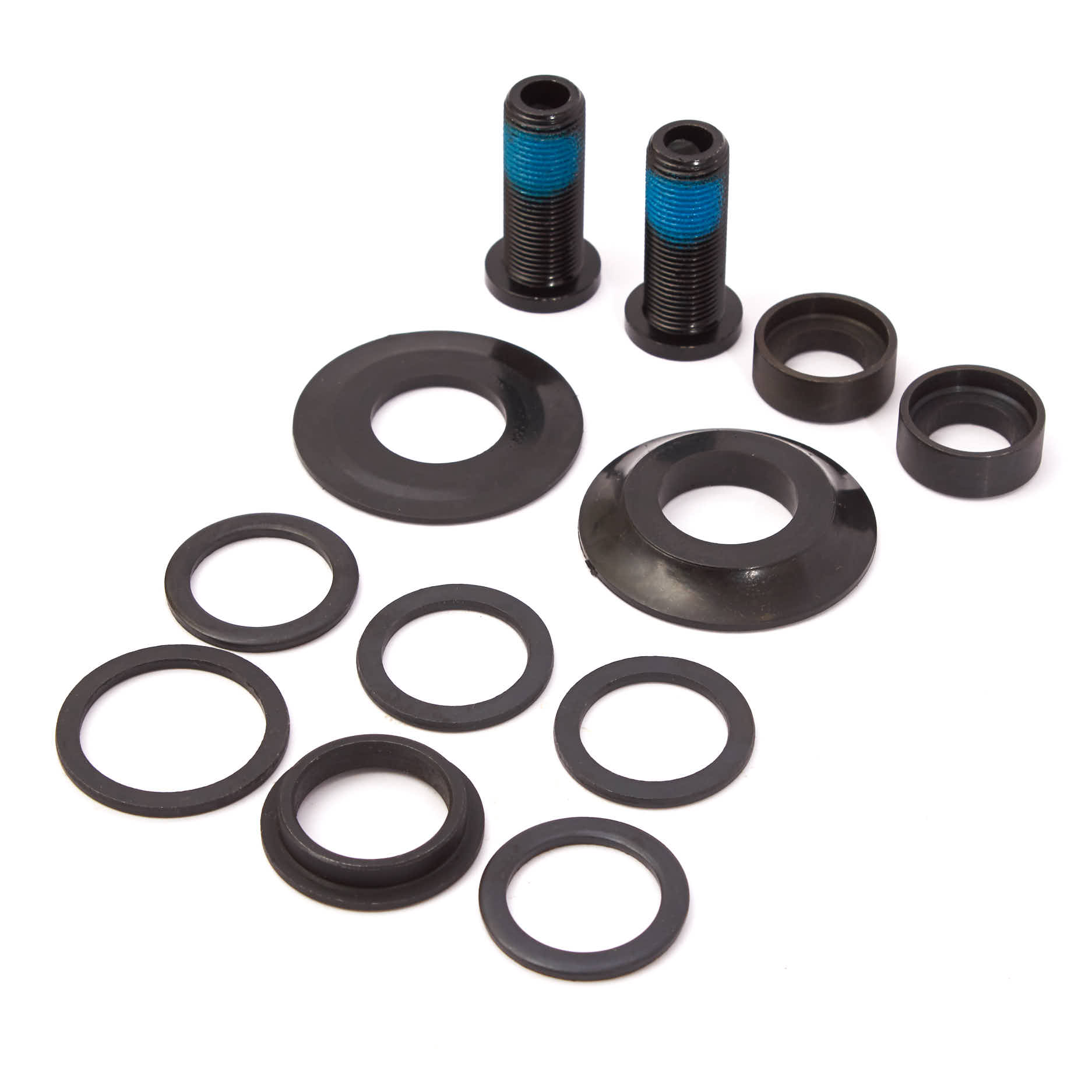

- Washers and bolts included
- Weight: Axle, bolts, washers and bearings only 1.02 lbs (462g) – axle alone 0.53 lbs (242g)
- Colour: Black
- Top product from KHE!
| Bottom bracket: | MID BB |
|---|---|
| Material: | 4130 CrMo |
| Colour: | Black, Chrome |
| Weight: | 1.02 lbs / 462g |
| Axis length: | 0.75" / 19mm |
| Length: | 5.51" / 140mm |
| Teeth: | 48T |
Ensure Compatibility:
This bottom bracket set is exclusively intended for use on BMX bicycles.
Only use it on bicycles compatible with a three-piece BMX crank.
Installation: Clean the bottom bracket shell and lightly grease the bearings. Carefully insert the bottom bracket into the shell, ensuring it is correctly seated. Tighten the bottom bracket evenly and check its function with a short test ride.
Care and Maintenance:
Regularly grease the bearings to ensure smooth operation.
Inspect periodically for rust and damage.
Replacement in Case of Wear: Replace the bottom bracket immediately if wear, uneven abrasion, cracks, or damage are detected.
