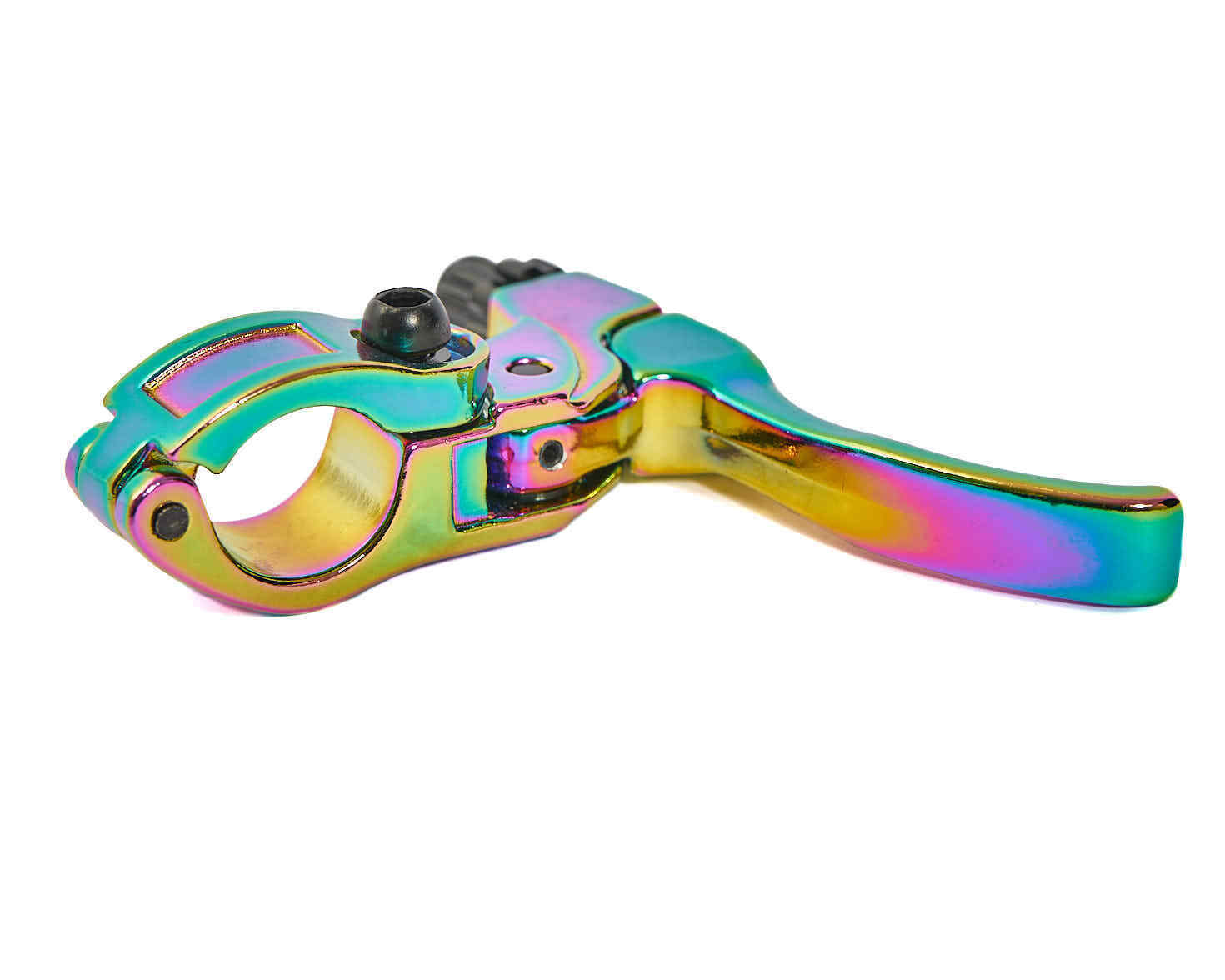

Cold forged KHE brake lever for left made of 6061 aluminum in shimmering rainbow colors.
Product number:
M360151
EAN:
4260640290797
Product information "BMX brake lever KHE Radius left"
Left KHE RADIUS Oil Slick Brake Lever
Very lightweight brake lever that enhances any BMX bike thanks to its Oil Slick finish. With its hinged clamp, it can be mounted on 22.2mm (0.87") handlebars without removing the grips.
Key specifications:
- Brand: KHE Radius

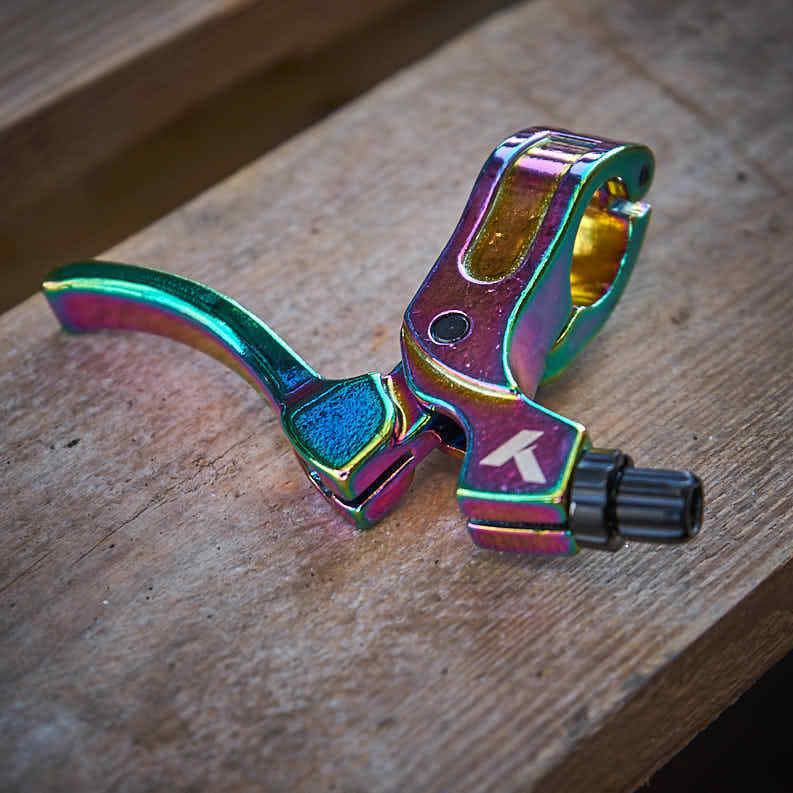

- 2-finger design
- Left side
- With hinged clamp
- Colour: Oil Slick
- Size: For 22.2mm (0.87") handlebars

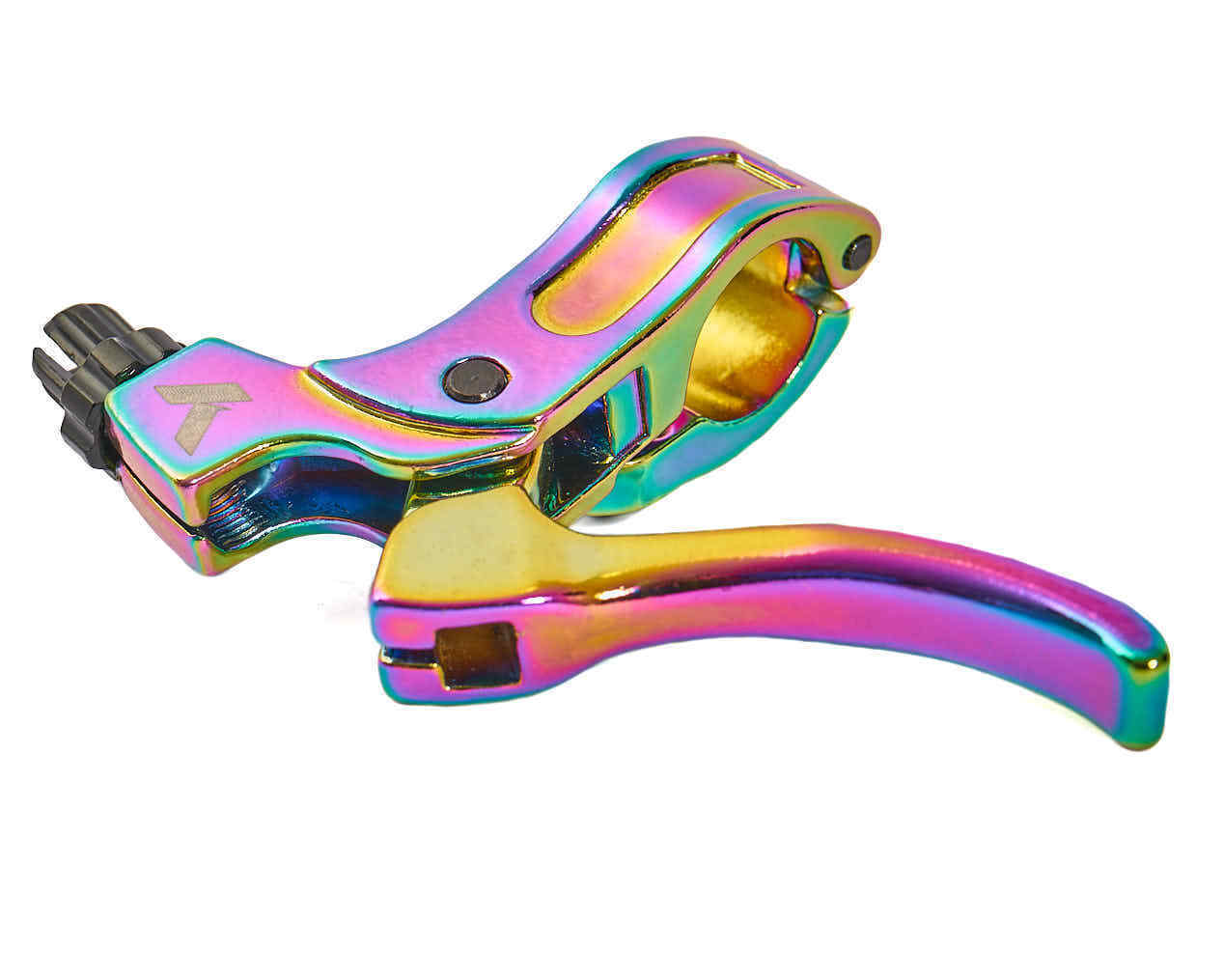

- Material: 6061 aluminium
- Cold-forged
- Weight: Only 0.18 lbs (82g)

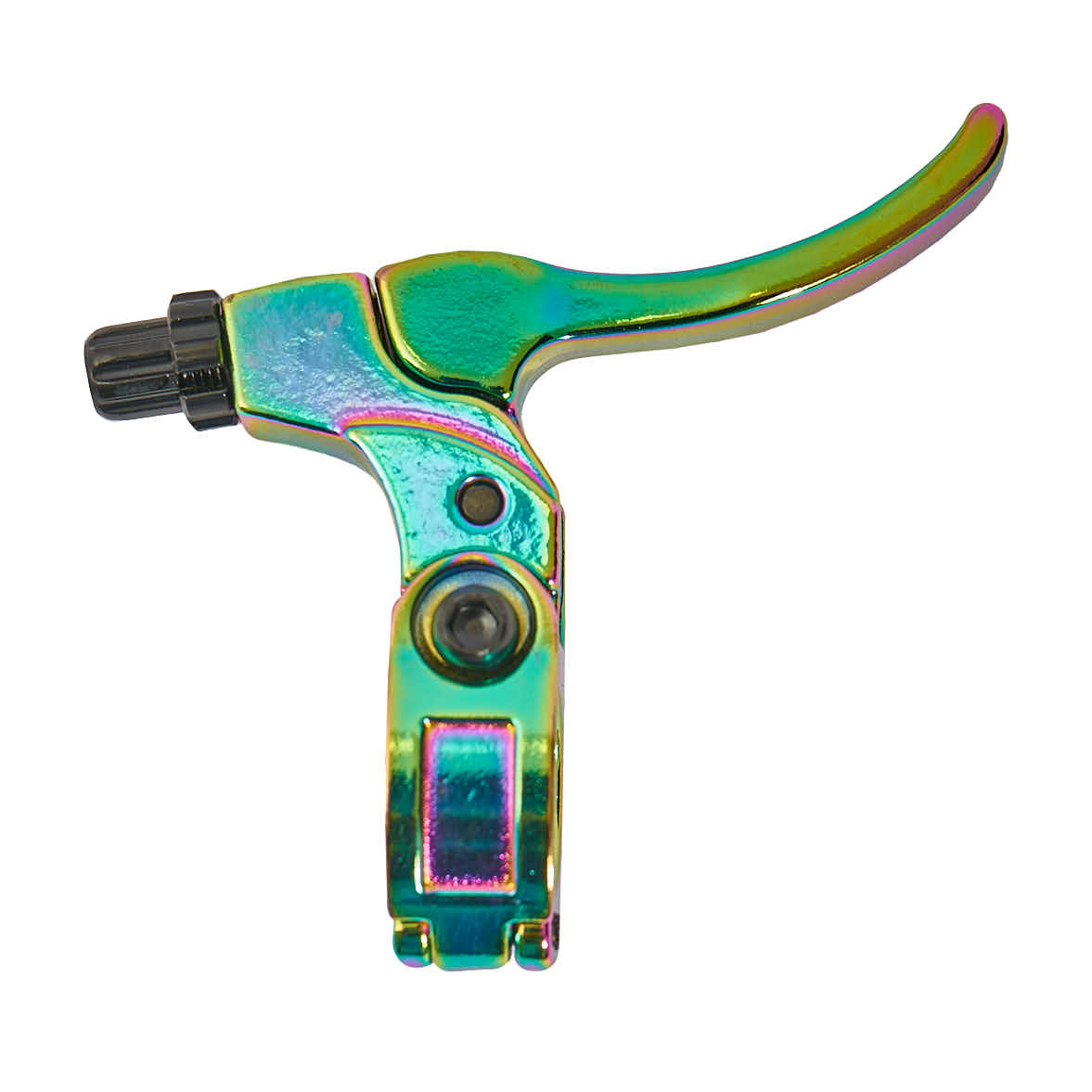

- With adjustment screw for brake cable
- Top product from KHE!
| Brake type: | U-brake |
|---|---|
| Material: | 6061 Aluminium |
| Size: | for 0.87" / 22.2mm handlebar |
| Colour: | Oil slick |
| Weight: | 2.89 oz / 82g |
| Side: | Left |
Product Safety Instructions for BMX Brake Lever KHE Radius Left:
Suitable for U-brakes: This aluminum brake lever generates the perfect pulling force needed to correctly engage U-brakes, making it ideal for BMX bikes with this type of brake.
Installation: Attach the brake lever in a comfortable position on the handlebar and guide the brake cable through the lever and cable housing to the brake body. Secure the brake cable at the brake body, adjust the cable tension, and fine-tune it at the lever if needed. Finally, test the brake function and secure any excess cable end with an end cap.
Do not make modifications: Do not perform modifications such as drilling or cutting on the brake lever.
Regular Inspection: Regularly check the lever and brake cable for wear, corrosion, and general functionality.
Replace the brake lever immediately if damaged.
