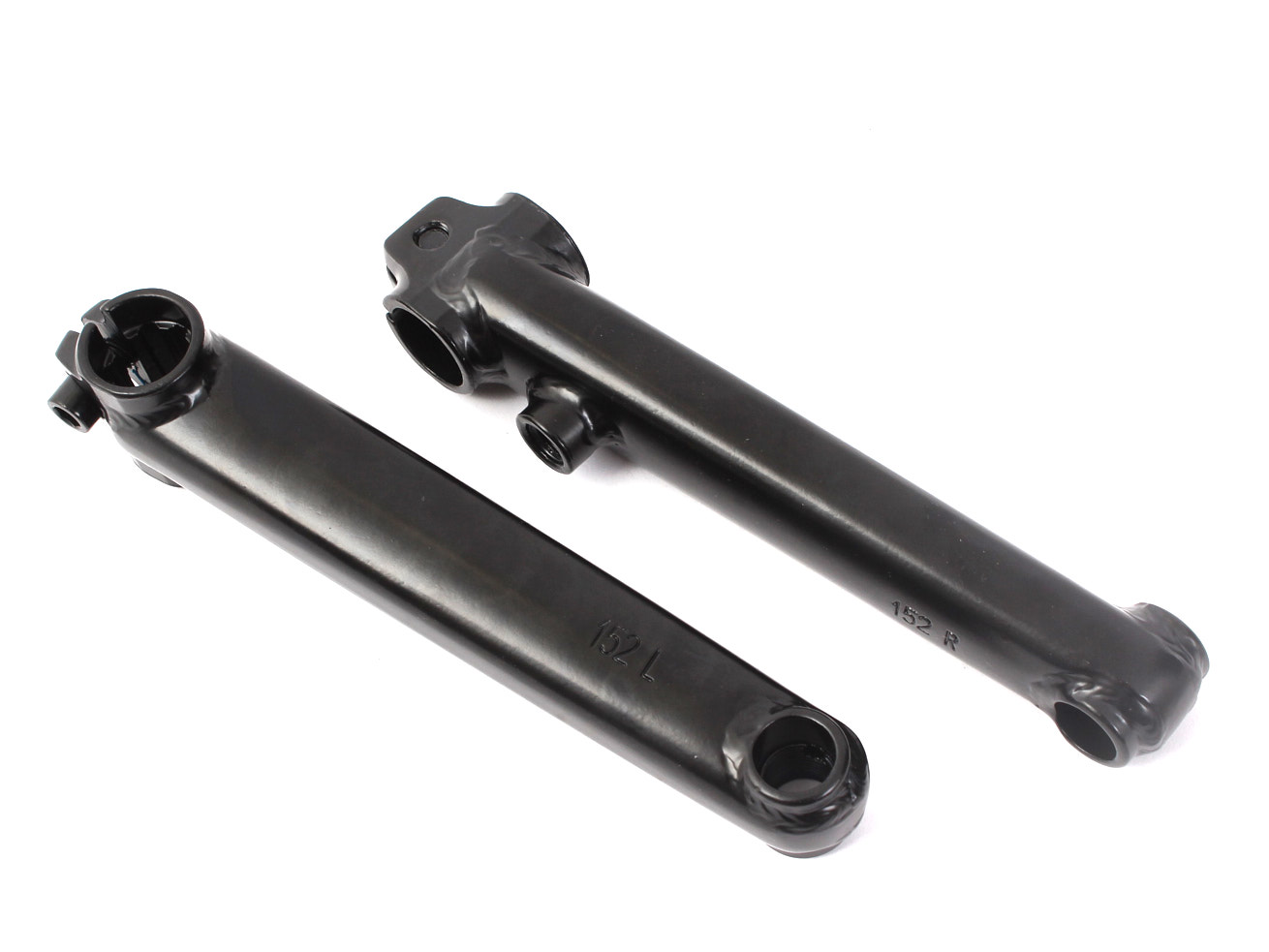

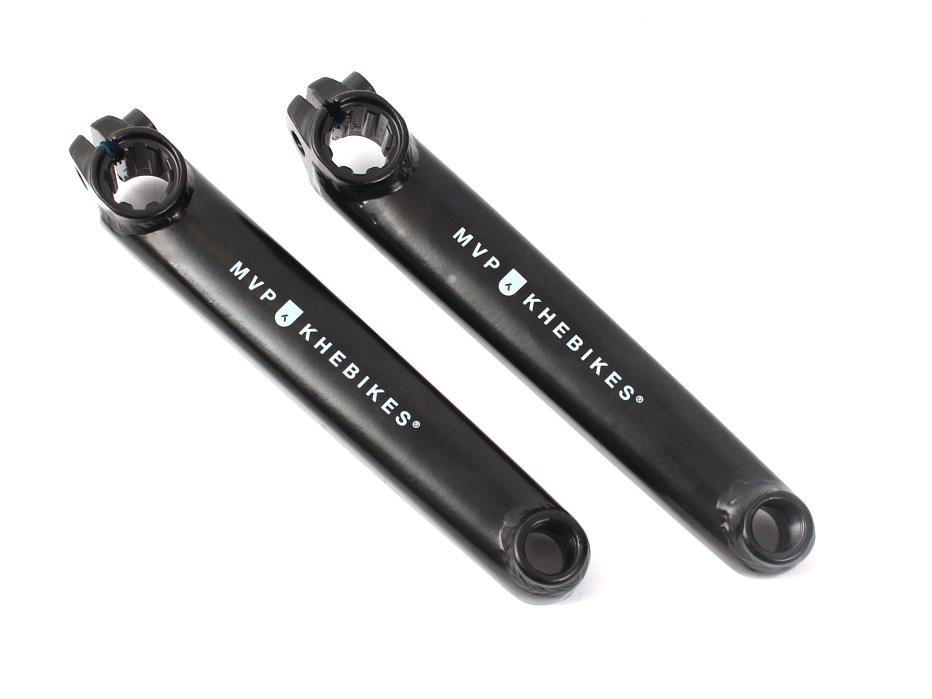

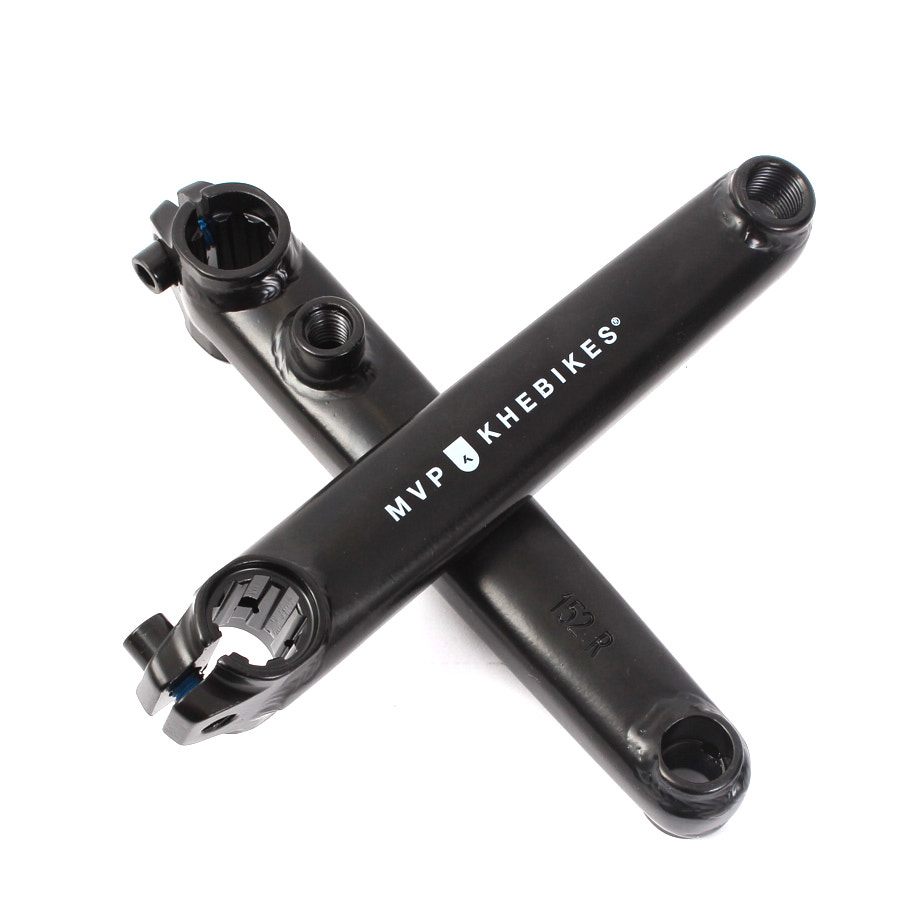

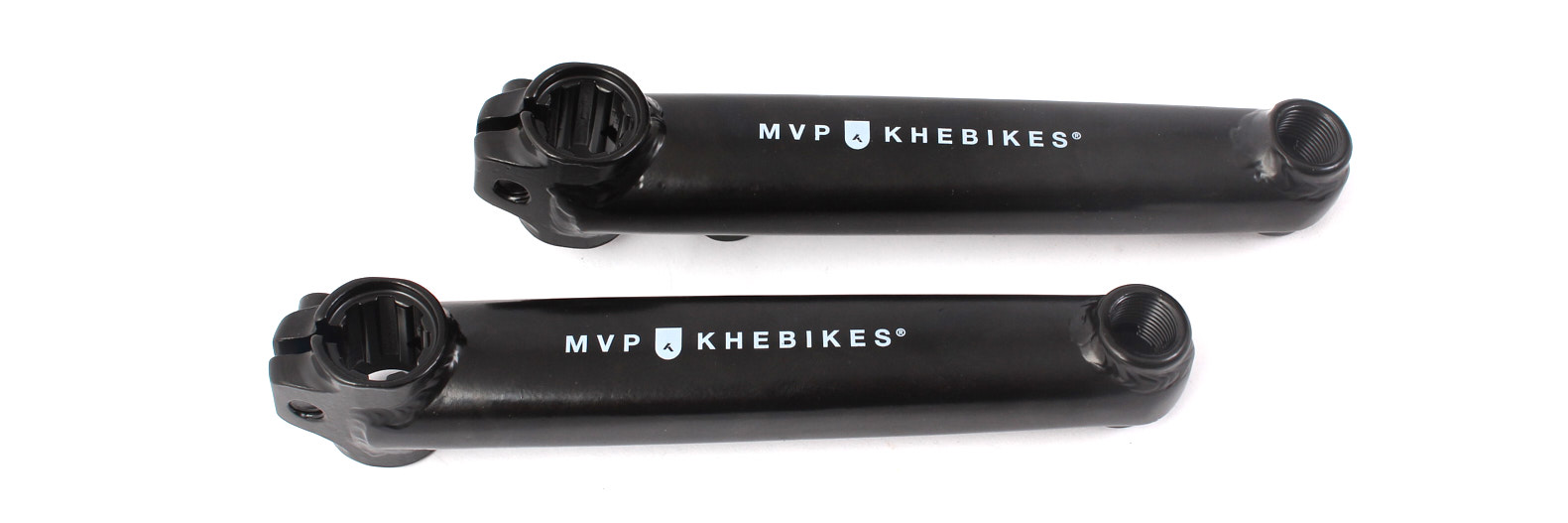

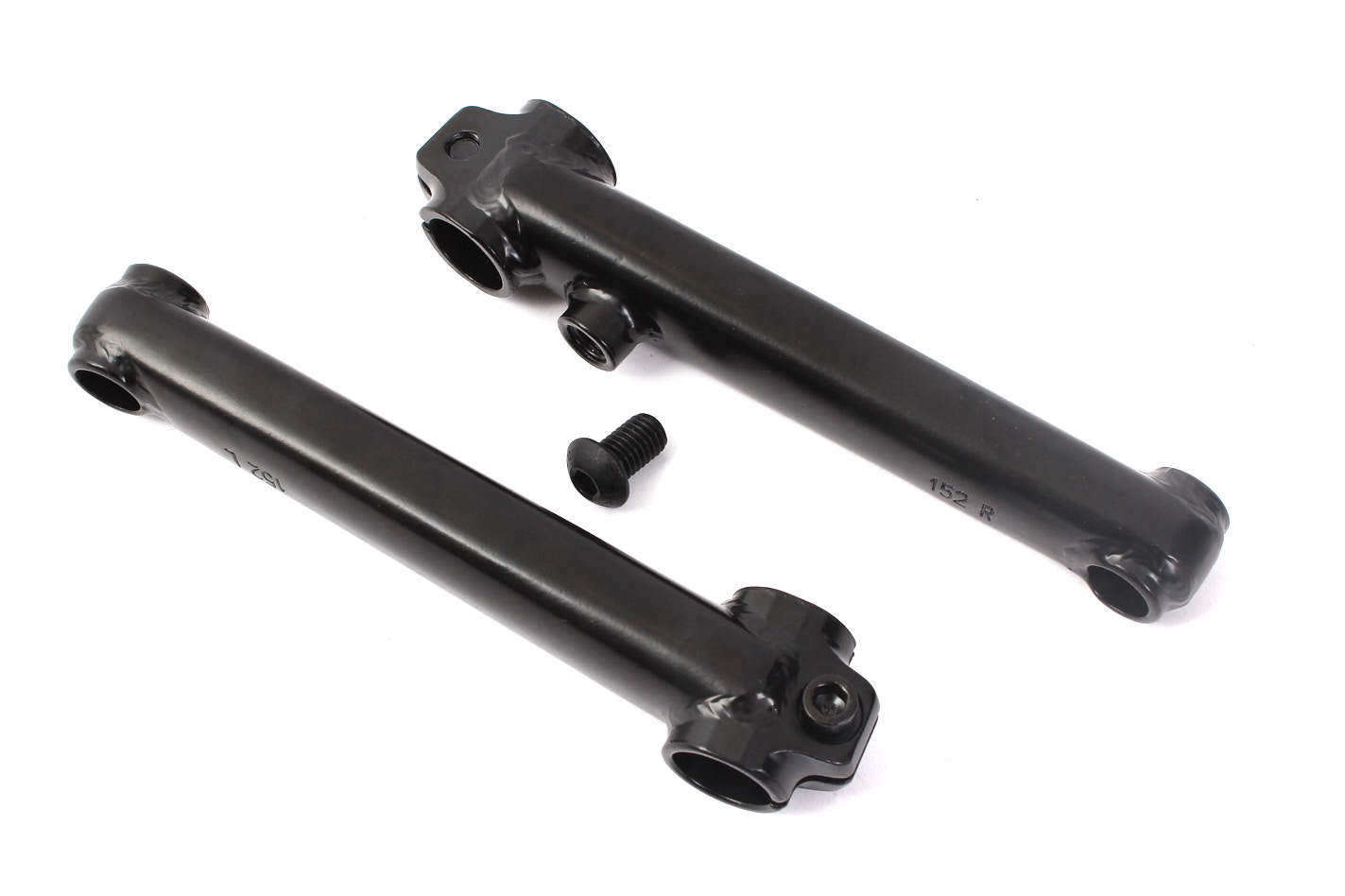

KHE MVP crank arms 8 teeth
Very high quality welded 4130 CrMo steel crank arms of the MVP series, which are 152mm long and fit all 8 tooth 19mm axles. Crank arm length is perfect for 18 inch BMX bikes & also BMX Flatland bikes.
| Axle diameter: | 0.75 " / 19mm |
|---|---|
| Colour: | Black |
| Length: | 5.98" / 152mm |
| Material: | CrMo |
| Size: | for 9/16" pedals |
| Teeth: | 8T |
| Weight: | 1.38 lbs / 628g |
Ensure Compatibility:
These crank arms are exclusively designed for use on BMX bikes.
Only use them on bicycles compatible with a three-piece BMX crankset.
Installation: Thoroughly clean the bottom bracket shell and insert the bearings with a bit of grease. Insert the crank axle through the bearings, attach the chainring using the provided bolts, and tighten them evenly. Finally, remove excess grease, check the crank for free movement, and test the functionality with a short ride.
Care and Maintenance:
Regularly clean the crankset and grease the bearings as needed. Check bolts and bearings for tightness and wear.
Replace When Worn: Replace the crank immediately if it shows signs of wear, uneven usage, cracks, or damage.
