BMX crank set KHE 22 48T MID BB 170mm

$59.95*

% $109.36* (45.18% saved)

Available, delivery time: 5-10 business days **

The crankset made of 4130 CrMo steel is very easy to mount. The scope of delivery includes crank arms with axle and MID BB bottom bracket as well as a chainring bolt.
Product number: M359380
EAN: 4260640291428
Product information "BMX crank set KHE 22 48T MID BB 170mm"



KHE 22 Crank with 22mm Hollow Axle

The KHE 22 crank is extremely lightweight and durable thanks to its 22mm hollow axle and square arms! It’s a so-called 2.5-piece crank, as the axle is already fixed to one side. This makes it very easy to install. Due to its flat surfaces, this crank is also ideal for crank grinds. A MID BB bottom bracket (sealed precision bearings) is included. The KHEbikes logo is laser-etched. Crank arms and axle weigh only 1.8 lbs (816g)! Both arms and axle are made from high-quality 4130 CrMo steel.

Overview of specifications:

  • Brand: KHEbikes
  • Model: 2.5 / 22mm / 48 spline / 170mm (6.7")

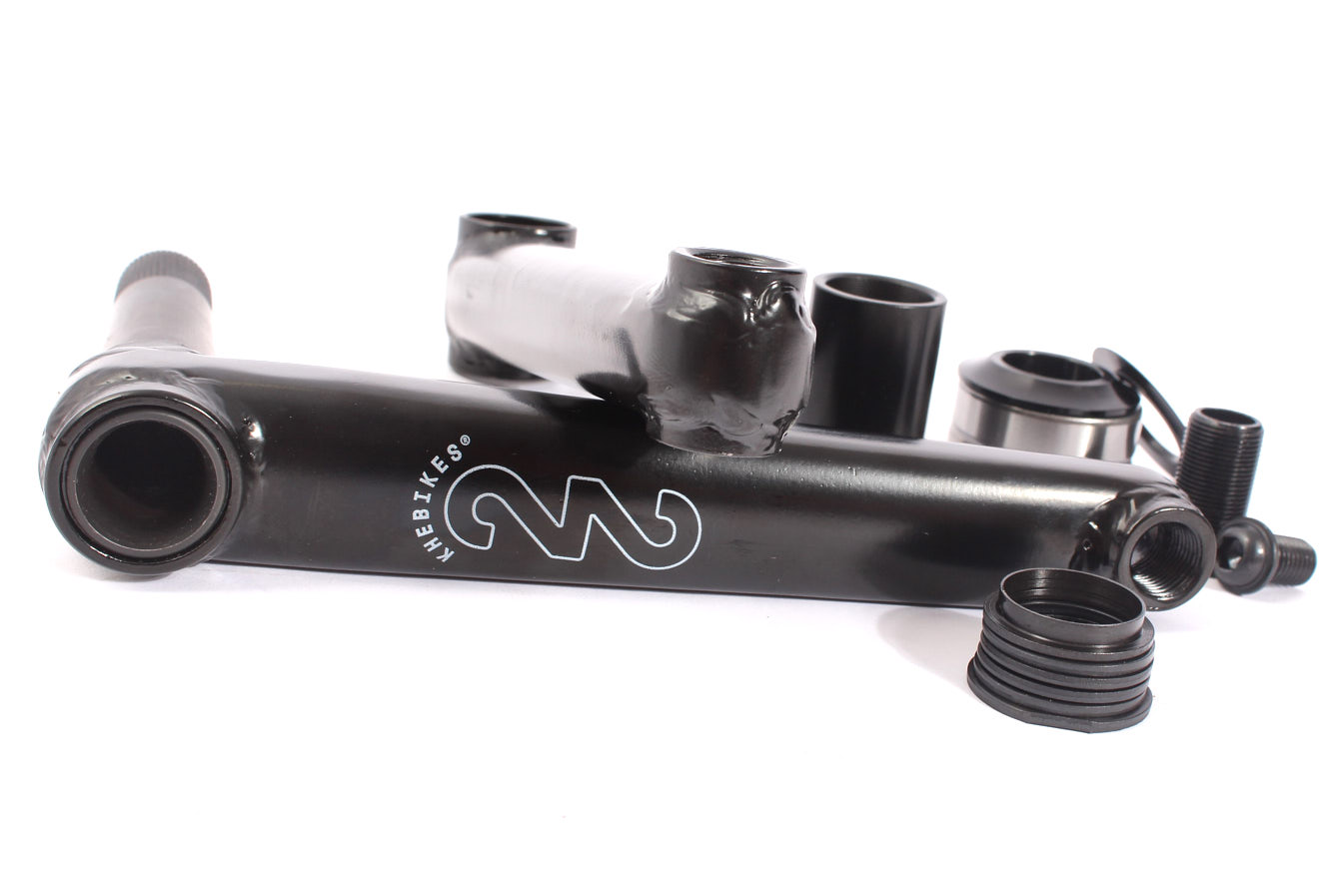

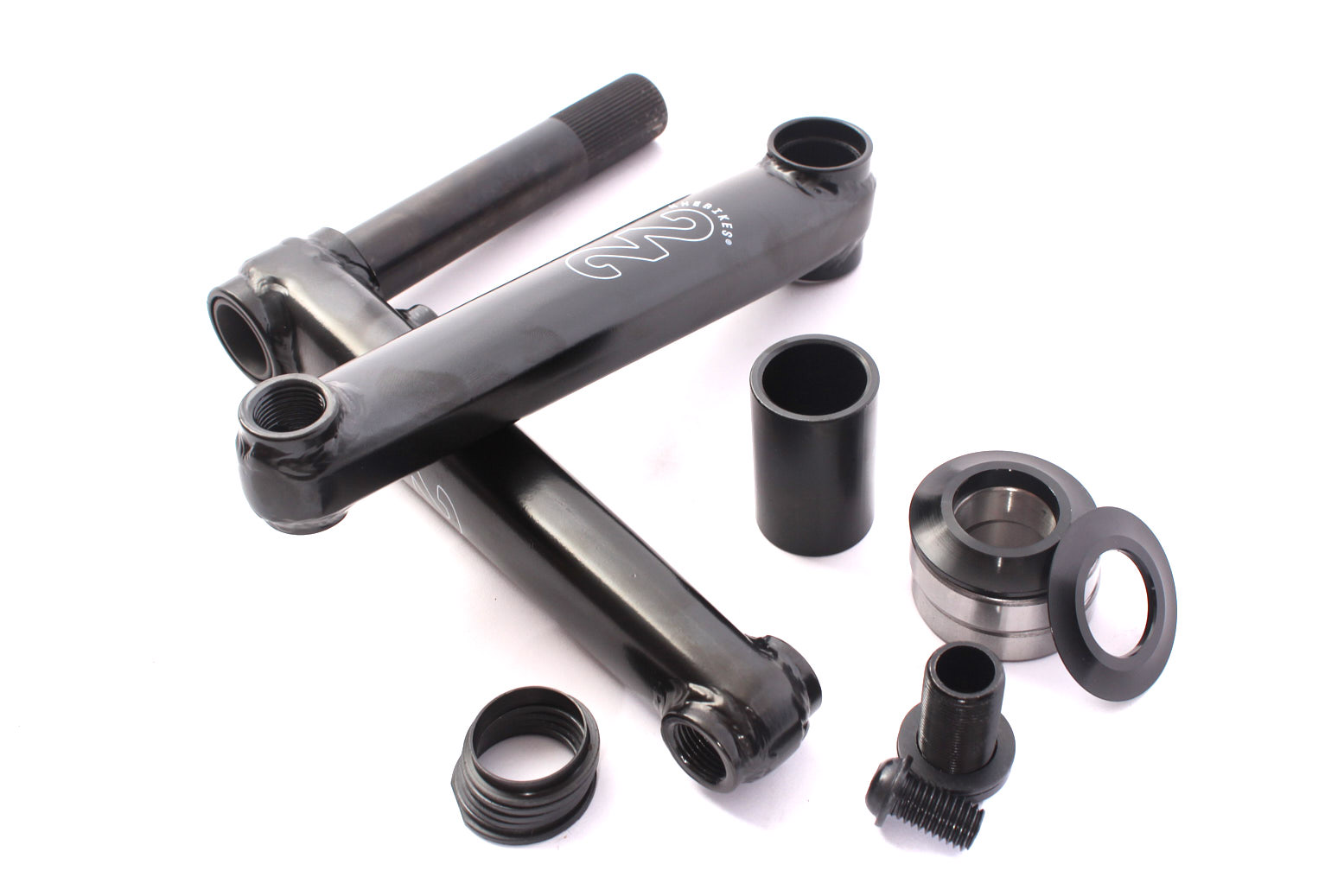

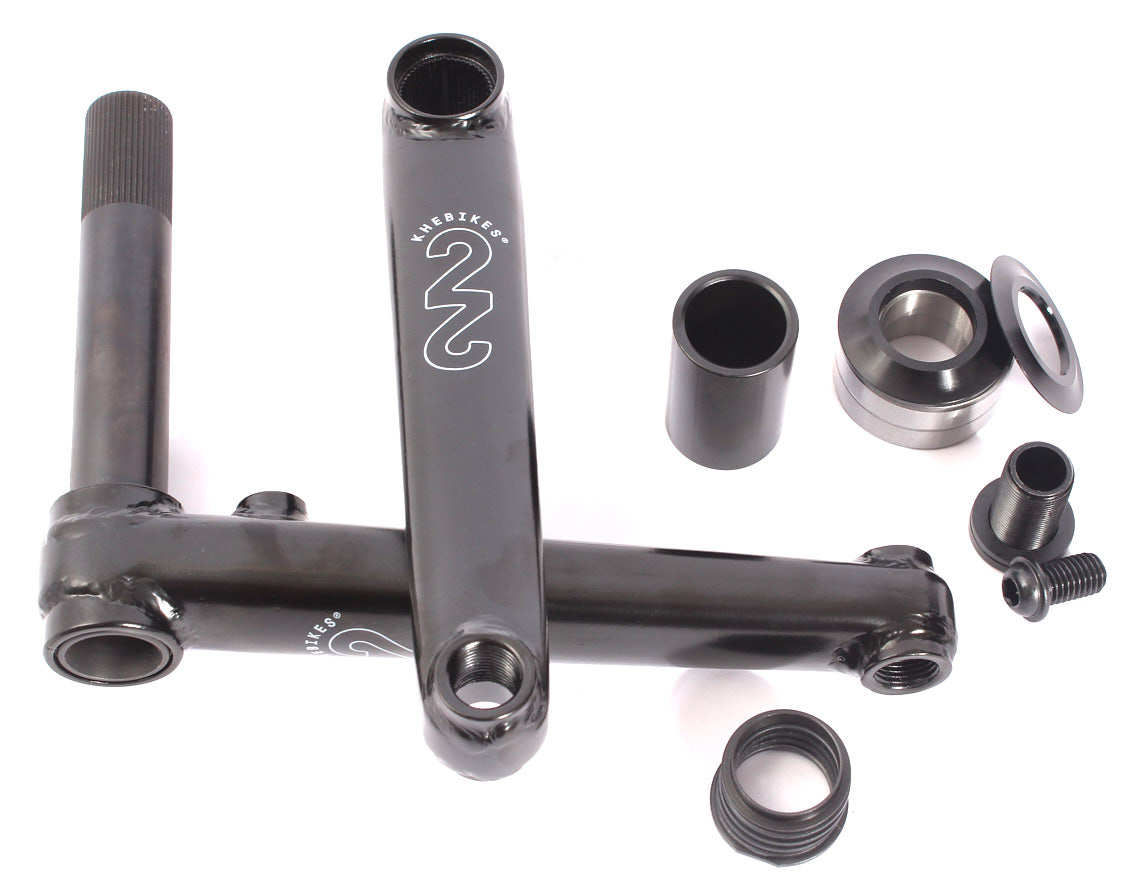

  • Included: Crank arms with axle and MID BB bottom bracket
  • Material: 100% heat-treated 4130 CrMo
  • Axle: 22mm (0.87") with 48T splines, including adapter for Ø24mm chainrings
  • Arm length: 170mm (6.7")
  • Axle length: 150mm (5.9")
  • Bearing outer diameter: 41mm (1.61")
  • Includes chainring bolt
  • Weight (arms + axle): only 1.8 lbs (816g)
  • Colour: Black
  • For 9/16" inch pedals

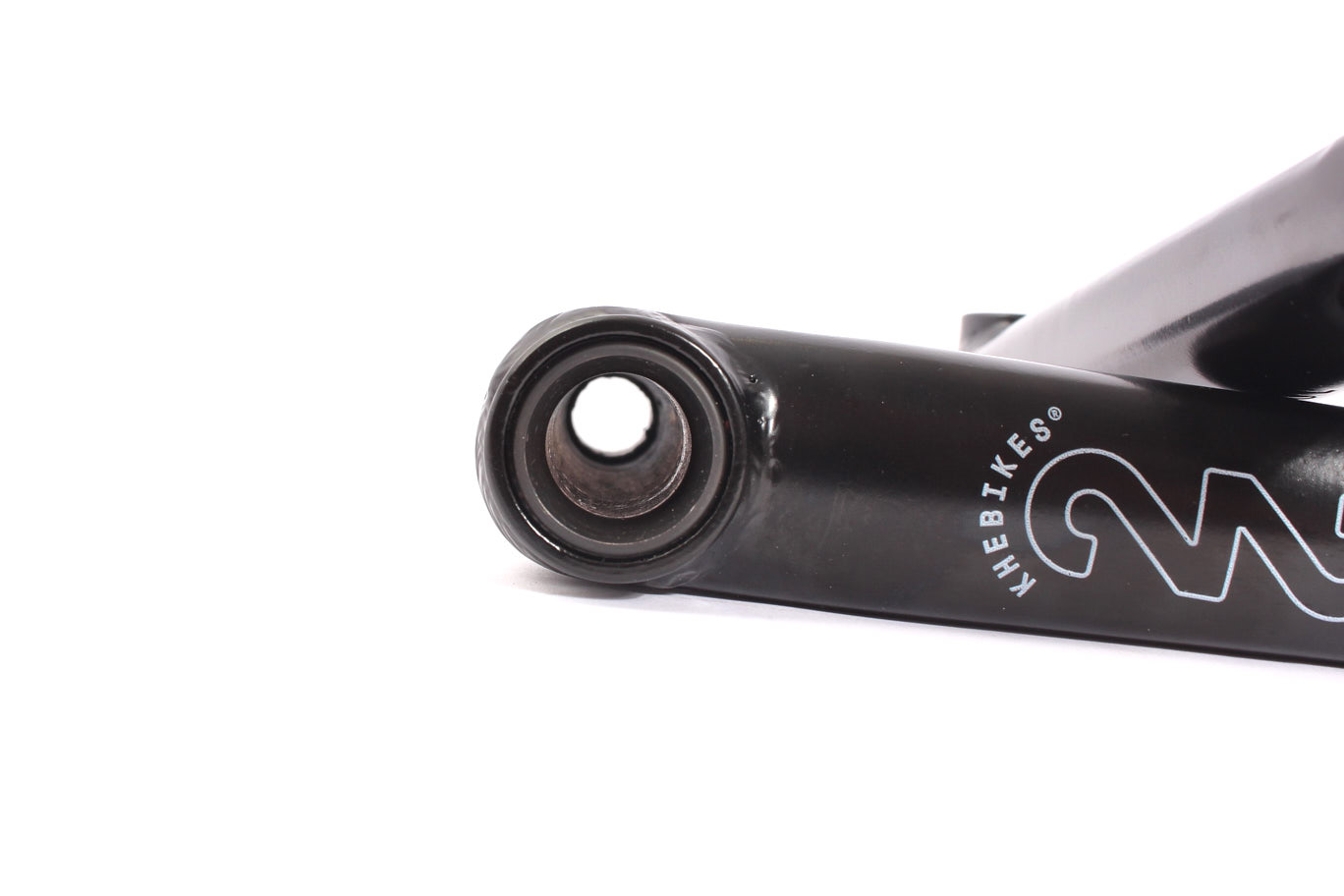

  • Laser-etched KHE logo
  • Top quality product from KHE!



Material: 4130 CrMo
Size: for 9/16" pedals
Colour: Black
Weight: 1.8 lbs / 816g
Axle diameter: 0.87 " / 22mm, 1.61" / 41mm
Axis length: 5.91" / 150 mm
Length: 6.69" / 170mm
Teeth: 48T

Product Safety Information for BMX Crank Set KHE 22 48T MID BB 170mm:

Ensure Compatibility: This crank set is designed exclusively for use on BMX bicycles. Use only on bicycles compatible with a three-piece BMX crank.

Installation: Thoroughly clean the bottom bracket shell and insert the bearings with a small amount of grease. Pass the crank spindle through the bearings, attach the chainring using the provided screws, and tighten them evenly. Finally, remove excess grease, check the crank for smooth rotation, and test the functionality with a short test ride.

Care and Maintenance: Clean the crank regularly and lubricate the bearings as needed. Check screws and bearings for proper tightness and wear.

Replace When Worn: Replace the crank immediately if you notice wear, uneven degradation, cracks, or damage.
