$32.95*
% $63.77* (48.33% saved)Available, delivery time: 5-10 business days **

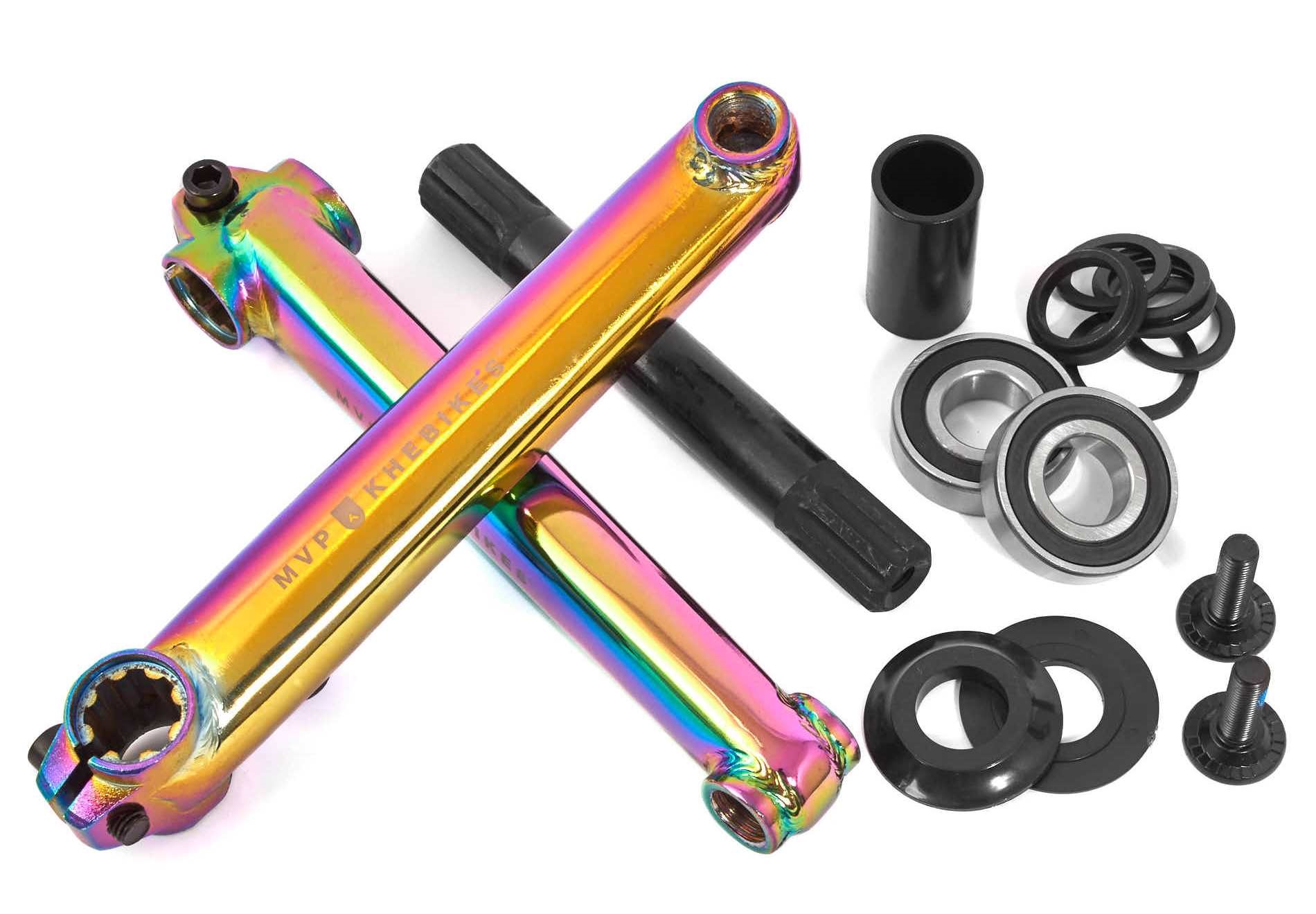

KHE crankset with Oil Slick finish – 6.7" arms and MID precision bearings
The new KHE MVP crank is perfect for upgrading the look of your BMX bike. The arms and axle of this hollow crank are made from high-quality 4130 CrMo steel. It features MID precision sealed bearings. Thanks to the 8-spline design, the crank is easy and quick to install.
Overview of specifications:
- Brand: KHE

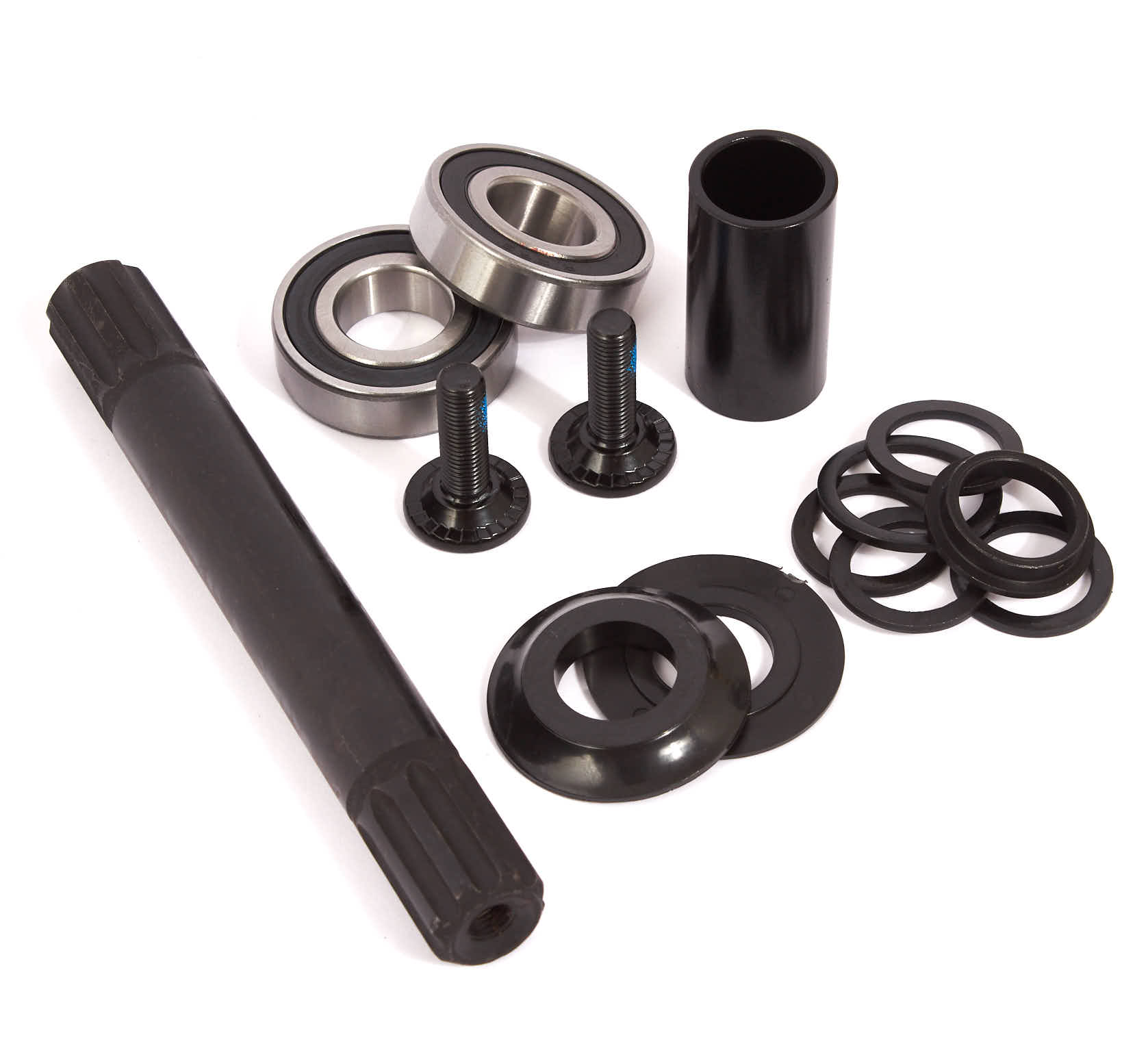

- Axle: 4130 CrMo, 19mm (0.75") diameter, 150mm (5.9") long, includes adapter for Ø24mm chainwheels

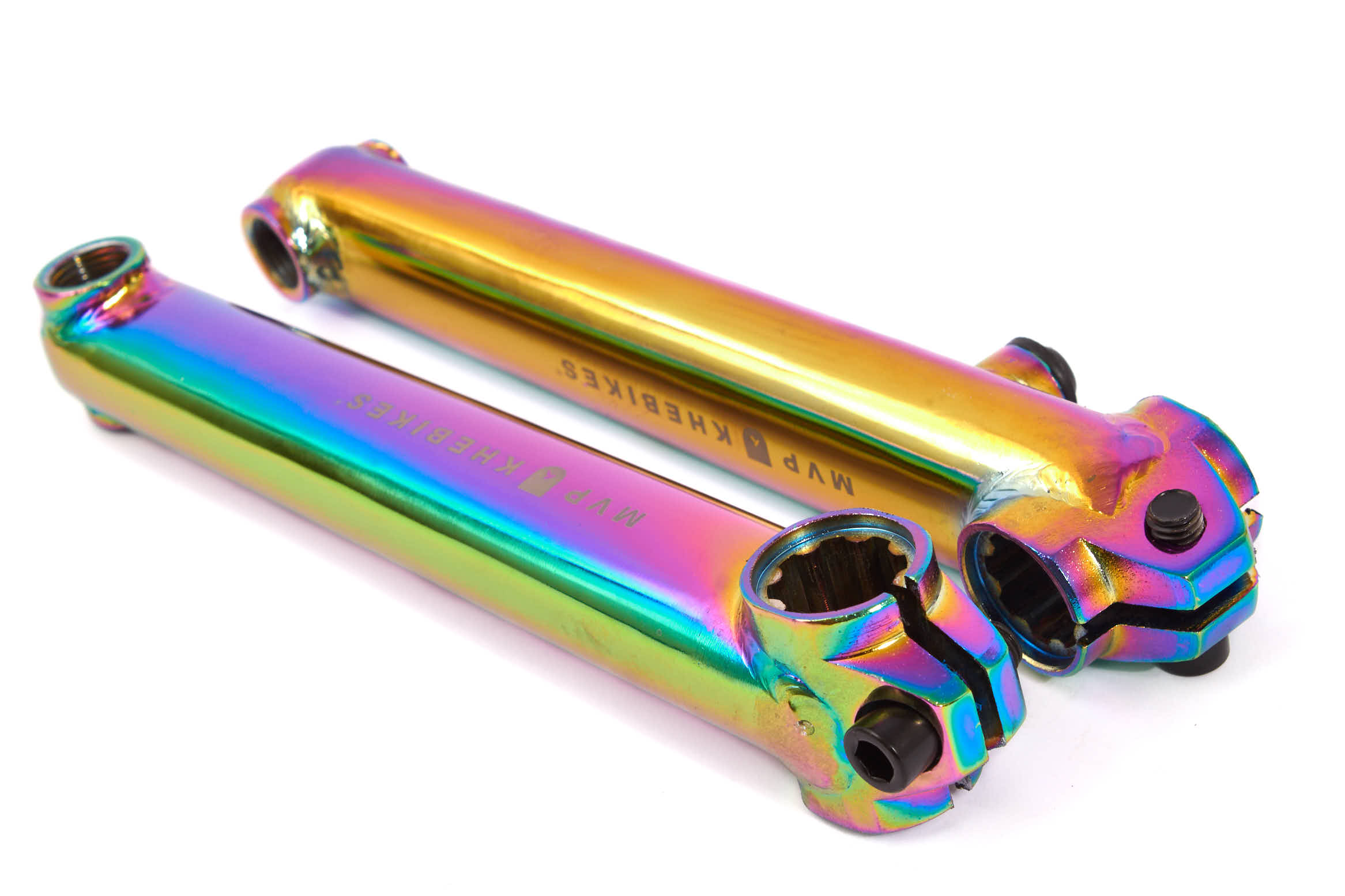

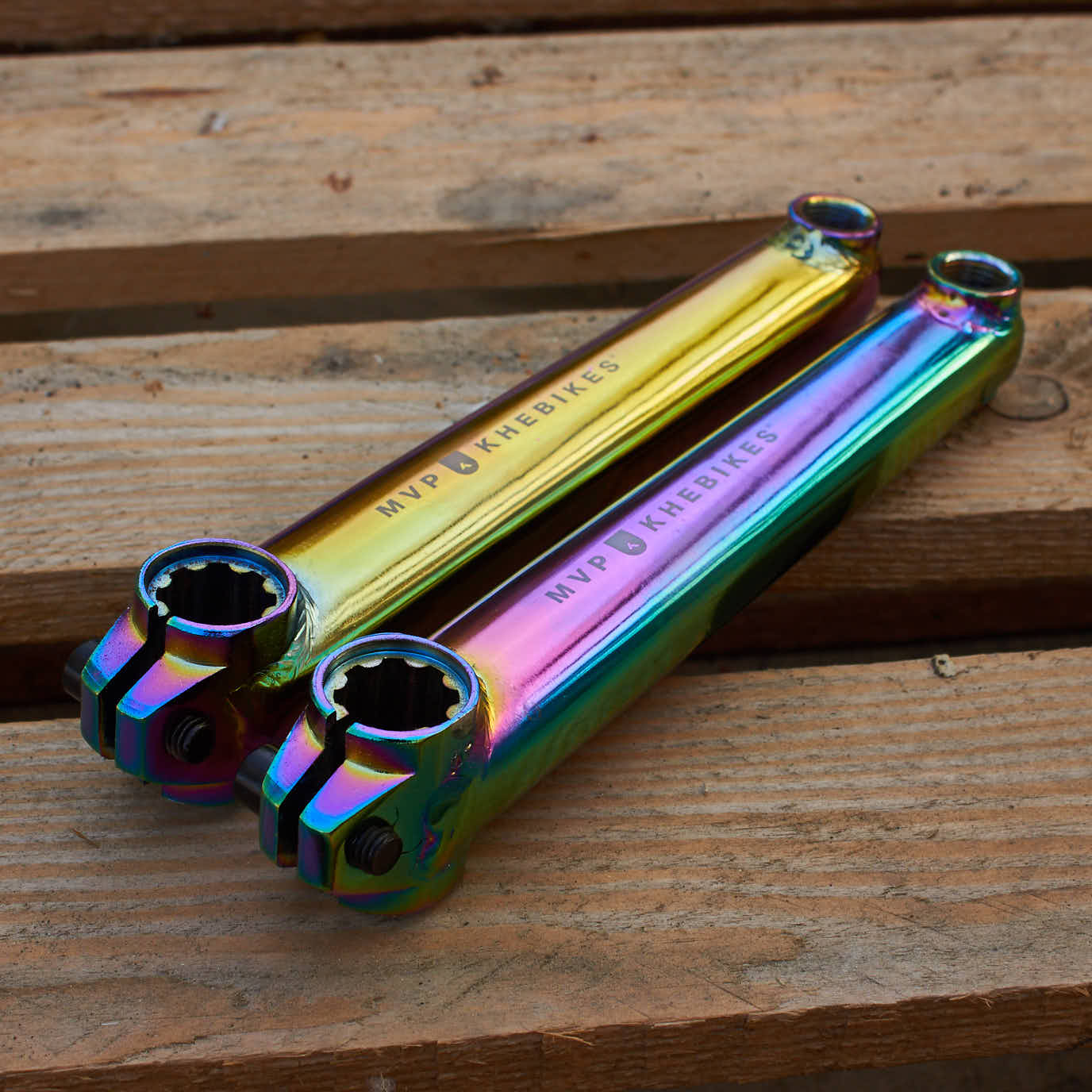

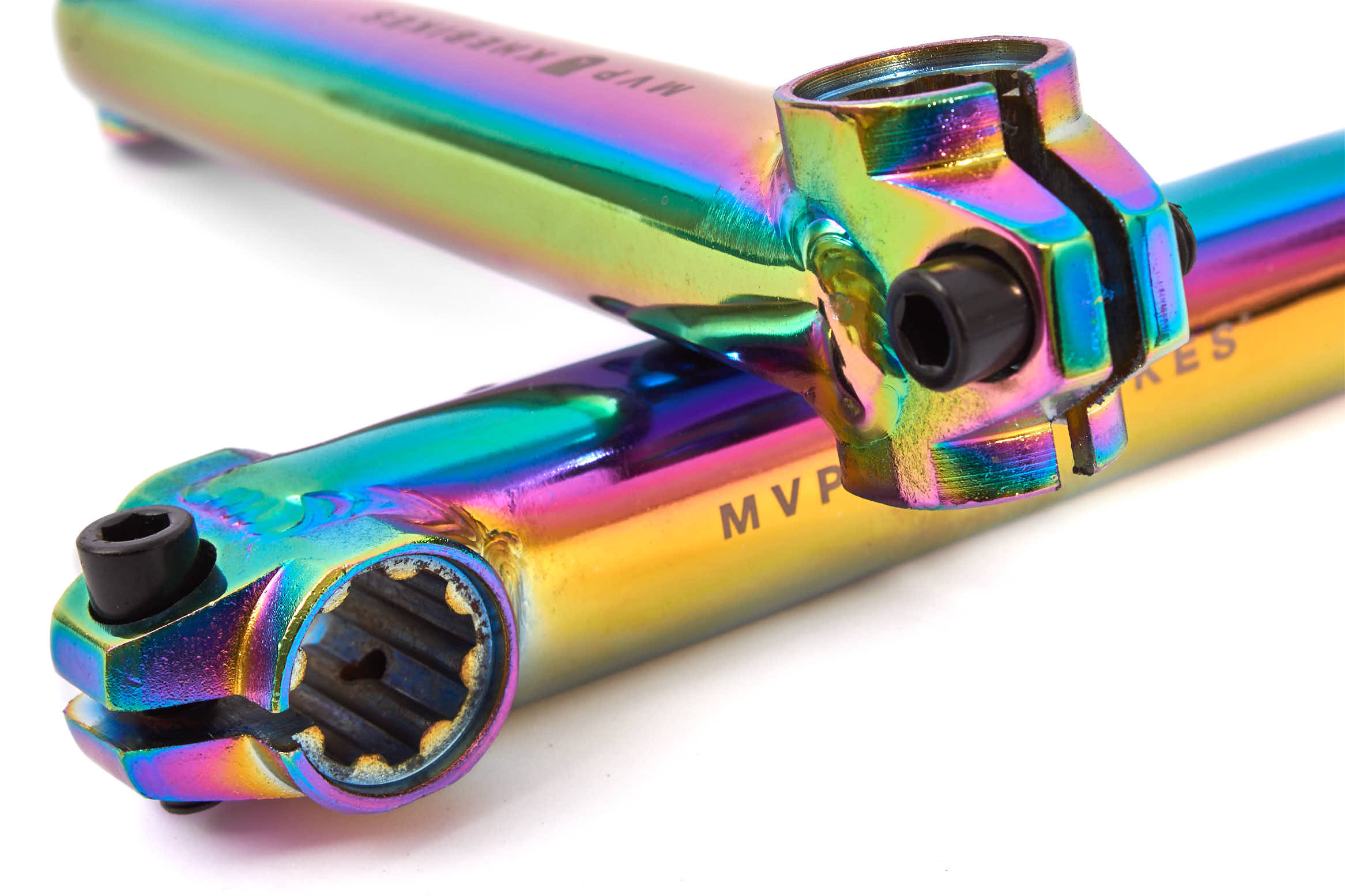

- Crank arms: Hollow arms made from 4130 CrMo steel
- Arm length: 170mm (6.7")
- Bearings: Sealed industrial MID bearings
- Outer bearing diameter: 41mm (1.61")
- KHE MVP laser logo
- Colour: Oil Slick finish
- Total weight: only 1142g (2.52 lbs)
- Fits 9/16" pedals
- Top product by KHE!
| Bottom bracket: | MID BB |
|---|---|
| Material: | 4130 CrMo |
| Size: | for 9/16" pedals |
| Colour: | Oil slick |
| Weight: | 2.52 lbs / 1142g |
| Axle diameter: | 0.75 " / 19mm, 1.61" / 41mm |
| Axis length: | 5.91" / 150 mm |
| Length: | 6.69" / 170mm |
| Teeth: | 8T |
Ensure Compatibility:
This crank set is designed exclusively for use on BMX bicycles. Use only on bicycles compatible with a three-piece BMX crank.
Installation: Thoroughly clean the bottom bracket shell and insert the bearings with a small amount of grease. Pass the crank spindle through the bearings, attach the chainring using the provided screws, and tighten them evenly. Finally, remove excess grease, check the crank for smooth rotation, and test the functionality with a short test ride.
Care and Maintenance:
Clean the crank regularly and lubricate the bearings as needed. Check screws and bearings for proper tightness and wear.
Replace When Worn: Replace the crank immediately if you notice wear, uneven degradation, cracks, or damage.
