$30.04*
% $45.54* (34.03% saved)Available, delivery time: 5-10 business days **

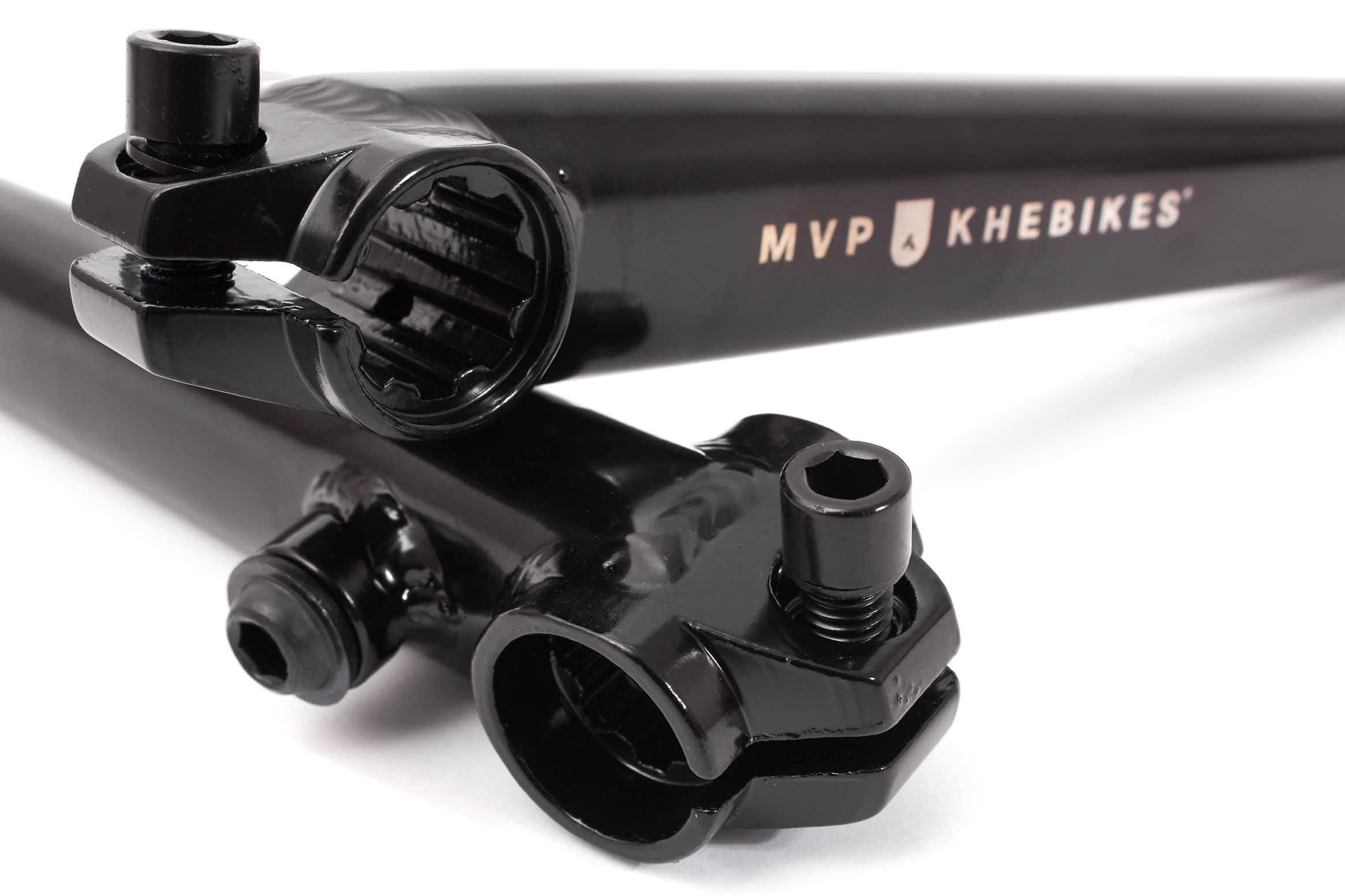

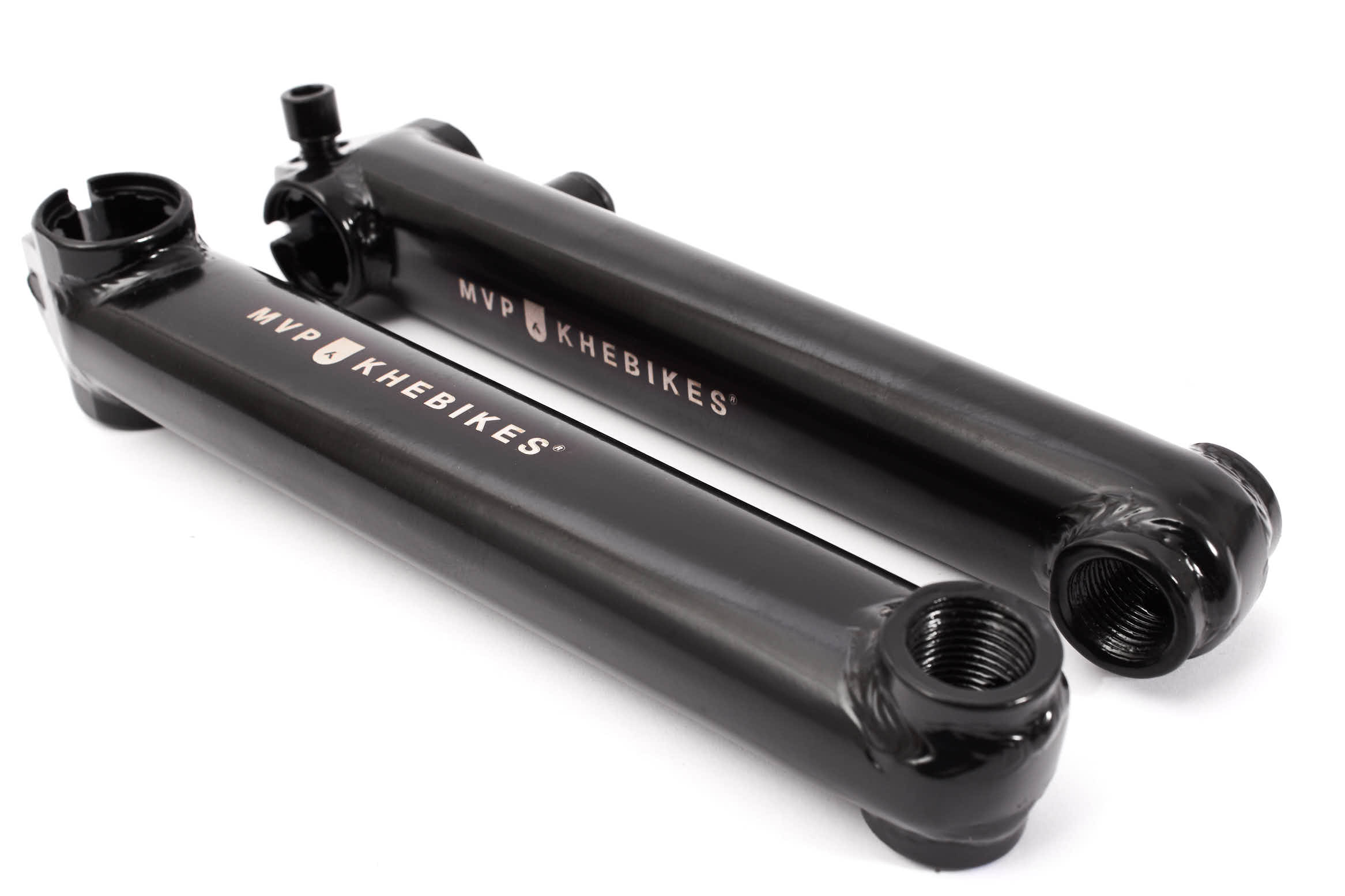

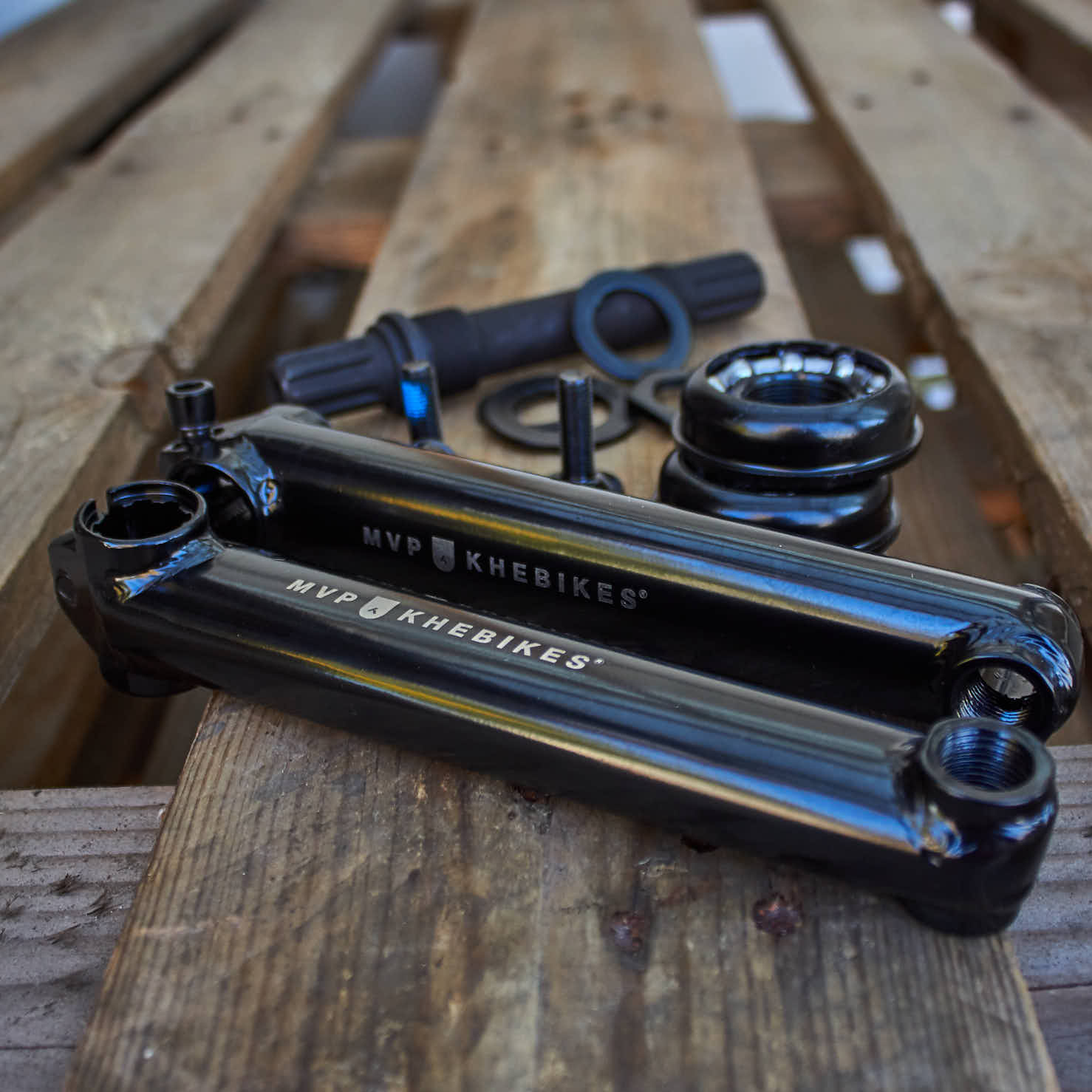

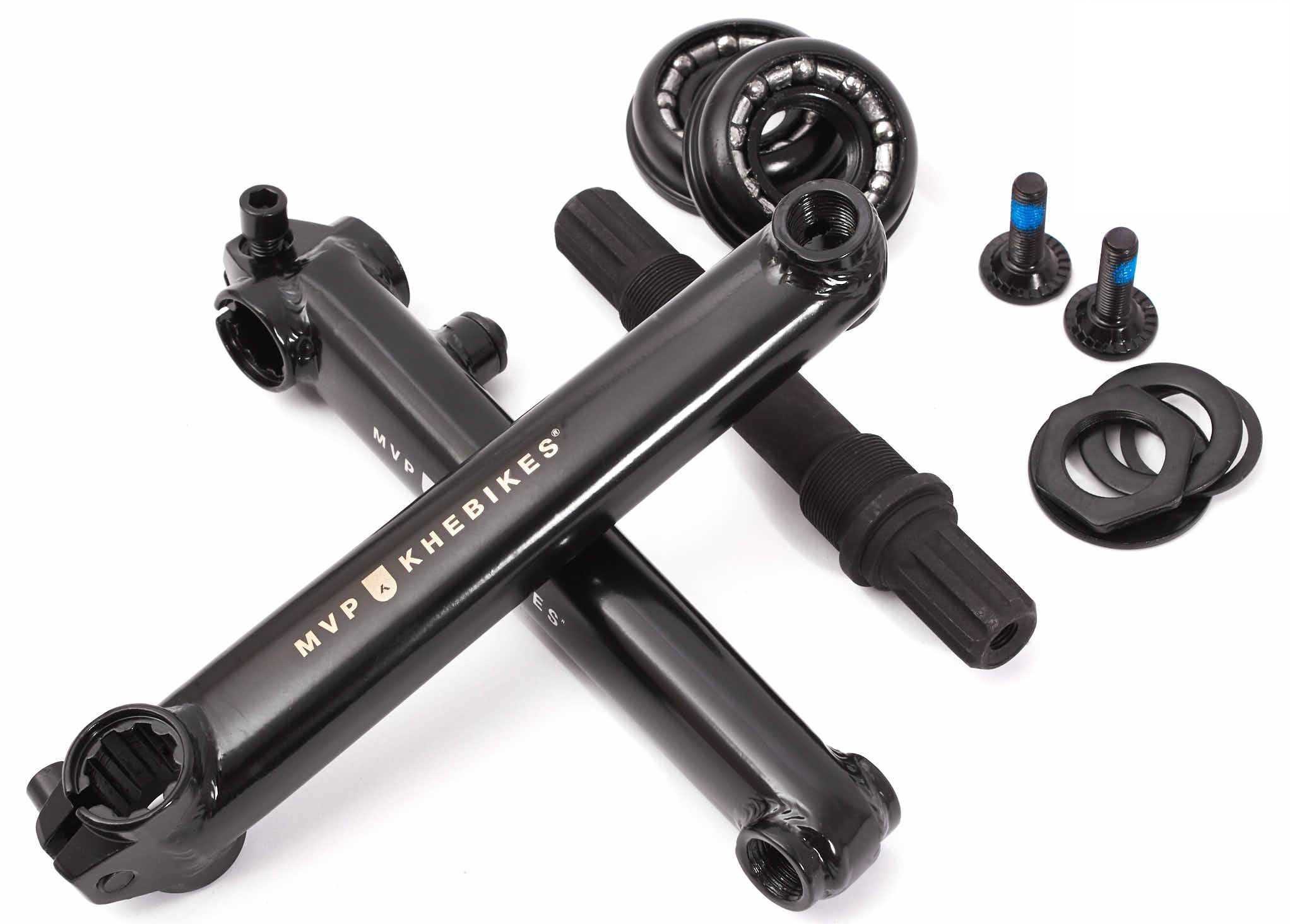

High-quality KHE crankset with 170mm long crankarms, a 19mm CrMo axle and a US BB bearing.
Our new KHE MVP crank is the perfect crank to push up your bike. It is a hollow axle and the arms / axle consist of high quality CrMo steel. As bearing we used a "loose ball" BB and because of its 8T gearing the crank can be assembled very easy and fast.
- HE MVP Laser Logo
- For 9/16" pedals

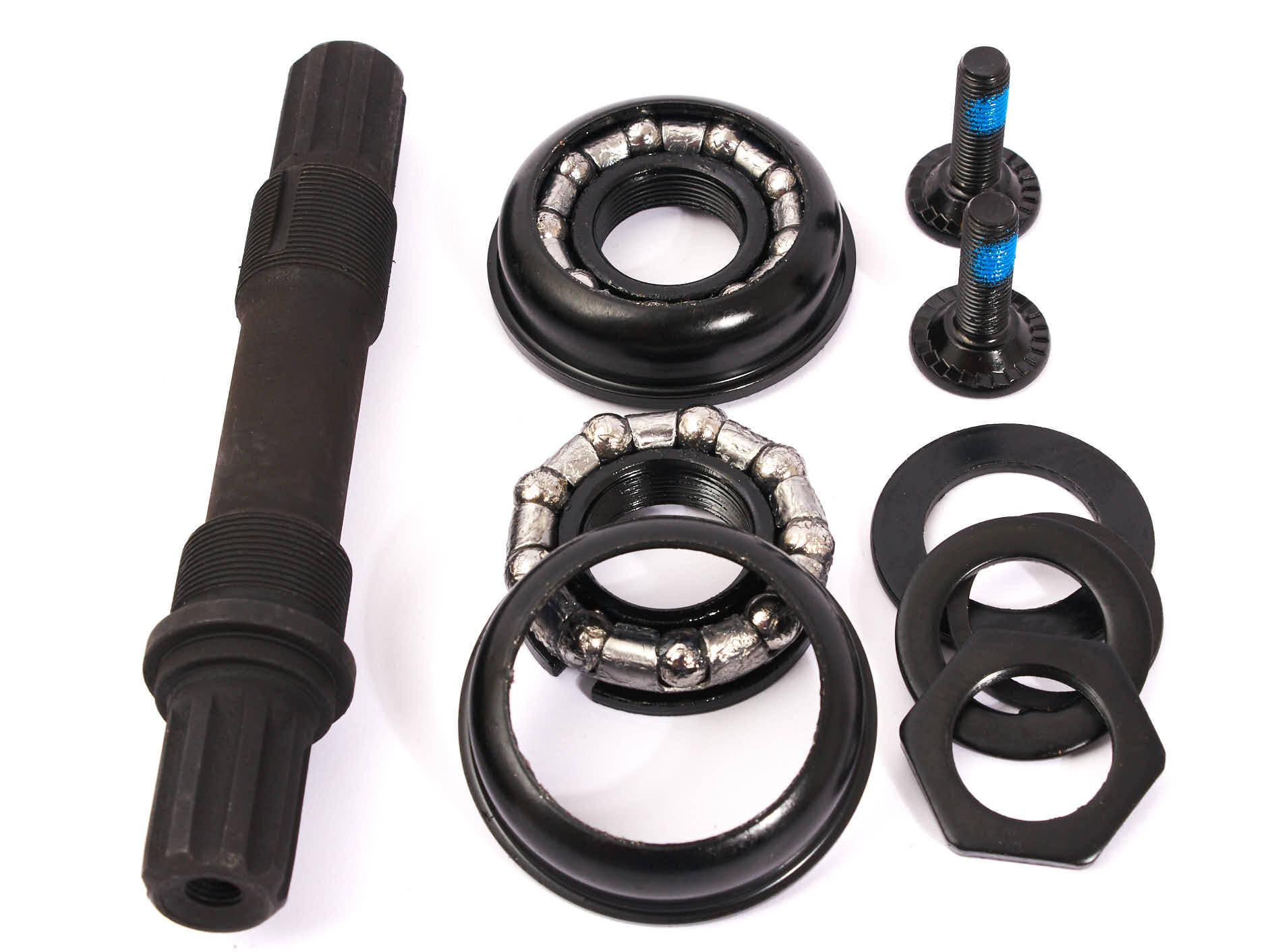

| Bottom bracket: | US-BB Loose Ball |
|---|---|
| Material: | 4130 CrMo |
| Size: | for 9/16" pedals |
| Colour: | Black |
| Weight: | 2.88 lbs / 1306g |
| Axle diameter: | 0.75 " / 19mm |
| Length: | 6.69" / 170mm |
| Teeth: | 8T |
Ensure Compatibility:
This crank set is exclusively designed for use on BMX bicycles. Use only on bicycles compatible with a three-piece BMX crank.
Installation: Thoroughly clean the bottom bracket shell and insert the bearings with a small amount of grease. Pass the crank spindle through the bearings, attach the chainring using the provided screws, and tighten them evenly. Finally, remove excess grease, check the crank for smooth rotation, and test the functionality with a short test ride.
Care and Maintenance:
Clean the crank regularly and lubricate the bearings as needed. Check screws and bearings for proper tightness and wear.
Replace When Worn: Replace the crank immediately if you notice wear, uneven degradation, cracks, or damage.
