$32.95*
% $54.66* (39.71% saved)Available, delivery time: 5-10 business days **

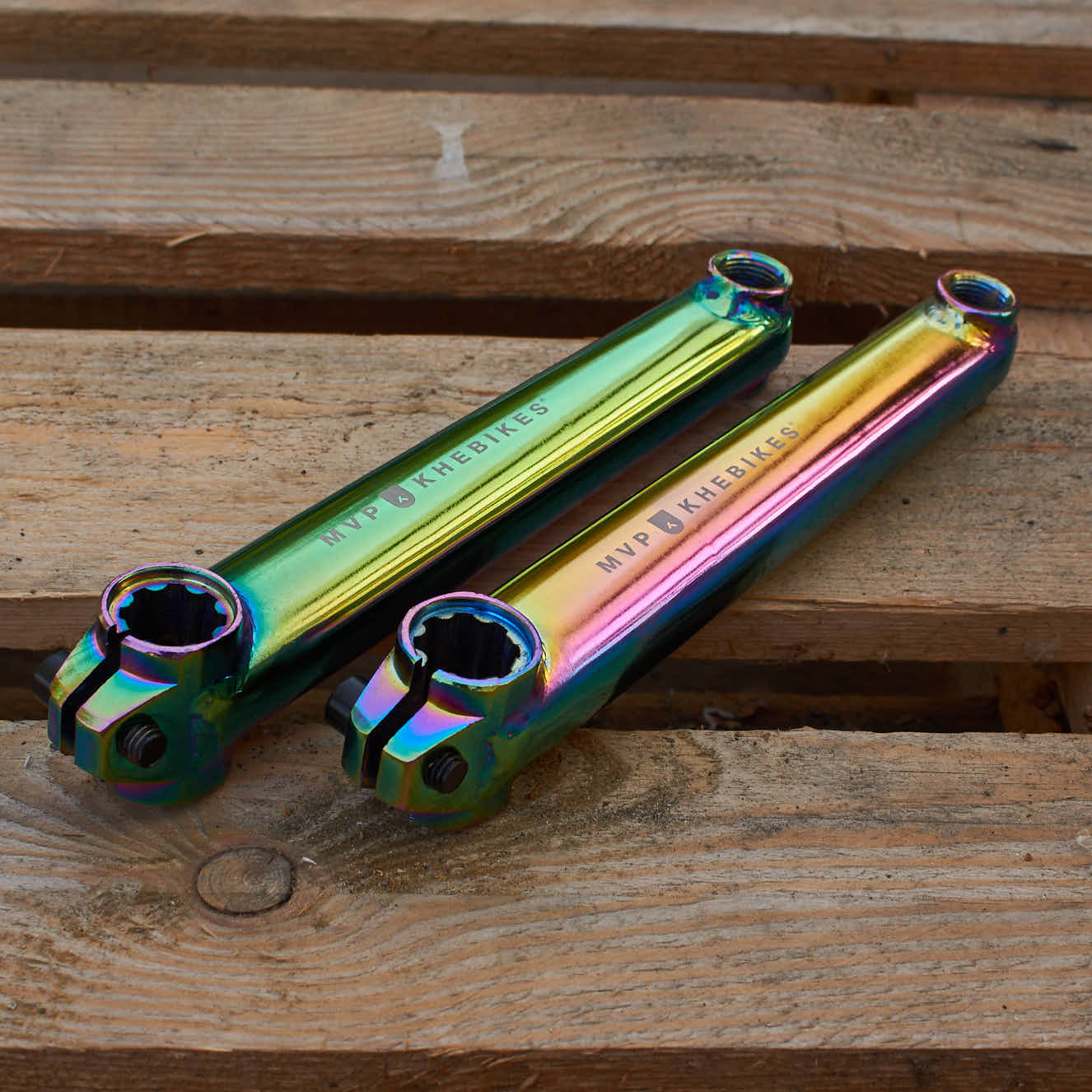

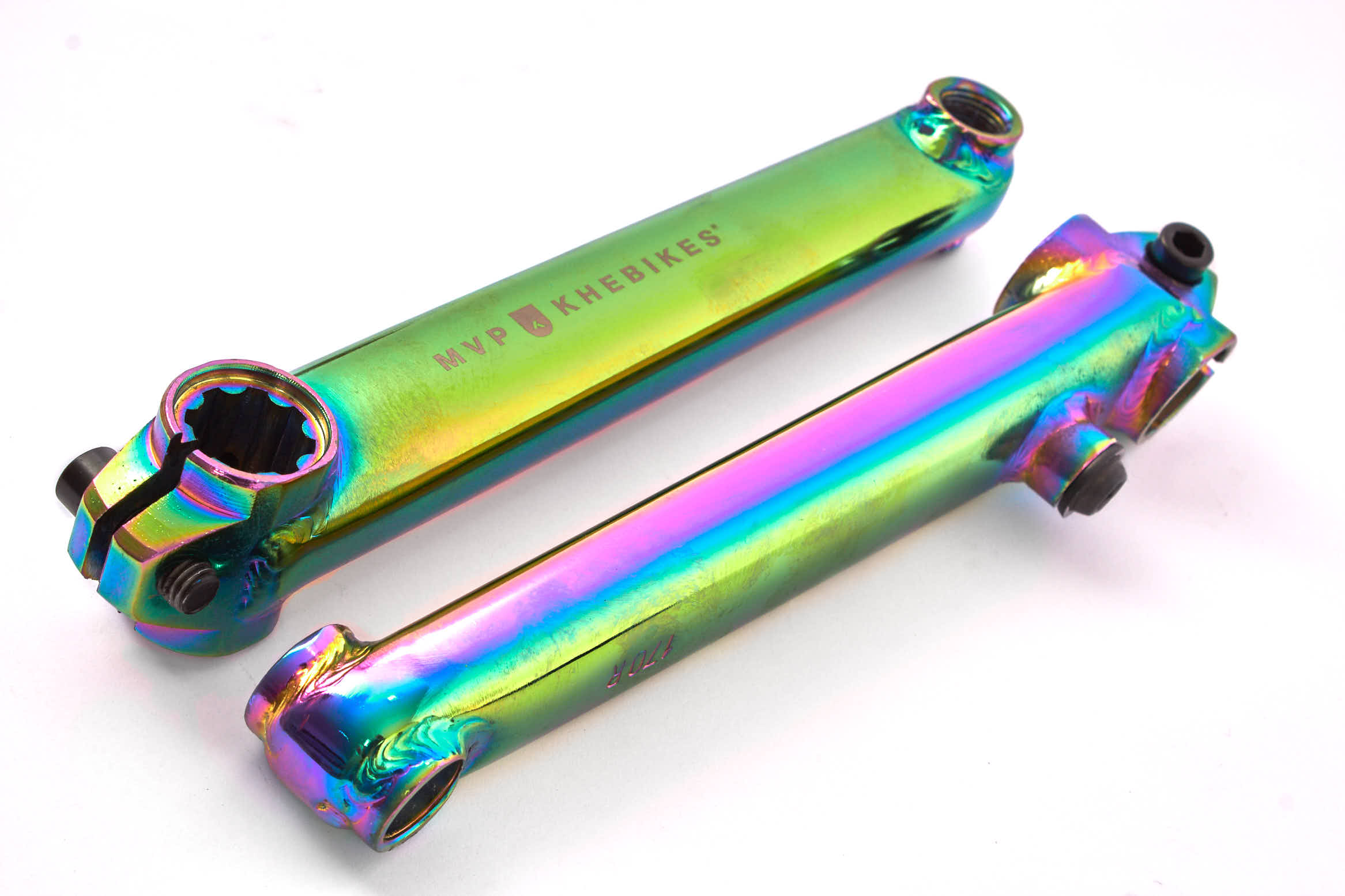

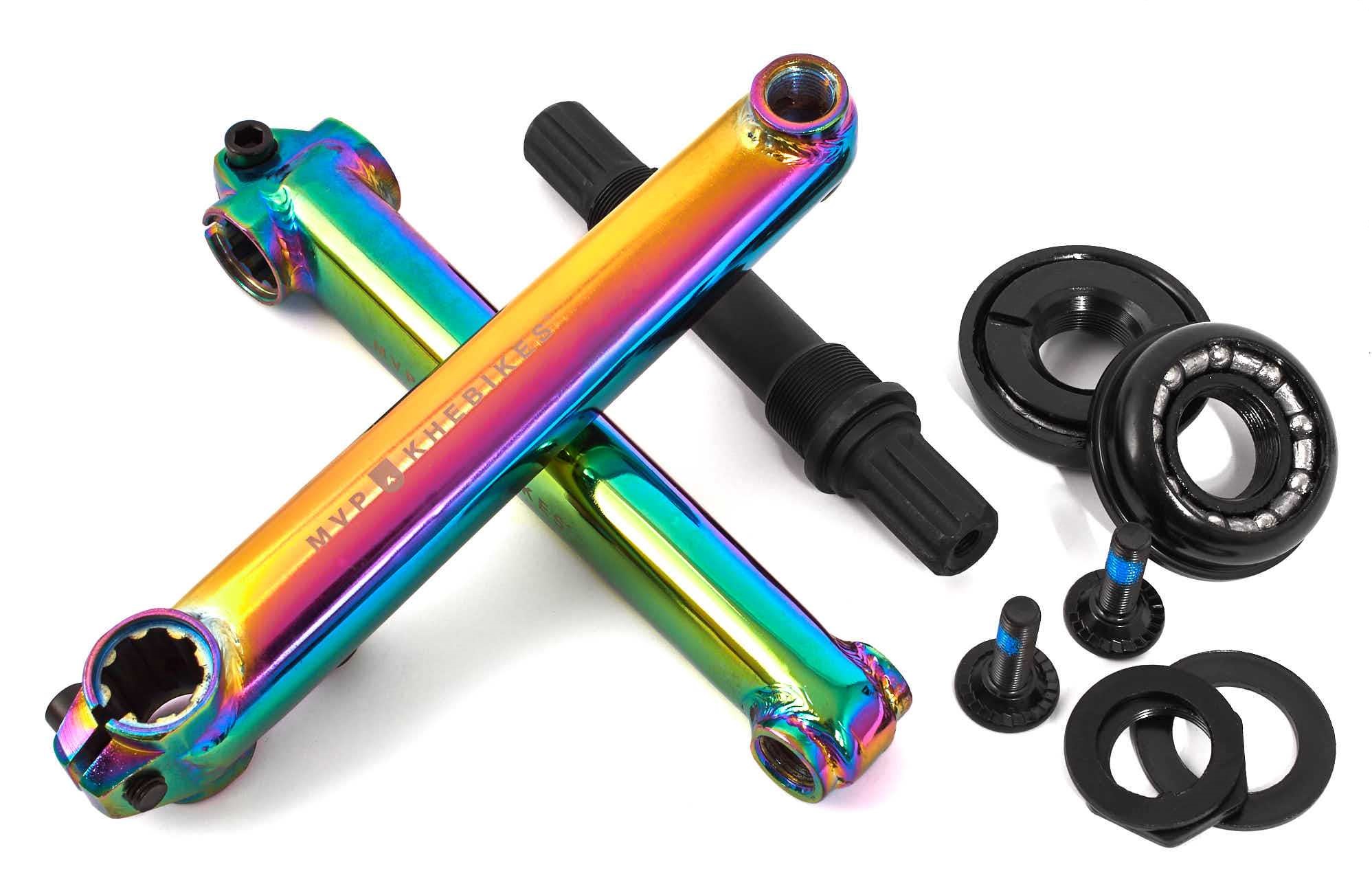

This premium KHE crankset with Oil Slick finish features 170mm (6.7 inch) long crank arms and an American (US BB) bottom bracket.

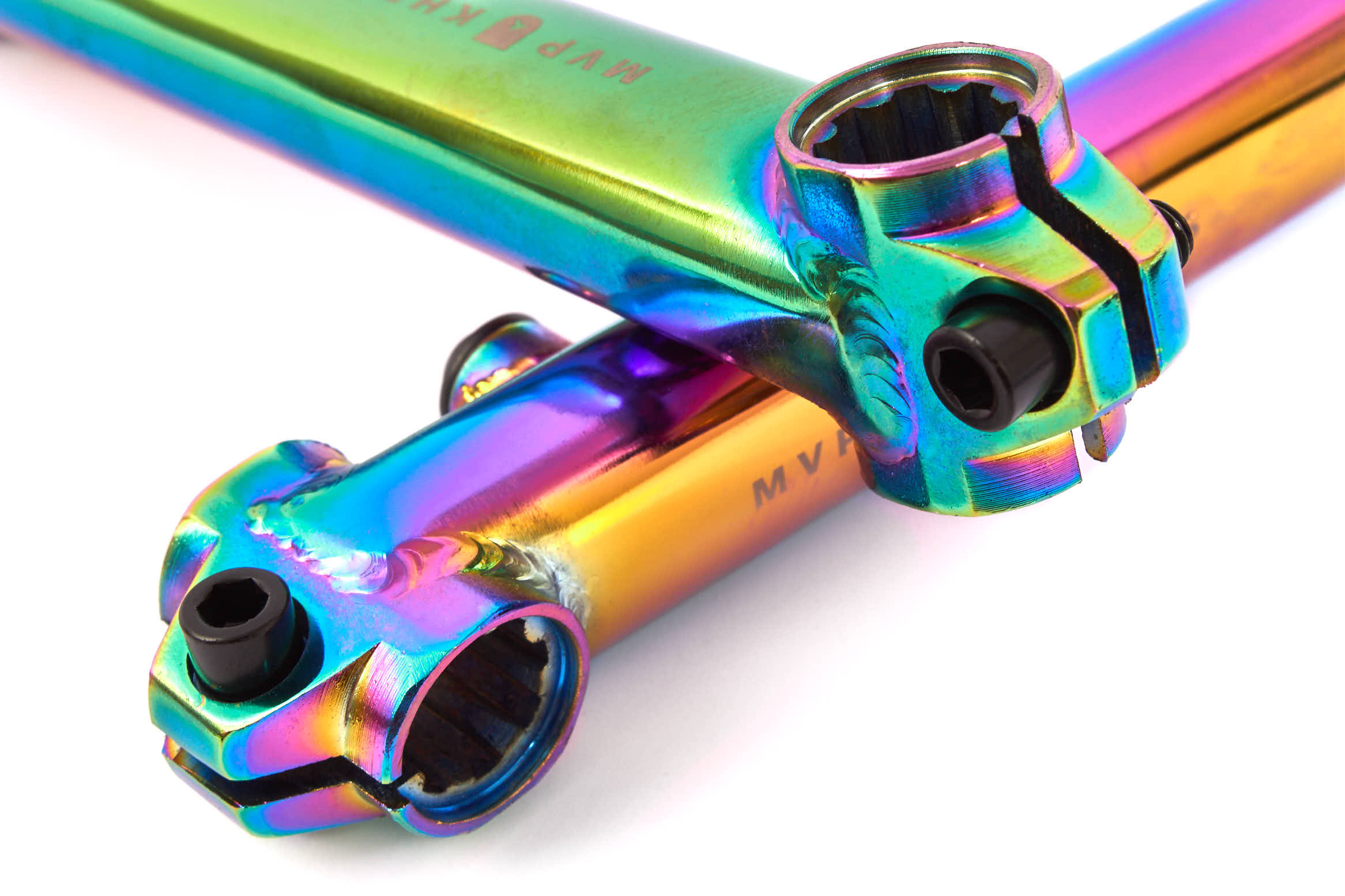

Our new KHE MVP crank is perfect for upgrading the look of your BMX. The hollow arms and axle are made of high-quality 4130 CrMo steel. It comes with US BB loose ball bearings. Thanks to the 8-spline design, this crank is very quick and easy to install.
Specifications at a glance:
- Brand: KHE

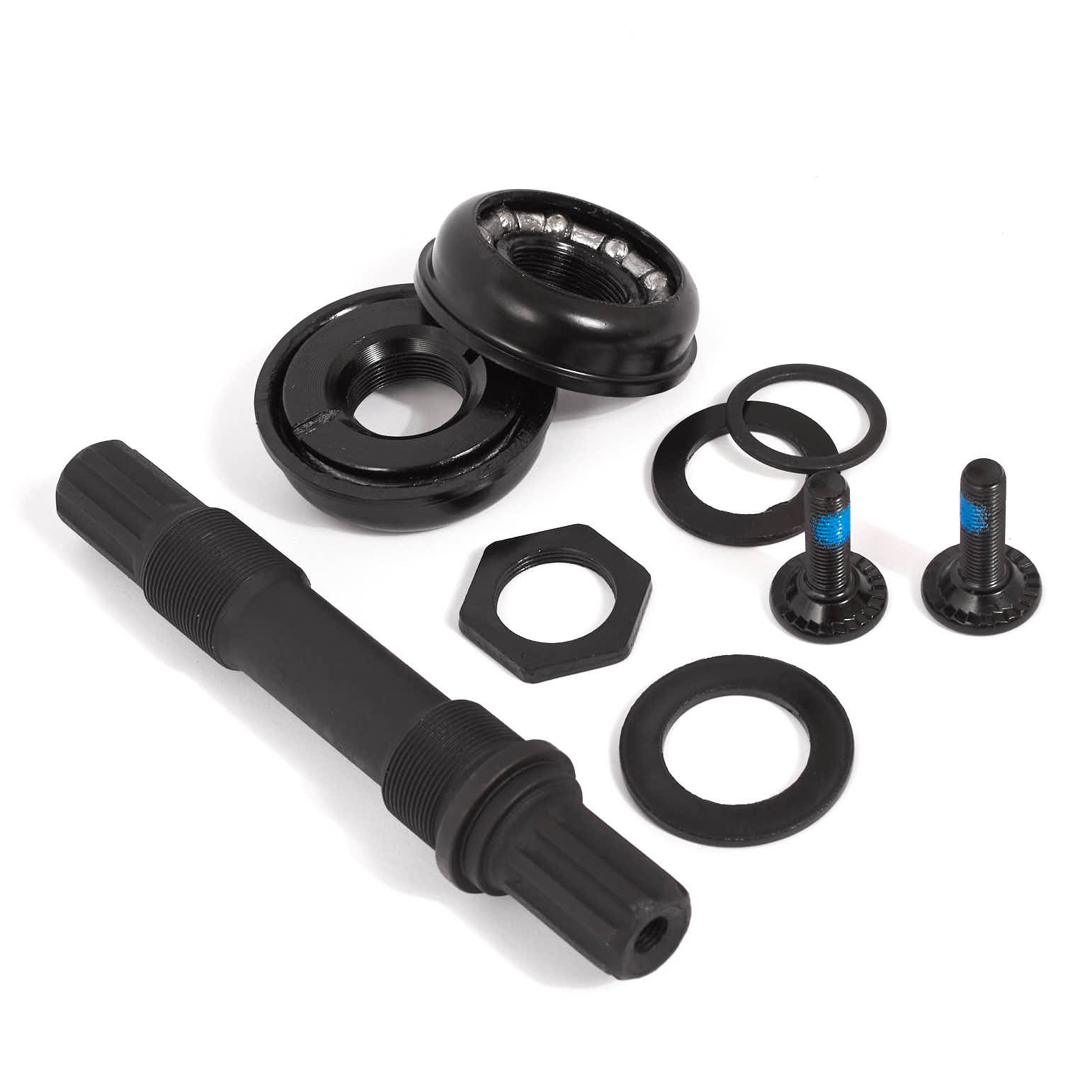

- Axle: 4130 CrMo 19mm (0.75 inch), incl. adapter for Ø24mm (0.94 inch) sprockets
- Crank arms: Hollow arms made of 4130 CrMo steel
- Arm length: 170mm (6.7 inch)
- Bottom bracket: American (US BB)
- KHE MVP laser logo
- Colour: Oil Slick finish
- Total weight: only 1306g (2.88 lbs)
- For 9/16" inch pedals
- Top product by KHE!
| Bottom bracket: | US-BB Loose Ball |
|---|---|
| Material: | 4130 CrMo |
| Size: | for 9/16" pedals |
| Colour: | Oil slick |
| Weight: | 2.88 lbs / 1306g |
| Axle diameter: | 0.75 " / 19mm |
| Length: | 6.69" / 170mm |
Ensure Compatibility:
This crank set is designed exclusively for use on BMX bicycles. Use only on bicycles compatible with a three-piece BMX crank.
Installation: Thoroughly clean the bottom bracket shell and insert the bearings with a small amount of grease. Pass the crank spindle through the bearings, attach the chainring using the provided screws, and tighten them evenly. Finally, remove excess grease, check the crank for smooth rotation, and test the functionality with a short test ride.
Care and Maintenance:
Clean the crank regularly and lubricate the bearings as needed. Check screws and bearings for proper tightness and wear.
Replace When Worn: Replace the crank immediately if you notice wear, uneven degradation, cracks, or damage.
