$24.95*
% $36.42* (31.5% saved)Available, delivery time: 5-10 business days **

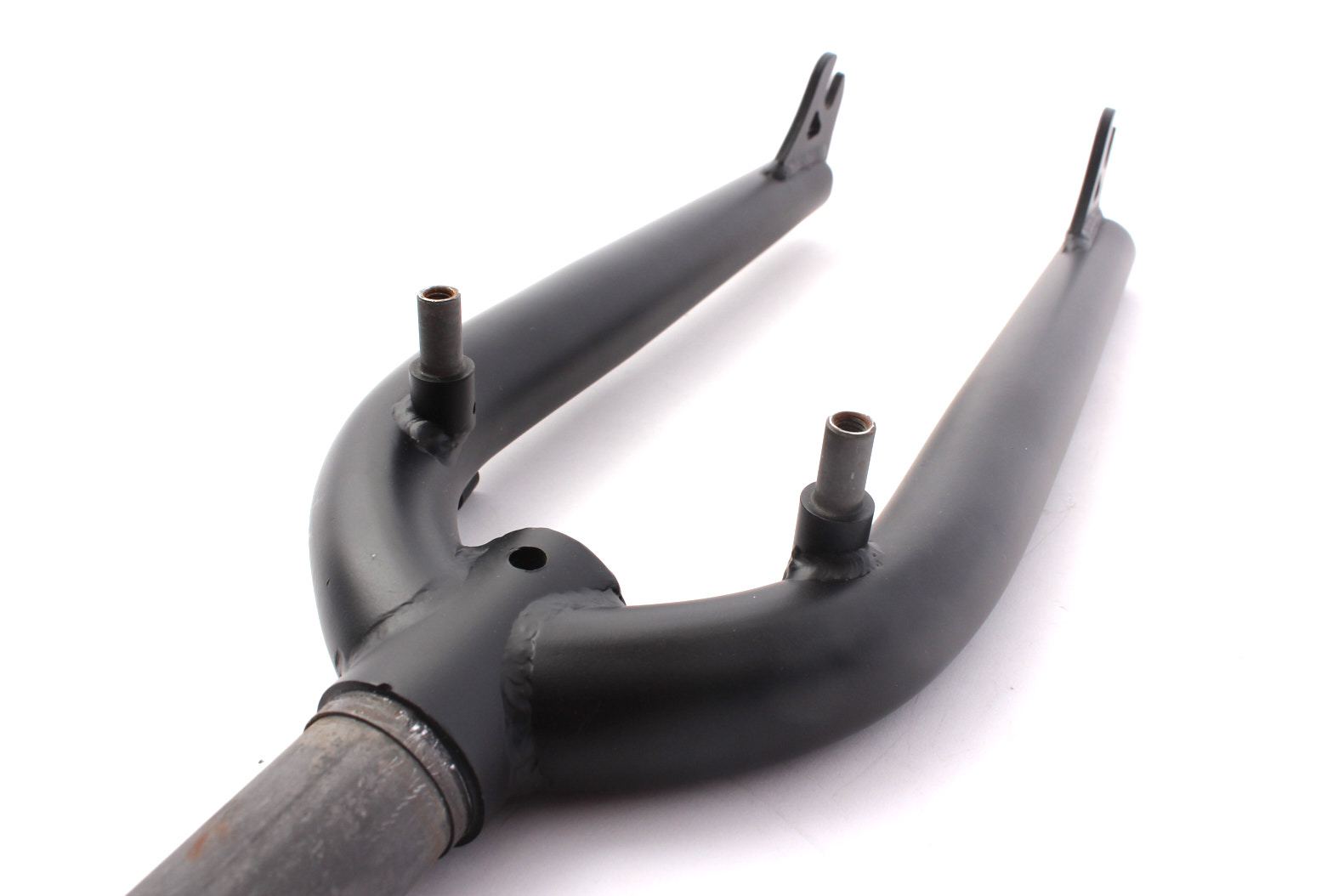

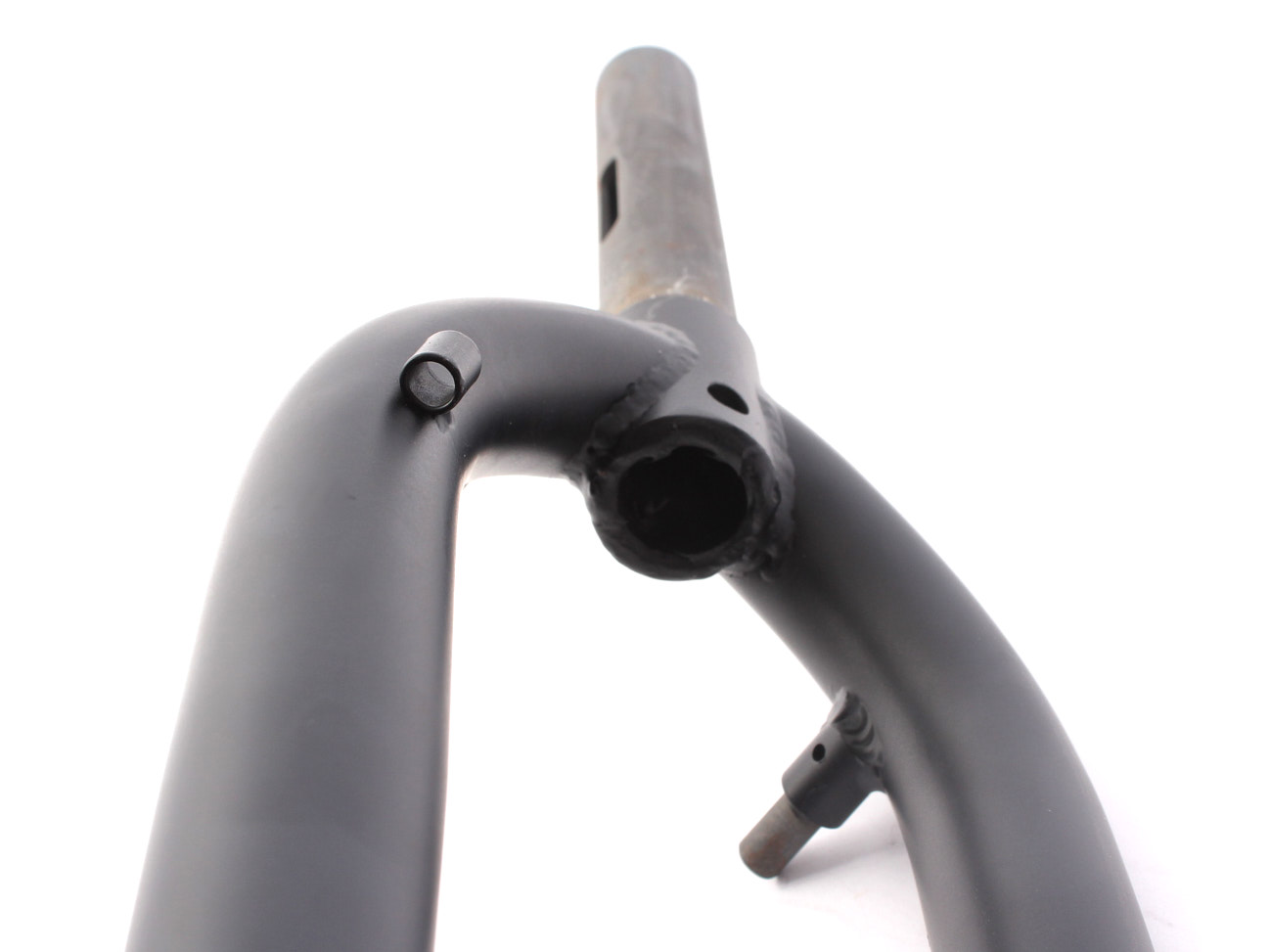

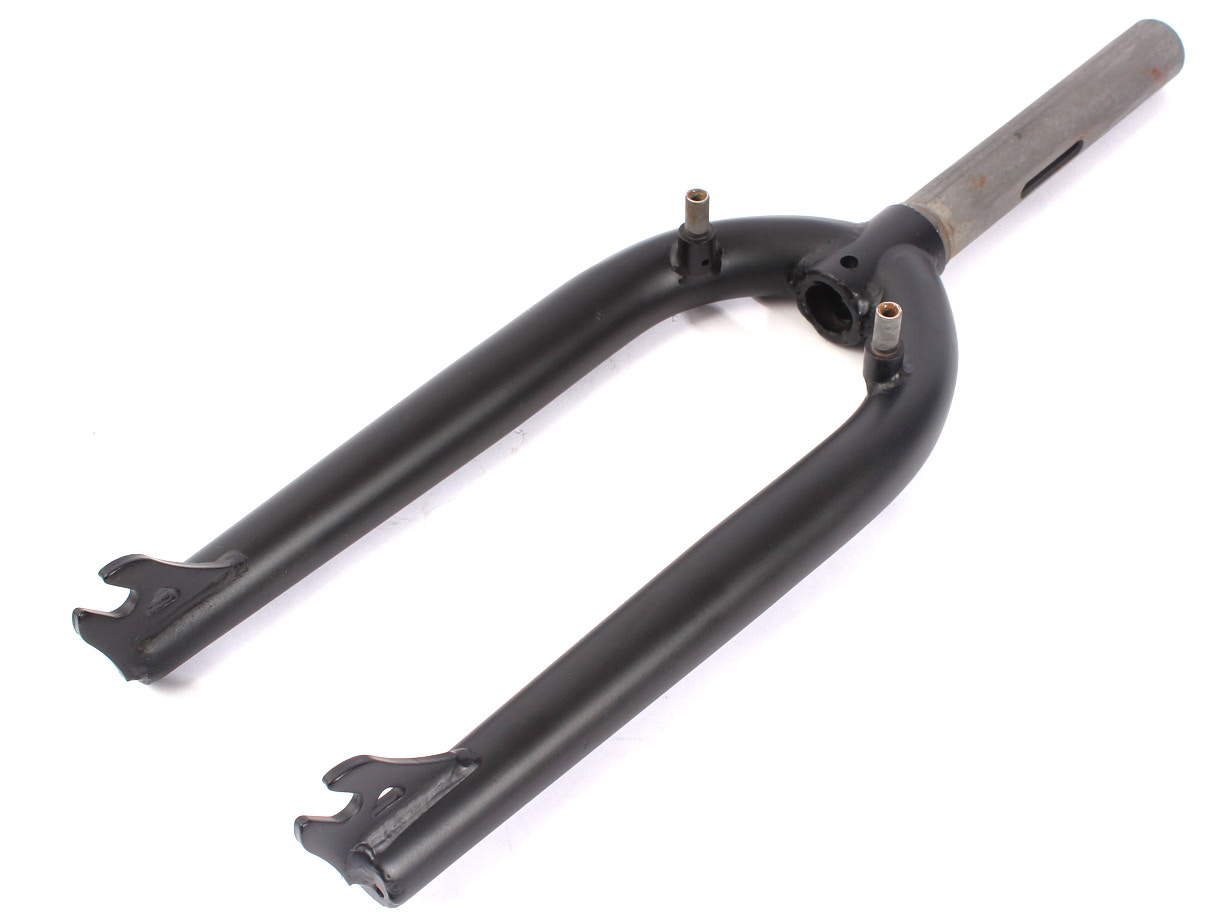

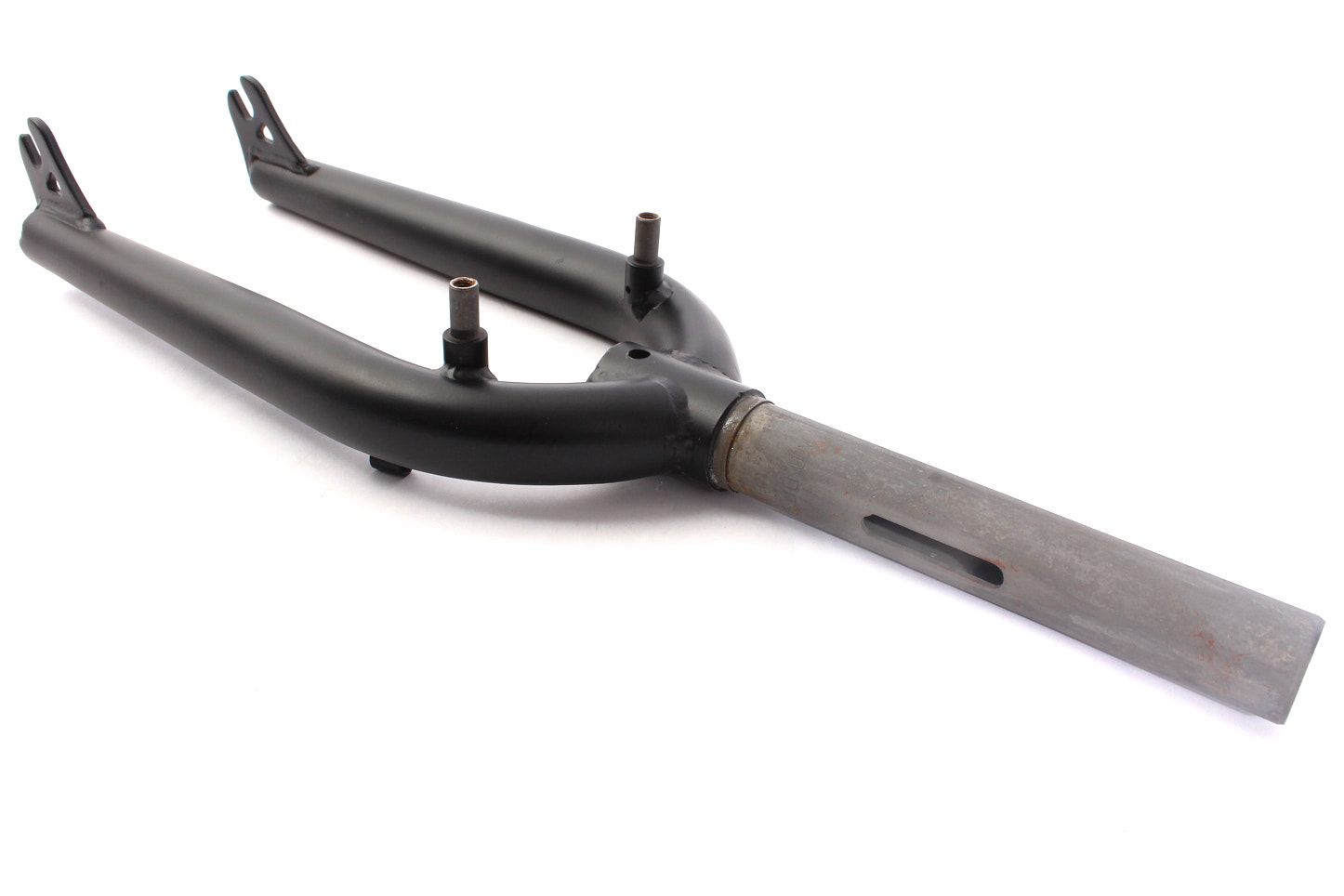

KHE Prism U-Brake Fork matt black 1 1/8" – Affix Ready
High-quality BMX fork with a matte black finish that fits perfectly with any BMX. Paired with a U-brake, it delivers strong and precise braking power to the rim.
Specifications at a glance:
- Brand: KHE

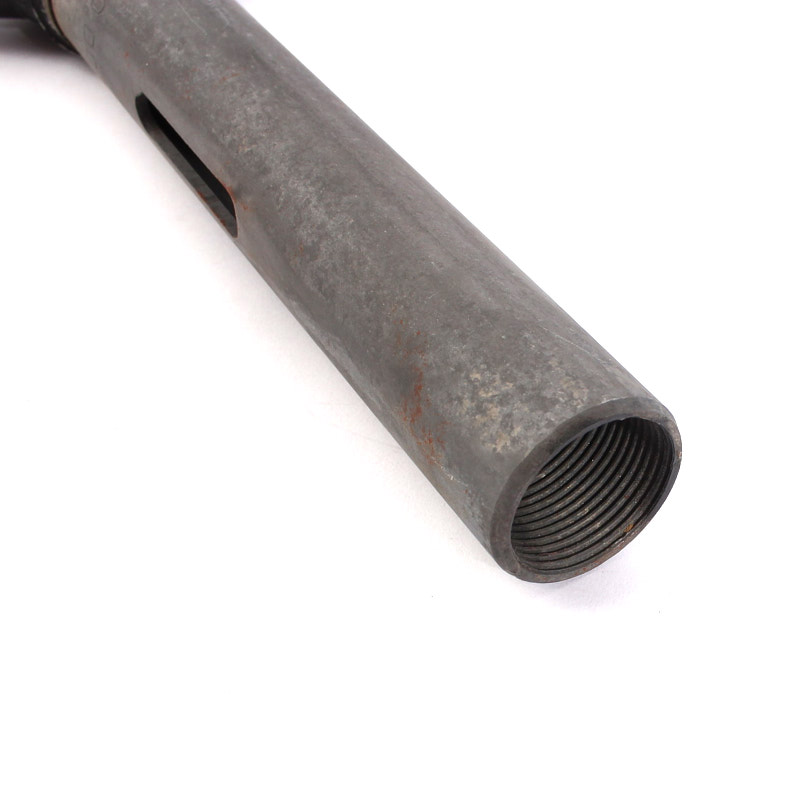

- Affix ready: With sidecut for the Affix rotor system. Can also be mounted on any other BMX (1 1/8").
- Material: High-strength Hi-Ten steel
- Features: U-brake mounts
- Weight: only 1140g ≈ 2.51 lbs
- Colour: Black

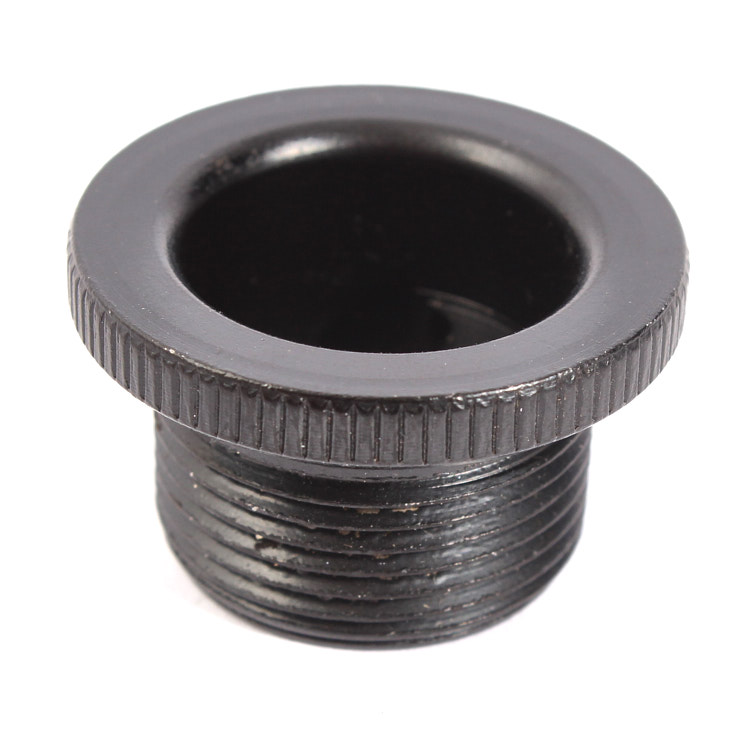

- Extras: without top cap bolt
- Size: For 20" wheels
- Steerer tube diameter: 1 1/8" (28.6mm)

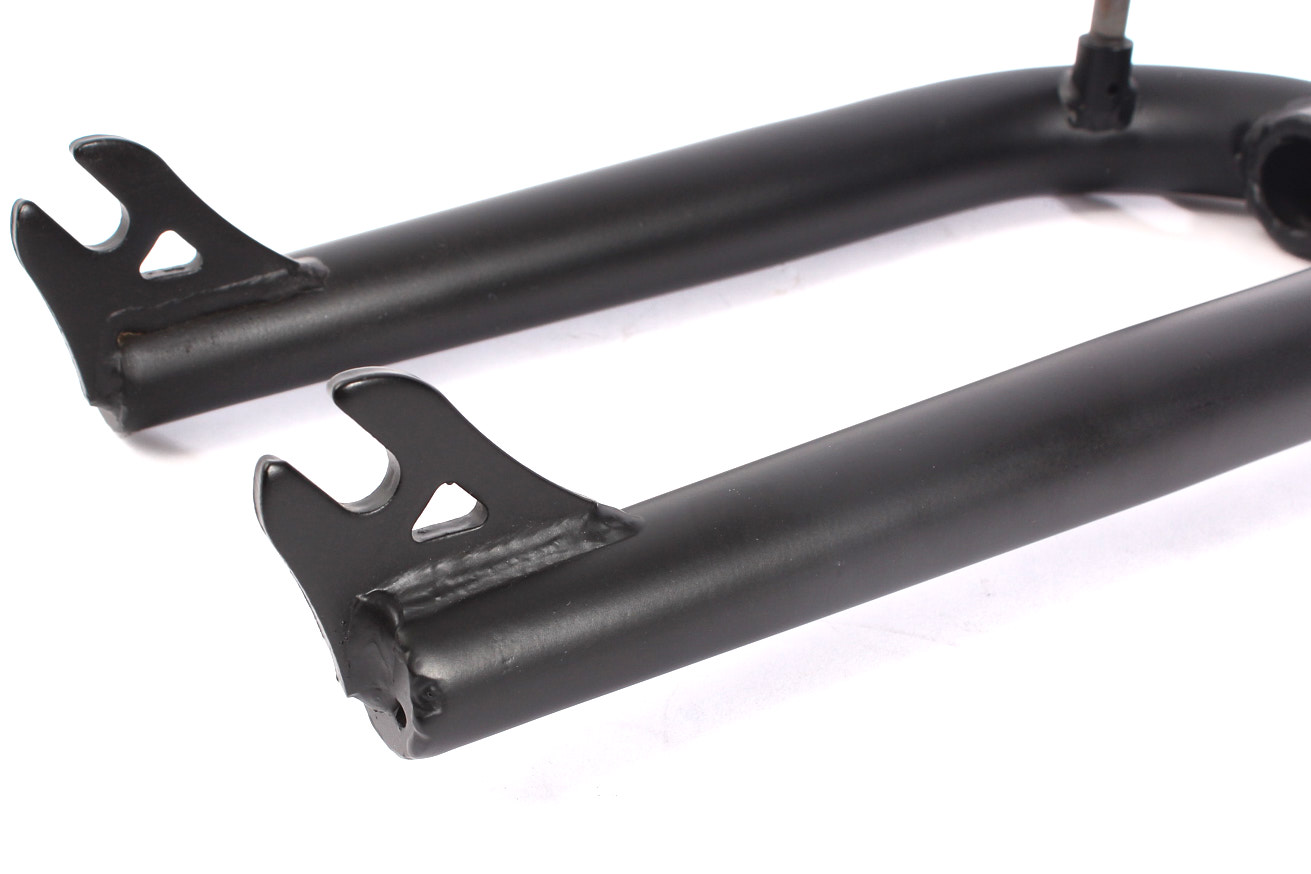

- Dropouts: 5mm thick, only for 10mm axles
- Offset: approx. 32mm
- Steerer tube length: 170mm
| Material: | HiTen steel |
|---|---|
| Tire size: | 20 inch |
| Size: | For 20" |
| Colour: | Black |
| Weight: | 2.51 lbs / 1140 g |
| Dropouts: | 5mm wide, only for 10mm axles |
| Width: | 1,8 Zoll |
| Height: | 6.69" / 170mm |
| Length: | 6.69" / 170 mm |
| Shaft diameter: | 1 1/8" |
| Shaft length: | 6.69" / 170mm |
| Leads: | approx. 1.26" / 32mm |
Product Safety Instructions for BMX Fork KHE PRISM 20 Inch for U-Brakes:
Material Quality: This steel fork is ideal for light tricks, moderate jumps, and technical freestyle riding on the street and in the park.
Compatibility: Ensure that the fork fits the BMX frame and stem clamp (diameter of the fork steerer and head tube).
Secure Installation: Check that the fork is securely mounted, especially at the stem and headset, to prevent wobbling steering movements.
Regular Inspection and Maintenance: Regularly inspect the fork for cracks, deformations, or other damage, especially after falls or hard landings. Do not perform any modifications such as drilling or cutting, as these actions can weaken the structural integrity and make the fork unstable. If the fork shows cracks or damage, replace it immediately.
