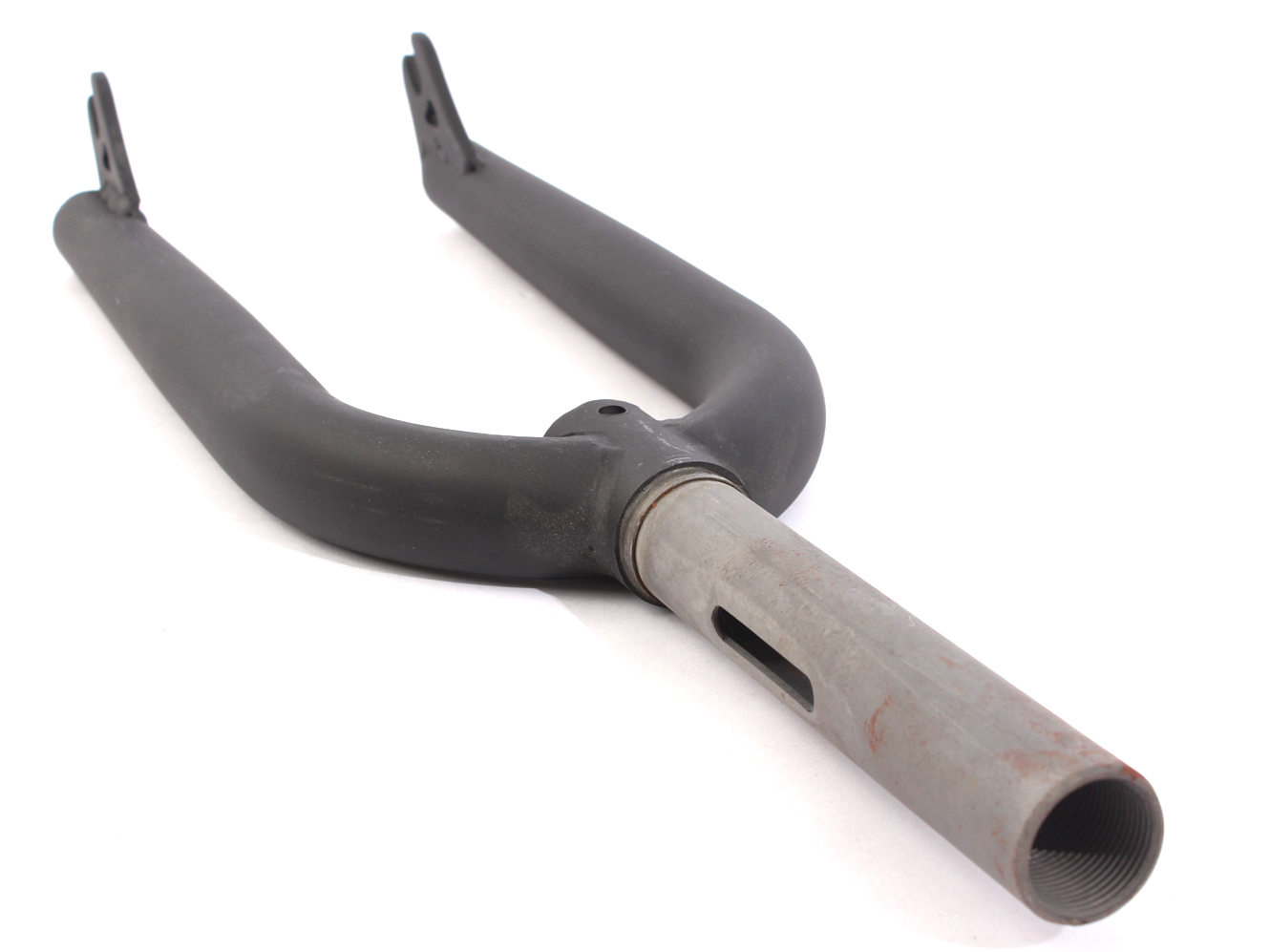

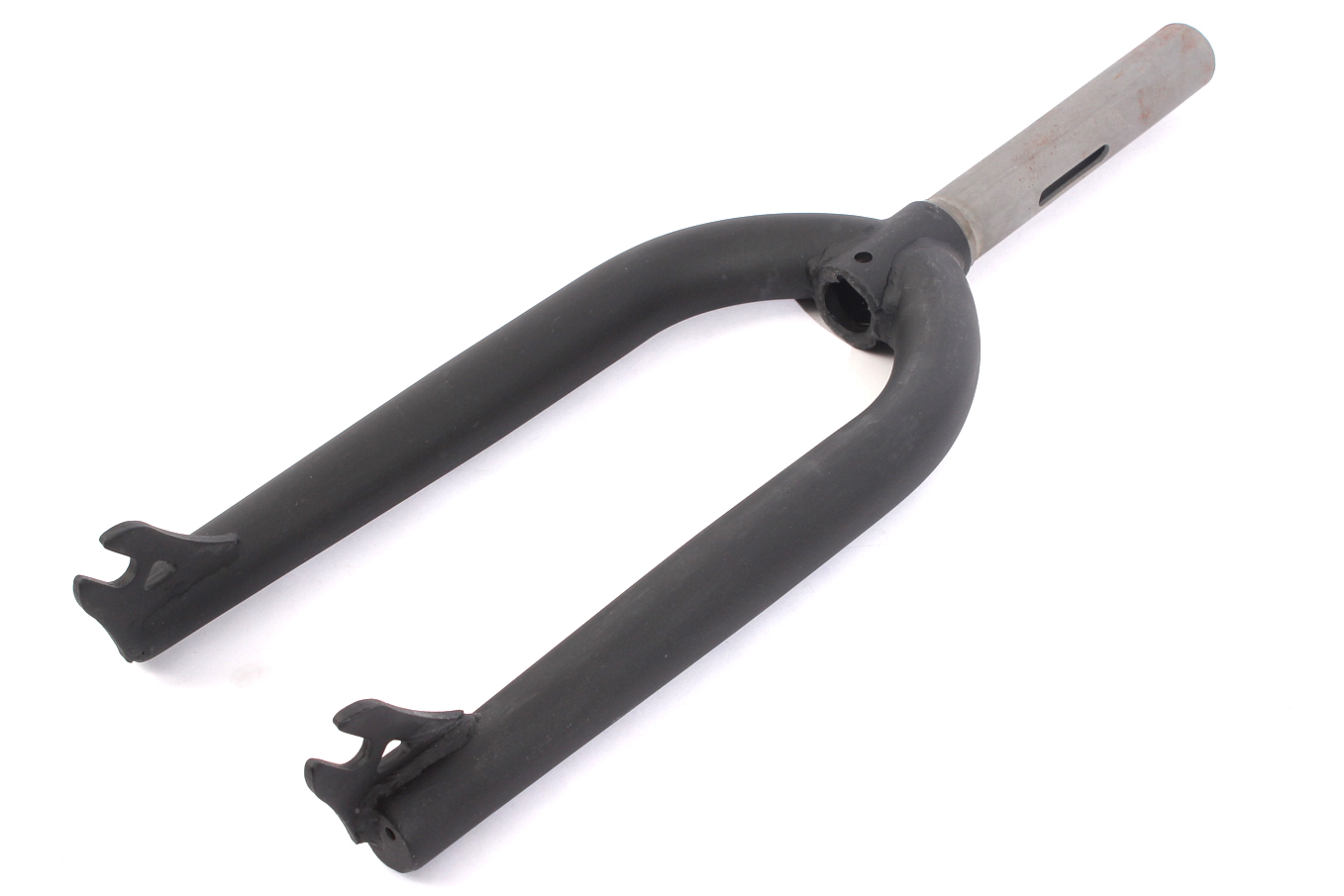

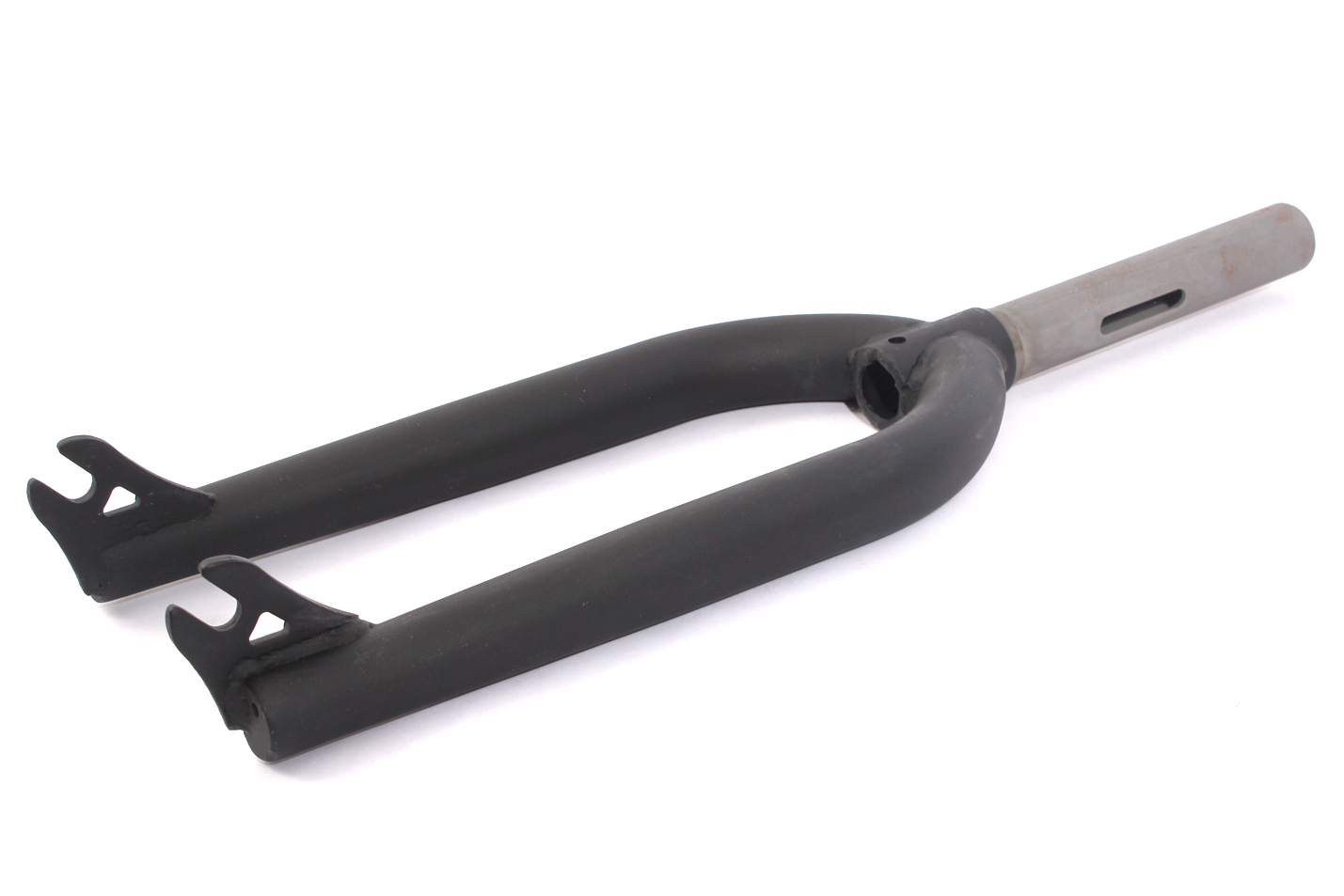

SILENCER 20" Fork
The SILENCER 1 1/8" CrMo fork can be used on any BMX bike or with the Affix rotor system.
Specifications at a glance:
- Brand: KHE MVP
- Material: 4130 CrMo steel
- Features: without U-brake mounts
- Weight: only 1092g ≈ 2.41 lbs
- Colour: matt black
- Extras: without top cap bolt
- Size: for 20" wheels
- Steerer tube diameter: 1 1/8" (28.6mm)

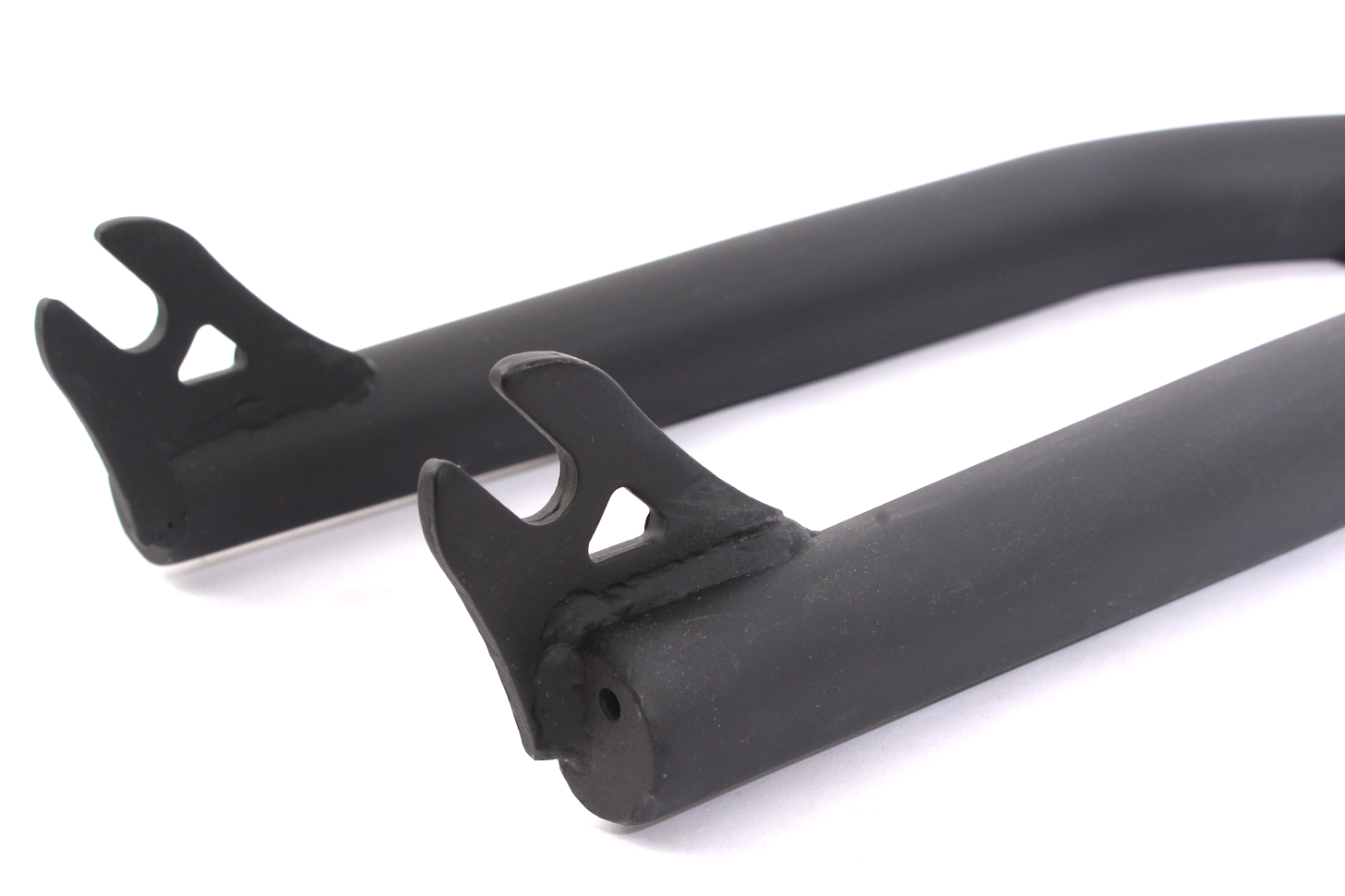

- Dropouts: 5mm thick, only for 10mm axles
- Offset: approx. 32mm
- Steerer tube length: 160mm
- Affix ready: with sidecut for the Affix rotor system
- Top product by KHE!
| Material: | 4130 CrMo |
|---|---|
| Size: | For 20" |
| Colour: | Black |
| Weight: | 2.35 lbs / 1,065kg |
| Dropouts: | 5mm wide, only for 10mm axles |
| Shaft diameter: | 1 1/8" |
| Shaft length: | 6.3" / 160mm |
| Leads: | approx. 1.26" / 32mm |
Product Safety Instructions for BMX Fork KHE SILENCER 20 Inch CrMo:
Material Quality: This steel fork is ideal for BMX tricks, moderate jumps, and technical freestyle riding on the street and in the park.
Compatibility: Ensure that the fork fits the BMX frame and stem clamp (diameter of the fork steerer and head tube).
Secure Installation: Check that the fork is securely mounted, especially at the stem and headset, to prevent wobbling steering movements.
Regular Inspection and Maintenance: Regularly inspect the fork for cracks, deformations, or other damage, especially after falls or hard landings. Do not perform any modifications such as drilling or cutting, as these actions can weaken the structural integrity and make the fork unstable. If the fork shows cracks or damage, replace it immediately.
