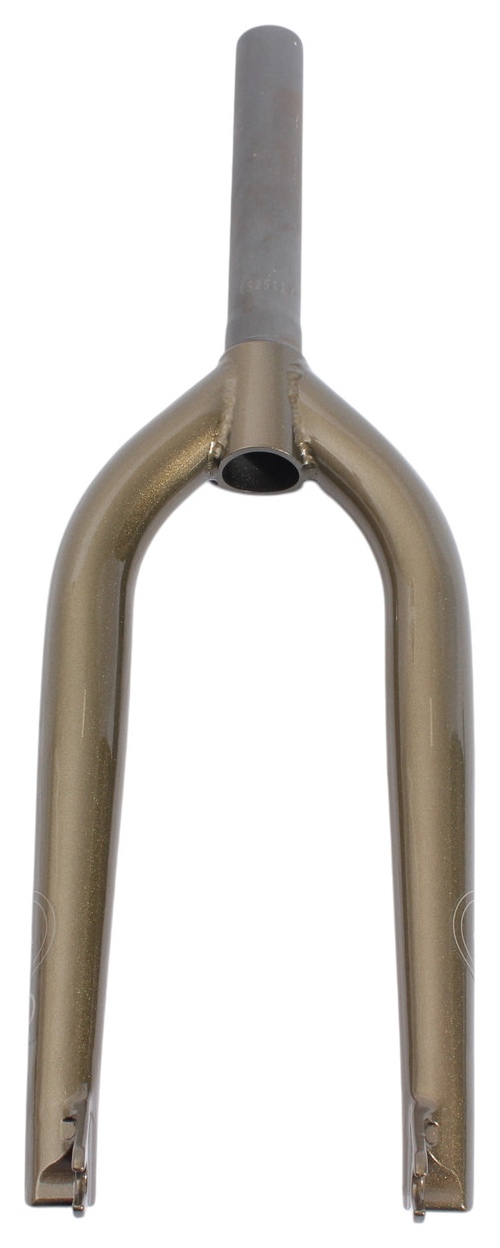

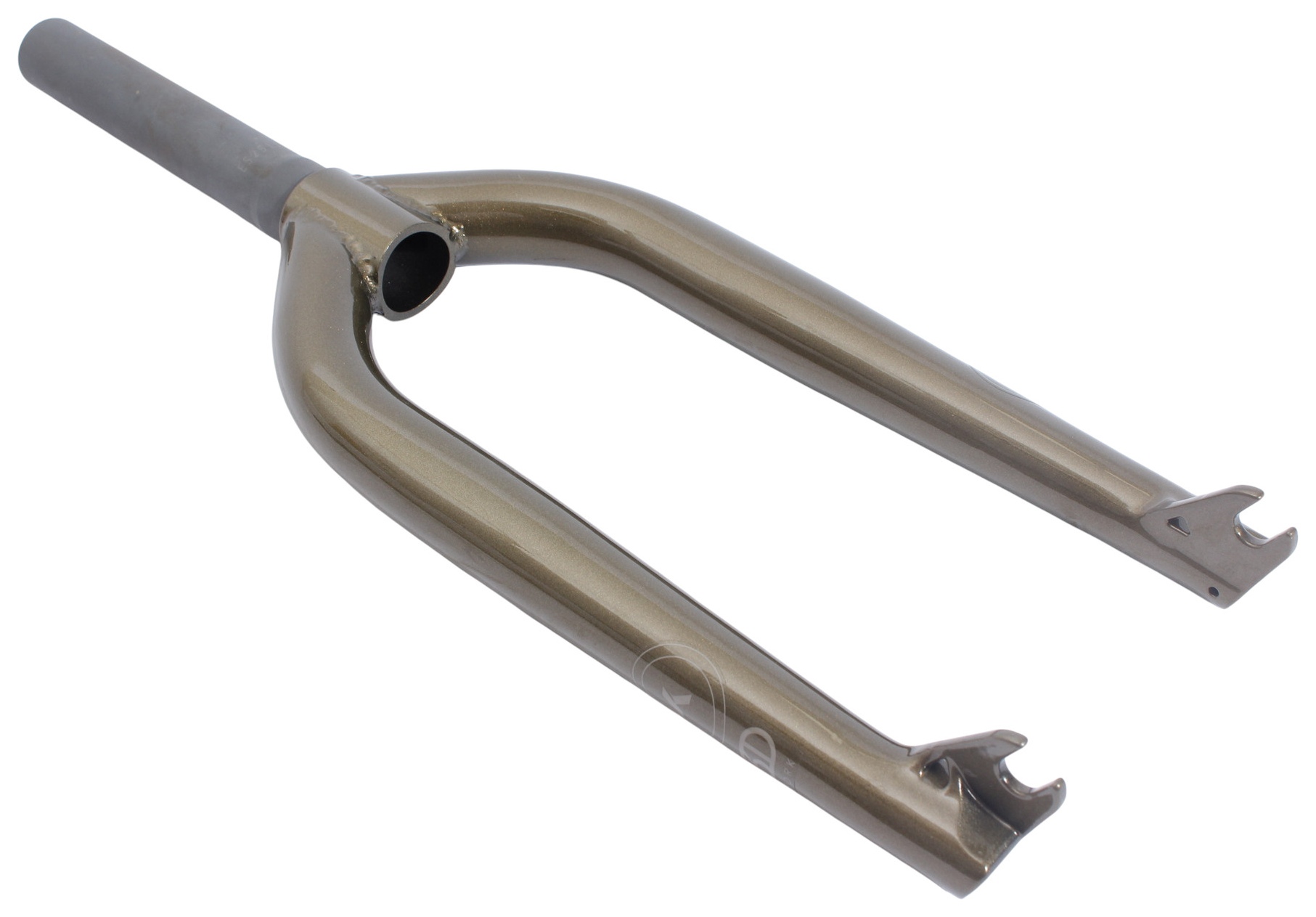

BMX fork KHE SPECTER PRO 20 inch butted CrMo
The KHE SPECTER PRO BMX fork 20 inch combines heat-treated 4130 CrMo steel, low weight and a 27 mm offset for high stiffness, precise handling and reliable performance in street, park and trail riding.

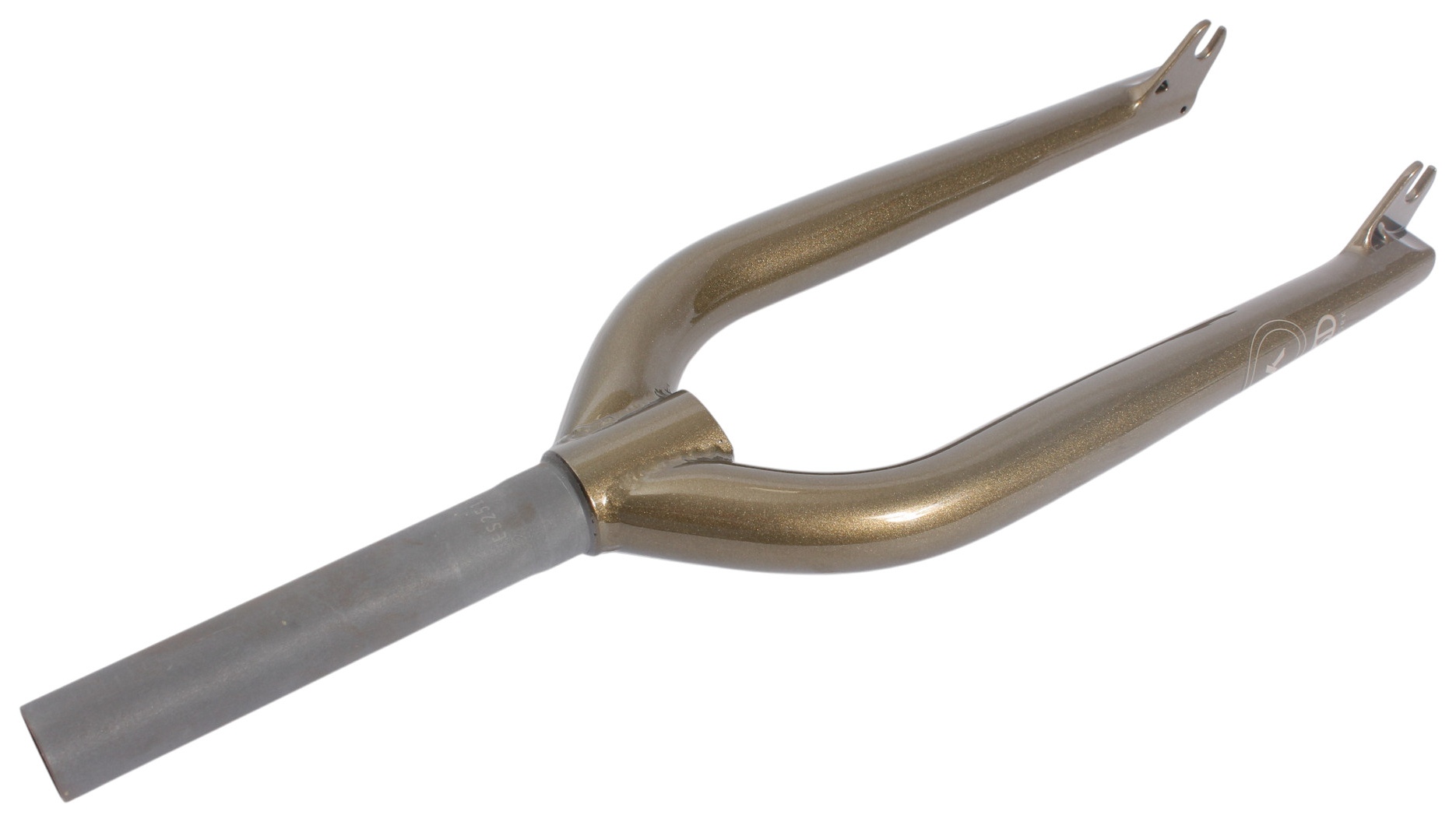

KHE SPECTER PRO BMX Fork 20" – Lightweight CrMo Street Fork

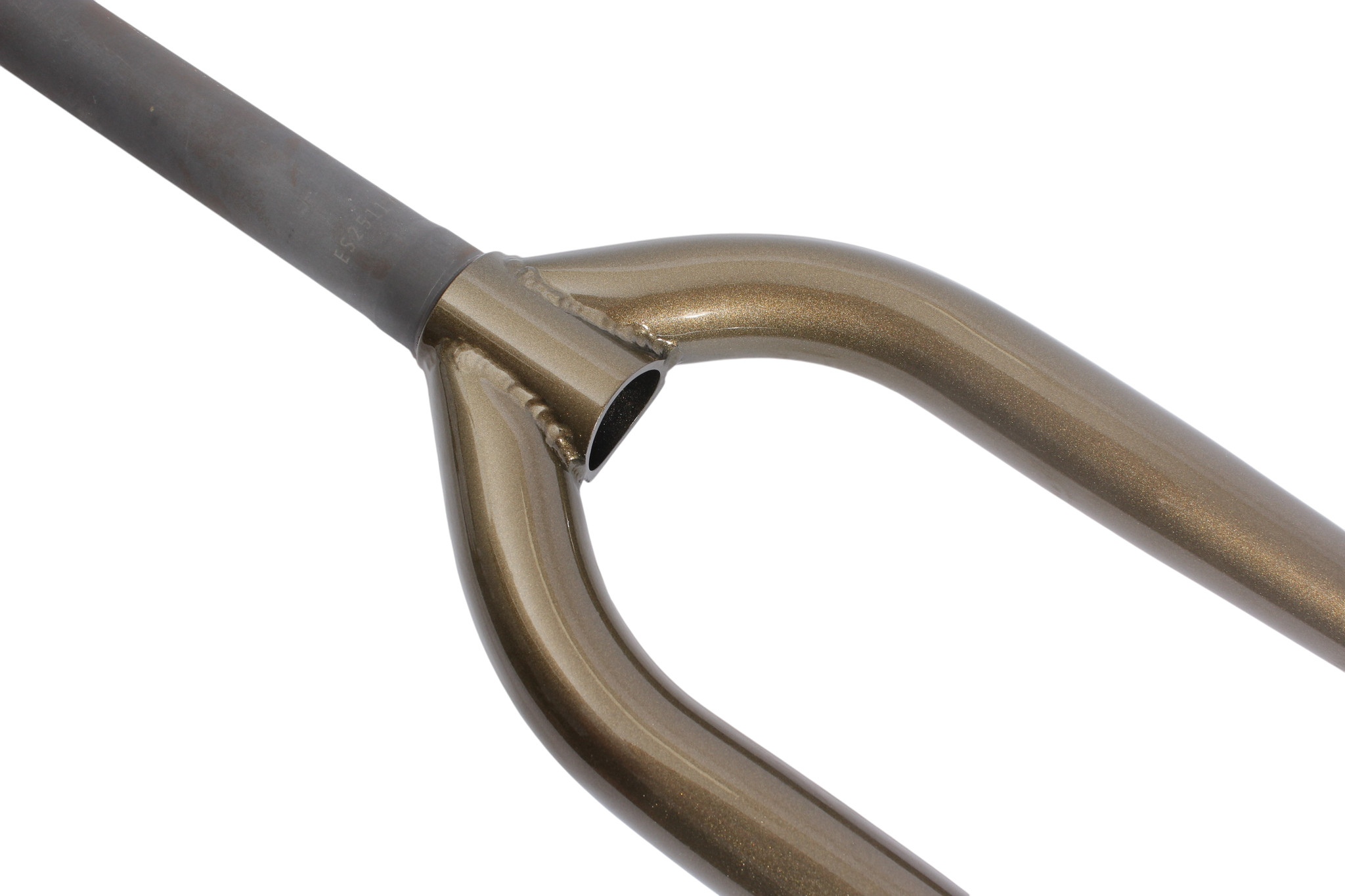

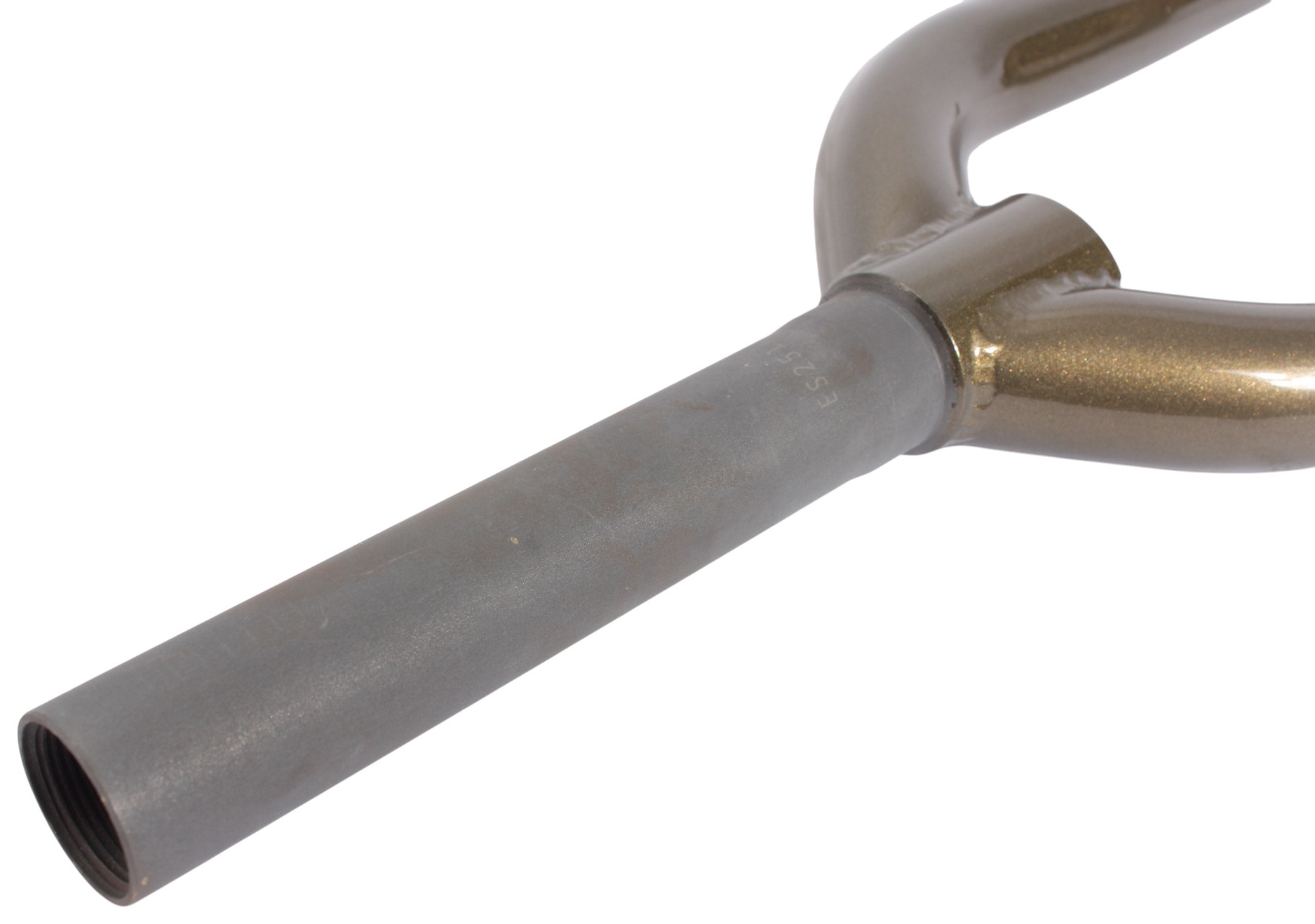

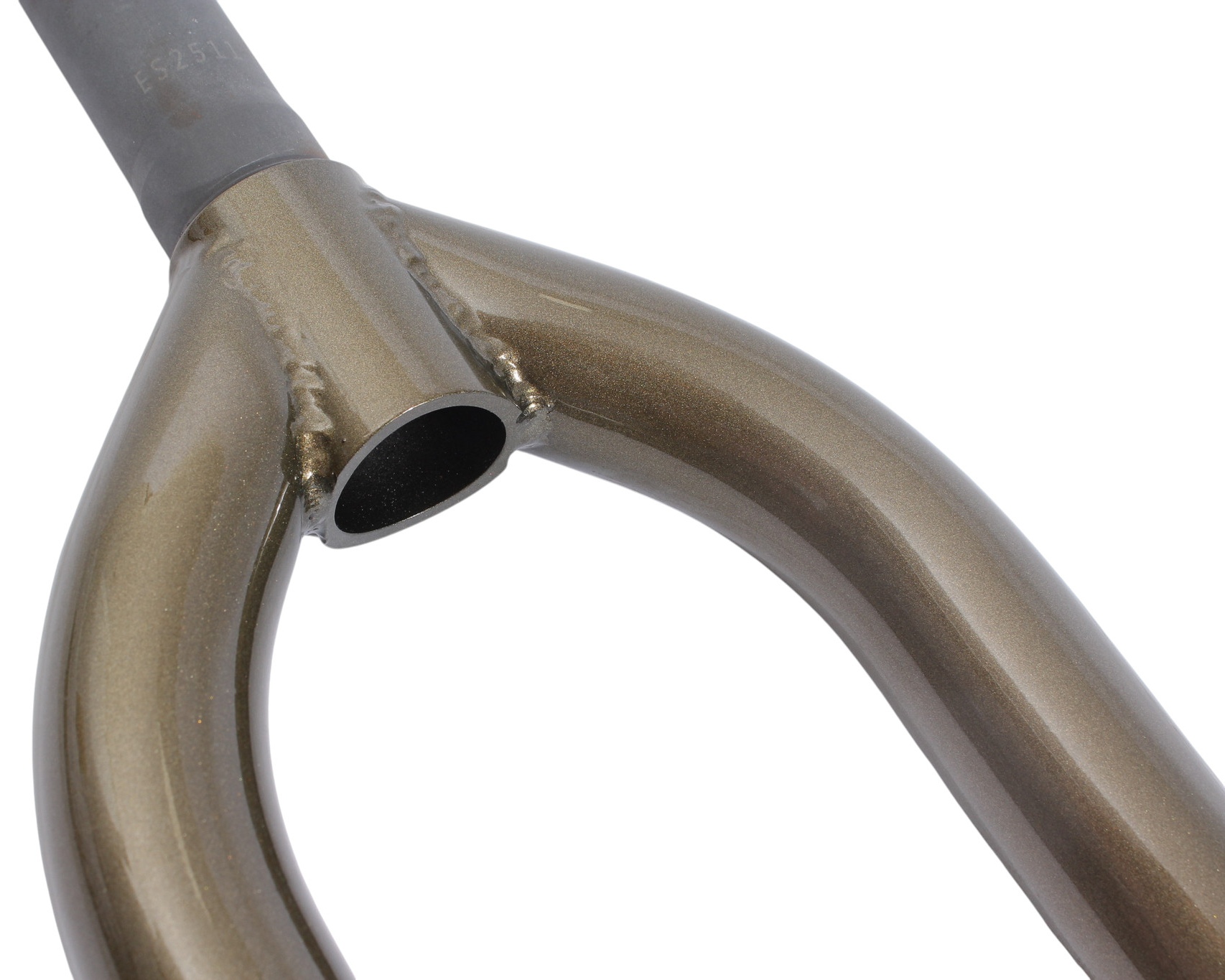

The KHE SPECTER PRO BMX fork is a premium, ultra-light 20" fork for street, park, and trails. Made from heat-treated 4130 CrMo steel with butted, tapered tubes, it combines high strength with a low weight of 916 g. The one-piece, CNC-machined CrMo steerer uses a 1 1/8" (28.6 mm) diameter and 163 mm length for precise headset fit.

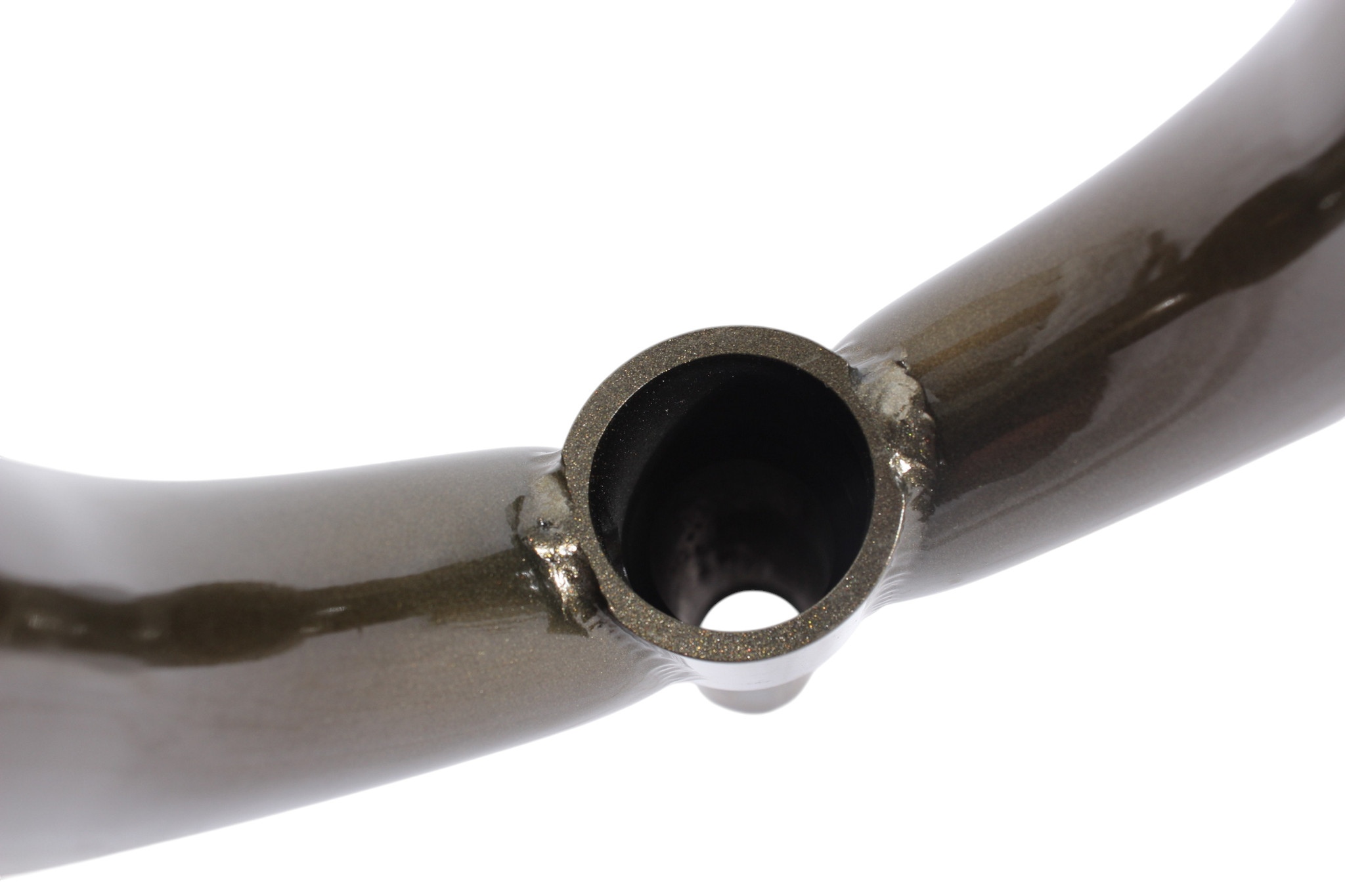

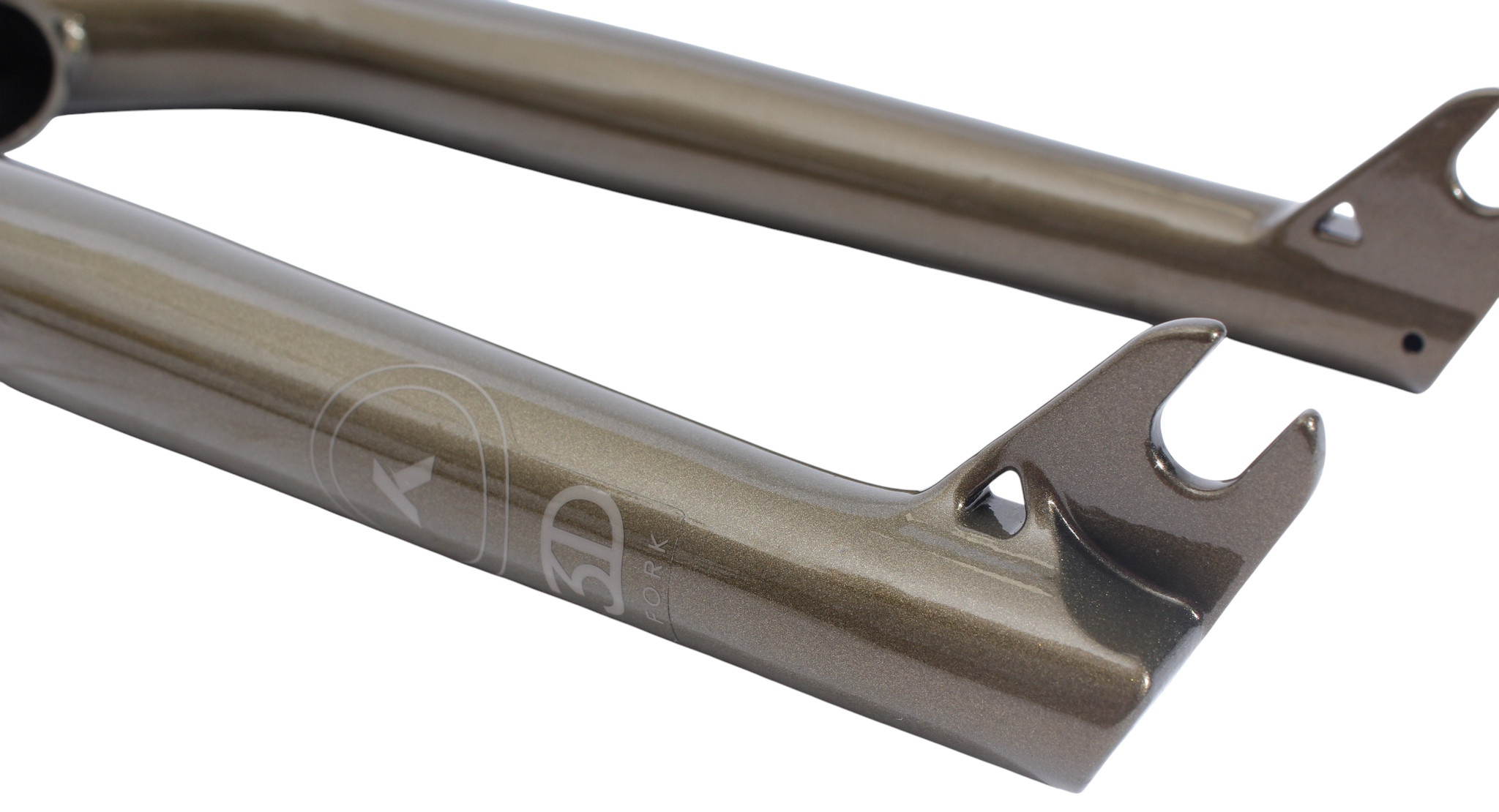

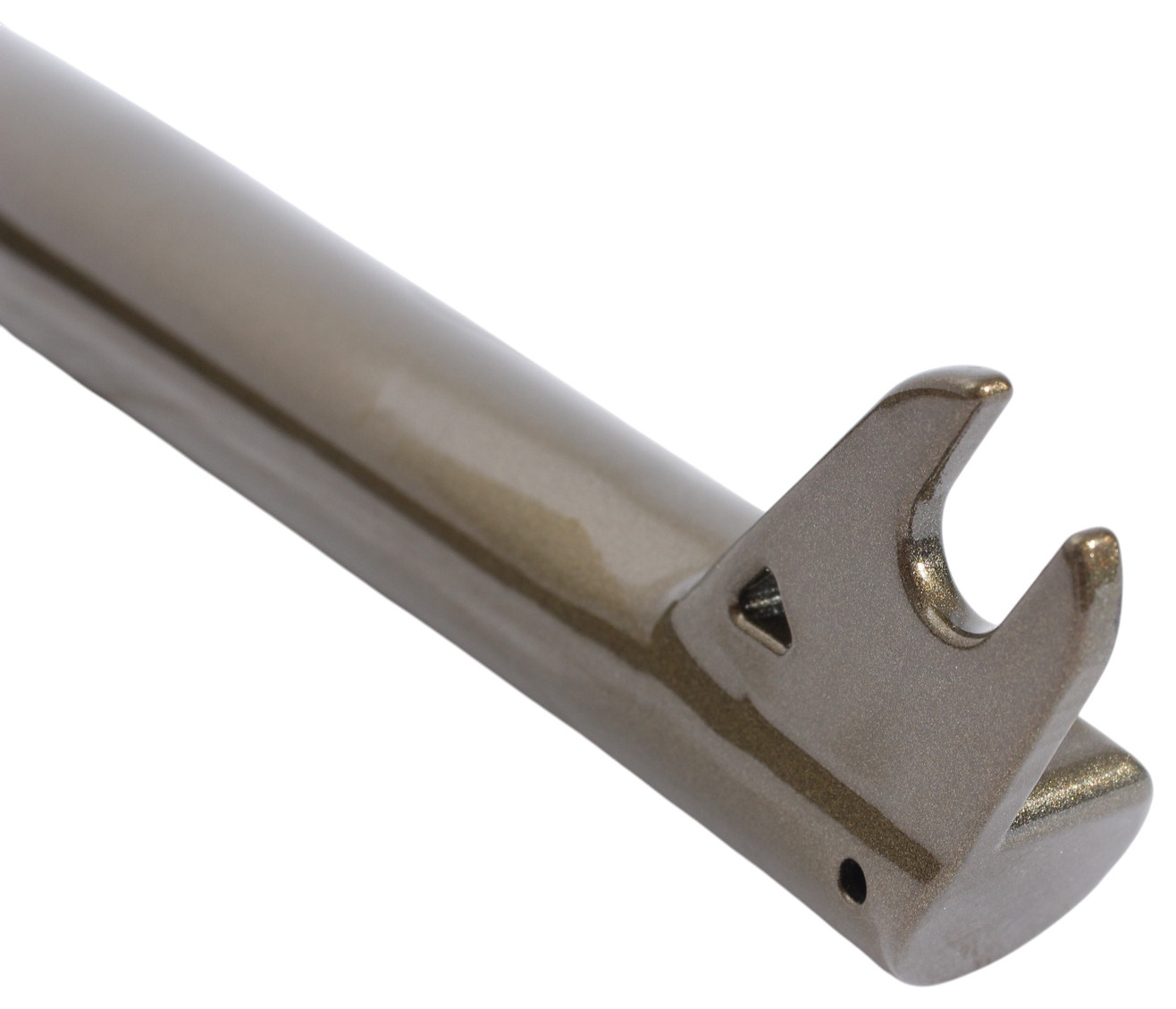

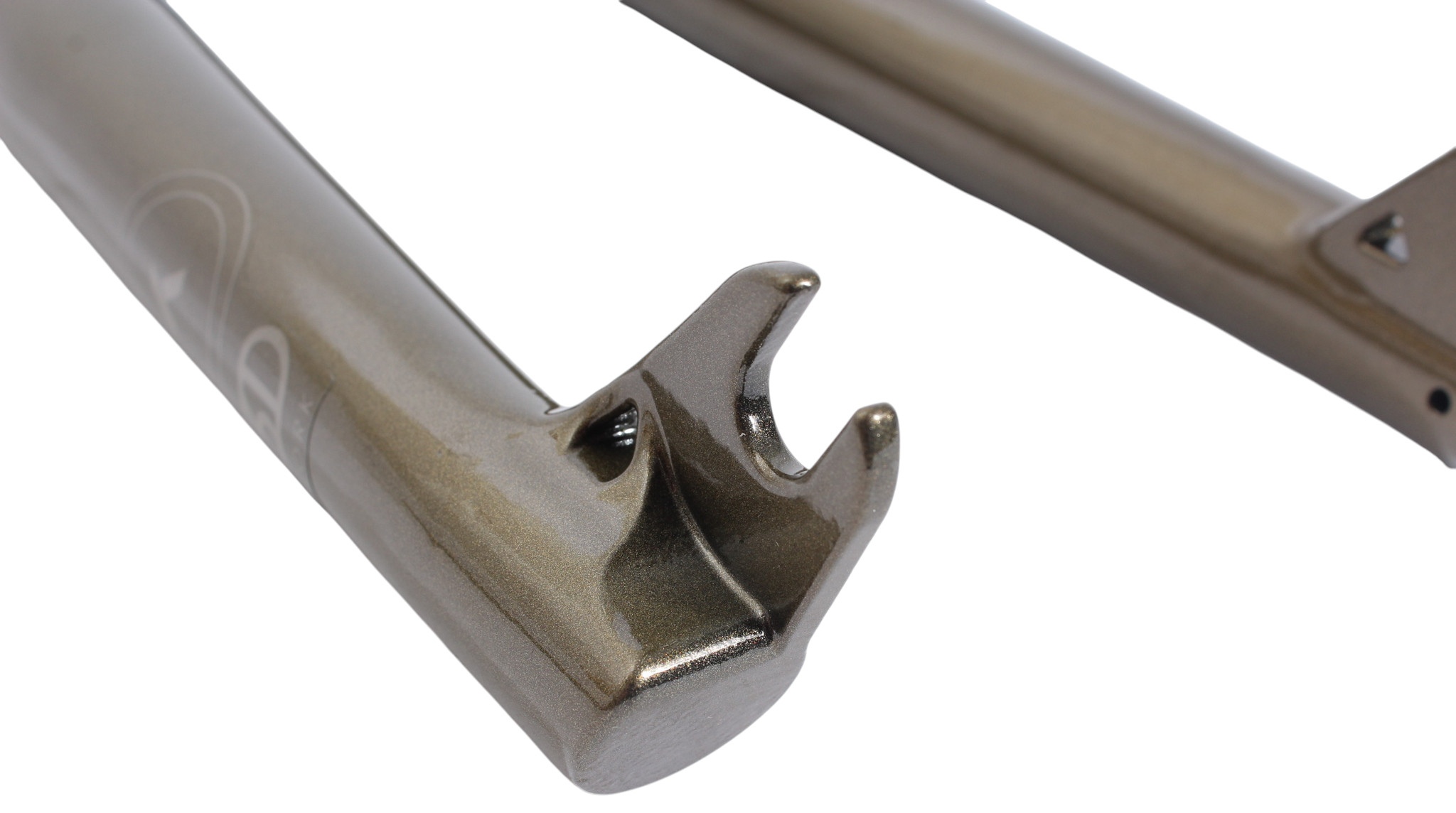

With 27 mm offset, this BMX fork delivers direct, controlled steering. Investment-cast 3D dropouts support 10 mm / 3/8" axles for solid wheel retention. Tapered legs provide clearance for wide tires up to 2.4". The integrated crown race simplifies installation, while the brakeless design suits modern BMX setups; an M25 thread for a top bolt is included, top bolt not supplied.
Produkthighlights
- 916 g lightweight, butted tapered tubes
- Heat-treated 4130 CrMo steel construction
- 27 mm offset for responsive steering
- CNC one-piece steerer, 163 mm
- 3D cast dropouts for 10 mm axles
| Material: | 4130 CrMo |
|---|---|
| Size: | For 20" |
| Colour: | Black |
| Weight: | 916g |
| Dropouts: | 5mm wide, only for 10mm axles |
| Shaft diameter: | 1 1/8" |
| Shaft length: | 163mm |
| Leads: | 27mm |
Intended use: BMX fork for compatible 20-inch BMX bicycles for street, park and trail use. Designed for 1 1/8-inch headsets, 10 mm/3/8-inch front wheel axles and tyres up to 2.4 inches. Use only with compatible frames, headsets, stems and wheels.
Installation / use: Install the fork correctly and tighten all components and fasteners to the specified torques. Ensure correct installation of the headset, crown race, stem, top bolt and front wheel axle. Before every ride, inspect the steerer tube, fork legs, dropouts and fasteners for secure fit, cracks, deformation or other damage. Do not use a damaged fork.
Care and cleaning: Clean the fork regularly with water and a soft cloth. Do not use aggressive cleaning agents or pressure washers. Especially after hard landings, crashes or heavy impacts, carefully inspect the steerer tube, welded areas and dropouts for damage.
Replacement due to wear: Replace the fork immediately if cracks, deformation, damaged dropouts, damaged threads or other safety-related defects are found. A damaged or structurally weakened fork may cause loss of control and serious injury.
