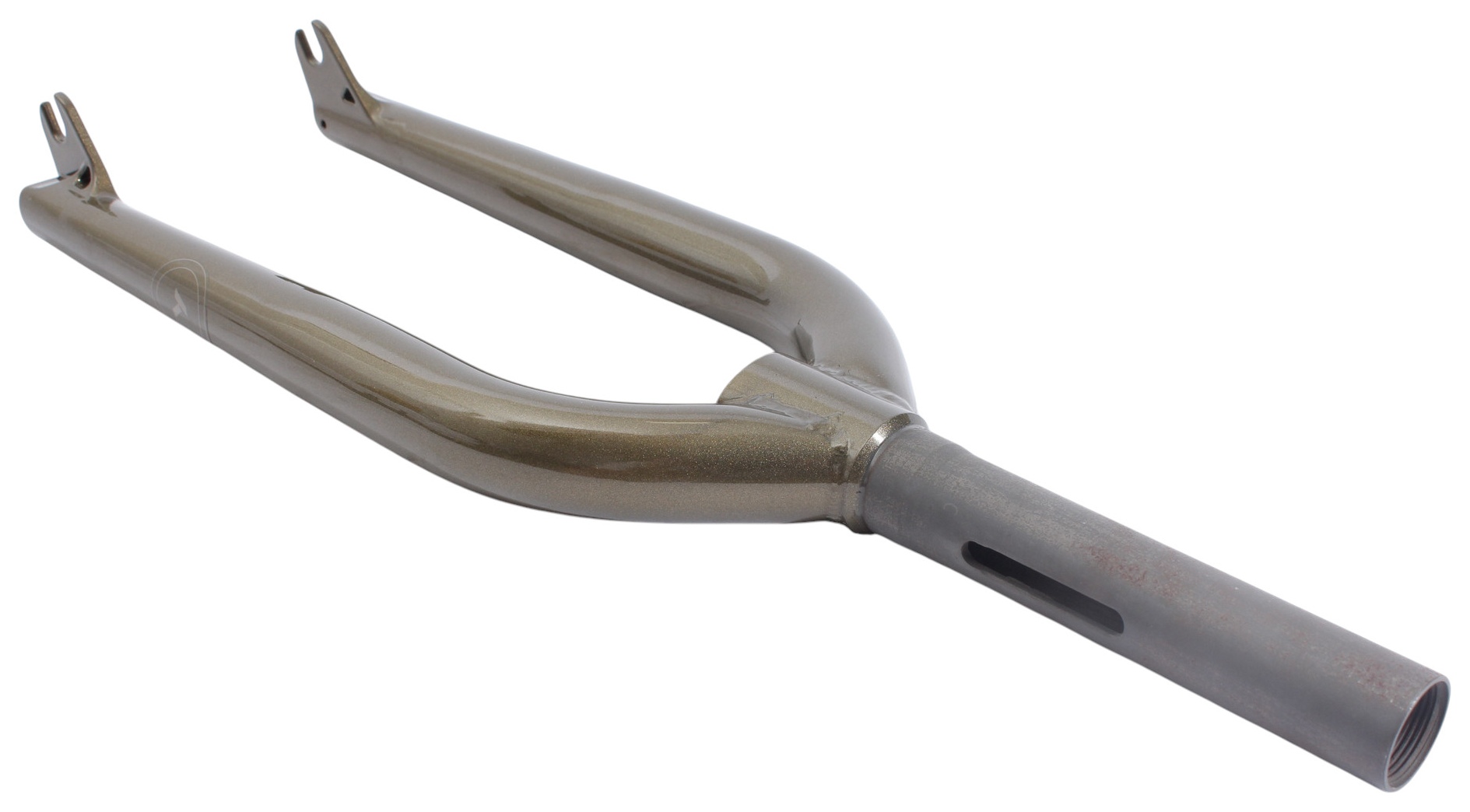

BMX fork KHE SPECTER PRO “with Affix cut” 20 inch butted CrMo
The KHE SPECTER PRO BMX fork with Affix Rotor Cut combines heat-treated 4130 CrMo steel, a weight of just 1.93 lbs and a 1.06 inch offset for precise handling and AFFIX-compatible street, park and trail setups.
KHE SPECTER PRO BMX Fork with Affix Rotor Cut
The KHE SPECTER PRO BMX fork with Affix Rotor cut is a premium, ultra-light 20" fork for street, park, and trails. Heat-treated 4130 CrMo steel with butted, tapered tubes delivers high strength at only 876 g, ideal for responsive BMX setups.

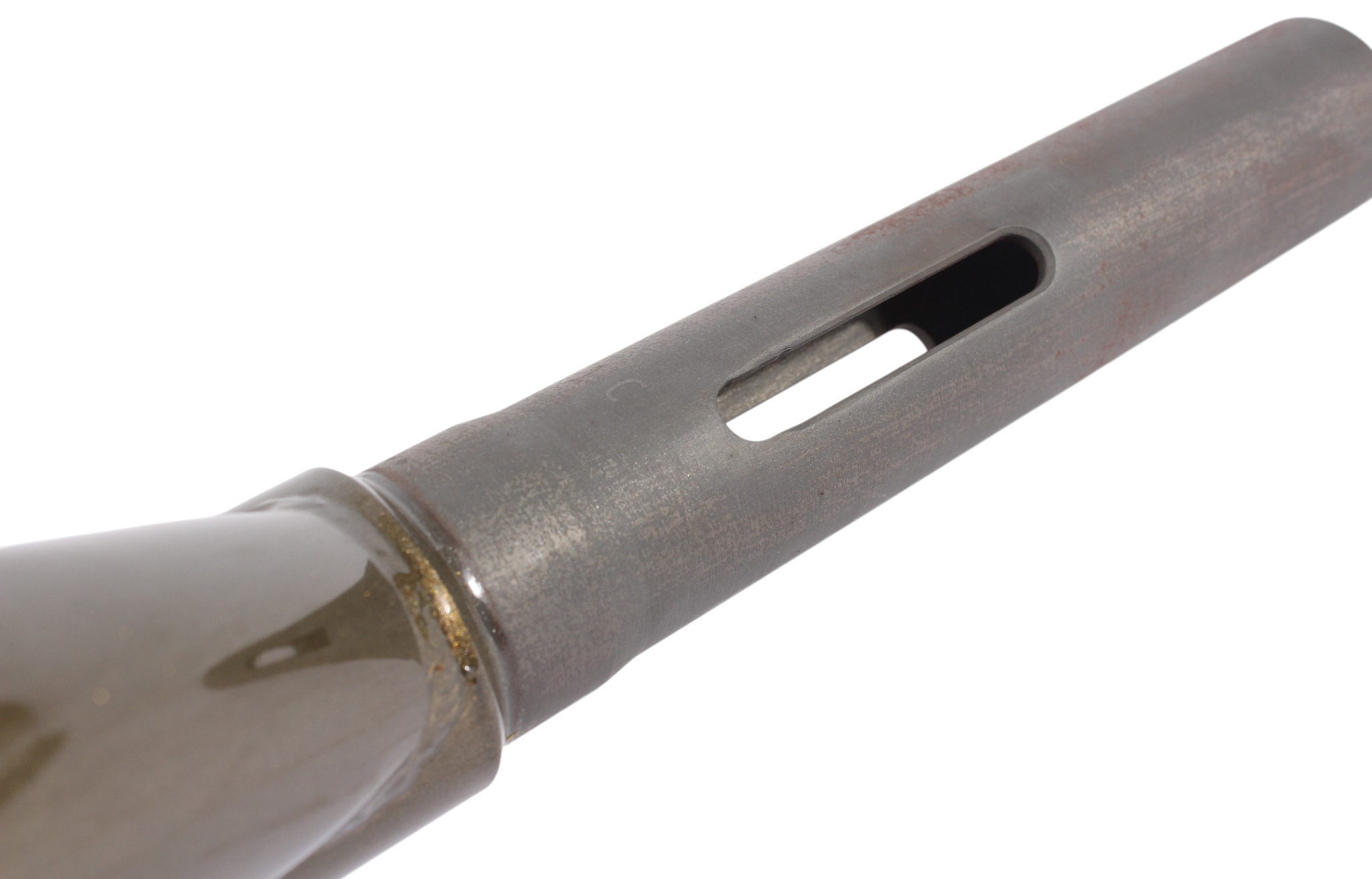

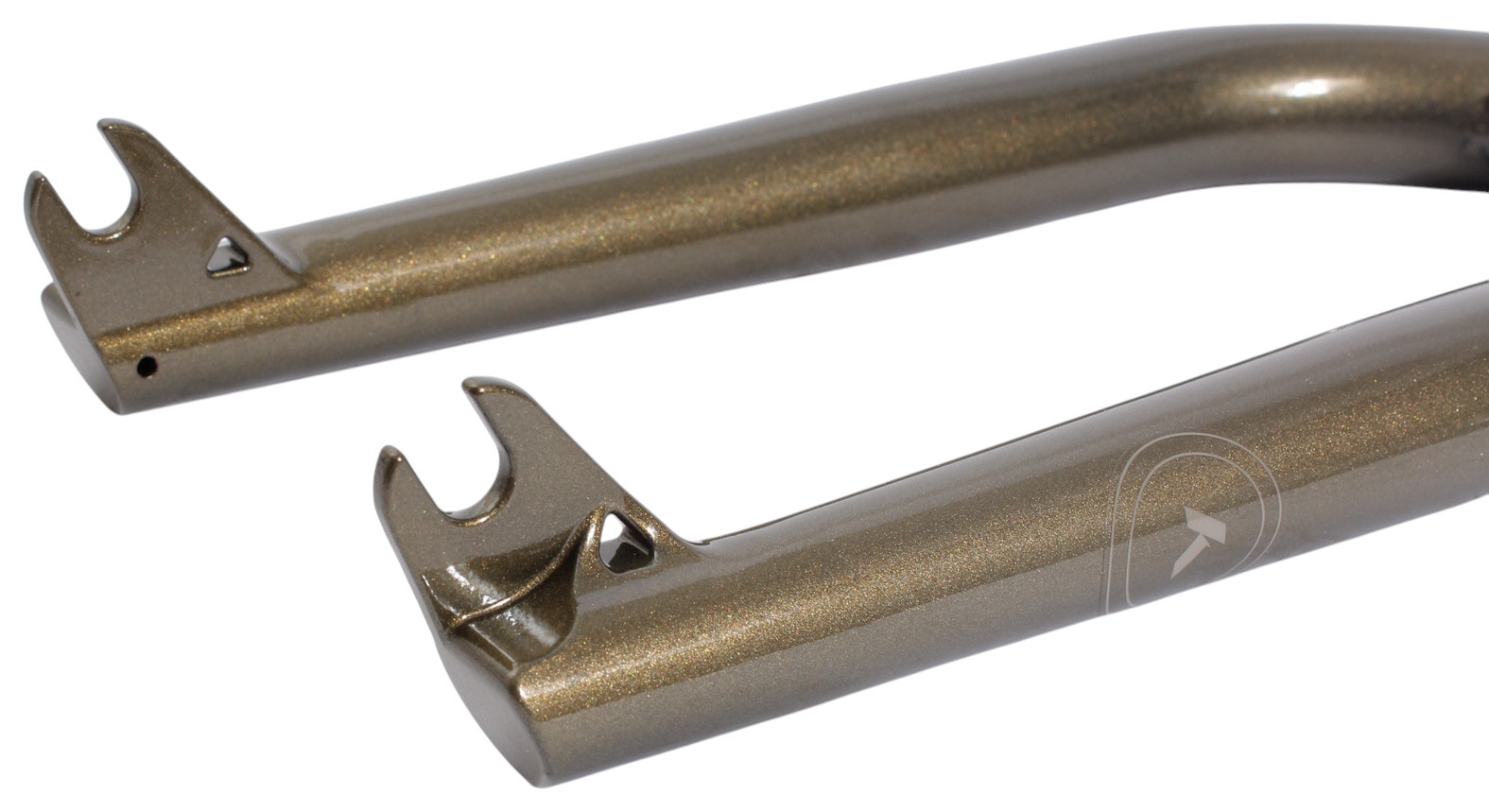

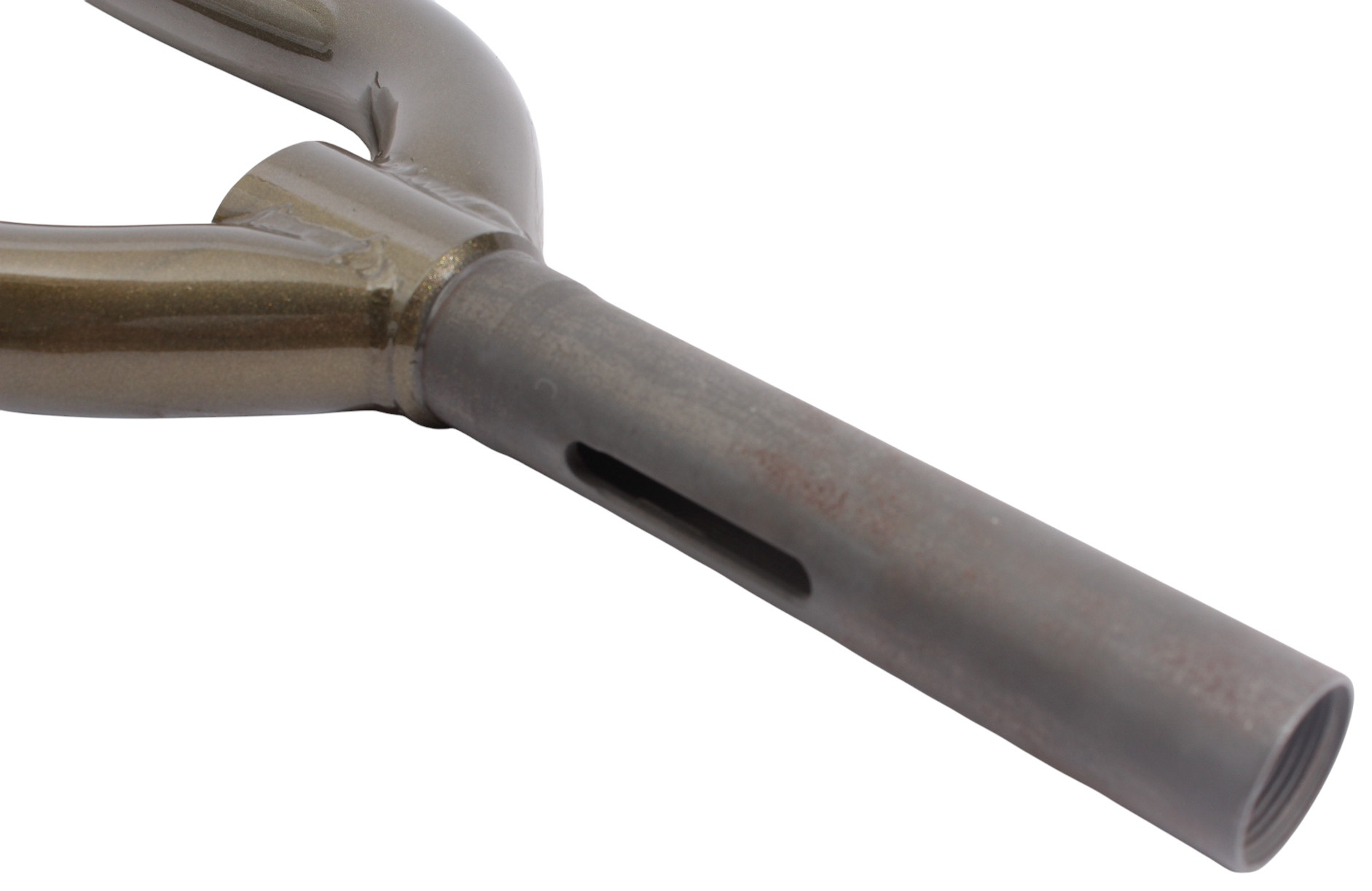

A one-piece CNC-machined CrMo steerer tube (1 1/8" / 28.6 mm, 163 mm) ensures precise headset fit. Investment cast 3D dropouts support 10 mm / 3/8" axles, while 27 mm offset provides direct, controlled steering. Tapered legs clear tires up to 2.4"; integrated crown race, brakeless design, and M25 top-bolt thread (bolt not included). Affix Rotor ready.
Produkthighlights
- 876 g lightweight, heat-treated CrMo
- 27 mm offset for precise steering
- Tire clearance up to 2.4"
- CNC 1 1/8" steerer, 163 mm
- 10 mm / 3/8" cast dropouts
- AFFIX Ready
| Material: | 4130 CrMo |
|---|---|
| Size: | For 20" |
| Colour: | Gold |
| Weight: | 876g |
| Dropouts: | 5mm wide, only for 10mm axles |
| Shaft diameter: | 1 1/8" |
| Shaft length: | 163mm |
| Leads: | 27mm |
Intended use: BMX fork for compatible 20-inch freestyle BMX bicycles for street, park and trail use. Designed for 1 1/8-inch headsets, 10 mm/3/8-inch front wheel axles and tyres up to 2.4 inches. The AFFIX Rotor Cut is intended for compatible AFFIX rotor setups. Use only with compatible frames, headsets, stems and wheels.
Installation / use: Install the fork correctly and tighten all components and fasteners to the specified torques. Ensure correct installation of the headset, integrated crown race, stem, top bolt and front wheel axle. When using the AFFIX rotor system, use only compatible components. Before every ride, inspect the steerer tube, fork legs, dropouts and fasteners for secure fit, cracks, deformation or other damage.
Care and cleaning: Clean the fork regularly with water and a soft cloth. Do not use aggressive cleaning agents or pressure washers. Especially after hard landings, crashes or heavy impacts, carefully inspect the steerer tube, welded areas, AFFIX Rotor Cut and dropouts.
Replacement due to wear: Replace the fork immediately if cracks, deformation, damaged dropouts, damaged M25 threads or other safety-related defects are found. A damaged or structurally weakened fork may cause loss of control and serious injury.
