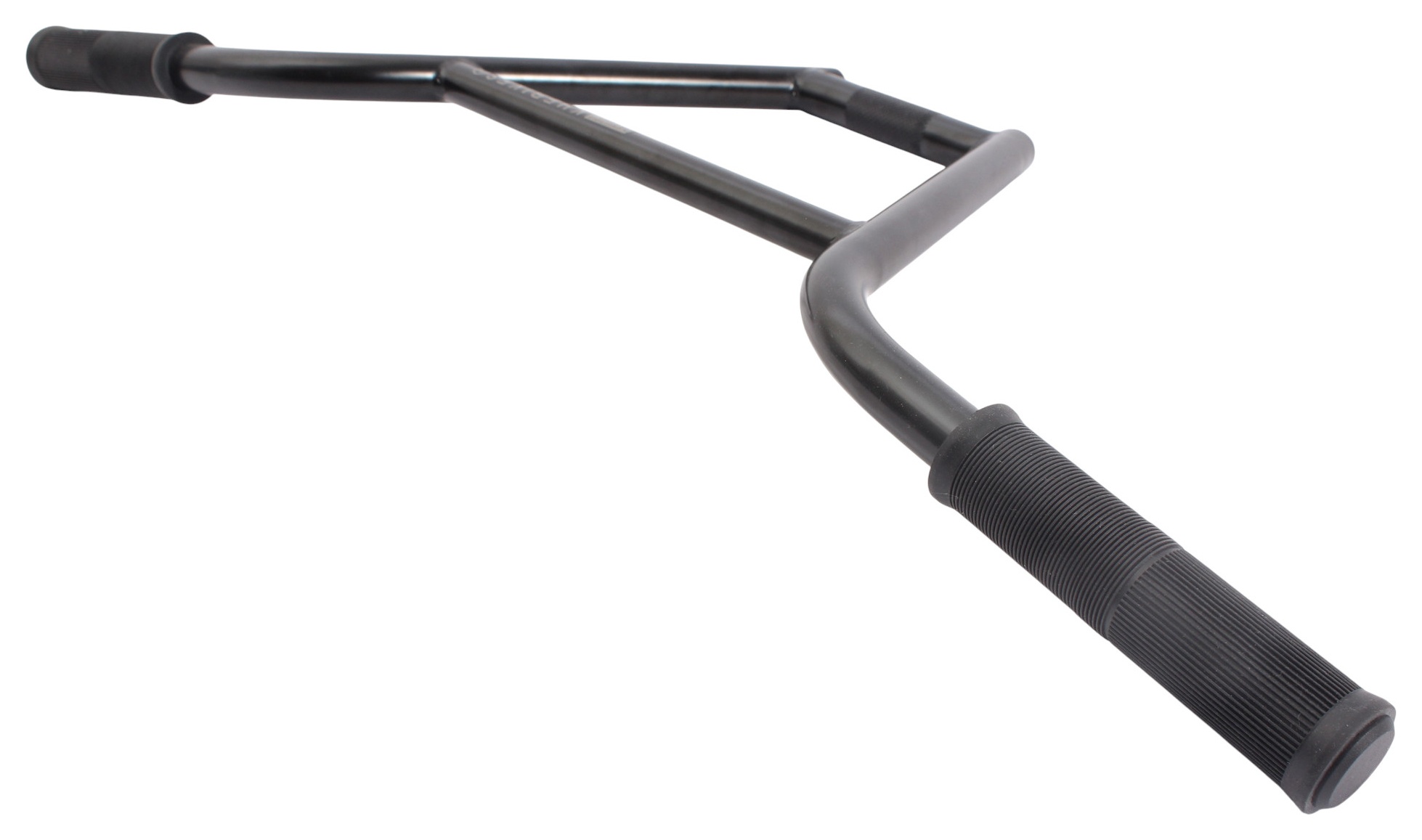

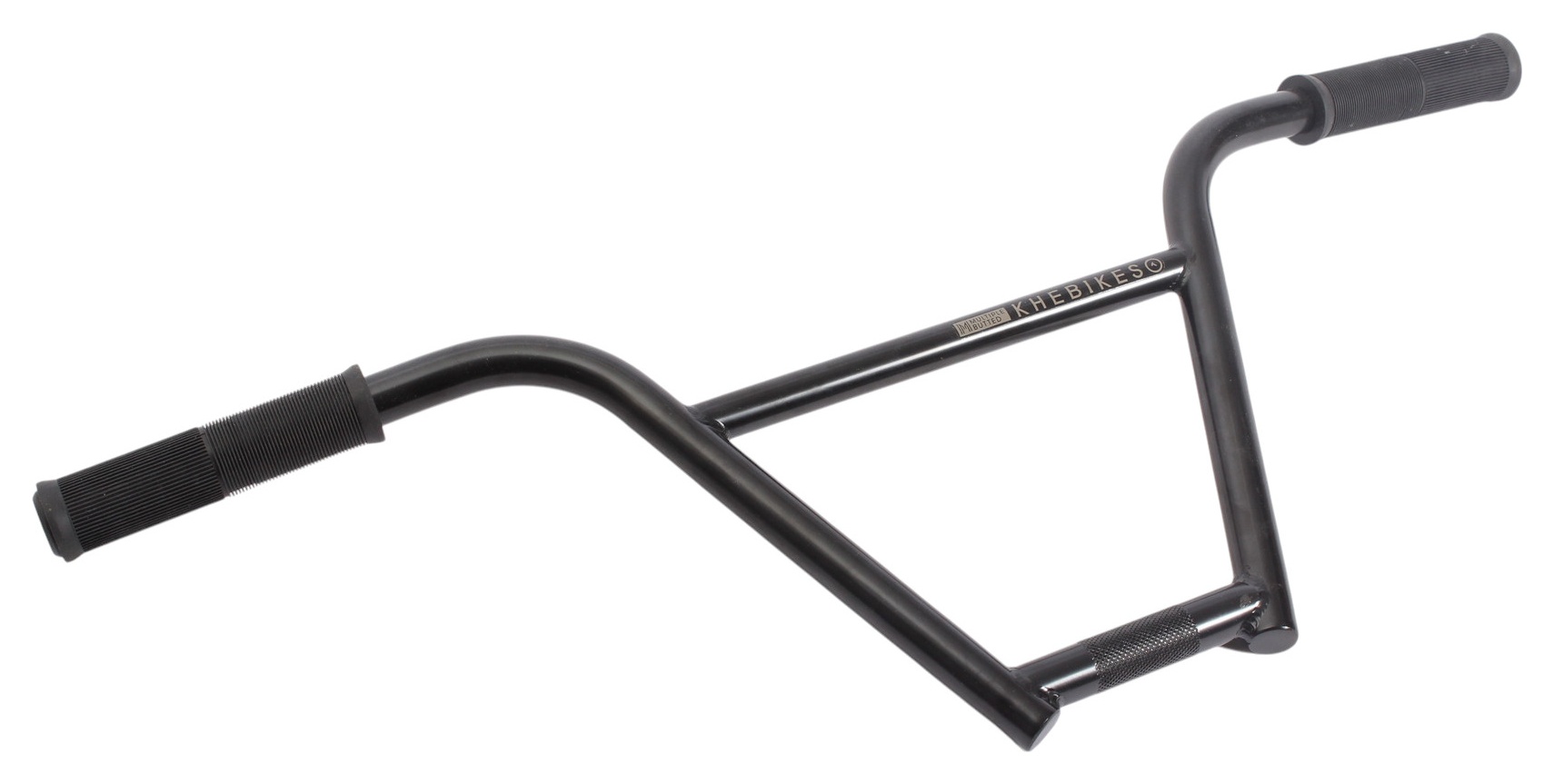

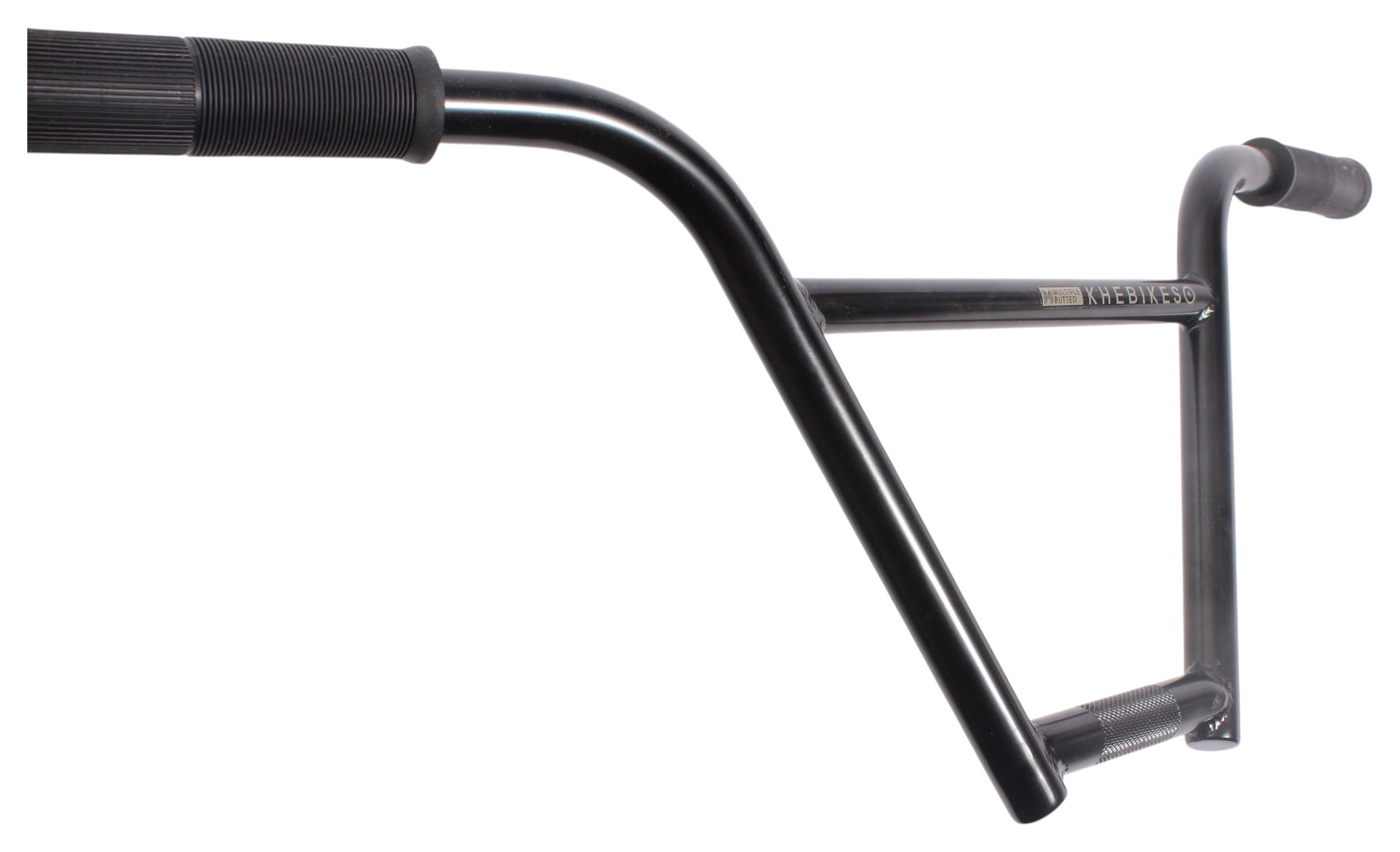

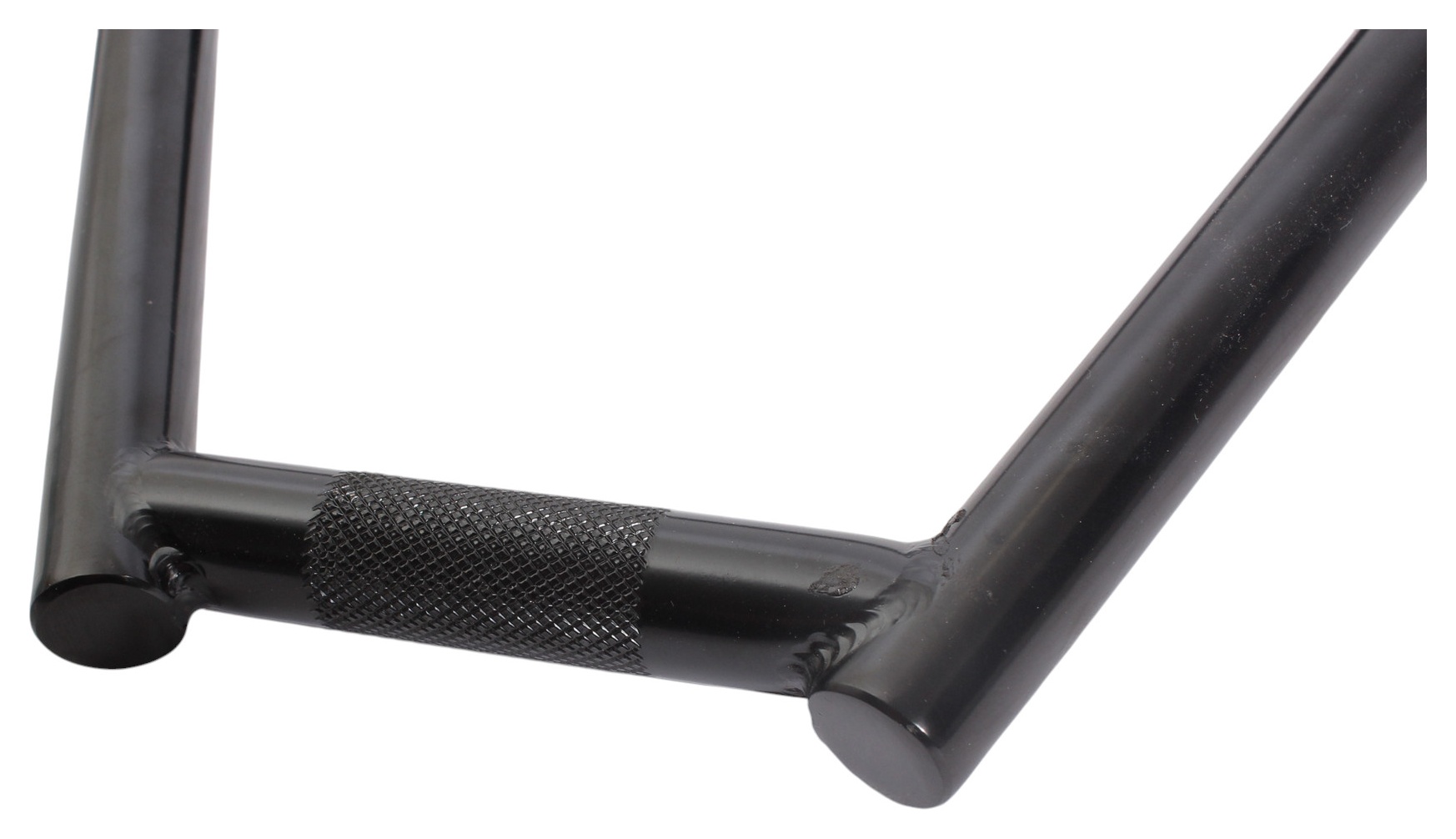

BMX handlebar KHE MVP 9 inch 4-piece black + KHE Propalm grips
The KHE MVP 9 inch BMX handlebar set Black combines a durable 4-piece 4130 CrMo handlebar with butted tubing, a 9 inch rise and KHE Propalm grips for high strength, secure grip and precise control in street and park riding.
KHE MVP 9 Inch BMX Handlebar Set Black
The KHE MVP 9 Inch BMX handlebar in black comes as a complete set with KHE Propalm grips and matching bar ends. This classic four-piece bar is made from 4130 CrMo steel and combines high strength with a low weight of about 850 g.

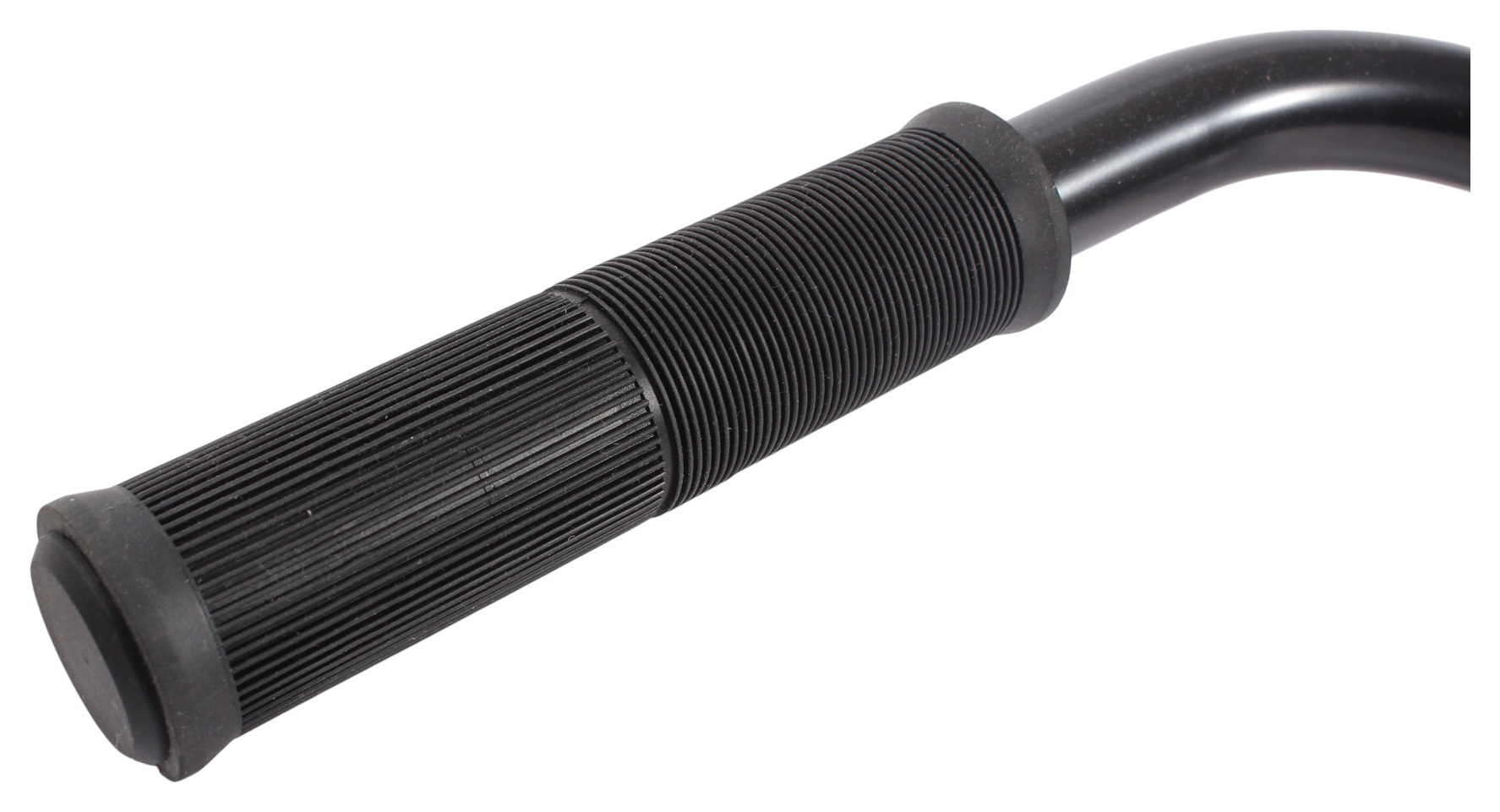

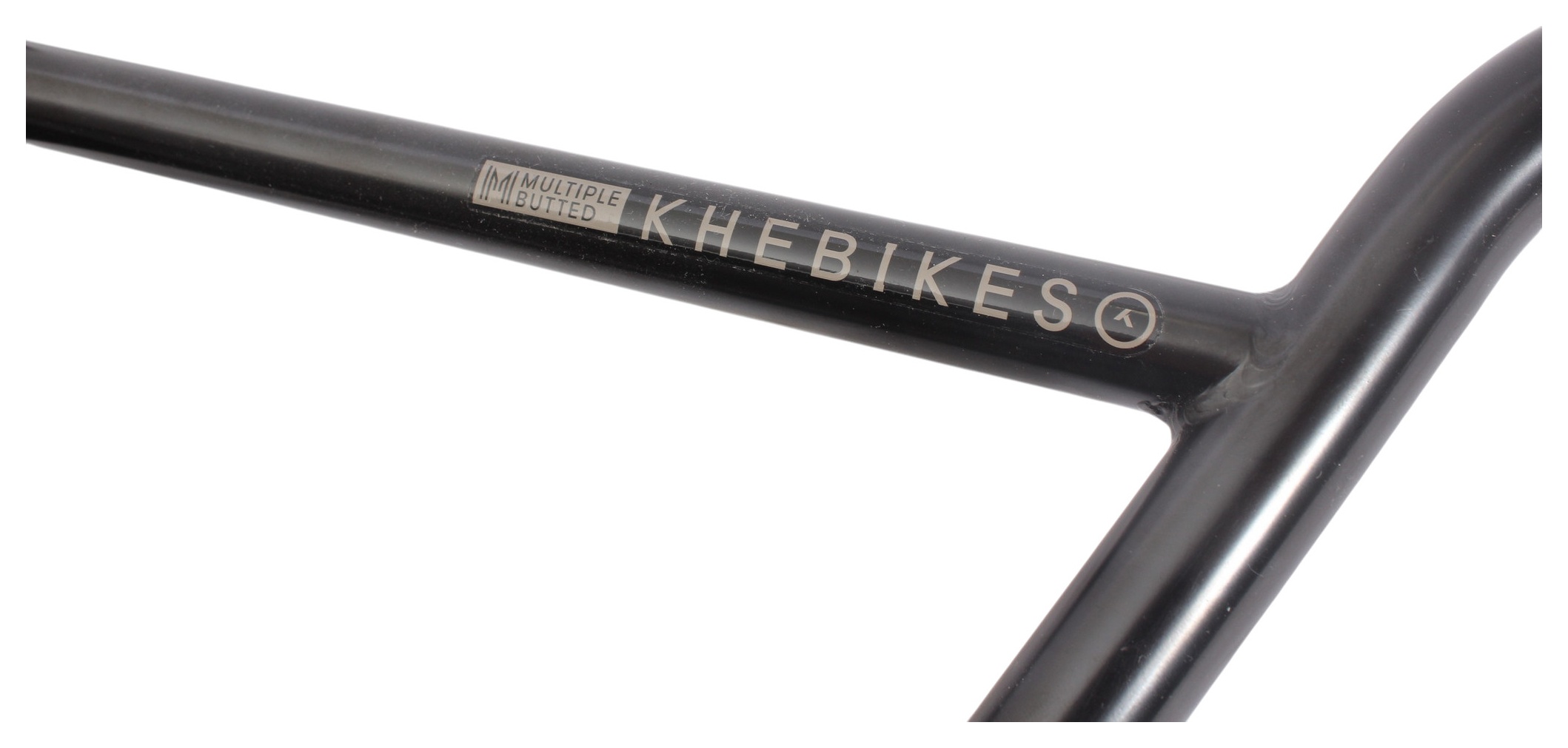

Thanks to butted tubing, wall thickness is optimized for durability where it matters while saving weight. Specs: 736 mm width, 228.6 mm (9\") rise, 10° backsweep, 2° upsweep, 22.2 mm clamp. Included are black KHE Propalm grips (HY-334, 142 mm, flangeless) plus BMX bar ends (HY-92S) for a clean finish.
Produkthighlights
- Four-piece bar, clean BMX look
- Butted 4130 CrMo, strong yet light
- 736 mm width, 9 inch rise
- 10° backsweep, 2° upsweep control
- 142 mm flangeless grips, secure feel
| Material: | Chromoly steel |
|---|---|
| Colour: | Black |
| Weight: | 1.87 lbs / 850g |
| Backsweep: | 10° |
| Width: | 28.98" / 736mm |
| Height: | 9" |
| Clamping diameter: | 0.87" / 22,2 mm |
| Upsweep: | 2° |
Intended use: Four-piece BMX handlebar made from 4130 CrMo steel for compatible BMX bicycles used for Street and Park riding. The handlebar has a rise of 9 inches (228.6 mm), a width of 736 mm, 10° backsweep, 2° upsweep and a clamp diameter of 22.2 mm. The set includes KHE Propalm HY-334 flangeless grips measuring 142 mm in length and matching HY-92S bar ends. Before installation, ensure that the handlebar, stem, grips and brake components are compatible.
Installation / use: Install the handlebar centrally and correctly aligned in a suitable stem with a 22.2 mm clamp diameter. Tighten the stem bolts evenly to the specified torque. Ensure that the handlebar is securely fixed and cannot rotate under load. Fully install the KHE Propalm grips and securely insert the HY-92S bar ends. Never ride with open handlebar ends. Before every ride, check that the handlebar, stem, grips and bar ends are securely fitted and that the brakes function correctly. Carefully inspect all components after crashes, jumps or hard landings.
Care and cleaning: Regularly clean the handlebar with a soft cloth and mild cleaning agent. Do not use aggressive chemicals, solvents or abrasive cleaners. Inspect the handlebar, particularly around the clamping area, welds and bends, for cracks, deformation and corrosion. Regularly check the Propalm grips for secure attachment, wear and damage. Also inspect the bar ends for secure fitting and damage.
Replacement due to wear: Replace the handlebar immediately if cracks, deformation, deep scratches causing material damage, severe corrosion or other safety-related defects are detected. Replace damaged, worn or loose grips and bar ends as well. Never attempt to straighten or reuse a bent handlebar. A damaged or incorrectly installed handlebar may break or rotate, resulting in loss of control and serious injury.
