KHE MID Bottom Bracket S/B – for 19mm Crank Spindles

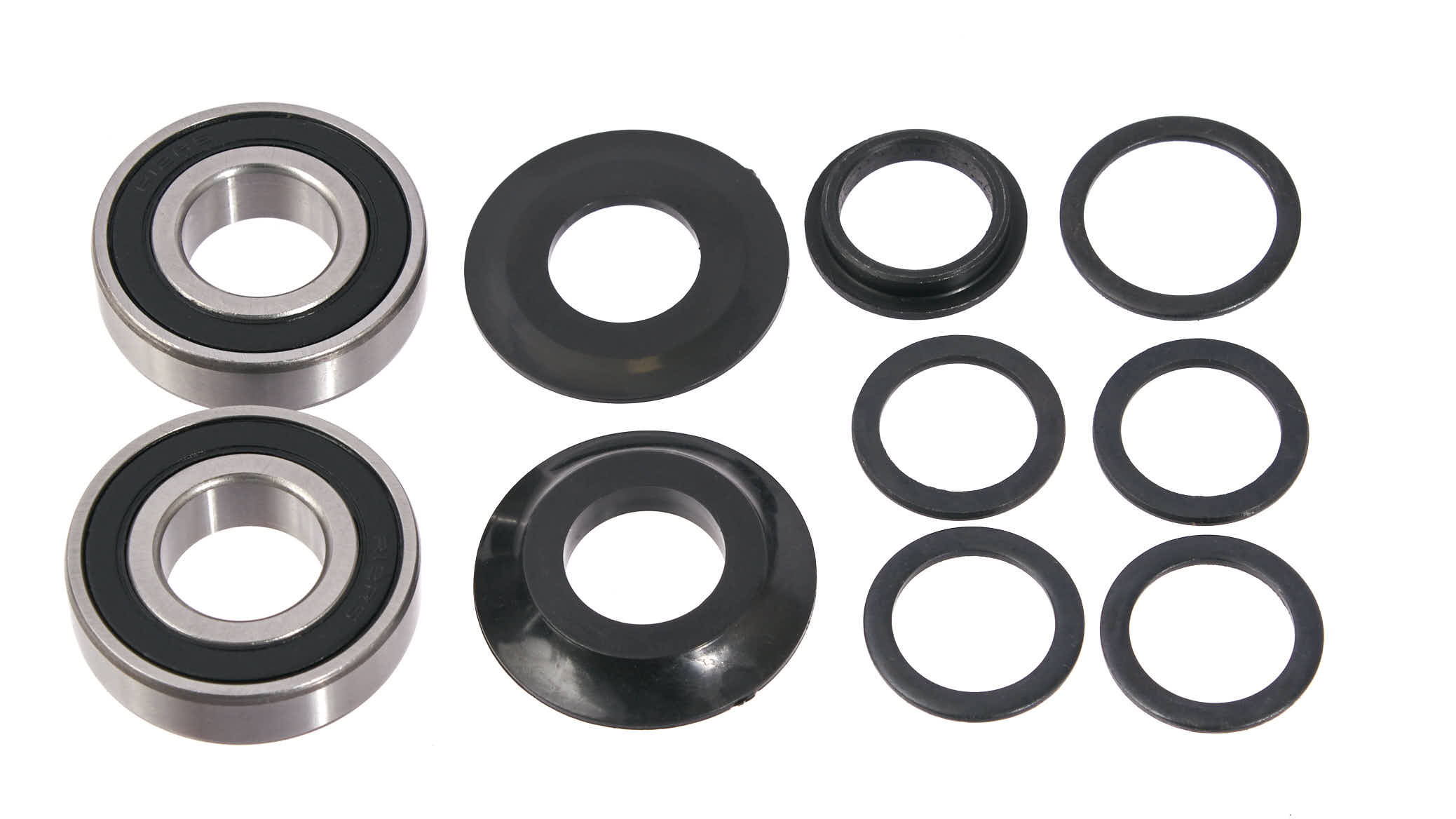

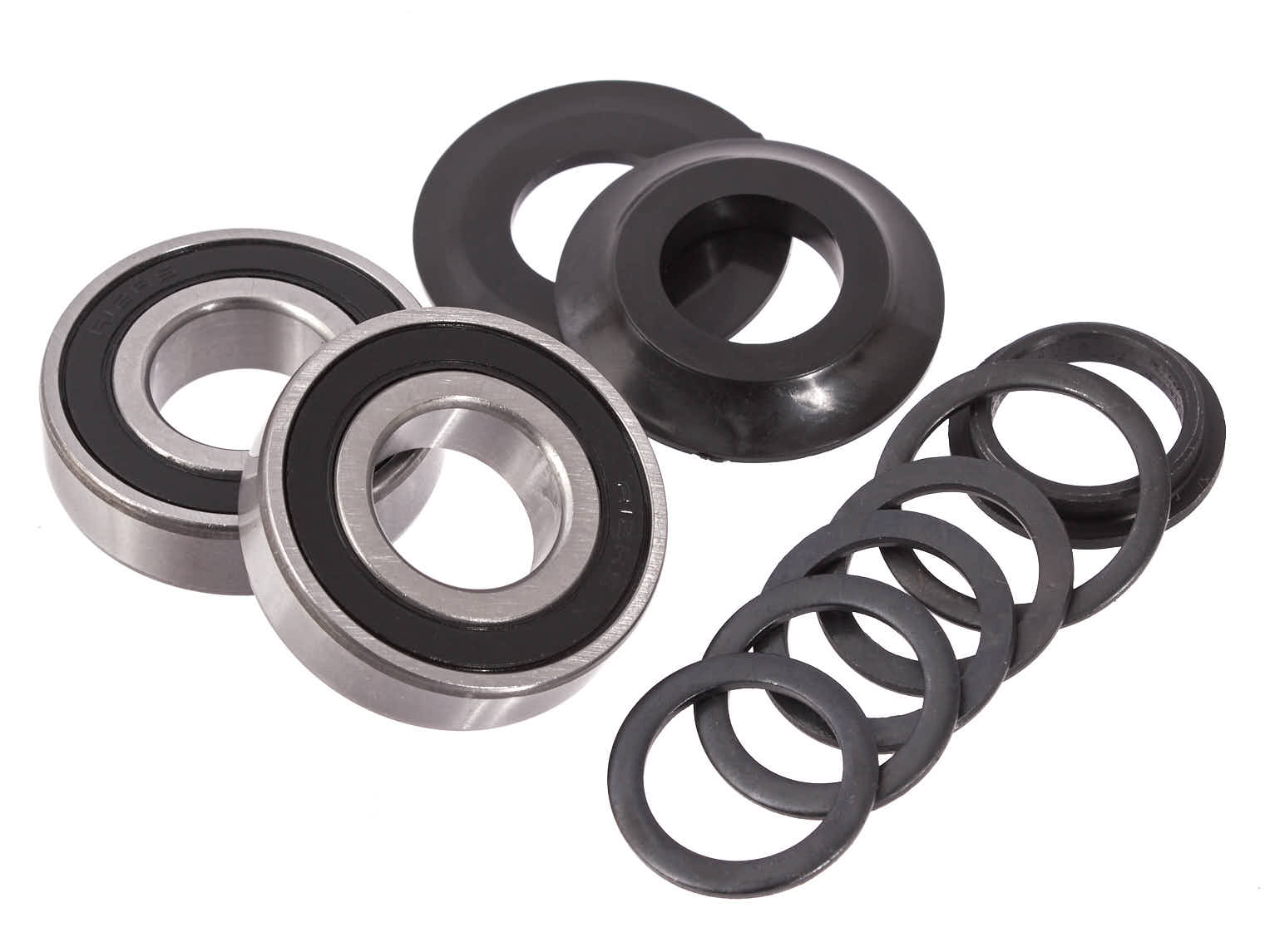

This high-quality MID bottom bracket by KHE is ideal for BMX riders who value durability and smooth performance. It includes two sealed industrial bearings (deep groove ball bearings), spacer rings, and a special adapter for 24mm chainrings to fit 19mm axles – compatible with both 8-spline and 48-spline setups.
Specifications:
- Brand: KHE
- Bearings: Sealed industrial bearings (deep groove)
- With adapter ring: Fits Ø24mm chainrings to Ø19mm axle
- Bearing outer diameter: 1.61" (41mm)
- Suitable for: 19mm crank axles (8T and 48T)
- Weight: only 0.34 lbs (154g)
- Colour: Black
- Included: Spacers + protective covers
Highlights:
- Maintenance-free, long-lasting bearings
- Extra covers for optimal dust & water protection
- Easy installation with included spacers
| Bottom bracket: | MID BB |
|---|---|
| Colour: | Black, Chrome |
| Weight: | 5.43 oz / 154g |
Ensure Compatibility:
This bottom bracket is intended exclusively for use on BMX bicycles.
Only use it on bicycles compatible with a three-piece BMX crank.
Installation: Clean the bottom bracket shell and lightly grease the bearings. Carefully insert the bottom bracket into the shell, ensuring it is correctly seated. Tighten the bottom bracket evenly and check its function with a short test ride.
Care and Maintenance:
Regularly grease the bearings to ensure smooth operation.
Inspect periodically for rust and damage.
Replacement in Case of Wear: Replace the bearings immediately if wear, uneven abrasion, cracks, or damage are detected.
